Royal Archives Center , Office of His Majesty’s Principal Private Secretary is the central archive for important historical evidence related to the Thai Royal Monarchy including manuscripts, photographs and other historical records. Previously these invaluable materials were stored separately in various sites.

Courtesy of Architects 49

Therefore, the brief of this project was called for a permanent central royal archive building as a place for storing, researching and conserving any information related to the royal family – Chakri Dynasty. The main areas are listed below: Printed documents / objects Archives – approximately 13,179 square meters. ( this area is mainly used for storing documents except for Her Majesty Royal Highness the Queen’s section where a specially controlled environment room is needed for silk collections and other artifacts.

Courtesy of Architects 49

Archives area for any documents dated from King Rama IV until present. Temperature, humidity and lighting control are strictly monitored in this area.

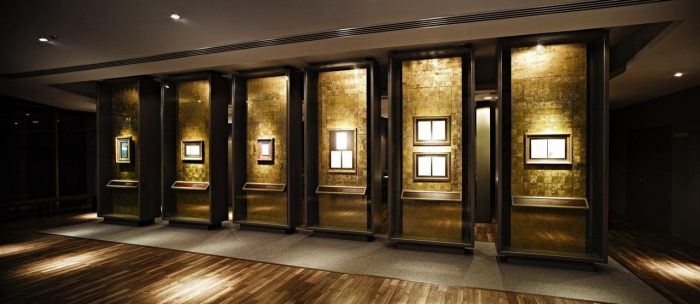

Permanent exhibition space – a display area of the King Rama VI’s achievements and biography.
Temporary exhibition space
Conference room – 100 seats
Public library
Car park – 80 cars
Conceptual design
Zoning strategy
Modern Thai architectural language
Energy conservation methodology

Courtesy of Architects 49 – Plan

1.0 Zoning strategy – The project can be categorized into main three zones:
1.1 Public zone – the areas where public users have full access i.e. exhibition rooms , the library (designated area) and 100-seat conference room. They are located in the front part of the building for easily accessible purpose.
1.2 Private zone – staff office area.
1.3 Secured zone – archives materials storage rooms where only authorized staff can have access.

Courtesy of Architects 49

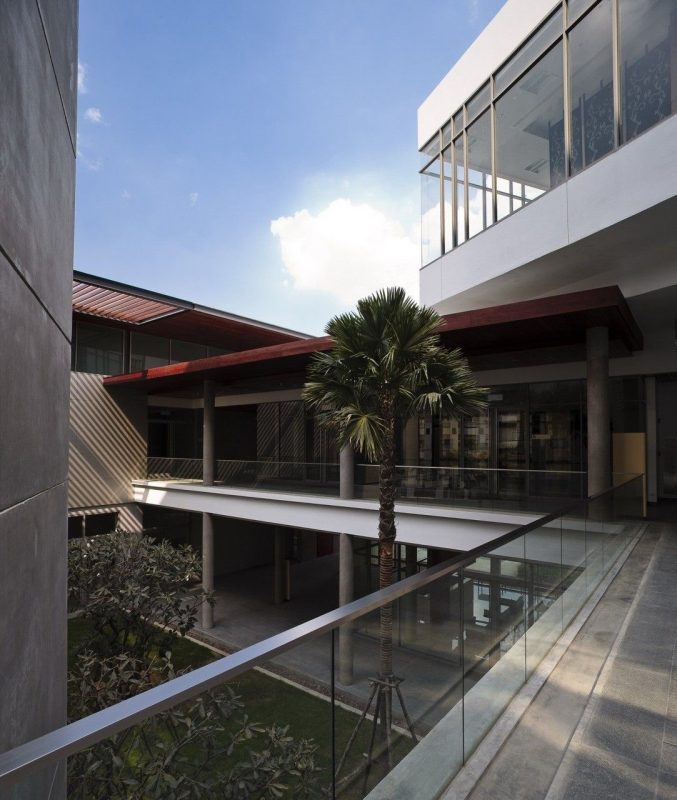

Three building forms are, therefore, a direct translation of this zoning strategy analysis. They are connected by a central courtyard which is sometimes used for holding official functions by Office of His Majesty’s Principal Private Secretary as well.

Courtesy of Architects 49 – Model

2. Modern Thai architecture
Due to the narrow drive way to the main building entrance, the front of the building is designed to reach forward to receive the visitors. The canopy at the drop-off area is made of red wood, a warm gesture to welcome guests. Other metaphoric approach to communicating the essence of traditional Thai architecture can be found elsewhere such as teak textured wall at the main entrance. The large red entry doors, derived from entries commonly found in traditional Thai palace, are designed to reflect the importance of archives materials created during Chakri Dynasty.

Courtesy of Architects 49

3. Energy conservation

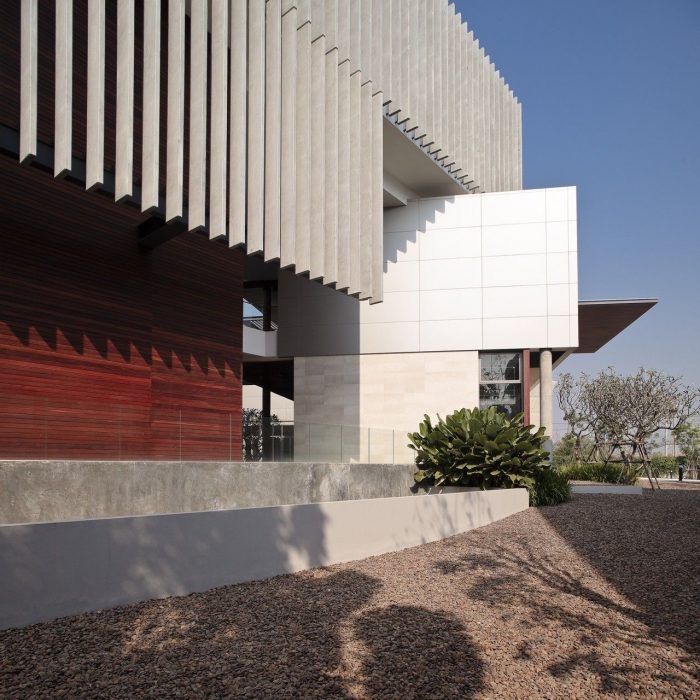

The project site is a rectangular shape with east-west orientation. The building functions do not require much natural daylight therefore the buildings are designed to be stacked masses to create shadows casting over one another, reducing heated surface area. The 8-storey archives building is built with mostly solid walls and situated at the back blocking direct sunlight from the west, sheltering the library building in the south-east. All archives storage rooms have interior wall insulation to prevent any heat gain. On the eastern façade of the library, vertical precast concrete panels are designed to protect the interior space from direct sunlight.

Courtesy of Architects 49

Project Info :

Architects : Architects 49
Project Year : 2009
Project Area : 17653.0 sqm
Graphic Designer : Graphic 49
Interior Architect : Architects 49
System Engineer : M&E Engineering 49
Project Location : Nakhon Pathom, Tháiland
Structural Engineer : Architectural Engineering 49
Contractor : CH. Karnchang Public Company Limited
Client : The Office of His Majesty’s Principal Private Secretary
Construction Management : Consulting & Management 49 Limited
