York Theatre Royal has re-opened following a significant redevelopment by De Matos Ryan, dramatically transforming the theatre’s spaces and visitor experience.
York Theatre Royal  has occupied the site since 1744 and has since undergone several alterations over the years, including the construction of a new foyer, a vaulted concrete pavilion built alongside the original building, by Patrick Gwynne in 1967.

Photography by © Hufton+Crow

The redevelopment of the Grade II* listed building unlocks the full potential of a complex site that had developed incrementally over 270 years. It has created additional space the theatre urgently needed in order to appeal to and engage a wider community, bring more people into the building and create the opportunity to increase revenue, enabling it to be more financially resilient in the future.

Photography by © Hufton+Crow

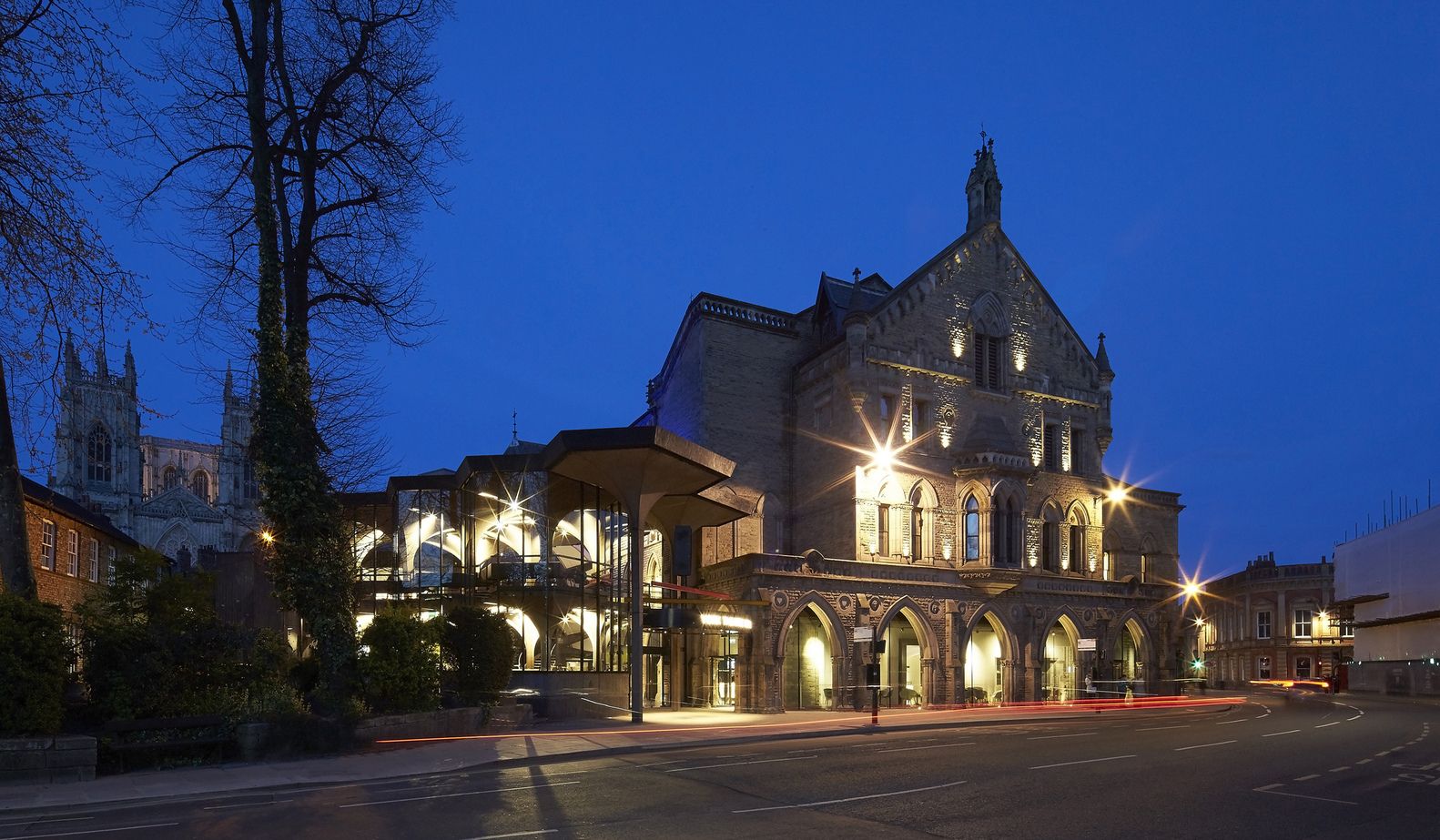

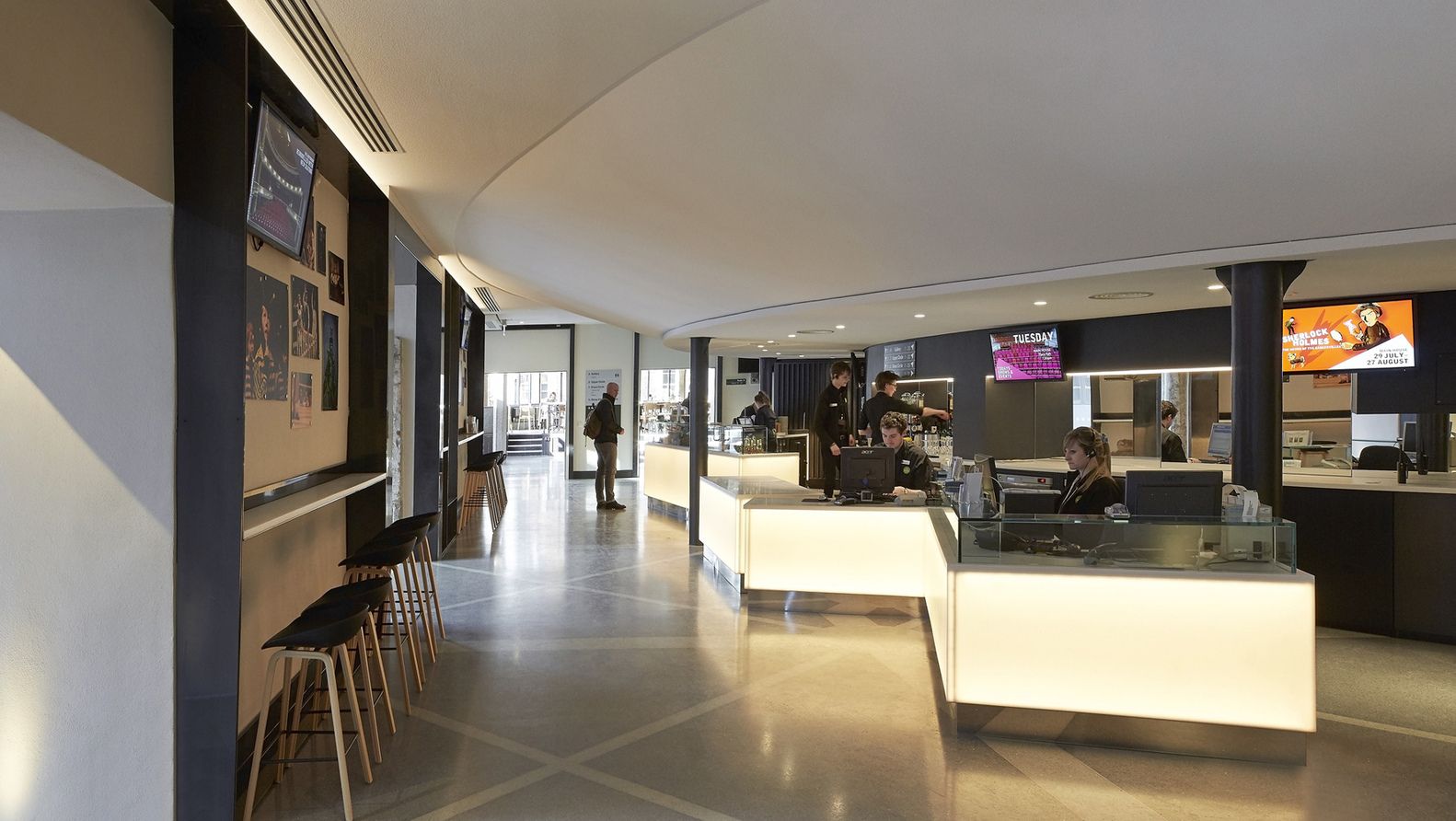

The radical redesign is immediately apparent from the street with the introduction of two new lobbied entrances, one of which allows entry from the south for the first time. The creation of new foyer space below the Dress Circle at the back of the Stalls by opening up where previously there had been broom cupboards and the glazing in of the Victorian colonnade is the most demonstrable changes to Front of House.

Photography by © Hufton+Crow

They provide a greater freedom of circulation, connecting the Patrick Gwynne extension (House Left) to the Georgian staircase and Keegan Room (House Right) for the first time.

Photography by © Hufton+Crow

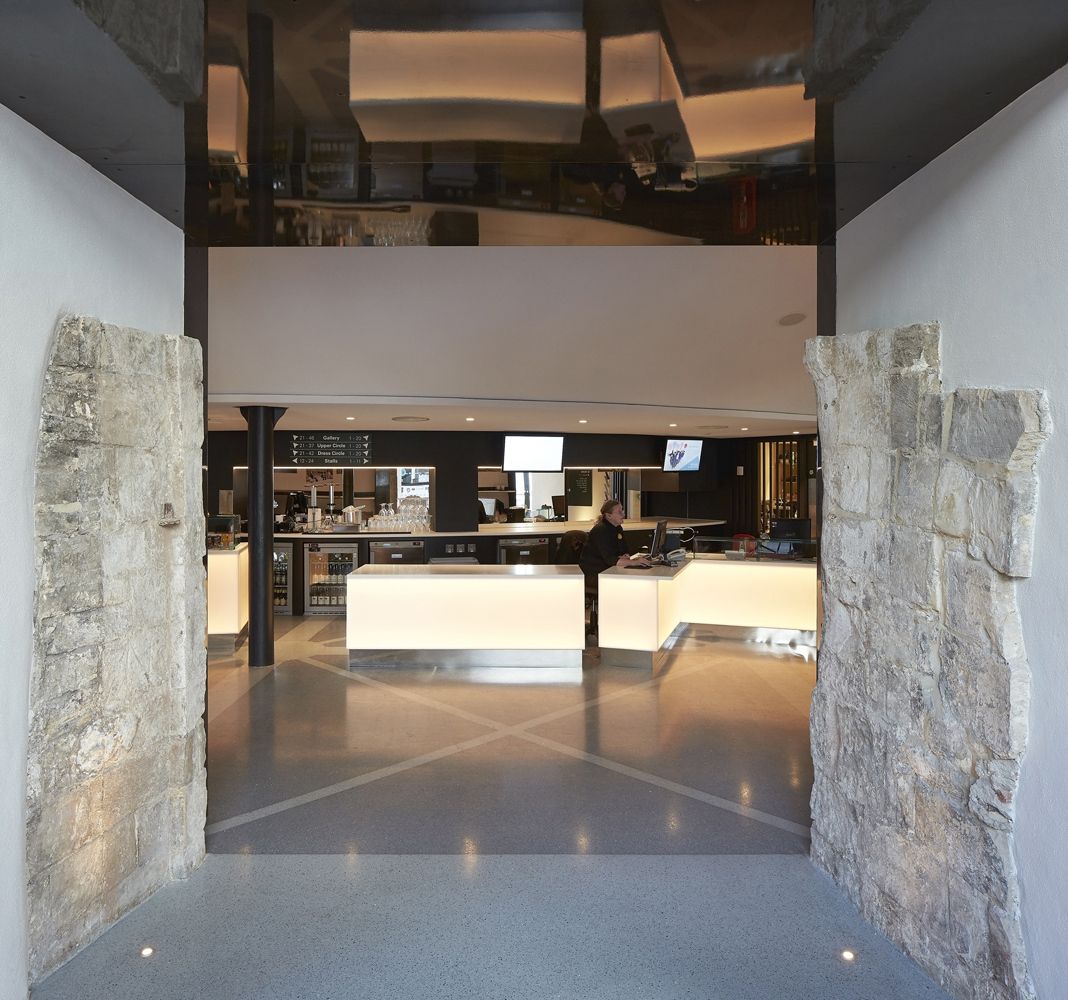

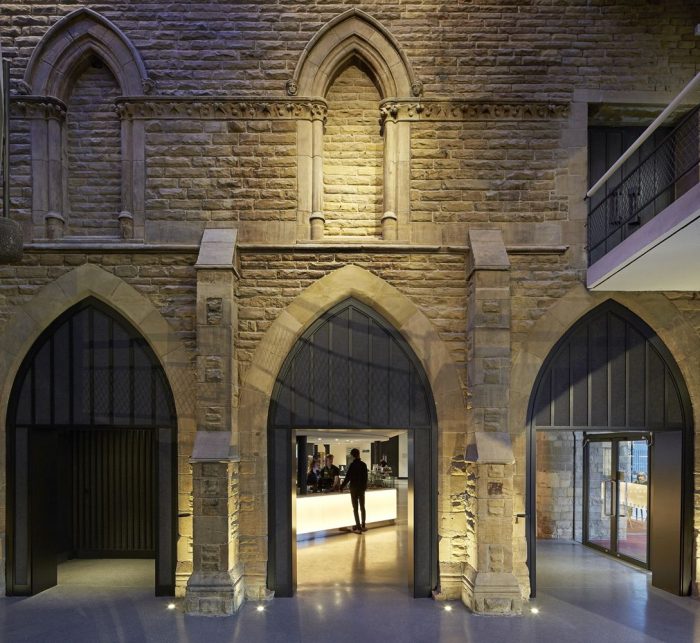

This newly found space provides for an improved welcome, gathering, and orientation. York Theatre Royal also gives the opportunity to reveal the heritage of the theatre and the site, making compelling connections between the past and present. A new Terrazzo floor incorporating a patterned inlay reveals the geometry of the medieval vaults that once crossed where the new foyer is, while the original doorway is now exposed from within the layering of the colonnade wall linings.

Photography by © Hufton+Crow

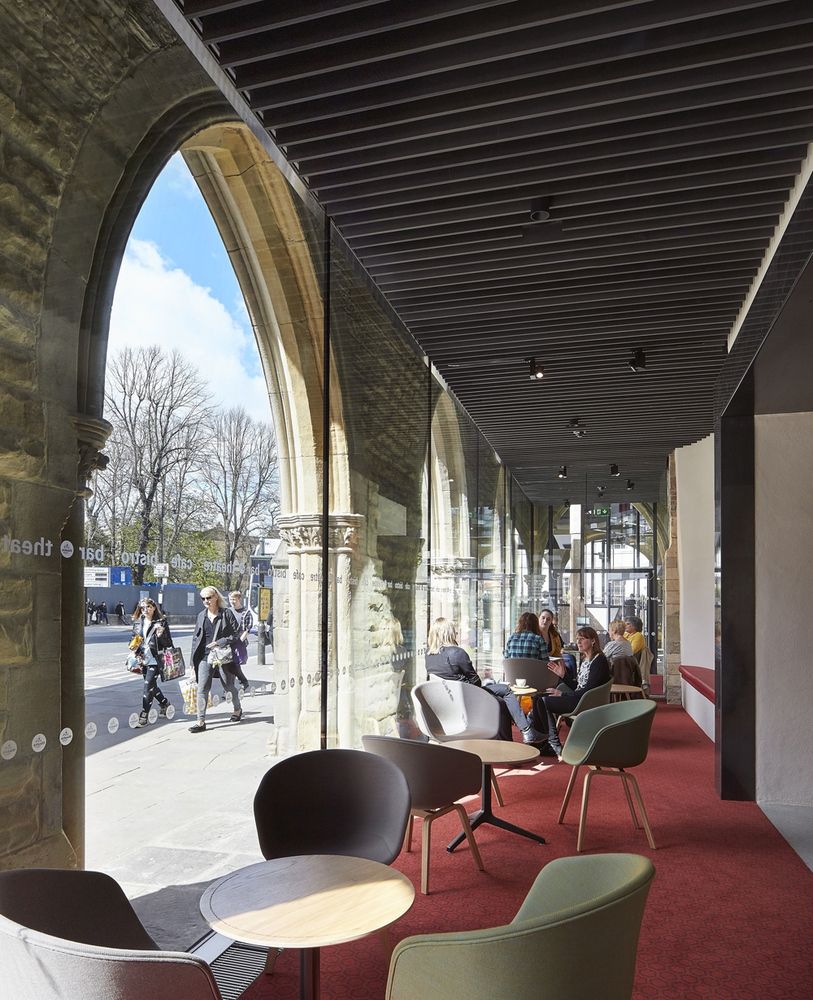

Housing a welcoming street-facing café clearly visible from the outside in order to draw people in, the Victorian colonnade has been glazed to give an animated face to the street akin to a storefront. The red carpet lining the colonnade floor may be seen as a humorous tongue in cheek reference that also reveals the ethos of the theatre that all visitors are VIPs.

Photography by © Hufton+Crow

Helping to enhance the visitor and audience experience, the installation of new and increased WCs on both sides of the house on all levels reduce waiting times during peak times in the intervals. New sound lobbies and insulation create spaces on all levels for informal performances including music and poetry. Sound insulation allows the café, restaurant, and bars to operate during performances, increasing the opportunities for income generation.

Photography by © Hufton+Crow

Access has been improved with the introduction of assisted and lobbied front doors and a range of counter levels accommodating a variety of users, step-free access from the street to the auditorium, and the installation of a lift to make the Dress Circle and first floor theatre bar accessible for the first time.

Photography by © Hufton+Crow

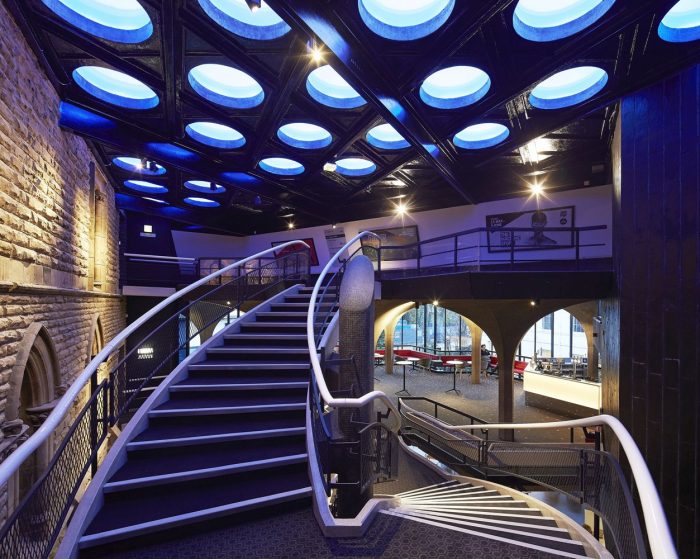

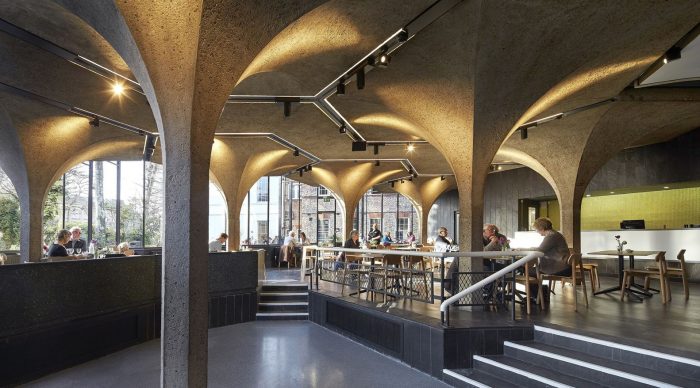

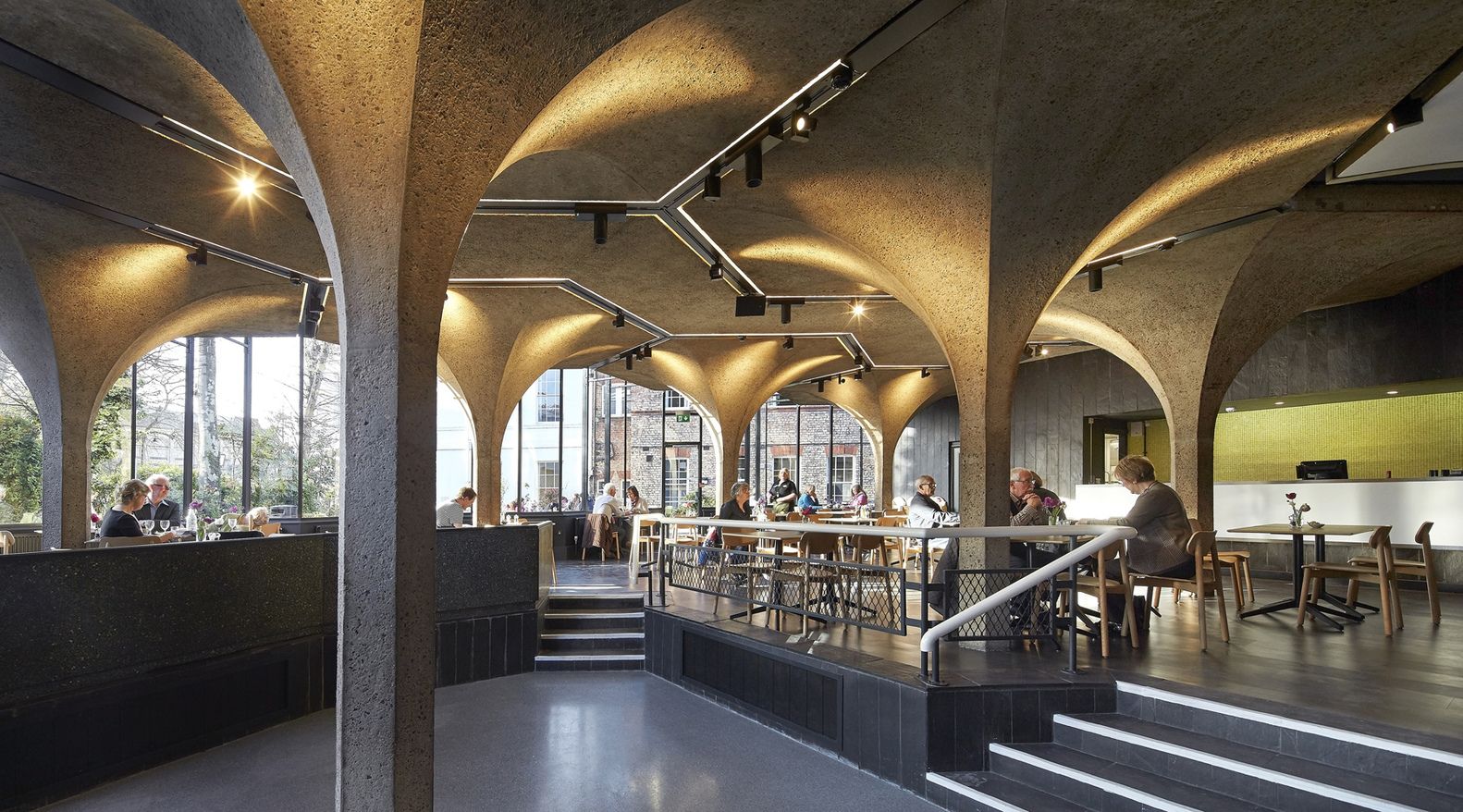

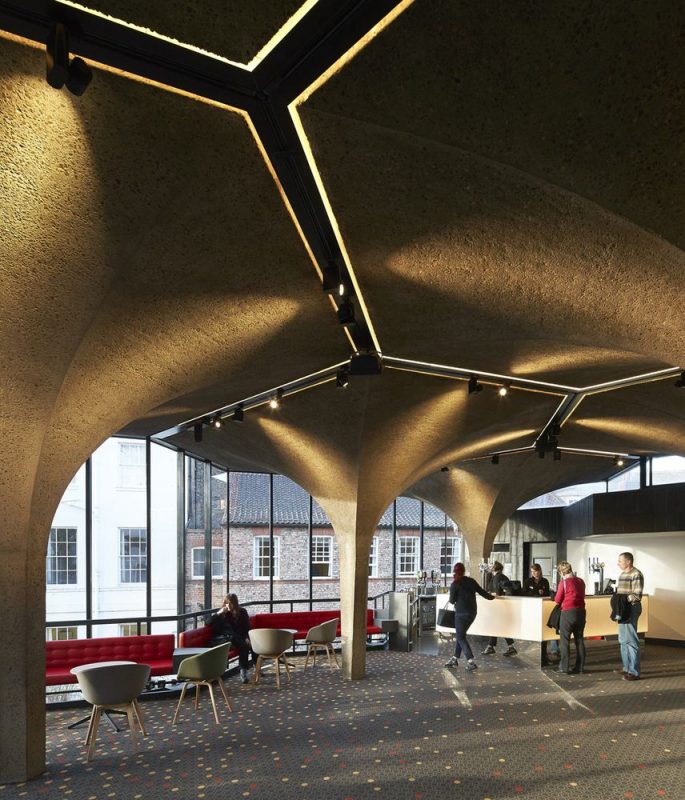

Patrick Gwynne’s 1967 extension has been carefully refurbished to de-clutter and reinstate the original design intent by improving floor coverings and furniture, upgrading the lighting and replacing the roof lights to give this listed building back its design coherence. Re-locating the café, bar and box office to the new space created under the Dress Circle has brought to life Gwynne’s original vision for the extension to house a bistro restaurant on the ground floor and a dedicated theatre bar on the first floor.

Photography by © Hufton+Crow

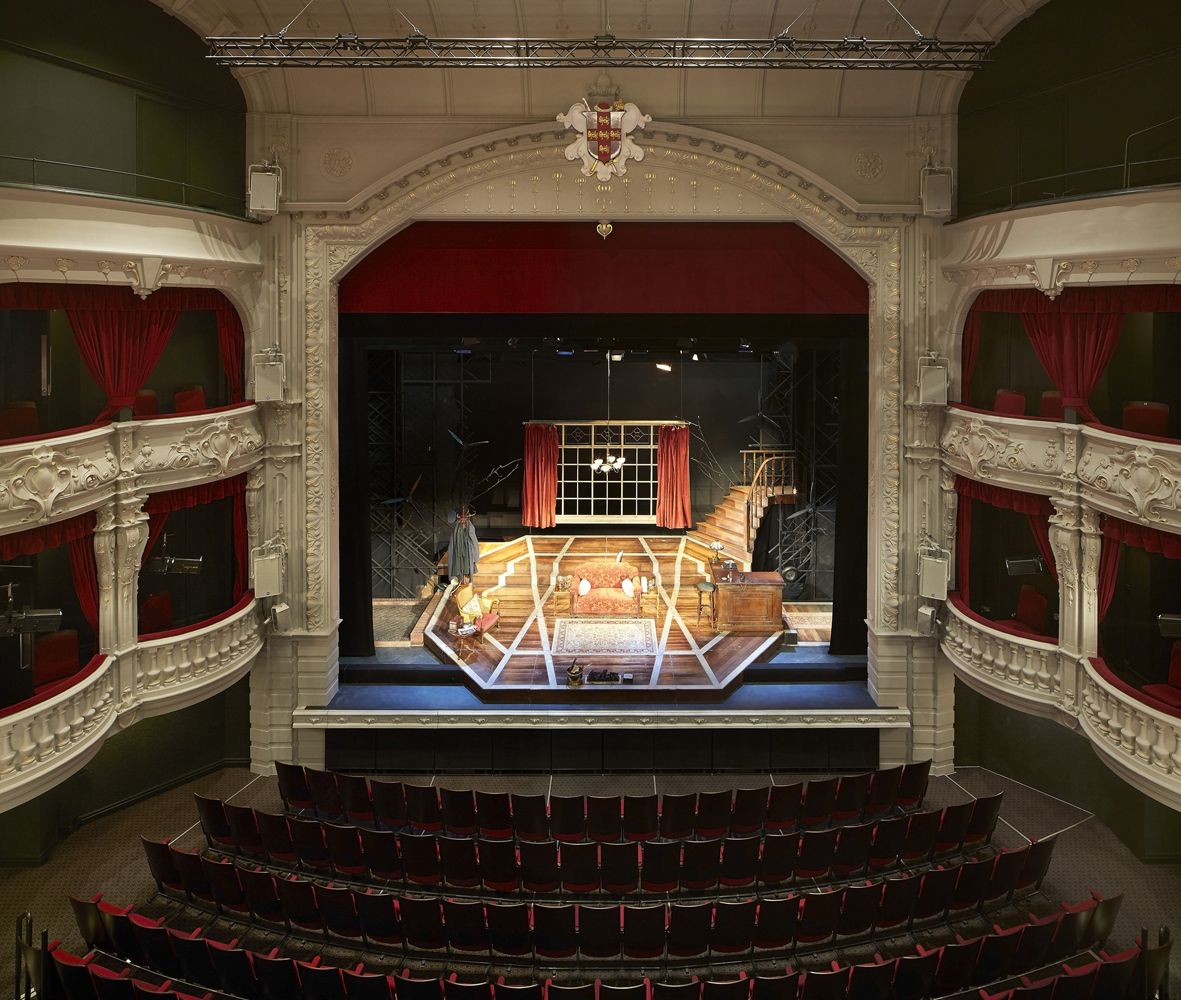

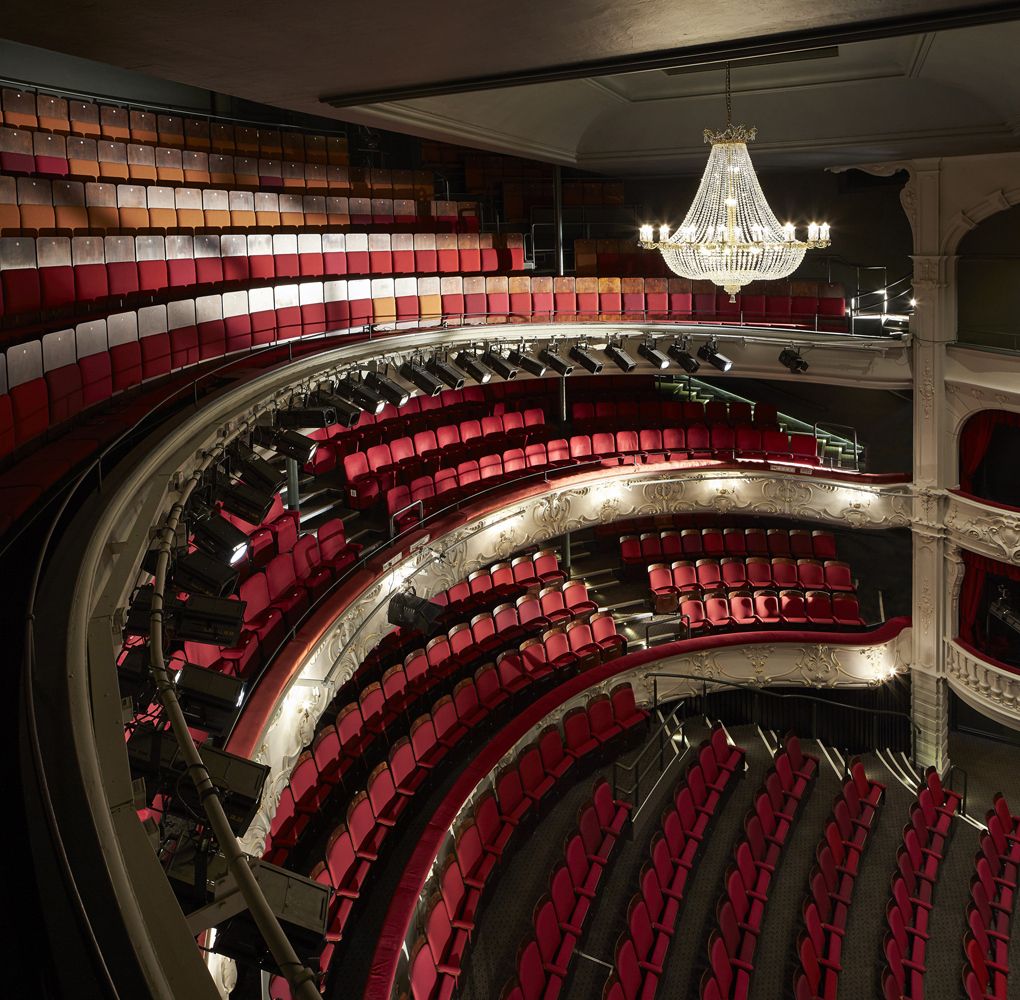

Upgrades to the main auditorium benefit both the audience and performers. New seating has been installed throughout the Stalls, Dress, and Gallery alongside efficient air handling and insulation to enhance comfort as well as minimize energy use. The rake of the Stalls has been increased to enable the audience to connect with the Dress Circle and make the house feel unified. The Gallery has been re-raked to improve sightlines, increase ticket yield and offer greater price options across the house, encouraging access to a more diverse audience on all levels.

Photography by © Hufton+Crow

The venue’s previously raked stage meant many theatre companies put York at the end of their tours due to the limitations of a sloping surface that required scenery to be adapted to the site. Alterations to the stage and orchestra pit have widened the scope of cultural possibilities and improved health and safety by creating level access, a flat stage and a better crossover underneath the stage with increased headroom. The new flat modular stage enables a wider artistic programme including dance and also encourages greater innovation.

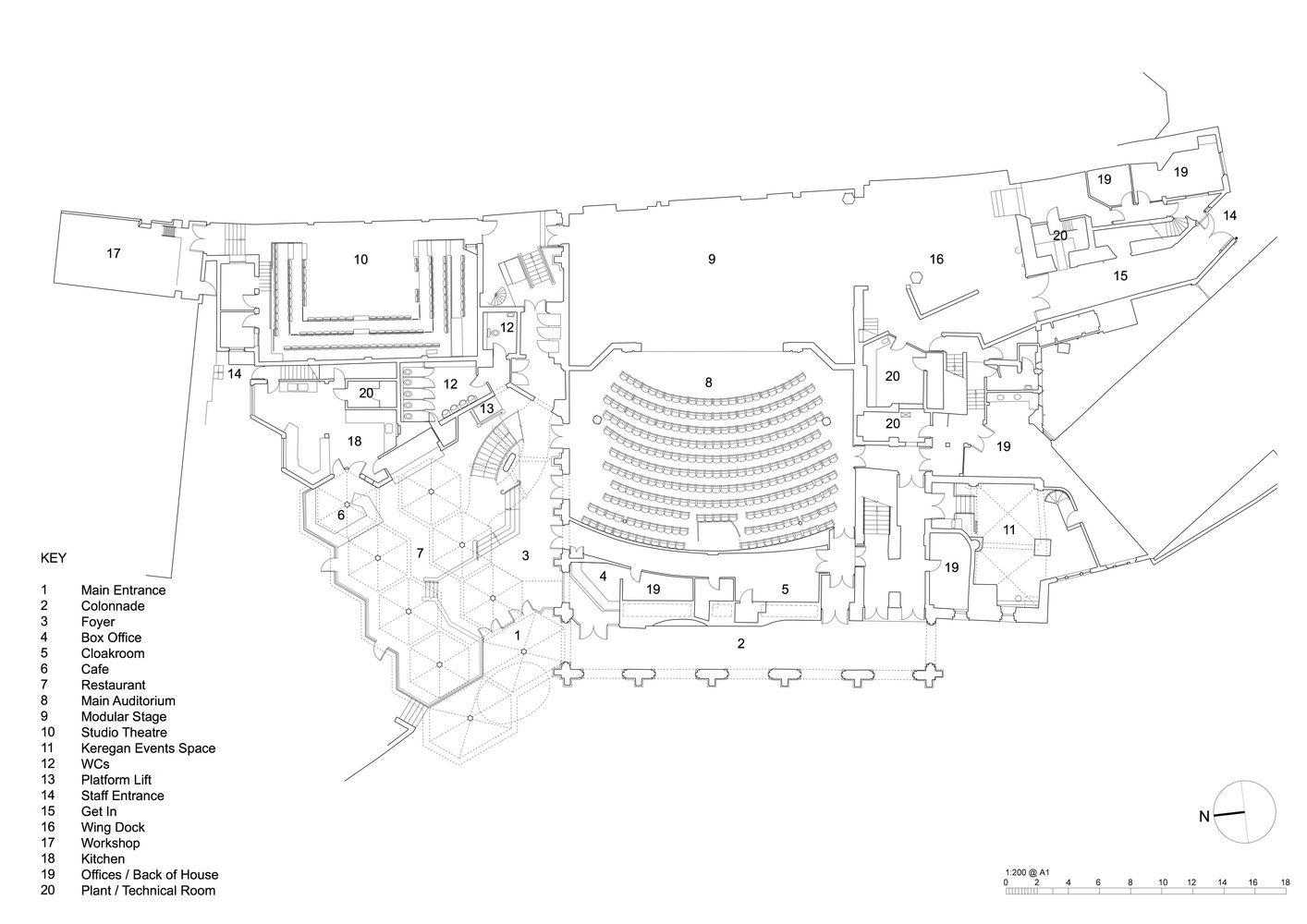

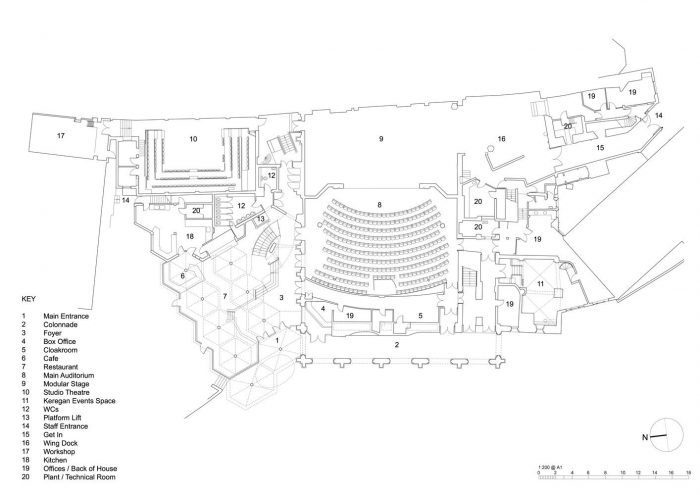

Existing Floor Plan

Project Info:
Architects: De Matos Ryan
Location: United Kingdom, St Leonard’s Pl, York YO1, UK
Project Architect: Raquel Borges
Area: 3213.0 sqm
Project Year: 2016
Photographs: Hufton+Crow
Manufacturers: Flowcrete, Sto, Ege carpets
Acoustics: Charcoalblue
Structural Engineer: Price & Myers
Services Engineer: P3r
Cost Consultant: Aecom
Access Consultant: David Bonnett Associates
Heritage Consultant: James Edgar
Project Management: Bilfinger GVA
Building Contractor: William Birch & Sons
Client: York Citizens Theatres Trust / York Conservation Trust Director in charge: Angus Morrogh-Ryan
Project Name: York Theatre Royal
