Transforming Umbrella Facade | 3Gatti Architecture Studio

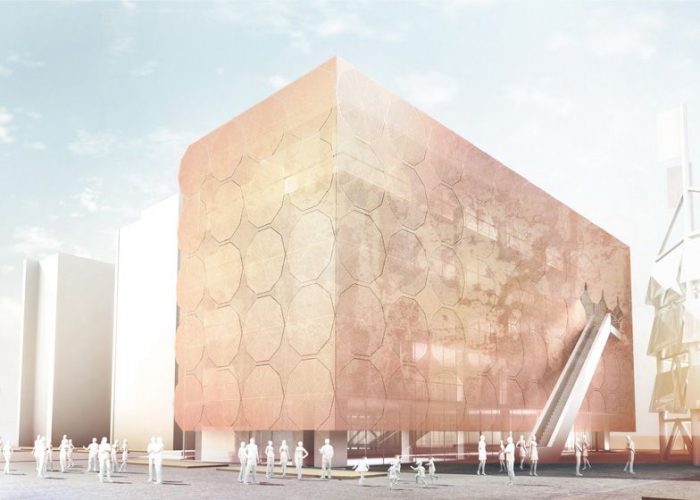

When 3Gatti Architecture Studio was asked to come up with a new design for the Foreign Office Architects’ Madrid Pavilion from the 2010 Shanghai Expo, they decided on a facade of opening and closing steel umbrellas.

Arch2o-Transforming Umbrella Facade-3Gatti Architecture Studio (2)

Courtesy of 3Gatti Architecture Studio

Chief architect Francesco Gatti said “We came up with this idea because on sunny days here, Shanghai is full of people with umbrellas. Here they are common objects used for sun shading.

Arch2o-Transforming Umbrella Facade-3Gatti Architecture Studio (5)

Courtesy of 3Gatti Architecture Studio

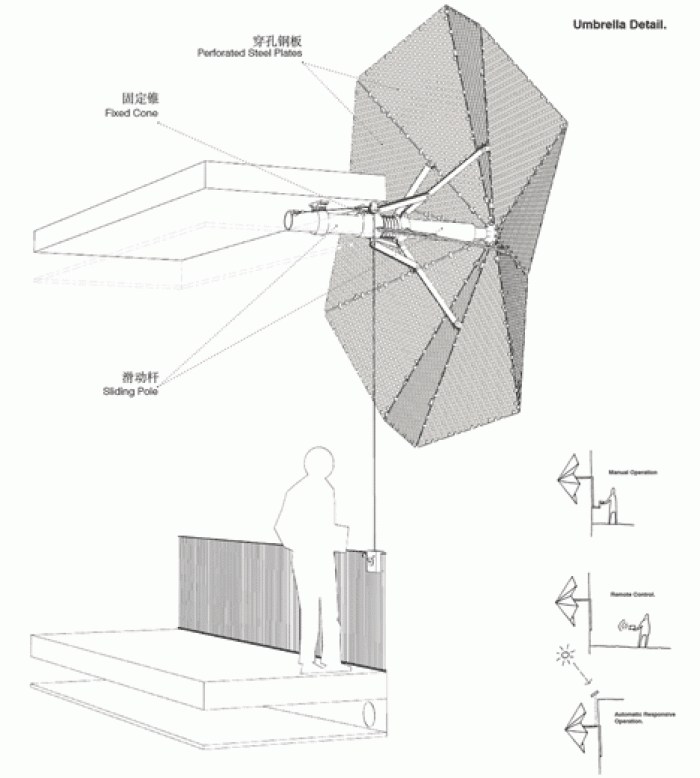

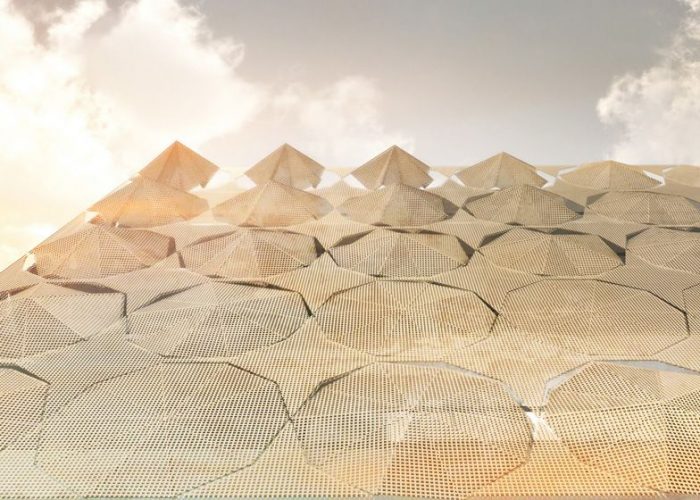

” The parasol-like screens will be made from perforated Corten steel that each fold open from a spring-loaded central joint. The new cladding will replace bamboo louvres that have started to rot, and occupants will be able to adjust this cladding to control light levels inside the building.

Arch2o-Transforming Umbrella Facade-3Gatti Architecture Studio (2)

Courtesy of 3Gatti Architecture Studio

By Alice T. Hellyar

 Courtesy of 3Gatti Architecture Studio
