GSO Nürnberg Information Center Competition Entry

German based firm, Studio DMTW, shared with us their GSO Nürnberg Information Center competition entry. The proposal includes both, a high degree of aesthetics as well as the functionality of the building play a major role while reflecting the spirit of this supra-regional institution. The centre‘s program covers a library including an open reading area, individual working spaces and several seminar and meeting facilities.. More details come from the architect after the jump.

Arch2O-M_A_Dahmen-Studio_DMTW-GSO-Exterior-MAD

Courtesy of Studio DMTW

The design stipulates a clear structuring for all the functions with regard to both the outdoor areas and the new building itself. Instead of being a big obstacle, the center acts as a connector between the campus in the north and the waterfront of the Pegnitz in the south. During the day the linking route between these two poles runs straight through the foyer which thereby becomes the central meeting place for students and teachers. The indented entrance areas are clearly readable from the sculpture and thus stimulate a self-evident orientation.

Arch2O-M_A_Dahmen-Studio_DMTW-GSO-ExteriorNight-MAD

Courtesy of Studio DMTW

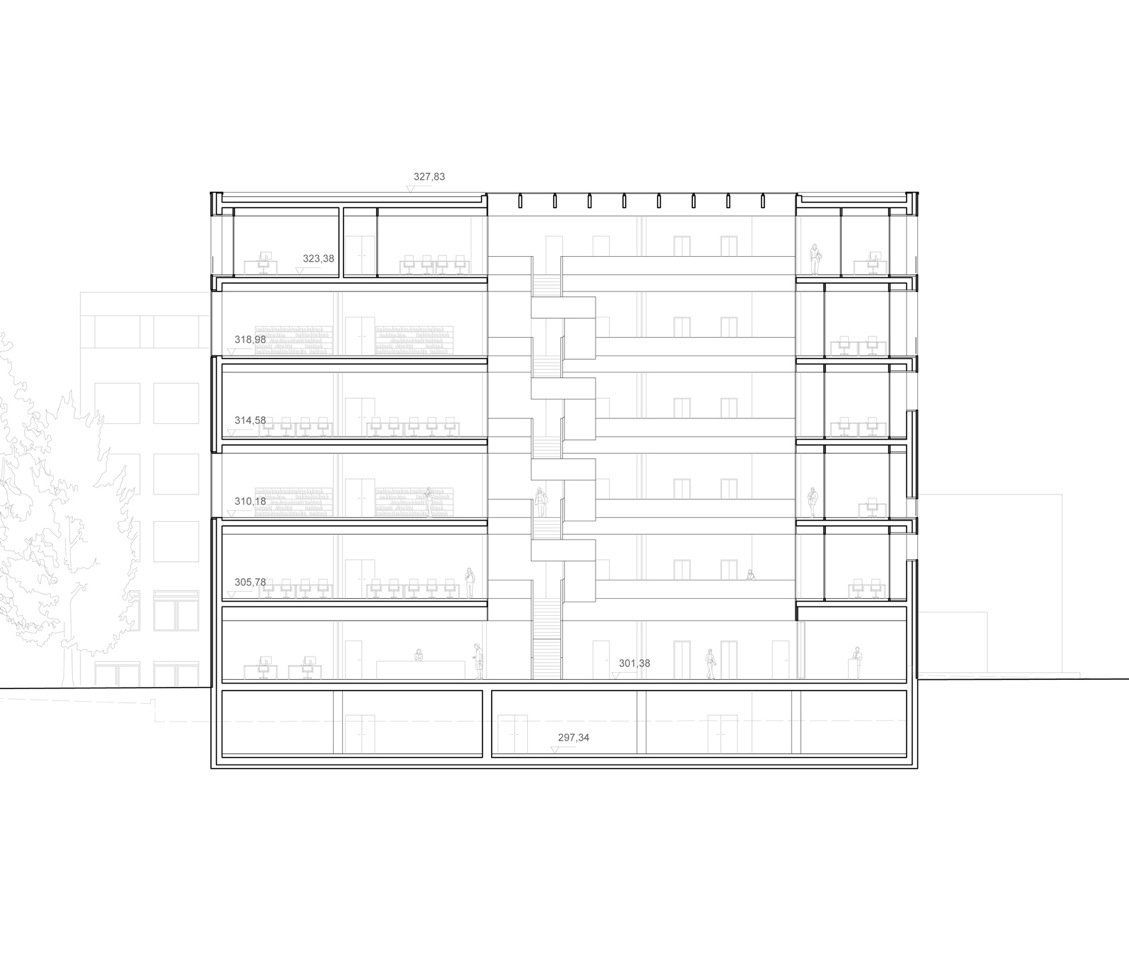

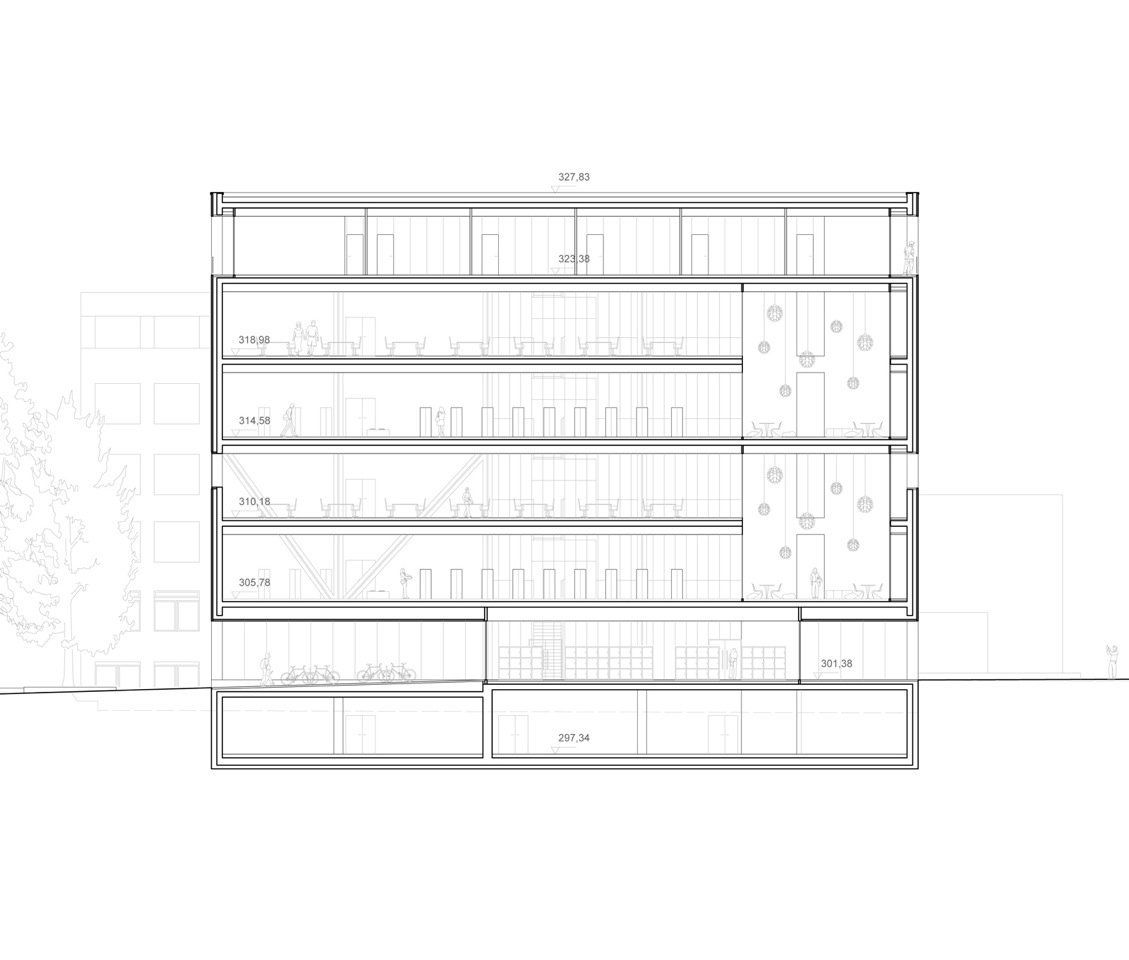

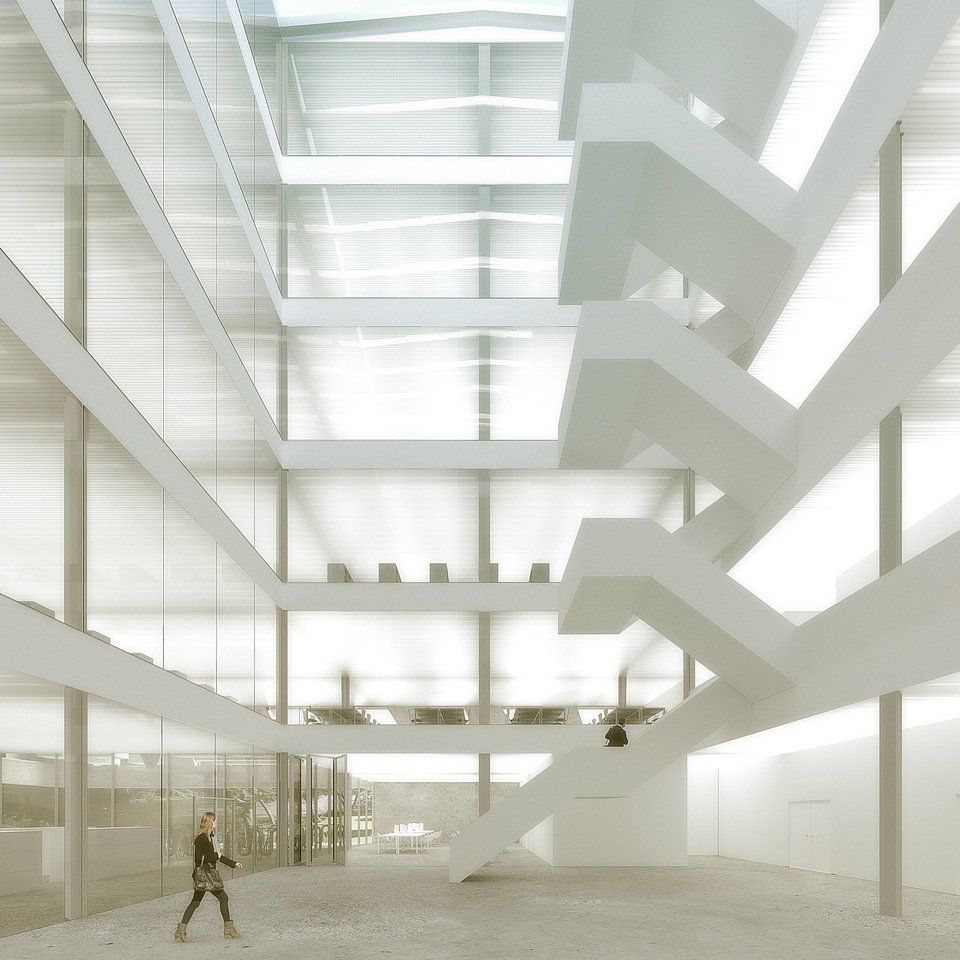

A big glazed void forms the core element of the cube providing daylight for all the internal functions while subdividing them into easy controllable sections. This atrium also establishes a visual but soundproof contact in between all program parts and makes it thereby easy for the visitors to orientate themselves. Due to its location conterminous to the void, also the compact-magazine on the top-floor in its capacity as an inaccessible „knowledge storage“ becomes a visible part of the building and reflects in a subtle manner the basic functionality of an information center.

Arch2O-M_A_Dahmen-Studio_DMTW-GSO-Interior1

Courtesy of Studio DMTW

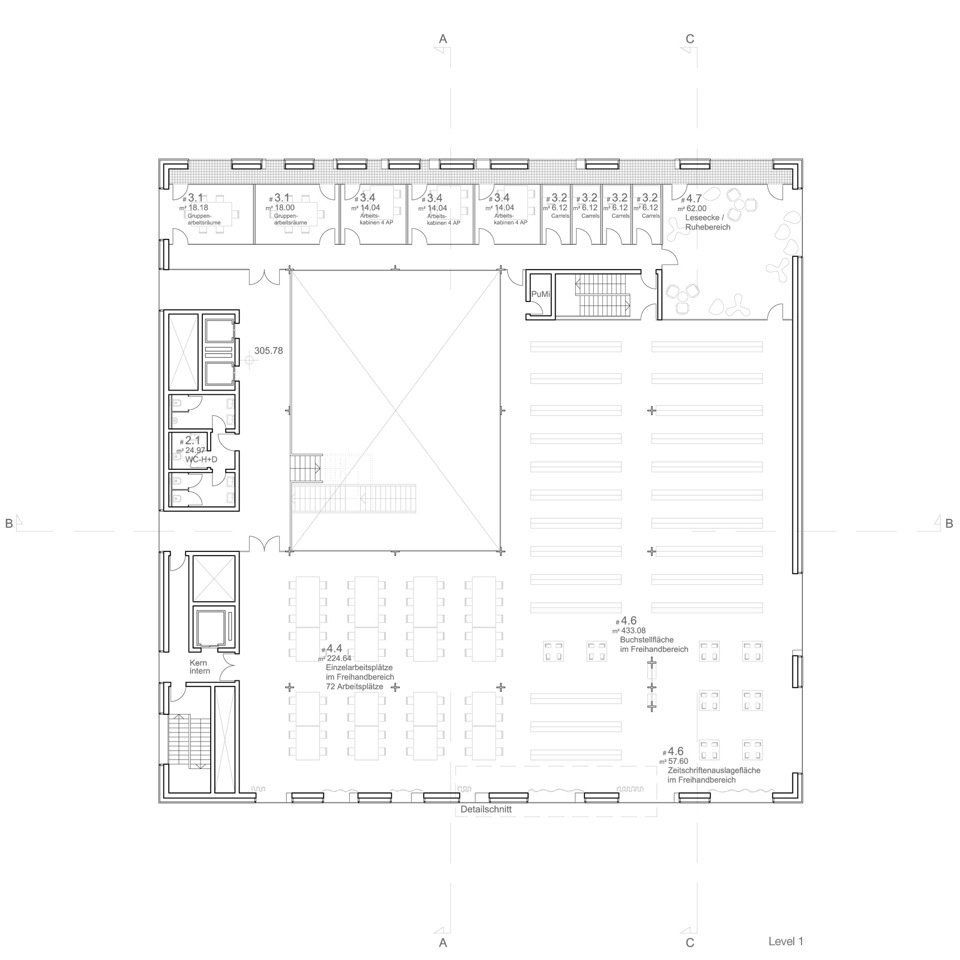

The backbone of the build is formed by two independent adjoining cores on the west side. One connects all the public functions and links them to big atrium while the other one provides access to all the internal service functions. This layout also enables the connection to a potential annex on that side at a later stage without compromising the internal local public infrastructure. Another stairwell in the north-east corner provides shortcuts between the different reading and working levels.

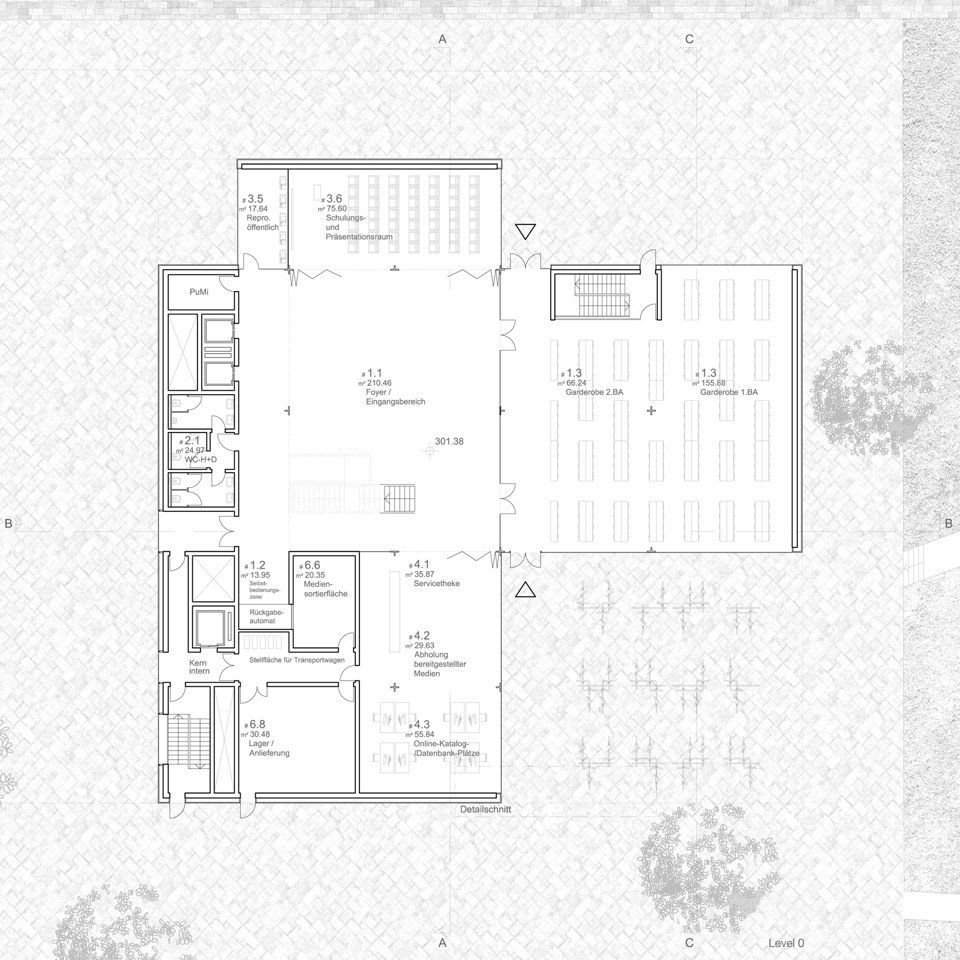

Arch2O-M_A_Dahmen-Studio_DMTW-GSO-Level0

Courtesy of Studio DMTW

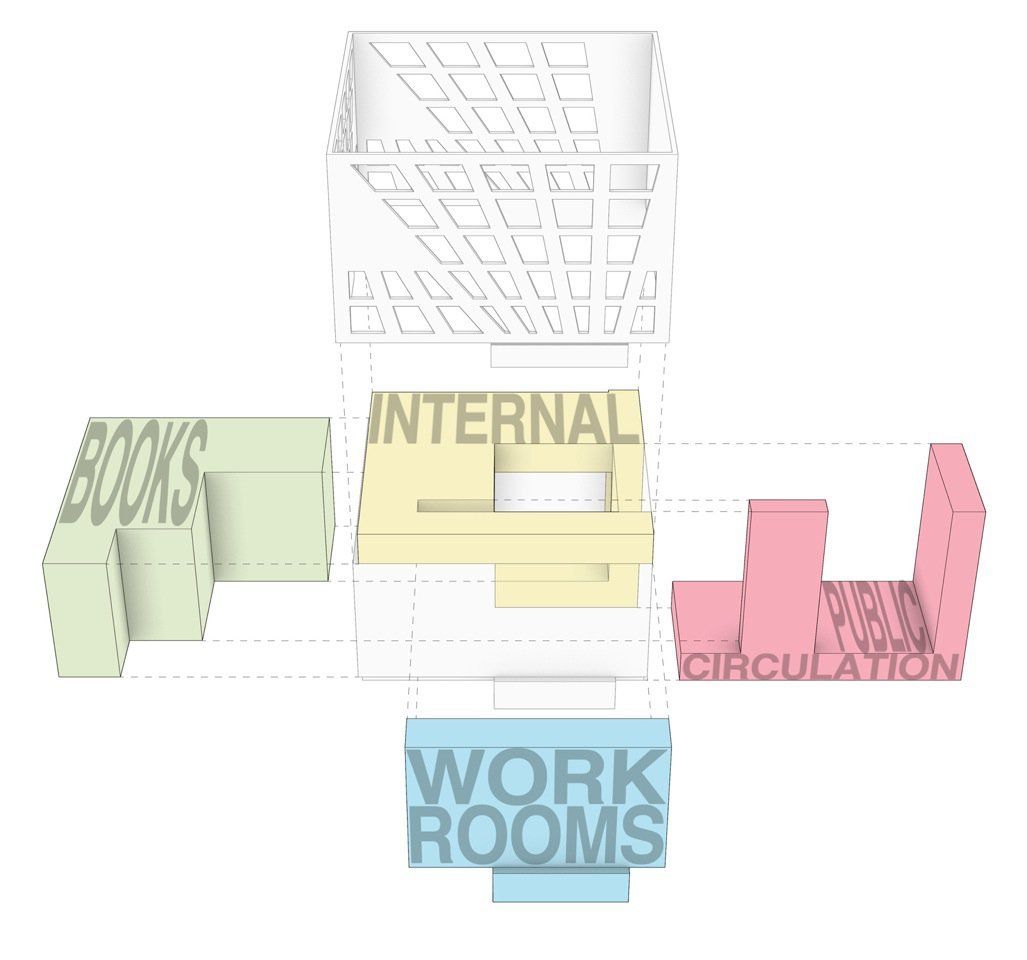

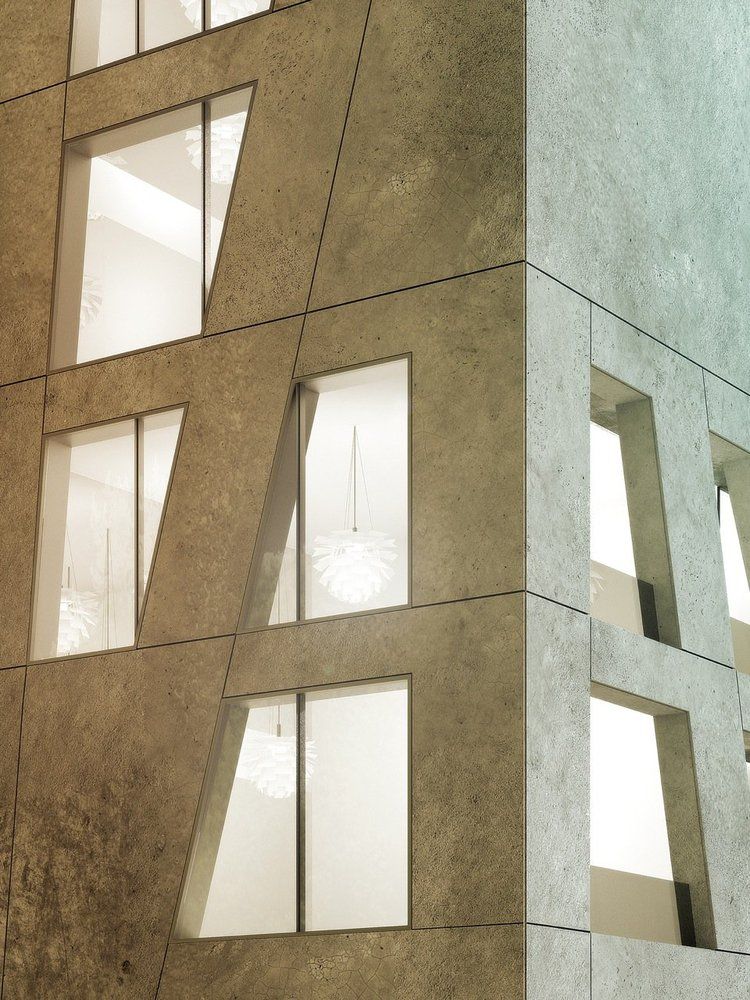

The sculpture consists of two different components. The plinth forms the first element. The volume touches at some places the circumscribing square while huge indents are carved out at the corners. These openings form the linking elements to the surrounding plaza and the campus. Resting on that plinth a self-supporting cube forms the second element. Its structural facade provides on the one hand a column free outdoor area beneath the three big cantilevers and on the other hand an outstanding and iconic appearance.





Credits & Info:
Year: 2012
Status: competition
Typology: Library
Location: Nürnberg, Germany
Size: ~8.700 sqm
Team & credits: Marc Anton Dahmen, Maximilian Schmitz, Mint Penpisuth Wallace, Simina Dron
