Pierre Lassonde Pavilion at the Musée National des Beaux-arts du Québec

The Pierre Lassonde Pavilion—the Musée national des beaux-arts du Québec’s fourth building is interconnected yet disparate—is a subtly ambitious, even stealthy, addition to the city. Rather than creating an iconic imposition, it forms new links between the park and the city and brings coherence to the MNBAQ.

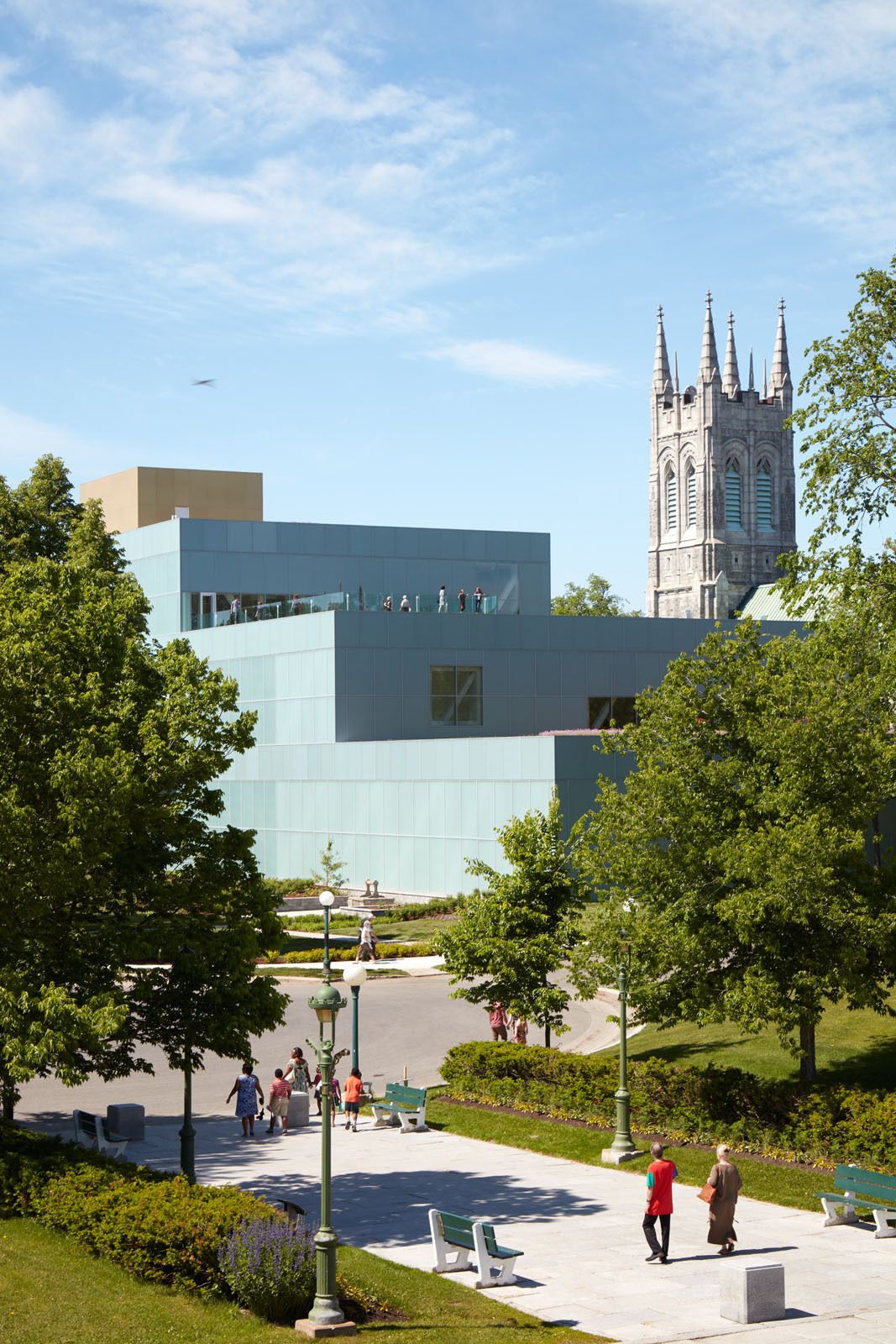

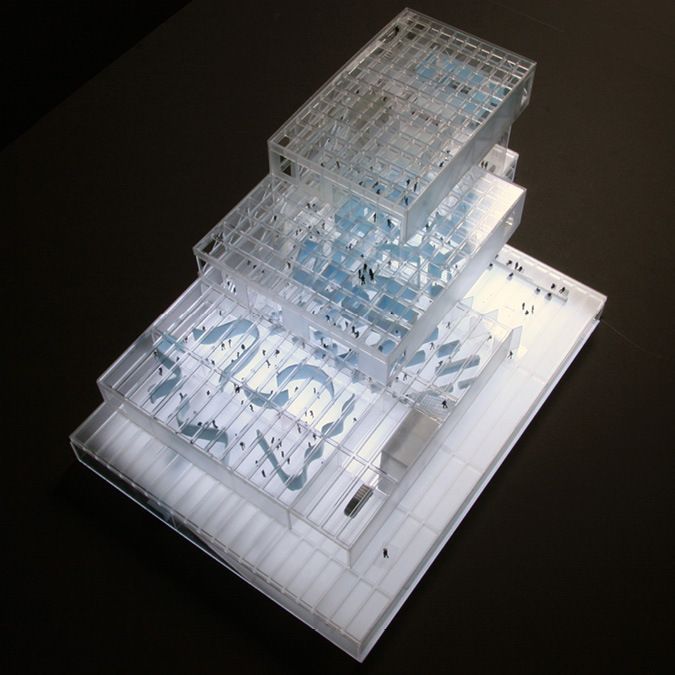

The intricate and sensitive context of the new building generated the central questions underpinning the design: How to extend Parc des Champs-de-Bataille while inviting the city in? How to respect and preserve the Saint Dominique church while creating a persuasive presence on Grande Allée? How to clarify the museum’s organization while simultaneously adding to its scale?OMA’s solution was to stack the required new galleries in three volumes of decreasing size to house temporary exhibitions, permanent modern and contemporary collections, and Decorative Arts and design, as well as Inuit artworks, creating a cascade ascending from the park towards the city. The building aims to weave together the city, the park and the museum as an extension of all three simultaneously.

photography by © Bruce Damonte

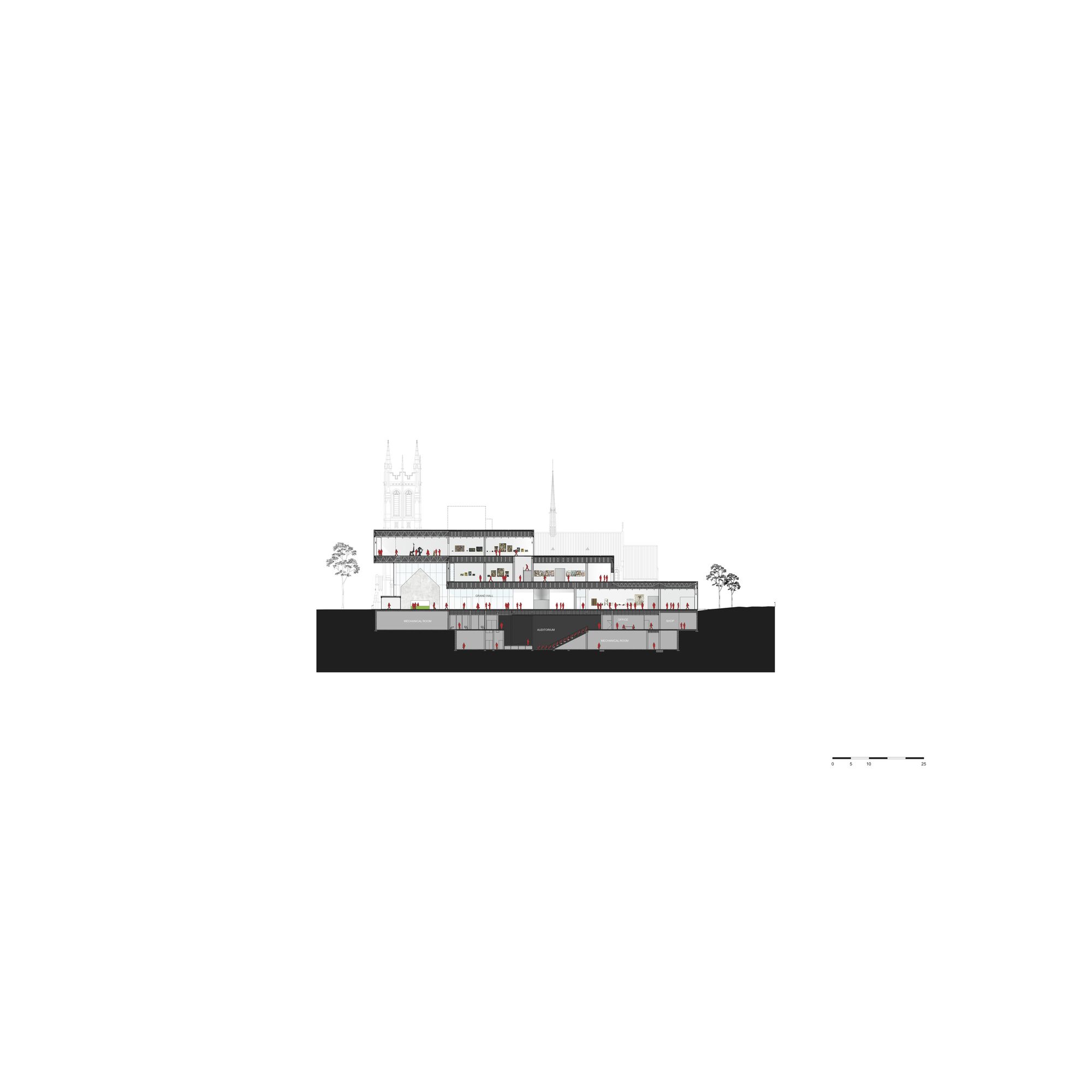

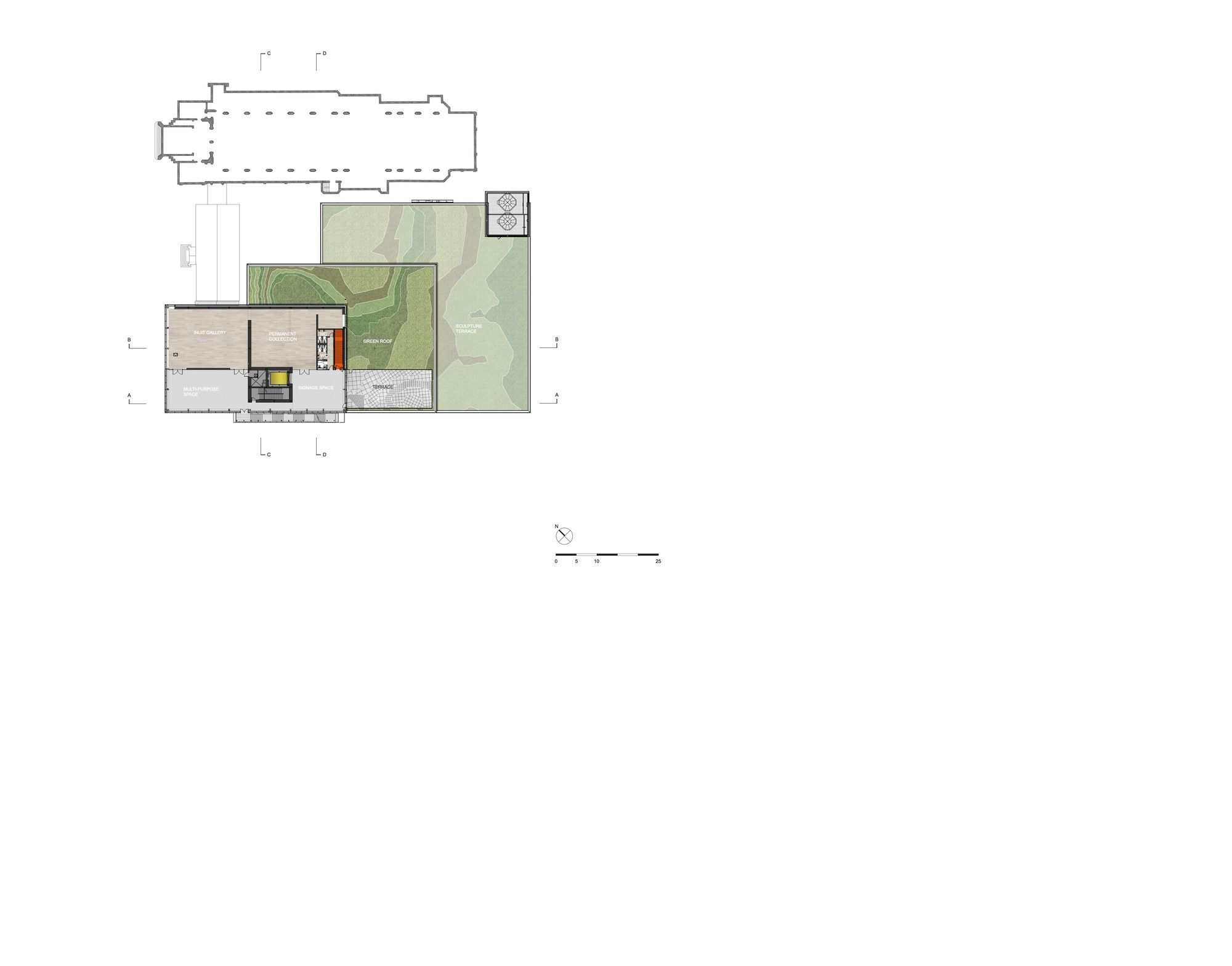

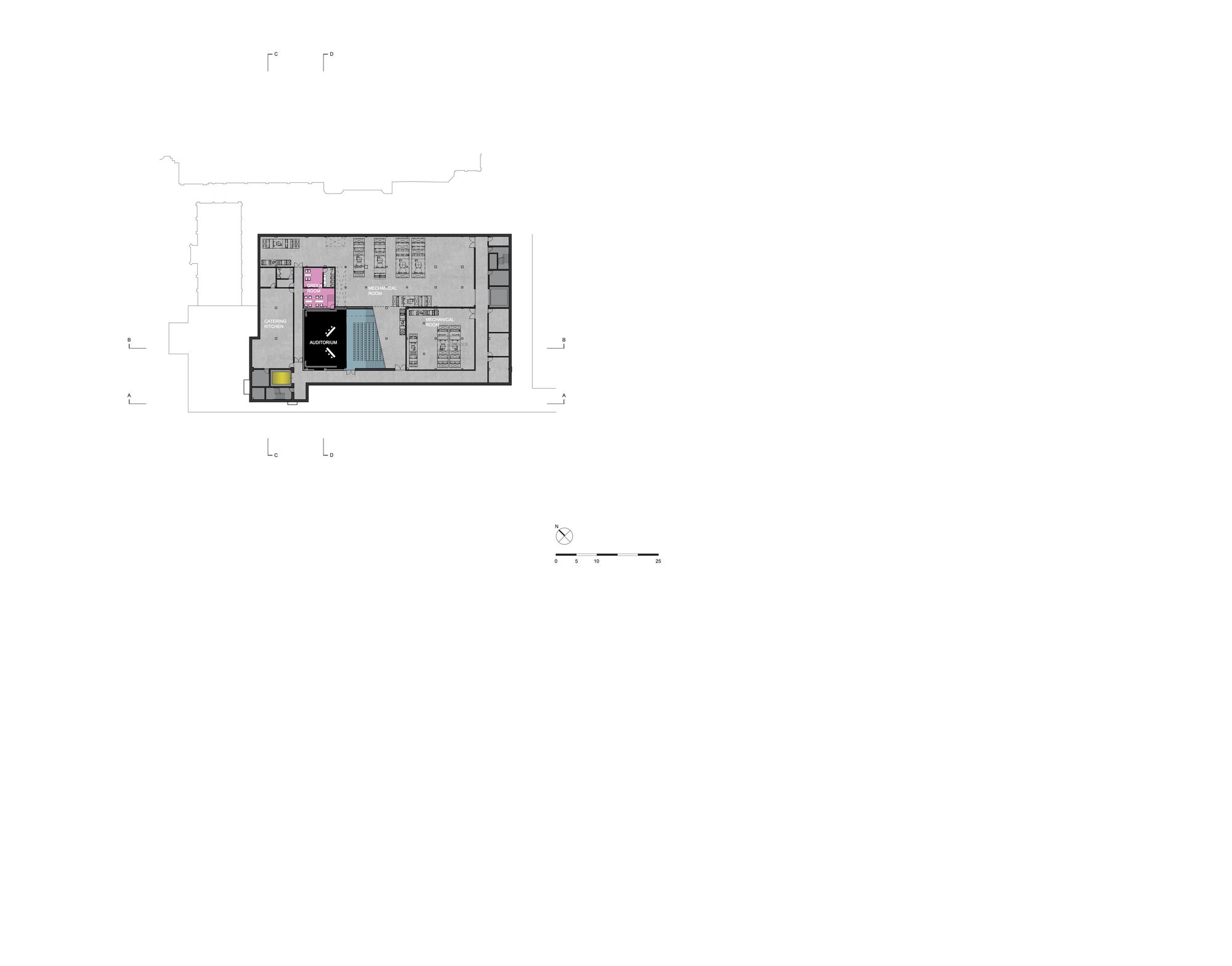

While they step down in the section, the gallery boxes step out in the plan, framing the existing courtyard of the church cloister and orienting the building towards the park. The park spills into the museum (through skylights and carefully curated windows) and the museum into the park (though the extension of exhibitions to the terraces and the outdoor pop-out staircase).
The stacking creates a 12.6m-high (42 ft) Grand Hall, sheltered under a dramatic 20m (66 ft) large cantilever. The Grand Hall serves as an interface to the Grande Allée, an urban plaza for the museum’s public functions, and a series of gateways into the galleries, courtyard, and auditorium.

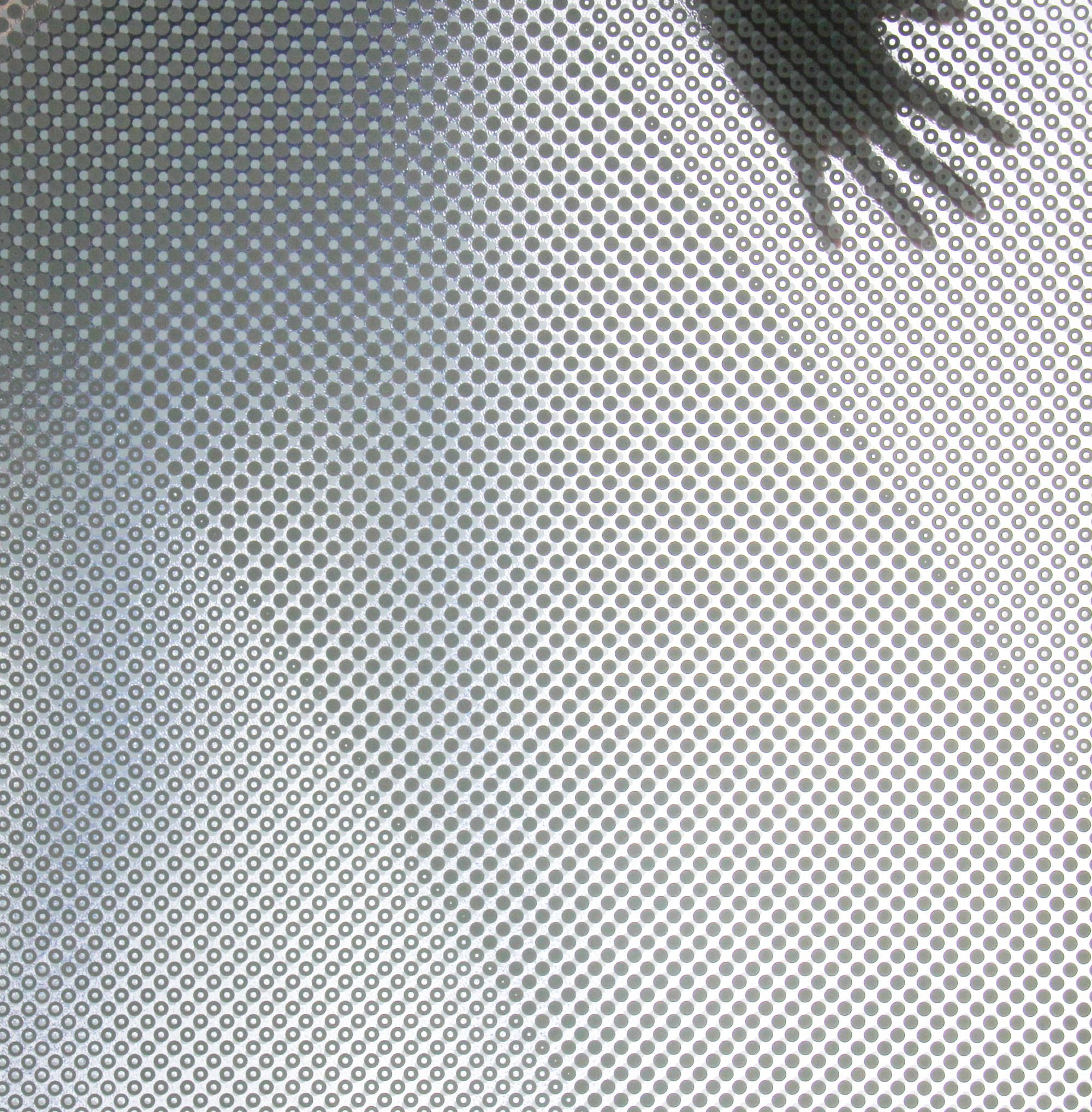

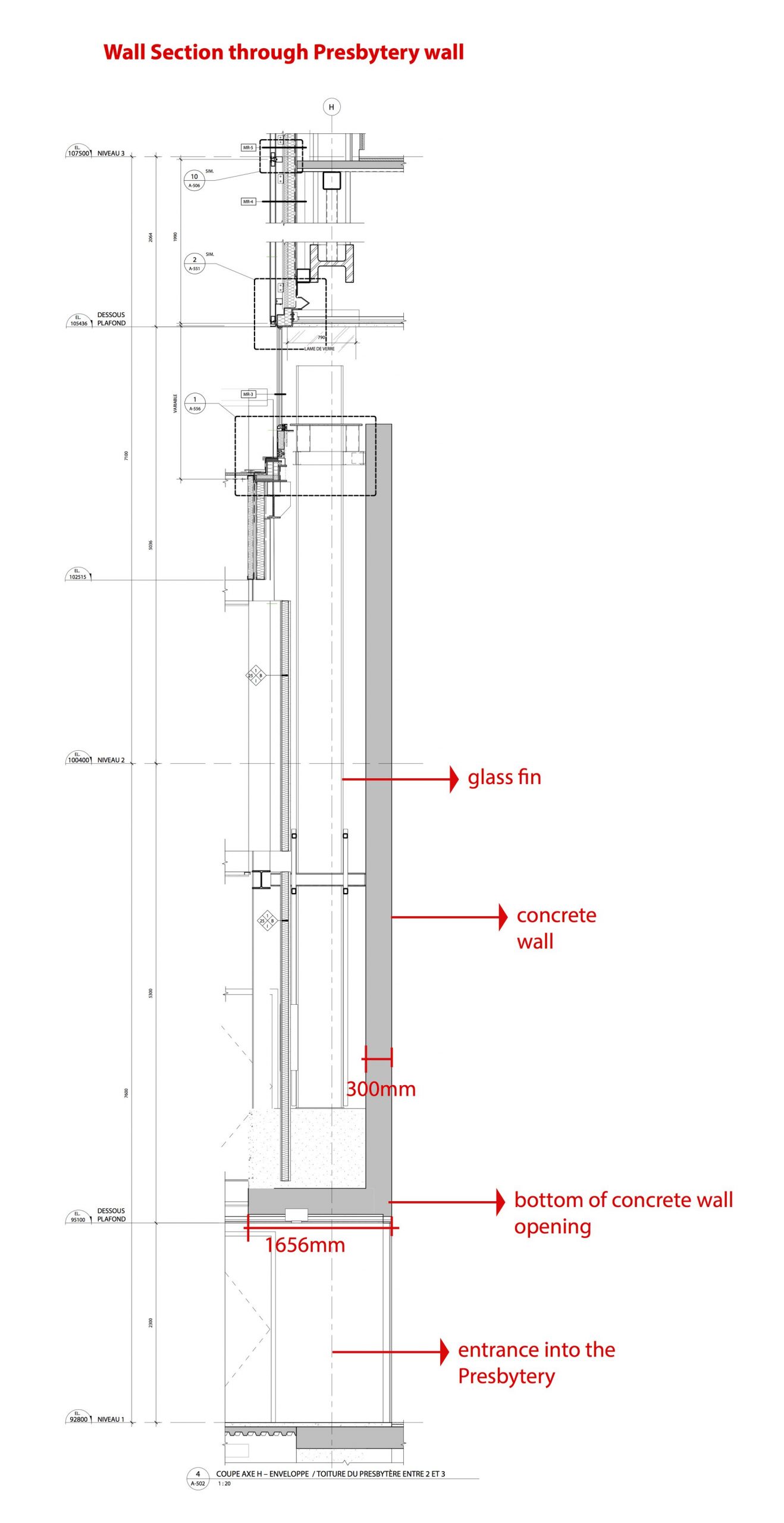

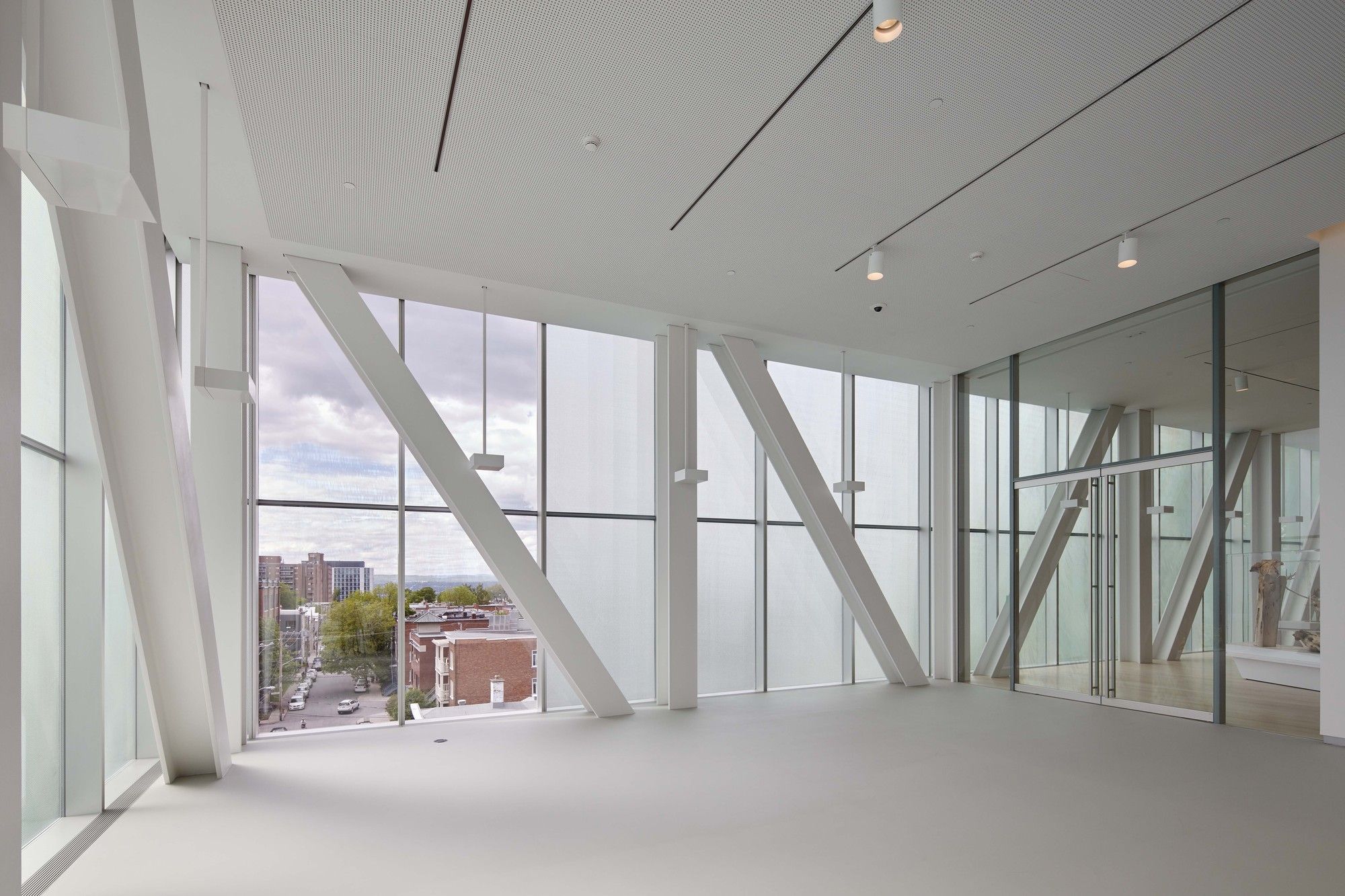

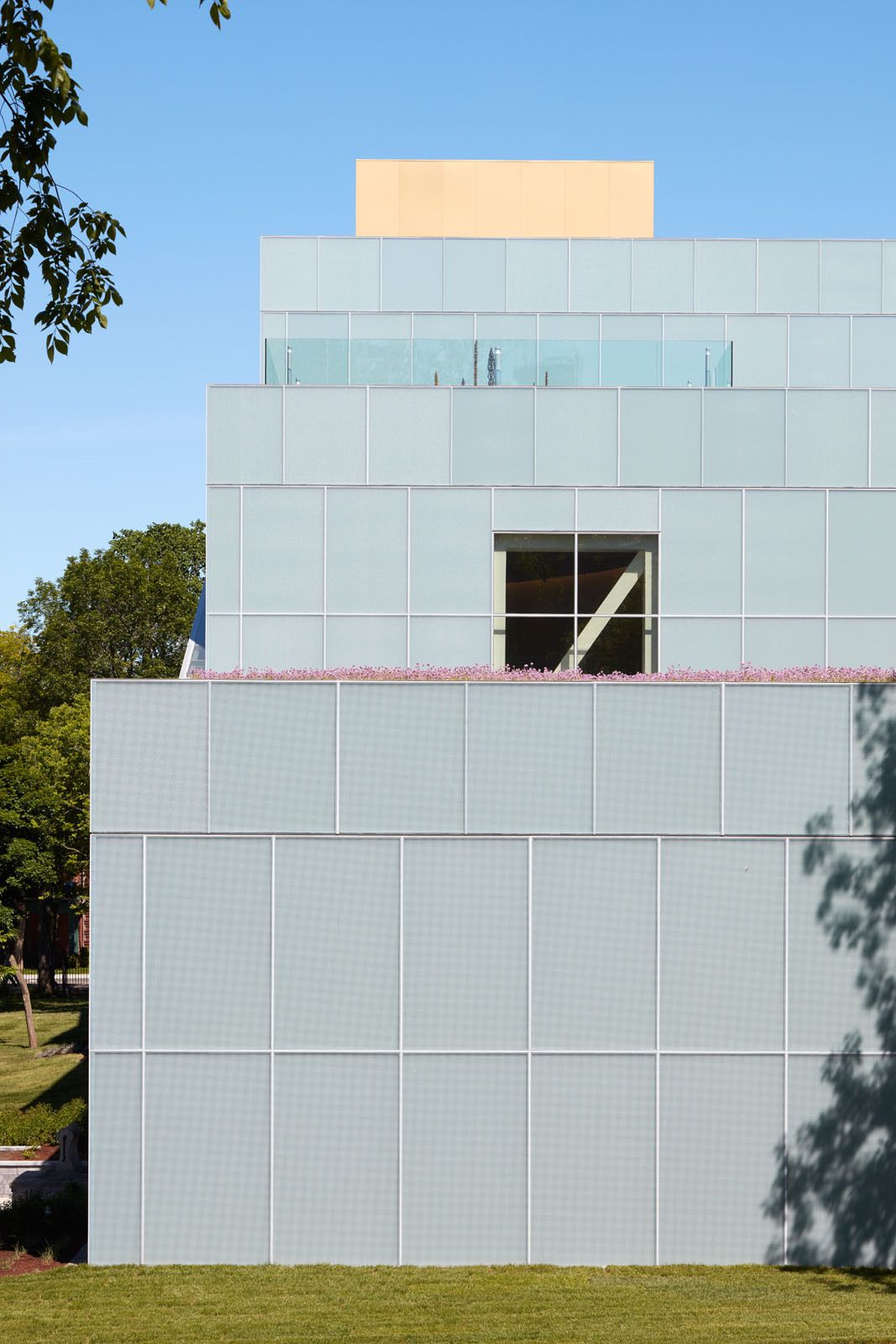

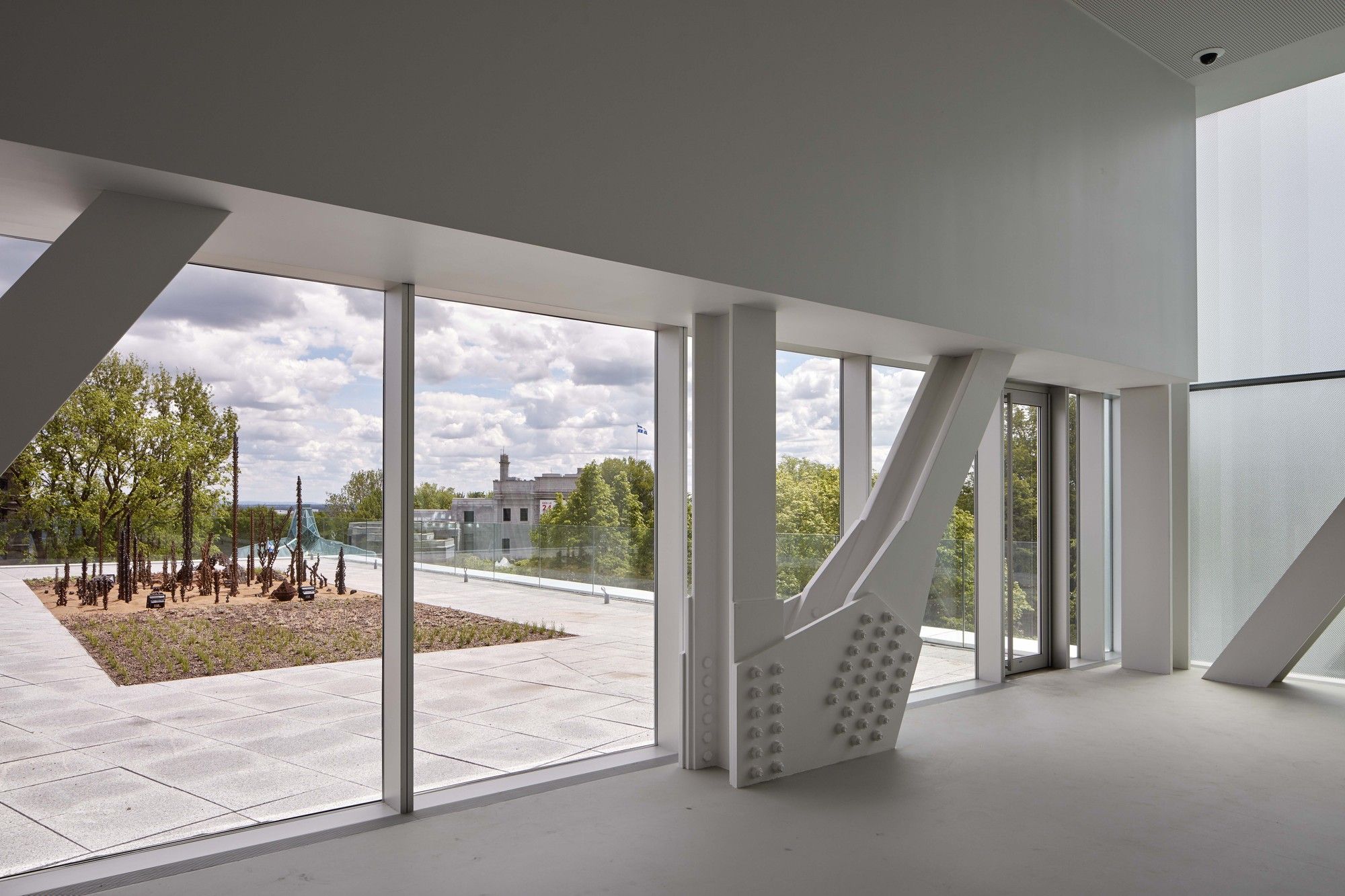

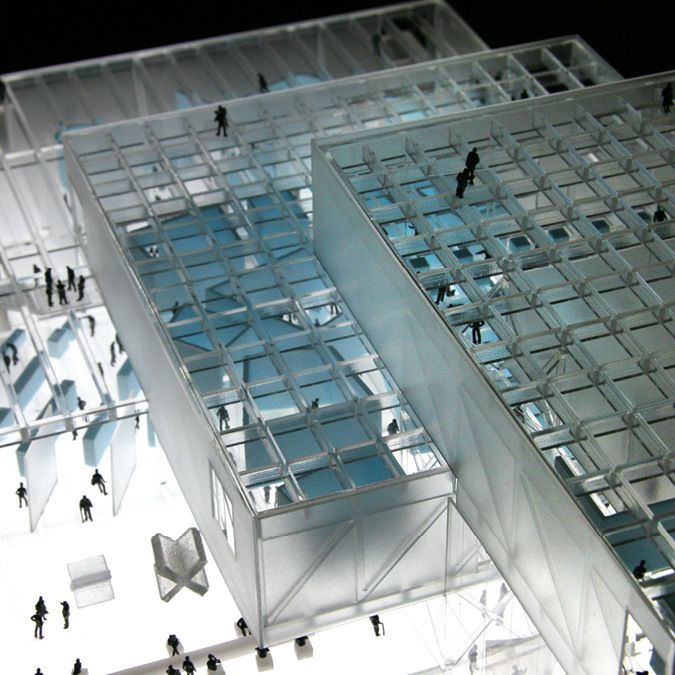

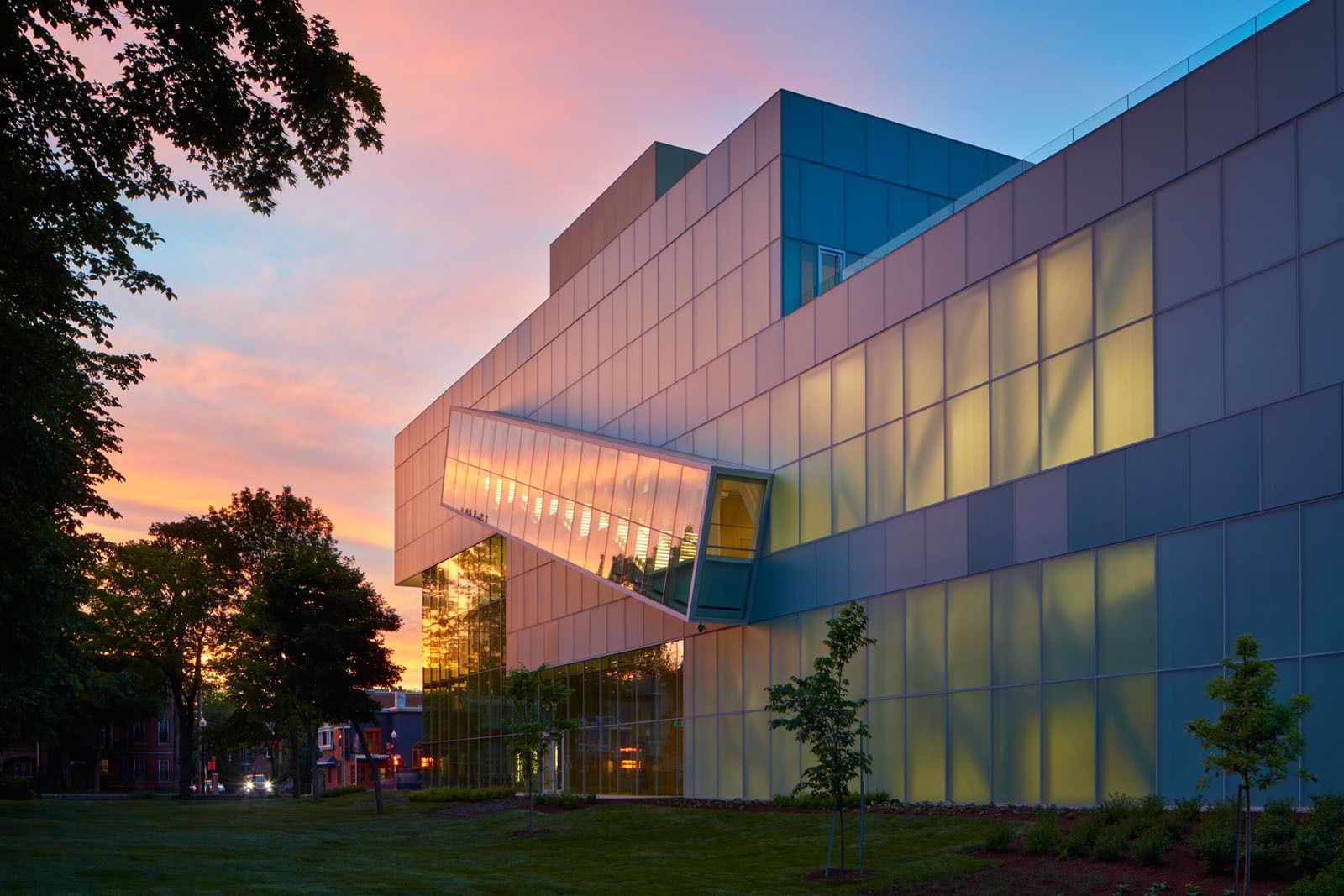

The cantilevered structure is supported by a hybrid steel truss system and accommodates galleries uninterrupted by columns. The layered façade is simultaneously structural, thermal and solar, addressing the seemingly contradictory needs of natural light and thermal insulation for Québec’s harsh winter climate. The triple-layered glass façade is composed of a 2D printed frit that pattern mimics the truss structure, a 3D embossed glass, and a layer of diffuser glass. In the galleries, insulated walls are located behind the translucent glass system, with a gap between that lights the building at night like a lantern in the park. The Grand Hall is enclosed by a glass curtain wall with glass fins that allow virtually unobstructed and inviting views to the Charles Baillairgé pavilion through a glass wall and ceiling. The contrast between the translucent gallery boxes and clear grand hall reinforces the reading of the building’s stacking and cantilevering massing.

photography by © Bruce Damonte

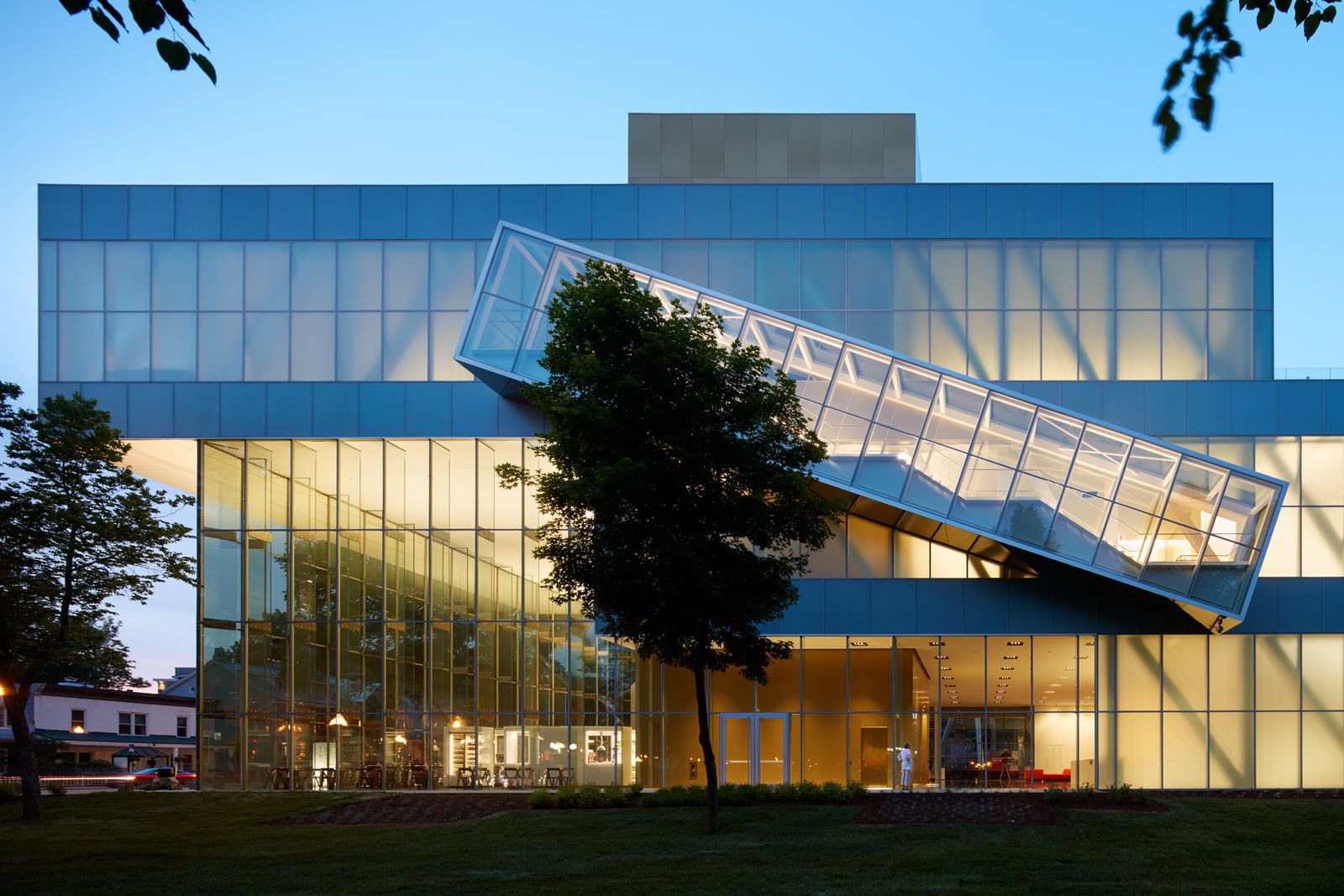

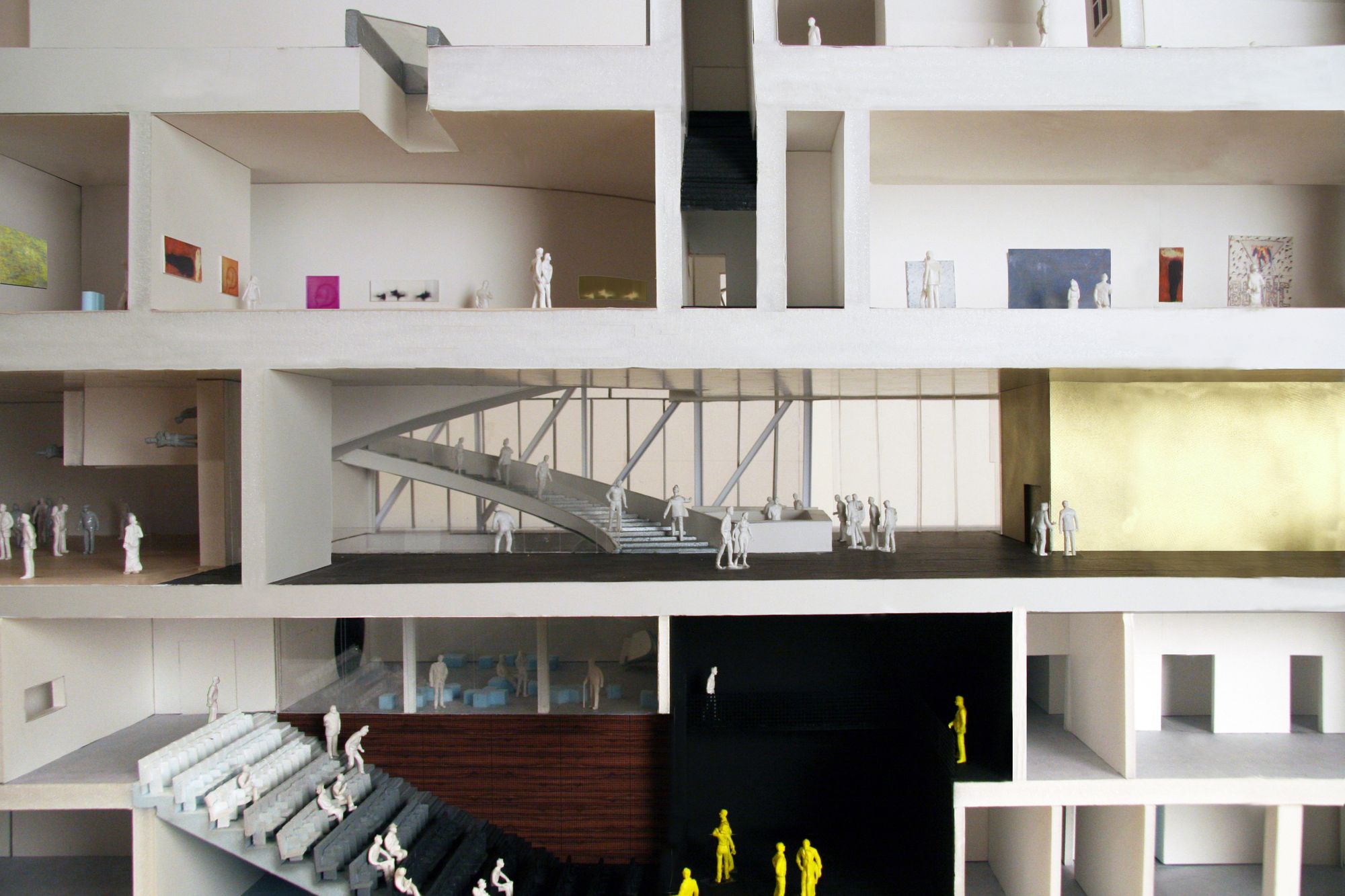

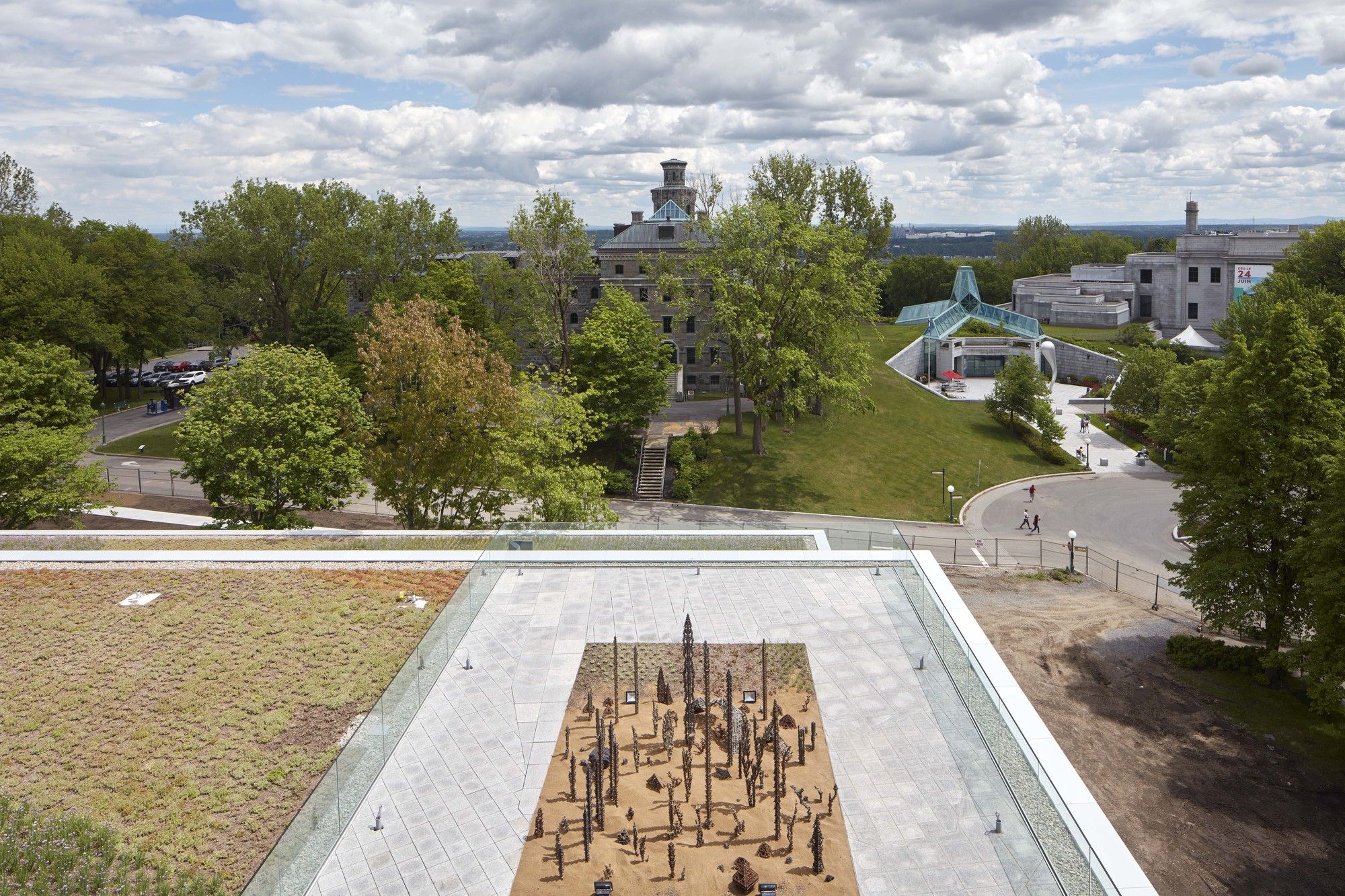

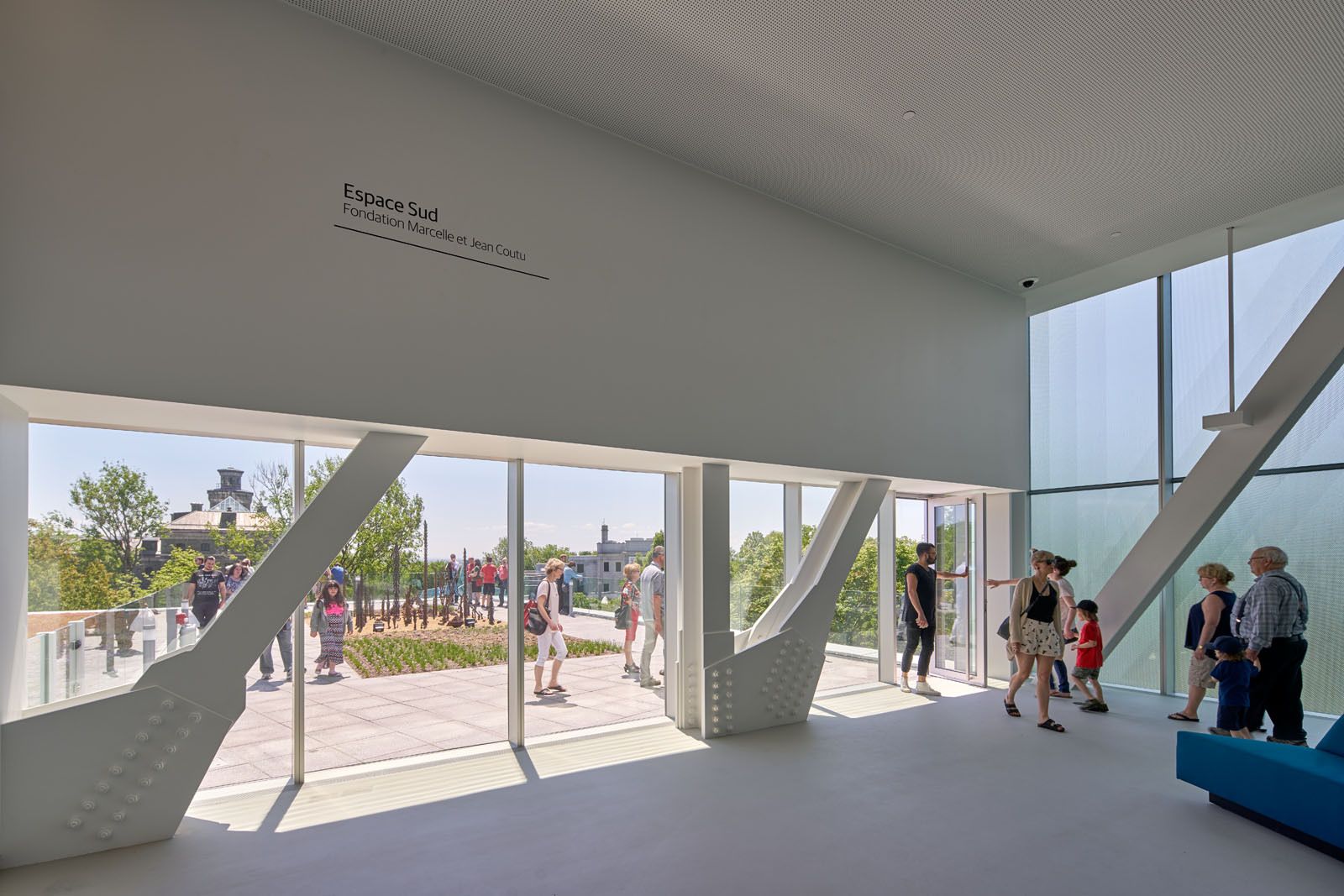

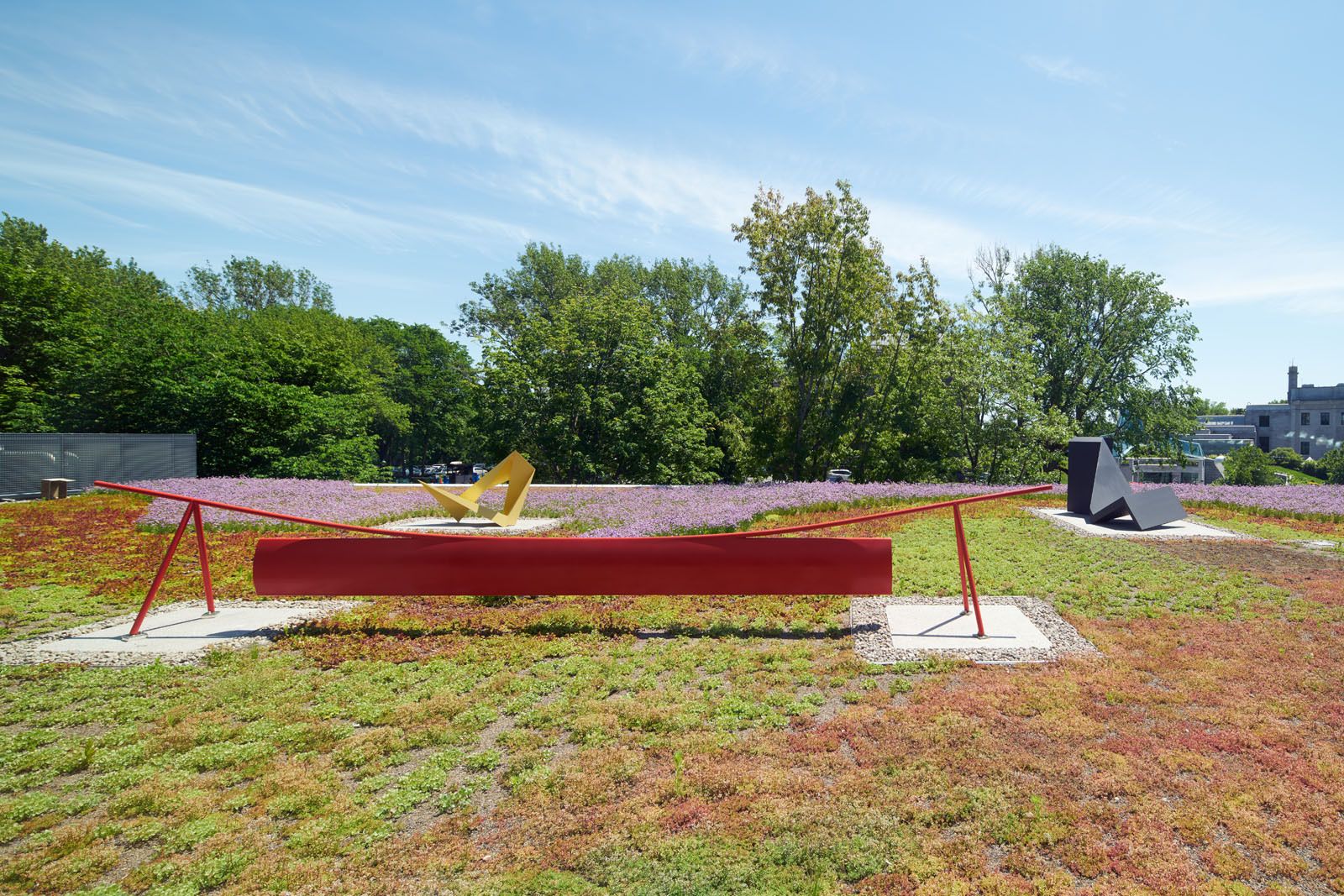

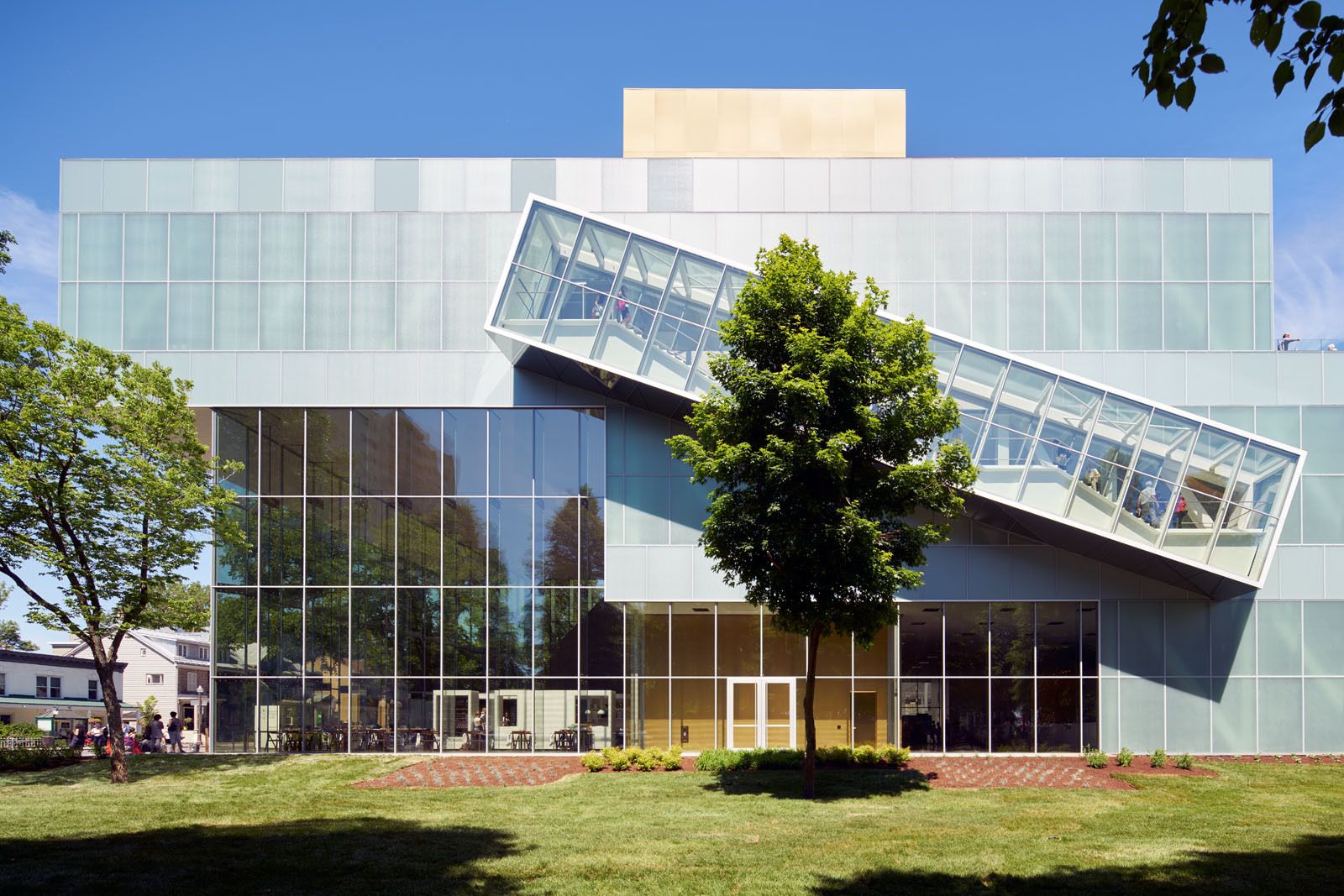

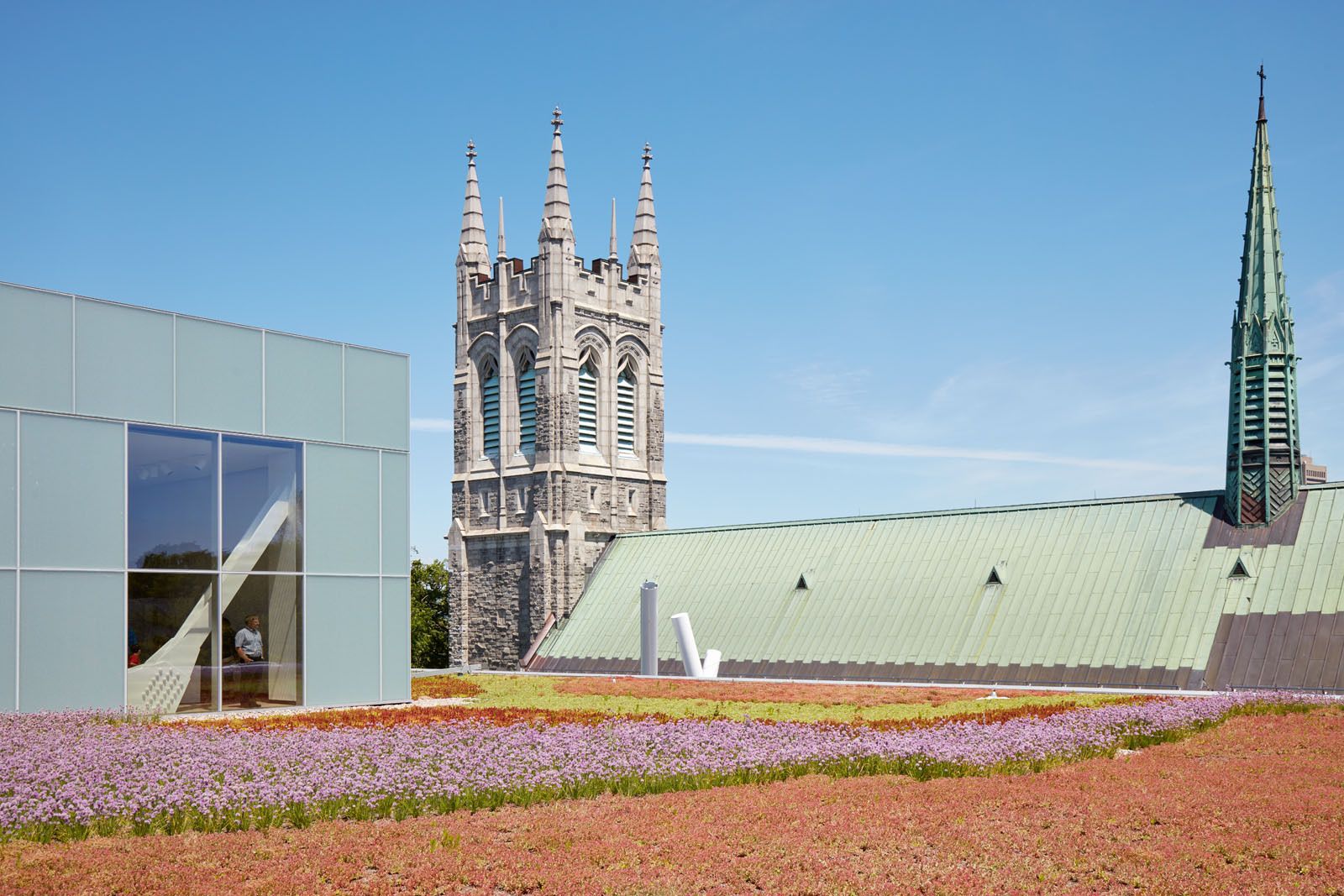

Complementing the quiet reflection of the gallery spaces, a chain of programs along the museum’s edge—foyers, lounges, shops, bridges, gardens—offer a hybrid of activities, art, and public promenades. Along the way, orchestrated views from a monumental spiral stair and an exterior pop out stair reconnect the visitor with the park, the city, and the rest of the museum. Within the boxes, mezzanines and overlooks link the temporary and permanent exhibition spaces. On top of each of the gallery boxes, roof terraces provide space for outdoor displays and activities.

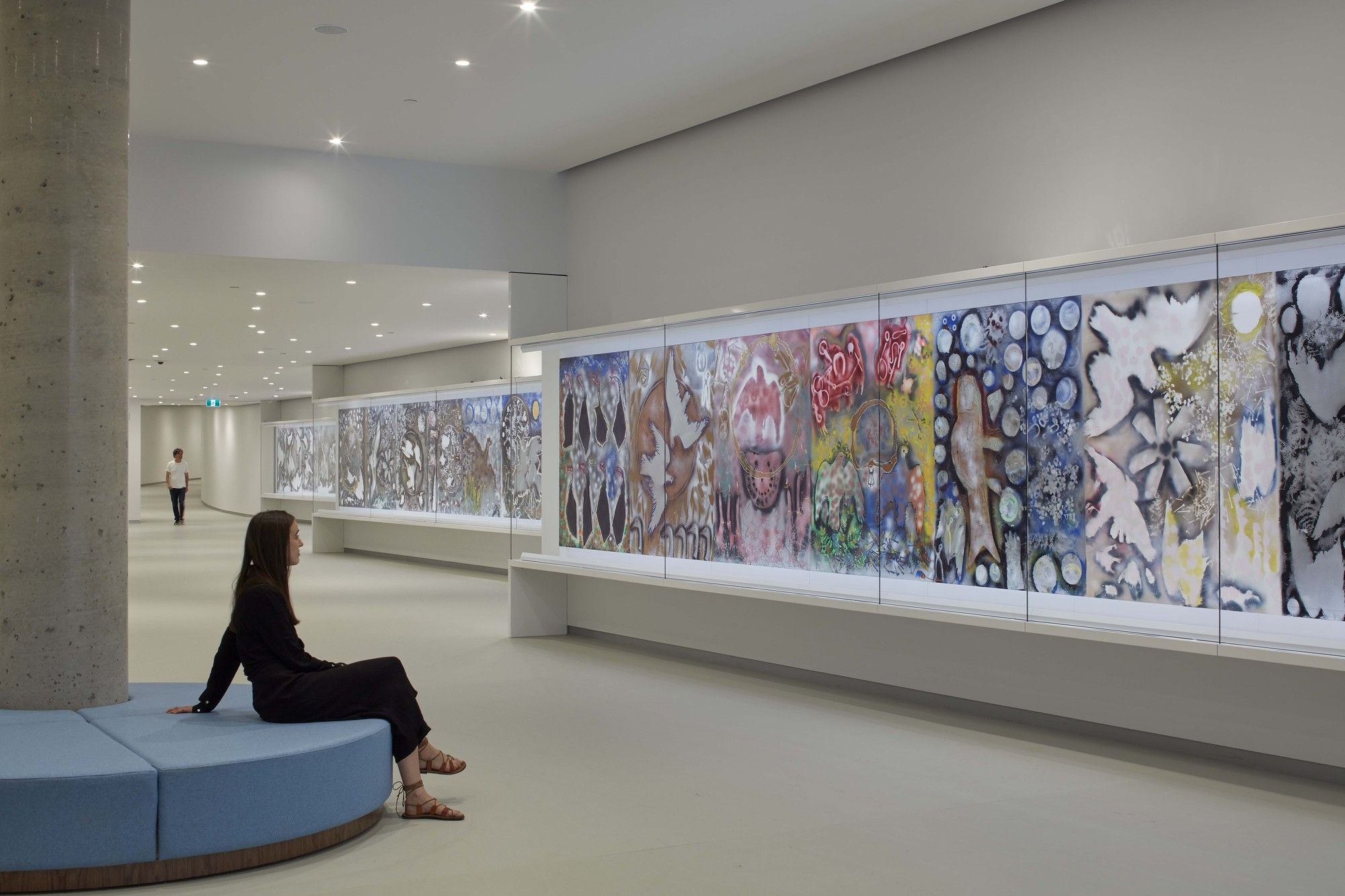

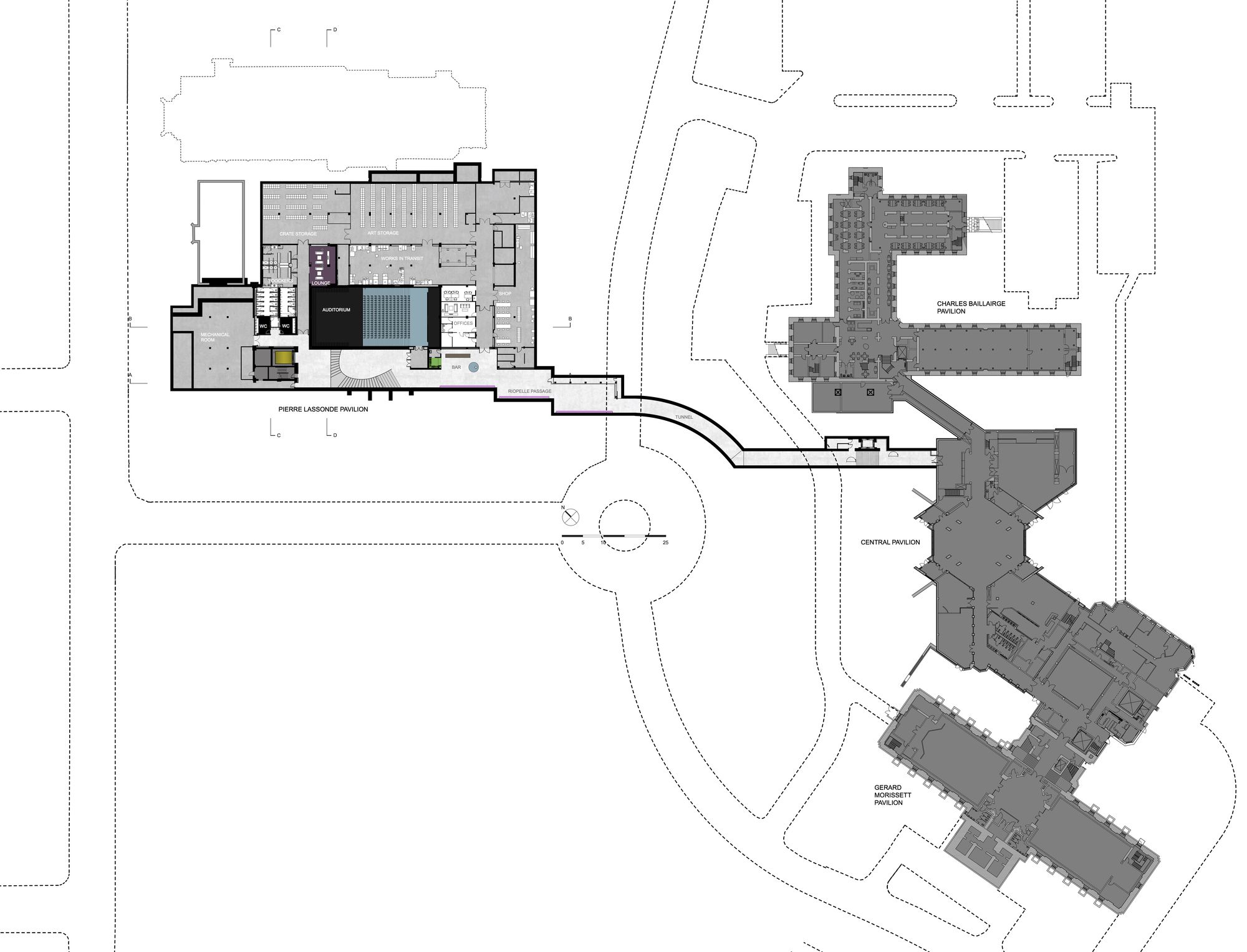

New exhibition spaces are connected to the museum’s existing buildings by a 130m (427 ft) long passageway, creating a permanent home for the museum’s 40m (132 ft) “Hommage à Rosa Luxemburg” by Jean-Paul Riopelle. Through its sheer length and changes in elevation, the passage creates a surprising mixture of gallery spaces that lead the visitor, as if by chance, to the rest of the museum complex.

photography by © Bruce Damonte

Project Info:
Architects: OMA
Location: Parc des Champs-de-Bataille, Québec City, Canada
Project: Expansion of the Musée national des beaux-arts du Québec (MNBAQ)
Lead Design Architect: OMA (New York)
Partner-in-Charge: Shohei Shigematsu
Associate Architect: Provencher_Roy Architectes (Montreal)
Client: Musée national des beaux-arts du Québec
Area: 14900.0 m2
Project Year: 2016
Photographs: Bruce Damonte
Manufacturers: Canam, Guardian Glass, MULTIVER
Project Name: Pierre Lassonde Pavilion at the Musée National des Beaux-arts du Québec
