Nursery School Pamplona | Pereda Pérez Arquitectos

On the kindergarten project in Pamplona, the value of the site is the main constraint, without it, this project Nursery School would not be easy to understand.  The plot, result of a reallocation project, is located on the edge of a suburb in Pamplona. The geometry of such plot had practically a triangular shape, where two of its sides had the nature of dividing walls corresponding to the rear of a row of buildings,  while the third side, and with the longest length, was orientated to the south, open to the square where the access is built.

Photography by © Pedro Pegenaute

Due to the extreme conditions of the plot and the program we thought that it was an exercise where firstly the common sense and the logic should be imposed in relation with the layout of the uses of the building and the priority of exploiting the sunlight prior than any other approach of highest complexity or exuberance.

Photography by © Pedro Pegenaute

For that reason, the proposal was not adjusted to an isolated construction in an aggressive location; Pereda Pérez Arquitectos understood it as the plinth of the preexisting buildings. For that reason, we understood that the project should keep those values and to act as such. In that way was confirmed, as an independent cell, which perimeter of changing concrete is placed and integrated on the plinth of this dividing wall. From this design, it was generated, with architectural mechanisms the different manners to light and to ventilate.

Photography by © Pedro Pegenaute

The project from the site and the program expected to work from the contrast adapting to the two situations; In one side the outside treated as an abstract plinth, in an ordered manner, modular and categorical. And in another side, the inside of the section treated as uneven, permeable, friendly and luminous.
The program was basically adjusted to five educational modules, a big general space to organize the prior mentioned spaces and to allow to be used as entertainment space when the climatologic conditions prevent to enjoy the two outdoor playgrounds, with its arcades, also requested, besides additional indoor spaces for administration, services, and facilities.

Photography by © Pedro Pegenaute

It was decided to place, from the organizational logic, the educational modules, understood as main spaces, at the only external side of the plot in order to ensure on those the direct sunlight and the views to the public space as the only values where the plot contribute with. From this decision it was developed the rest of the program in a natural way with the physical constraint of the plot: the educational modules were centered considerably on the linear development of the square edge to release to its sides and at the ends the spaces planned to be used as outdoor playgrounds where the own geometry of the plot made difficult different uses and reinforce the idea that the spaces planned for children always have direct sunlight.

Photography by © Pedro Pegenaute

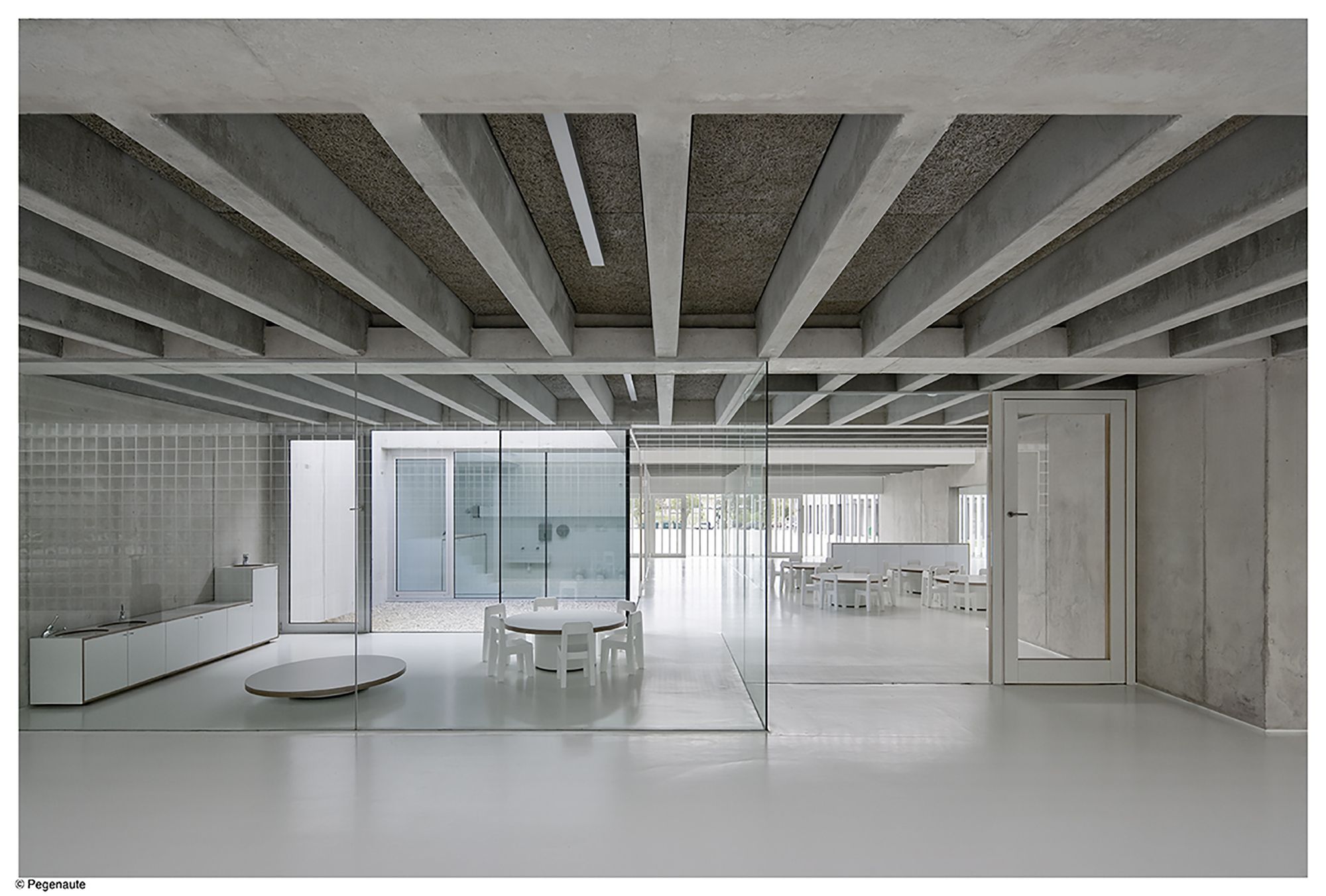

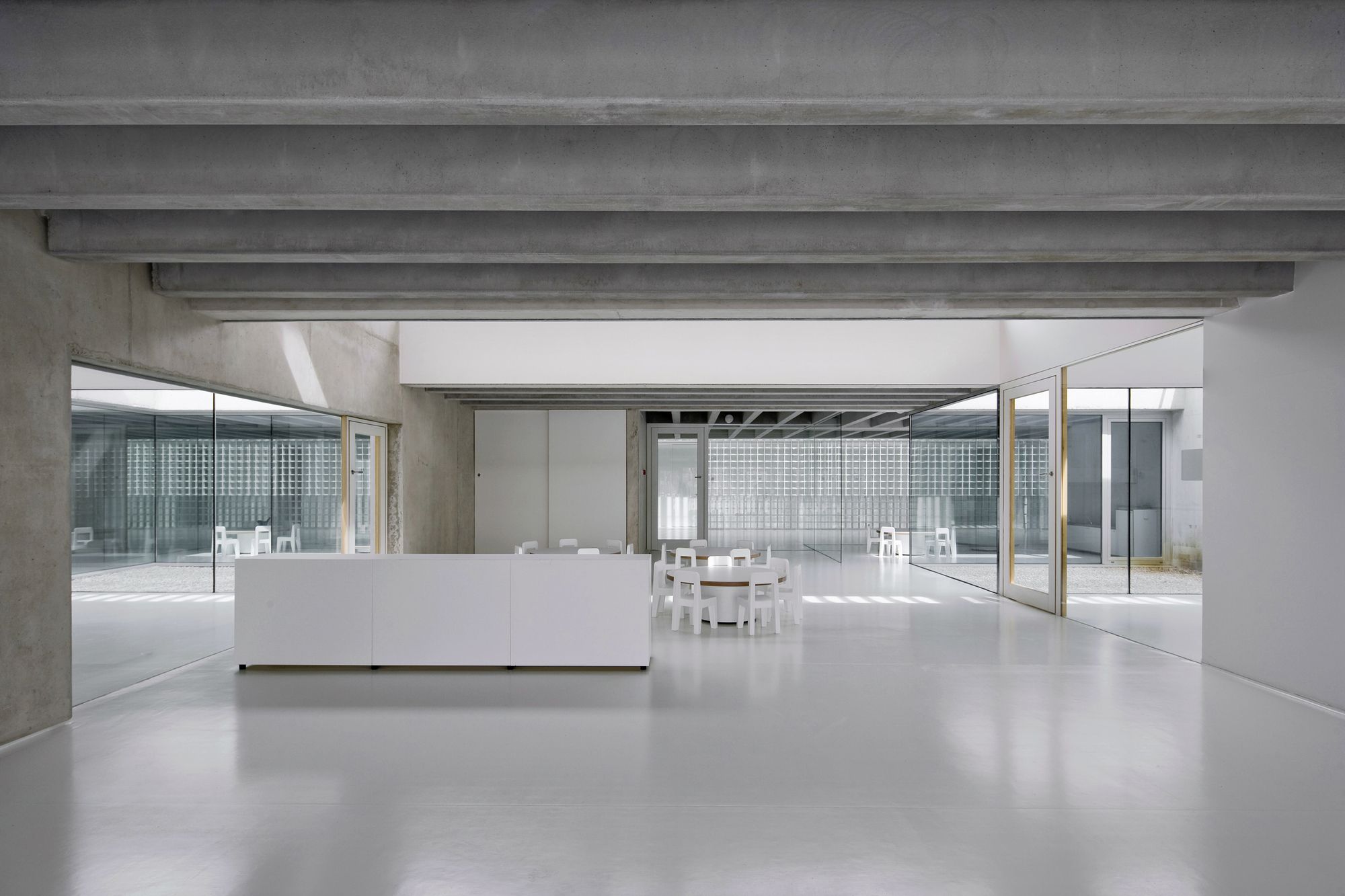

At the internal part of the plot it is placed and space between two supporting walls planned as the spaces of service no public, administration and facilities organized around a courtyard which supply it primary necessities, sunlight, and ventilation.  Between both spaces separating two supporting walls, communicating those, it is placed the central space real distributor of the building, space of transits, space to play, multi-use space which at the same time is communicated directly with the arcades and playgrounds.
Educational modules, comprised of a classroom, a bedroom, a workshop and the bathroom, are organized seeking the physical and visual continuity, except the bedroom which is isolated, to ensure the required objective.

Photography by © Pedro Pegenaute

In a plot with a big depth against a single façade, the proposal is articulated with architectural mechanisms of courtyards and skylights which ensure to the building the primary necessities of lighting and ventilation.

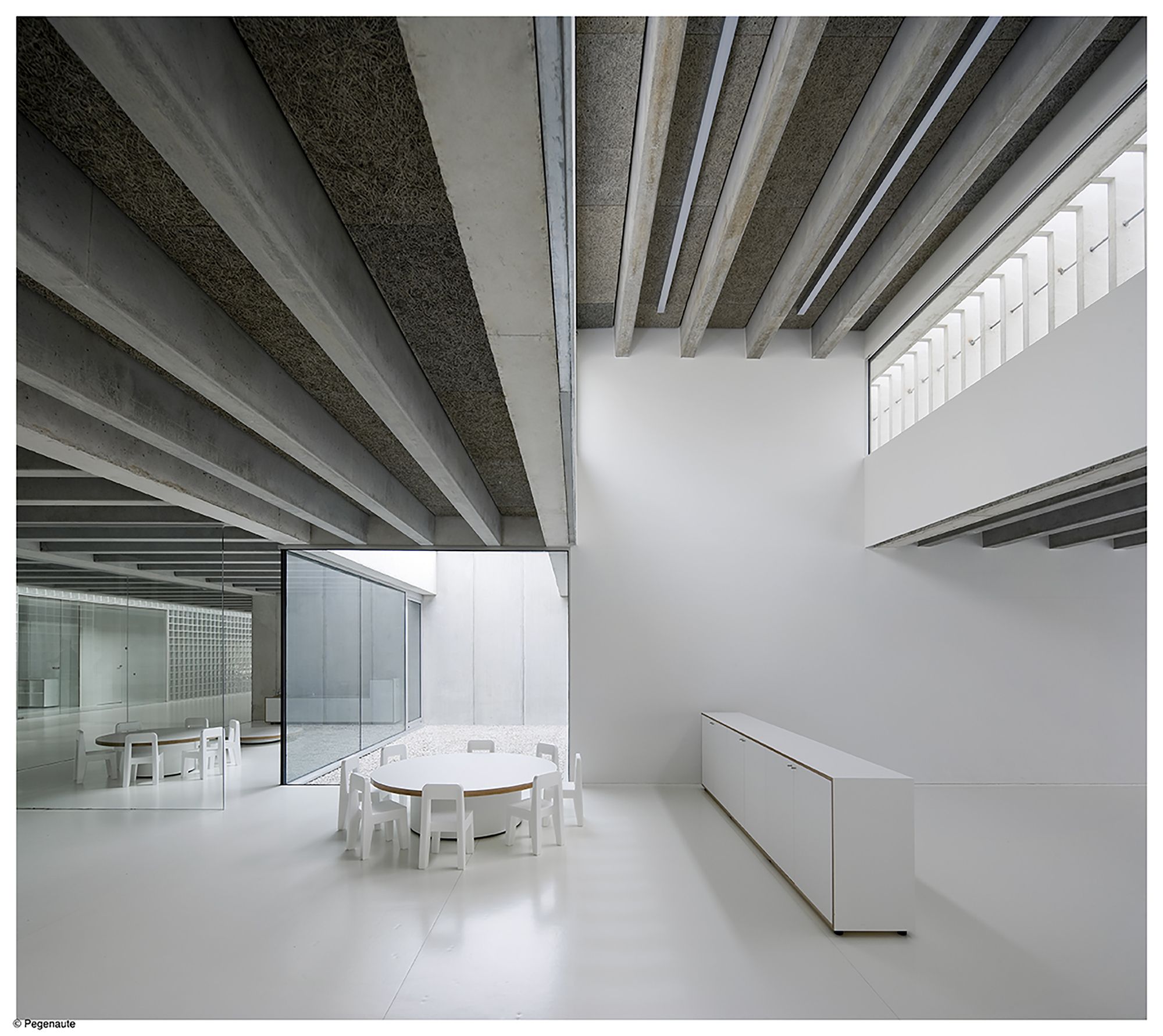

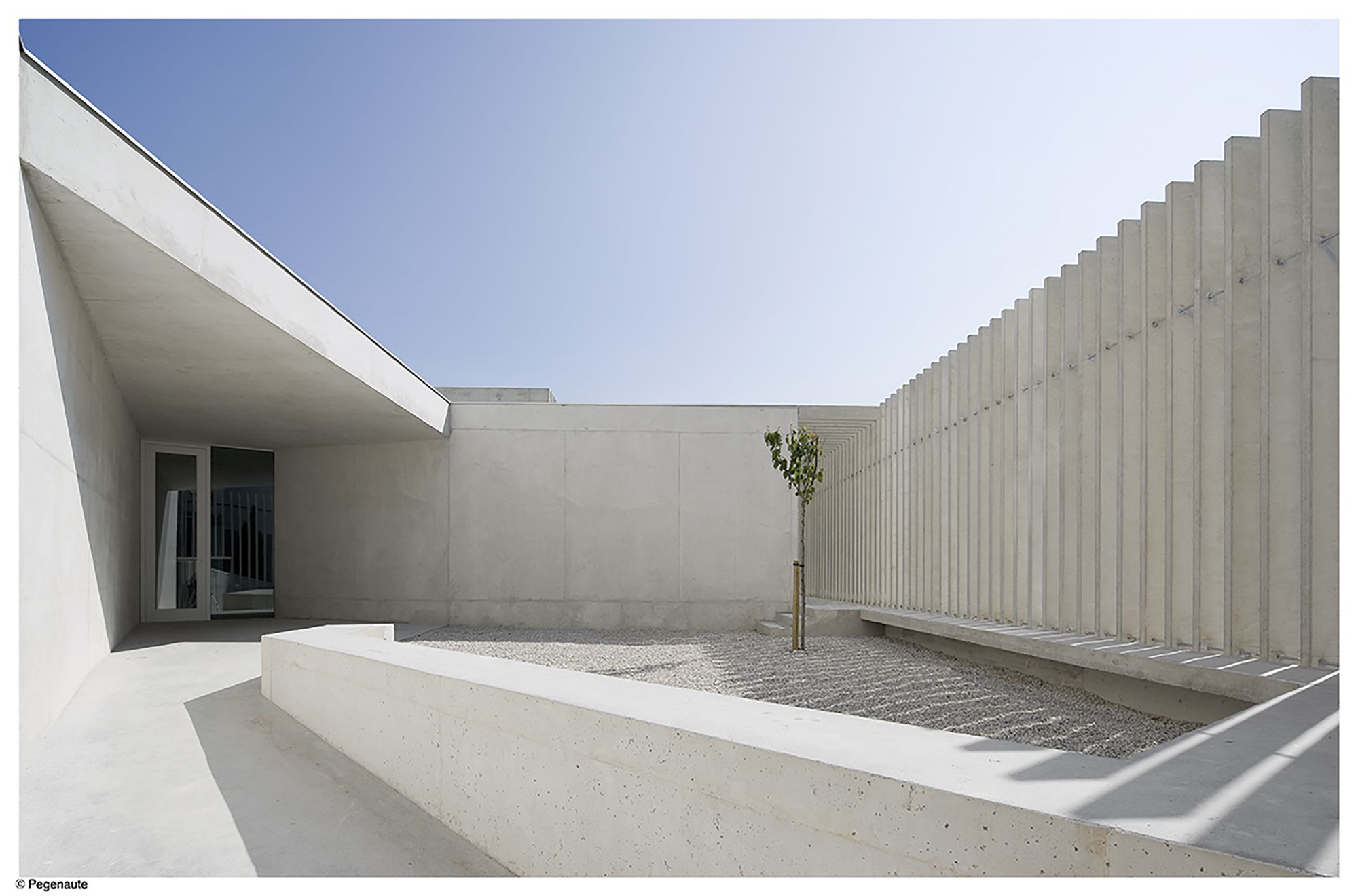

The skylights, as mechanisms to capture the direct sunlight, overlap and increase in high according to its arrangement in the depth of the plant with the mission of making the light penetrating at the same time than improving the visual impact of the dividing wall as it remains harmonized by those volumes. And the courtyards, diffuser of indirect light, reinforcing the lighting and generating an intimate atmosphere in each of the educational modules.

Photography by © Pedro Pegenaute

The building shows two accesses, the main one, placed almost in the center of the façade, is the only point in the lattice which allows the access to the building from the square. This entry allows access to the arcade and the main outdoor playgrounds.
Constructively the project is characterized by the utilization of prefabricated components of concrete. In one side in the ribbed forged which allow spaces with long spans, versatile and with constructive speed. And in another side, the lattice of the façade built also with concrete and with a prefabricated shape of concrete which makes the building special. This, are protection mechanism of the school to the square which without isolating, ensures four aspects in which the projects is interested: a proper control of the sunlight, a higher privacy in a building of such features placed at the ground floor, ensuring a better presence of this in the public space, assuming and harmonizing the typical under controlled “chaos” of those kind of building and finally making it jointly with the limits of the external courtyards built in the same style of the building having a higher presence in the plot conditions.

Photography by © Pedro Pegenaute

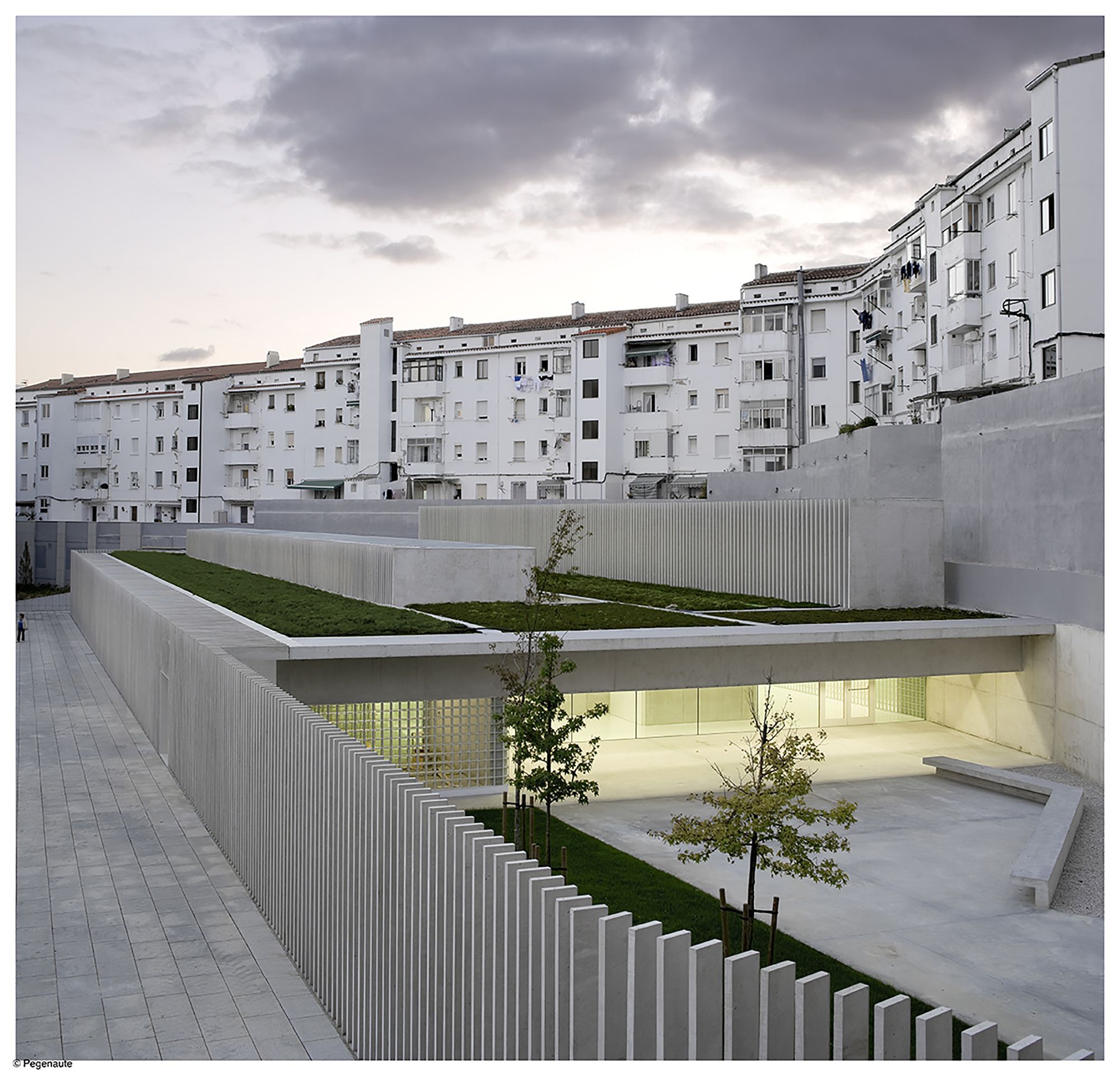

Finally the project since its design, and coming back to the beginning, was conceived under a strong environmental concern. And without any doubt, such orientation collaborates remarkably in one side using the geothermal resource, as renewable and clean energy. And in the other, making the upper deck as a garden area which besides improving the thermal behavior of the building improves the visual impact since is a single floor construction among higher buildings.

Photography by © Pedro Pegenaute

Project Info:
Architects: Pereda Pérez Arquitectos
Location: Pamplona, Navarre, Spain
Architects in Charge: Carlos Pereda, Óscar Pérez
Area: 1630.0 sqm
Project Year: 2016
Photographs: Pedro Pegenaute
Collaborators: Teresa Gridilla, Sara Andorinho
Surveyors: Marc Buxó y GLSL
Constructor: Construcciones Guillén
Project Name: Nursery School Pamplona
