Caseta de les Brugueres Refurbishment

“Caseta de las Brugueras” refurbishment is a Project to rehabilitate a listed small Catalan country house or “Mas”, to turn it into a small refuge for short-term vacation breaks.

Photography by © DEL RIO BANI

The “Mas” is located in Priorat, an area of volcanic origin, a region with a rough and wild appearance, with landscapes of impressive luminosity. The building, settled in this same environment, retains the essence of the region; the silence and tranquility with maximum respect for the pre-existing construction and in close contact with the environment.

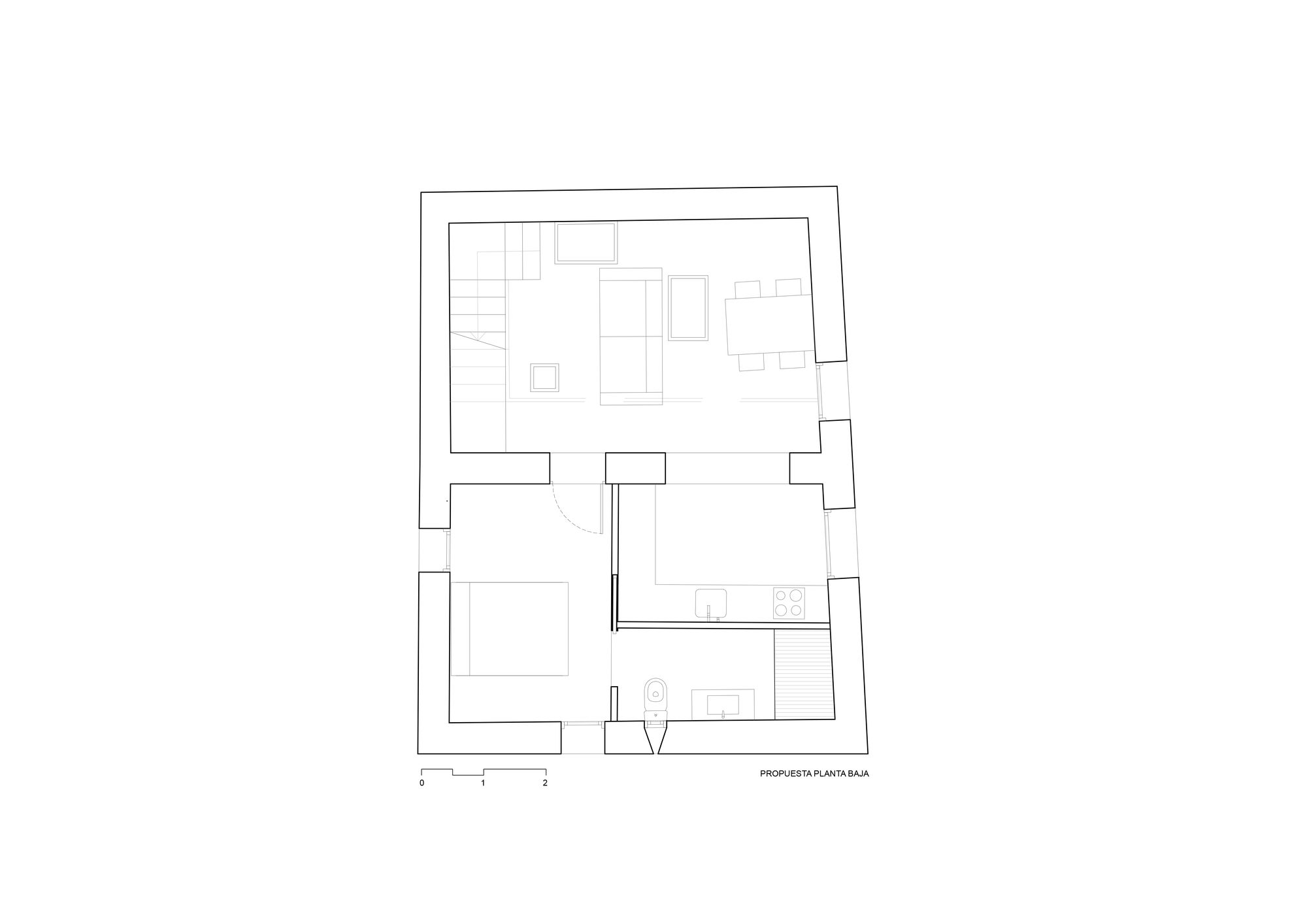

The building consists of two adjacent naves at different levels from different periods, adapted to the terrain’s topography.

The project’s primary purpose consisted in giving value to the existing construction; that is to say, differentiate the architectural intervention from the pre-existing “Mas”.

Photography by © DEL RIO BANI

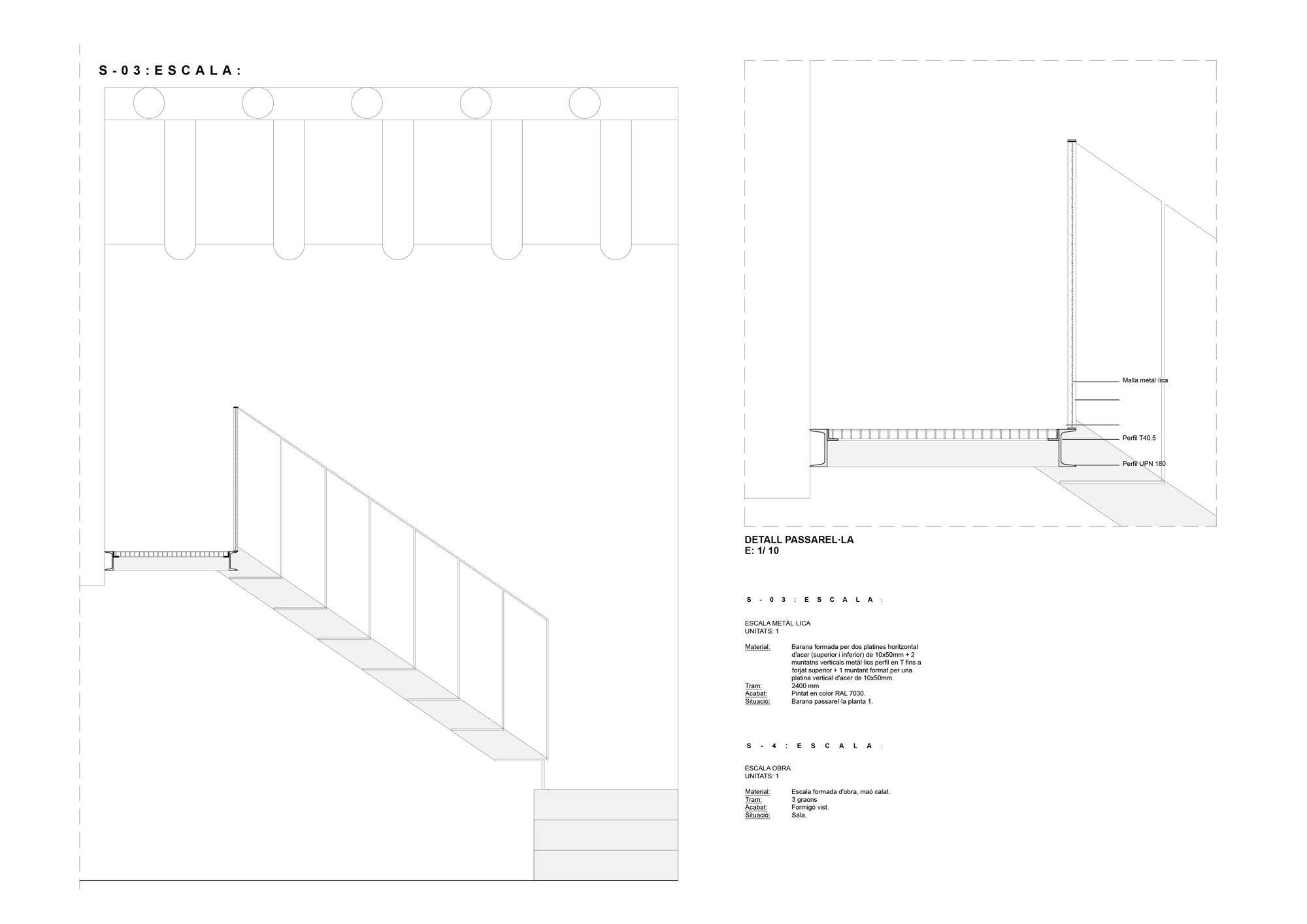

One of the most important client’s requirements at the program level was to provide the house with a double space where the dining-living would be located. To solve the circulation between this space and the upper floor, we made a walkway to allow the light reach the lower floor.

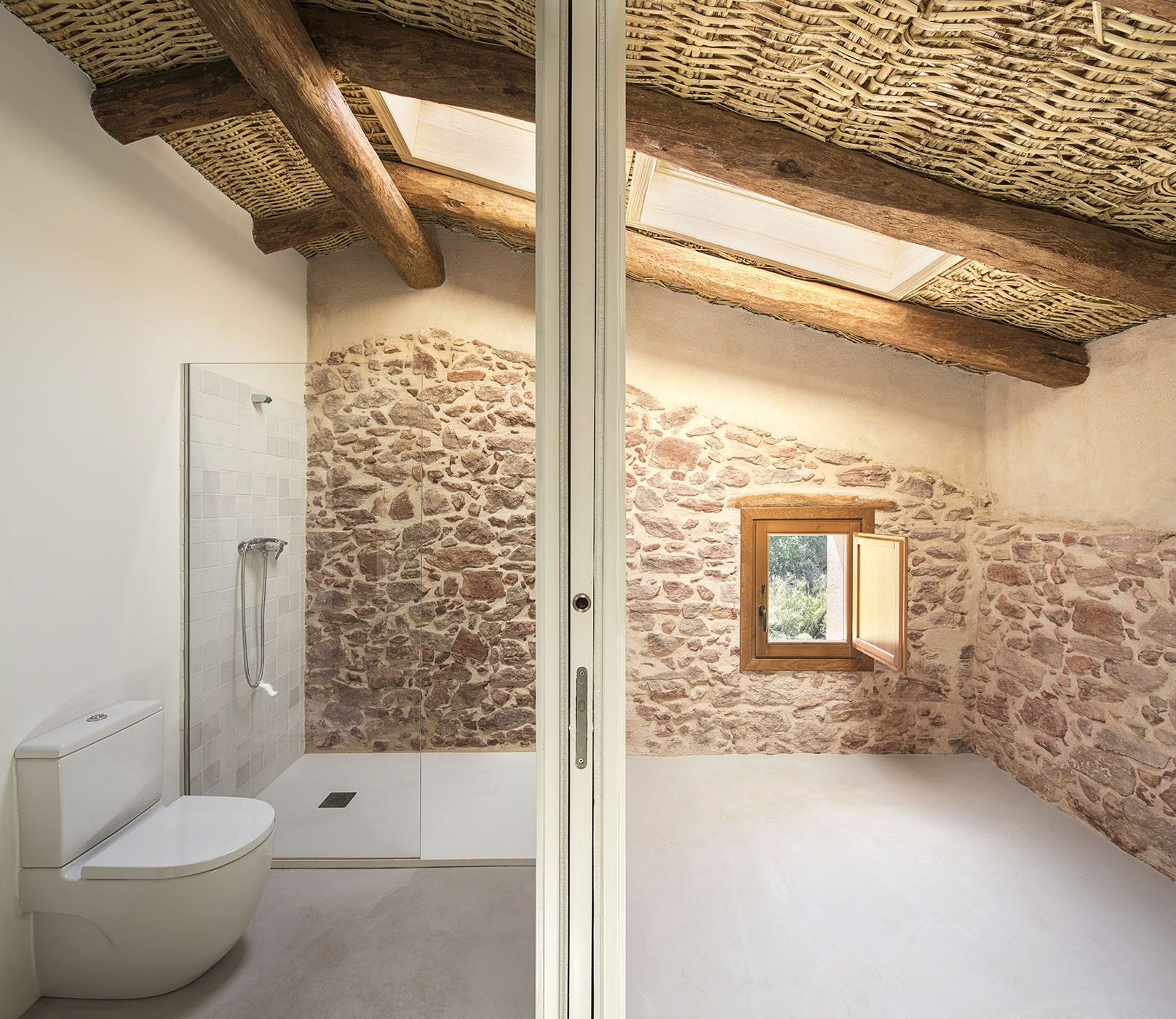

As it is a catalogued façade, we opened just the necessary windows to guarantee a minimum of ventilation in the different rooms of the project. To maximize the entry of light, we have put Velux type windows.

Photography by © DEL RIO BANI

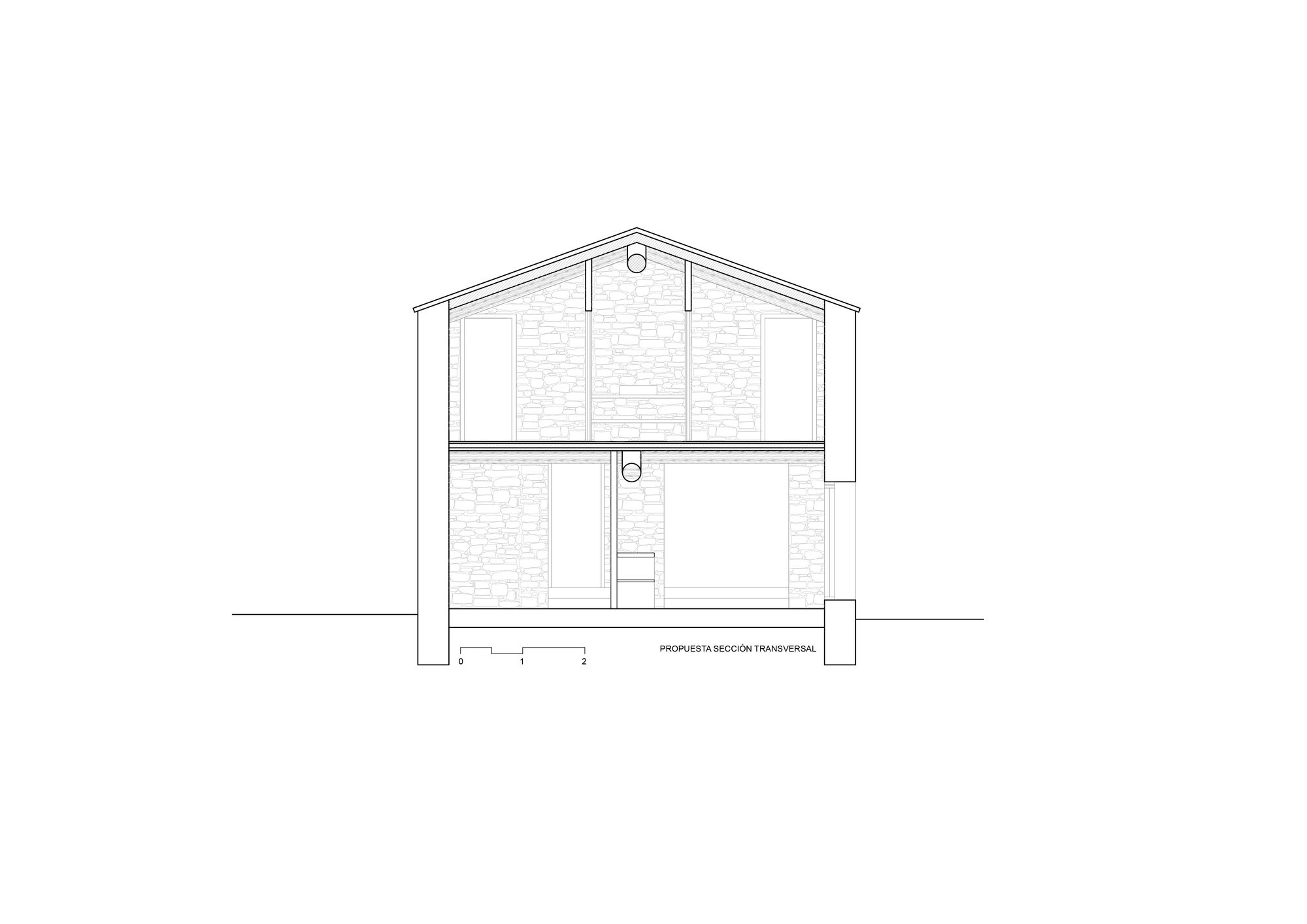

The actions on the structure involved reinforcing the existing slab through a compression layer with connectors in the existing wooden beams and raising the level of the roof with a perimeter ring beam that improves the “tying” with the existing structure.

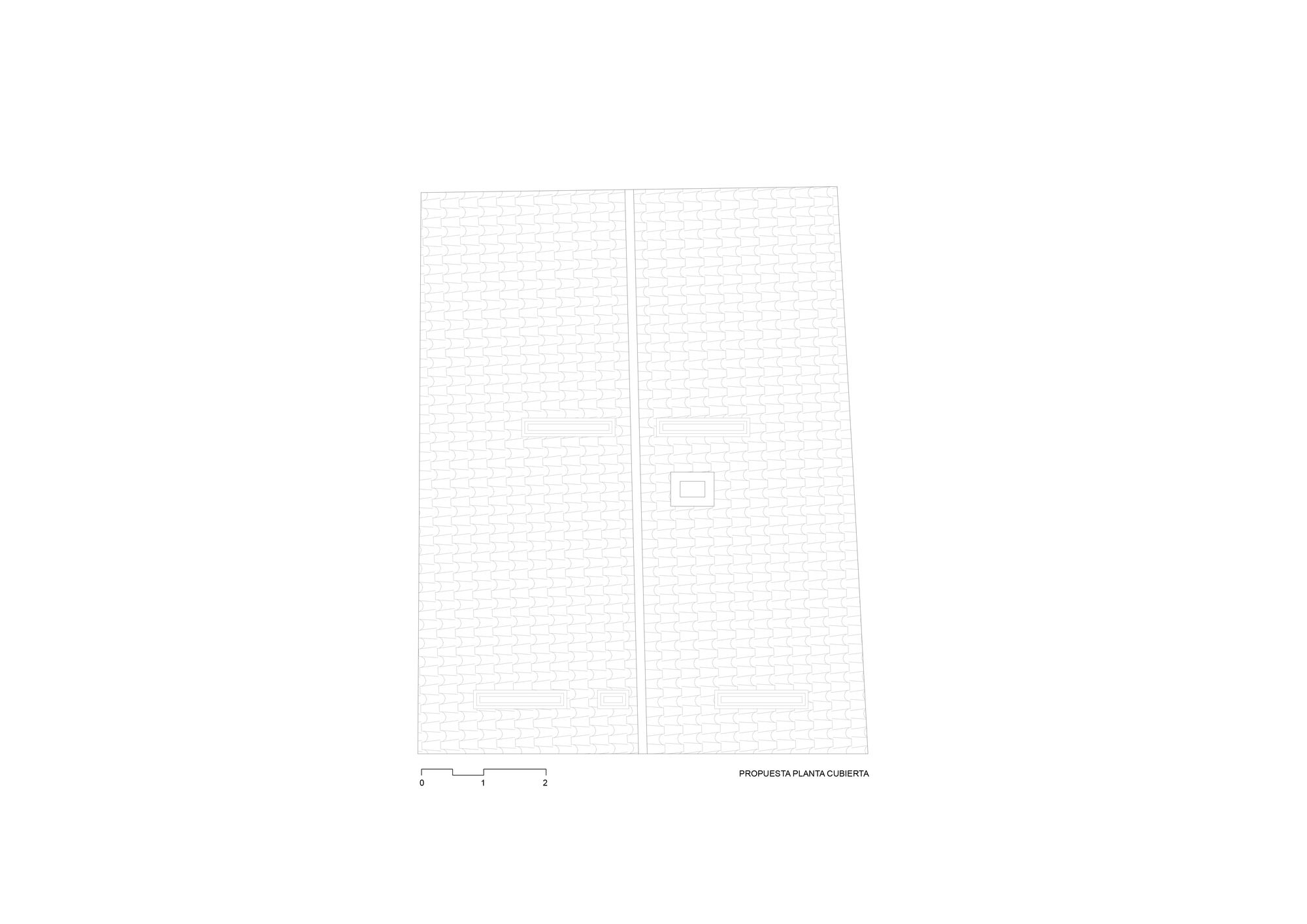

To build the roof, we have recovered the wooden beams and more than 50% of the original roof tiles. At the same time, a lot of isolation thickness was gained to improve the thermal conditions inside.

Another challenge we encountered was that the building didn’t have a connection to the electricity network; therefore we placed photovoltaic panels with batteries that accumulate the energy that the house needs.

Photography by © DEL RIO BANI

Project Info:
Architects: GMO Arquitectura
Location: ElPriorato, Spain
Area: 113 m²
Project Year: 2020
Photographs: DEL RIO BANI
Manufacturers: AutoDesk, Velux
