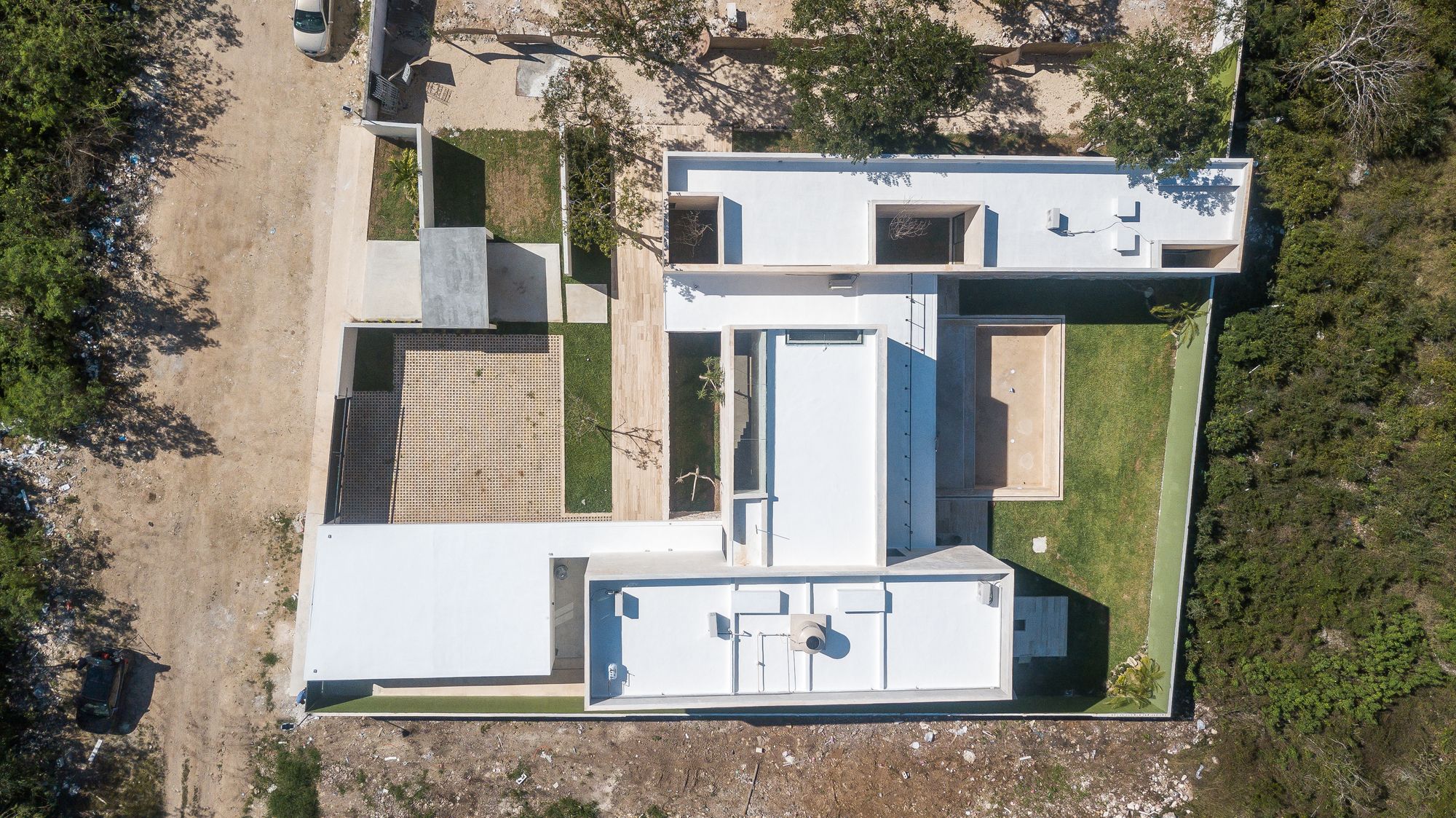

SM house? The proposal consists of a single-family house surrounded by nature. The project is on the north side of the city of Mérida, in an emerging context that is being activated by single-family houses, multi-family apartments, and commercial facilities. The total surface of the plot was divided in two, using one part for the house and the other one for a future project of the family. Both proposals will be connected through a terrace on the south side of the property.

Photography by © Manolo R. Solis

SM House | Quesnel arquitectos

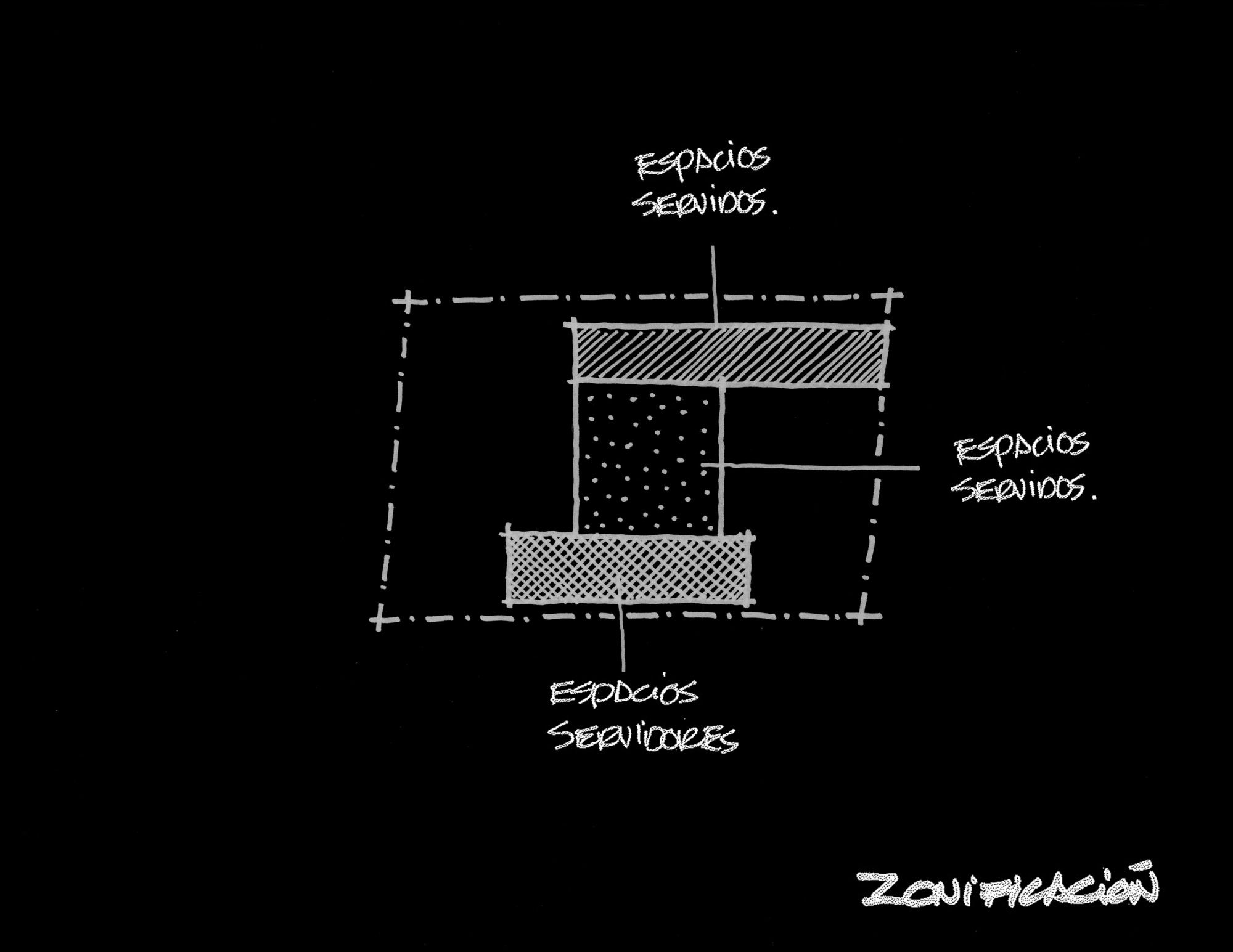

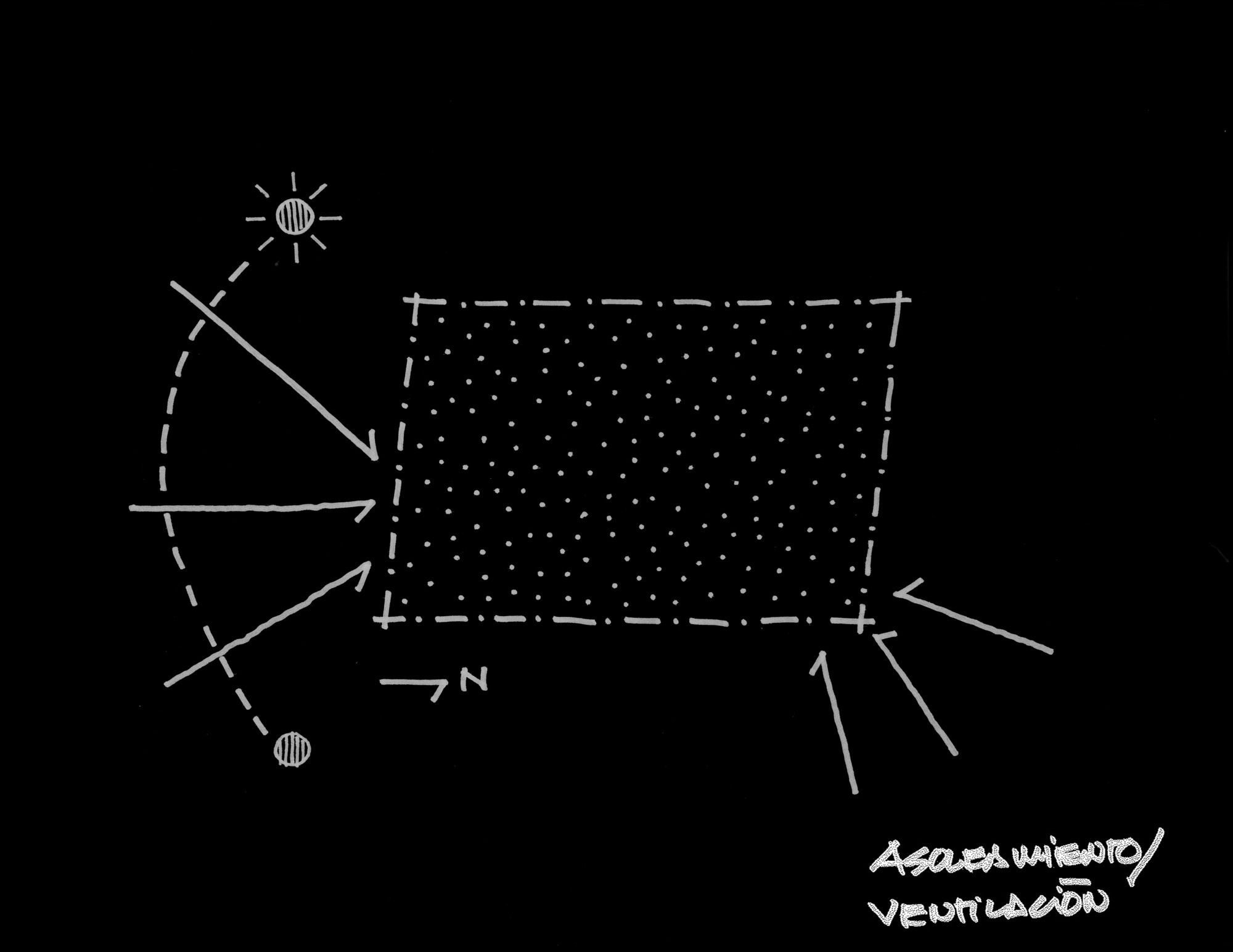

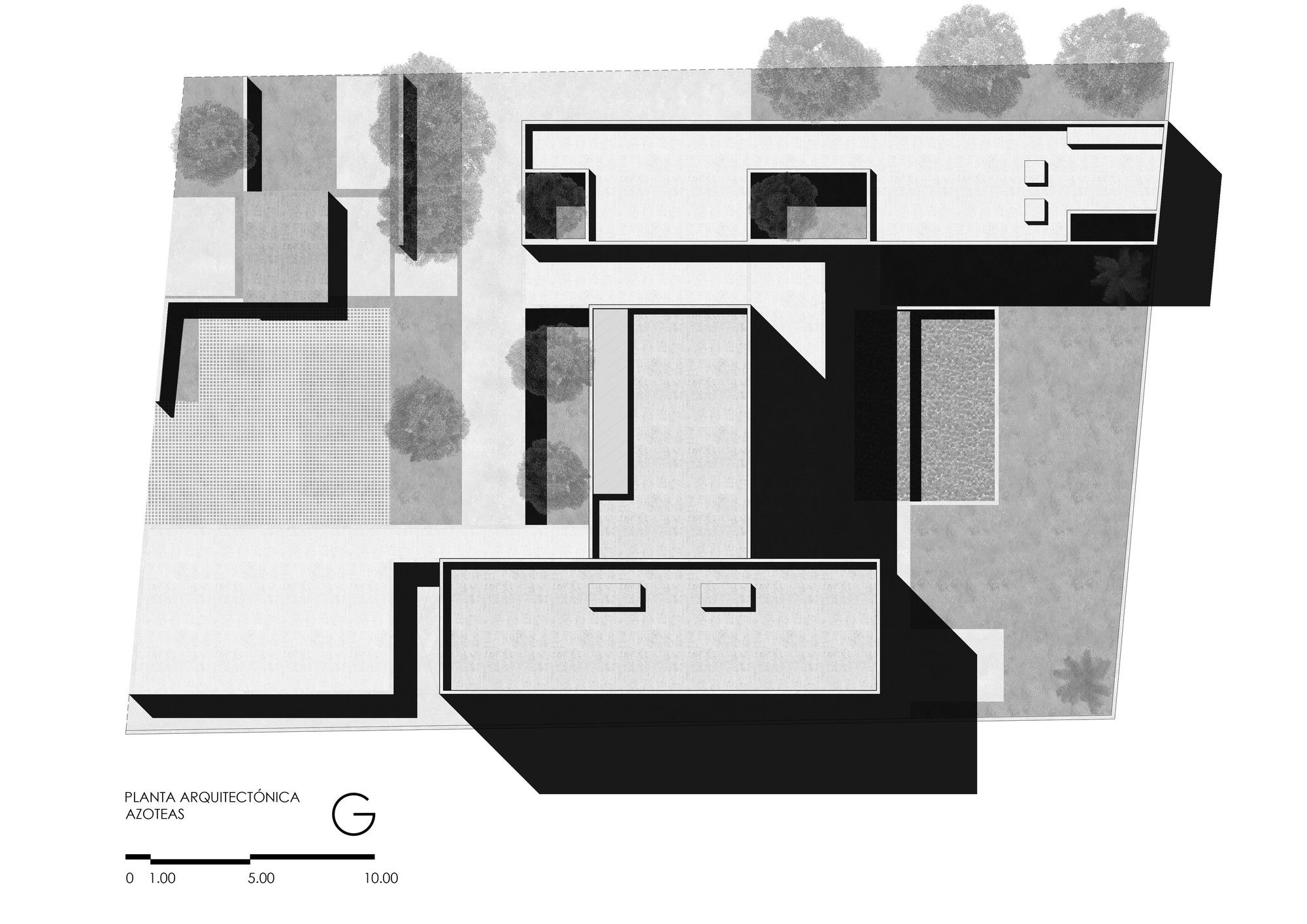

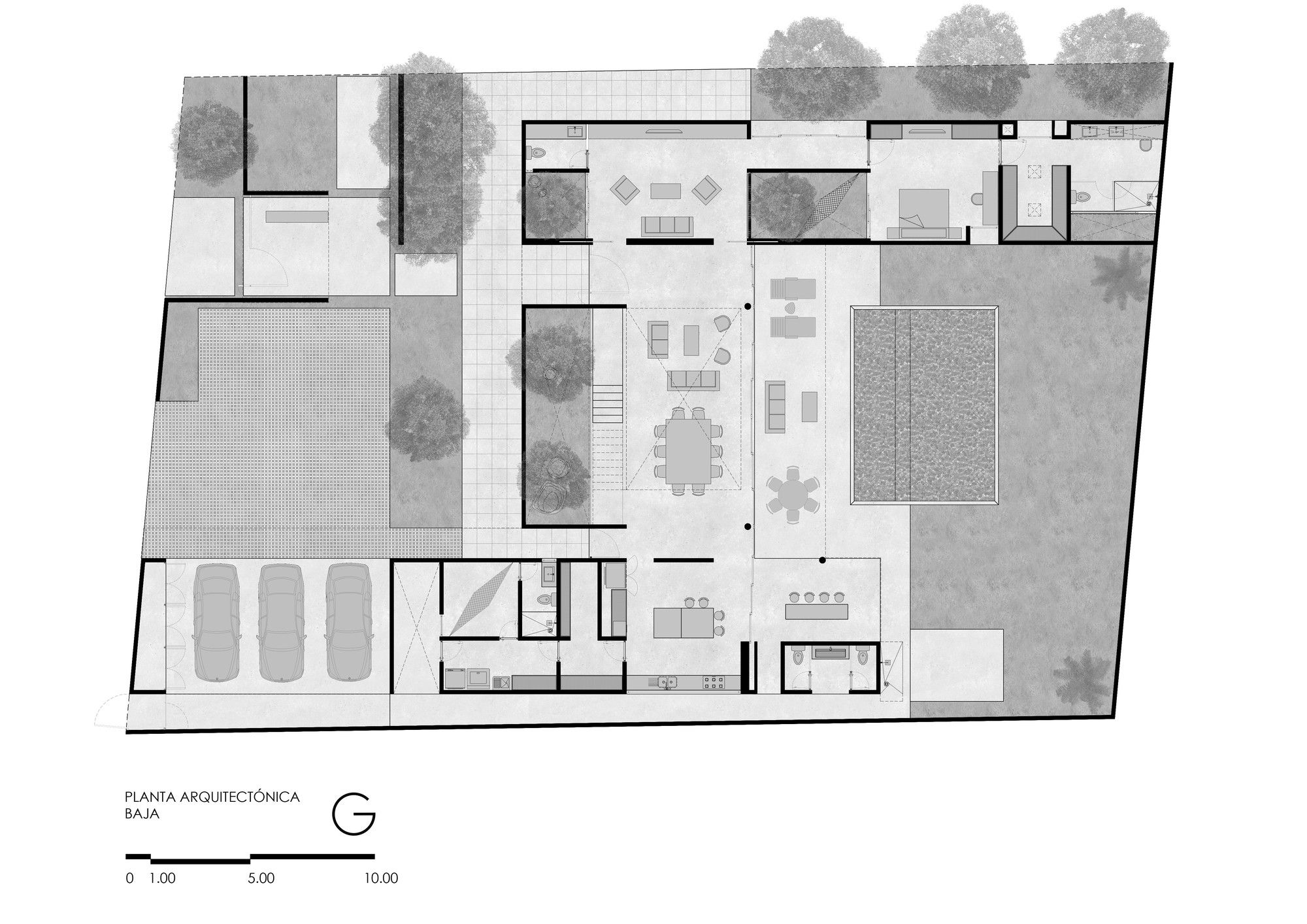

The dwelling activities required by the users were organized according to the relation between them and the level of privacy that each one demands, as well as by the climate of the site. The program is arranged in three volumes facing north to allow natural cross-ventilation to regulate the interior temperature. The openings were defined by the sun’s trajectory aiming towards providing interior spaces with natural indirect lighting.

Photography by © Manolo R. Solis

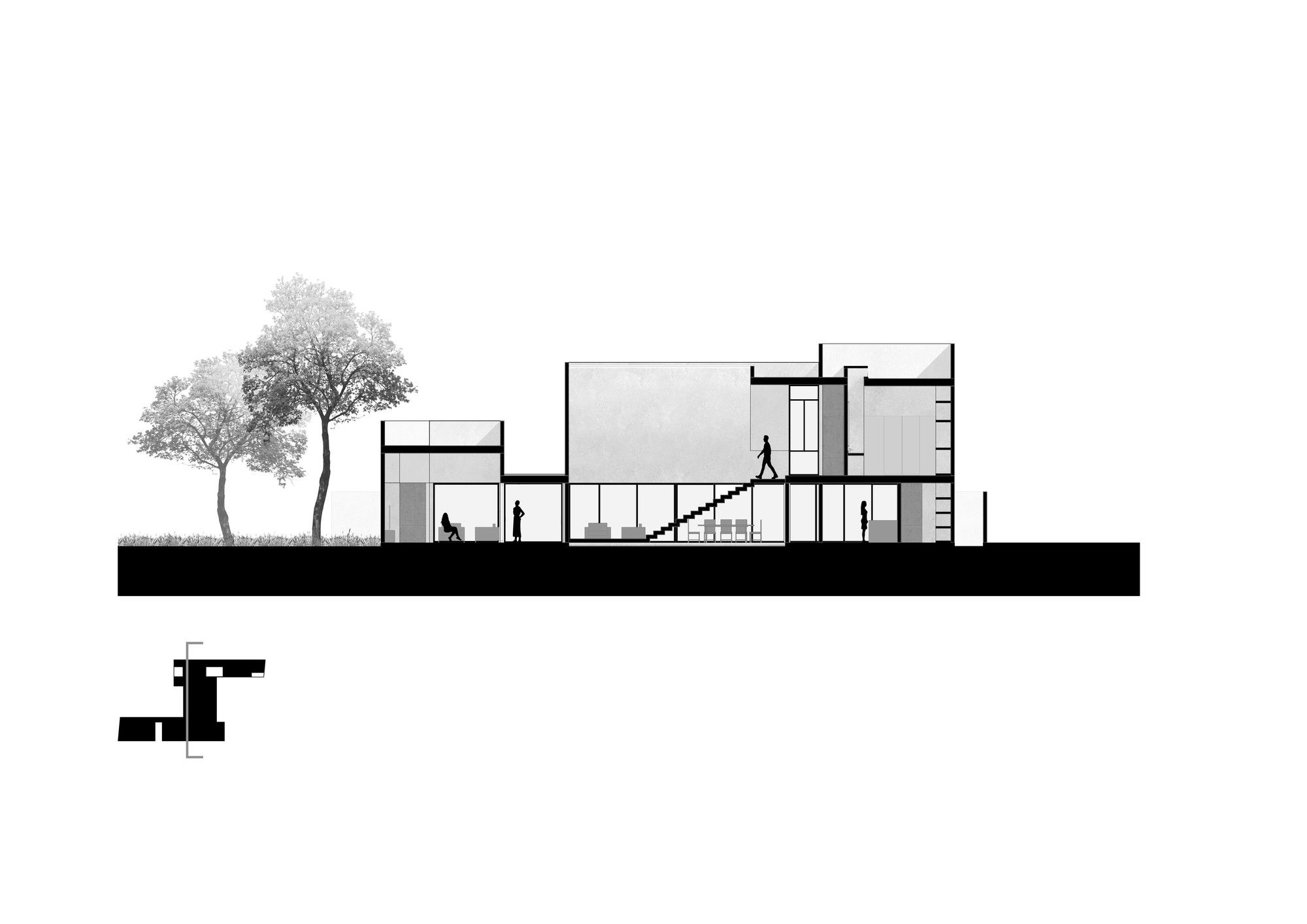

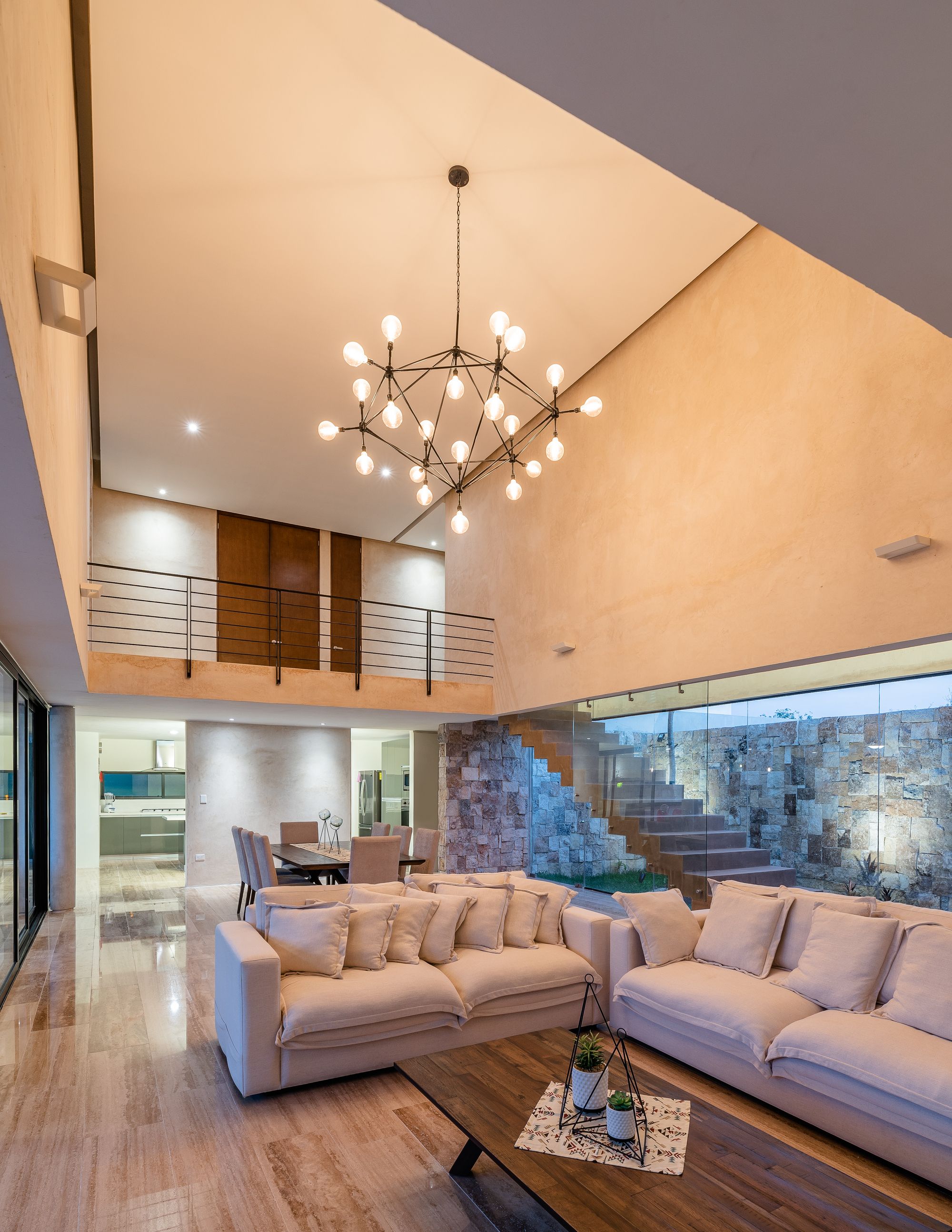

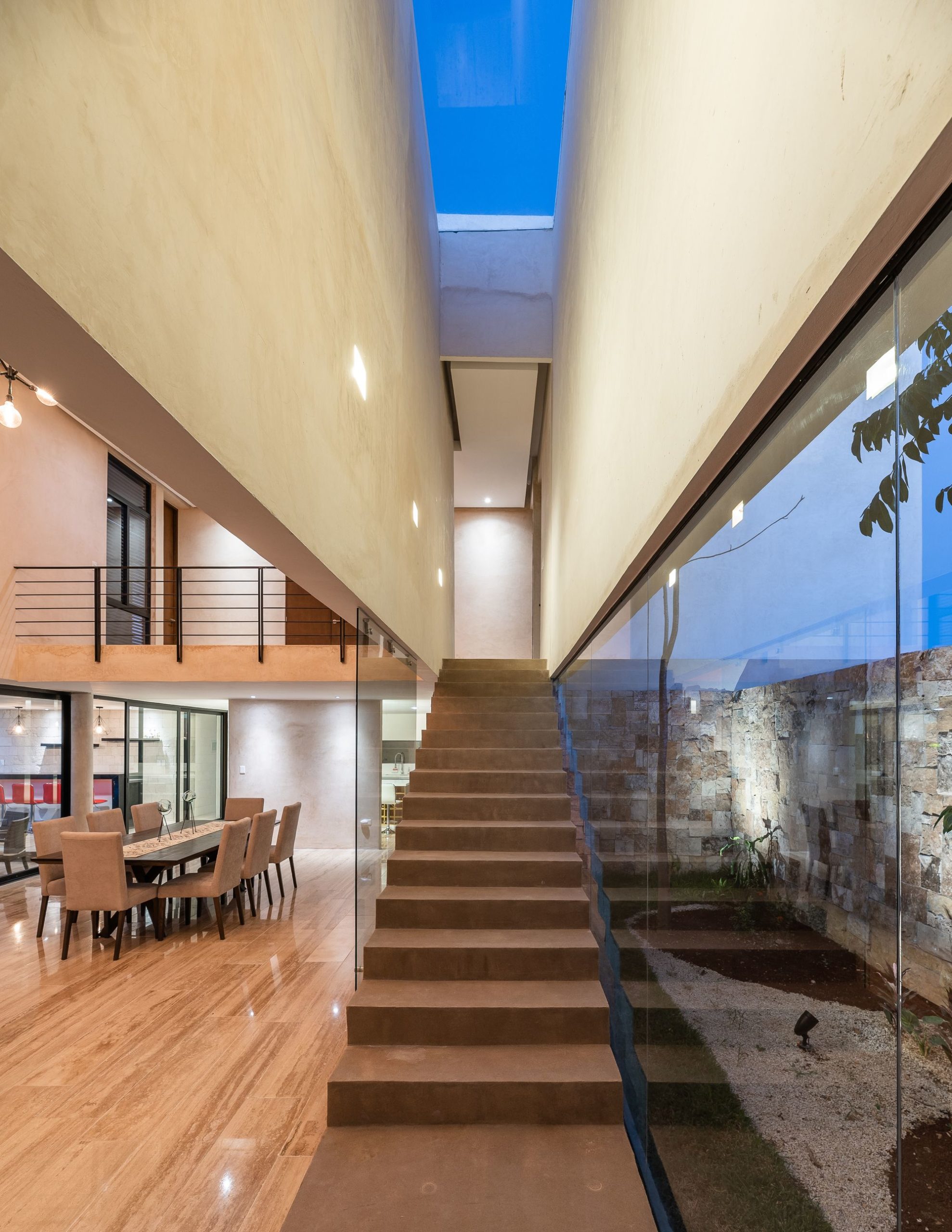

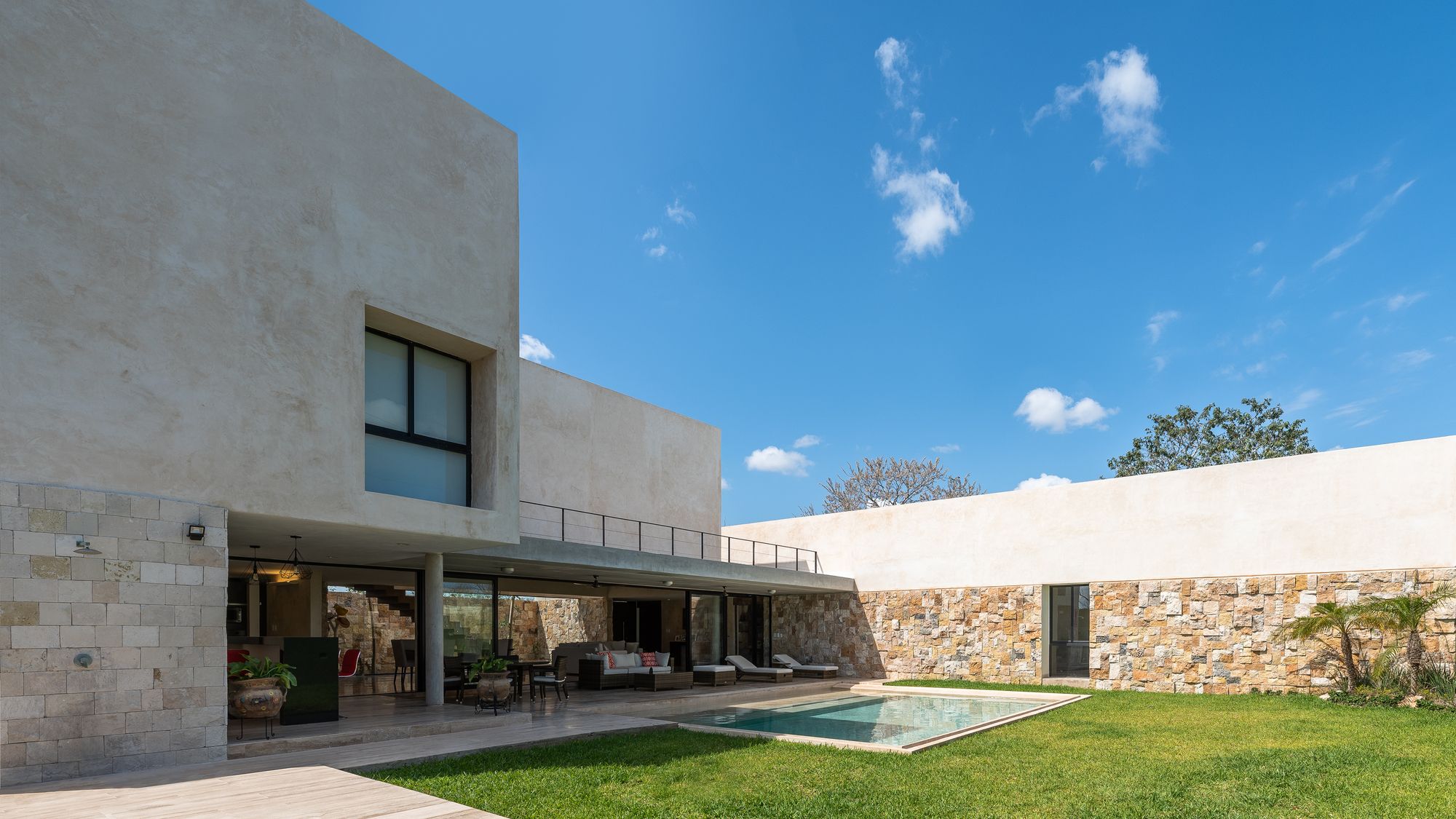

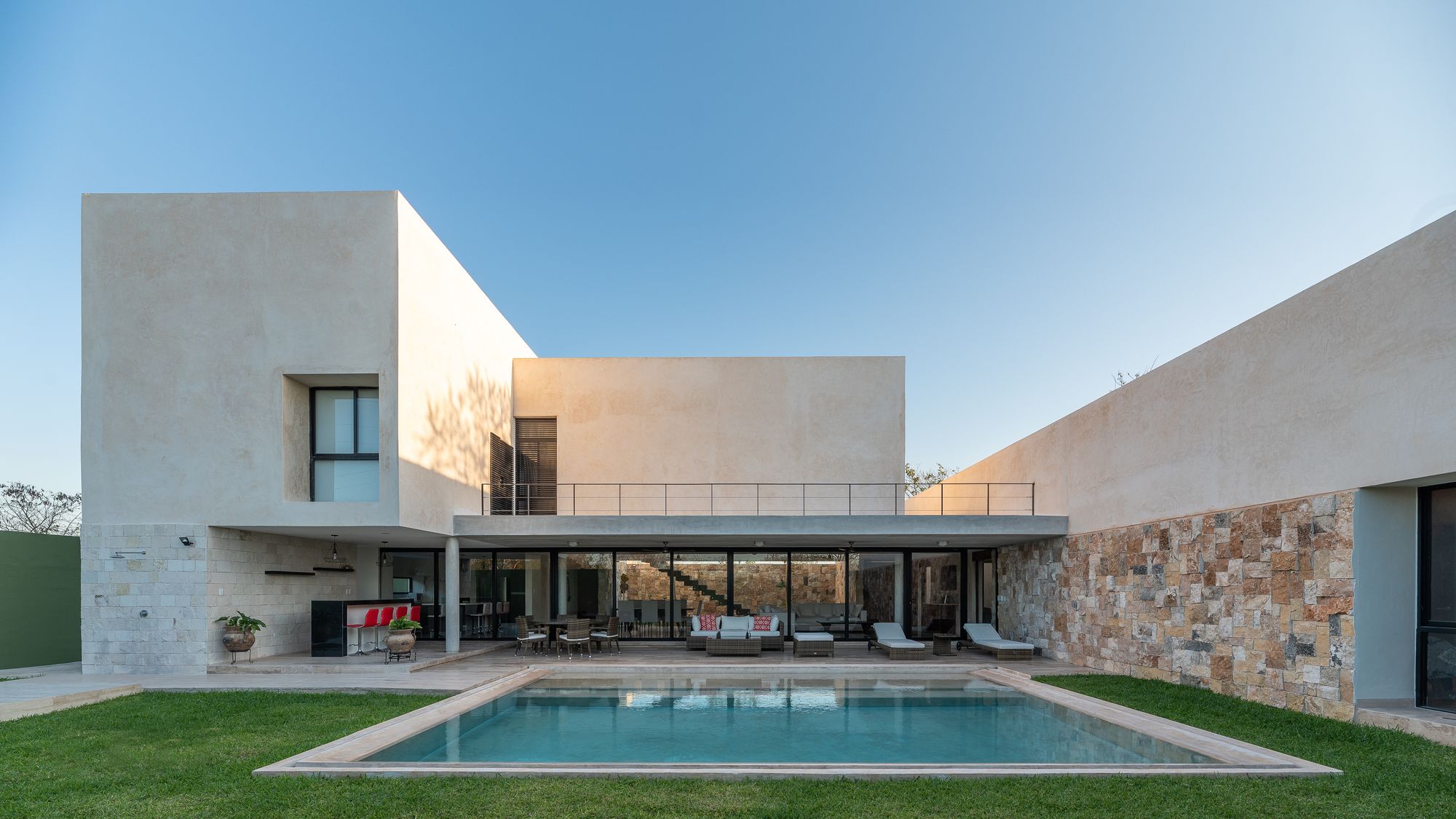

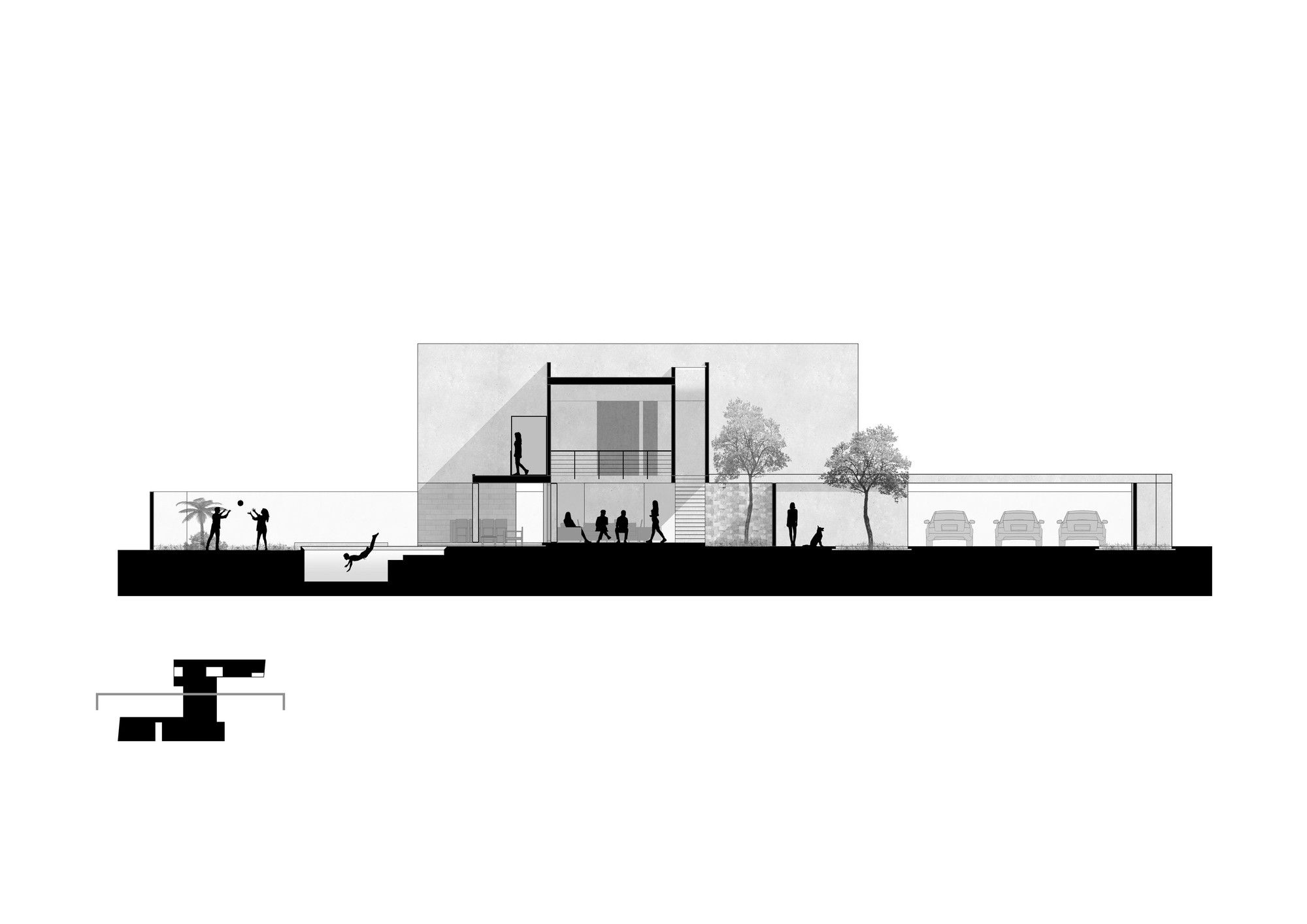

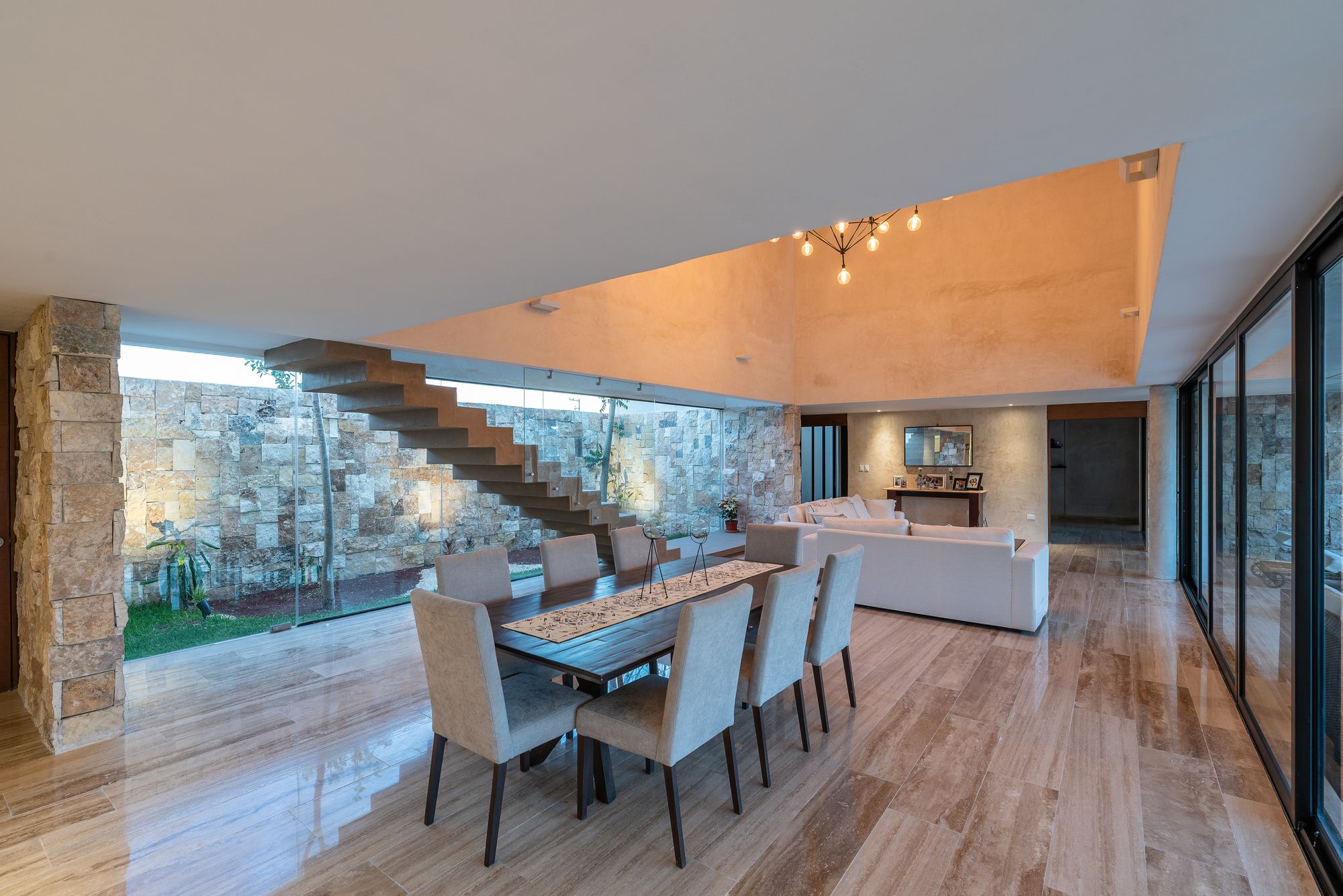

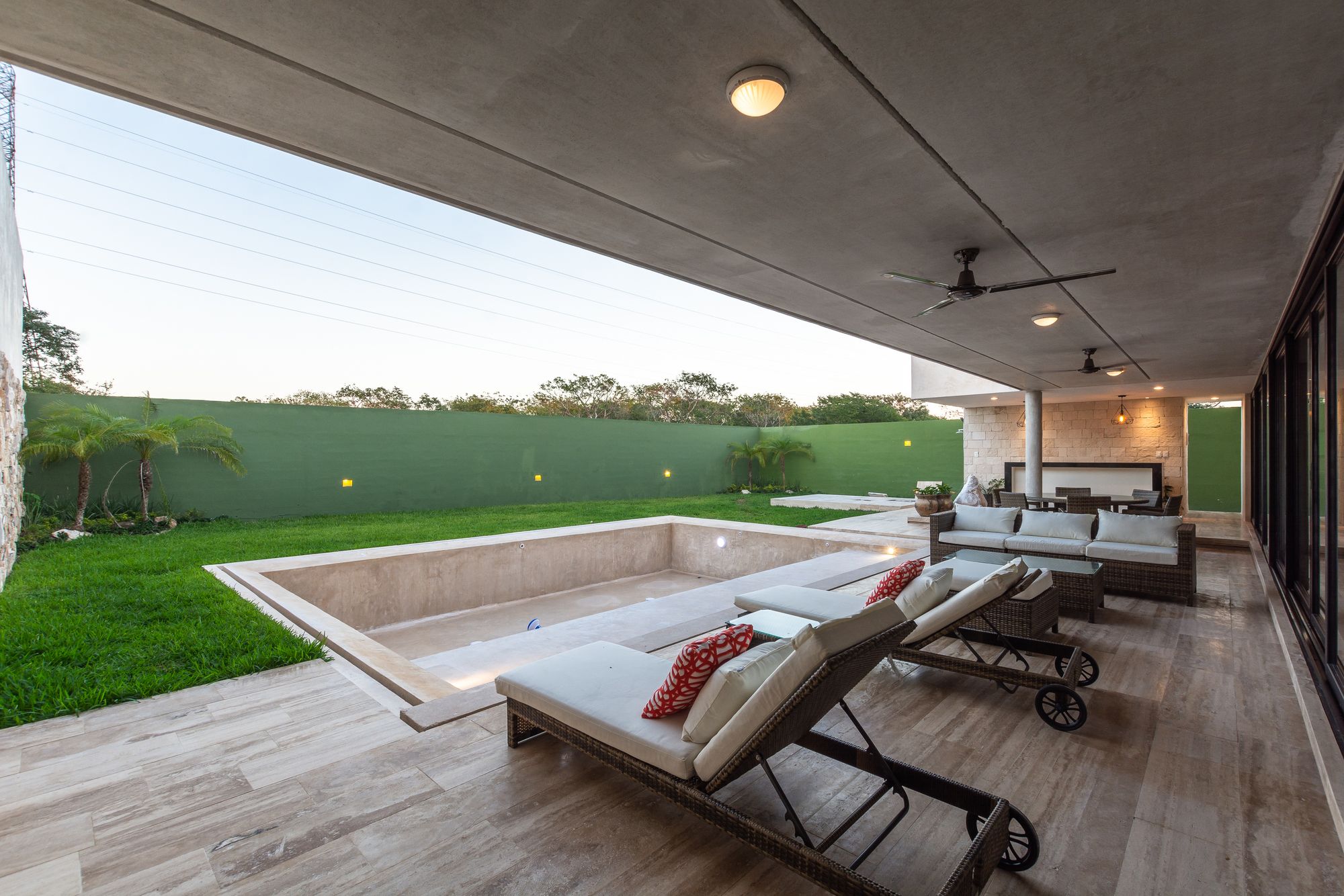

The volumes respond to the activities developed inside of them and are connected with the gardens. The central volume hosts the collective activities and articulates all the interior spaces through a double height that generates two outdoor terraces, one on the ground floor and one on the upper floor. The central volume opens itself towards the back garden and allows physical and visual connections between the public interior and exterior spaces.

Also read:- The best wallpaper types

Photography by © Manolo R. Solis

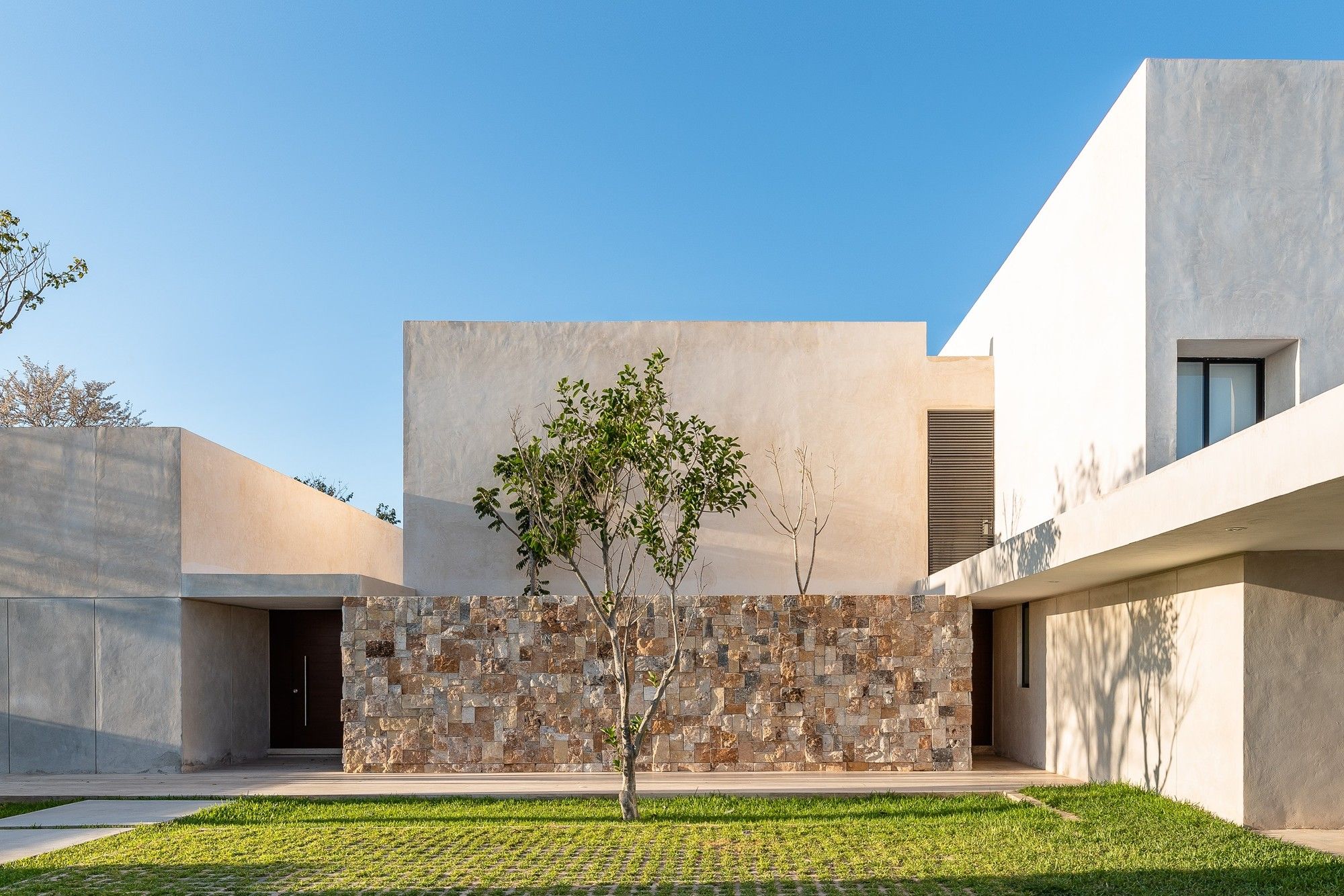

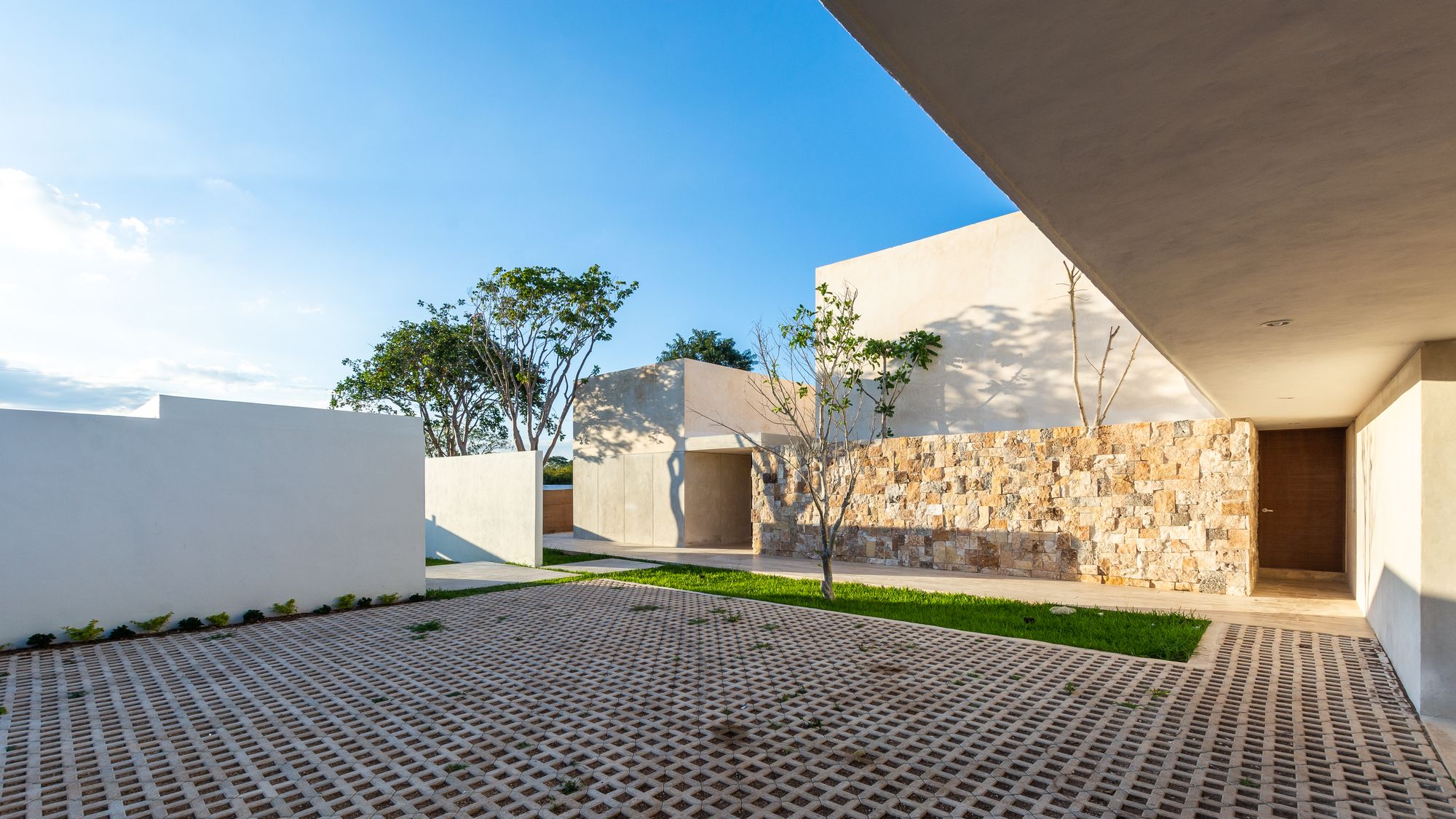

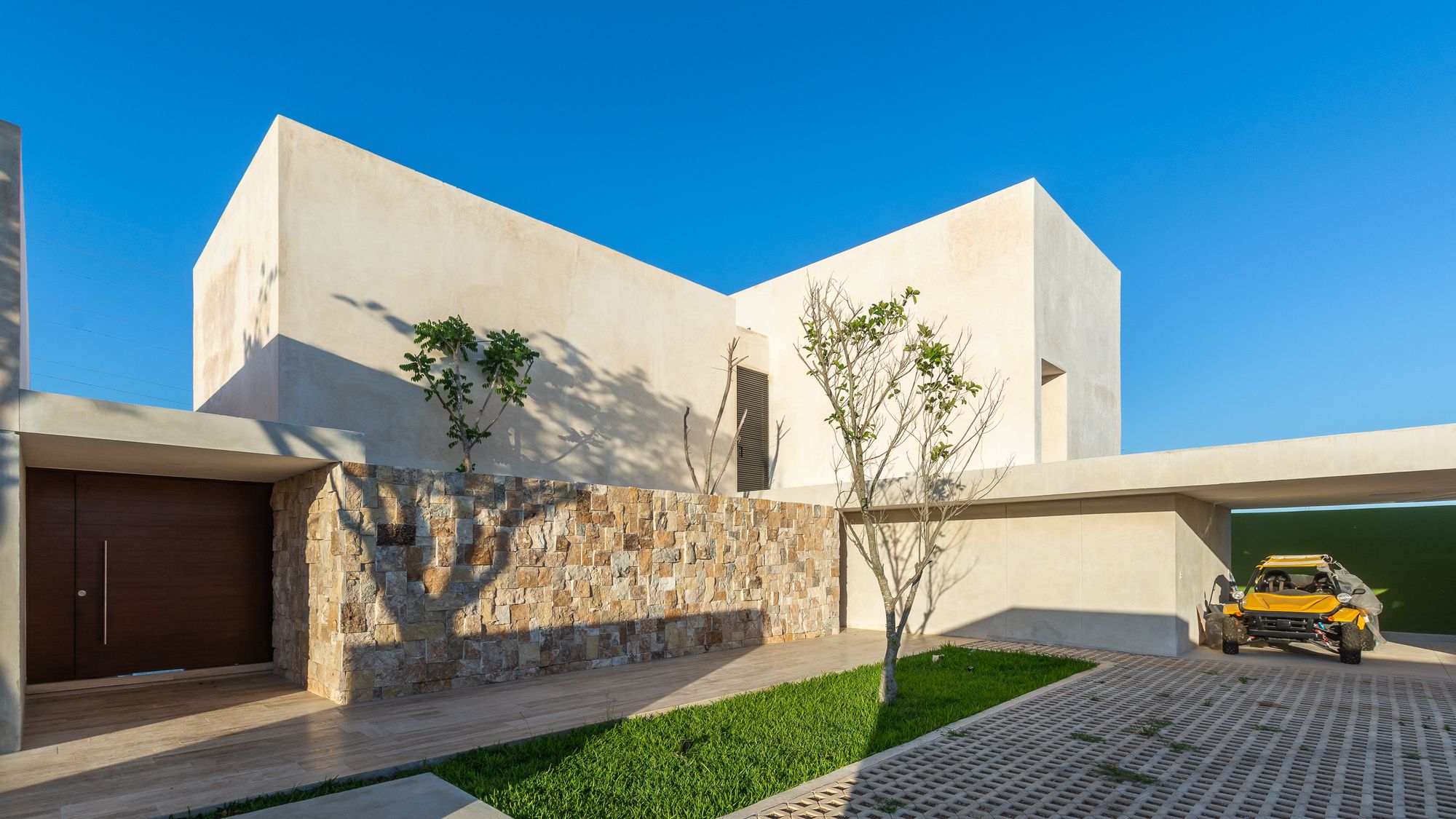

Private activities are developed in solid elements with specific openings that regulate the interaction with the different areas of the house. A sequence of courtyards on the ground floor connects private spaces with nature. Materials are a narrative of the activities that are carried out inside. The stone and concrete surfaces wrap the spaces that require privacy and glass allows visual connections between the volumes and their surroundings.

Also read:- The most popular projects with long-span structures

Photography by © Manolo R. Solis

Project Info:
Architects: Quesnel arquitectos
Location: Merida, Mexico
Area: 538 m²
Project Year: 2018
Photographs: Manolo R. Solis
Manufacturers: SikaComexEUCOMEXInterceramicPinturas Berel
