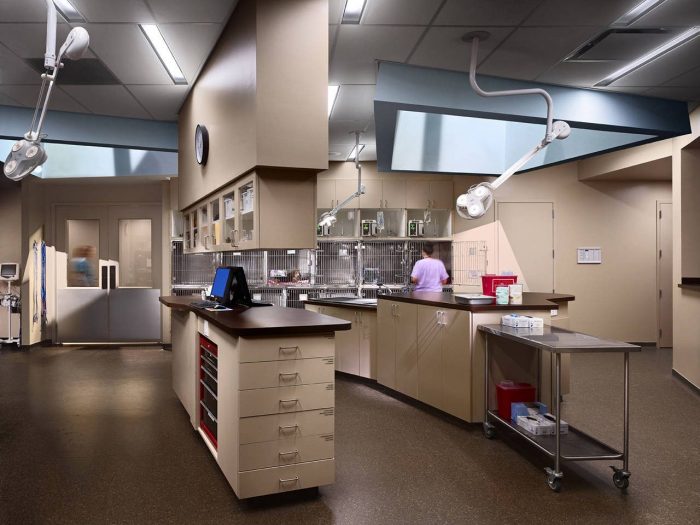

Memphis Veterinary Specialists (MVS) is a referral-based veterinary practice with expertise in emergency surgery, exotic animals, orthopedics, oncology, dermatology, dentistry, and diagnostic treatment. The practice had outgrownits location in a retail shopping center and needed a freestanding building for their growing practice. Continuous 24-7 treatment and care for animal patients created programmatic needs that are very similar to a human hospital, including: treatment, surgery, specialty procedure rooms, recovery, and intensive care areas.

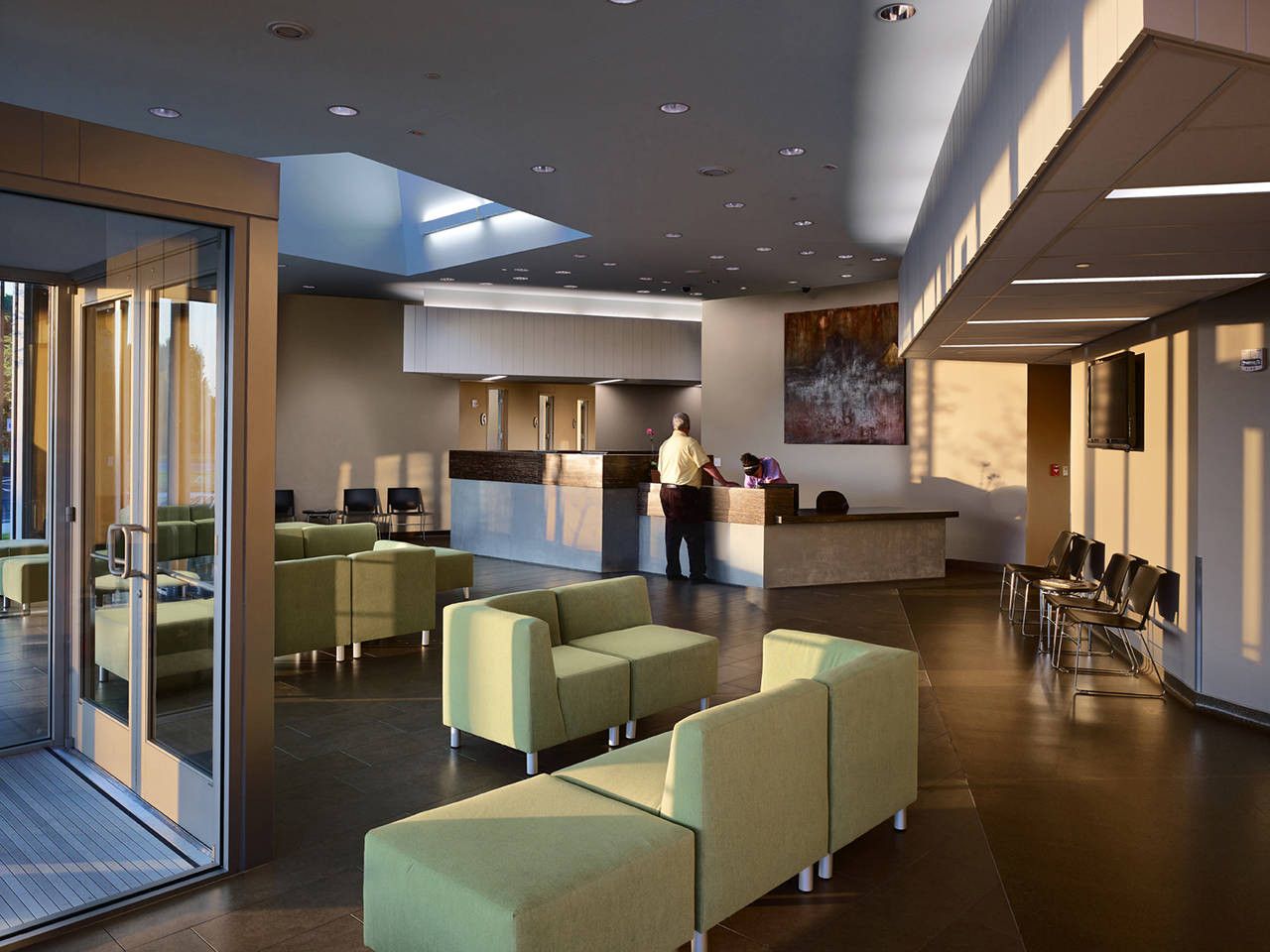

Courtesy of Archimania – Photographs : Jeffrey Jacobs

During the architectural interview process, the client provided plans and exterior renderings of the building, drawn by their lead surgeon. These drawings were used as evaluation criteria for the architect’s schematic design work. This dynamic provided the basis for the collaborative dialogue surrounding the building’s design. The client’s main goal was to provide an efficient work space for the staff that maximized their ability to care for their animal patients. Other goals for the project included: responsibility to a tight budget, an aggressive schedule, and the environment.

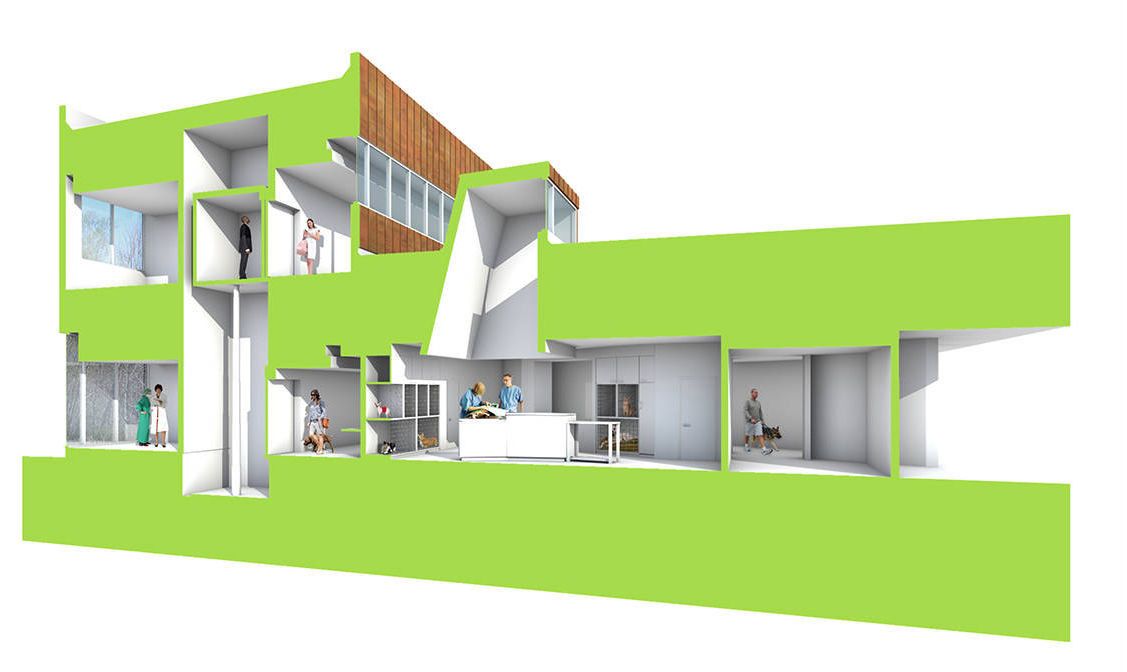

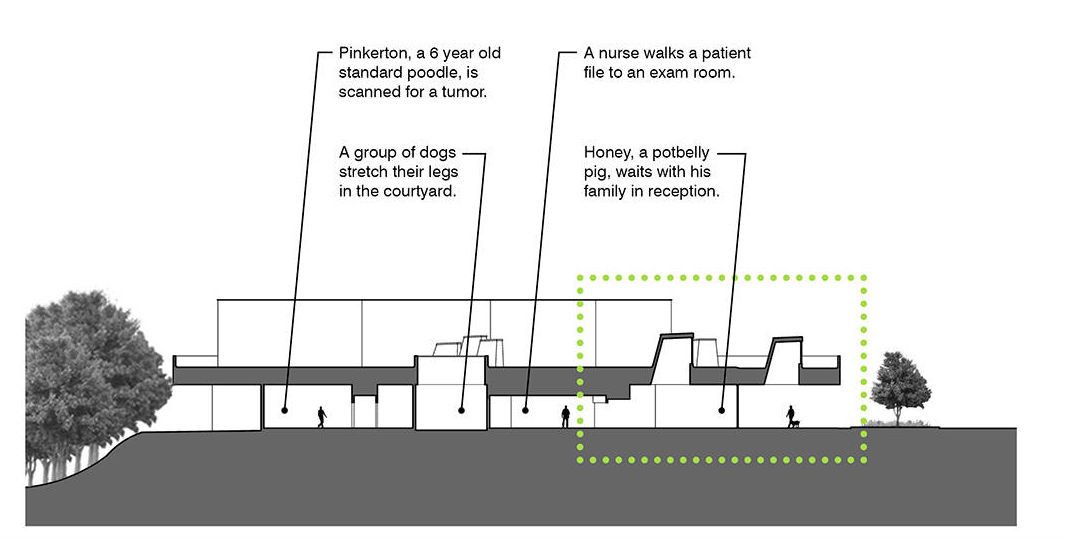

Courtesy of Archimania – Section

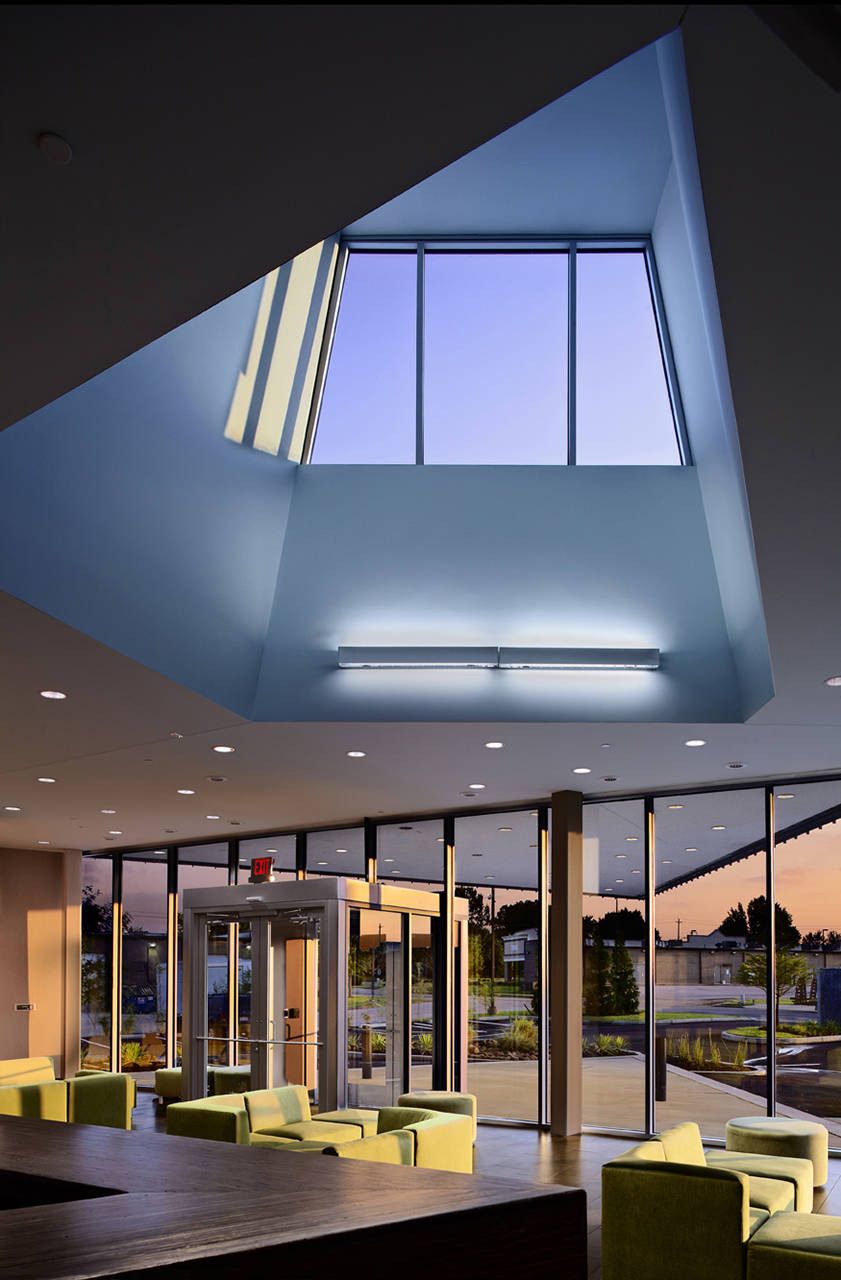

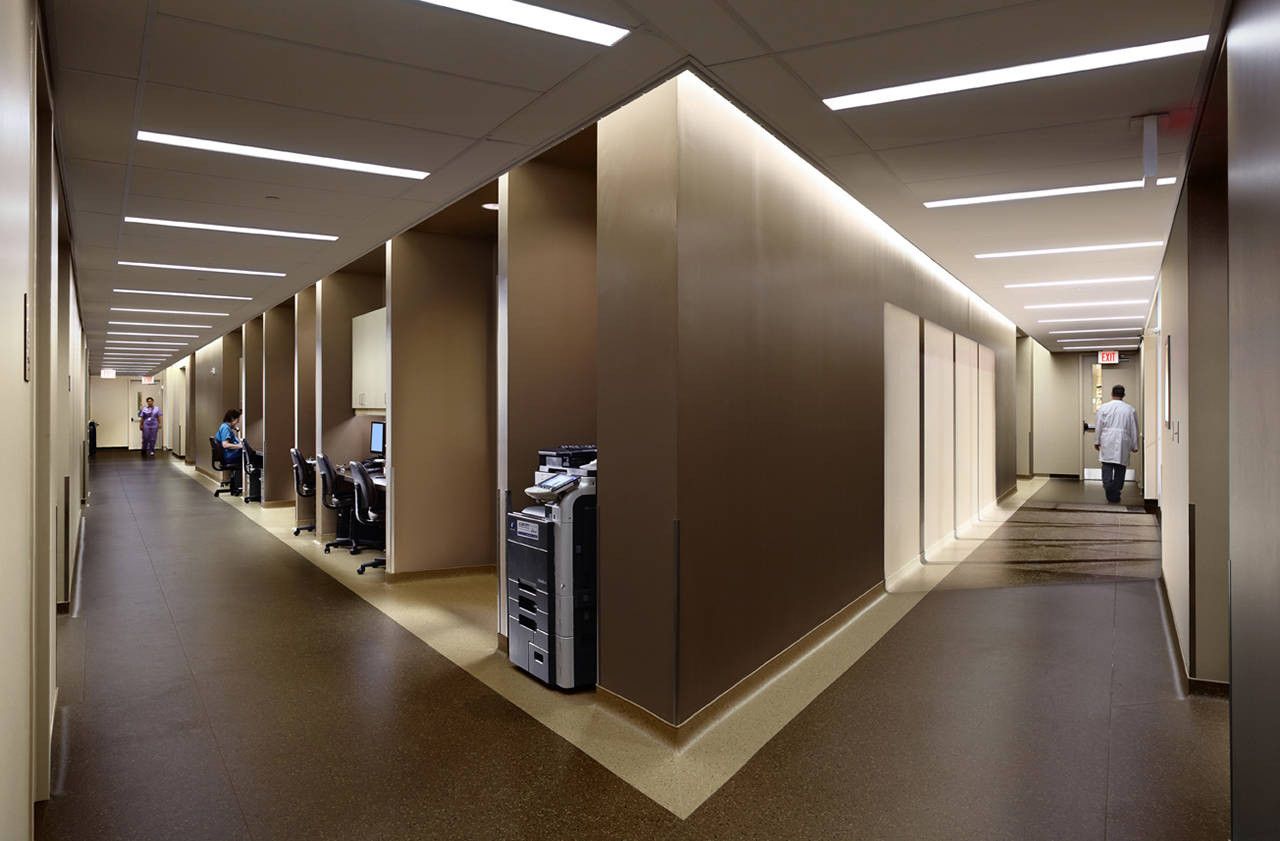

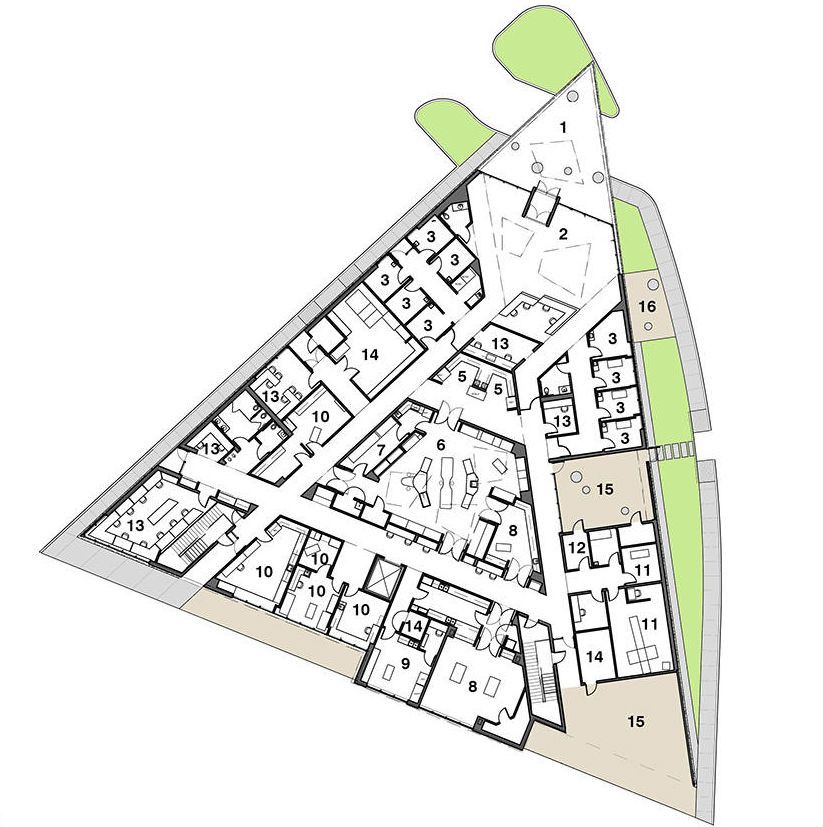

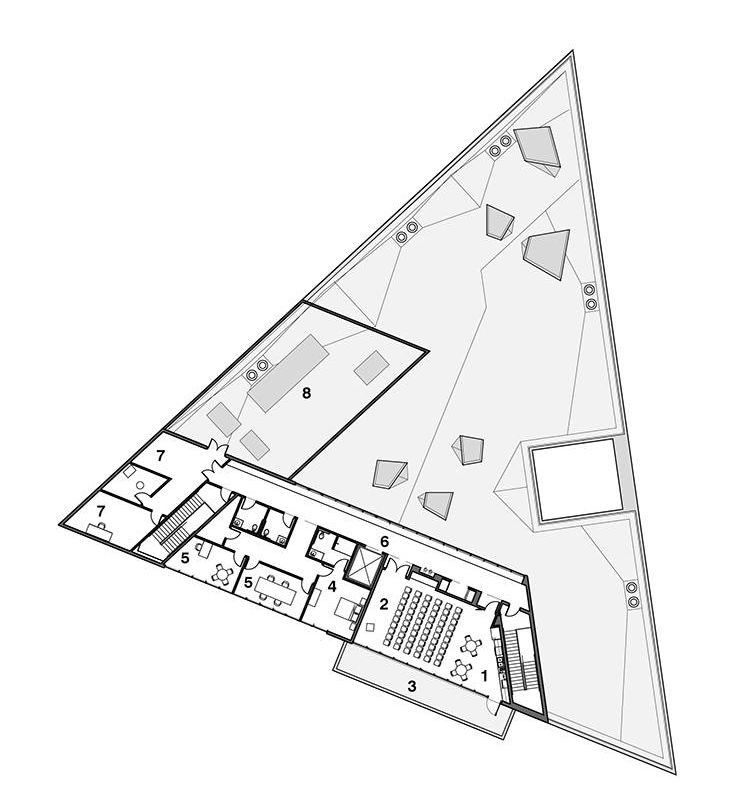

The building’s shape was created by reconciling the constraints of the site with the program. Interior spaces for surgery, specialty procedure, and support were wrapped around the main treatment area at the core of the building. The building’s cantilevered entrance and light monitors are oriented northward to provide optimal day lighting and to address the main access road. The landscape of the creek that borders the southwest portion of the site became a counterpoint to the building’s mass. Attention was given to how interior spaces viewed the creek and how a space could be made between the tree line of the creek and the building.

Courtesy of Archimania – Photographs : Jeffrey Jacobs

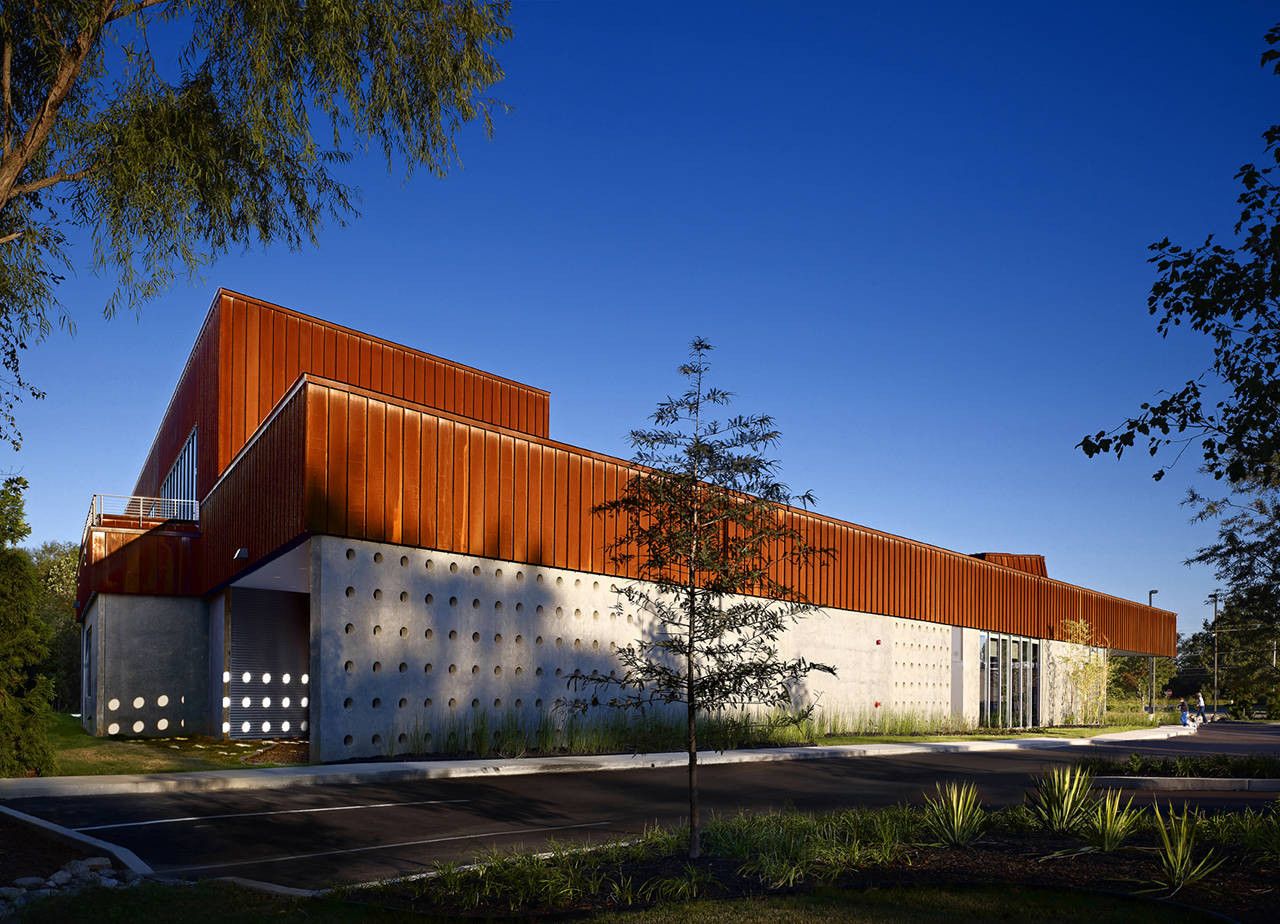

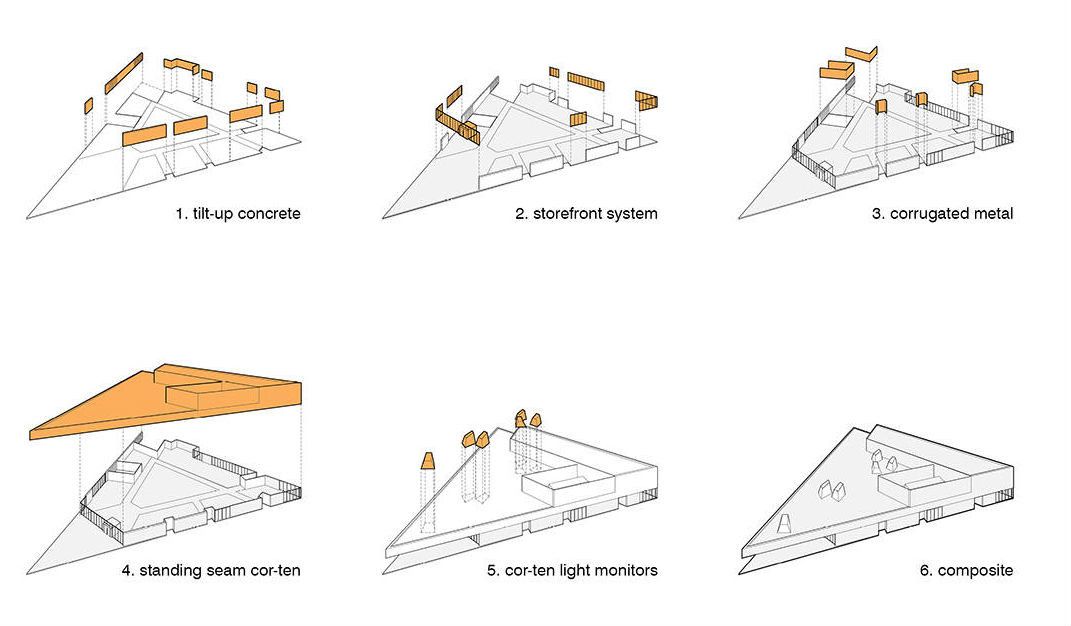

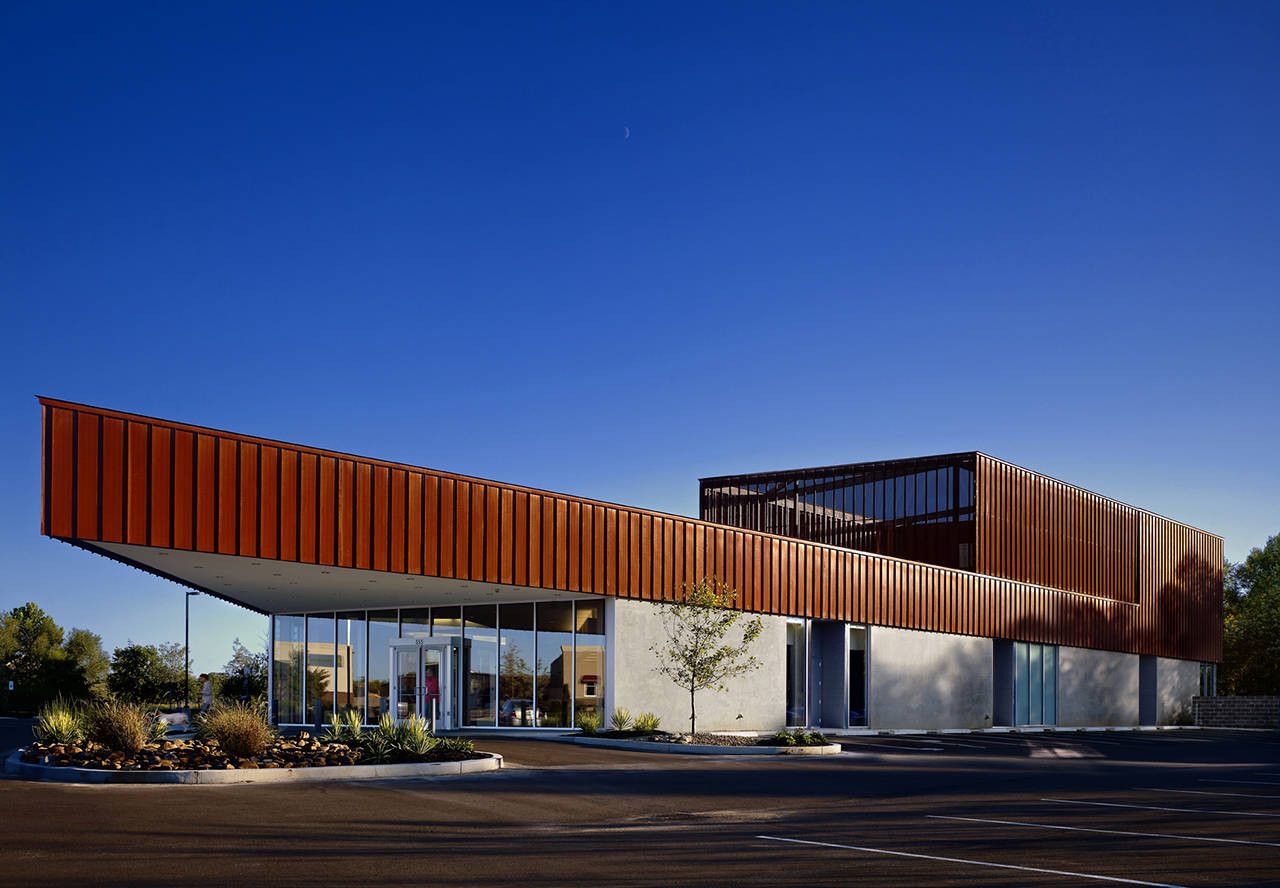

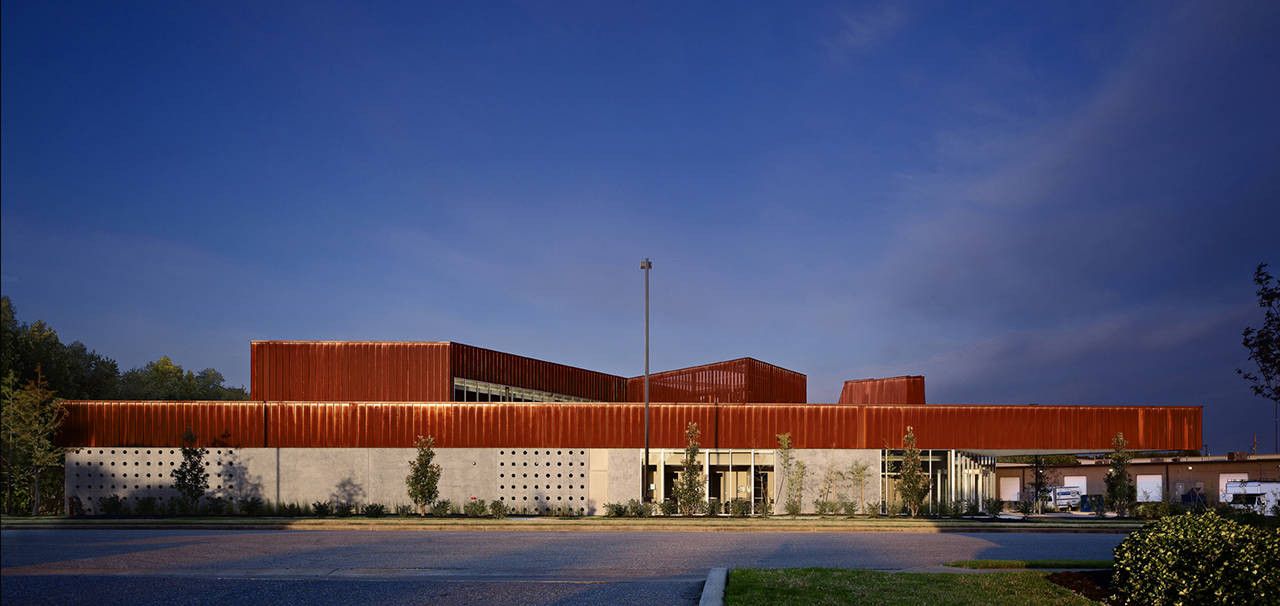

The building’s volume is broken into two primary parts: a concrete base with corrugated metal and storefront infill, and a weathering steel ‘cap’ that articulates the triangular shape and hovers above the main entrance.At the building’s base, the corrugated metal panels are used as a counterpoint to the glass and concrete panels. The darker color and heavier texture of the corrugatedpanelsallow themto recede from the lighter and more reflective surfaces of the concrete and glass.

Courtesy of Archimania – Photographs : Jeffrey Jacobs

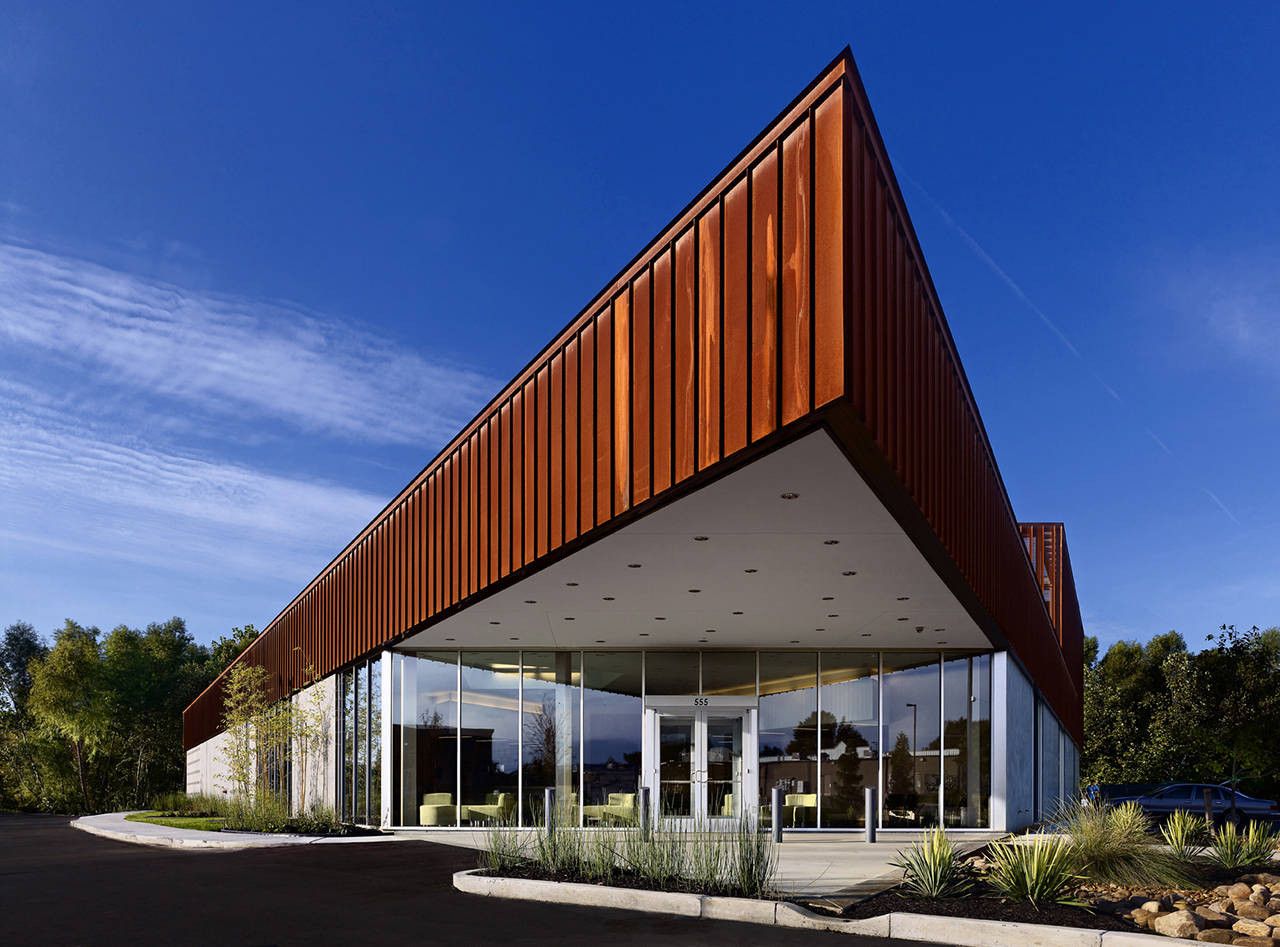

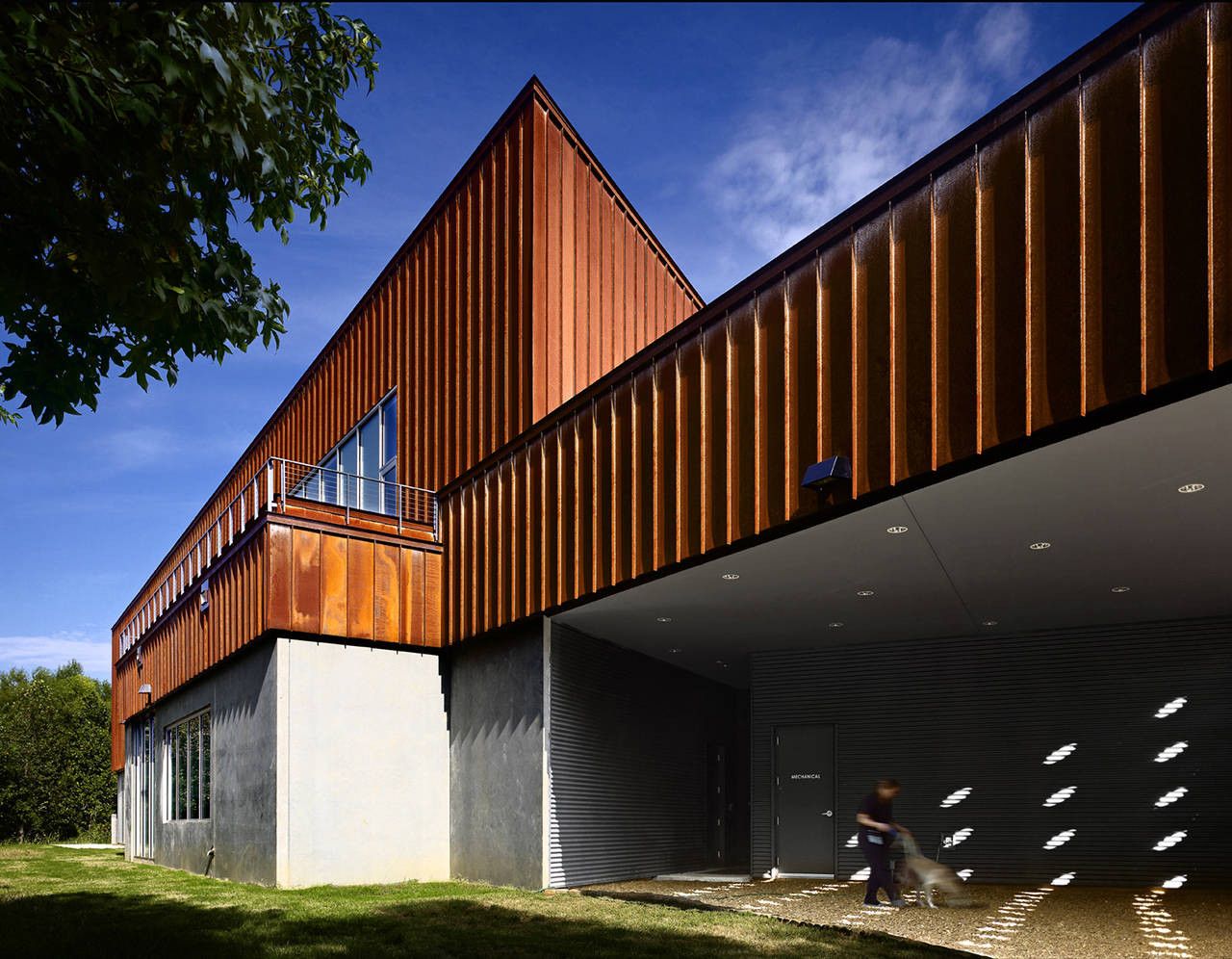

The weathering steel cap is comprised of standing seam cor-ten panels, whose seams are oriented vertically to accentuate the volume of the parapet and second floor. The rooftop equipment is wrapped in perforated standing seam panels, to provide ventilation while enhancing the monolithic scale of the building’s cap.

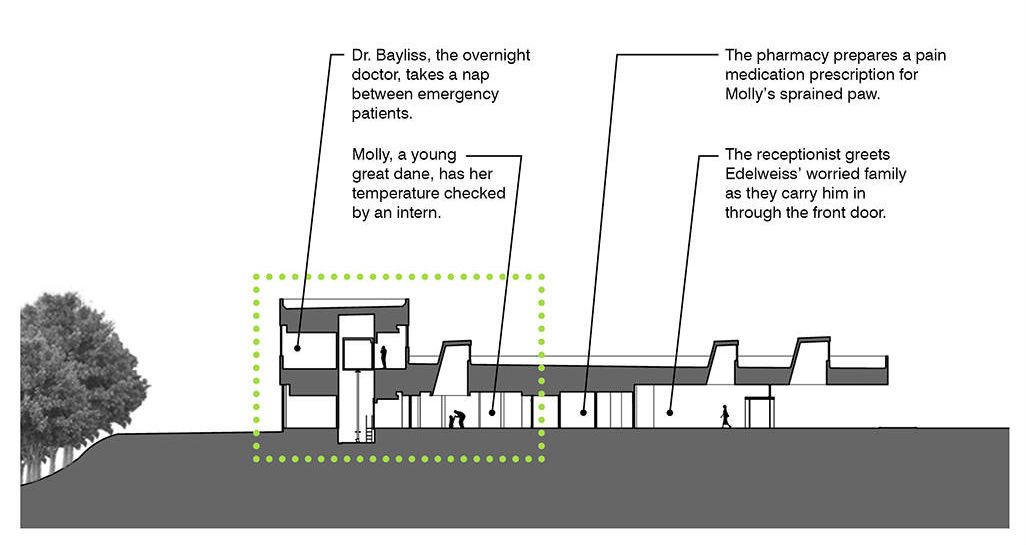

Courtesy of Archimania – Section

Project Info :

Architects : Archimania
Project Area : 18323.0 ft2
Construction Cost : $3.219.900
Owner/Client : Tobias and Associates
Photographs : Jeffrey Jacobs
Project Location : Cordova, Tennessee, United States
