Madison House | XTEN Architecture

The Madison house is perched on a knoll in La Quinta, California, near Palm Springs. In order to shelter the house from extreme desert conditions, the massing and materiality are configured to protect against the sun and strong Northerly winds. Concurrently the house opens completely along an East-West axis culminating in a spectacular indoor-outdoor living space with full height glass walls that slide away to embrace the desert landscape, light and mountain views.

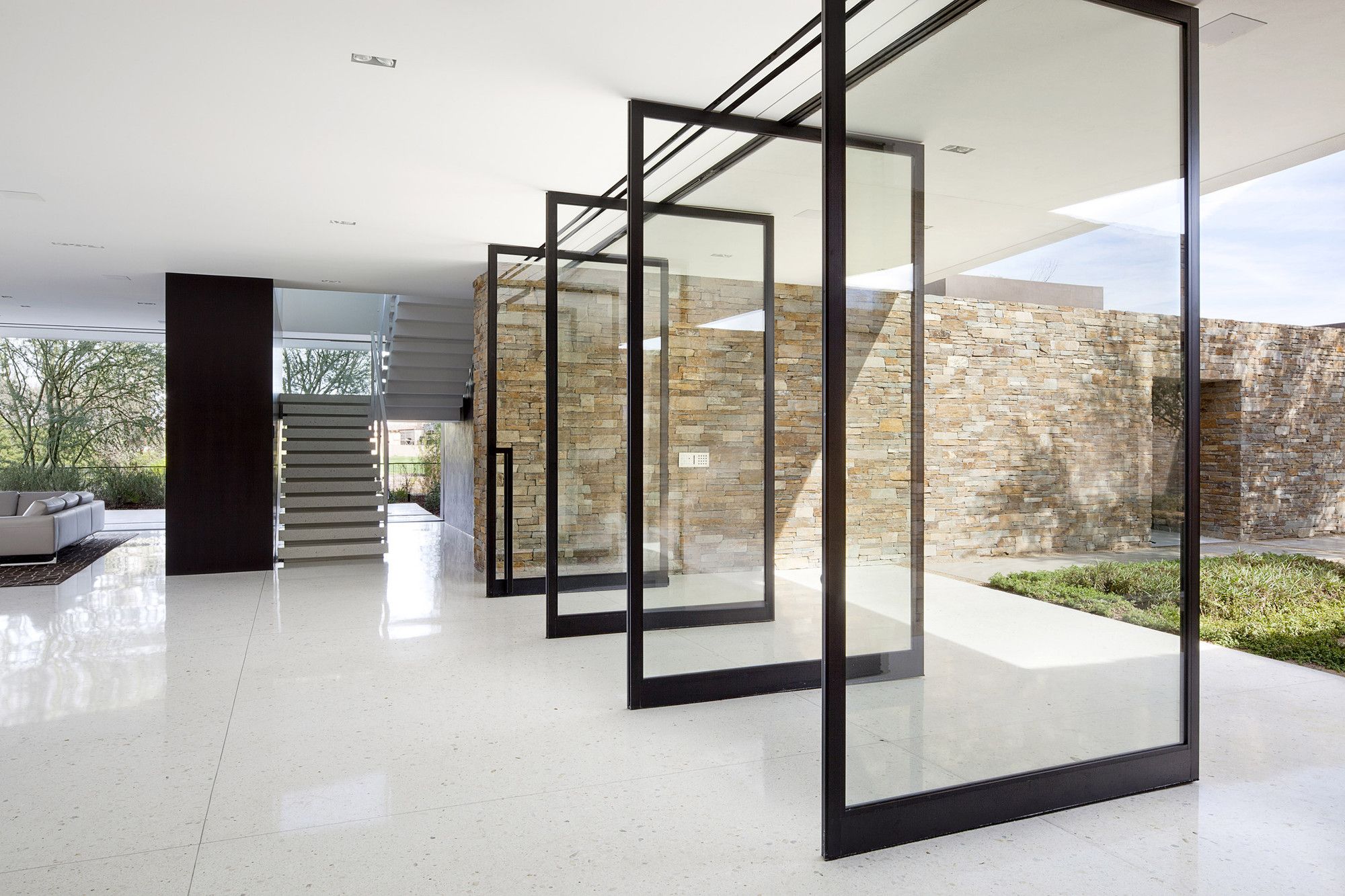

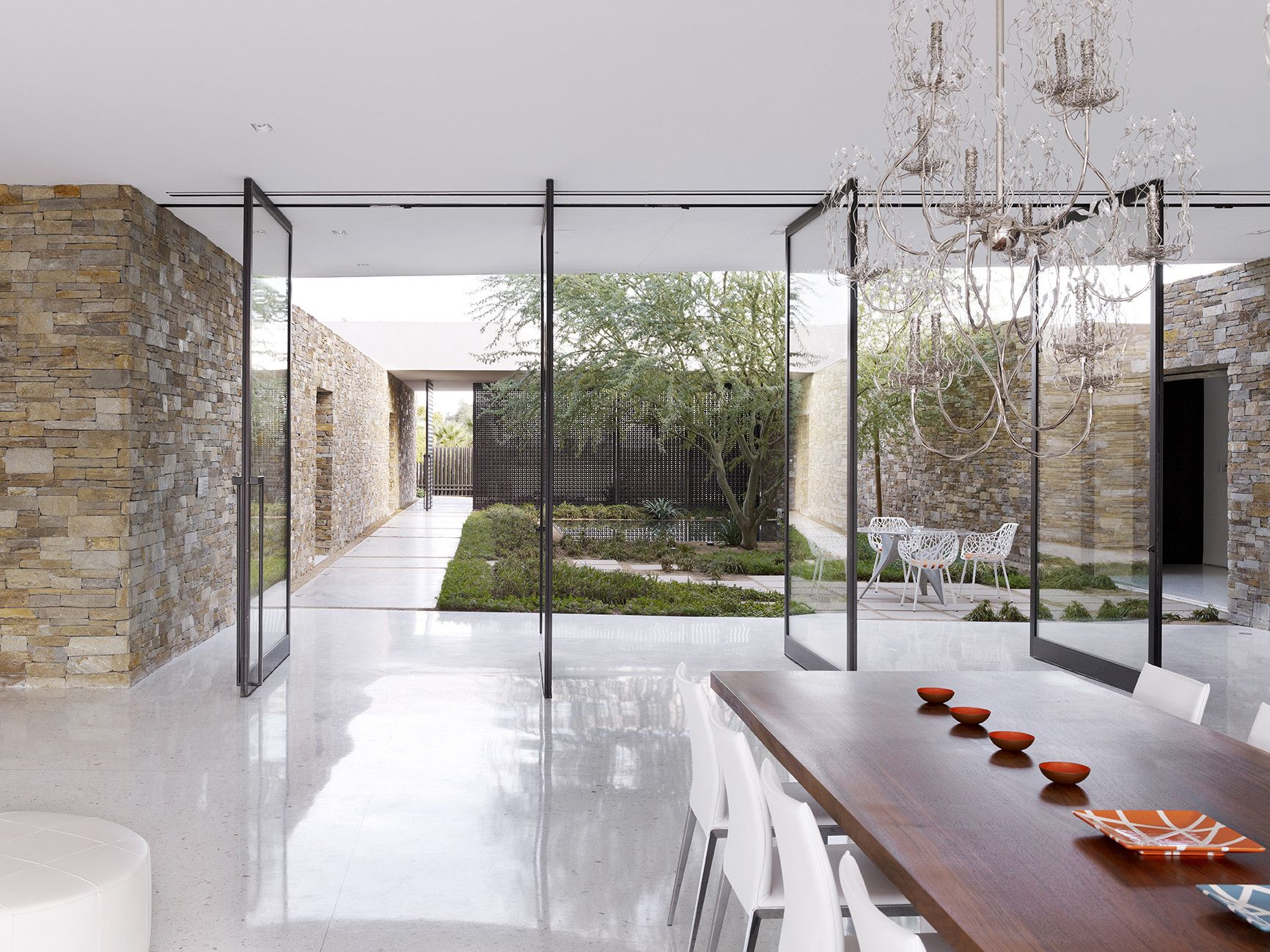

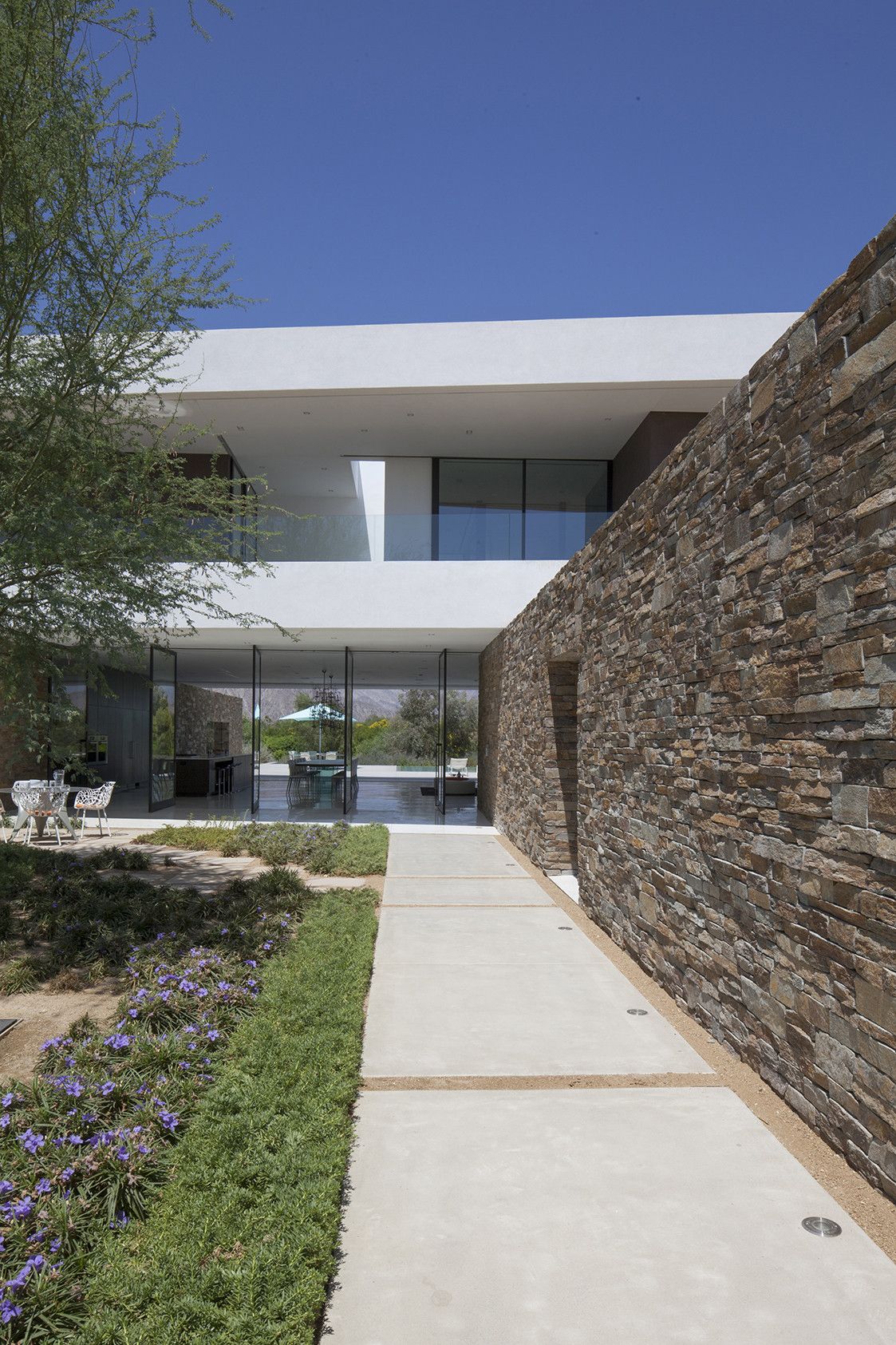

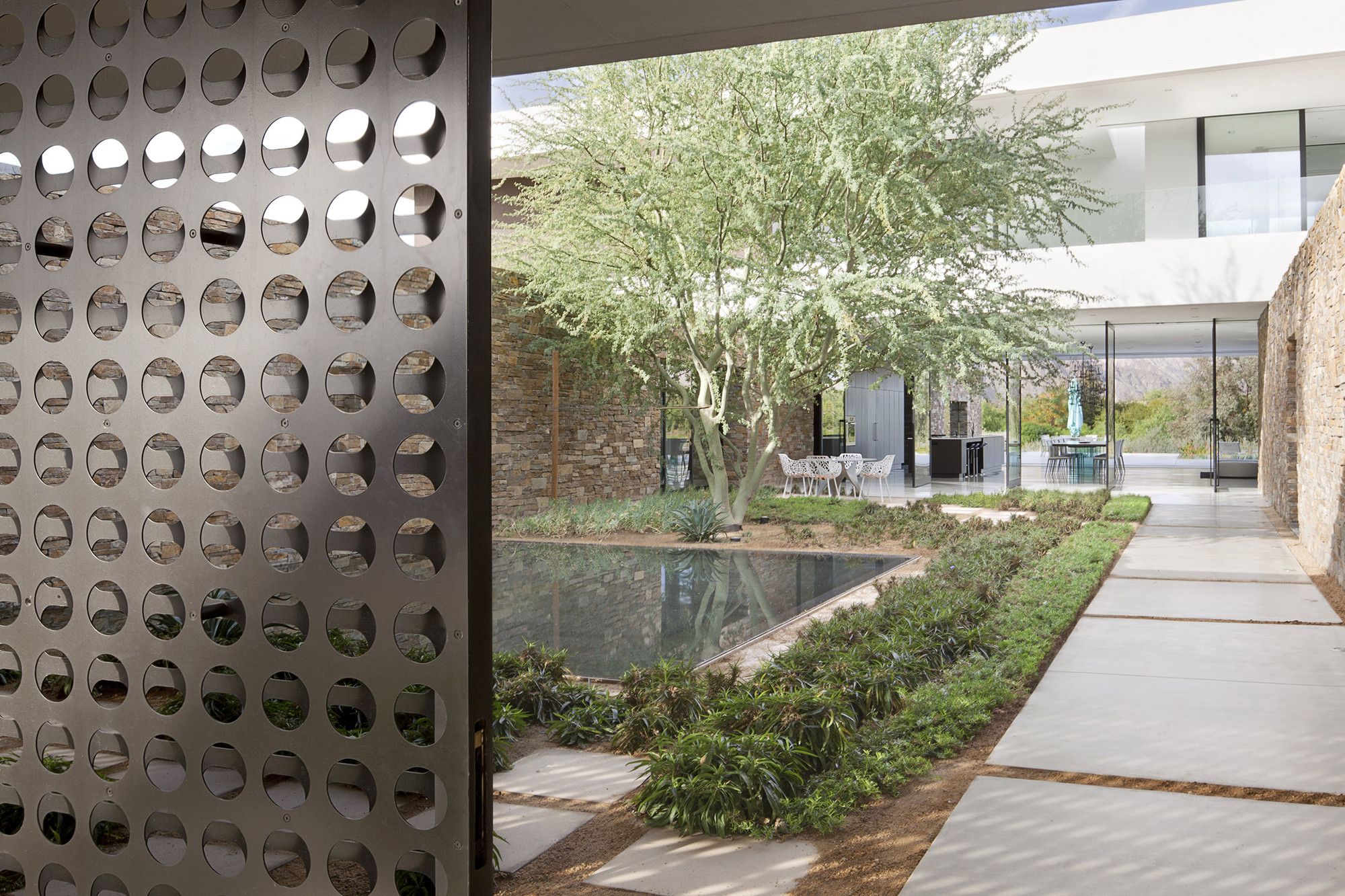

To the South, a large volume containing service spaces buffers the Madison house against the solar gain and opens to the courtyard, the kitchen area and at both ends. To the North, a volume containing bedrooms creates a windbreak to severe winds that can reach 100mph. These volumes frame a courtyard, the main entry gates and a series of glass pivot doors, the main entry to the house.

photography by © Jeremy Bittermann

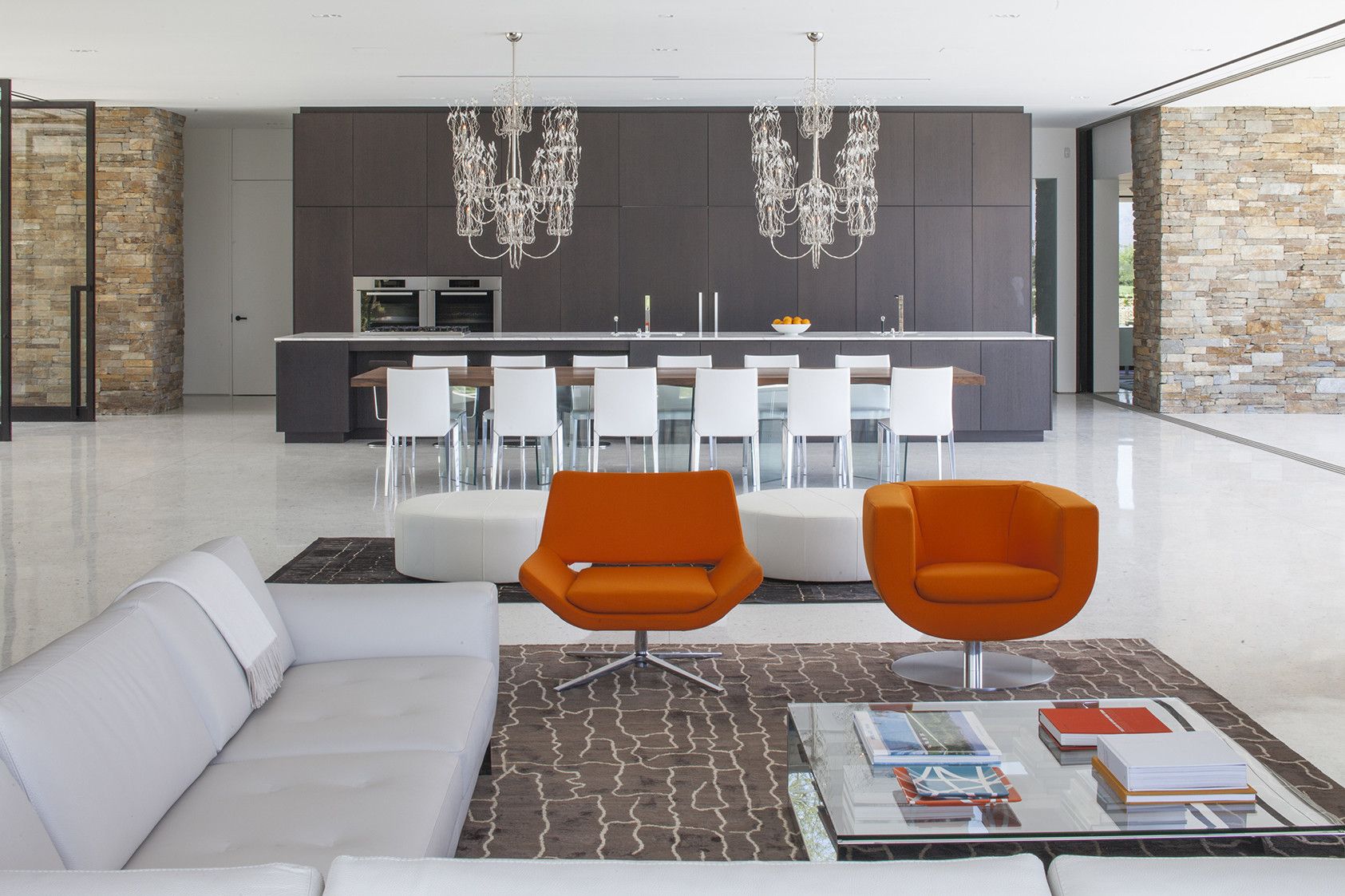

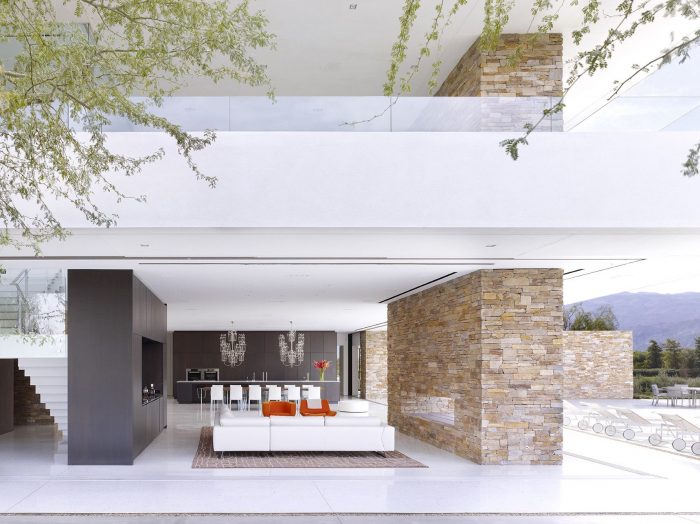

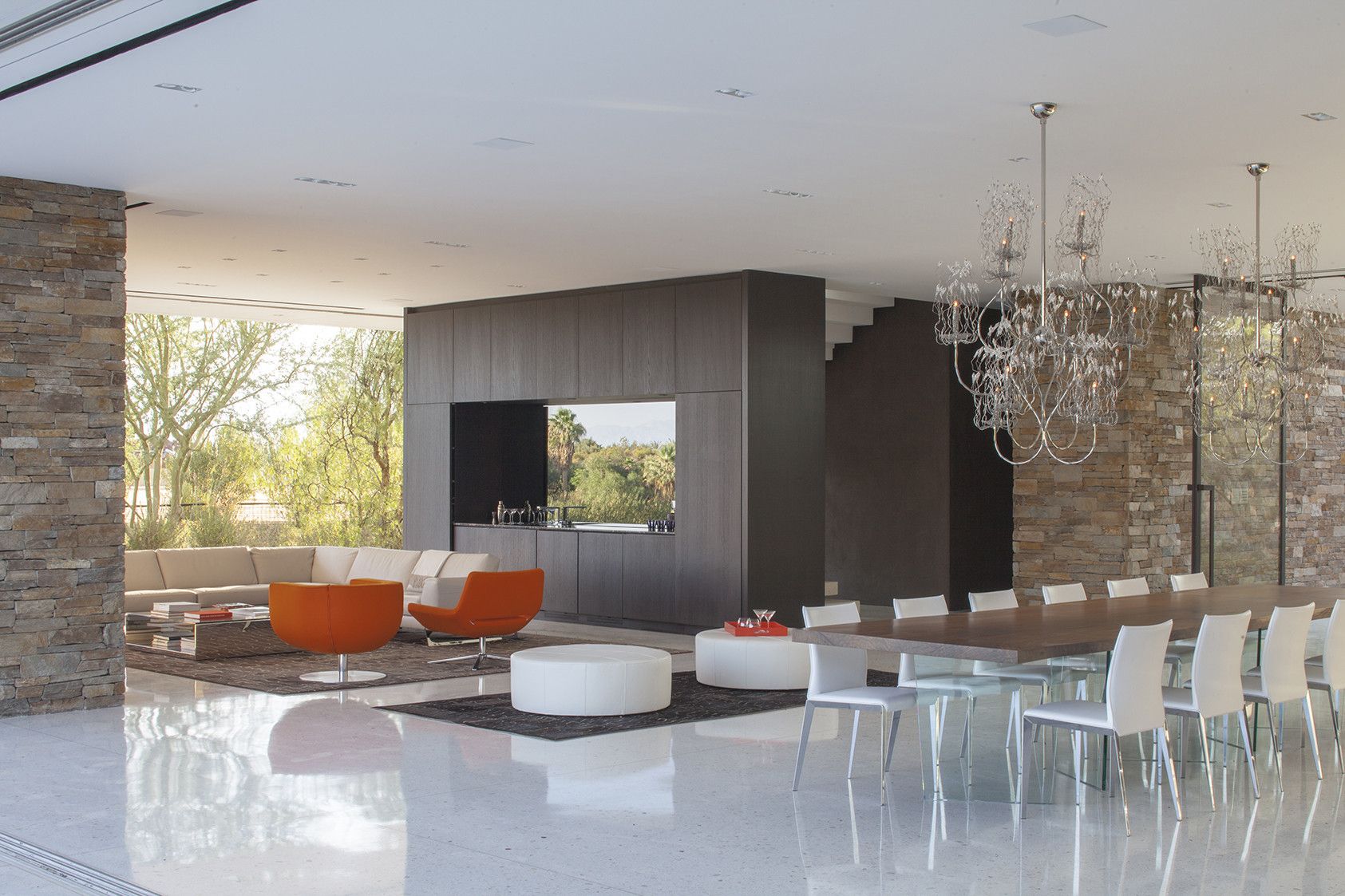

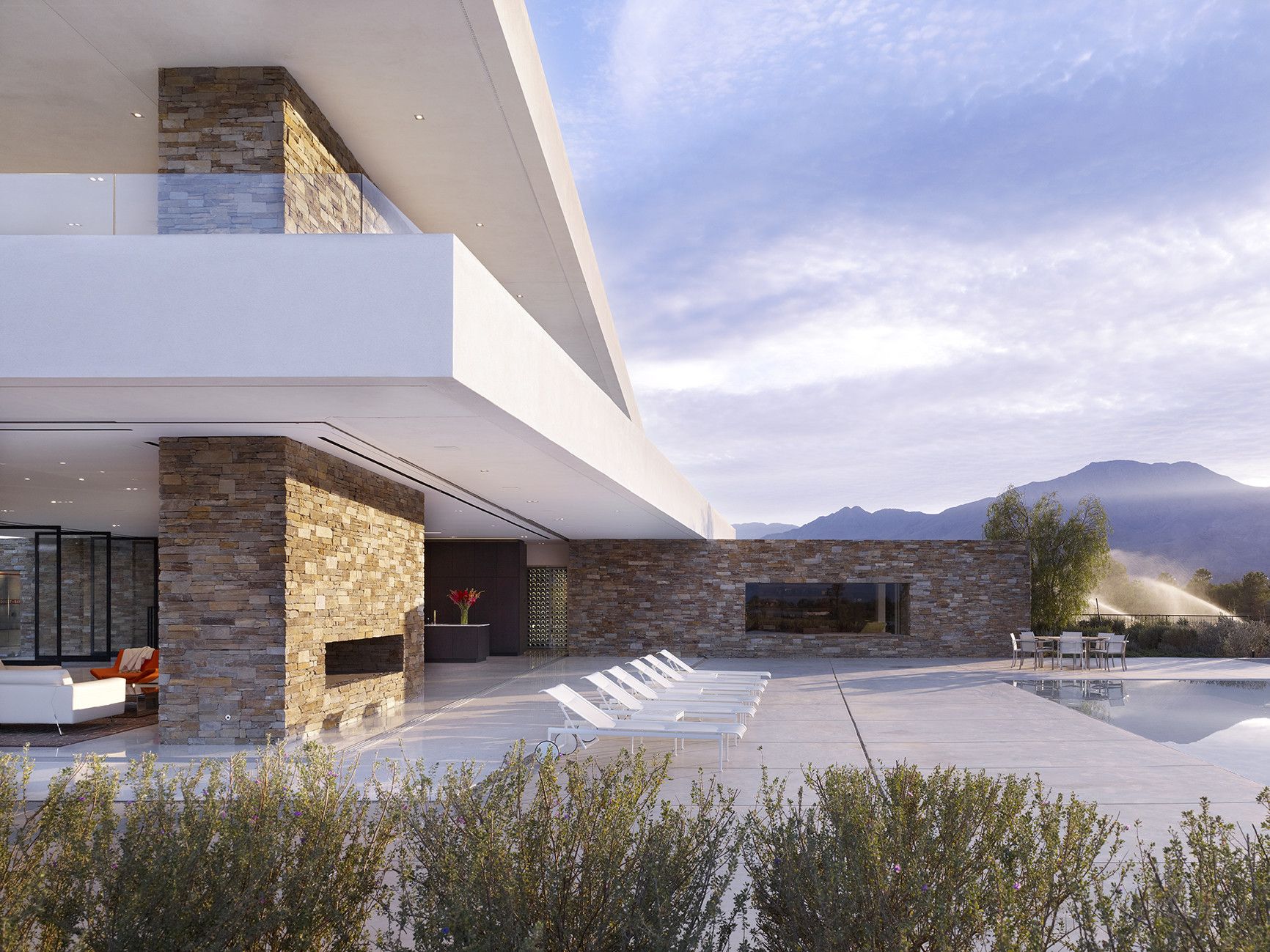

An East-West shift in these volumes creates the space for an open kitchen/ dining/ living area that expands laterally across the entire West elevation. This is the main space of the house and it opens completely to the landscape. Glass doors on three sides pivot and slide away and disappear into hidden wall slots. The terrazzo floors and white plaster ceiling extend the space horizontally out the landscape. Separate secondary volumes – a stone fireplace, a dark oak kitchen, a 30-foot long wood and marble island, an oak cabinet and floating cast terrazzo stairs — anchor the space and conceal all the structure and systems required for the large spans and cantilevers.

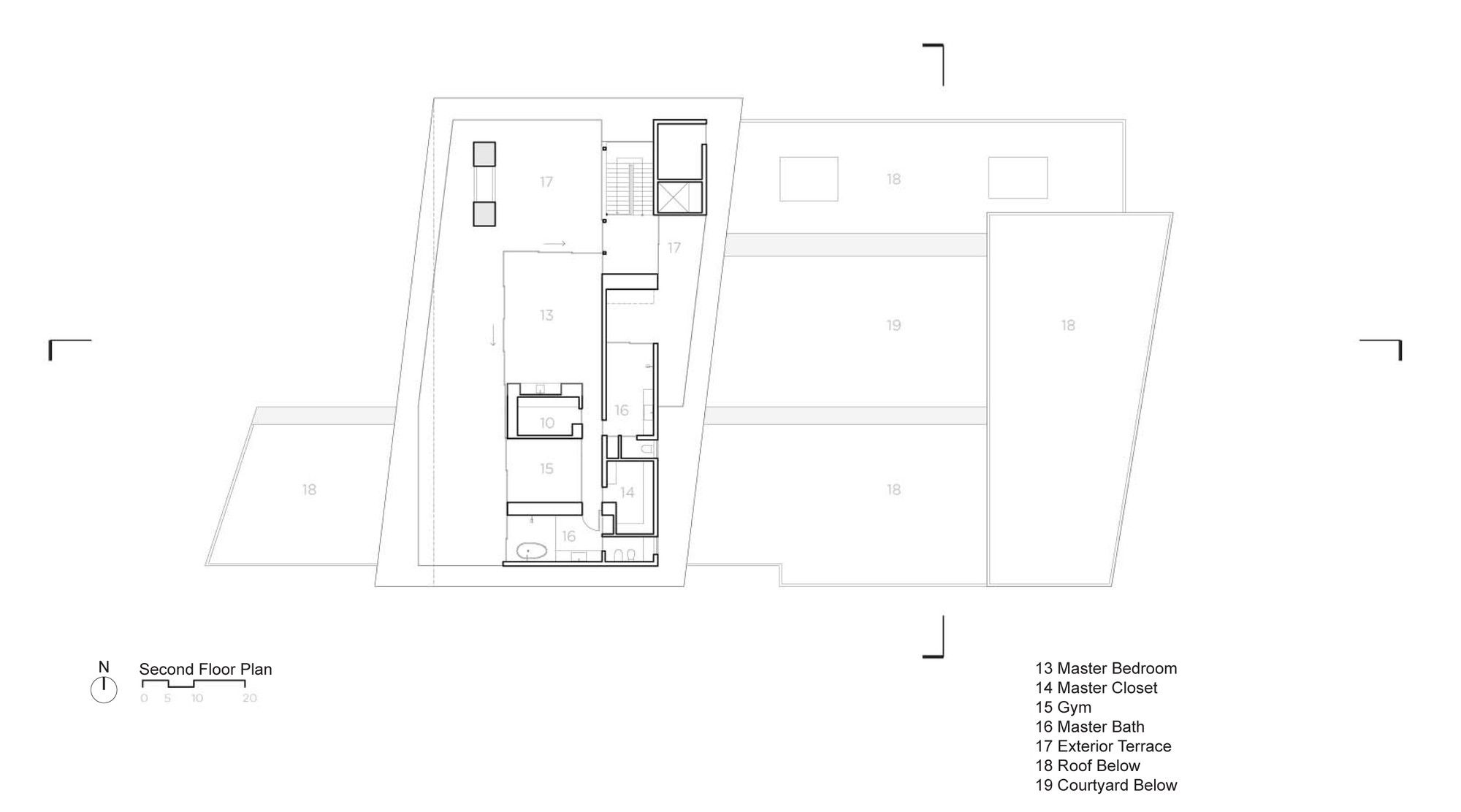

A partial second story bridges the lower volumes and contains the master bedroom suite and an outdoor terrace/ fireplace area. The spaces on this floor are also configured with strong volumetric, solid/void relationships to create a free-flowing indoor-outdoor series of spaces opening to the landscape.

photography by © Jeremy Bittermann

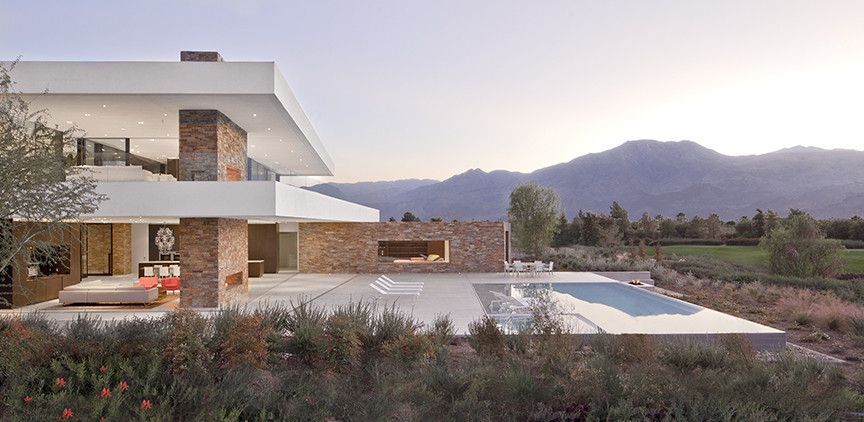

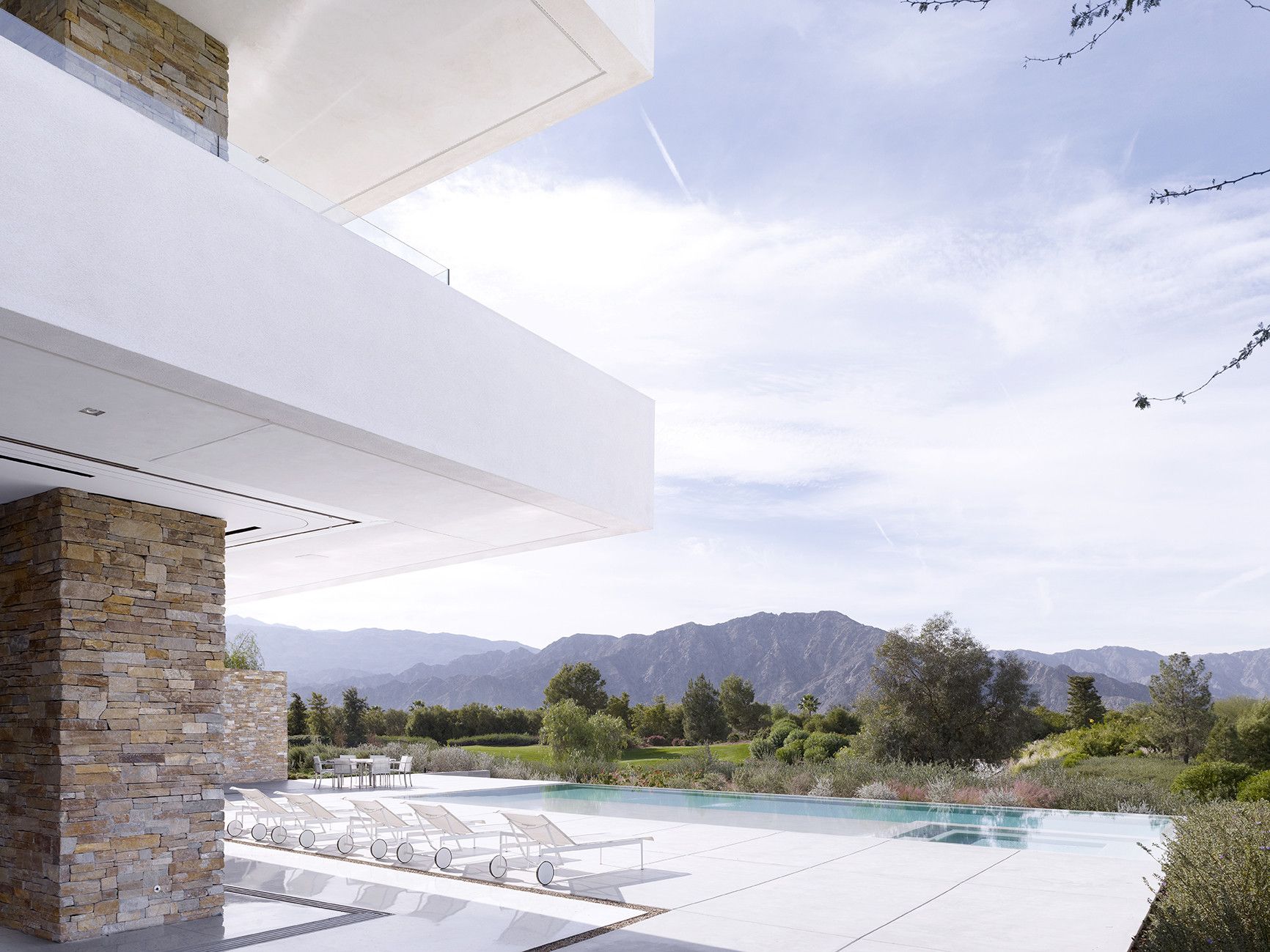

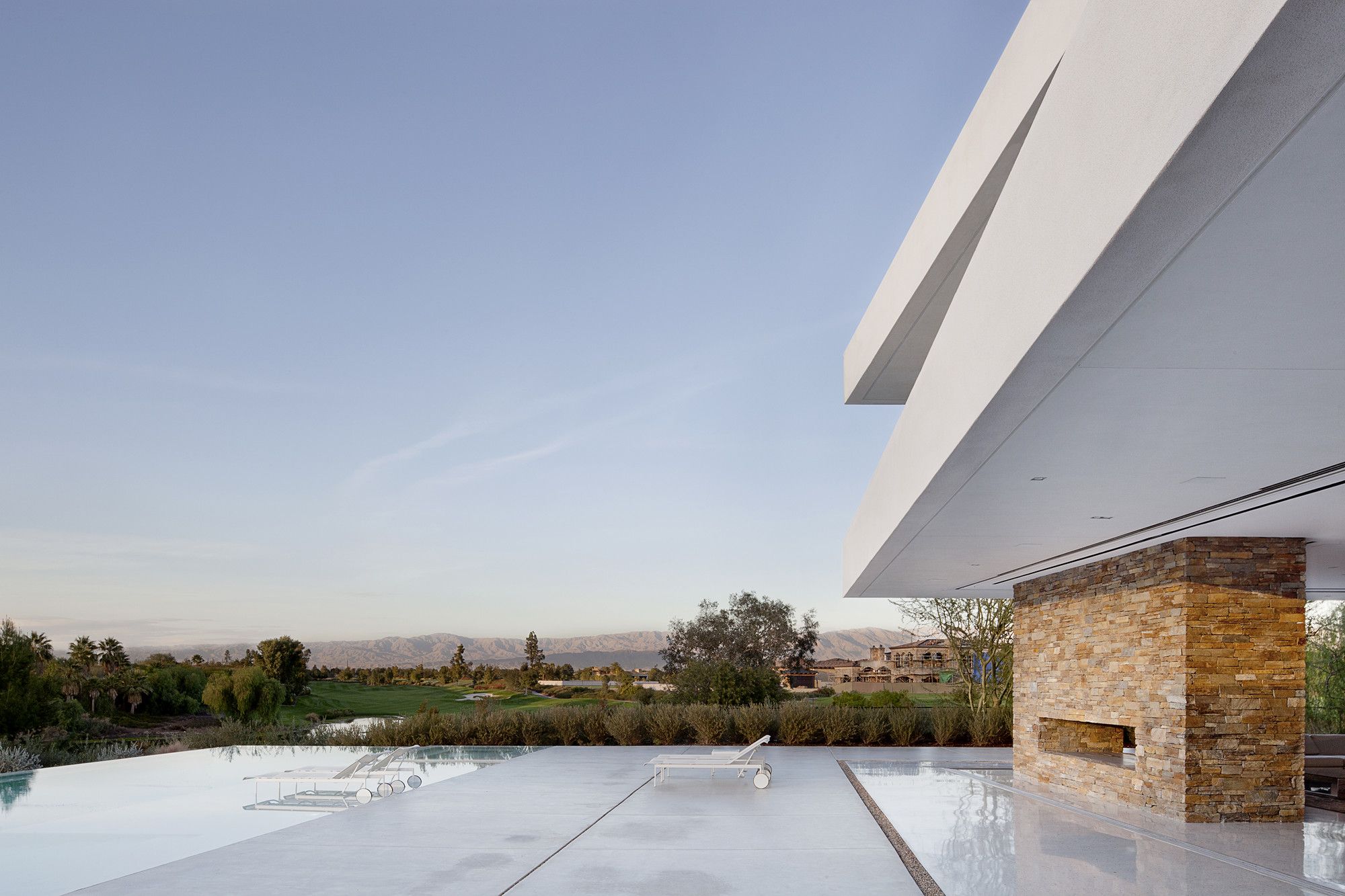

Building components, assemblies, and fixtures were selected to achieve environmental goals. Insulated Concrete Formwork (ICF) walls were used throughout the project, creating super-insulated R60 assemblies. Four-foot thick stone and concrete walls, deep glazing recesses, and large cantilevered overhangs were calculated to shield the house from massive desert solar gain. The house opens in every direction to draw air through a second story thermal chimney. The courtyard reflecting pool and main pool provide evaporative cooling for the ground floor areas. High-performance glass, high-efficiency mechanical systems, fixtures and photovoltaic panels further reduce the energy profile of the house.

photography by © Jeremy Bittermann

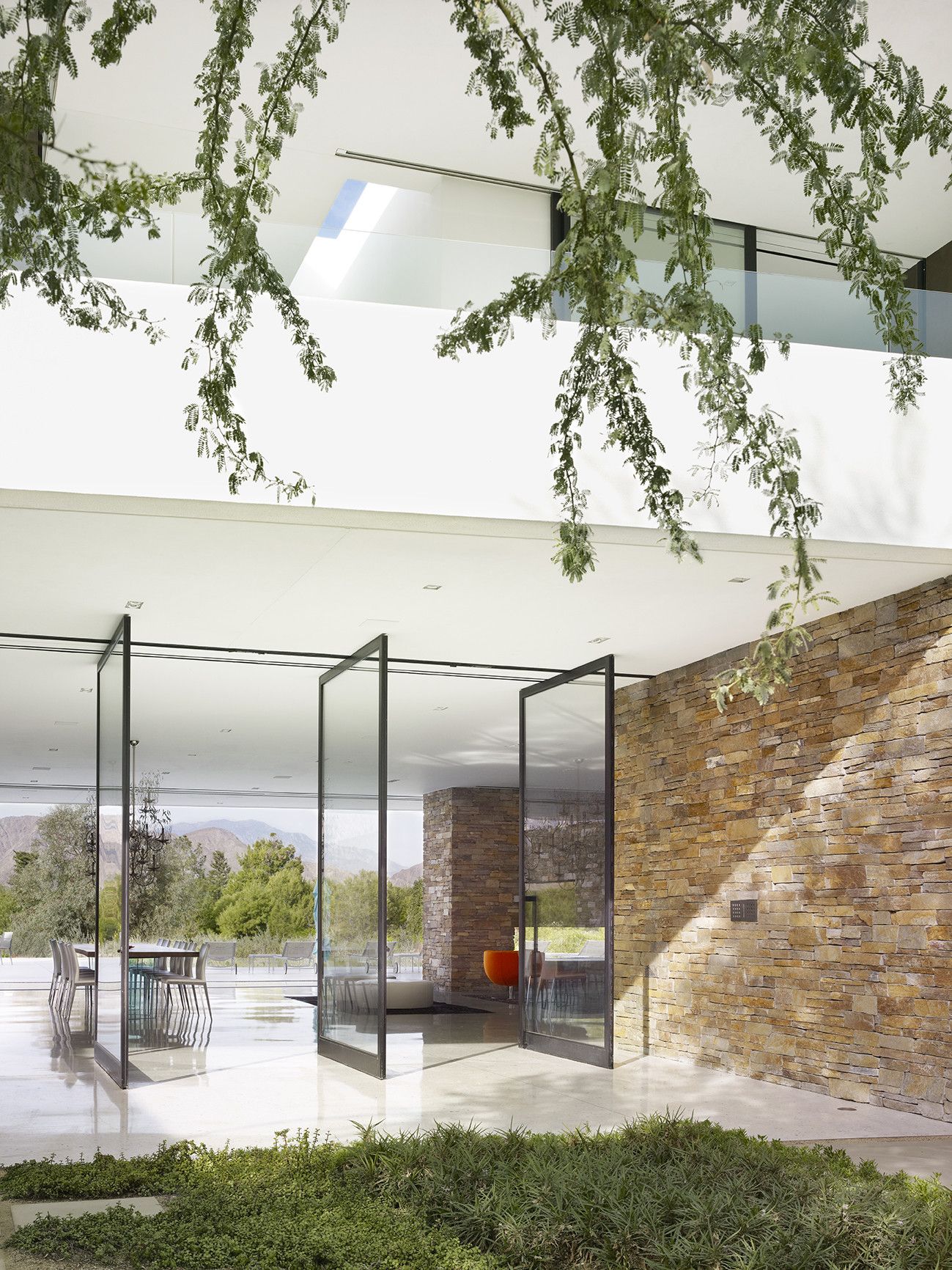

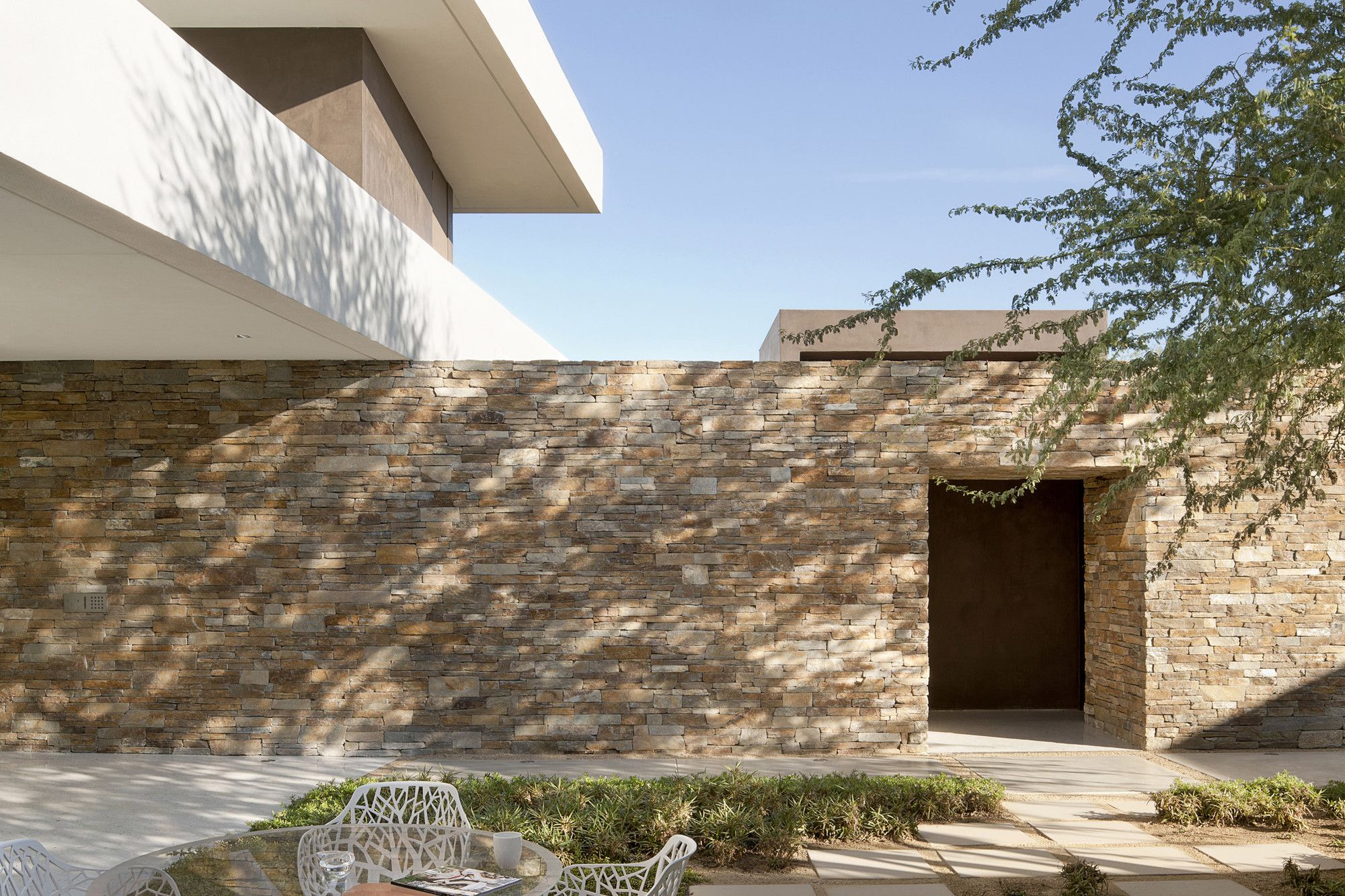

Madison House was conceived as a series of freestanding volumes set beneath and between projecting horizontal slabs. These freestanding volumes in stone, concrete, and oak are spaced and configured to create the different scales of indoor-outdoor space that flow between them. Large open and fluid spaces are framed by massive solid and fixed elements. Light white terrazzo floors and countertops are bounded by dark rift oak wood cabinetry. Rough stone walls frame openings of precise metal and glass doors. There are eighty sliding glass walls in the house, all configured to slide away and disappear completely into hidden wall pockets. There are few materials used throughout the house but they are used in a multiplicity of ways indoors and outdoors throughout the house.

photography by © Jeremy Bittermann

Project Info
Architects: XTEN Architecture
Location: La Quinta, California
Architect in Charge: Austin Kelly AIA, Monika Haefelfinger SIA, Scott Utterstrom, Tina Rothermund, Jae Rodriguez, Qichen Cao, Christina Kaneva, Dana Nishimura Bryan, Stephanie Sent
Landscape: Pamela Burton & Company
Structural Engineer: Axial Engineering
Geotechnical Engineer: Sladden Engineering
Civil Engineer: RCE Consultants
Electrical Engineer: OMB Electrical Engineers
General Contractor: M.A.P. development
Area: 10650.0 sqm
Year: 2012
Type: Residential
Photographs: Steve King, Art Gray, Jeremy Bittermann
Project Name: Madison House
