Flower Market | Atelier Didier Dalmas Architectes Associés

Flower Market is designed by Atelier Didier Dalmas, The A3 block is the first block of the new ZAC “Lyon Confluence II” to be developed. It’s a prototype. His ambition is to invent a way of life characteristic of the new neighborhood.
The A3 block has a privileged location within the ZAC. On one side, it’s exposed on the major axis of the confluence district: the “cours Charlemagne” and on the other side, it’s on one the main squares: “the central place” to the south, in front of the regional hotel.

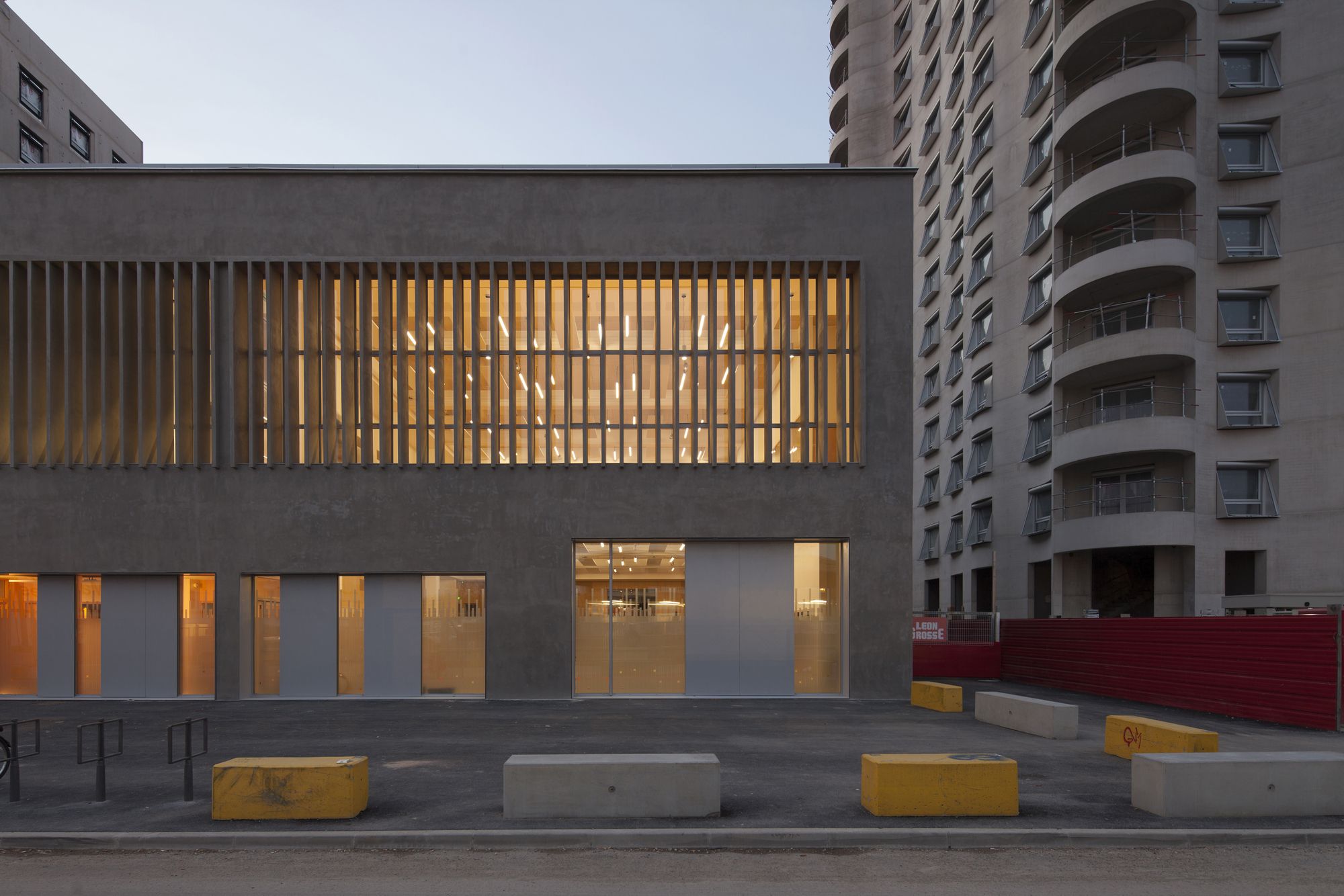

photography by © Jérôme Ricolleau

The building of the “Halle aux fleurs”, is an old market hall that has been preserved. This building is an industrial architecture. It testifies to a commercial past and allows to offer a variety of typologies to the islet.
The rehabilitation project consists of transforming the old hall into sports facilities. Are created: a dojo, a dance hall, offices and locker rooms and sanitary facilities for each activity.

photography by © Jérôme Ricolleau

This building had been designed for the auction of products of national interest market, but was never used for this function, and was eventually dedicated to the sale of wholesale flowers. A very specific architecture characterized this building: a double rostrum composed of steps arranged back to back, creating a particular spatial configuration inside this double-height concrete structure.

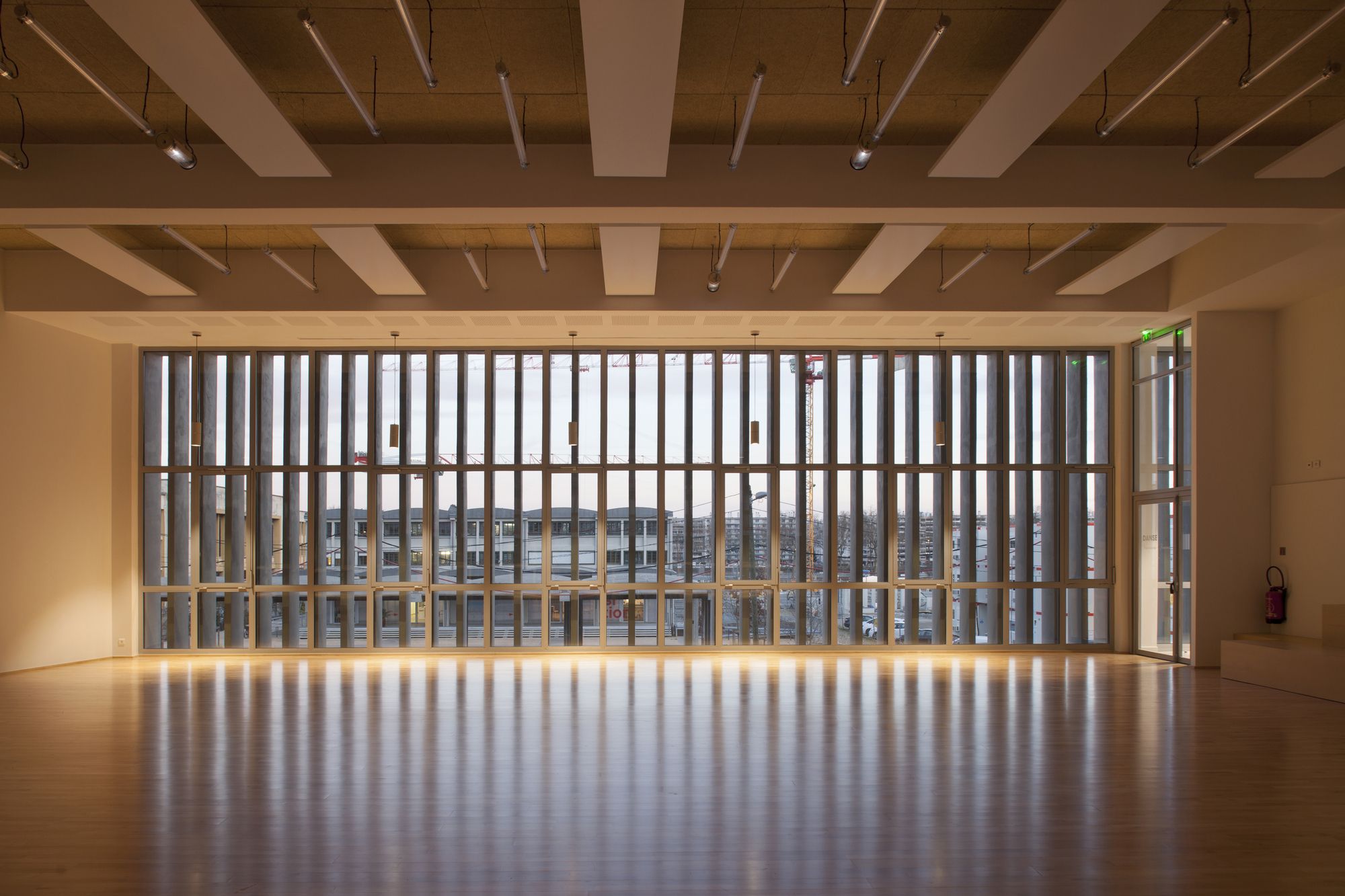

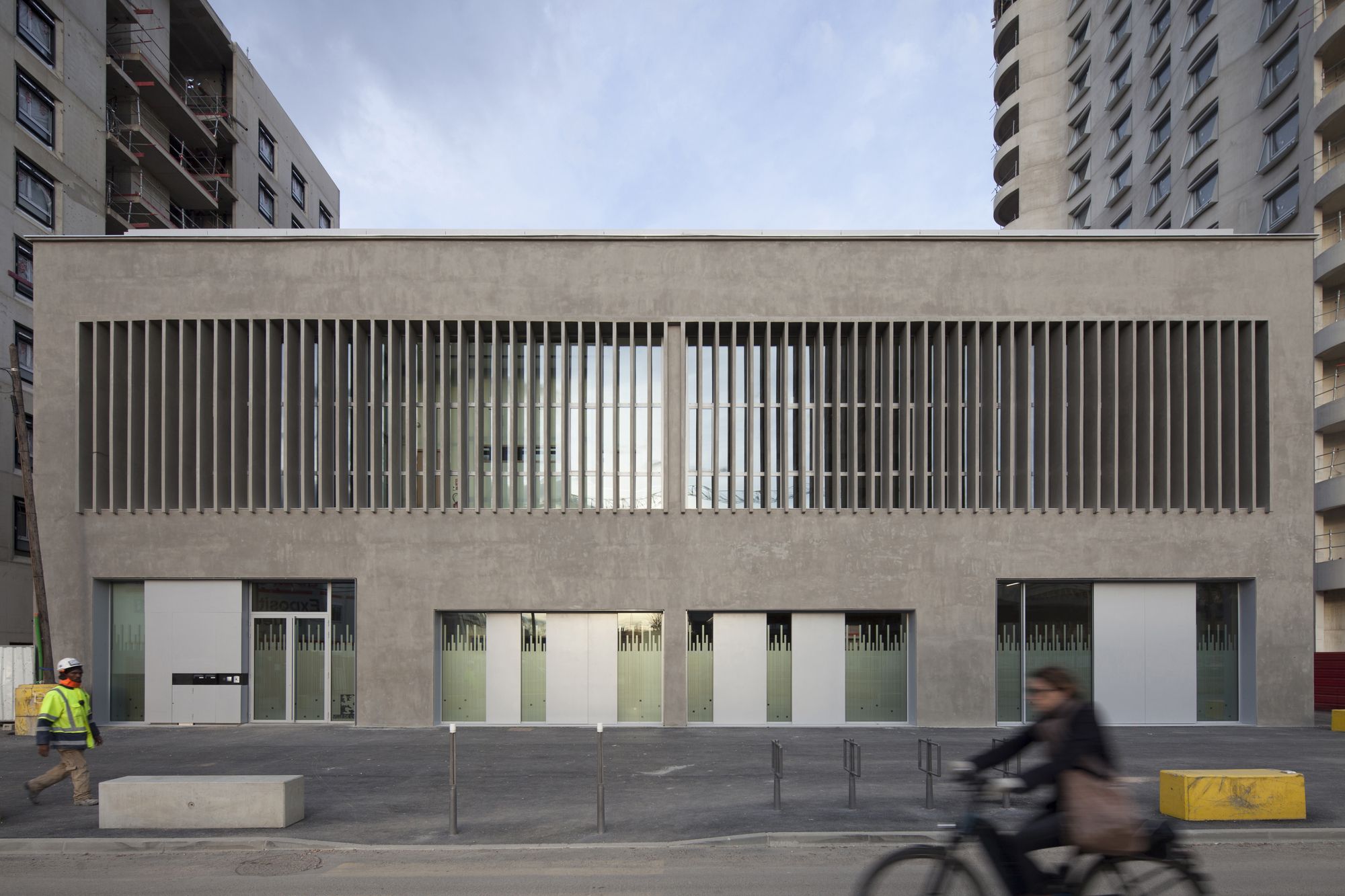

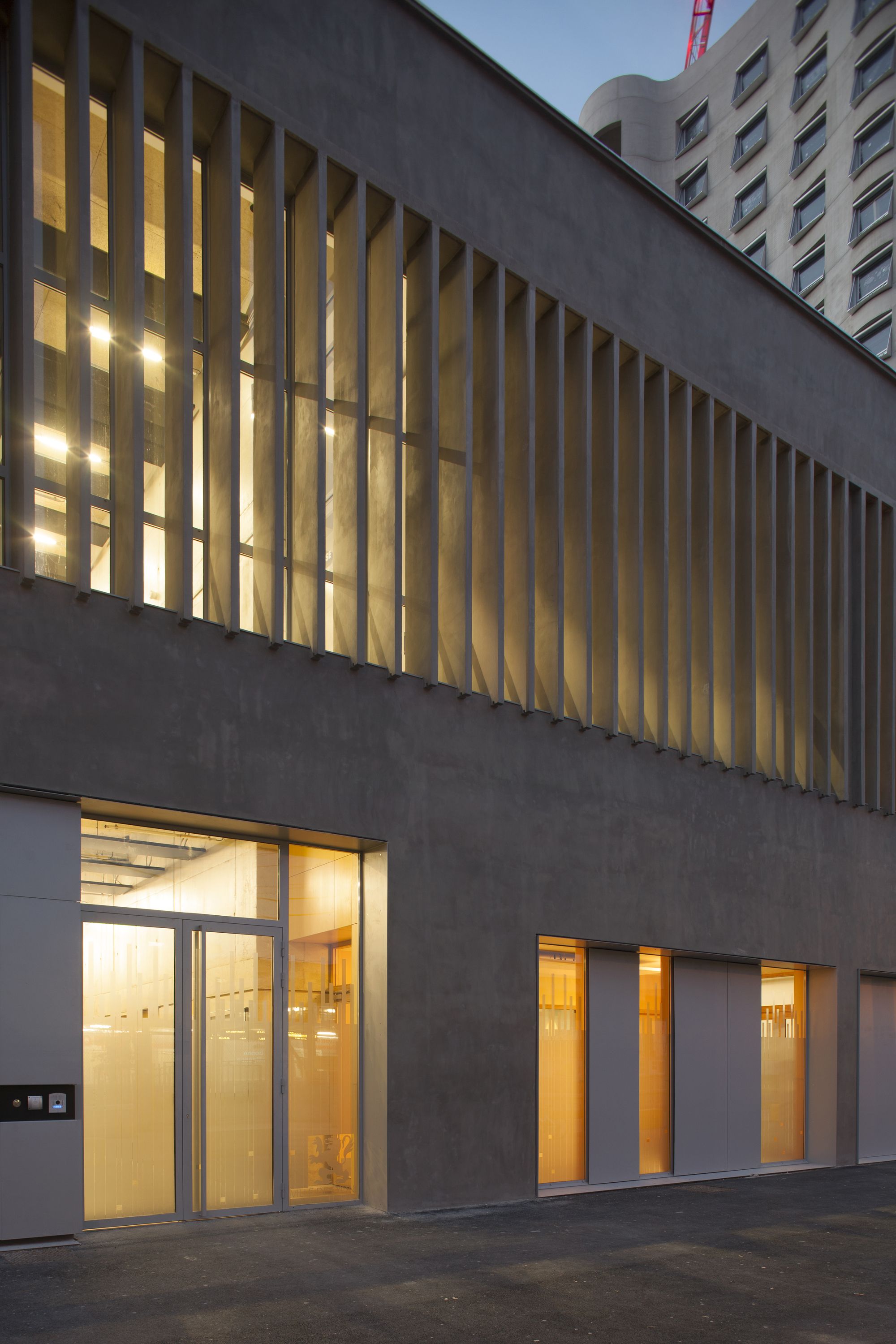

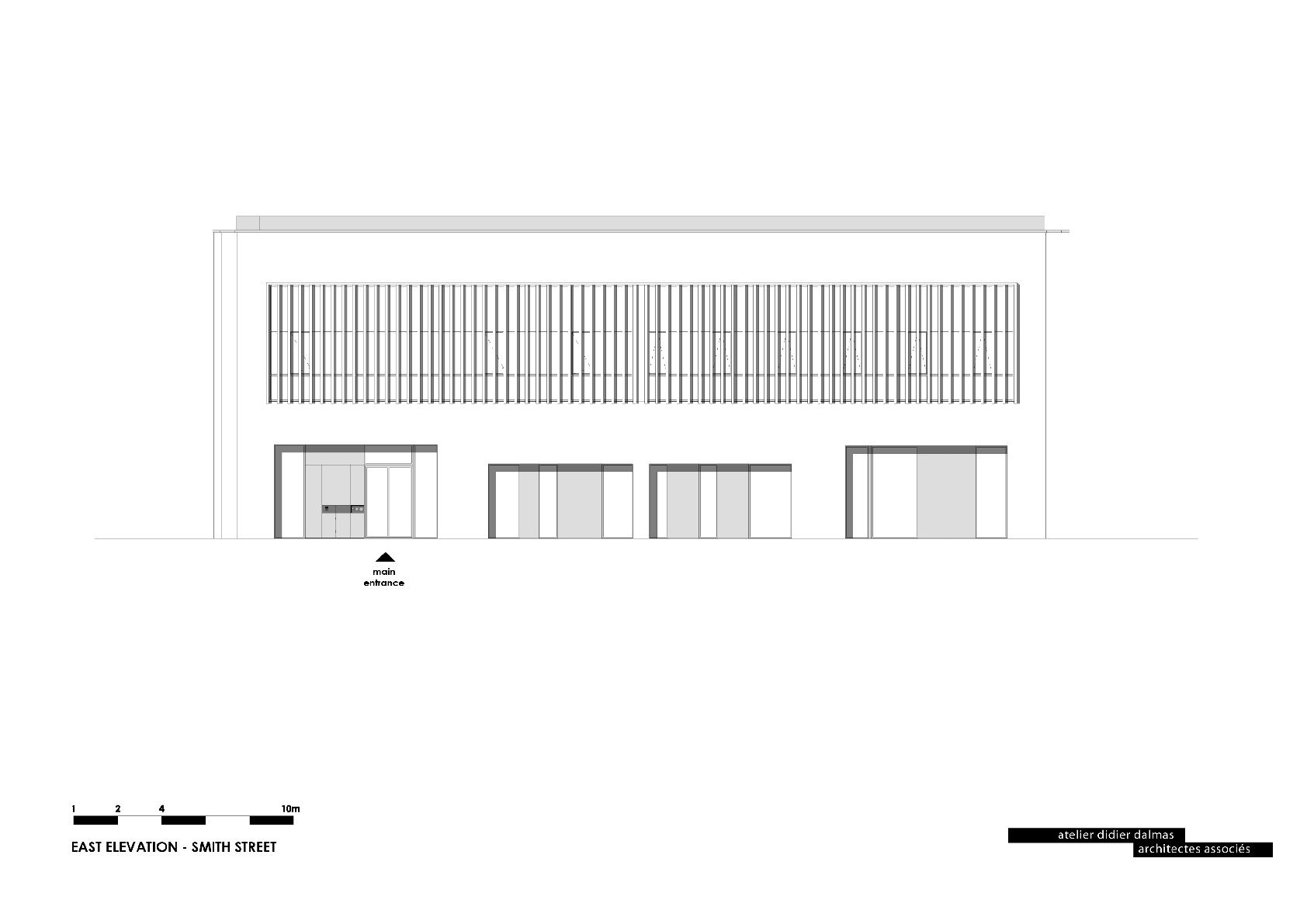

Large openings made of concrete sun breezes on the first level of the south-east and north-west façades have created a recognizable facade with large openings on the ground floor designed for truck passage.

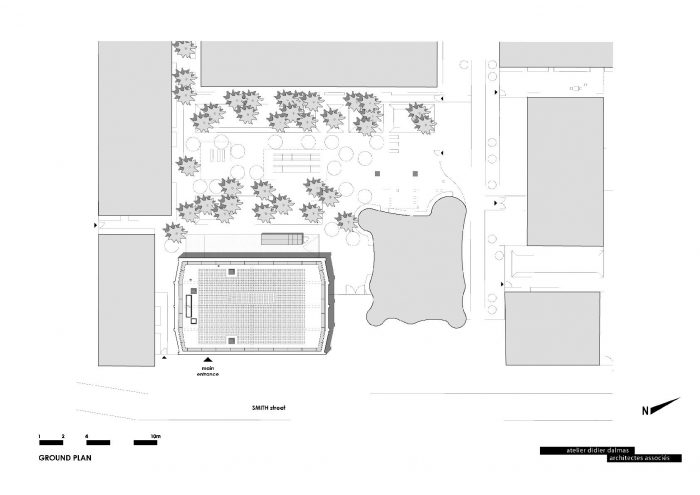

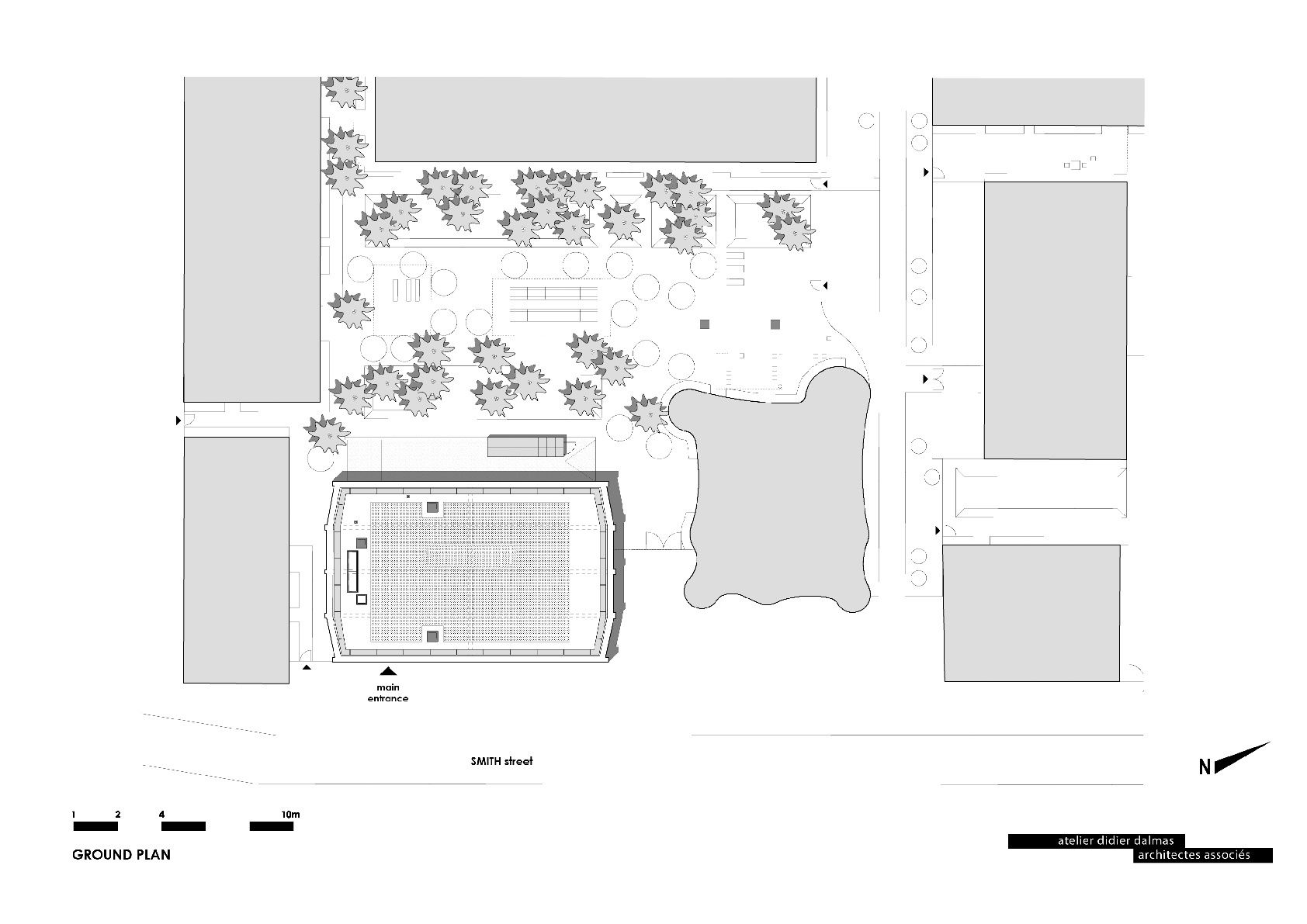

Site Plan

The Rehabilitation of The Flower Market Project:

The rehabilitation project consisted of removing all existing internal concretes and retaining only the envelope and structure of the building. The lean-tos on the sides of the building have been removed to enhance the main concrete volume and bring natural light into the rooms.

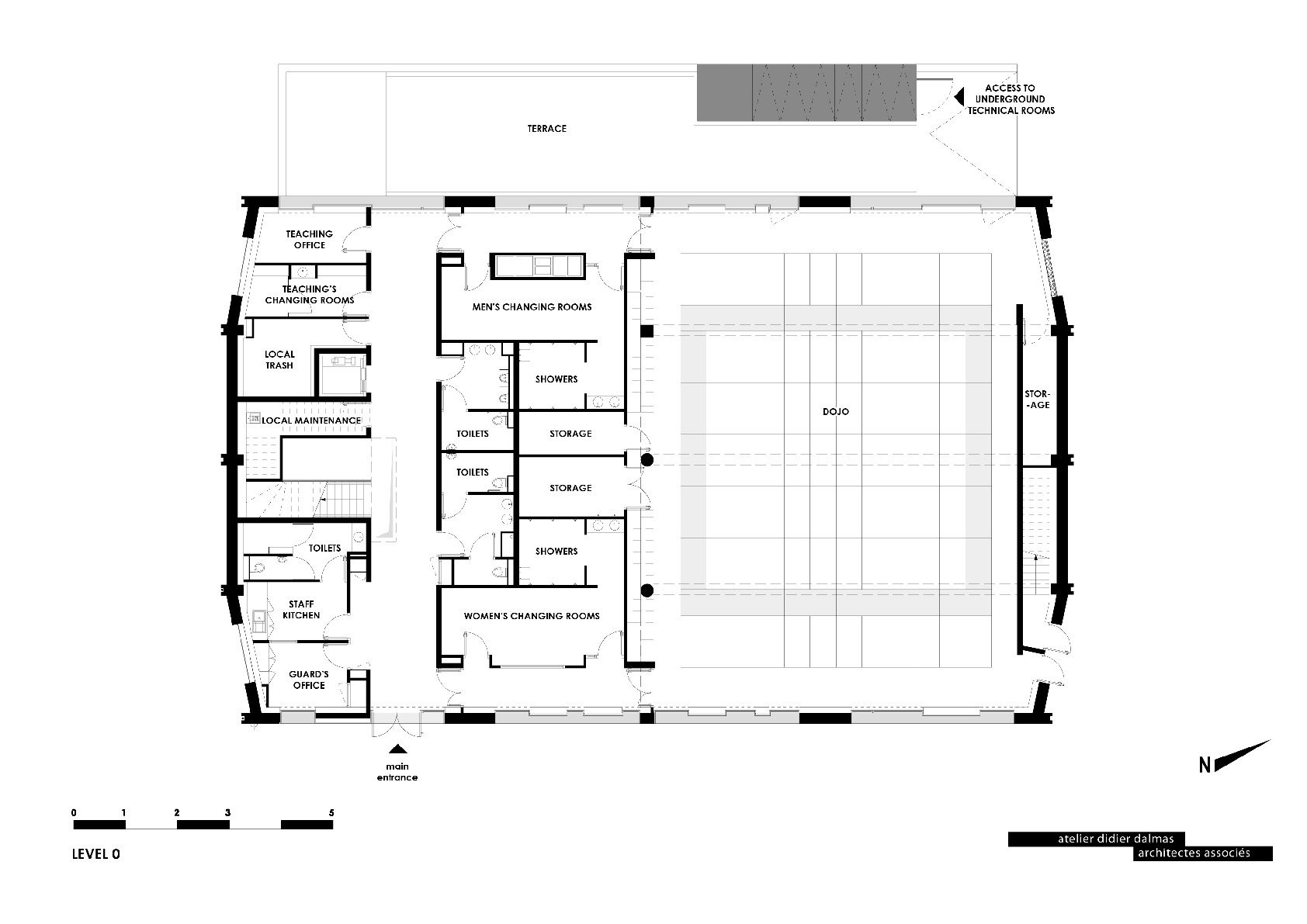

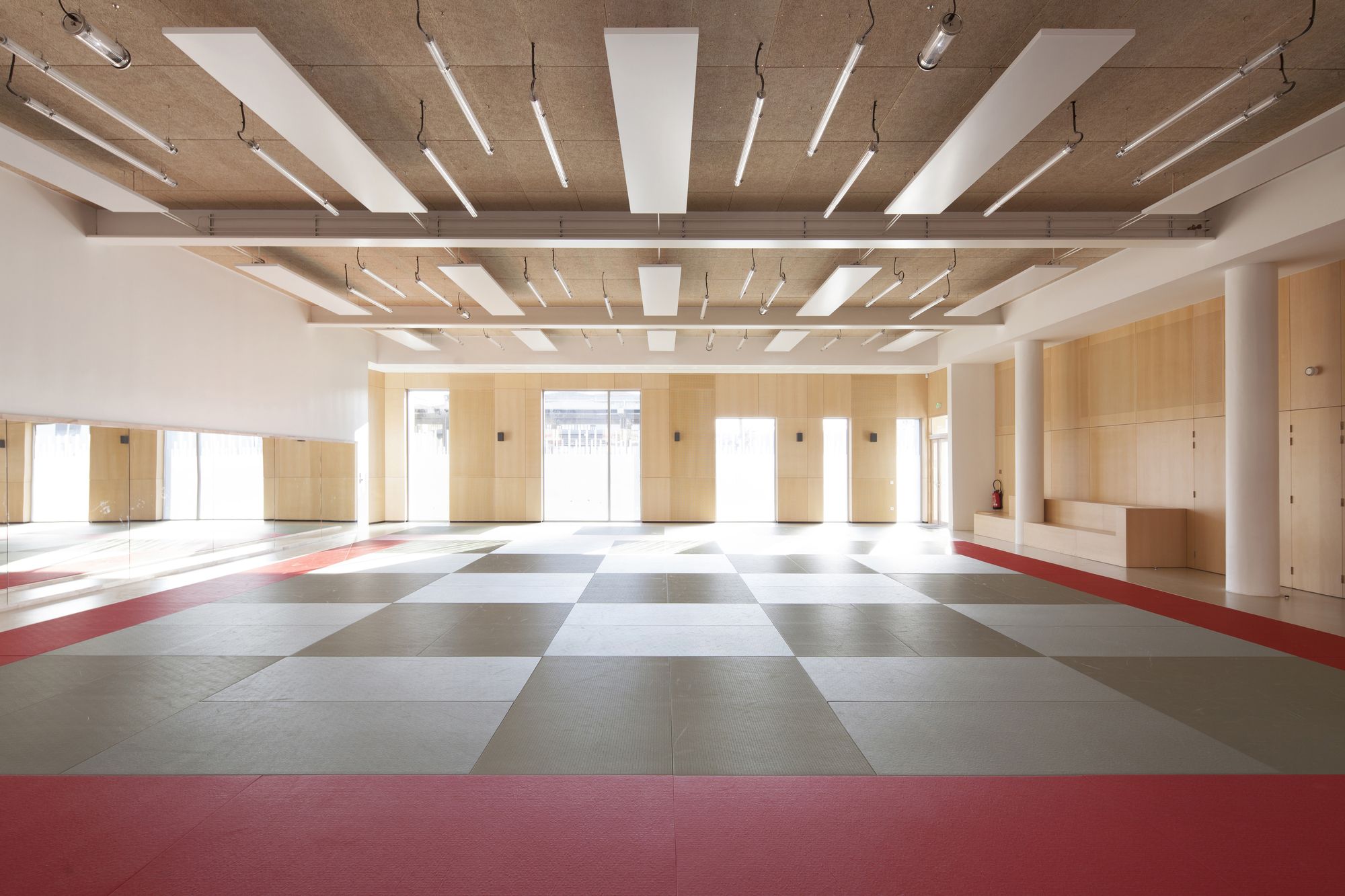

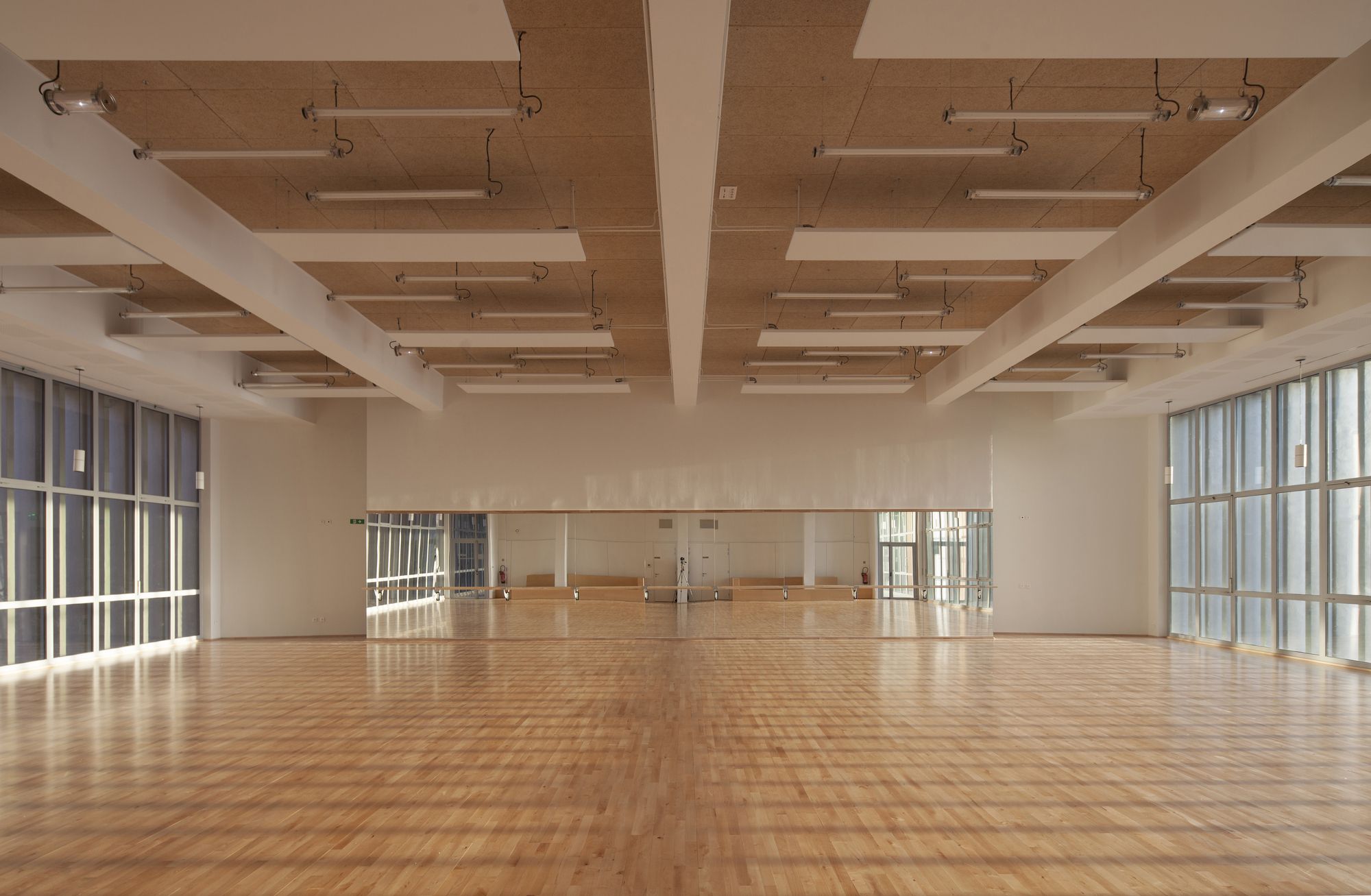

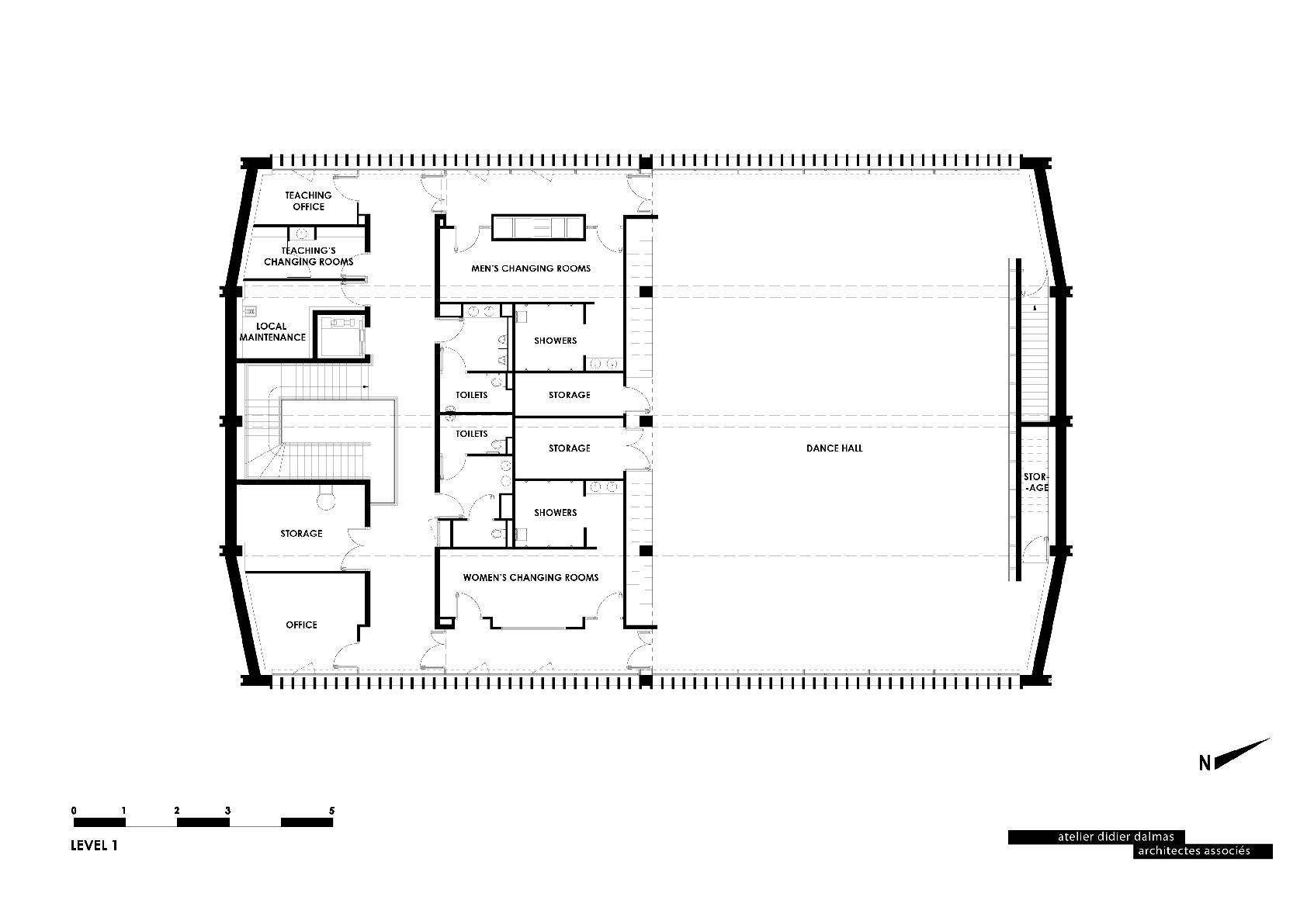

The hollow building made it possible to design a new distribution of spaces according to the requested program. An intermediate slab was built to create a complete floor, then the partitions were designed to meet the different requirements of the program: each level hosts a gym on one half of the surface (dojo in the RDC and dance hall on the R + 1), the other surfaces allowing the creation of locker rooms and sanitary facilities as well as offices dedicated to the various sports players.

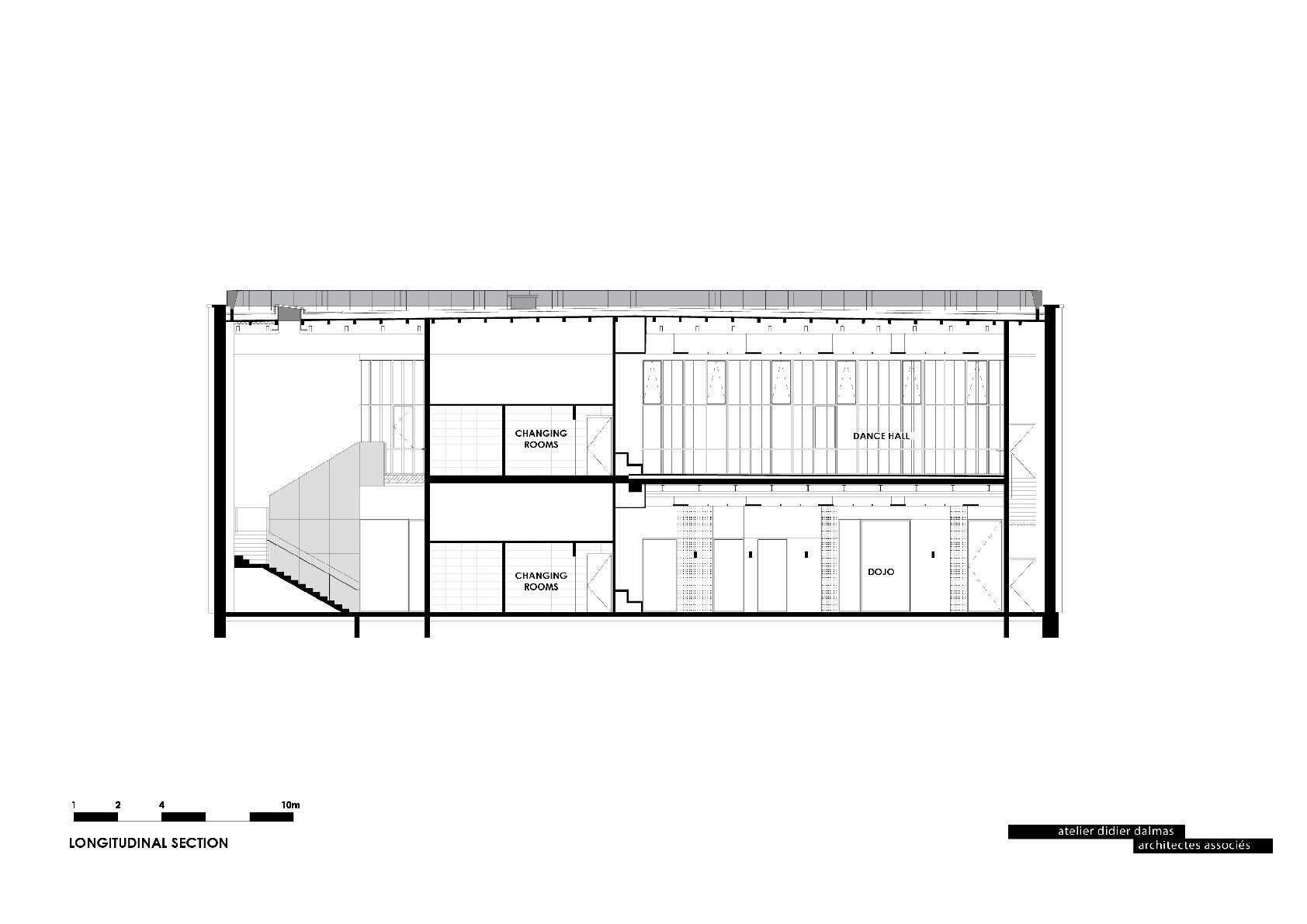

Longitudinal Section

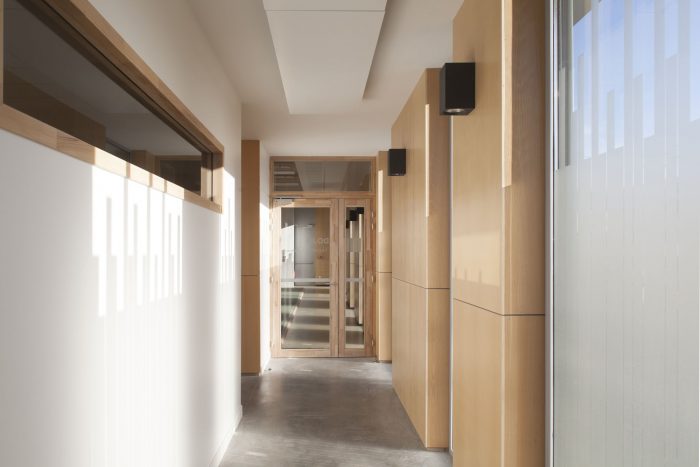

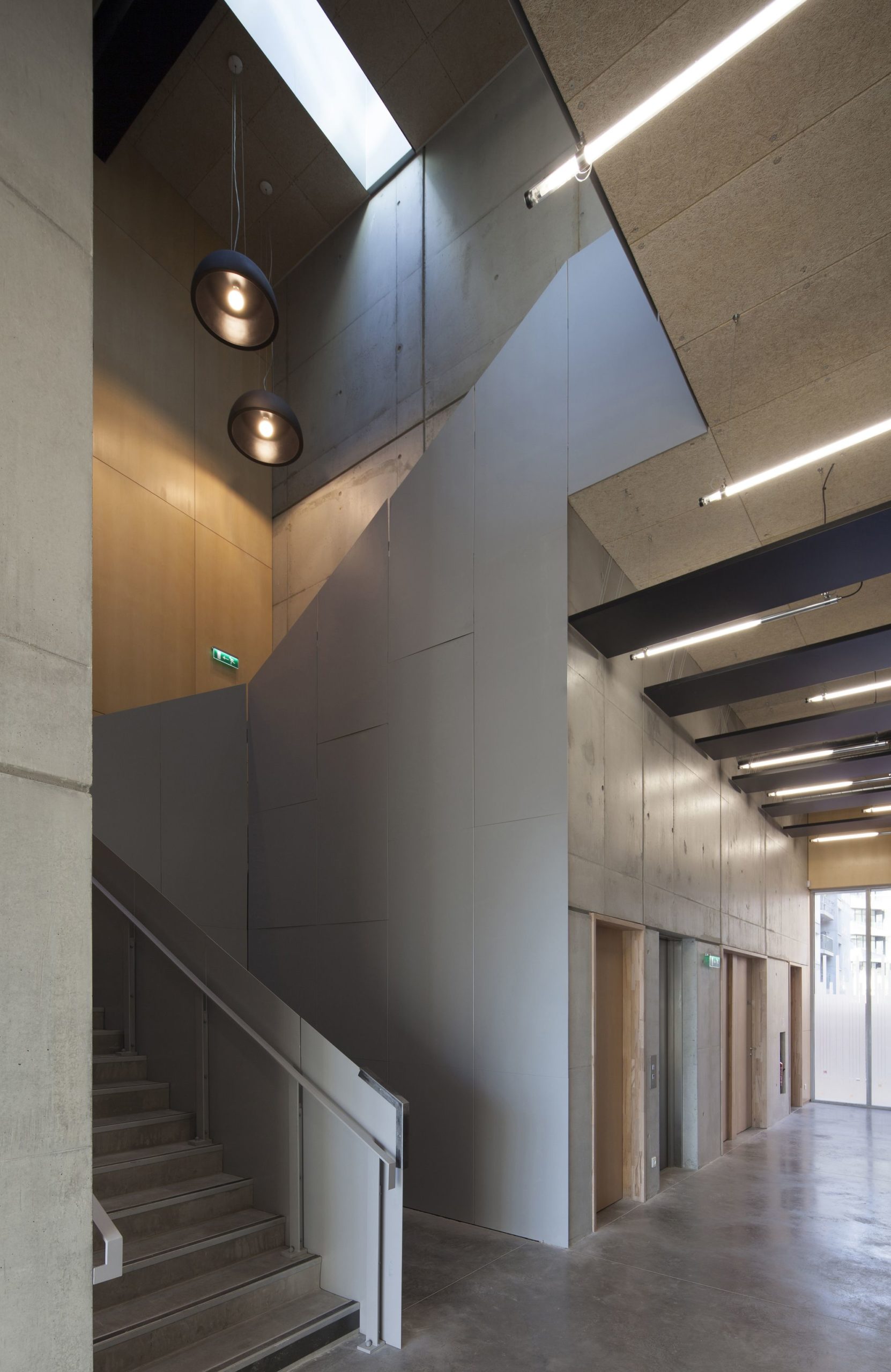

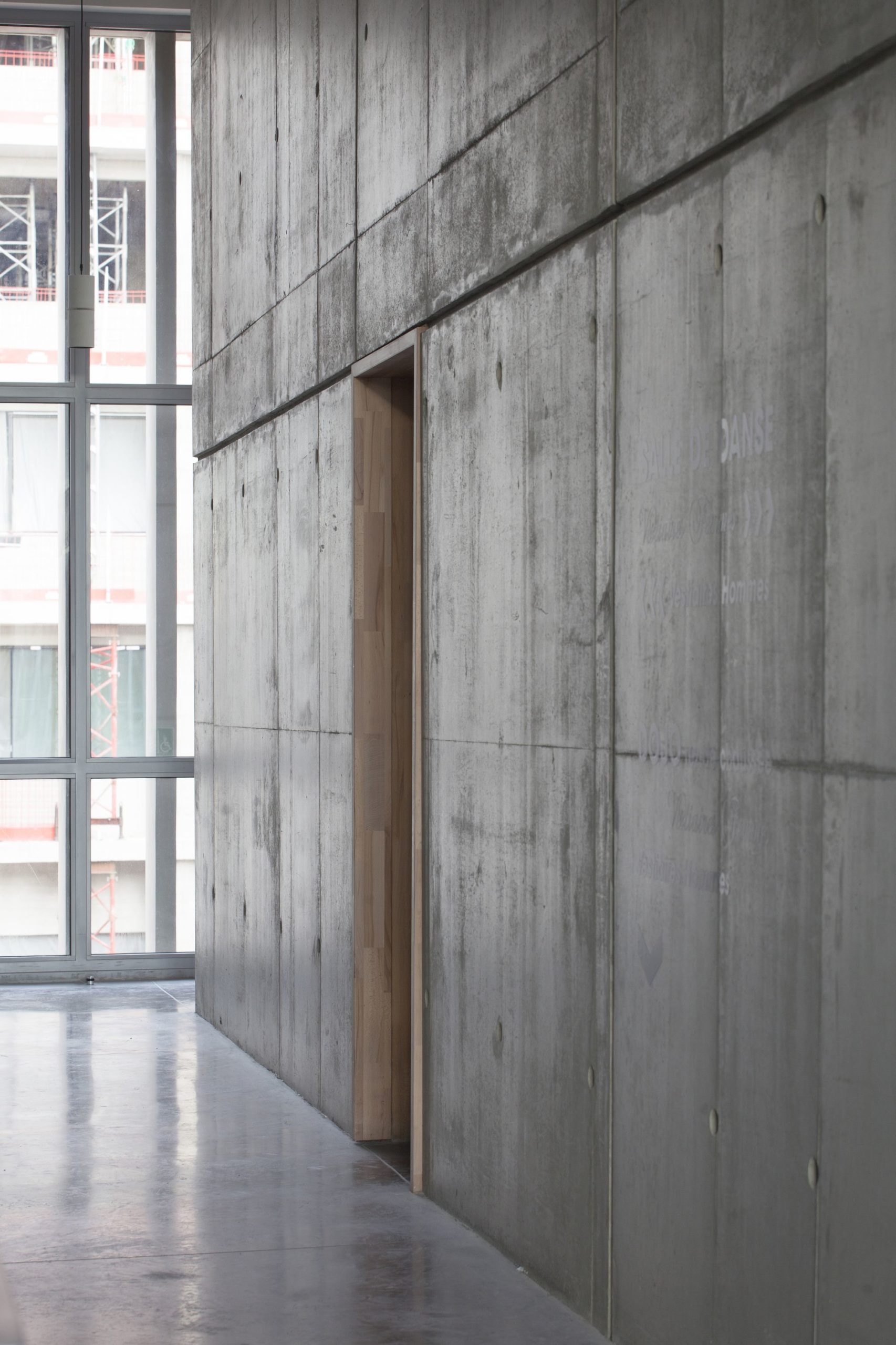

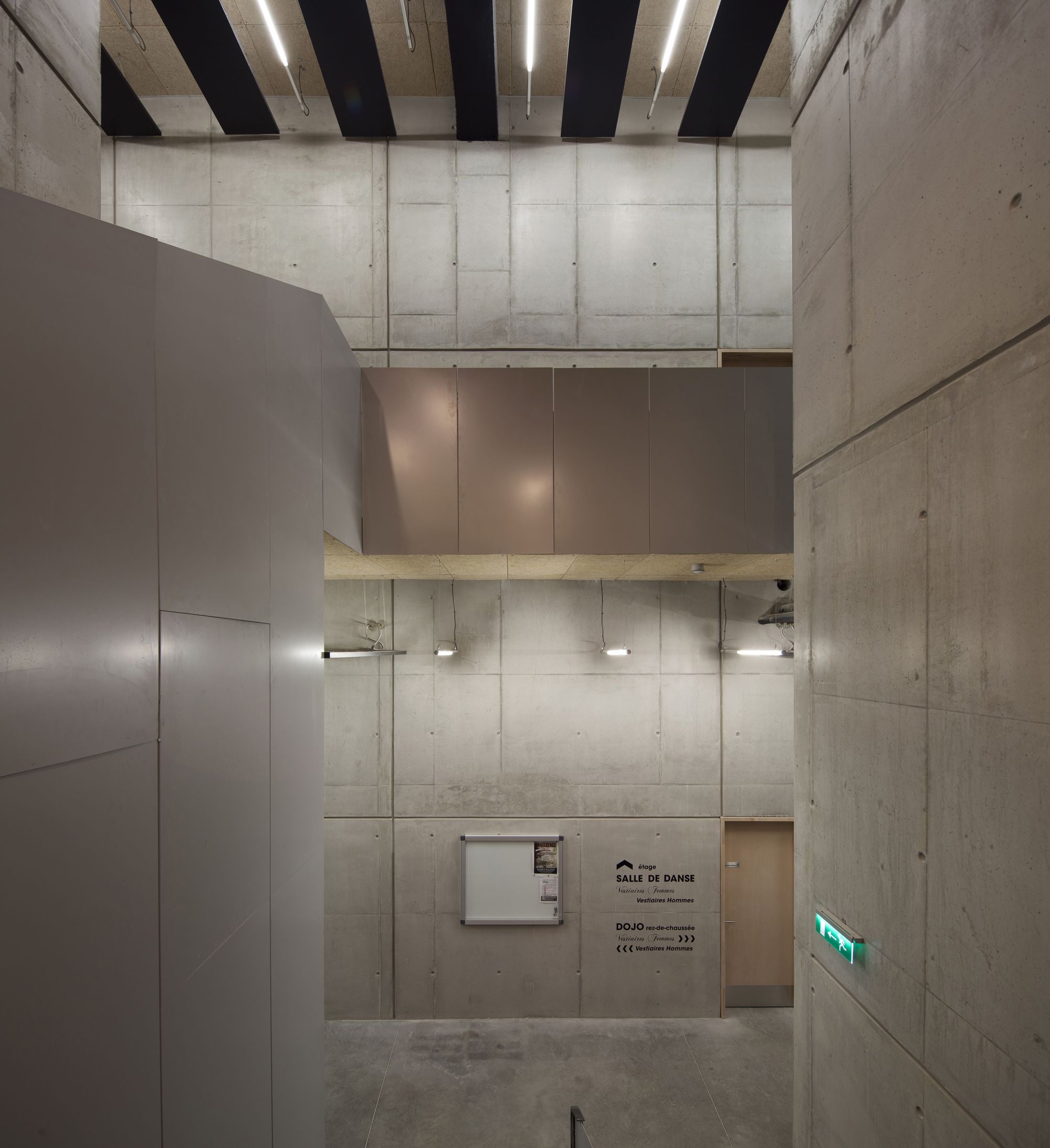

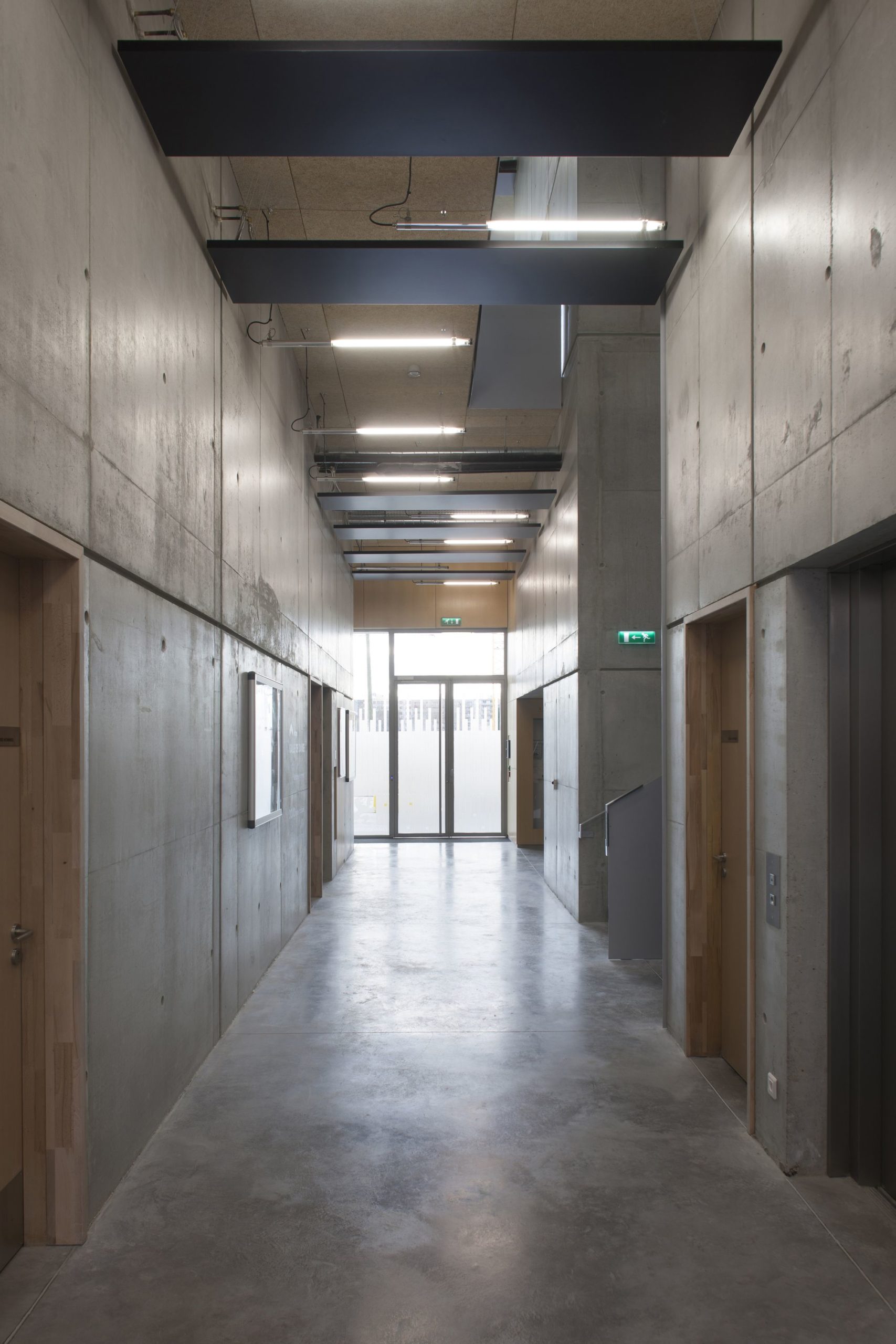

The architectural choices were guided by the desire to accentuate the industrial side of the building: Untreated raw concrete elevations, wood paneling, wood fiber acoustic ceiling. Emphasis has also been placed on the development of the existing structure. This is visible from several areas of the project.
Furthermore, insulation of the building was made from the inside by wood wool in order to preserve the raw appearance of the building. The facades are covered with a mineral glaze in a light gray tone to preserve the appearance of the concrete and its roughness.

photography by © Jérôme Ricolleau

Project Info:
Architects:  Atelier Didier Dalmas Architectes Associés
Location: Lyon, France
Lead Architects: Didier Dalmas
Area: 1168.0 m2
Project Year: 2016
Photographs: Jérôme Ricolleau
Budget: CUBIC
Fire Safety: Nicolas INGÉNIERIE
Structure: COGECI
Engineering Consultant: ARBOR&SENS
Project Name: Flower Market
