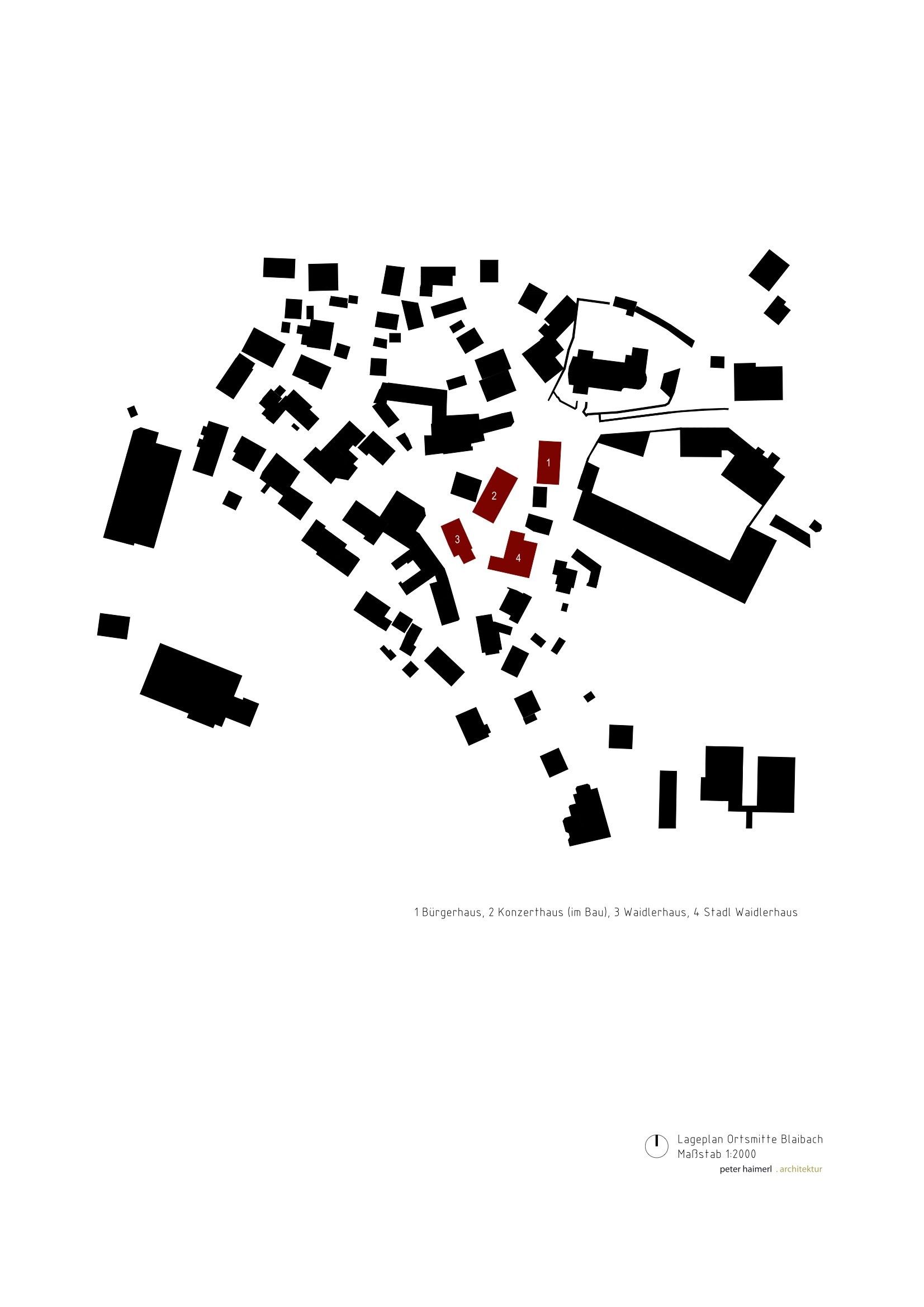

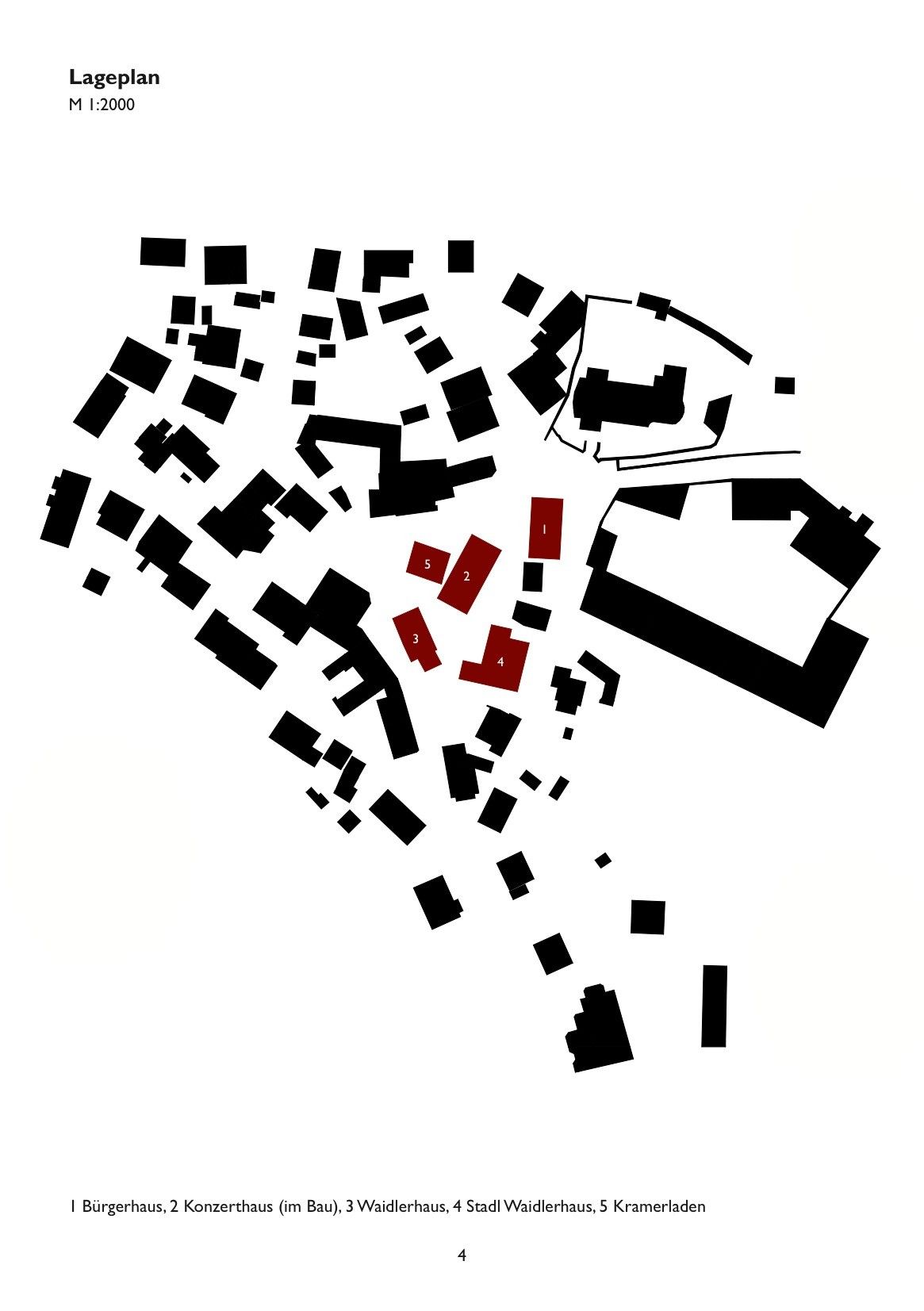

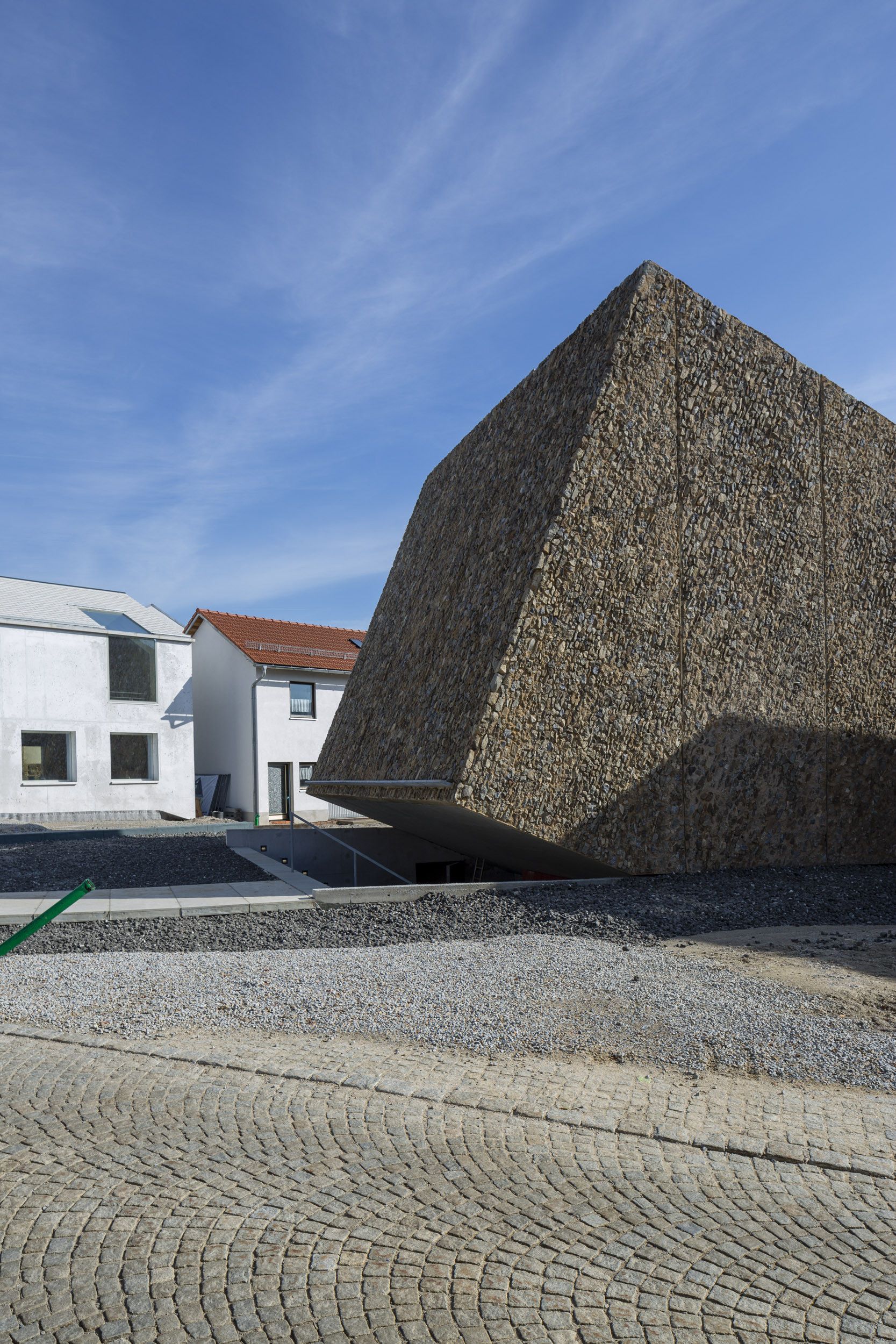

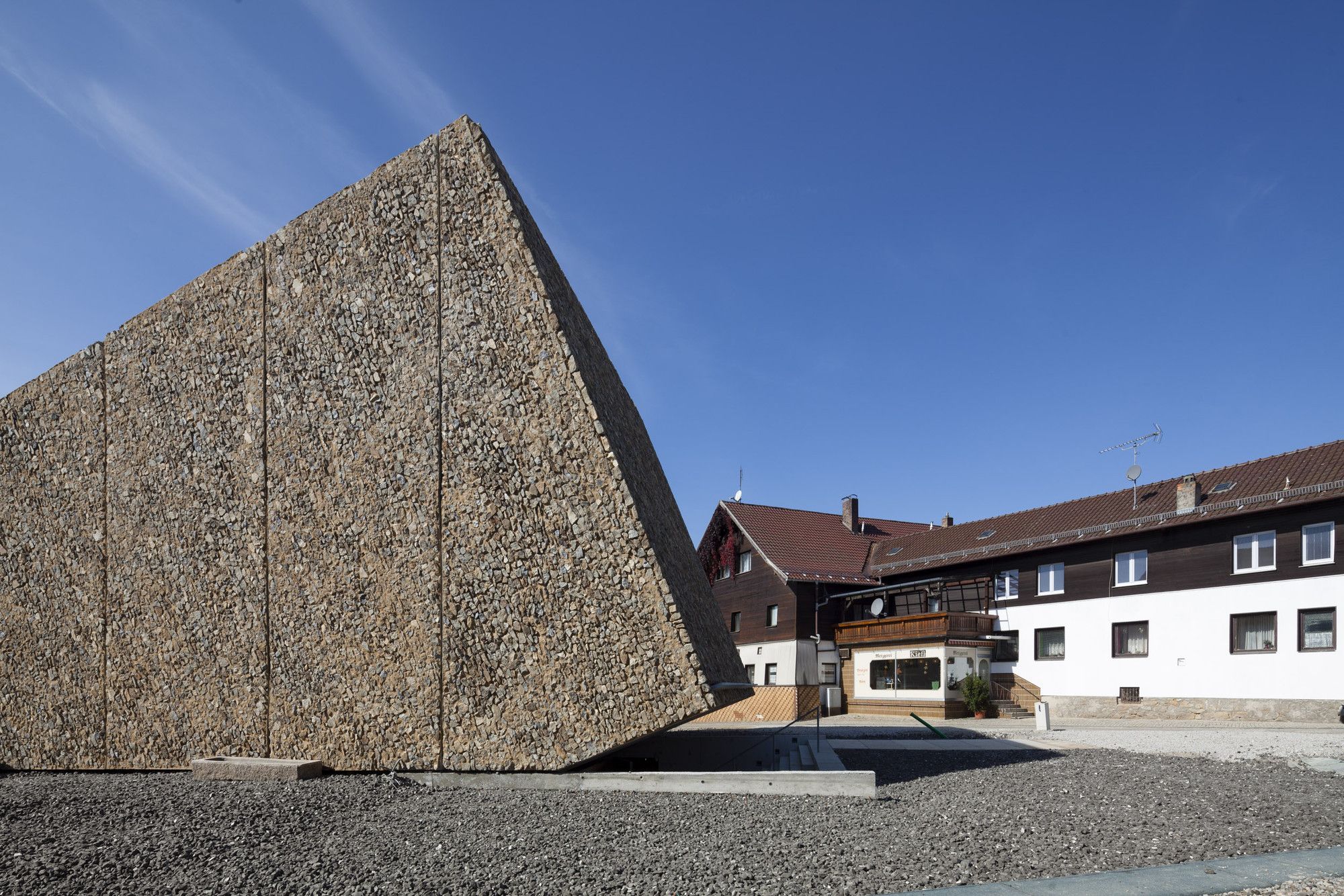

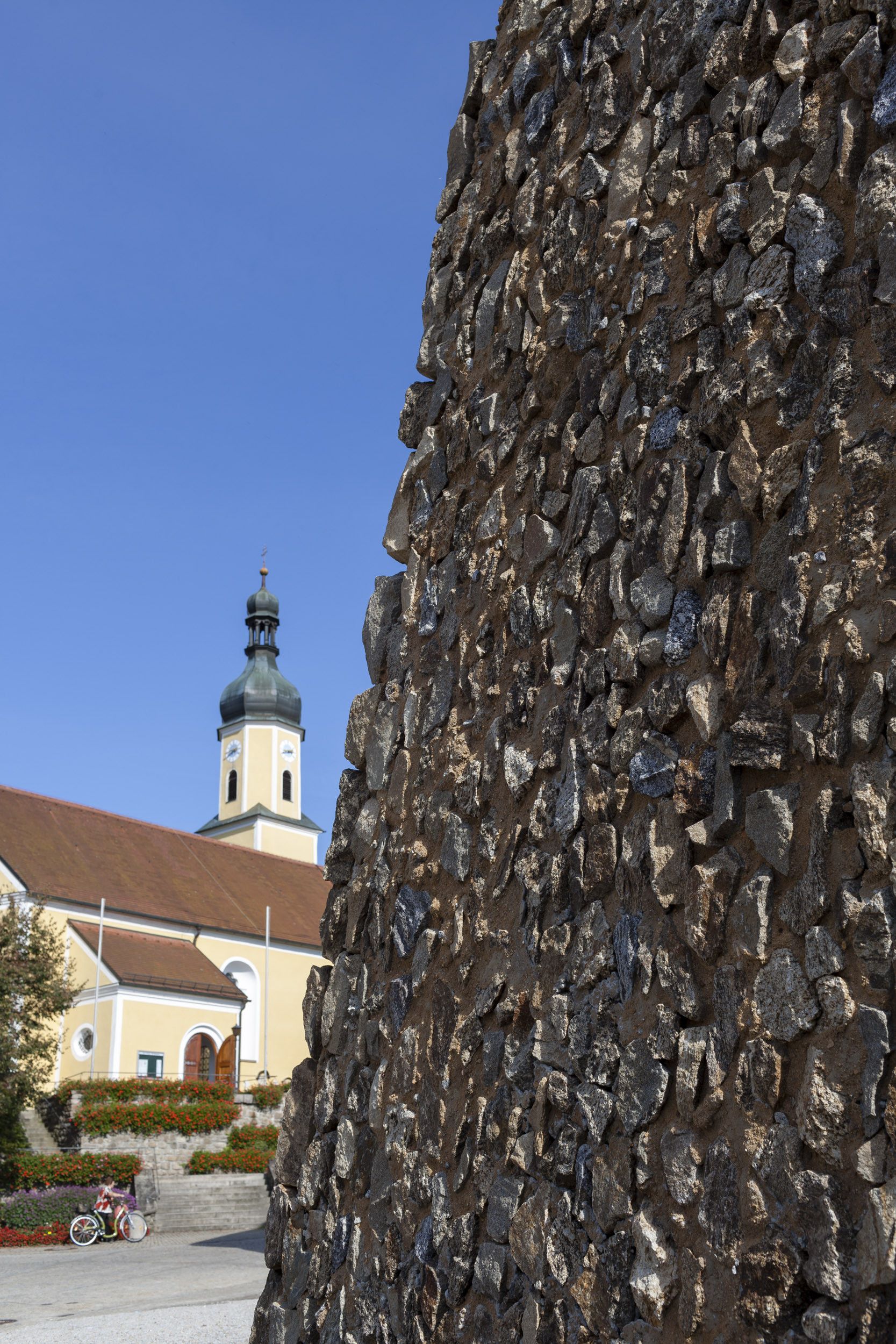

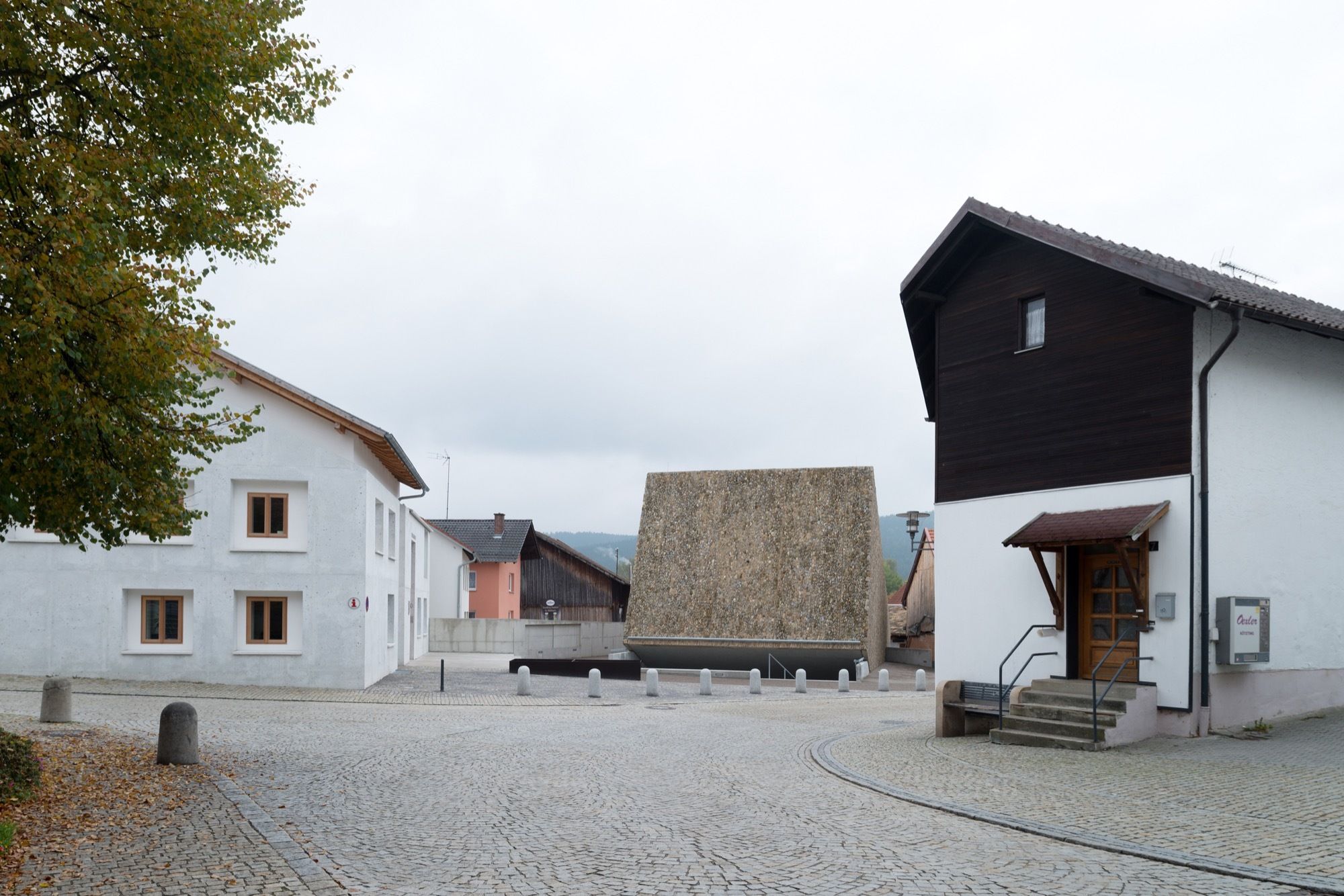

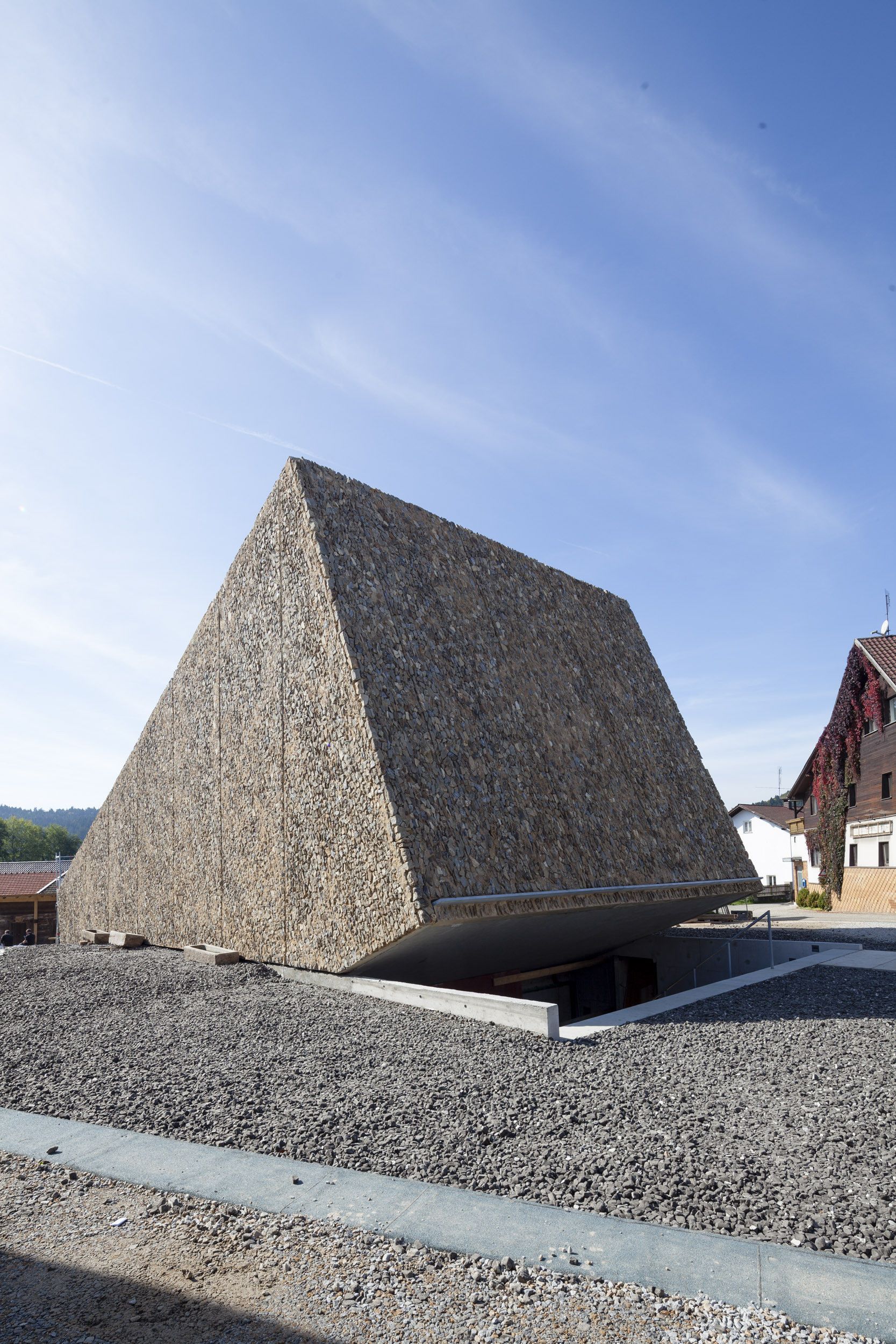

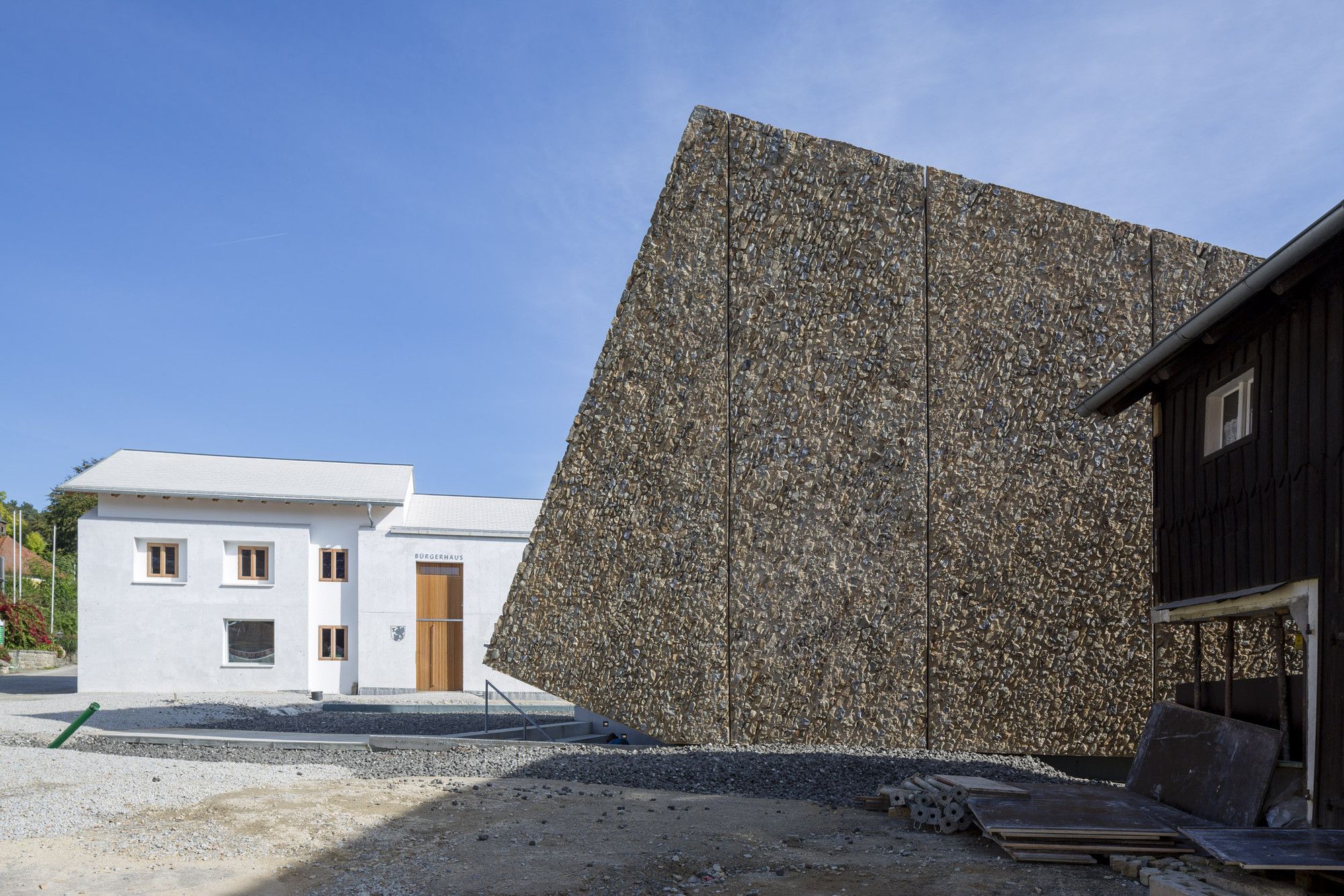

Designed by Peter haimerl.architektur, The concert hall represents the heart of the urban development to revitalize the new center of Blaibach. It is located next to the new community center and complements the space of a new village square that was realized with funds of the state urban development support. The concert hall is a solitaire of concrete with an inclination above the slope in the village center following the topography and linking with its granite facade to the stone carver tradition of Bailbach.

Photography by © NAARO

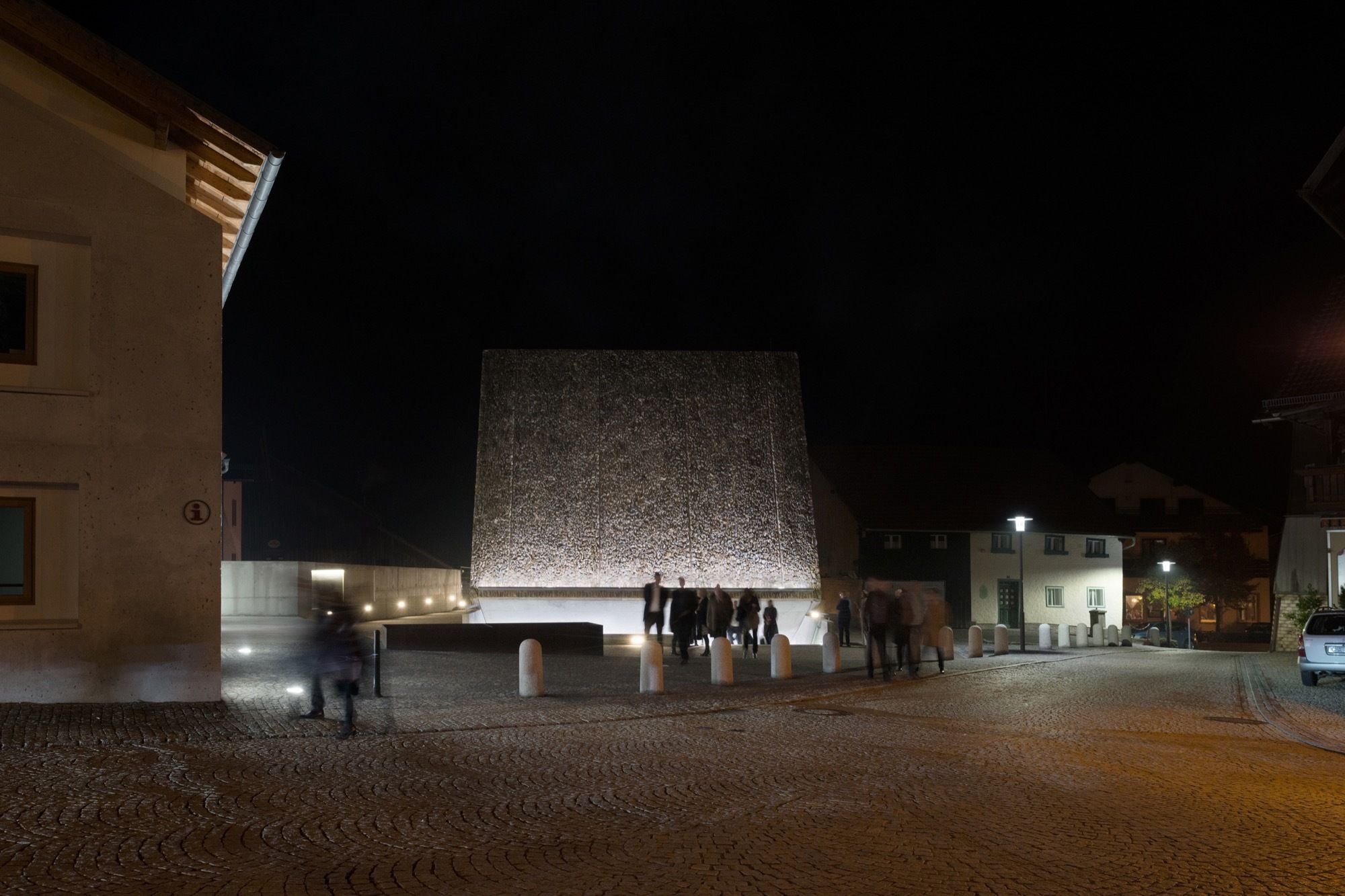

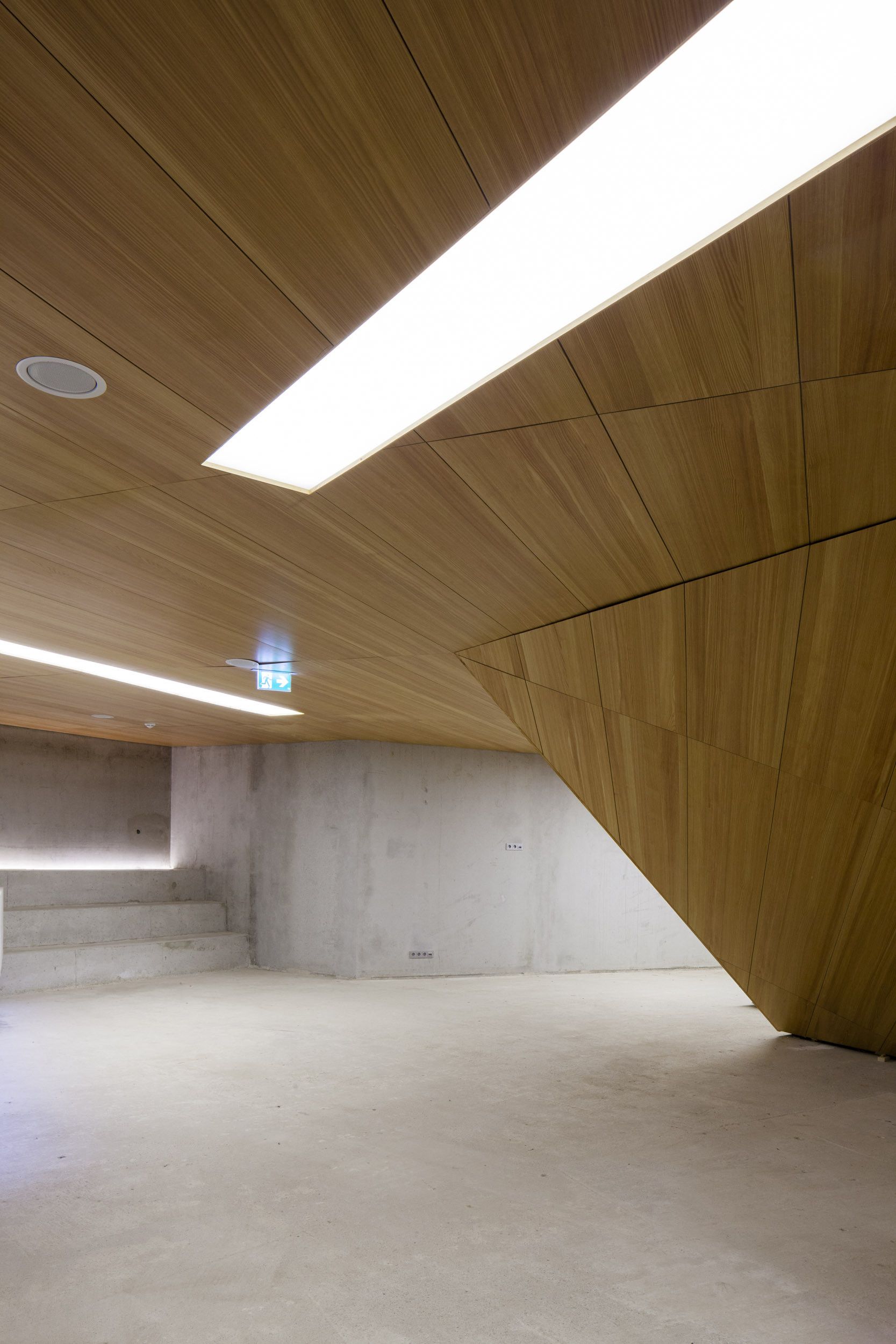

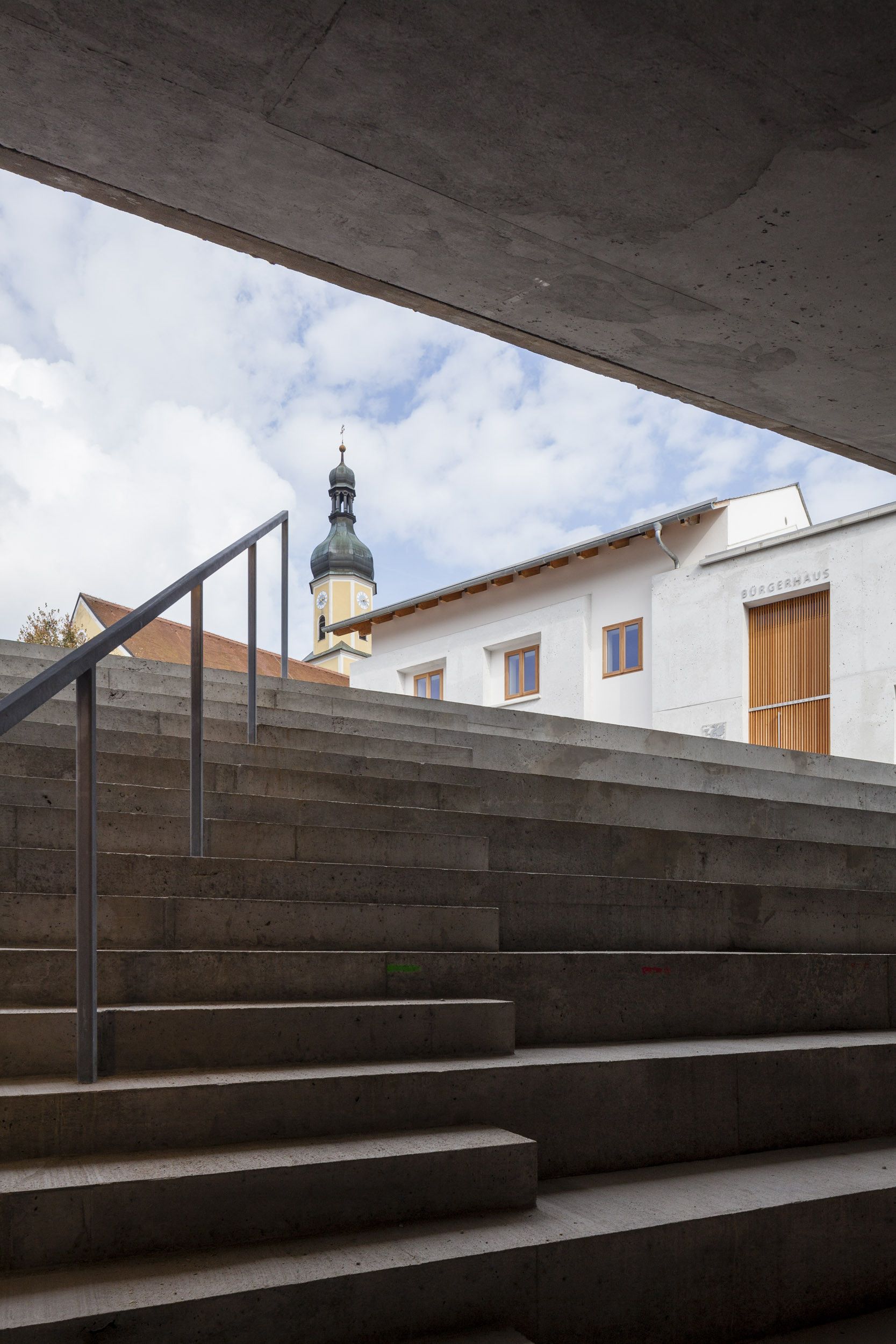

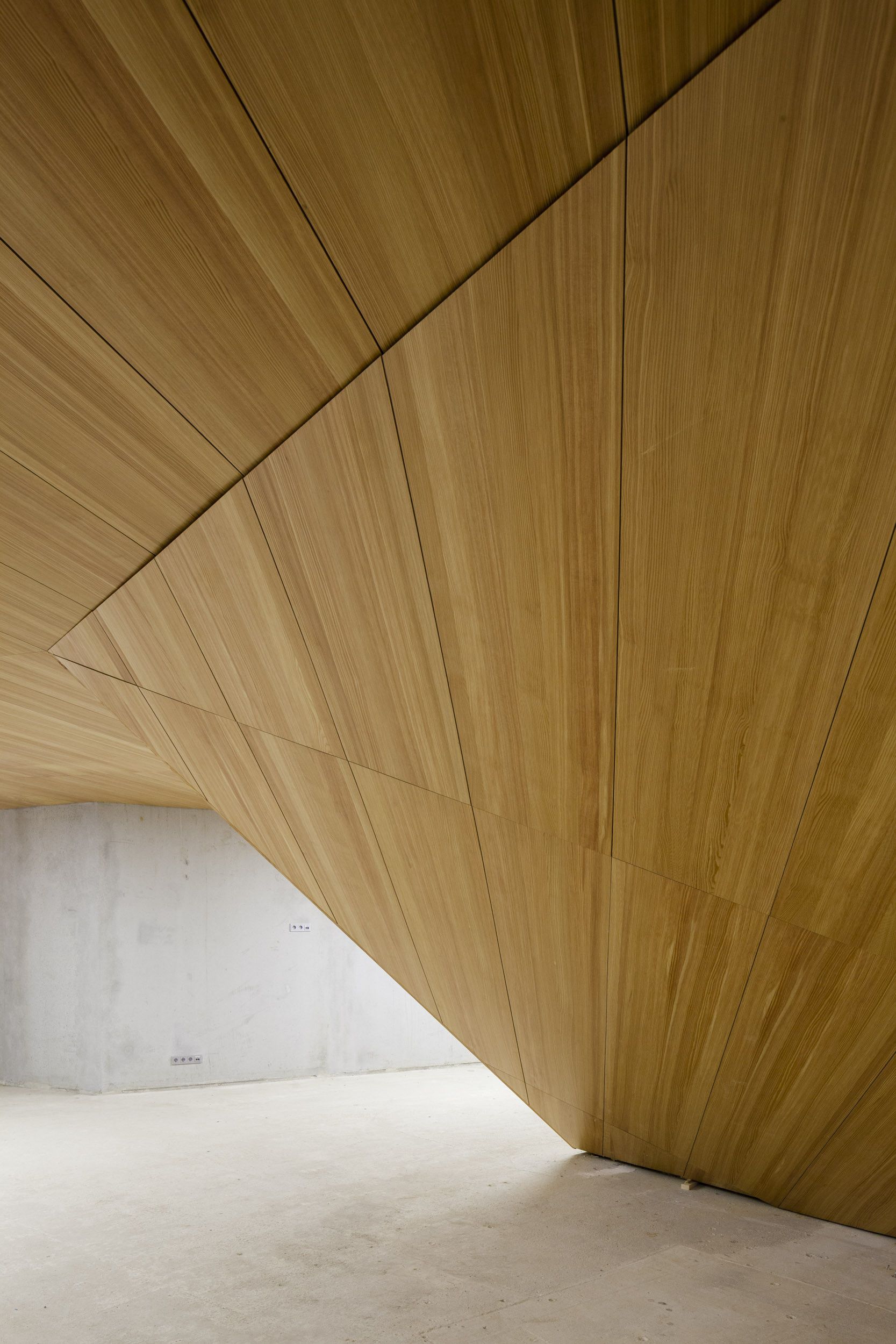

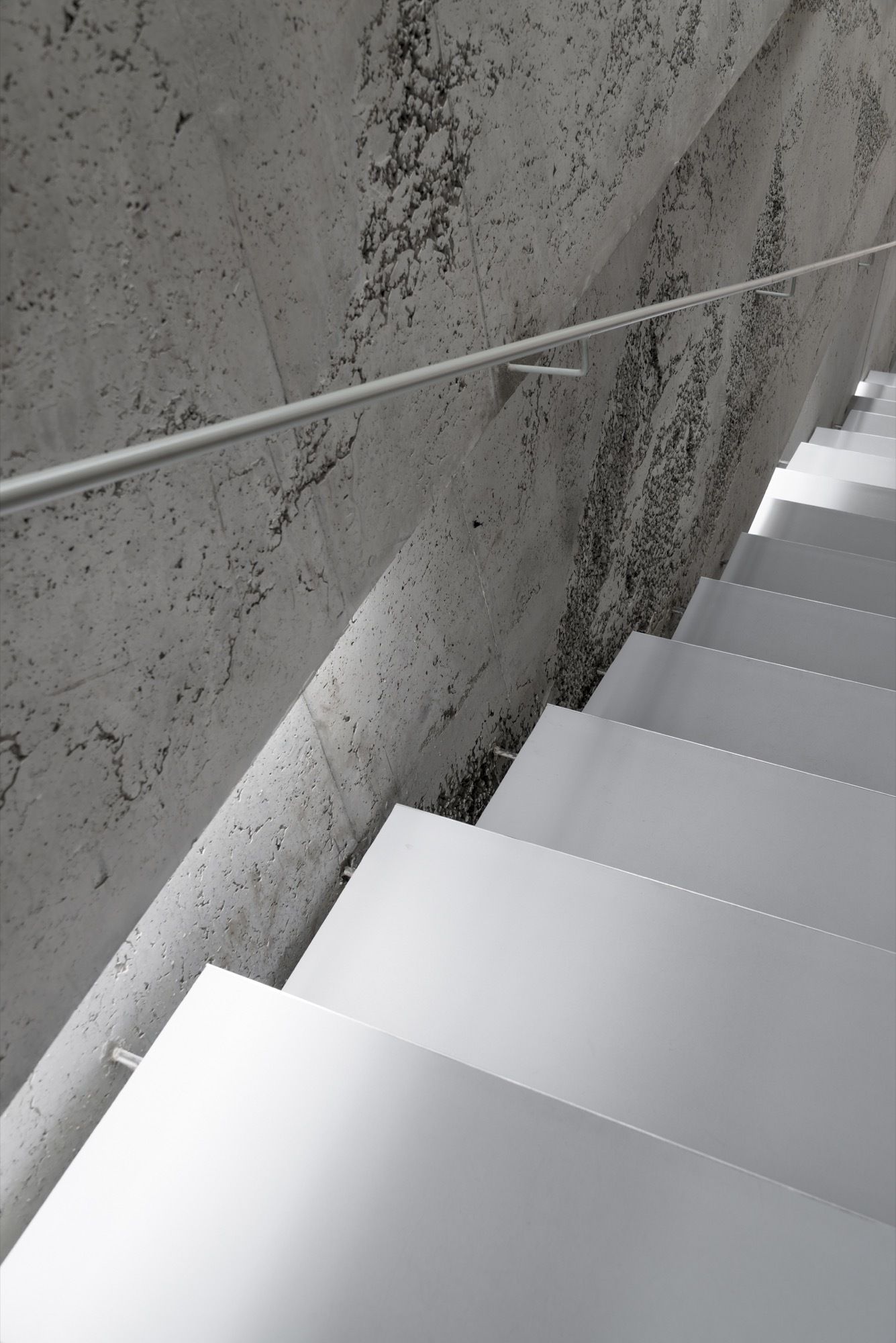

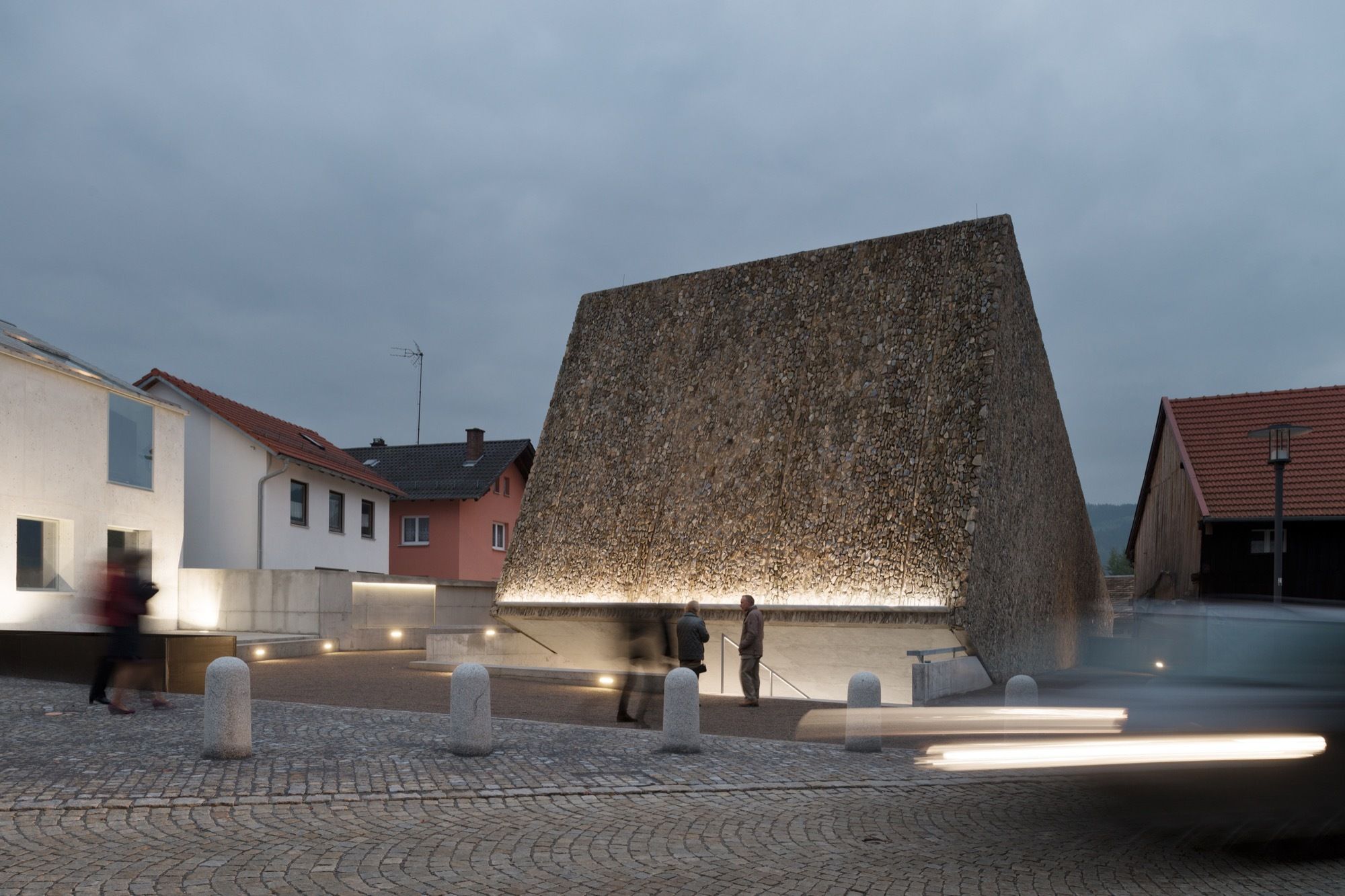

The monolithic tilted building opens itself to the visitors at the new village square and guides them by a staircase to the foyer below the surface. The foyer provides not only the functional areas of wardrobe, sanitary rooms, and bar but also leads the visitor excitingly around the auditorium into the inner concert hall.

Photography by © NAARO

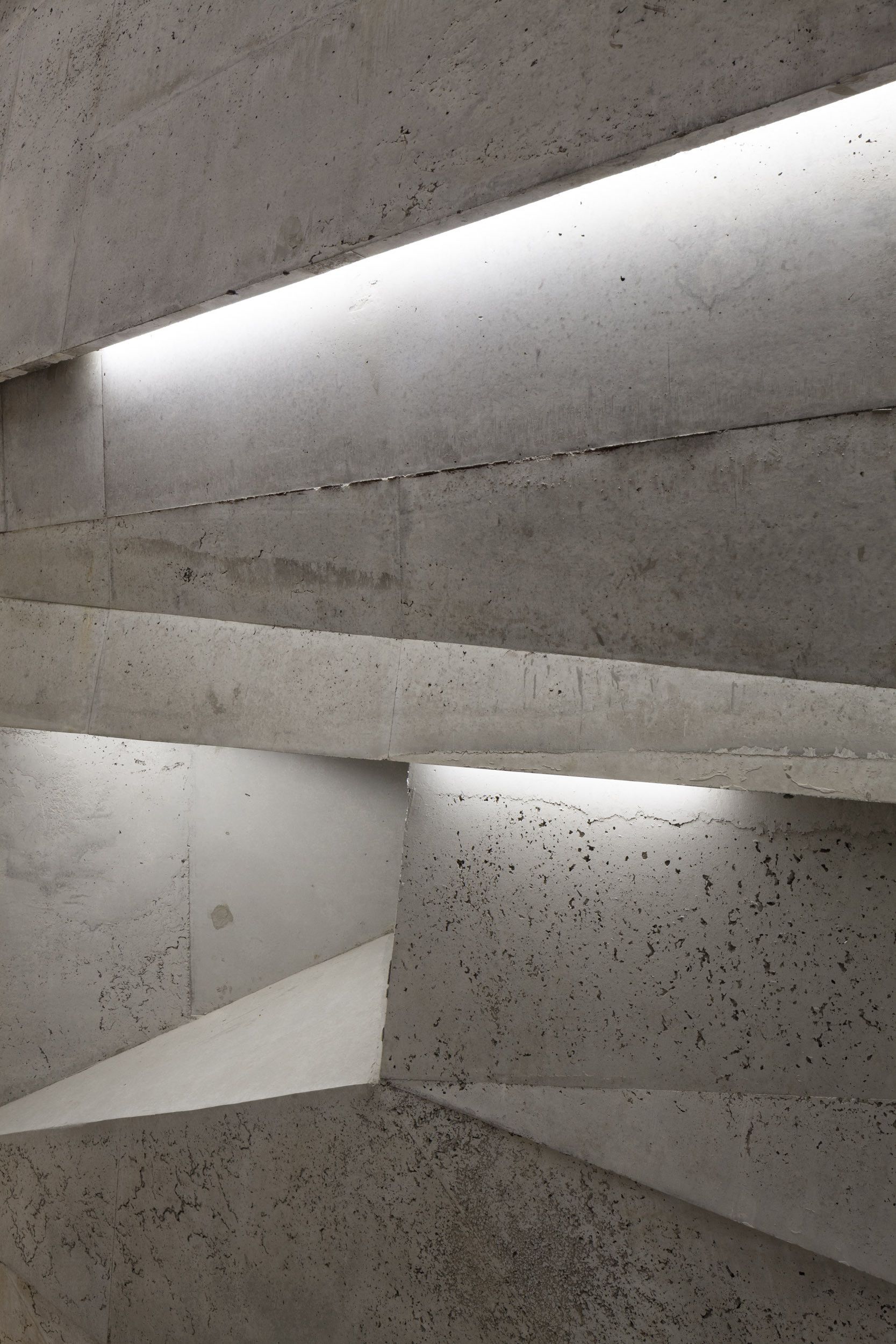

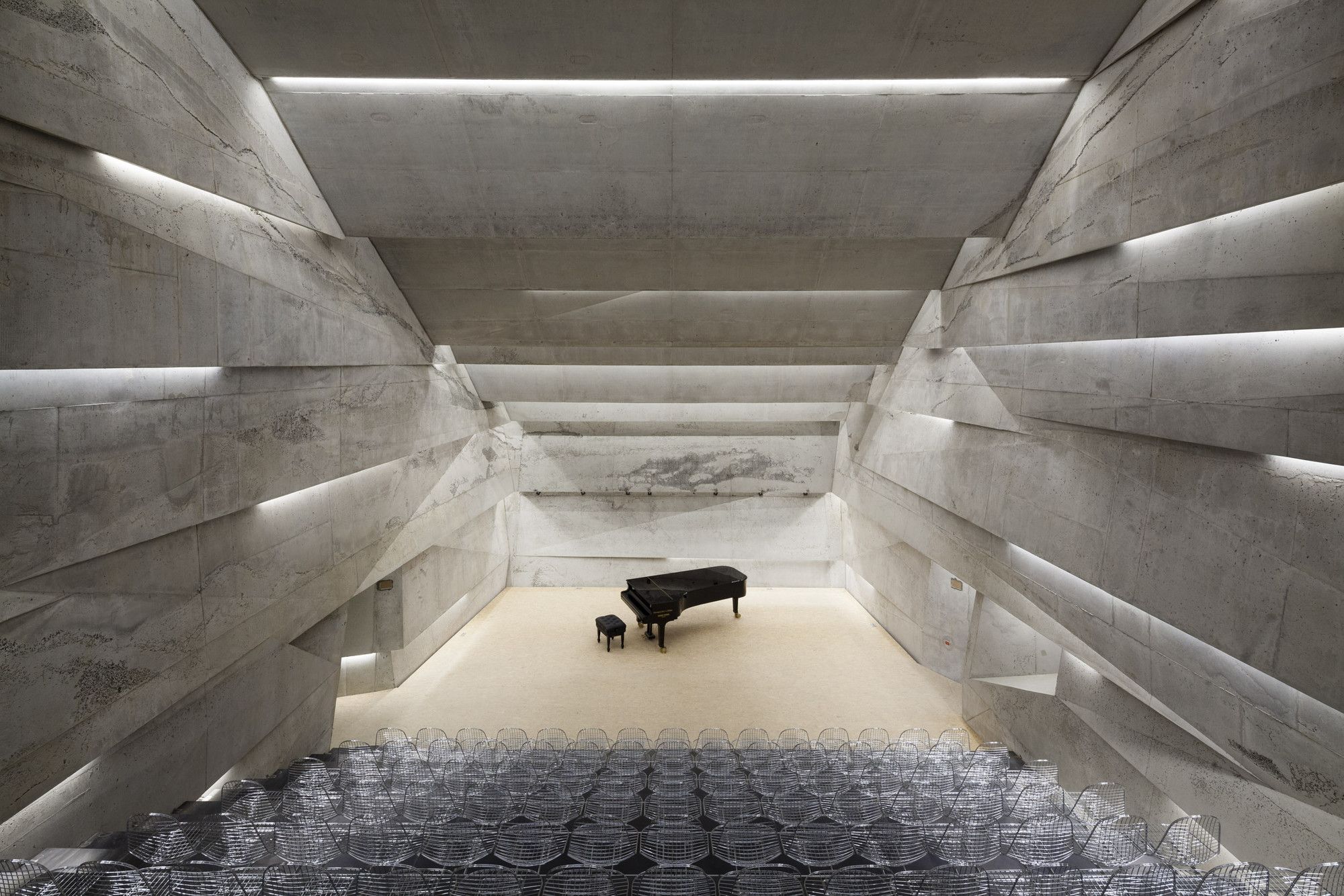

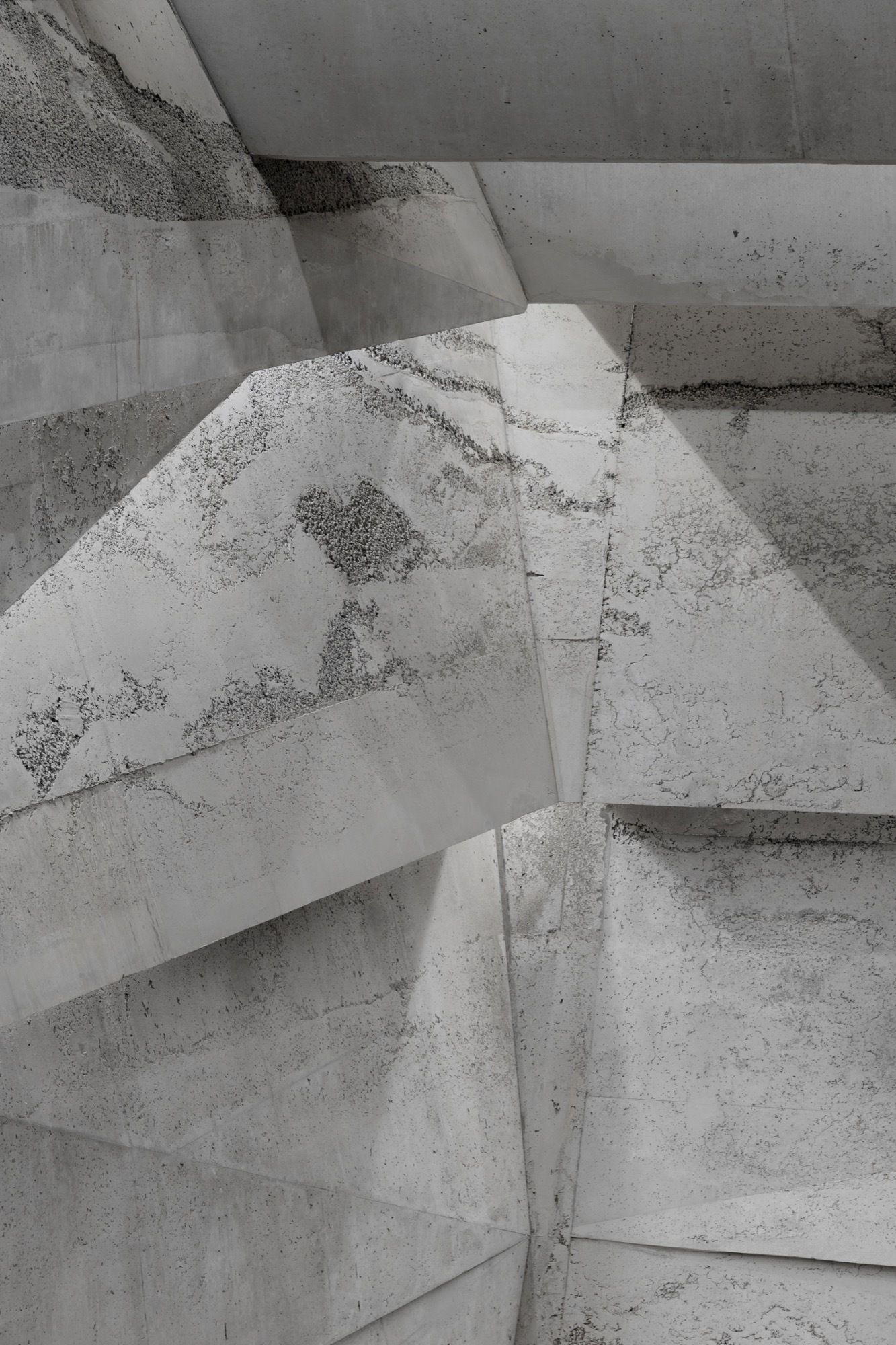

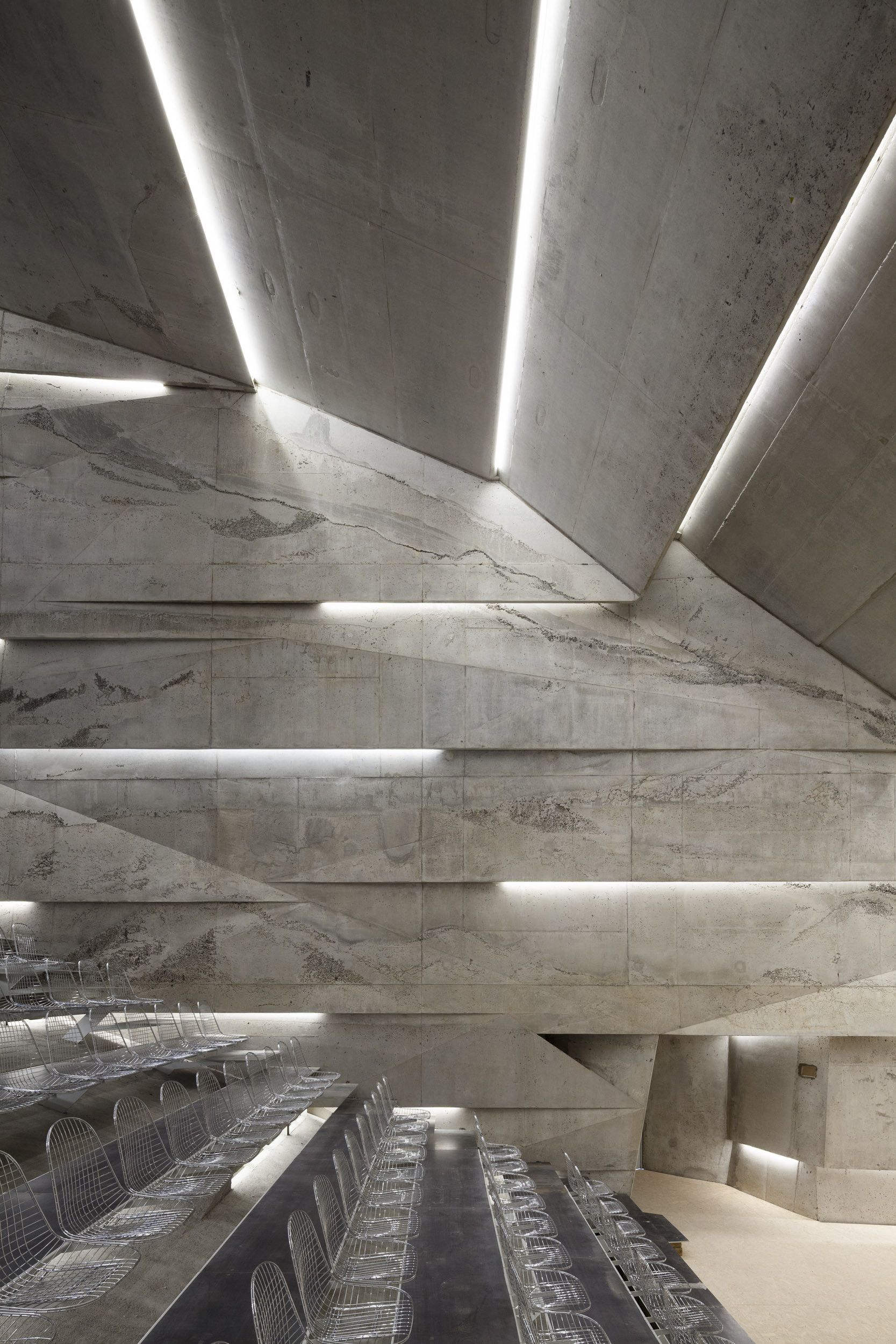

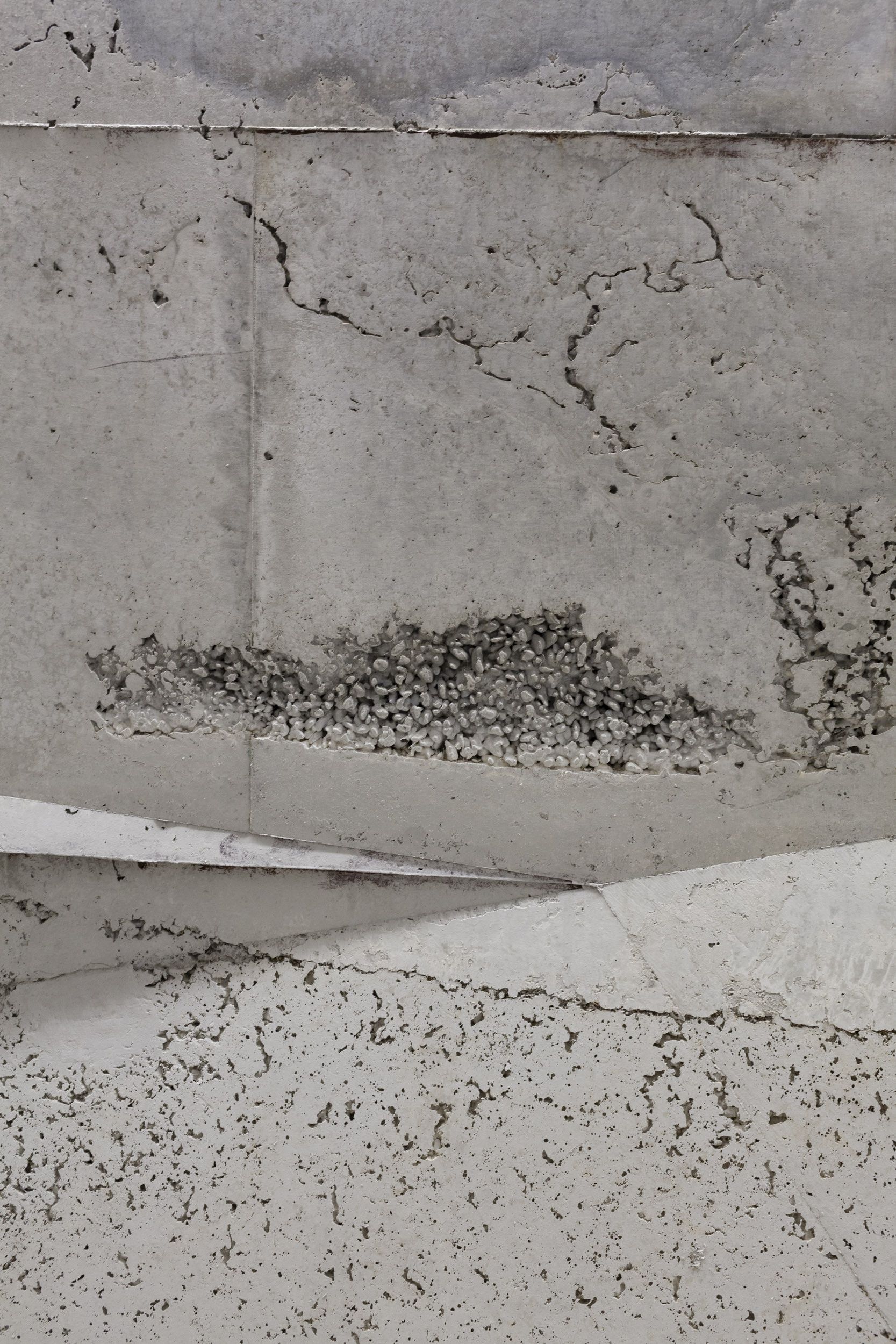

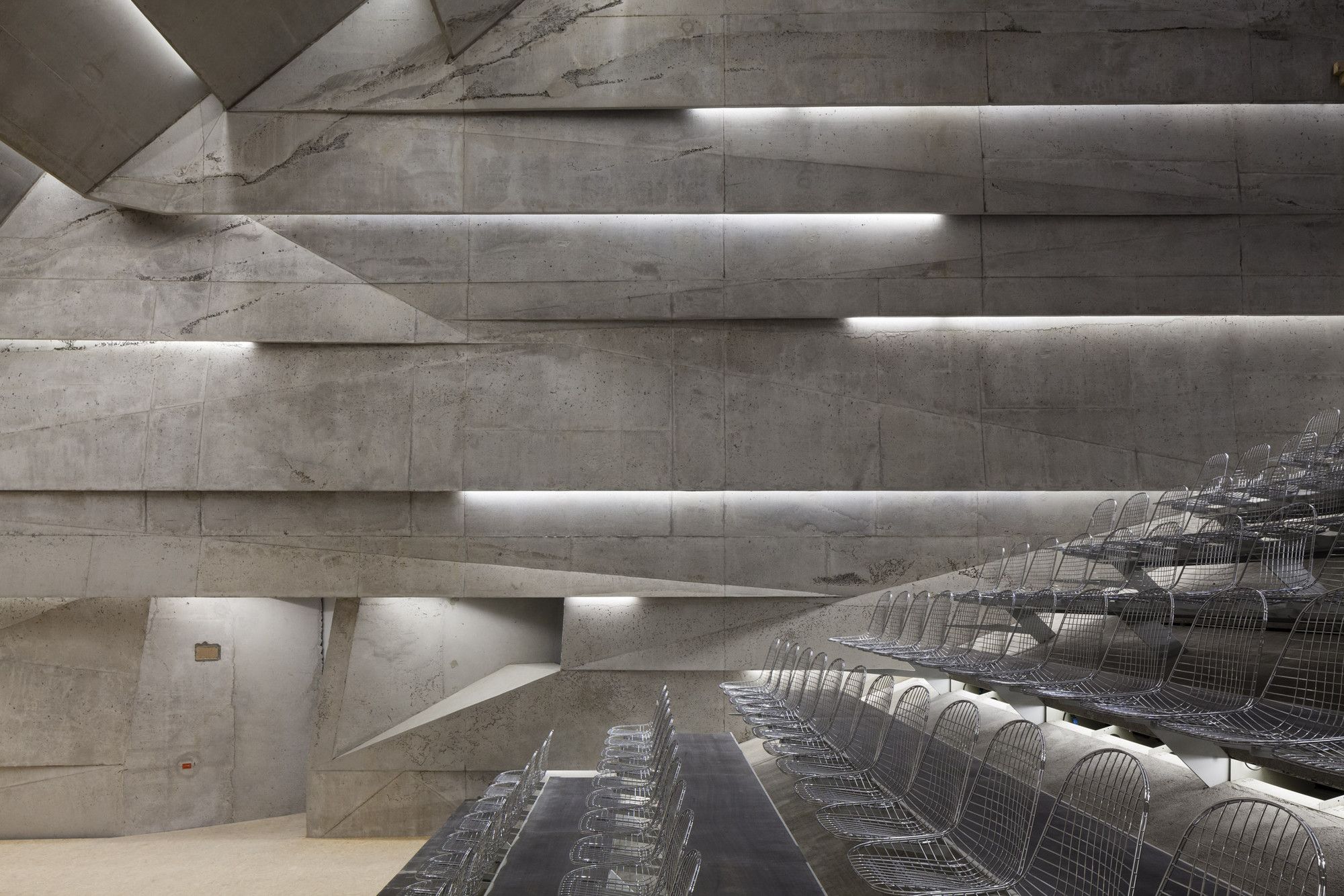

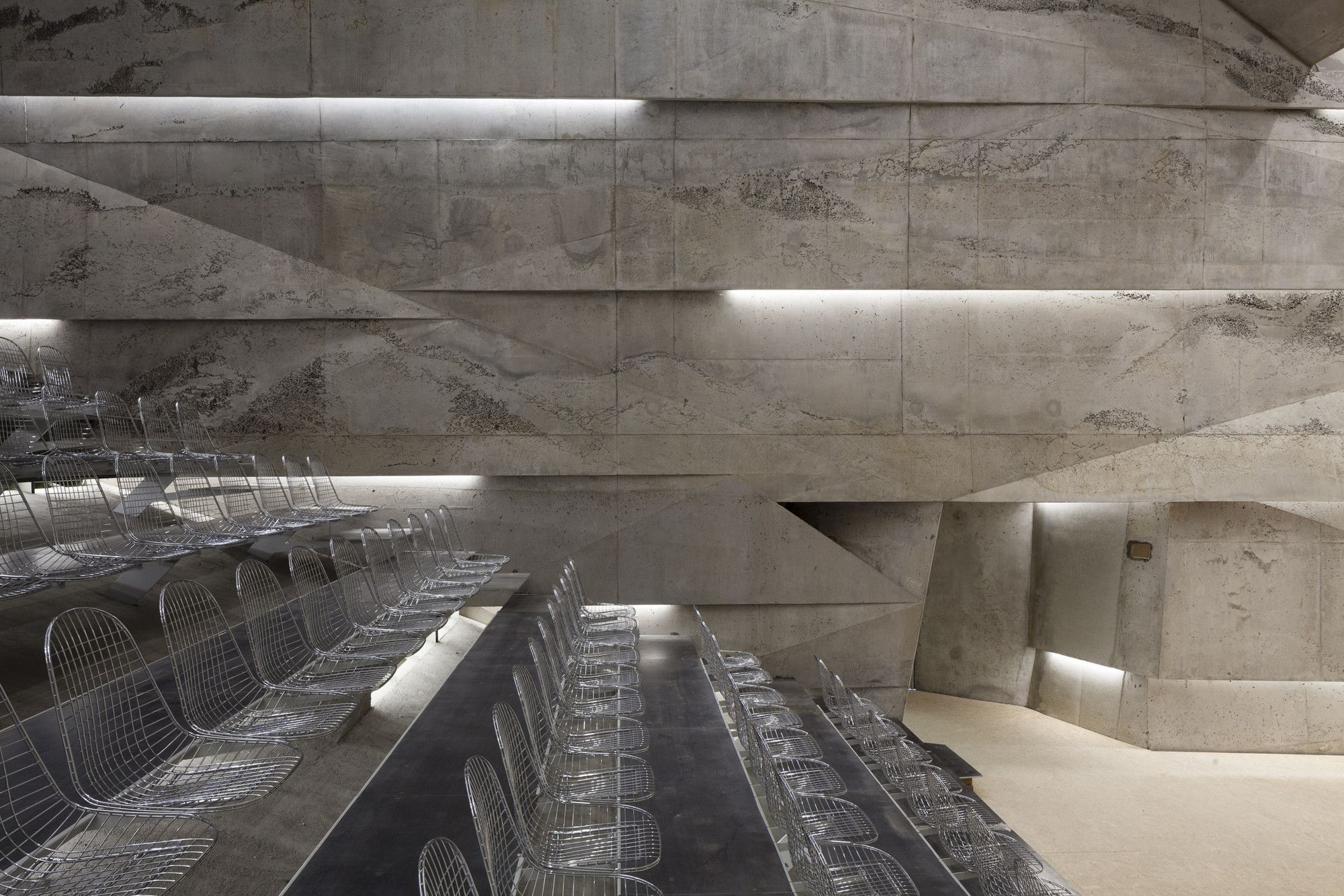

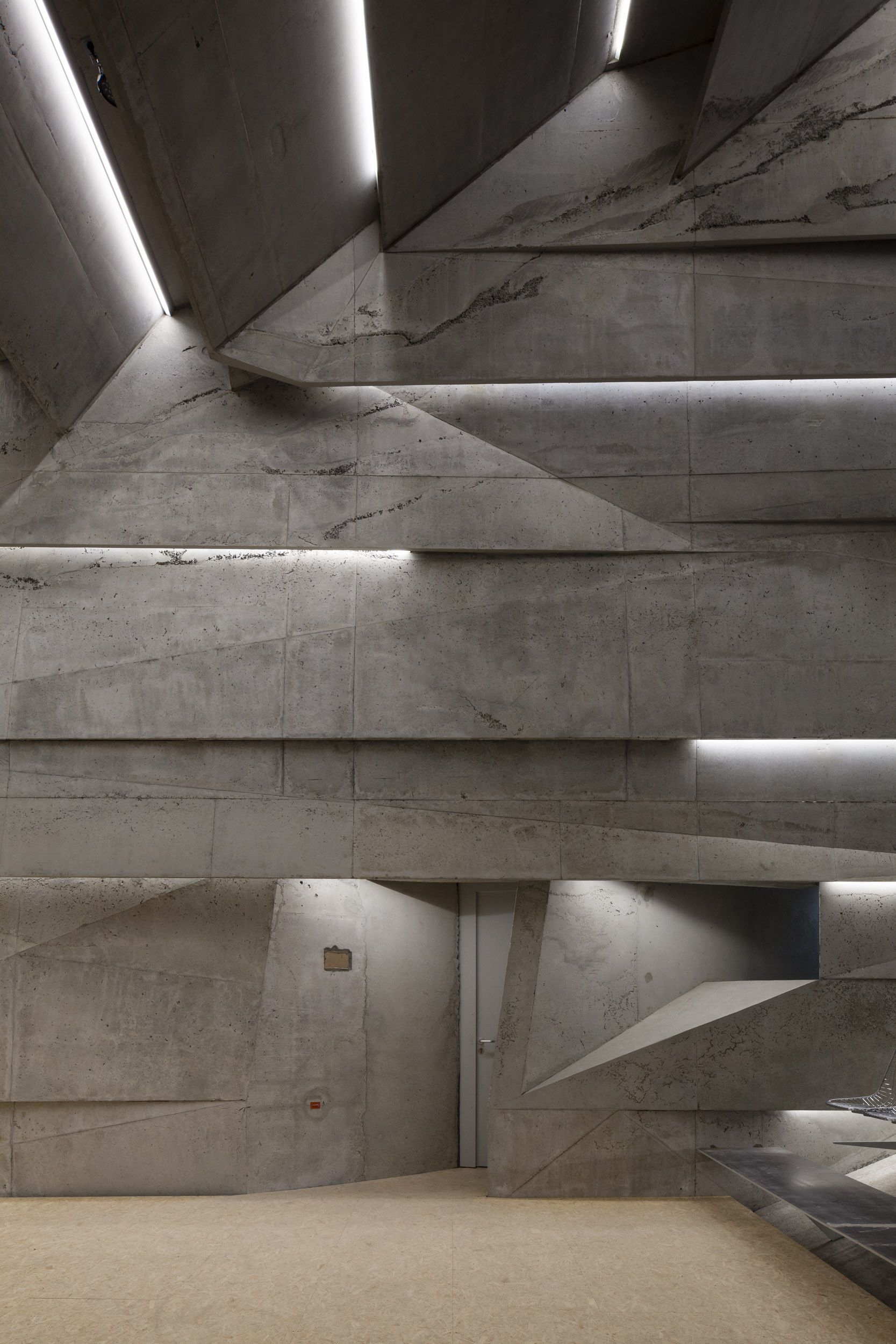

The hall unfolds its acoustics within the seemingly light building. While the precise light slits illuminate the space. The building body is made of pre-cast concrete and only a highly intricate constructed formwork made the realization of the difficult form possible. The dominant tilted surfaces of the concert hall are based on acoustic specifications and include besides LED-lights also bass absorber behind the light slits as well as underneath the steps for optimal acoustics. The concrete in the hall is untreated. Its lively surfaces help to absorb the medium-height tones.

Photography by © NAARO

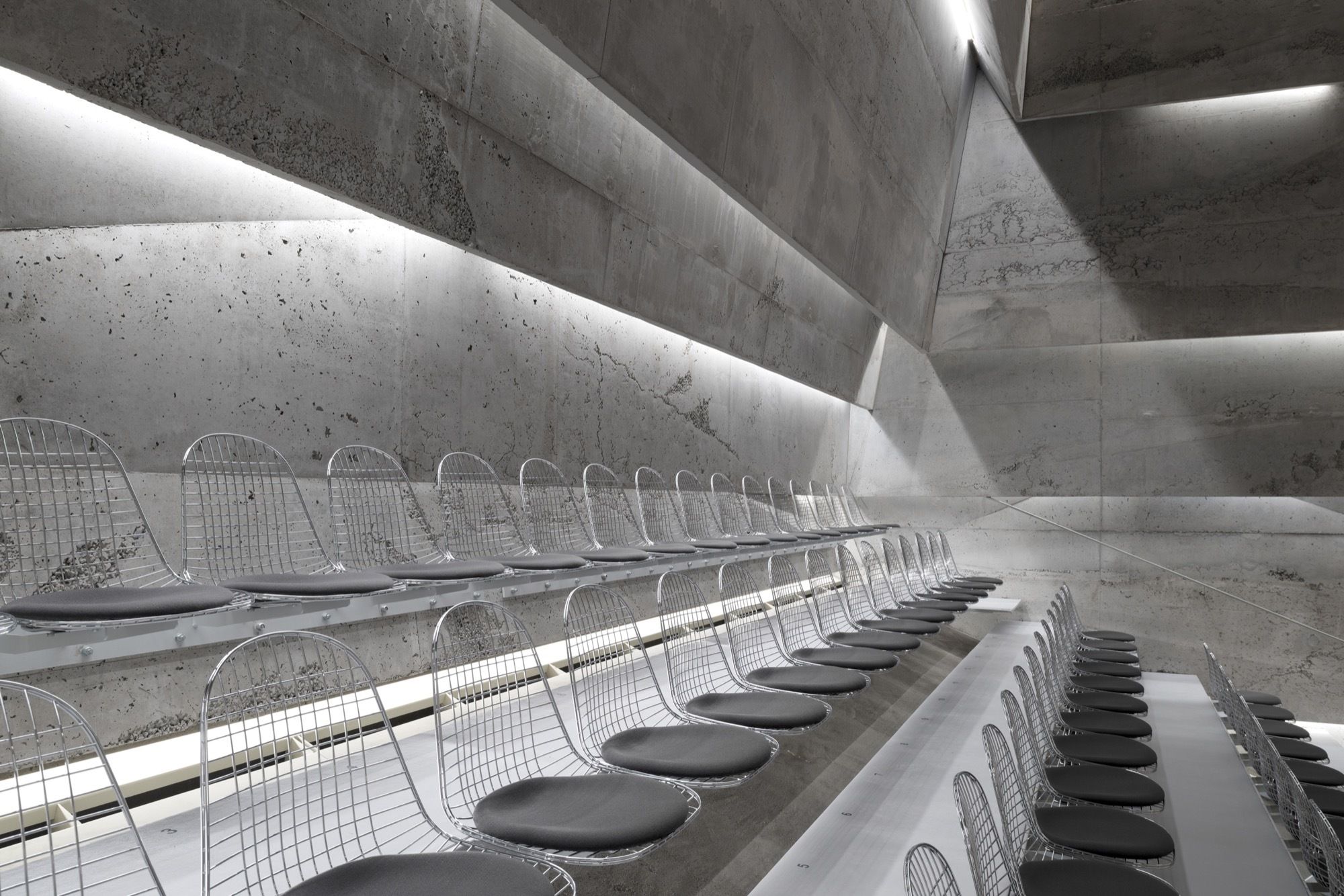

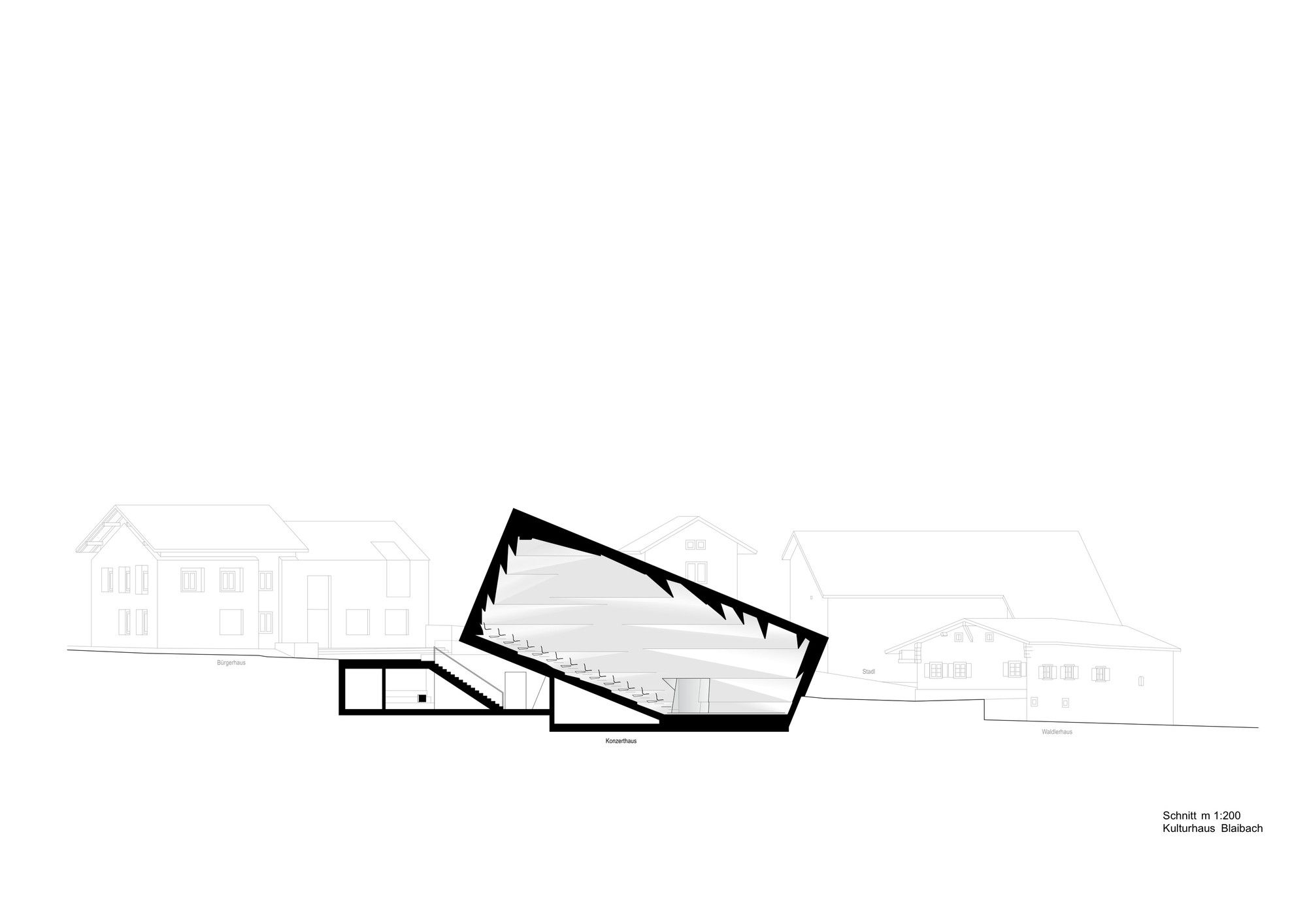

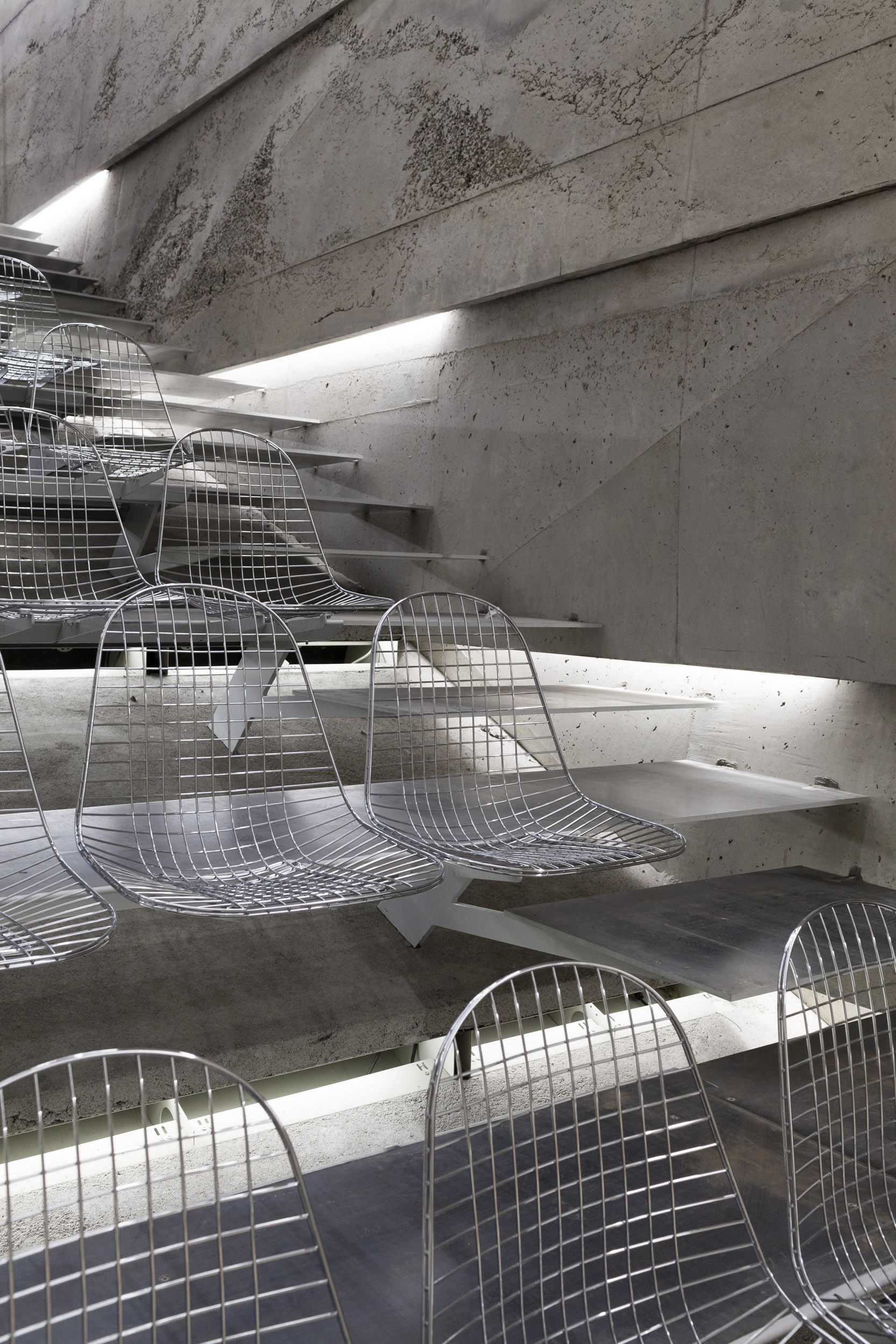

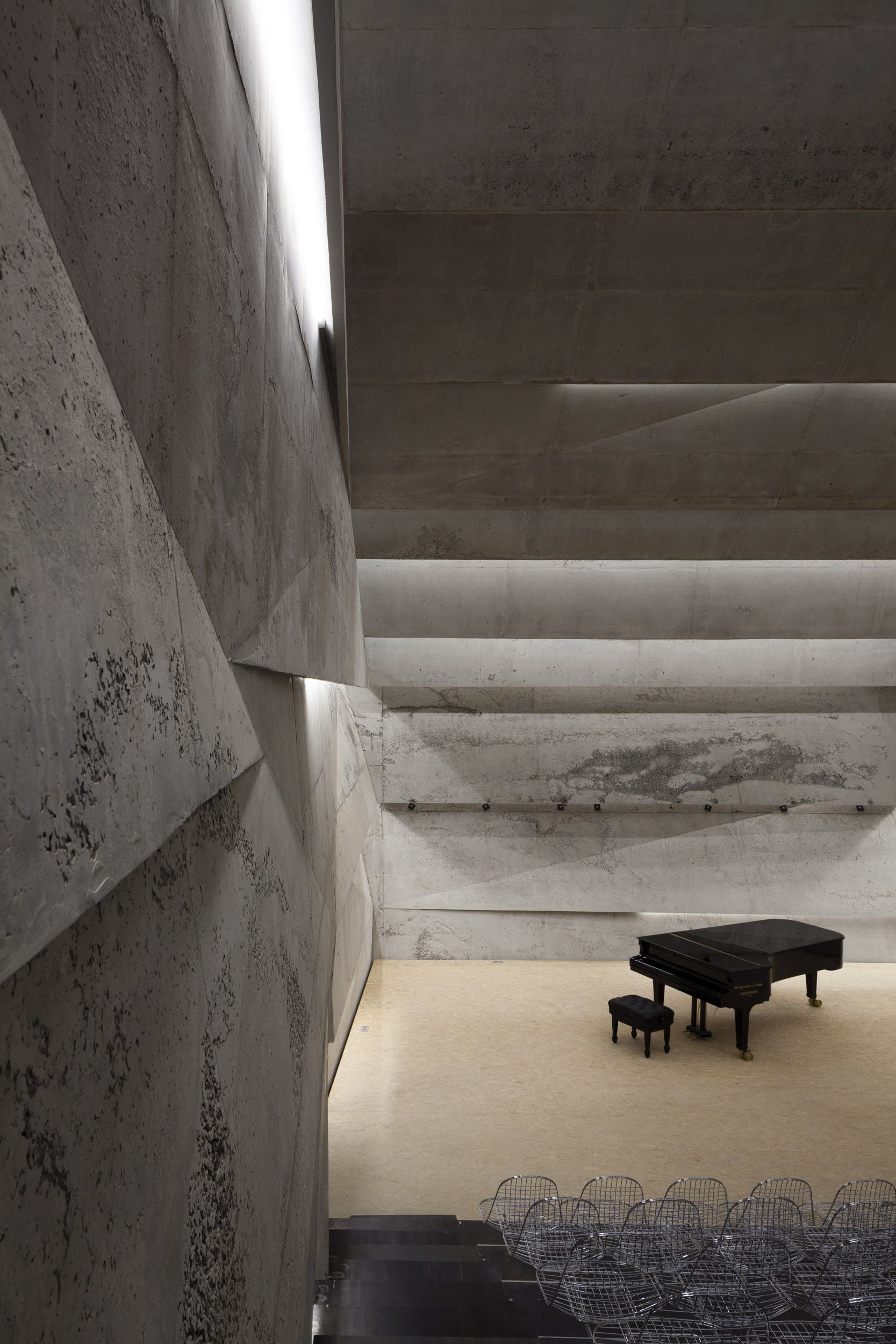

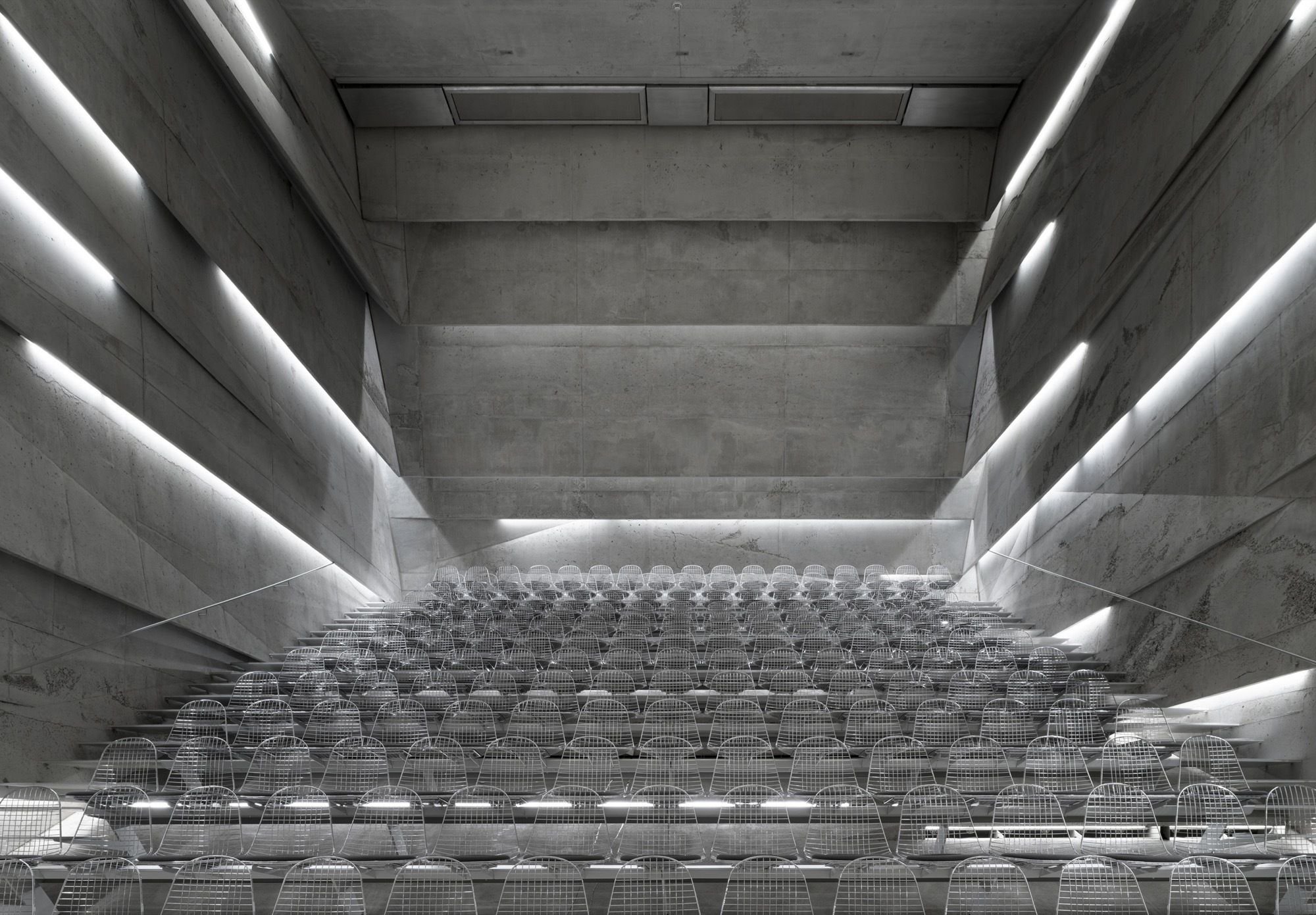

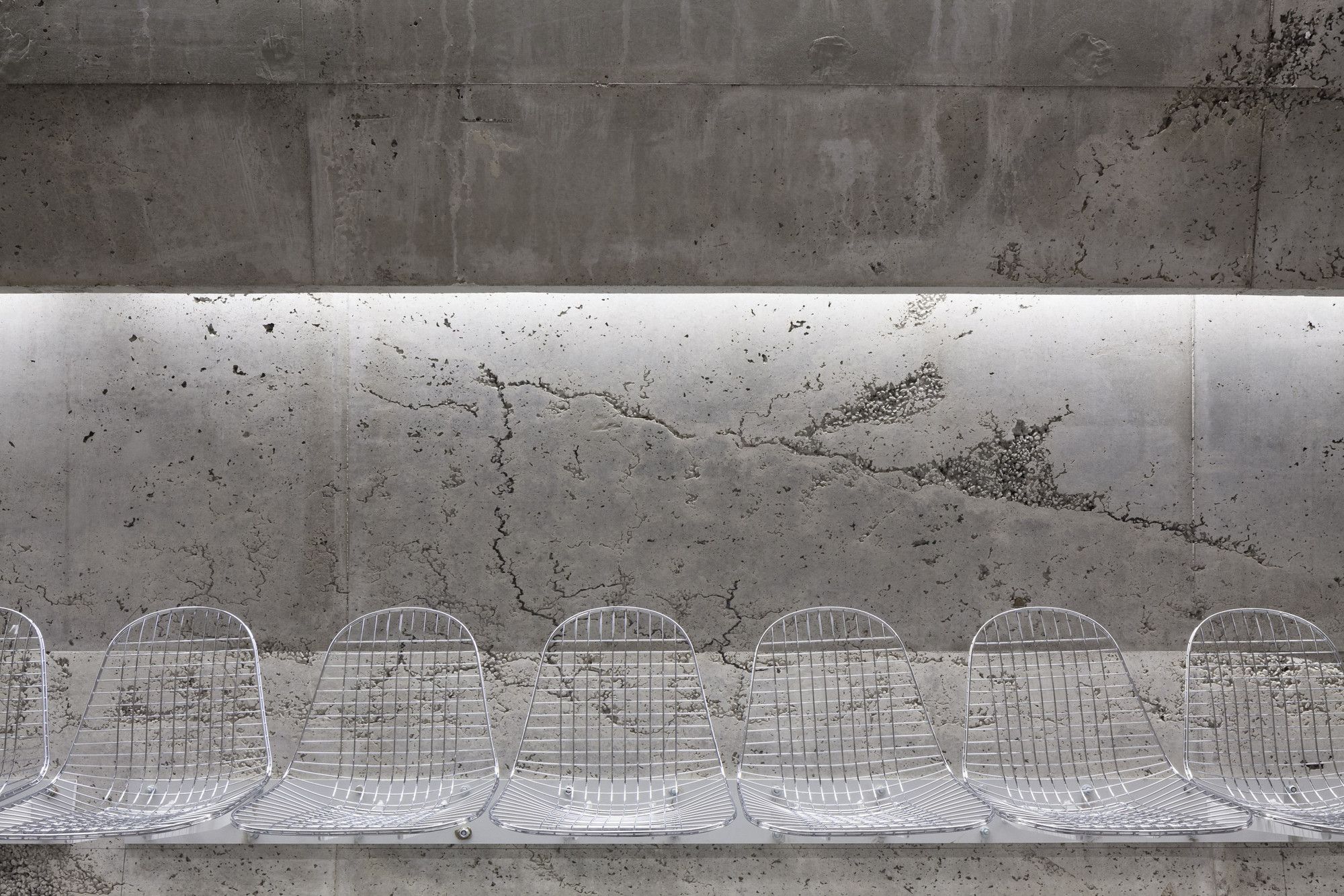

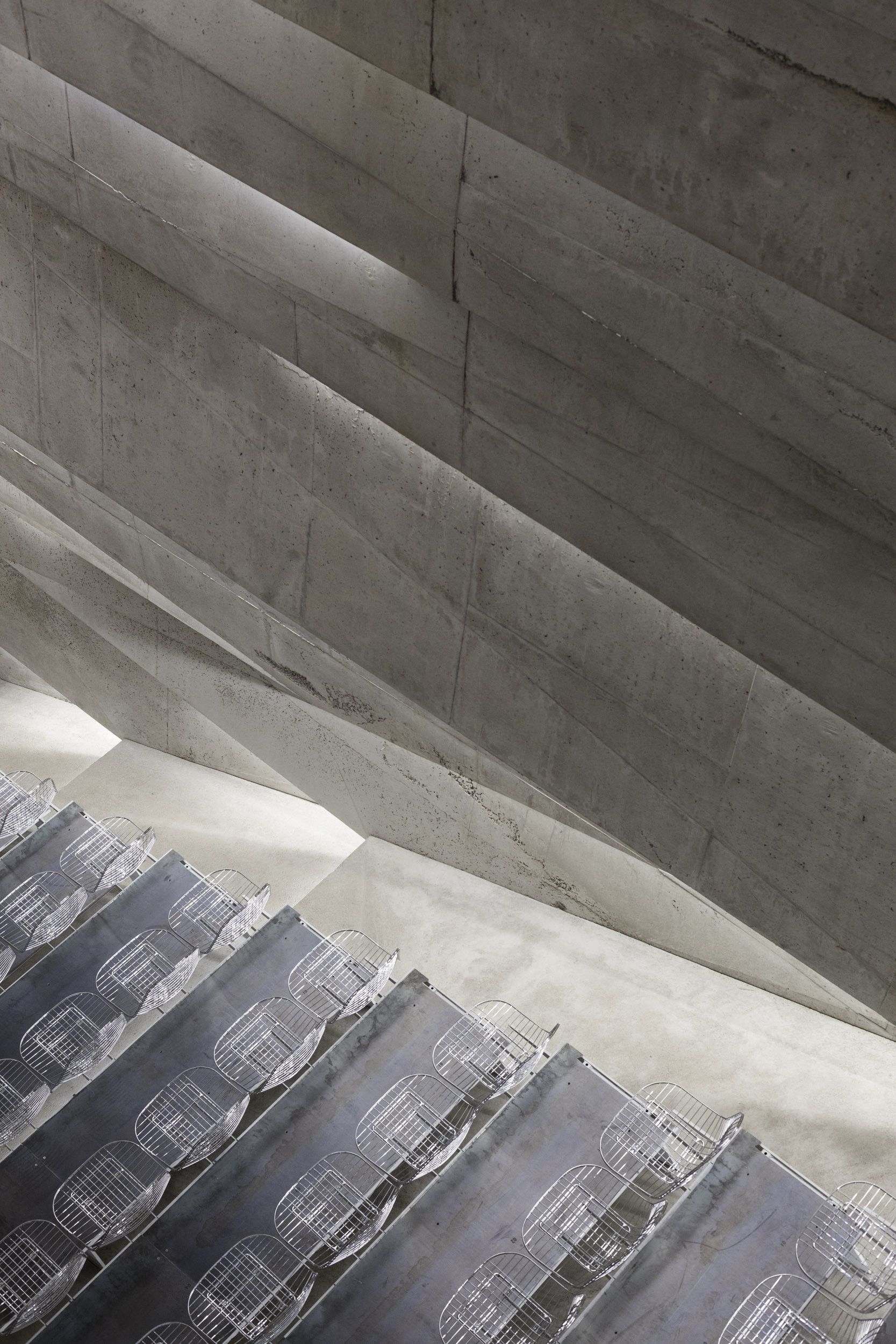

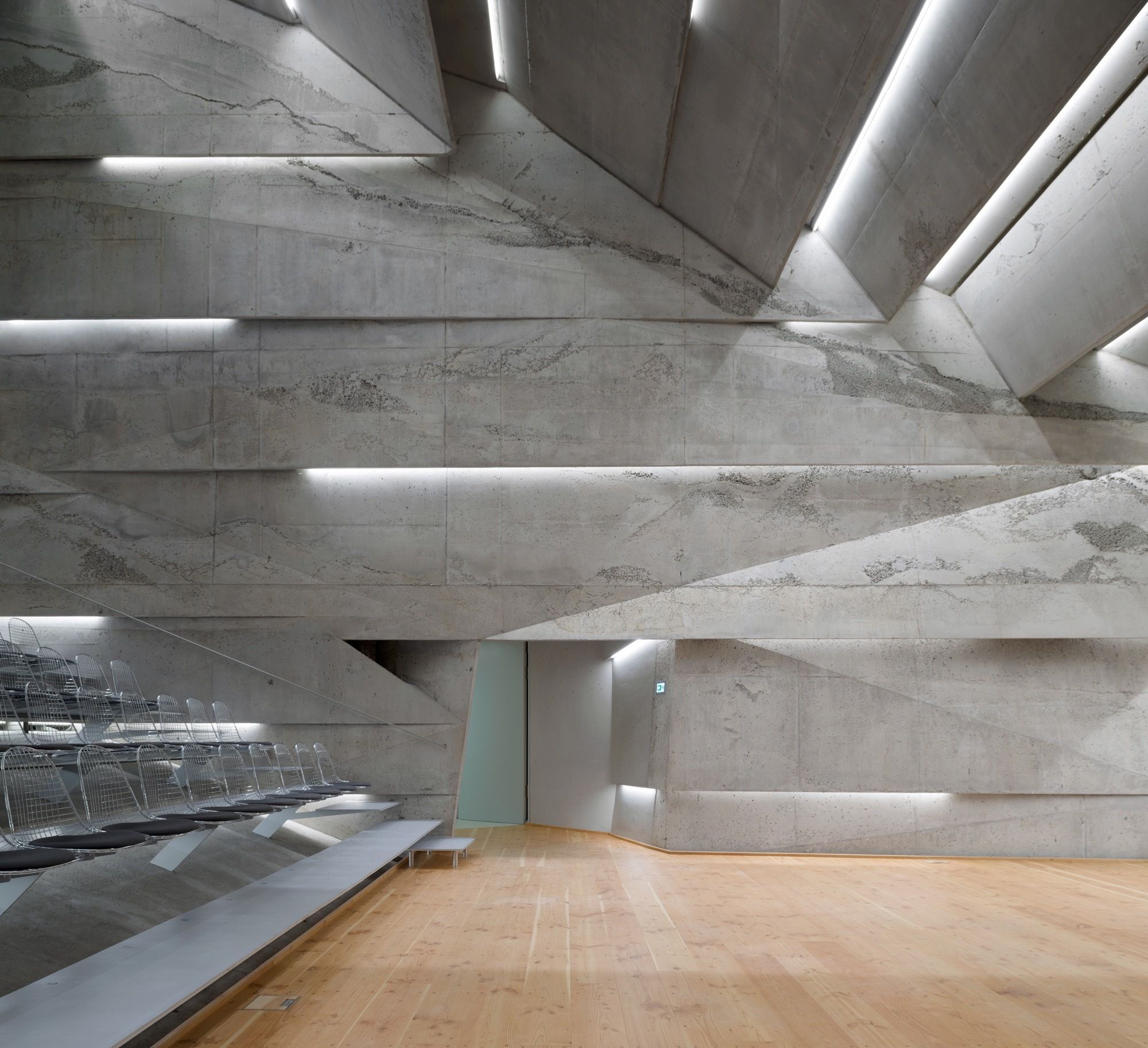

The inclination of the building – based on the increase of the slope – carry the gallery. The seemingly transparent seats, which are fixed on iron swords, appear to float above the light slits. The stage of the concert hall, which is only designed for its actual function not as a multifunctional room, is equipped with modern LED-stage technology.

Photography by © NAARO

Project Info:
Architects: Peter haimerl.architektur
Location: Blaibach, Germany
Design Team: Karl Landgraf, Ulrich Pape, Tomo Ichikawa, Felicia Michael, Jutta Görlich, Martin Kloos
Area: 560.0 sqm
Project Year: 2014
Photographs: NAARO, Edward Beierle
Project Name: Concert Hall Blaibach
