Coffee Production Plant

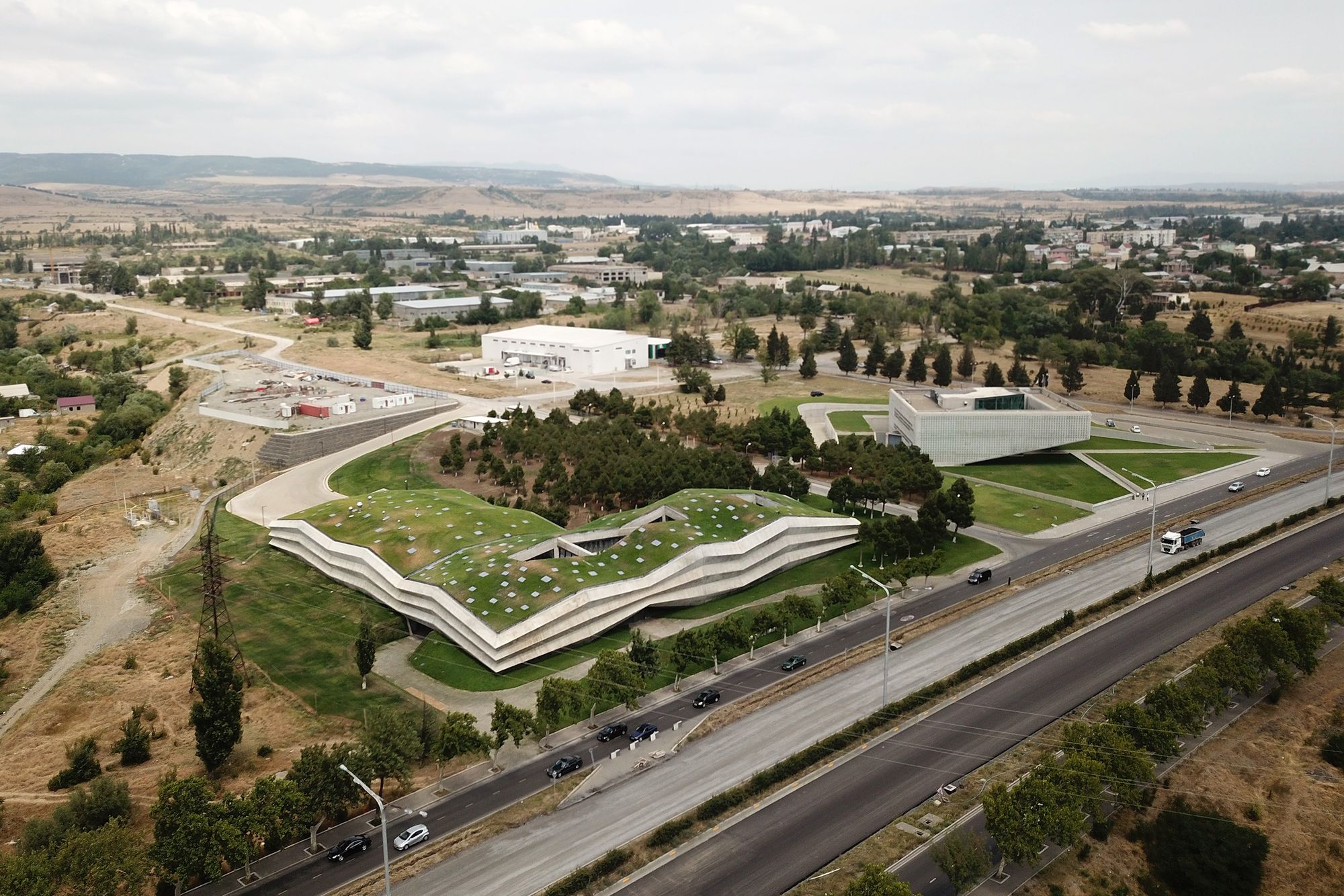

Designed by Khmaladze Architects, Located on a highway connecting the city to the airport, the site is sparsely developed. Surrounded with fields and pine trees. the project houses coffee production plant, its offices, coffee tasting, and small coffee exhibits.

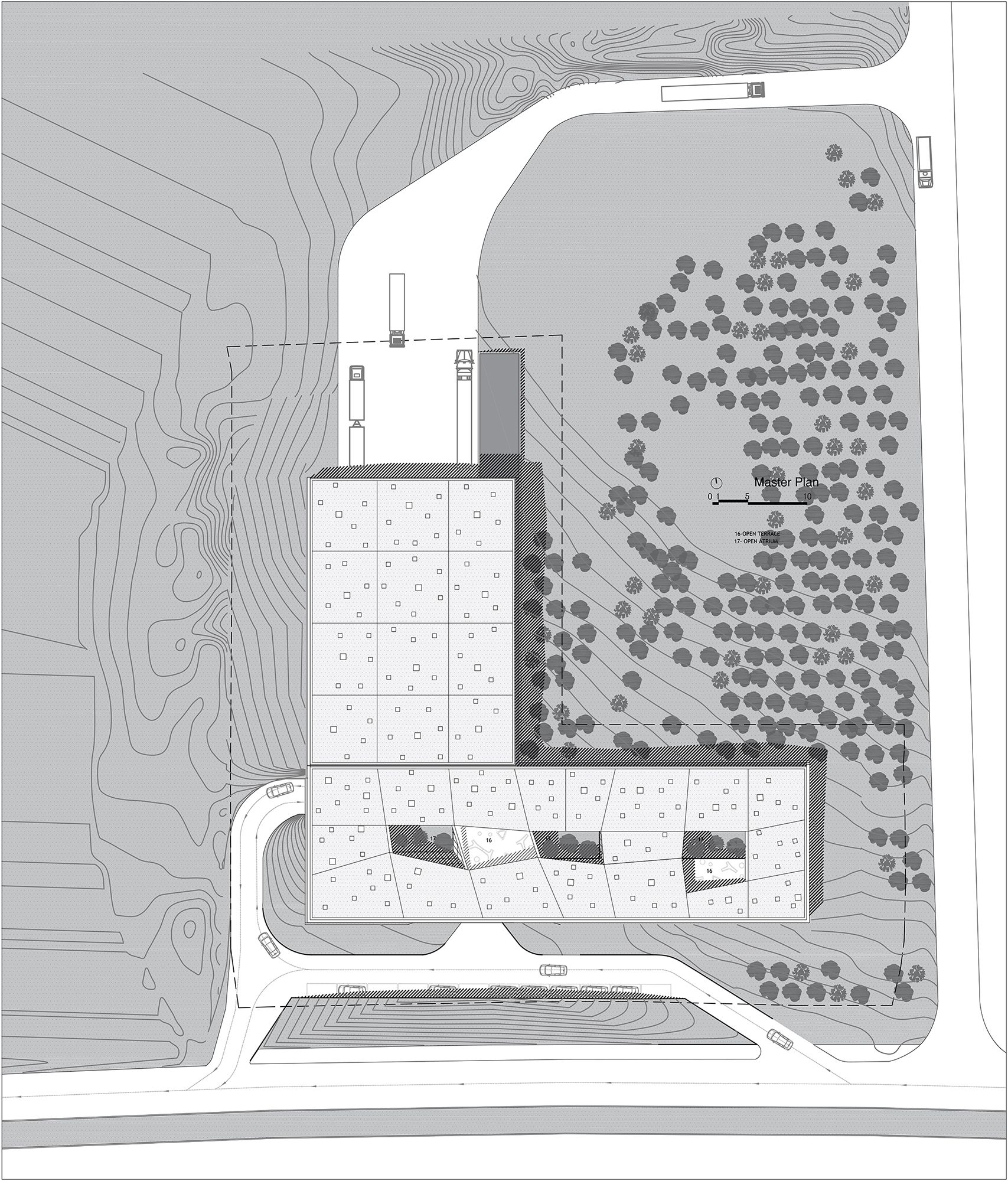

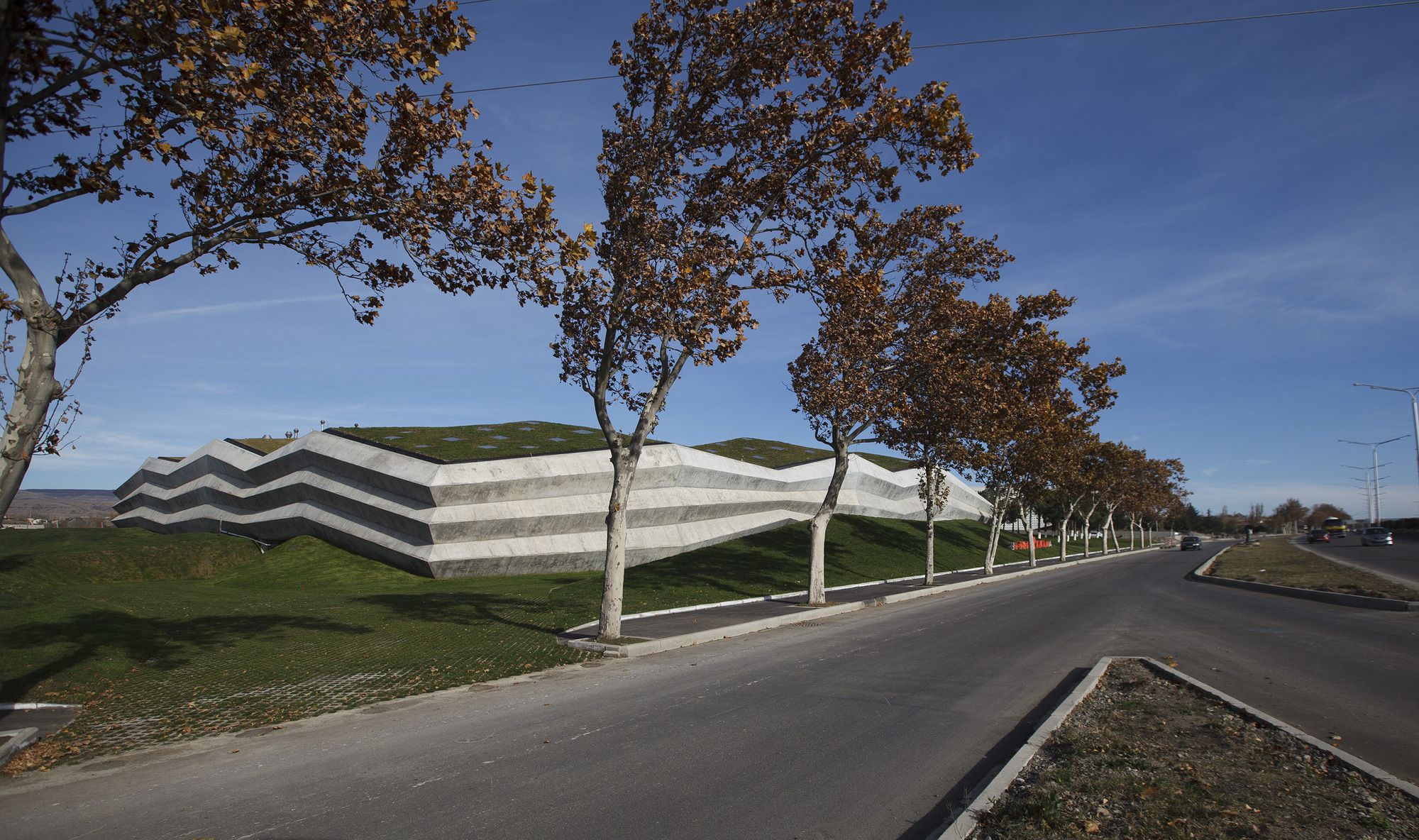

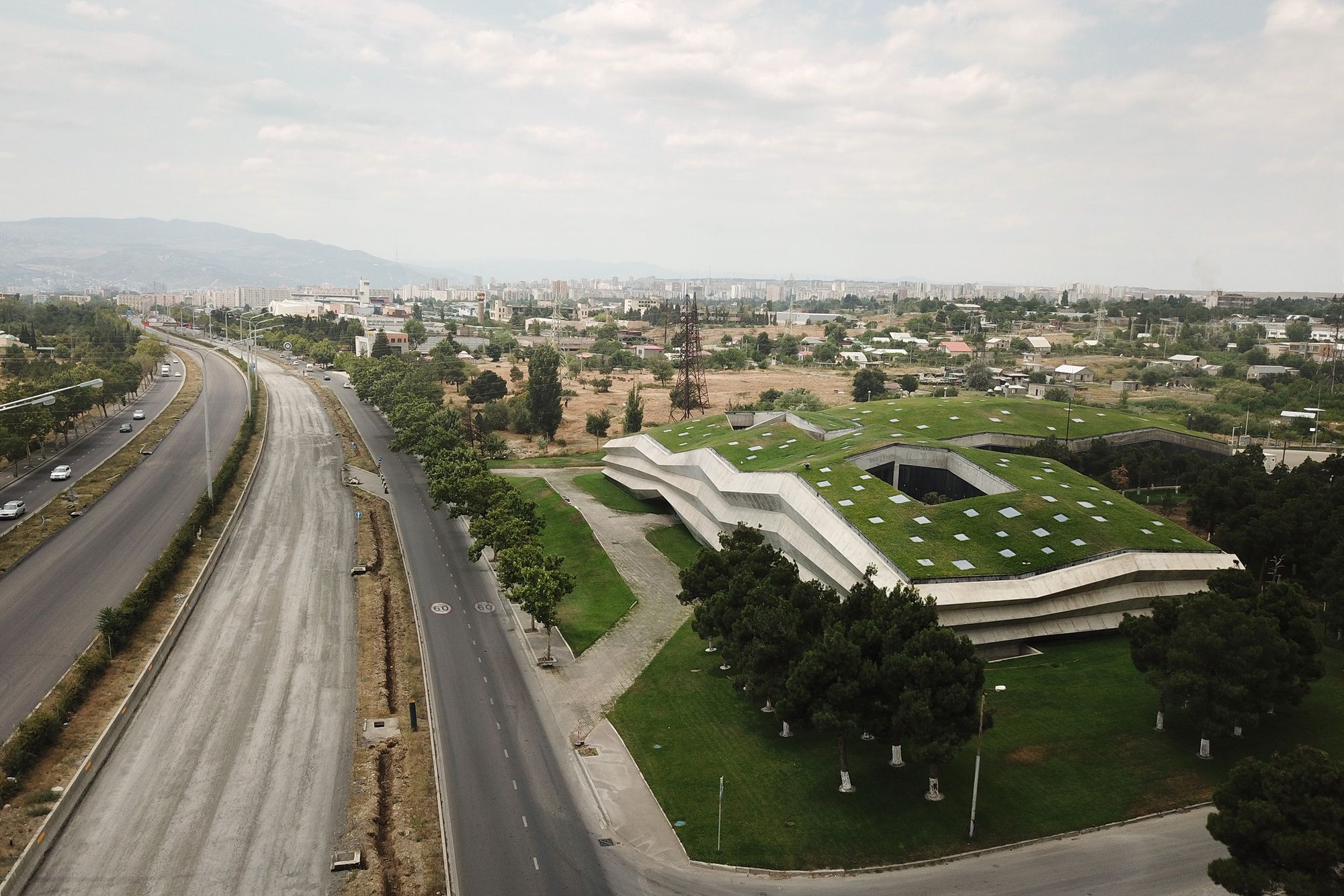

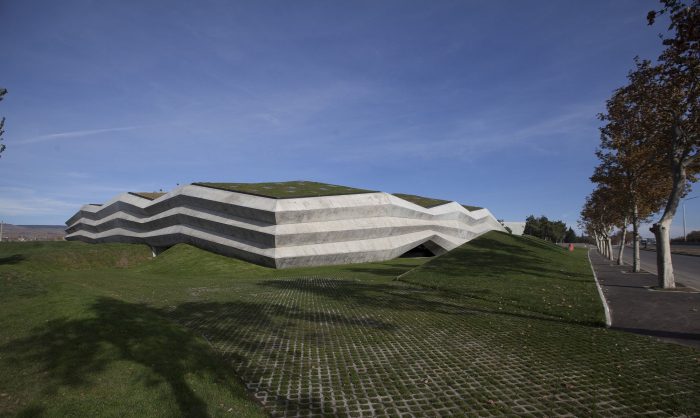

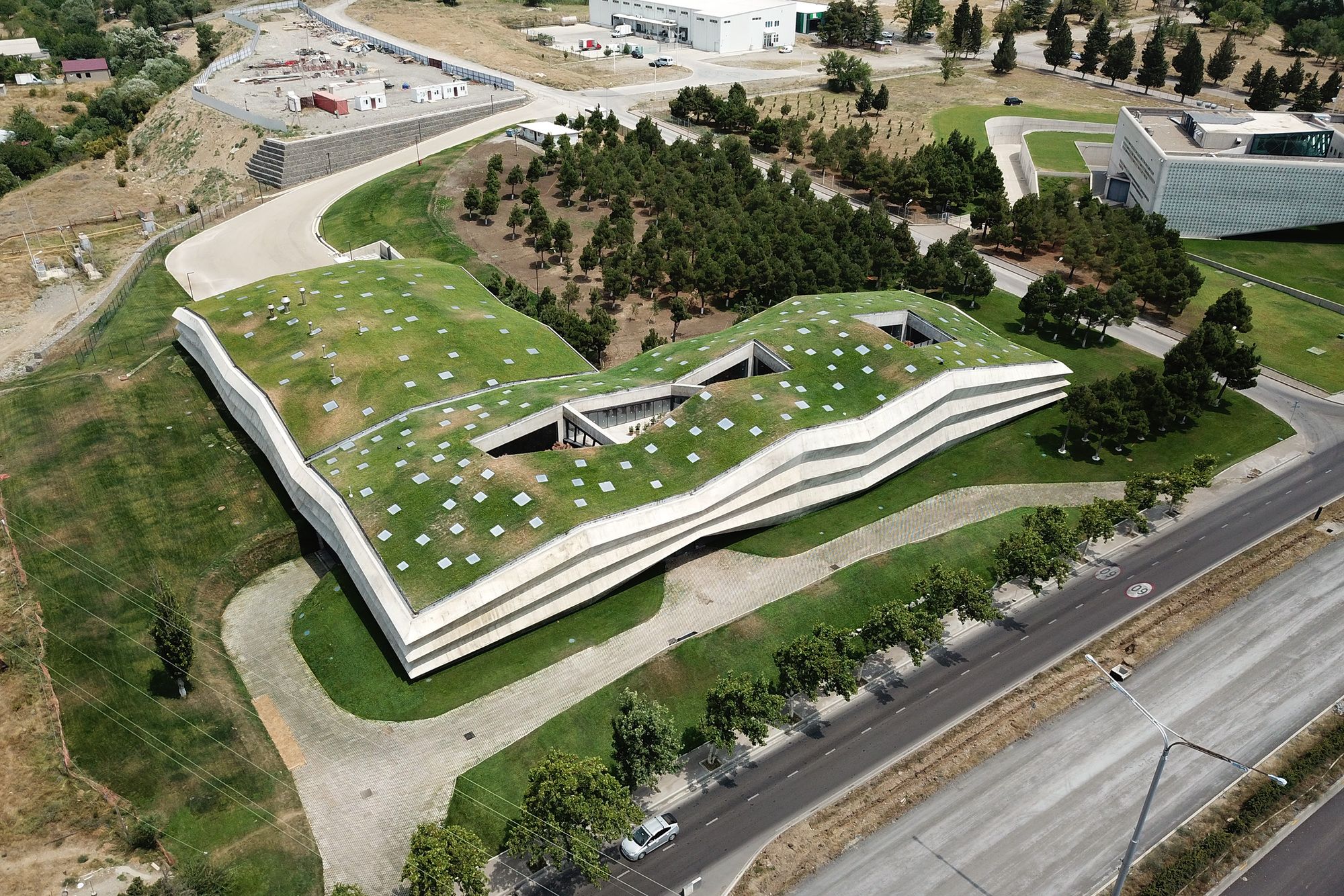

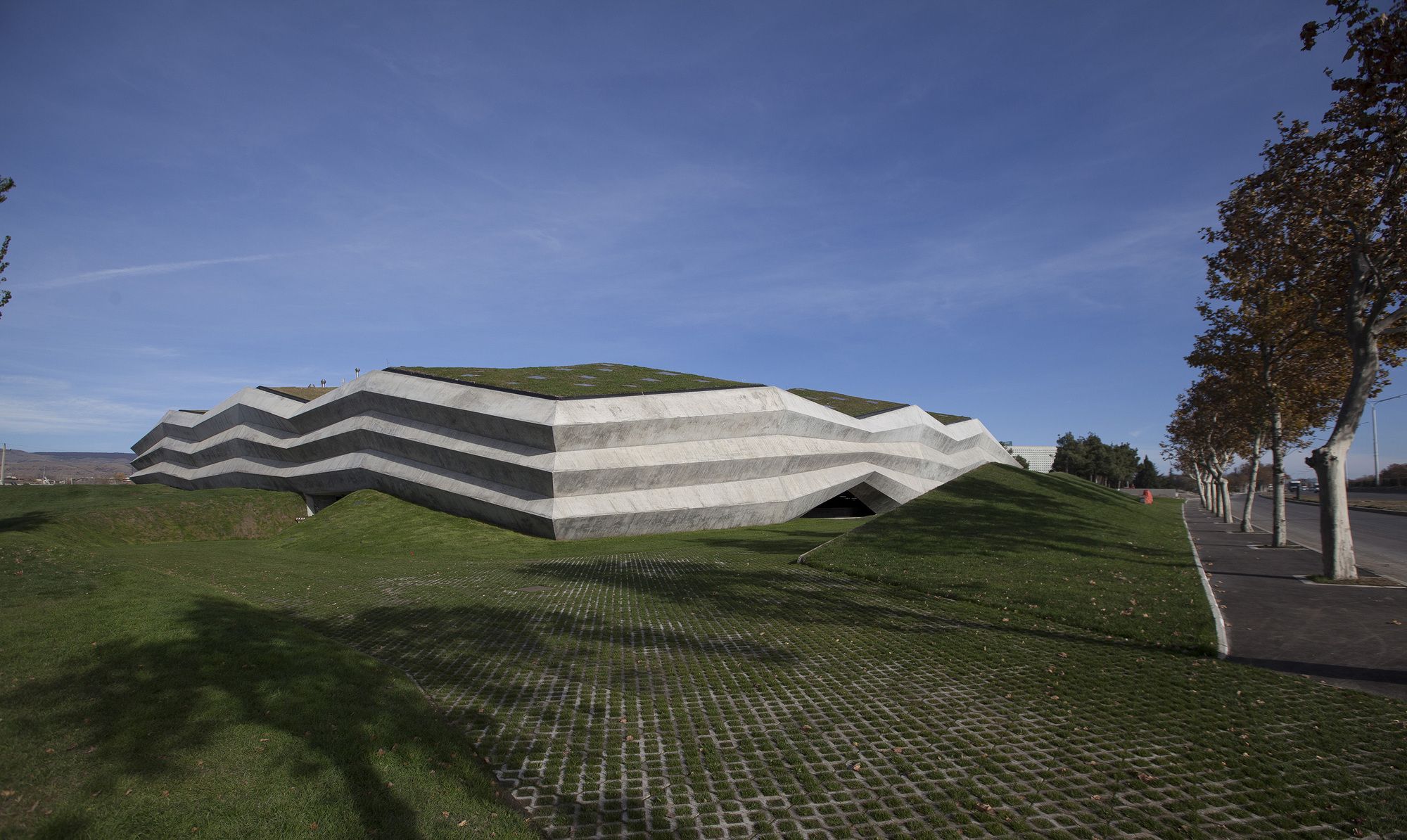

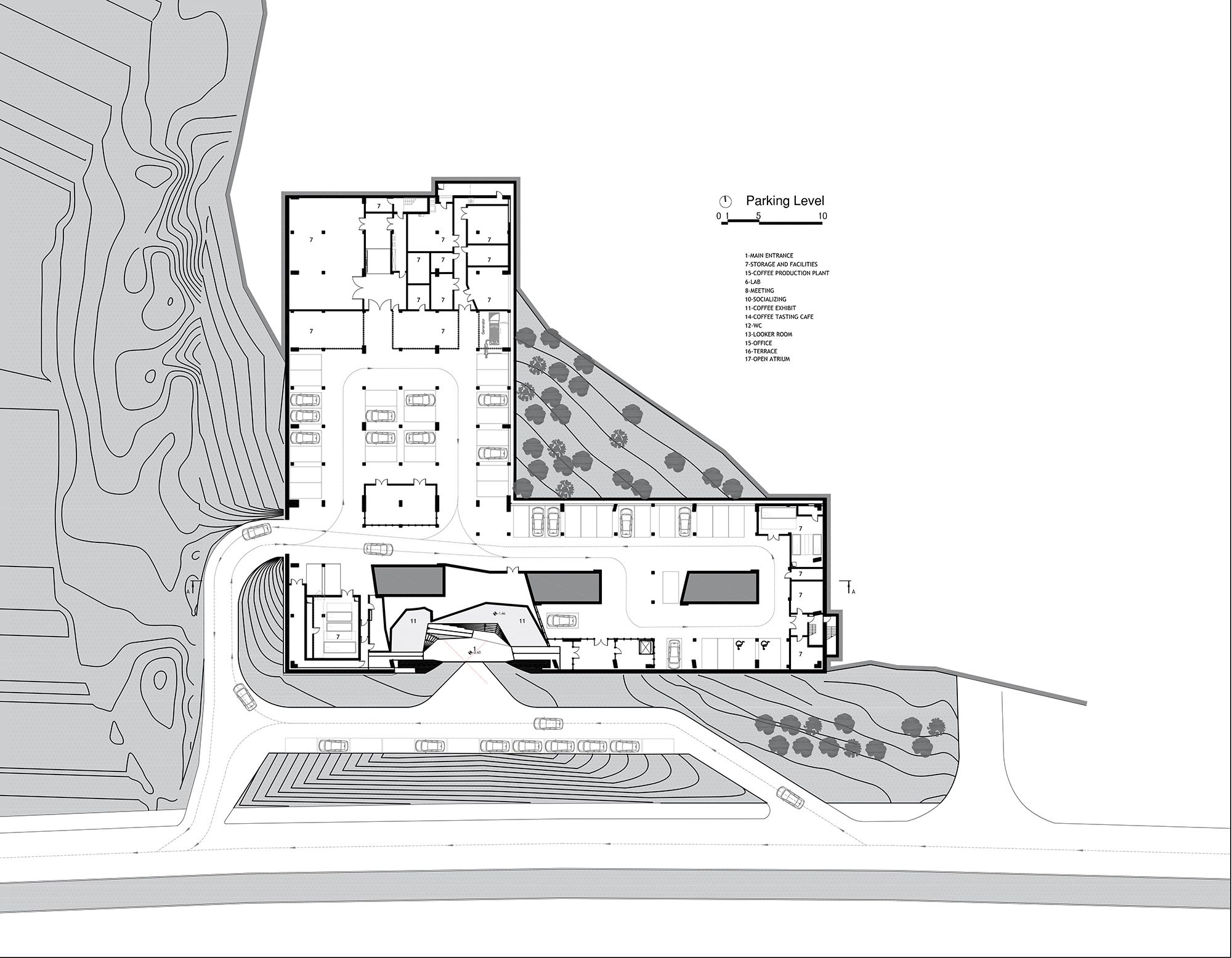

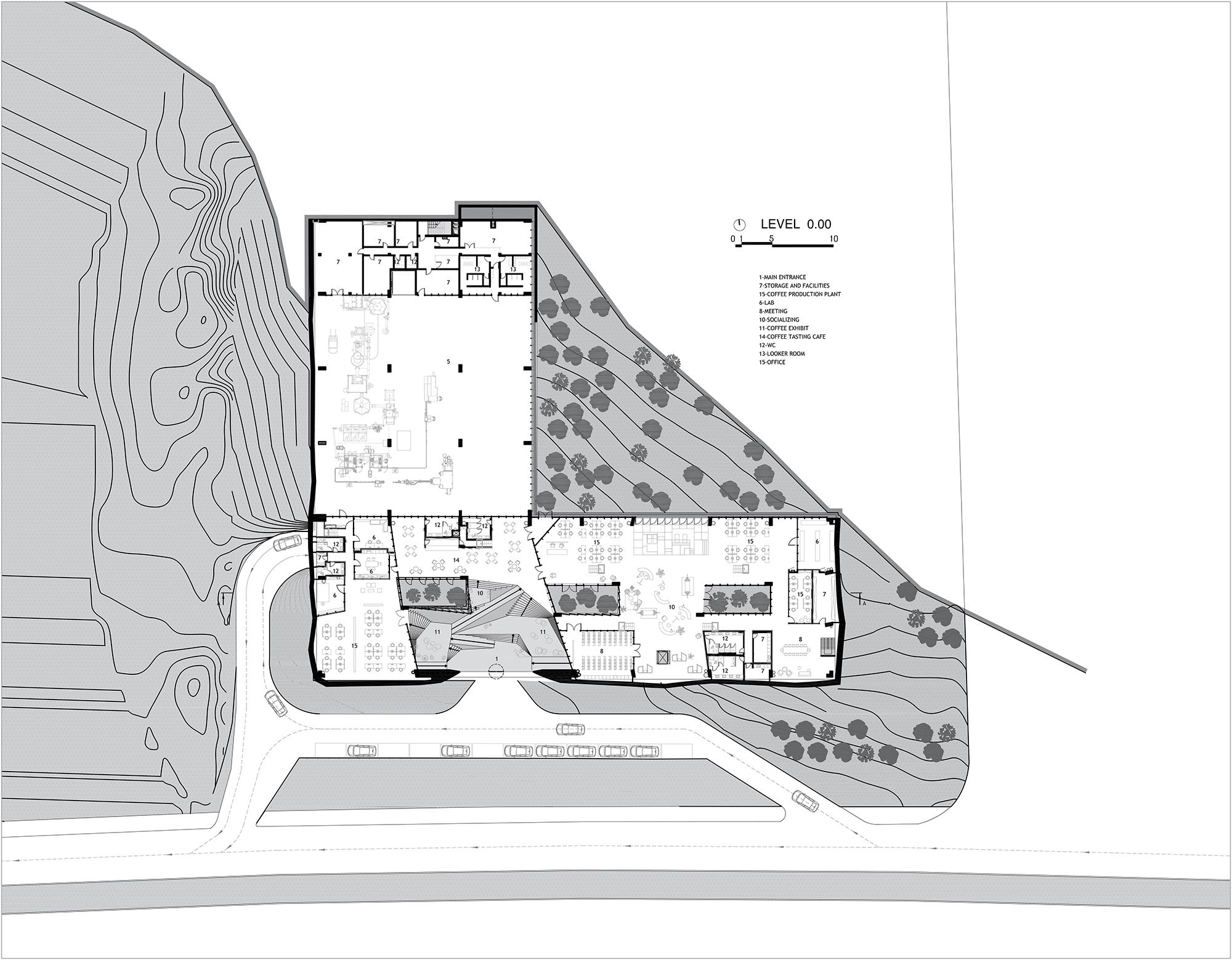

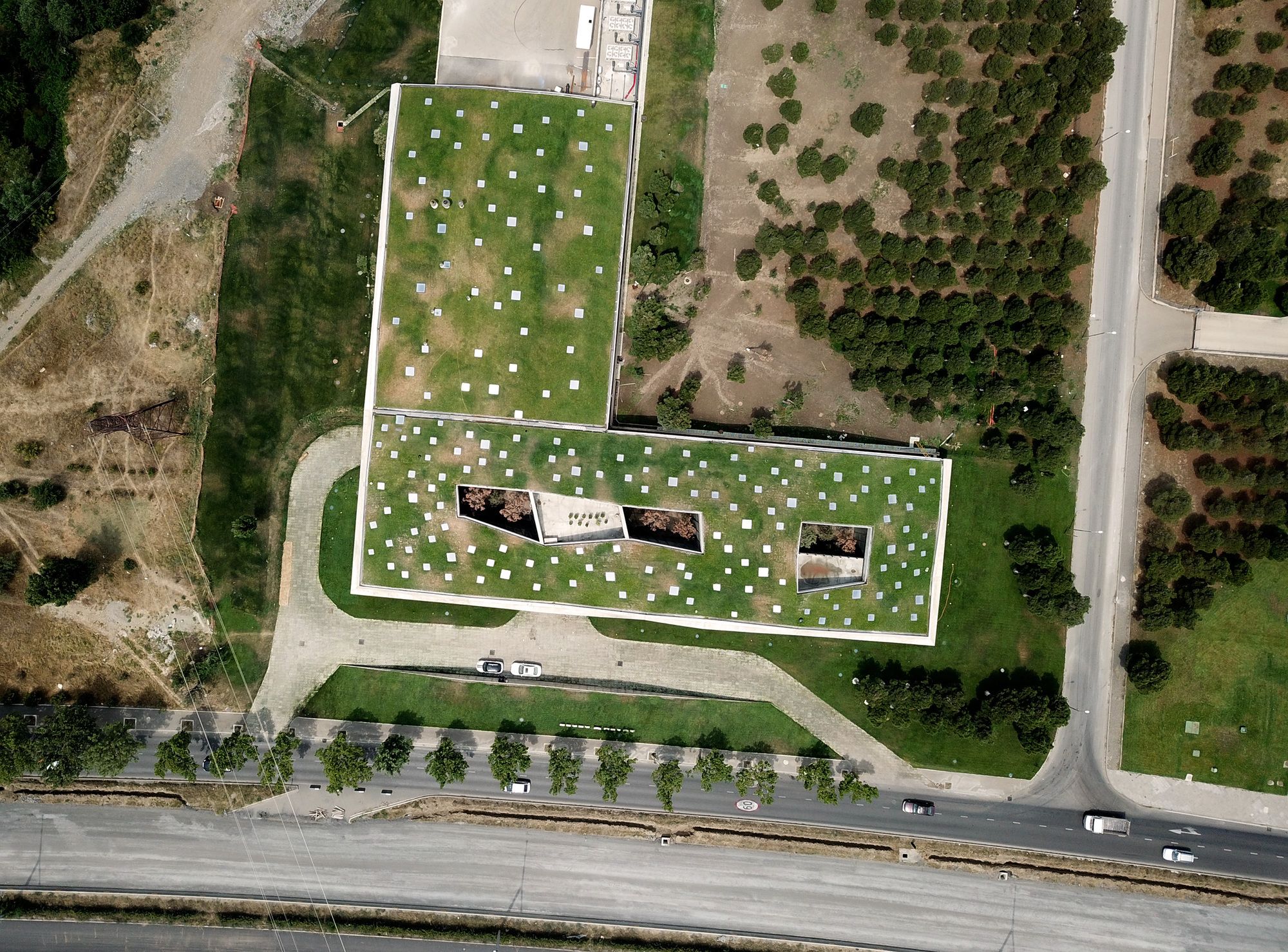

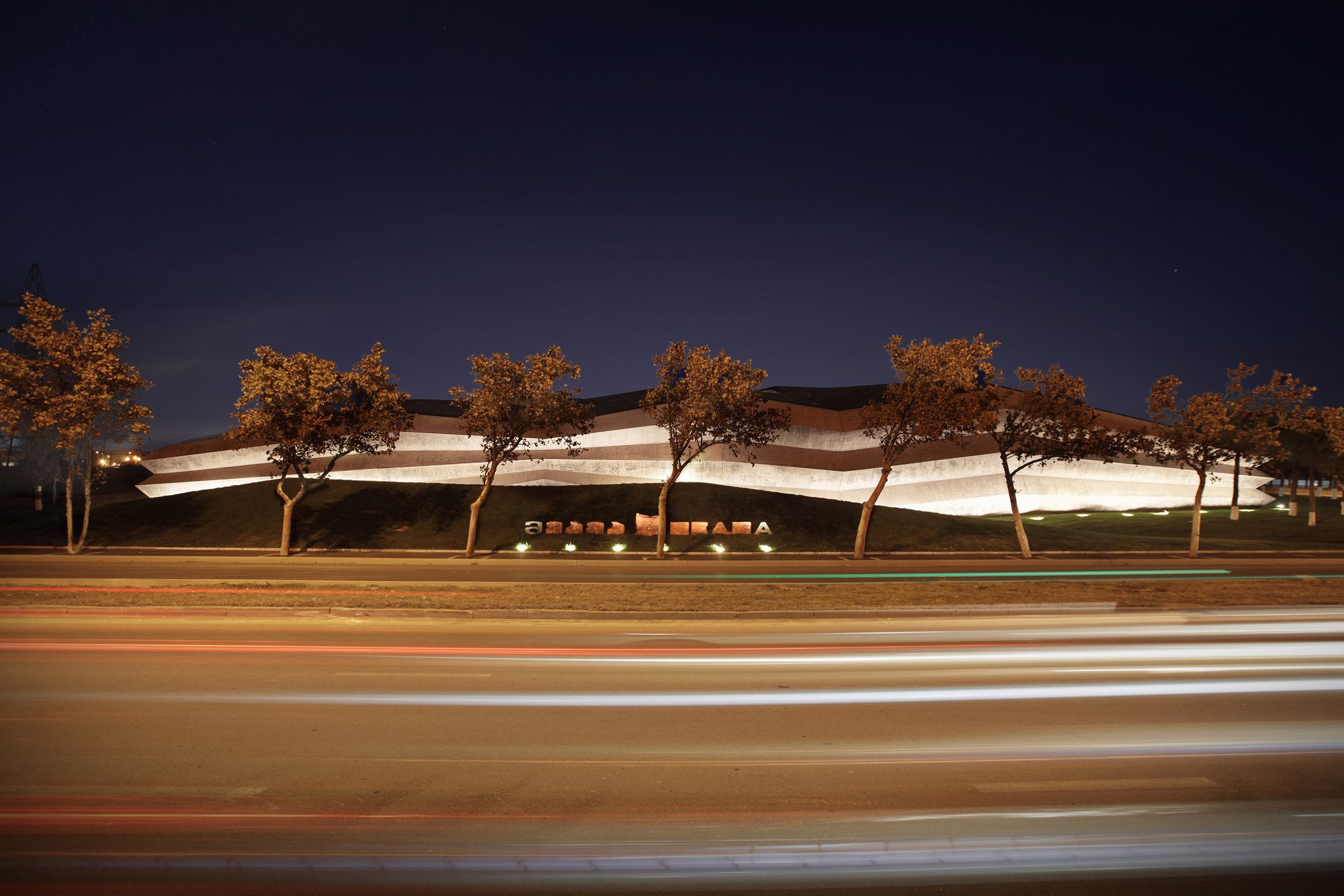

Inside, all programs are arranged in a continuous unobstructed space, with glass partitions as boundaries in between. From the highway, the building is a homogeneous concrete folded volume with no visible openings that would define its programs, on the backside it opens up towards the pine forest. From above, it blends into surroundings by a vast green roof, where occasional openings in forms of atriums, terraces, and skylights bring natural light indoors. This reduces the impact of a large building footprint visible from the planes taking off and landing next to the site.

Photography by © Giorgi Khmaladze

The city required a building that escapes the regular factory appearance, the client – a strong visual identity. The program required to fit both, coffee plant, office and public areas with coffee tasting and small exhibits.

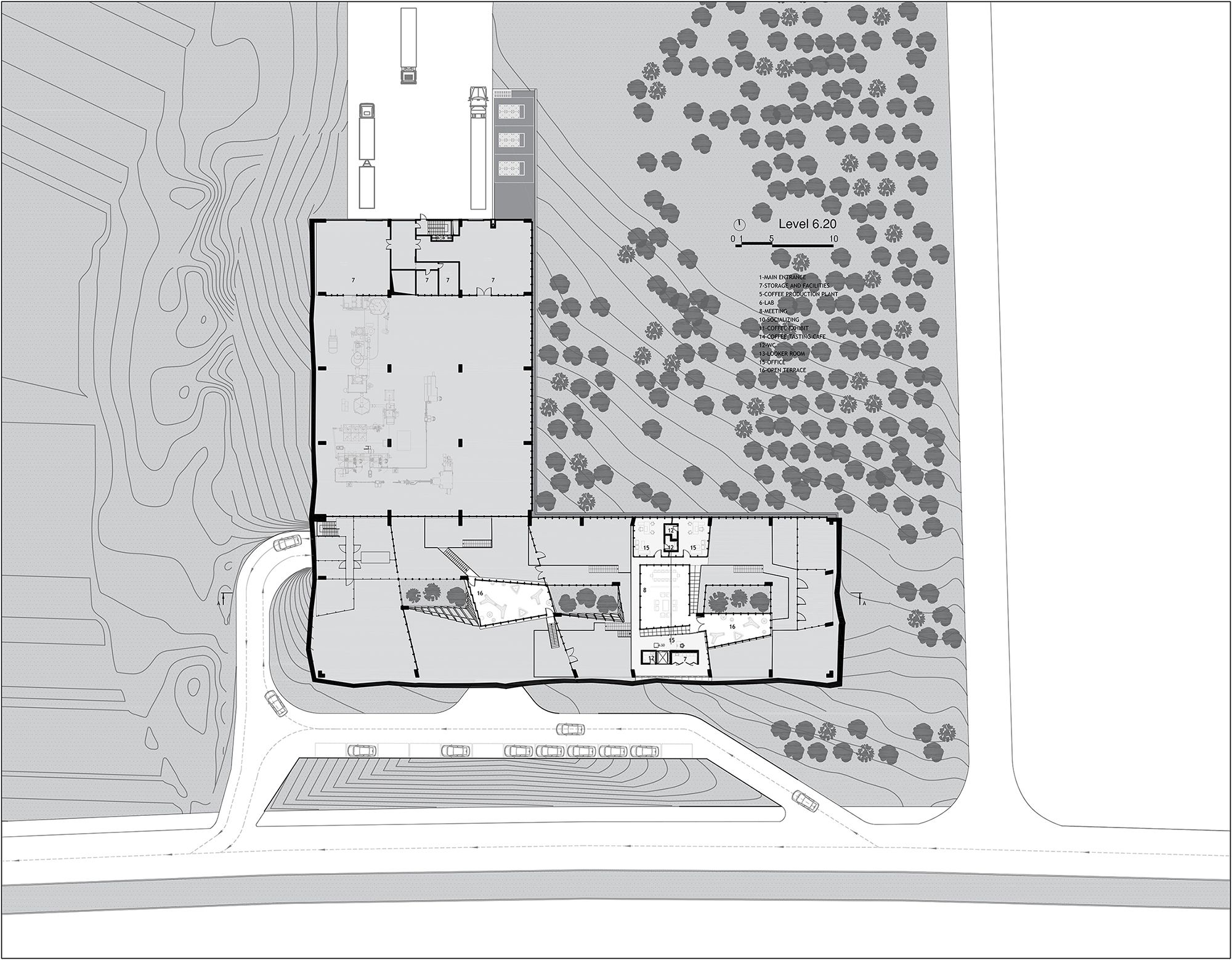

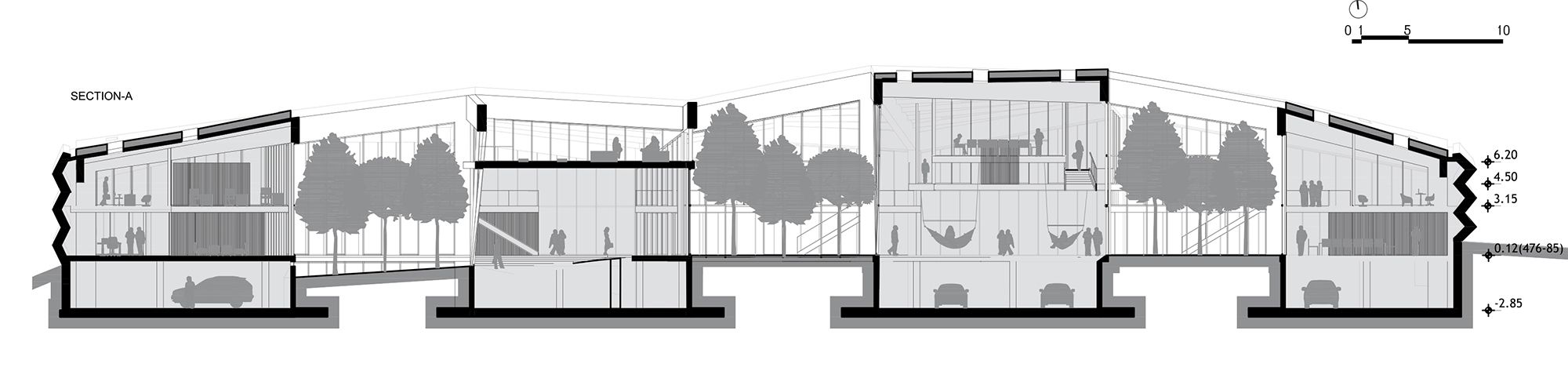

As a response, a box-like volume of a plant adjusts to program components by wrapping around. It stays high to fit equipment and lowers where possible. Same with office, the shell wraps around work, meeting and socializing spaces arranged on floors suspended on various levels. The three atriums filled with vegetation and numerous skylights bring daylight to spaces below. From the highway, the monolithic mass with no visible openings is an object of curiosity. While it’s internal spaces are all oriented towards the park and the sky by means of two terraces.

Photography by © Giorgi Khmaladze

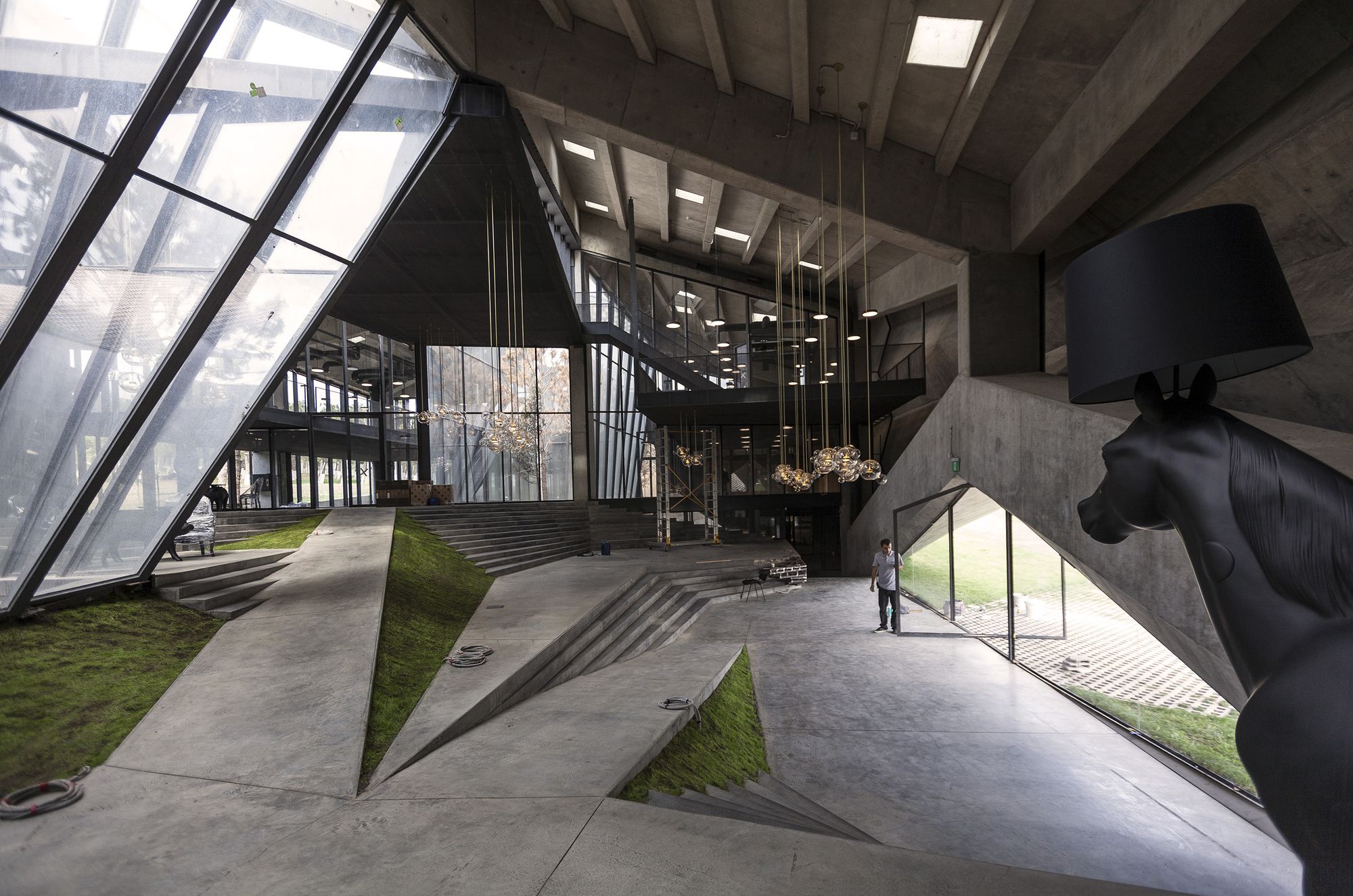

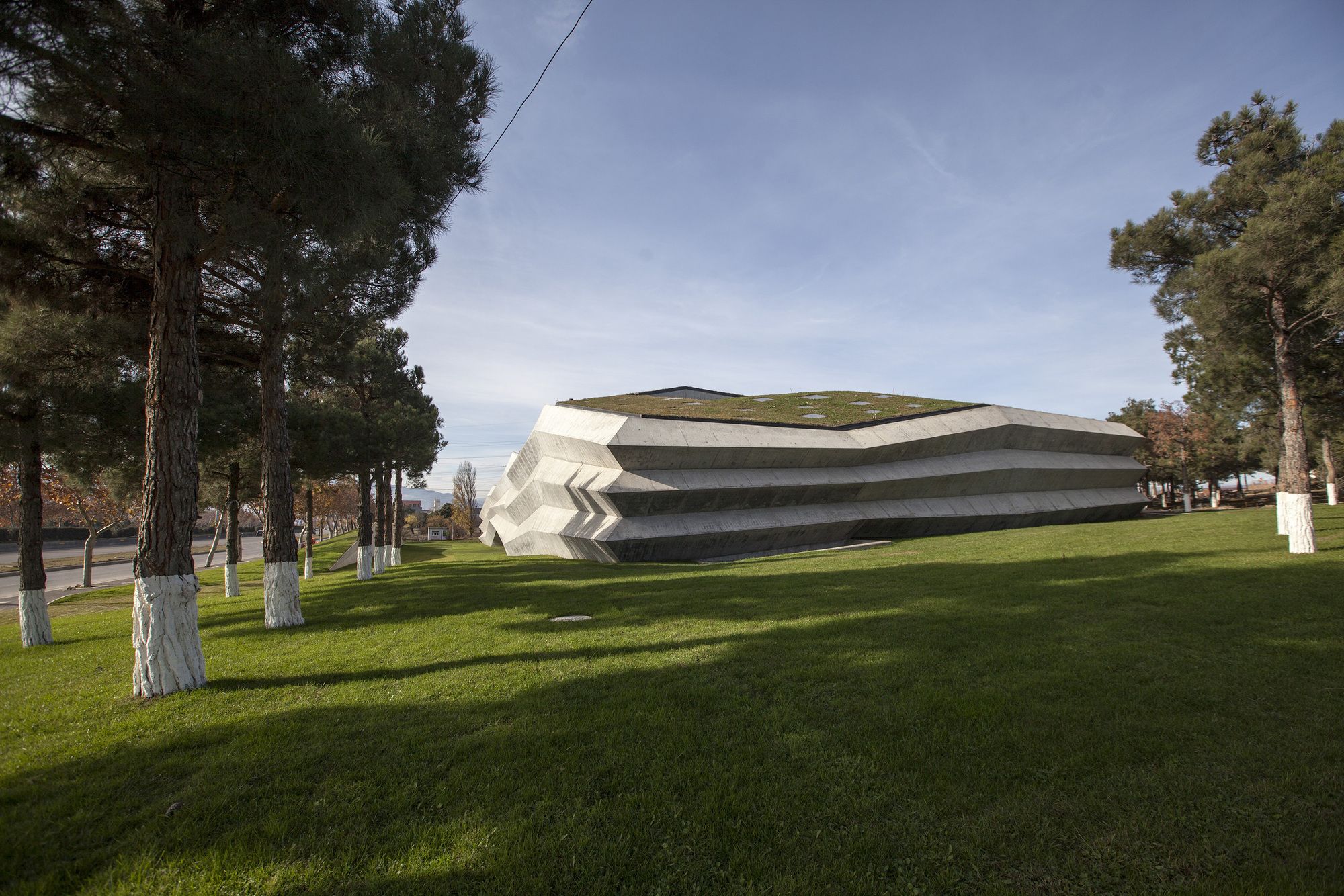

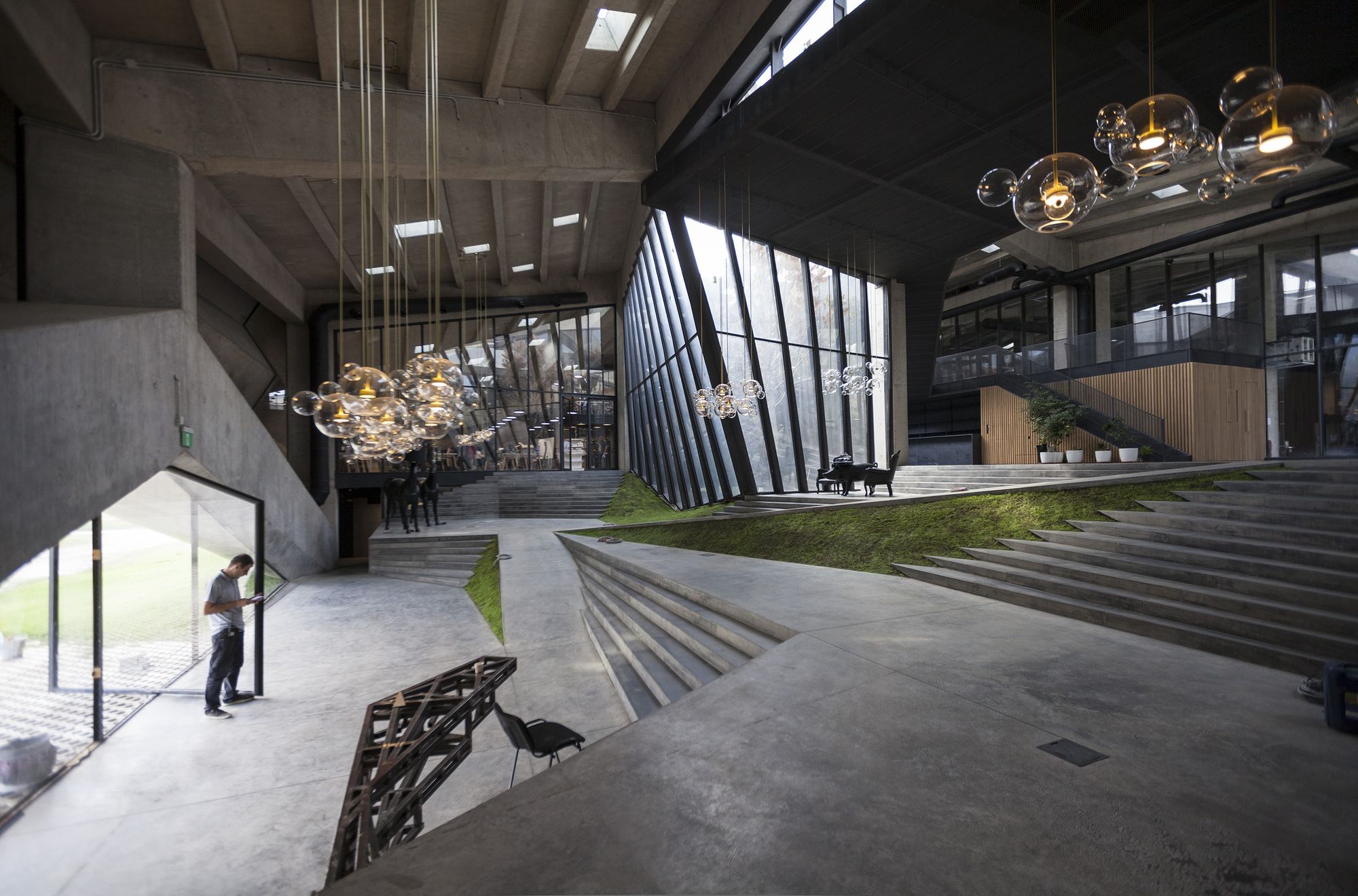

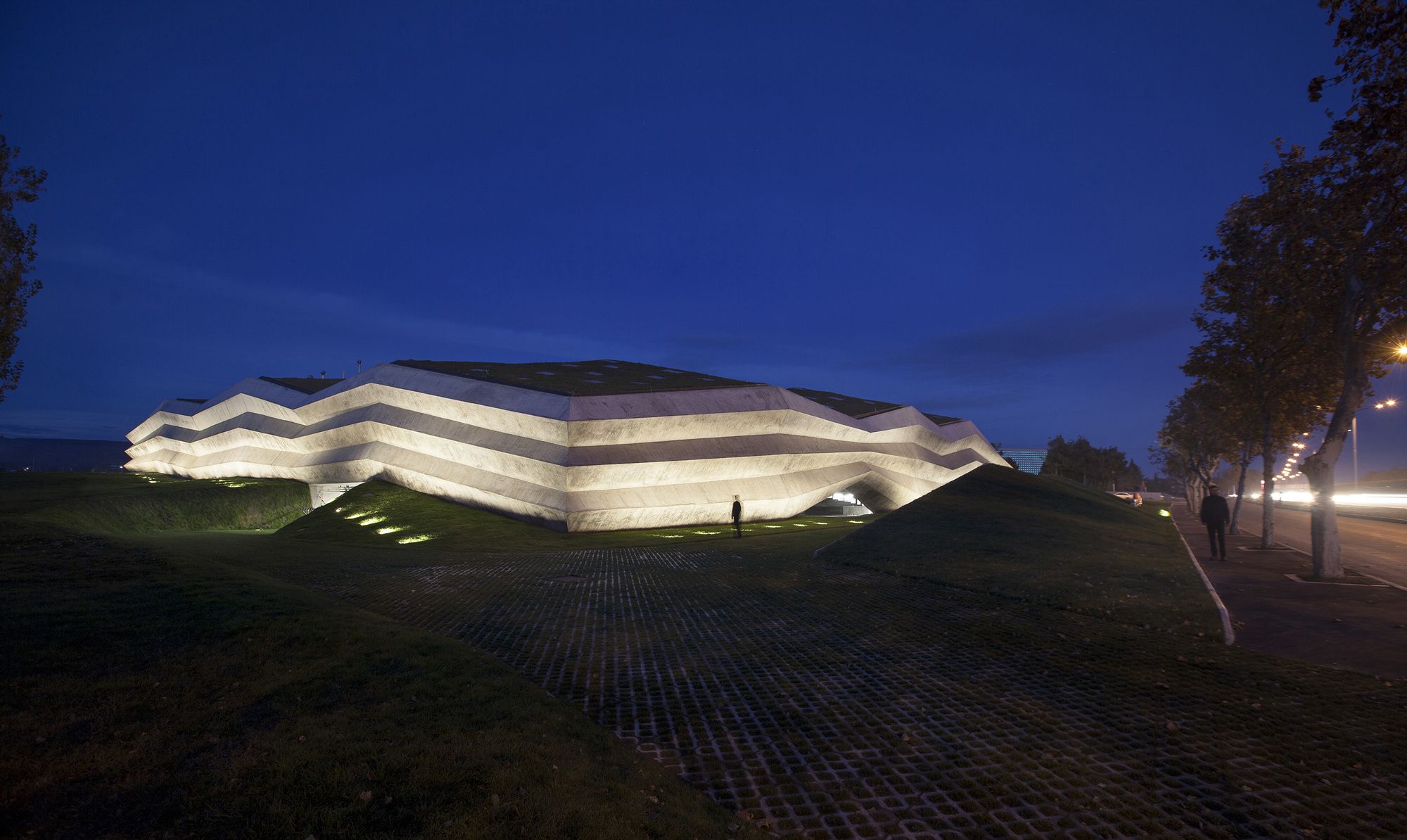

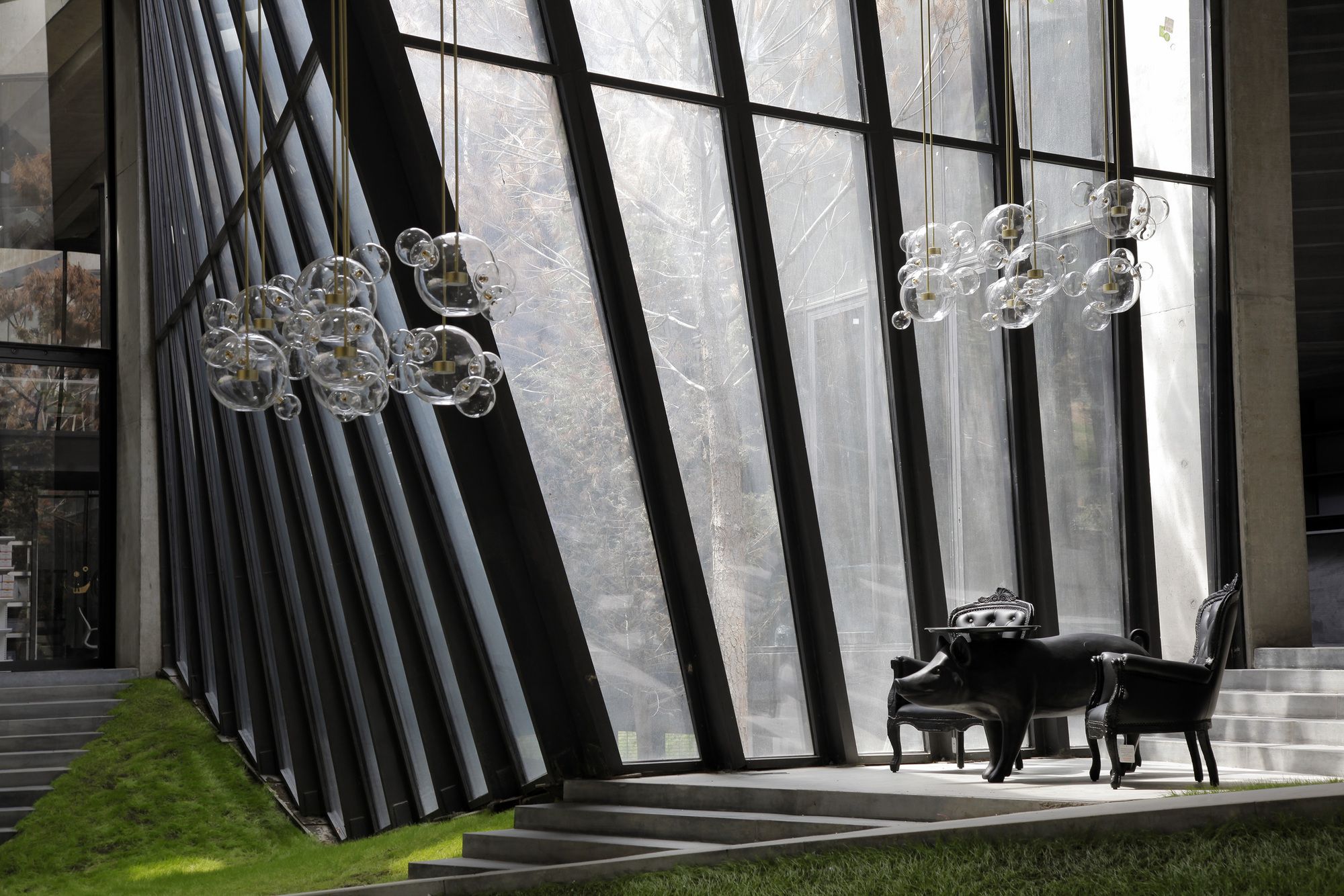

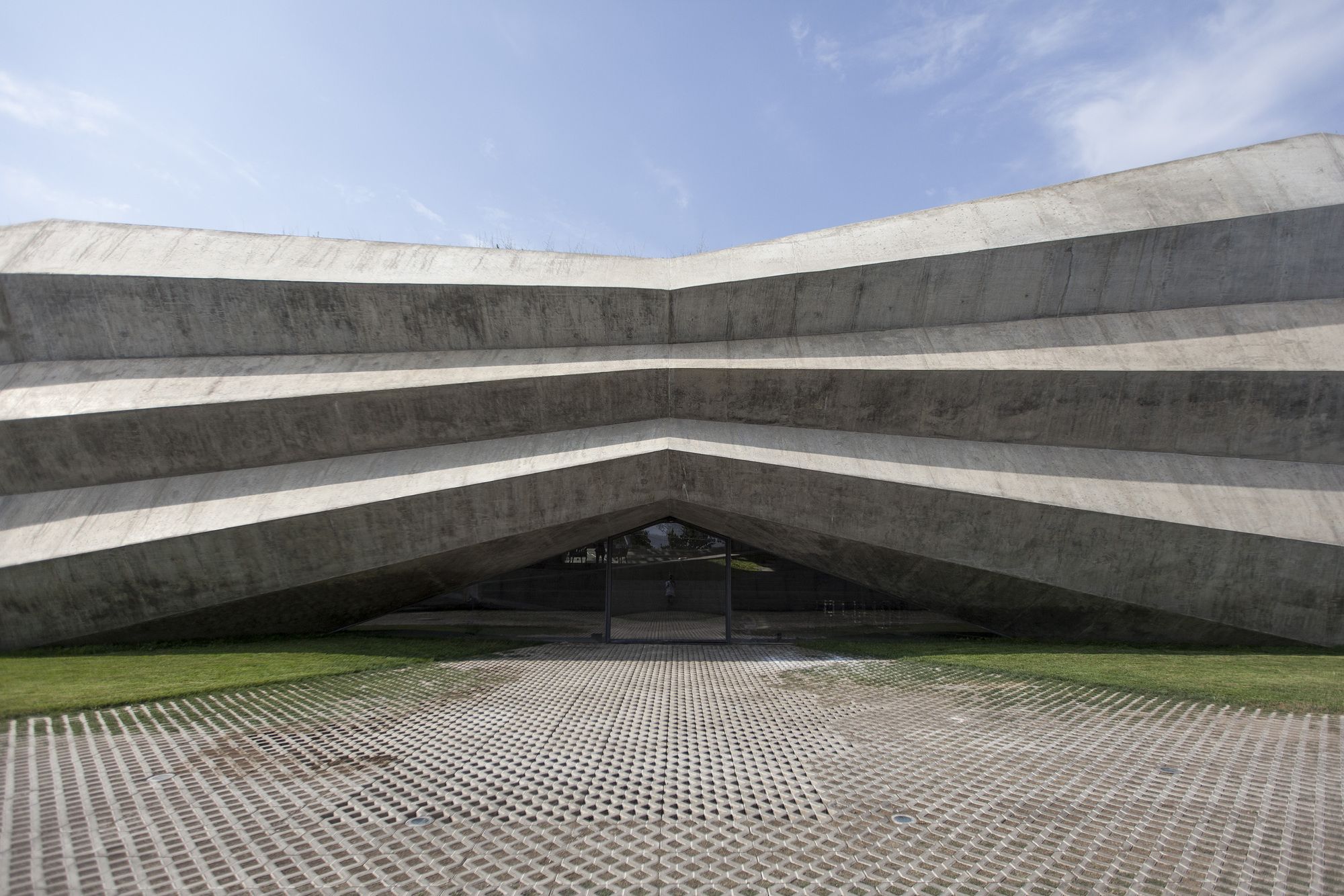

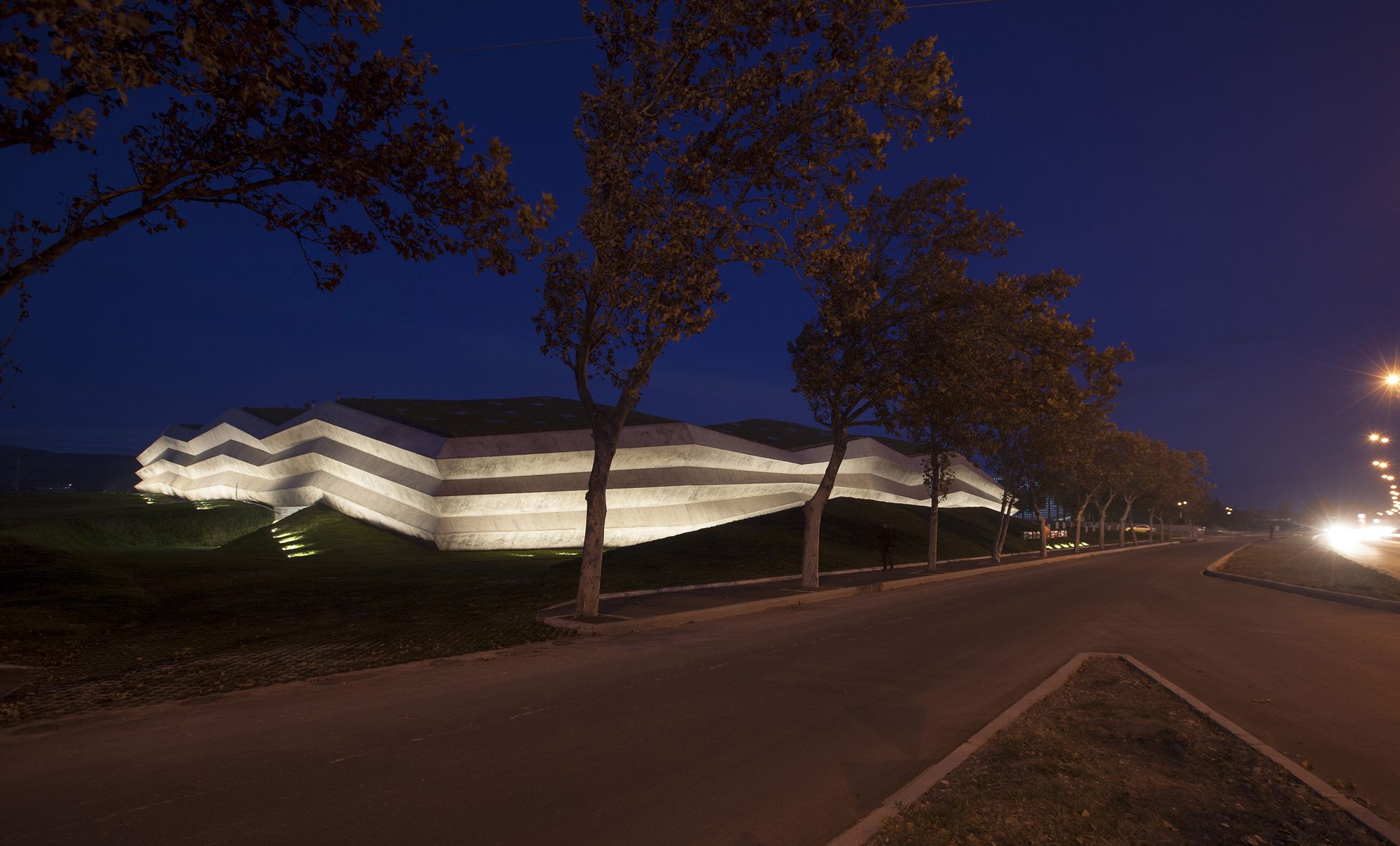

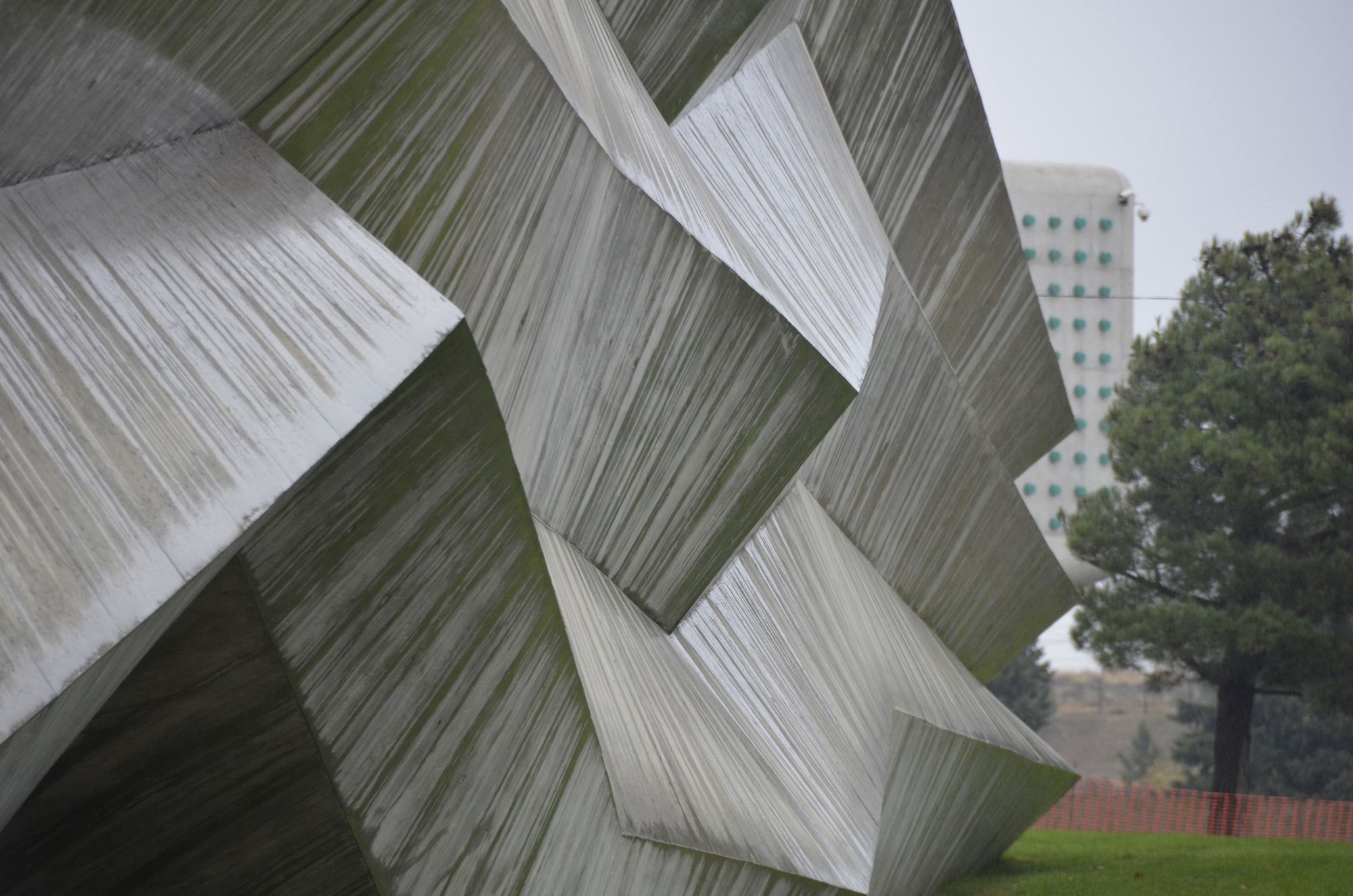

The all-concrete facade folds into double-curved geometry. Its appearance changes during the course of a day, following sun movement producing a play of light and shadows. A large main lobby located between the two of the green atriums. The multilevel platforms for coffee exhibits and lounges are placed along the stairs and ramps leading to the coffee tasting cafe and the office spaces.
The concrete structure with one way waffle slab spans up to 16 meters to create large unobstructed spaces.

Photography by © Giorgi Khmaladze

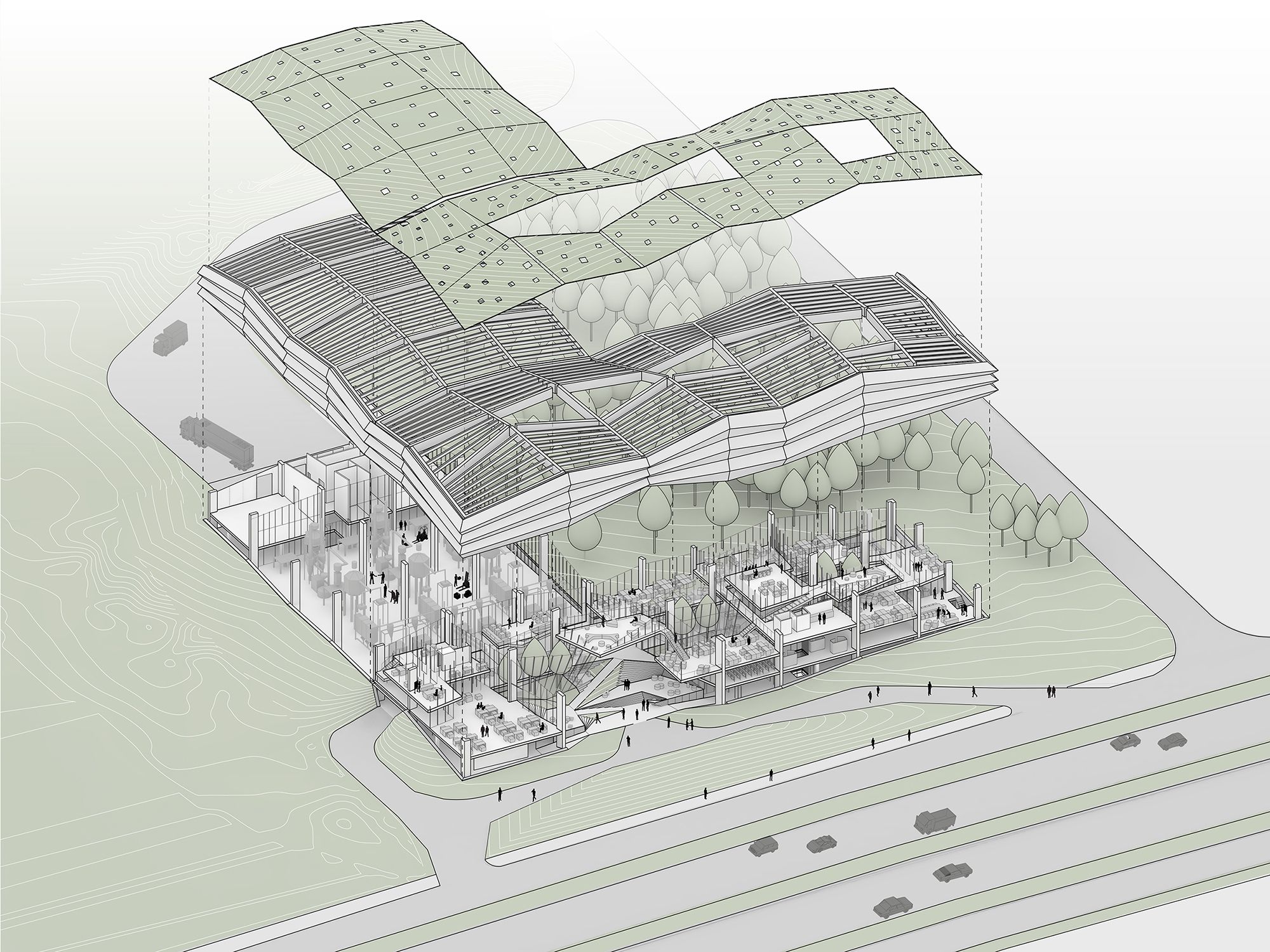

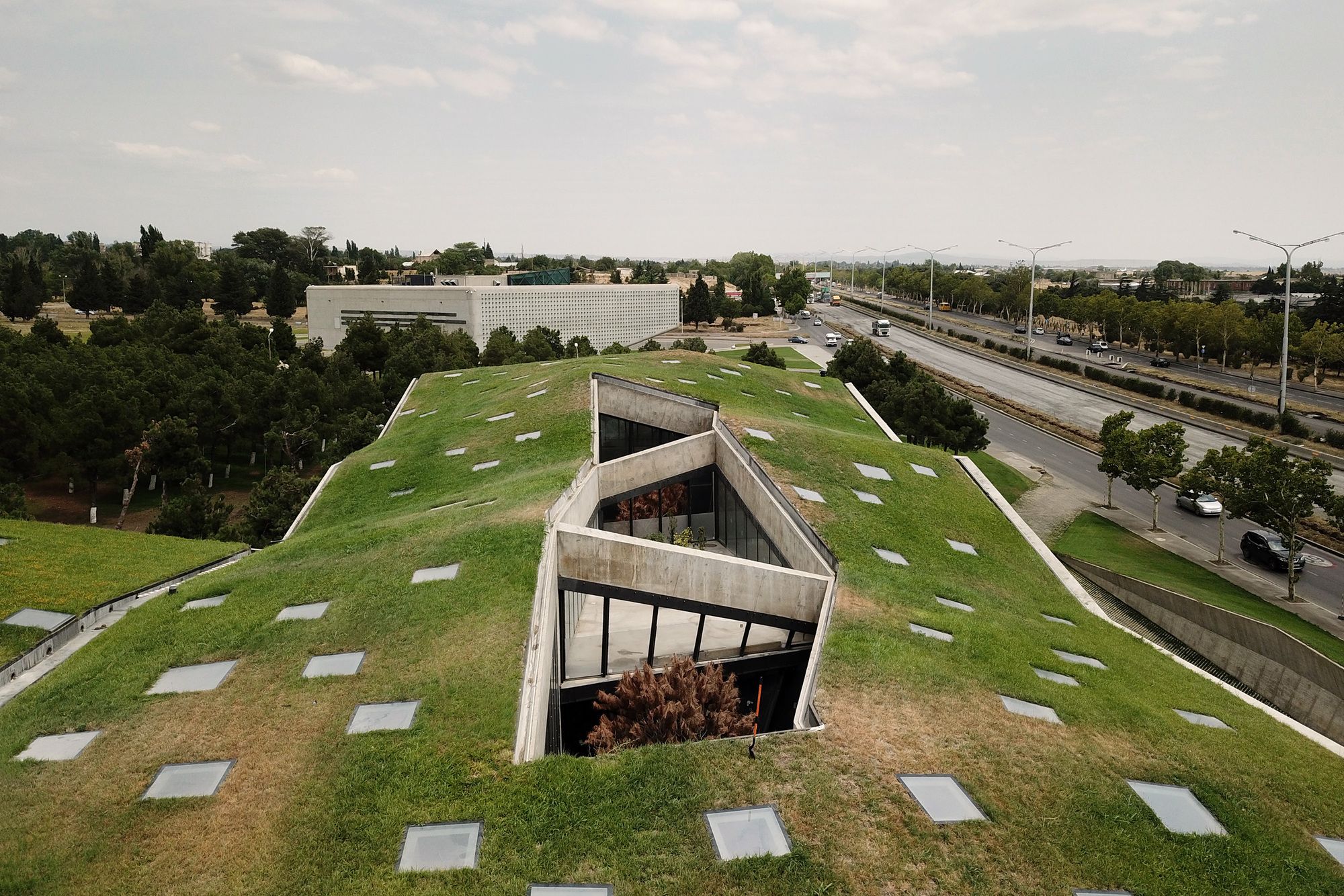

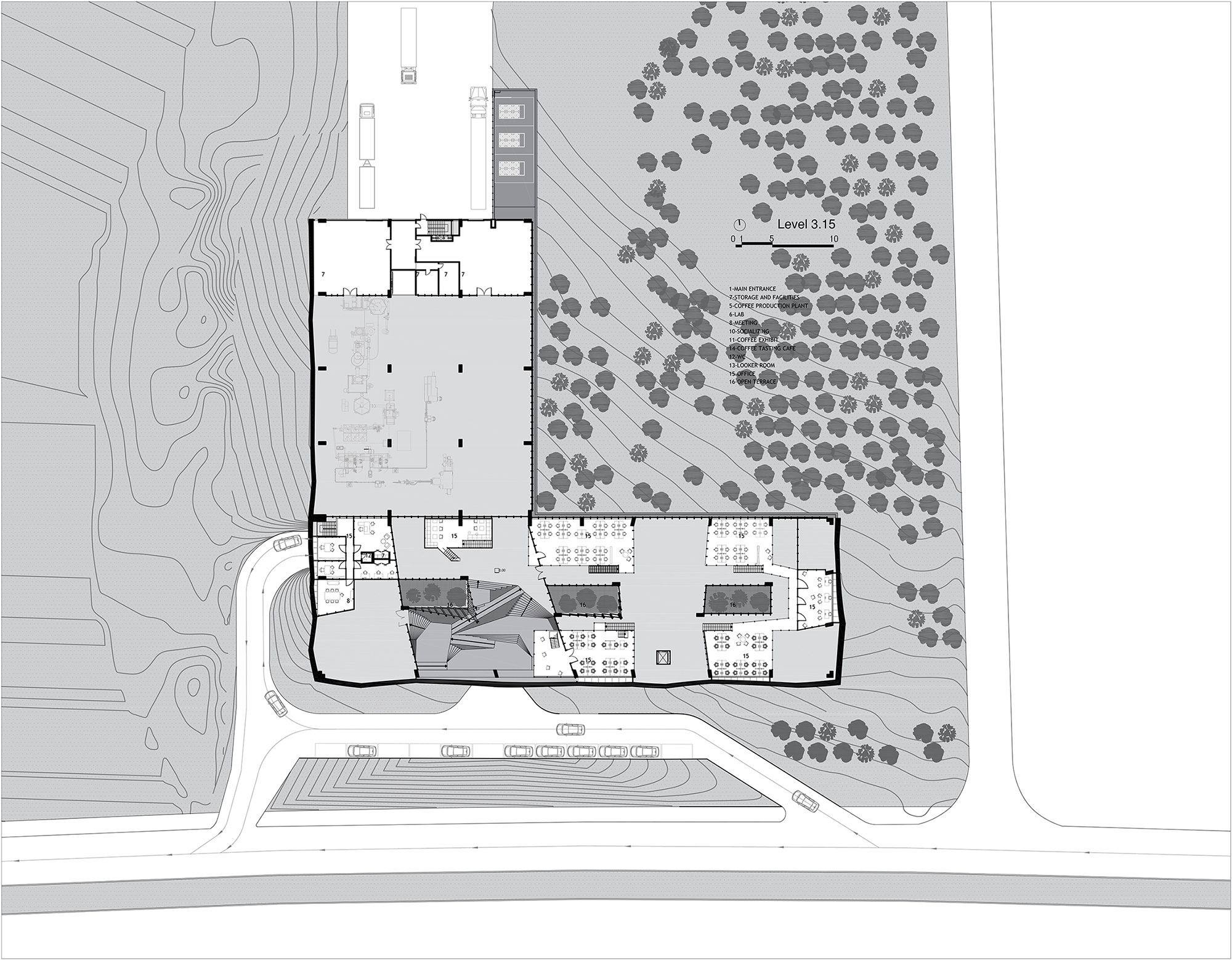

Steel floor slabs are suspended from the roof slab on various levels with the use of steel rods. The cast in place concrete folded facade which ages well is a double wall with insulating layer in-between. The 3,680 sqm green roof acts as an additional thermal barrier to the roof insulation. The roof is intended to grow vegetation found around the site with wild grasses and plants, to blend with the context and require less maintenance.

Photography by © Giorgi Khmaladze

Project Info:
Architects: Khmaladze Architects
Location: Tiblissi, Georgia
Architect in Charge: Giorgi Khmaladze
Design Team: Tinatin Sherazadishvili, Ana Khutsishvili, Maia Baghishvili – Goshadze
Area: 16960.0 m2
Project Year: 2019
Photographs: Giorgi khmaladze
Project Name: Coffee Production Plant
