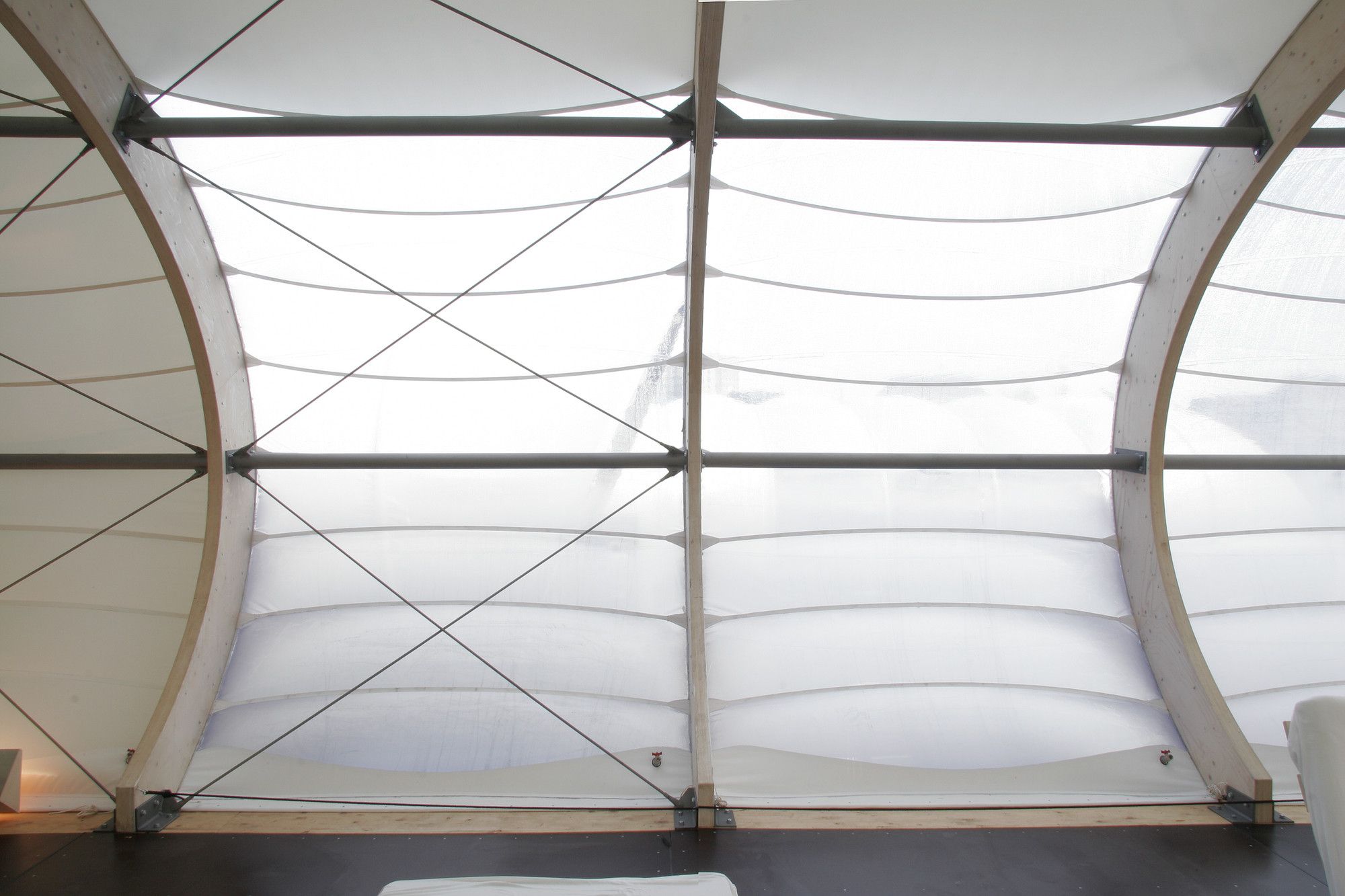

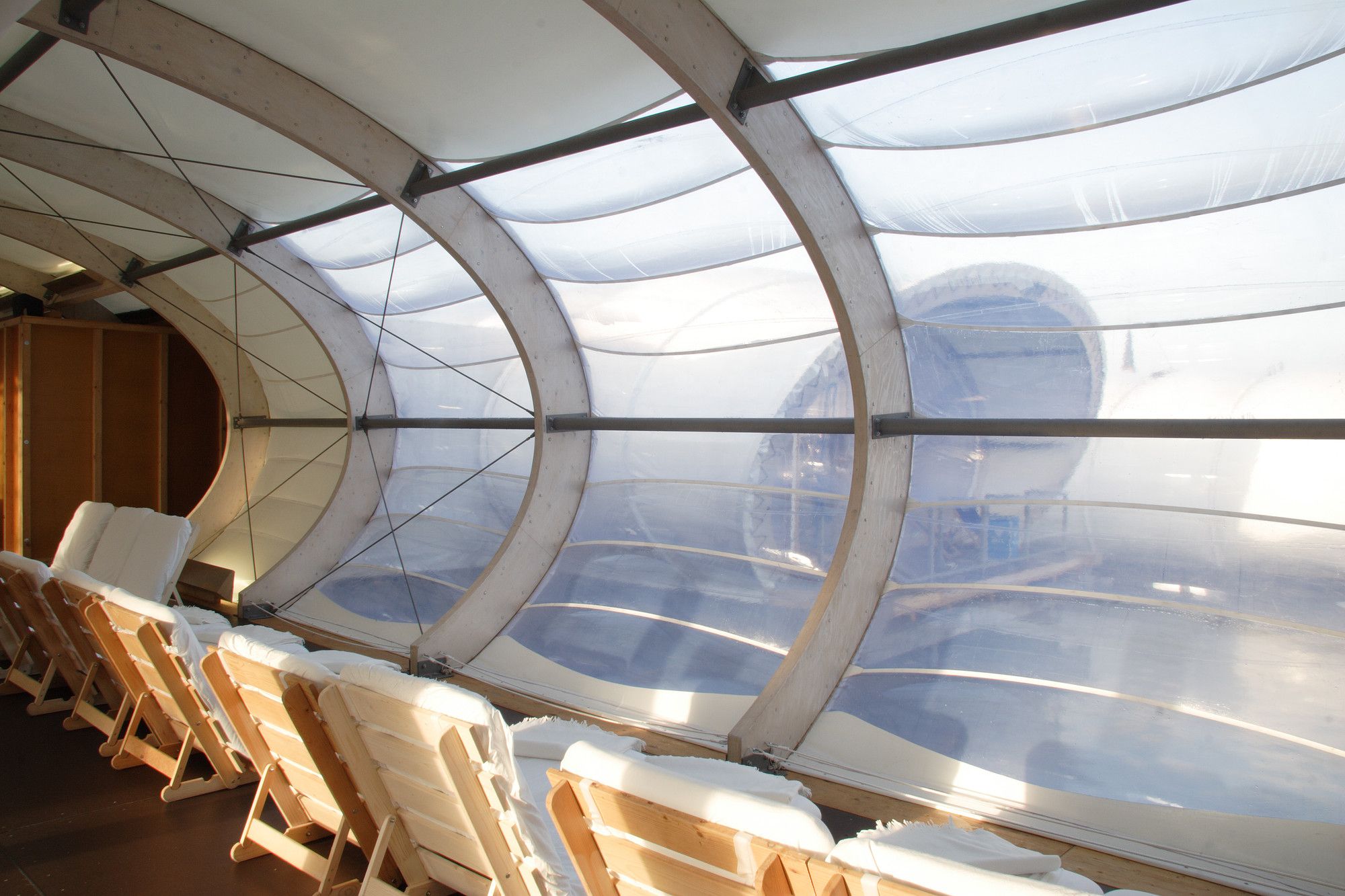

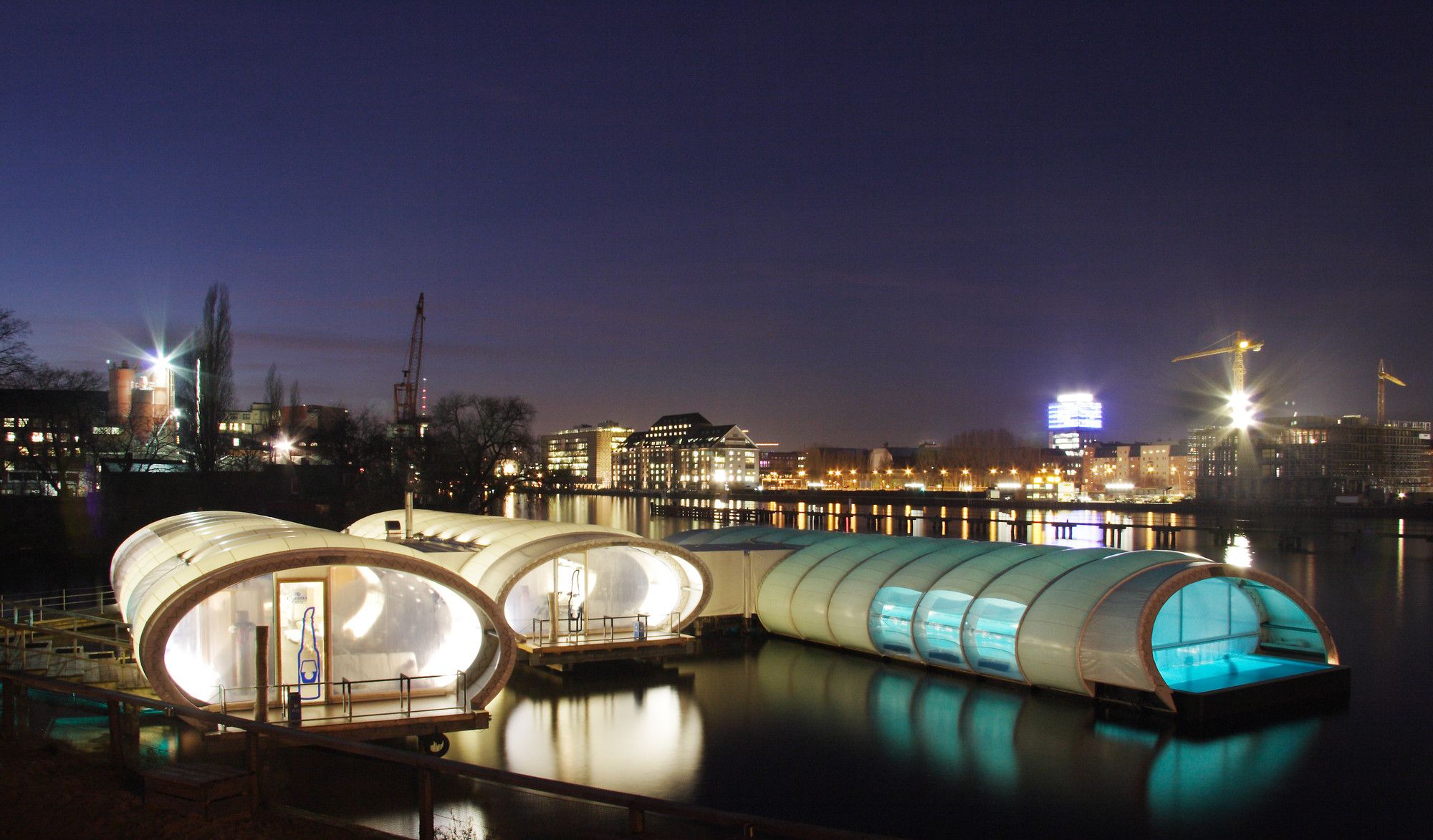

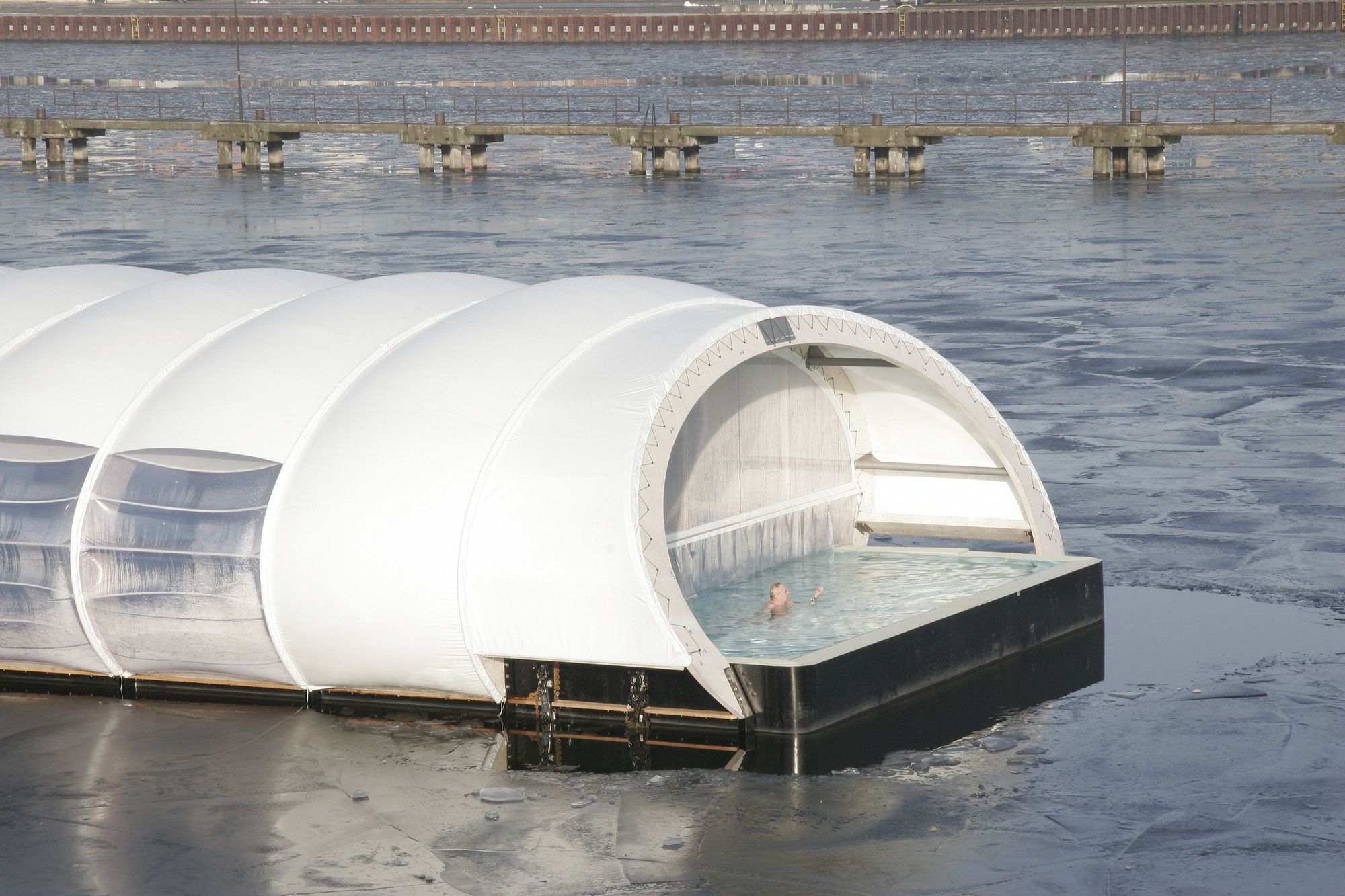

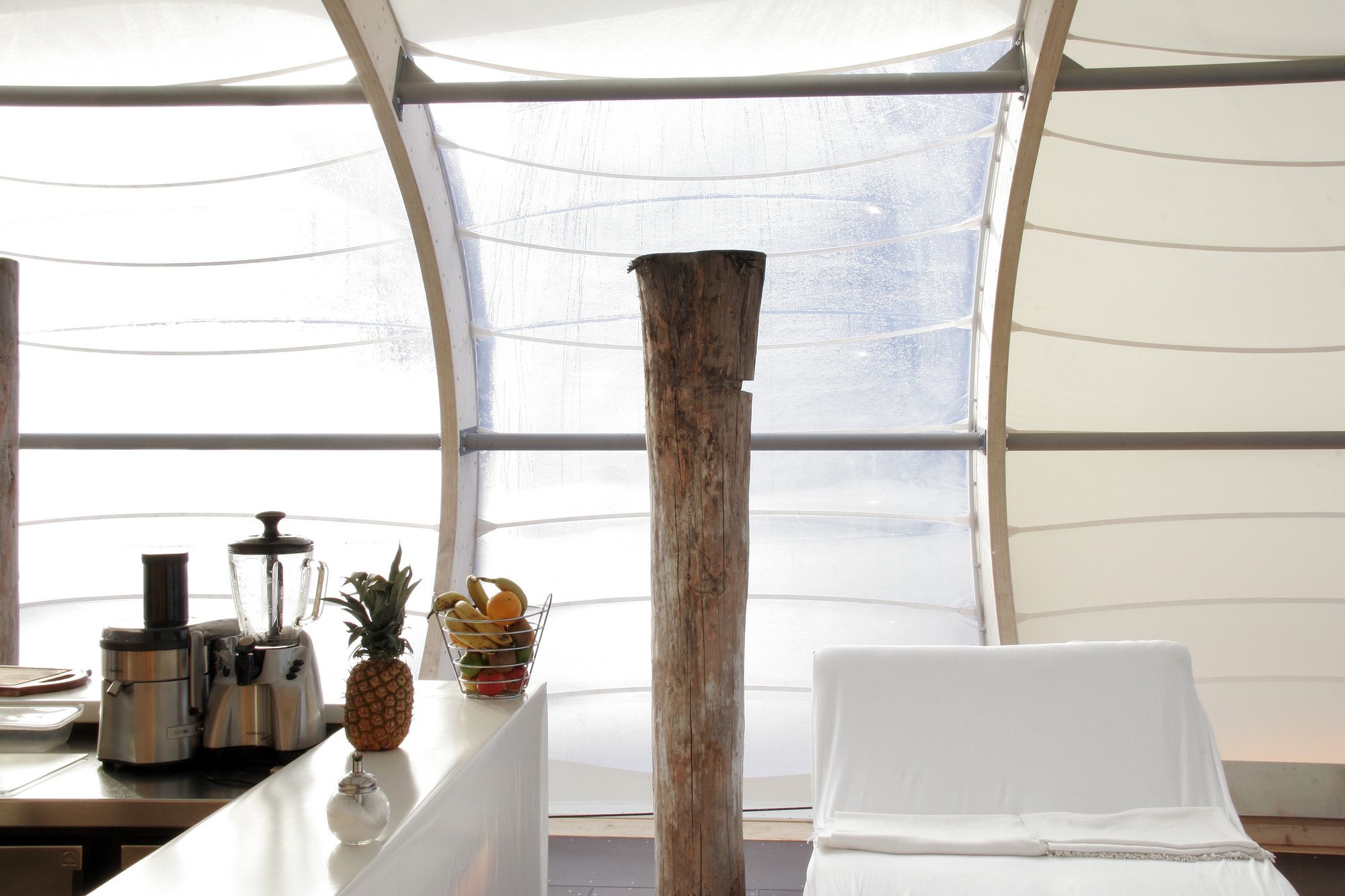

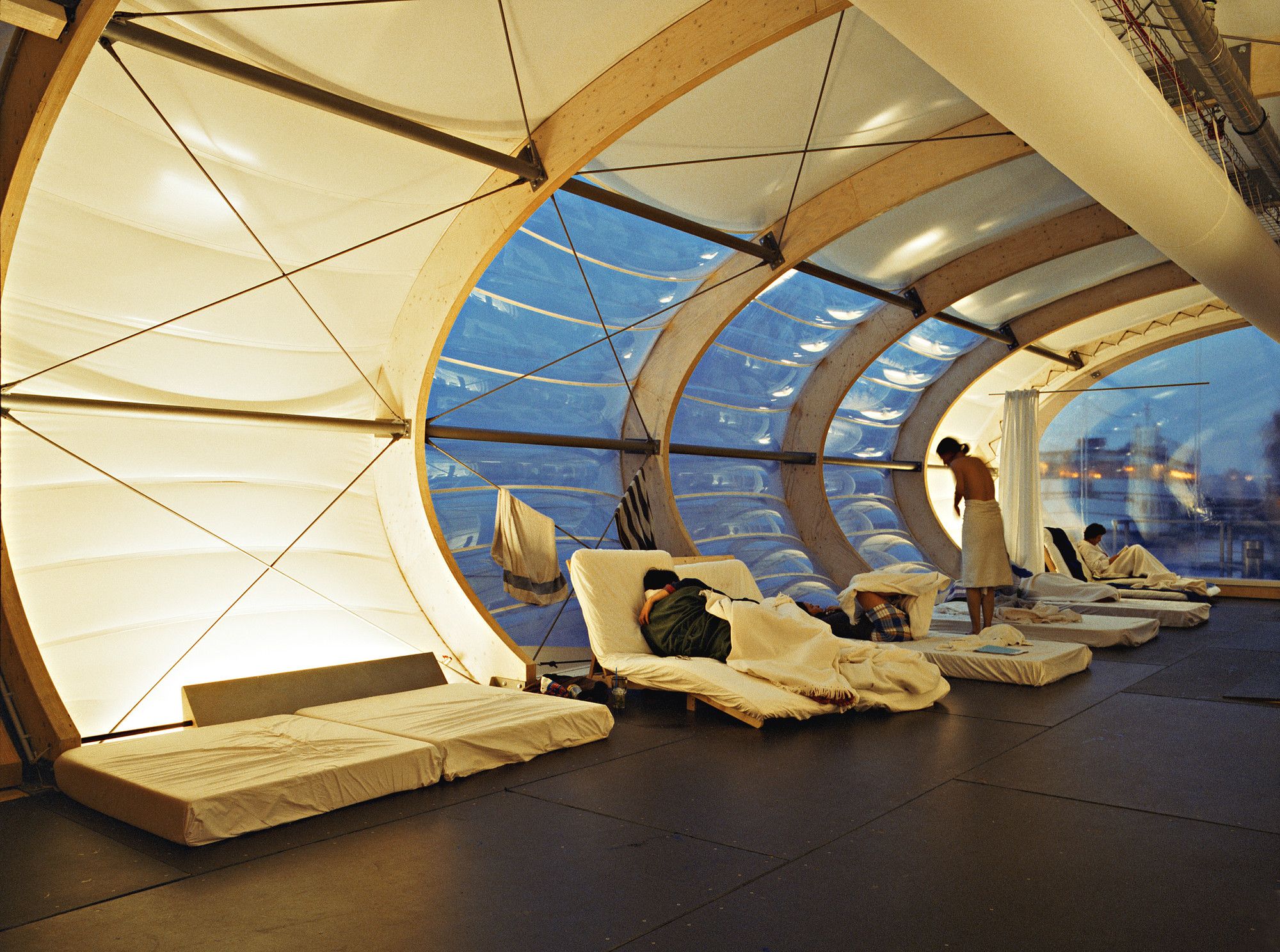

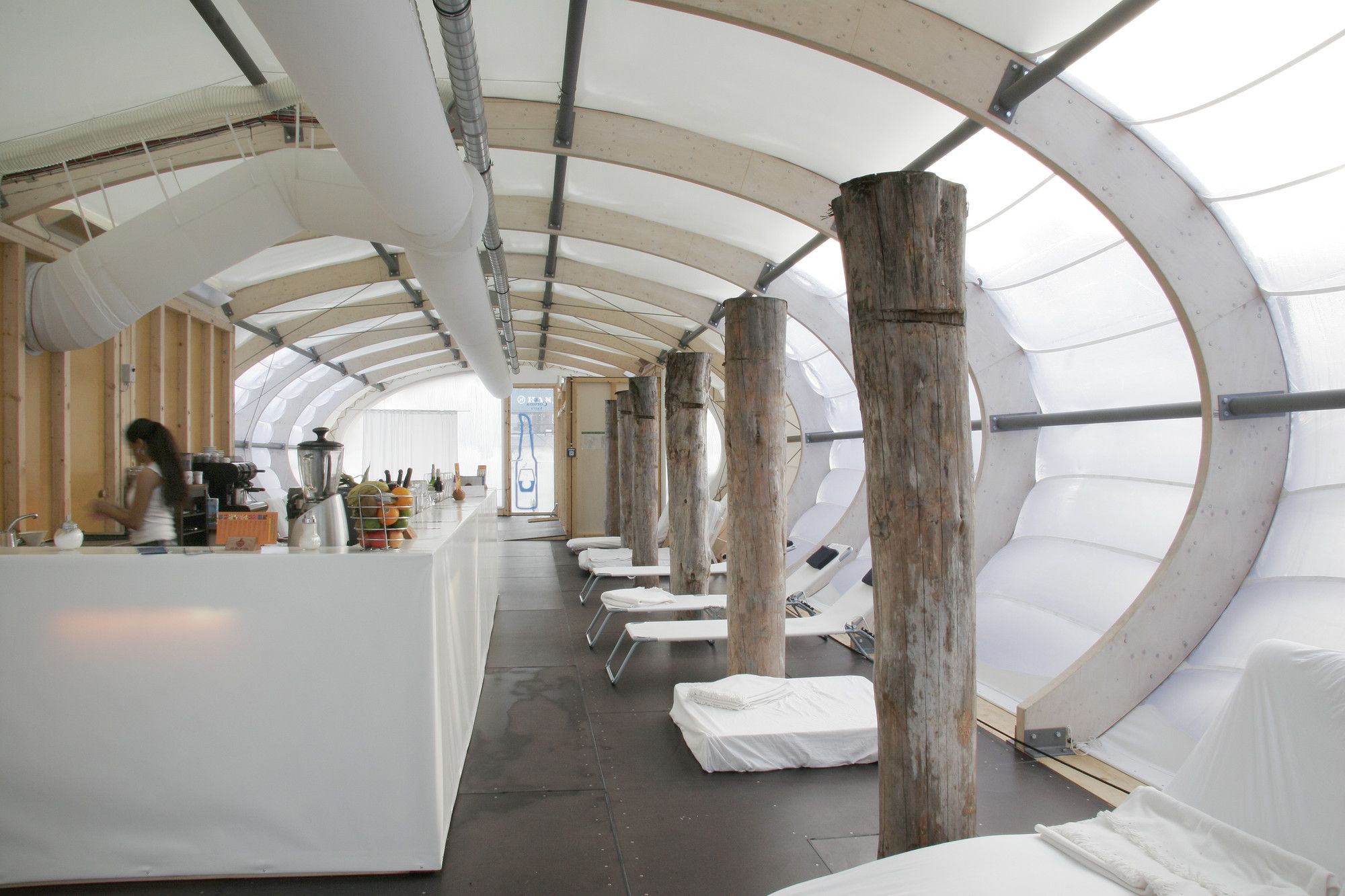

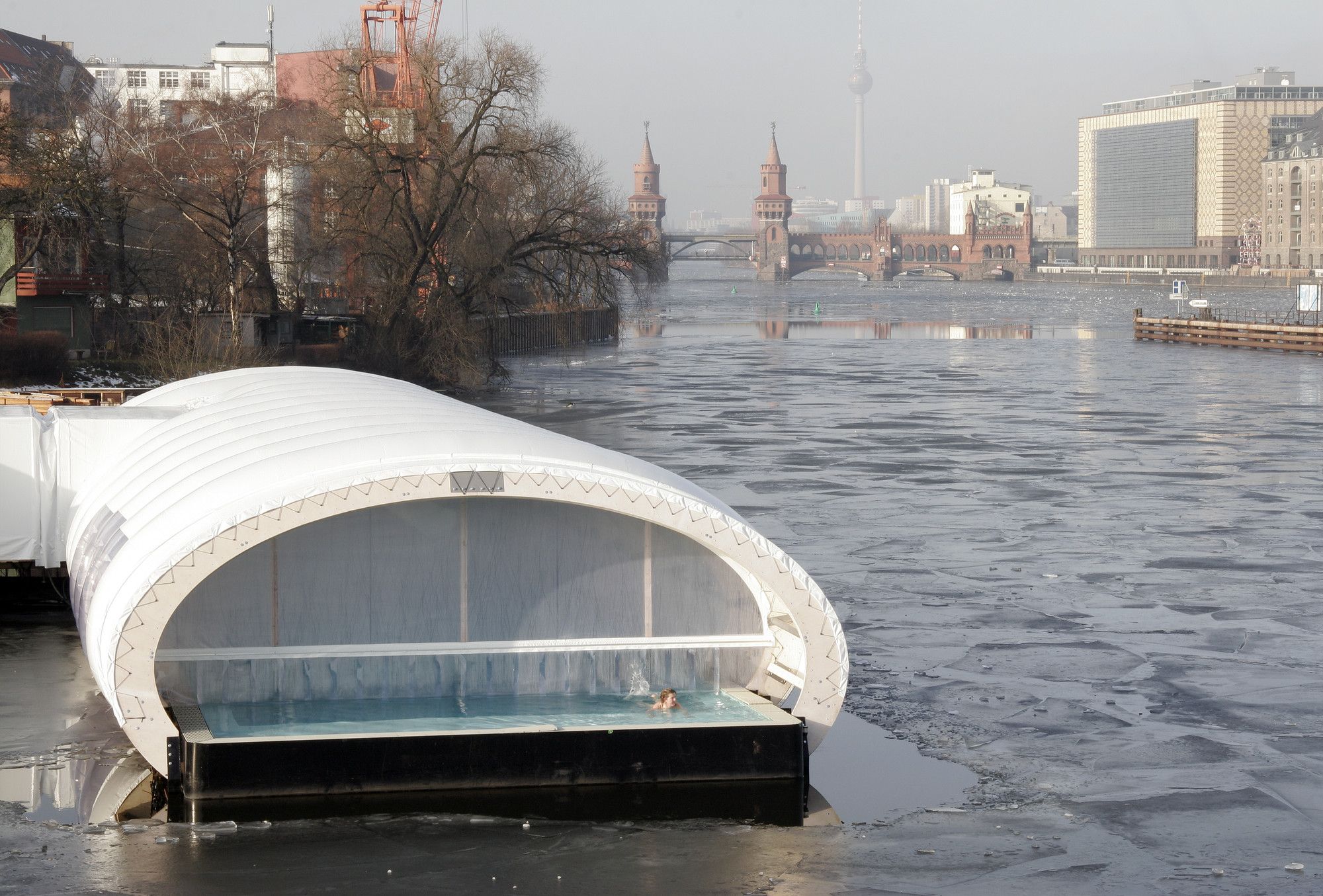

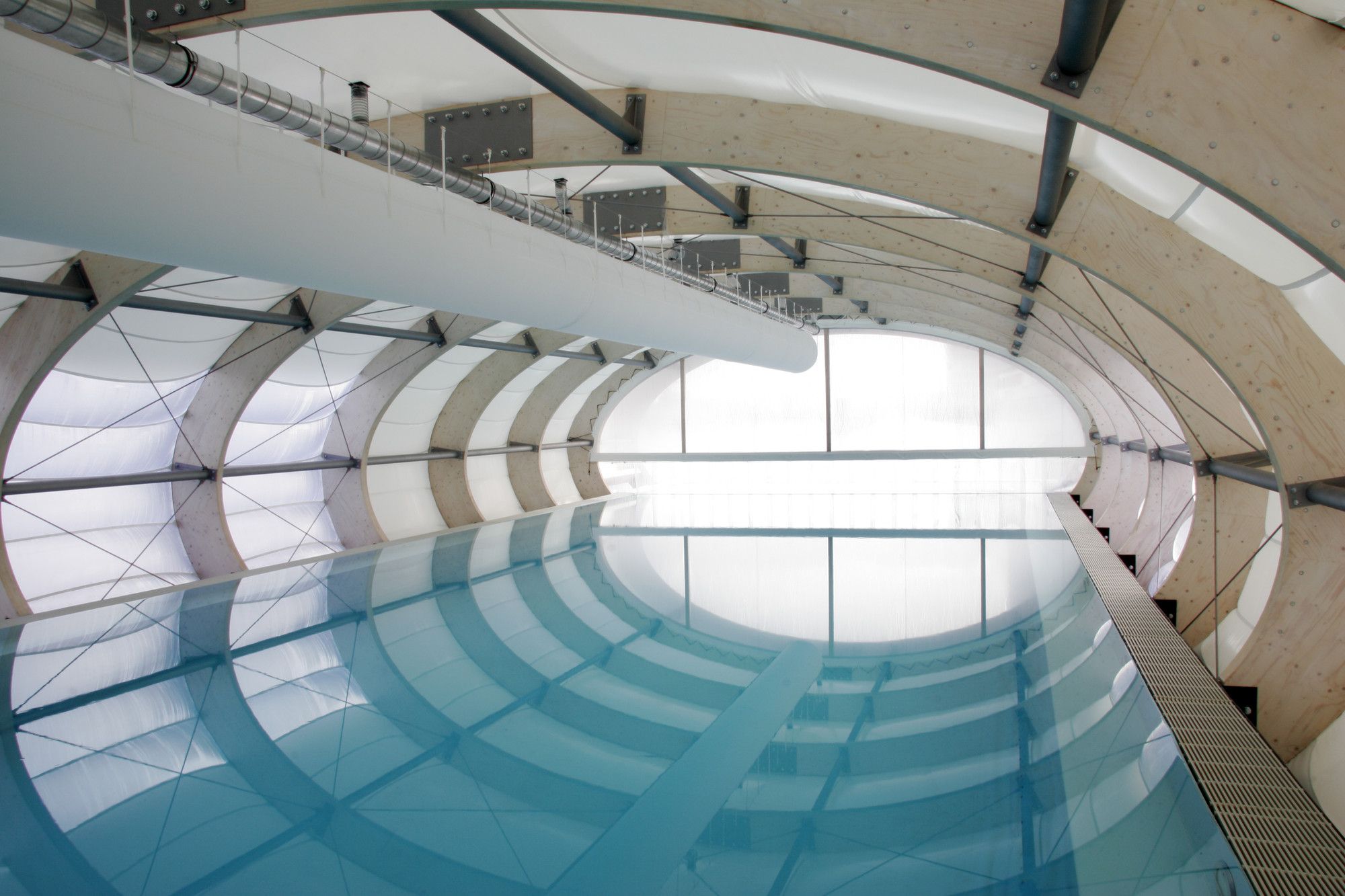

After the fruitful summer bathing ship and the brisk demand of press, in autumn 2005 the construction was roofed temporarily, to maintain the business over winter. The winter- roofs base area is limited to the existing arrangement and consists of three lengthwise airy parts of a structure constructed with membranes, which are divorcing the interior into three functional areas: lounge, sauna- area, and finally the pool ship. These areas are connected via added boxes where the sanitarian rooms are included. The construction is existing of elliptical wooden trusses which are spaned by a two laid membrane. By the use of translucent and in selected fields transparent surfaces, it is created a strong reference to the surrounding. Space between membranes is filled up with air pressure, to achieve optimized insulation to guarantee an agreeable temperature (25°C) inside also during extremely cold outdoor temperature, despite minimalized tare. To minimize building cost there were exclusively used standard materials and processing was just done with minimal complexity. To guarantee a fast assembly and disassembly it was of great value to create uncomplex joinings and the ease of manual assembly. The whole superstructure through the division in elements is mountable and removable without the use of a crane. These elements can be stored over summer or alternatively be used as a pavilion ashore. The Bathing Ship not only supplements the estival offer of bathing opportunities of the Spree in front of the urban scenery of the eastern harbor; besides you can enjoy sauna and bathing during the cold month with a panoramic view over the winterly river Spree until in springtime the arrangement finds back to its original form.

photography by © Kulturarena Veranstaltungs

Project Info :

Architects : Wilk-Salinas Architekten
Project Year: 2005
Project Area: 740.0 sqm
Project Location: Berlin, Germany
Architect in Charge: Thomas Freiwald
Building Owner : Kulturarena Veranstaltungs
Enclosure+ Bridge: IB Leipold, Andreas Leipold
Statics Of Ship : HHW+Partner, Wolfgang Wienecke
Photographs : Kulturarena Veranstaltungs, Torsten Seidel
Associates : Catharine von Eitzen, Ann-Kristin Hase, Fabian Lippert, Nora Müller
