Aperture | Arno Matis Architecture

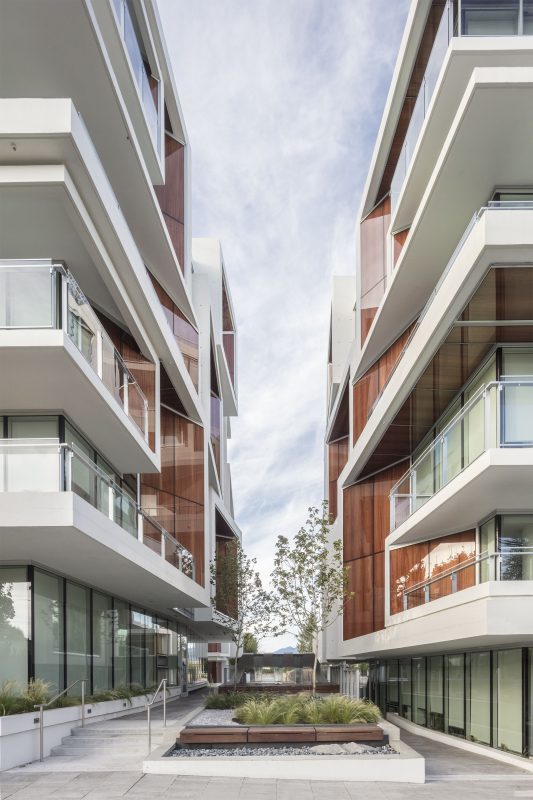

Located in Vancouver, Canada, this residential project by Arno Matis Architecture features façade openings that are programmed to provide passive shading and act like an Aperture: opening and closing in response to the unique solar exposure of each façade. Apertures are deeper on the south elevation to provide increased sun shading, and more shallow and open to the North, to allow for additional light.

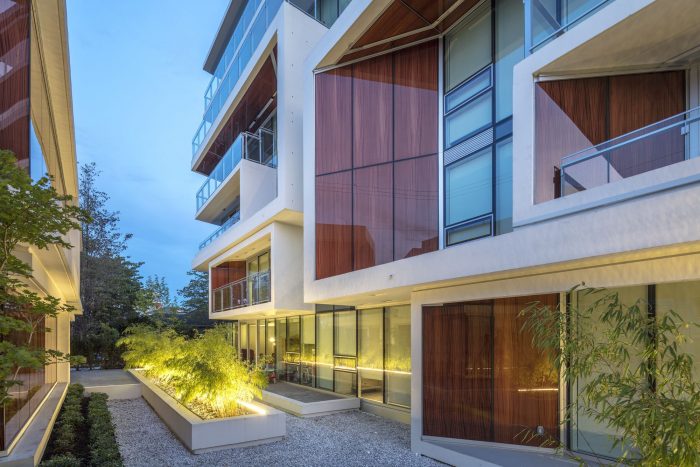

Each aperture is framed with natural wood-in-glass; a building skin that is the first of its kind. A mahogany veneer encapsulated between two glass layers, the system allows the wood to be preserved in its natural form without staining or color treatment; the richness of the natural wood grain is enhanced through a refracted light.
Encapsulated UV glass protects wood from weather exposure, eliminating the need for wood maintenance and staining. The insulated panel also reduces solar gain and increases the thermal resistance of the façade.

photography by© Michael Elkan

Stratigraphic architectural themes echo the area’s mid-century modern architectural vocabulary. Cantilever decks and strong horizontal lines and create a sense of lightness and lower the missing profile.
A full city-block located in a “single-family-transitioning-to-urban” neighborhood, the building responds to this context by stepping-down in scale from 6-story midrise blocks on the busy arterial, down to two-story villas, sensitive to the single-family neighborhood to the north.

The six building blocks are bisected with water gardens and bamboo courtyards that animate volumes with reflective light. The shallow massing results in bright, light-filled residences.
The building’s ‘campus-like’ massing creates interstitial social spaces: landscaped courtyards, mid-block water fountain and seating, and two, 6,000 SF fully-communal rooftop terraces that include urban agriculture, a children’s play place and BBQ areas where all can share Vancouver’s striking mountain views.

photography by© Michael Elkan

Project Info:
Architects: Arno Matis Architecture
Location: VancouverCanada
Architect in Charge: Arno Matis
Area: 98000.0 ft2
Project Year: 2017
Photographs: Michael Elkan
Manufacturers: Grohe, Miele, Mapei, Kawneer Co., OTIS Elevator Company
Project Name: Aperture
