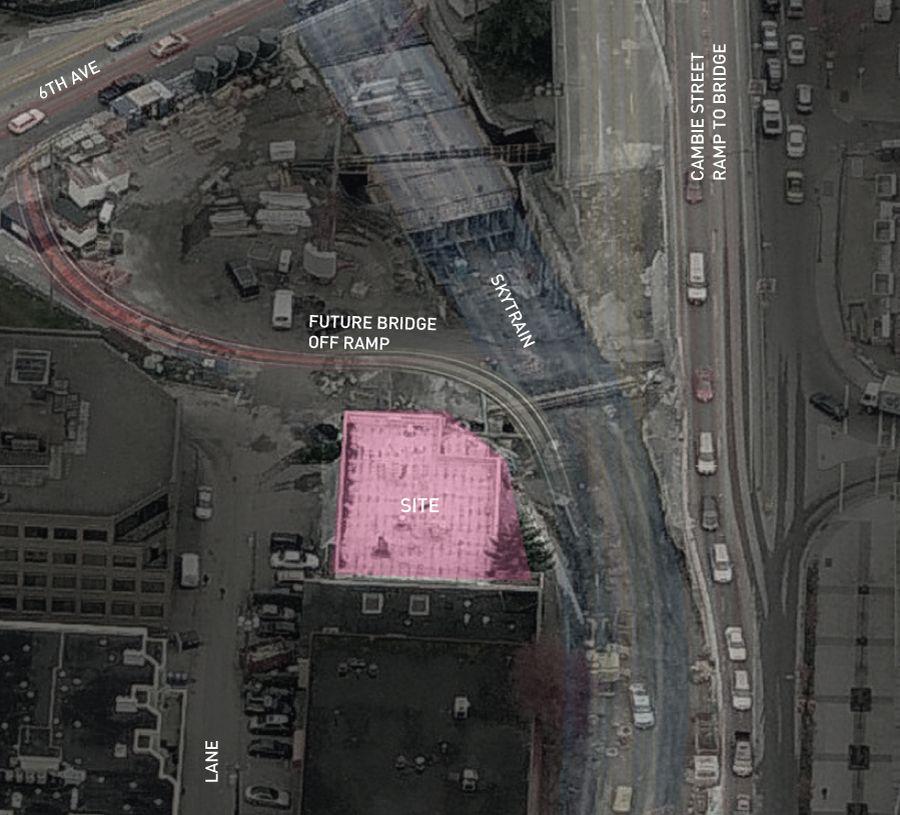

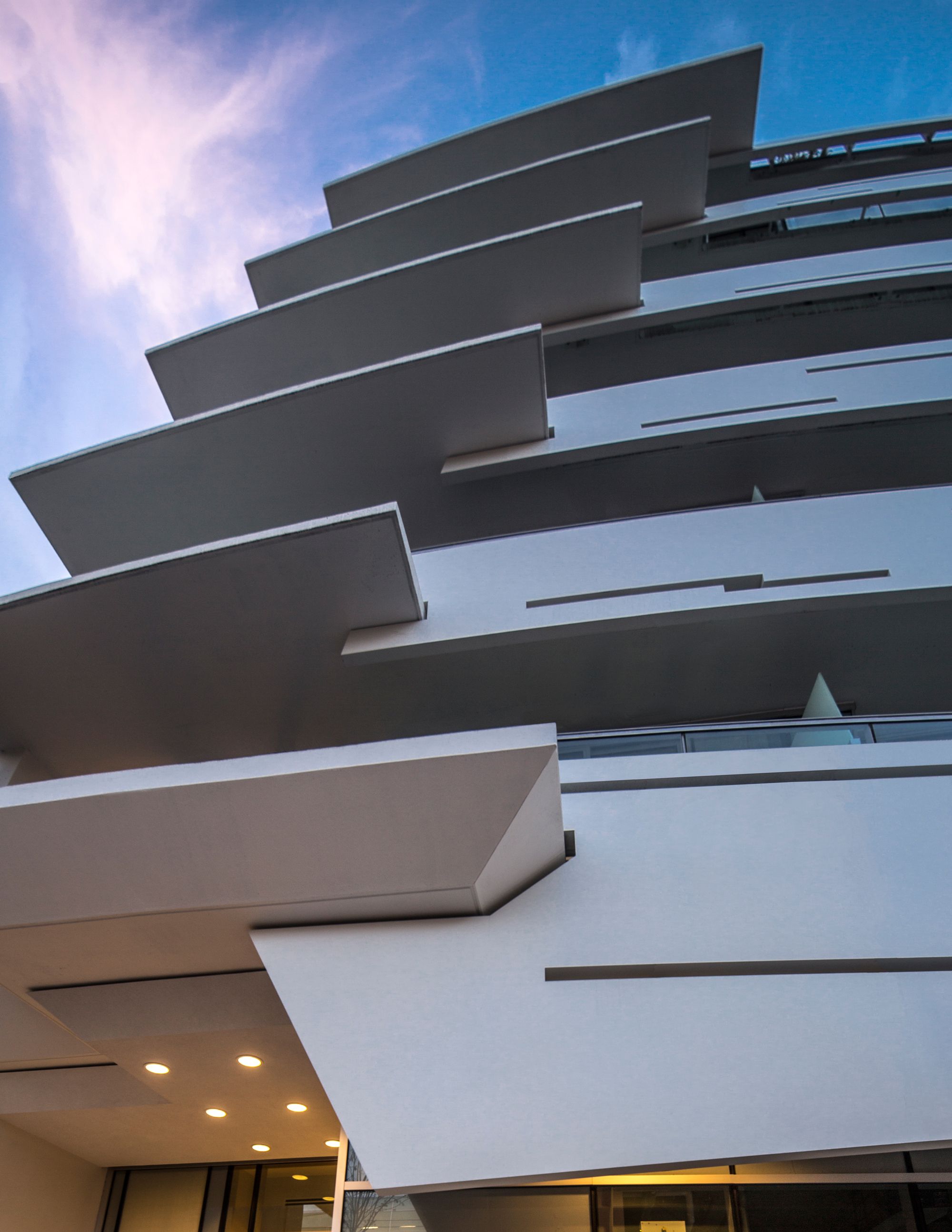

Designed by Arno Matis Architecture, A once forgotten site sitting adjacent a new underground rapid transit line, this project sits on the southern gateway of Vancouver’s grand Cambie Boulevard. This commercial/residential mixed-use project presents an avant-garde building form of cascading post-tensioned concrete cantilever floors and a layered screen façade that reflects light and distorts the boundaries between interior and exterior.

photography by © Michael Elkan

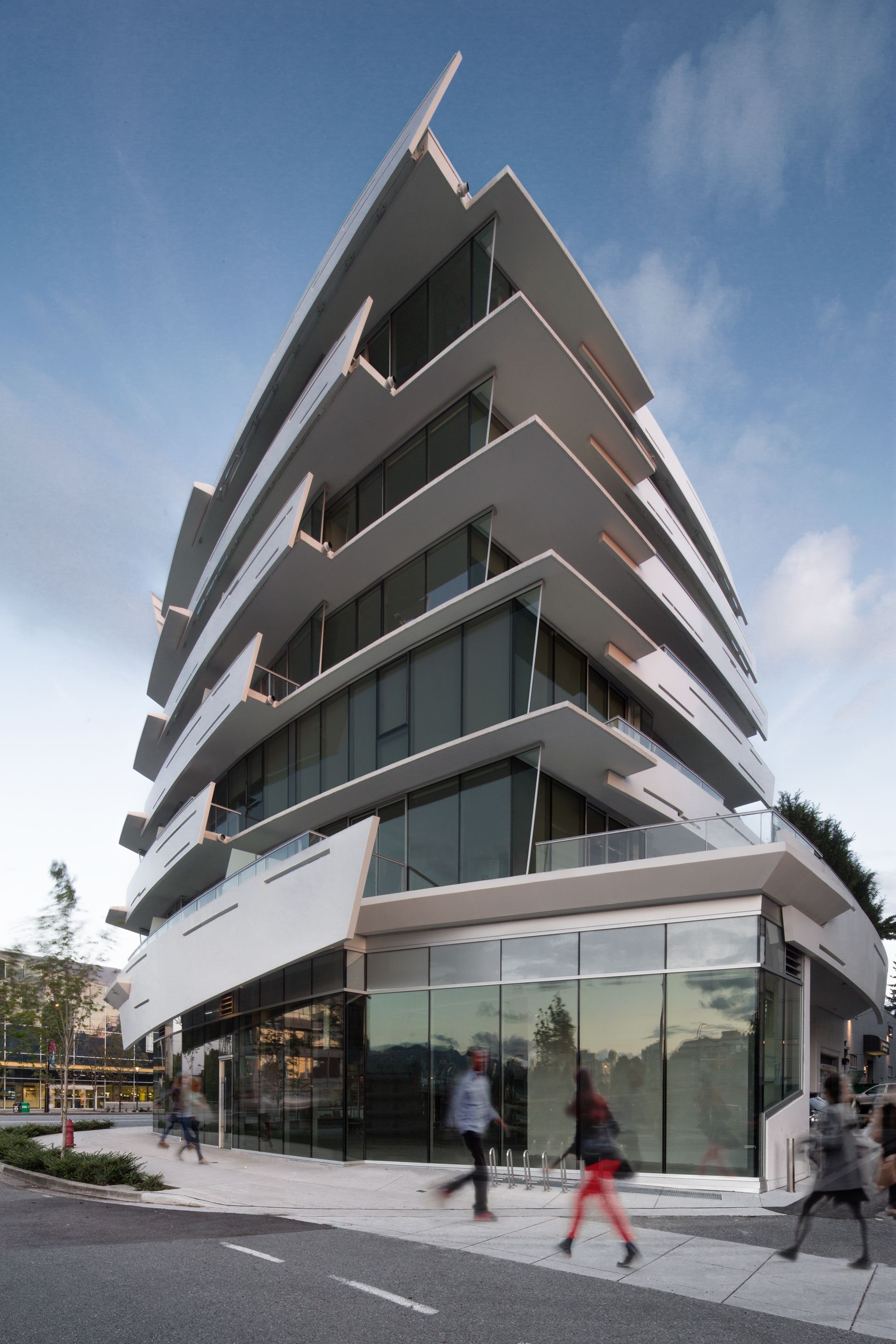

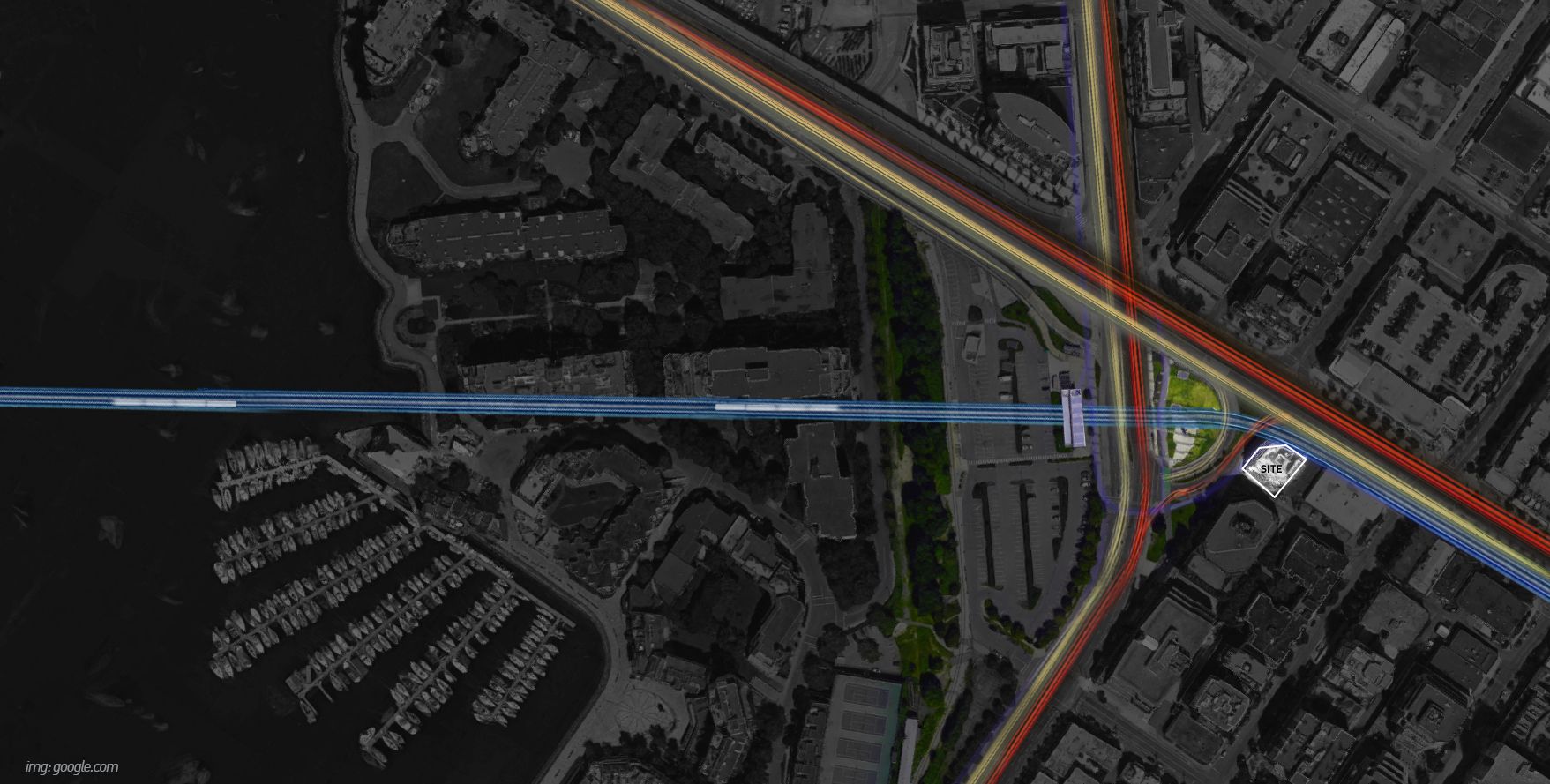

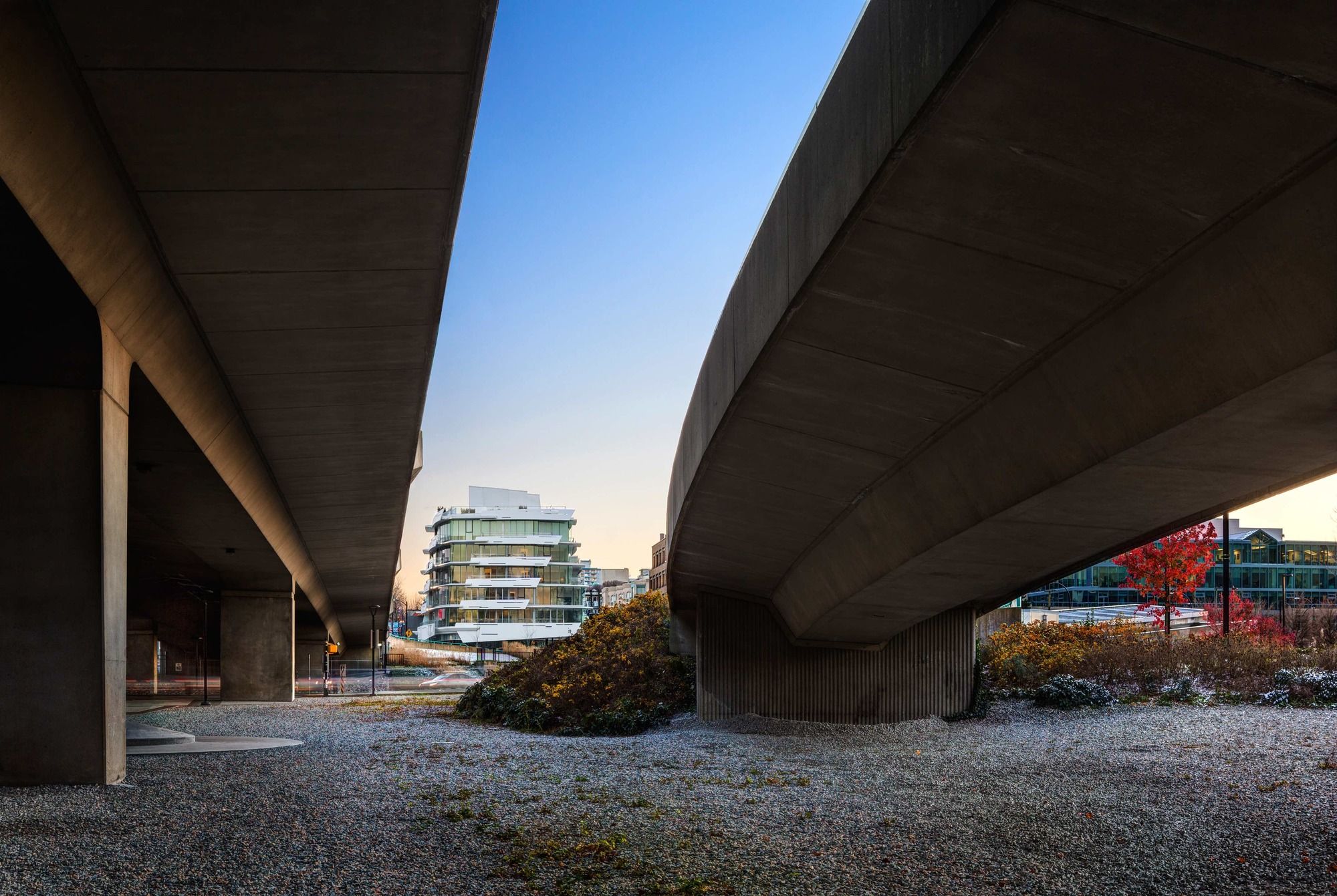

Designed to capture the vortex energy of the neighboring bridgehead, building vocabulary is sweeping and spiraled to capture the energy created by the adjacent bridge ramps. Edges are curved and fragmented to evoke the idea of movement as if the energy of the street itself is pealing the surfaces of the building apart. The building turns its corners in prow-like forms that track sun-angles and provide passive horizontal and vertical sun-shading.

photography by © Michael Elkan

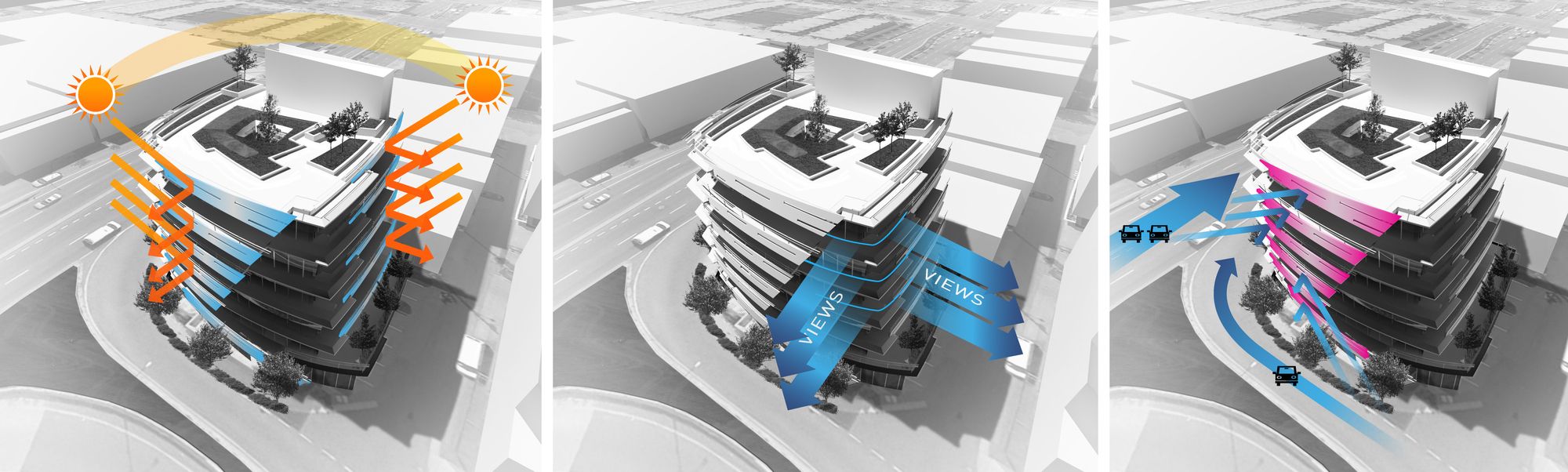

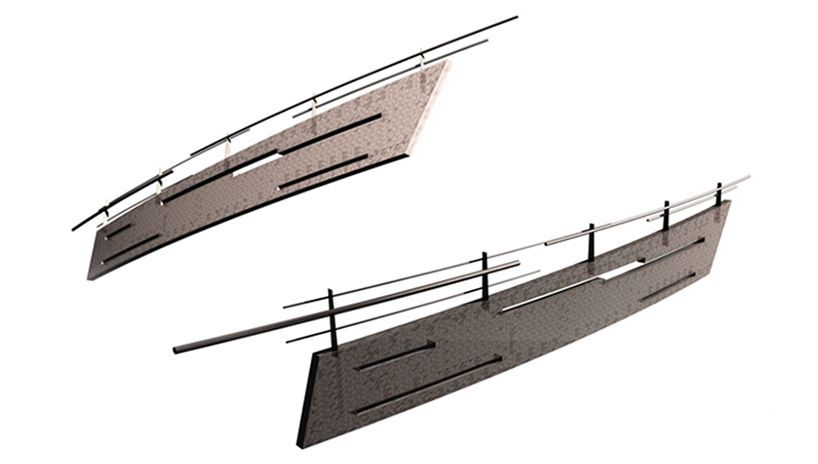

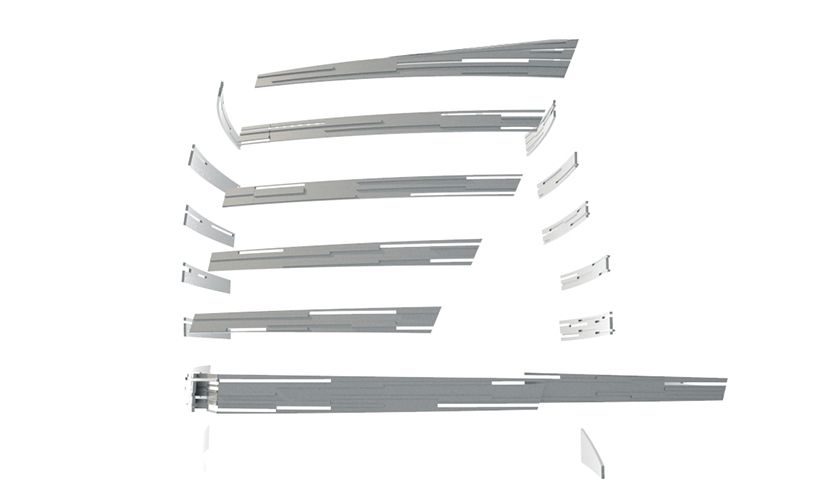

FAÇADE: The solar signature of each façade was carefully mapped and the result was a tailored system that is not only an effective passive solar control tool but also serves as a privacy screen from the bridge traffic to the northeast while opening to views to the northwest.

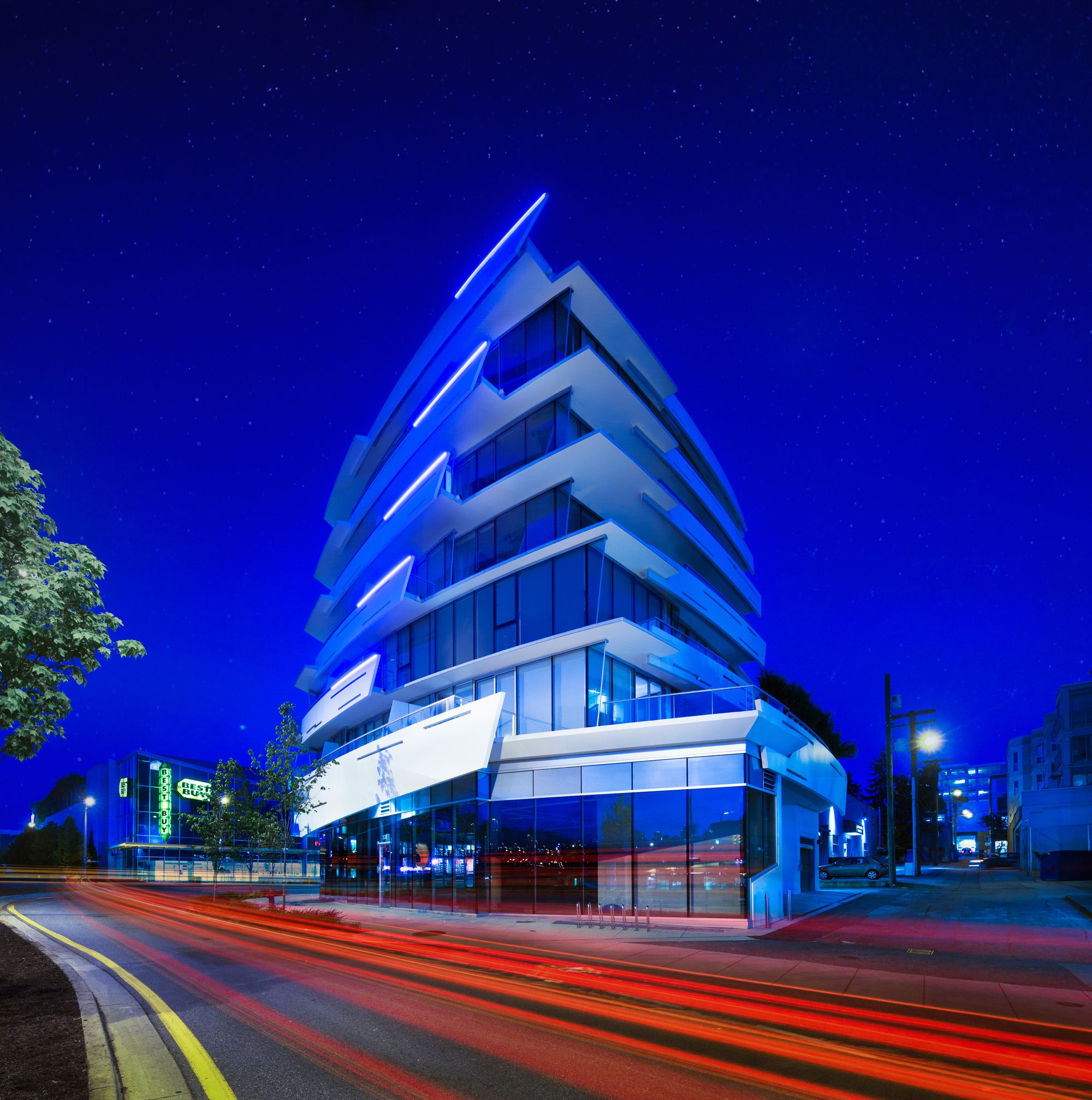

LIGHT ART: The building form is emphasized through a light art installation by light artist Tamar Frank that recalls the frenetic movement of head and taillights.

photography by © Leo Light Photography

Project Info:
Architects: Arno Matis Architecture
Location: Vancouver, BC, Canada
Architect in Charge: Arno Matis
Area: 2602.0 m2
Project Year: 2014
Photographs: Michael Elkan, Ed White, Leo Light Photography
Manufacturers: Bosch, Mapei
Project Name: 2211 Cambie
