The Almanjayar zone, the area chosen for the construction of the administrative headquarters ‘Almajayar Offices’ of the Andalusian Regional Government in Granada, did not provide any sort of stimulus for the building’s design or layout. The chosen site was bordered by residential buildings to the west, a large shopping centre to the south, a supermarket to the north and eternally unfinished construction to the east.

Courtesy of Cruz y Ortiz Arquitectos – Photographs : Duccio Malagamba

In essence, the public administration’s precise aim was to attempt to rezone the area through the presence of this new building; undoubtedly a positive approach in terms of urban development, but one that also presented a serious challenge to the design of the building, as it did not have any nearby reference points or positive urban information to draw on.

Courtesy of Cruz y Ortiz Arquitectos – Photographs : Duccio Malagamba

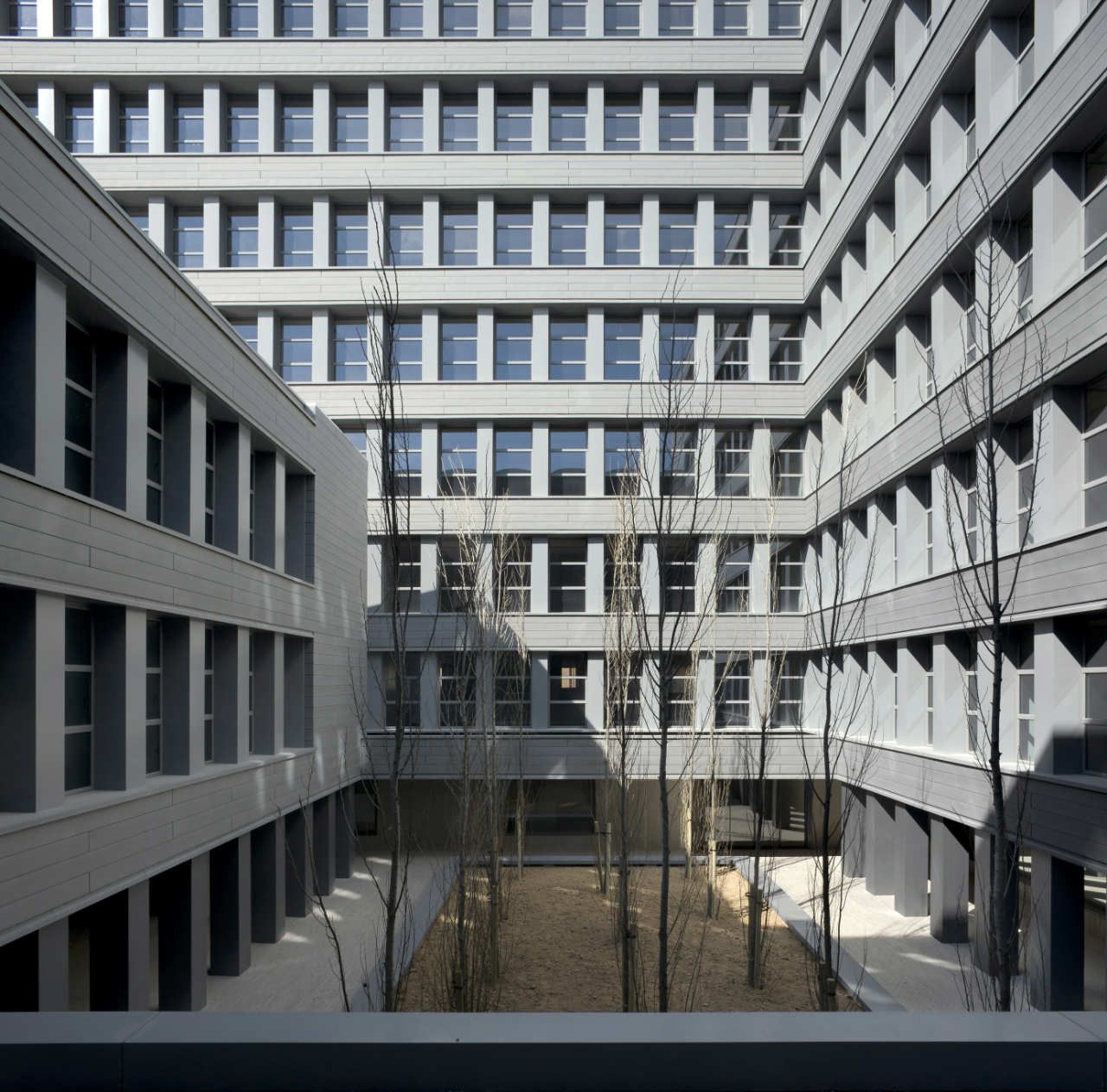

This led to the design of a building whose unique exterior facade avoids replicating any of the lines of the nearby buildings. In fact, the building takes its shape from a new space, a precisely geometrical courtyard that occupies the centre of the building and around which the entire structure is organised.

Courtesy of Cruz y Ortiz Arquitectos – Photographs : Duccio Malagamba

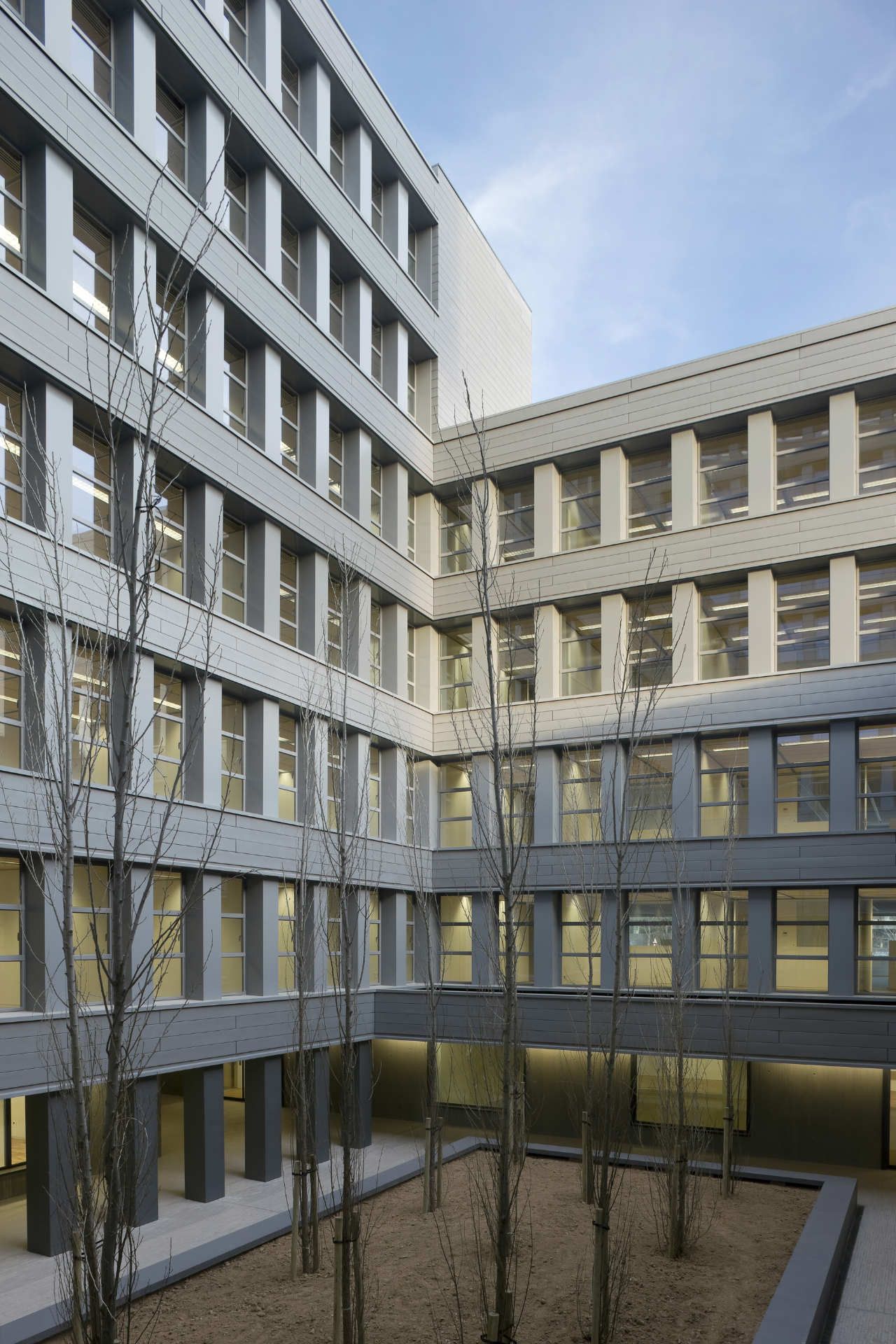

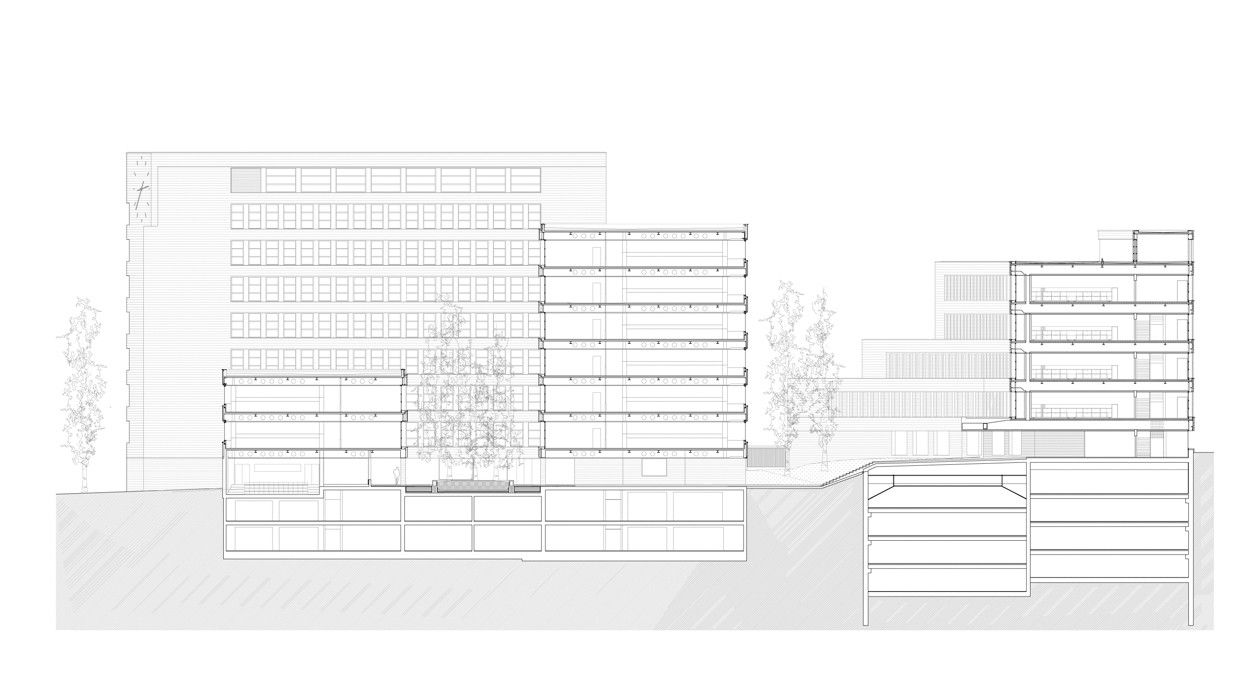

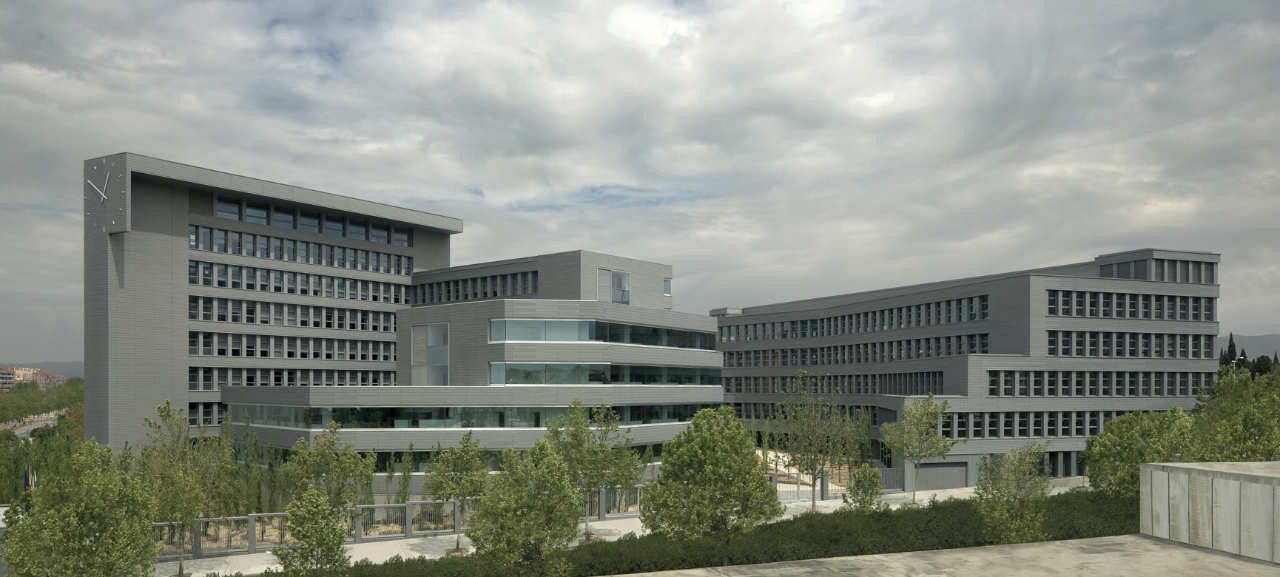

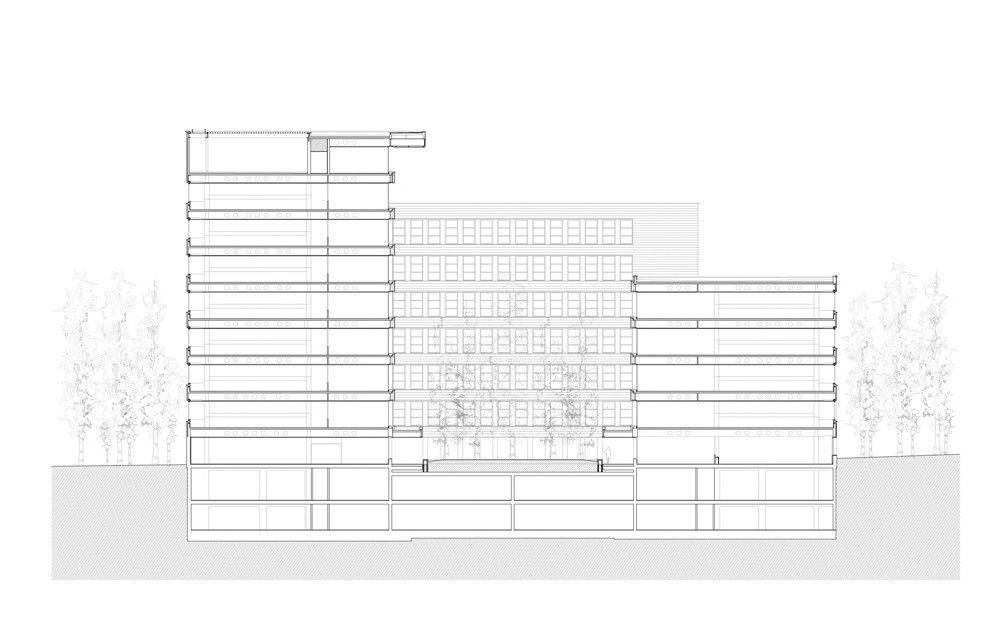

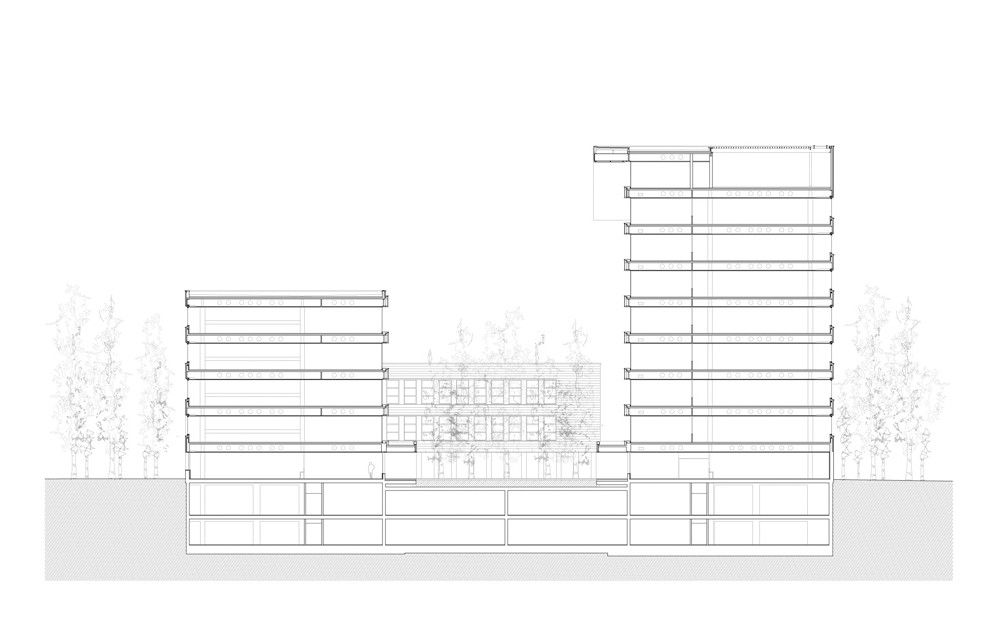

In essence, the whole complex revolves around this space; each structure progressively increasing in height, from three to five, seven or nine storeys, in line with the four sides of the rectangular courtyard. In short, the building disassociates itself from the exterior facades and generates its structure from its own centre, from this newly created space.

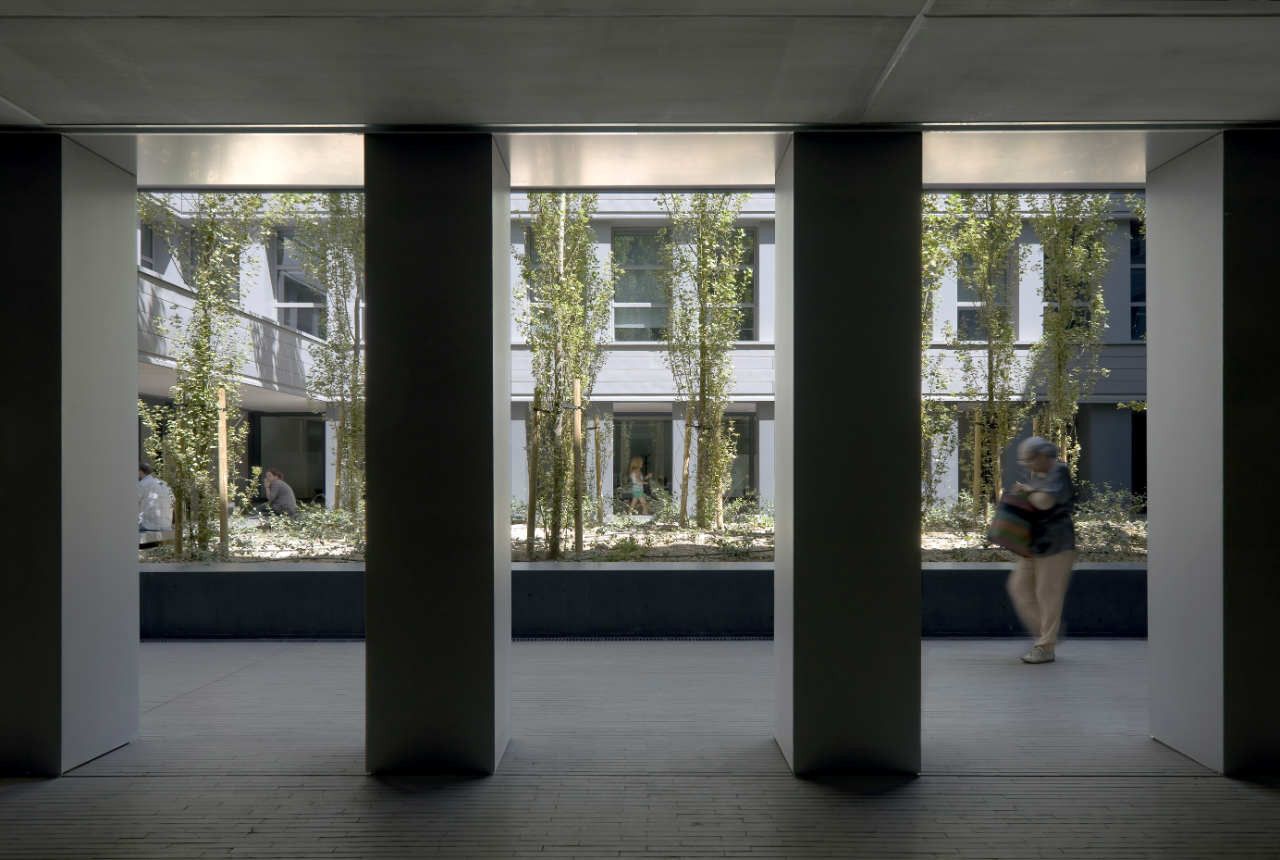

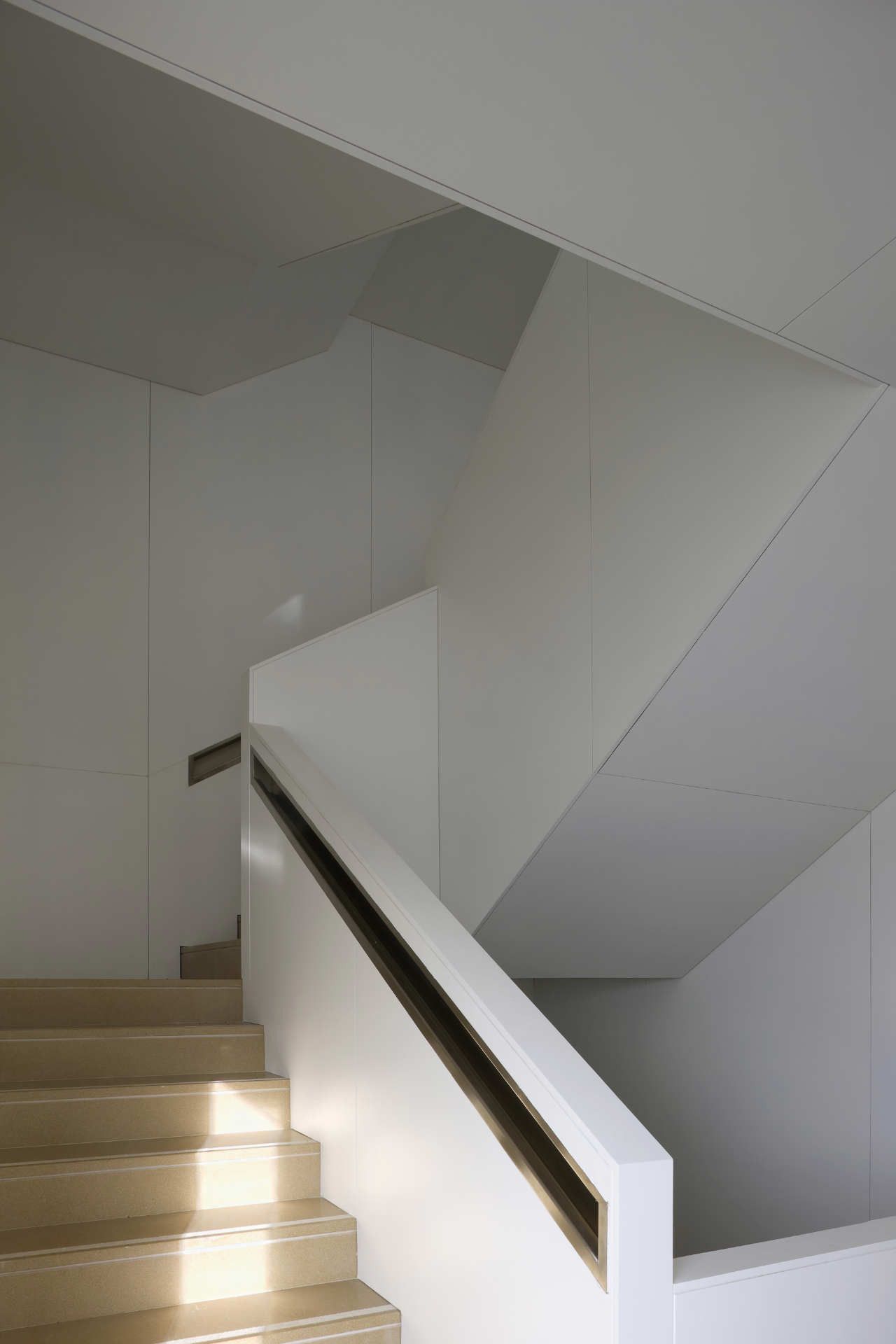

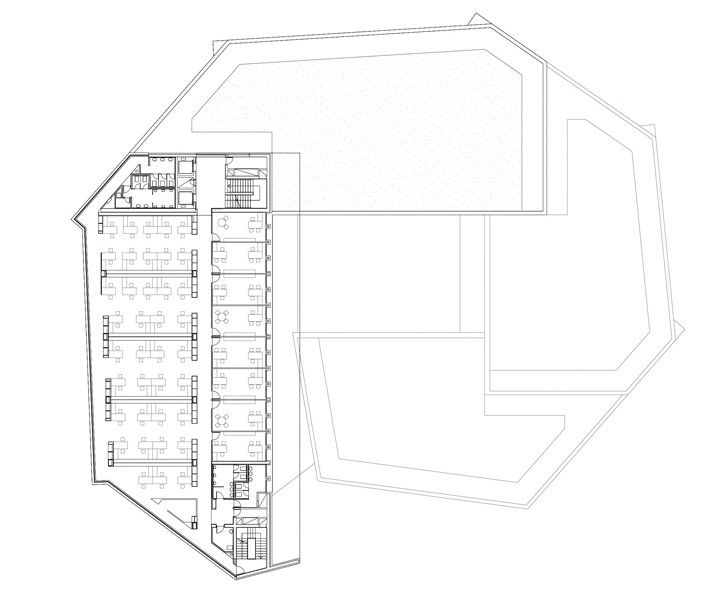

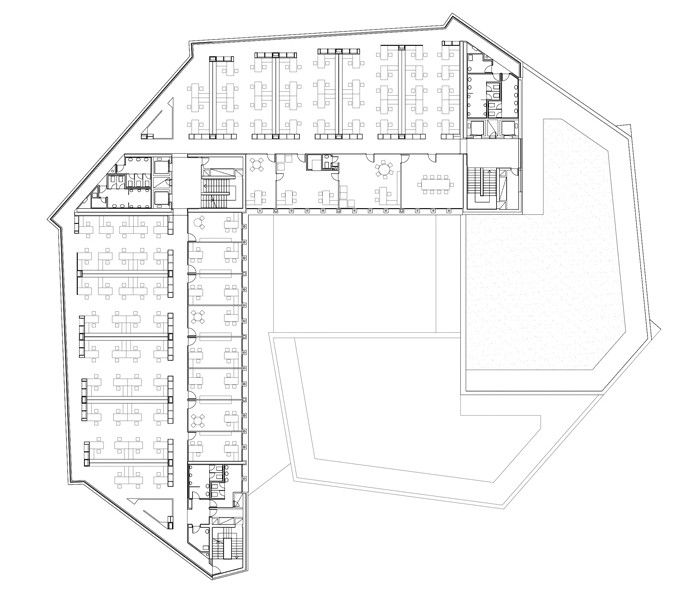

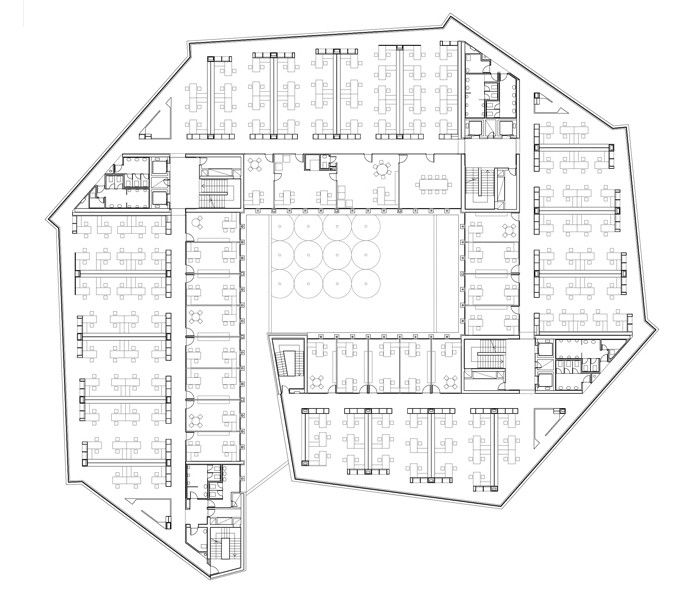

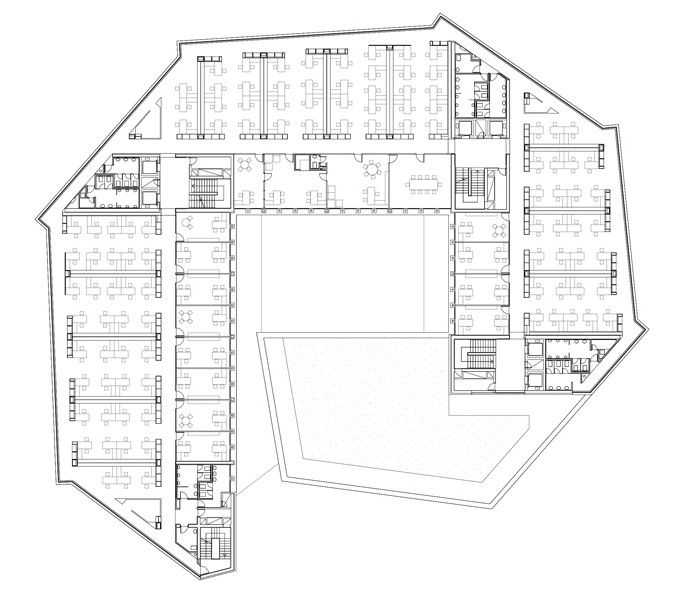

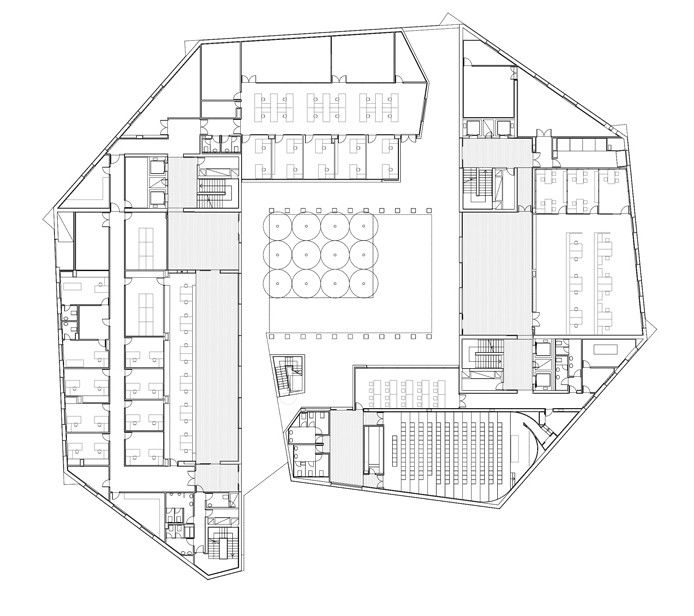

The complex is accessed from the south, where, after passing through checkpoints and porches, visitors come upon the courtyard, an unexpected discovery. From the courtyard they can reach the various vertical circulation areas. The influence of this central space and its organisational importance extends even to the arrangement of the offices on the various floors; individual offices are grouped around the courtyard, while the external-facing areas, which have a more irregular geometry, are reserved for open-plan offices.

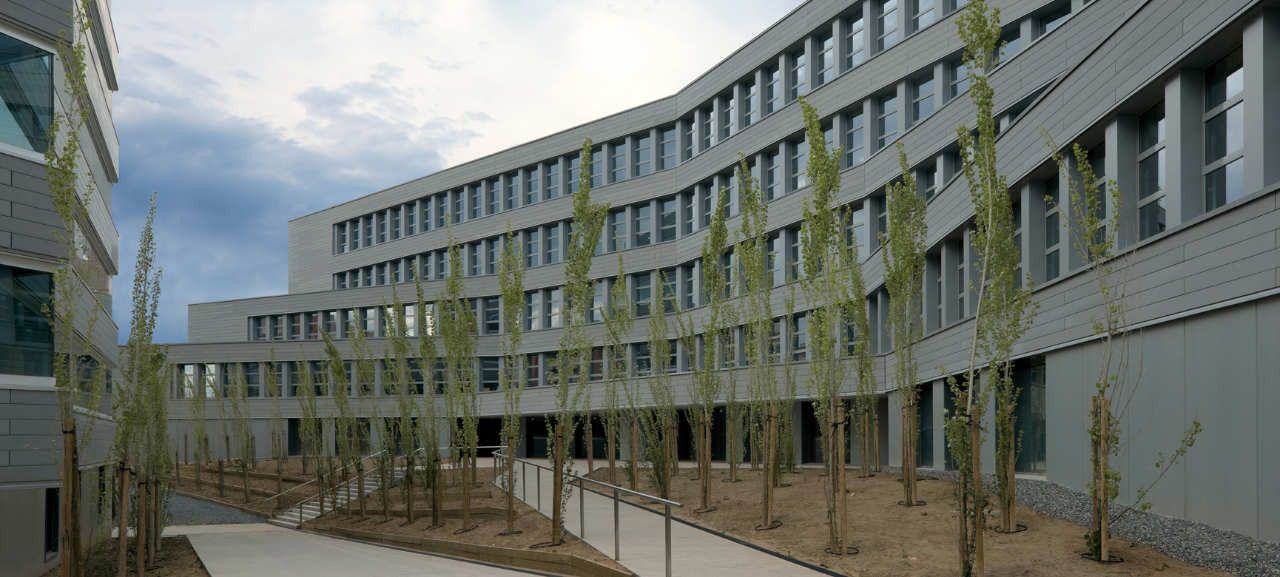

After crossing the courtyard, visitors come to a complementary building that was developed in a second phase. This structure opens out towards the main building while being closed off to the back street. A contrast is therefore produced – the exterior facades of the second building mirror the interior facades – those that open onto the courtyard – of the first building.

Courtesy of Cruz y Ortiz Arquitectos –
Photographs : Duccio Malagamba

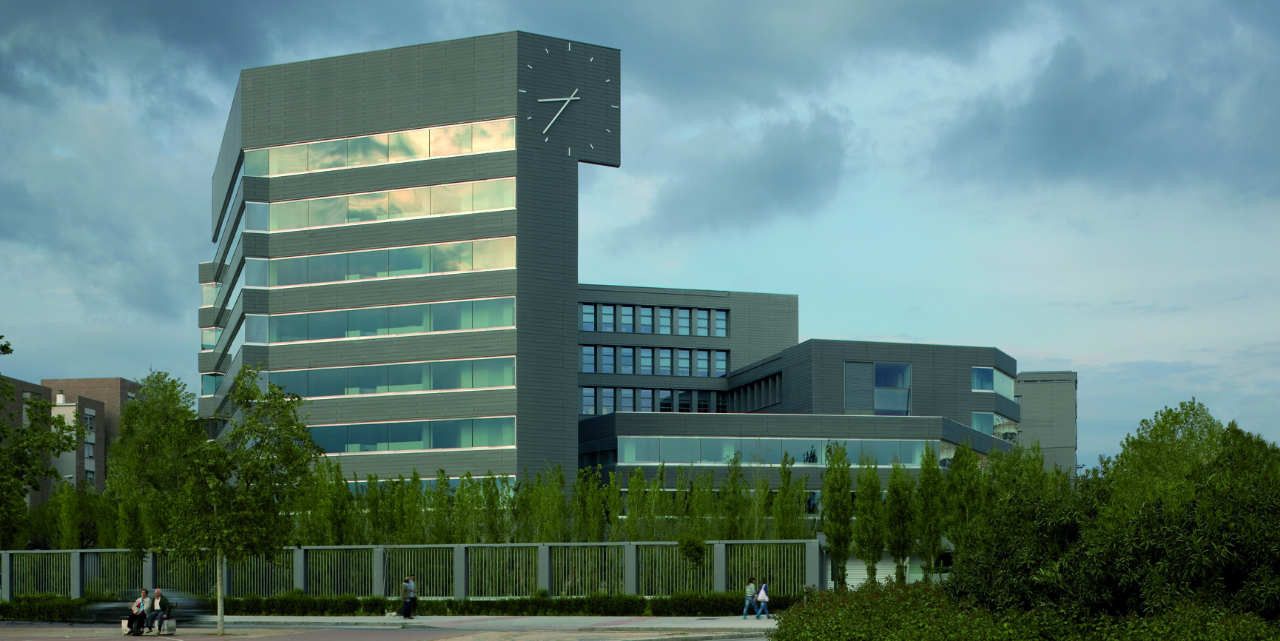

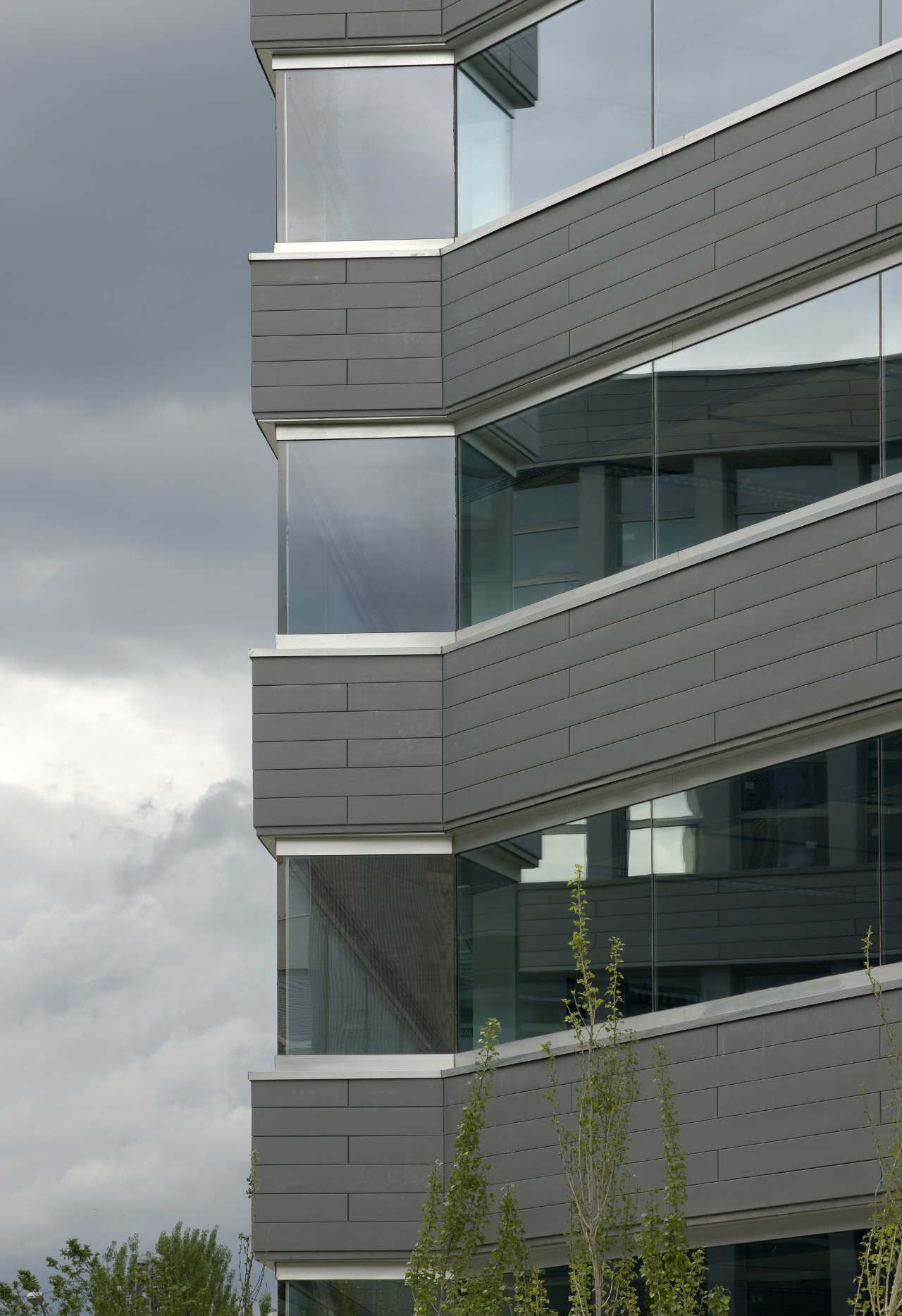

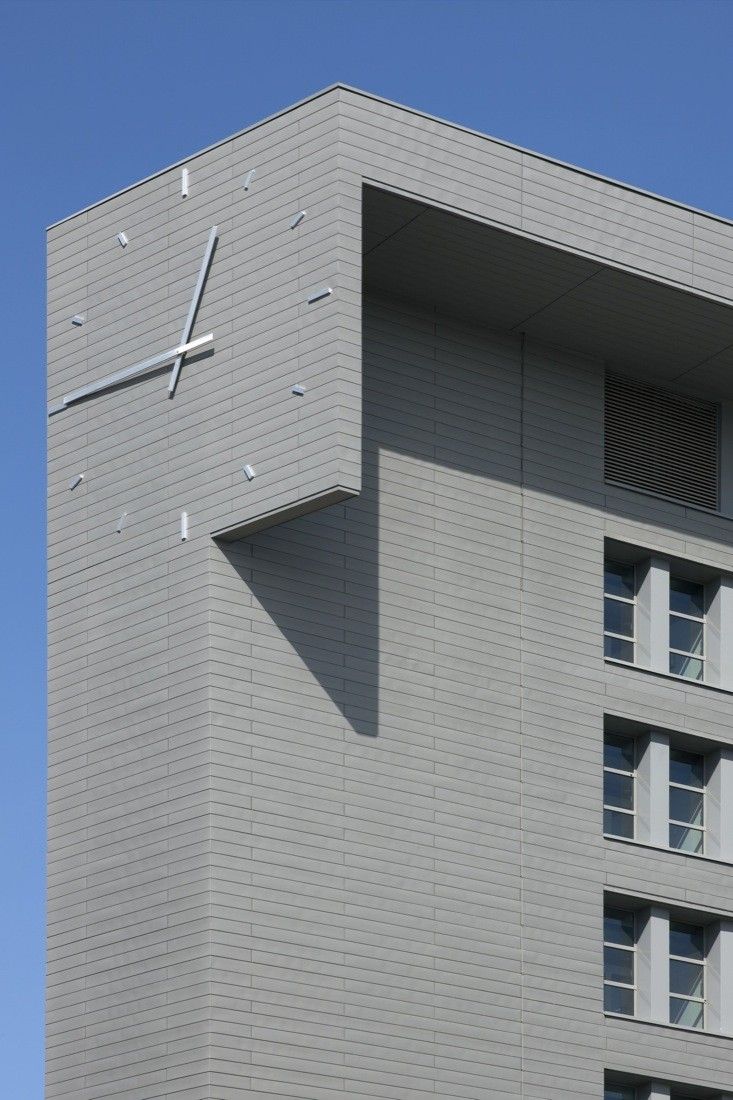

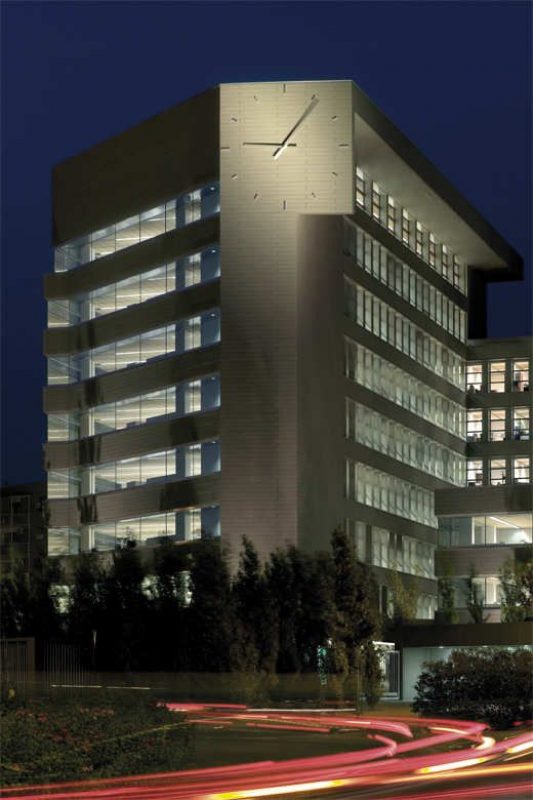

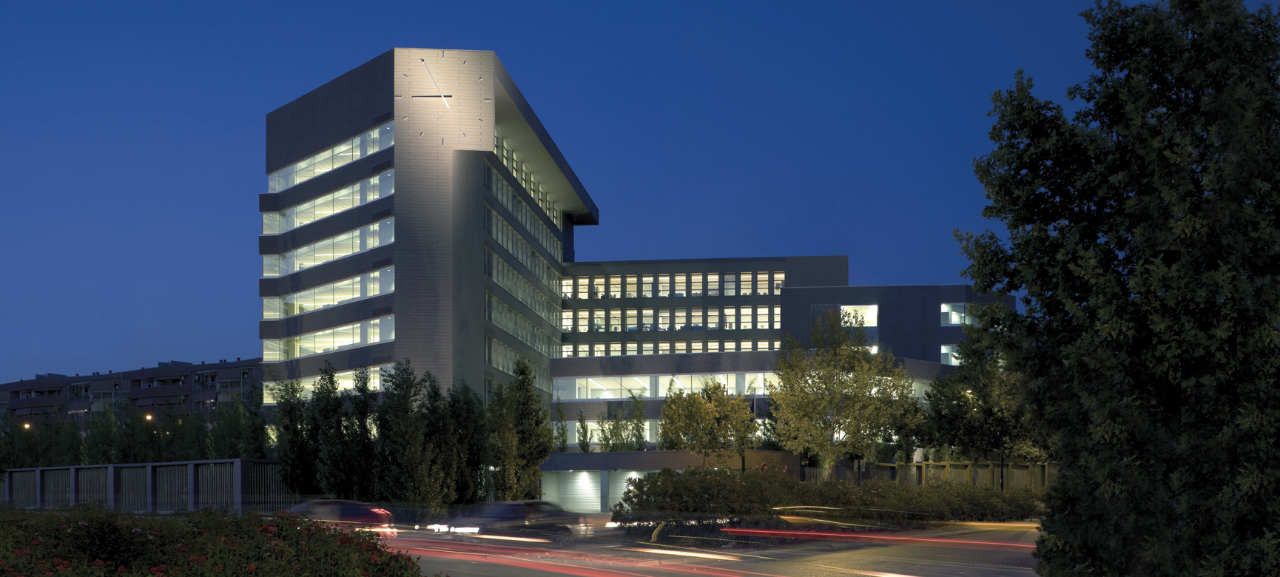

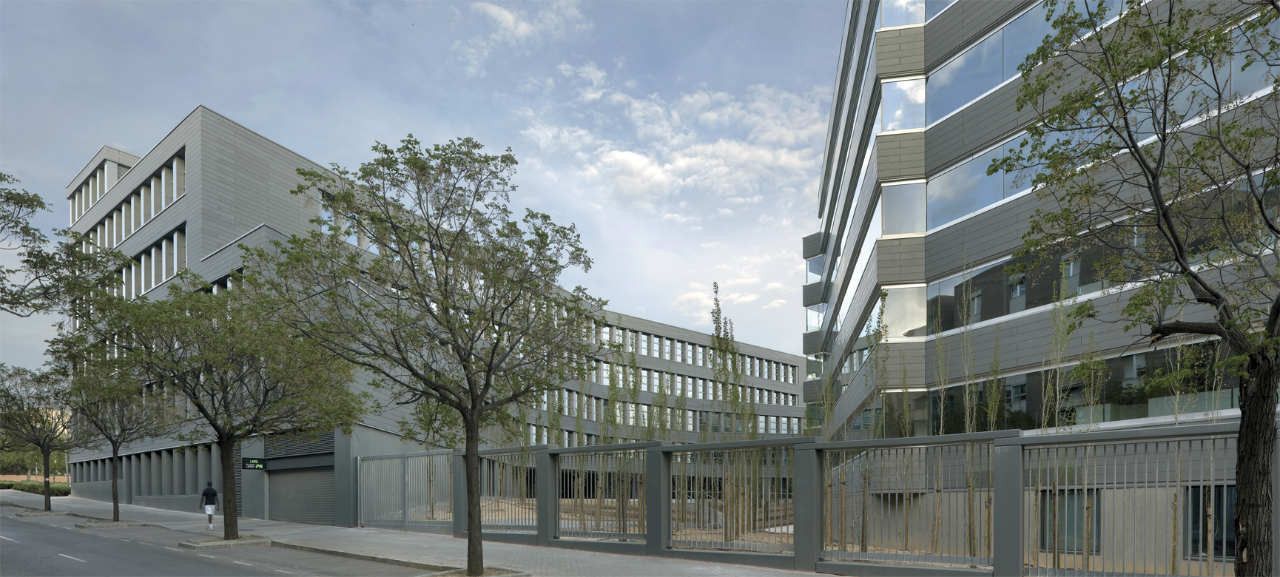

The facades of both buildings have been clad in zinc panels, and the complex as a whole is very monochromatic; a grey that clearly sets it apart from its neighbouring buildings. To further distinguish this building from its suburban surroundings, a large clock has been positioned at the highest point of the complex.

Courtesy of Cruz y Ortiz Arquitectos –
Photographs : Duccio Malagamba

Project Info :

Architects : Cruz y Ortiz Arquitectos
Project Year : 2010
Budget : 34.930.267 €
Project Area : 46.893 sqm
Photographs : Duccio Malagamba
Structural engineering : Tedeco Ingenieros
Project Location : Calle Joaquín Eguarás s/n, Granada, Spain
Client : Dirección General de Patrimonio. Consejería de Economía y Hacienda. Junta de Andalucía.
Collaborators : Blanca Sánchez, Daniel Rodríguez, Elena de las Moras Hervella, Juan Carlos Mulero, Marta Pelegrín, Miguel Velasco
