Zinc Roof Systems – Click Roll Caps | RHEINZINK
Use: Exterior metal roofing.
Applications: Commercial, residential, cultural, public, industrial, hospitality.
Characteristics: Reduced use of tools and machines, fast installation, economical, rainproof.
Sizes: Coil widths 470 mm (approx. 1.54 feet) to 670 mm (approx. 2.2 feet) | Panel widths 345 mm (approx. 1.13 feet) to 545 mm (approx. 1.79 feet) = center distances 385 mm (approx. 1.26 feet) to 585 mm (approx. 1.92 feet) | Metal thicknesses 0.7 mm/0.8 mm | Panel lengths ≤ 25 m (approx. 82 feet) | Deliverable lengths max. 10 m (approx. 32.8 feet)
Certification: Cradle to Cradle Certified™.

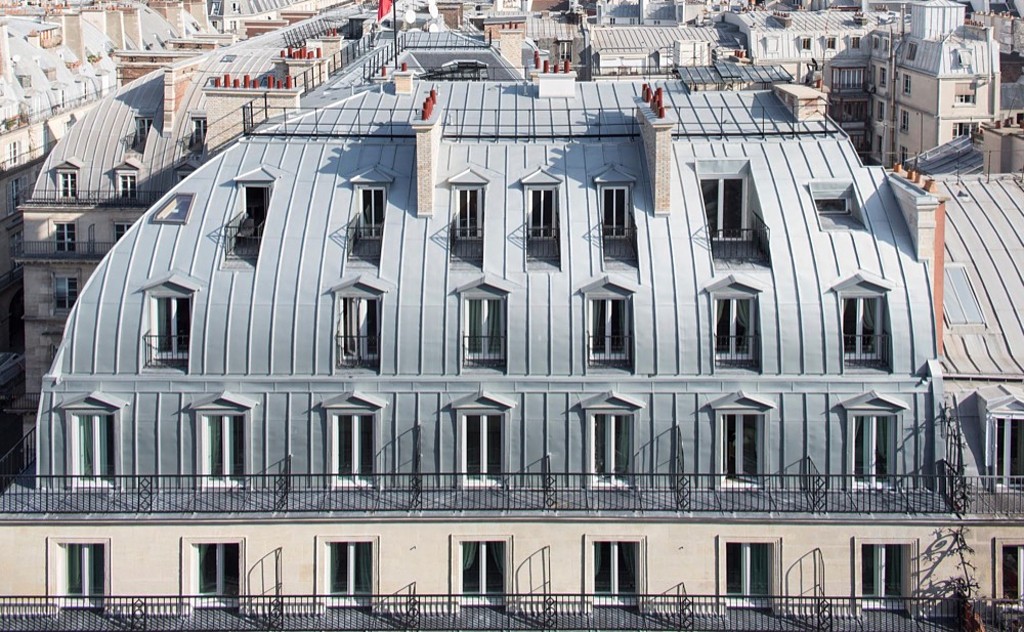

RHEINZINK titanium zinc click roll cap roofing is a striking, segmented metal roof system for roof slopes from 3°. RHEINZINK developed click roll cap roofing from the older roll roofing system. Using click roll roofing is even more popular today and can be used in almost any area.
*Illustrations shown throughout may not represent all components necessary to meet building codes.
Installation

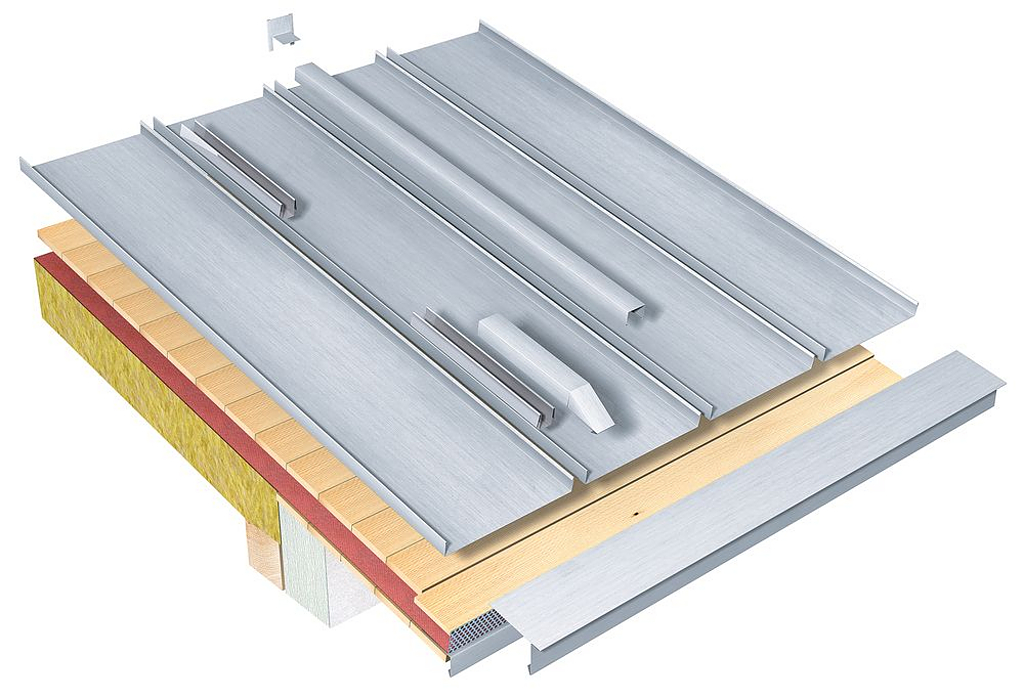

The panels are attached using a specially developed RHEINZINK click roll fastener made from galvanized steel. After attachment, the RHEINZINK click roll cap (standard length 3 m) is clipped into place using the click roll fastener. The flared click roll cap allows individual caps to be slightly overlapped. Panels can be delivered with ready-made profiles or can be produced on the construction site using mobile RHEINZINK roll formers.
Features
- Economical installation
- System can be used on non-ventilated roof structures
- Once installed, click roll cap roof systems are rainproof and replace old building elements made from wood or other materials reliably and durably
Easy calculation as many parts can be prefabricated - Panels longer than 6 m can be manufactured on-site using a mobile roll former
- Panels can be up to 25 m long and installed rapidly on surfaces
