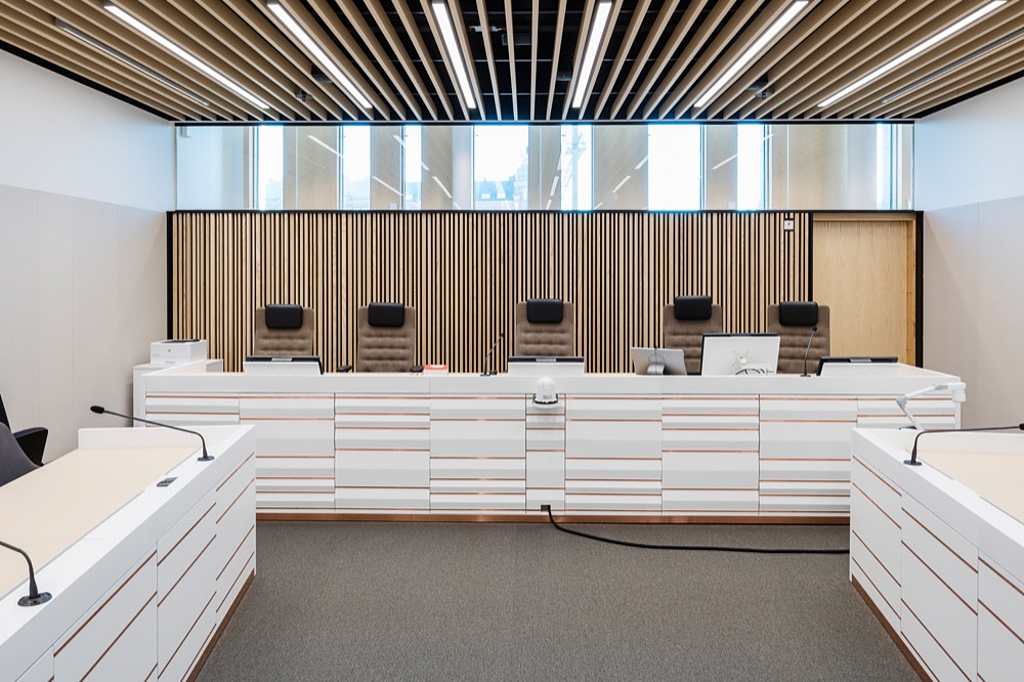

Gustafs Linear Modules come fully assembled and ready to use, including the acoustic felt. The Module system provides quick, user-friendly and concealed installations and a modern linear look in solid wood. A look that can be adapted to specification when it comes to the rib dimension and the spacing in between them, and also the type of wood and wood treatment.

Characteristics

Core & Surface Finish:	Modules are available in species of solid wood and can be treated with a lacquered, stained, oiled or painted finish.
Acoustics:	Open area and sound absorption depend on the design.
Reaction to Fire:	The solid wood in Gustafs modules can be impregnated to classification B-s1,d0.

Installation

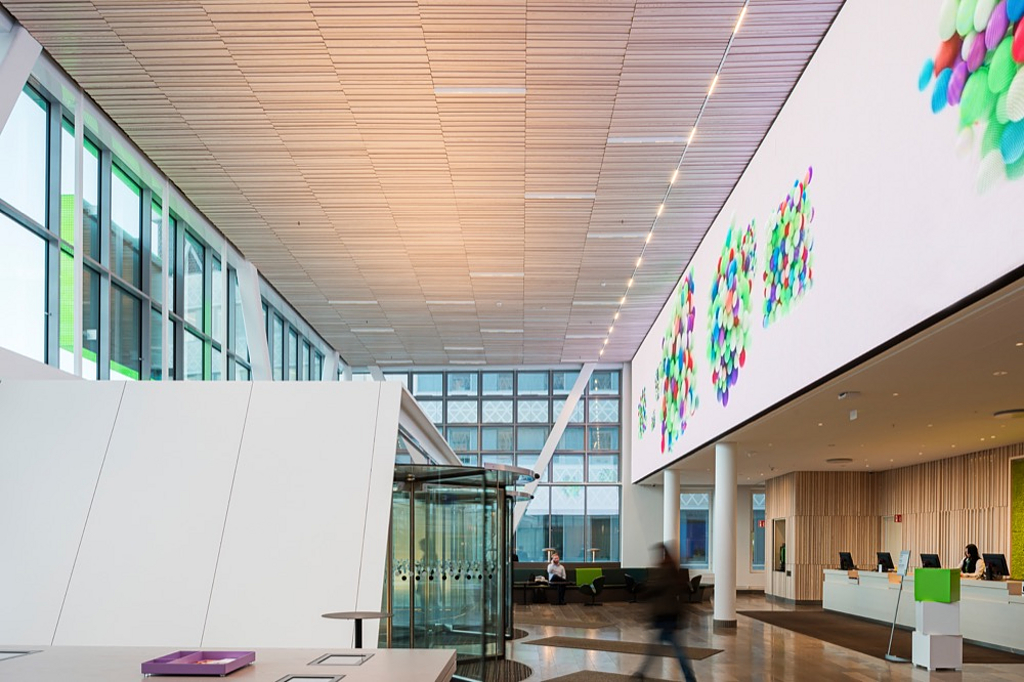

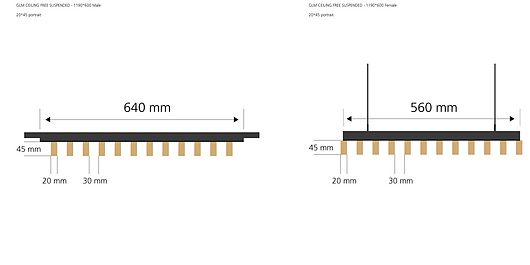

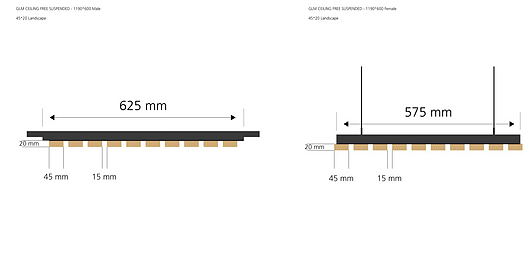

Ceiling Installation – Free Suspended
The ceiling modules come ready to use including an acoustic felt and are easily suspended from the integral M6 connection points.

Portrait

Landscape

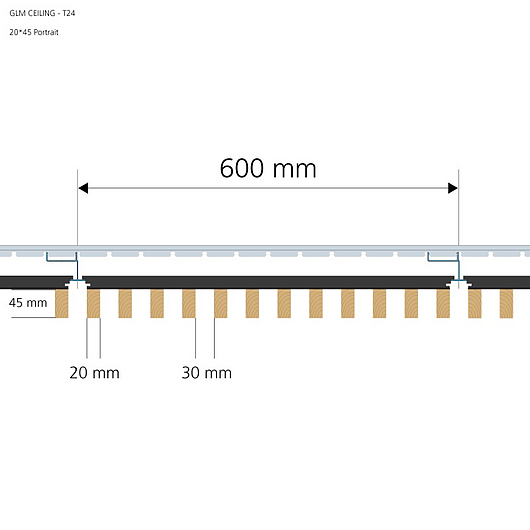

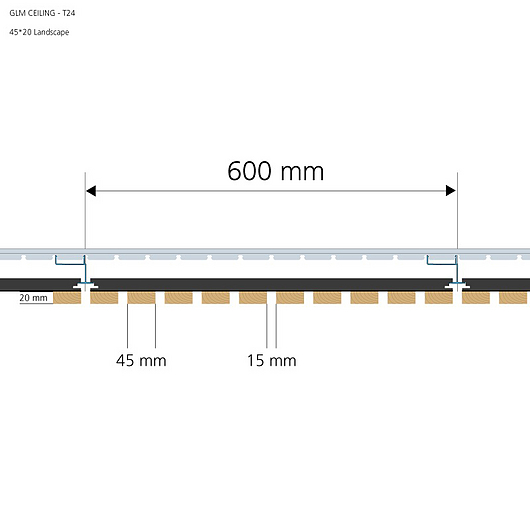

Ceiling Installation – T24 Suspension
Modules designed for Gustafs Capax T24 Ceiling Grid have a semi-concealed and fully demountable installation system.

Portrait Landscape

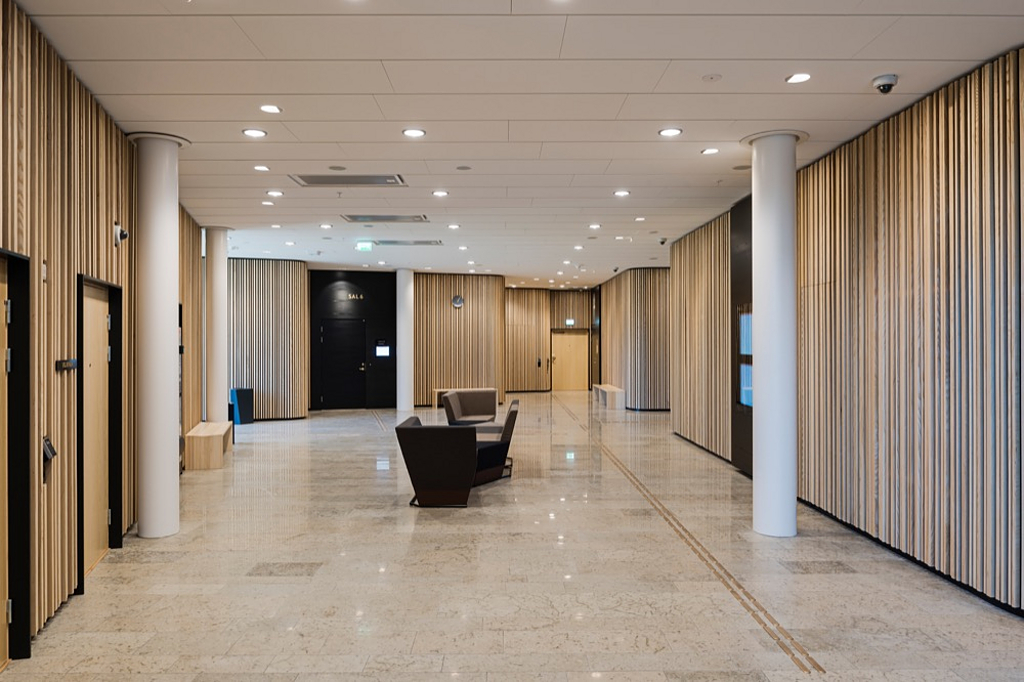

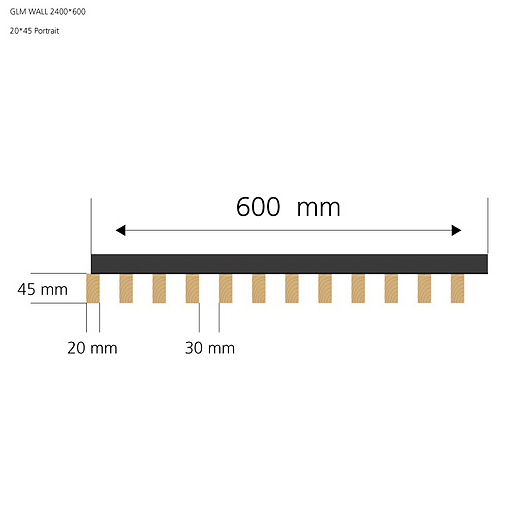

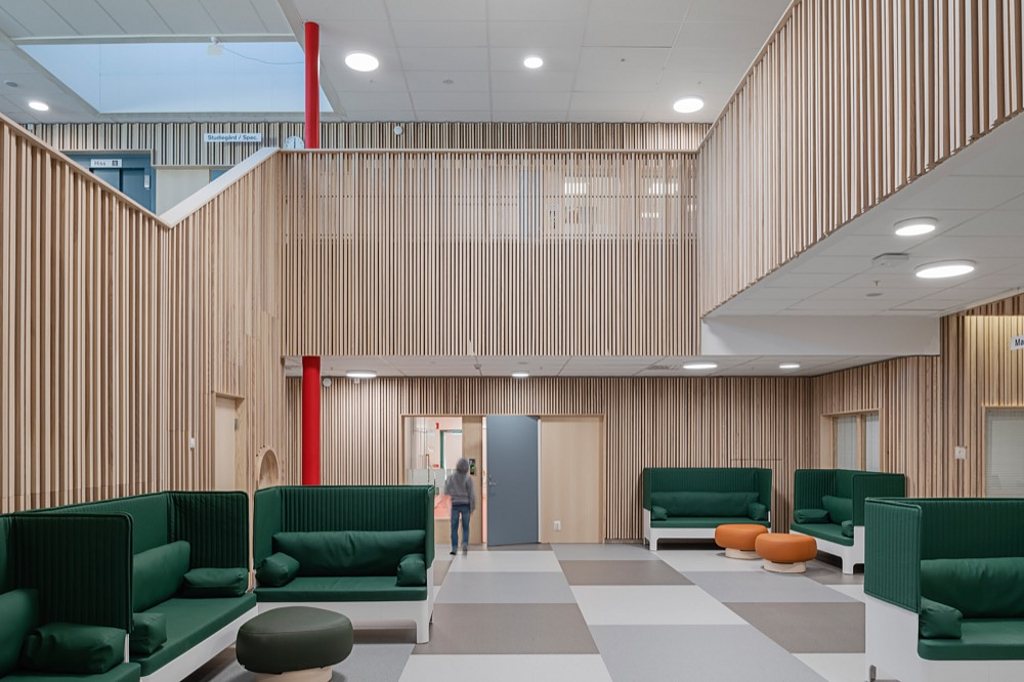

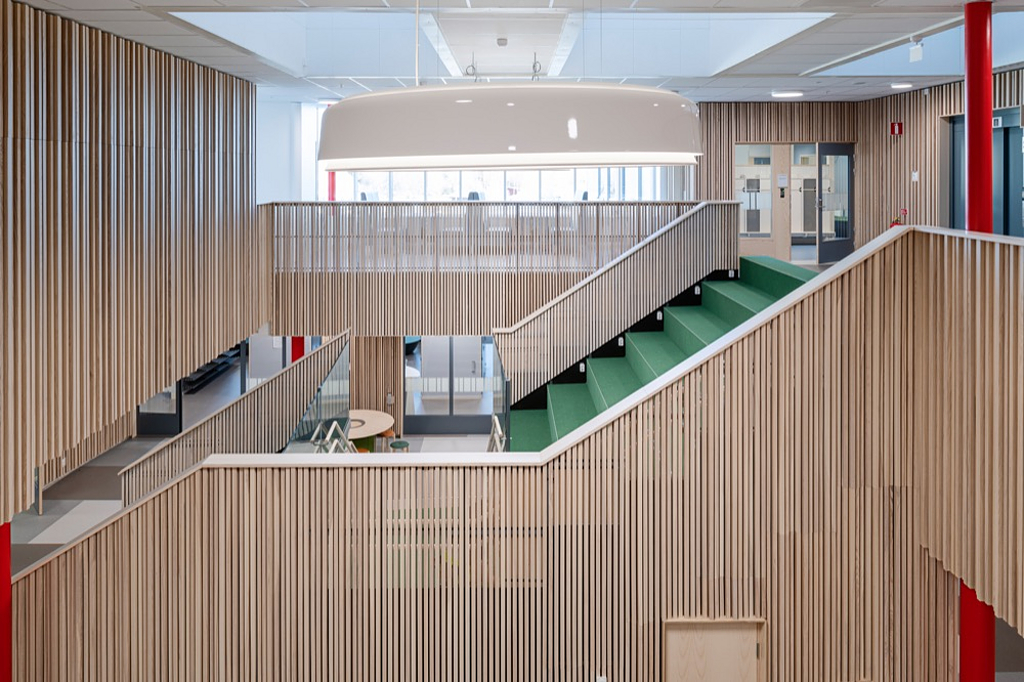

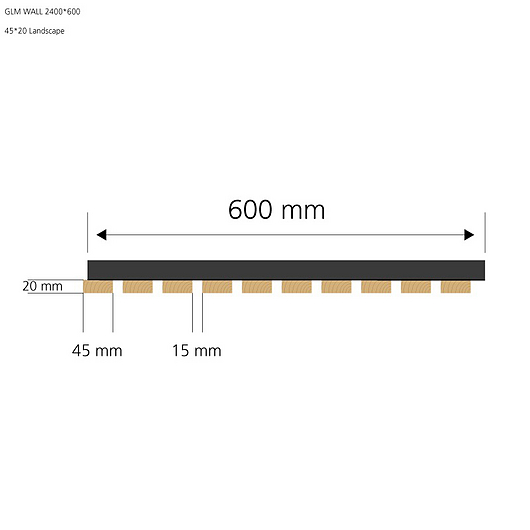

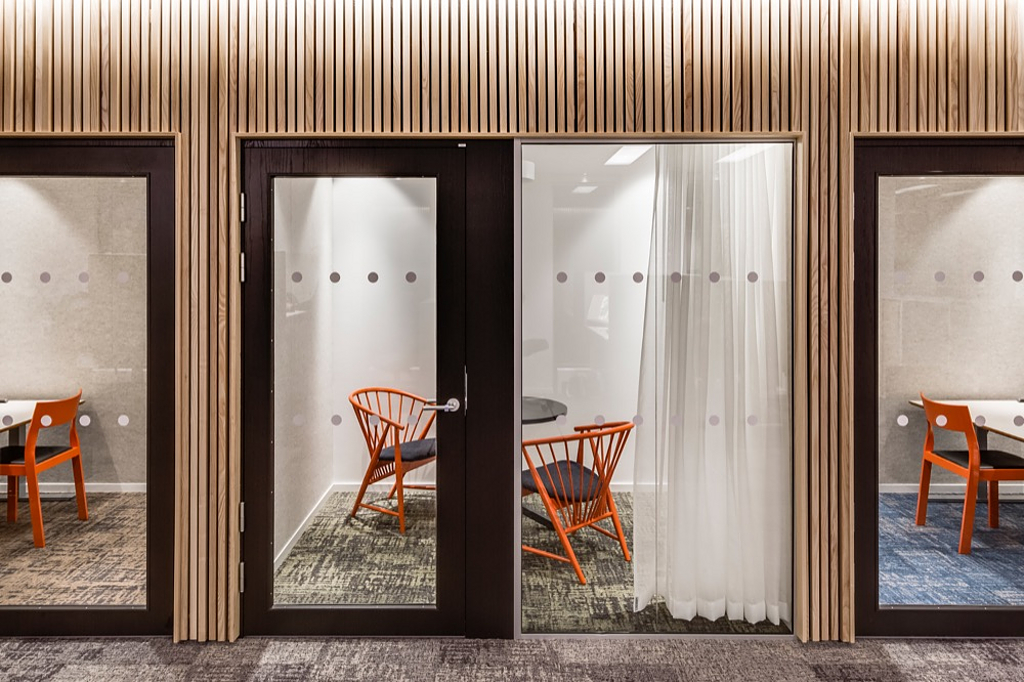

Wall Installation

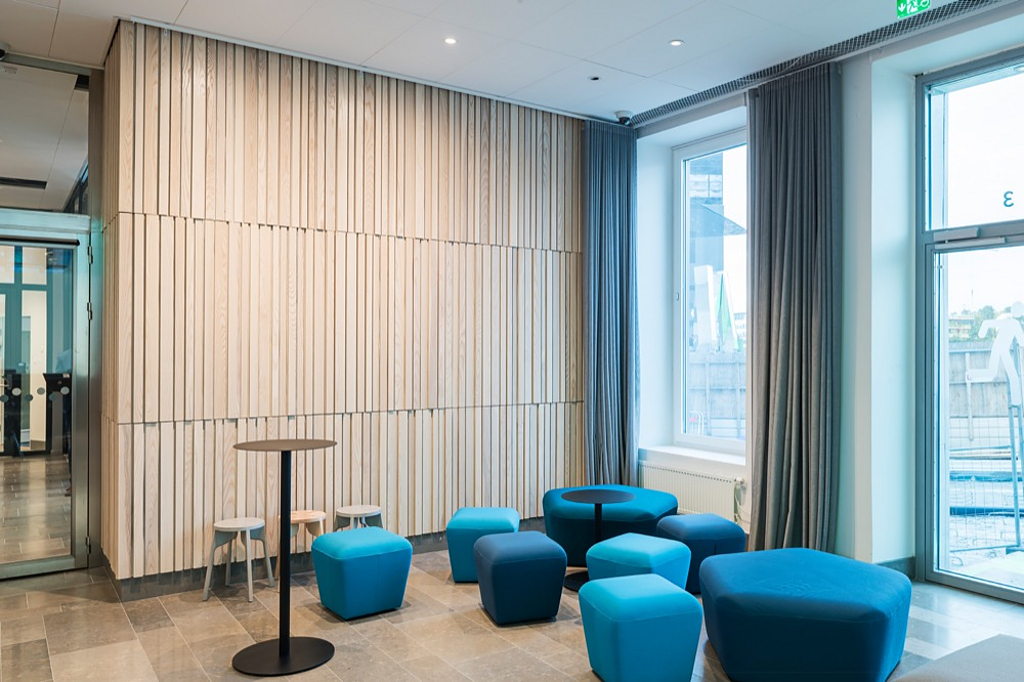

The Linear modules for walls come fully assembled and equipped with an acoustic felt. The modules are hung from hook-shaped battens and once in place secured by a screw. The screw will be hidden behind the acoustic felt, using an overlap principle.

Portrait Landscape

Surface Design

Gustafs Linear Modules offer many possibilities to create environments with the highest demands for design and appearance.

Lacquered surface
A clear lacquered finish is by far the most common maintenance-free and durable finish for wooden surfaces. Utilizing a multi-stage UV-lacquering process, technical aspects are retained, such as fire retardation and environmental benefits. The lacquer is a multi-layer UV-cured process that is available in a range of gloss finishes.
Pigmented surface
A pigment can be used to change the color tone on the Modules.
Stained surface
Staining the module can achieve different effects on your wall or ceiling. Different wood reacts differently to certain treatments.
Painted surface
The Modules have a plane and even surface. This enables a painted surface finish with the wooden texture visible on the surface.
Printed surface
A print can be applied directly on the module surface. Each module can be designed in a completely unique way. Design module by module or spread graphics over several modules with a seamless transference.
Oiled surface
Oiled Module top finish creates a matte and beautiful finish on wooden surfaces.
