Cassette Systems | RHEINZINK
Use: Exterior metal façade/wall cladding.
Applications: Commercial, residential, cultural, public, industrial, hospitality.
Characteristics: Custom production, can be used on curved profiles, concealed fastening elements.
Sizes: Construction width > 333 mm (approx. 1.92 in.) to 600 mm (approx. 1.97 in.) | Metal thickness 1.2 mm and 1.5 mm | Max. length 3000 mm (approx. 9.84 in.)
Certification: Cradle to Cradle Certified™.

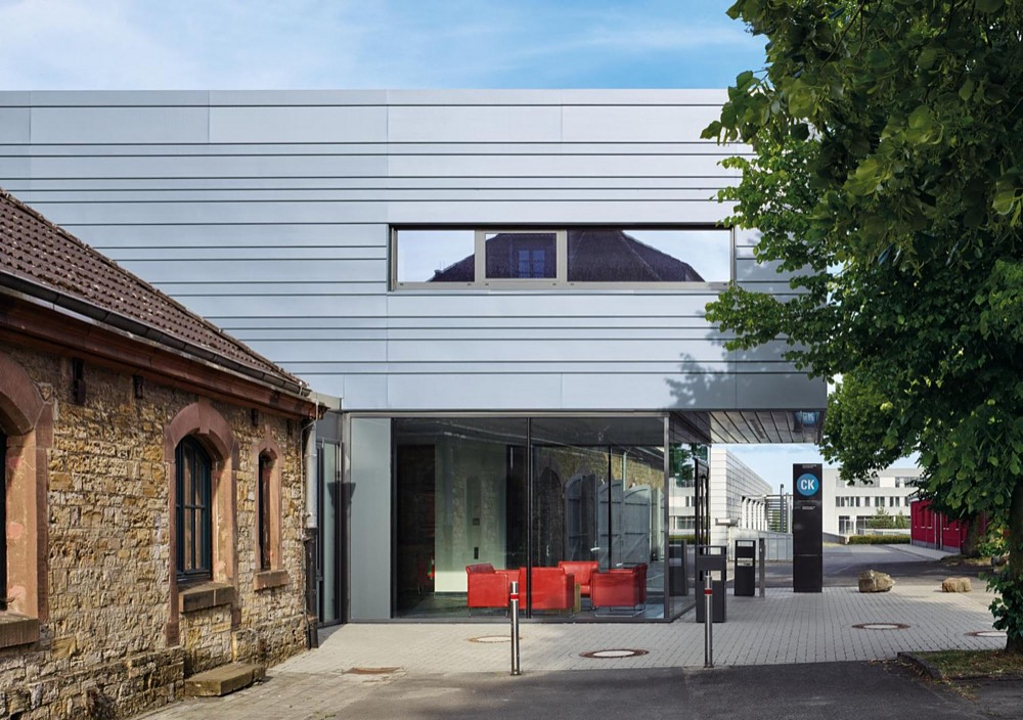

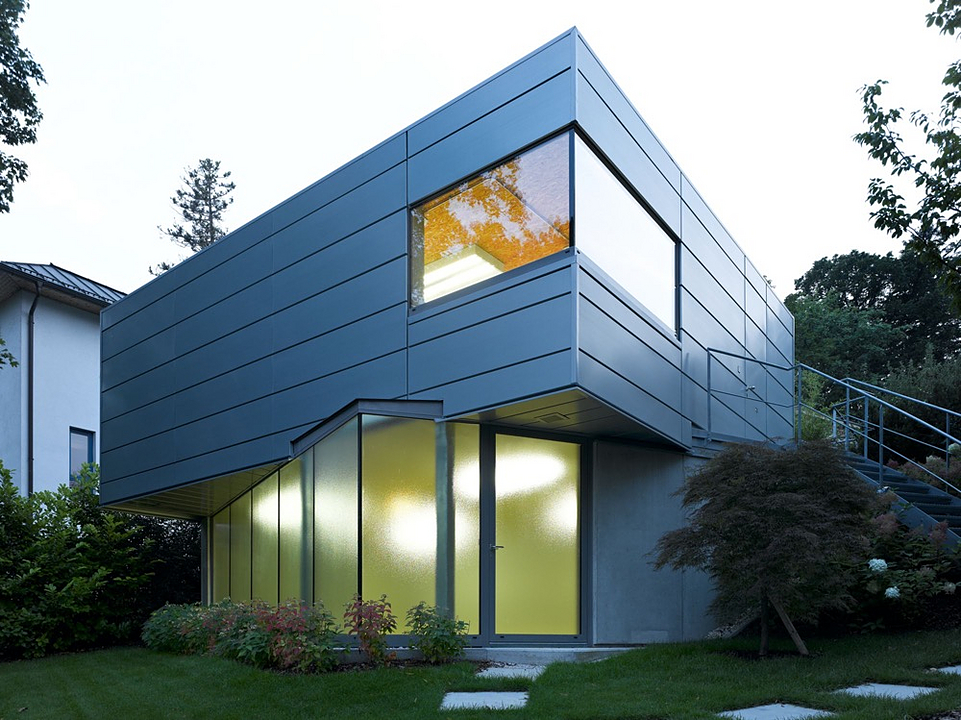

RHEINZINK cassette façades offer an especially fast and therefore cost-effective assembly thanks to the large-area profiles of the convex cassette profiles. The profiles have four beveled edges and can be used to generate a futuristic, technological appearance that is often seen on administrative buildings and commercial structures.
RHEINZINK can create customized cassette façades are based on their H 25 horizontal panel. Cassette cladding is ideal for use on façades with high technical and design requirements and can also be used to cover buildings with concave or convex rounded building plans.
*Illustrations shown throughout may not represent all components necessary to meet building codes.
Benefits
- Large-area, convex cladding profile
- Horizontally aligned cassettes
- Custom and perfectly matching production
- Stabilizing end plates fitted at factory
- Larger construction widths possible with higher material thicknesses

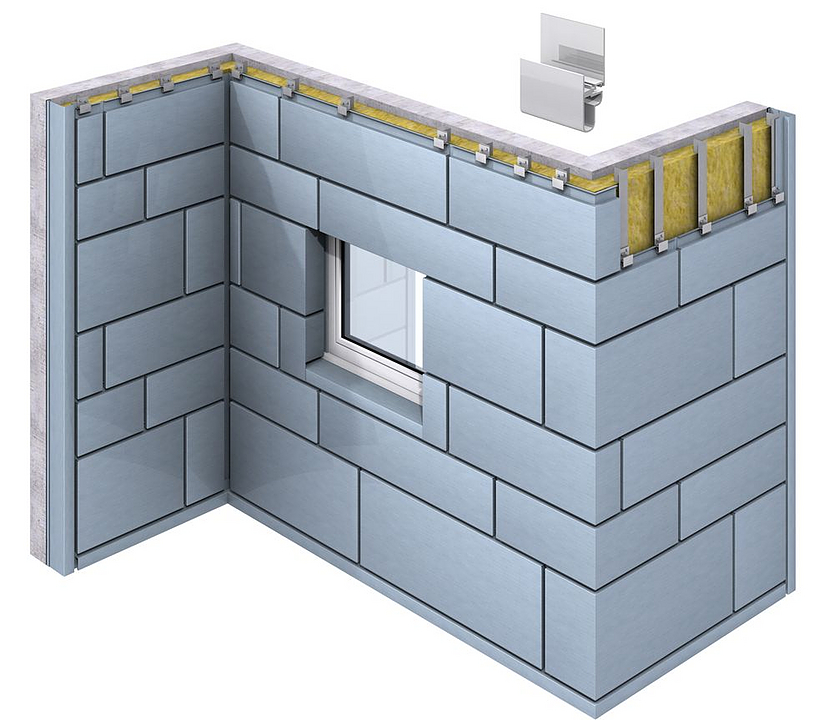

Horizontal metal cassettes made by RHEINZINK have an installation depth of 25 mm and a fixed, specified shadow gap of 20 mm. These values are mirrored by the fastening rail that forms part of the system. This system can be used to construct lengths of up to 6000 mm within the cassette façade grid of your choice.
