Kunshan Electronic and Bicycle Pavilion

Designed by SIADR, Kunshan Electronic and Bicycle Pavilion project are located on the north side of Qianjin Road in Kunshan Development Zone, which closes to the Xiajia River and the City Park. On the side of the river is the center of the city five-star hotel revetment.

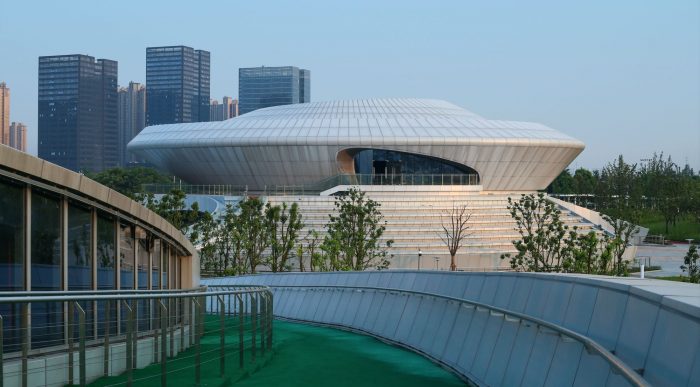

Photography by © Xianliang Zeng

1. In the aspect of design philosophy: according to the project design requirements, three perspectives of digital, ecological, exhibition have been shown as a design concept for the project.
First of all, the architectural form, space, and display device should reflect the background of contemporary digital technology, conforming to the concept of digital architectural form. Besides, it should embody the sense of building technology and futuristic, which can bring infinite imagination and possibility to people. In the meantime, the building could promote the vitality of the city and symbolize take-off development of the economic and technological development Zone in Kunshan.

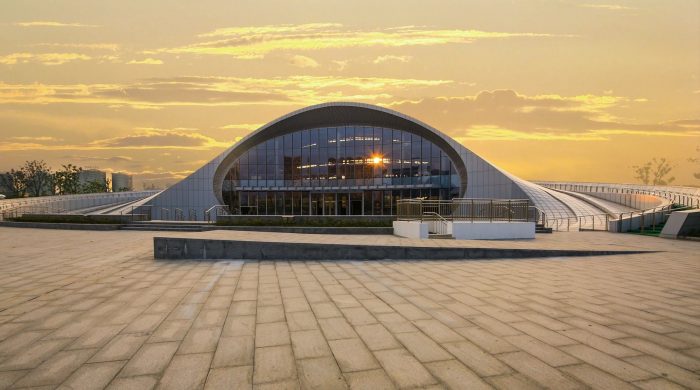

Photography by © Xianliang Zeng

Secondly, the architectural form reflects green ecological design concept from the shape coefficient, landscape construction, lighting, ventilation and so on. Flexibility and stepped landscape architecture has not only become the landscape part of the outdoor park environment but also provided minimized sunshine occlusion and comfortable wind environment for the park. Architectural forms adopted the landscape building body about “a convex a concave and one in one yang,” and therefore the building itself is both the form of architecture and also the landscape. The roof of architecture is not only a building structure but also a landscaped road, for example. Indoor and outdoor functional space by overlapping each other can form close indoor and outdoor spatial interaction, including ground, overground, multi-dimensional, multi-level.

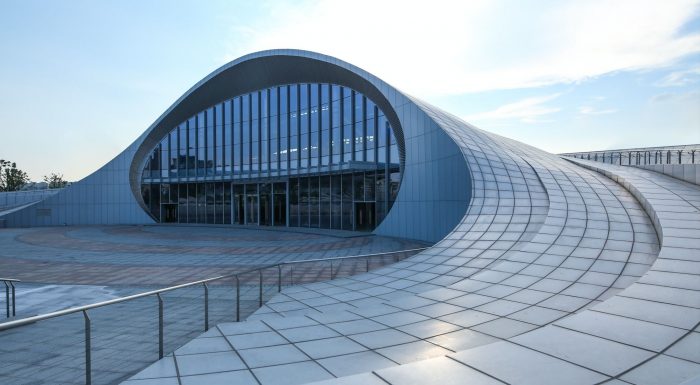

Photography by © Xianliang Zeng

Moreover, the basic elements of the building space form is a circular, oval. According to the combining relationship between each other, it forms logo shape of the building, which incarnates architectural carrier features as athletic display features.
2. In the design of operation: architectural form from the initial idea to the final completion, in fact, is constantly modeling of the process with the limitation of the comprehensive conditions. Combined with a variety of software, the architecture form design has been completed with non-linear geometrical characteristics.
First, in the process of building shape gradual completion, architects designed by using Rhino, Grasshopper, Ecotect, Revit etc software to solve synthetic problems, such as shape optimization, integration issues professional coordination, shape positioning, environmental analysis and so on. Final optimized architectural shapes have been accomplished by parametric control adjustment model, spatial orientation and expand curtain wall design approach.

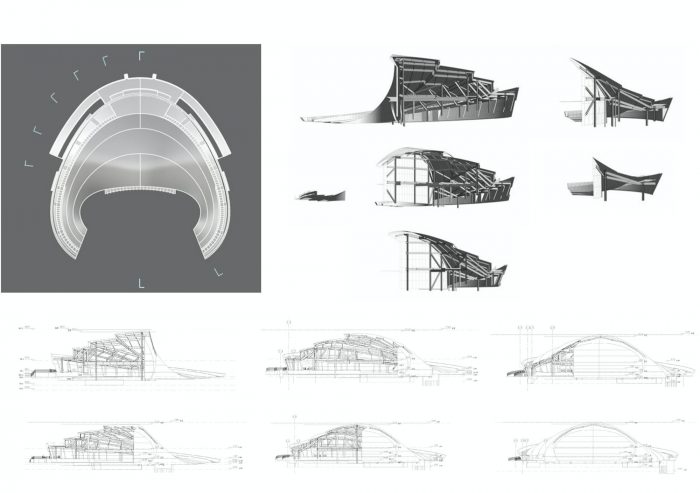

diagram

At the beginning of the construction of the nonlinear geometric design, according to the inner logic of parameterized, the construction geometry can be adjusted by designers. Besides, the architectural shape has been carried on tests about wind pressure and speed by using Phoenix software. Then combined with parametric geometry adjustment, the architectural design has been optimized. Existing buildings defuse the wind speed of the building itself and surroundings and reduce wind shadow zone area. At the same time, the sunshine analysis has been completed to optimize the building orientation and form a high-quality exhibition space.

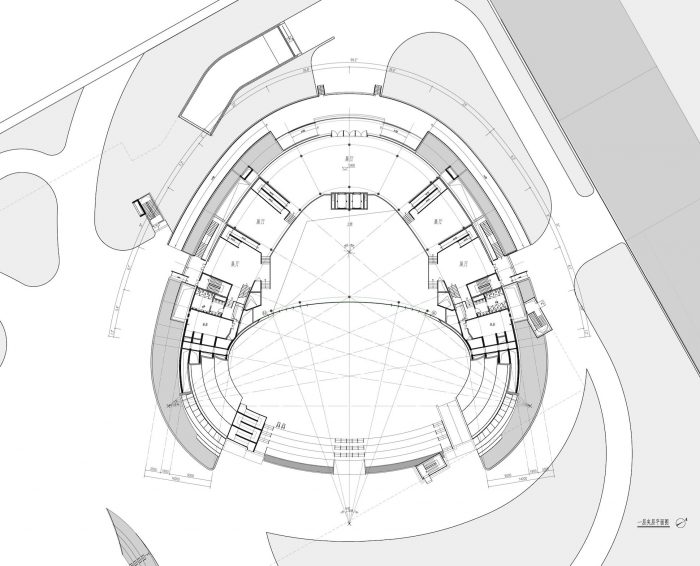

plan

Then, aim at the problem of structure adjustment caused by structure control boundary, curtain wall control boundary and architectural form adjustment, designers discussed how to combining with the architectural form conception, which could make sure the key controlling factors of the architectural form to establish the finished surface, structure control boundary and correlation model method of the internal structure of axis. In addition, both the division of building façade and the axis of the structure model of the space are participated and achieved by parametric design software.
Finally, the spatial orientation of the building outer contour coordinate points can generate automatically to provide spatial orientation reference on-site construction.

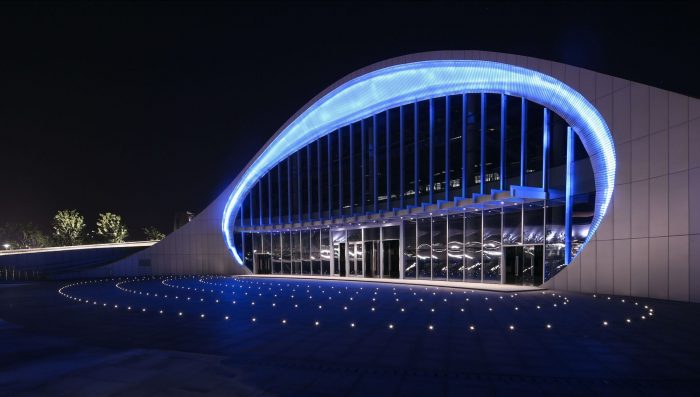

Photography by © Xianliang Zeng

Project Info:
Architects: SIADR
Location: Kunshan Development District, Jiangsu Province, China
Architect in Charge: Doctor Ban Wang
Design Team: Min Zhang, Changyue Sun, Haojiang Liu, Liang Zhang
Area: 24908.87 sqm
Project Year: 2016
Photographs: Xianliang Zeng
Project Name: Kunshan Electronic and Bicycle Pavilion
