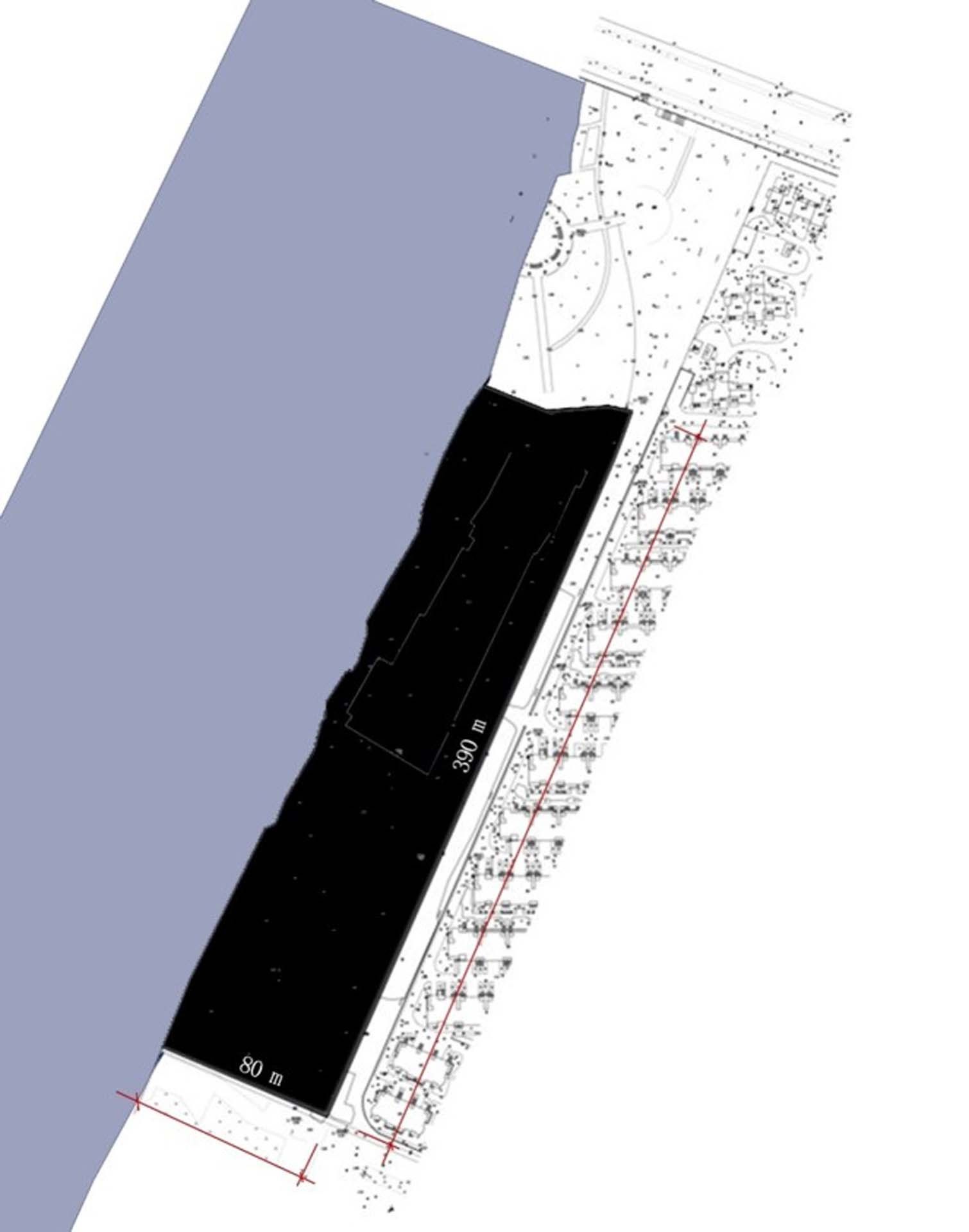

Designed by Zhaohui Rong Studio, The filed locates in Jiangsu Jingjiang. It is long and narrow, with 80 meters in width and 390 meters in length. To reach the requirement of a blue line from the Water Department, the available field can be used is only 60 meters wide.

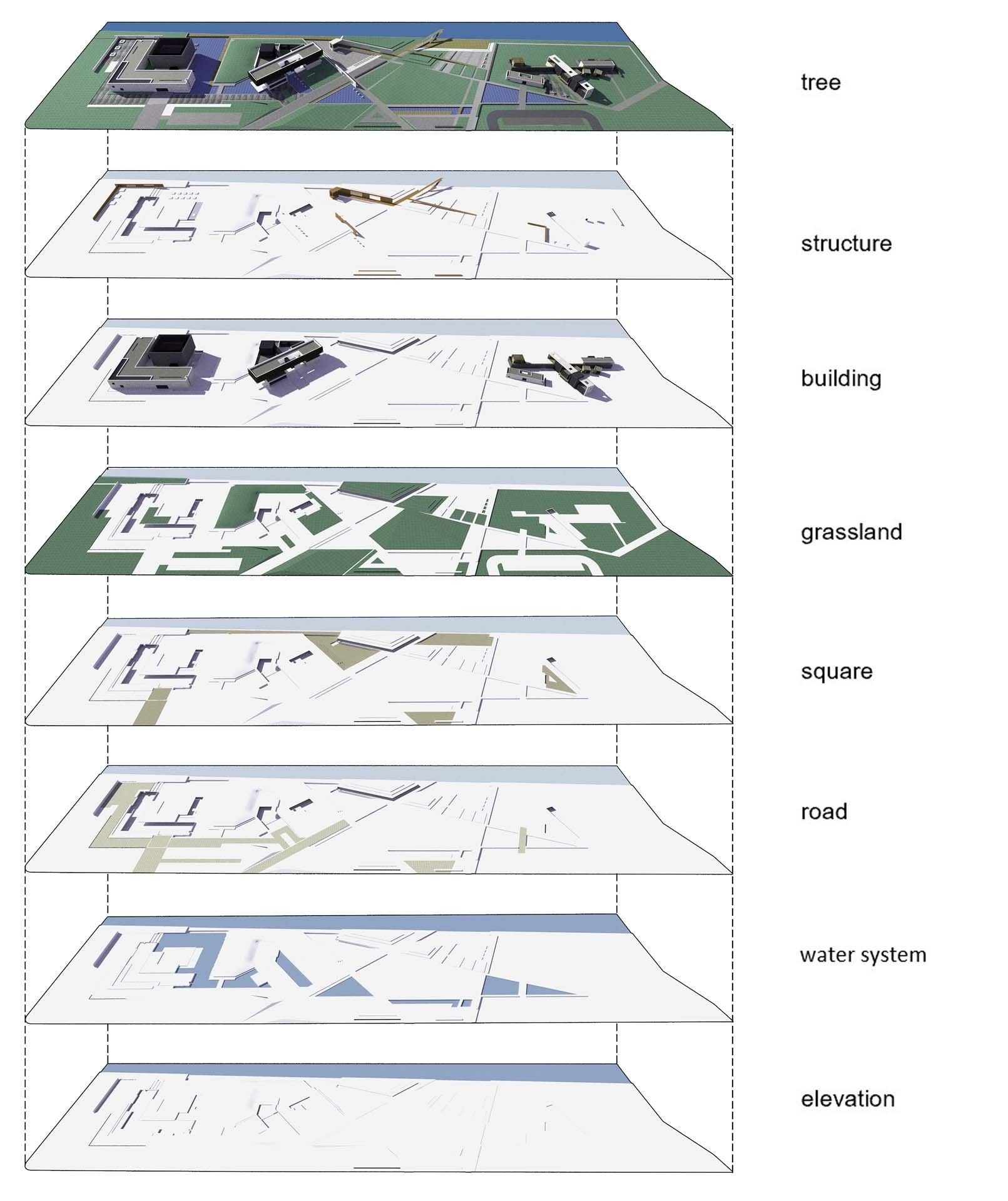

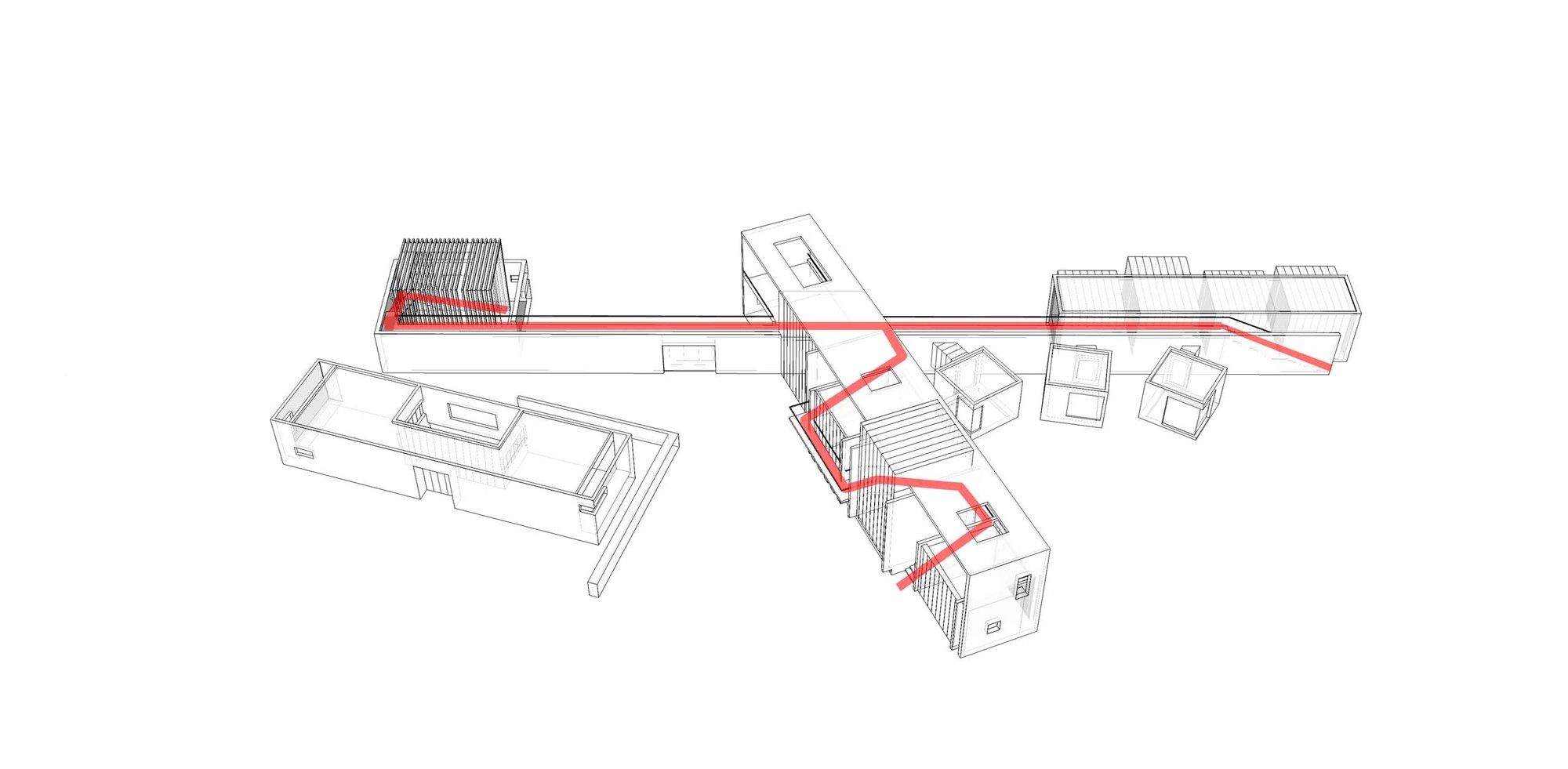

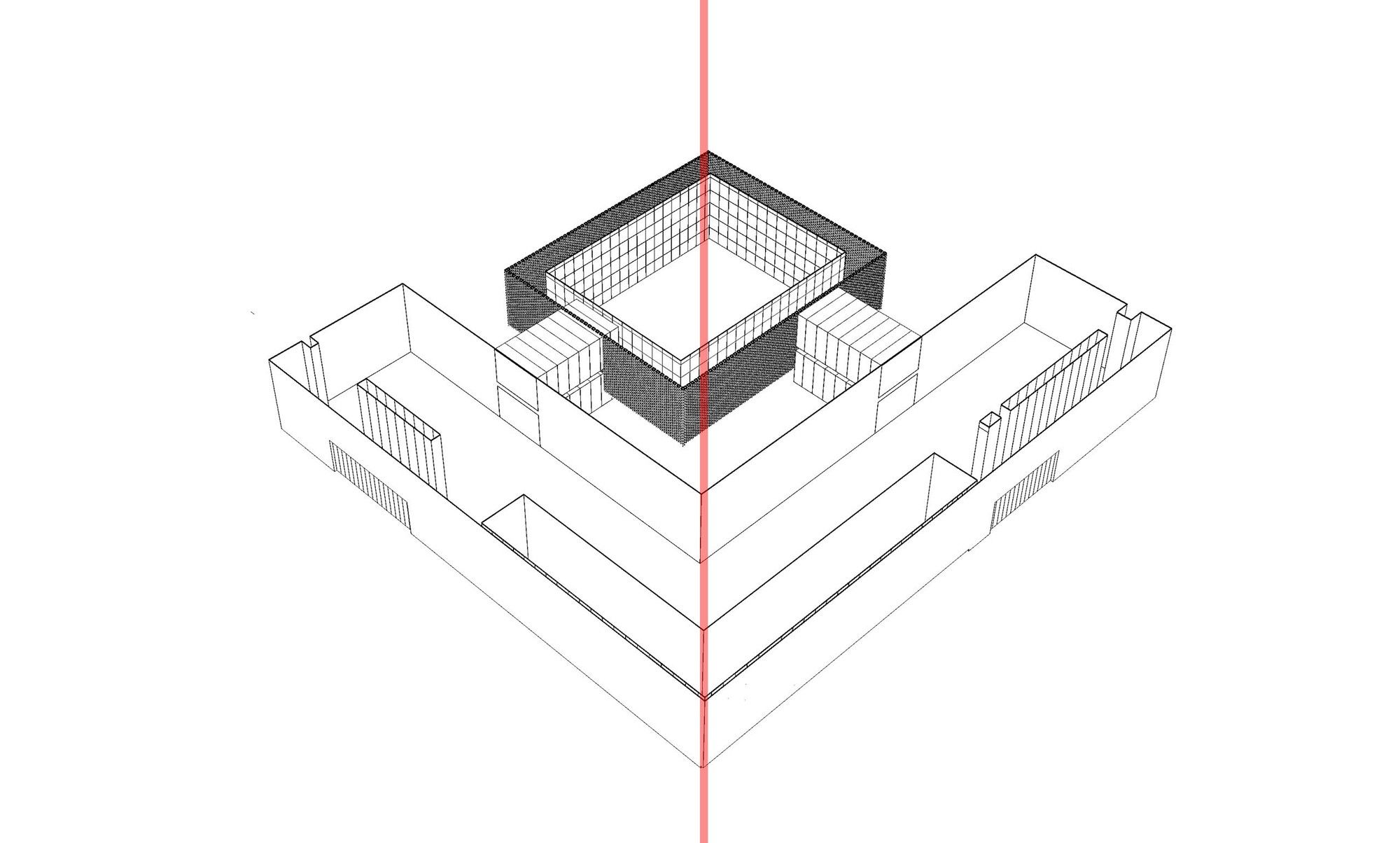

analysis daigram
The project is made up of three parts: the museum, the exhibition hall and the tearoom. The government hopes to use these projects to provide an energetic place on the belt of public green space beside the Shiwei harbor. The low plot ratio changes the relationship between the architecture and the environment. The available width is only 60 meters. But there is still the possibility of breaking the field because of the intervention of new buildings. One of the significances of architectural designing is to use architecture to build a relationship: re-show nature in an abstract way.
© Li Yao

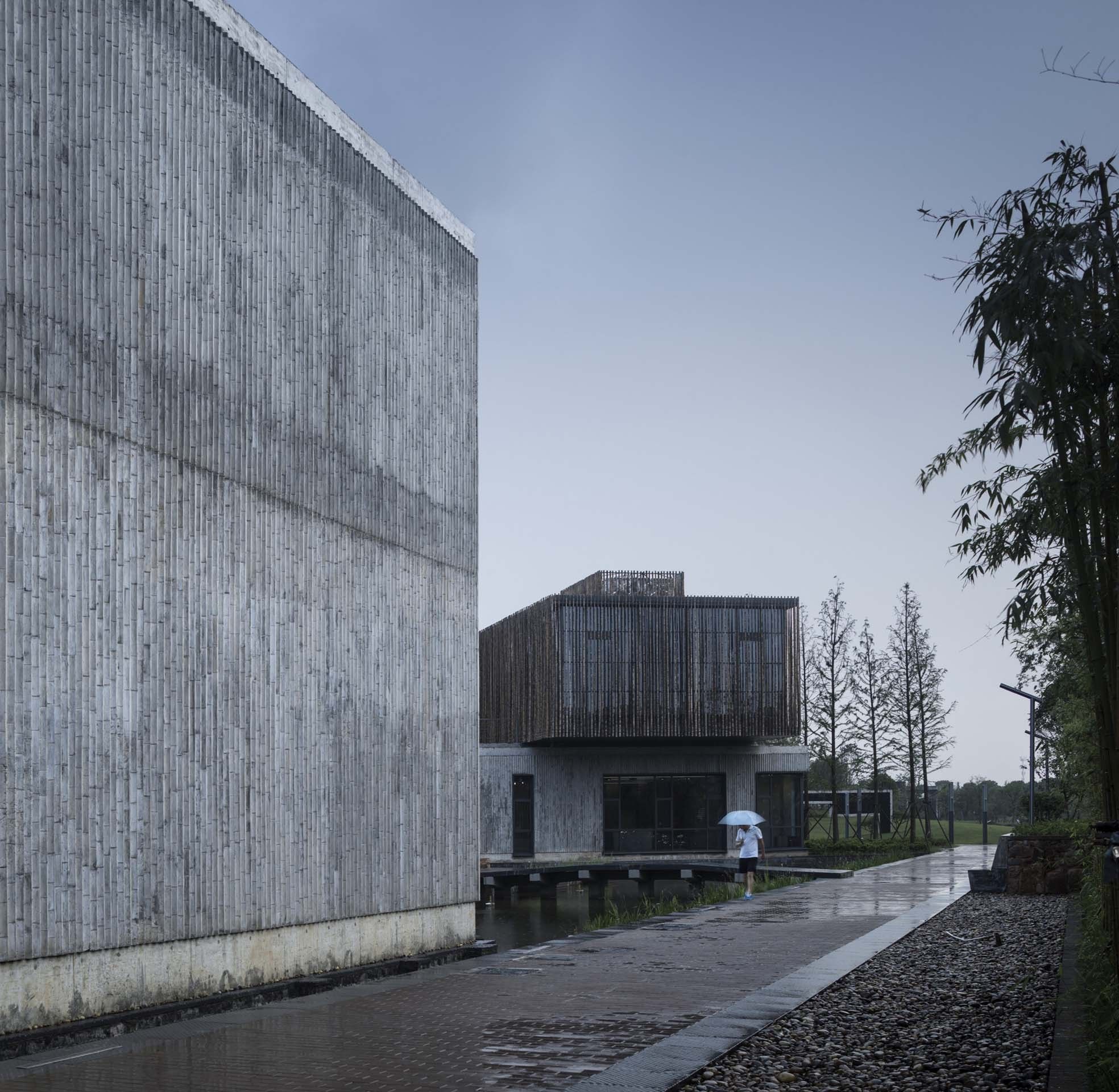

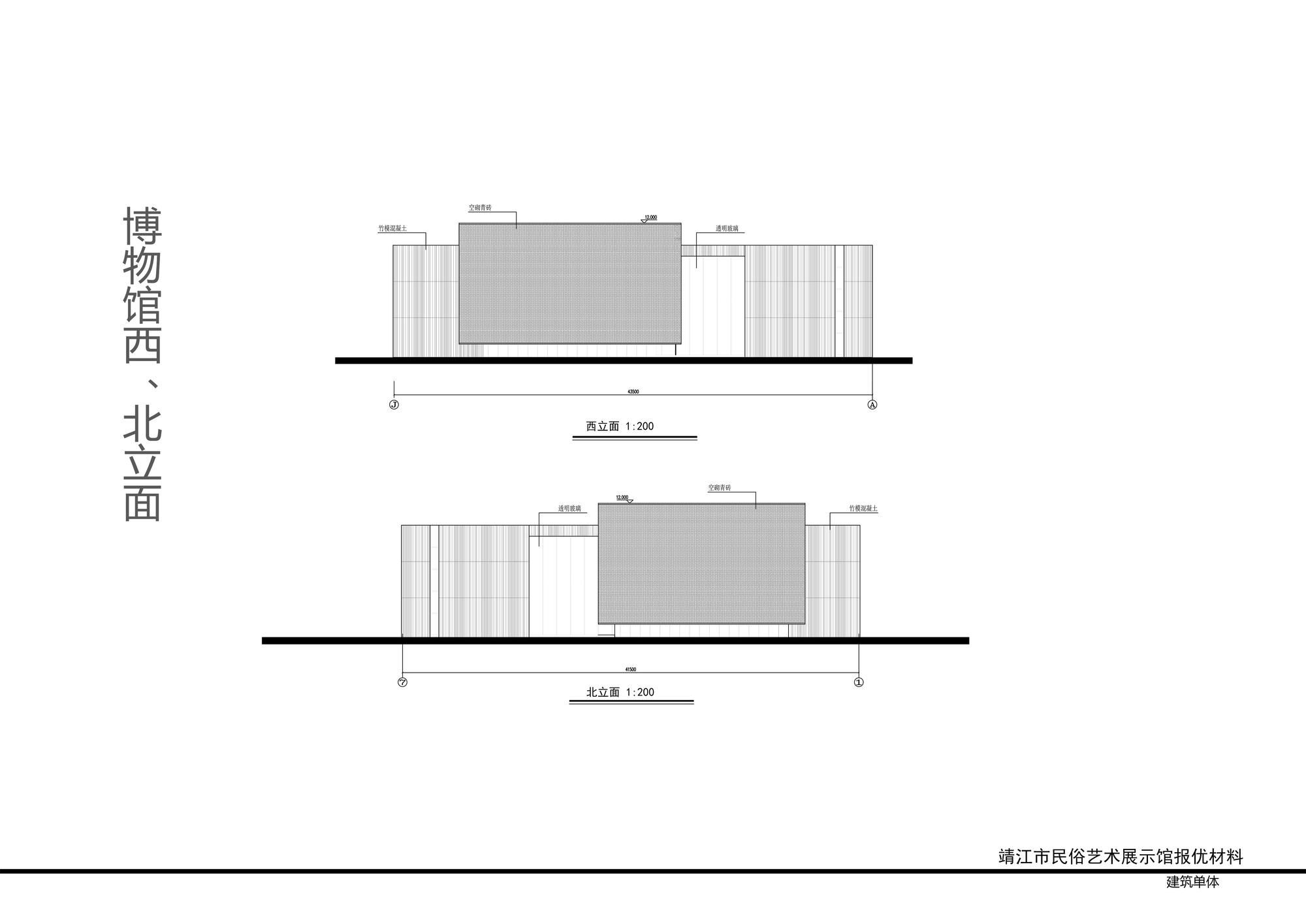

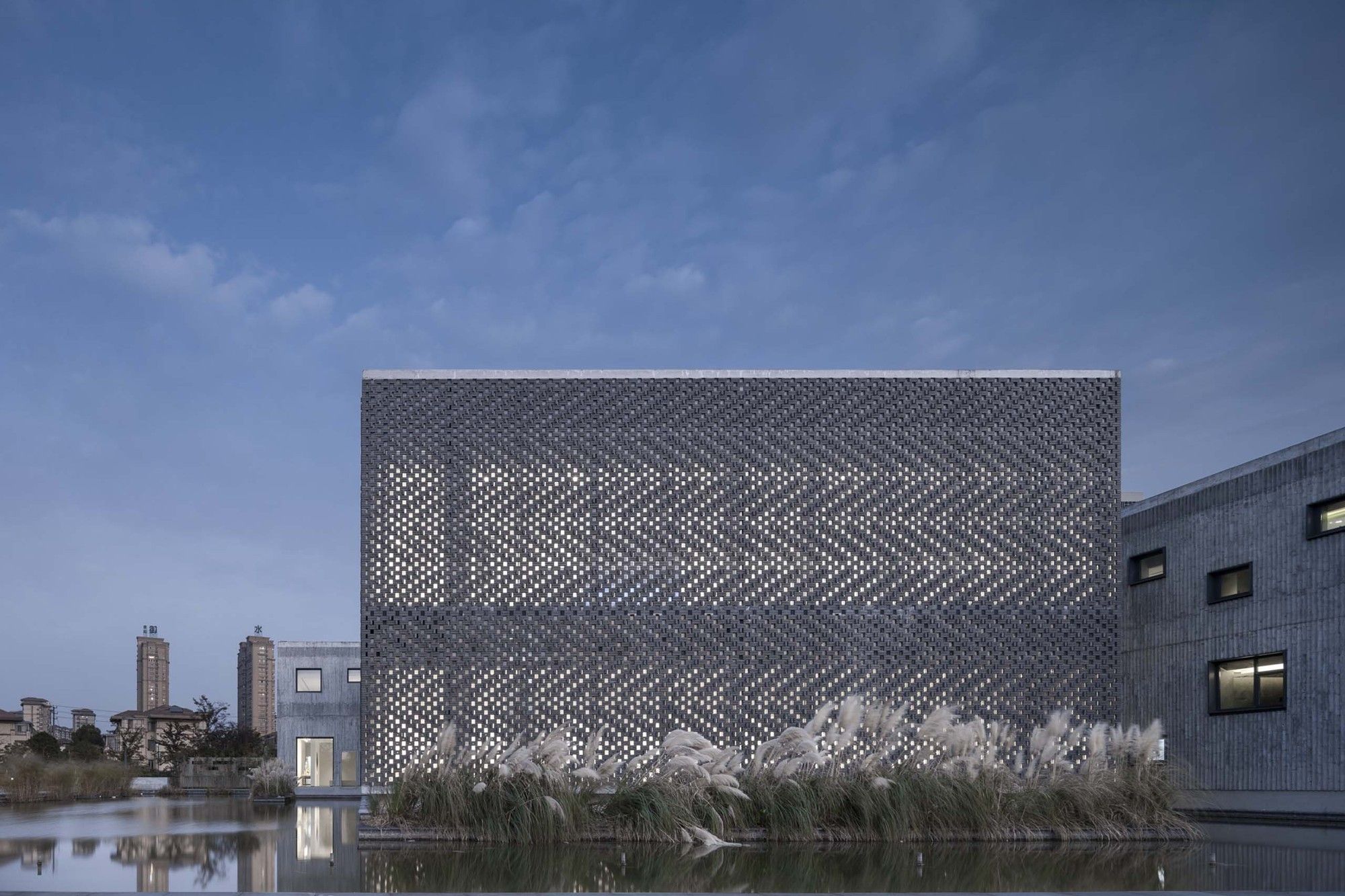

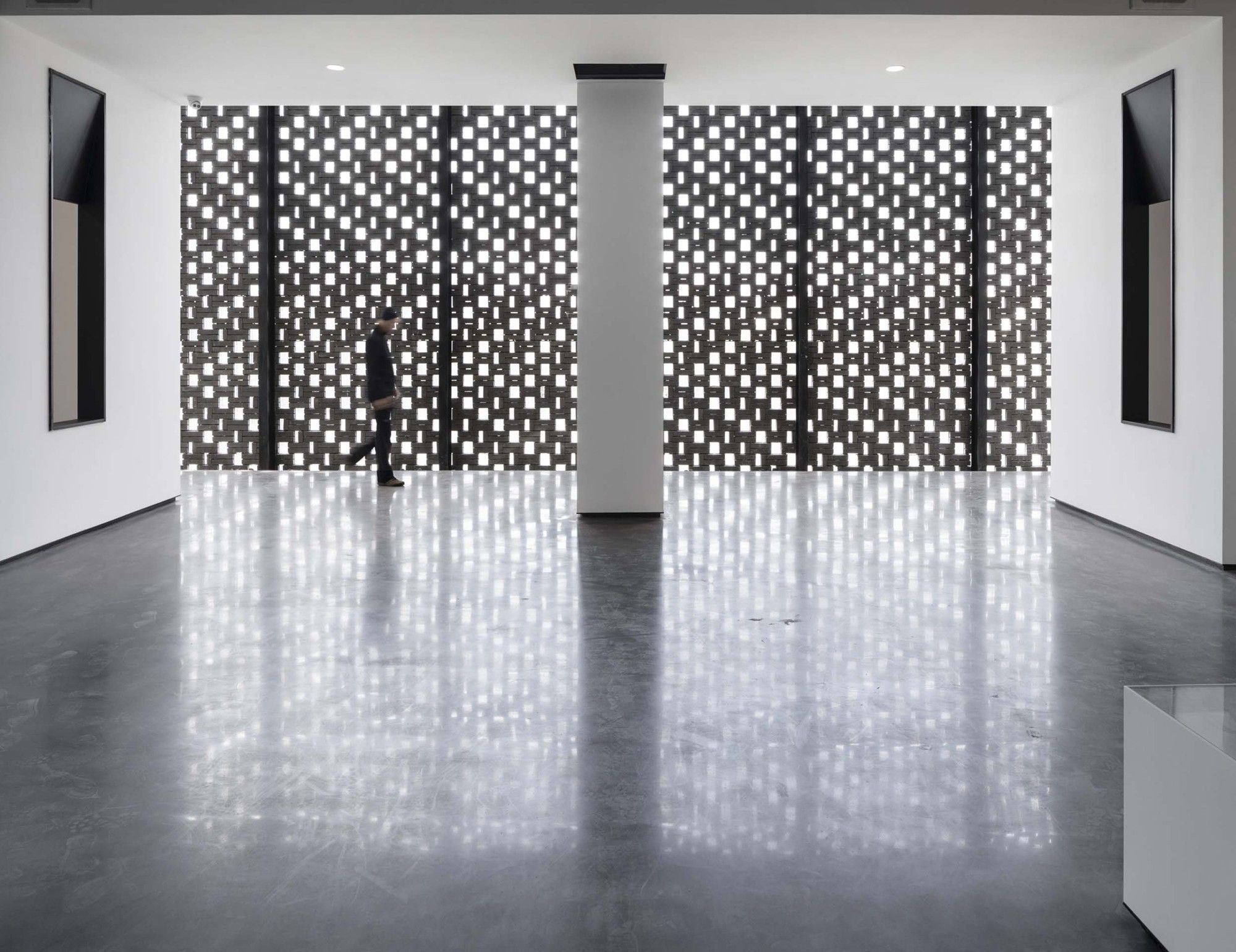

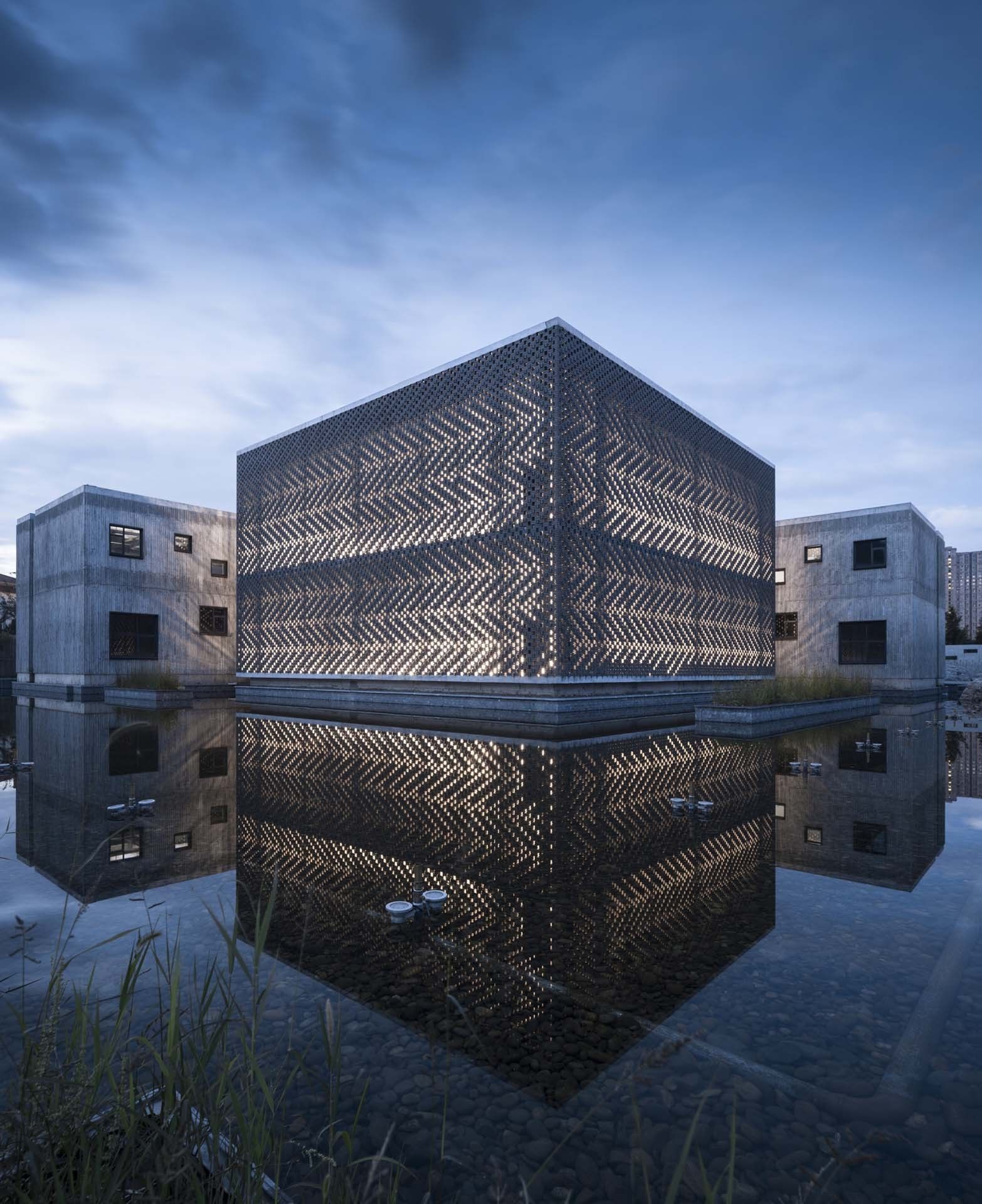

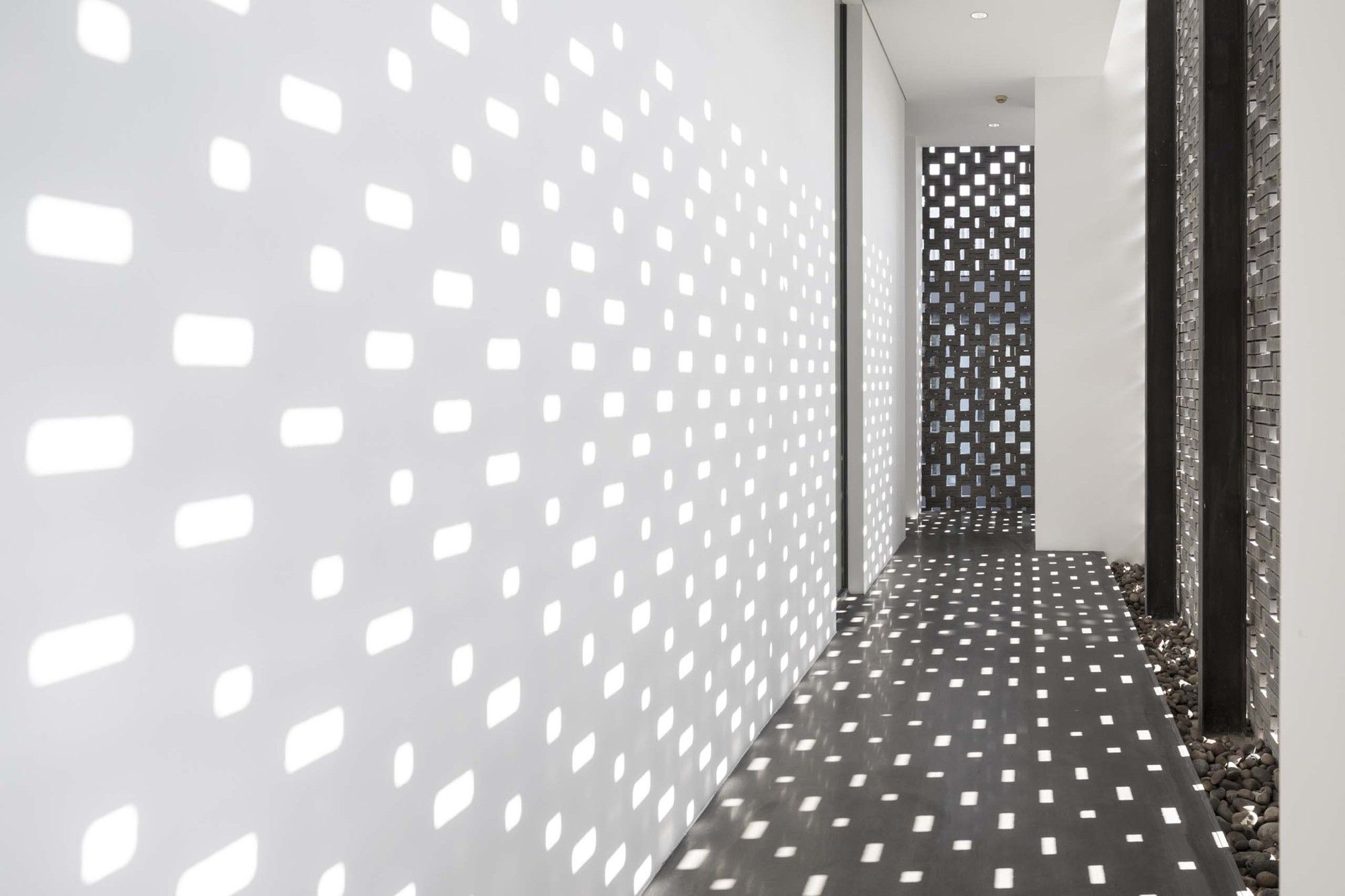

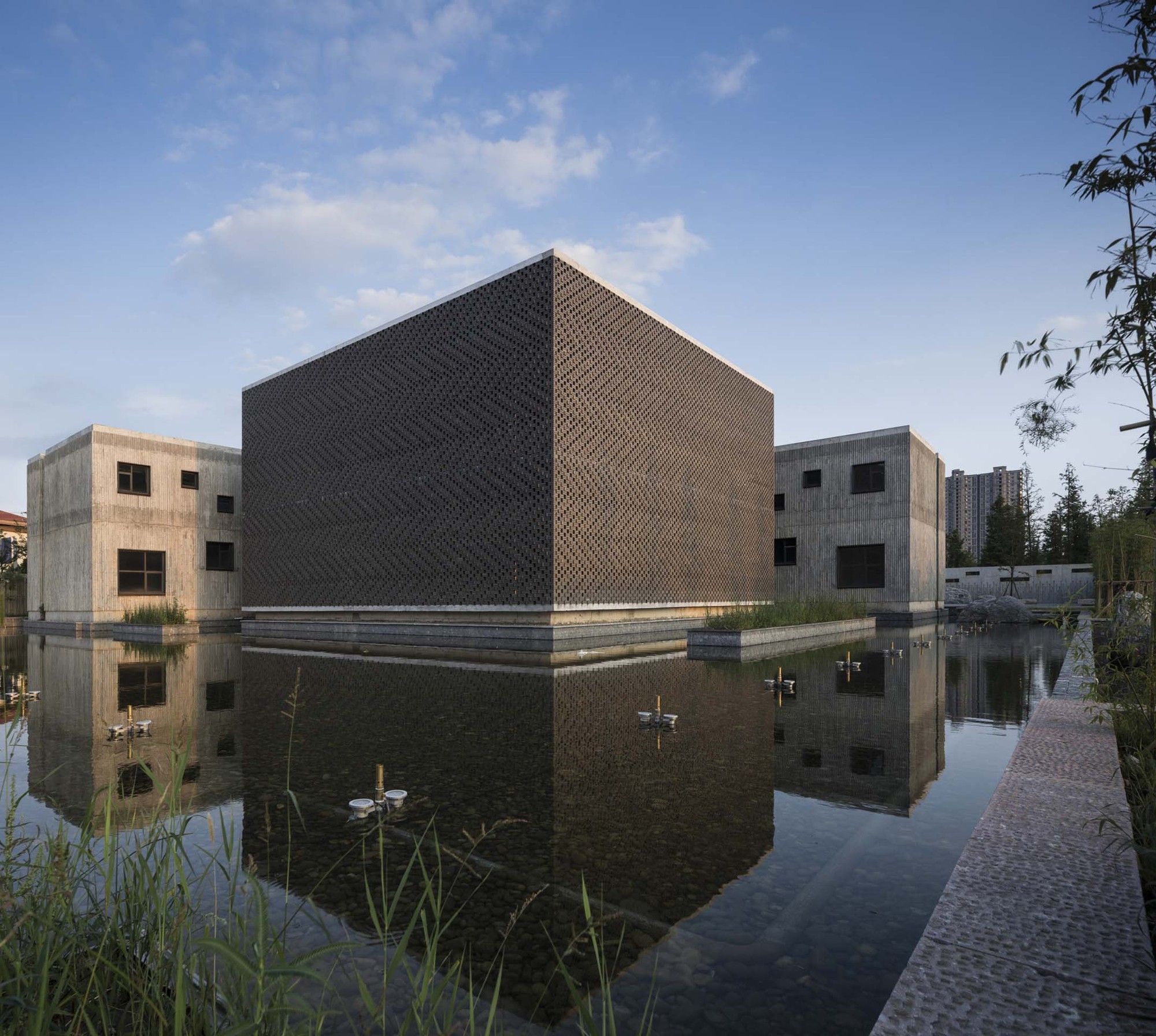

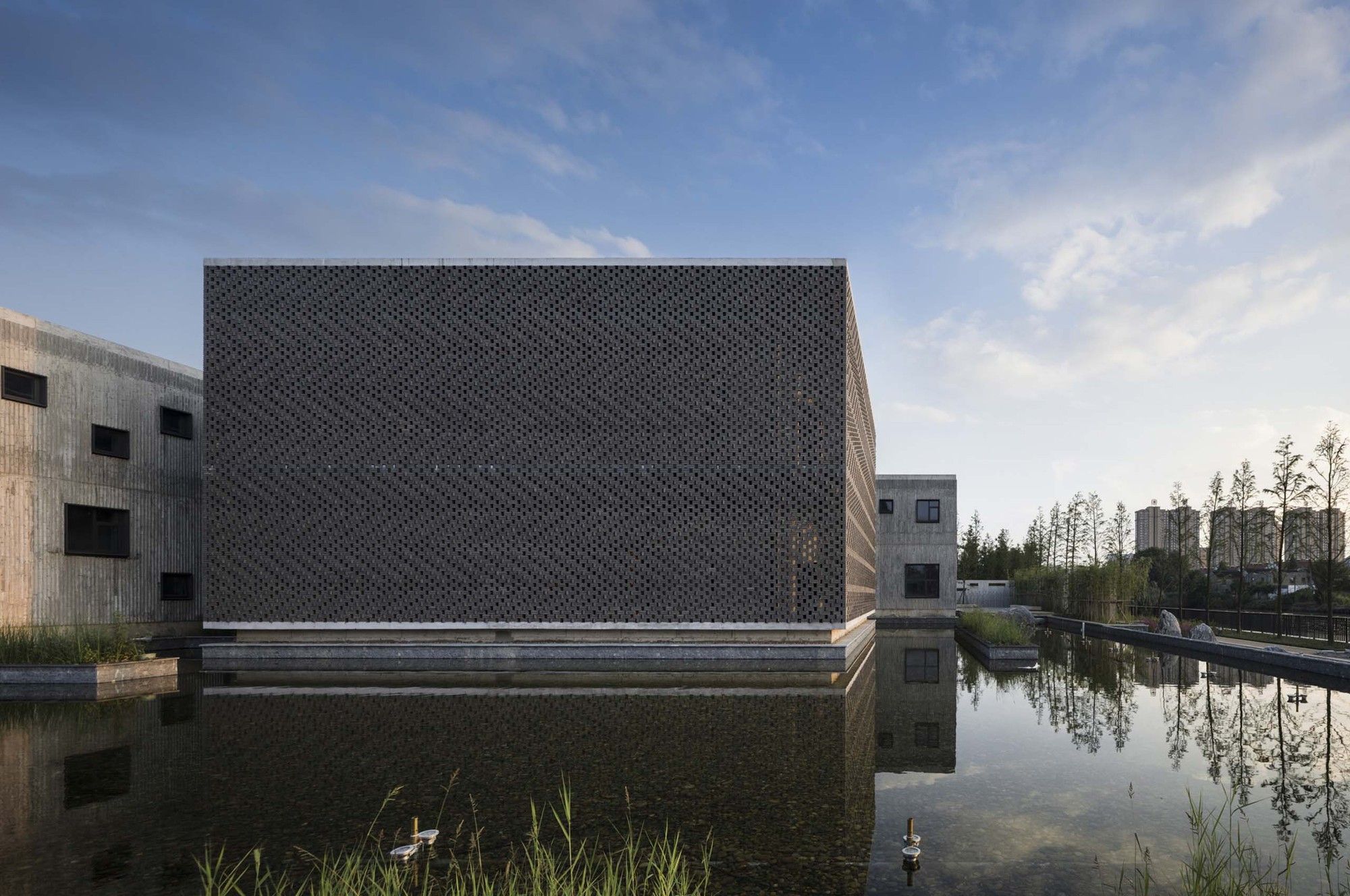

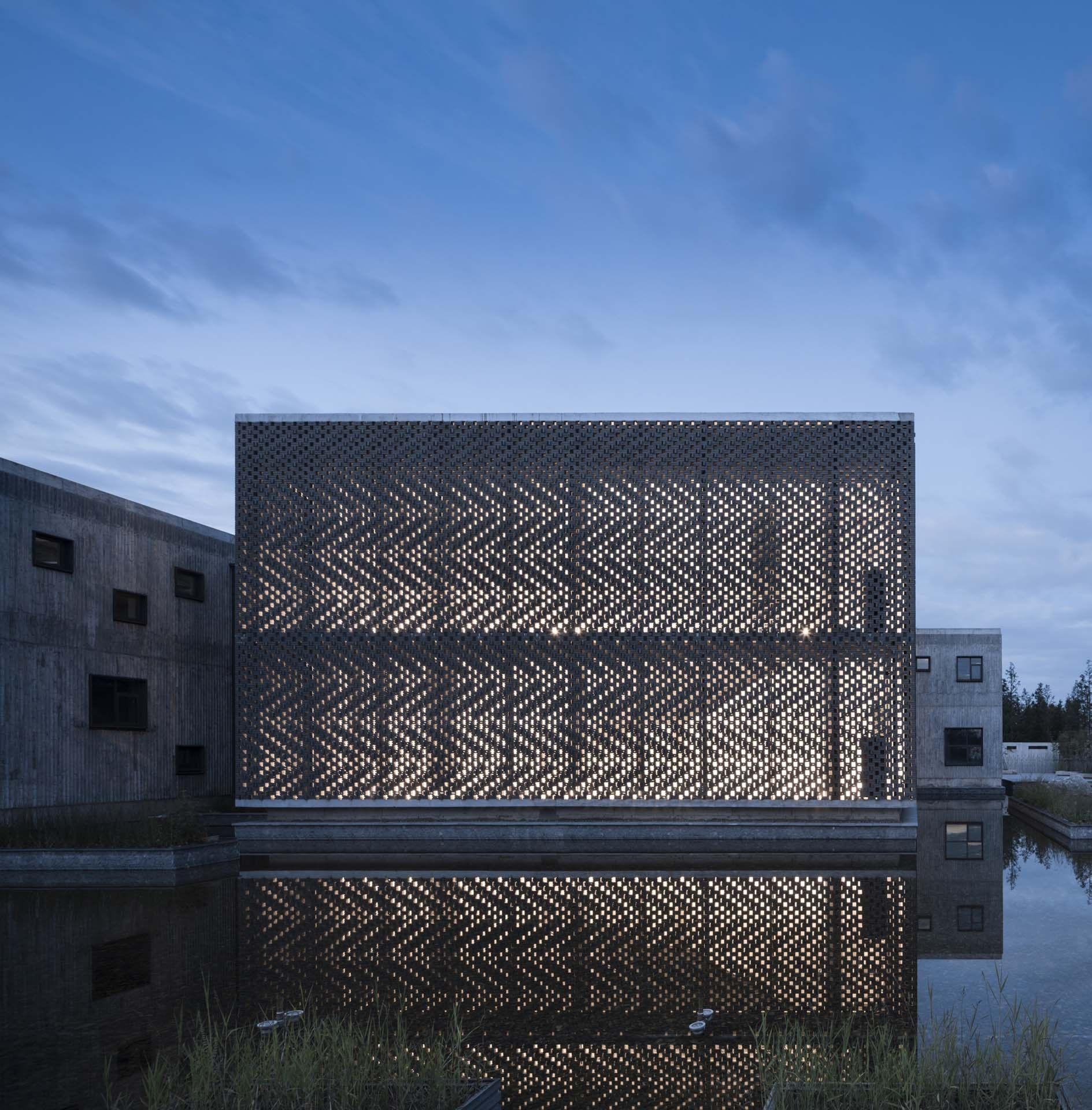

The museum and the road is displayed orthogonally. The architecture is included in the field by an L-shape concrete wall. The public space outside the hall is surrounded by hollow clay brick walls. The hollow bricks allow the sunlight to go into the building, creating an interesting atmosphere.
© Li Yao

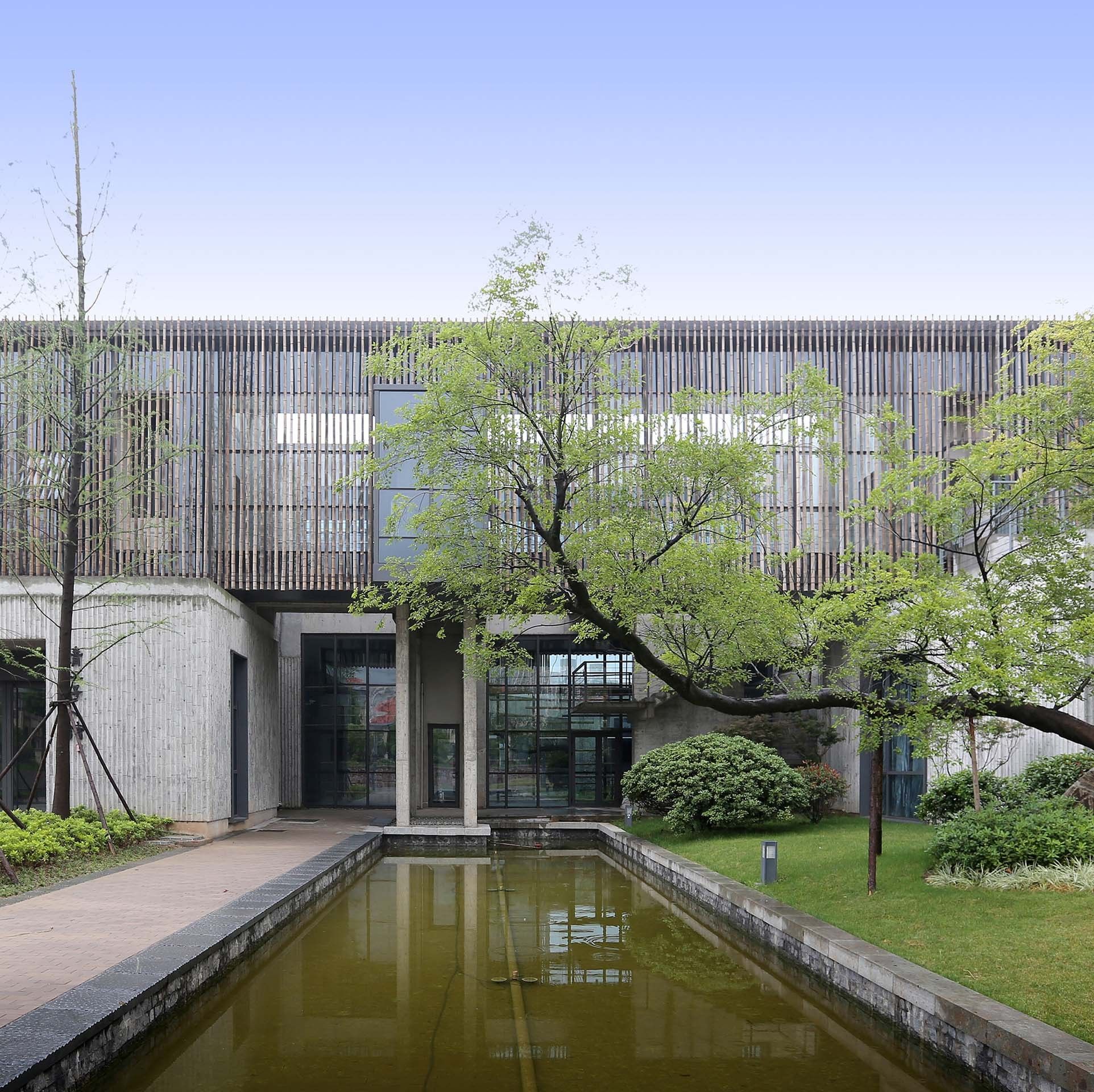

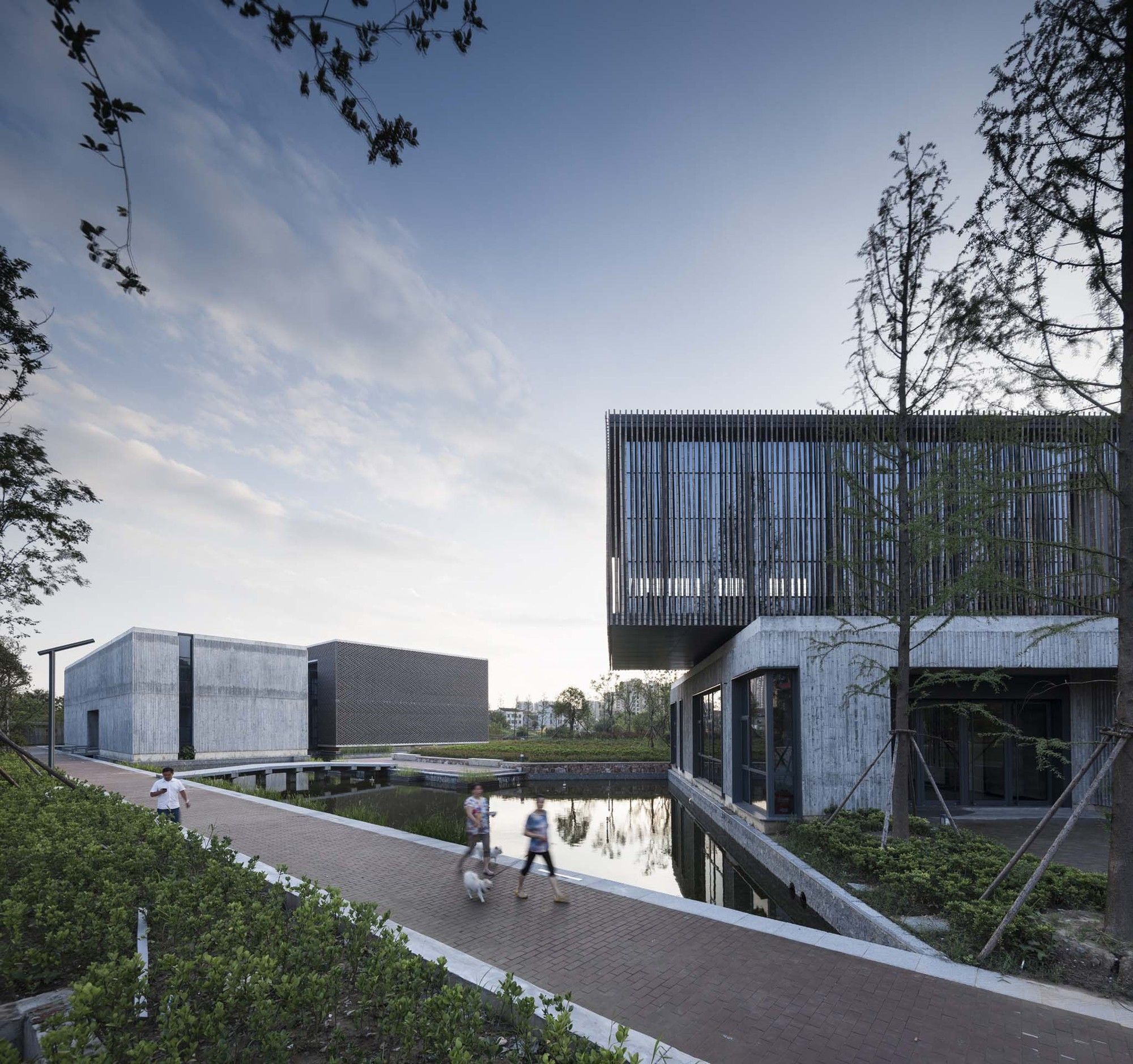

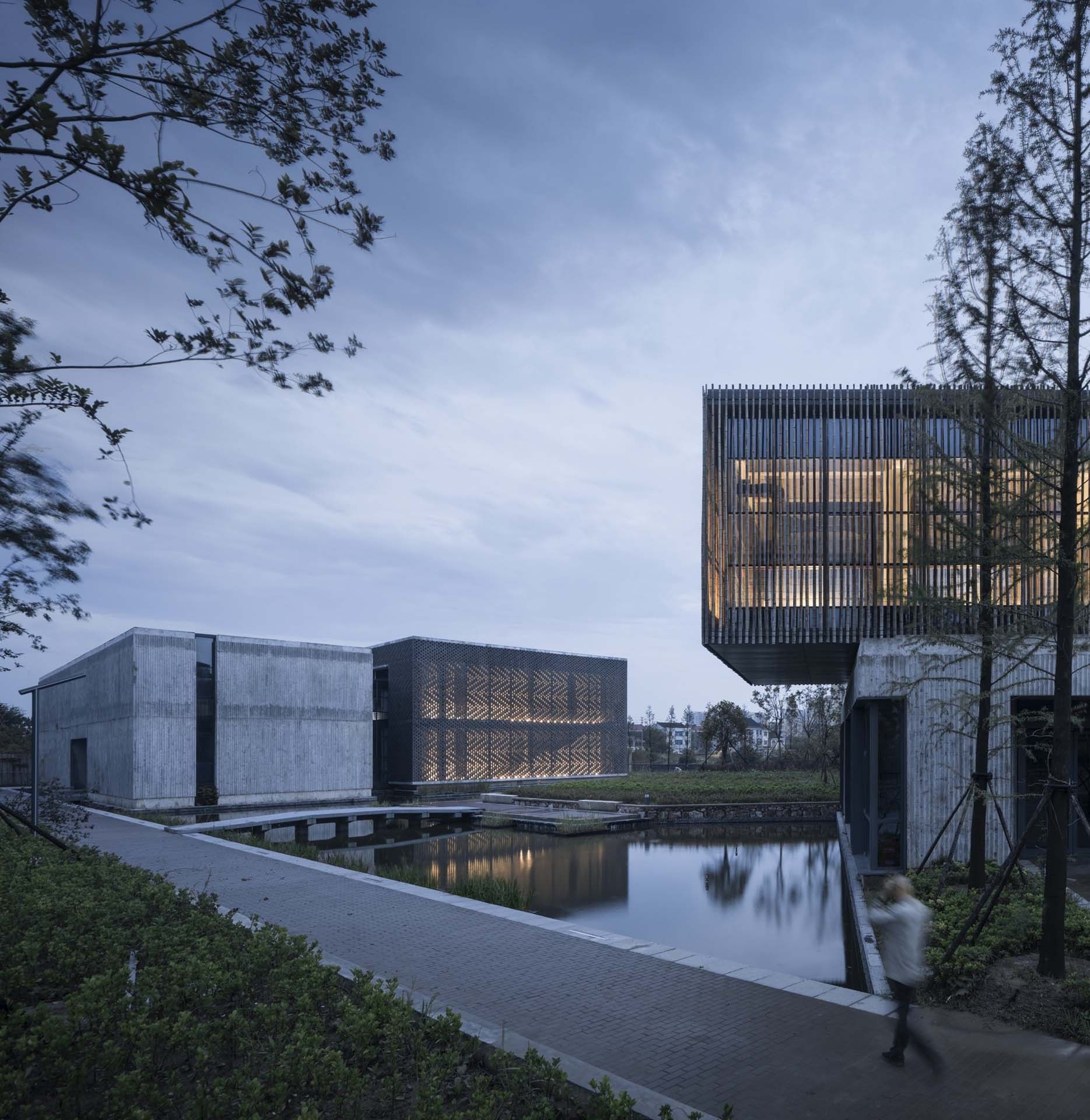

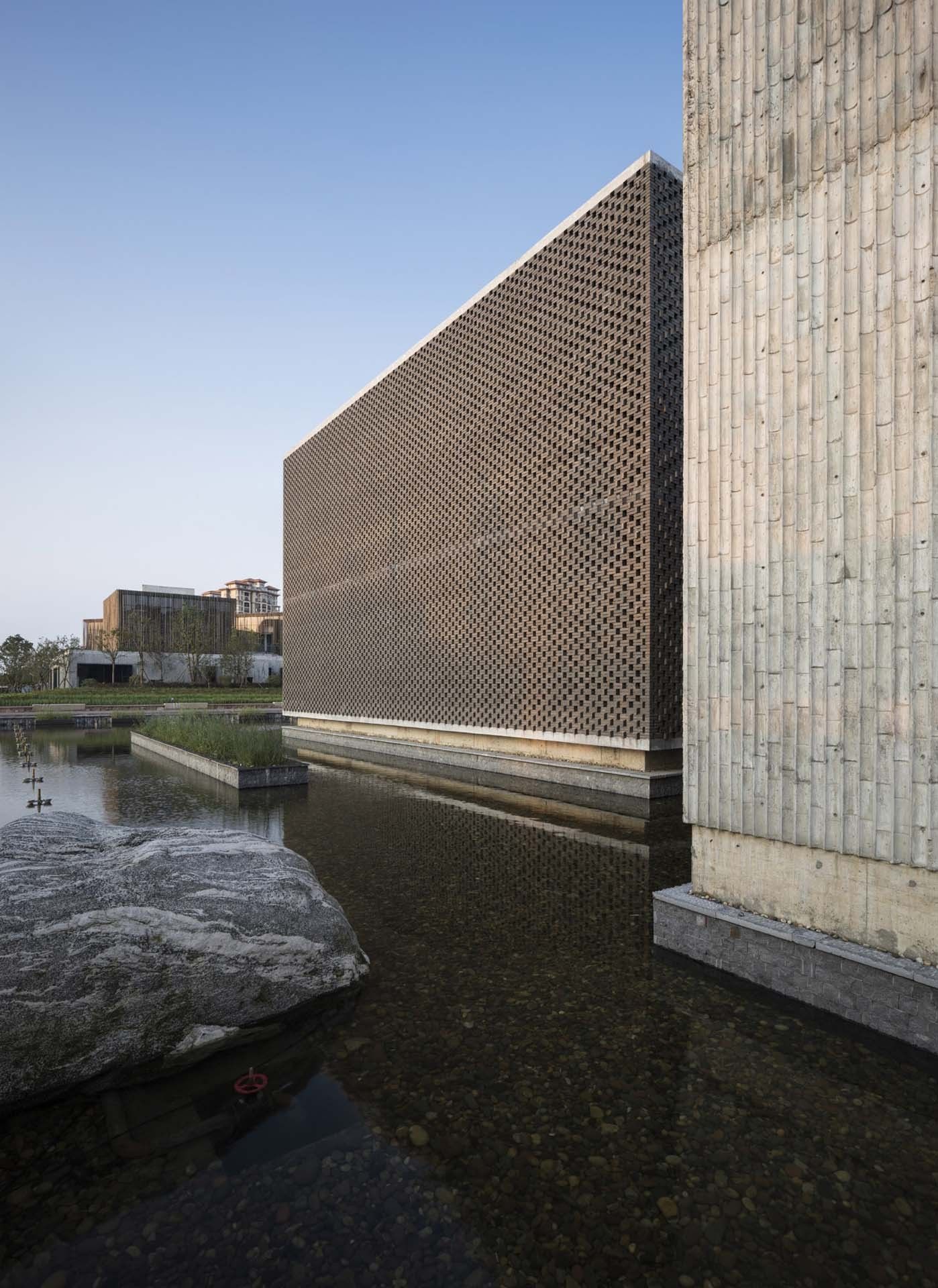

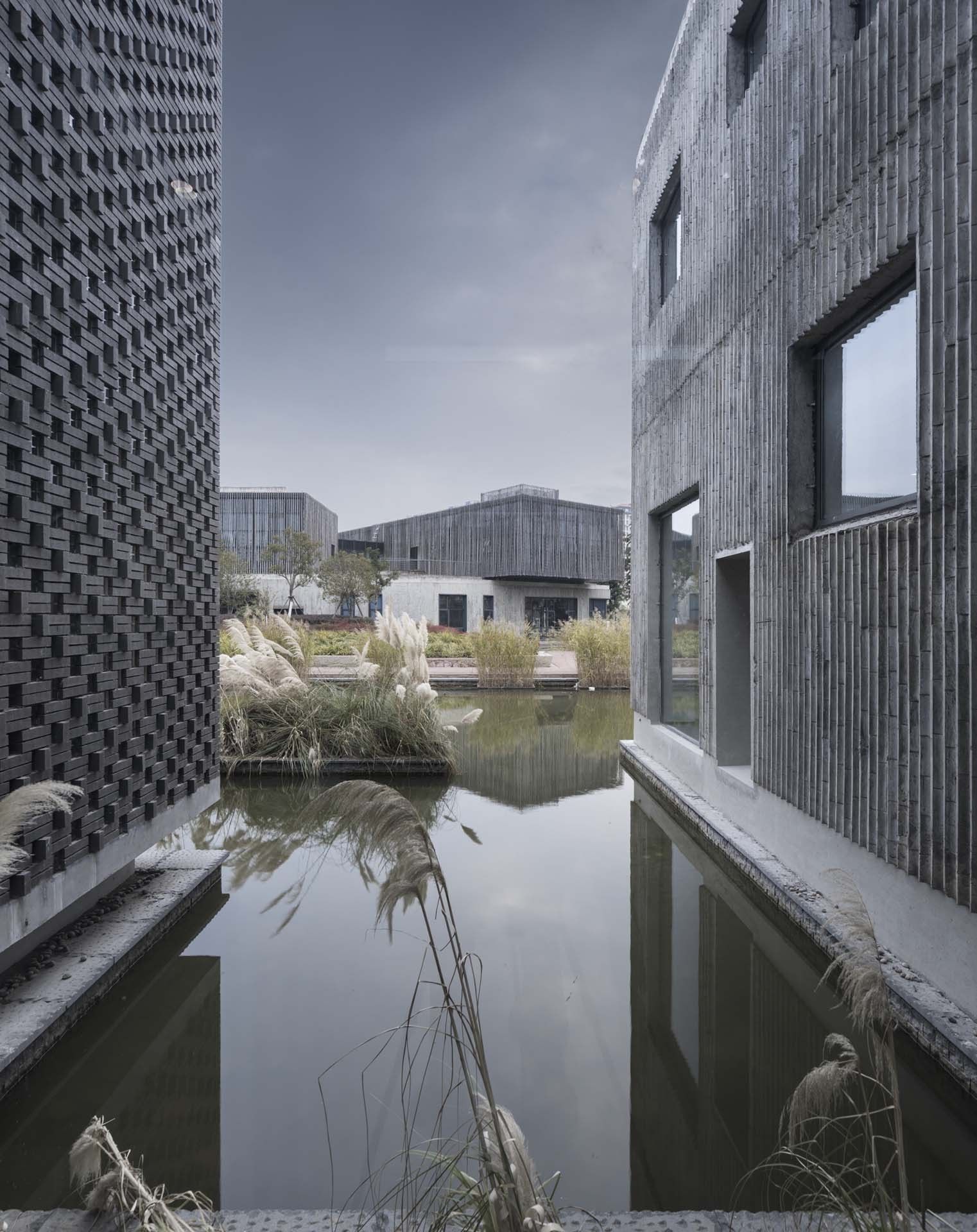

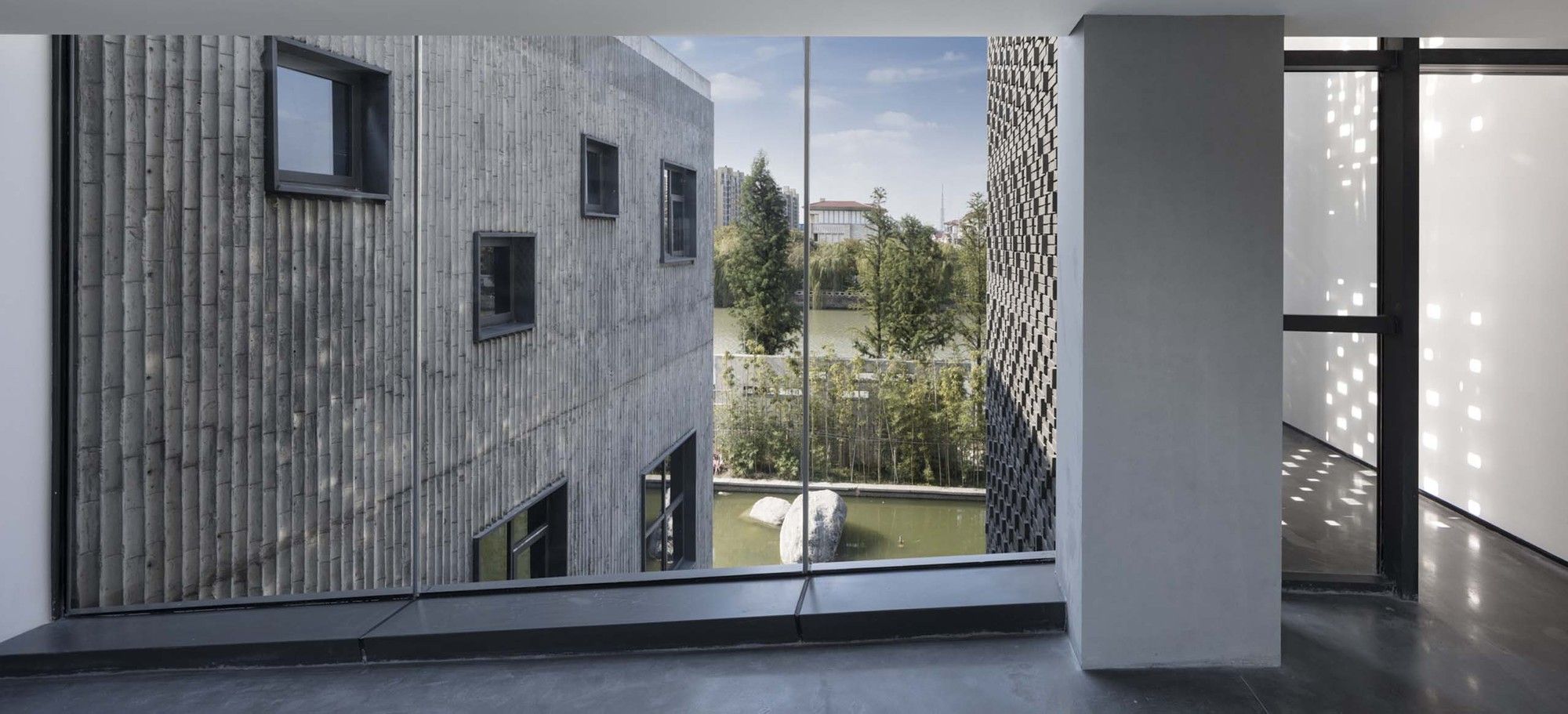

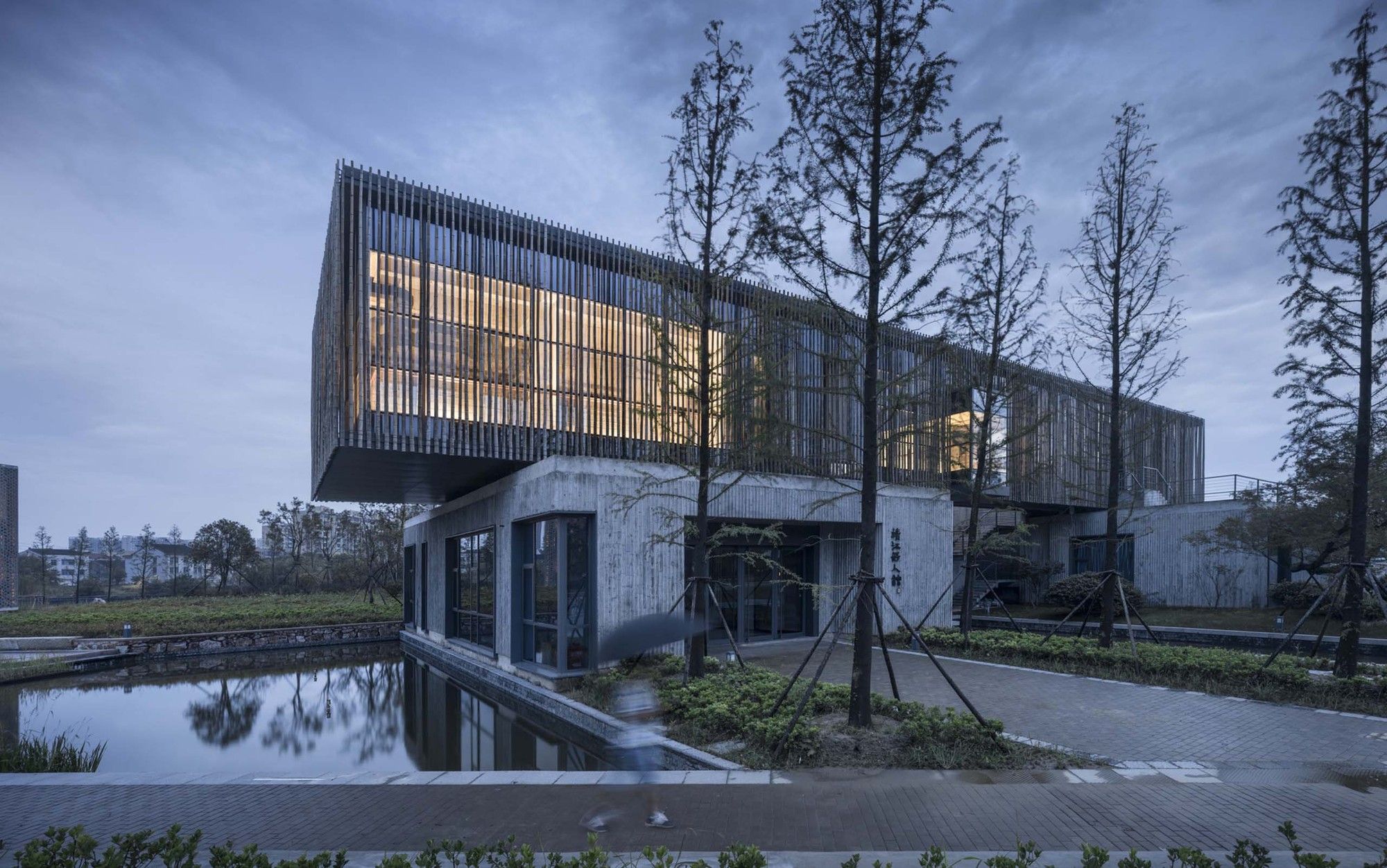

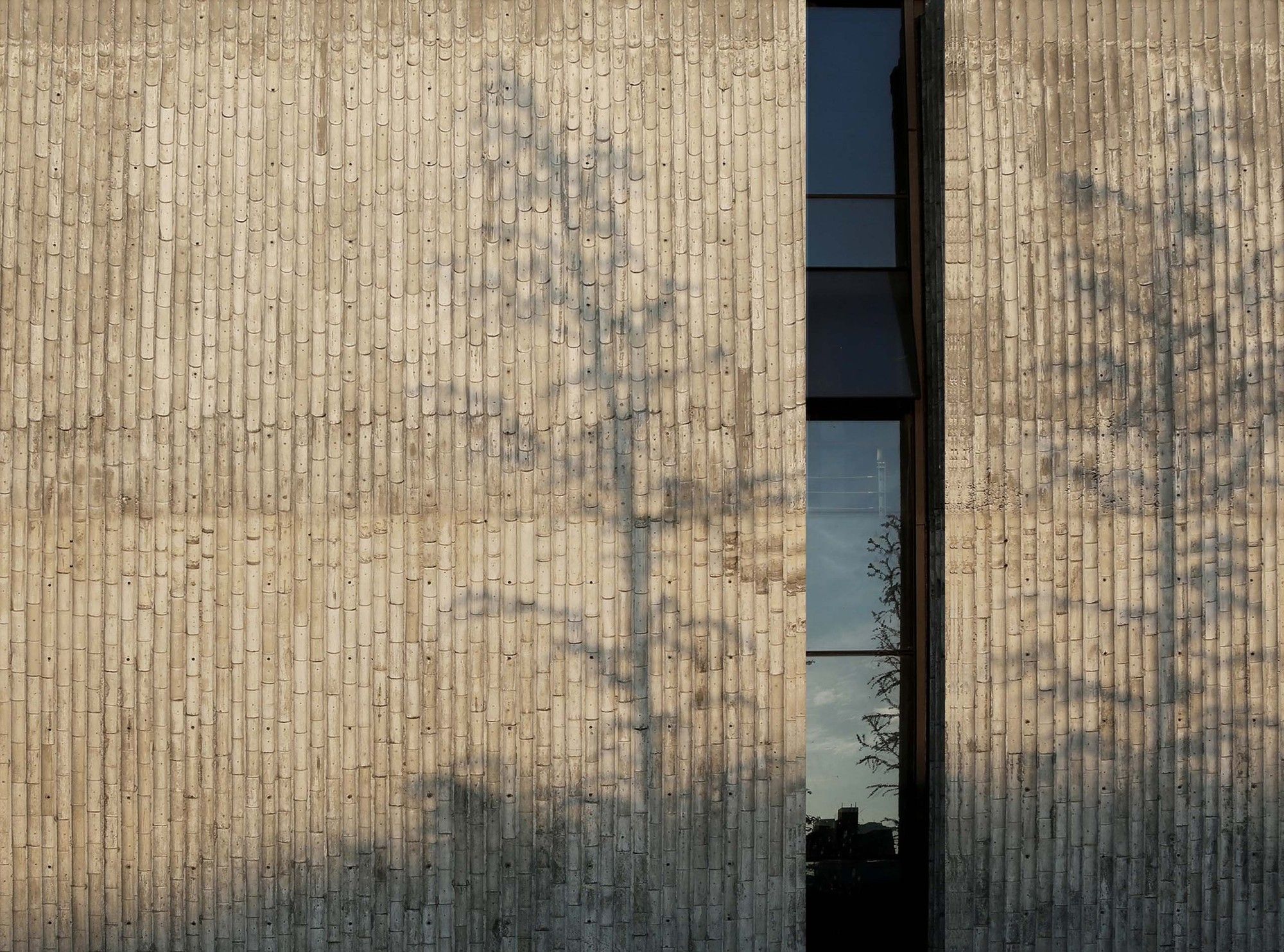

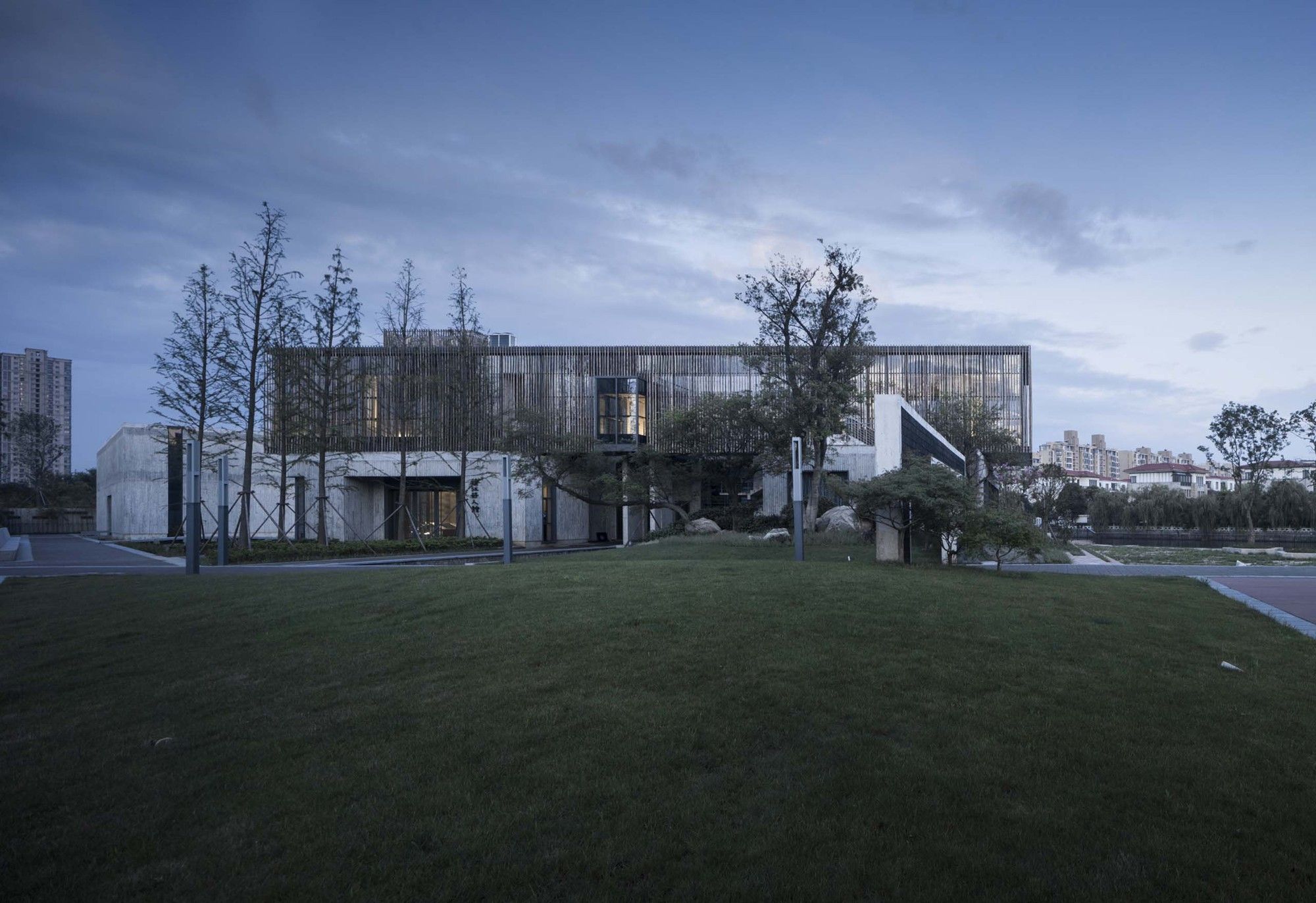

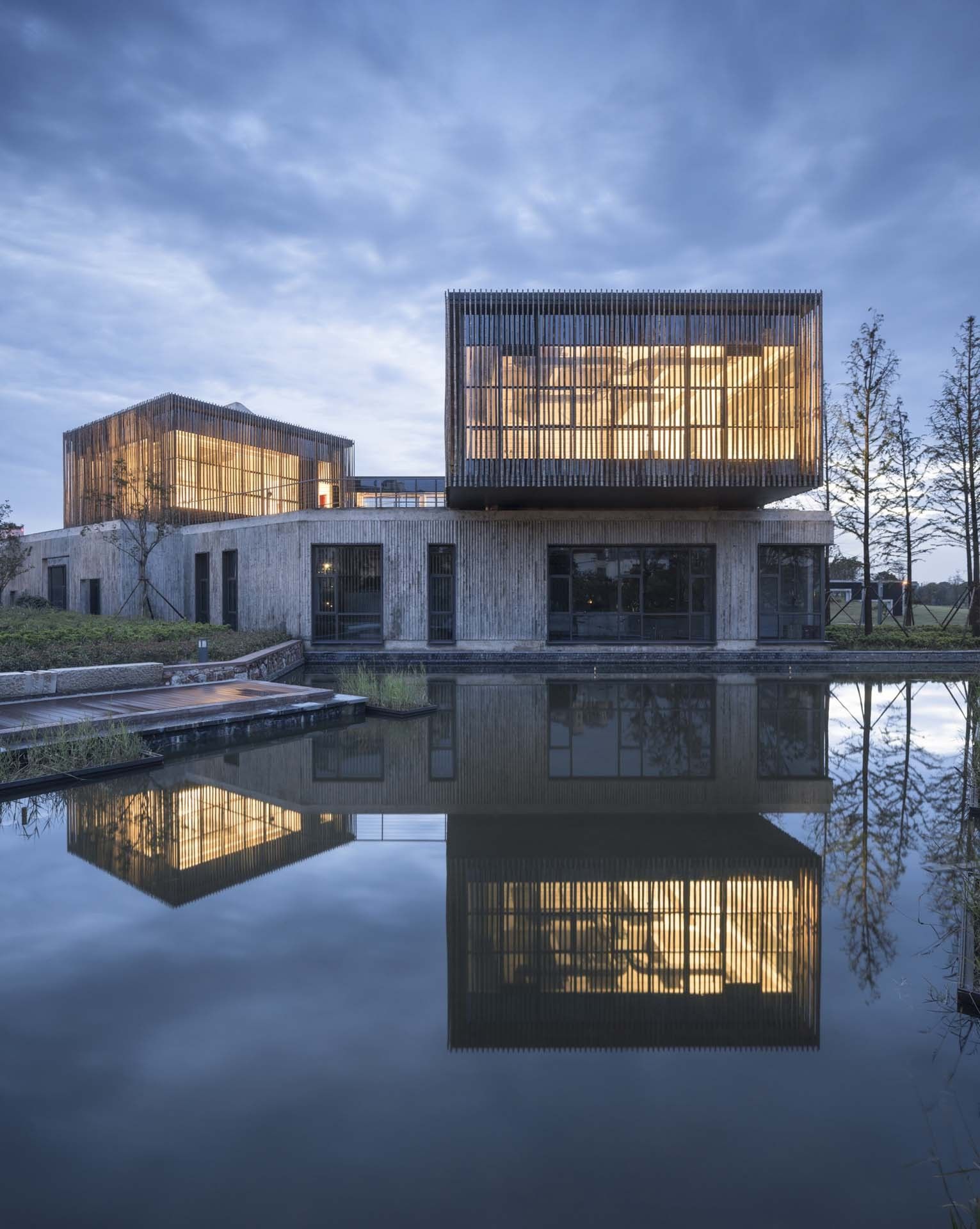

The pool in the exhibition hall is faced by the museum. The exterior wall of the basement is made up of bamboo mold concrete, while the second floor has a bamboo carbide curtain wall. The two parts are twisted, so space has a transition here. There are several vanish points in the linear exterior space so that the grid system in visitors’ common sense is broken.

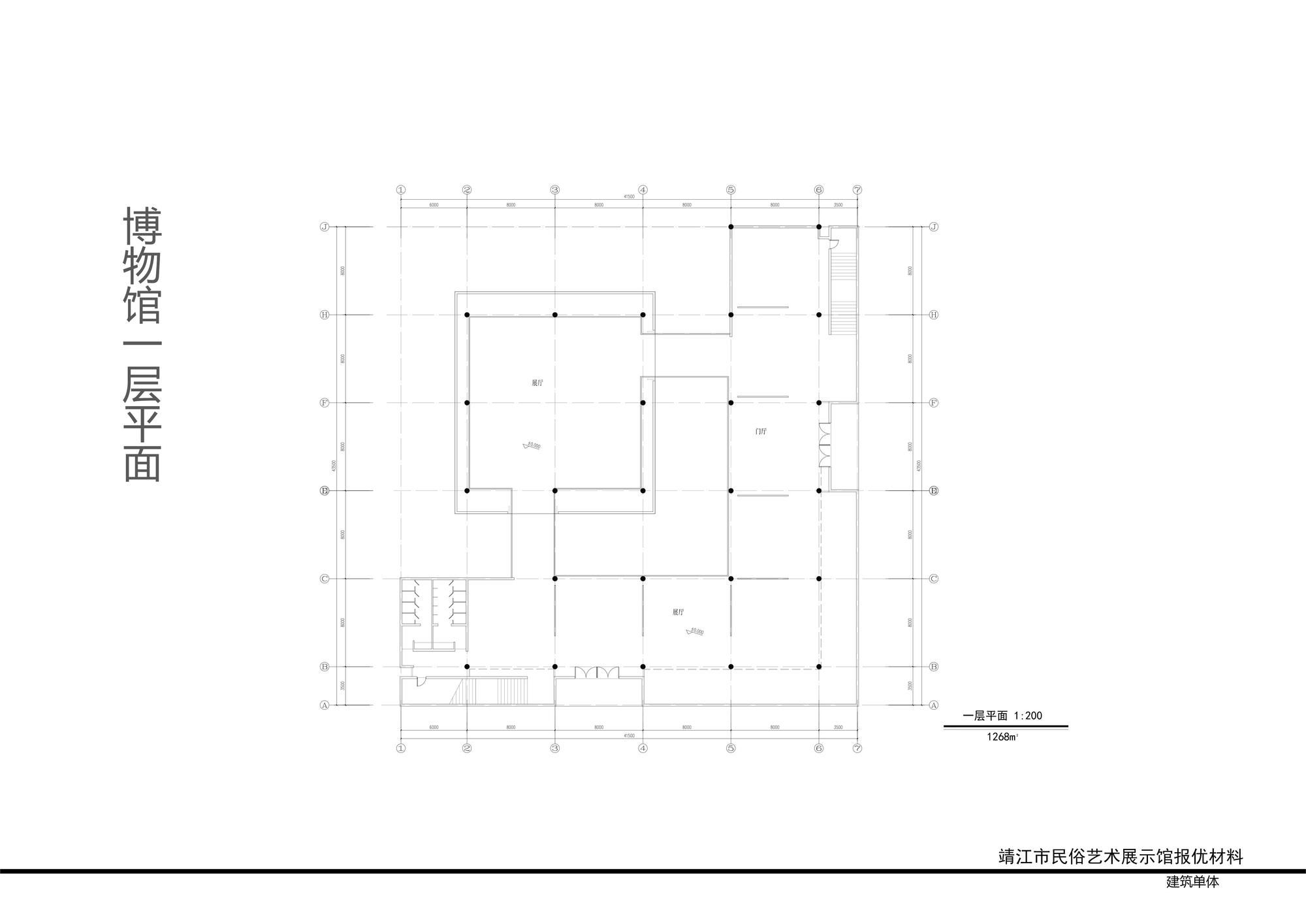

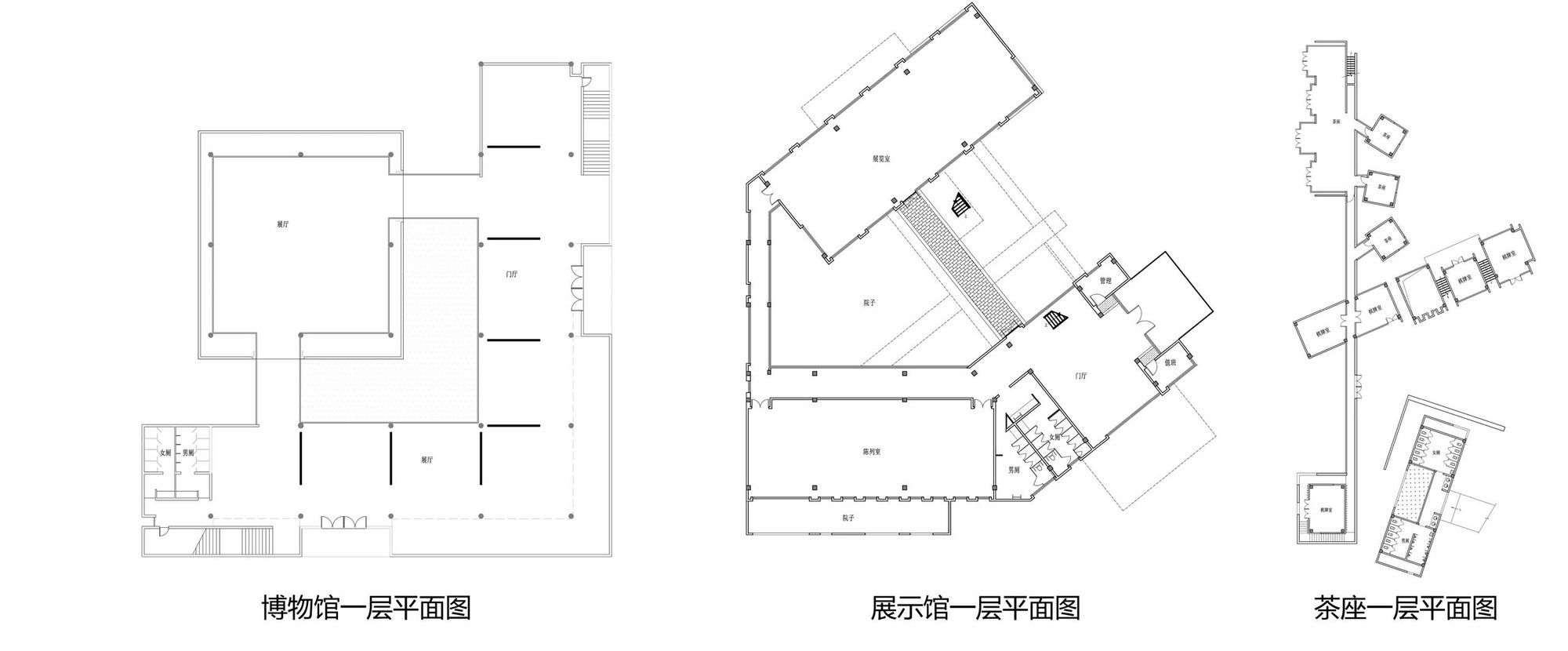

1F plan

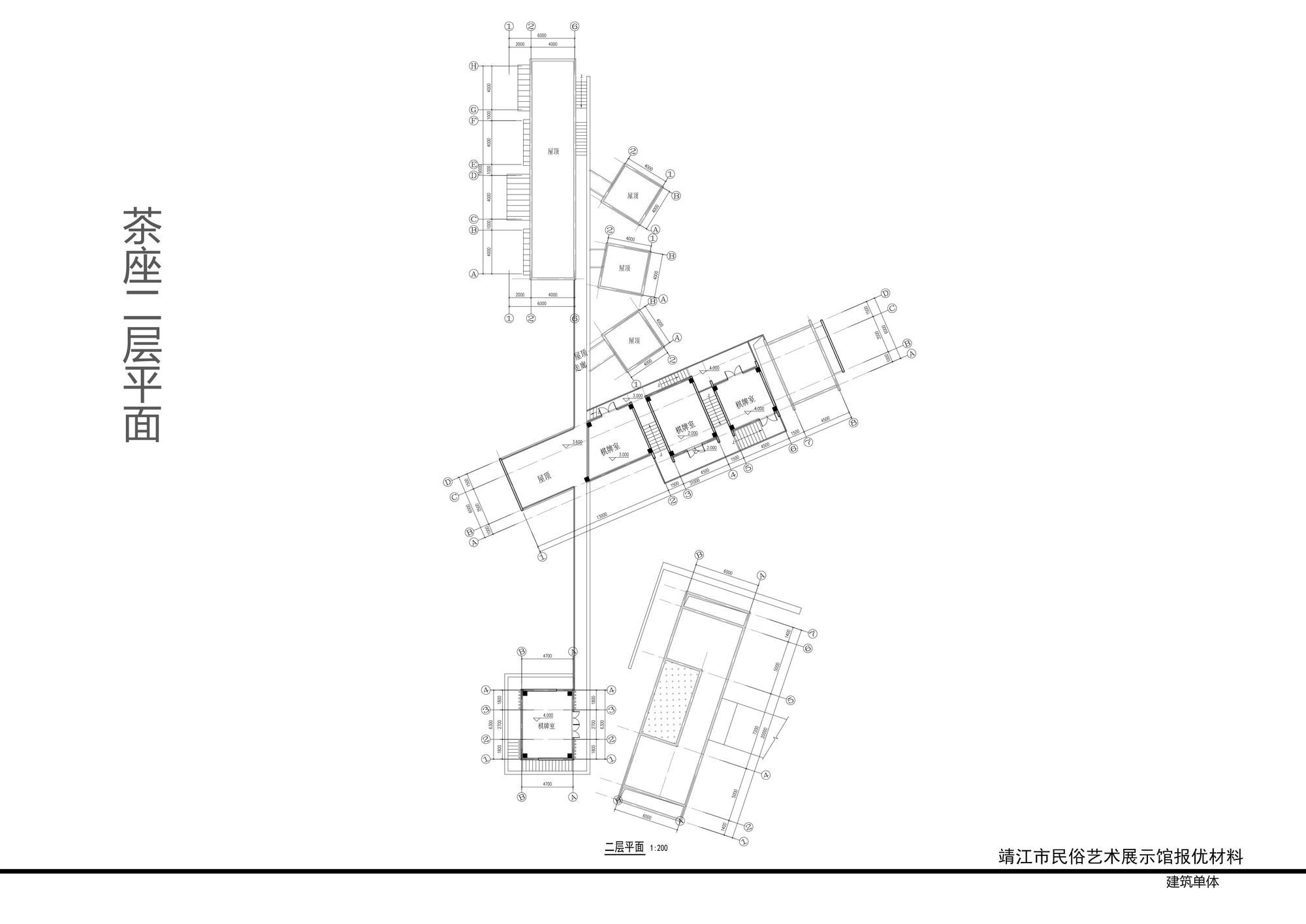

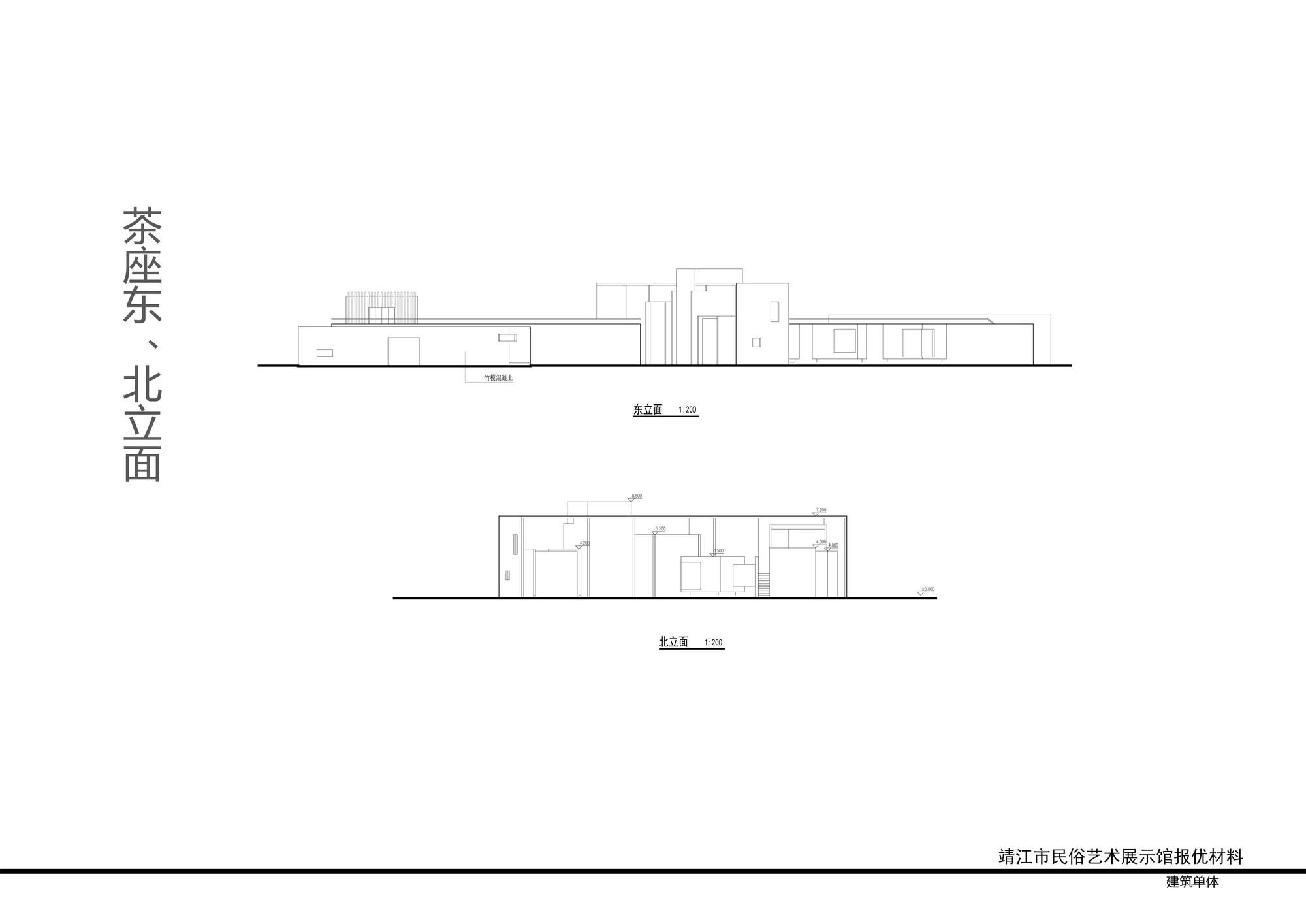

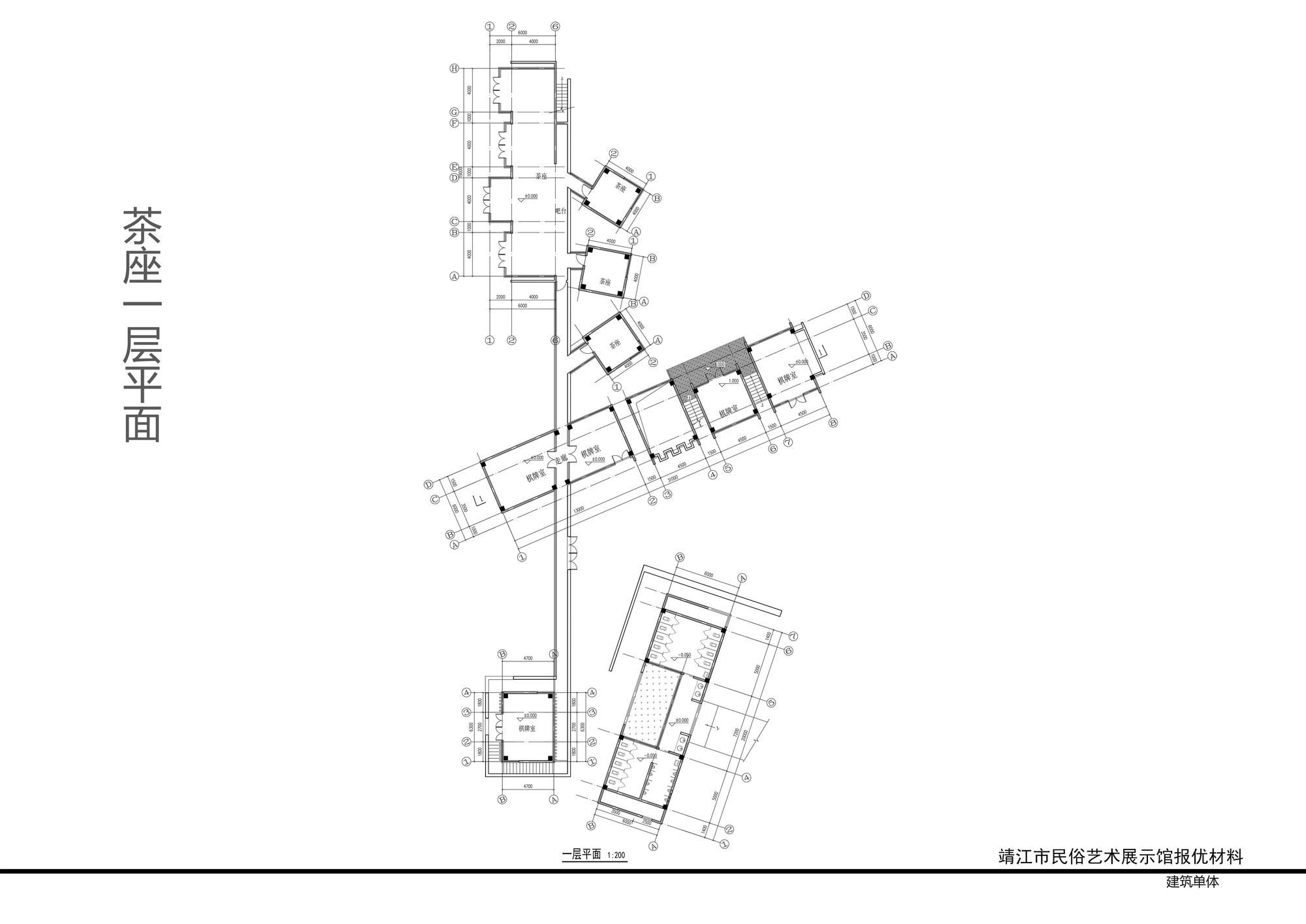

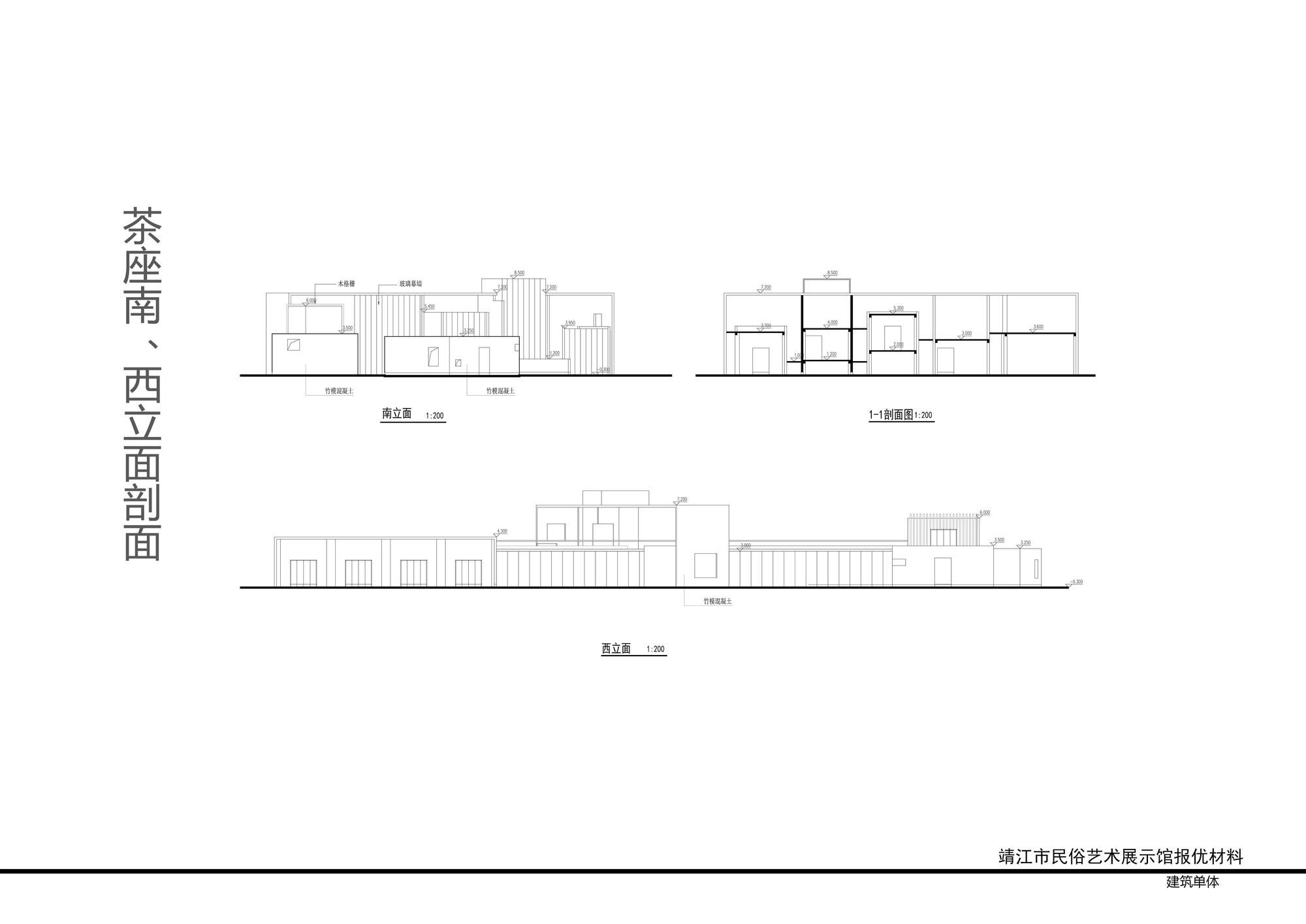

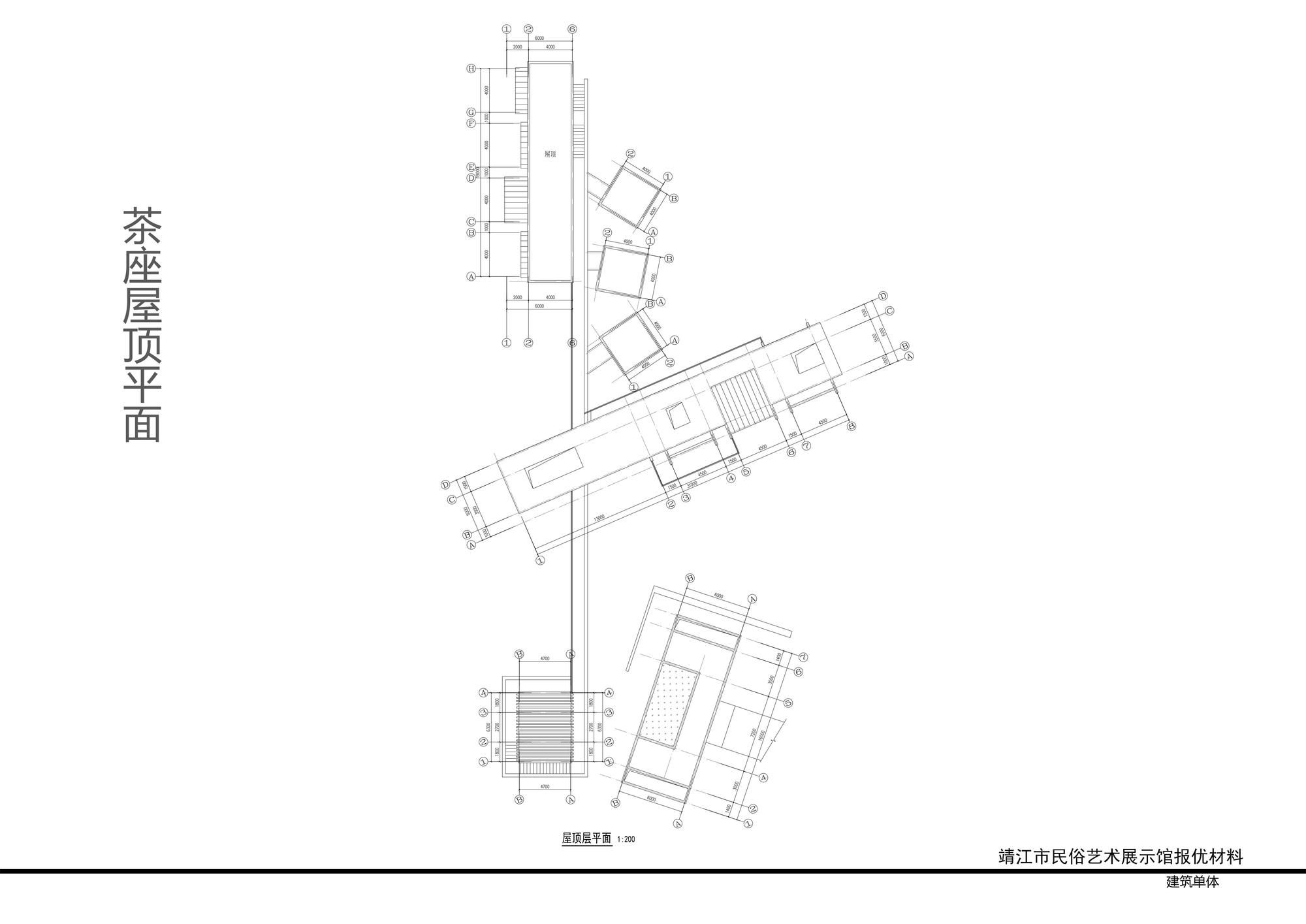

The tearoom has a regular but also the loose linear space. It is designed beside the river so the landscape can be used fully. Going through the architecture to the roof making visitors feel like they are climbing a hill. Two trees breaking the roof, reducing the existence of the basement.
Project Info:
Architects: Zhaohui Rong Studio
Location: Taizhou, China
Architect in Charge: Zhaohui Rong
Design Team: Aitian Gu, Hu Liu, Laiguang Yang
Area: 4468.0 m2
Project Year: 2016
Photographs: Li Yao
Structural Design: Lipeng Nie, Zhongqiang Wang, Chen Lin
Water Supply and Drainage: Yanjun Ren
Electrical Engineer: Jiangjun Liu
Heating and Ventilation Design: Wei Qian
Client: Jing jiang Binjiang new town investment company
Project Name: Jingjiang Folklore Museum
