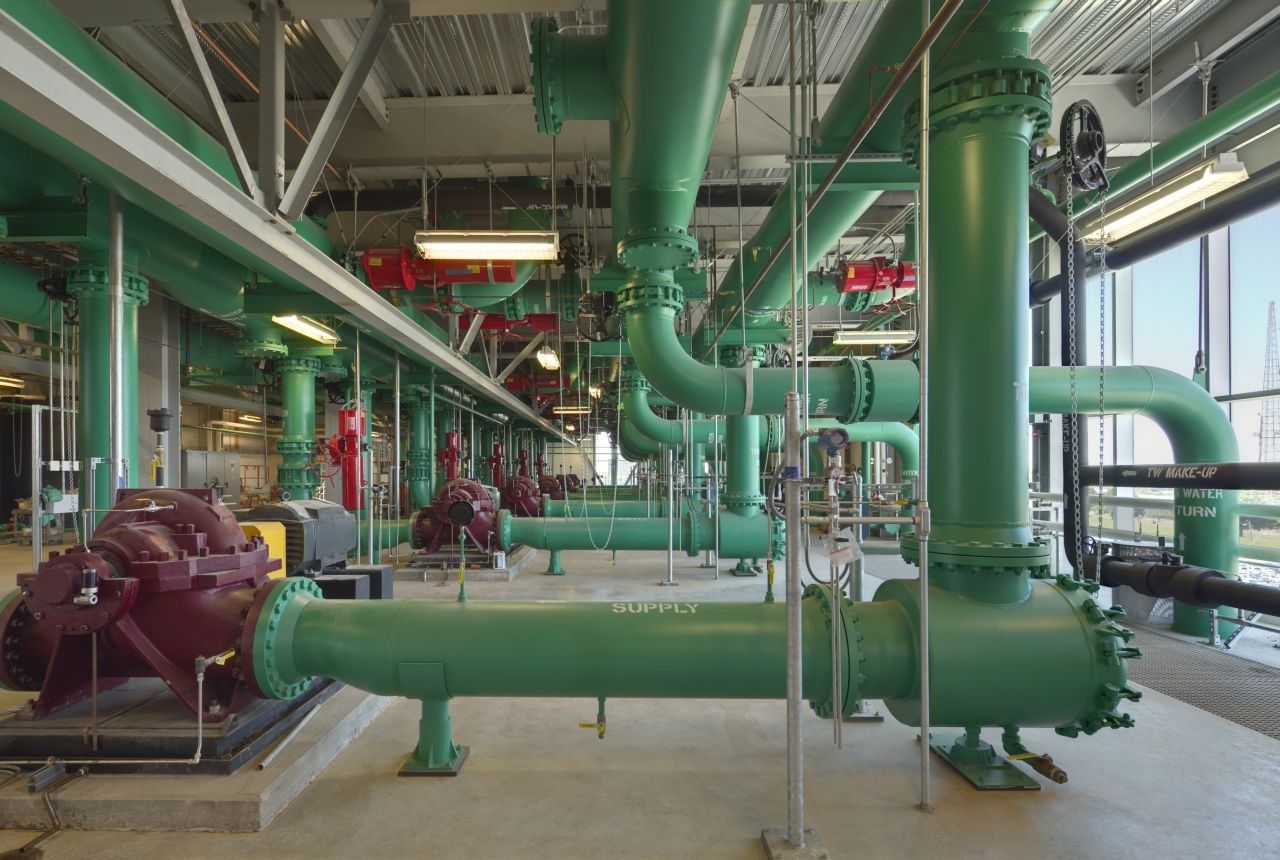

Designed by Ross Barney Architects, The South Campus Central Chiller Plant will provide the Medical District of the Ohio State University a long-term, efficient and sustainable solution for chilled water production and distribution. Durability and redundancy will be addressed with a modular design with additional components of all critical equipment to maintain 12,500 tons of chilled water for the medical center customers. To further increase reliability, emergency power will be installed with the chiller plant to provide chilled water for critical operations during power outages.

Photography by © Brad Feinkopf

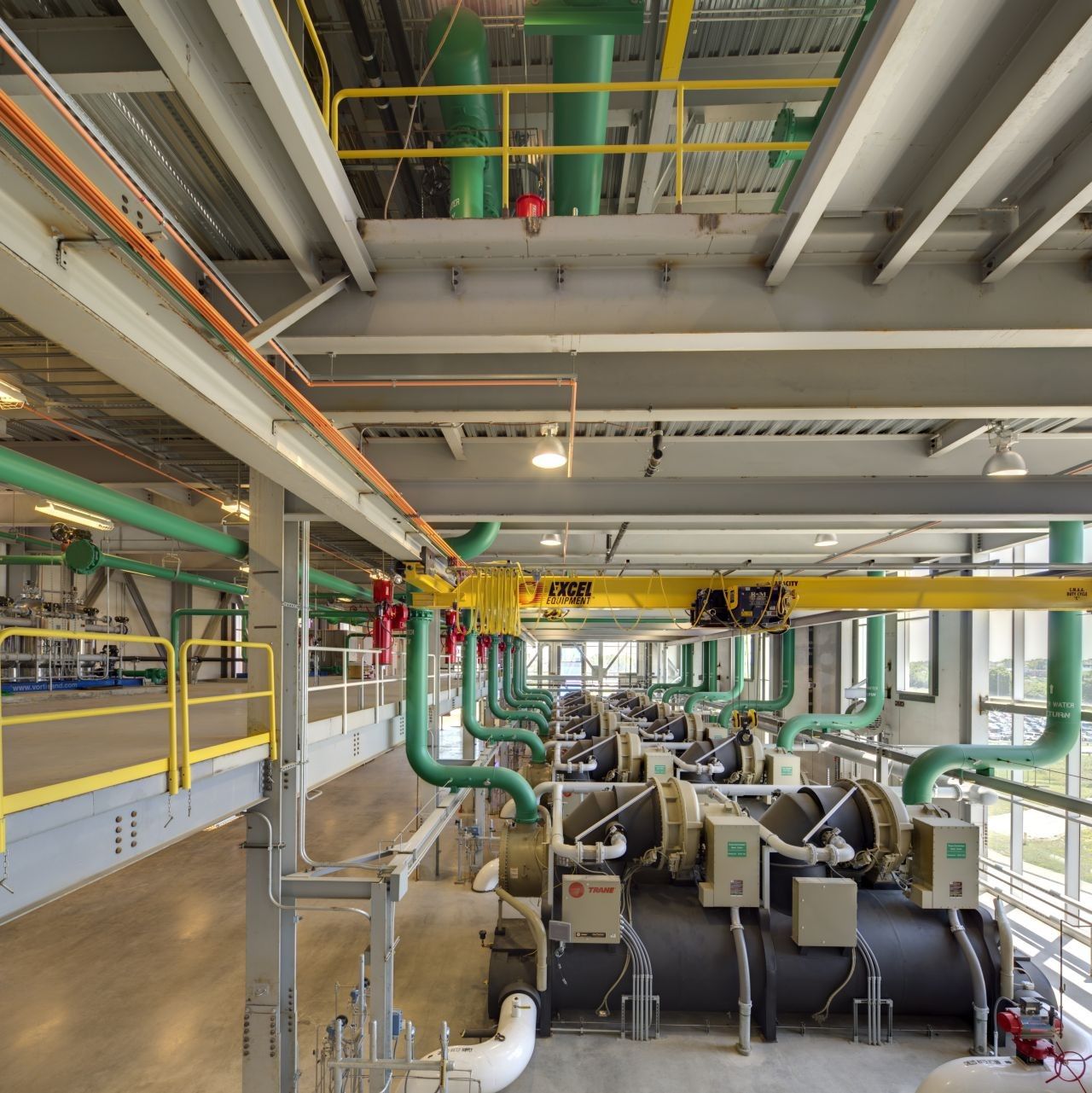

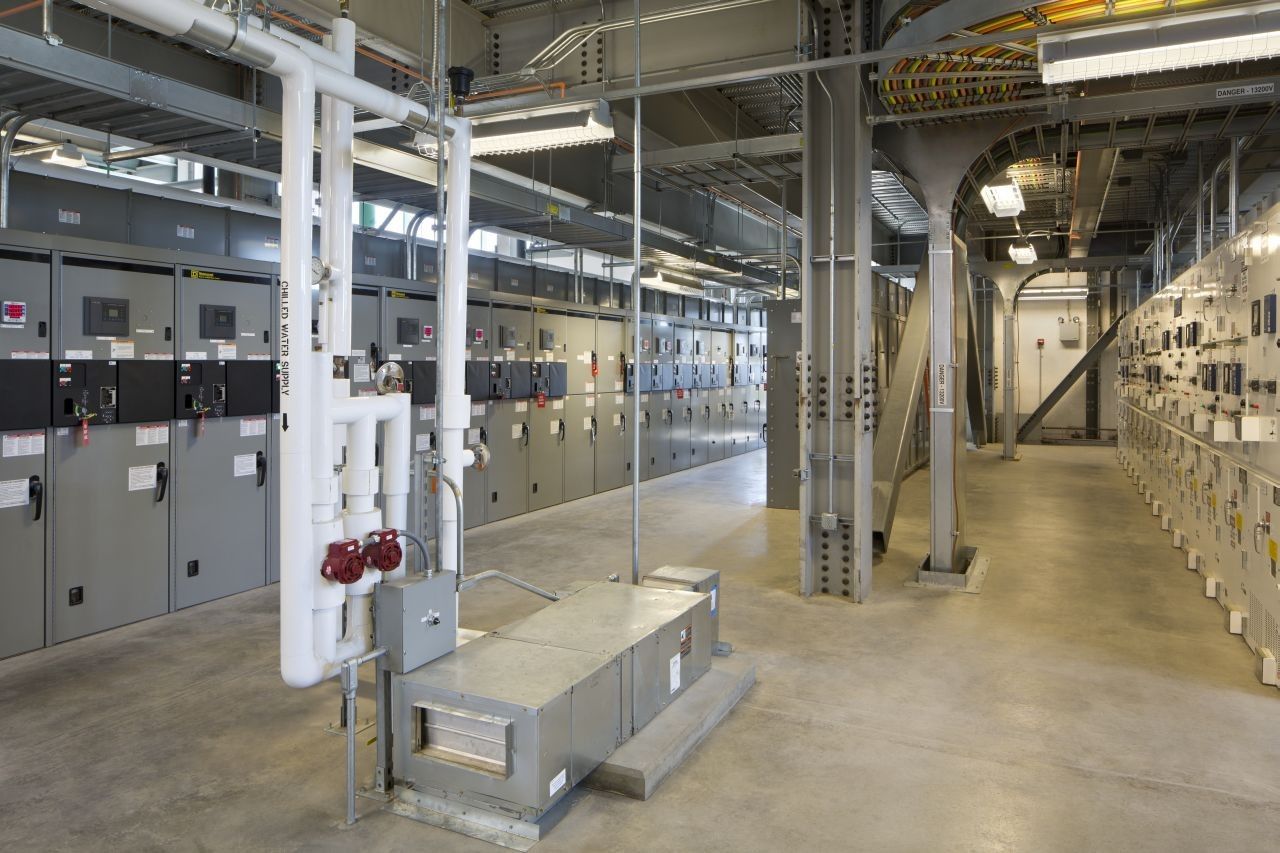

The ultimate capacity of the Chiller Plant will be 30,000 tons of chilled water. The installation the chillers will be installed in phases to address requirements of the medical center and will be remotely controlled at the central power plant with robust industrial control systems. Phase one of the chiller plant will be a minimum of 15,000 tons for the new Cancer and Critical Care Tower and the gradual replacement of aging equipment located in existing buildings of the medical campus.

Photography by © Brad Feinkopf

The chiller plant will be constructed in the current location of a surface parking lot west of the College of Pharmacy. The site is currently below the floodplain and will require underground utility relocations and the location of critical equipment above this elevation.

Photography by © Brad Feinkopf

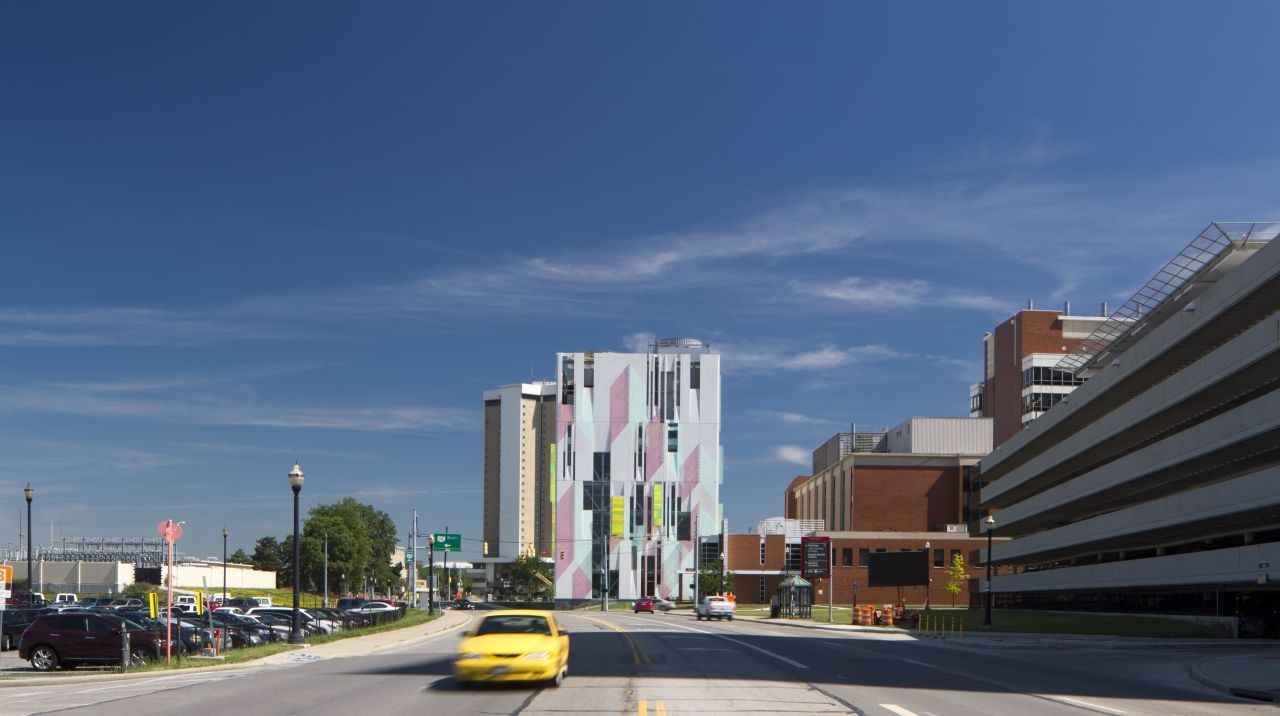

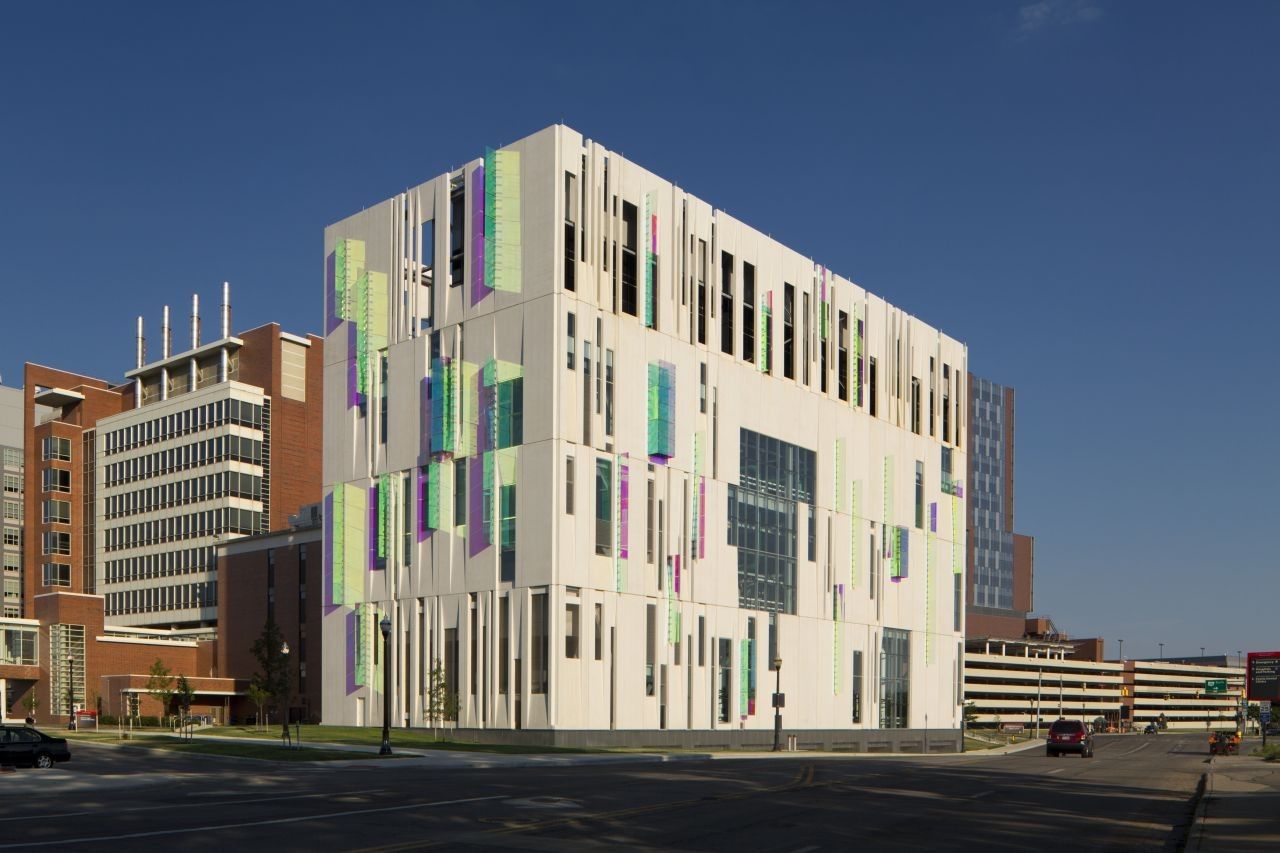

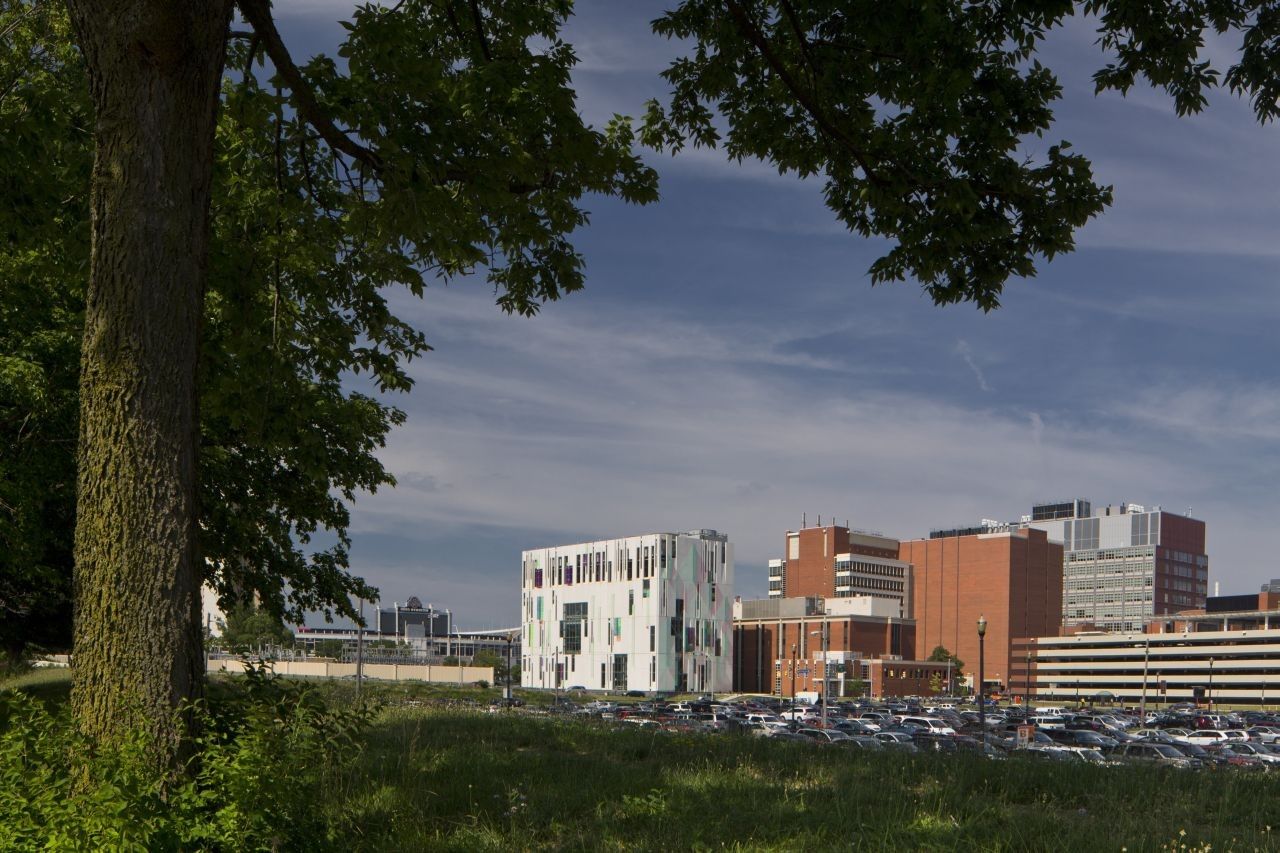

The siting of the building took into consideration the relocation of Cannon Drive and future extension of Kinnear Road. The new chiller plant will serve as an iconic anchor for this future intersection.

Photography by © Brad Feinkopf

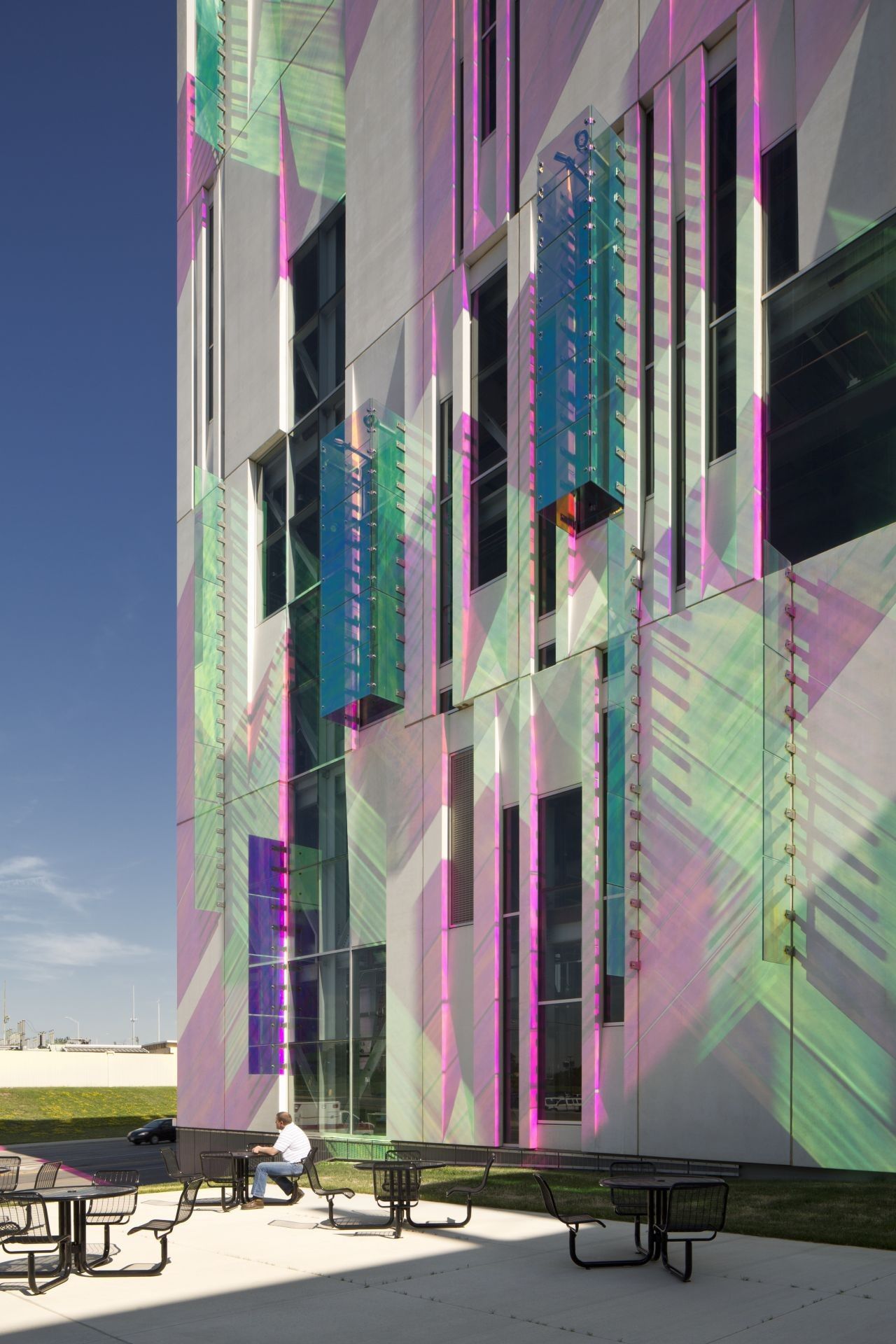

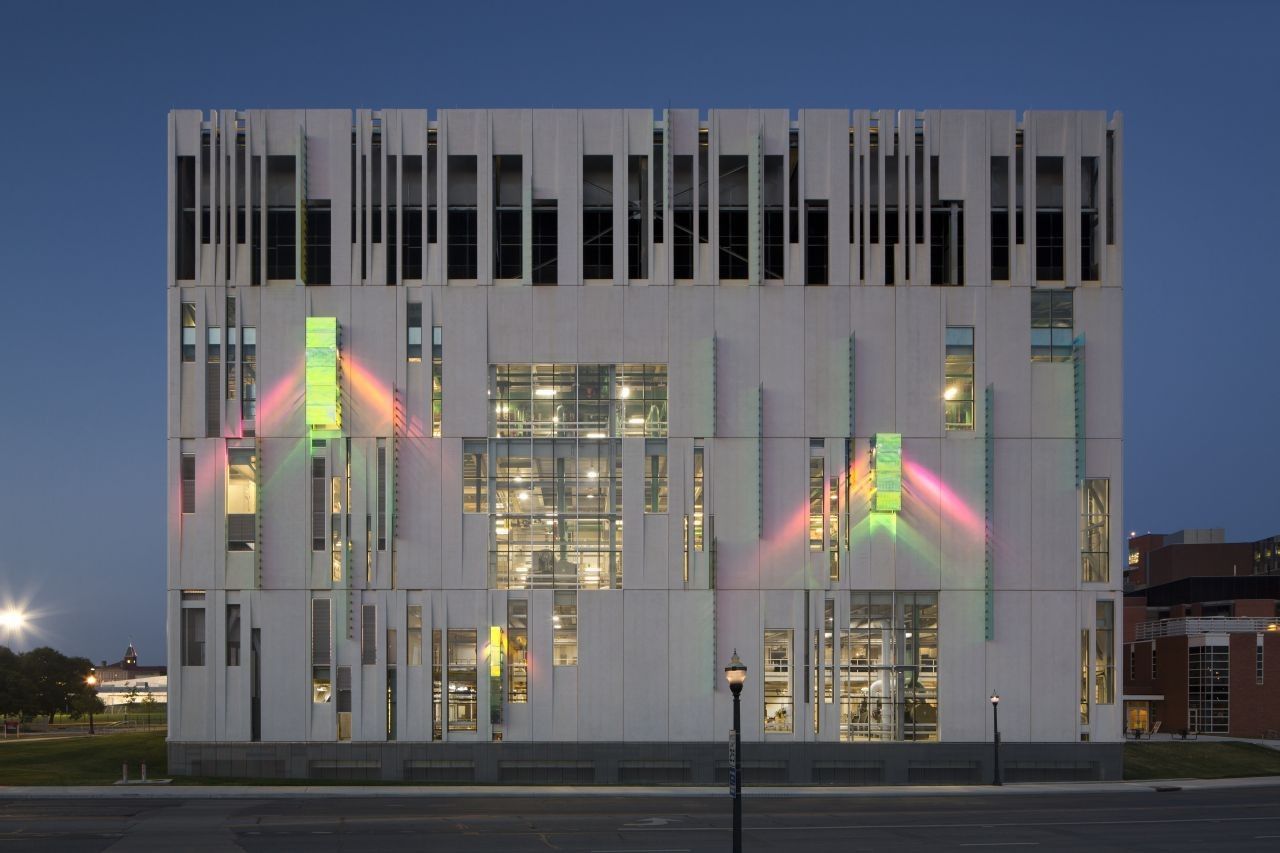

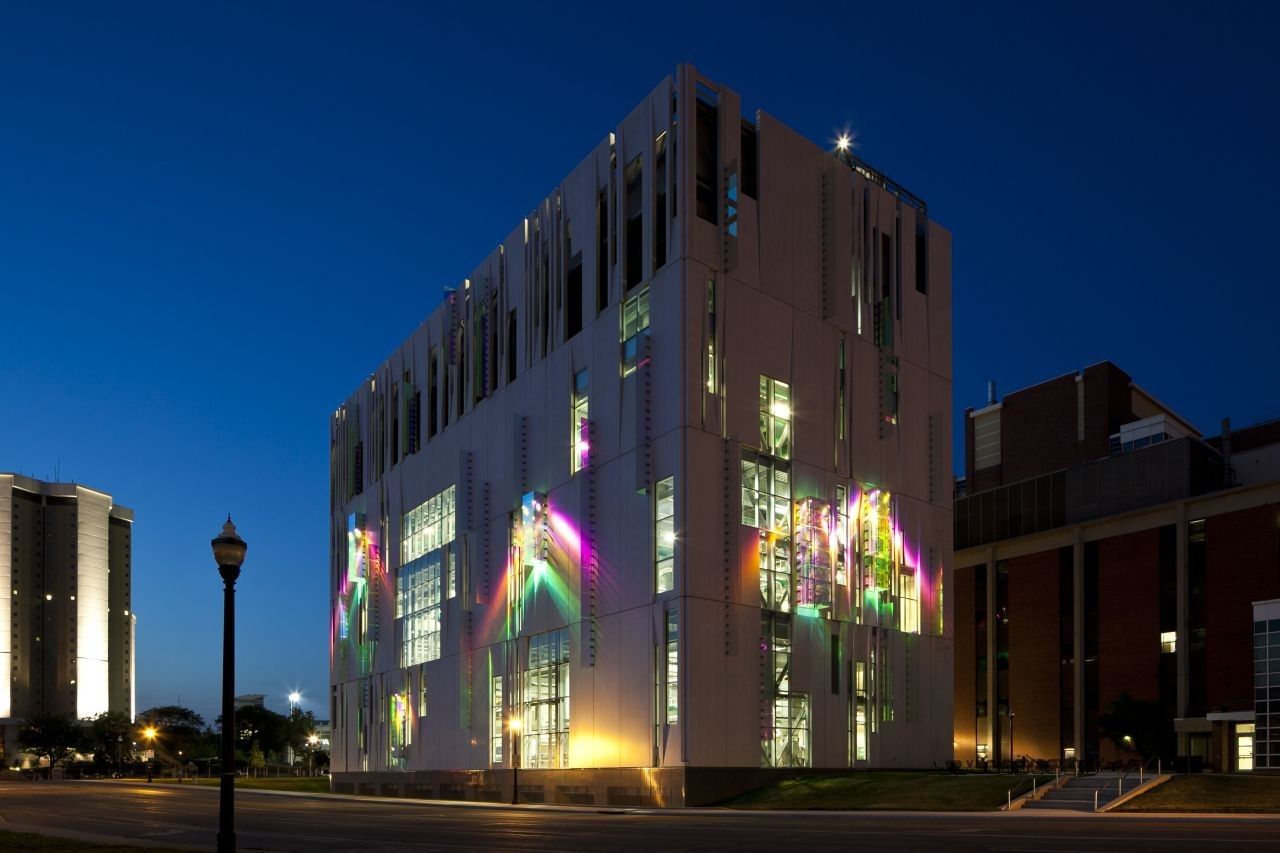

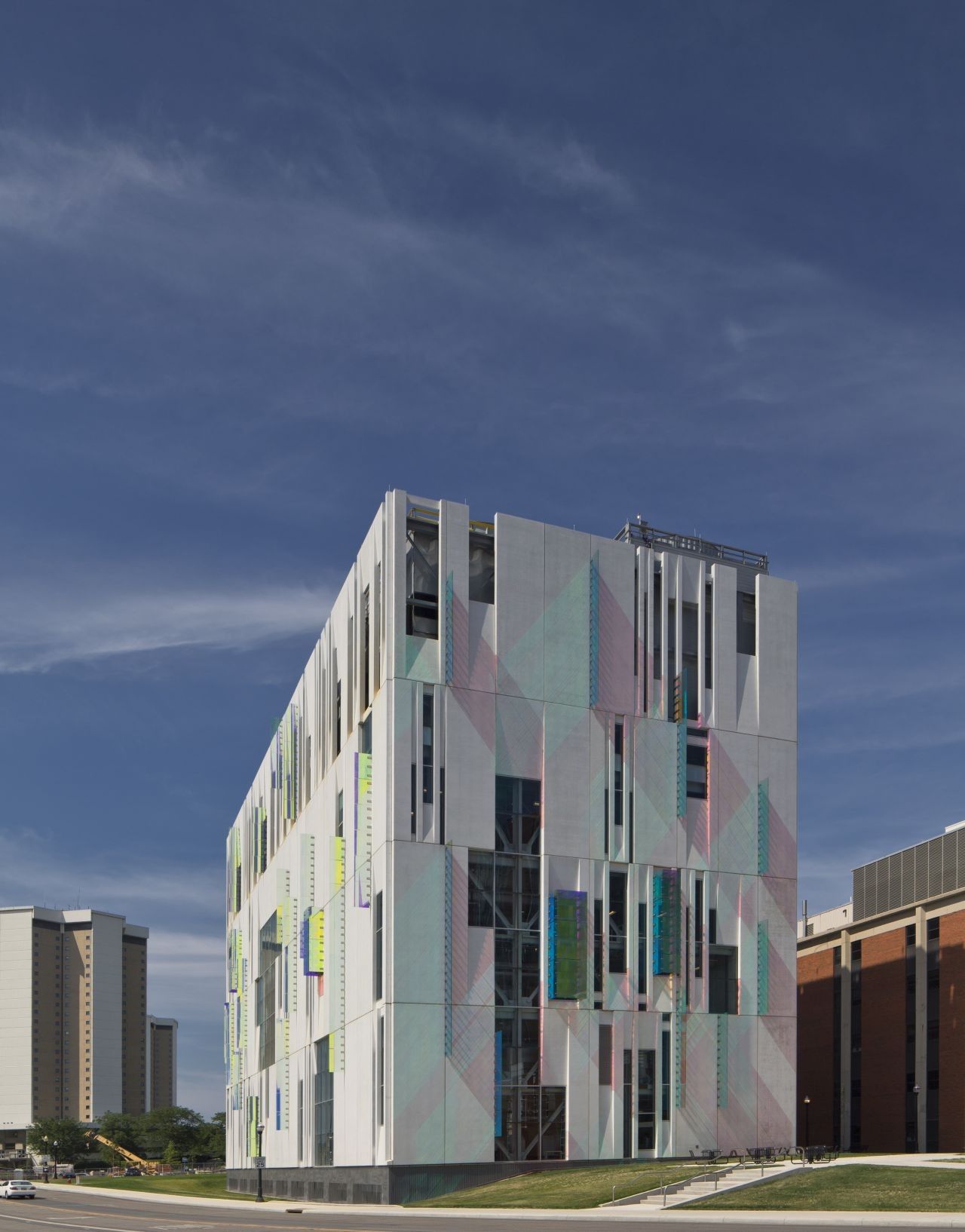

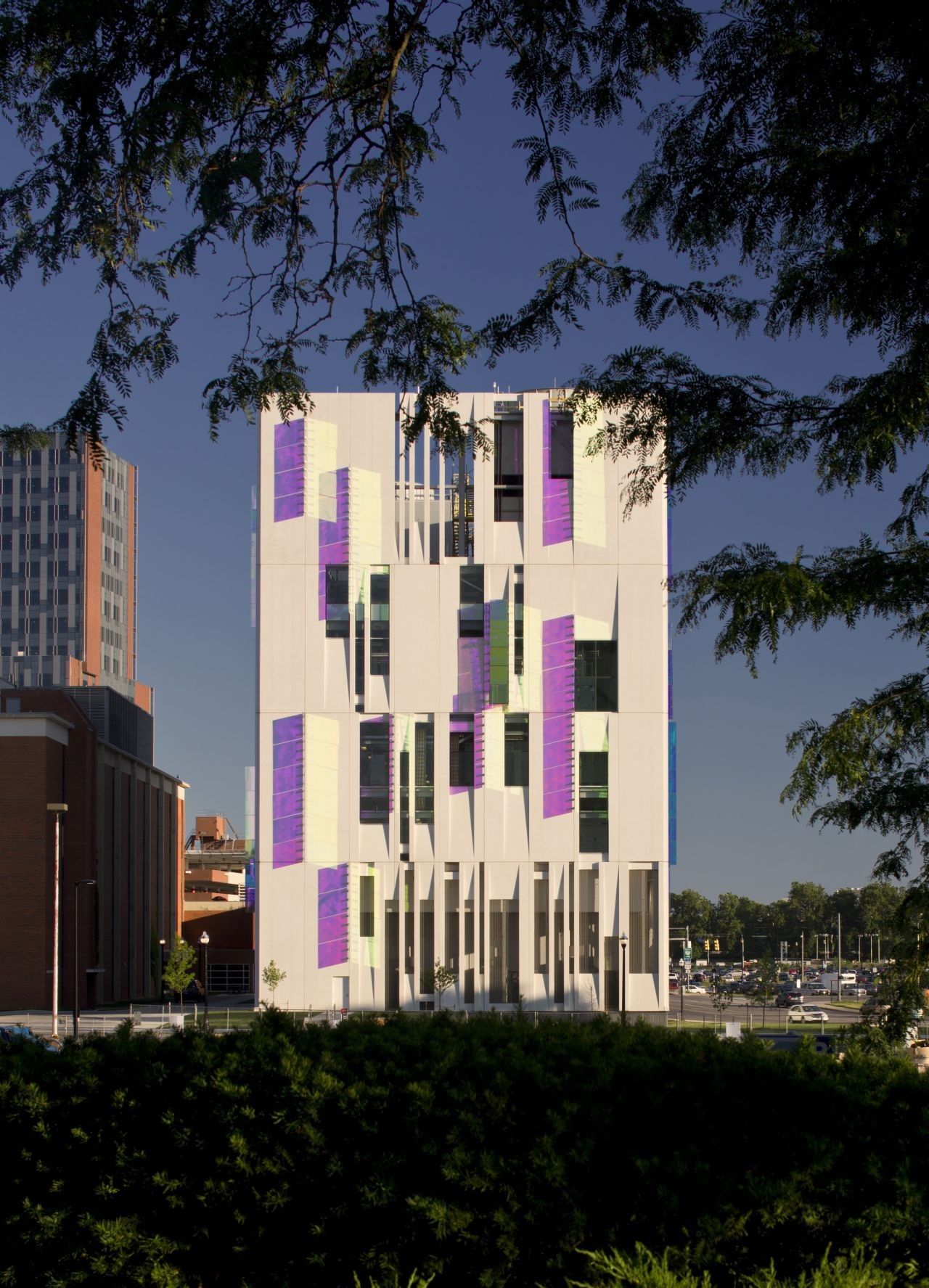

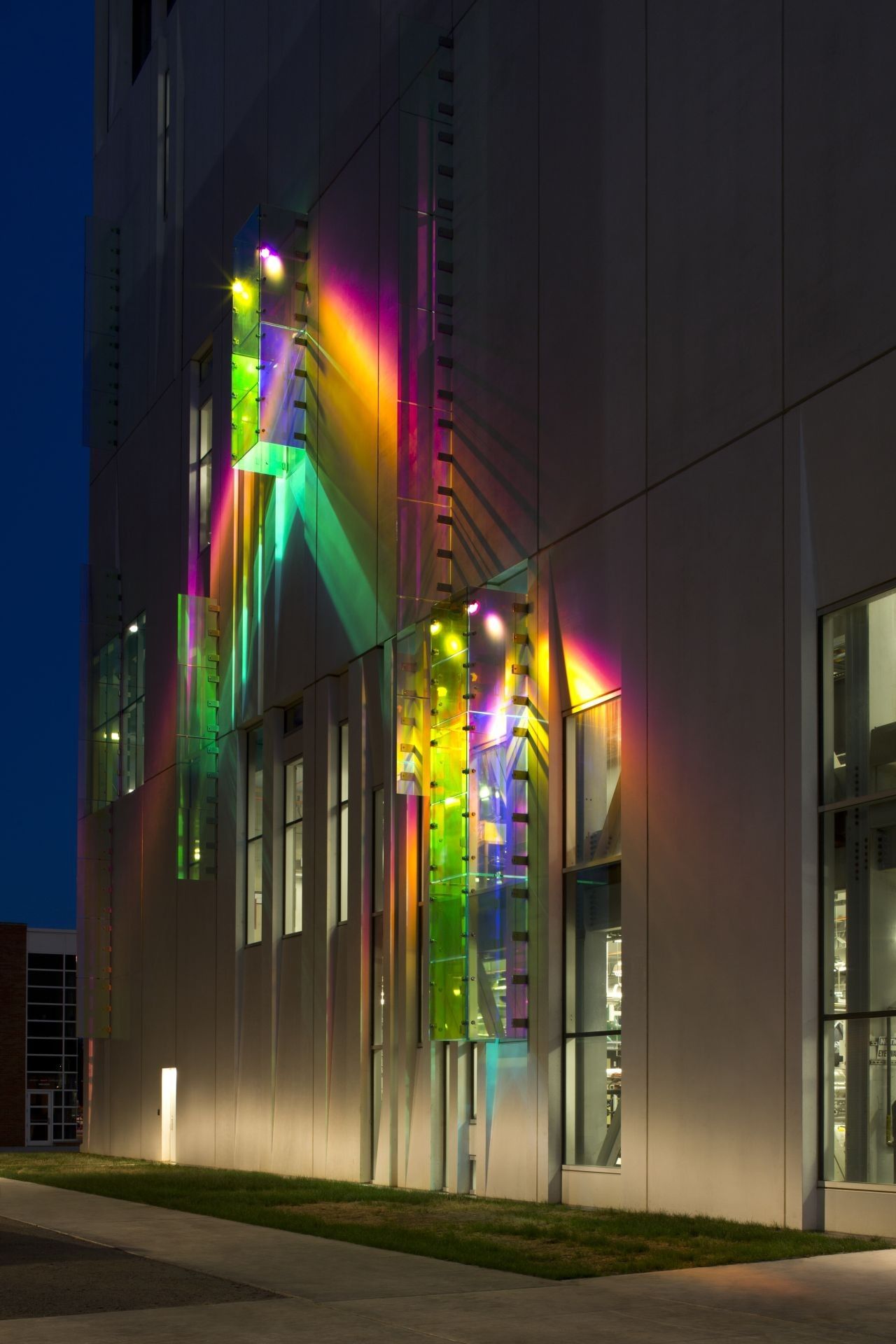

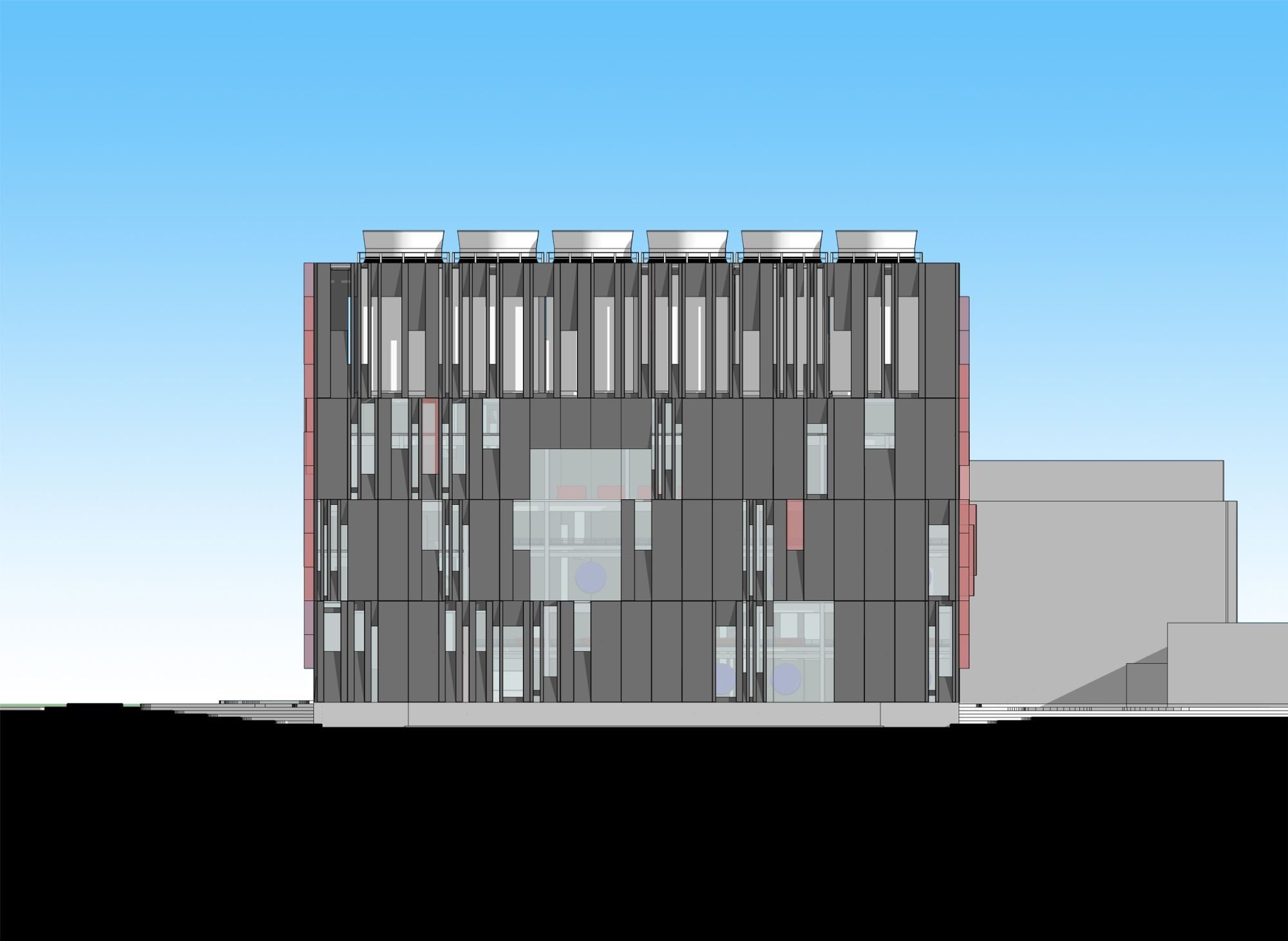

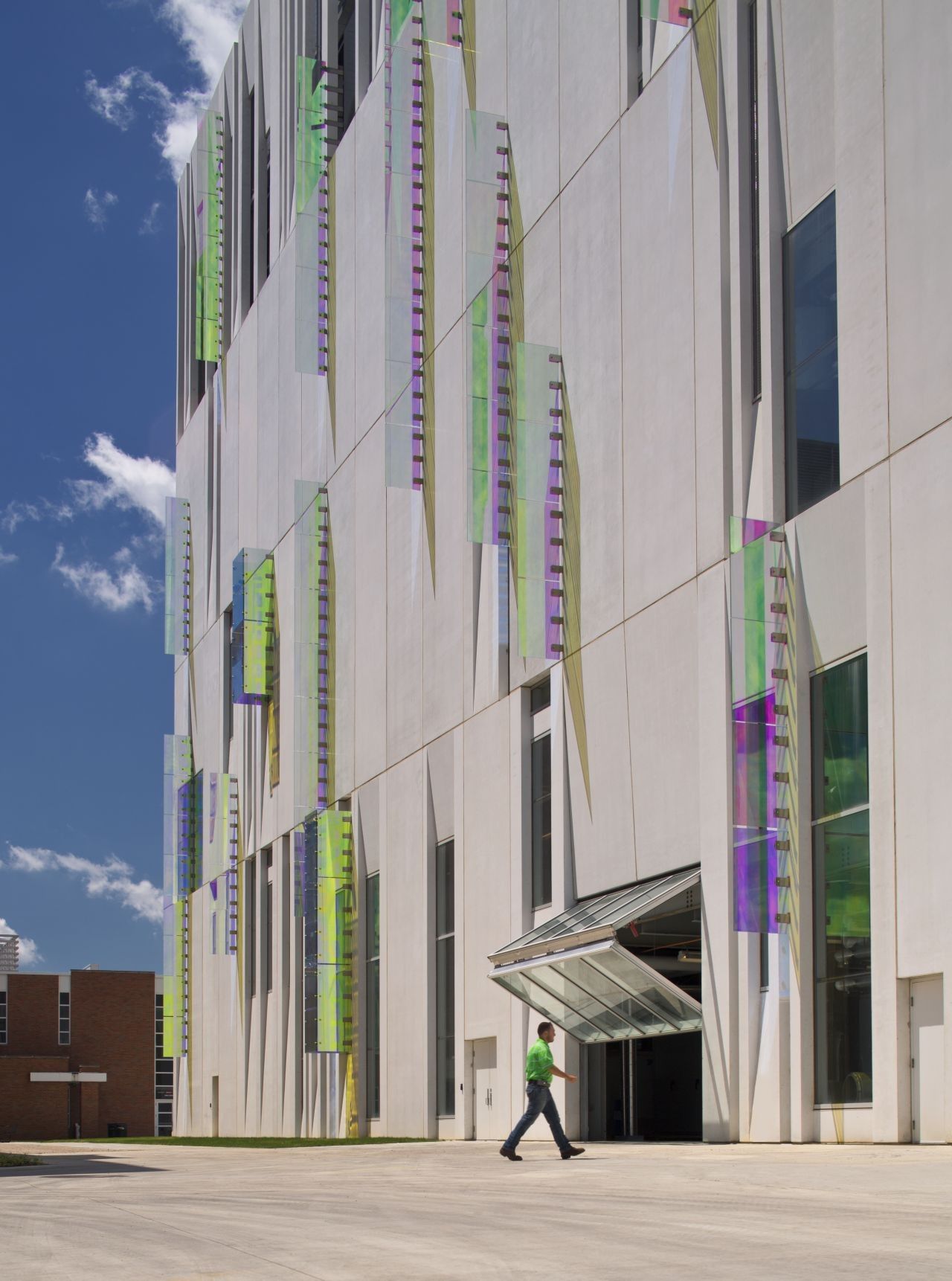

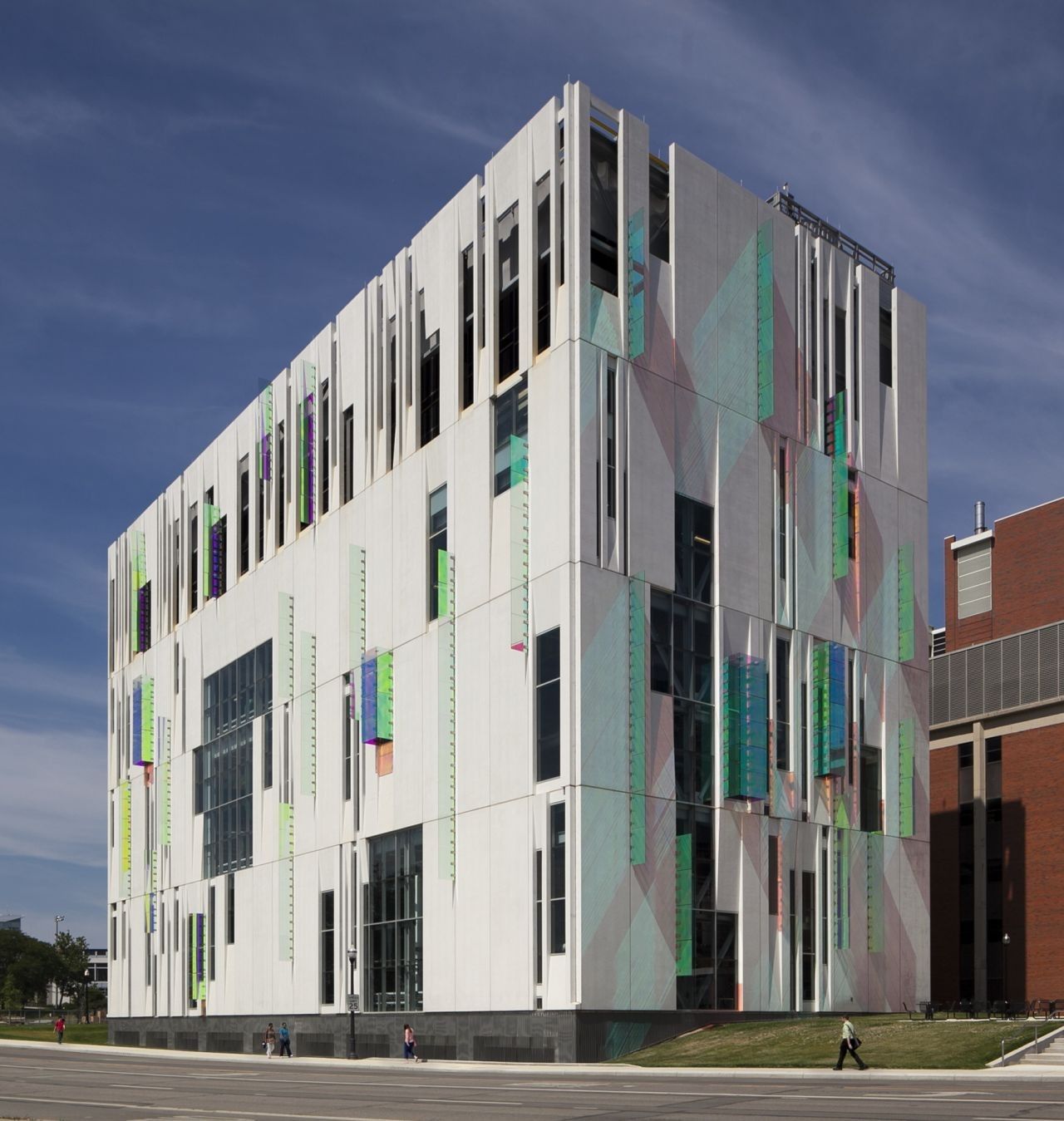

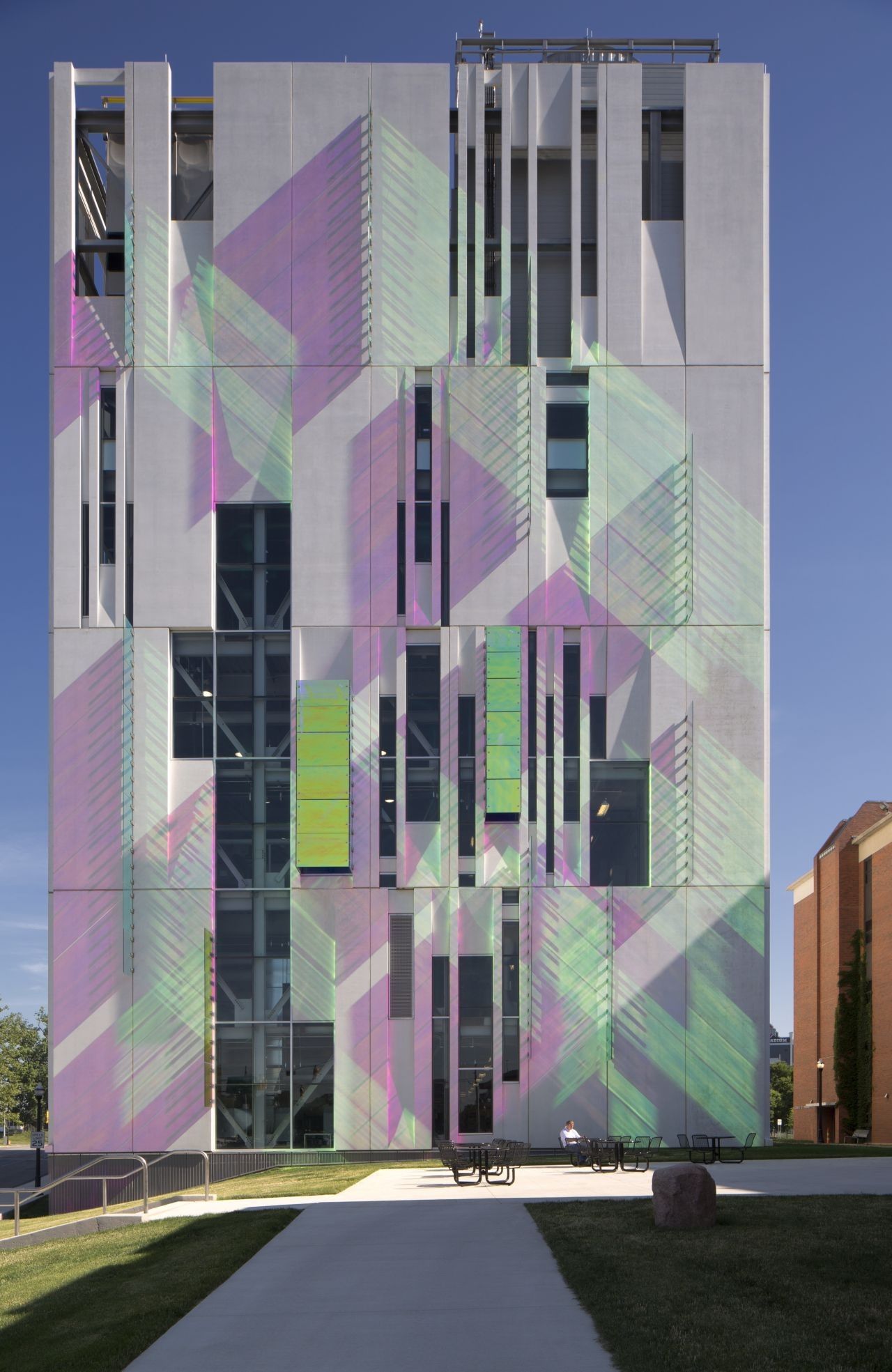

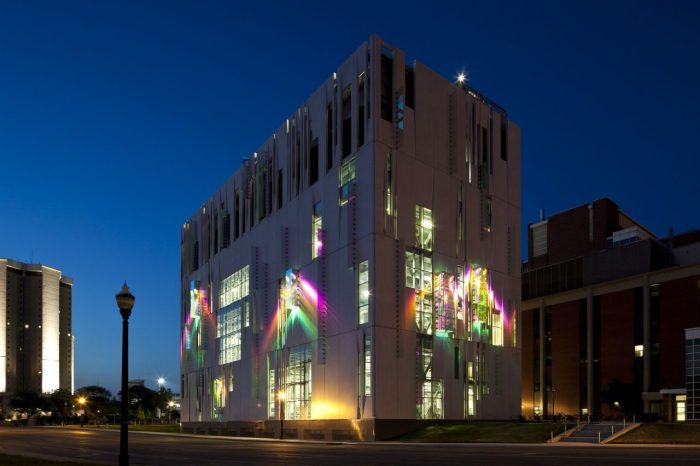

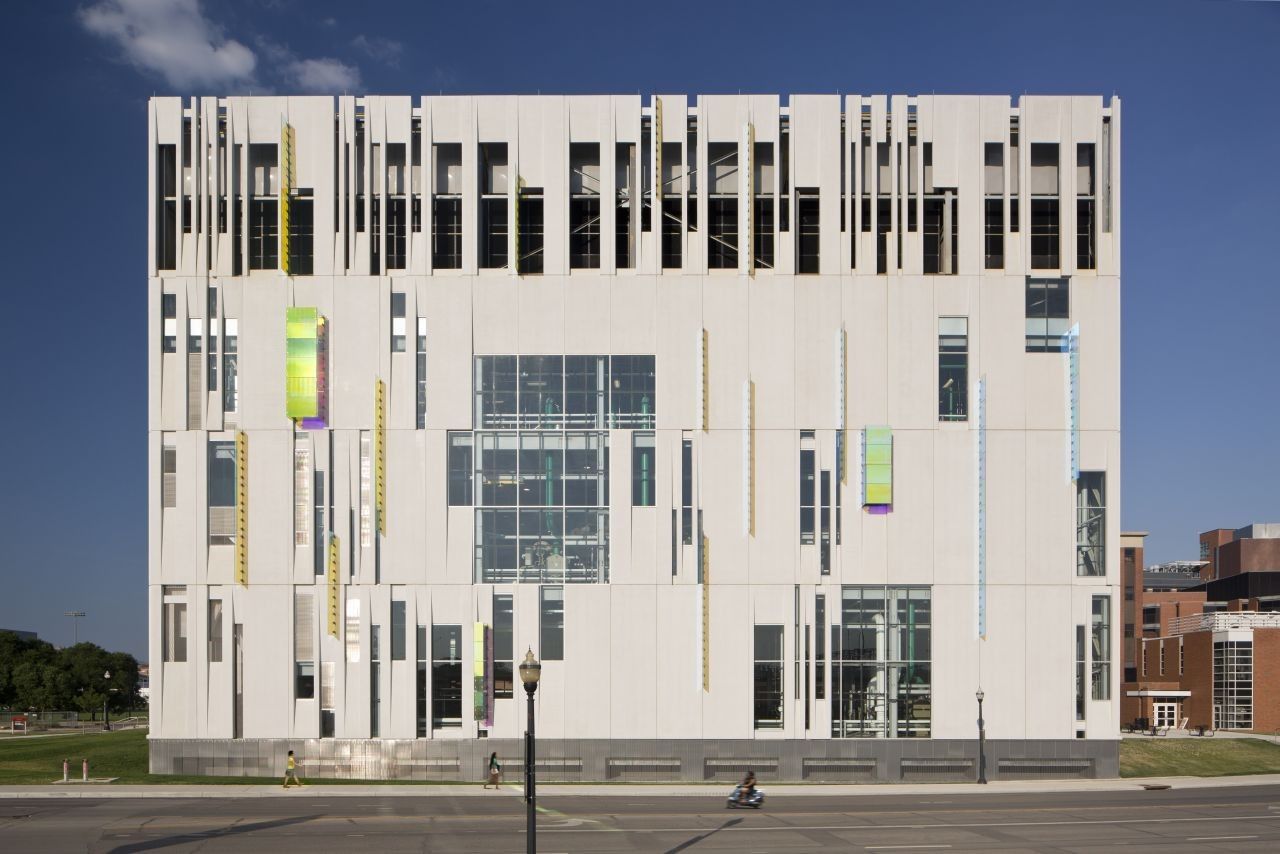

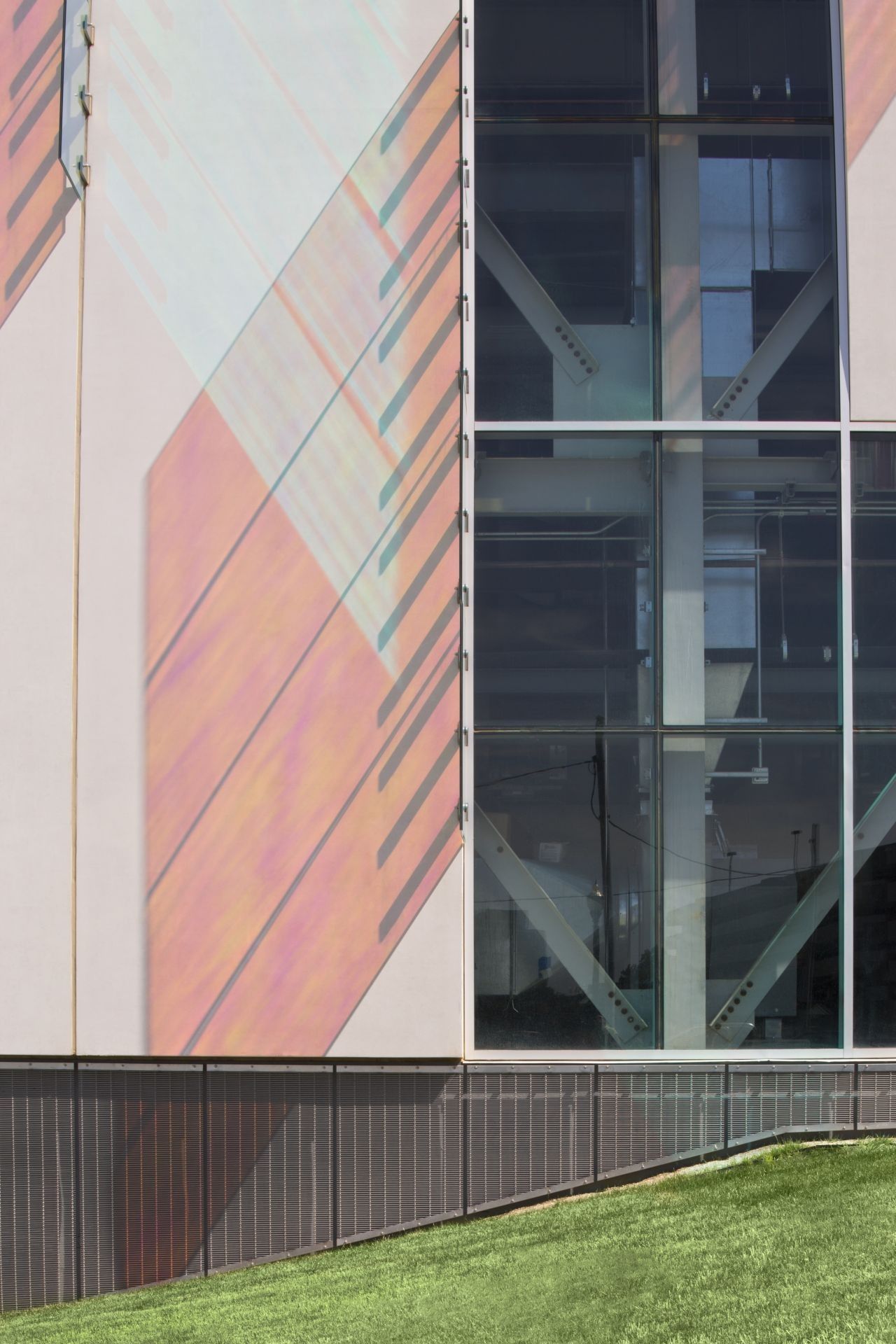

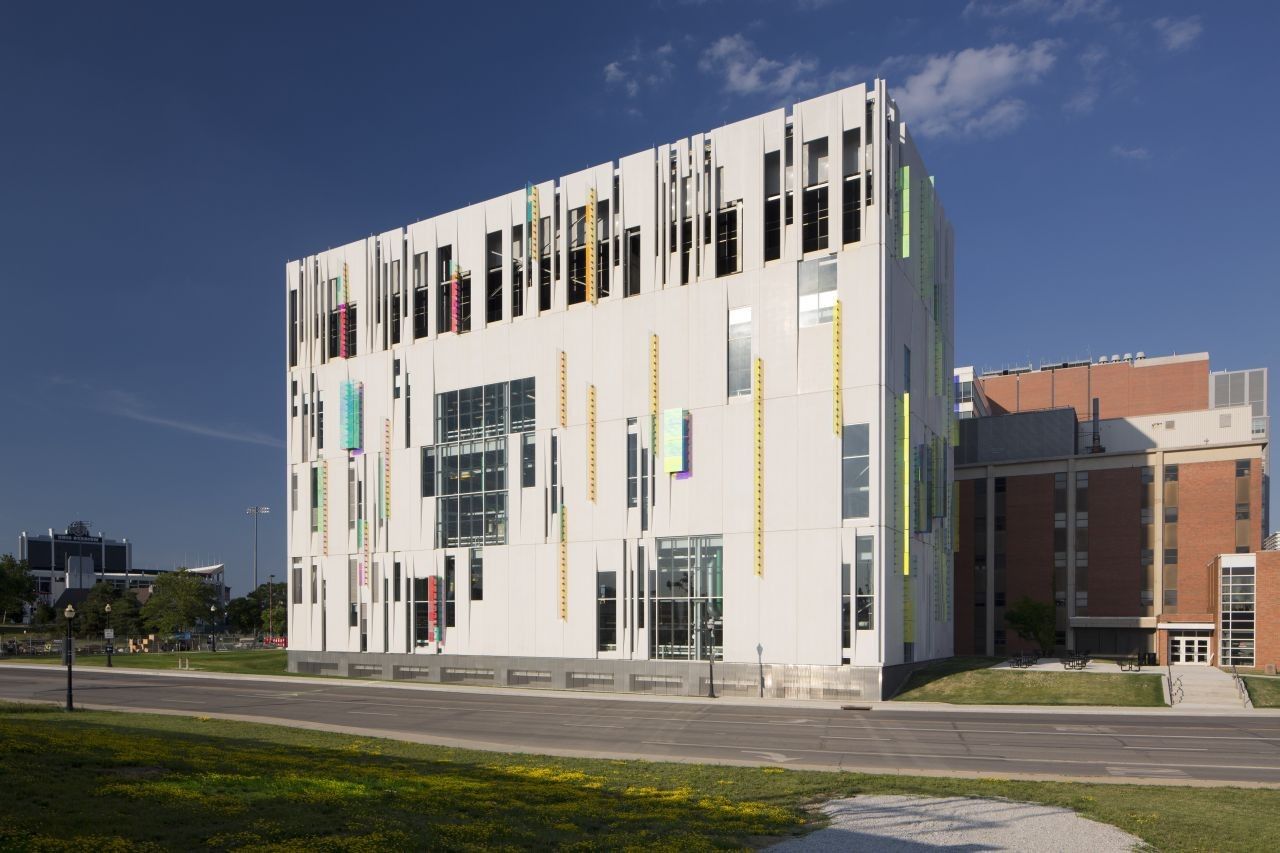

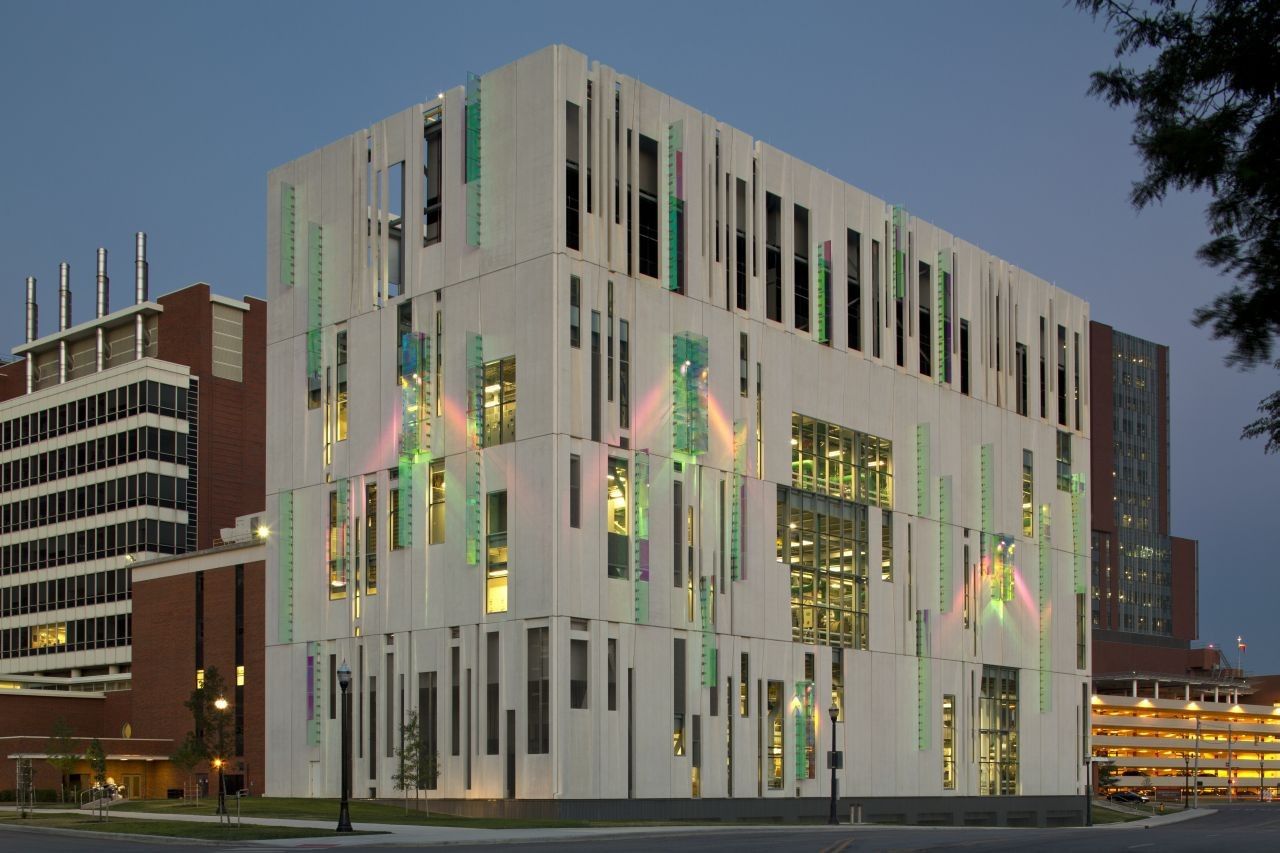

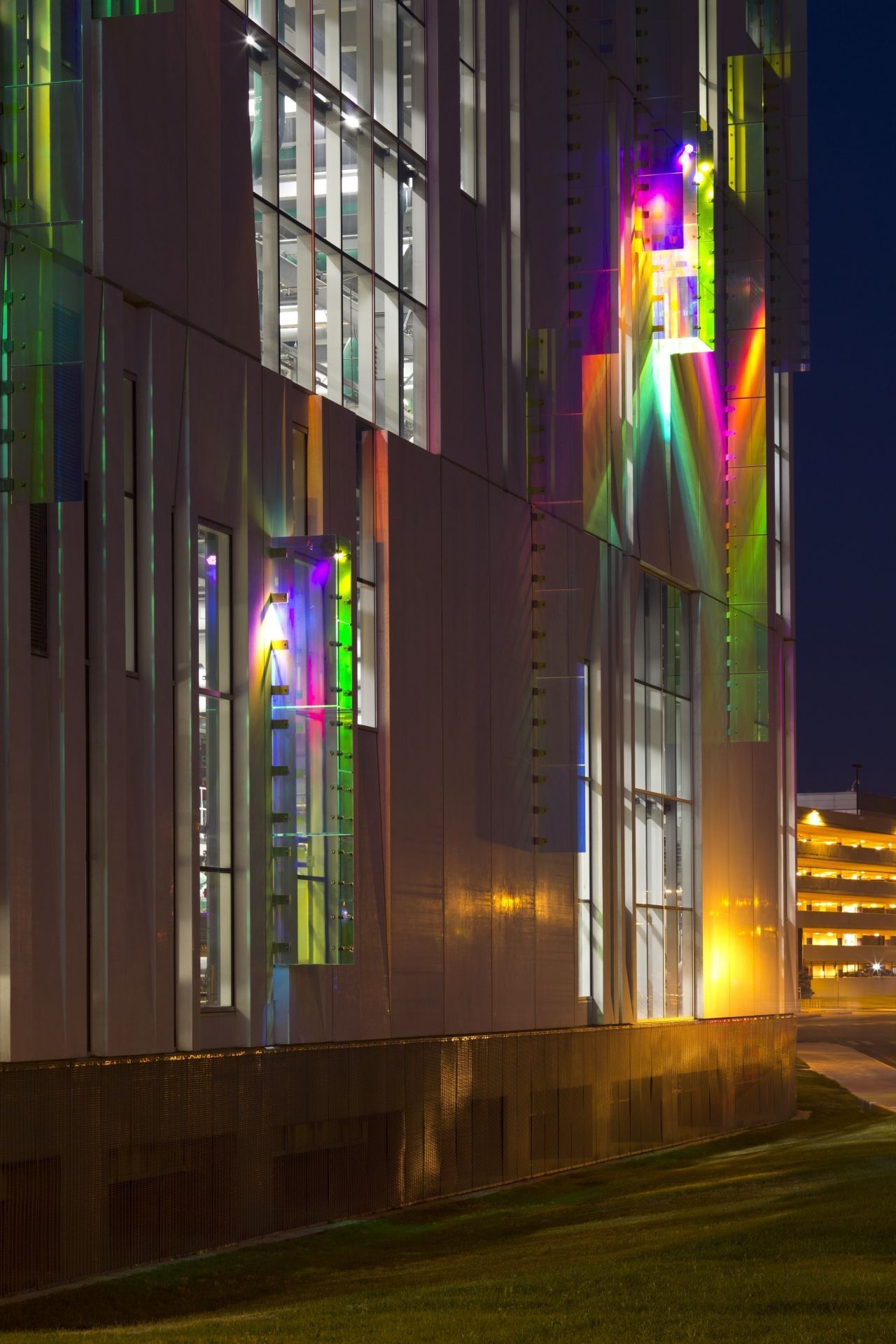

The materials for the new chiller plant will be concrete precast panels with a high sheen polish finish. Large glazed openings are located to help identify the function of the building by framing views of the chiller equipment. Since there are no visible moving parts, dichroic glass fins located in the joints of the precast panels will convey a sense of motion as the colors change from the movement of the sun. The design incorporates sustainable principals and will be integrated with the planning of LEED certification of other District facilities.

Photography by © Brad Feinkopf

Although the building is located at the edge of campus, on a very prominent, visible site, pedestrian movement along Cannon must be considered as an important pathway to the main Campus. To reinforce this, the landscaping around the building will consist of a plaza and landform seating area to engage the pedestrian traffic. Also, as a part of the University’s Framework Plan for the Cannon Drive Corridor, a “pond” of prairie grass will be provided on the west of the building to respond to the revitalization of the greenscape along the nearby Olentangy River.

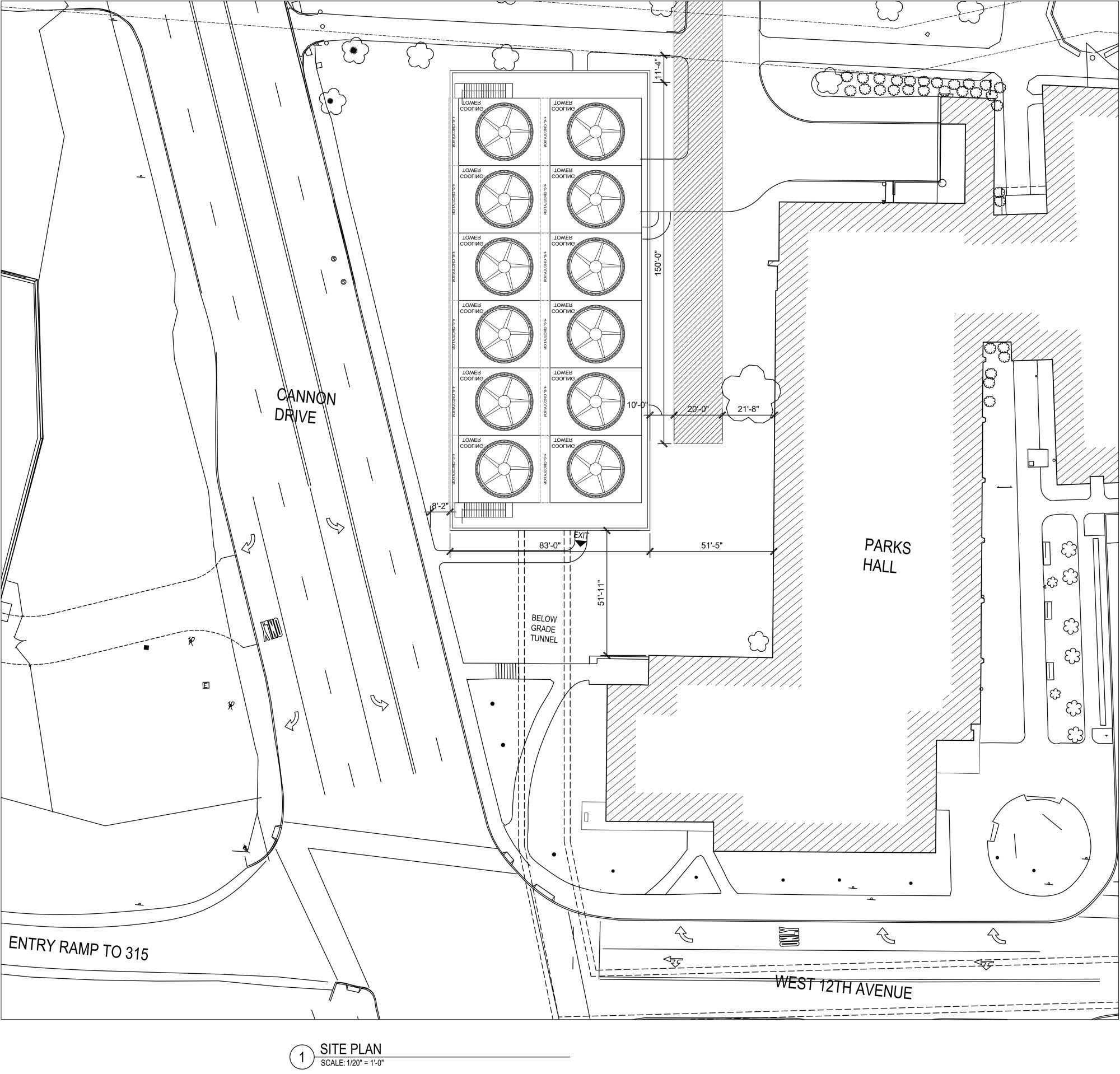

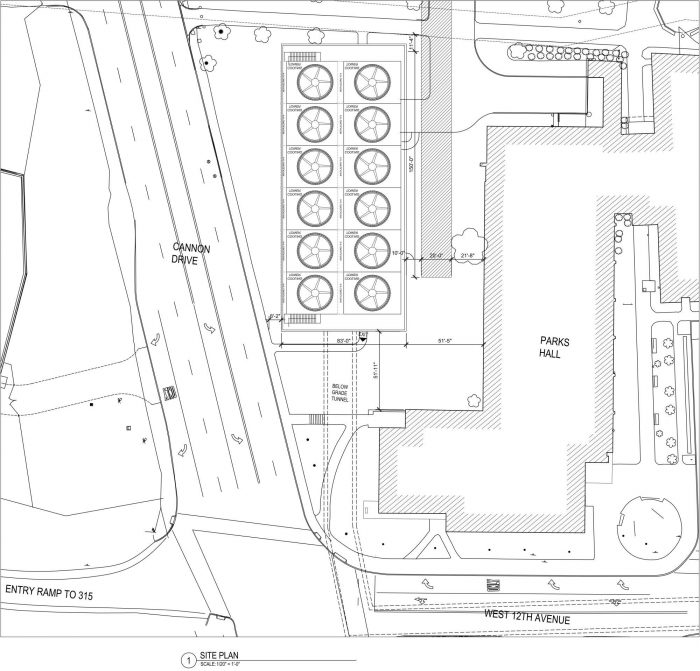

Site Plan

Project Info:
Architects: Ross Barney Architects
Project Year: 2013
Project Area: 95750.0 ft2
Photographs: Brad Feinkopf
Manufacturers: Goldray Glass
Local Architect: Lupton Rausch
Principal in Charge: Eric Martin
Design Principal: Carol Ross Barney
Architect of Record: Champlin Architects
Project Architect: Jonathan Graves, Marc Anderson
Design Team: Ryan Giblin, AIA, LEED AP; Huili Feng
Project Location: 500 W 12th Ave, Columbus, OH 43210, USA
Project Name: South Campus Central Chiller Plant
