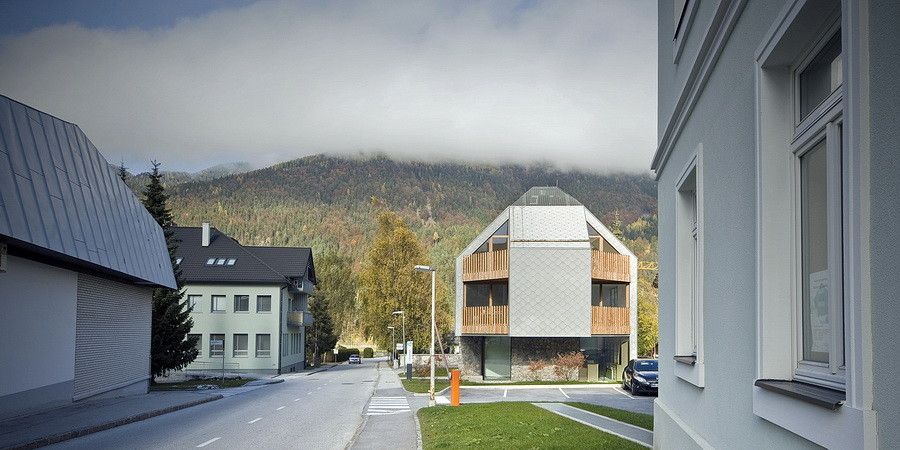

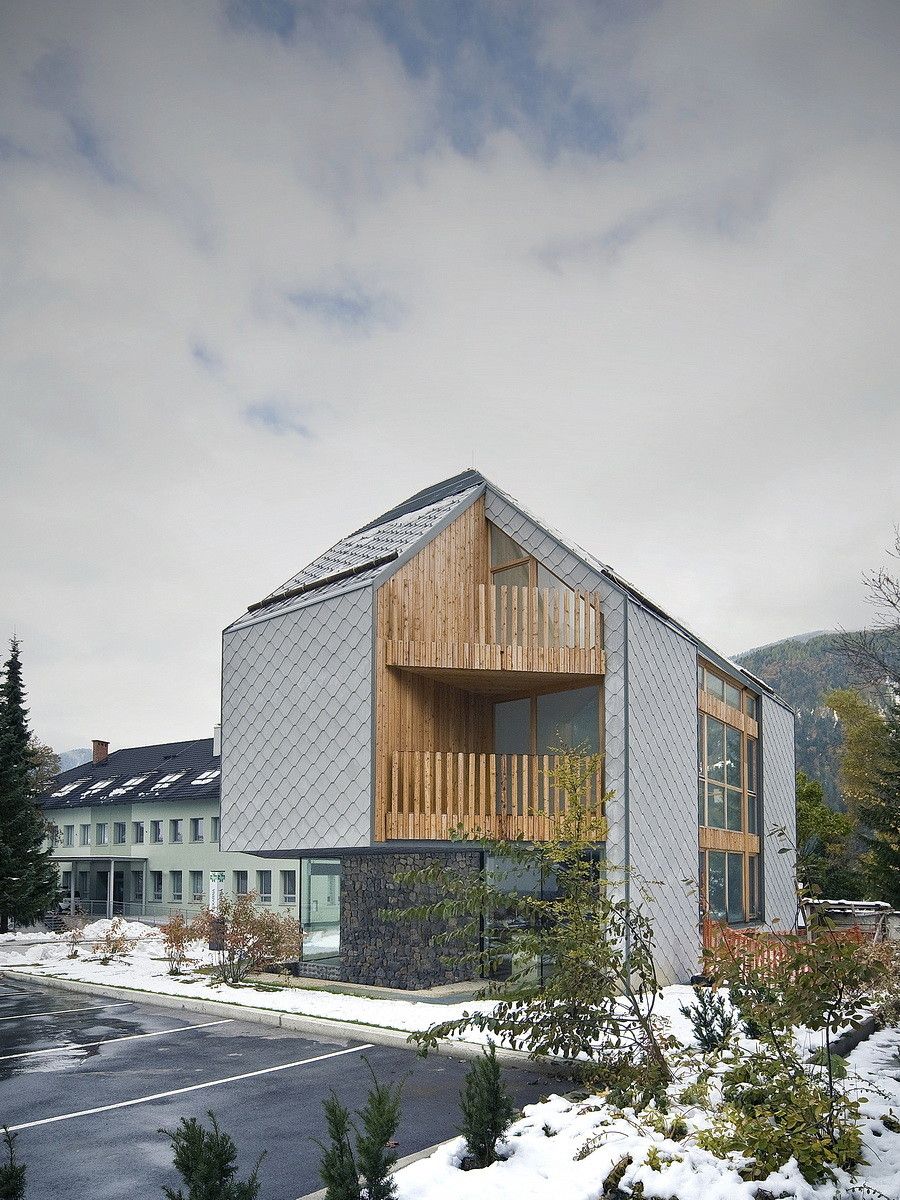

Designed by OFIS Architects, Alpine Skiing Apartments is located in the Slovenian alpine town Kranjska Gora on the northwestern corner of the country. The brief required a public ground floor and small apartments on the upper floor that could be converted into bigger units.

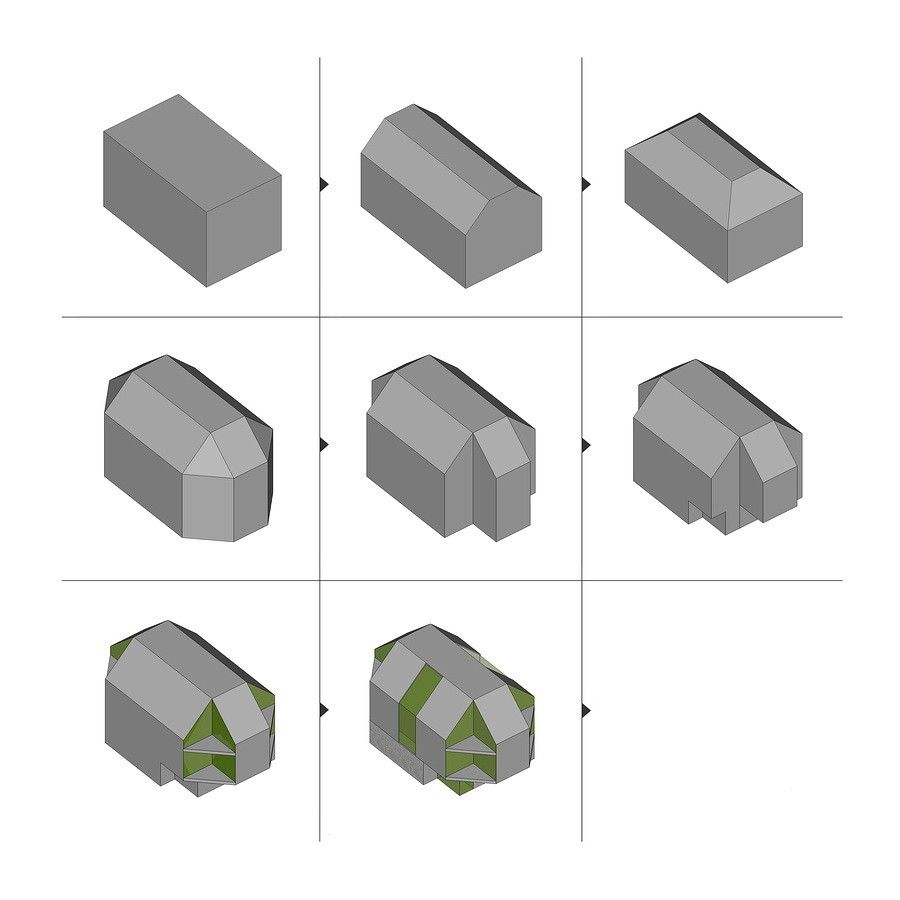

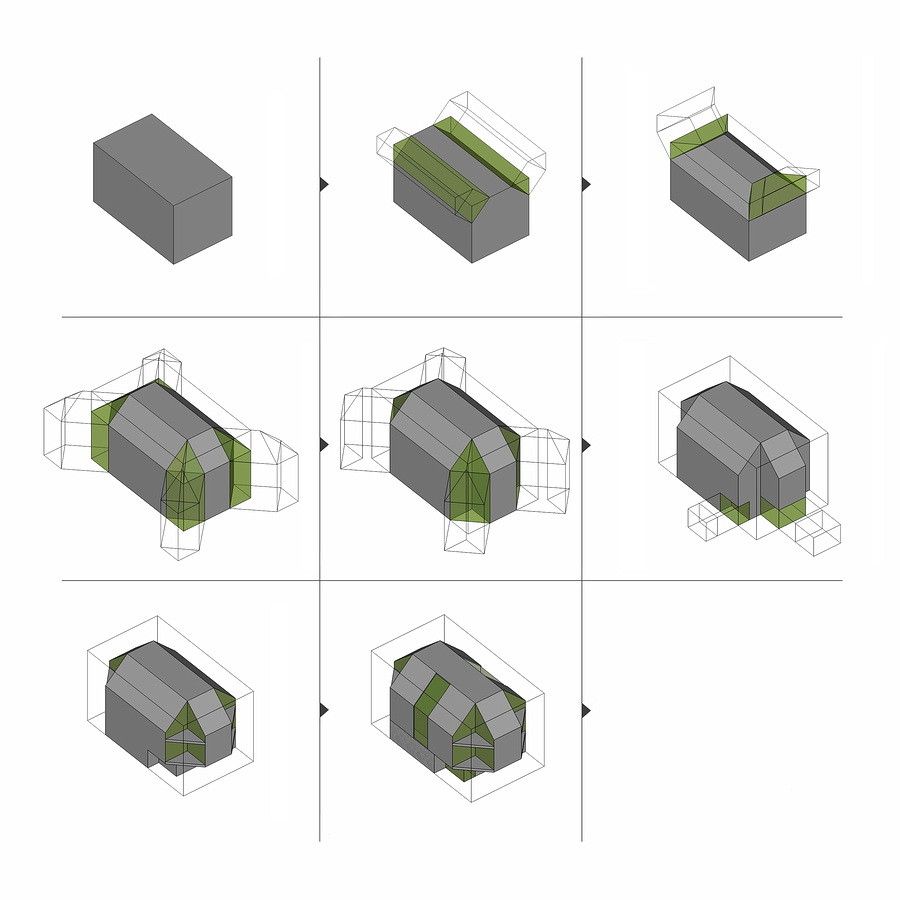

The concept design was initially dictated by strict local building regulations, height and footprint plot limit which partially led to the building form. The first step was pasting maximum volume on the site -a cube on the allowed urban footprint. The final form derived from cutting the cube in the vertical and horizontal planes.
Courtesy of OFIS Arhitekti

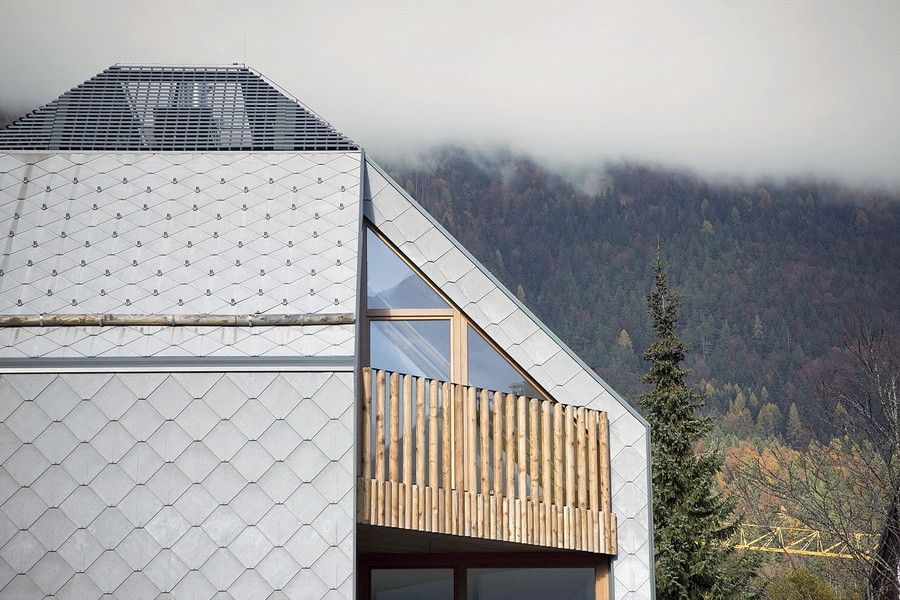

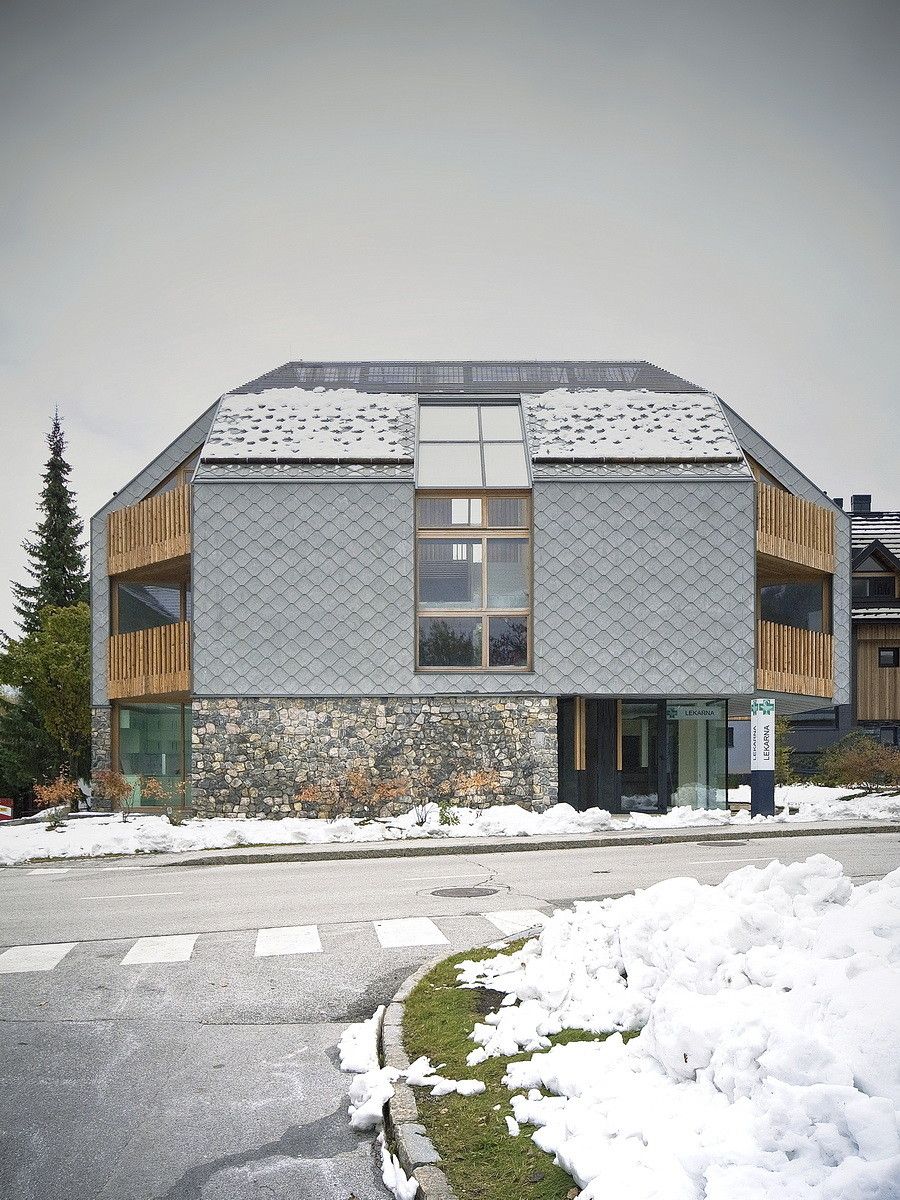

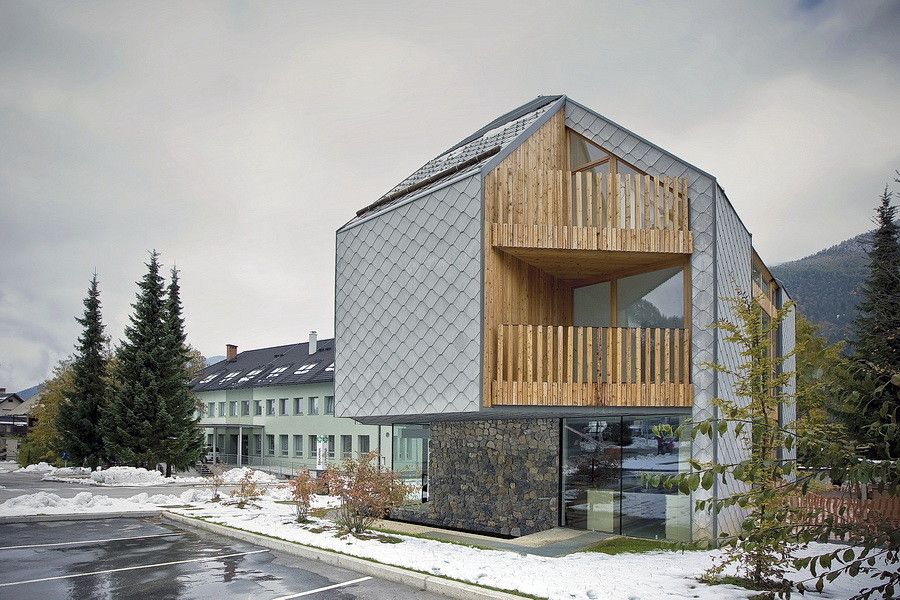

Horizontal cut – pitched roof with a flat top to hide service ventilation pipes and chimneys. Vertical cut – angled corners with inserted wooden balconies allowing the building a softer, less substantial volume appearance.

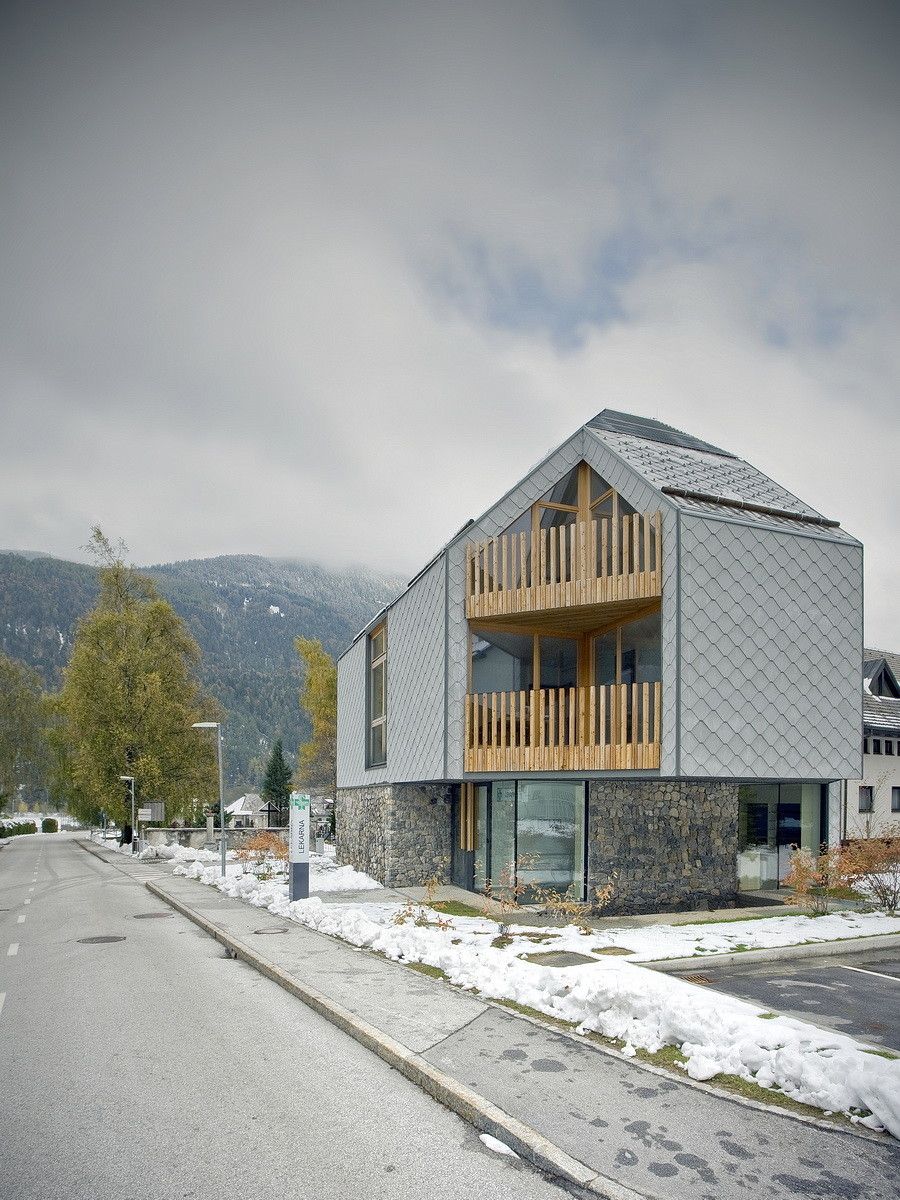

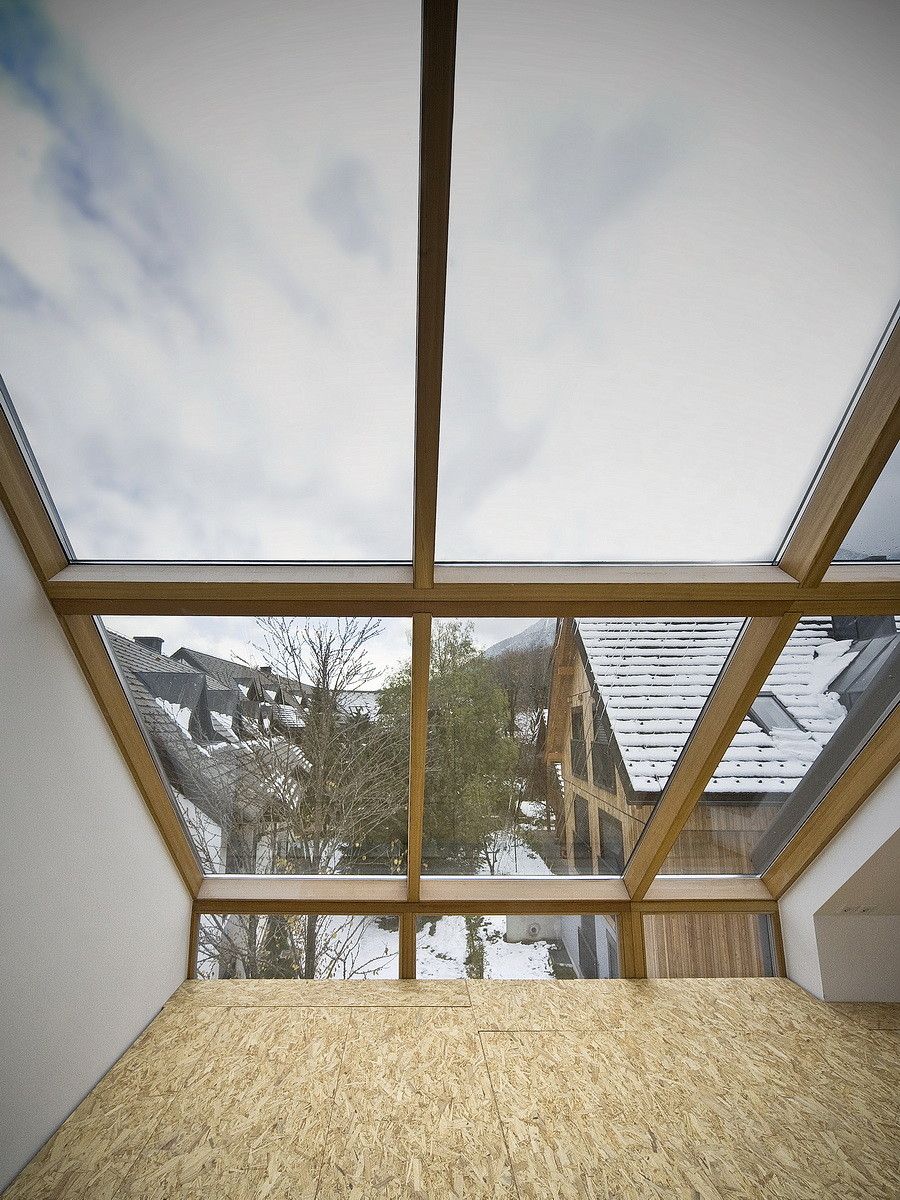

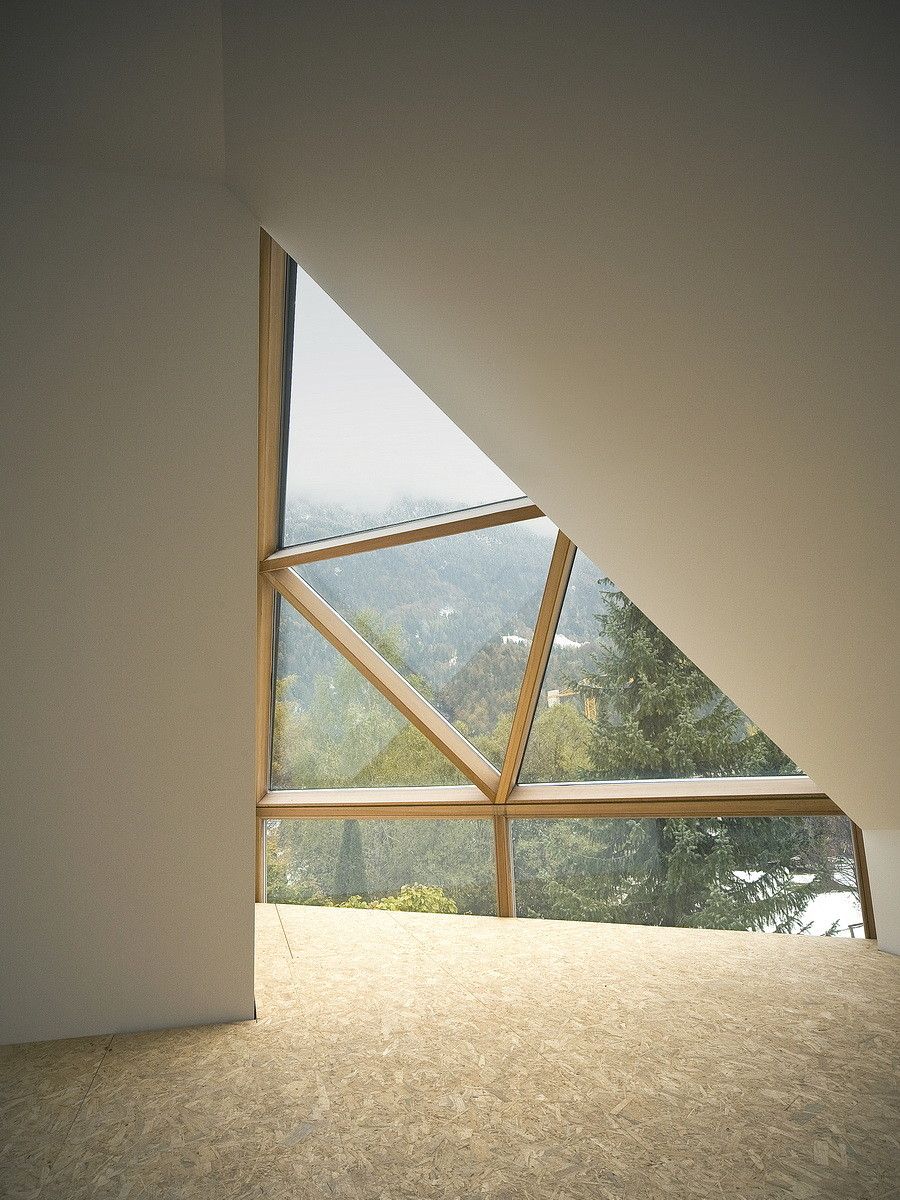

The pharmacy is located on the ground floor with larger glazed elements and a recessed entrance creating a more open and inviting level for the public space. First and second floors contain 6 studio apartments of different sizes, each with own balcony and large glazed opening affording views towards the surrounding mountains. The basement level is a communal space with a shared area, sauna and leisure room.

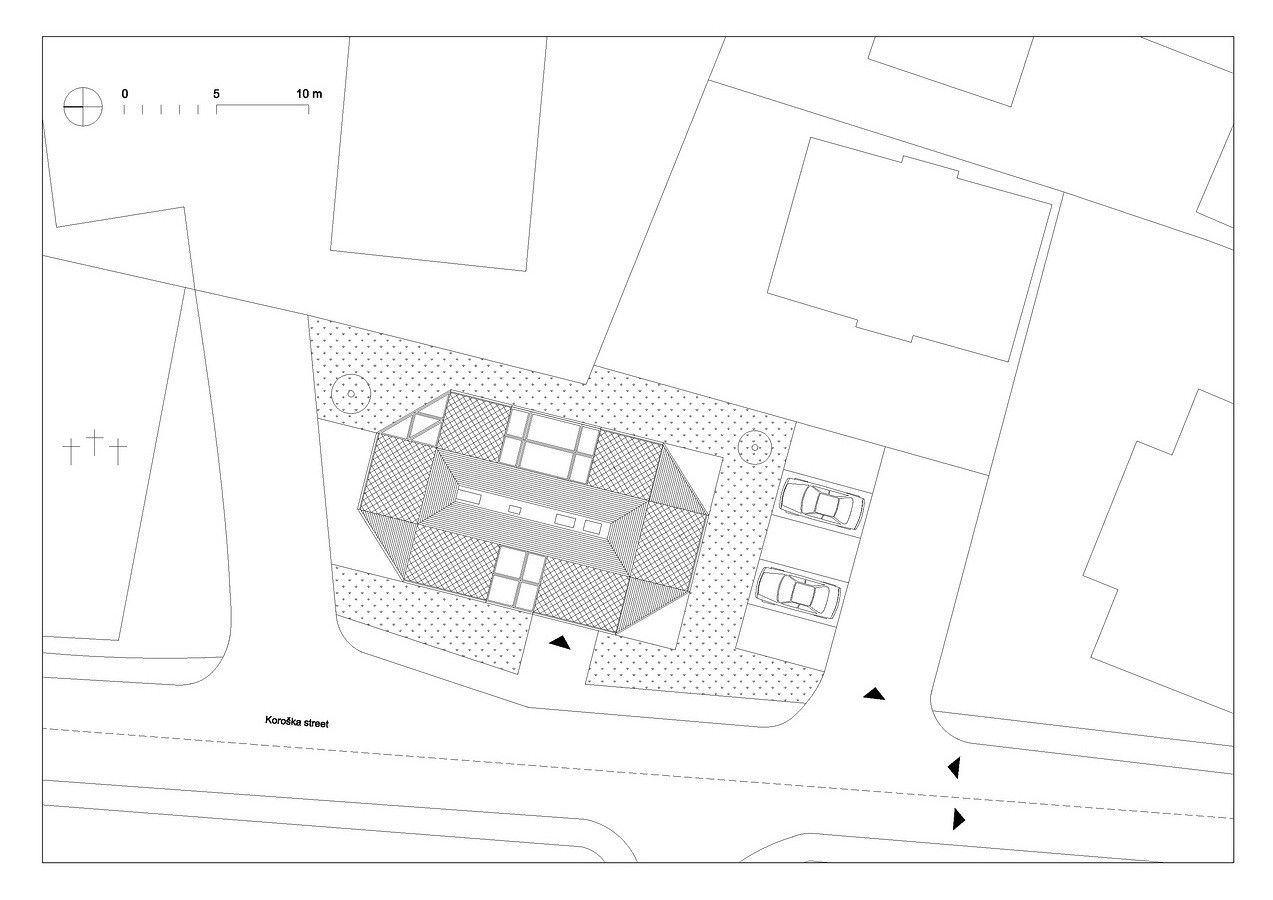

Site Plan

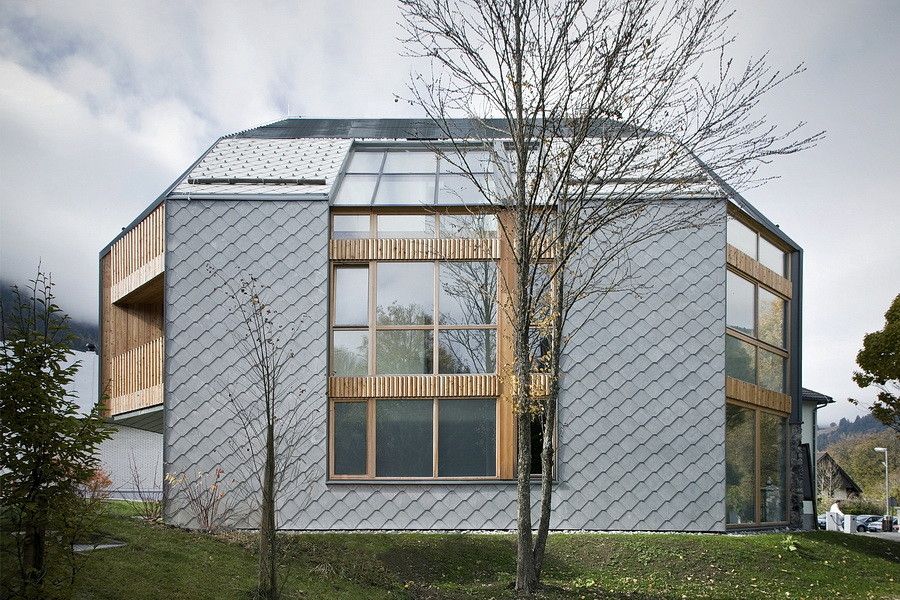

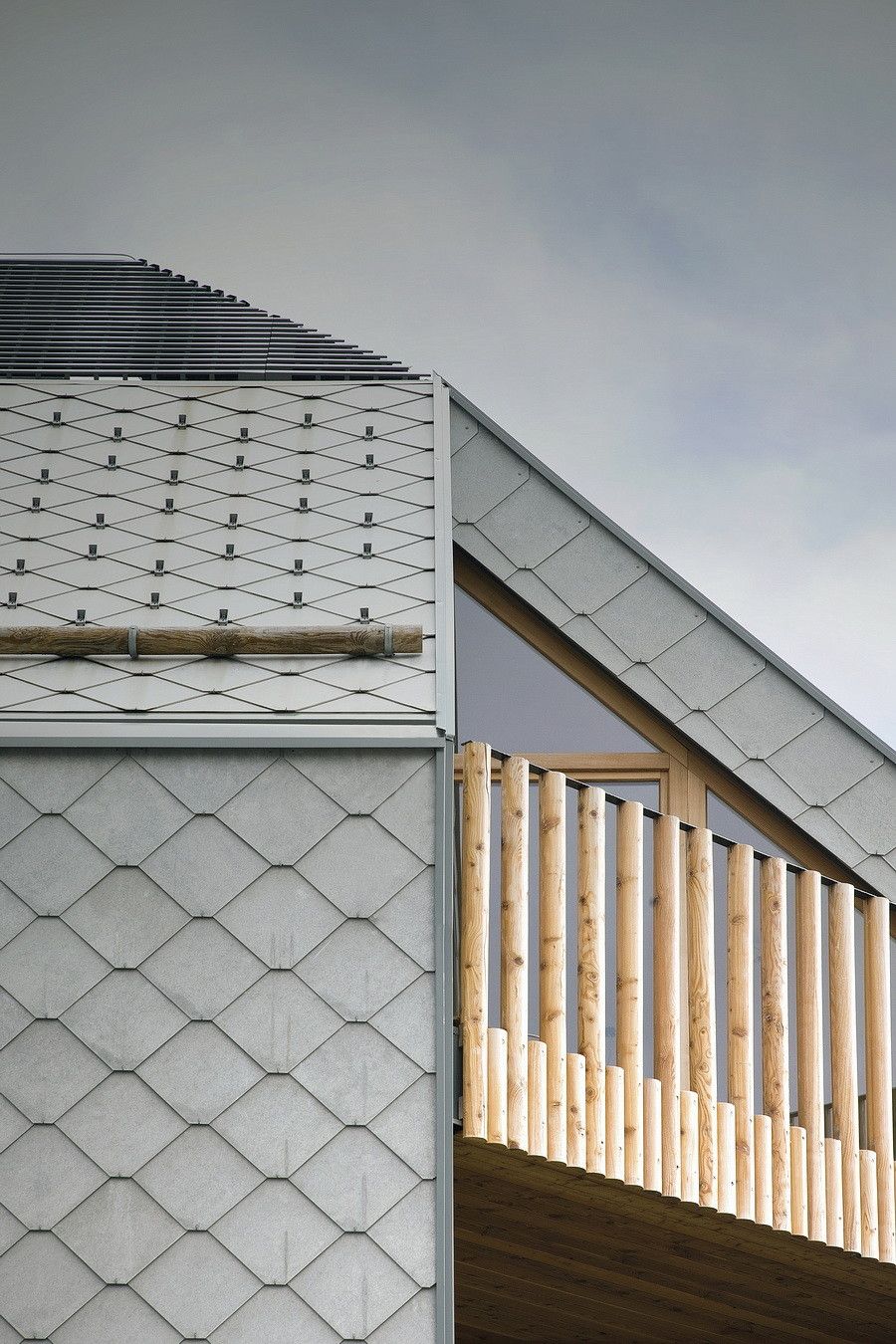

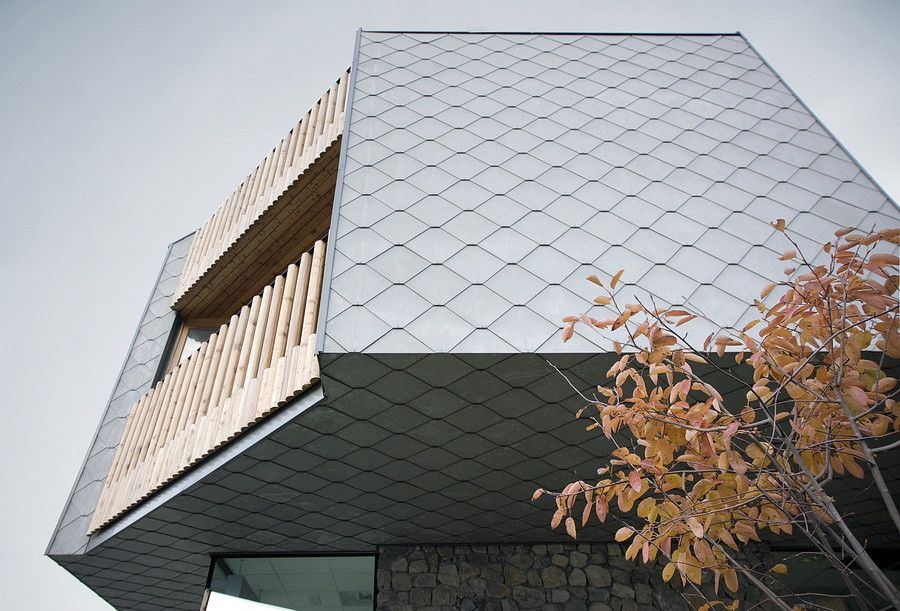

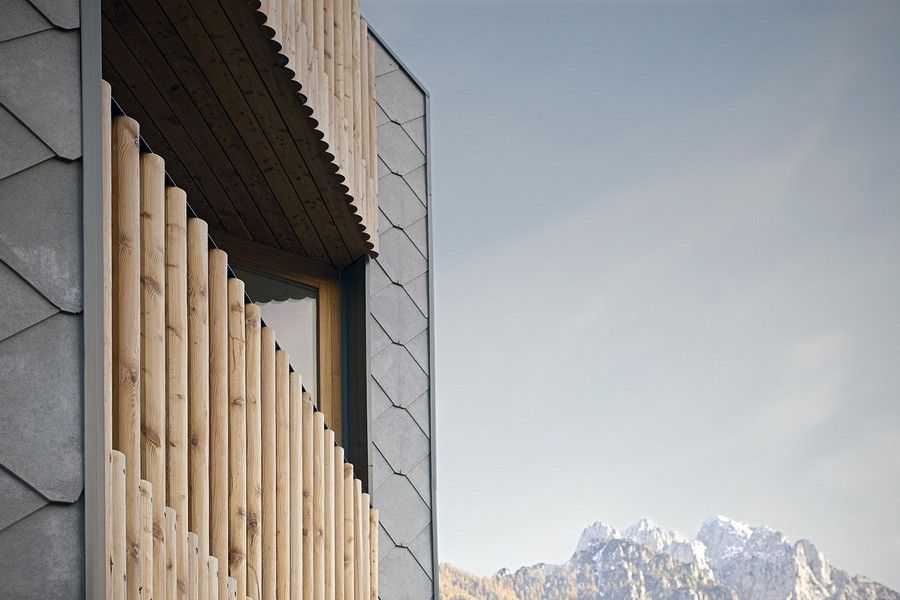

The materials used have also been chosen as a response to the local historical tradition, using materials to emulate those of the existing building environment. Cement tile cladding as the principal material which visually gives the impression of a tiled roof, however, provides continuous skin which is used on both the roof and walls to emphasize the form of building further.

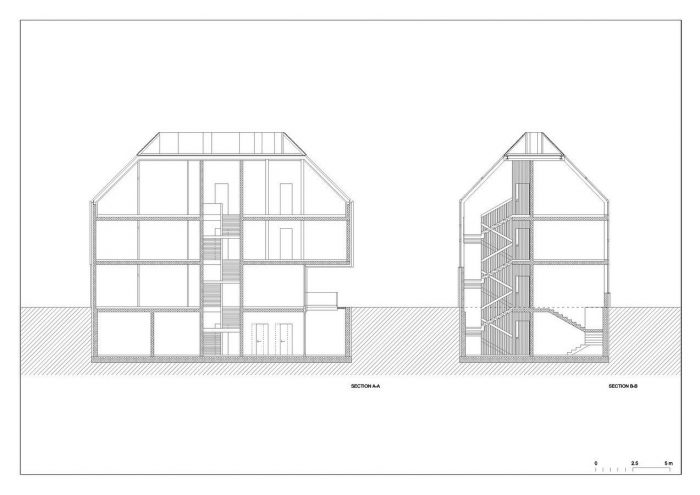

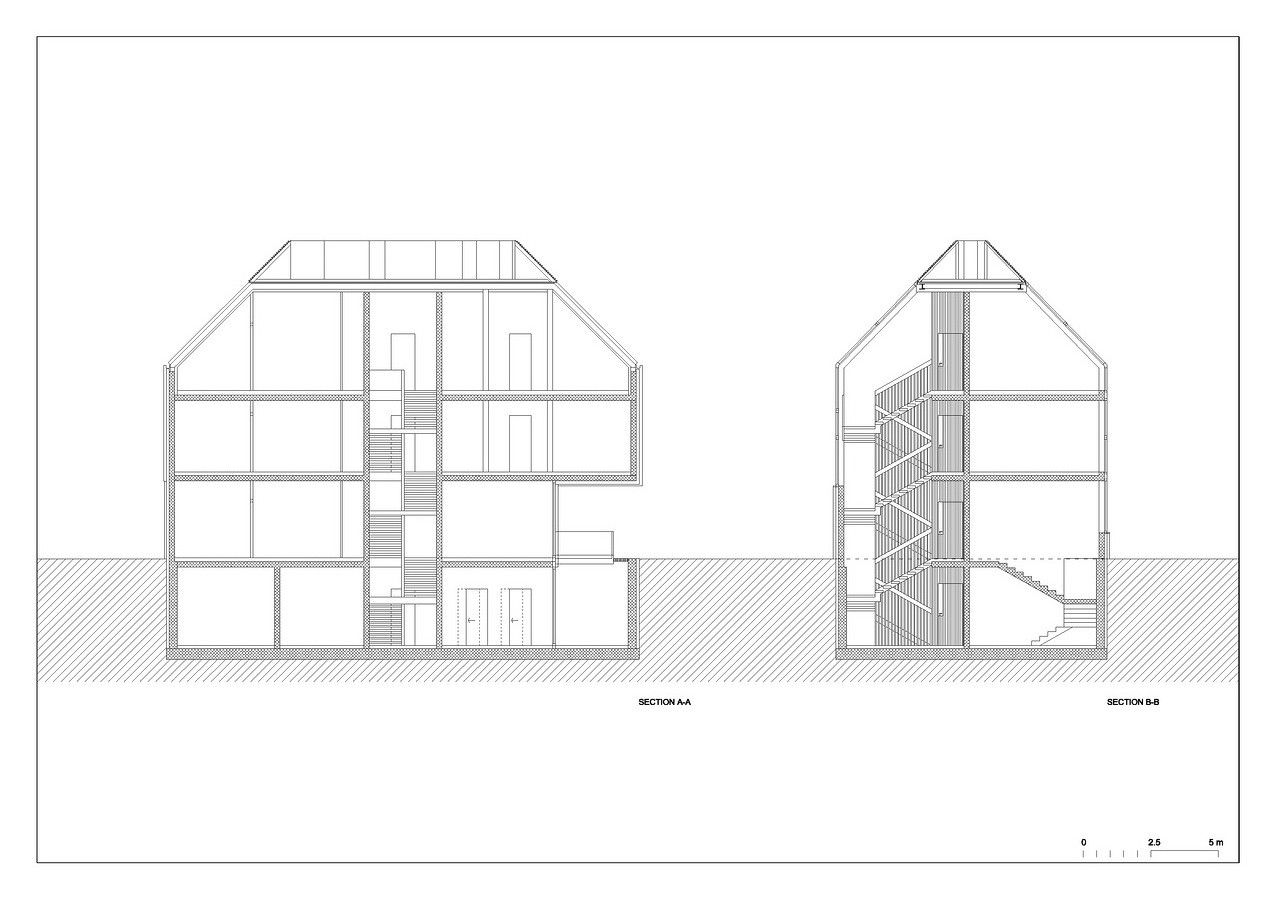

Section

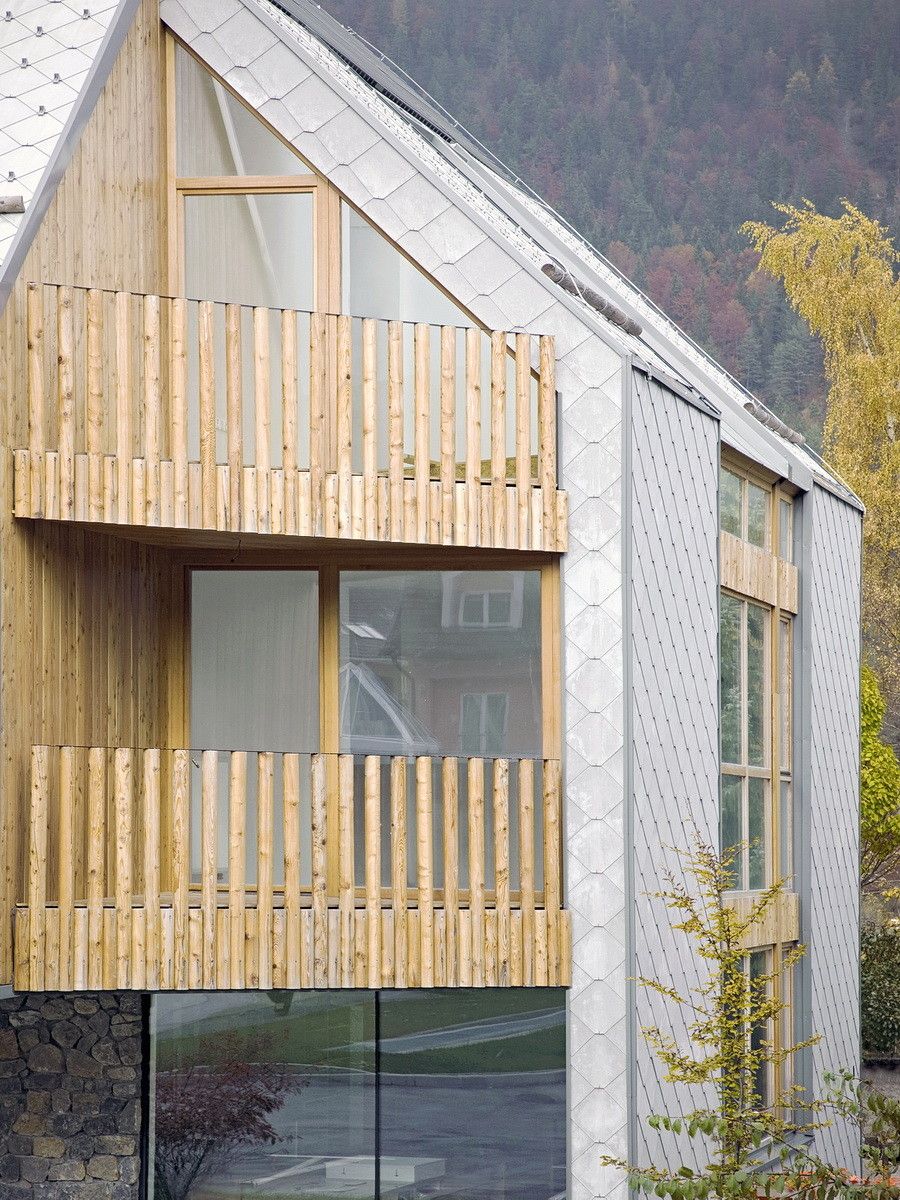

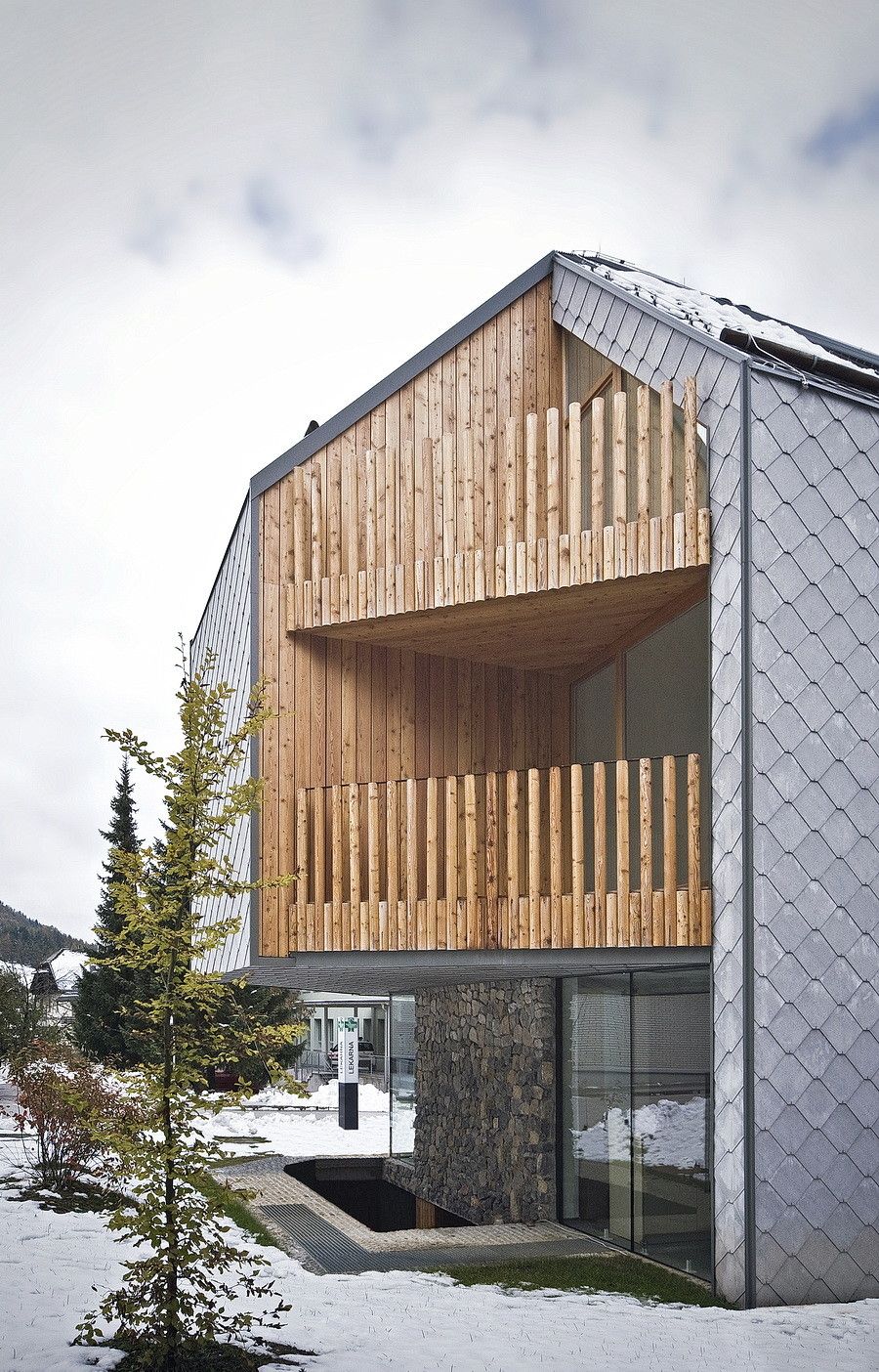

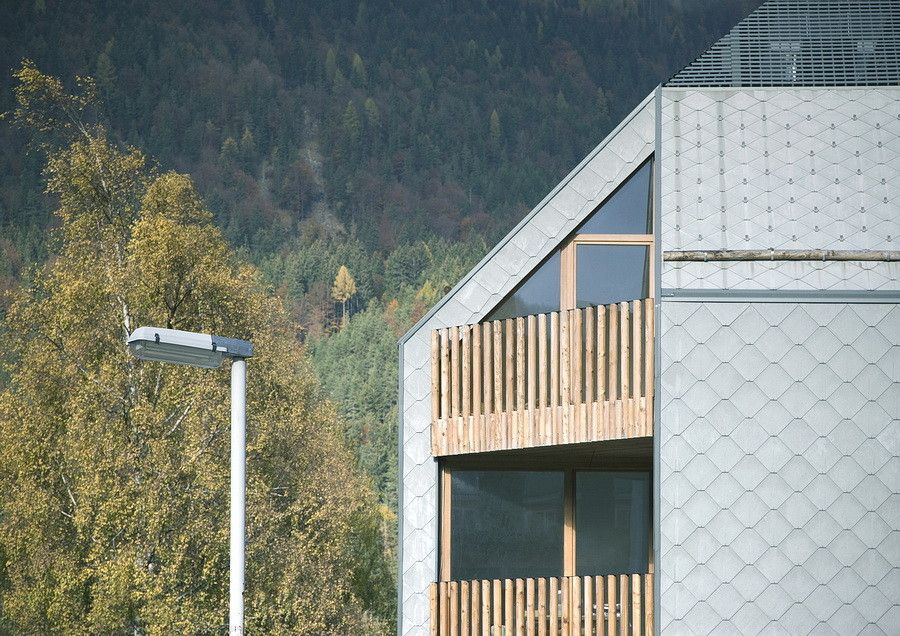

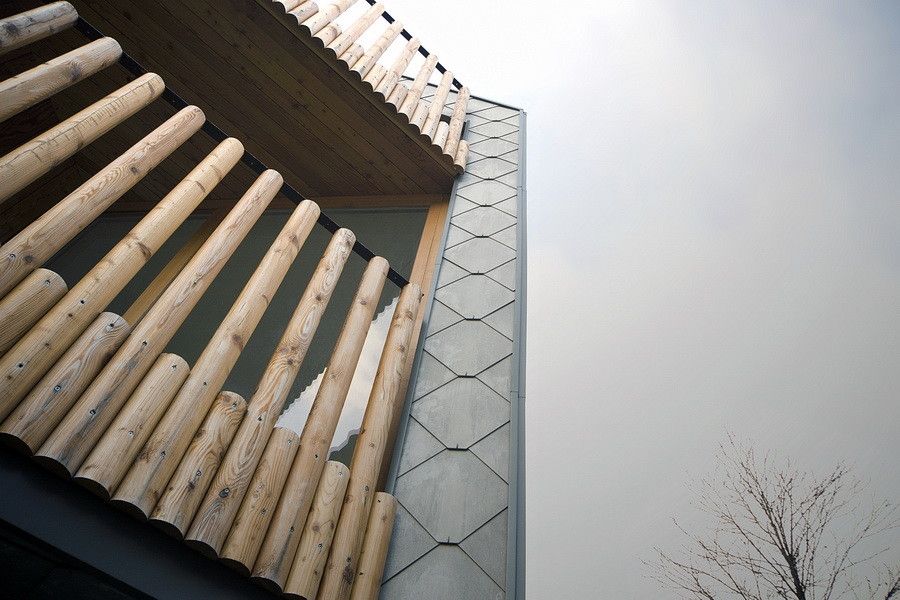

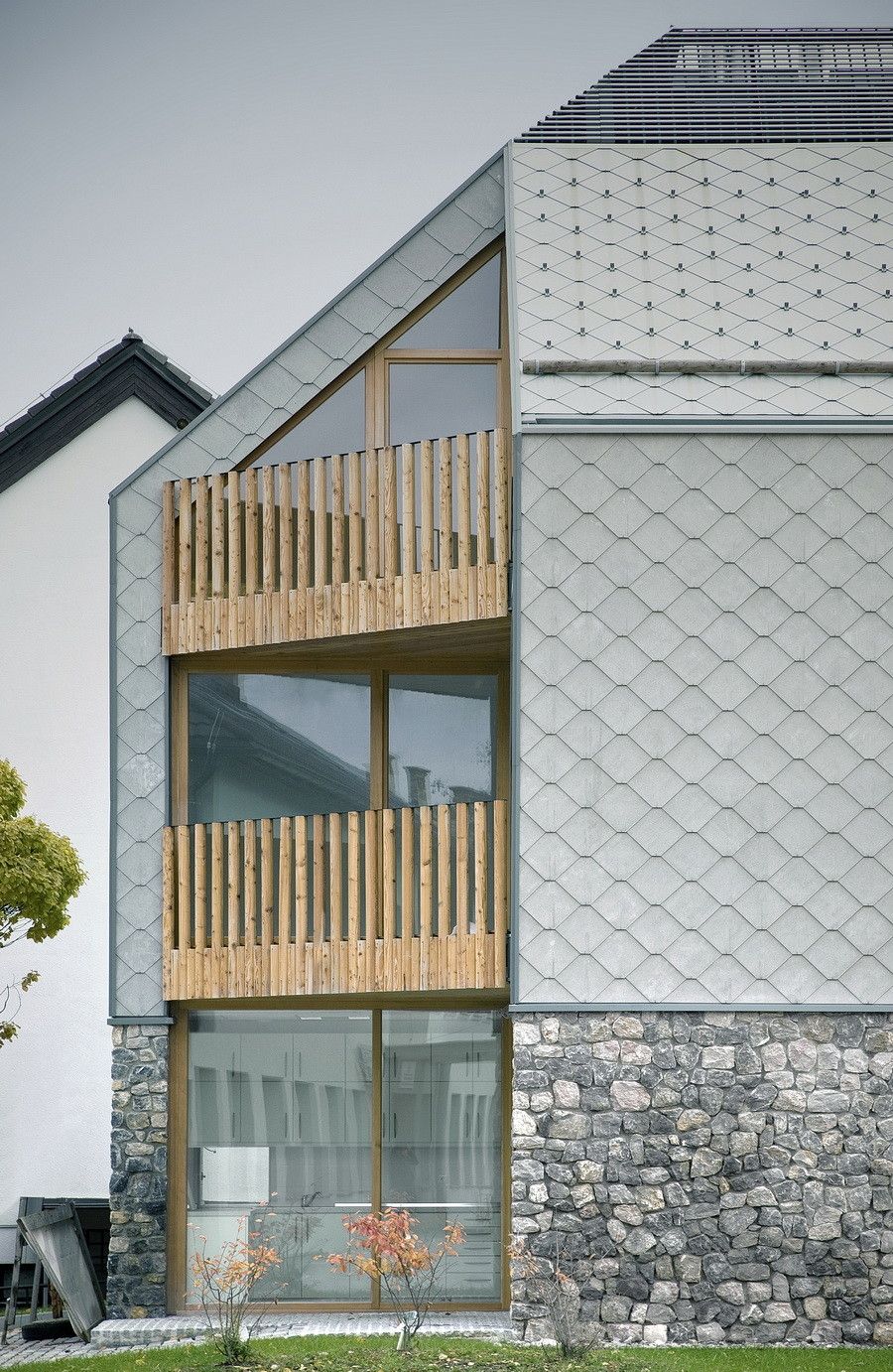

Larch is used for the balconies on the corners of the building in order to indicate the location the buildings form has been cut to reveal external spaces for the apartments. Natural stone from the region is used as a material for the ground floor to indicate the entrance and difference between private and public areas. Both of these materials have been chosen due to their use historically in local traditional architecture.
Courtesy of OFIS Arhitekti
Project Info:
Architects: OFIS Architects
Location: Kranjska Gora, Slovenia
Client: GRADIS G Group d.d
Area: 457.0 m2
Project Year: 2011
Project Name: Alpine Skiing Apartments
All Images Courtesy Of OFIS Architects
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS ArhitektiCourtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS ArhitektiCourtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-
- Courtesy of OFIS Arhitekti
-

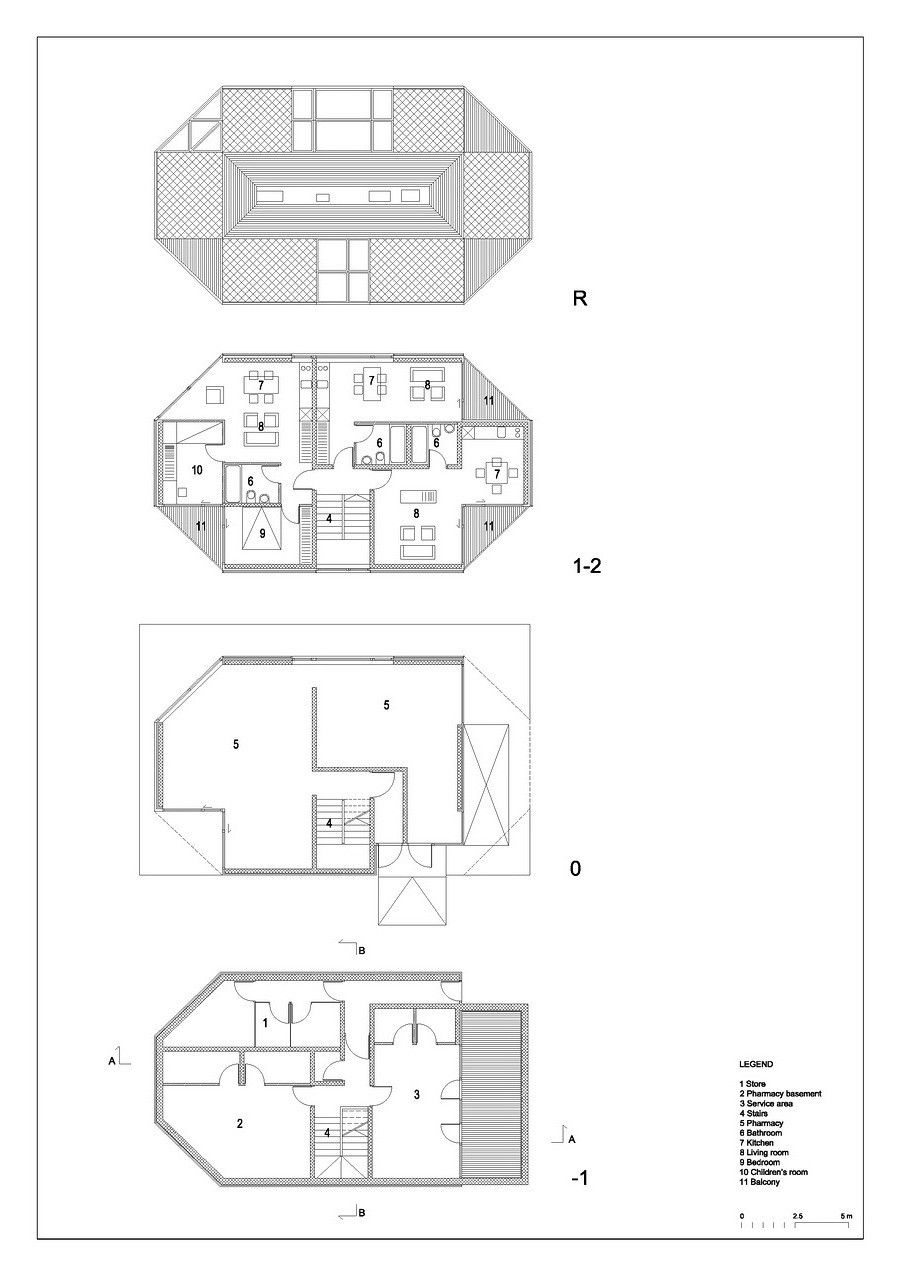

- Plans
-
- Site Plan
-

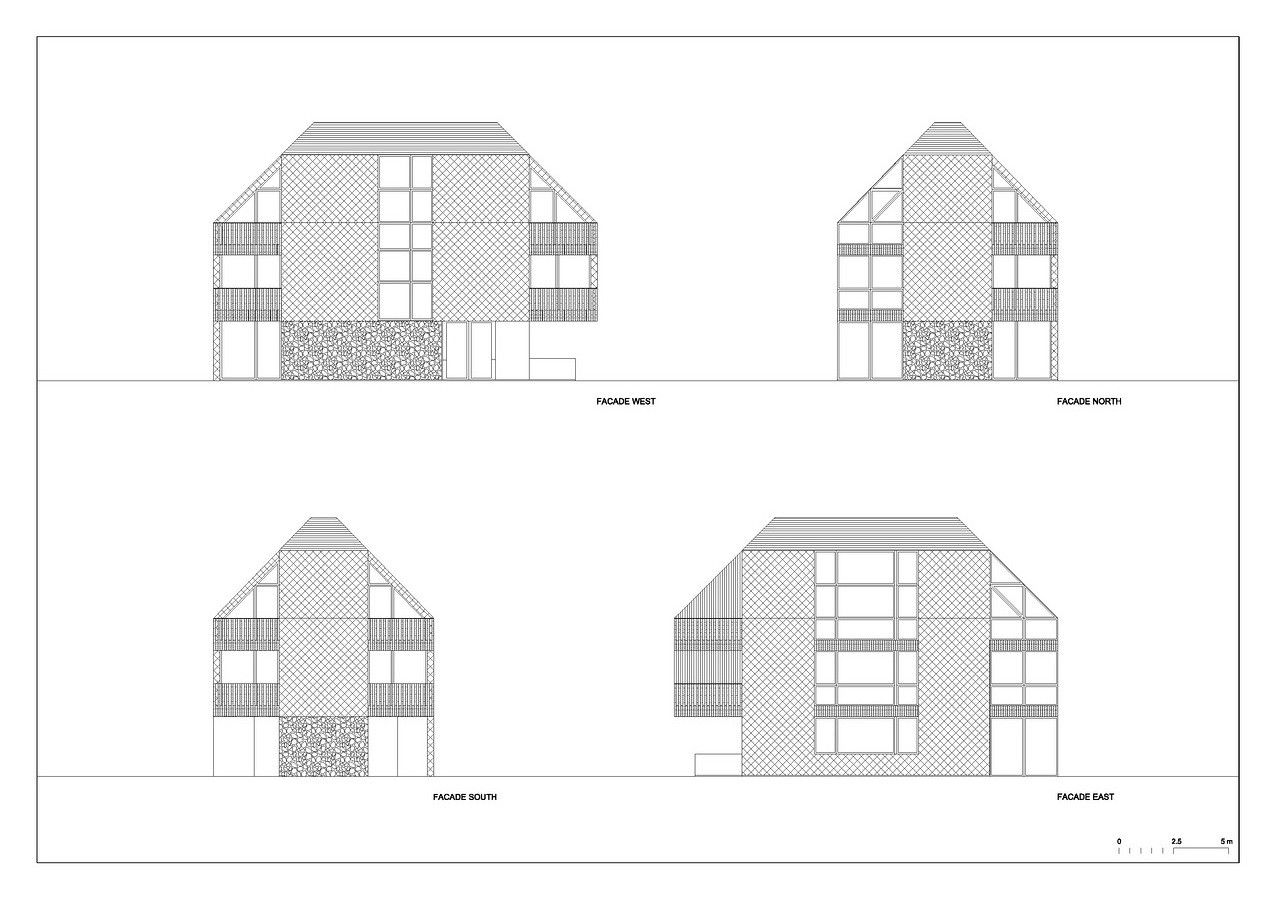

- Elevations
-

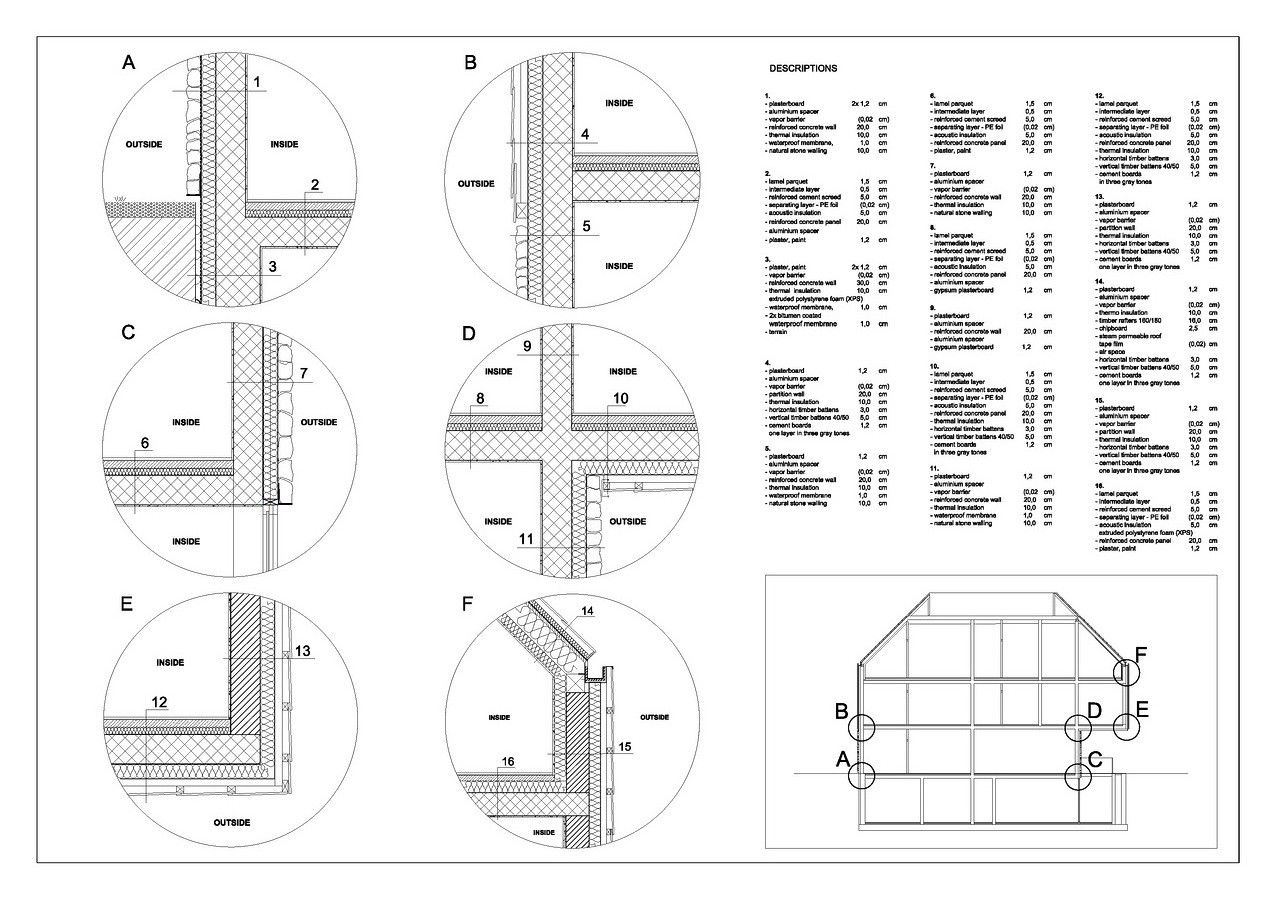

- Details
-
