Energy Environment Experiential Learning

Located at the University of Calgary, the Energy. Environment. Experiential. Learning (EEEL) building is a five-storey, 24,531 sm undergraduate teaching facility that allows students to learn in an experiential and hands-on environment. Imagined as a building that ‘connects the dots’, EEEL is sited on the northern edge of the campus and links together a series of previously disconnected buildings.

Courtesy of Perkins+Will + DIALOG – Photography: Tom Arban

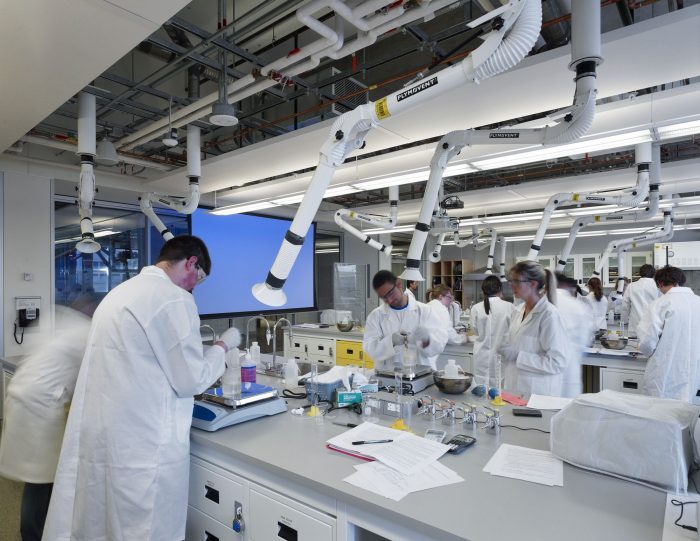

EEEL contains approximately 11,000 sm of teaching laboratories and 2,500 sm of classroom and seminar space. The area is also provided for up to 3,000 sm of future research labs. The structural module and arrangement of the building systems allow the university long-term flexibility to convert spaces efficiently from one use to another.

Courtesy of Perkins+Will + DIALOG – Photography: Tom Arban

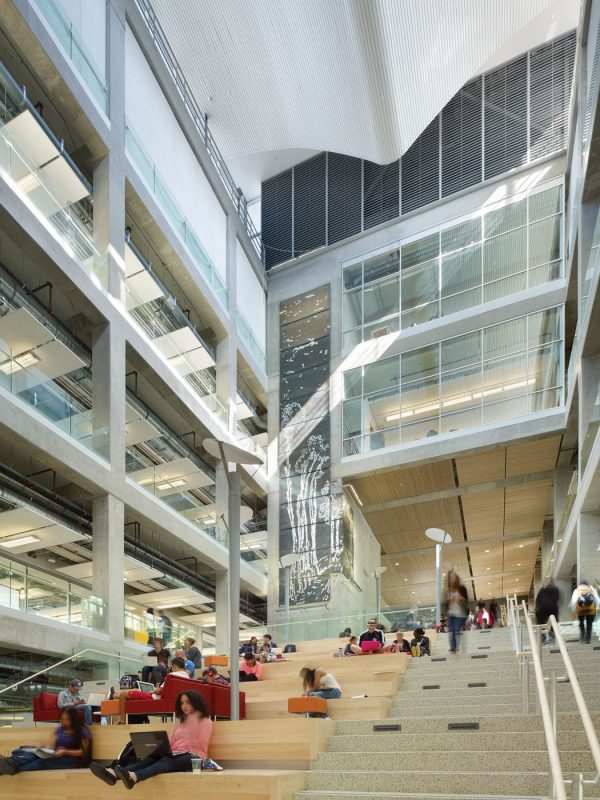

Placing a large emphasis on informal learning, the building centers around a ‘social stair’ that facilitate interaction and interdisciplinary collaboration. In keeping with the goal to put ‘science on display’, EEEL includes undergraduate classrooms and labs that are fully glazed to the corridor beyond to encourage curiosity and engage passersby.

Courtesy of Perkins+Will + DIALOG – Photography: Tom Arban

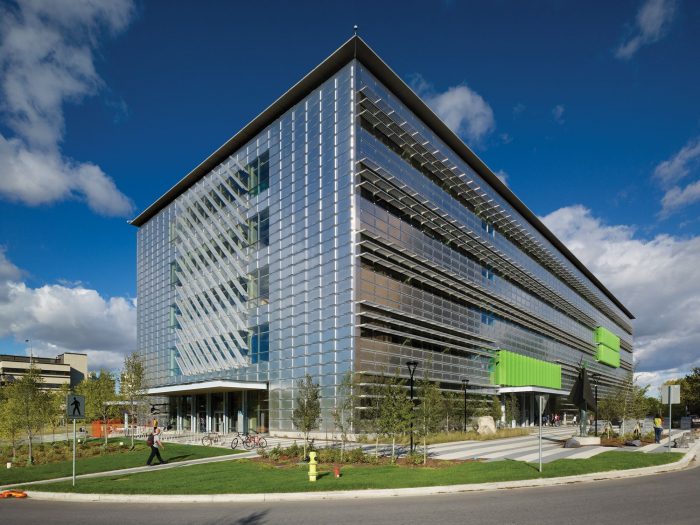

The project incorporates a number of solar control strategies, such as sculpted aluminum spandrel panels that act as an effective solar collector and dispenser, and solar shutters that actively track the sun to provide fully daylit but glare-free interior spaces. Additional environmental strategies include the use of thermal mass, an efficient envelope, natural ventilation, earth tubes, and low-energy systems, which contribute to the project using 45% less energy compared to a conventional laboratory building. Low-flow fixtures and use of captured rainwater mixed with recycled process water for toilet flushing reduce potable water use by 64%. As a means to record building performance and lower operating costs, all energy related metrics have post-occupancy data collection through the building’s BMS system.

Courtesy of Perkins+Will + DIALOG – Photography: Tom Arban

One of the most energy-efficient laboratory buildings in North America, EEEL is one of only 29 buildings across Canada to achieve LEED Platinum certification, with only four of those buildings on Canadian university or college campuses.

Courtesy of Perkins+Will + DIALOG – Photography: Tom Arban

Project Info
Architects: Perkins+Will, DIALOG
Location: Alberta, Canada
Area: 24531.0 sqm
Owner: The University of Calgary
Construction Management: Ellis Don Construction
Project Managers: DukeEvans Inc..
Year: 2011
Type: Research Center
Photographs: Tom Arban
