WMS Boathouse at Clark Park, The Clark Park facility is one of four boathouses proposed by Chicago Mayor Rahm Emanuel as cornerstones of his riverfront revitalization plan, anchoring the river’s future development. Emanuel’s initiative was spurred by the provision of nearly $1 million in grant funds by the United States Environmental Protection Agency to help clean up the river and drive job creation. Studio Gang was commissioned to realize two of the four boathouses, with the second facility to be located along the south branch of the Chicago River at 28th and Eleanor Streets. It is scheduled for completion in 2015.

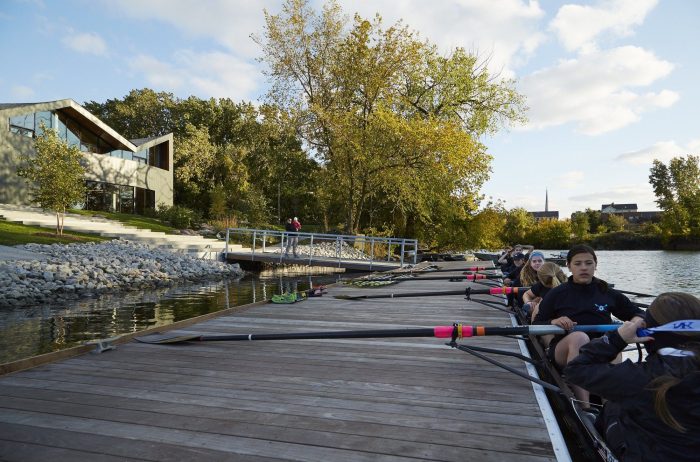

Photography by © Steve Hall/Hedrich Blessing

The WMS Boathouse at Clark Park is currently home to the Chicago Rowing Foundation (CRF). In partnership with the Chicago Park District, the CRF offers a wide range of indoor and outdoor activities year round, including learn to row sessions both in tanks and on the river, youth and masters team rowing, ergometer training, rowing-inspired yoga classes, and lessons tailored to individuals with disabilities.
As the City of Chicago works to transform the long-polluted and neglected Chicago River into its next recreational frontier, Studio Gang’s boathouse at Clark Park helps catalyze necessary momentum. “The architecture is meant to visually capture the poetic rhythm and motion of rowing,” said Jeanne Gang, Founder, and Principal of Studio Gang Architects. “But by providing a publically accessible riverfront, it also reveals the larger movement toward an ecological and recreational revival of the Chicago River.”

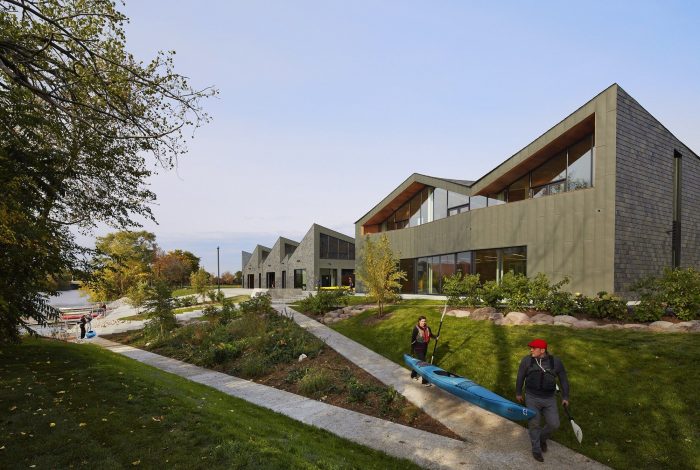

Photography by © Steve Hall/Hedrich Blessing

The boathouse’s design translates the time-lapse motion of rowing into an architectural roof form, providing visual interest while also offering spatial and environmental advantages that allow the boathouse to adapt to Chicago’s distinctive seasonal changes. With structural truss shapes alternating between an inverted “V” and an “M,” the roof achieves a rhythmic modulation that lets in southern light through the building’s upper clerestory. The clerestory glazing warms the floor slab of the structure in winter and ventilates in summer to minimize energy use throughout the year.
The 22,620 square foot complex consists of a two-story mechanically heated and cooled training center, one-story boat storage facility, and a floating launch dock. The main building houses row tanks, ergometer machines, communal space, and an office for the Chicago Park District. Boat storage accommodates kayak and canoe vendors and includes office space, as well as clear span storage for rowing shells and support equipment.

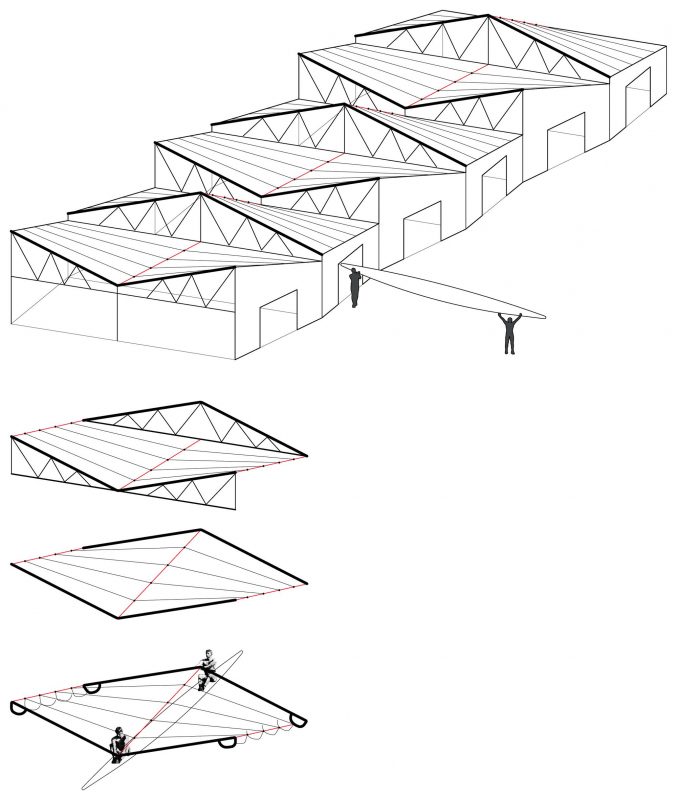

Roof Diagram

The total building cost is $8.8 million, with $3.2 million in private funding including $2 million from WMS, $1 million from North Park University, and $200,000 from the Chicago Rowing Foundation and $1 million matched by Alderman Ameya Pawar (47th Ward) with TIF funds.

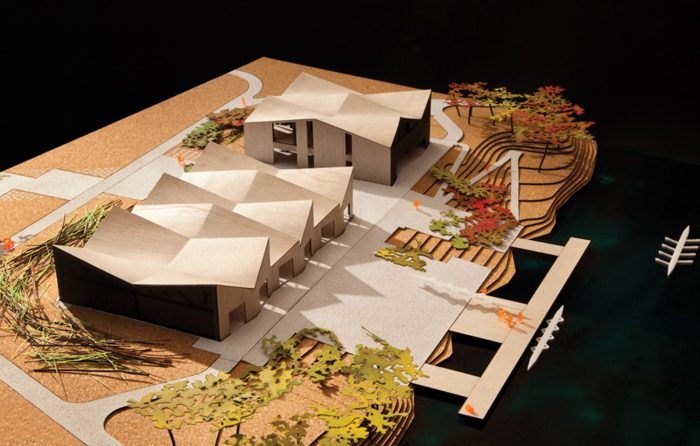

Model 2

Project Info:
Architects: Studio Gang
Location: 3331-3371 N Rockwell St, Chicago, IL 60618, USA
Founder and Design Principal: Jeanne Gang, FAIA, LEED AP
Managing Principal: Mark Schendel, AIA, LEED AP
Project Architect: William Emmick, AIA, LEED AP
Area: 22620.0 ft2
Project Year: 2013
Photographs: Steve Hall/Hedrich Blessing
Manufacturers: Accurate, Acuity Brands, Bega, Chicago Faucets, Daltile, DuPont, Guardian Glass, HAWS, Honeywell, Kawneer, Kohler, LCN, Maharam, Rheinzink, Saint Gobain, Schindler, Sherwin Williams, Tubelite, VaproShield, Lightolier + 15
Products: Facade Cladding
Project Name: WMS Boathouse at Clark Park
