Designed by SKL Architects, Westside School is a pre-K through eighth-grade school serving 360 students that were about to lose its lease. At the same time and nearby, the Hillcrest Presbyterian Church, located in a residential neighborhood southwest of downtown Seattle, found itself in an awkward position. Its congregation had decreased in size over the years but remained in a large well-loved, but an inefficient 1970s-era facility.
A plan was born: the church would co-locate with another church nearby and sell its facility to the school to fund ongoing operations. The soaring, vaulted wood roof structures of the church would be resurrected as a new home for Westside school.
Courtesy of SKL Architects

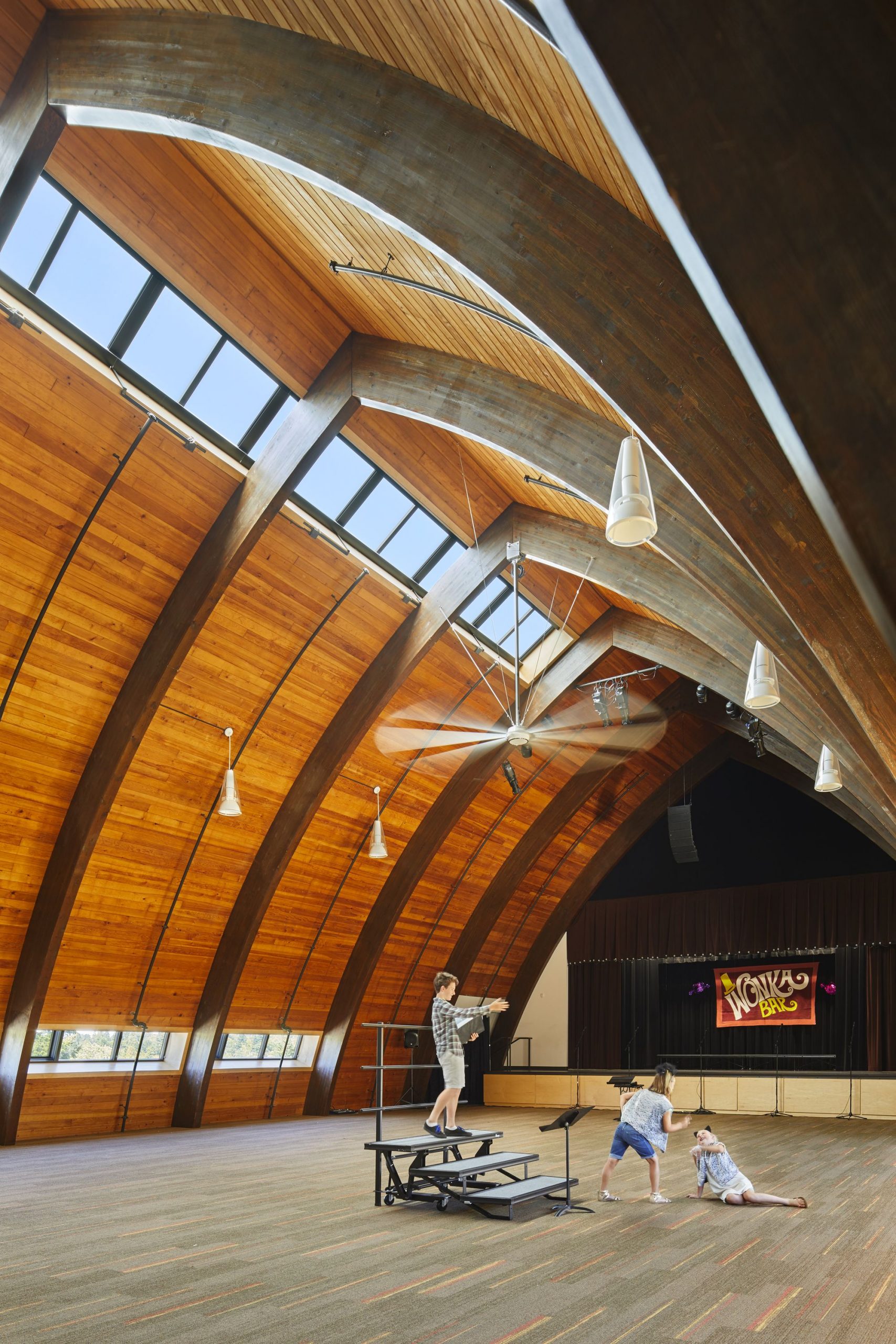

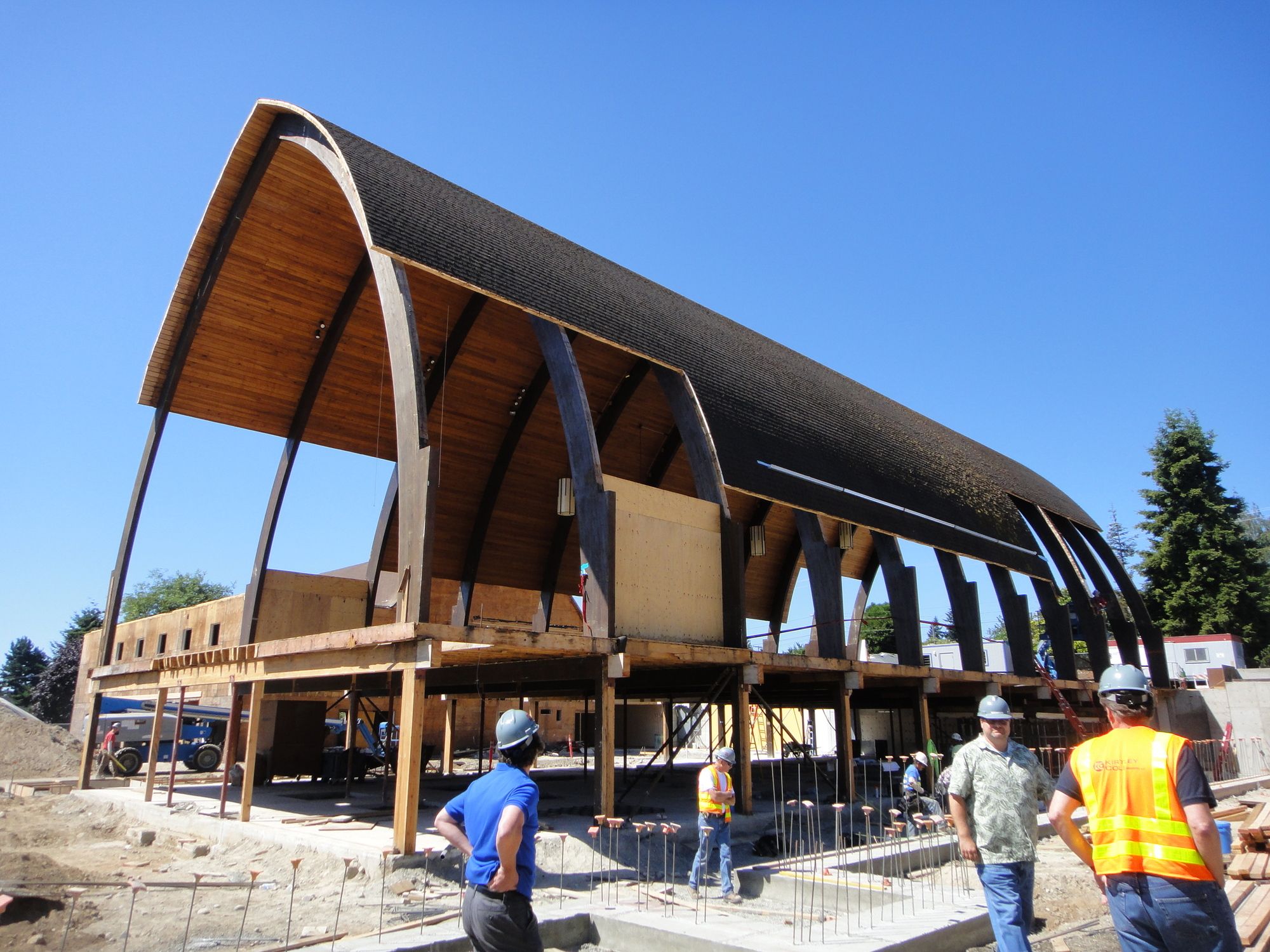

As stewards of the next generation, Westside School was committed to extensively reusing the existing church structure and minimizing the embodied energy used in new construction. The church’s soaring wishbone-shaped nave was the departure point for our imagination. Inspired by the soaring nave the 45’ glulam arches were preserved and space was reconfigured to accommodate classrooms, offices, support, lunchroom, and storage, preserving the existing gym.
The Challenge of Westside School:

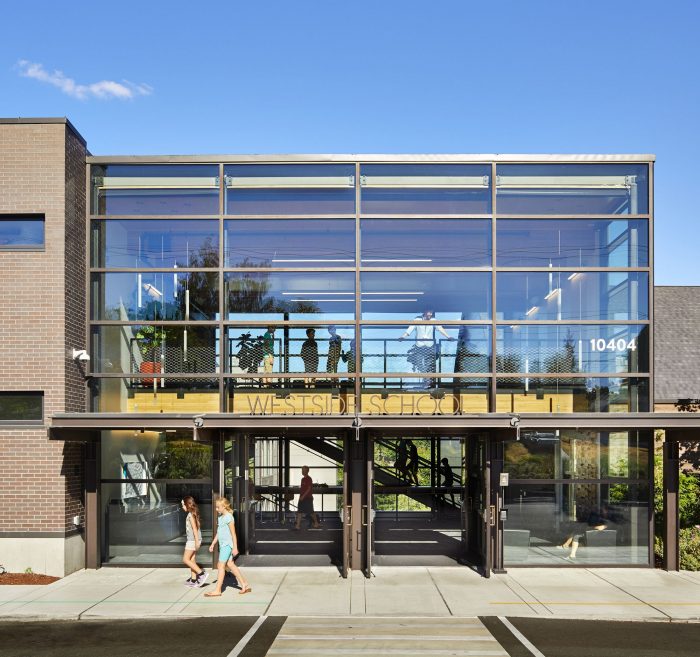

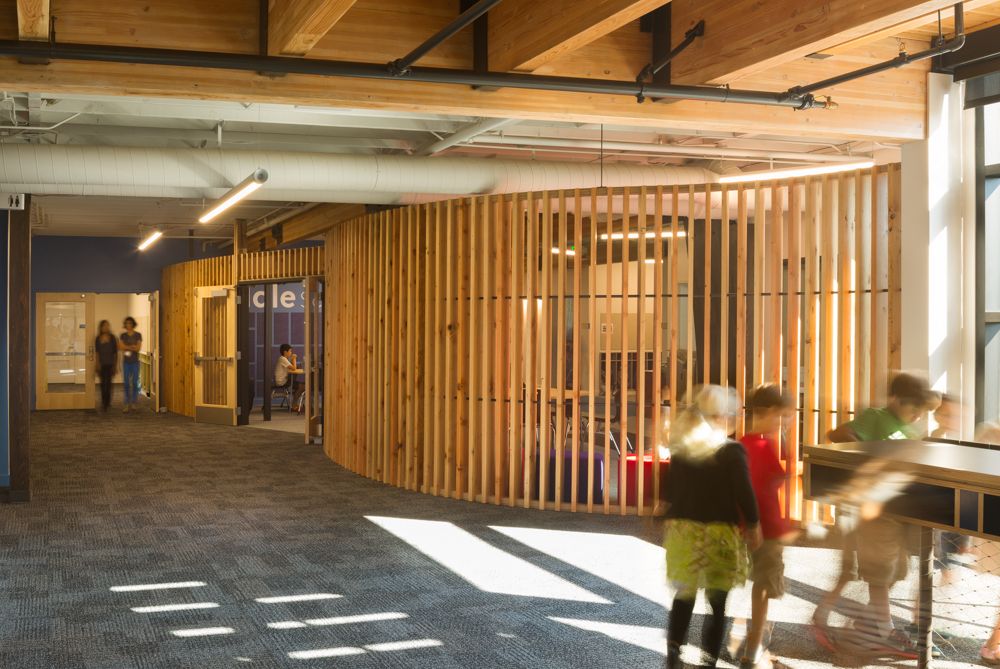

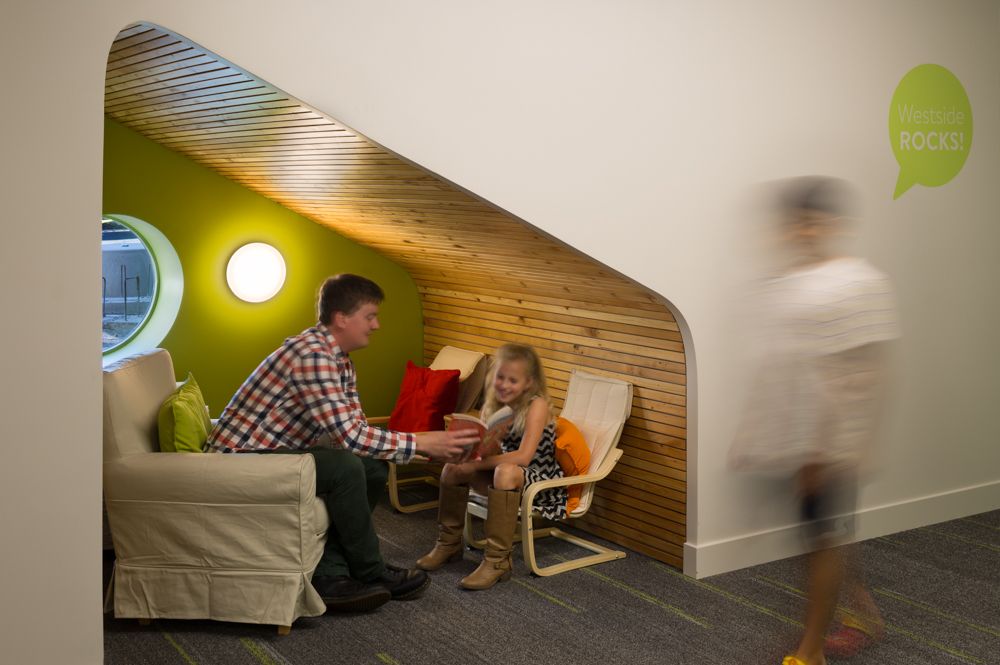

The challenge was to connect the existing structure to the new entry foyer in a way that communicates a sense of unity. The architecture provides a range of engaging learning environments. Idea spaces carved into the classrooms provide flex space for spontaneous meetings and informal, smaller, group learning. Other found spaces encourage interaction, creativity, and curiosity. The new entry forms a central, transparent gathering and display space where parents, faculty, and students convene and connect. The unified structure embodies learning, linking the school’s present with its future and past.

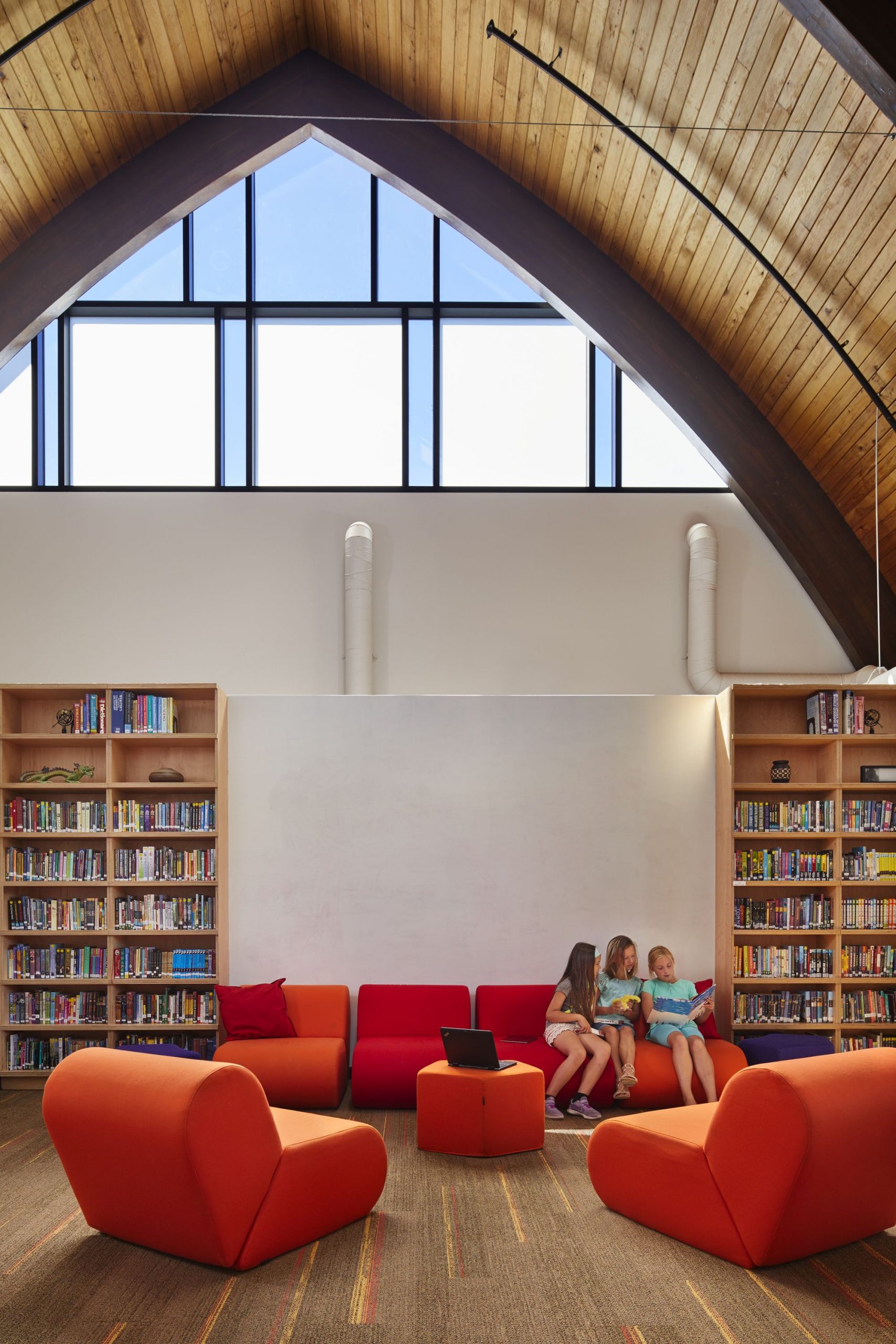

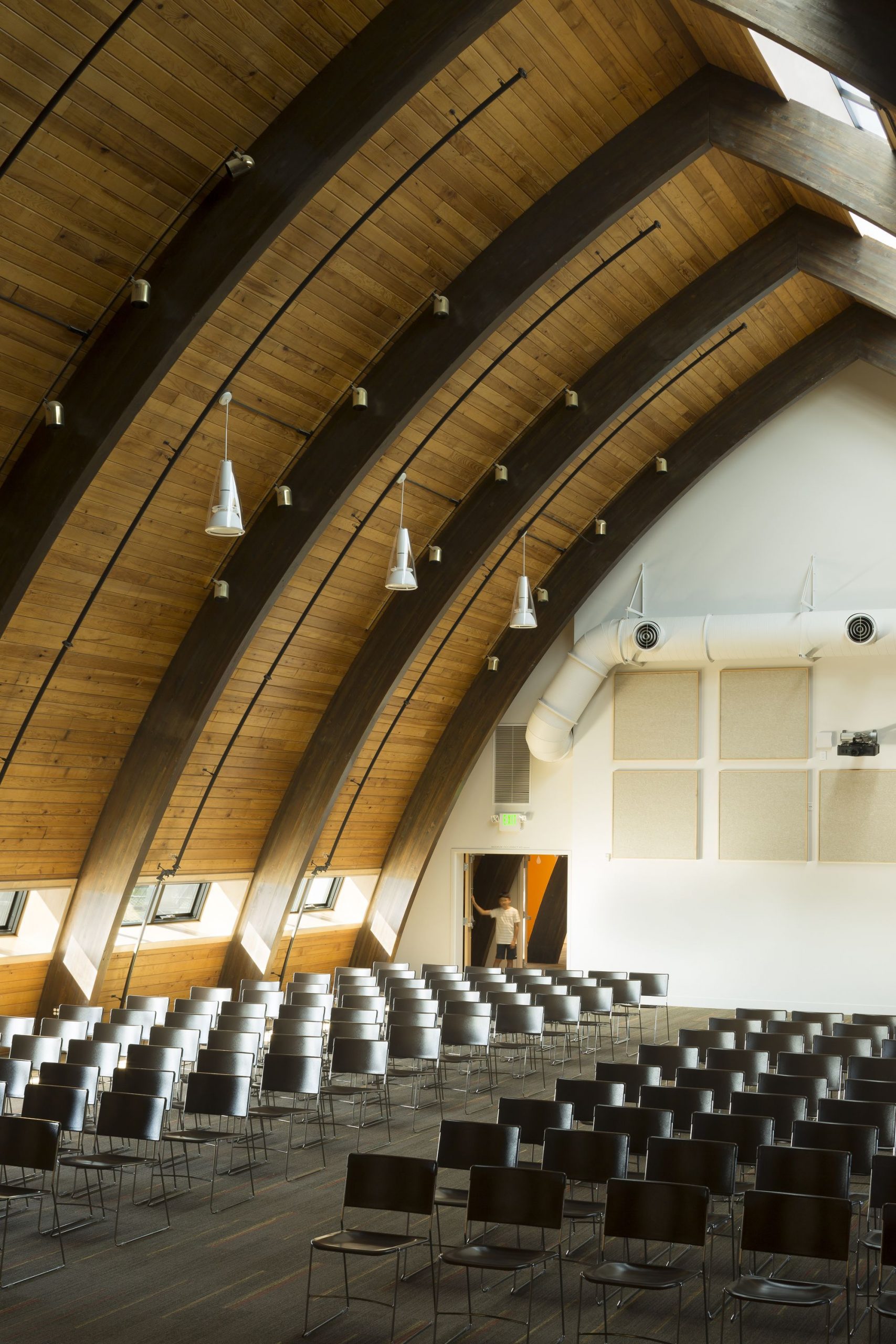

All aspects of energy savings were looked at in the design, including lighting, daylighting, HVAC, natural ventilation and future PV panel mounting provisions. Lighting throughout the building is entirely LED, with an installed lighting power density of less than 0.3 W/ft2. After consulting with Seattle’s Integrated Design Lab, carefully oriented and sized skylights were introduced into the nave roof to reduce electric lighting loads in the newly created auditorium and library.
The philosophy for the mechanical system design was a Design For Off™ approach, focused on right-sized zonal equipment that can operate independently from neighboring spaces for heating, cooling, and ventilation.
Courtesy of SKL Architects

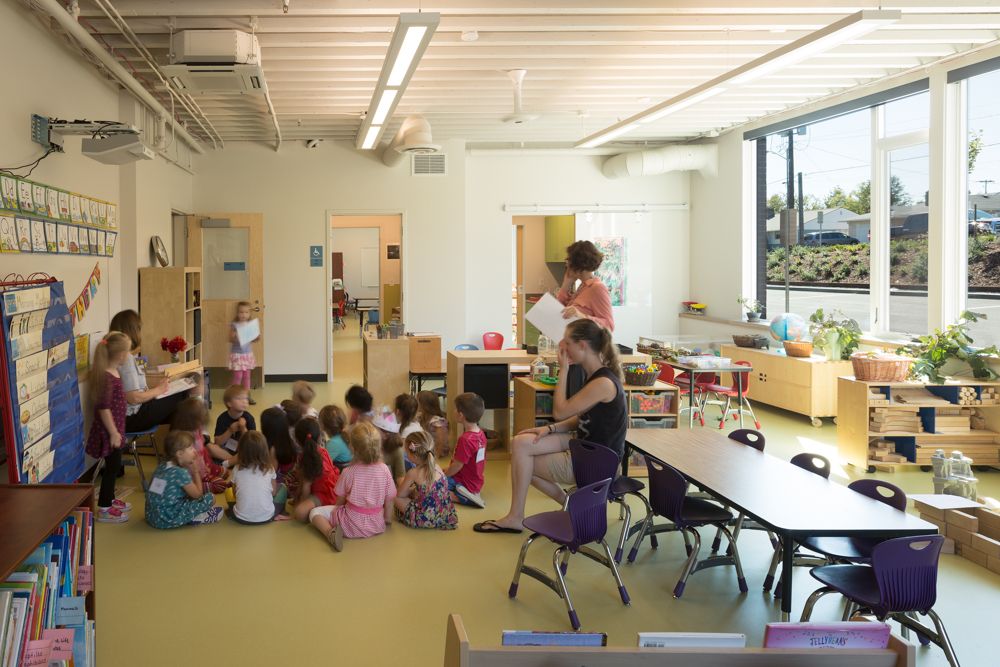

New portions of the envelope were built to meet strict Seattle Energy Code requirements, and the majority of the gym and nave roofs and walls were replaced and/or re-insulated. New classrooms feature operable windows to take advantage of Seattle’s moderate climate. Ceiling fans help evenly distribute the fresh air in classrooms and provide air movement for improved thermal comfort. First school year building operation achieved a measured EUI of 14 kBtu/ft2·yr. The old Westside School building operated at 48 kBtu/ft2·yr, 39 kBtu/ft2·yr of which was space and DHW heating. The new building is 70% more efficient than the school’s former building.
Westside School is one of the most energy-efficient schools in the Northwest region, created with an extremely small HVAC budget, and achieved by concentrating on introducing energy efficiency where it would count the most. The result is a building that easily meets the 2030 Challenge.
Courtesy of SKL Architects
Project Info:
Architect: SKL Architects
Location: Seattle, Washington, United States
Project Year: 2017
Photographs: Benjamin Benschneider, Lara Swimmer
Project Name: Westside School
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Courtesy of SKL Architects
-
- Basement
-
- Level 1
-
- Level 2
-
- Existing new diagram Basement
-
- Existing new diagram 01 Level 1 plan
-
- Existing new diagram 02 Level 2 plan
-
- Existing new diagram axon
-
- Existing new diagram section
-
- Section Mechanical Diagram Updated
-

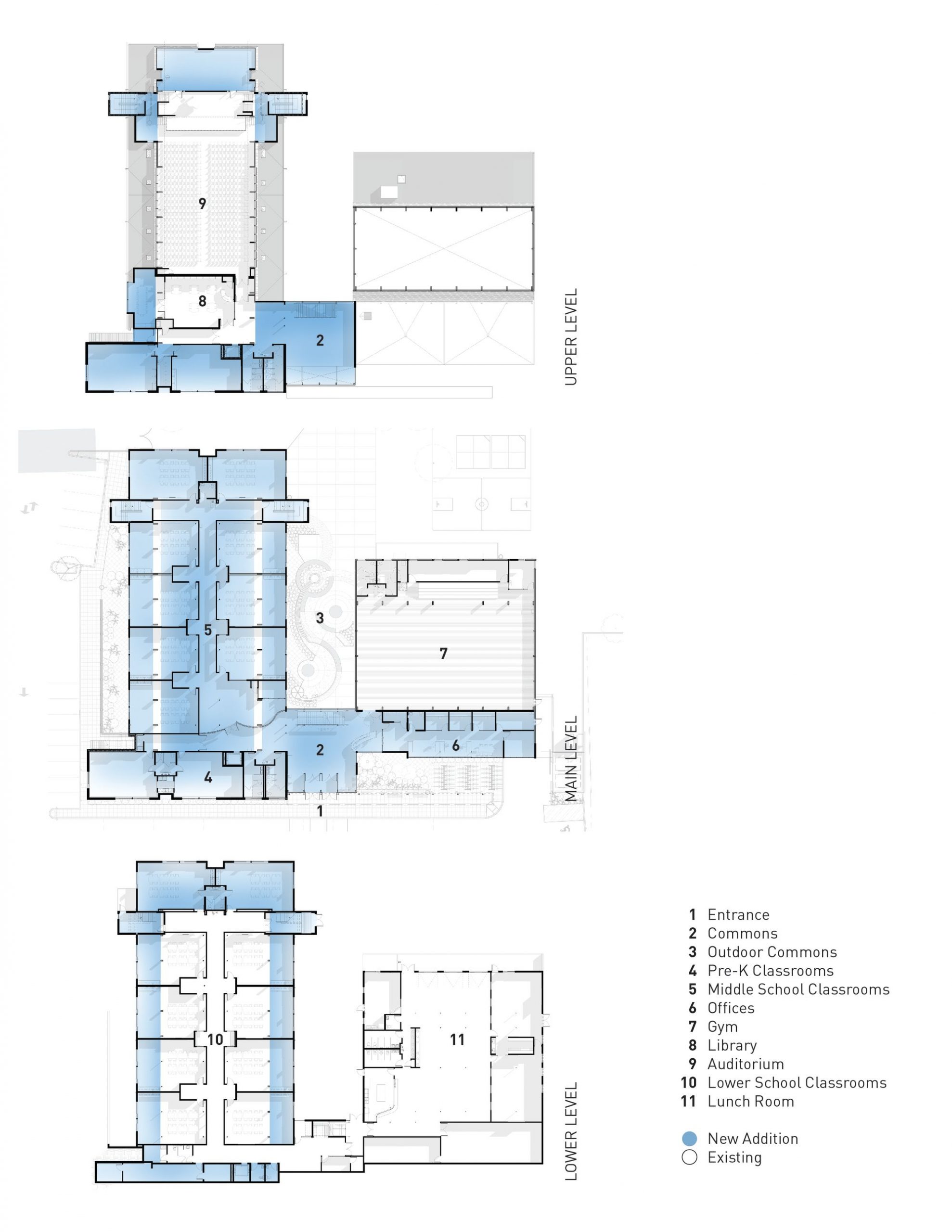

- Floor plans Labeled
-
