Renovation and Expansion of the Morgan Library | Renzo Piano Building Workshop Architects

Creating additional space for the Morgan Library in the heart of Manhattan was a particular challenge. This elegant group of buildings, a ‘village of memory’ is surrounded by the dense urban fabric of New York City, a seemingly solid physical barrier around the site. Rather than building upwards, Renzo Piano Building Workshop decided to dig downwards into the hard rock to build a sort of underground vault in which to house the library’s rare book collection. With surgical precision, new steel and glass units were inserted in and amongst the existing buildings.

Photography by © Michel  Dance

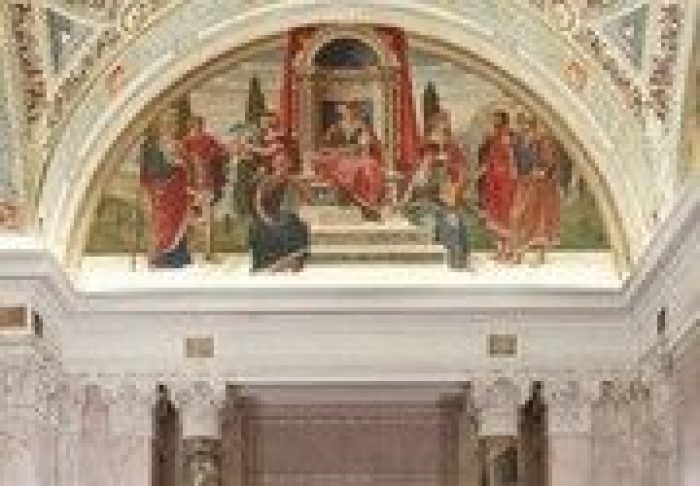

The Morgan Library required new public spaces, safe and organized storage areas for the collection itself, an auditorium for chamber music, and a new reading room, all whilst preserving the Library’s original classified buildings: the McKim’s building (1906), the Annex (1928), and the brownstone Morgan House at 231 Madison Avenue, former home of the Morgan family. The requested total expansion of nearly 10,000 sqm within the tight confines of the site was achieved by taking the site back to its original three buildings and recovering additional space underground, excavating to a depth of 17m.

Photography by © Michel  Dance

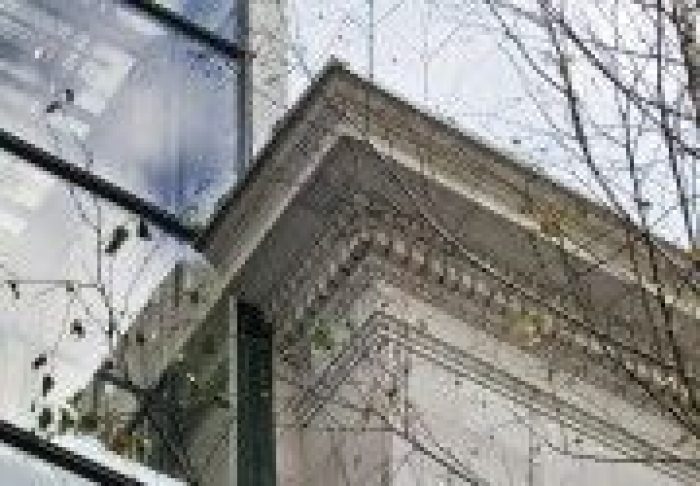

RPBW designed three new pavilions connected to the historic buildings, leaving a large open ‘plaza’ at the center of the Morgan complex that could be used for public functions and as a metaphorical breathing space for visitors. The three historic buildings, the plaza and the new pavilions meet under a steel and glass transparent roof.

Photography by © Michel  Dance

The largest pavilion, located on Madison Avenue between Morgan House and the Annex, provides a new entrance at ground level, an exhibition area on the first floor and the new Reading room on the second floor. The smaller cube-shaped pavilion, located on the 36th Street between the Annex and the McKim building, is an exhibition space. This pavilion and the new Reading room are naturally lit from above. The third pavilion, adjacent to the Morgan House, contains office space and a number of service areas. All of the exhibition buildings are clad in steel panels.

Photography by © Michel  Dance

Below ground is the Gilder Lehrman Hall, an auditorium with a capacity of 299. While its acoustics have been designed for chamber music concerts, the auditorium can also be used as a conference or projection room thanks to the acoustic modularity of the room. New temperature and humidity-controlled storage for the Library collection is laid out over three communicating floors.

Photography by © Michel  Dance

Project Info:
Architects: Renzo Piano Building Workshop Architects
Location: New York, NY, United States
Project Year: 2006
Size: 100,000 sqft – 300,000 sqft
Photographs: Michel Dance
Project Name: Renovation and Expansion of the Morgan Library
