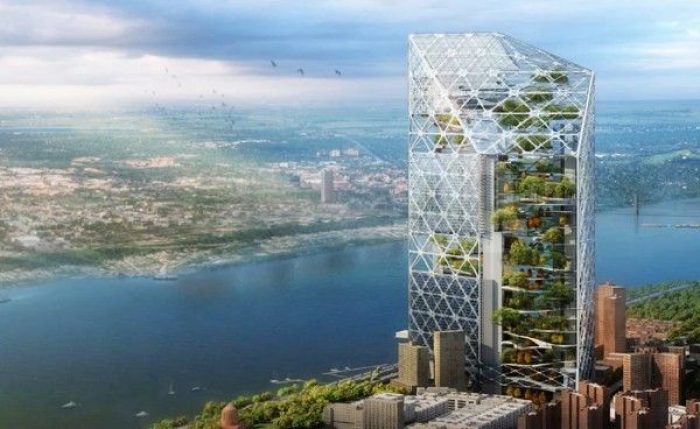

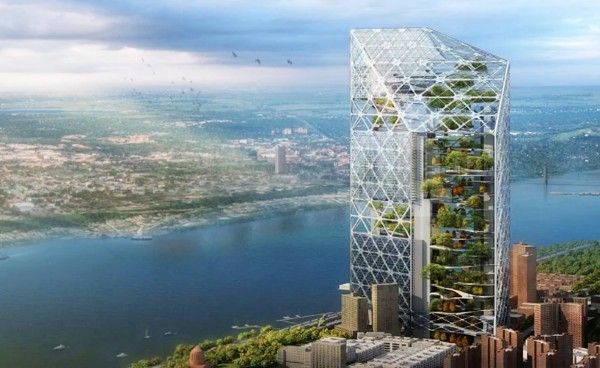

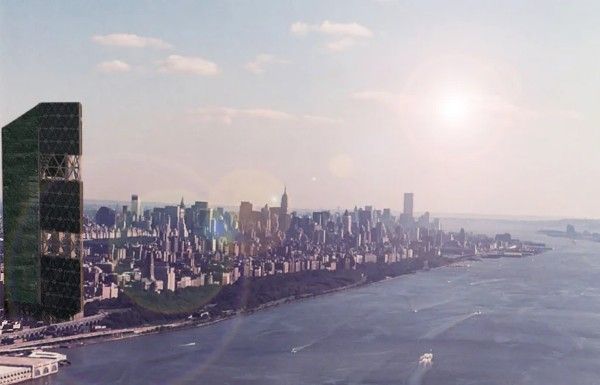

New York Breathing Machine by IAD is a 468-meter sustainable skyscraper inspired by Central Park, featuring vertical gardens and interconnected indoor-outdoor spaces. Separated in one side of the structure, three core modules house private office and a hotel, which are interwoven by spiral pathways of public vertical gardens that serve as a ‘lung’ for the mixed use building.
© independent architectural diplomacy © independent architectural diplomacy
The program of the skyscraper is contained within a gridded armature. The ventilated ETFE skin within the structural framework of the façade takes active advantage of meteorological conditions to help control and manage the temperature and direct the flow of cool air in the semi-open spaces between programmatic blocks.
© independent architectural diplomacy © independent architectural diplomacy
To avoid a wind-tunnel effect within the structural voids the vertical garden’s foliage made up of perennial trees and conifers offer protection. In the end these strategies along with the use of solar panels and microturbines the structure achieves carbon neutrality and a net-positive energy skyscraper perfect for uptown Manhattan
© independent architectural diplomacy © independent architectural diplomacy
Project info:
Project name: new York breathing machine
Location: w 125th / broadway, new york city, new york, USA
Architects: IAD
Project manager & 3d modeling: iván gutierrez
Assistants: izabela boron, jolanta ostaszewska
Offices (52m – 156m) typical floor plan area: 4,287 m2
Global area: 94,314 m2
Number of floors: 22
Number of elevator cores: 3 (18 elevators)
Number of emergency cores: 3
Volume of atrium: 43,704 m3
Hotel (208m – 312m) typical floor plan area: 3,283 m2
Global area: 83,075 m2
Number of rooms: 850
Number of floors: 25
Number of elevator cores: 3 (18 elevators)
Number of emergency cores: 3
Volume of atrium: 151,786 m3
Sky suites (364m – 468m) typical floor plan area: 817 m2
Global area: 20,425 m2
Number of rooms: 200
Number of floors: 25
Number of elevator cores: 2 (12 elevators)
Number of emergency cores: 2
Vertical park length of paths: 12.5 km
General height of skyscraper: 468 m
Volume of vertical park: 3,319,497 m3
Volume of skyscraper: 5,398,806 m3
Year: 2012
