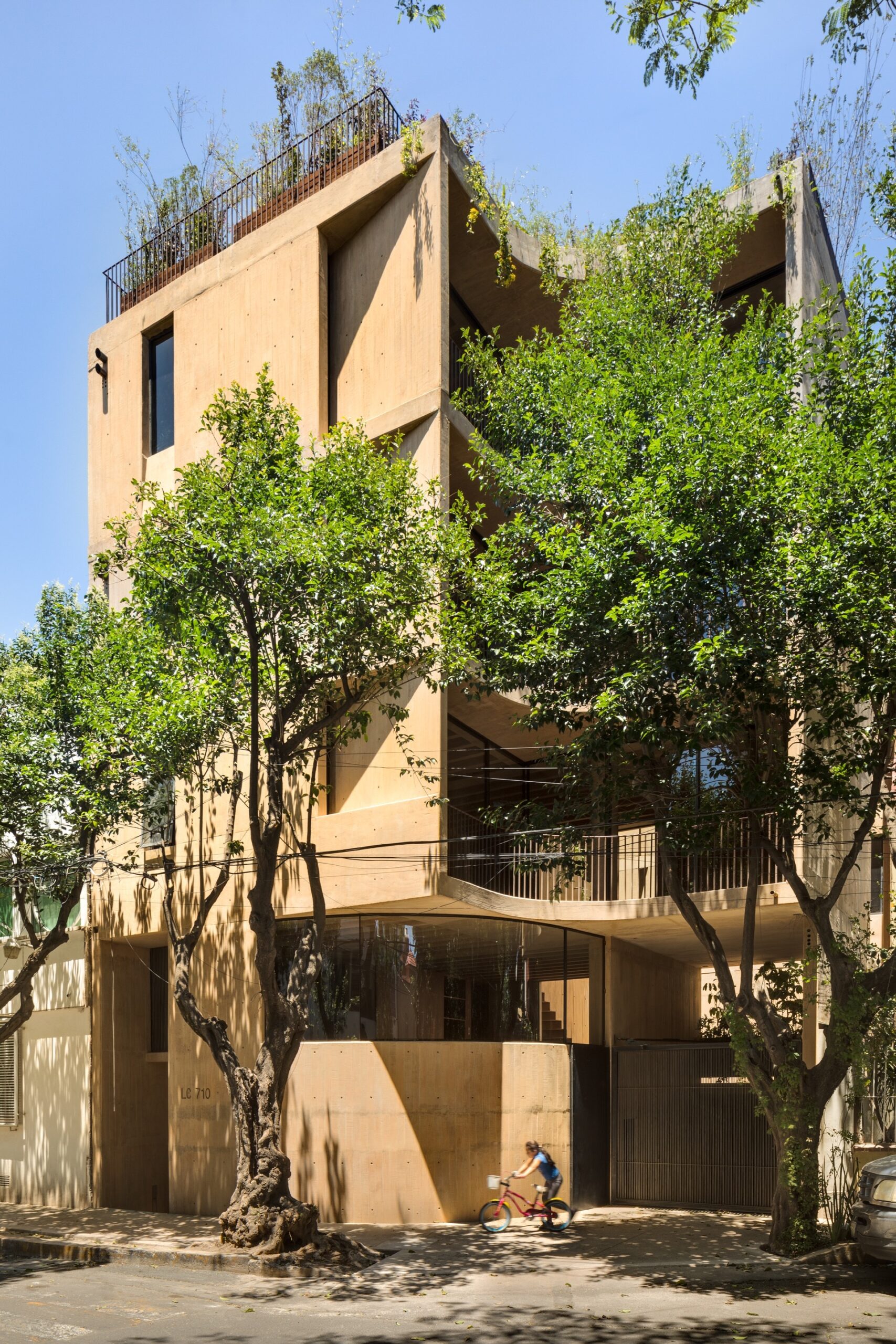

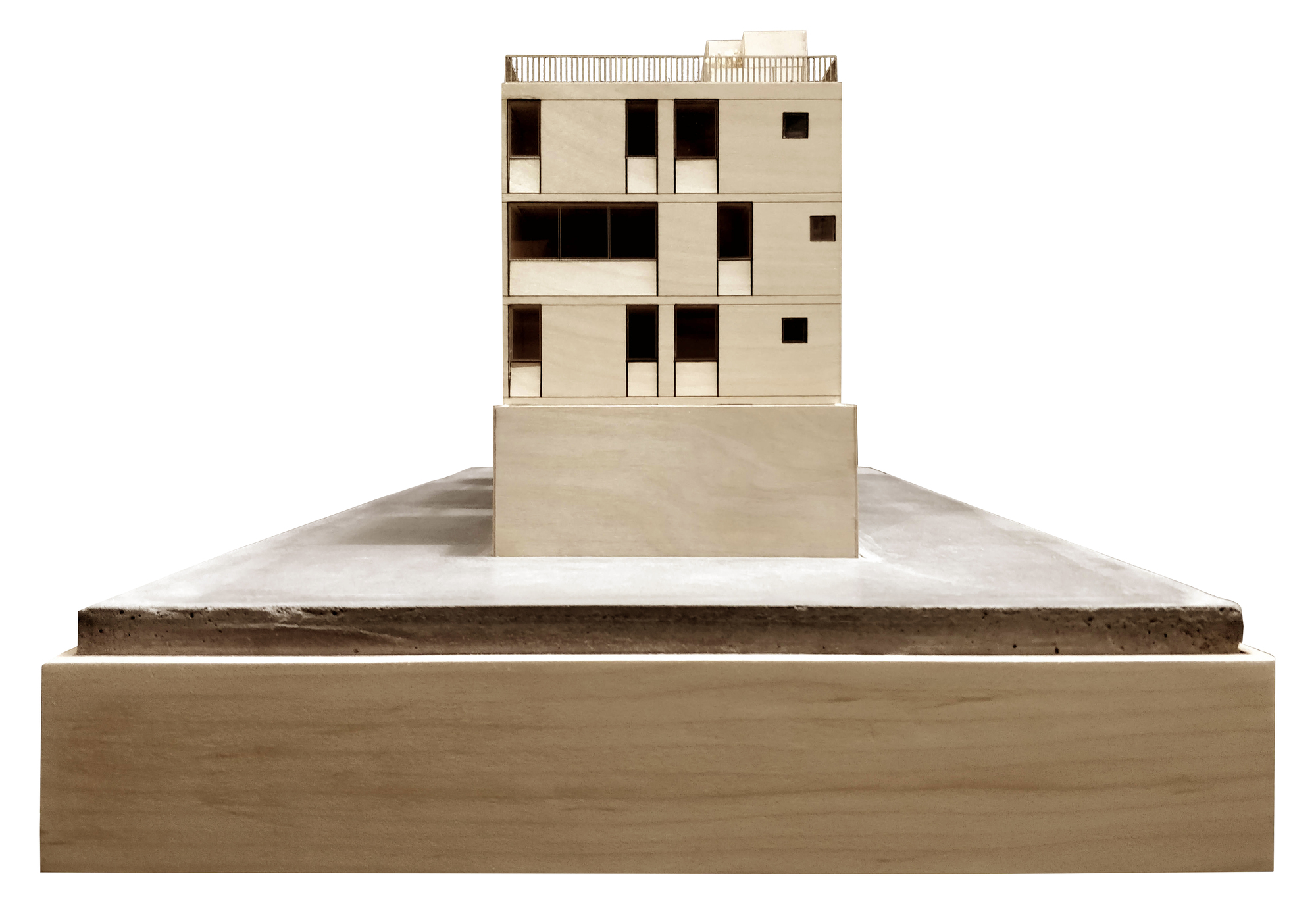

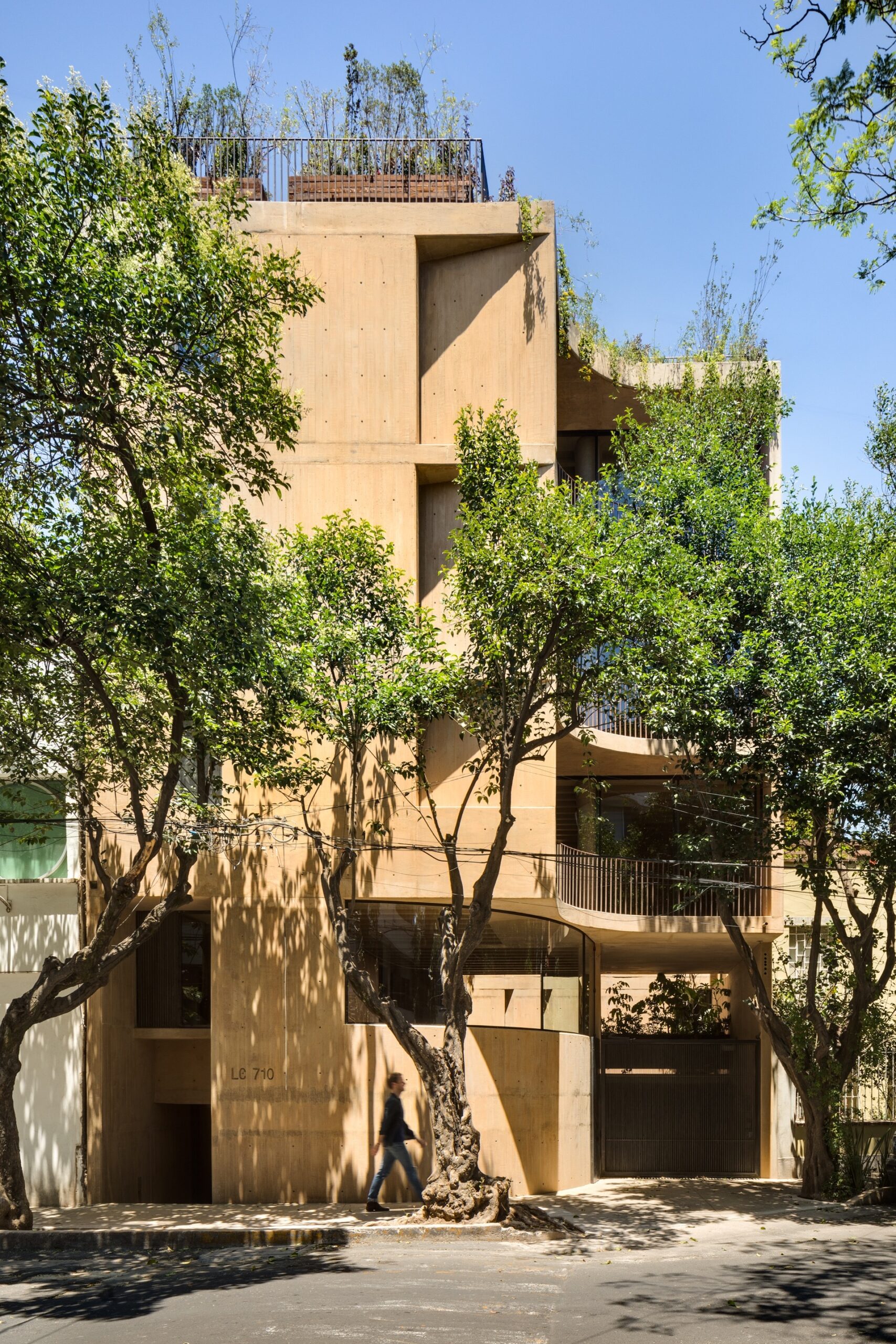

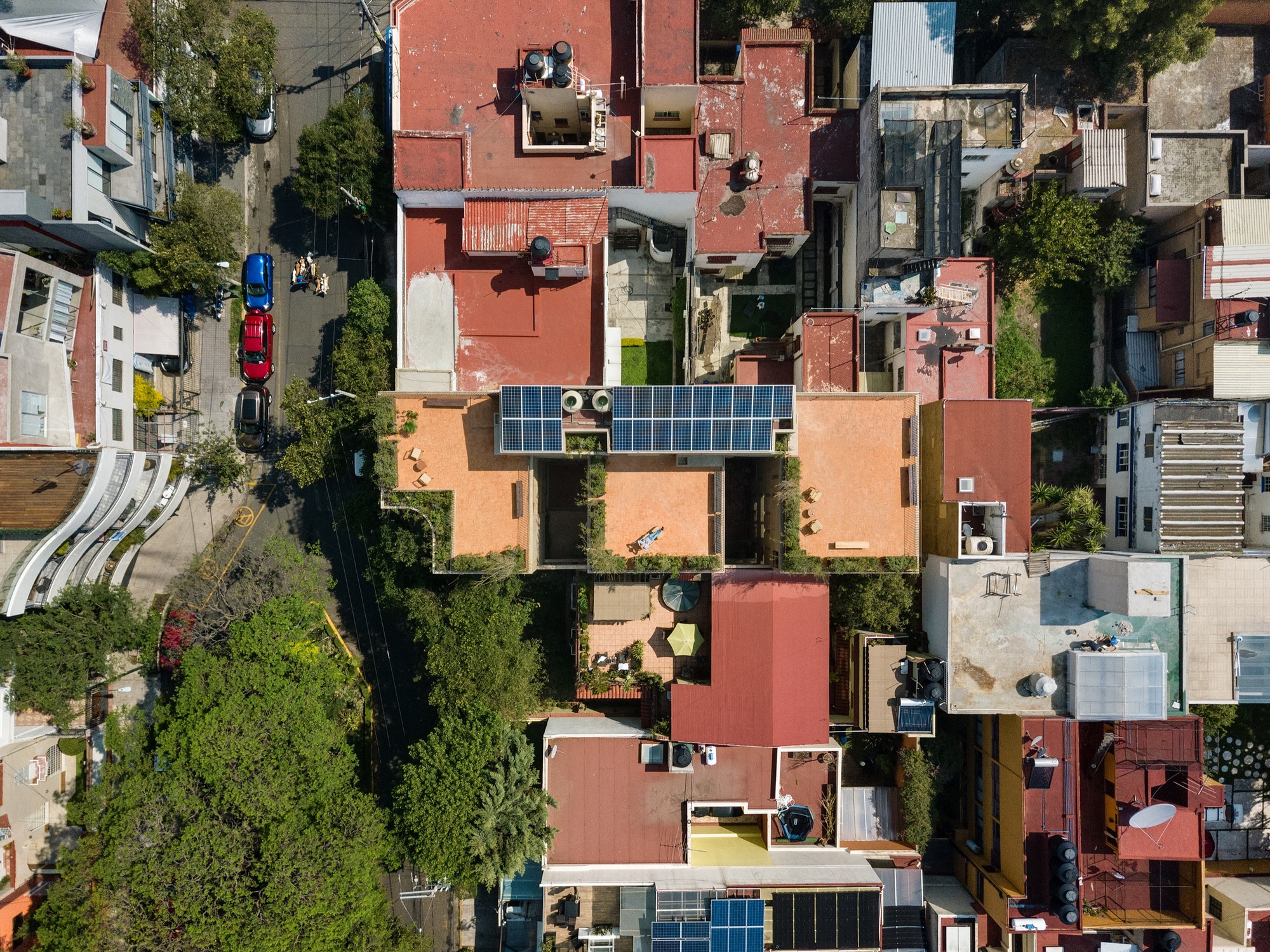

LC710 is located in a residential area in the center of ¨Colonia del Valle¨ in Mexico City. The site has a rectangular form, with a narrow front of 10 meters facing the street and 32 meters in depth.
© Rafael Gamo

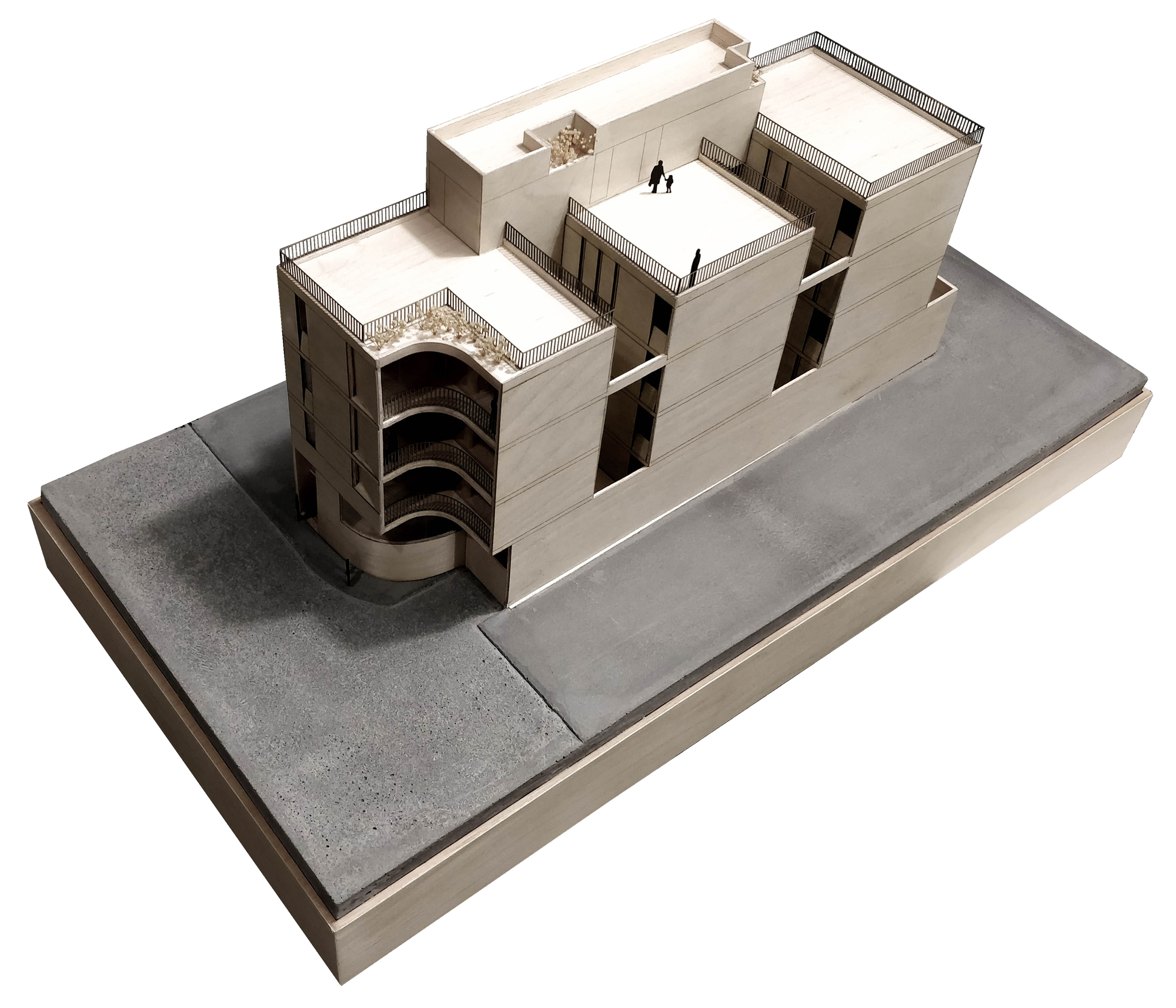

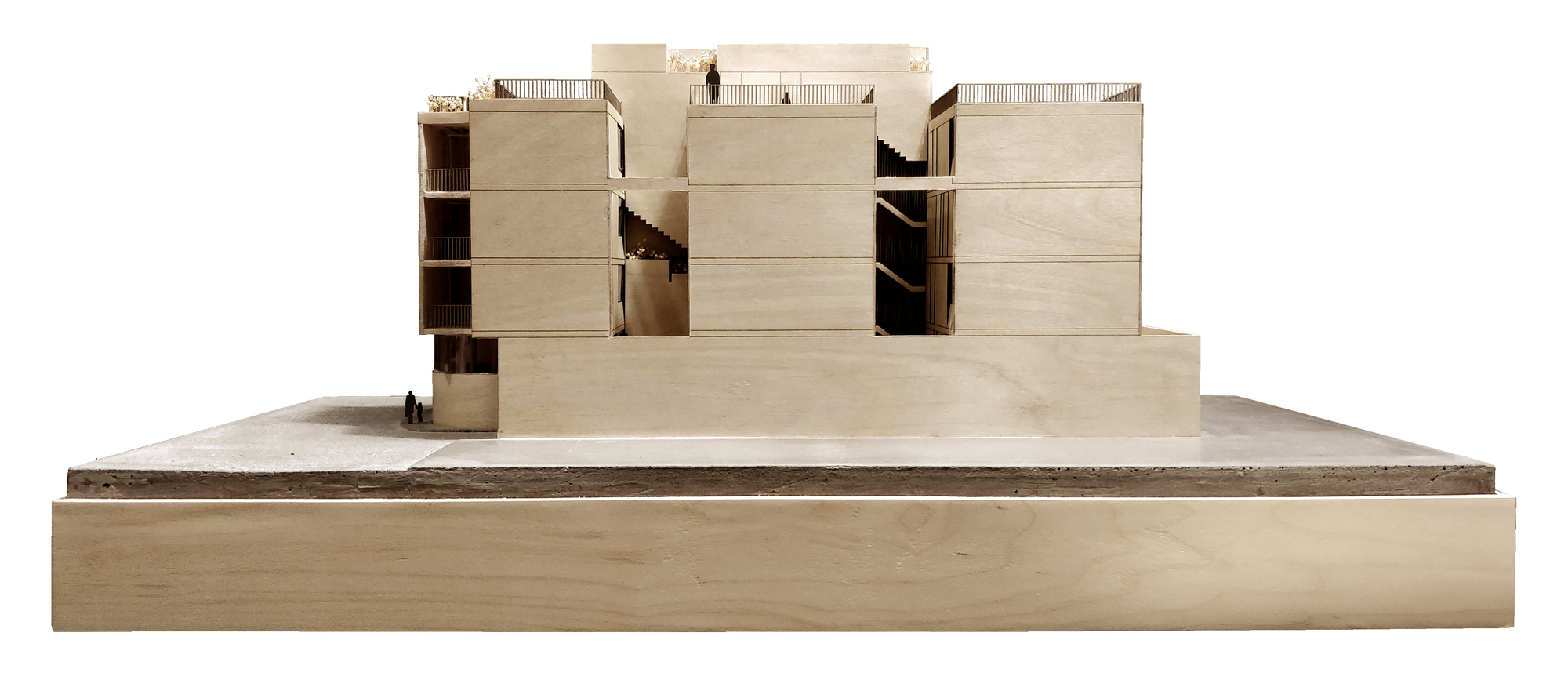

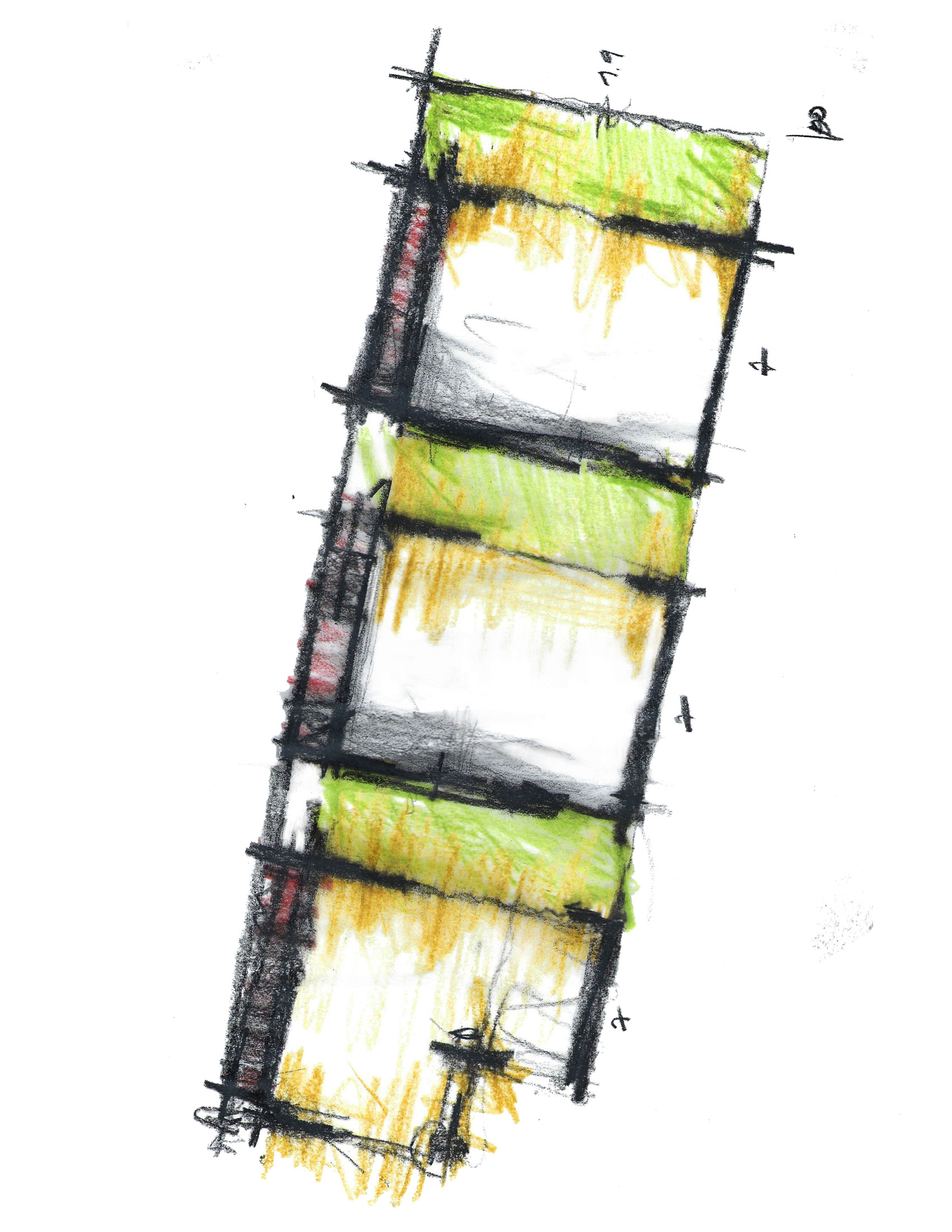

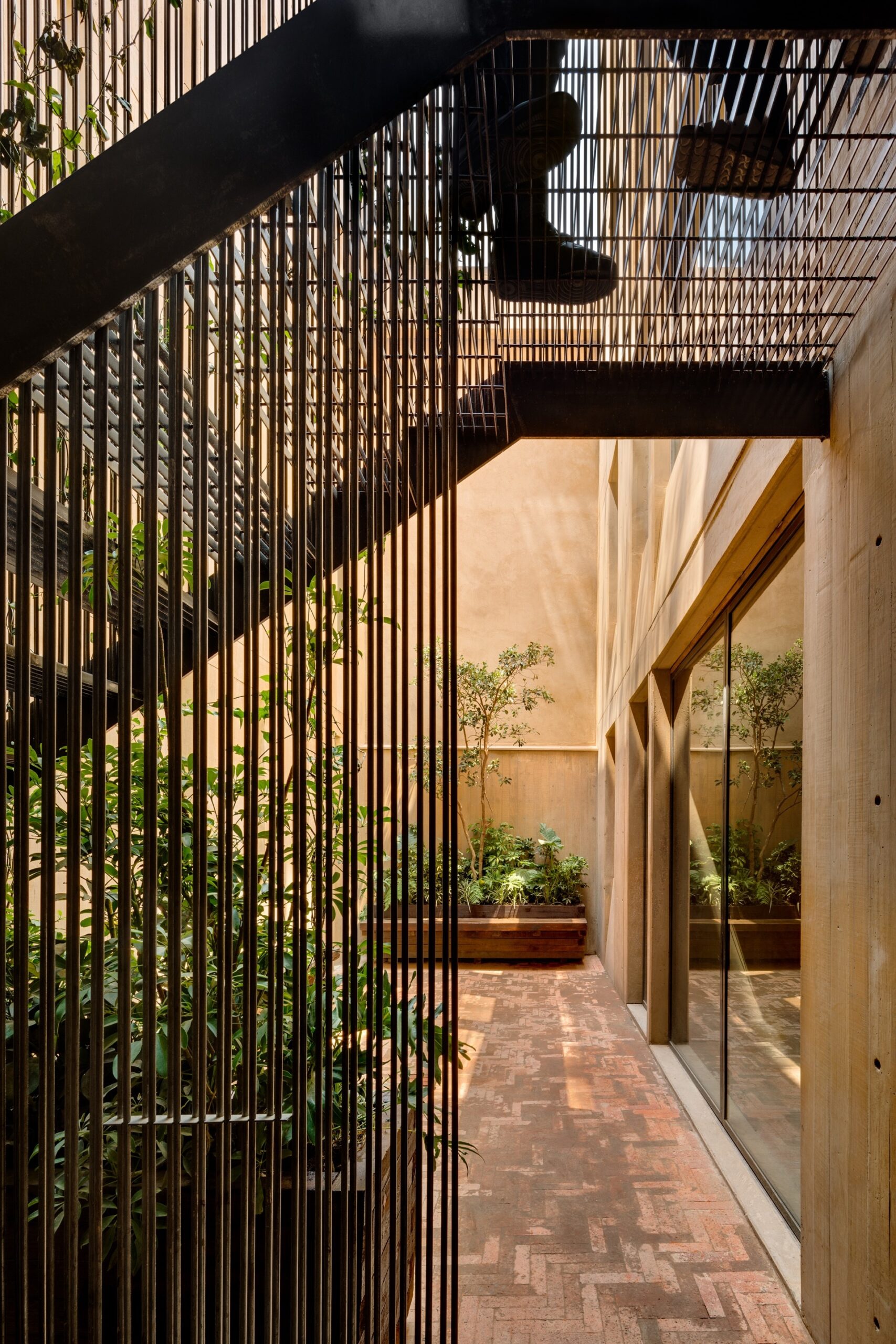

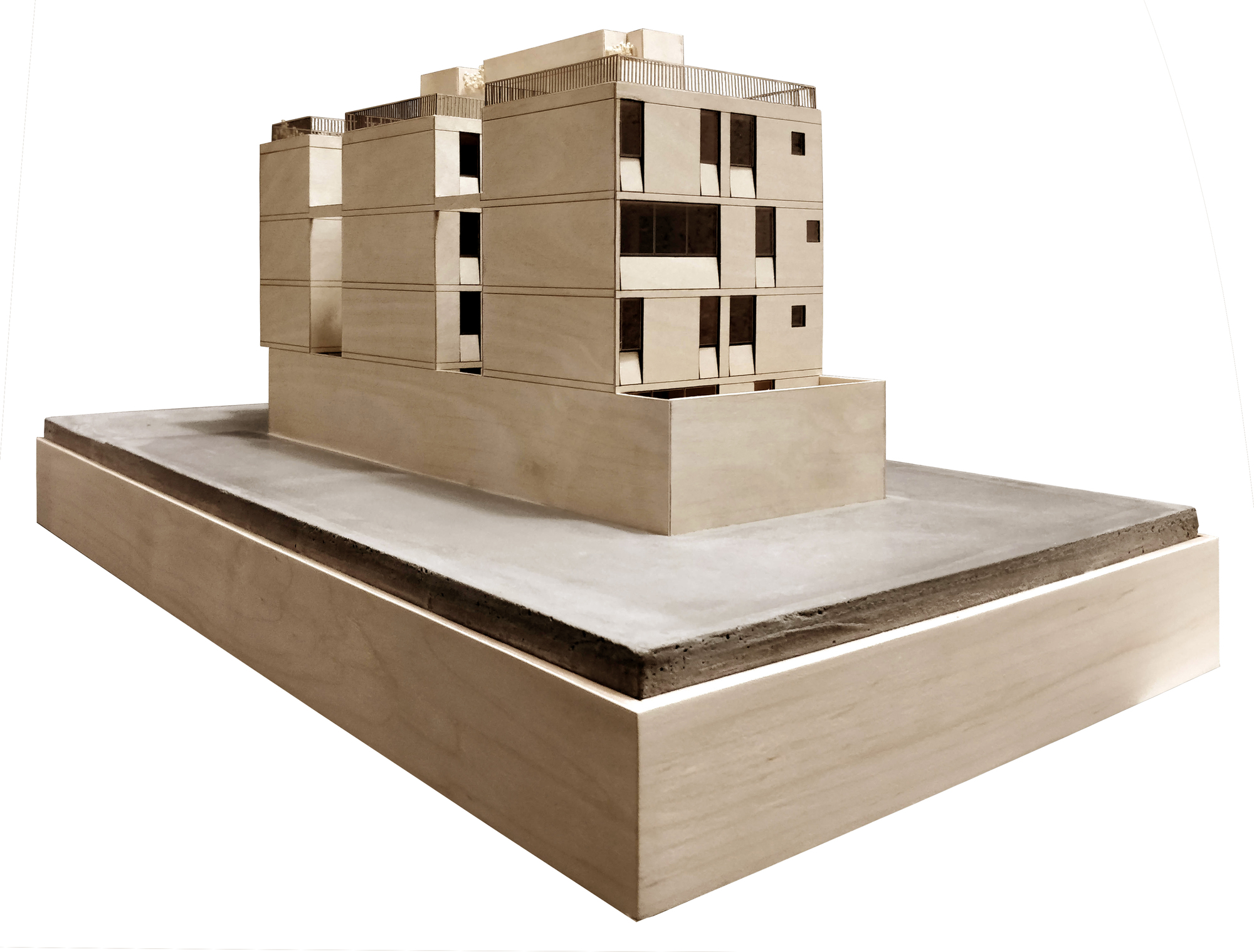

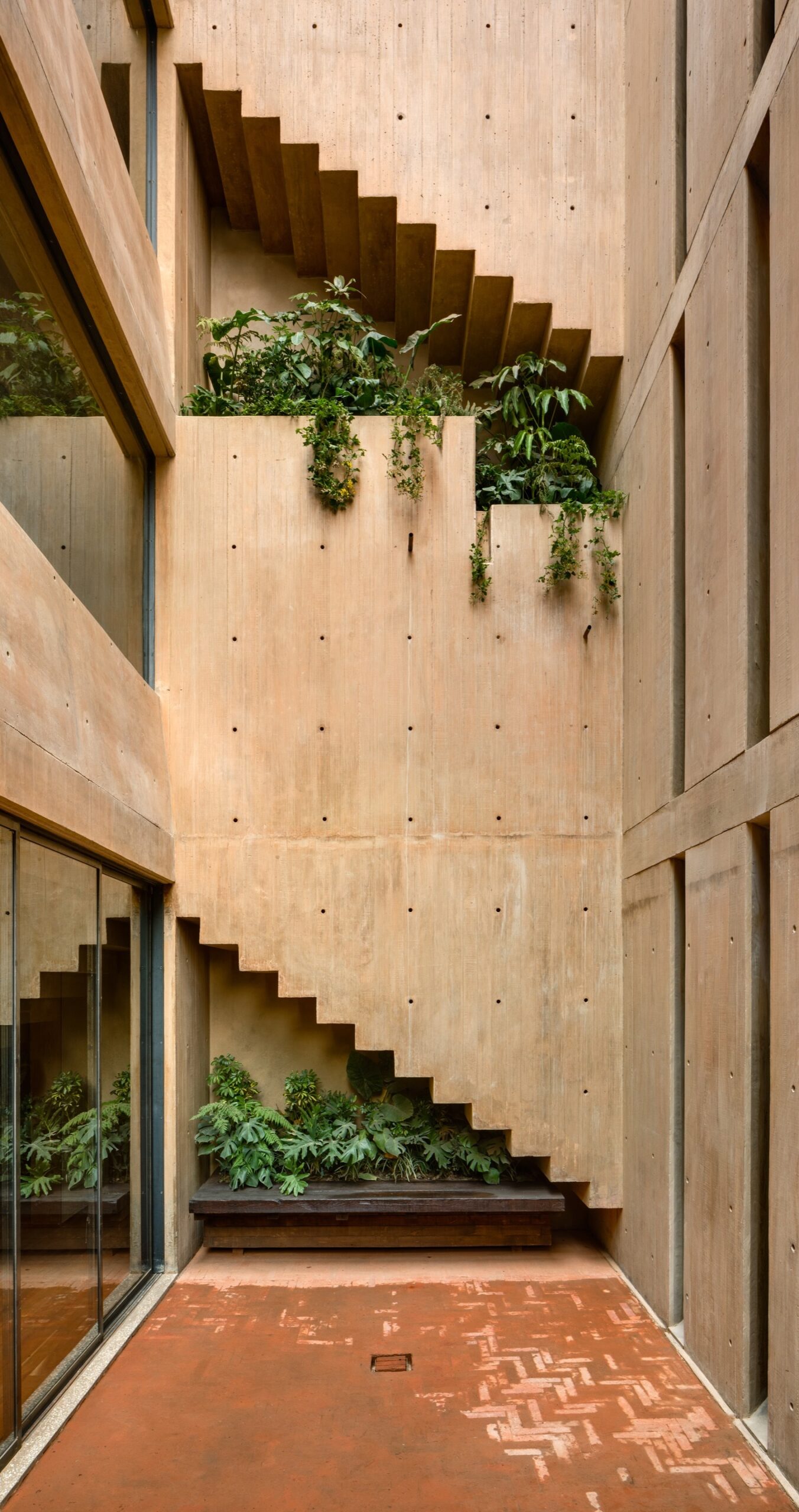

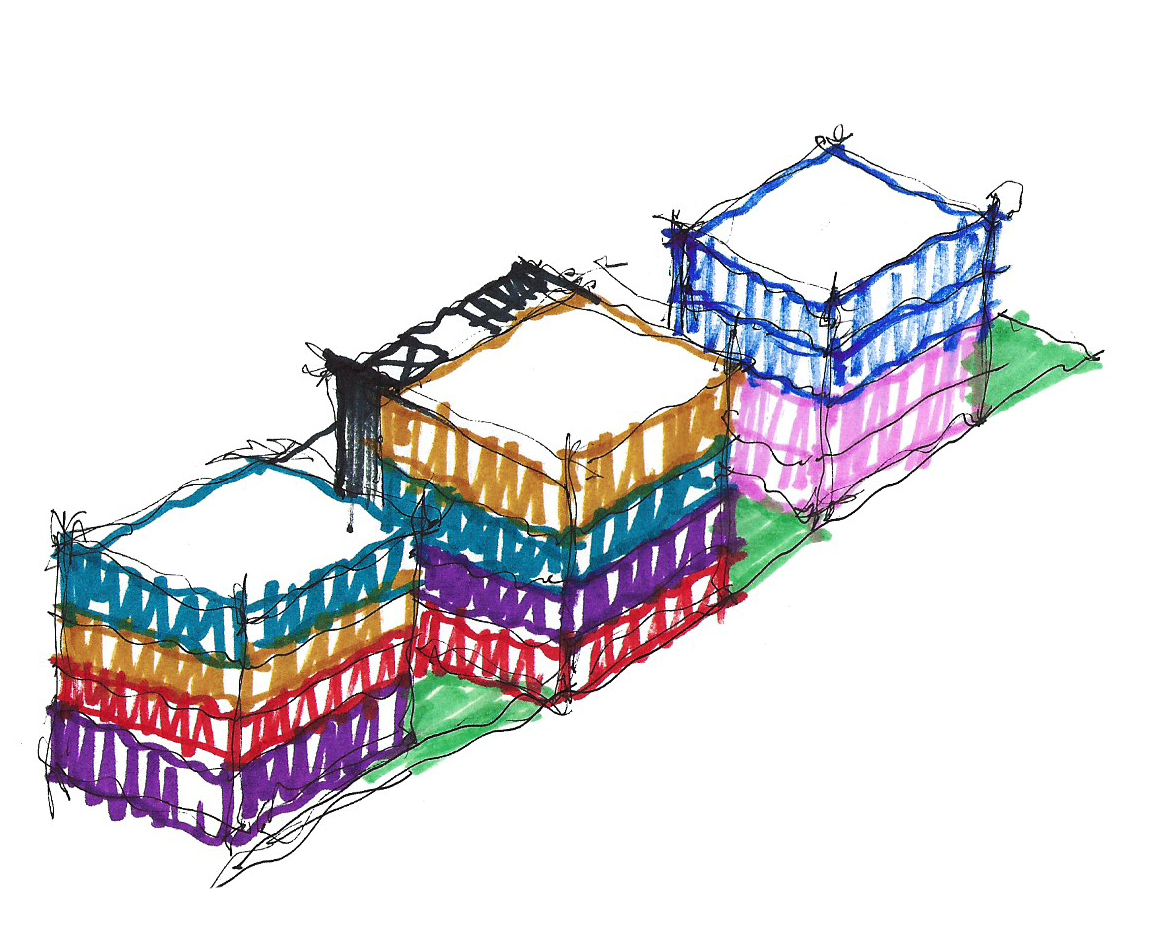

This proportion and the east-west orientation resulted in a compositional scheme which parts from three volumes interleaved with three ¨Patios¨ /voids.
© Rafael Gamo

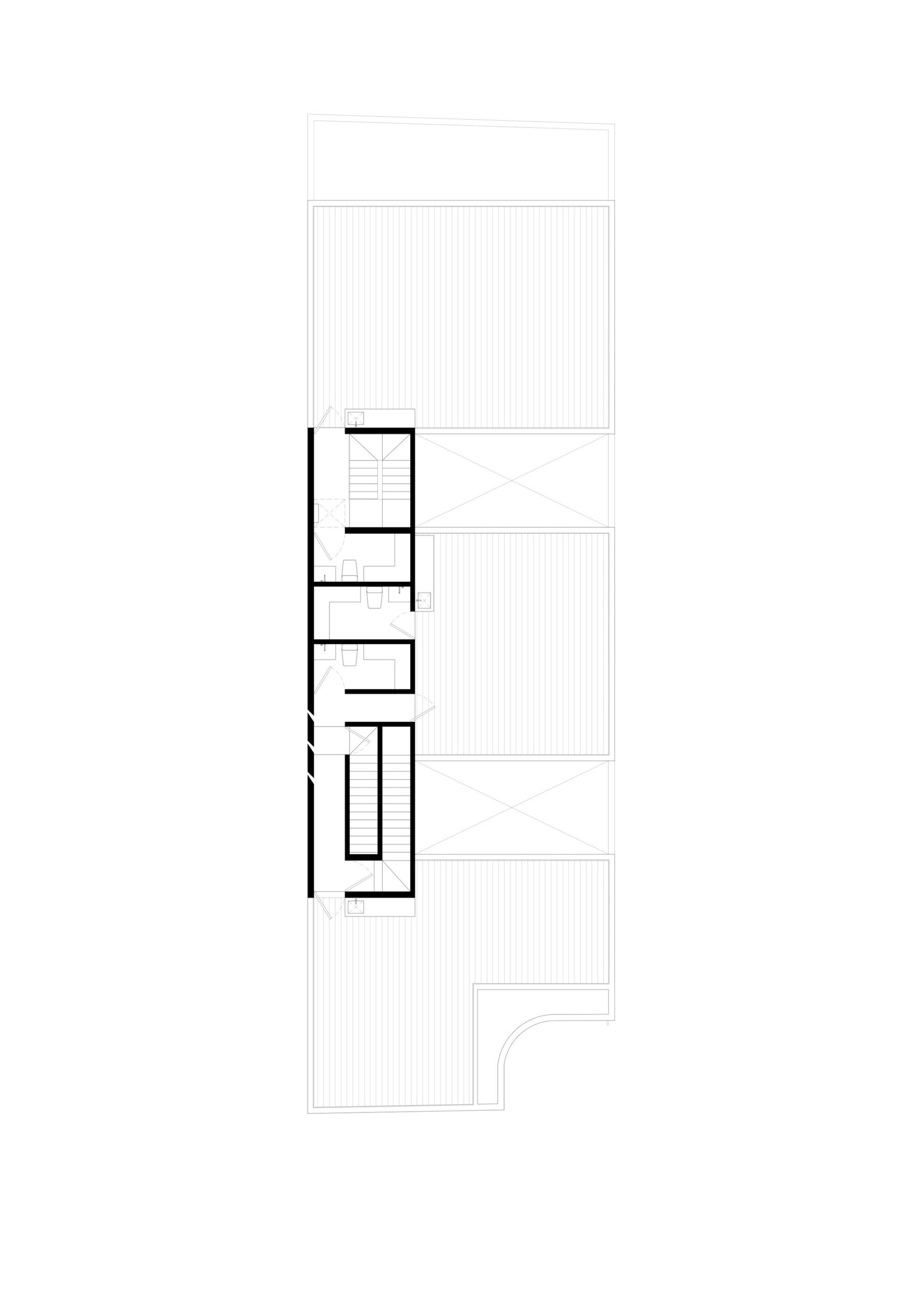

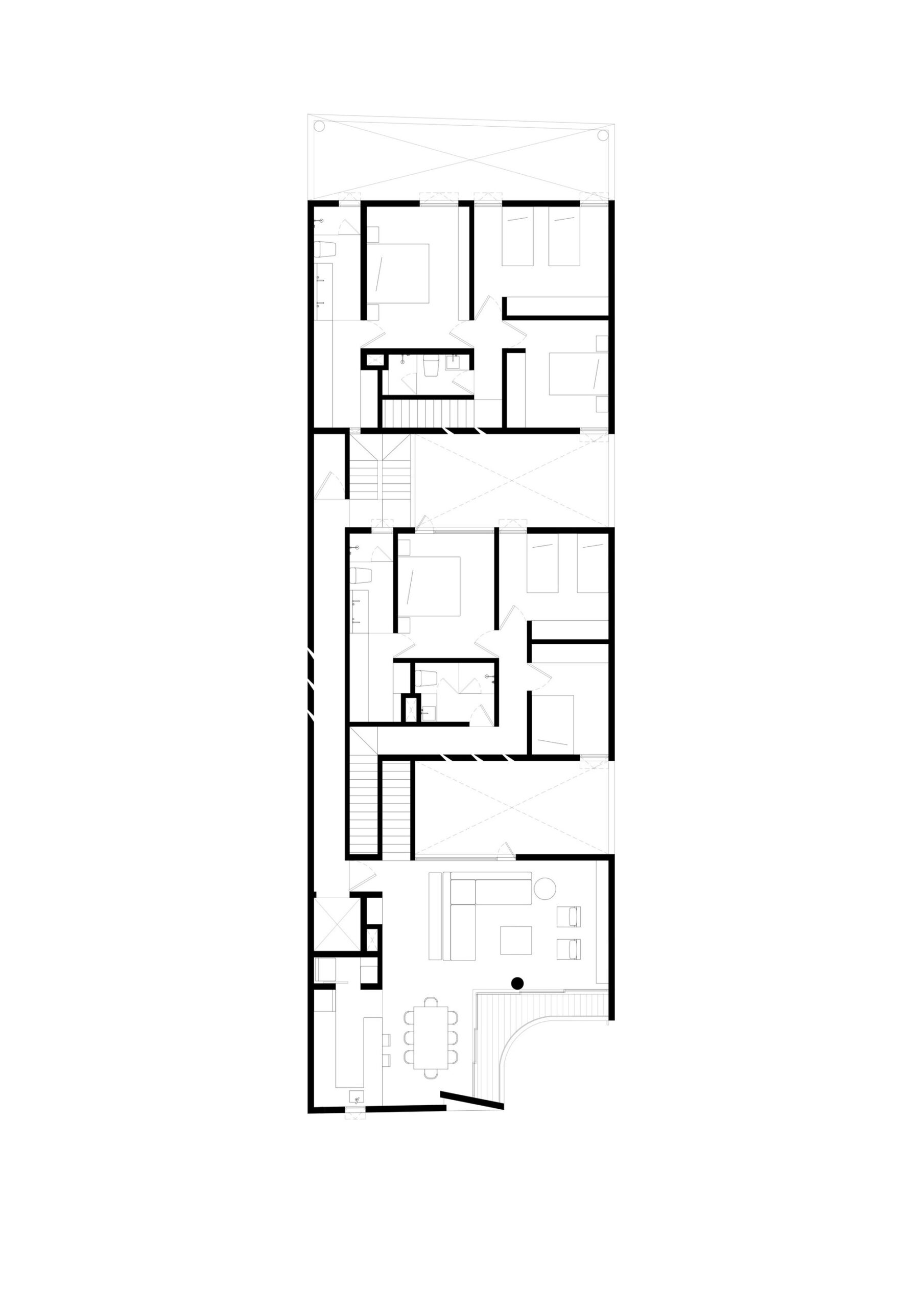

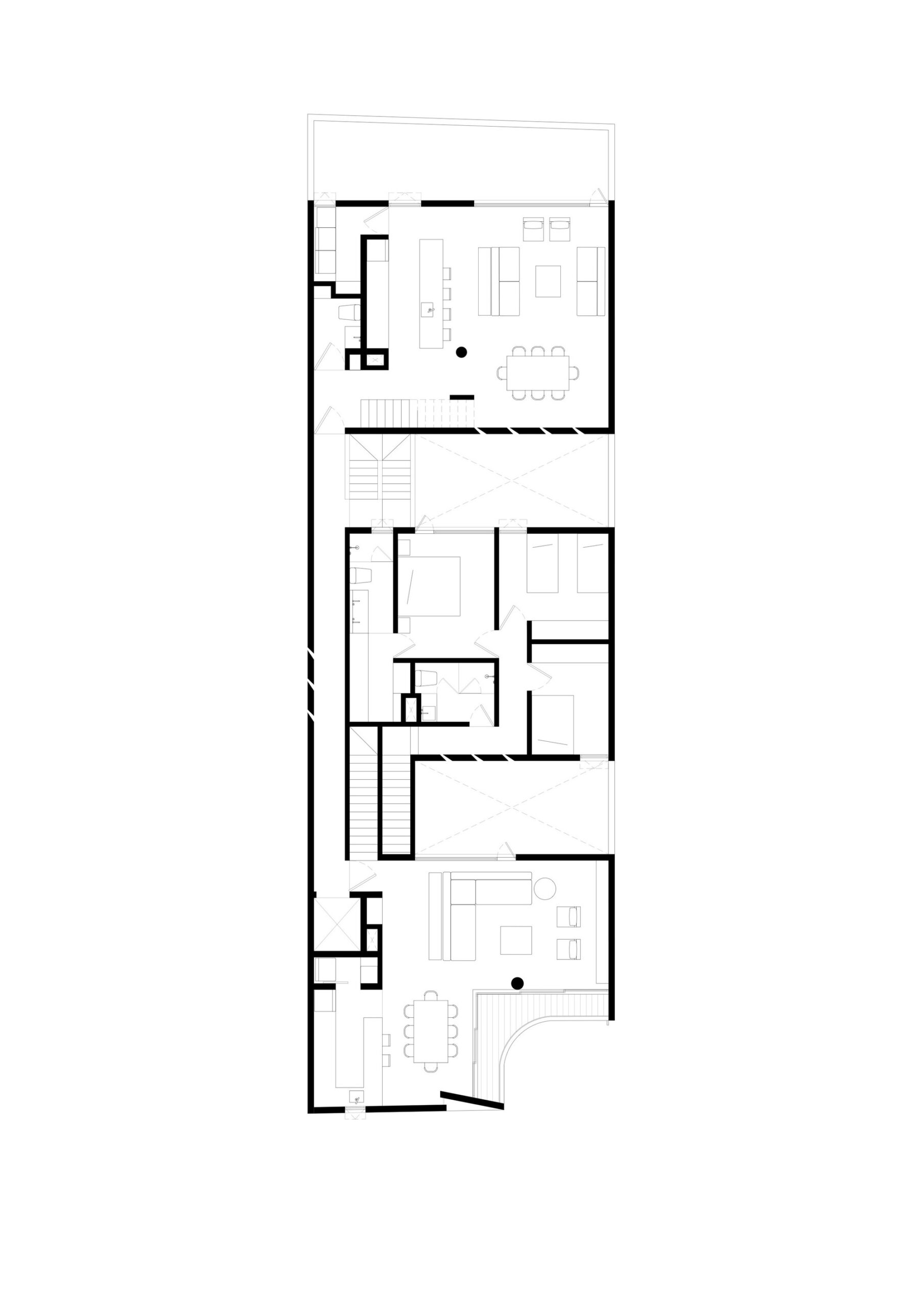

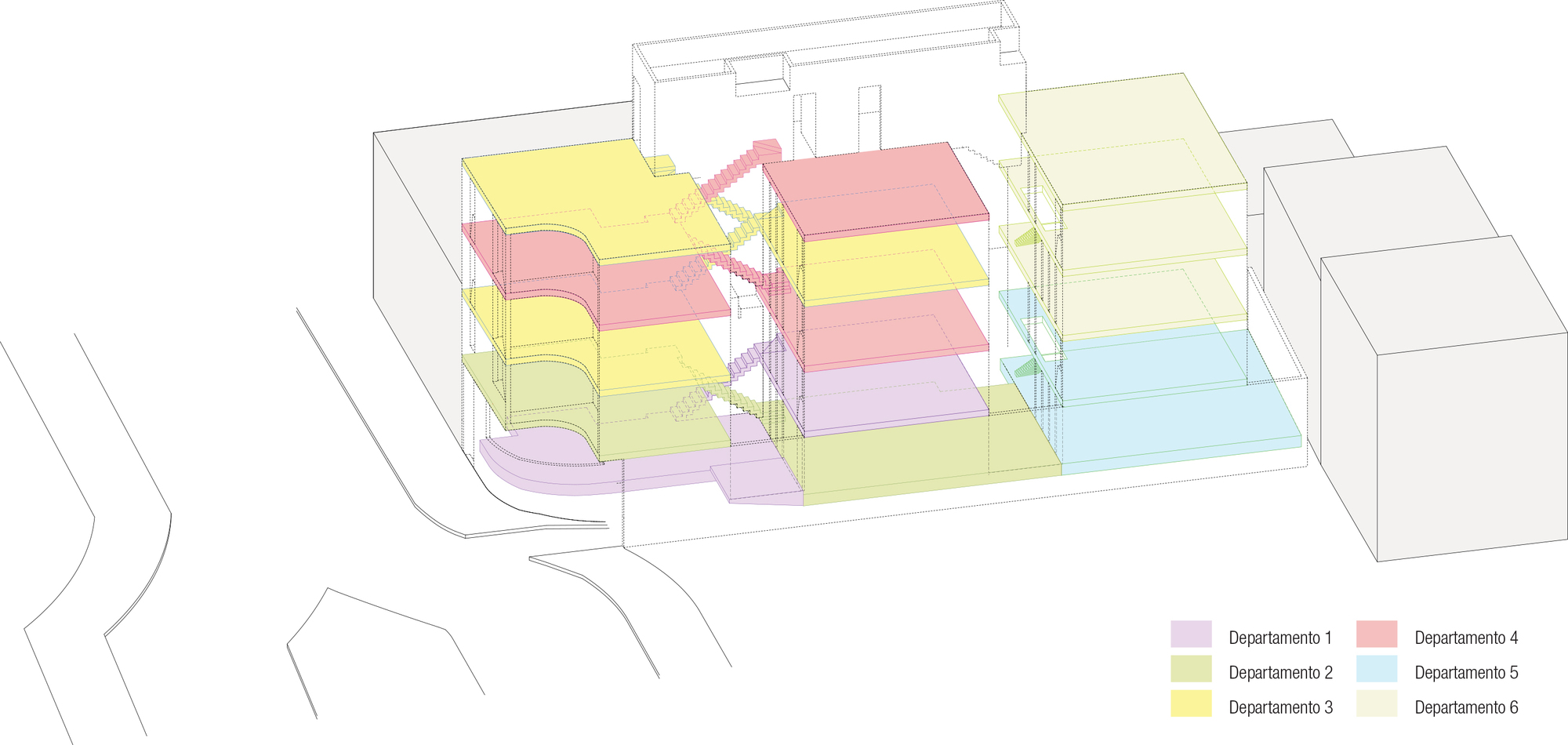

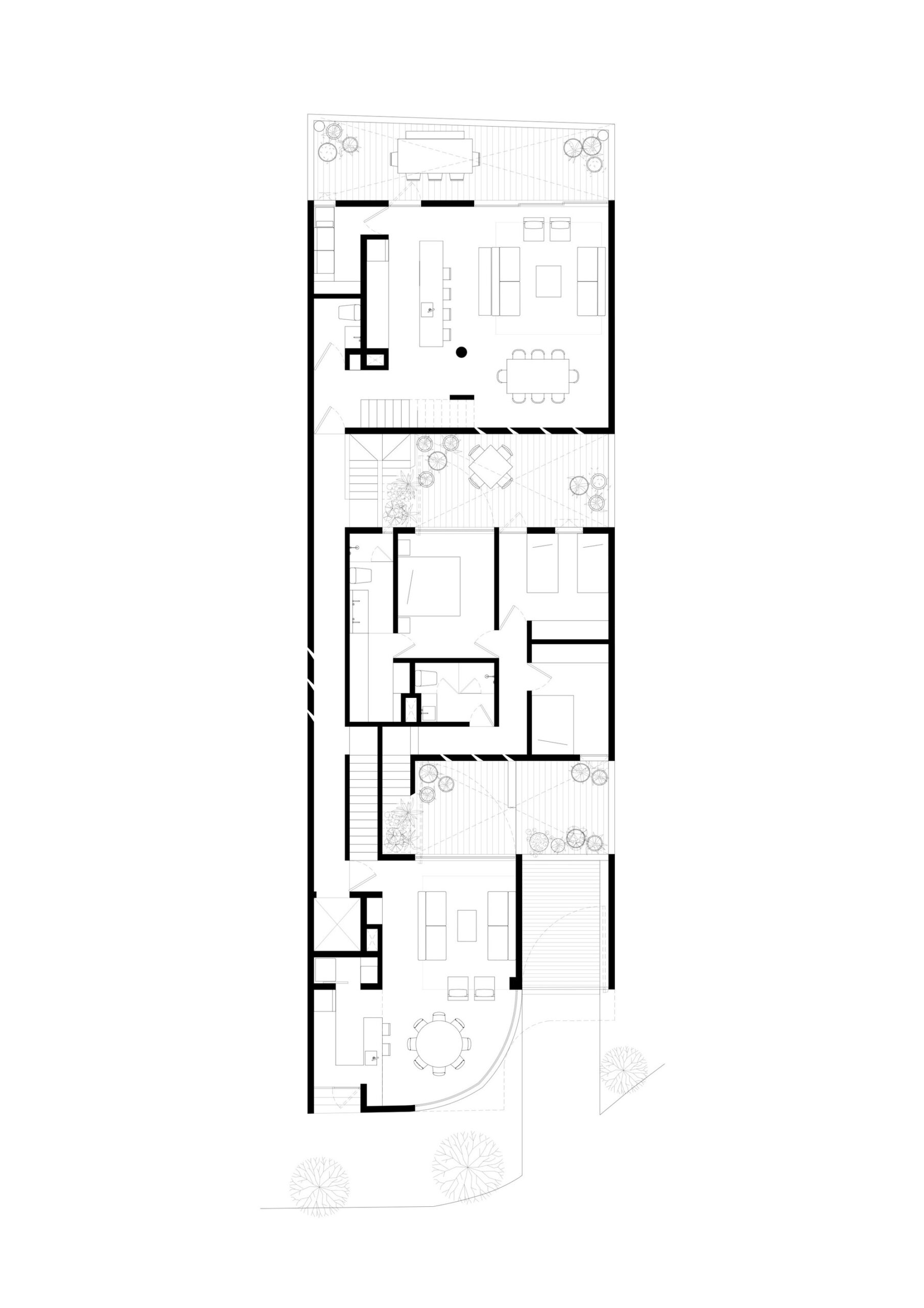

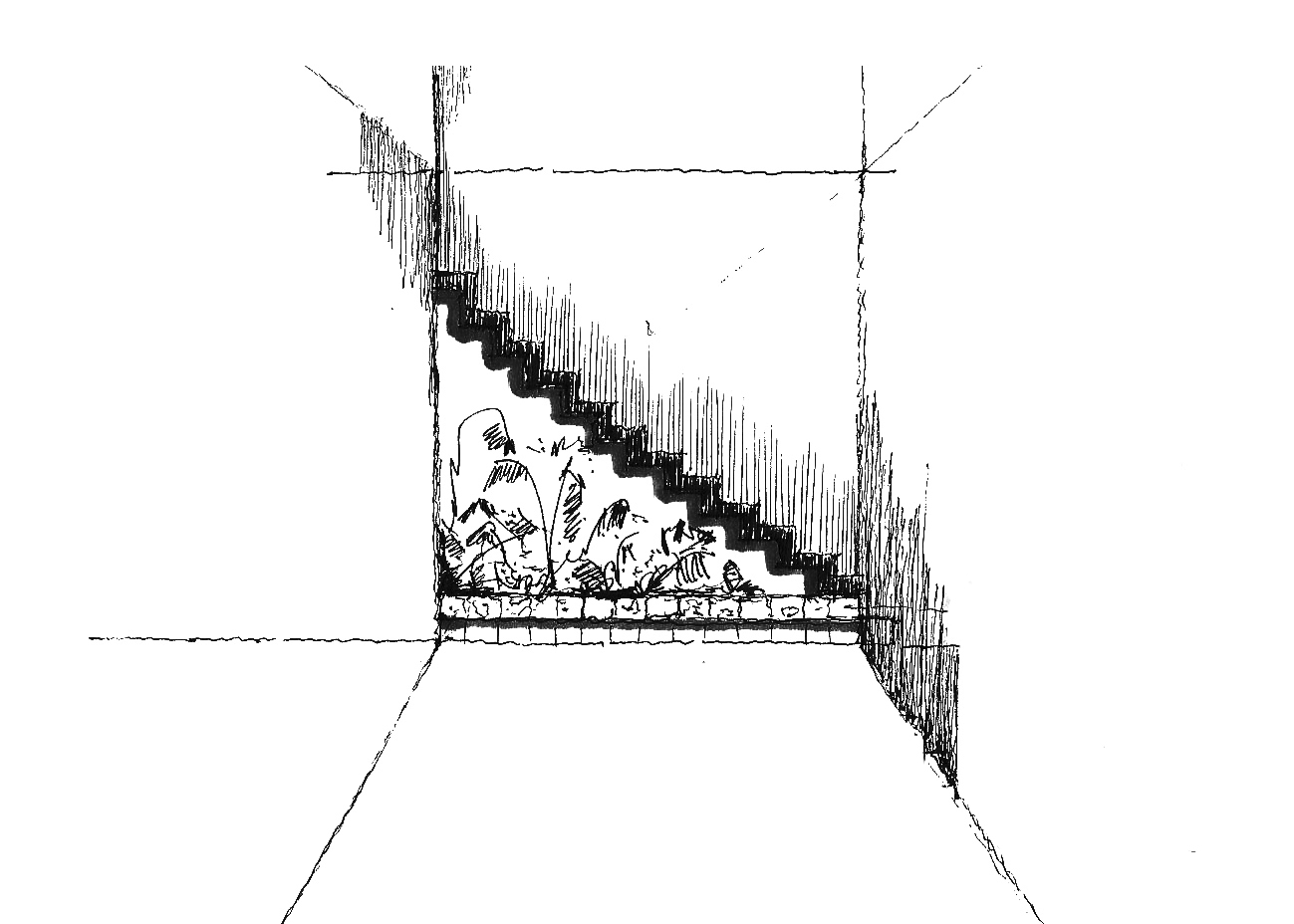

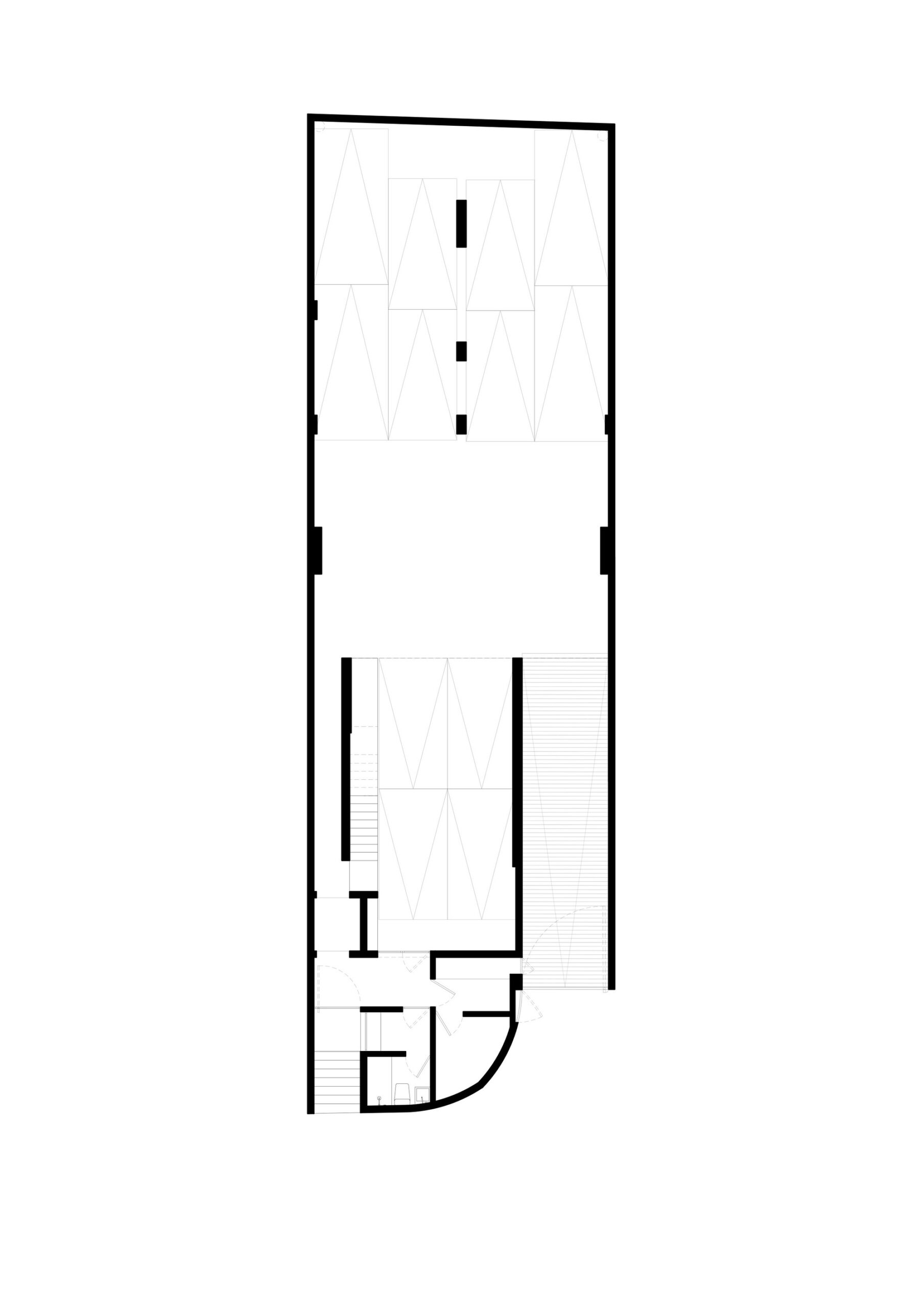

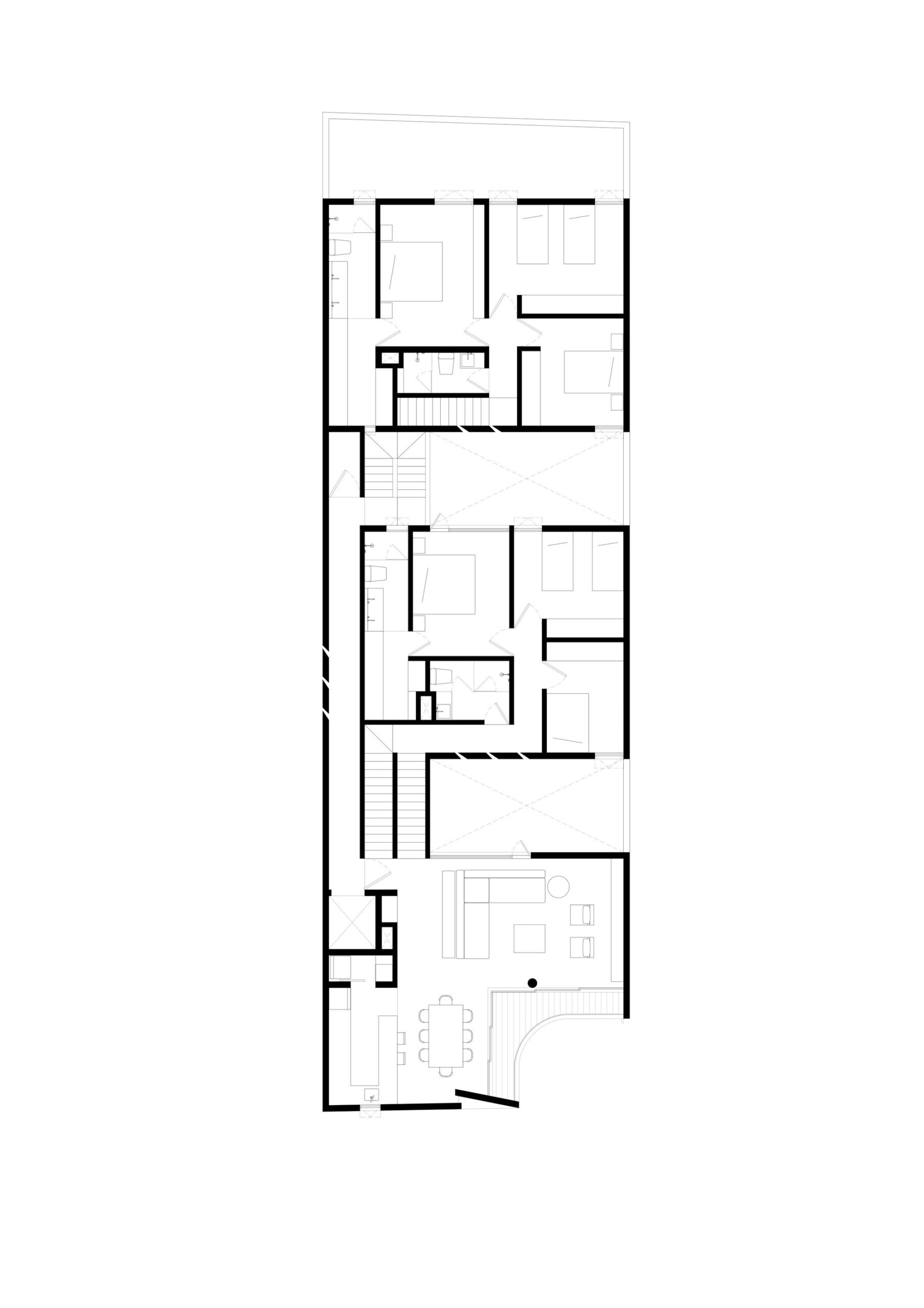

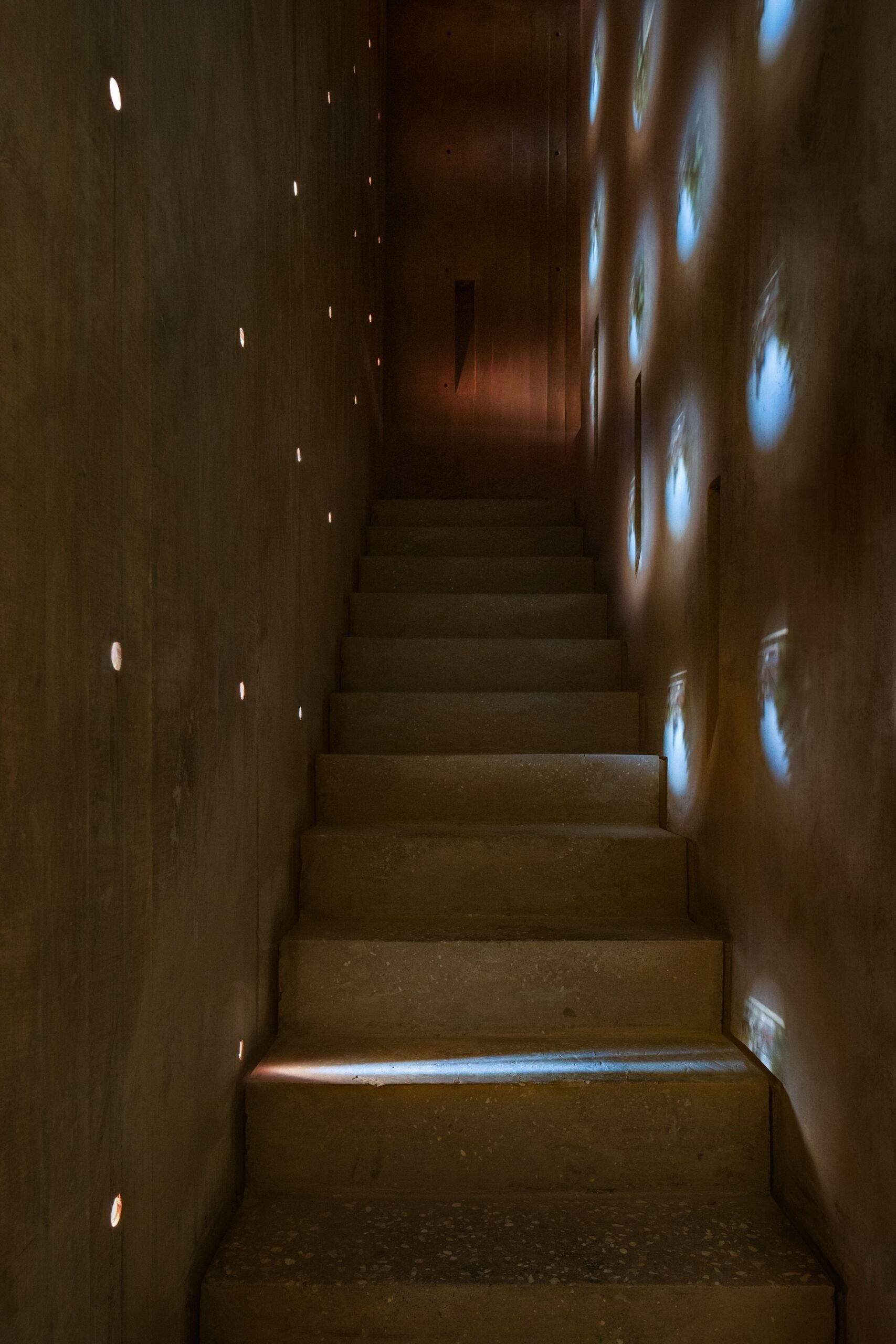

Six housing units make up the interior of these volumes through two different typologies. Within the first two volumes the same four units develop, in which the social area is on the first one facing the street and the private areas are on the second one, linked between the circulation core, evident in the intermediate ¨patios¨/voids.
© Rafael Gamo

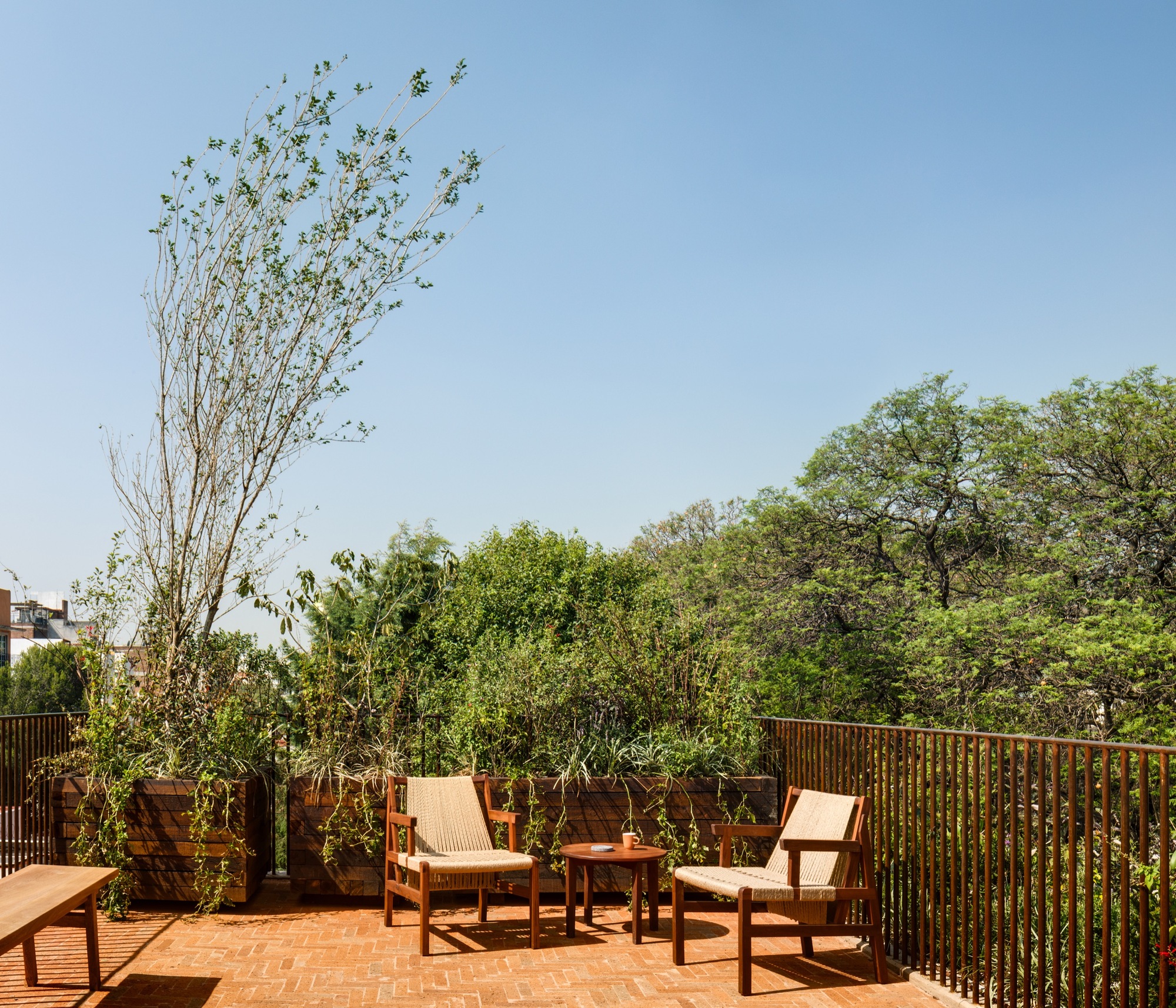

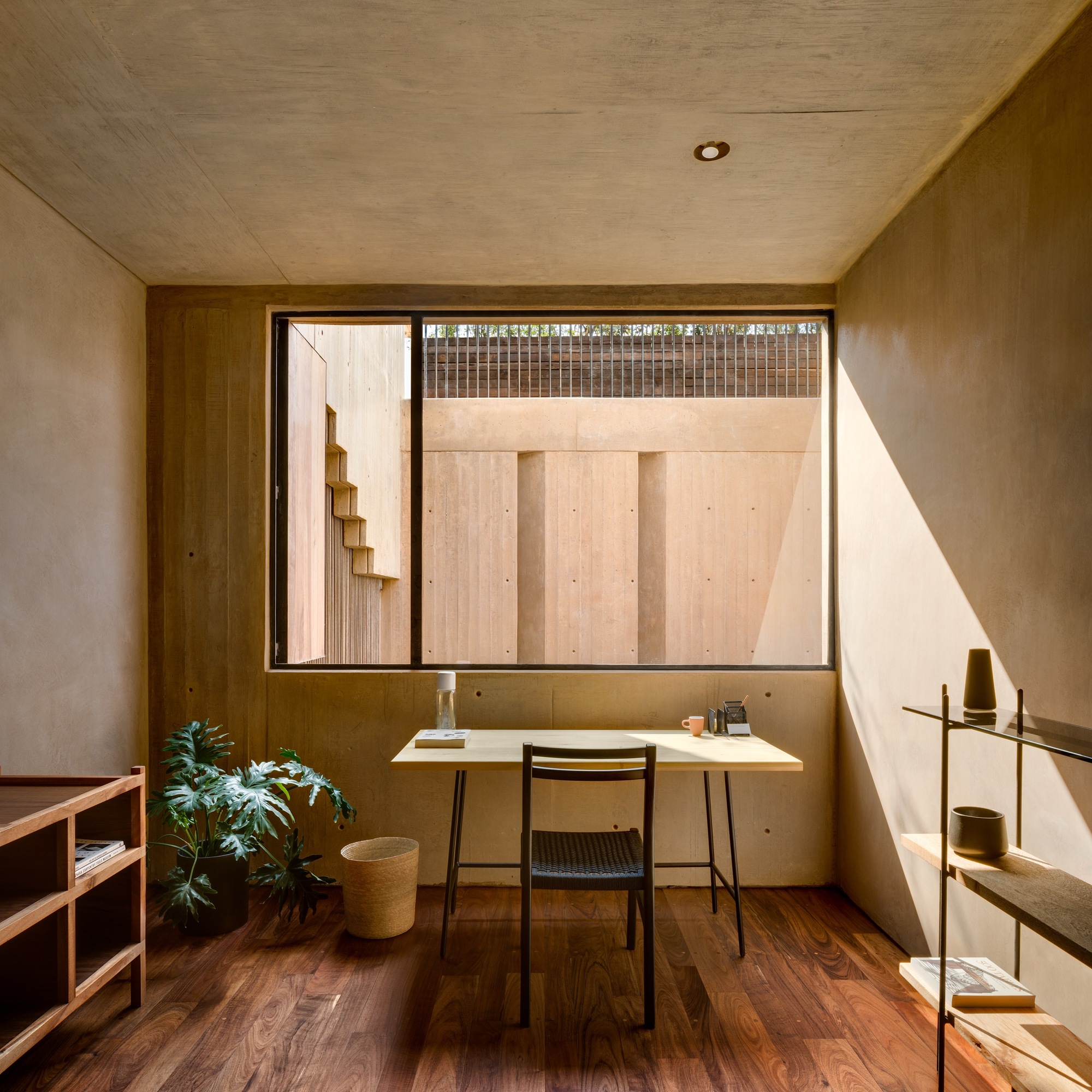

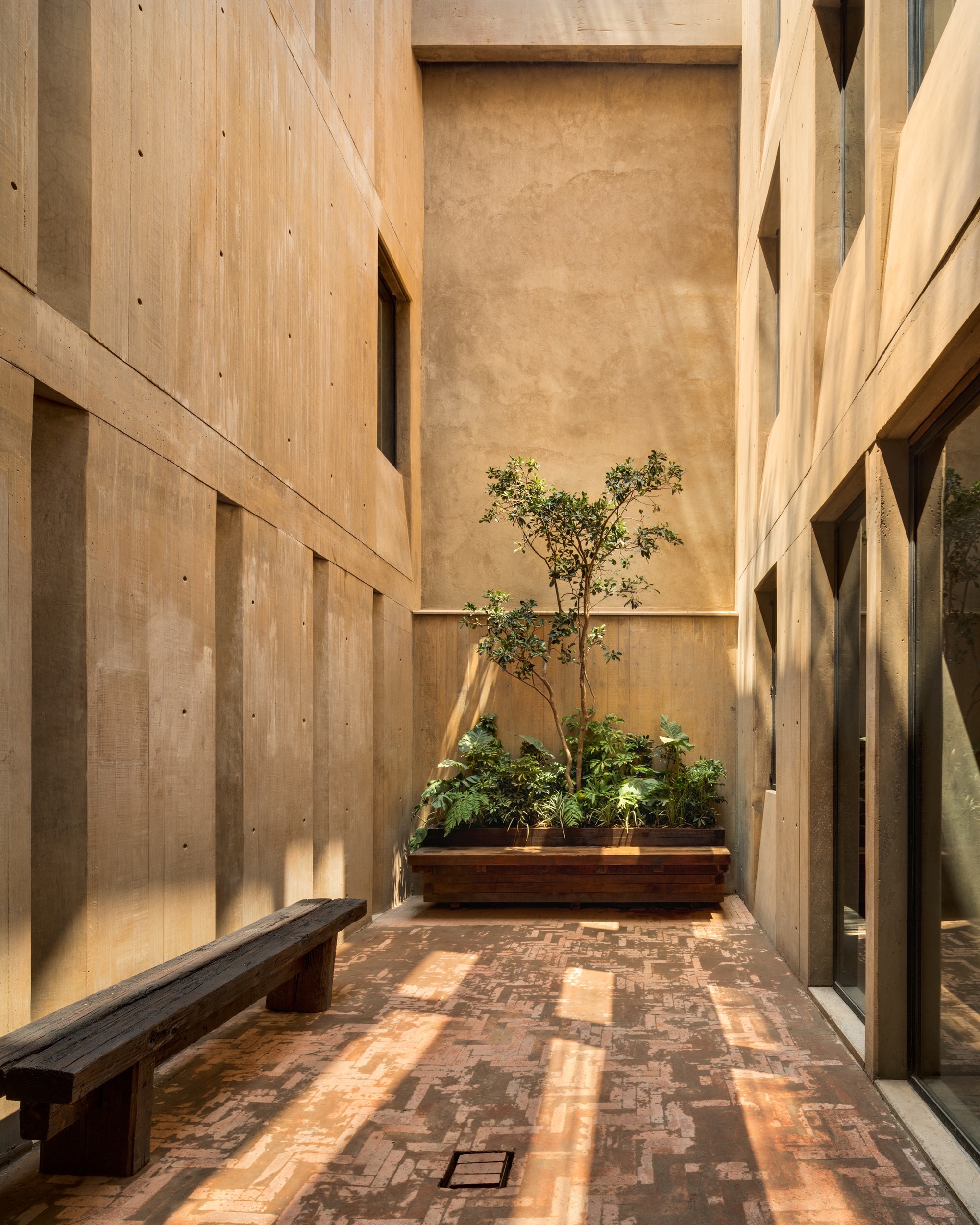

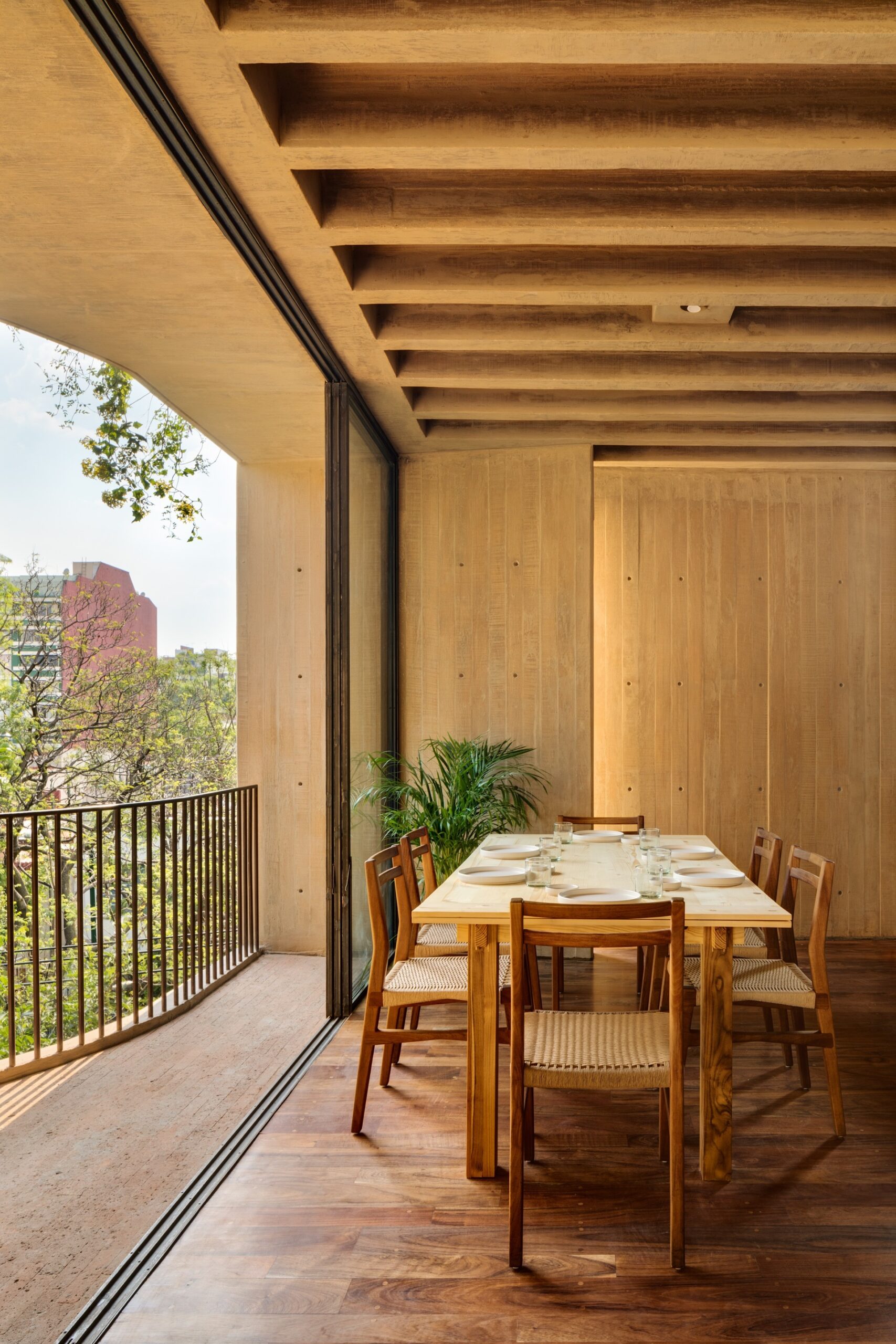

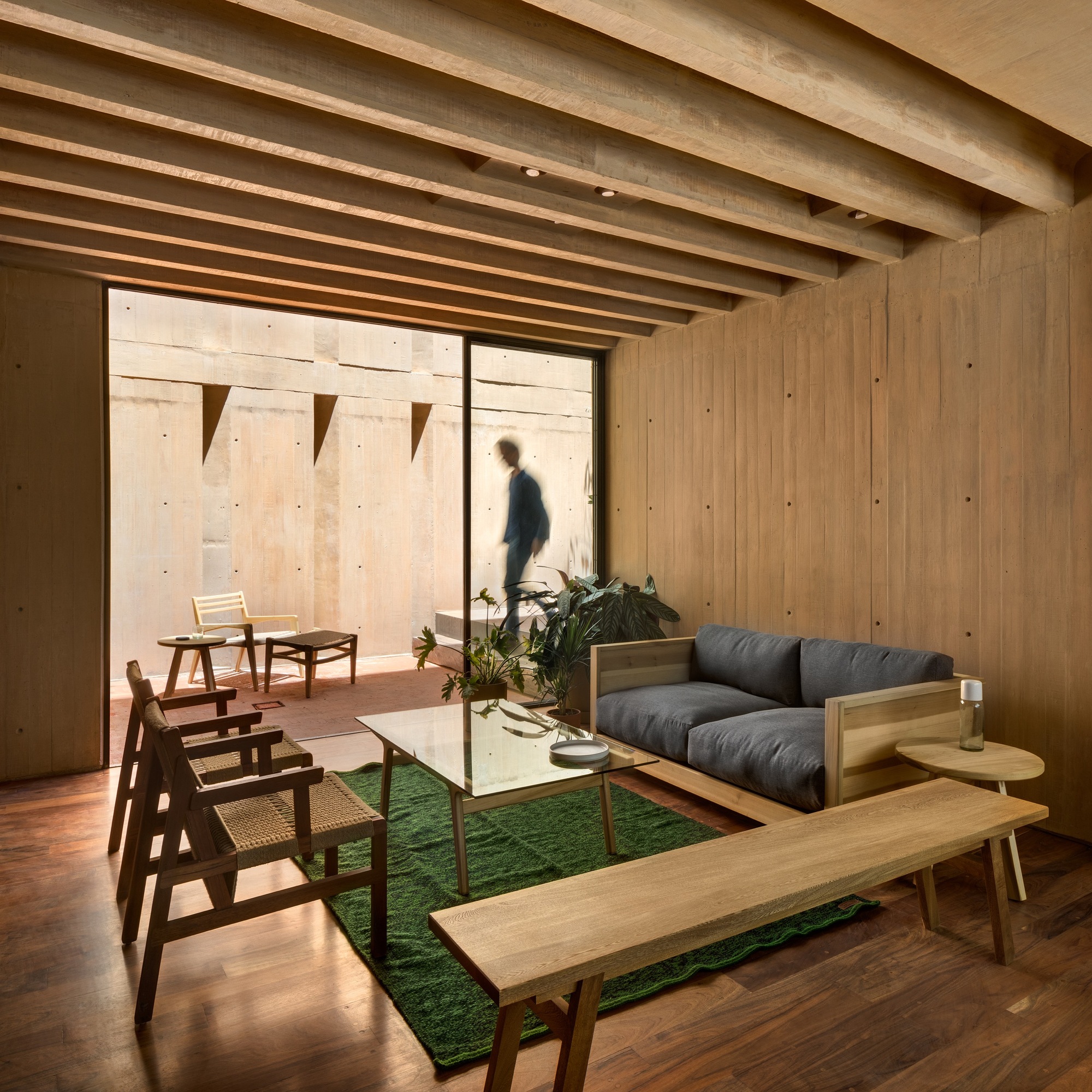

The diagonal connection between these two program areas allows each unit to take advantage of the fist floor ¨patios¨ and the gardens on the rooftop, so that each unit has its own private exterior area that merges with the interior space.
© Rafael Gamo
In the third volume two different units take part, each one consisting of two superimposed levels, that also merge with the exterior spaces in a more intimate and silent atmosphere.
© Rafael Gamo

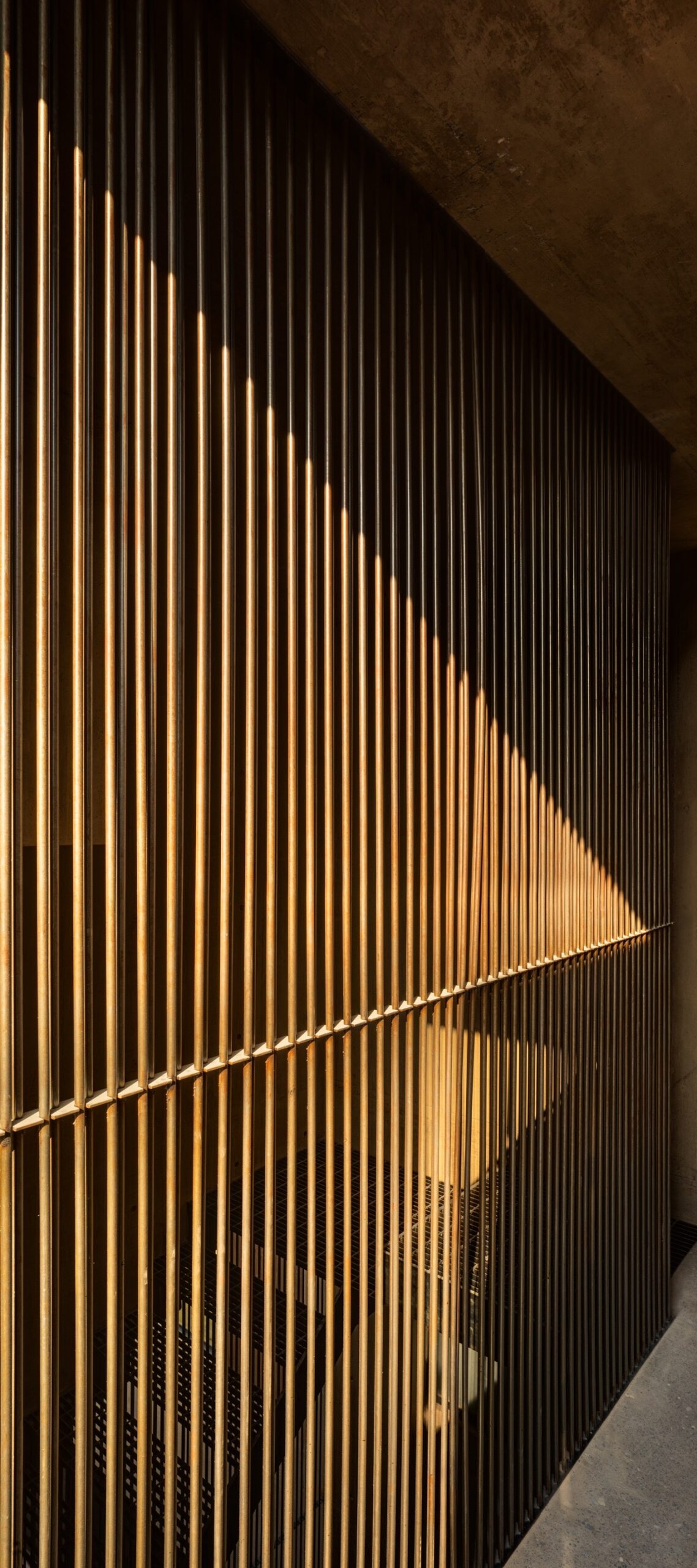

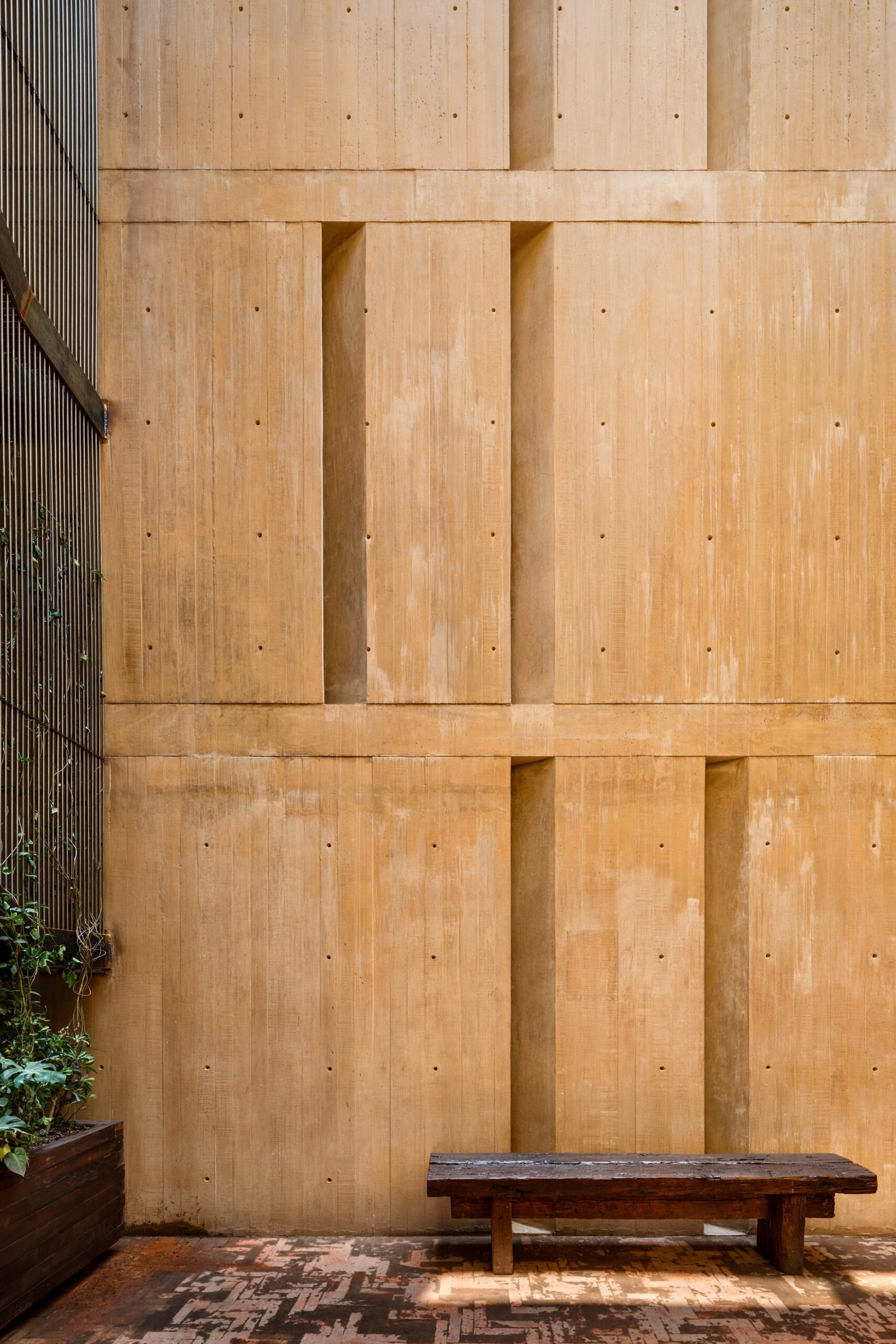

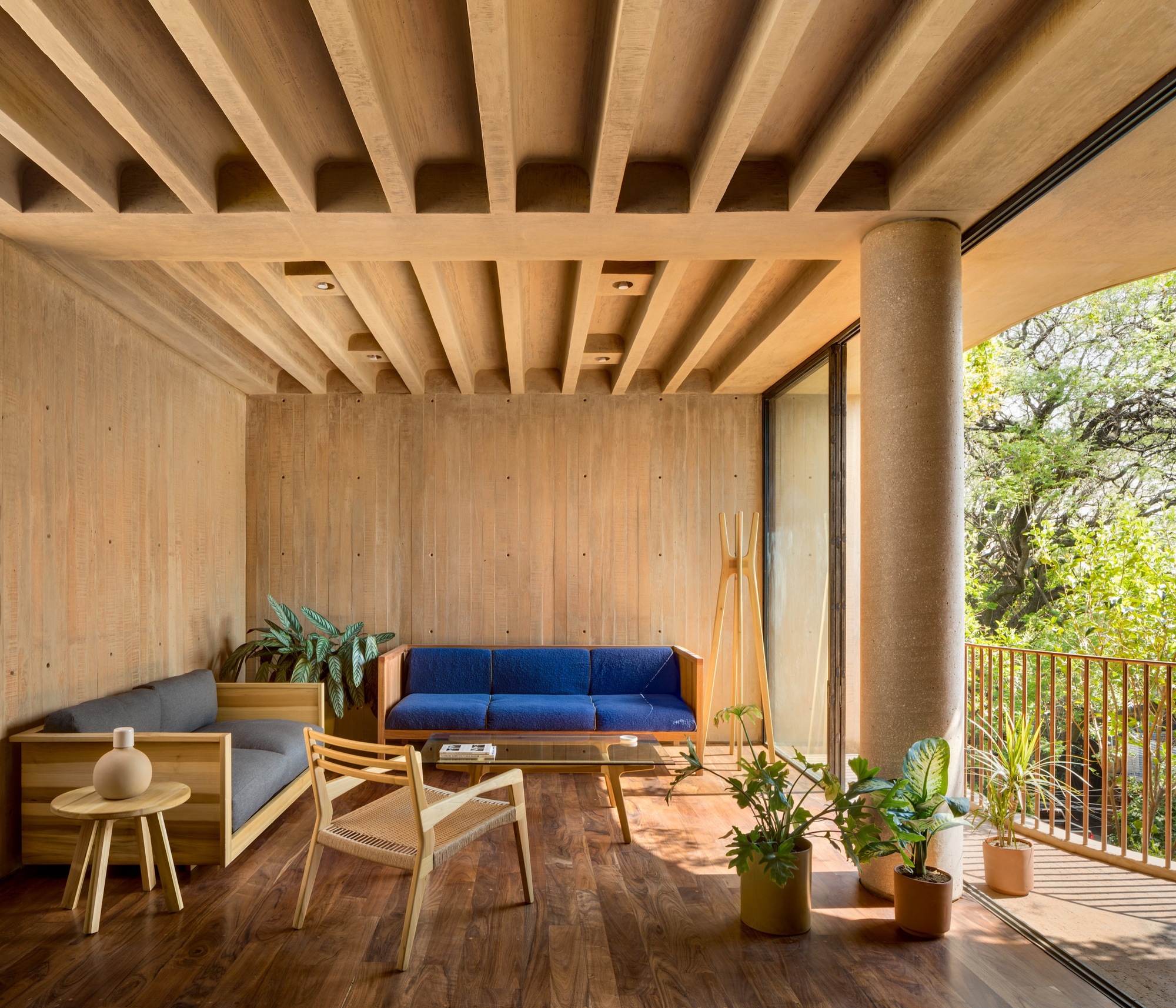

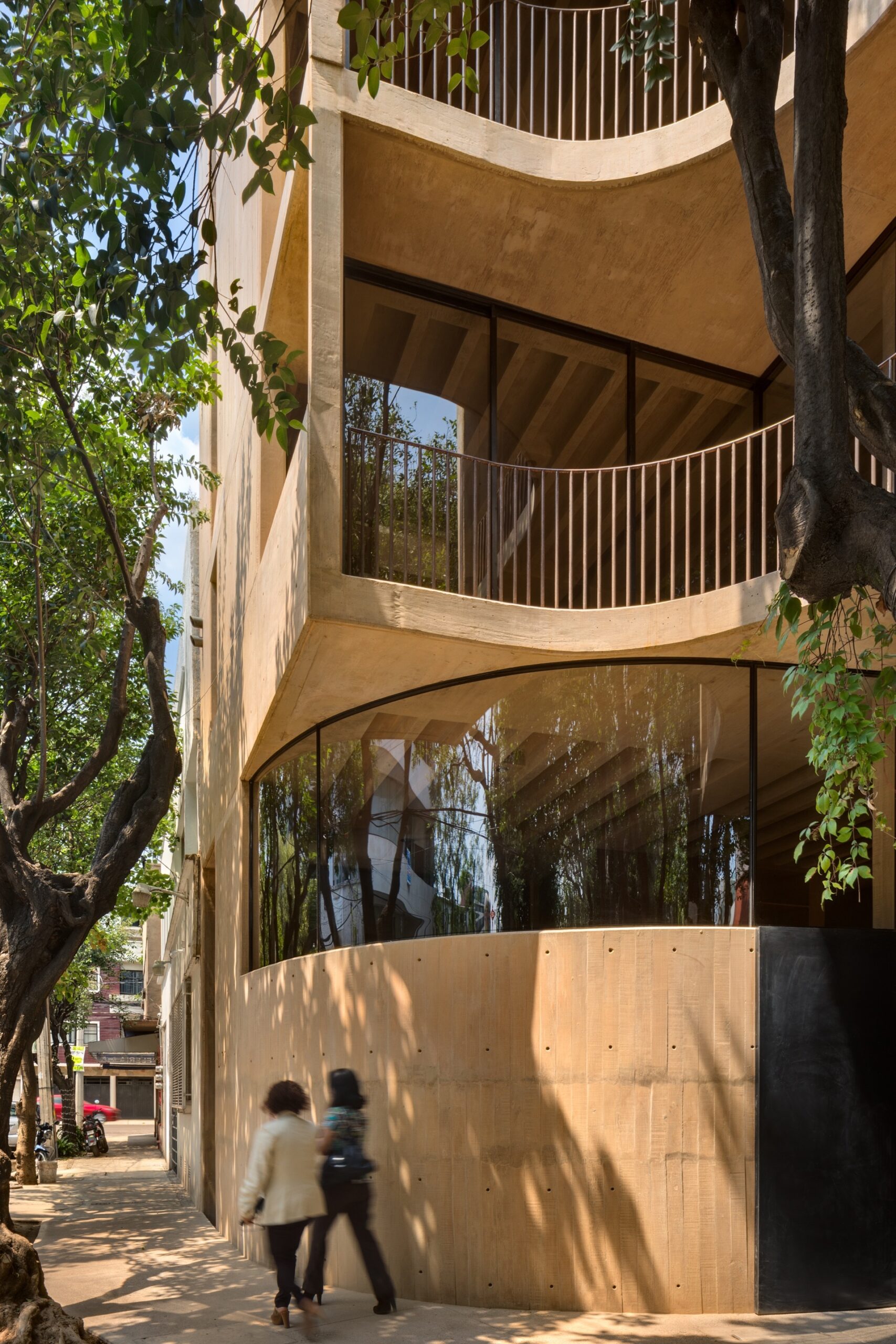

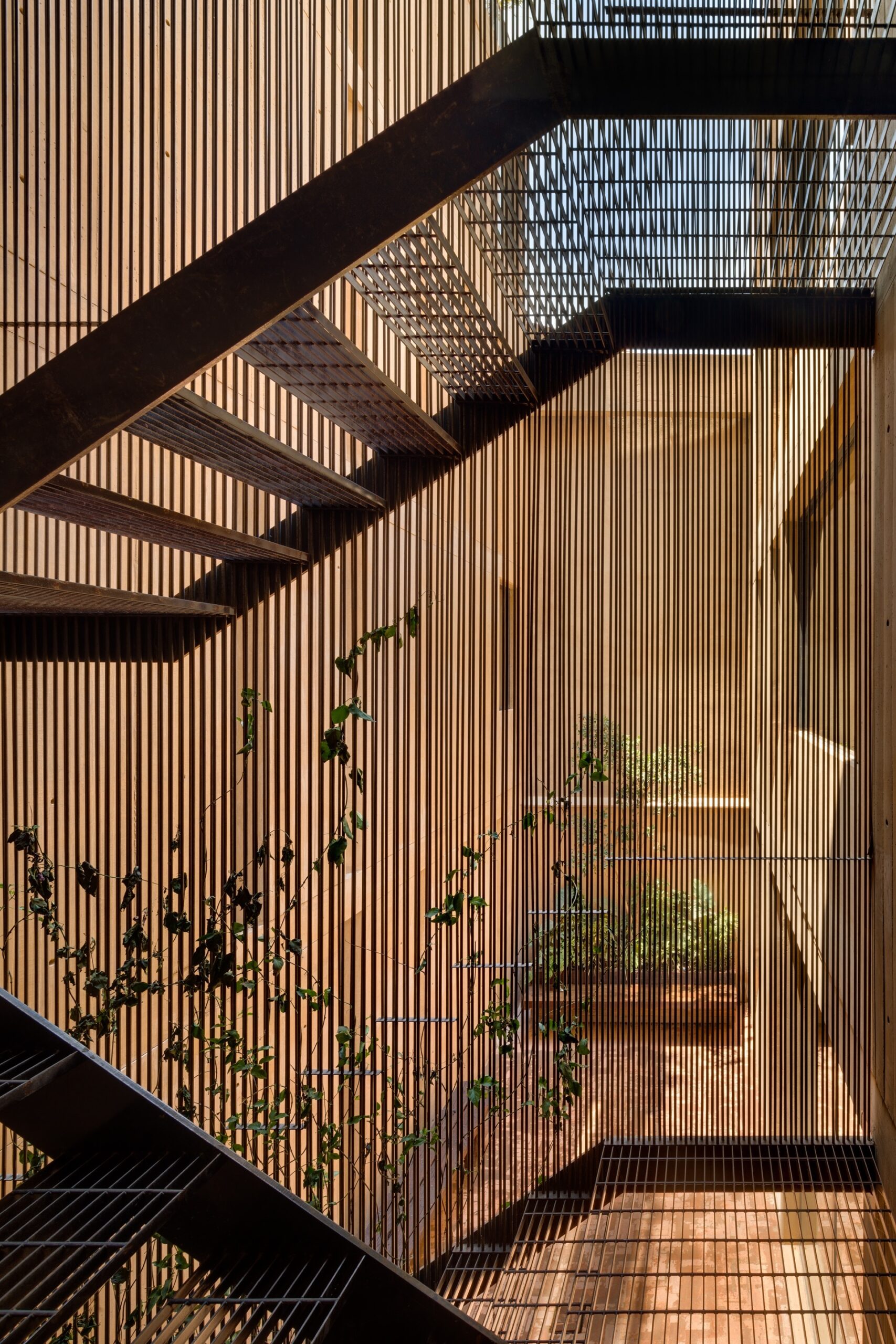

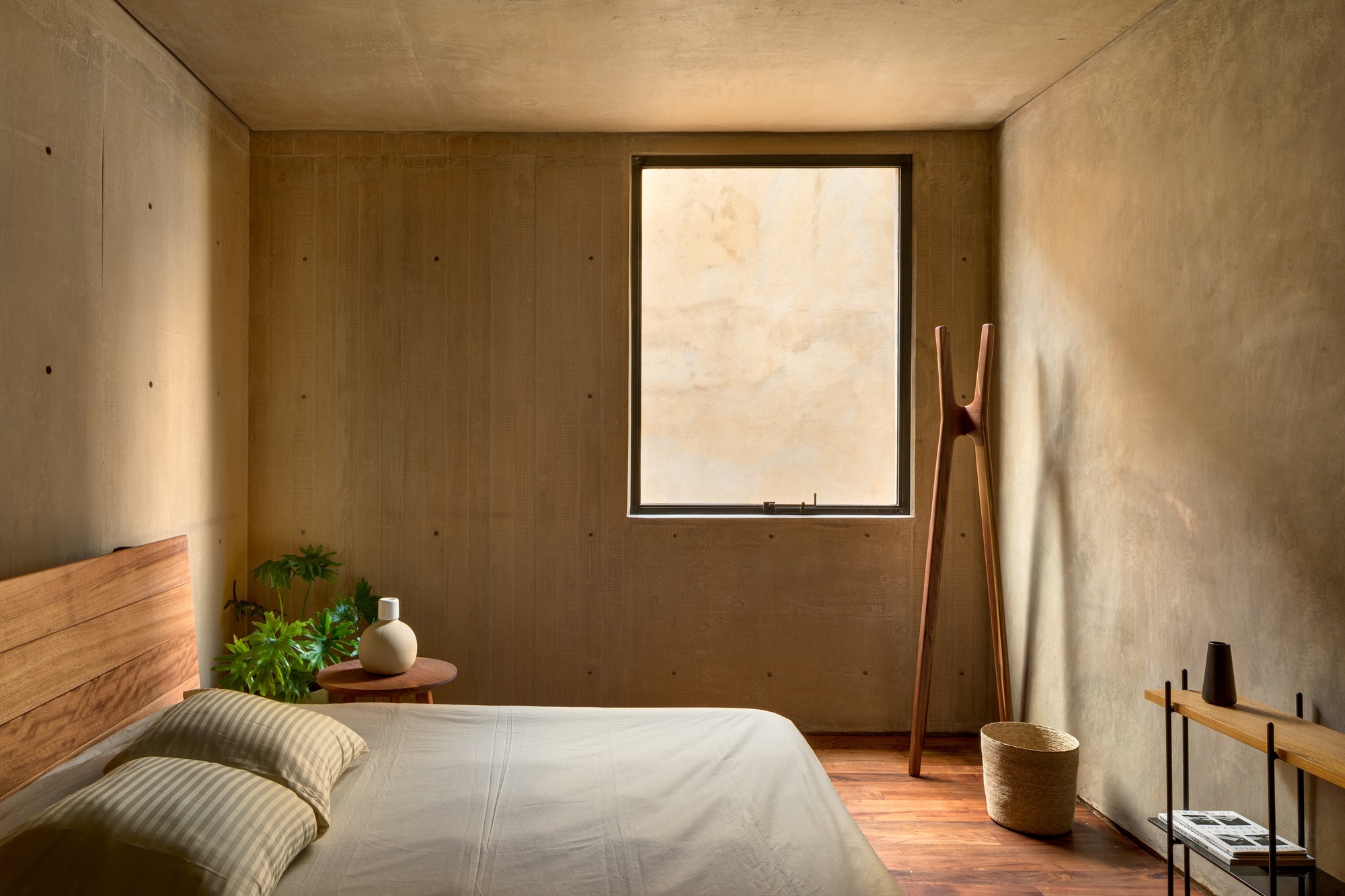

The two materials used are concrete, with a color aggregate, and steel. Finding in both good aging and low maintenance. Their use not only seeks to exalt their structural characteristics, but also to generate a good atmosphere through their sensorial qualities.
Project Info
Architects: Taller Héctor Barroso
Country: Mexico, Ciudad de México
Area: 960 m²
Year: 2018
Photographs:Rafael Gamo
Construction: Isaac Gindi
Structural Calculation: Ricardo Camacho
Installations: Tomás Rodríguez
Furniture: La Metropolitana
Landscape: Entorno. Taller de Paisaje
Author: Héctor Barroso
Design Team: Vianney Watine, Diego Rentería, Silene Rivera
