Kinfolk | Berg Design Architecture

Designed by Berg Design Architecture,The project is located in the Wythe Avenue corridor in Williamsburg, Brooklyn: a neighborhood composed of mostly low rise industrial buildings which support local manufacturing. The corridor is also home to Kinfolk Studios, formed in 2008 by friends from New York, Los Angeles and Tokyo, Japan. The concept of a “Kinfolk life” evolved from their desire to create products and experiences they’d imagine but couldn’t find to purchase.
Combining experience from a variety of disciplines, the group set out to source the highest quality designers, builders and techniques to develop lasting products and unique experiences.

Photographt by © Edward Caruso

As an organization, Kinfolk is a creative collective that uses their space at 90 Wythe Ave for various functions, not the least of which are a coffee shop, bar, and restaurant. For the neighboring site at 94 Wythe Avenue, we were hired to design a multi-disciplinary event/performance space, bar, and retail store. The existing building, a former mechanics garage, is a 75’ x 50’ brick structure with 20’ tall ceilings and storefront glazing facing Wythe Avenue.
As a design directive, the client asked that space look like it was designed by a “Pacific North West hippie Mathematician”. The bar area had to feel intimate on a slow night with only 30-40 people but feel connected to the rear event space when the venue is filled to capacity with 150 people. The bar and event space needed to be adaptable to a variety of uses including art gallery shows, movie screenings, DJ dance parties, musical performances and large dinner parties.

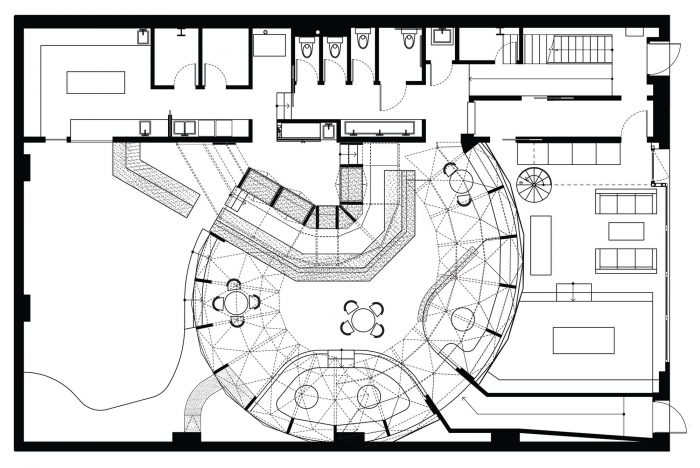

Plan

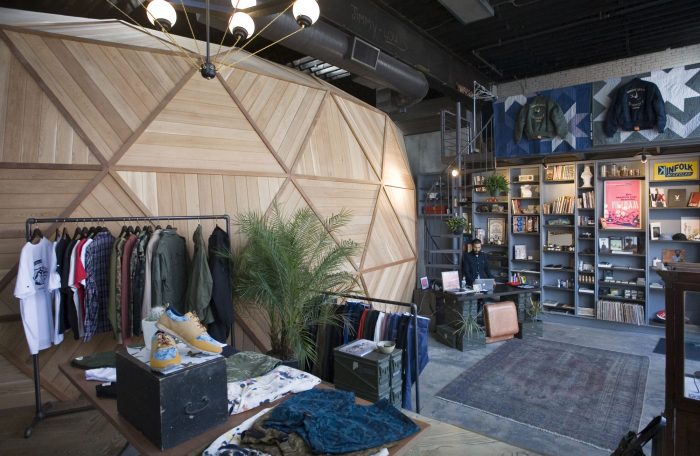

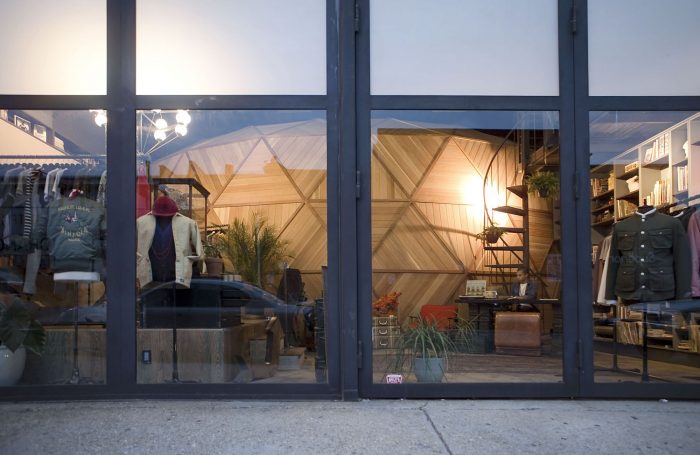

In the middle of the main space three set pieces were inserted; two “geo – shells” and the bar canopy. The geo-shells are geodesic inspired sections of a dome and are clad in Douglas fir and Western red cedar to materially reference the Pacific North West. The retail space utilizes the glass storefront system for display and has a designated street entrance. The experience from the street is that there is an entire geodesic dome in the space.

Photographt by © Edward Caruso

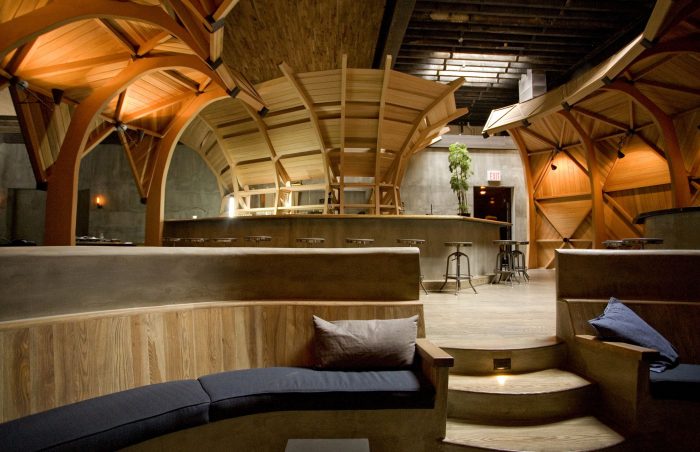

One enters the bar/event space through an intentionally dark entry hall which is angled at the end to only reveal the interior space of the dome at the end of the hallway. Upon entering, the bar structure is the visual focal point and a foil to the geo-shells. The bar structure’s trusses support the liquor bottles and the canopy which spatially defines the bar area. Both geo-shells while slightly different in scale and radius create semi-enclosed spaces with intimate seating areas differentiated by changes in elevation; one seating array is slightly raised while another is recessed into the floor referencing George Nelson era “conversation pits”. The geo shell in the rear of the space is carefully perforated to connect to the rear event space which contains a small stage, DJ booth, and gallery lighting.
Removable panels were designed to infill the openings in the shell and modulate the level of connection between the two spaces.

Photographt by © Edward Caruso

Project Info:
Architects: Berg Design Architecture
Location: Williamsburg, Brooklyn, NYUnited States
Lead Architect: John Berg
Area: 2500.0 ft2
Project Year: 2014
Photographs: Edward Caruso
Project Name: Kinfolk
