Jackson Lab for Genomic Medicine | Centerbrook Architects & Planners

The Jackson Lab for Genomic Medicine was designed to be sophisticated enough to entice internationally acclaimed scientists, bold enough to symbolize the state of Connecticut’s commitment to advanced research, yet practical enough for an economic nonprofit organization serious about its mission.

Centerbrook Architects & Planners in collaboration with Tsoi/Kobus & Associates of Cambridge, Massachusetts, designed the $135 million research facility. A nonprofit research institution based in Maine and with facilities in California as well, JAX has a staff of 1,400 professionals nationwide and is a designated National Cancer Institute research center.

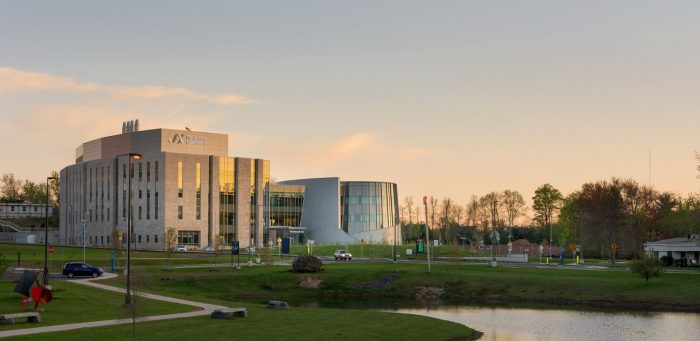

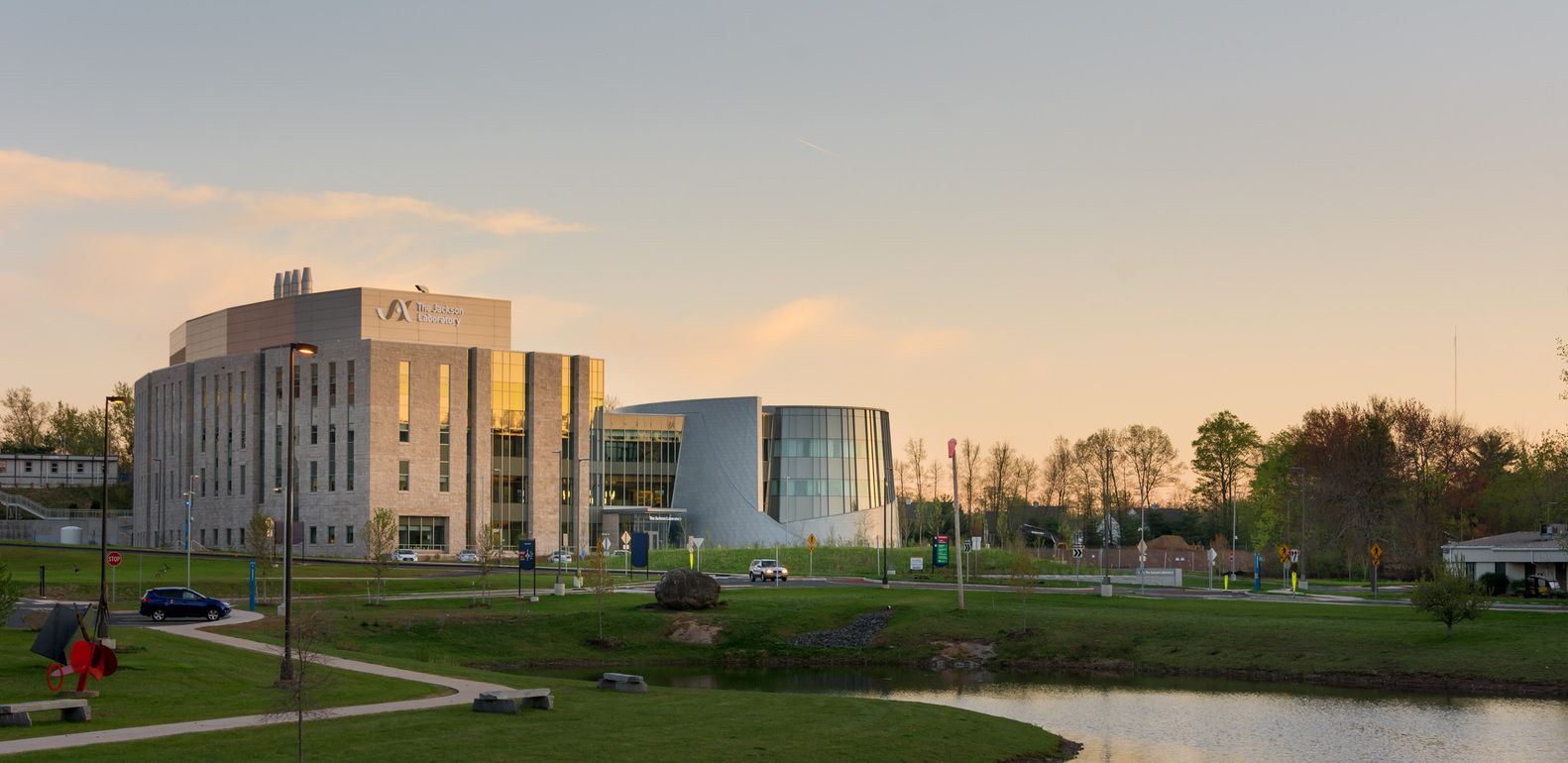

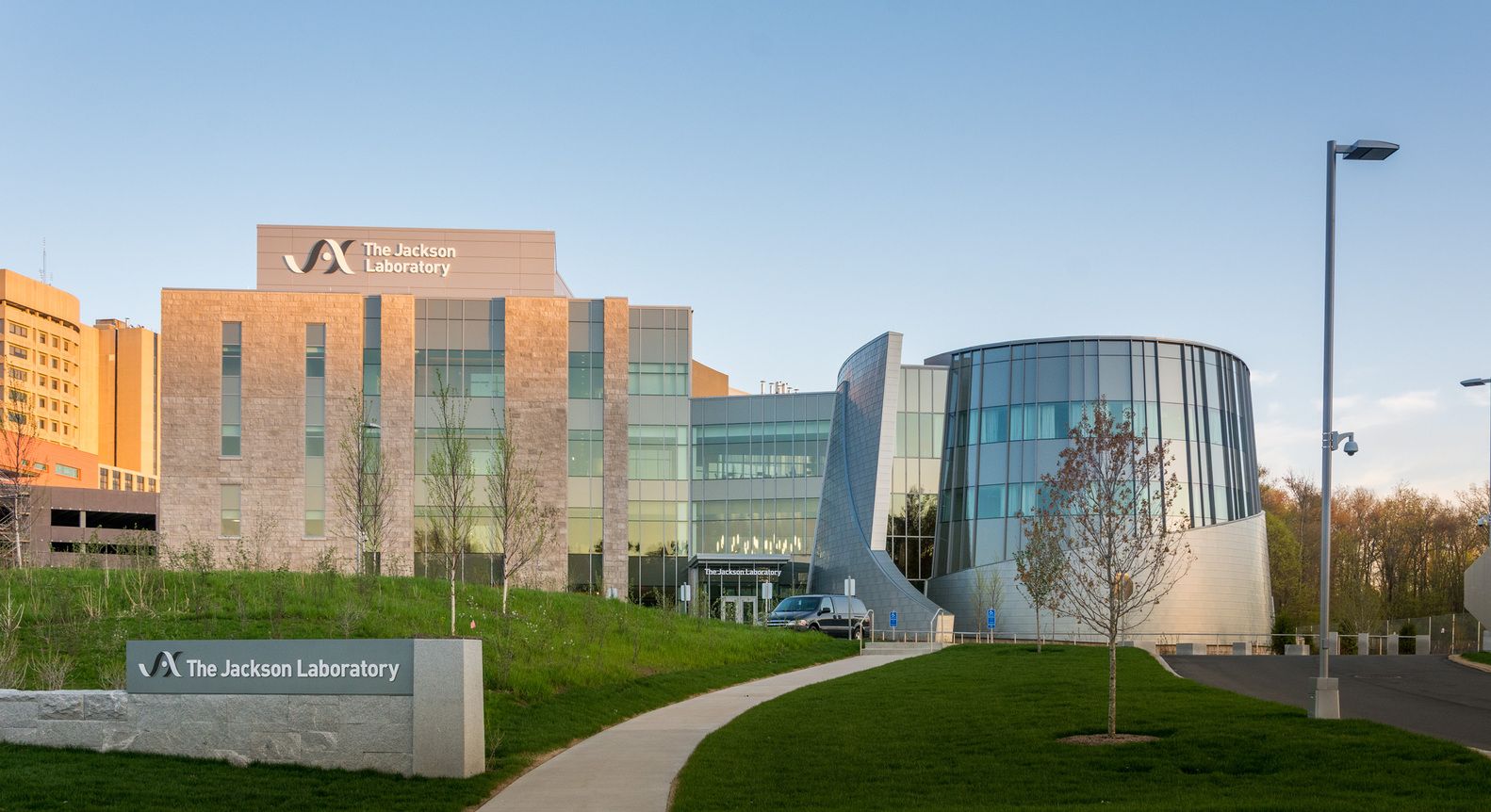

Opened in 2014, the 189,000-square-foot JAX building is set on a 17-acre site adjacent to the UConn Health campus. It houses state-of-the-art laboratories where more than 300 biomedical researchers, technicians and support staff will probe the human genome for new treatments for cancer, Alzheimer’s, diabetes and other daunting diseases.

Photography by © Robert Benson

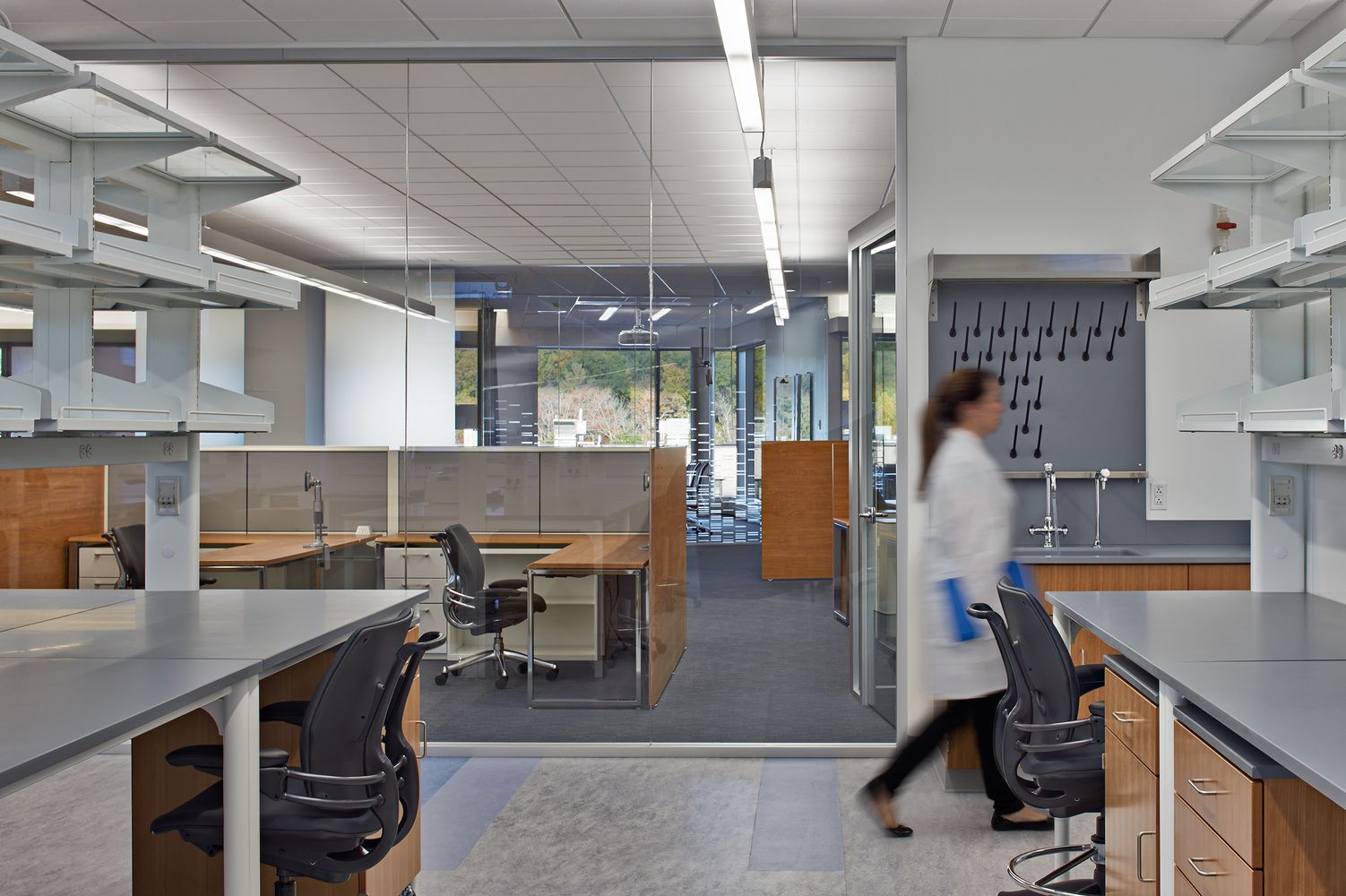

Jackson Lab includes 17 “wet” biology labs and another 17 “dry” computational science labs, along with scientific service areas. The labs are clustered in large open suites to encourage collaboration among scientists and technicians, and to enable spaces to be reconfigured quickly and easily as research programs grow or evolve.

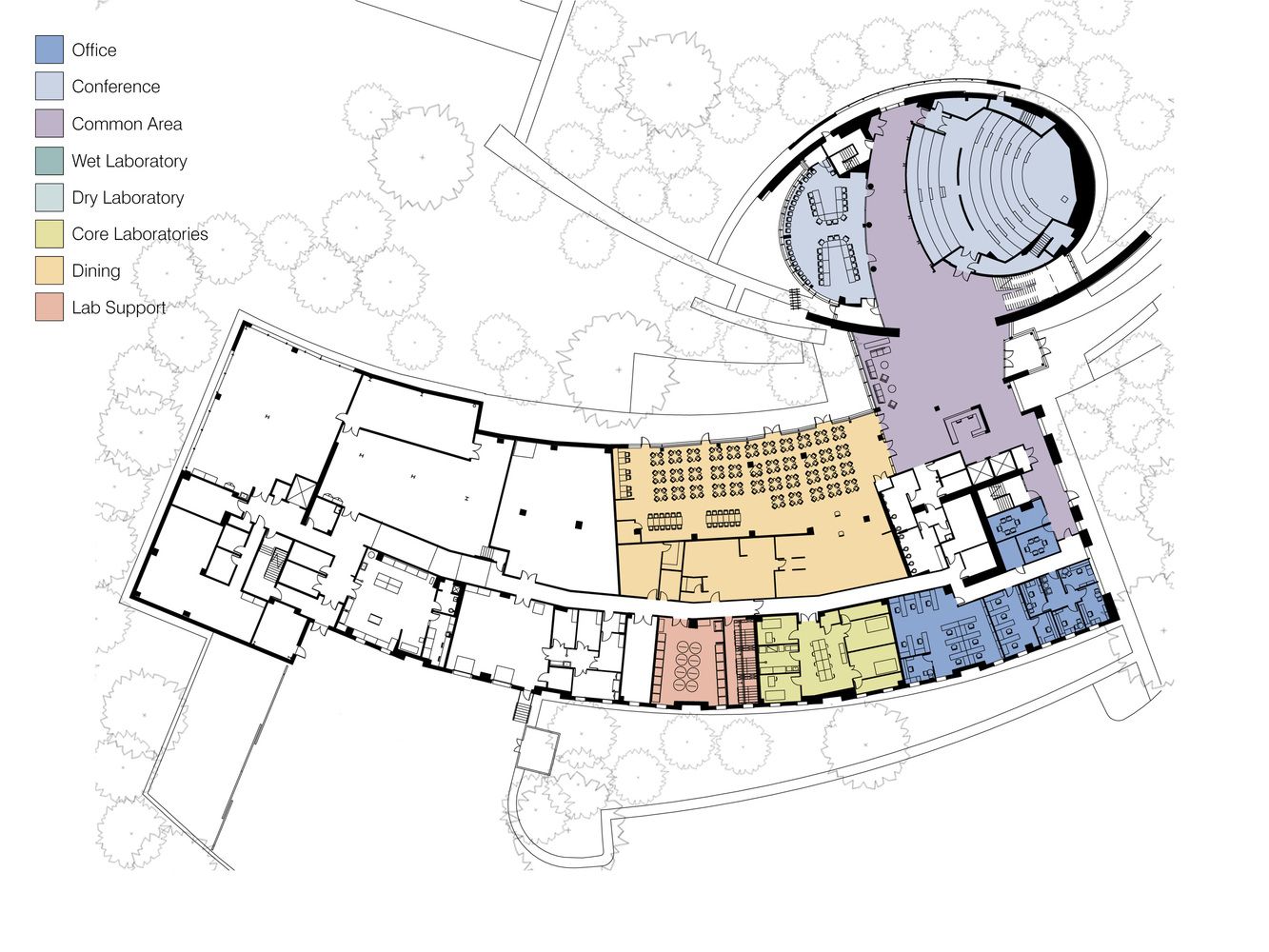

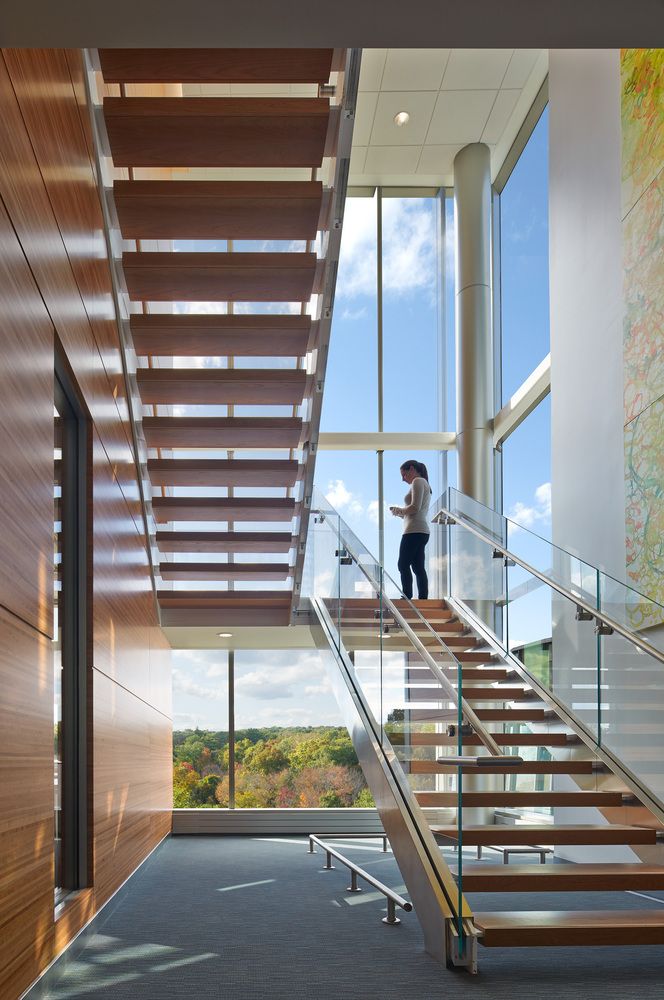

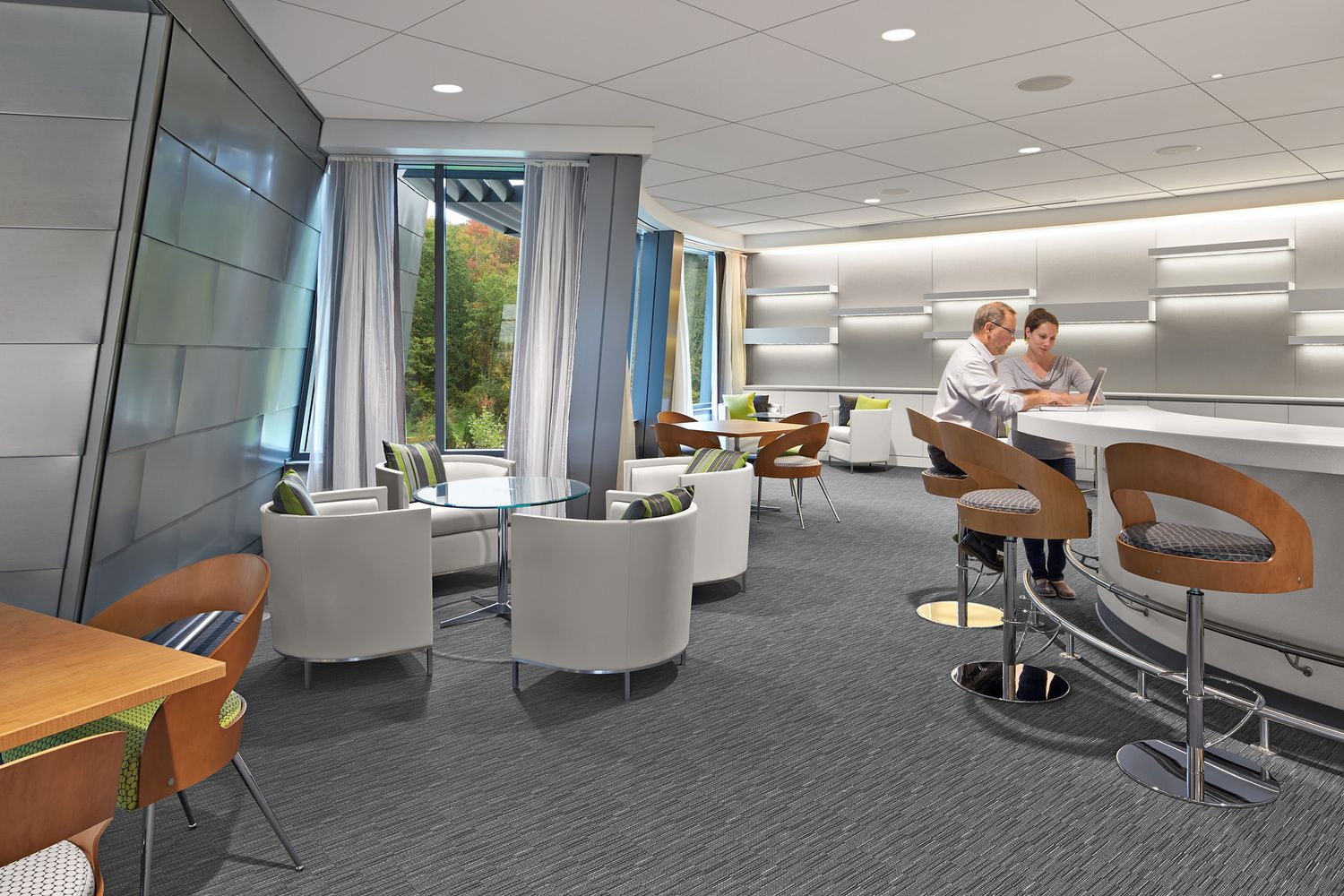

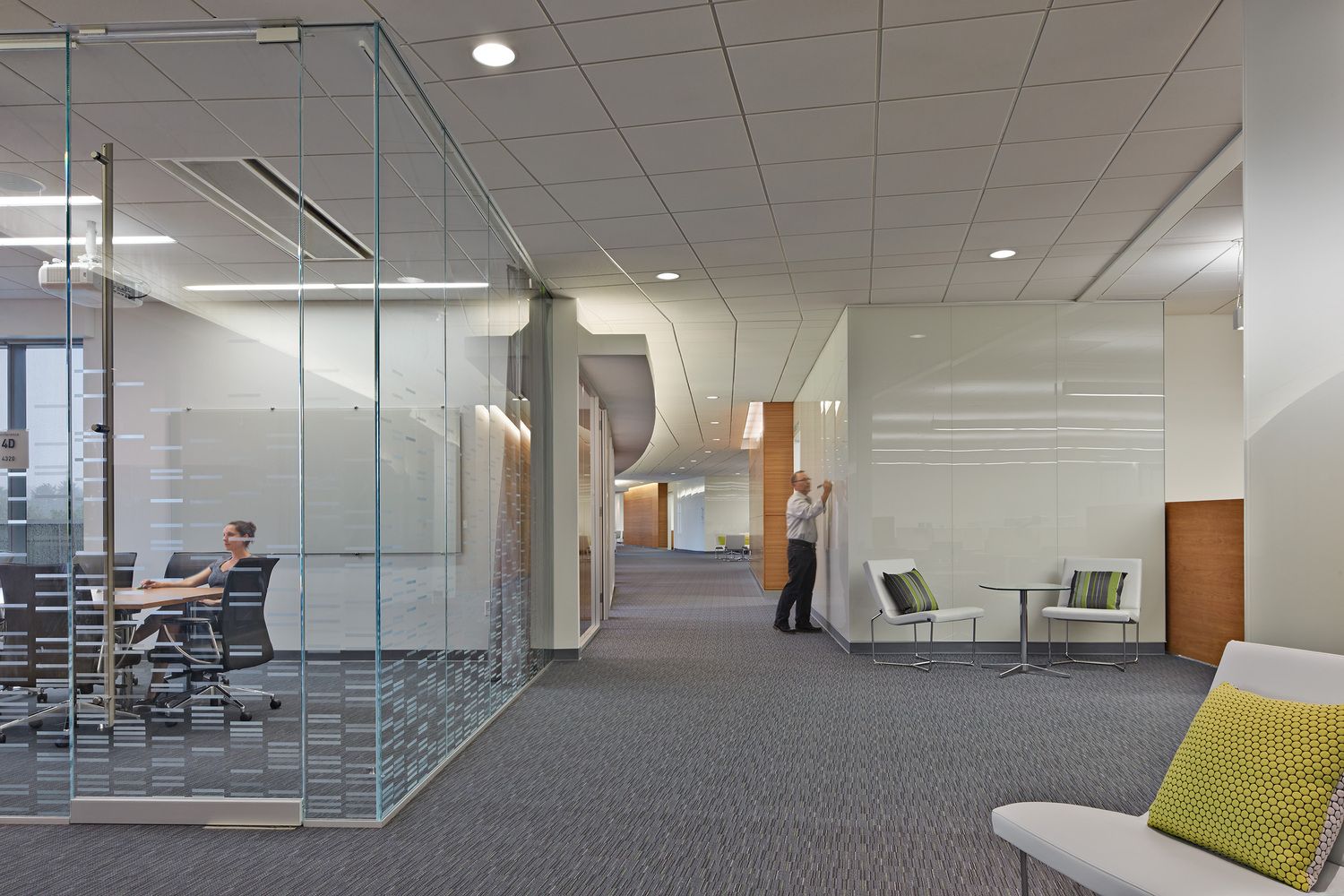

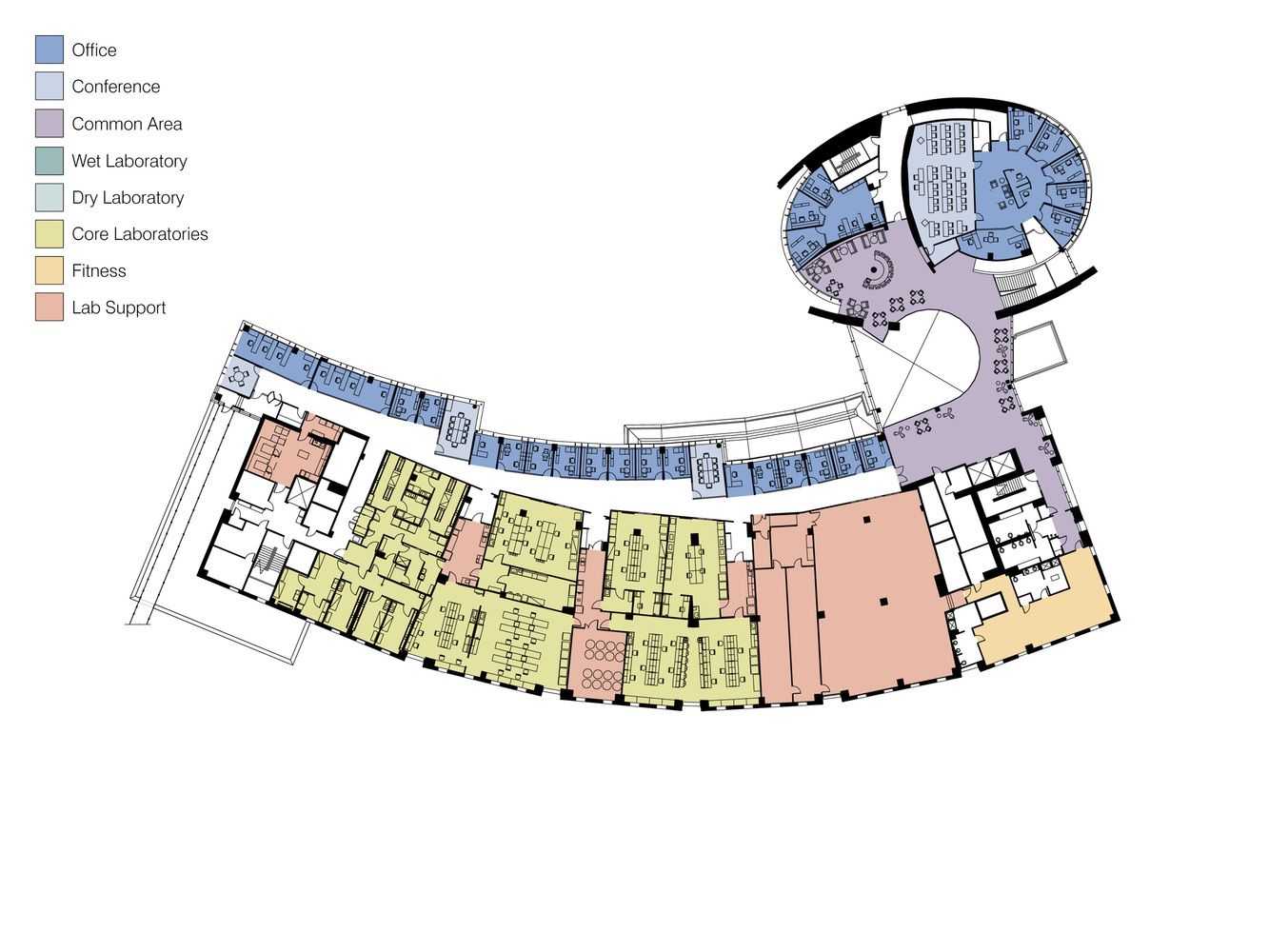

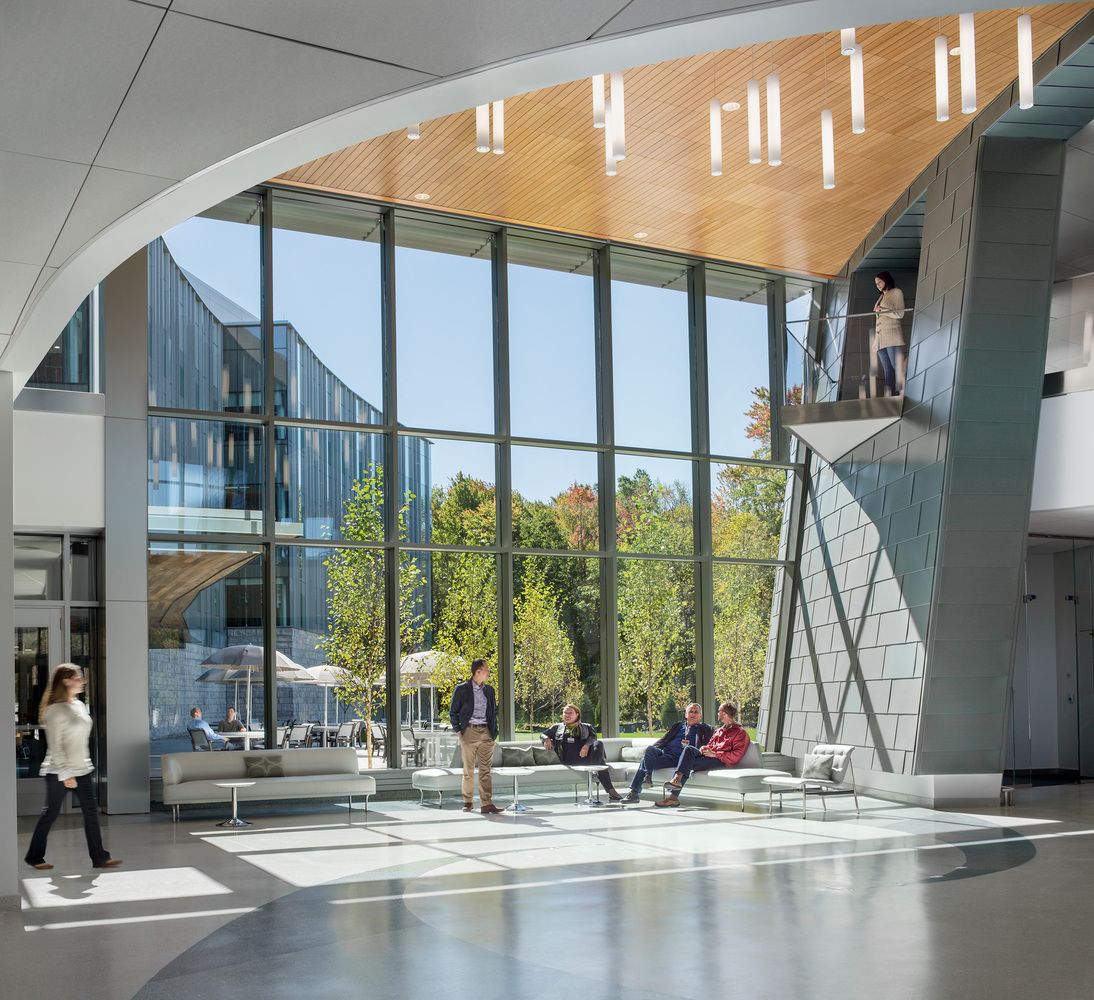

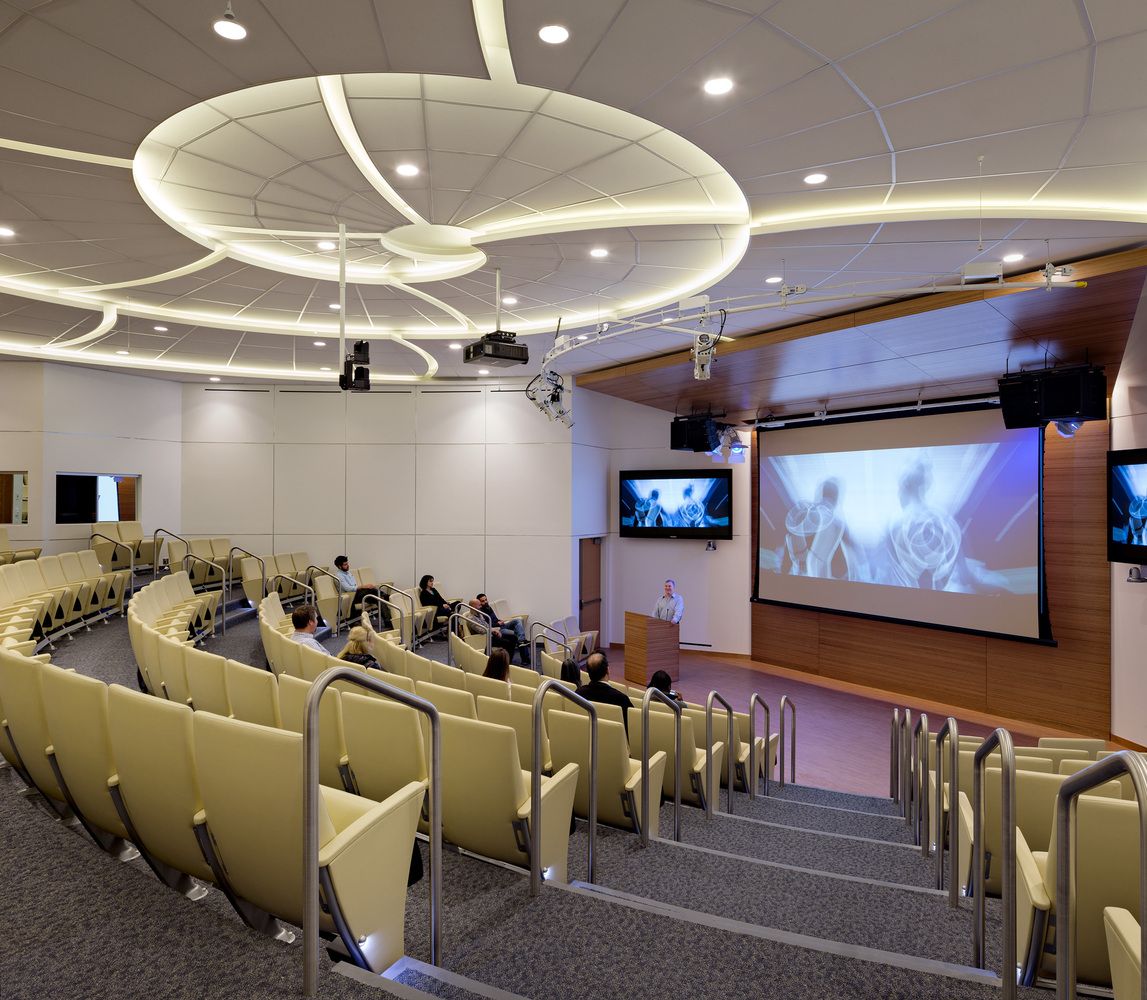

At the building’s entrance, visitors walk into a light-filled, double-story vaulted reception area leading to a 200-seat auditorium, two large conference/seminar rooms and a 200-seat dining area that opens into an outdoor courtyard. On the second floor are core service labs, a data center, offices, conference rooms, an employee fitness center and an informal seating area referred to as the “pub” for casual networking and formal pre-conference gatherings. Research labs and faculty offices will predominate on the third and fourth floors.

Photography by © Robert Benson

Product Description:

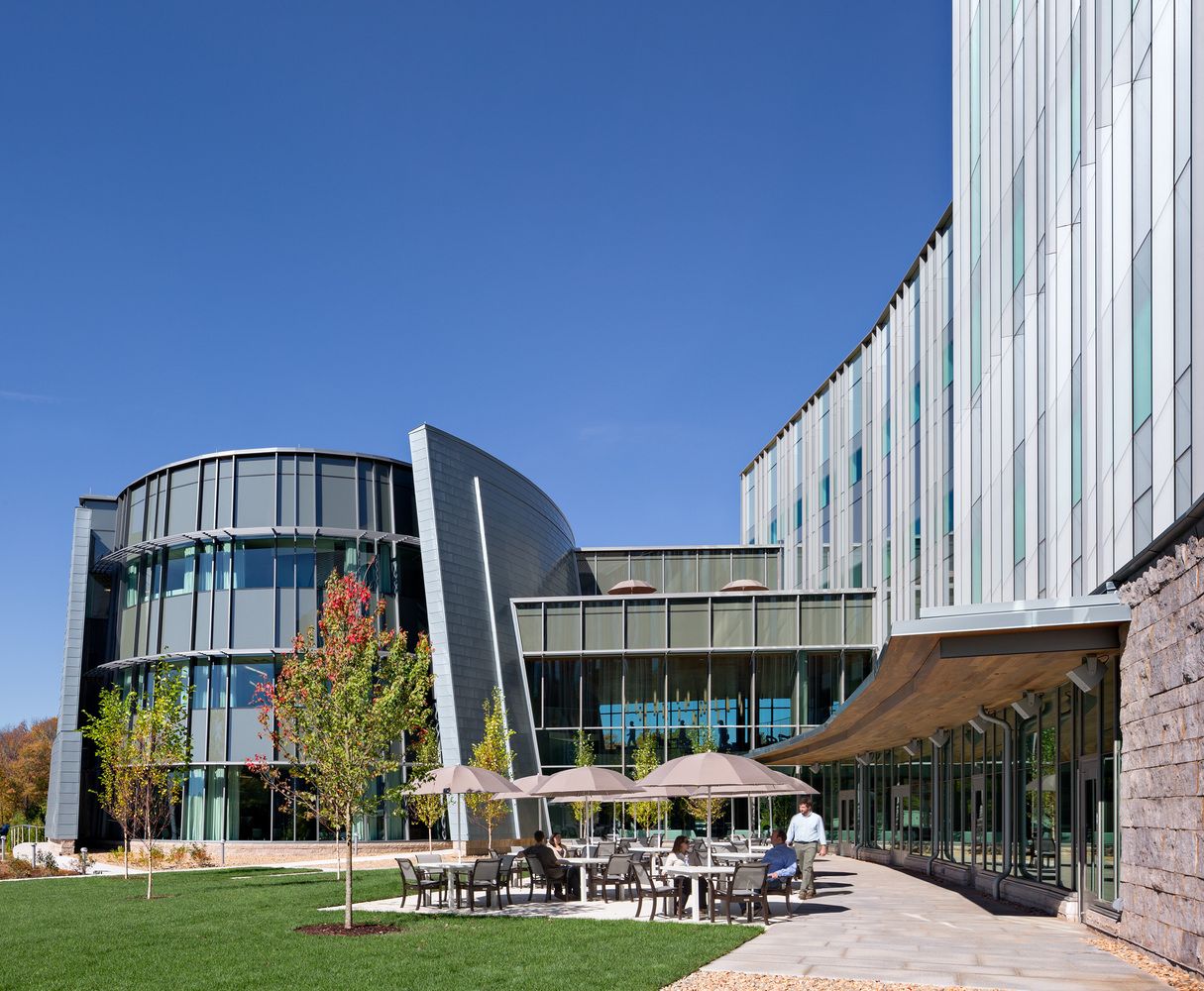

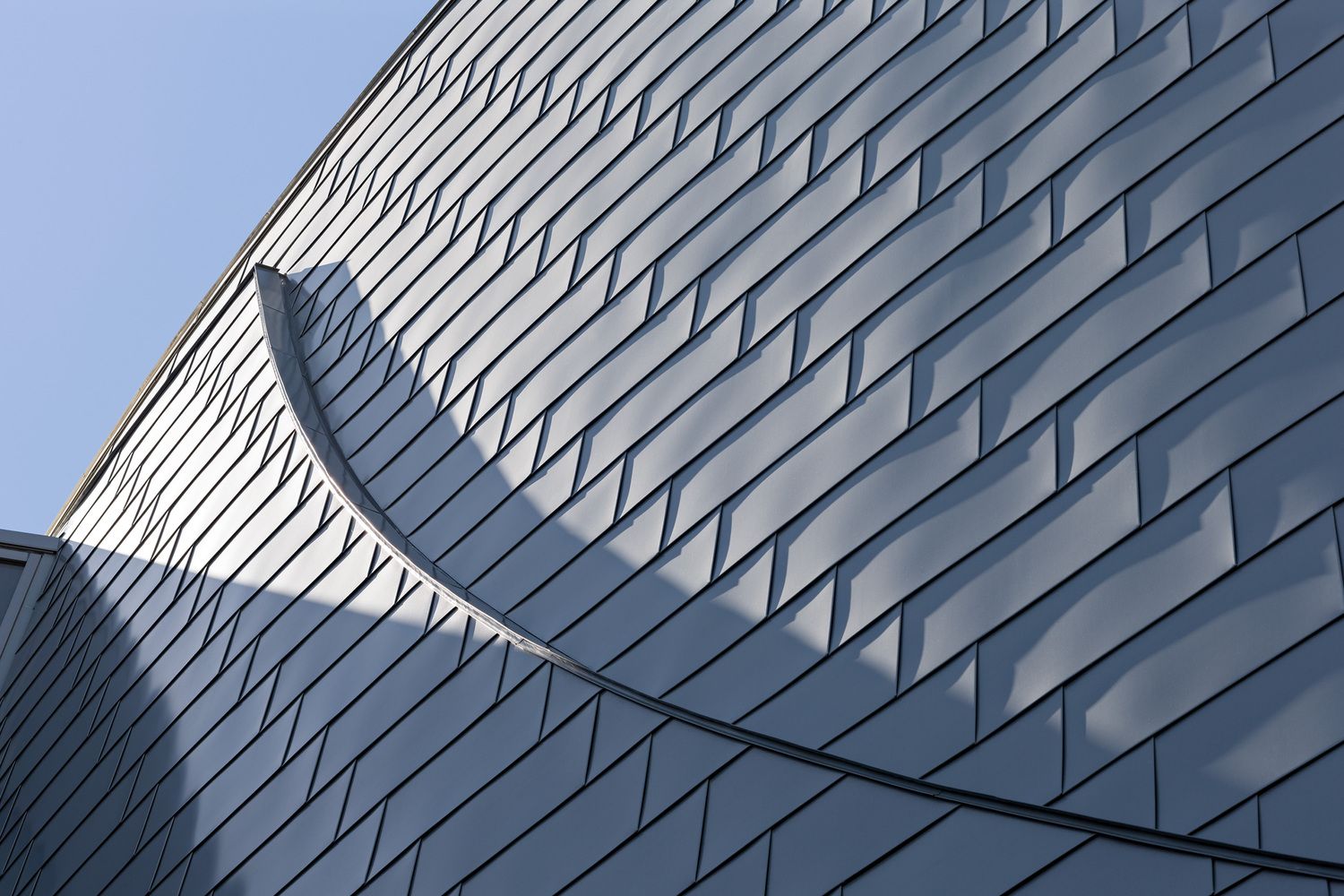

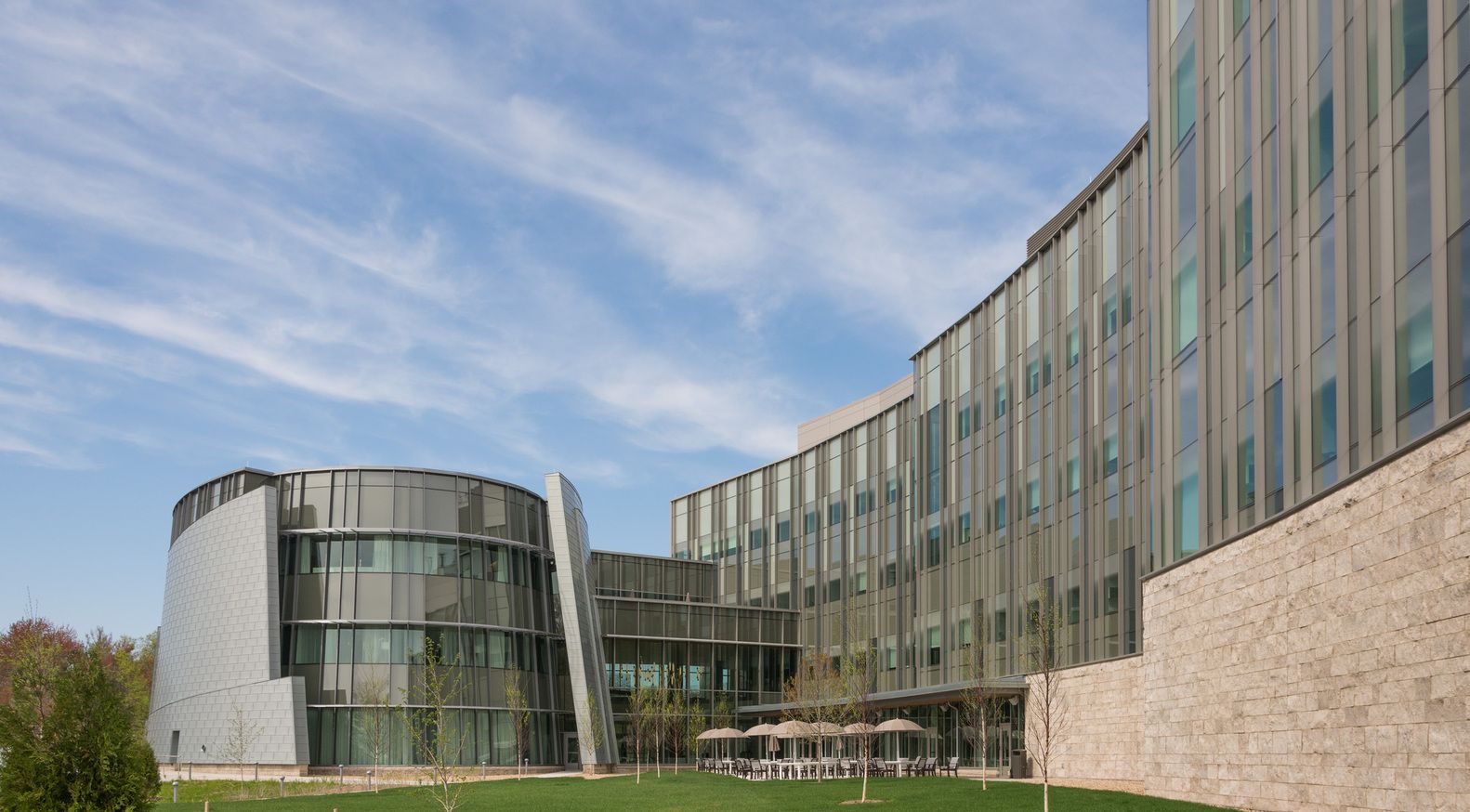

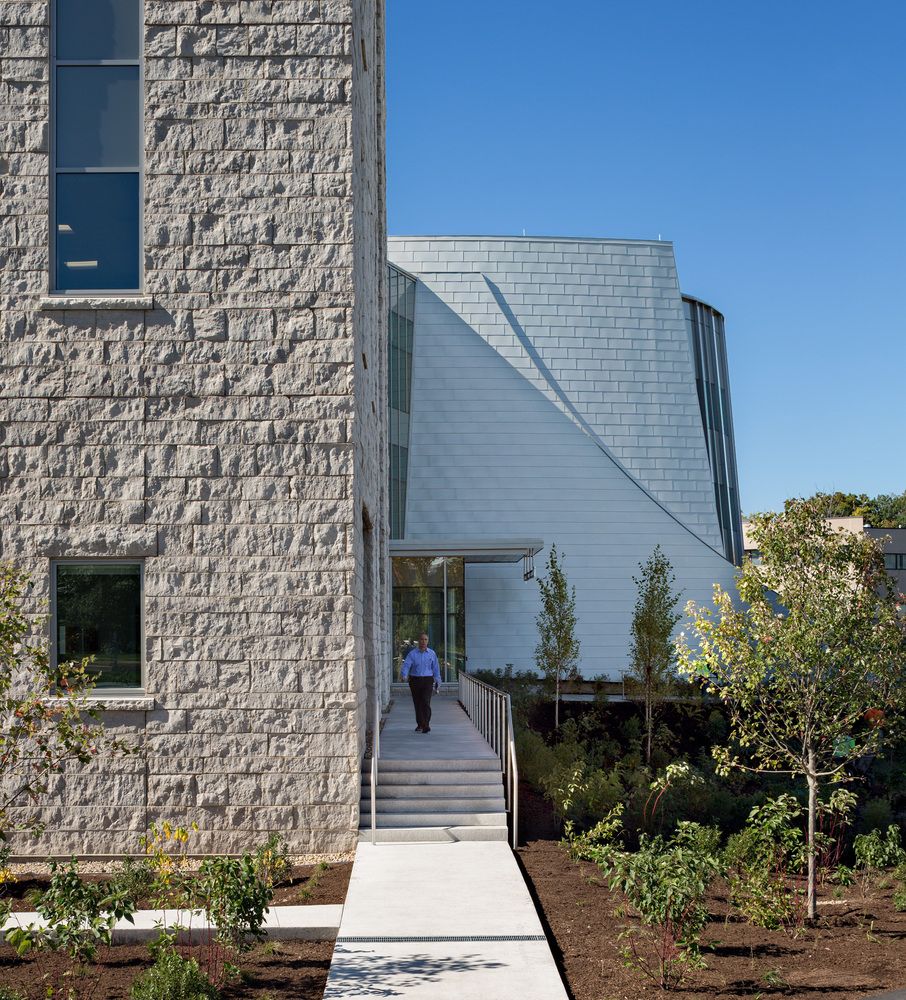

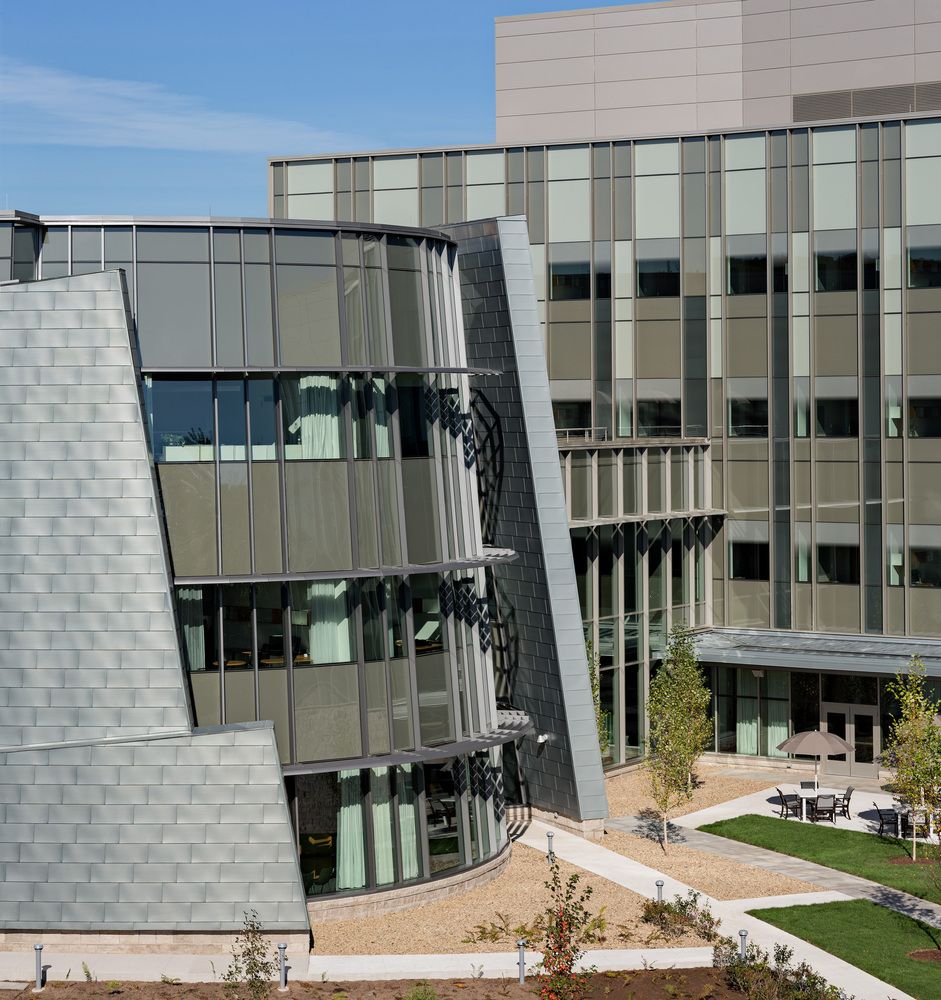

The building consists of a structural steel frame faced with Canadian limestone, glass, and 14,000 square feet of Rheinzink 1.0 mm prePatina Blue Gray Zinc panels fabricated by MetalTech-USA. The zinc panels were selected because they age well and become more beautiful as the building ages. The Blue Gray hue of the zinc was specified as it complemented the limestone, which has blue veining. It also subtly blended with the champagne and pewter colors of the aluminum curtain wall frame.

Photography by © Robert Benson

Project Info:
Architects: Centerbrook Architects & Planners
Location: Farmington, CT, United States
Architect in Charge: Centerbrook Architects & Planners (shell & core) and Tsoi/Kobus & Associates (interior architecture, lab planning and design)
Area: 189000.0 ft2
Project Year: 2014
Photographs: Derek HaynRobert Benson
Manufacturers: Oldcastle BuildingEnvelope, Viracon Inc.
Contractor: Whiting-Turner Construction
Owner’s Program Manager: Gilbane Building Company
Laboratory: Jacobs Consultancy
MEP Planning: Bard, Rao + Athanas Consulting
MEP Implementation: BVH
Civil: Vanasse Hangen Brustlin
Geotechnical: Haley & Aldrich
Vibration/Acoustics: Jaffe Holden
Landscape: Stephen Stimson Associates
Lighting: Atelier Ten
Project Name: Jackson Lab for Genomic Medicine
