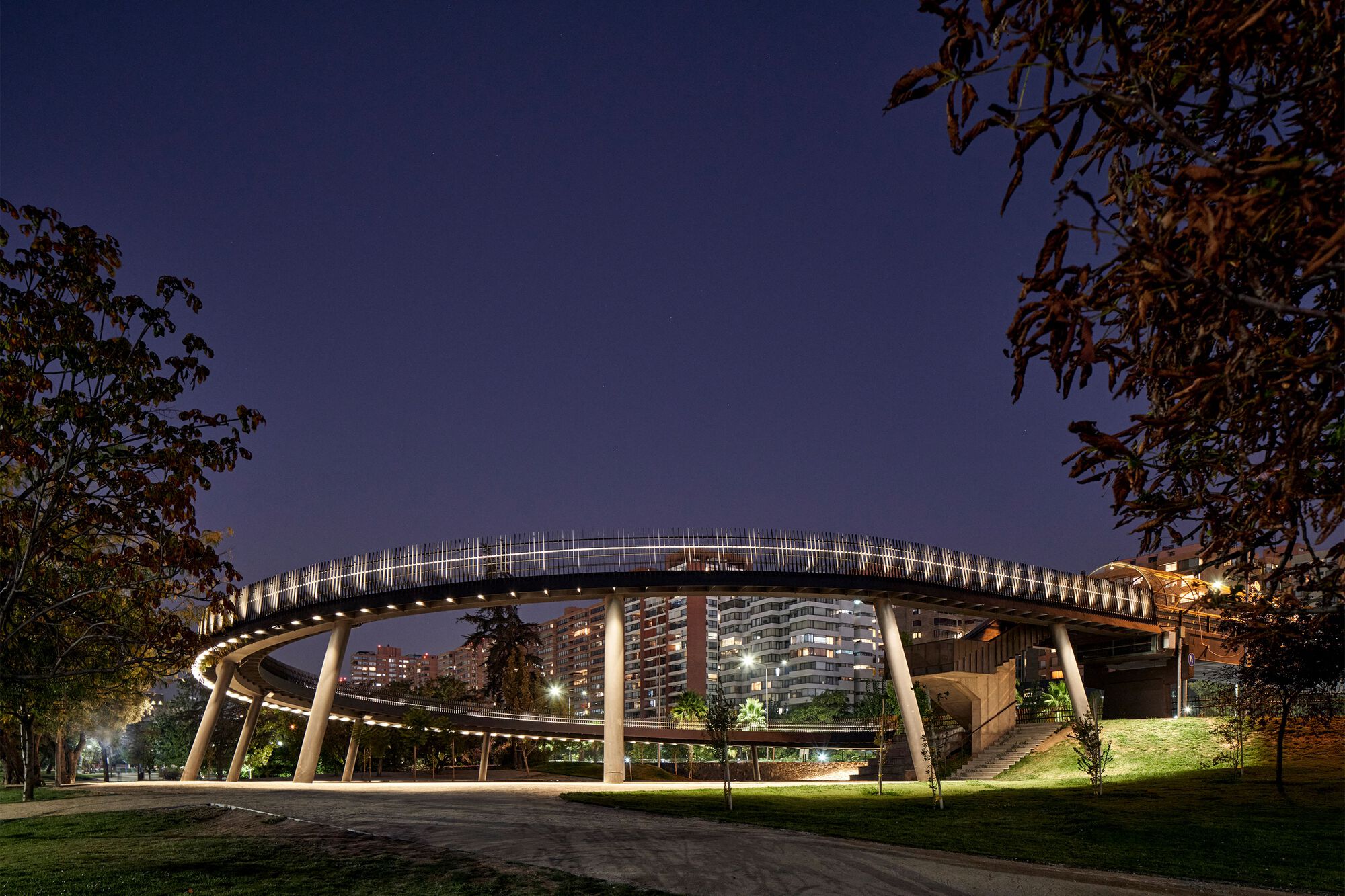

Cuauhtémoc Park Ramp, Rampa Cuauhtemoc. It is an open competition to solve the universal accessibility of a route that continues a system of public parks.
© Cristobal Palma / Estudio Palma

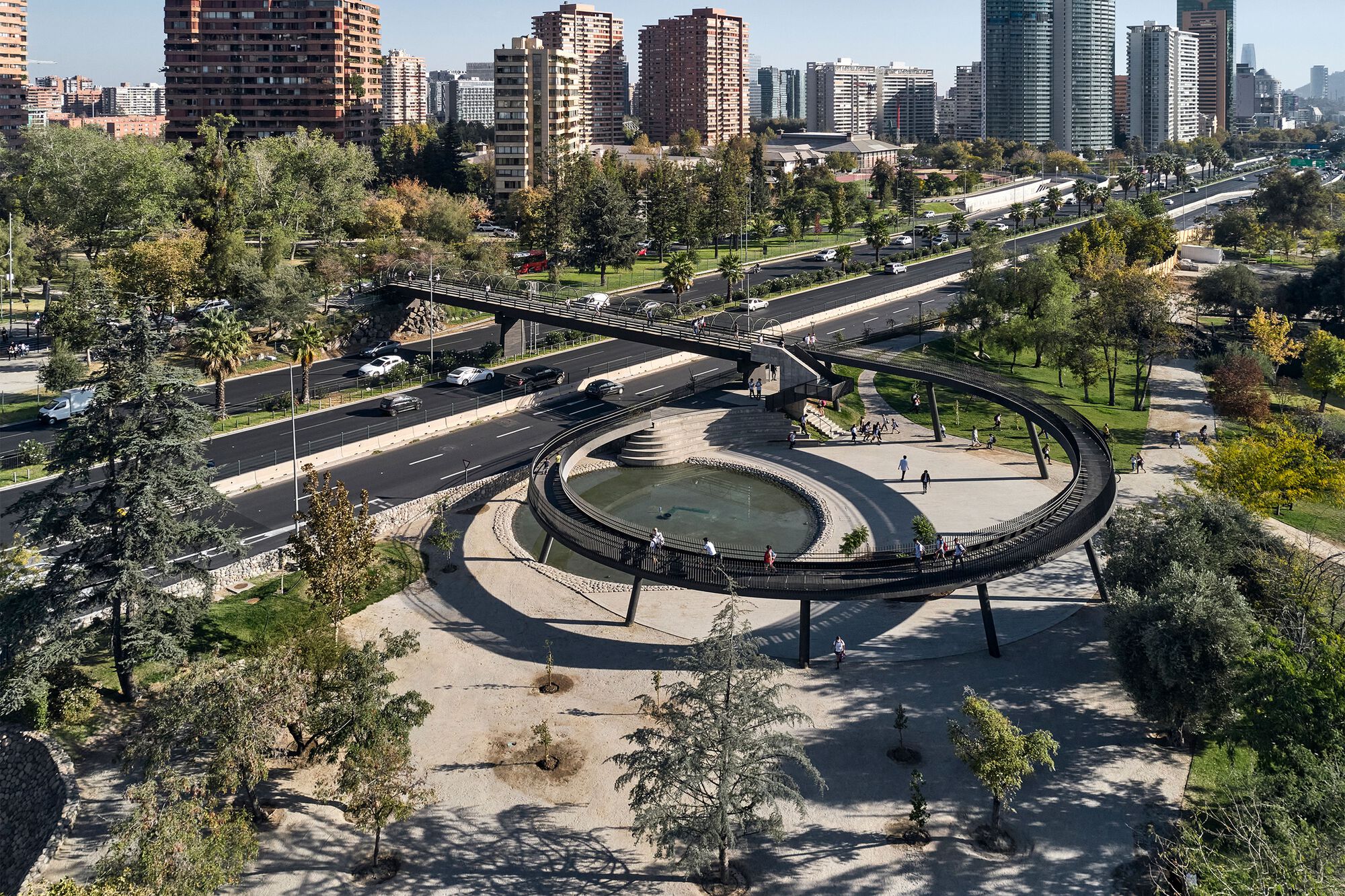

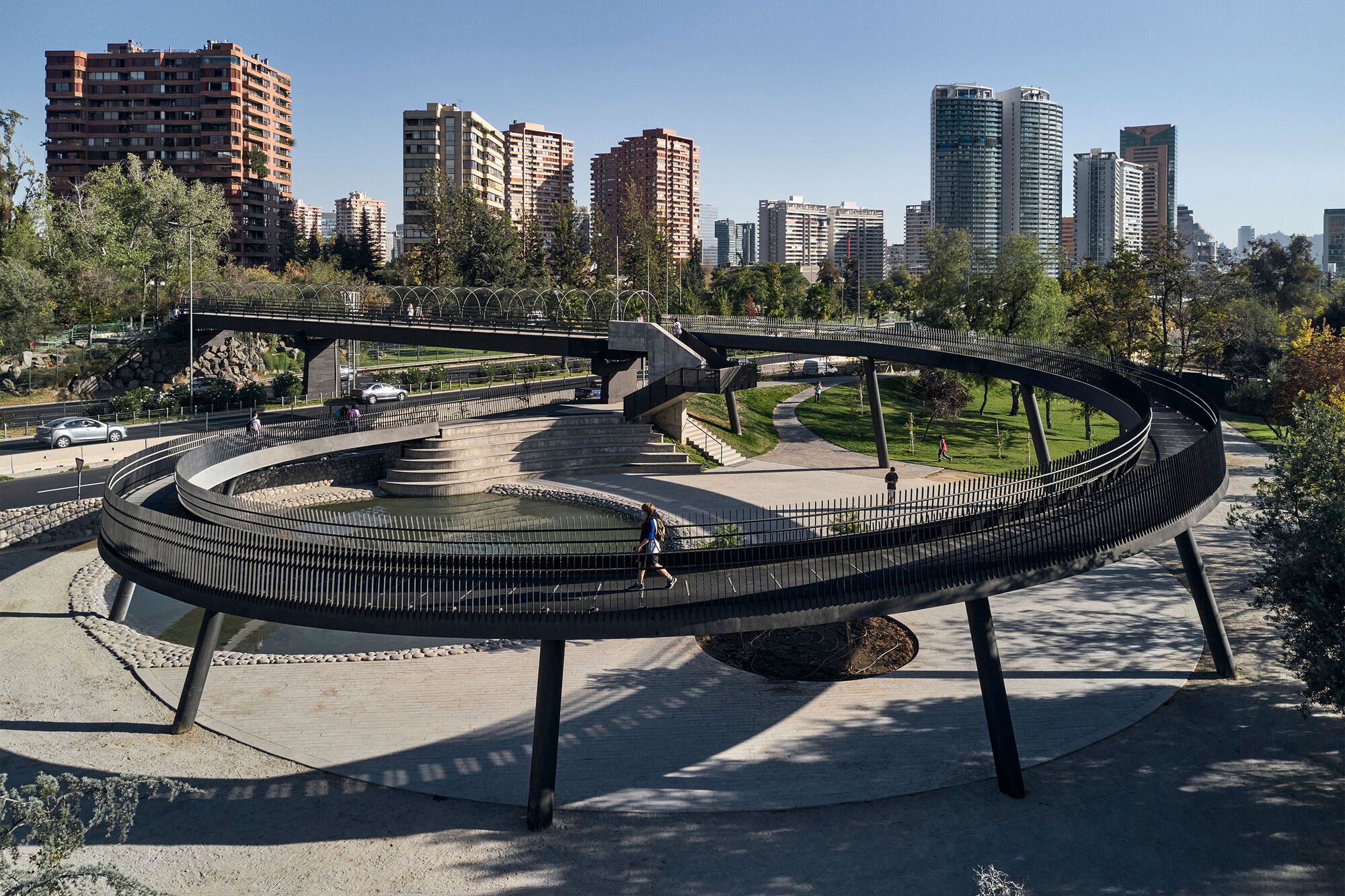

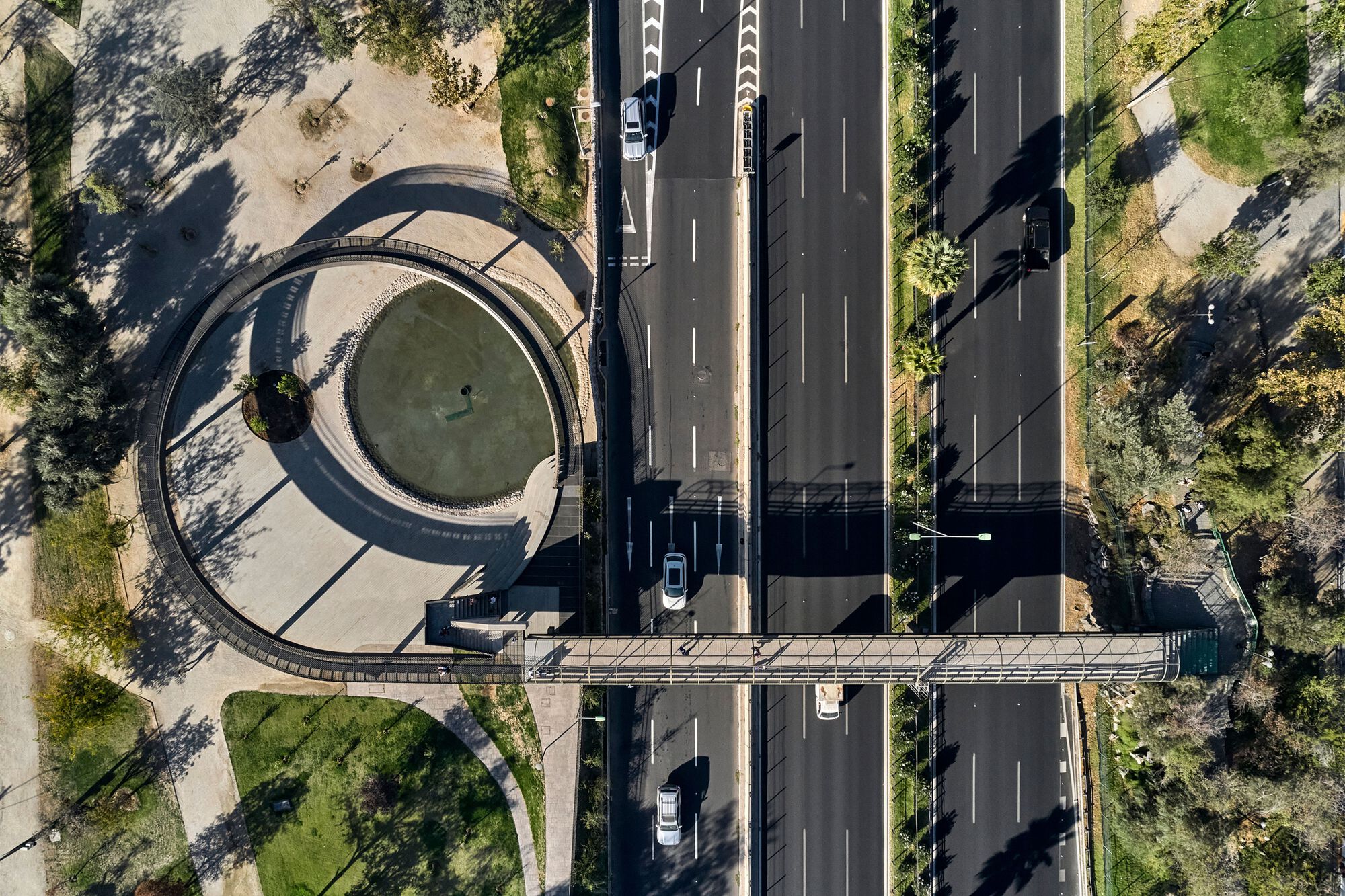

In the place, there is a bridge that crosses the highway and a circular pool from the 70s, a project by Carlos Martner, an outstanding Chilean landscape architect.
© Cristobal Palma / Estudio Palma
The growth of the avenue has compressed the original pedestrian descent and brought the cars closer to the park with great risk – and noise.
© Cristobal Palma / Estudio Palma

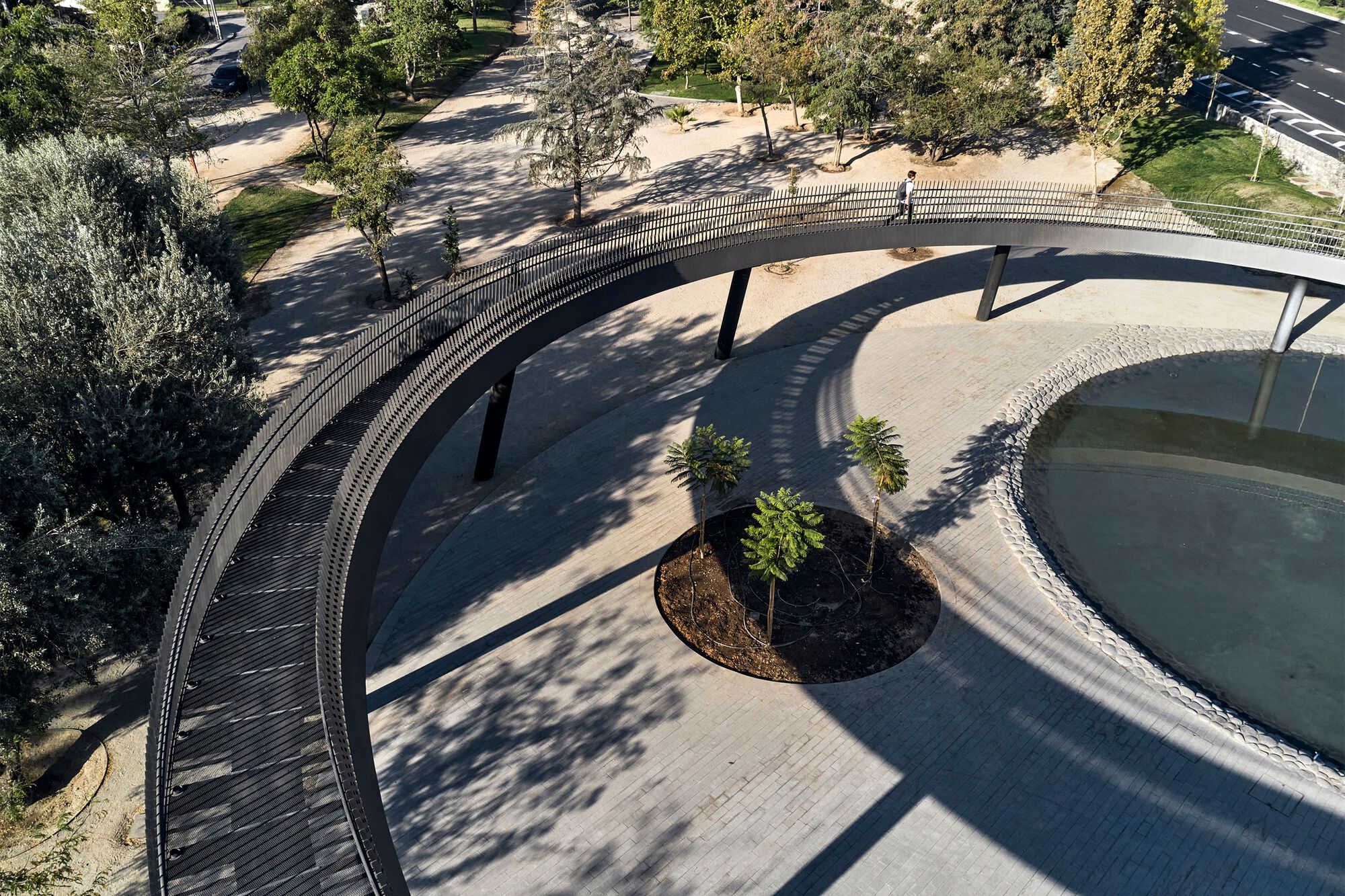

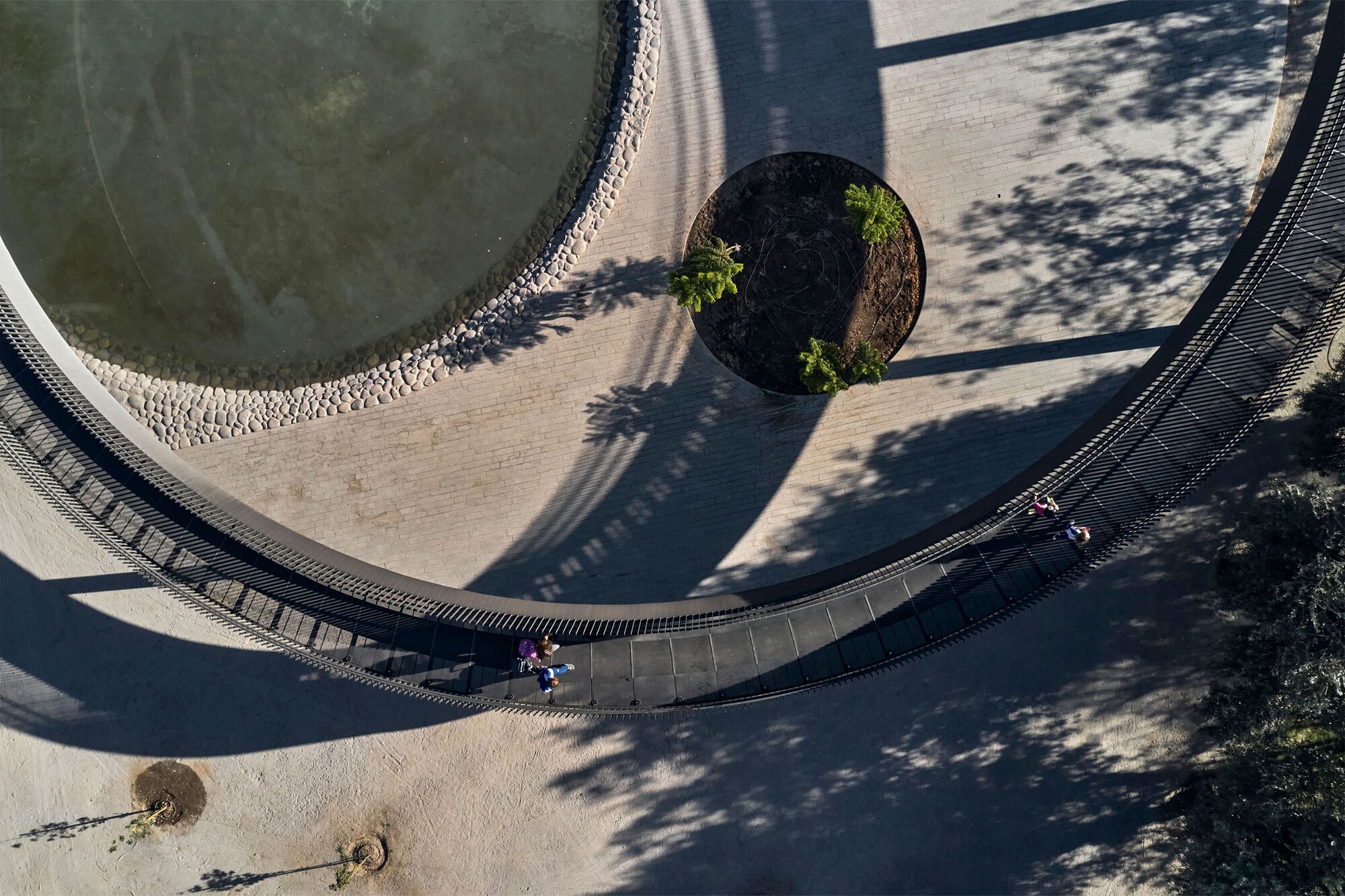

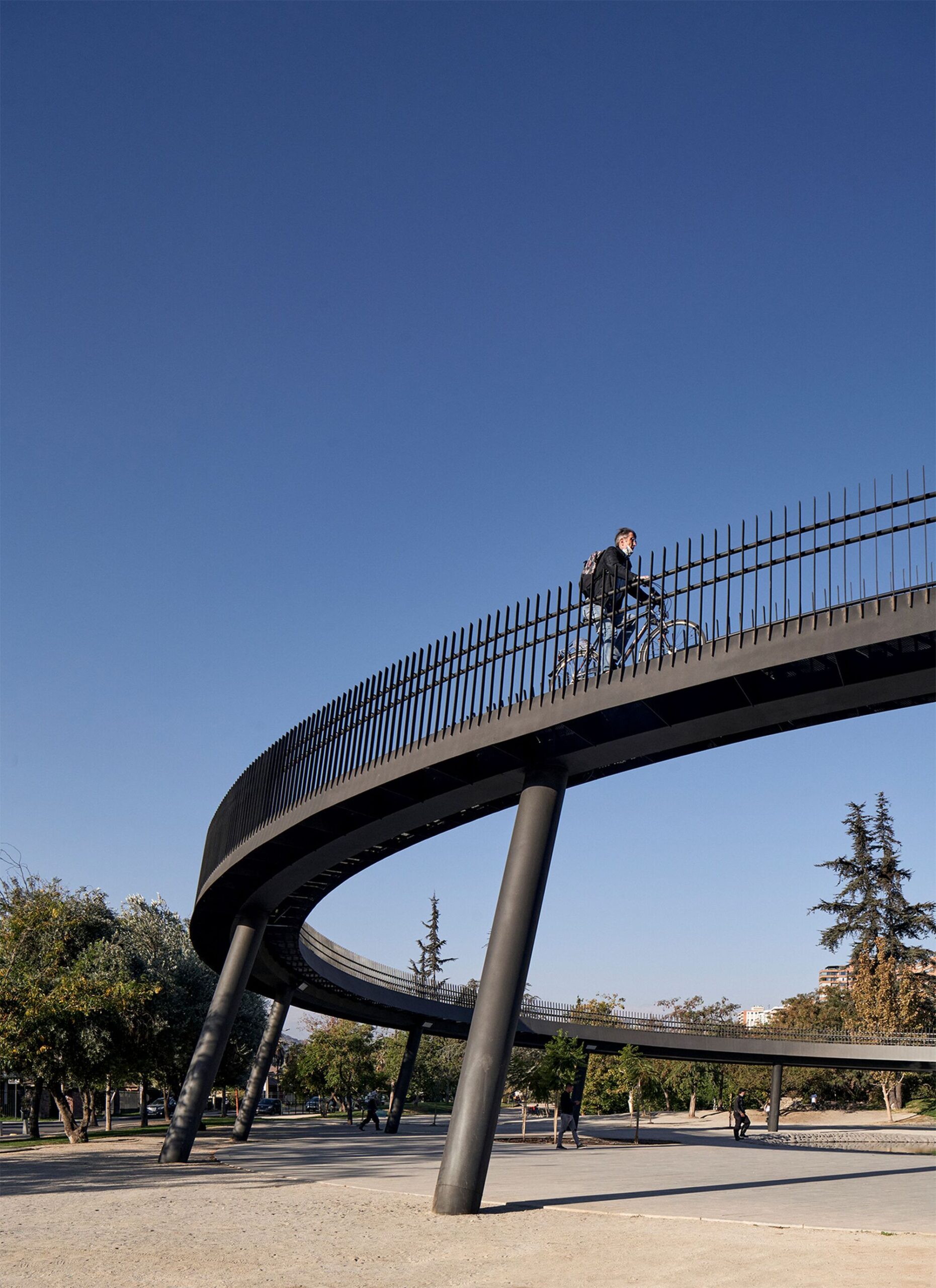

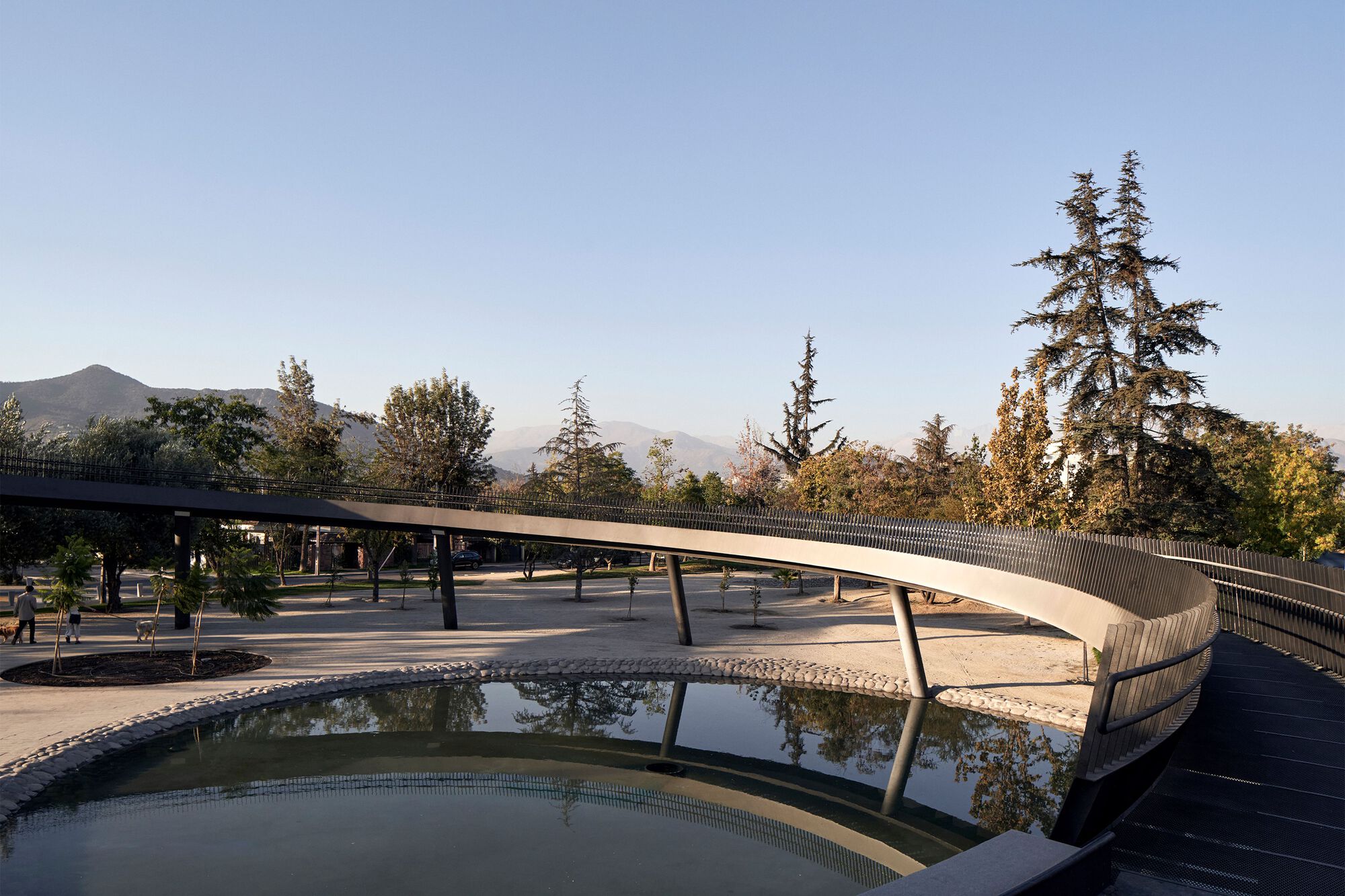

It is necessary to overcome 6 meters of unevenness with a constant slope of 5%, which requires an extension of 120 meters for the ramp. Taking advantage of the long circular perimeter of the pool, it is surrounded by a first 60-meter-long elevated walkway that descends with views of the surrounding mountains.
© Cristobal Palma / Estudio Palma
The second section – also 60 meters long – is a tree-lined slope, which serves as a containment for cars and noise. Between both sections, there is a staircase for quick passage and a small amphitheater.
© Cristobal Palma / Estudio Palma

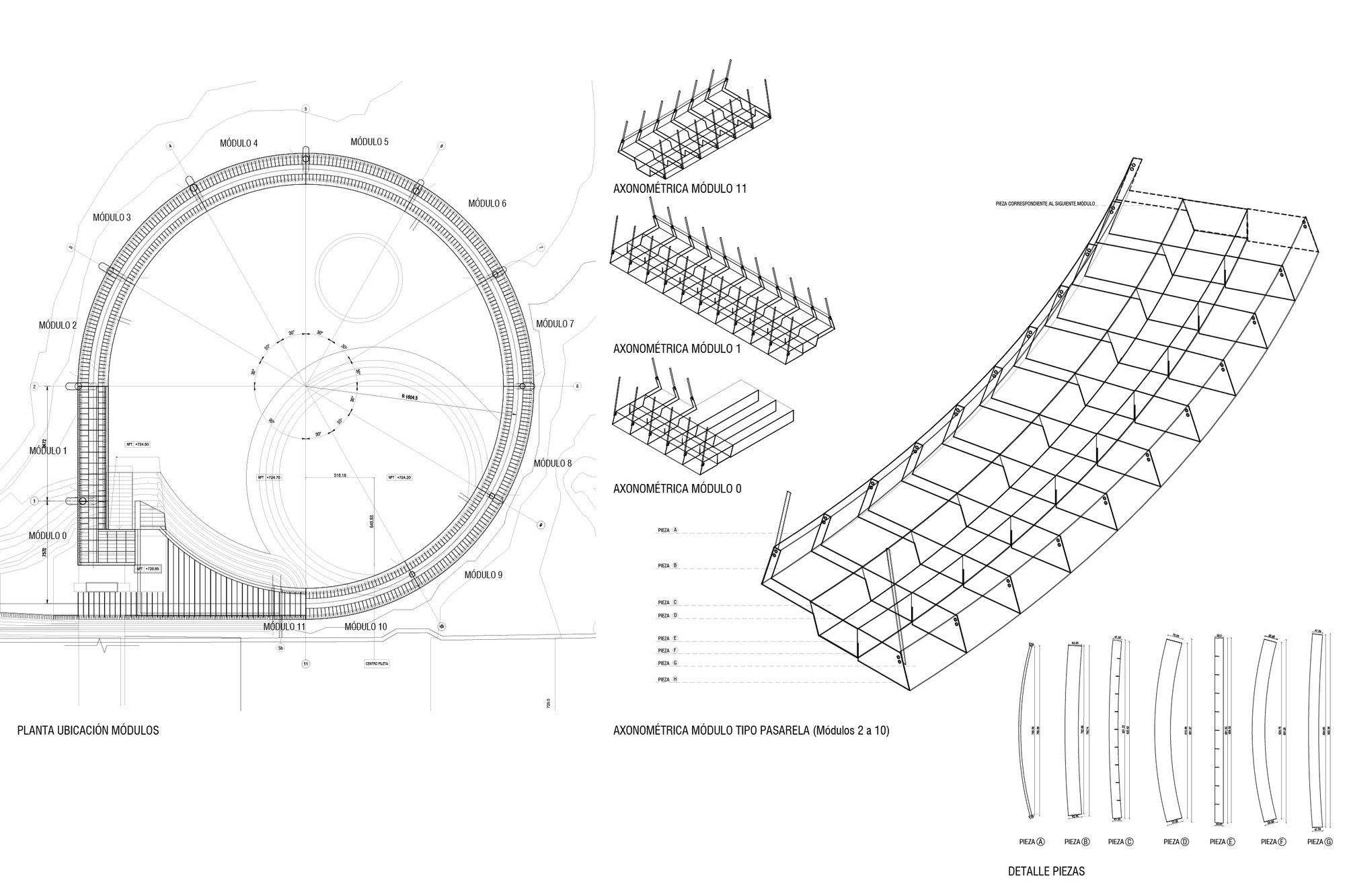

Construction, Modulation, disassembly, and assembly. The torsion of the ascending spiral is resolved in a concentric digital model formed by radial ribs and a central beam, understood as a set of solidary elements. This model unfolds into flat figures of the different pieces, which are cut with CNC on large format sheets of 3000×9000 mm. In turn, these elements – which include semi-cuts for welded joints – are rolled for curvatures and assembled in the factory in nine equal modules plus three adjustment modules for the ends. Then, these prefabricated components are mounted on the in-situ pillars. The shims, both for the terrain slopes and for the construction elements, were tested in different physical scale models, which anticipated the work.
Project Info
Architects: Carreño Sartori Arquitectos
Country: Chile, Vitacura
Area: 1200 m²
Year: 2022
Photographs: Cristobal Palma / Estudio Palma
Collaborating Architects: Paula Bugilio, Pablo Leiva, Blanca Barragán
Landscape: Piera Sartori de Campo
Electrical Installation: PRY
Sanitary Installation: PRY
Water Systems: Claudio de la Cerda
Construction: AVO
