Casa Adpropeixe | Carlos Castanheira & Clara Bastai

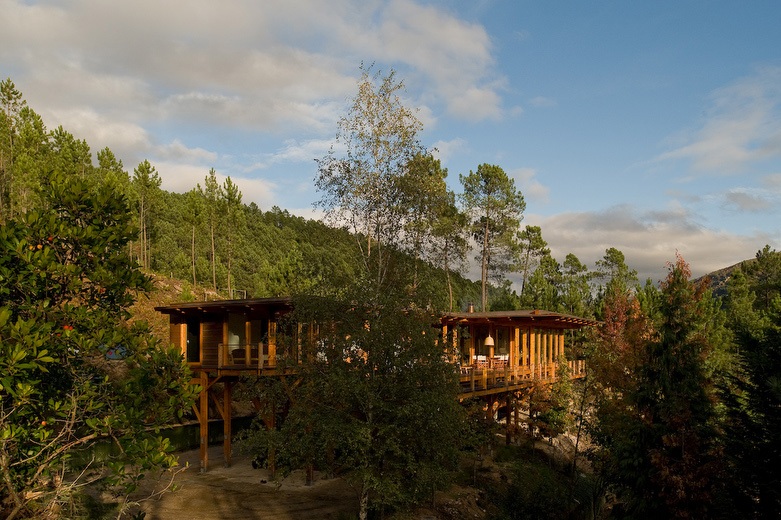

Casa Adpropeixe designed by Carlos Castanheira & Clara Bastai, Adpropeixe, which almost seems to be a name out of an Astérix book, is a part of the Gerês Natural Reserve, located in Vilar de Veiga, in the Terras do Bouro district. It’s just there, by the water, after passing the bridges and just before arriving at Gerês; the spa village. It’s easier to access by boat than by road or cross-country. It is a unique place so the response to the commission also had to be unique and specific: a timber house.
The client, in love with Gerês, the reservoir, and the water, had been looking for a site to buy to hopefully build a house.
After a long search, the chance arose to buy a site, where a tennis court had been built prior to the establishment of the Natural Reserve. This construction was legally and properly authorized at the time.

Courtesy Of Carlos Castanheira & Clara Bastai, Arqtos Lda.

The pre-existence of this tennis court, which covered an area of 800m2, now allowed under the current regulations for the building of a house of up to 200m2 on the site. To get there, one has to climb the hill, along a sinuous tarmacadamed road, always rising until, when nearly at the top one starts to go down and down a narrow dirt track alongside perilous drops and stunning views.
The vegetation is dense and rich, although the traces of a forest fire that occurred some years ago in the area are still apparent. The court, a concrete slab painted green with a few white lines, which had once been used for playing tennis, was the only level plane in the whole 14,500 sqm site.

Courtesy Of Carlos Castanheira & Clara Bastai, Arqtos Lda.

Nature adapted itself to this element that was set into the hillside. The court was already within the forest when we first visited the site.
On arriving by the upper path, the view is stunning, taking in the calmest area of the lake and almost allowing a glimpse of the bridges.

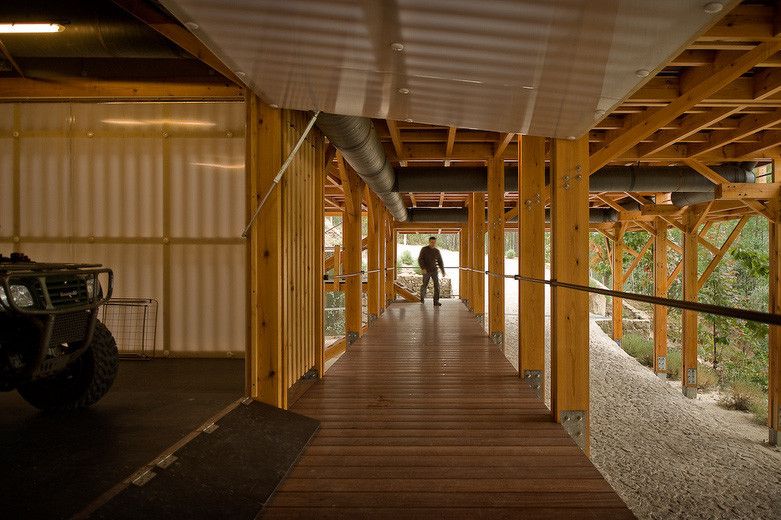

On the court or platform, the view is an interior one, as the dense vegetation blocks out the panoramic views. Arrival from above, elevation of the volume of the house above the level of the platform so as to ensure views into the distance and the use of the platform, the flat area, for service and circulation.

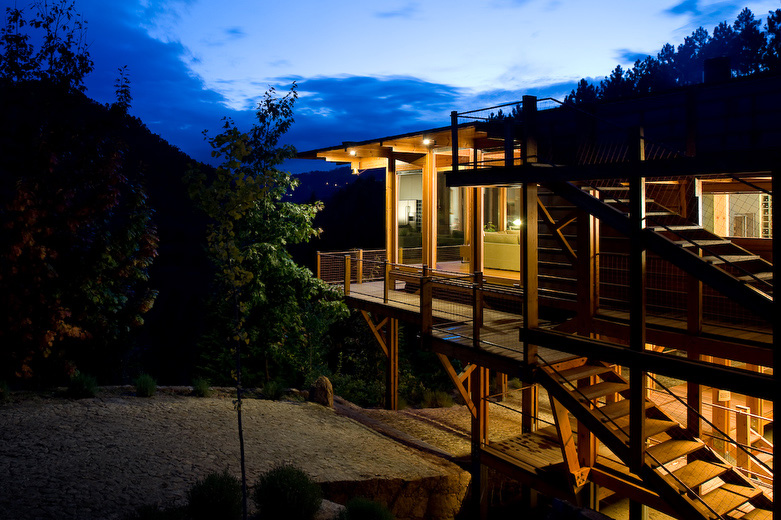

Arriving at the site from an outcrop of rock, access to the house is via a bridge at roof level. Coming down, one arrives at the main entrance door, which is actually not used very much.

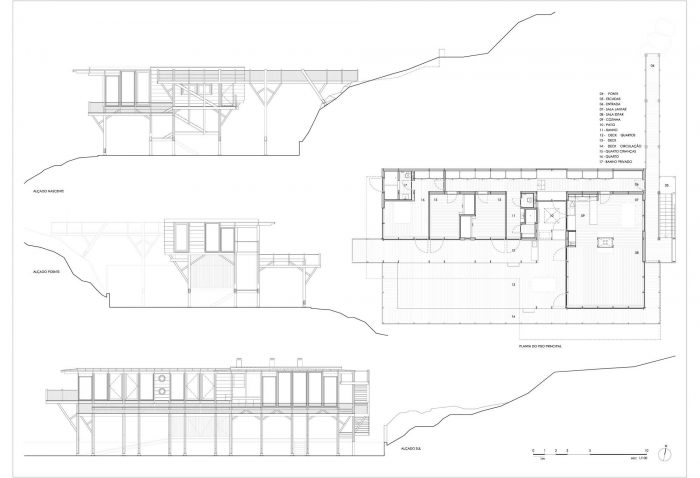

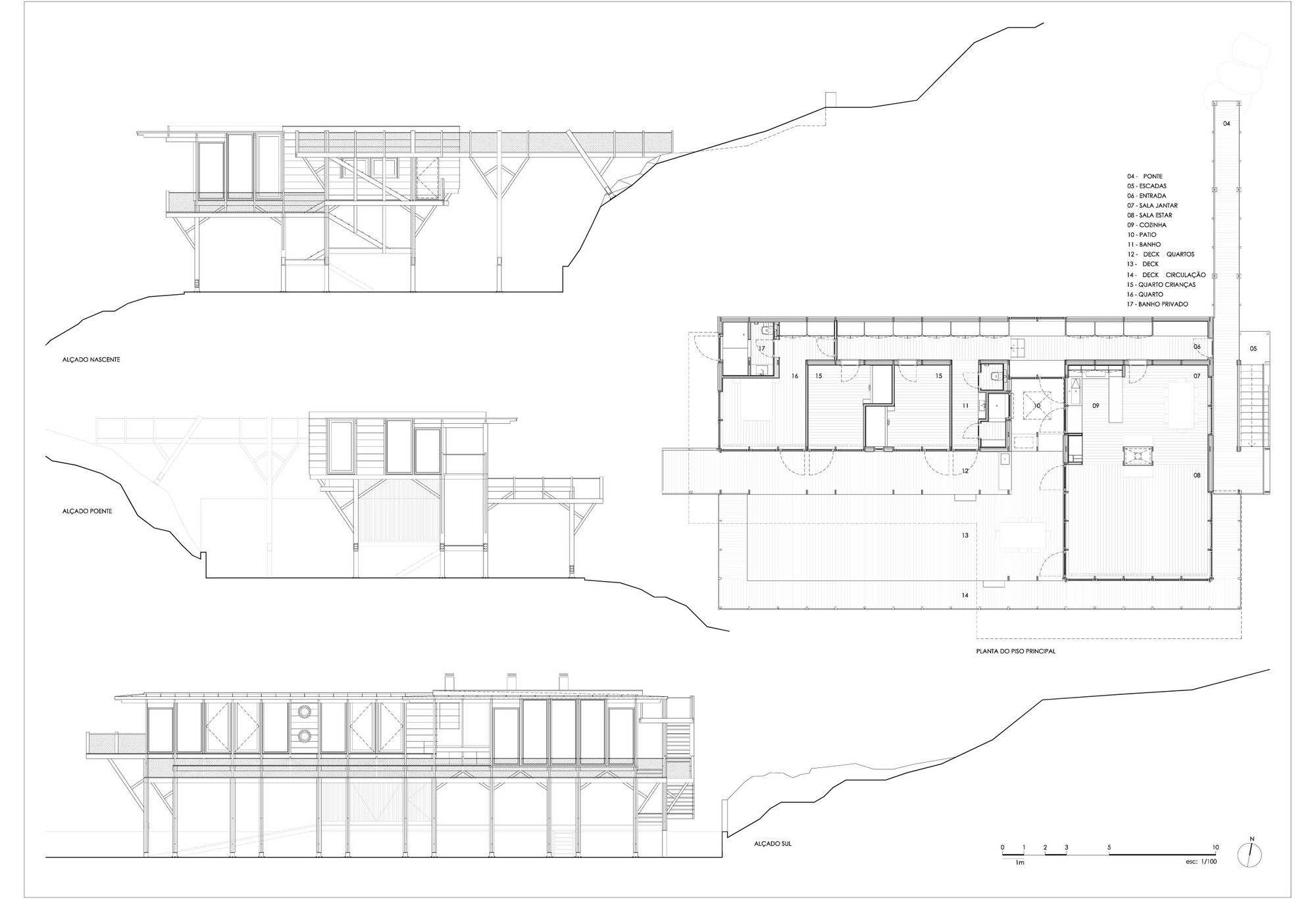

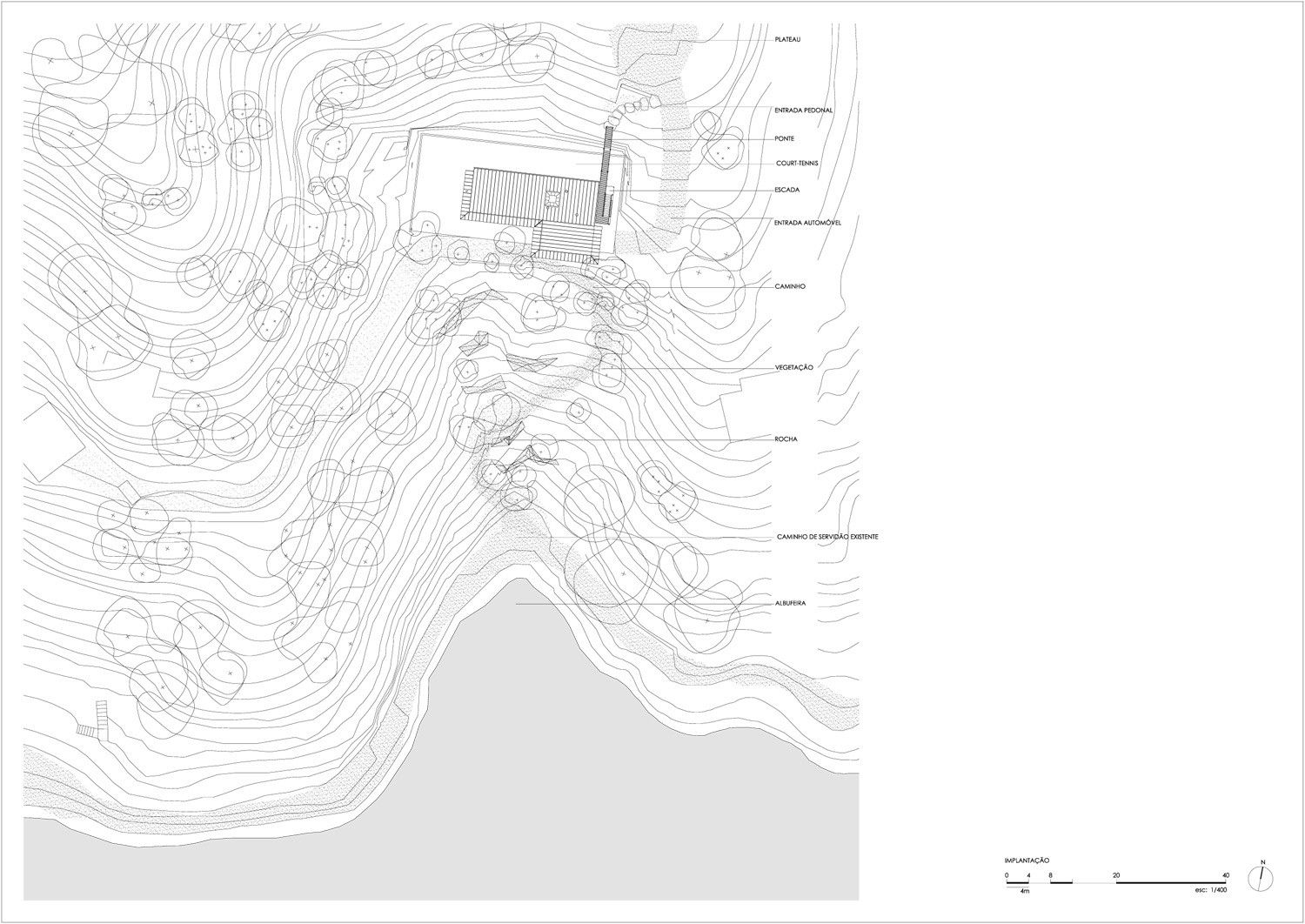

plan

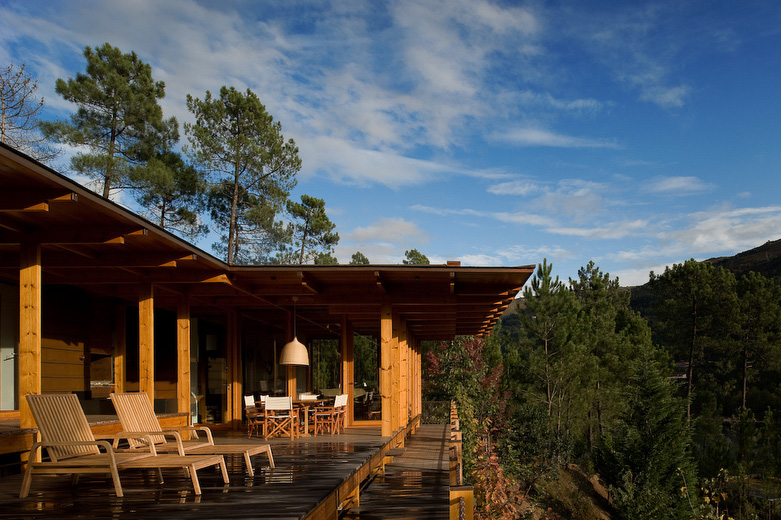

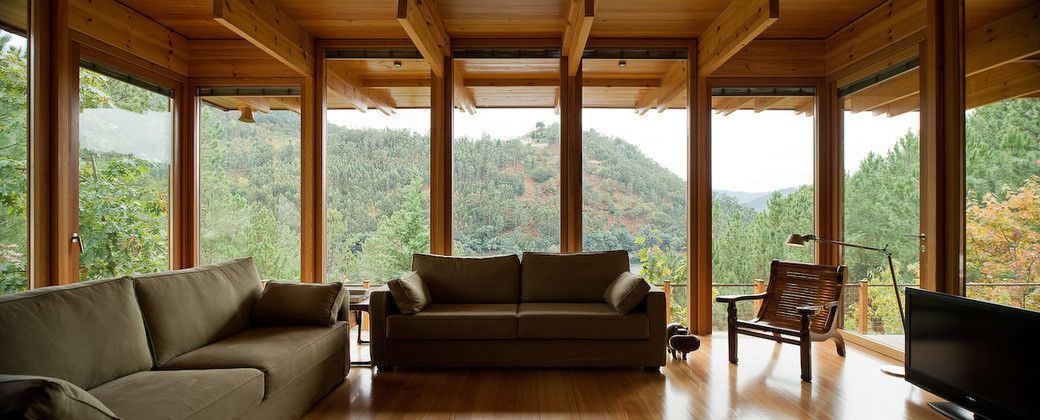

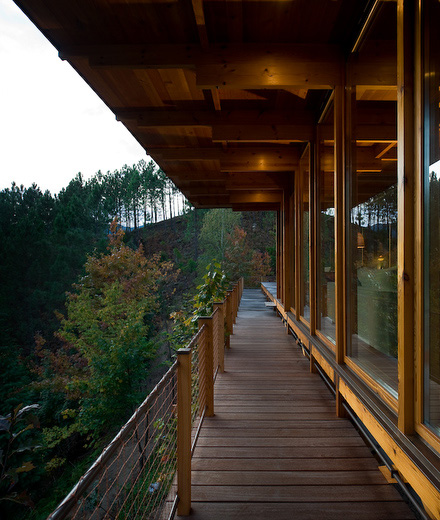

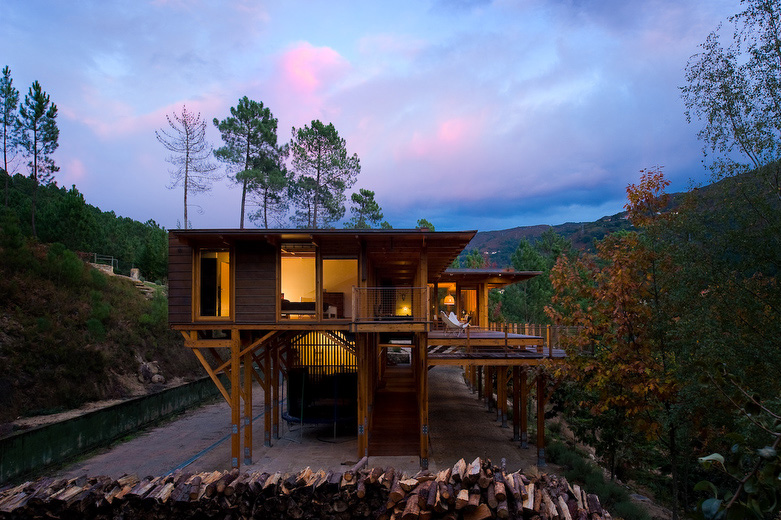

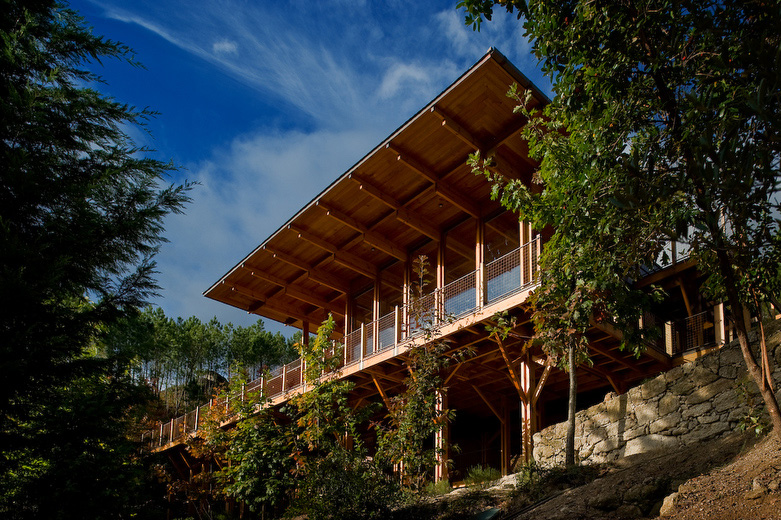

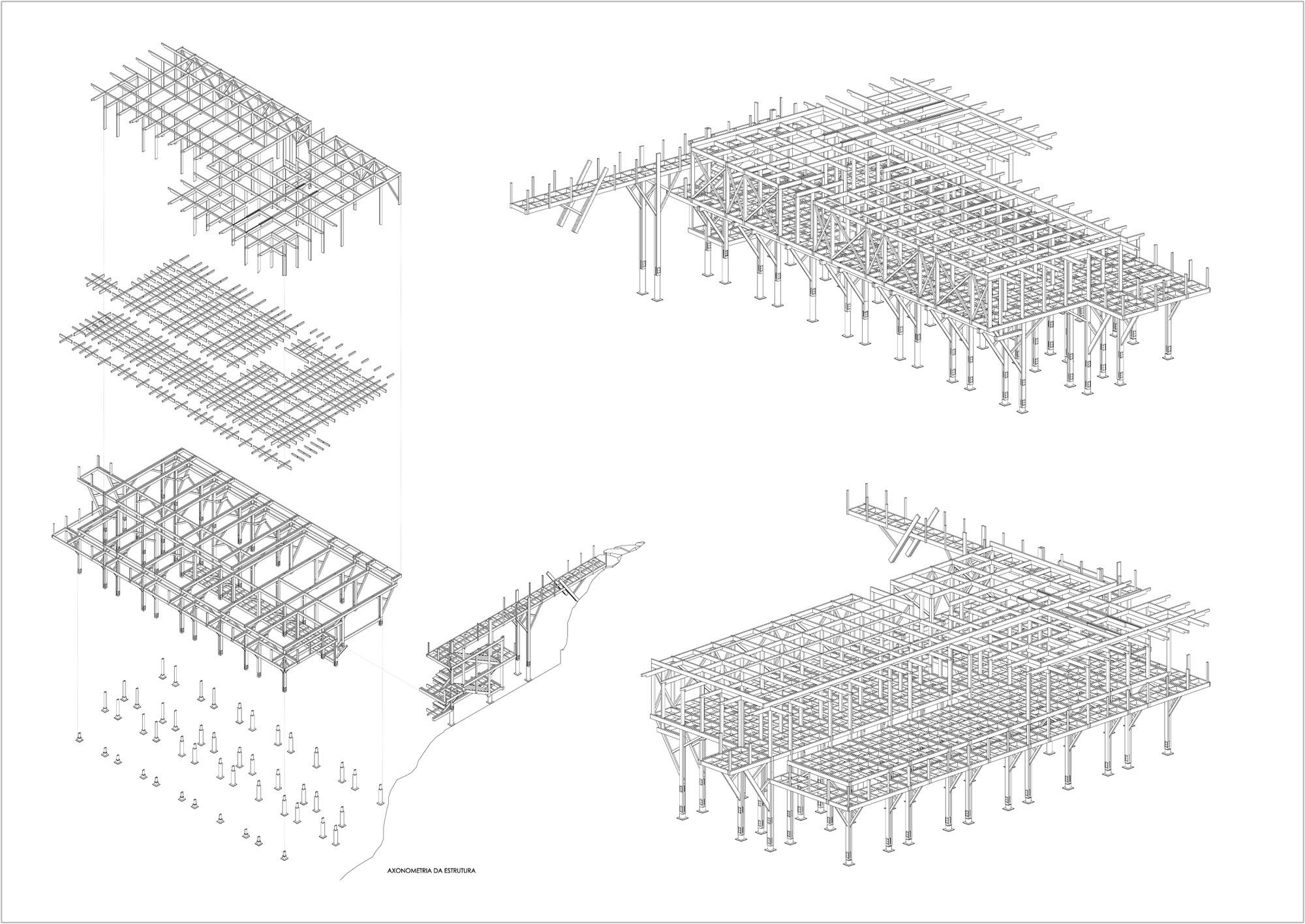

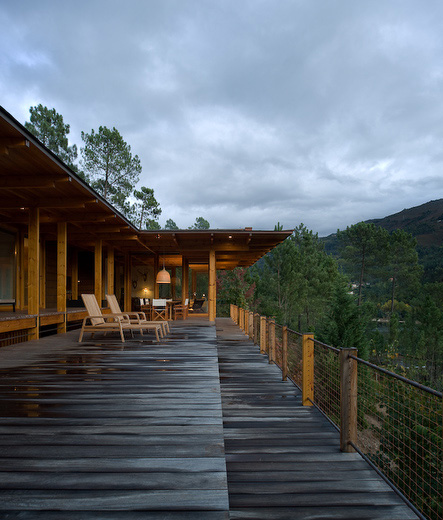

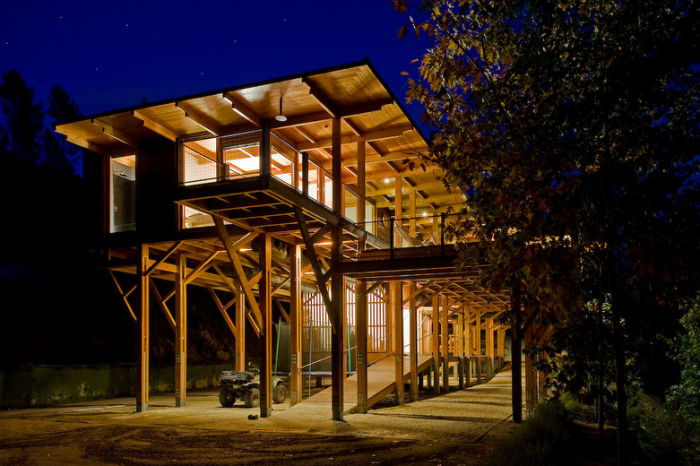

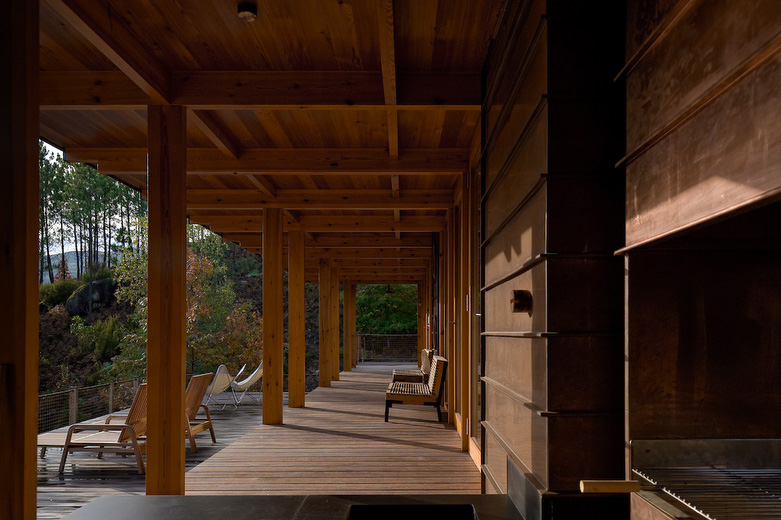

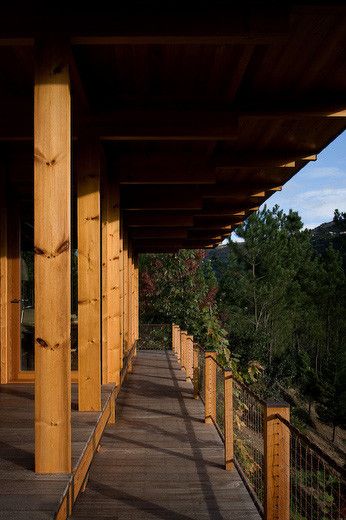

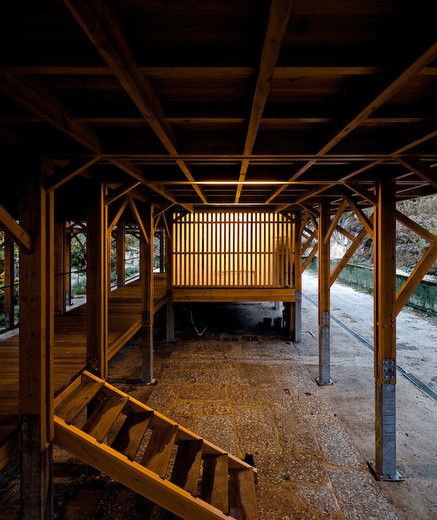

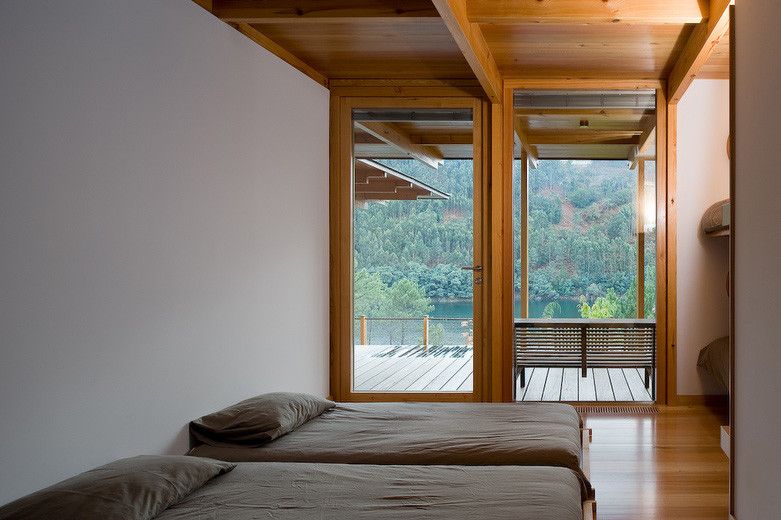

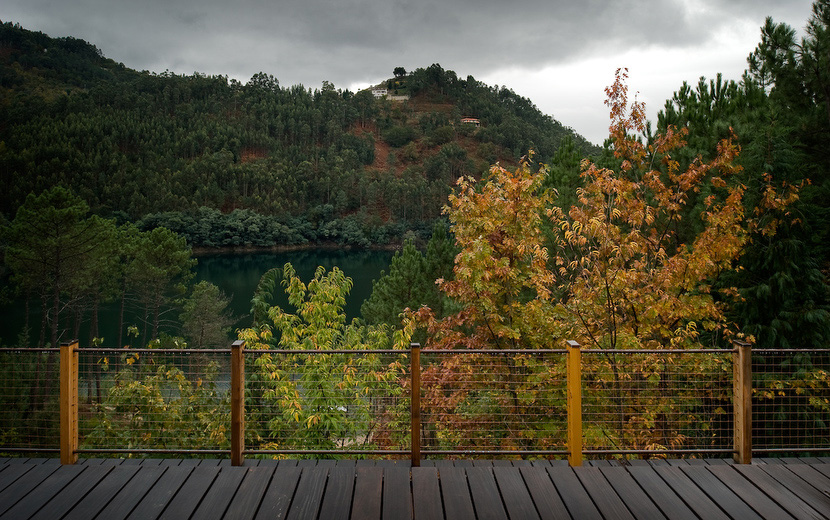

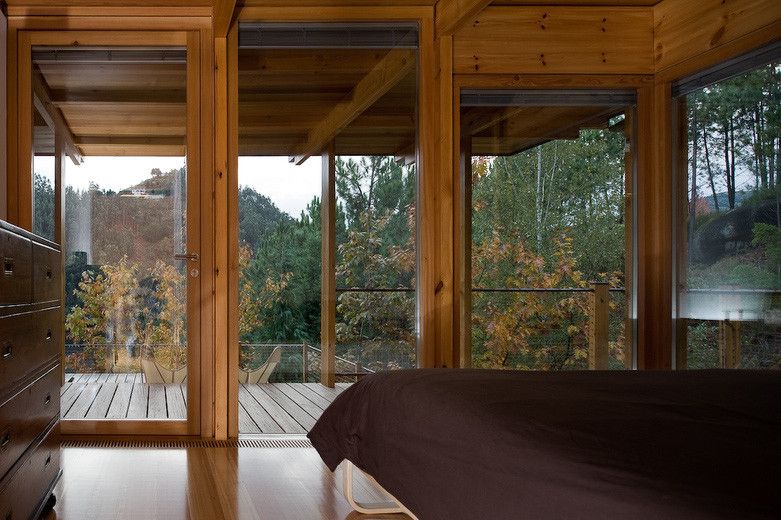

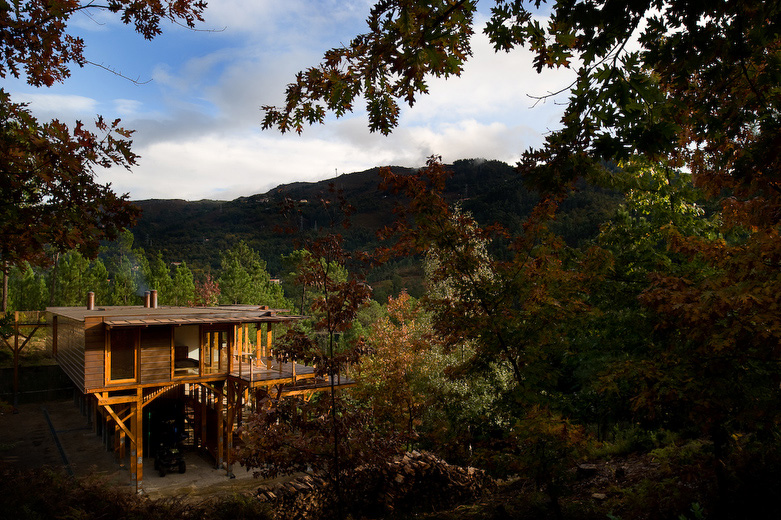

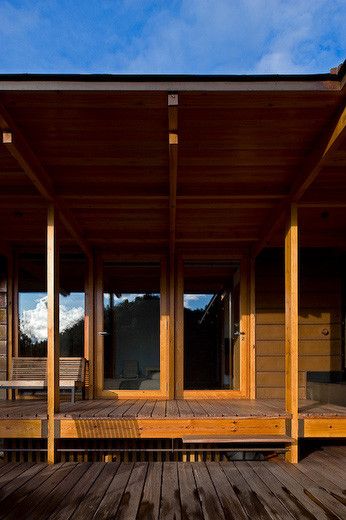

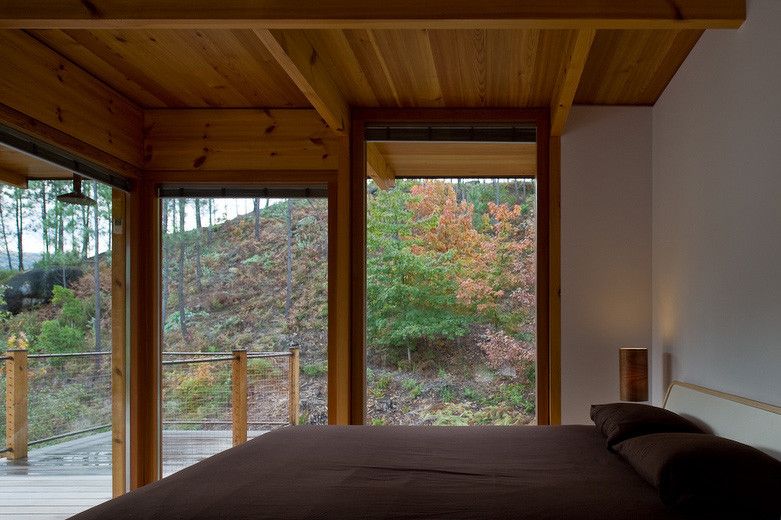

From the living room, one has access to a large external terrace, nowadays called a deck. From the bedrooms, one has access to a balcony which, due to a difference in level is separated from the large terrace, even though it is contained by it. By placing external circulation on the periphery of the terrace, at a lower level, the visual interference of the necessary guard rail is avoided. The house, or habitable volume, is elevated over the ground by 52 timber pillars that form an ordering and constructive network. This same network, or logic, is developed in the construction of the slabs, walls, and stairs.

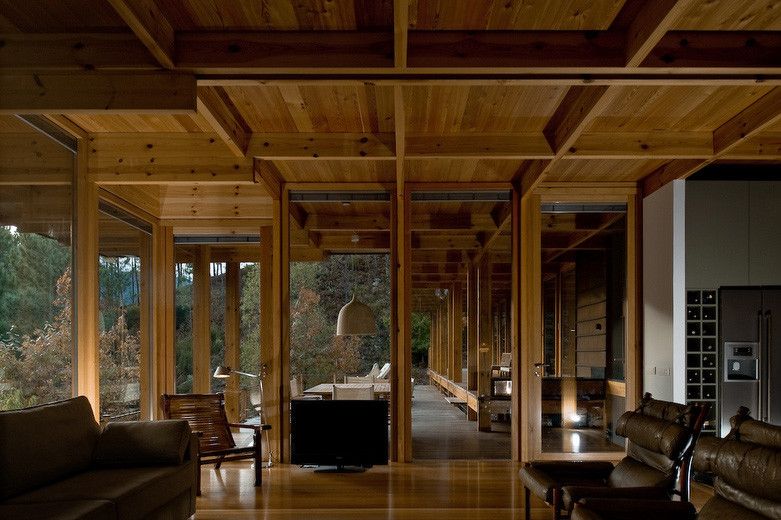

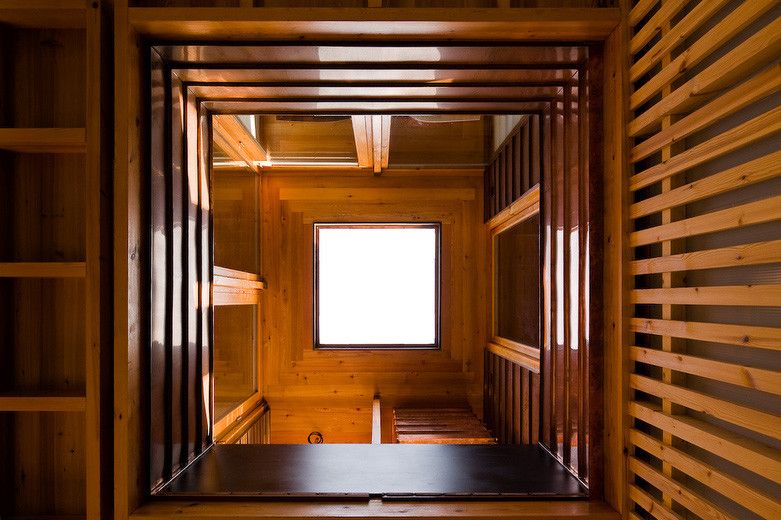

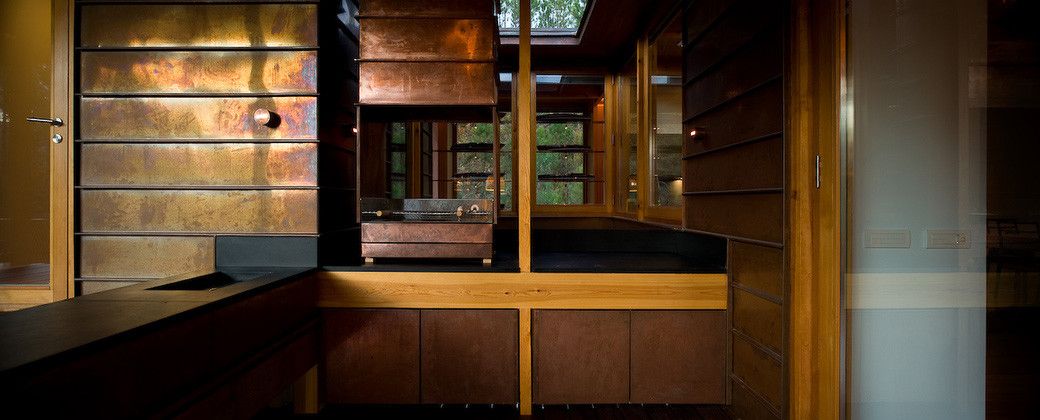

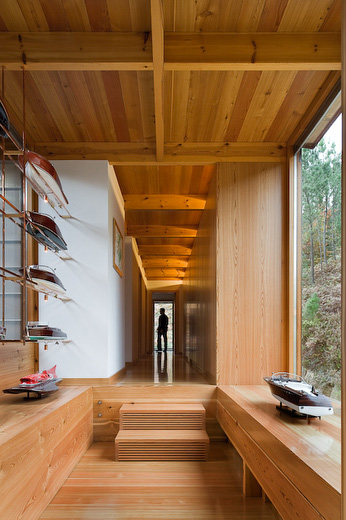

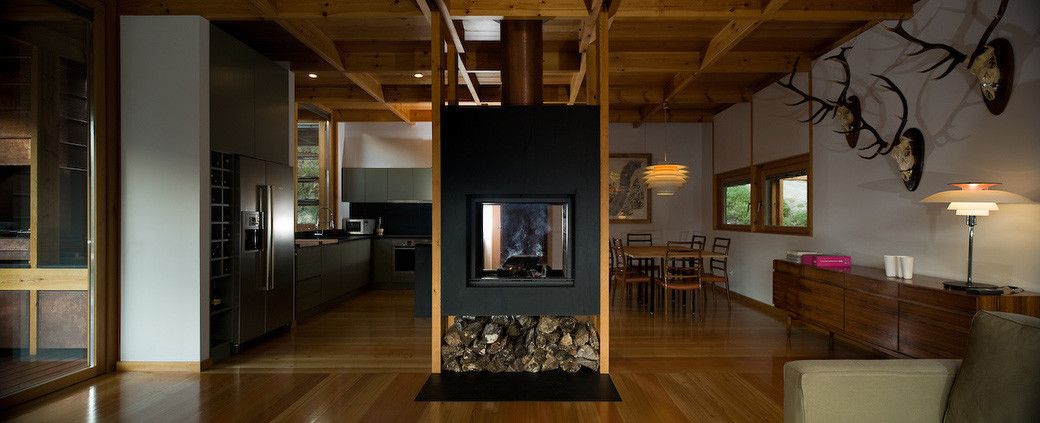

Almost everything has been left exposed, even when covered by thermal insulation or weathering membranes. Inside, the whole structure is seen and felt and lived in.

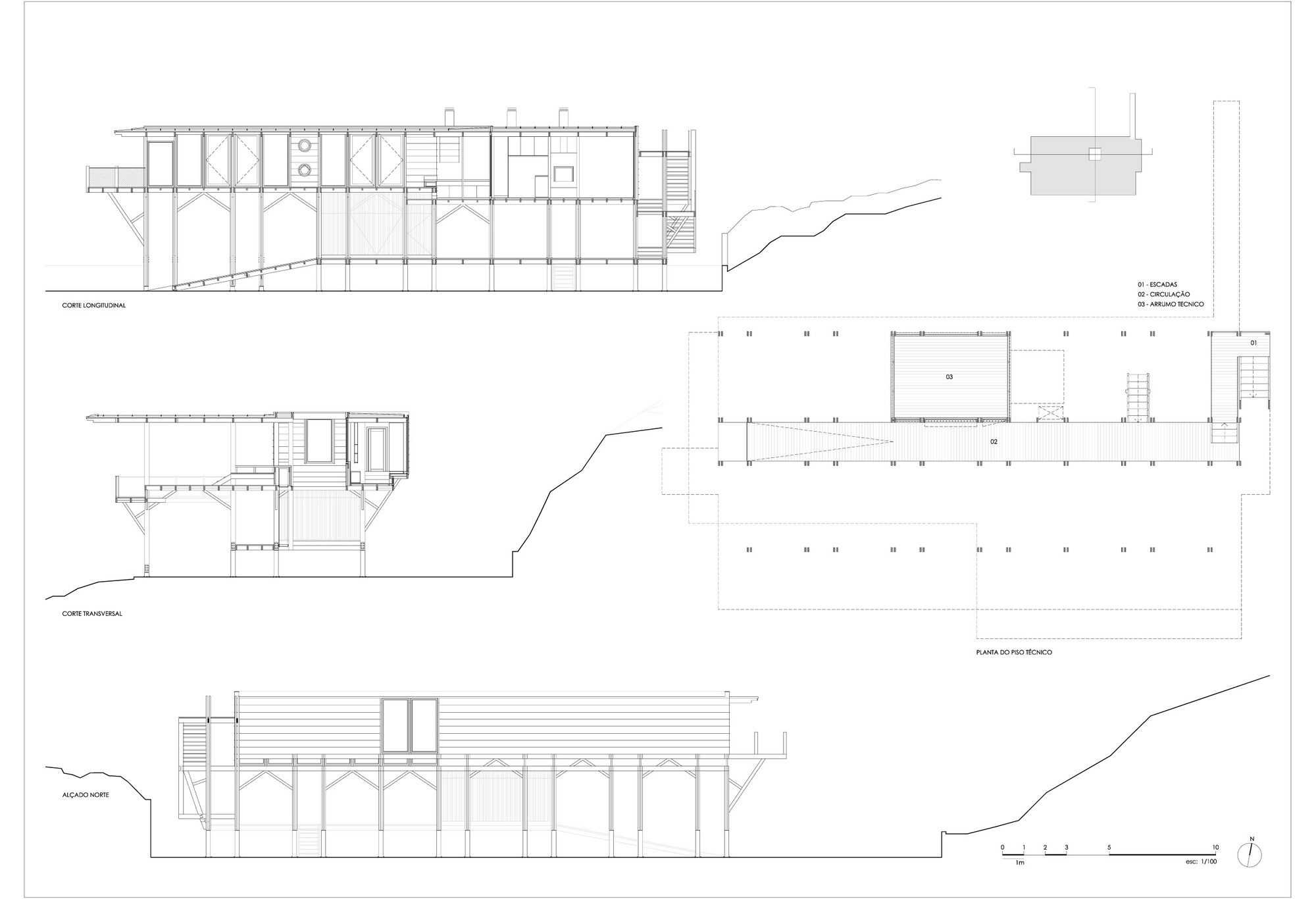

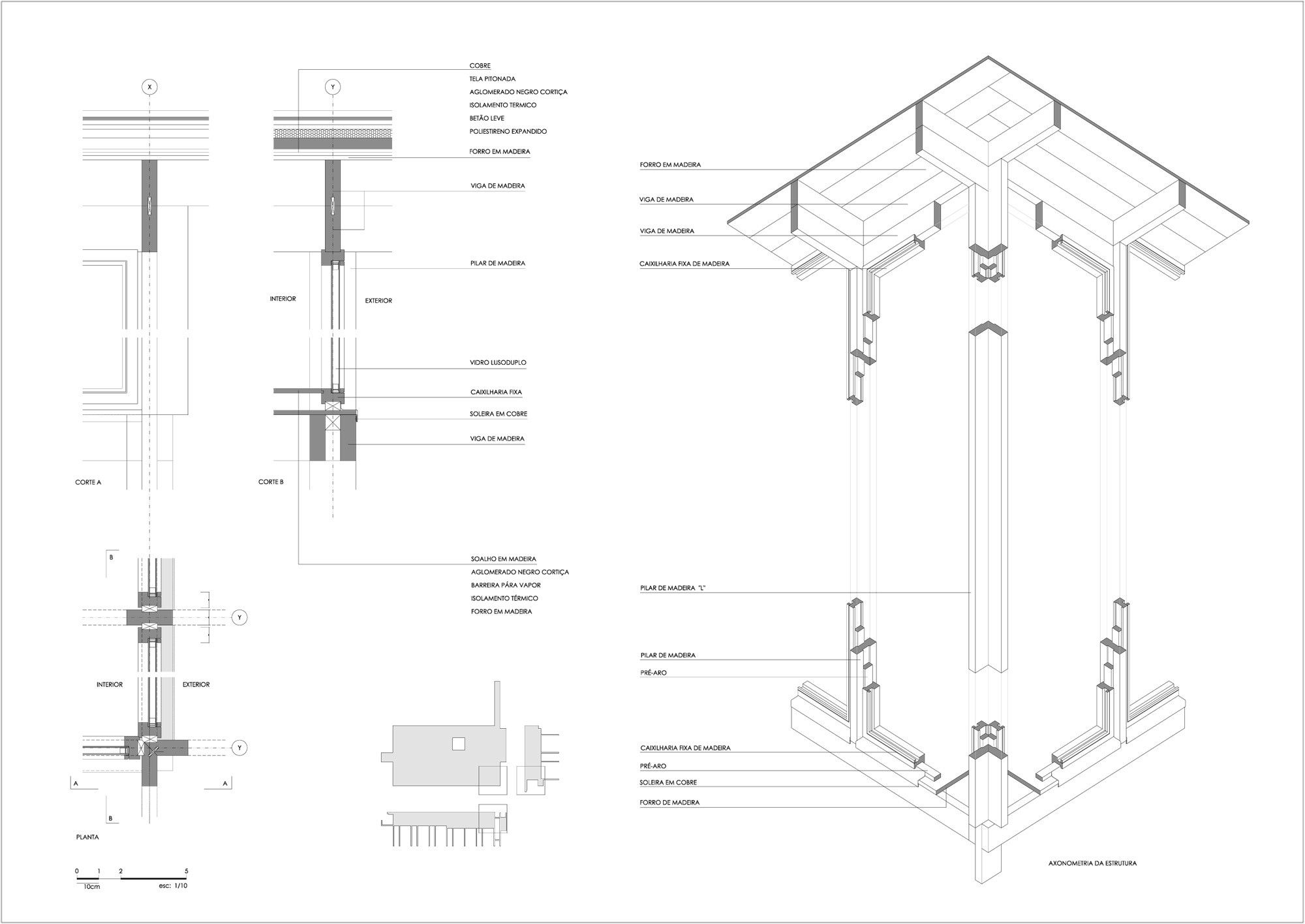

plan/section

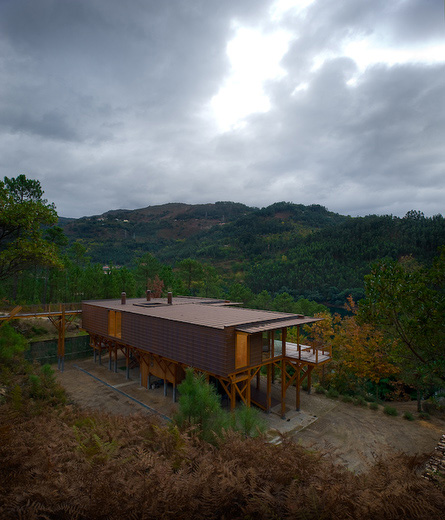

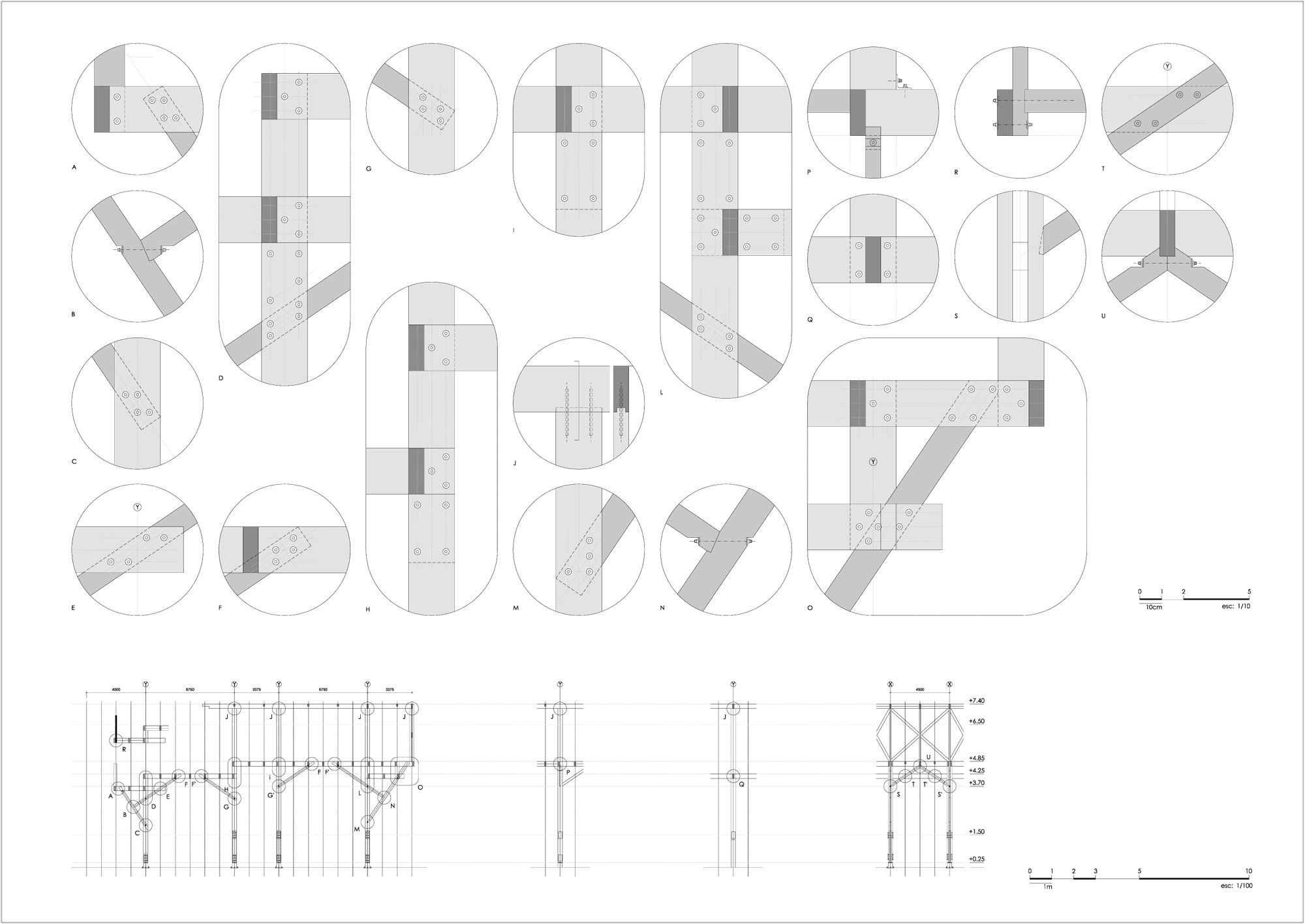

Concrete footings, (the only concrete used in the building). Steel connectors. Structural frame, internal floors, and ceilings in a red deal, external flooring and ceilings in Cumaru Brazillian Teak. External finishes, walls, and roof in copper. Glass in timber frames. Posts with fixings in copper and a wire mesh of polypropylene nylon form the fencing.

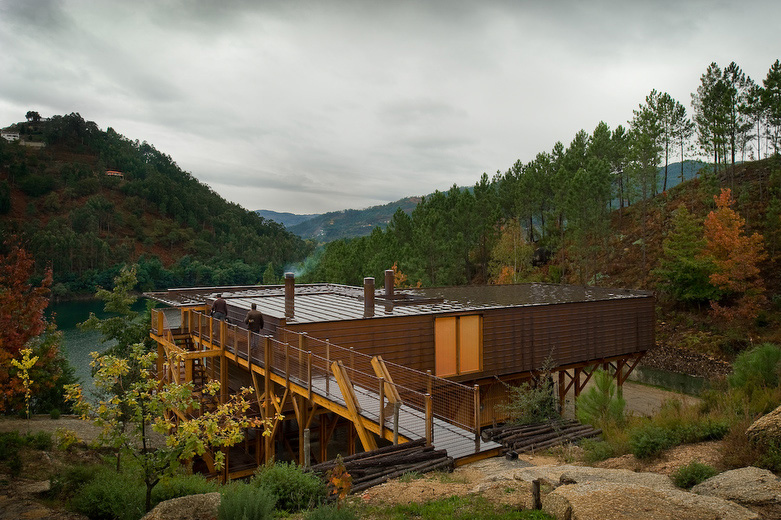

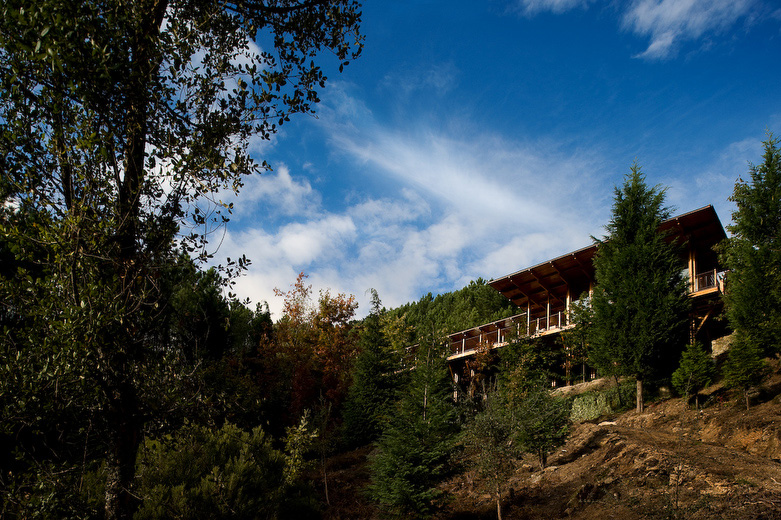

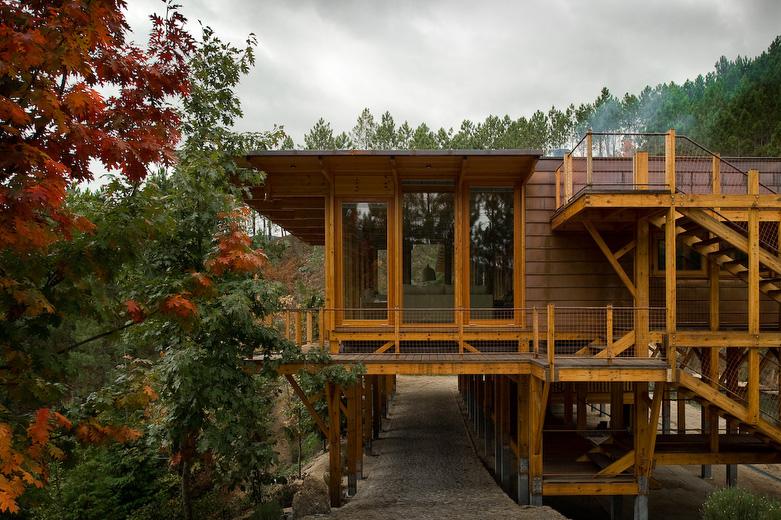

The house in Adpropeixe is a habitable viewing platform, elevated off the ground, but integrated and installed in the site.
The land, the area, the Reserve, have all been improved since the building of the house commenced, not only because of the house, but also because of the occupancy that it brought about, does now and will continue to bring about.
The hillside has been cleaned up, water tanks have been built, trees have been planted, the paths improved, Nature has been humanized.

Courtesy Of Carlos Castanheira & Clara Bastai, Arqtos Lda.

Project Info:
Architects: Carlos Castanheira & Clara Bastai, Arqtos Lda.
Location: Gerês, Portugal
Collaborators: Pedro Carvalho, João Figueiredo (3D)
Engineering: HDP, Gabinete de serviços e projectos de engenharia civil, Lda. / CONCILIARUM, Projectos e soluções de engenharia, Lda.
Domotics: Enancer Electronica Sa.
Carpentry & General Contractor: Carpicunha madeiras Lda.
Client: Tiago Sousa Lopes
Area: 18700.0 m2
Project Year: 2008
Project Name: Casa Adpropeixe
All Images Courtesy Of Carlos Castanheira & Clara Bastai, Arqtos Lda.
