The greatest inventions come out of individuals/ groups who want to do something but are fed up with a particular aspect of that something and know from the experience of doing that something, how to fix the one thing. Mouthful, but do you get what I’m saying? Those who do, are the most apt at creating solutions to make the ‘done’ easier and more convenient.

Courtesy of Patkau Architects

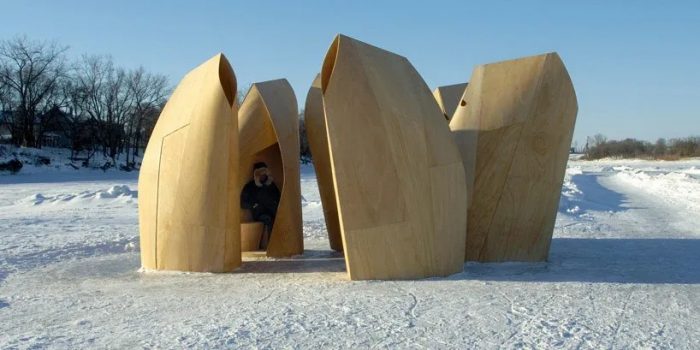

These are the Winnipeg Skating Shelters created by Patkau Architects for the town of Winnipeg, Canada. Below is a description provided by the architects. Read Up!

Courtesy of Patkau Architects

Winnipeg is a city of 600,000 residents located on the Canadian prairie. It is the coldest city of its size outside of Siberia. Winter can last six months. So learning to celebrate winter – learning to take advantage of the opportunities that winter provides – makes sense.

The Red and the Assiniboine Rivers meet in the centre of the city, and in winter, when plowed of snow, skating trails many miles long are created. But with temperatures that drop to minus 30 and 40 for long periods of time, and winds that can make minus 30 feel like minus 50, creating opportunities to find shelter from the wind greatly enhances the ability to use the river skating trails. Therefore, a program has developed to sponsor the design and construction of temporary shelters located along the skating trails.

Courtesy of Patkau Architects

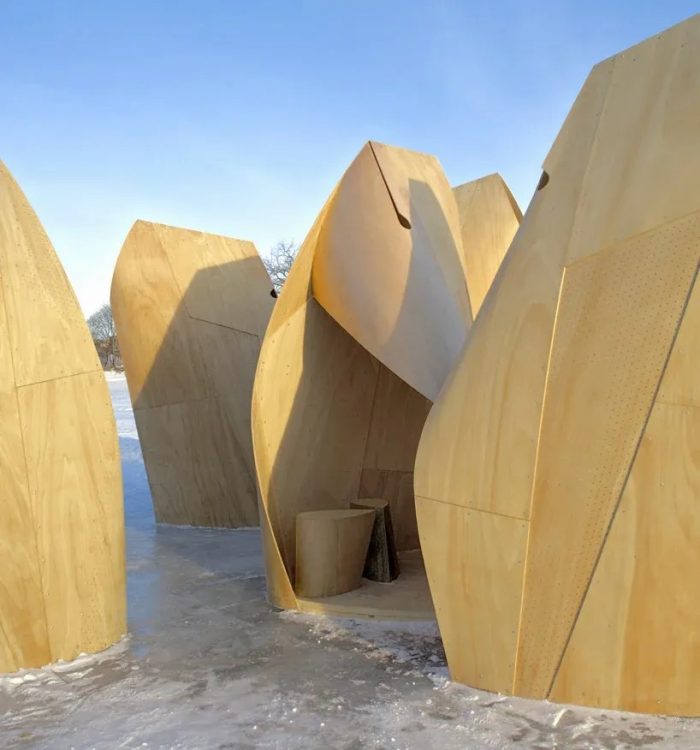

Our proposal consists of a cluster of intimate shelters, each accommodating only a few people at a time. They are grouped in a small ‘village’ (or ‘herd’, or ‘school’, or ’flock’, or ‘flotilla’) to form a collective . . . of ‘something’ . . . irreducible to a single interpretation. They stand with their backs to the wind like buffalo, seeming to have life and purpose as they huddle together shielding each other from the elements.

Courtesy of Patkau Architects

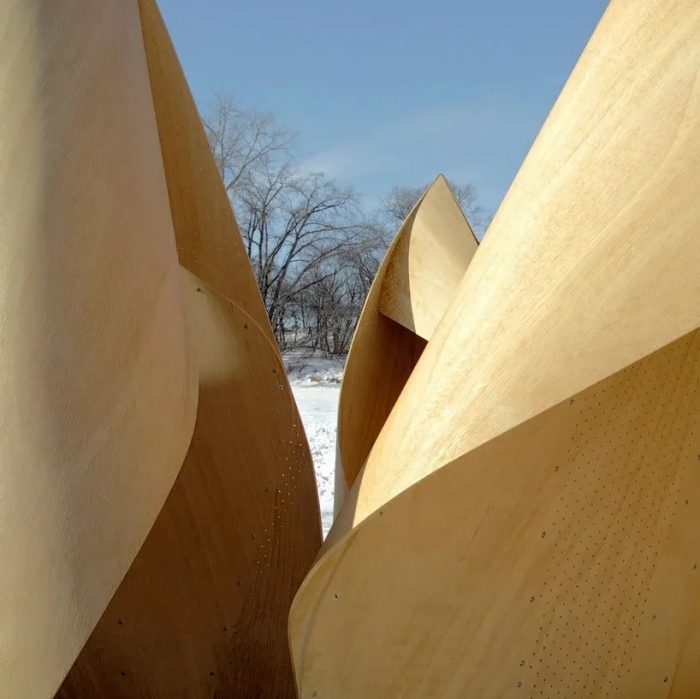

Each shelter is formed of thin, flexible plywood which is given both structure and spatial character through bending/deformation. Skins, made of 2 layers of 3/16th inch thick flexible plywood, are cut in patterns and attached to a timber armature which consists of a triangular base, and wedge shaped spine and ridge members. (The ridge is a line to negate the gravity loads of snow.) Experiments in our workshop with a full-scale prototype mapped the stresses of bending. Stress points were relieved by a series of cuts and openings. The form of the shelter is a resultant of this process of stressing/deforming and then releasing stress.”]

Courtesy of Patkau Architects

Grouping the shelters into a cluster begins with the relationship of two, and their juxtaposition to qualify the size and accessibility of their entrance openings. This apparently casual pairing is actually achieved by a precise 120 degree rotation. Three pairs (one with mirror reflection) are then placed in relation to one another through a secondary rotation of 90 degrees to form the cluster and define an intermediate ‘interior’ space within the larger grouping. Together, the shelters create dynamic solar/wind relationships that shift according to specific orientation, time of day and environmental circumstance.

Courtesy of Patkau Architects
