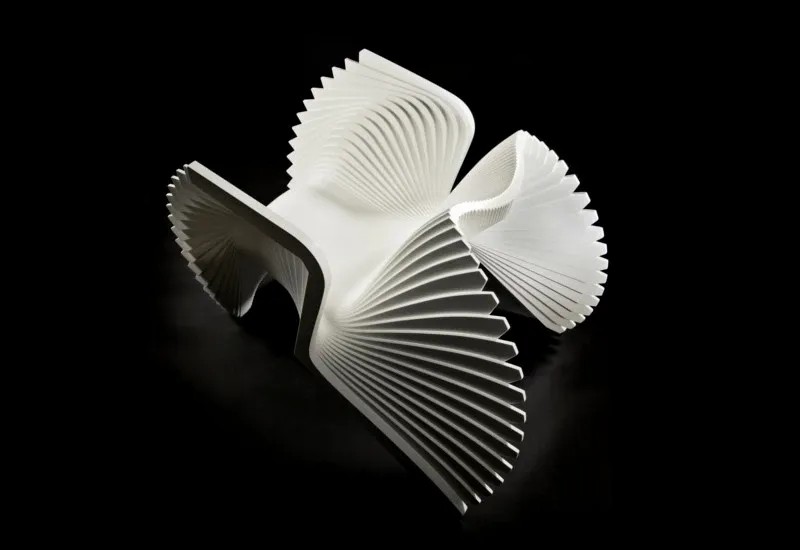

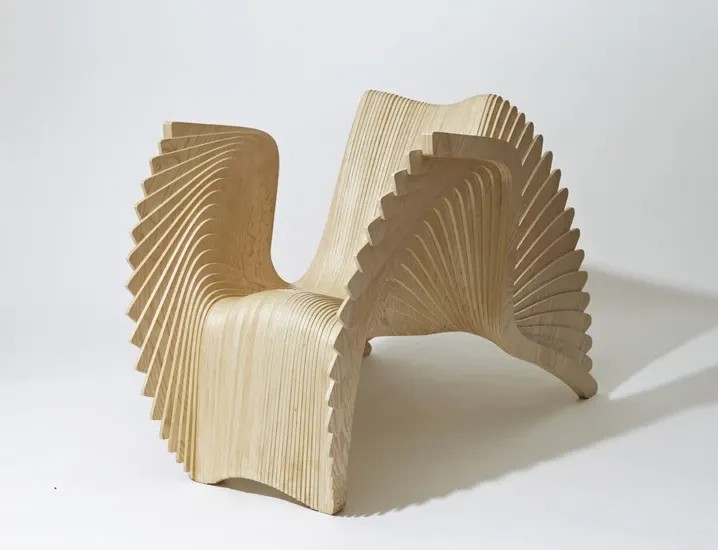

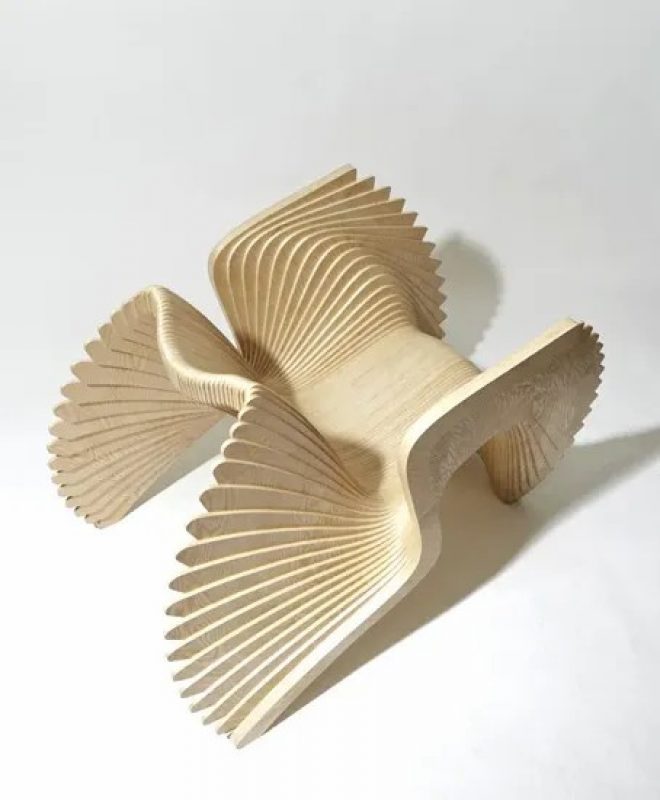

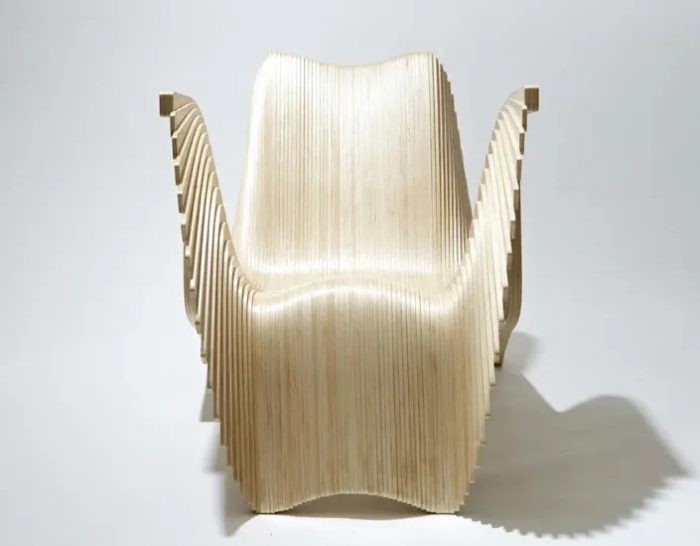

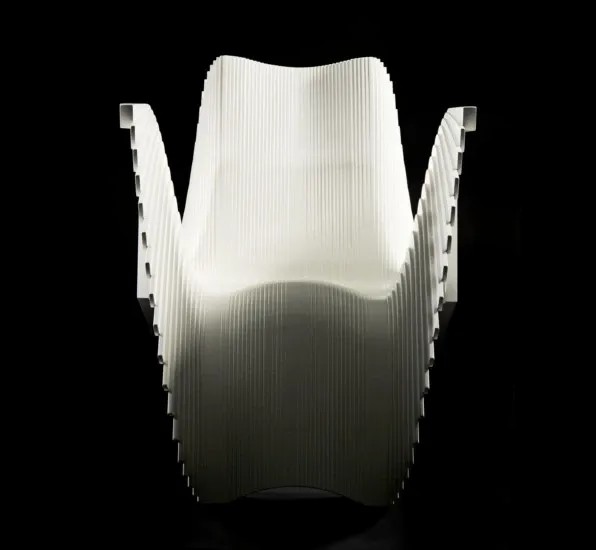

Striking elegance, simplicity in idea, comfortable, designed with sustainability in mind. The Monroe Chair is an attempt to drastically simplify the manufacturing process involved in making an armchair. It exploits the potential of CNC technologies to repeatedly cut out a flat element from MDF, these elements are then splayed around a central axis to shape a complexly curved armchair. The back leg gradually morphs into the backrest and the armrest into the front leg, creating a distinct aesthetic entirely defined by the simplicity of the manufacturing process. The project started in february 2011 Pewsey, Wiltshire, UK and finished in time for an Exhibition at the Candid Art Galleries in Isllington, London. October 2011. The Monroe Chair An Armchair by Alexander White is Golden A’ Design Award Winner in Furniture, Decorative Items and Homeware Design Category, 2011 – 2012. Images of The Monroe Chair by Alexander White from A’ Design Award & Competition.

Arch2O Monroe Chair Alexander White 02

Courtesy of Alexander White

PRODUCTION :
CNC router, 9mm MDF. All components being identical, they can be economically laid out on a sheet of 8by4 MDF producing minimal waste. After being cut out each component is fed onto a metal pole that runs through the width of the chair, then splayed and fixed in place in order to achieve the desired aesthetic and comfort. Then the whole chair is primed and lacquered.

Arch2O Monroe Chair Alexander White 03

Courtesy of Alexander White

RESEARCH ABSTRACT:
Marilyn was always in the back of my mind when designing this chair but my main aim was to produce a chair made from one component. I started with a fairly simple idea that I sketched and play around with it in my sketchbook until I was convinced that it’s is worth developing. I then took the basic drawn shape to the computer and started producing more refined shapes for the main component. Several models then followed perfecting the aesthetics and apparent comfort of the chair. It’s only once a full size prototype was made that I could fully understand the boundaries and balances between it’s style and comfort and therefore decide on final detailing.



Arch2O Monroe Chair Alexander White 04

Courtesy of Alexander White

CHALLENGE:
Trying to get the correct shape for the main component was a challenge. As the repeated component for this design performs many tasks; the front end of it being both the armrest and the front leg and the back end of it being the back rest and the back leg. This meant a balance between the functions of the component had to be found. Its shape had to be just right.

Courtesy of Alexander White
