The Standard New York

The design for this new hotel deftly responds to its unique urban context and client, creating a singular identity while reinforcing the historic industrial fabric it towers above and integrating a new linear public park. The 337-room, 204,500-square-foot Standard, New York is located in Manhattan’s Meatpacking District, a vibrant neighborhood of roughly twenty square blocks just east of the Hudson River and west of Greenwich Village on the City’s edge.

Courtesy of Ennead Architects – Photographs: Jeff Goldberg/Esto

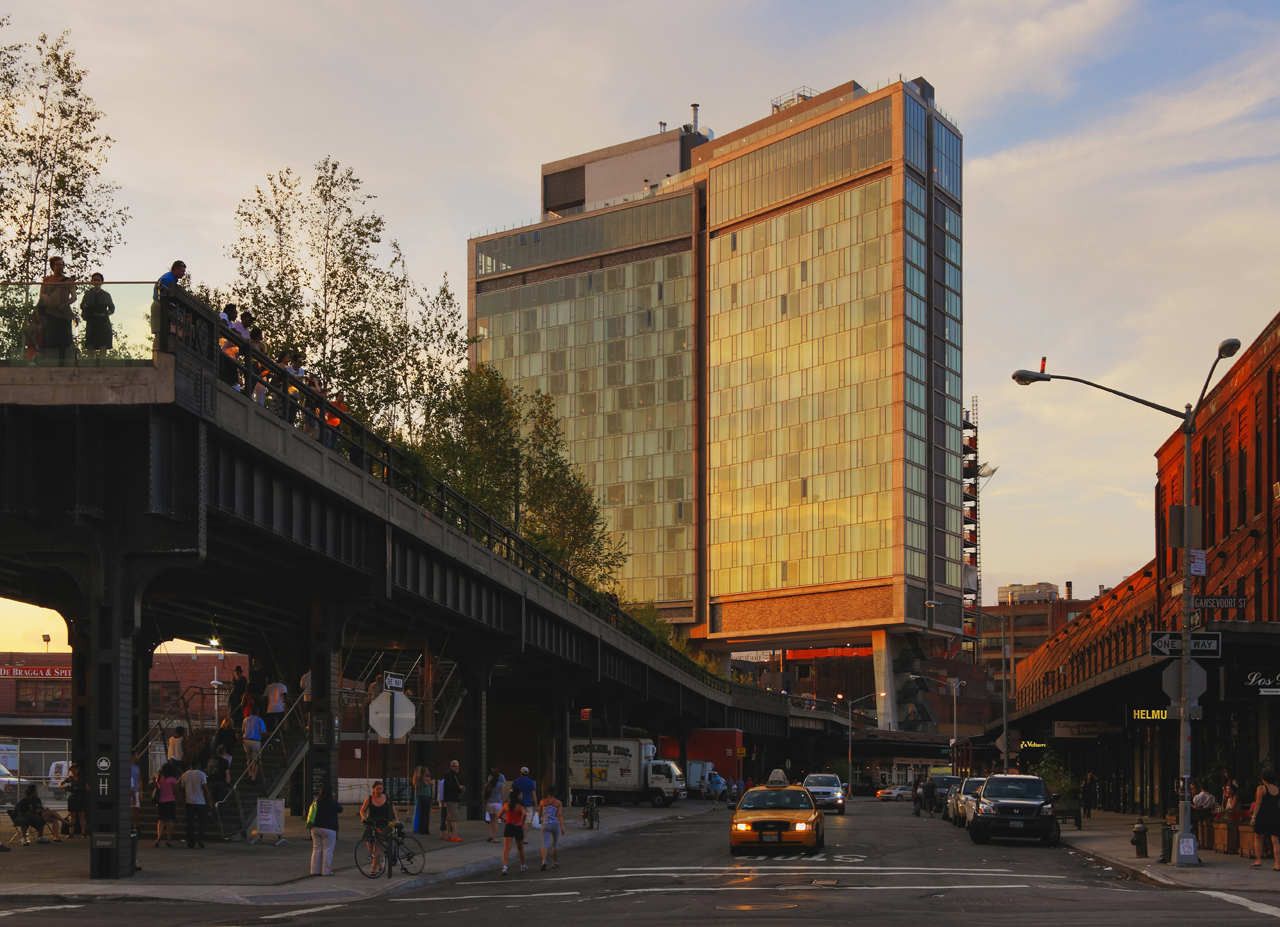

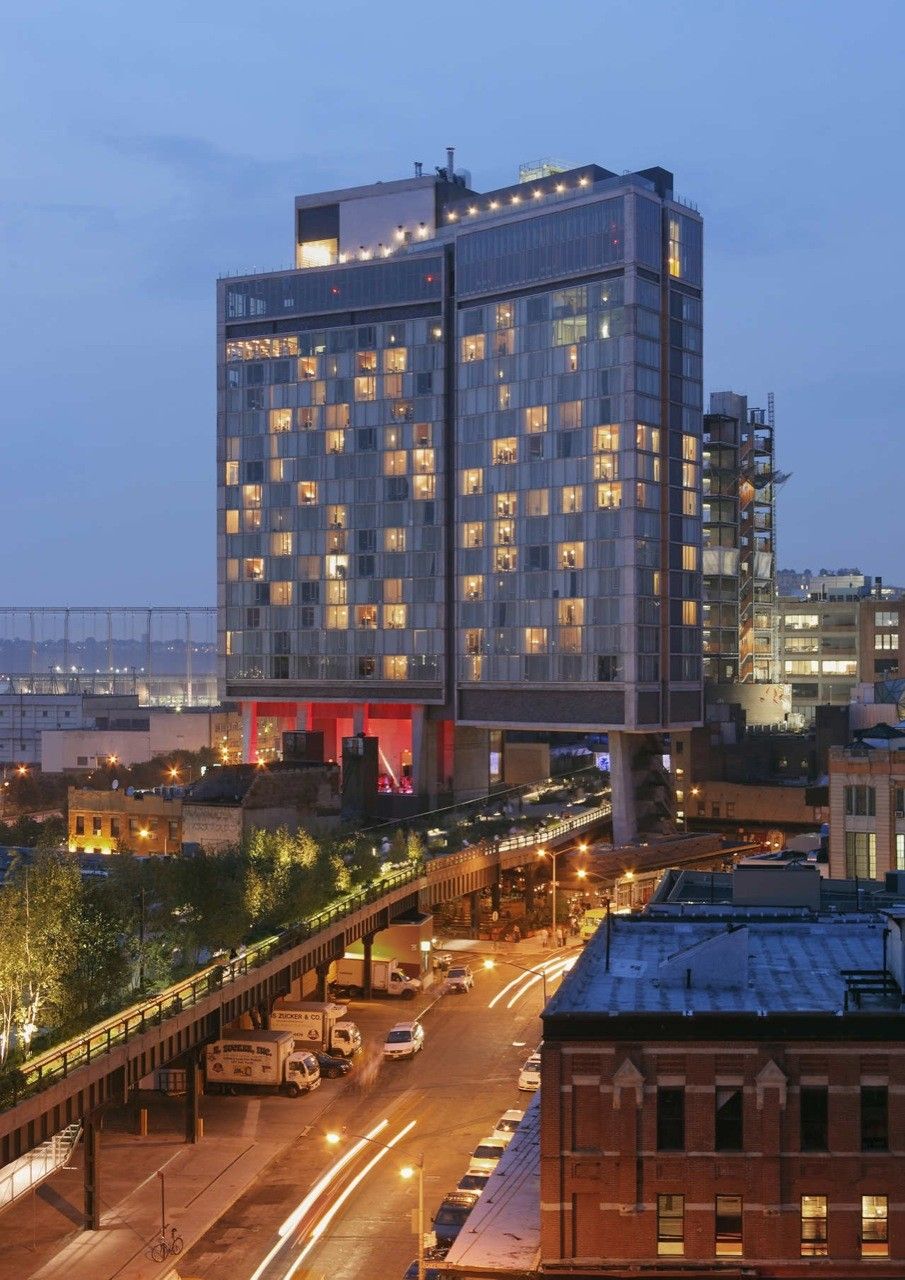

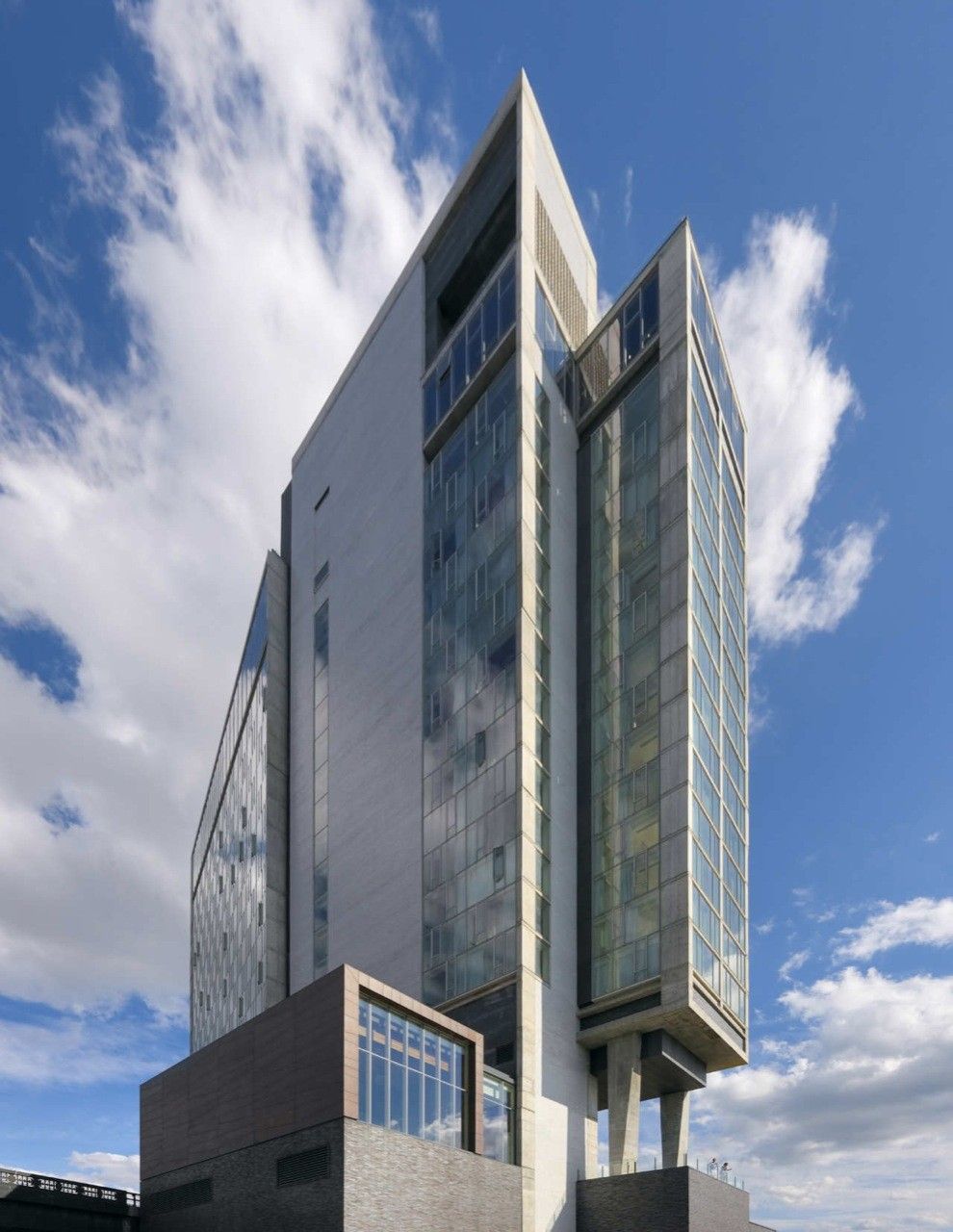

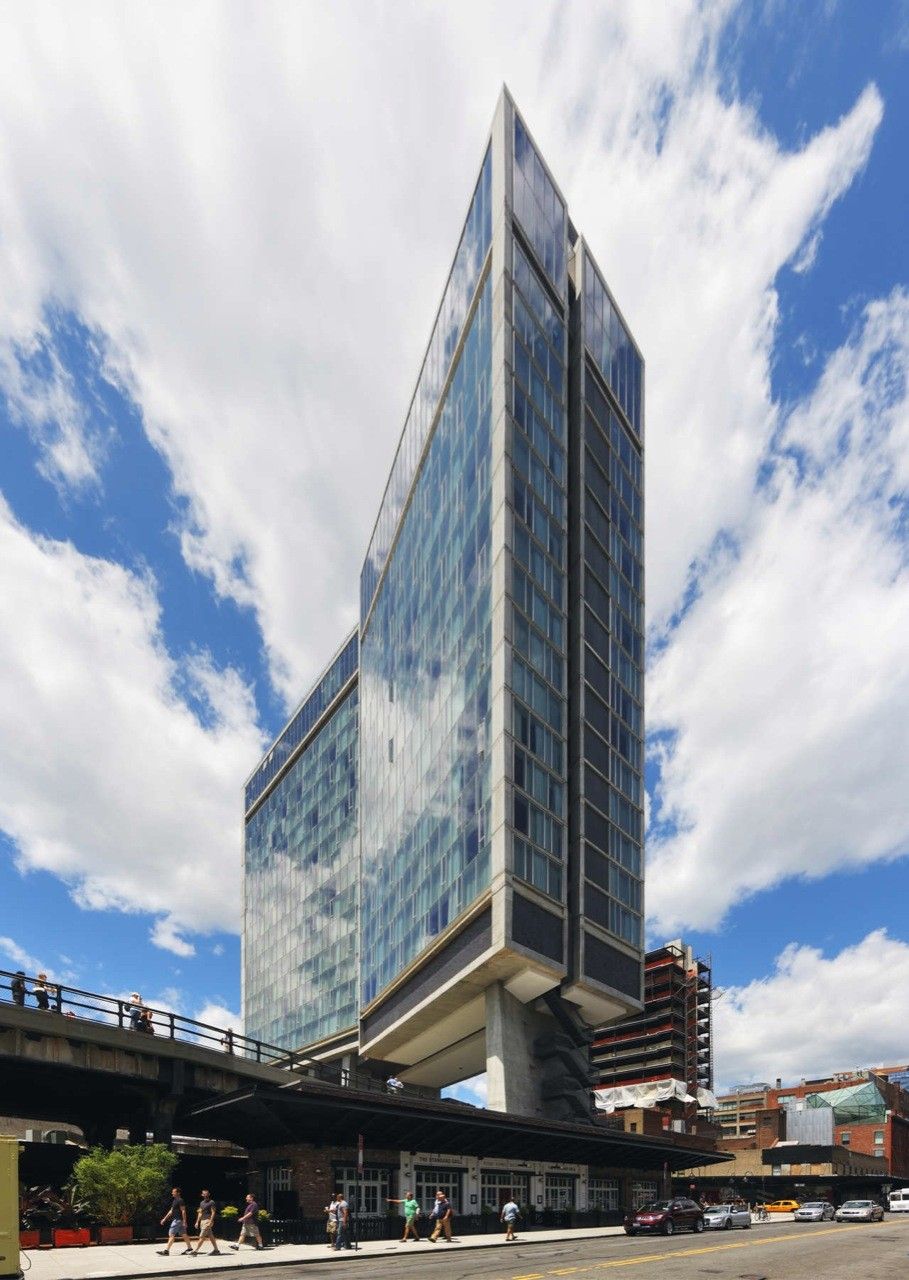

The eighteen-story, concrete and glass structure defines the New York City identity of the Standard brand and in its material quality, its proportions and its relationship to the High Line and the street, engages its context through contrast. The building is elevated above the street and straddles the High Line, an abandoned section of a 75-year-old elevated railroad line, which passes over the buildings of the district and is currently being developed as a new linear, public park.

Courtesy of Ennead Architects – Photographs: Jeff Goldberg/Esto

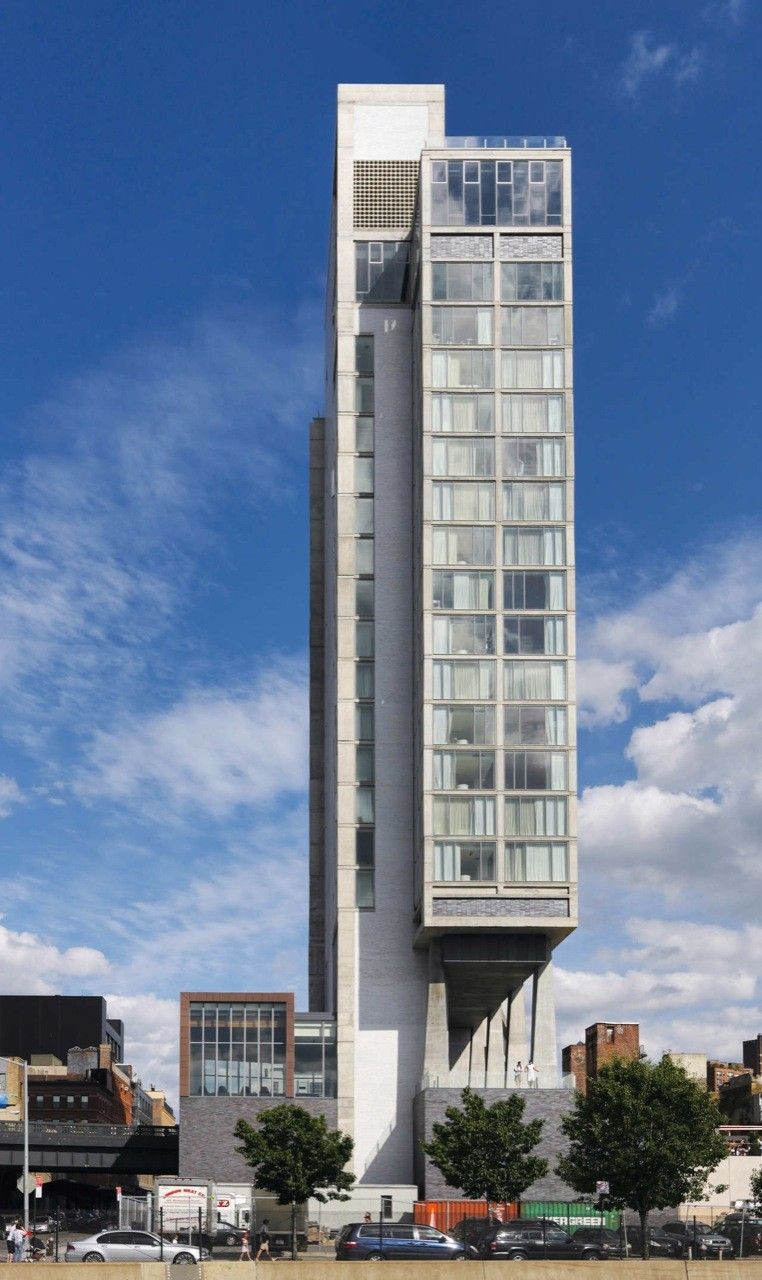

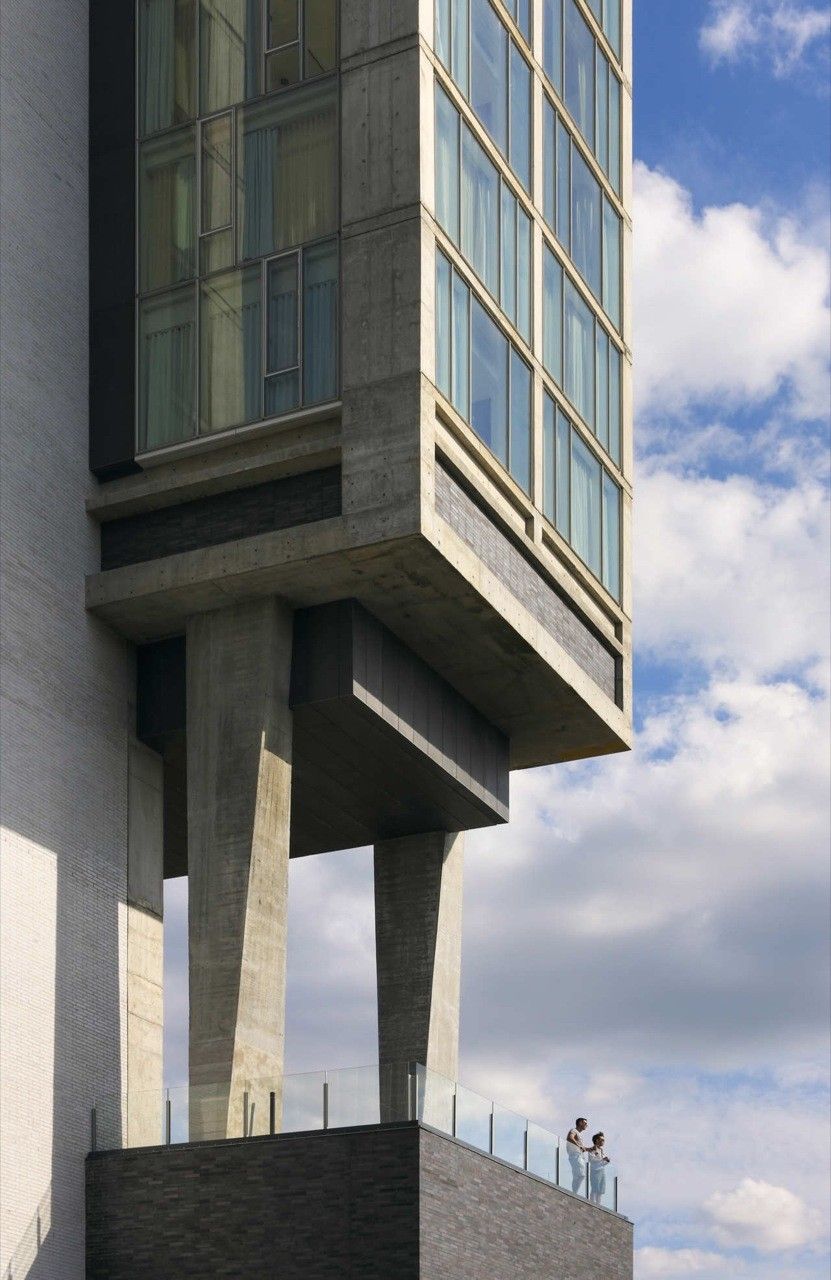

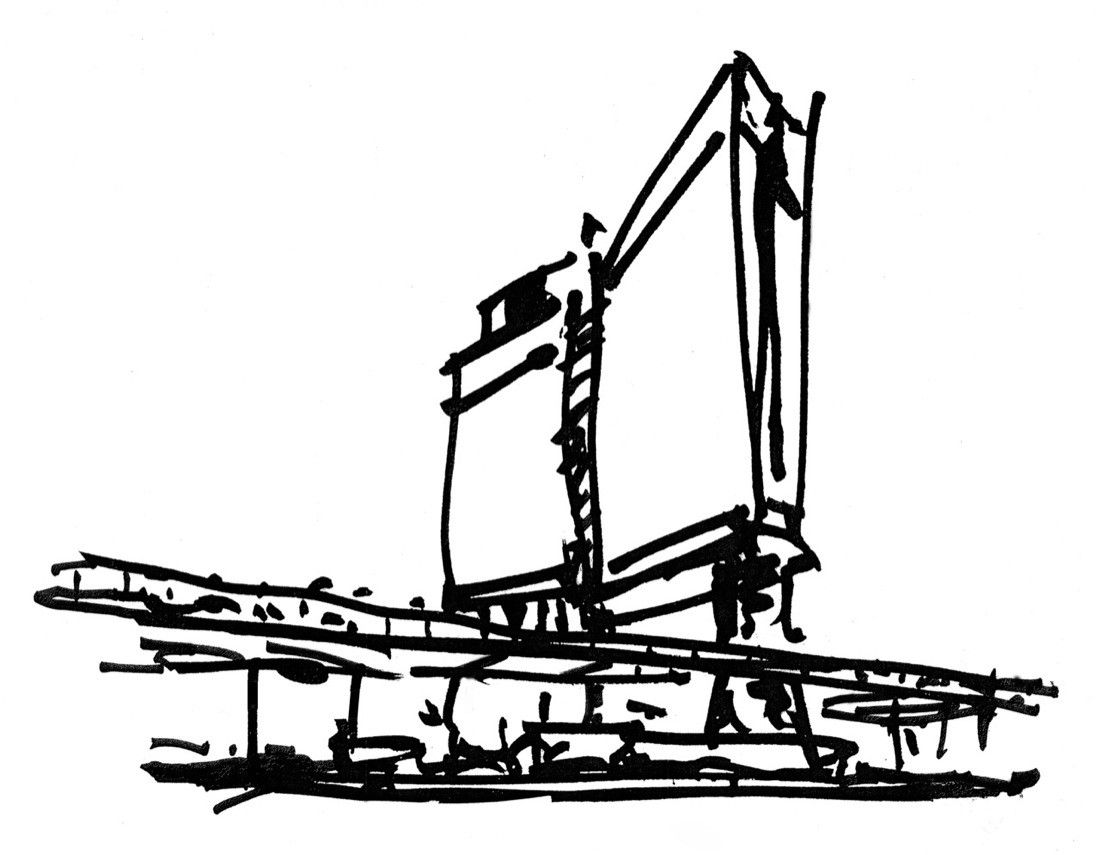

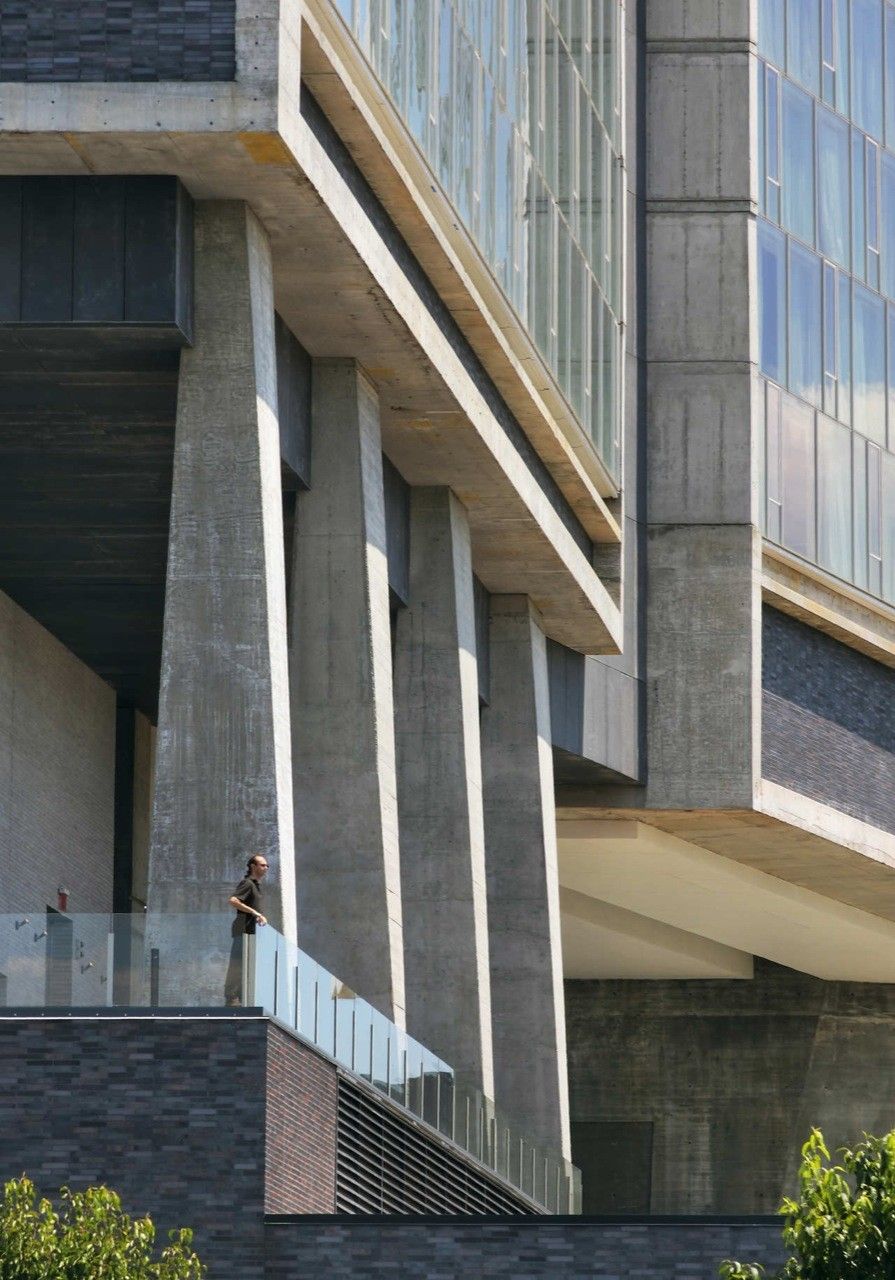

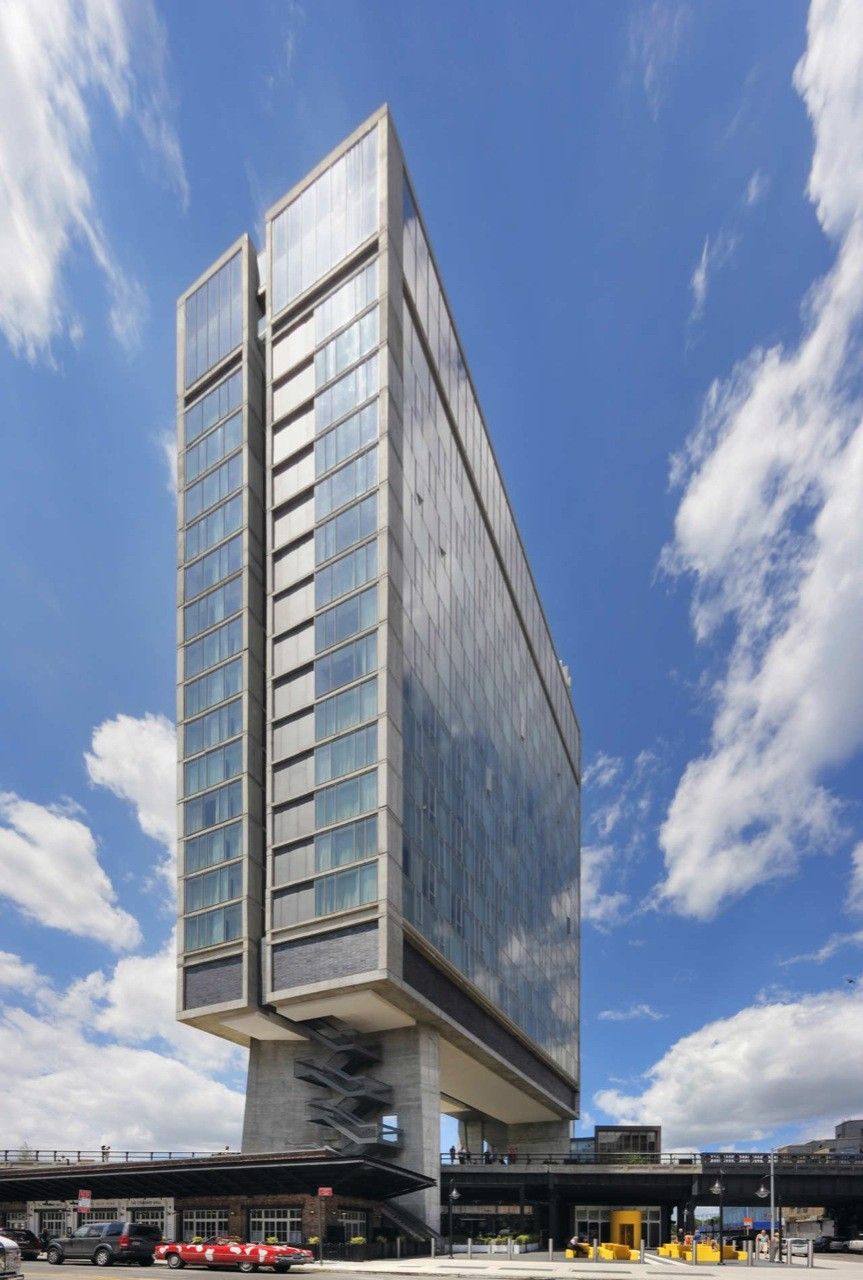

The building responds to its context through contrast: sculptural piers, whose forms clearly separate the building from the orthogonal street grid, raise the building fifty-seven feet off the street, allowing the horizontally-scaled industrial landscape to pass beneath it and natural light to penetrate to the street. The two slabs are “hinged” – angled to further emphasize the building’s distinction from the city’s grid and its levitation above the neighborhood.

Courtesy of Ennead Architects

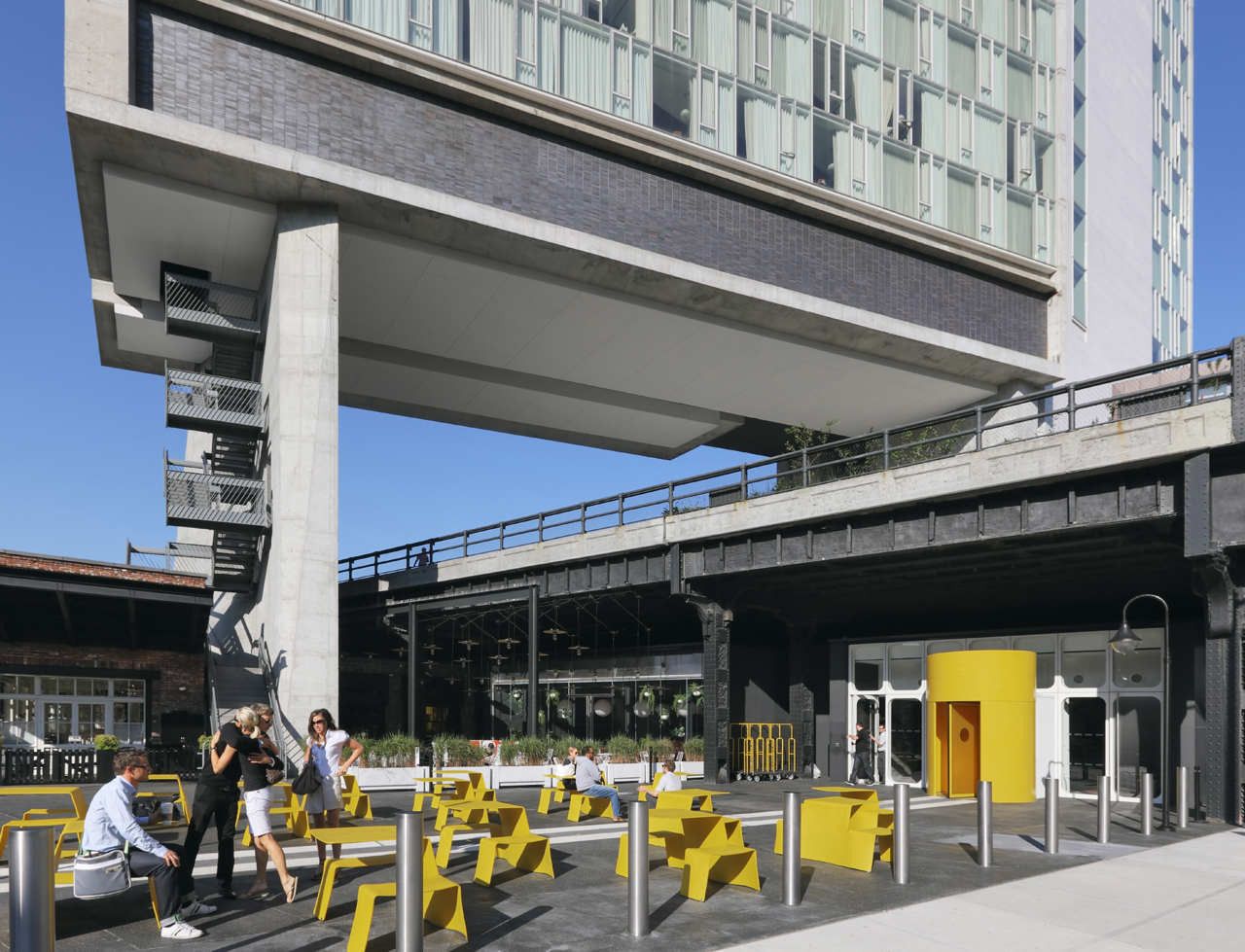

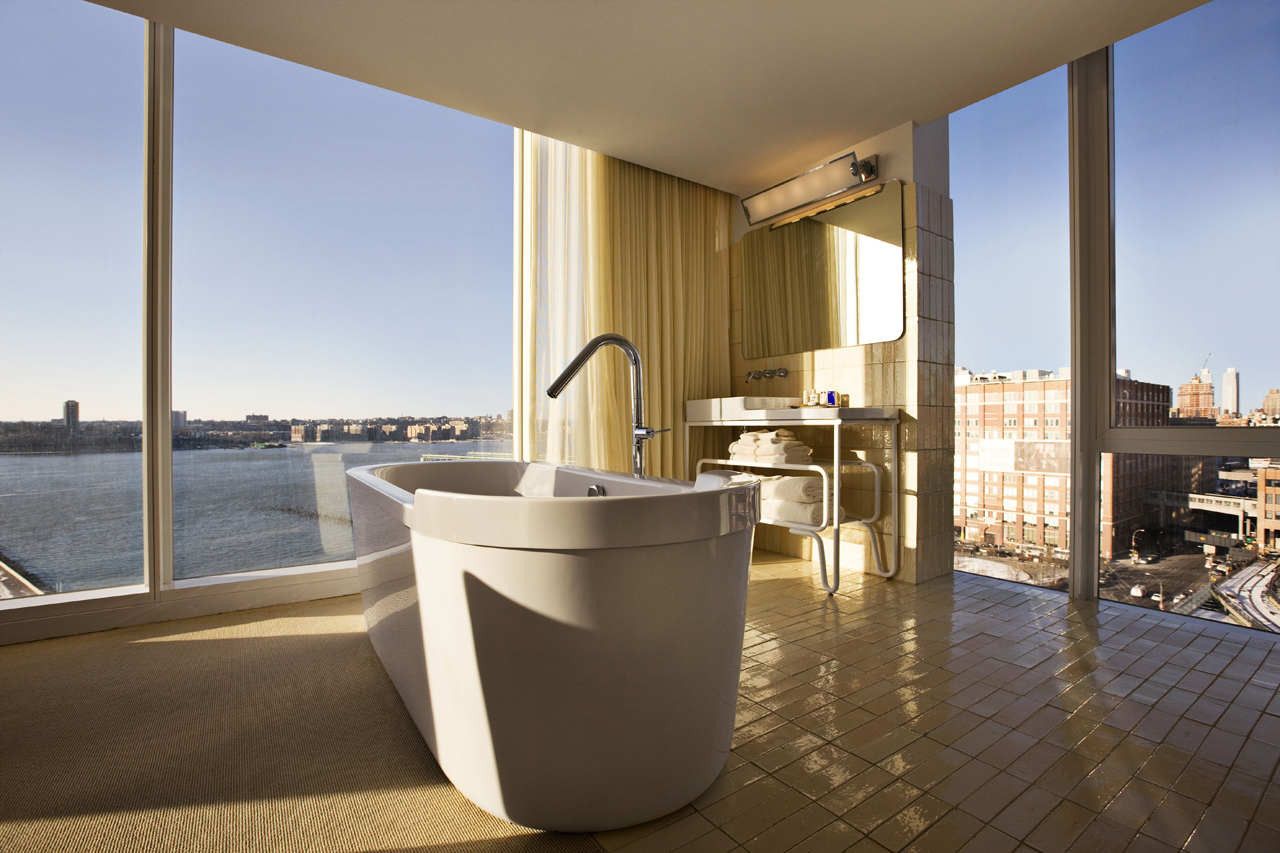

The low-scale context affords the building unusual visibility from all directions, and its interaction with the High Line creates a stepped transition from the street, shaping distinct public spaces that afford visitors unique views of the City from all directions. Further unobstructed 360° views of the City are ensured from the building.

Courtesy of Ennead Architects – Photographs: Jeff Goldberg/Esto

Engineering Achievement: The owner of the High Line would not allow shoring from its historic structure. To clear the easement 30 feet above the elevated railroad bed, a transfer structure spanning nearly 90 feet between exposed concrete super columns and the East Pier was required. However, the erection of post-tensioned concrete transfer girders would have been onerous and prohibitively expensive.

Courtesy of Ennead Architects – Photographs: Thomas Loof

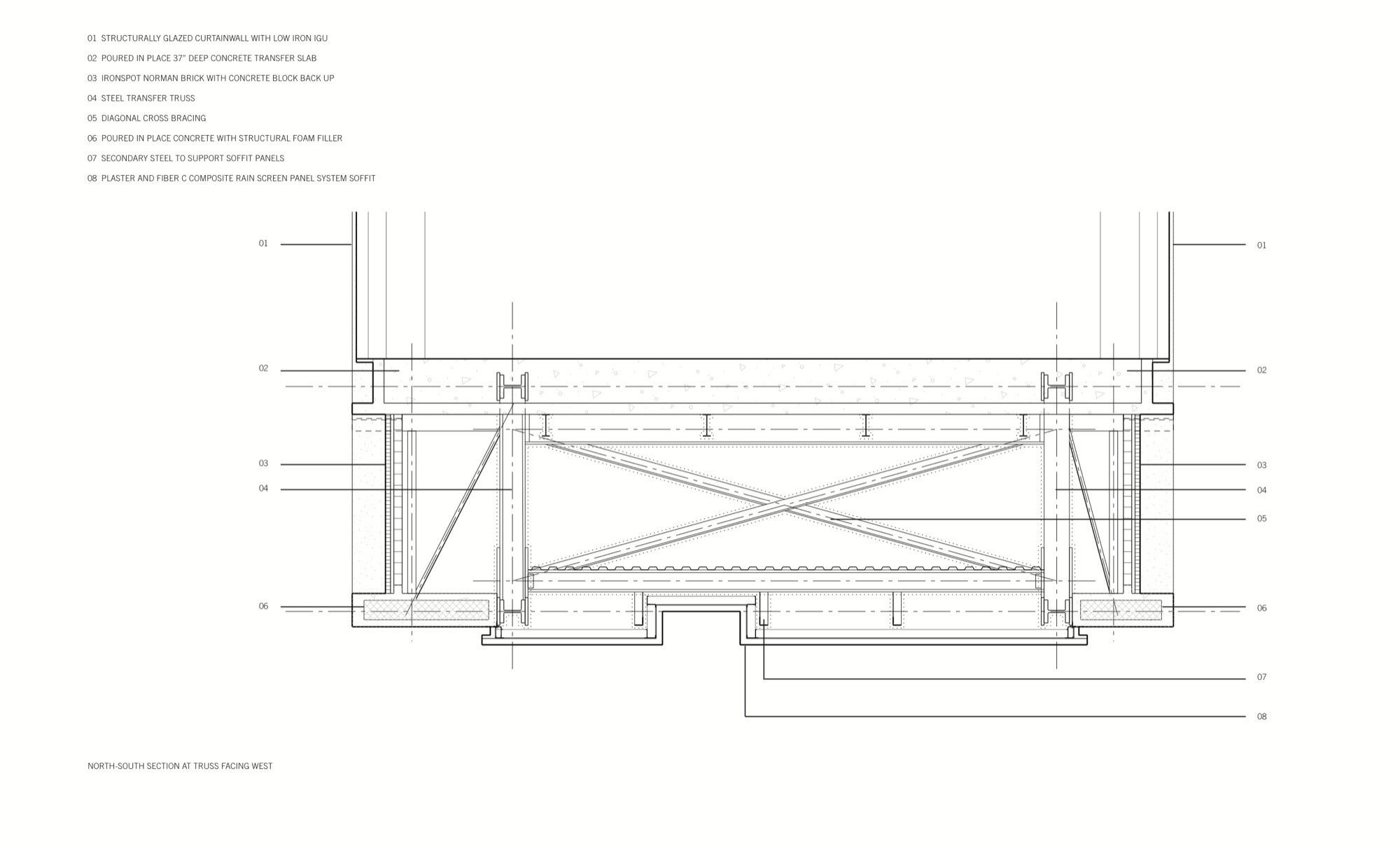

Instead, two 65-ksi steel trusses support the eastern half of the hotel tower. A multi-step cantilevered shoring procedure was employed to install the two-piece trusses. The top chords of the trusses are embedded in a 37-inch-deep concrete transfer slab, creating a large double-tee profile. The composite action greatly reduced steel tonnage and optimized the efforts and efficiency of both materials.

Courtesy of Ennead Architects – Photographs: Thomas Loof

Project Info
Architects: Ennead Architects
Location: New York, United States
Project Architects: Megan Miller AIA (Design), Tara Leibenhaut-Tyre AIA (Construction Administration)
Design Team: Gary Anderson, Darla Elsbernd, John LaBombard, Apichat Leungchaikul, Ken Mito, Saem Oh, Michael O’Meara, Jesse Peck, Alan Slusarenko, Frederick Tang, Maya Weissman-Ilan
Interior Design: Roman and Williams
Design Partner: Todd Schliemann FAIA
Senior Designer: Amy Lin AIA
Management Partner: Kevin McClurkan AIA
Area: 204500.0 sqm
Year: 2009
Type: Hotel
Photographs: Jeff Goldberg/Esto, Thomas LoofRyan R. Browne
