Shipping Containers

For nearly a decade, Ganti & Associates (USA), and their local office in Mumbai known as GA Design Consultants LLP, created designs that’s known for its purity of form and simplicity in expression. GA founders say they have been greatly influenced by architects Richard Meier, Louis Kahn, and Le Corbusier.

That can be seen clearly in their winning design for the competition “Super Skyscrapers.” Launched by the Indian government demanding to explore the possibility of a temporary adequate housing solution for dwellers of the densely populated Dharavi Slum in Mumbai, India, using used-shipping containers as building modules.

Courtesy of GA - Day View

Courtesy of GA – Day View

“Our concept is about stacking containers 10 storeys high keeping in mind its modular character which can repeated several times. The steel skin itself takes the load like a “Monocoque” structure thus cutting cost for additional columns or beams. The design of a 100 M tall high rise structure (approx. 32 storeys) calls for erecting portal frames connected with steel girders placed every 8 storeys and this module repeats vertically” said the architect.

Courtesy of GA - Self Carrying Structure

Courtesy of GA – Self Carrying Structure

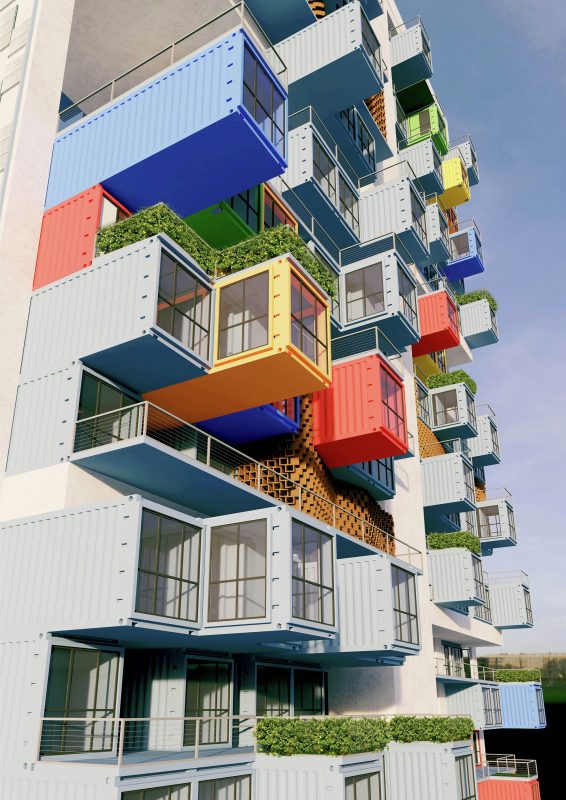

Although the aesthetics of their proposal isn’t as good as GRC proposal, their main concept for aesthetics was created by staggering containers and the use of different colors. The staggered containers creates cantilevers which provides shade for below corridors.

Courtesy of GA - Containers Staggering Pattern

Courtesy of GA – Containers Staggering Pattern

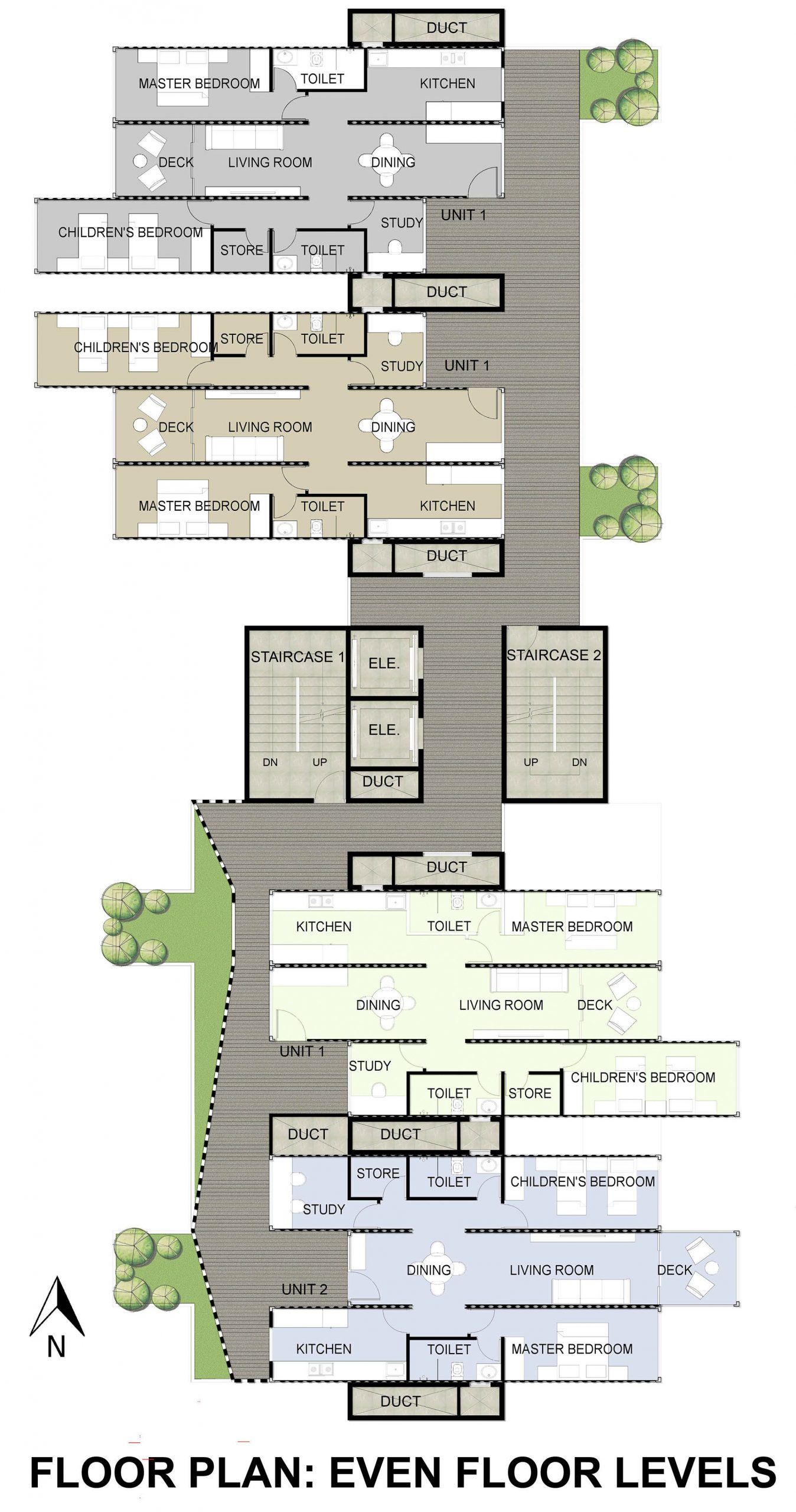

As shown in plan the proposal is a repeated unit “apartment” made up of 3 standard size containers each unit has 2 bed rooms, dinning, living room, kitchen, store, 2 toilets, study room and a shaded deck.

Courtesy of GA - Plan

Courtesy of GA – Plan

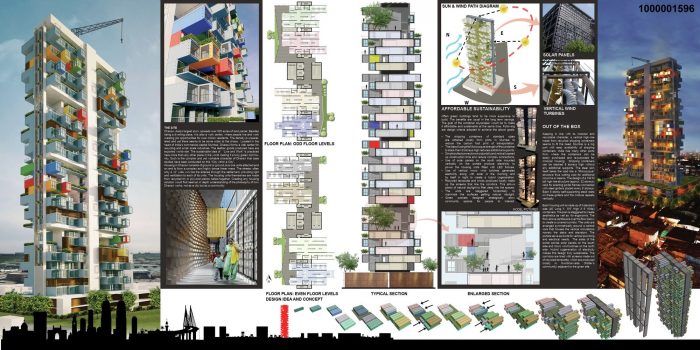

In terms of sustainability the west and east sides carry solar panels, micro-turbines for electricity hybrid co-generation and energy saving LED lighting throughout the building.

Courtesy of GA - Sustainable Design

Courtesy of GA – Sustainable Design

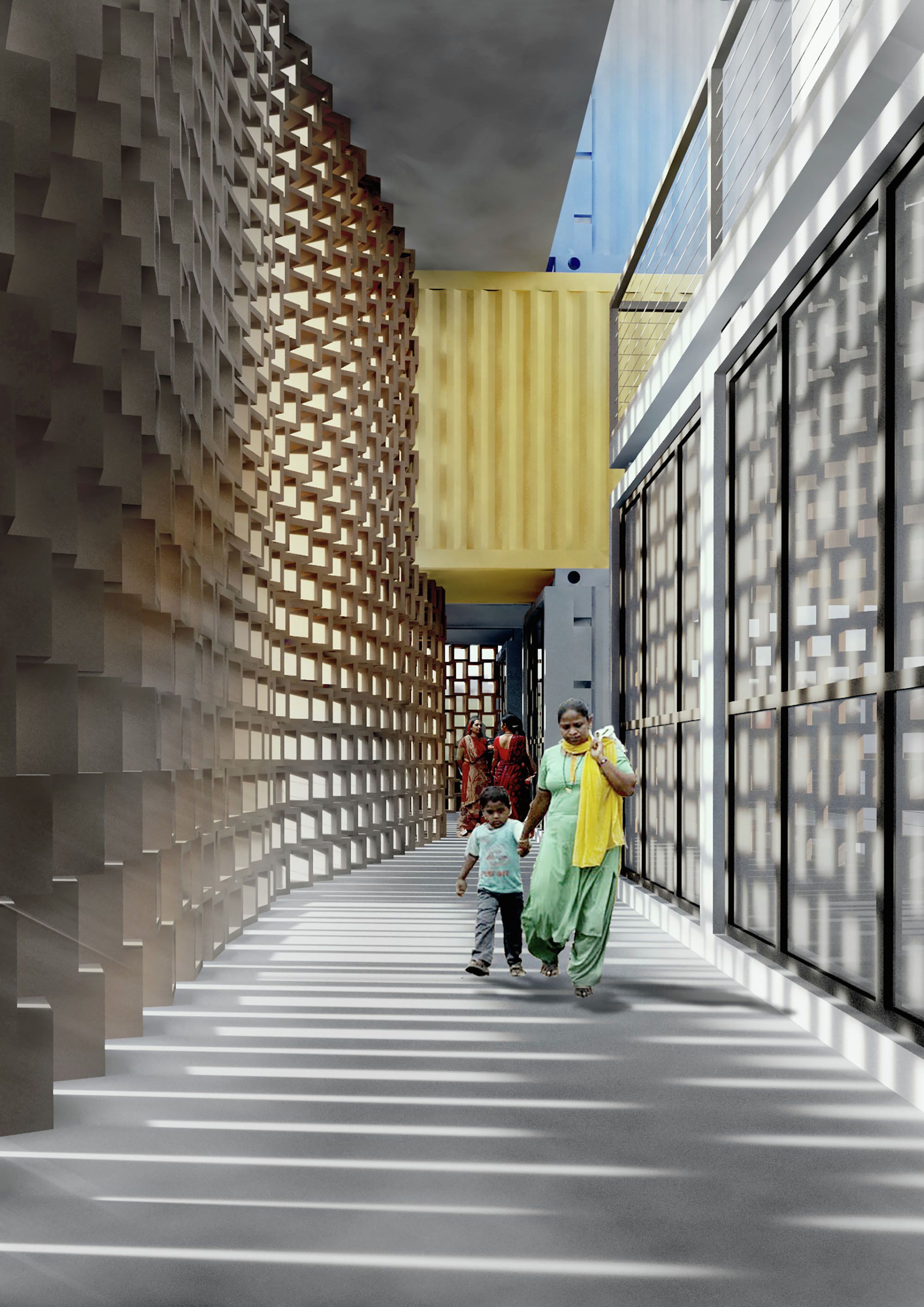

They showcased great understanding of the site context, creating local design by using recycled terracotta jaalis which are locally made as screens for outdoor corridors.

Courtesy of GA - Recycled Screened Corridors

Courtesy of GA – Recycled Screened Corridors

Going through the different proposals for this competition, this design was the best of all. It had a clear thinking for sustainability and energy use. It went through the smallest details to allow light and ventilation into each unit, and even making culture part of the design by the use of recycled local materials “that was the cherry to top this cake.” Keeping in mind that thin metal boxes don’t seem a good basis for a skyscraper nor they have discussed a solution for the heat gain from all this metal.

By: Yosra A.Rahman
