AND Office Tower

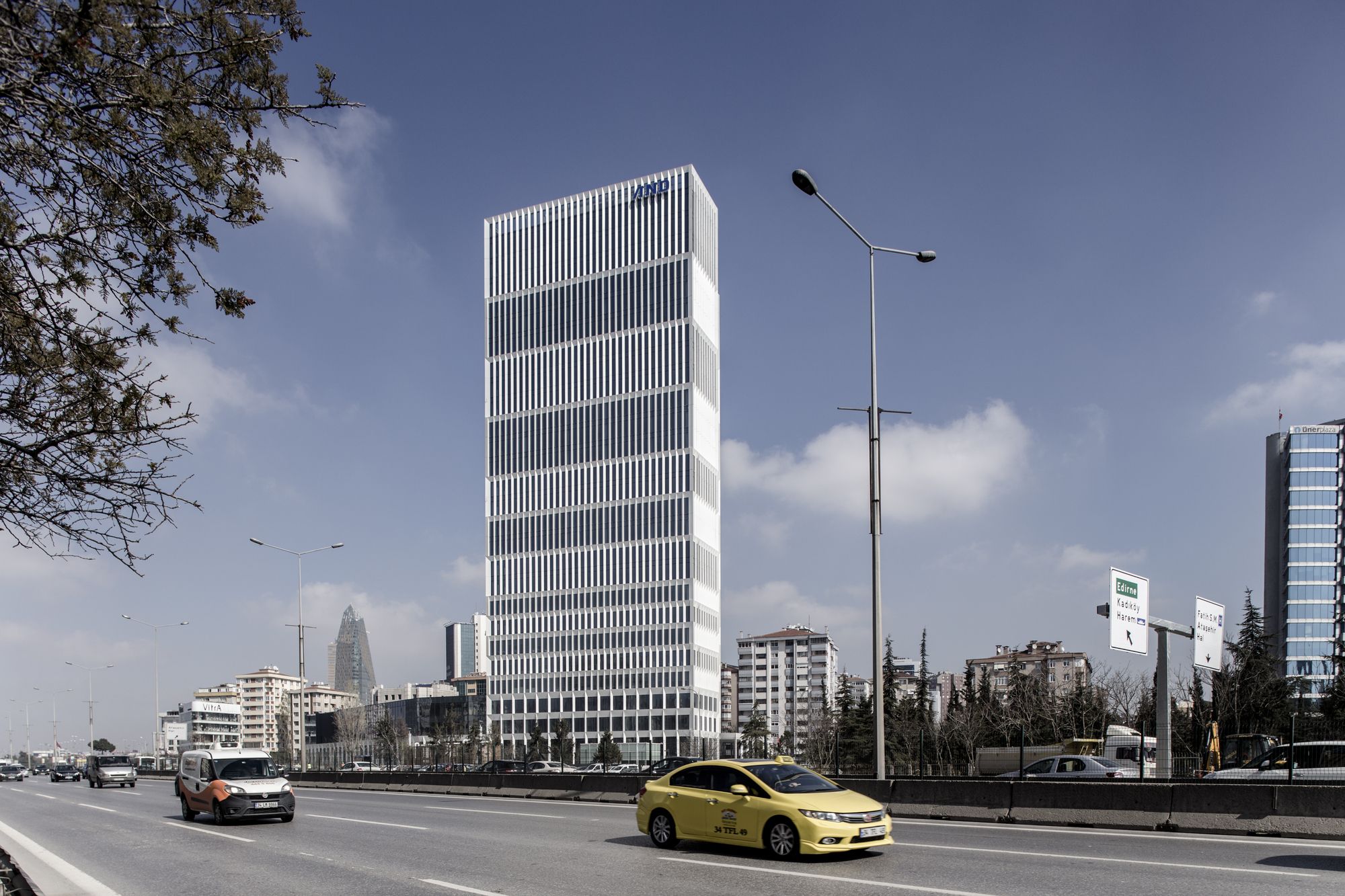

With its 110 metres, the AND tower rises out of the new Kozyatağı financial district located in the south of the Asian part of Istanbul. The completion of this third financial centre and further completions planned for the next twelve months demonstrate the growth of the Megacity of Istanbul: The third Bosphorus Bridge will be inaugurated in the summer of 2016, the third airport in the spring of 2017.The positive development of Kozyatağı goes back to the previous phase of expansion of the infrastructure. The district’s location, between the southern bridge and the second airport, is ideal; the new underground line connects Kozyatağı directly to the city centre.

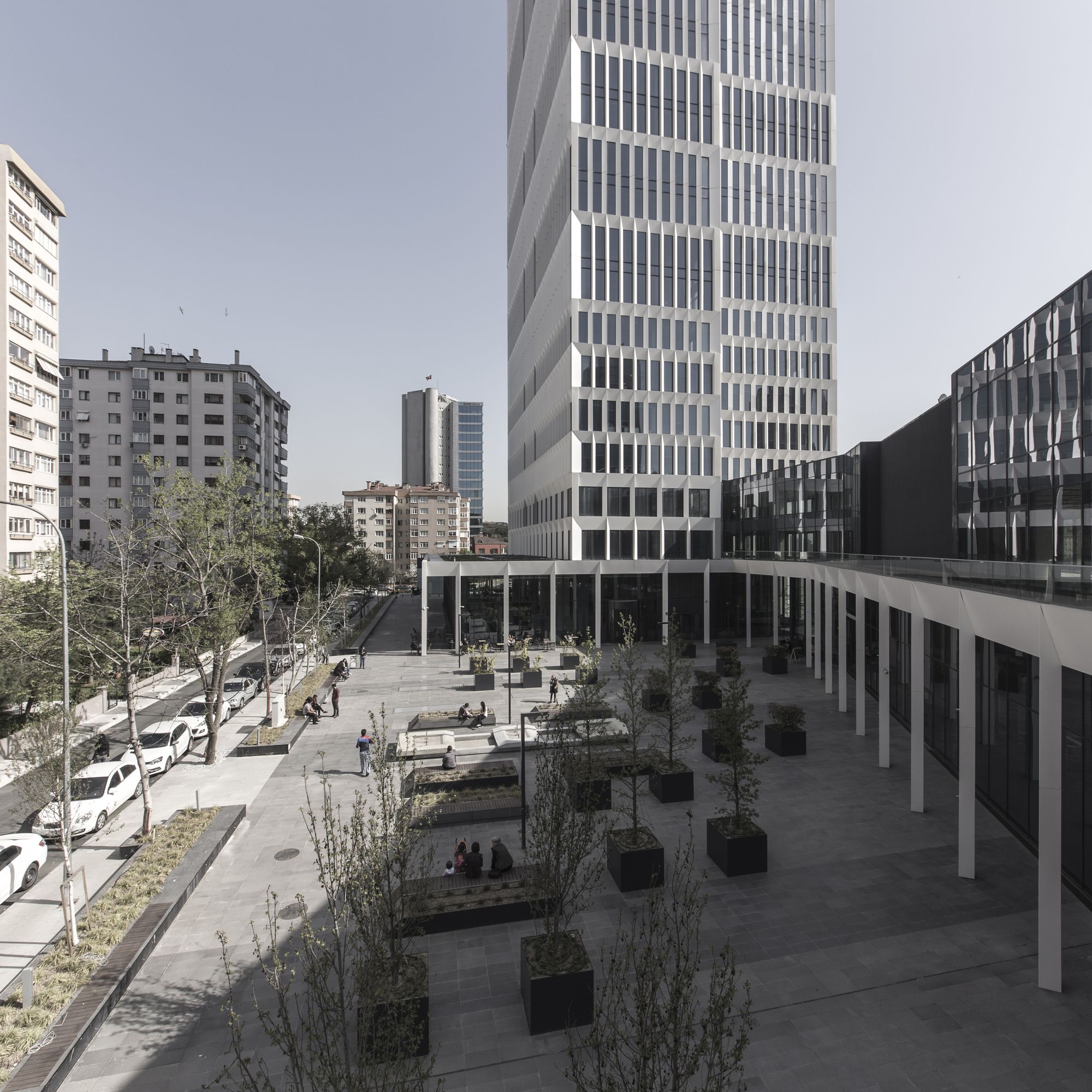

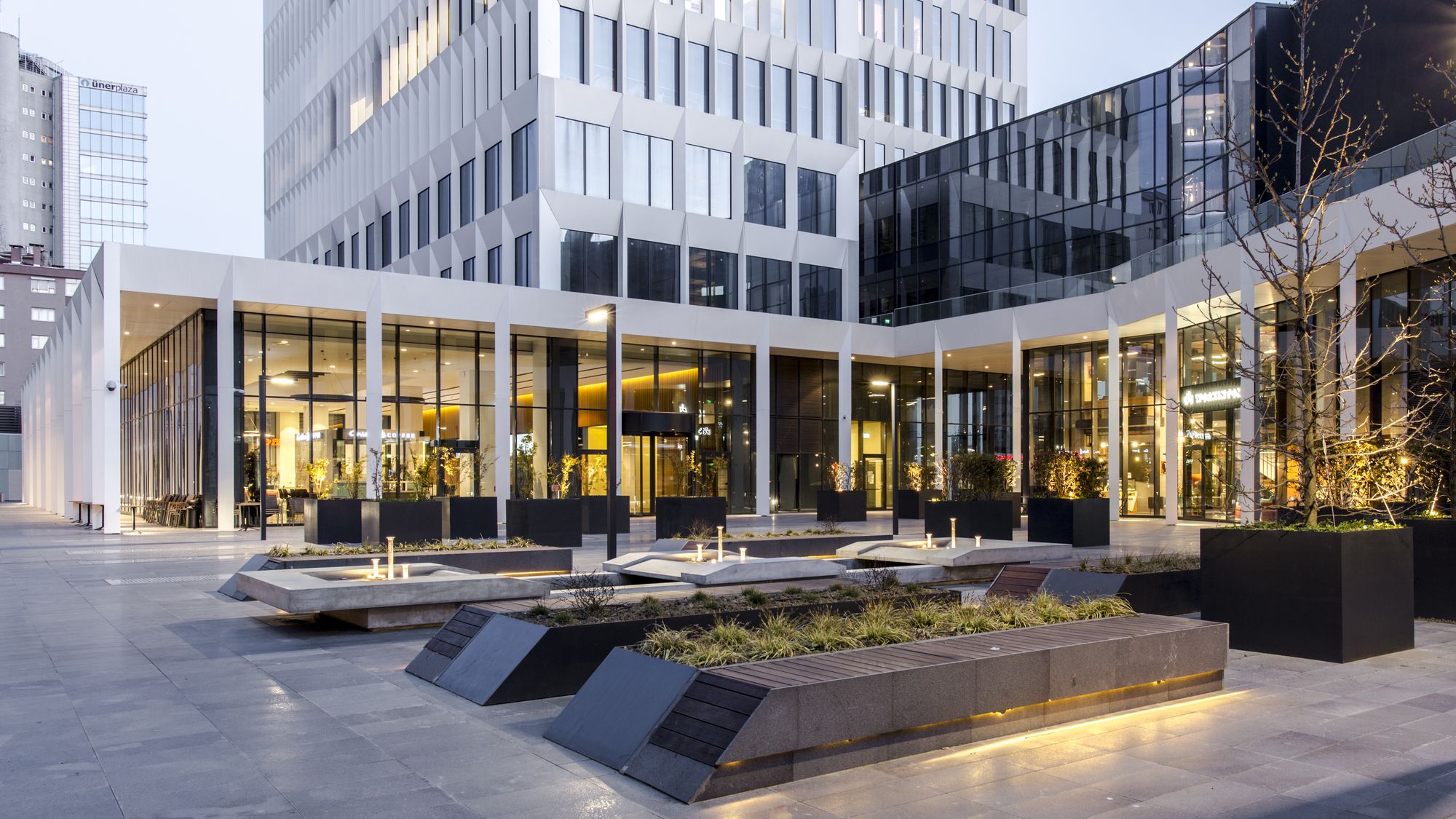

Buğrahan Şirin, head of the office and project leader explained the design thus, “The urban context of the new building, sitting upon a plinth containing 3 storeys of retail space, helps to create the link between the emerging financial district and the adjacent residential areas”. “An attractive square has also been created on the side of the building that faces away from the E5 expressway, which can be enjoyed by residents and employees alike.”

photograph by © Onur Gürkan

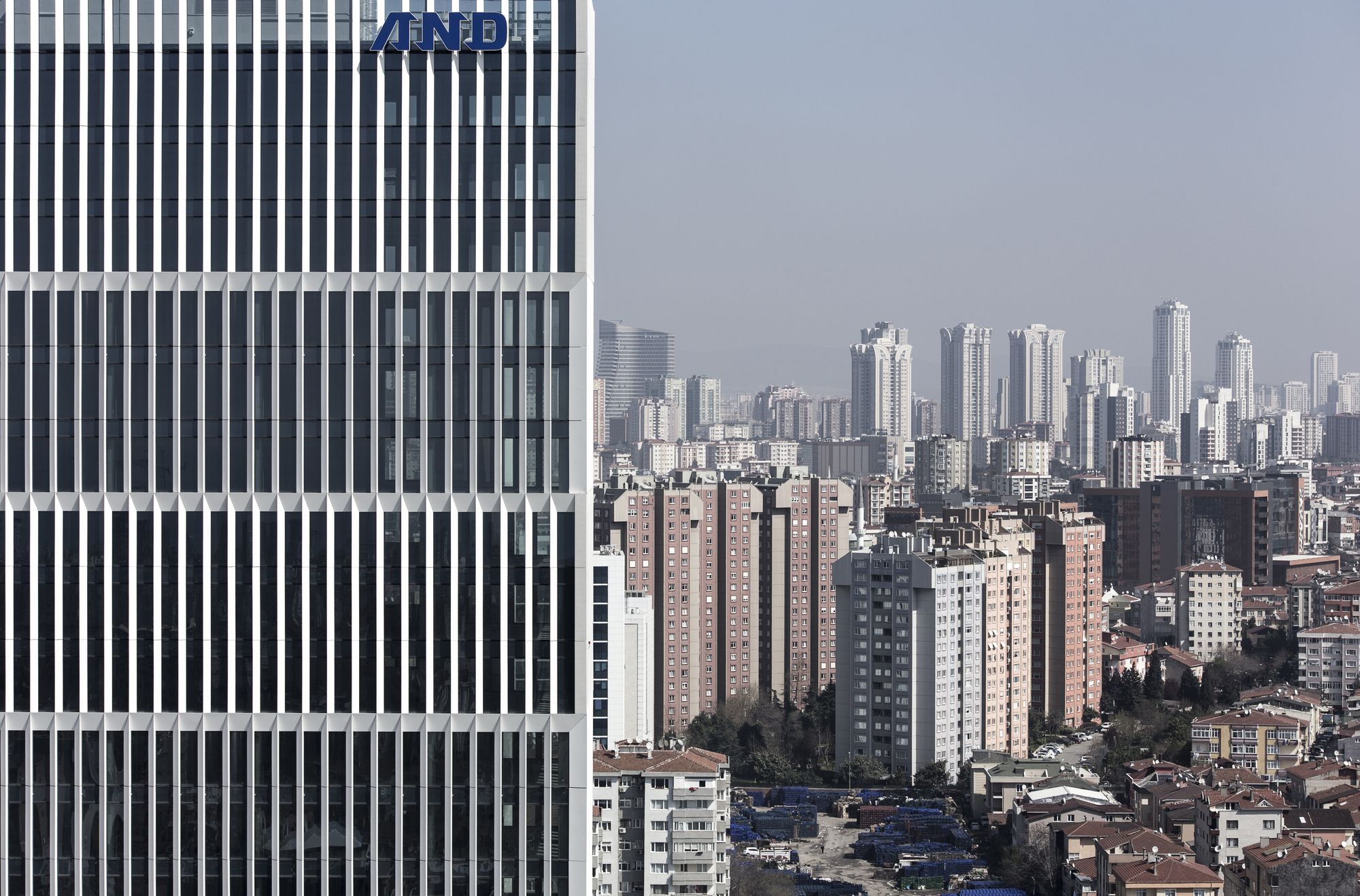

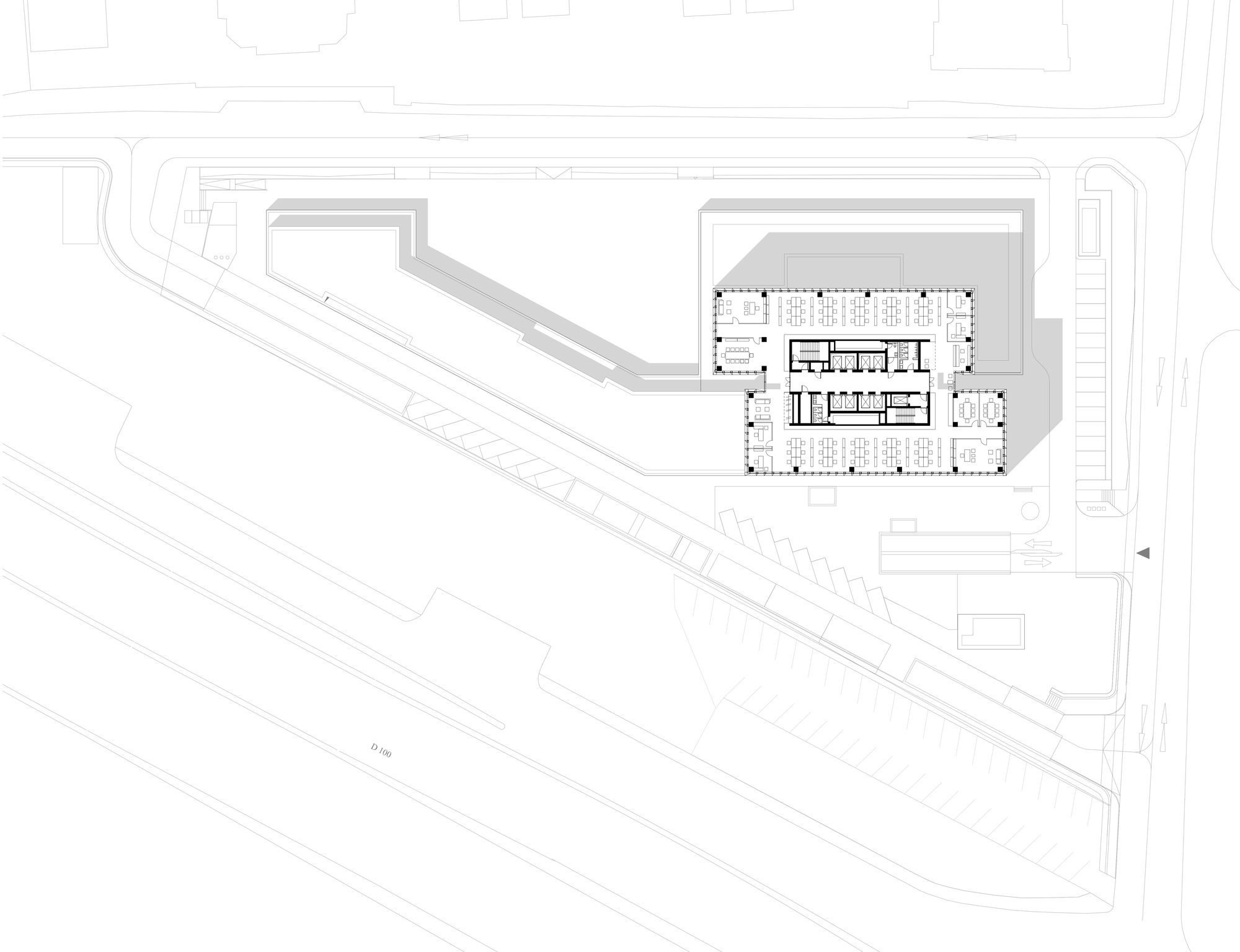

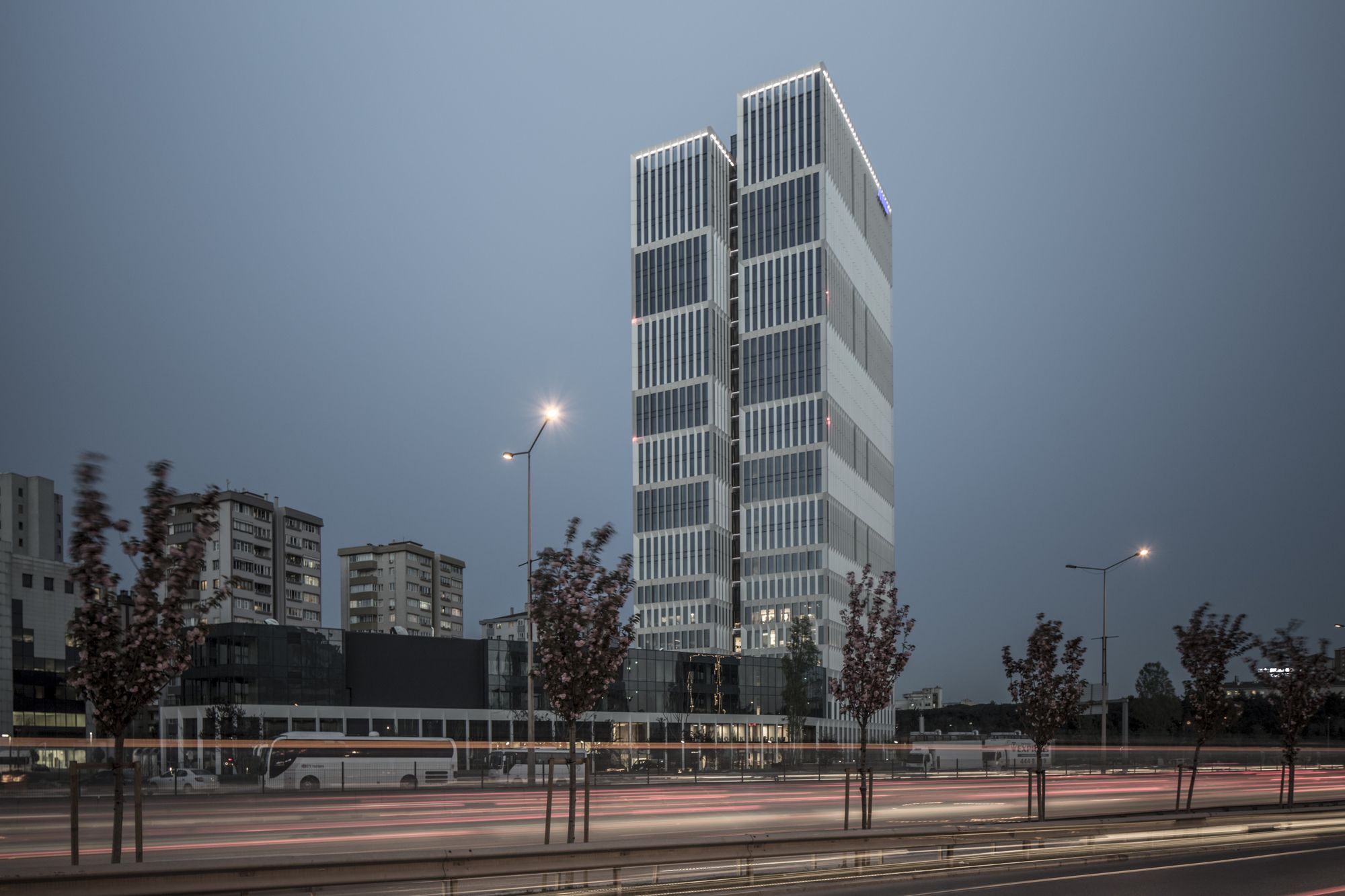

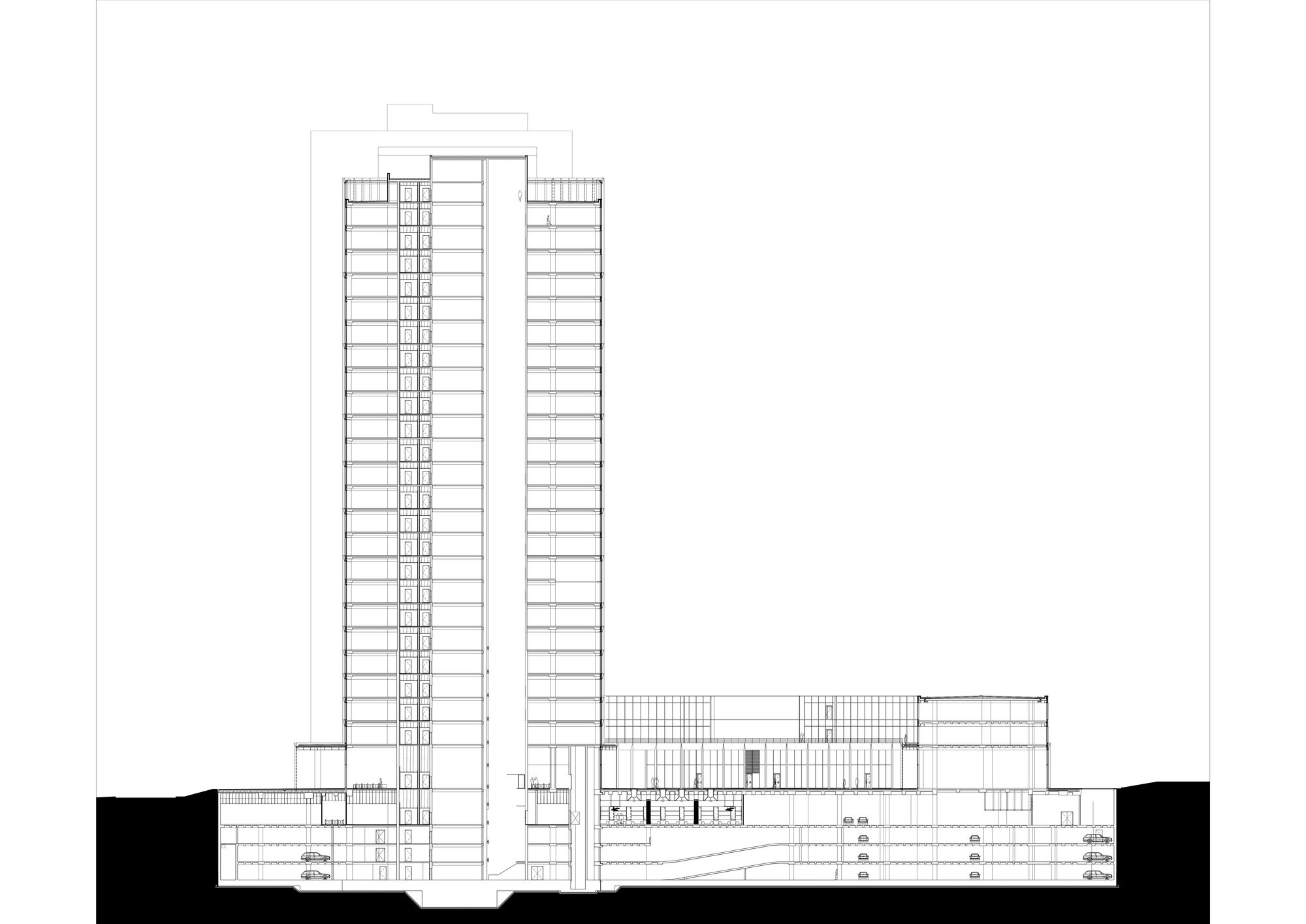

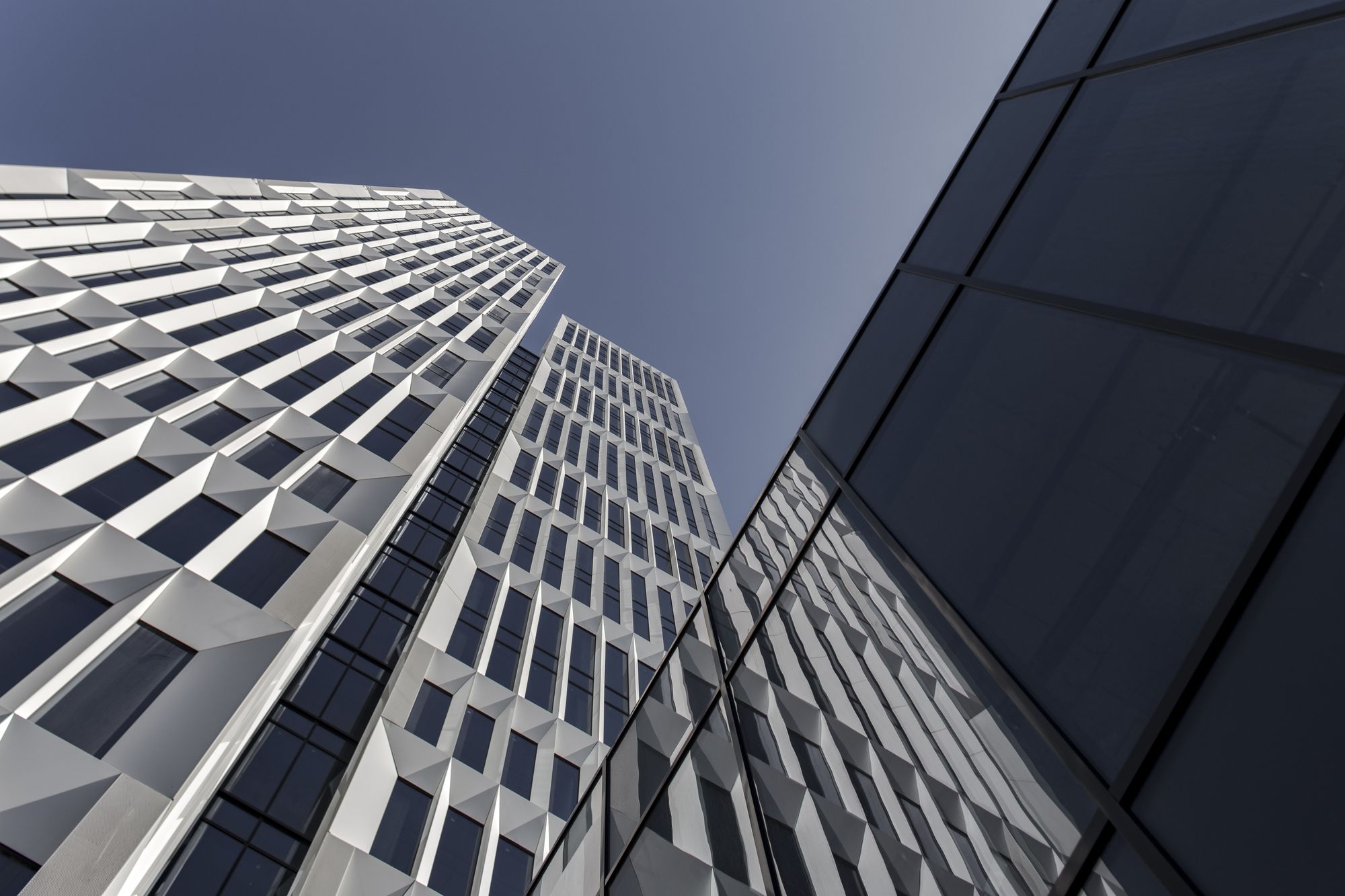

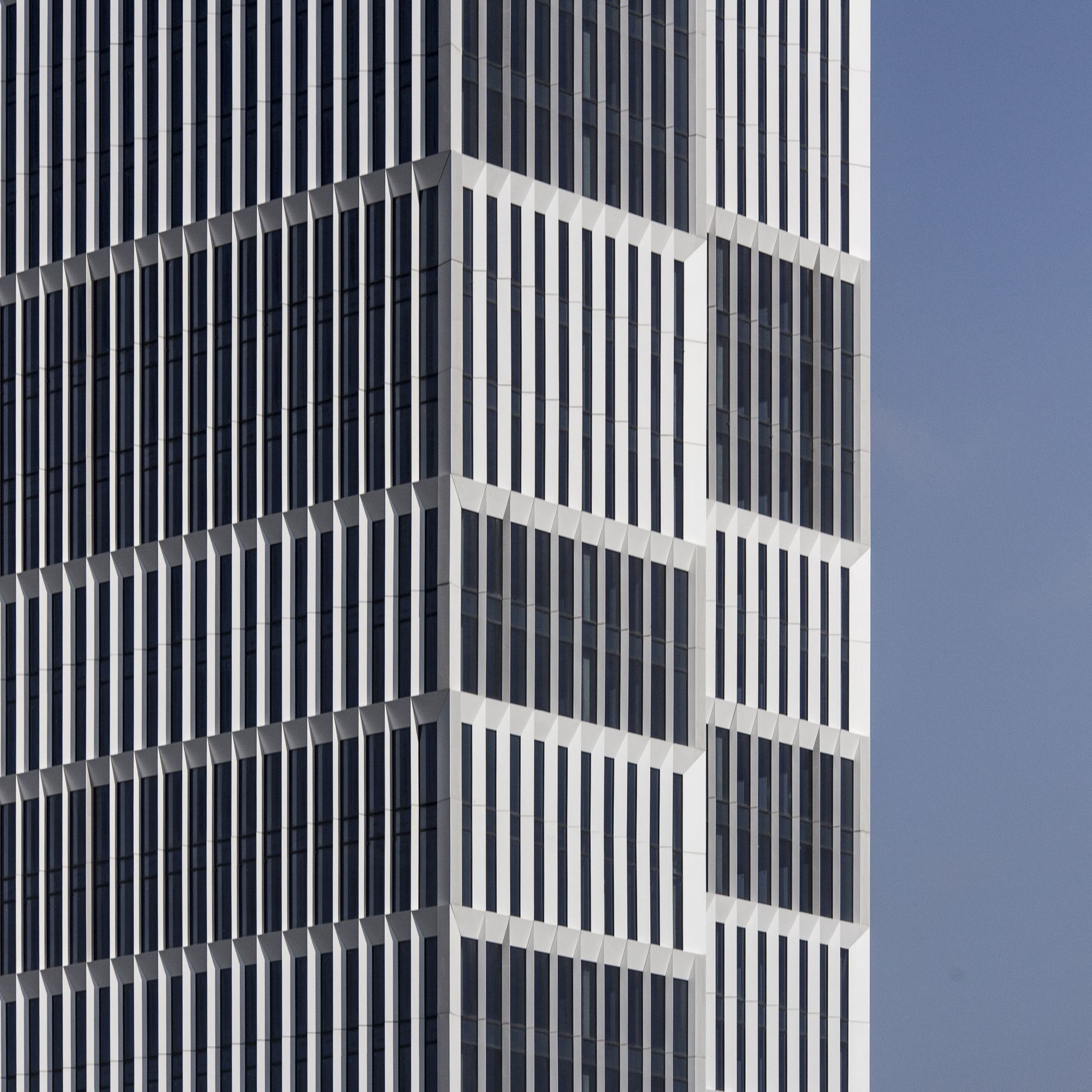

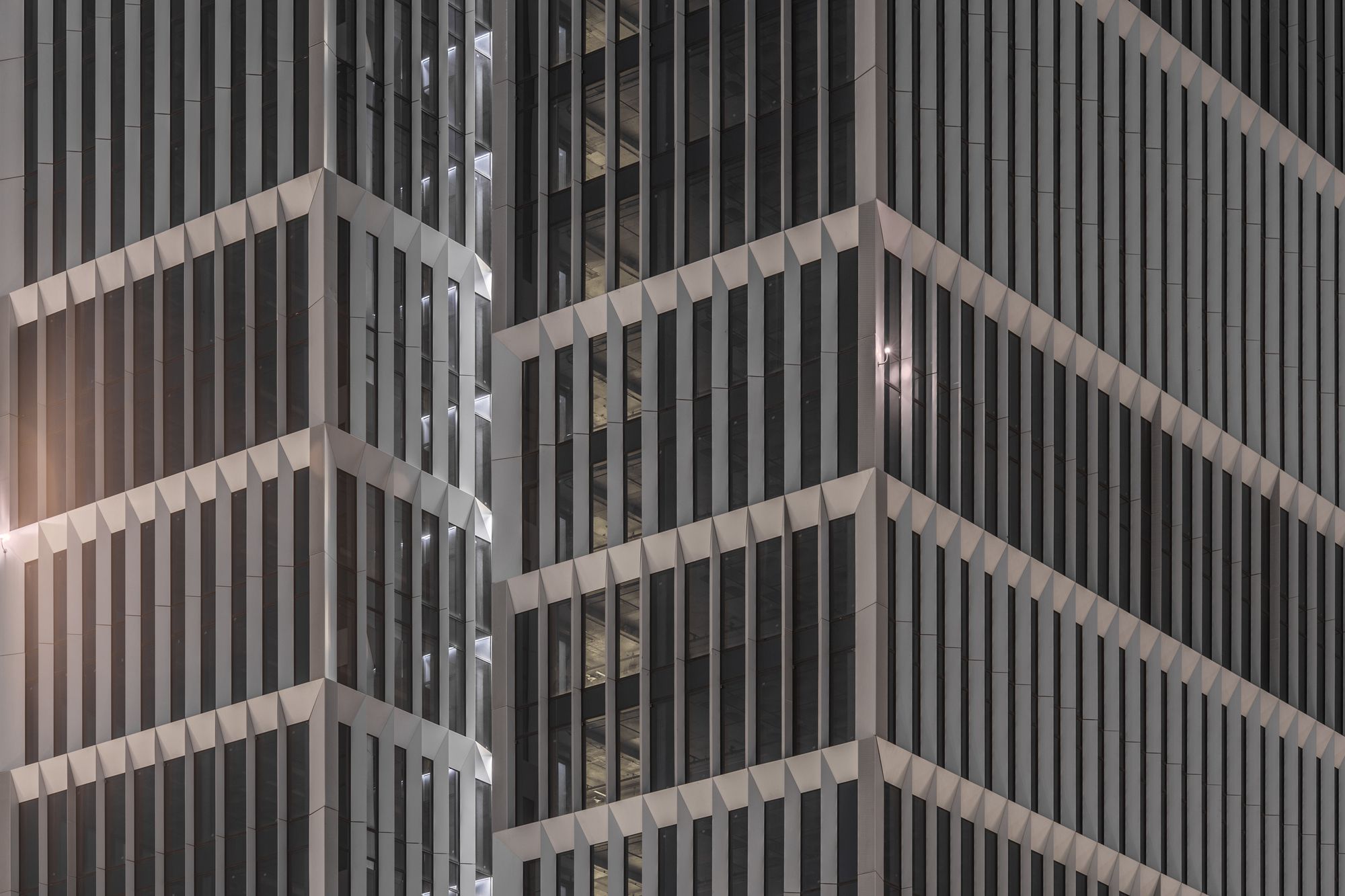

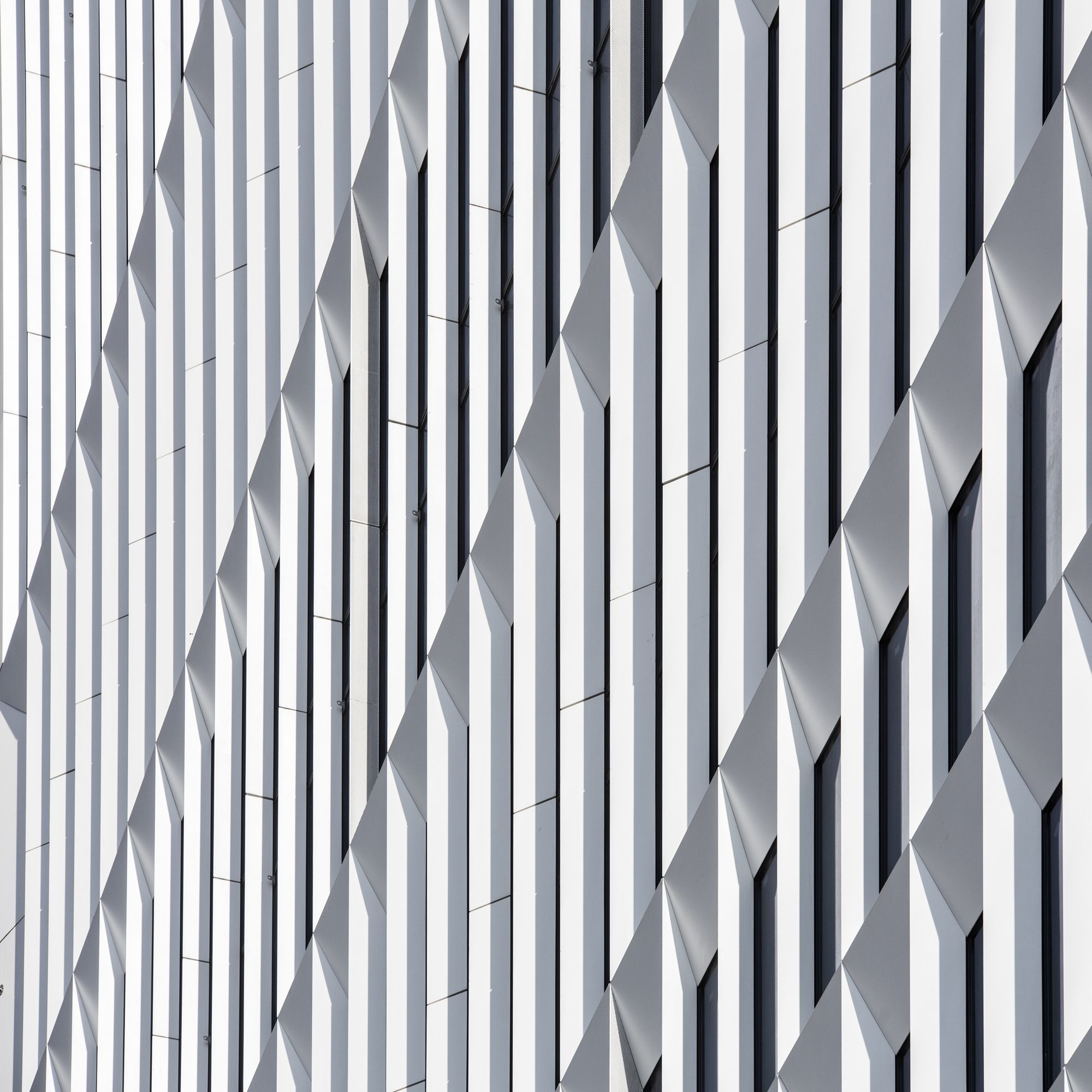

Due to the height limitations of the site and the amount of floor area required by the client, HPP divided the tower in order to emphasise its vertical character. The arrangement of the facade contributes significantly to the visibility of the high-rise: The block-like arrangement of the triangular aluminium facade pillars, the positions of which are shifted every two to three storeys, produces changing light-and-shade effects according to the position of the sun.With a facade grid of 1.35 metres and a construction height of 8.10 metres, a variety of accessible and potential work environments can be created. The central arrangement of the service core allows division into up to four tenant units per floor. Of the total 73,300 square metres of gross floor area, slightly more than half will be given over to offices and retail areas above-ground, providing 1,800 work spaces. The other half contains the underground areas, which include a conference centre, a canteen for 350 people and a four-storey underground garage with 740 parking spaces

photograph by © Onur Gürkan

The sustainability of the building begins with the deliberately chosen orientation: shifting the layout by 45 degrees to the north-south axis has a positive effect on the energy balance. Just recently the building was awarded a LEED Platinum certificate.

Partner-in-charge, Gerhard Feldmeyer commented, “As for the quality of the design, planning and execution, the AND tower exemplifies our understanding of the architecture of lasting value. This success also confirms that it was the right decision to open an office on site in Istanbul. Even before completion, the project received many similar prizes. The AND tower received a total of six prizes in the Cityscape Awards 2014, and the European and International Property Awards 2015.

photograph by © Onur Gürkan

Project Info.
Architects : HPP Architects
Location : İstanbul, Turkey
Design Team : Buğrahan Şirin and Nurgül Ece with Özlem Ünkap ilis, Sibel Özgenç, Hüseyin Şahin, Müge Sarıoğlu, Henrik Schulte, Hande Tombaz, Elcin Kara Vatansever, Batu Ayhan
Year : 2015
Photographs : Onur Gürkan
Project Type : Tower, Office, Administrative
