Mono Single-Seater Supercar

Concept
Introducing Mono, a lightweight, ultra high performance, road legal supercar designed and manufactured using the latest racing technology. Aimed at drivers who seek a purist driving experience and for whom design, engineering excellence and performance are of paramount importance, Mono is an aggressive design and will set a new benchmark in the small, but elite segment of radical, lightweight sports cars.

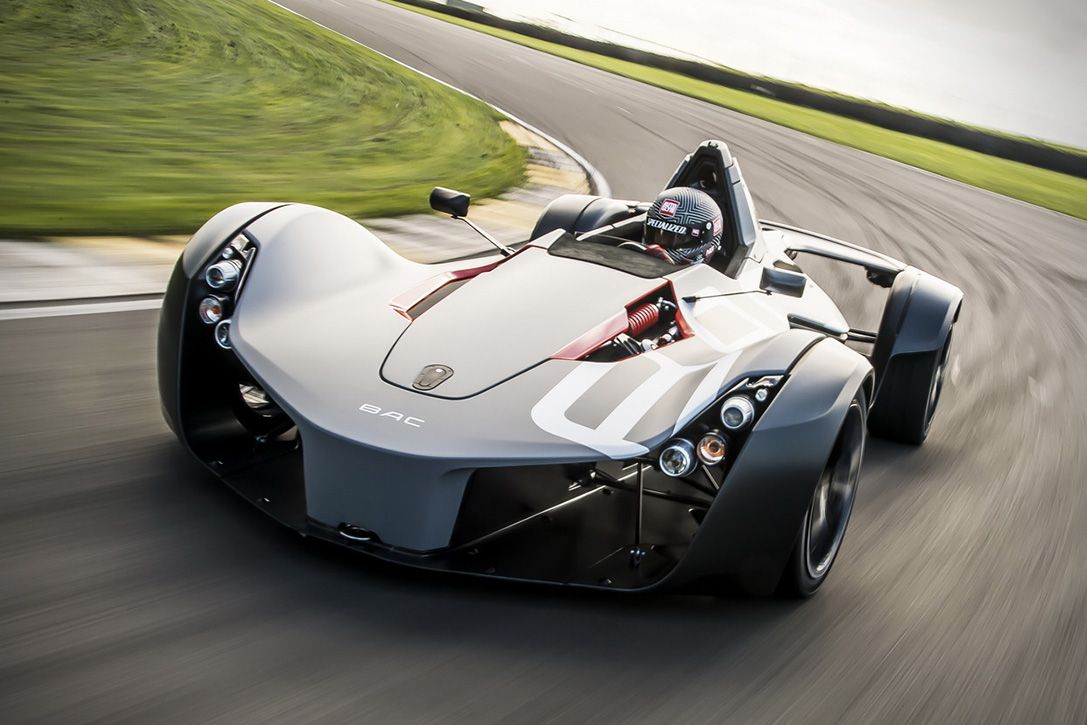

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

Design
The single central-seat gave our designers and project engineers the ultimate blank canvas on which to assemble their dream. The organic, enclosed front and exposed mechanical rear typifies the unique appearance of Mono. The design aesthetic is intended to combine sculpted, sleek, organic forms to provide an emotional, human connection juxtaposing the technical, mechanical elements of the car.

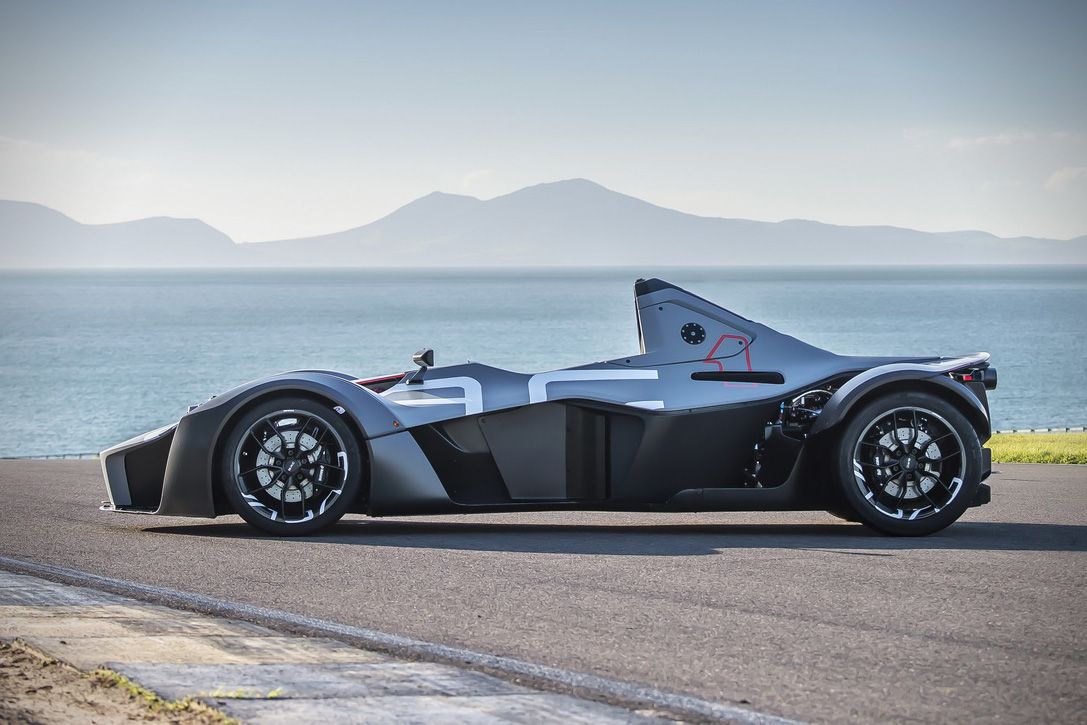

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

While this vision runs throughout Mono’s appearance it was fundamental to our designers that form follow function on all aspects of the car. The necessity to gain access to the central driving position and adjustable dampers as well as providing clean airflow to the radiators and engine are just some of the factors on which Mono’s architecture is built.

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

Technical
Above all else Mono has been designed to optimise the driving position – in the middle, central to the wheels, and the balance of the car.

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

Mono is constructed using high-strength carbon fibre composite around a steel safety cell. The cell is designed to offer maximum safety featuring a FIA compliant steel rollover structure, a sophisticated side impact structure and a front carbon crashbox. Powering Mono is a longitudinally mounted 2.5 litre, 305 bhp four-cylinder power plant provided by Mountune. Coupled to that engine is an F-3 spec 6-speed sequential gearbox from Hewland.

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

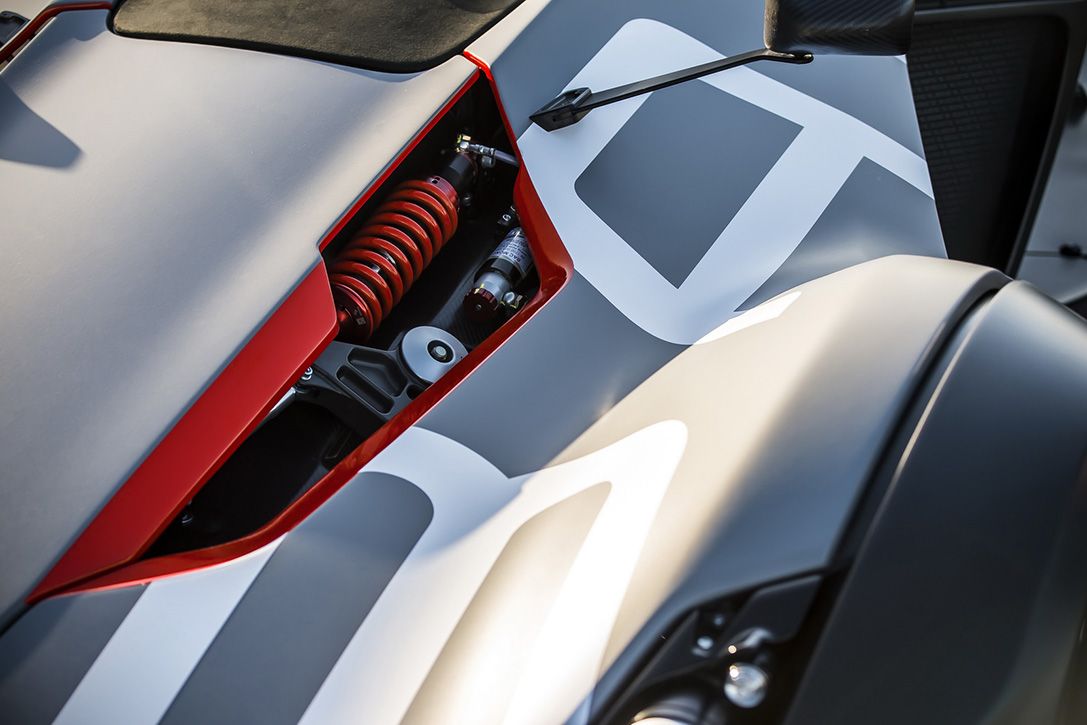

Suspension is a fully-adjustable pushrod suspension with damping elements made by SACHS Racing. Fitted with 295mm ventilated discs, AP Racing brakes provide stopping power. Tyre manufacturer Kumho has used their vast experience in motorsport and road cars to develop a special rubber compound for Mono, which is designed to work with the low weight and optimized pushrod suspension.

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

Mono’s central driving position makes the driver an integral component of the car, creating an unparalleled synergy between man and machine. With this in mind, each customer is fitted for his or her seat, pedal reach and preferred driving position.

Mono Single-Seater Supercar - Courtesy of BAC

Mono Single-Seater Supercar – Courtesy of BAC

Vehicle Specification
Dimensions and Weight
Overall width : 1836mm
Overall length : 3952mm
Height : 1110mm
Wheelbase : 2565mm
Ground clearance : 100 mm (f) 110 mm (r)
Weight : 580 kg
Engine
Type : Normally aspirated, structurally mounted
Displacement : 2488 cc
