Milan Water HQ

Gruppo CAP is a recognized brand wich needs an appropriate building symbol.Water which is the main area of interest of the company would be exposed already from the outside and embedded in the core of the design with the facade and four court resembling water movement.

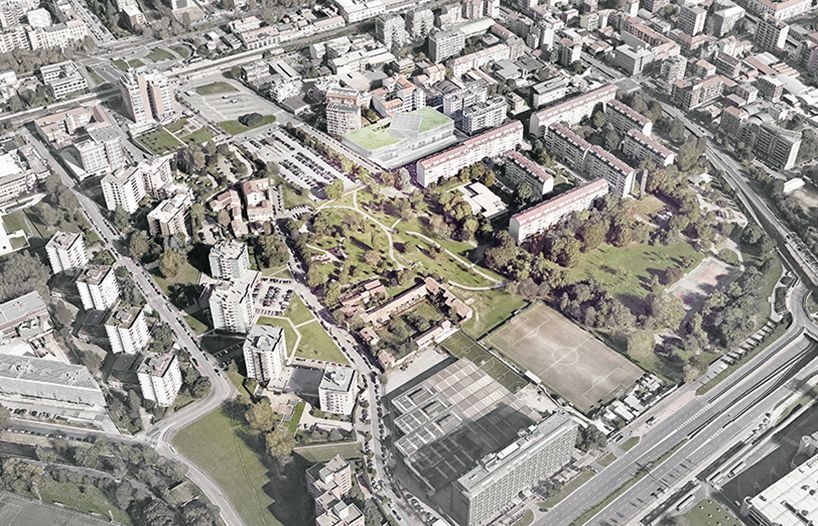

Potential of the site
The potential of the area of the project is not currently efficiently used.It’s big enough to apply a water harvesting strategy what would stand in line with the company profile and it’s main theme – natural resources.This approach would be the highlight of the sustainable design of the new CAP HQ.

Courtesy of KAMJZ architects

Refurbishing of old is sustainable
The underground area currently used as parking for the CAP car fleet is in spite of all the obstructions a well-lit area.It has a big potential for reuse with a new temporary and later permanent function giving insights into former building traditions and post-industrial district heritage. Keeping part of the existing building (the underground area) is a sustainable solution as it is not related with additional construction work and C02 emissions during the transport of building materials and soil. After refurbishing of this area, the employees of via Rimini would be transferred to this isolated block to continue working during the construction process.

Improving internal and external conditions for people stay
By enlarging the opening in front of the old facade and inclining the surface more sunlight would be directed into the underground areas providing a more pleasant work environment.

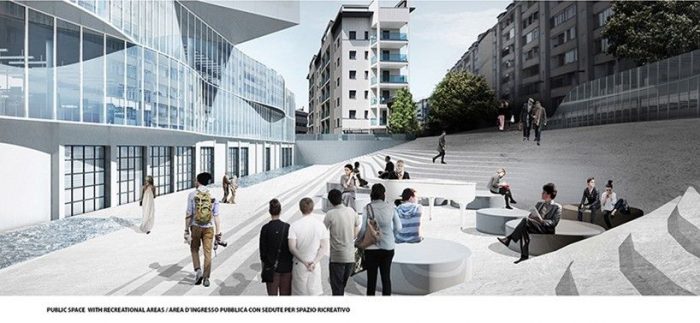

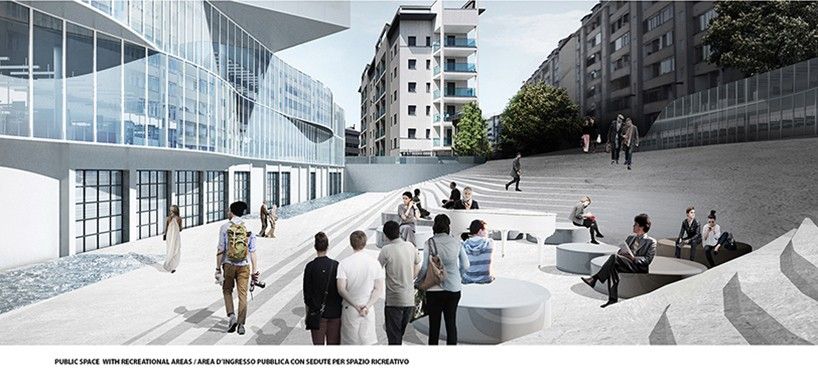

The front of the site facing the street would provide a generous public area covered with stairs which gently resemble in it’s form the movement of water.

Courtesy of KAMJZ architects

The reflection pond
A water pond would be situated in the front of the building facing the main public entrance area.It would perform in different ways – from a purely decorative design element which provides water reflections on the facade to a safety buffer zone or an improvement of the facade performance during summer when it would help to combat the glazing overheating.In warmer days in combination with winds, it could create on the other hand a fresh ambient for people to relax in.

Water harvesting maximized

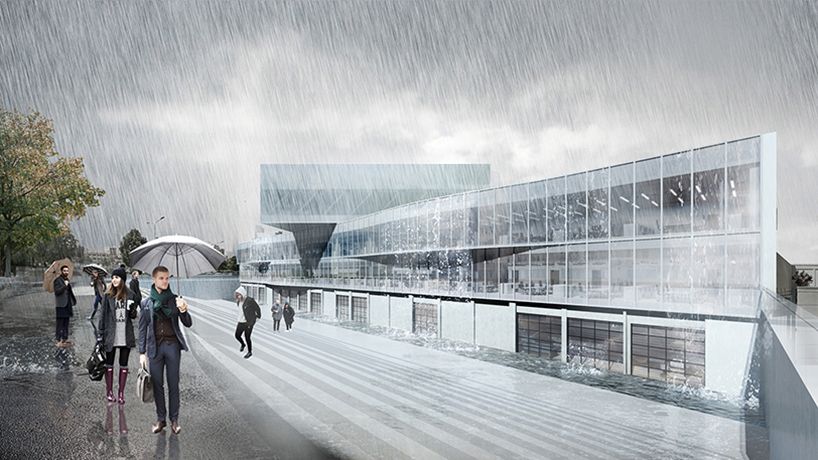

The large roof surface area would not be accessible and would be covered with a porous green permeable layer and entirely devoted to rainwater harvesting.Runoff water from the street and the inclined surface with stairs in front of the building would be stored in the pond, filtered and pumped to a water tank which would be positioned directly under the big frontal public space with stairs in the excavation of the previous office building.

Efficient use of space
The new CAP HQ would consist of offices and large span functions in a two level podium and a separate lab block positioned on top of it and connected with a technical core with vertical circulation. Areas would be efficiently used by avoiding mezzanine floors. The net floor area for the new building would be optimal to host the current via Rimini employees and the coming staff from other CAP Group branches.

Courtesy of KAMJZ architects

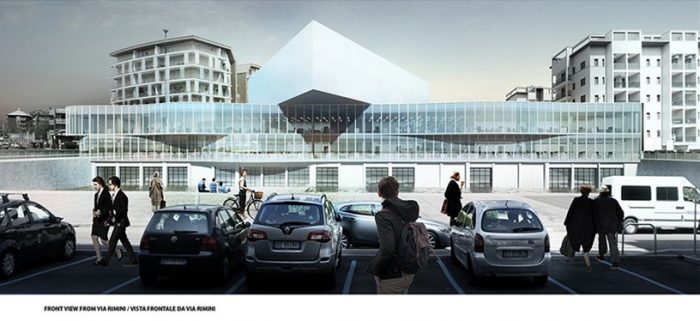

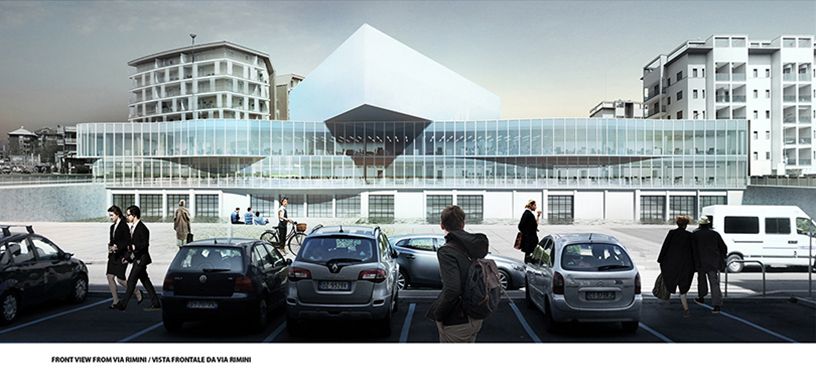

Podium with a block instead of a tower
The proposed design solution is a typological alternative for common office buildings.It does not try to compete for the attention by using heights wich are not appropriate in a housing neighborhood. Instead, it focuses on a pragmatic approach to providing an efficient modular office scheme together with the landscape modified to bring out the best of the existing site.This new arrangement would respect the dimensional restriction of the area and the vicinity.The lab block on the top floor wich would provide a more iconic look to the setting would be oriented accordingly to the sunlight analysis of the surrounding building.

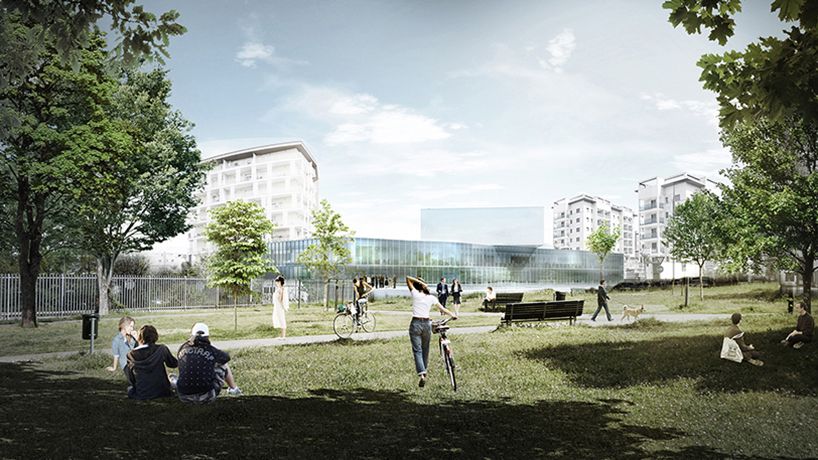

Relation with the surroundings
The rotation of the lab block on top of the office podium is based on the solar analysis of housings in the closed area. To prevent overshadowing of living spaces providing at the same time nice views an appropriate orientation was selected. The restrictions in the area according to the PGT of Milan are respected in the design.The border distance and the offset from the other buildings near the area is maintained as the new building follows the existing heights of the building lines from north and west. The arrangement of the additional block is a result of phasing efficiency, analysis rooftop maintenance, analisys of the internal courtyard’s adjacent rooms.

Courtesy of KAMJZ architects

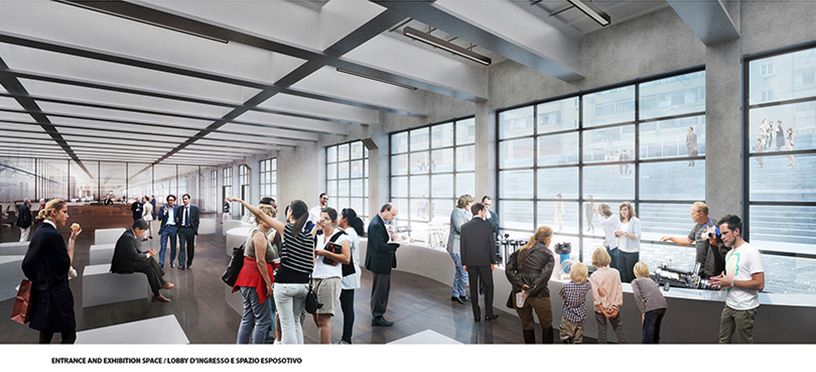

Opening the program to the outside

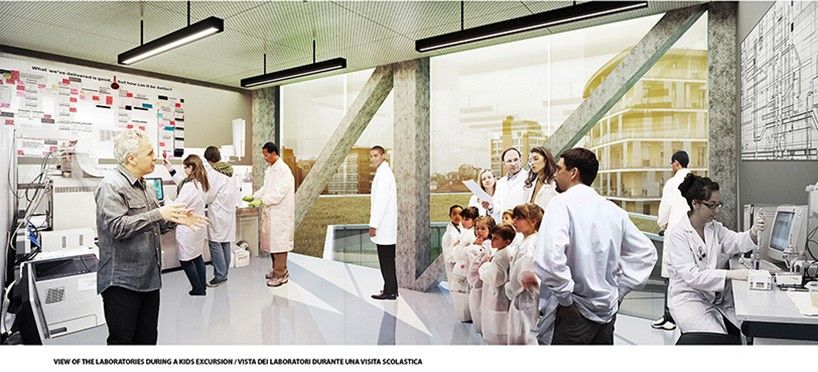

The building would be open to the public during special occasions like for example school excursions which take place every week.Their access to the lab facility which is always one of the main attractions for visitors would be controlled through security checkpoints.
An efficient route would be provided to the employees which would access the building directly from the street level from the corner on Via Rimini through a secondary lobby.

More archive space through digitalization
In the beginning, before the construction, part of the via Rimini archives would be digitized which in result would allow to free up more precious space for the phasing of the construction to take place.

Courtesy of KAMJZ architects

Efficient structural grid

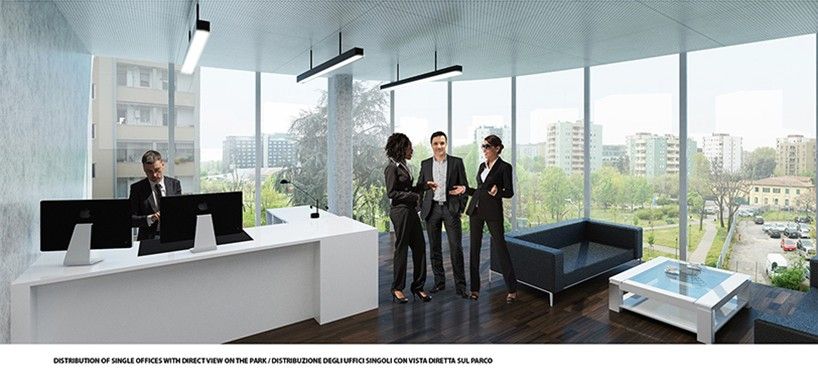

The existing underground structural system is solid and rigid enough to withstand additional loads like a partially cantilevering block. The structural system would provide a lot of flexibility with a normal office construction dimension along the facade allowing to create single offices, gases group of offices and open spaces and a frame structure in it’s back for larger spans.

Control over glasses
The ventilation of the podium in the core would improve through a chimney effect the outlet of the gasses from the lab.

Grouping installations
The core of the lab block would be connected with the service corridor of the podium but it would keep an independent ventilation and A/C system. The majority of the installation shafts would be placed on the Lab rooftop so that the big roof could harvest more rainwater without obstacles.

Courtesy of KAMJZ architects

Facade overheating controlled
Selected materials allow to achieve good thermal internal conditions and prevent overheating of the glazed surfaces without the need of additional facade elements.The cost of using a triple glazing with the Solar Factor g of less than 0,35 and the thermal Ug=0,5W/(m2K)would be similar to other possible solutions.

Deliveries of gas for lab needs
The current delivery path of the gas tanks/ bottles leading through the building poses serious threats to the safety inside. The new improved scheme would propose a delivery zone with a storage in the tall basement level where vans can enter.

Courtesy of KAMJZ architects

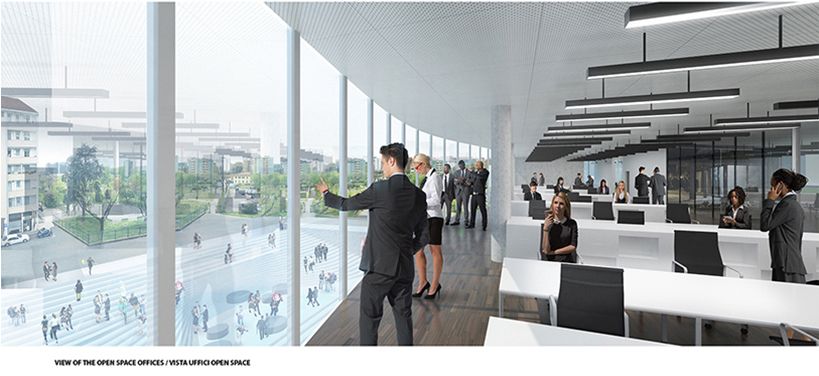

Modular curtain wall along all podium facade
The facade would be based on the 135cm office module wich would allow achieving different floor space configurations.Divison walls could be applied along all the elevations in order to create rooms in the working areas for a permanent and temporary stay.

Special glazing for special lab function
The office block would be covered with a special type of glazing wich is translucent from inside-out only.From external views, it is seen as a semi-transparent white block typical for laboratories functions that are usually associated with sterility purity. A special layer inside the facade glass would allow to control the level of privacy, prevent overheating and at the same time would bring diffused sunlight to areas where direct light is not needed like the experiment rooms.

Courtesy of KAMJZ architects

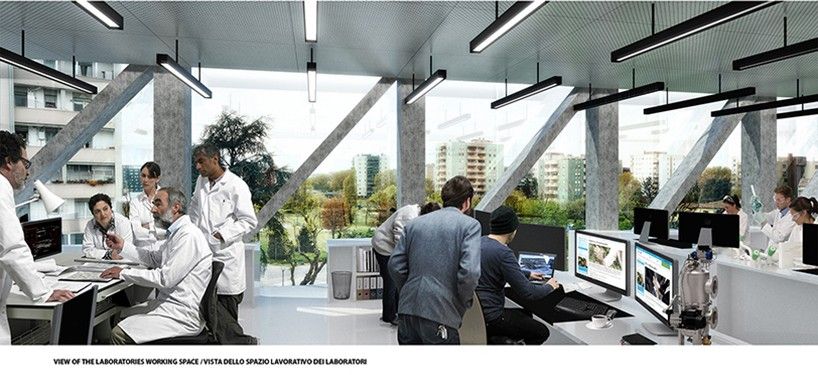

Lab area improvements
The Lab block spatial organization would be improved by positioning working areas facing the facade and a big storage next to the technical and circulation core in it’s middle.Office areas would be grouped to provide the possibility for a different floor space arrangement.

Canteen. Nursing and Breakroom
New functions would be introduced on the site such as canteen, nursing or break room.

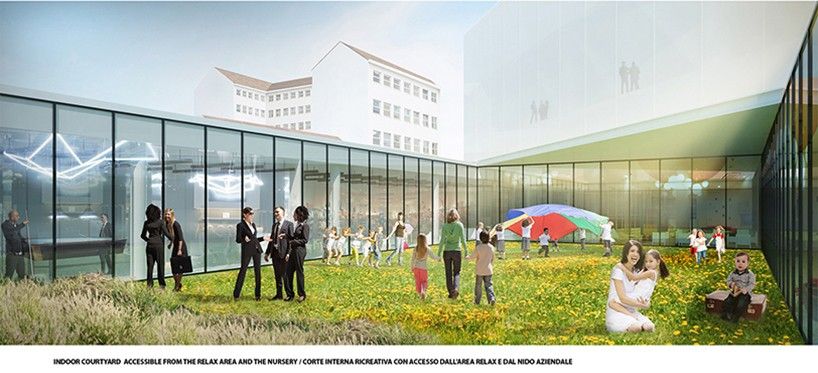

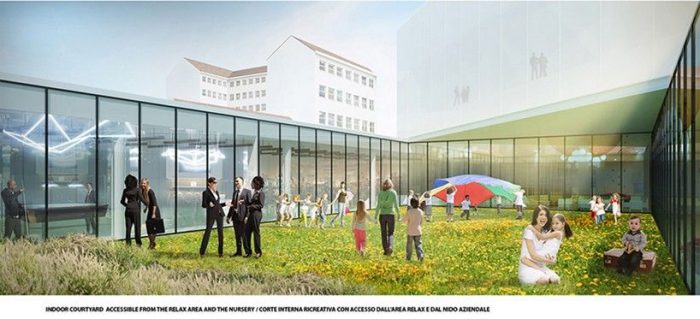

The Company nursery would be an important function in the building with a private green courtyard. The access for partners of CAP employees would be available through the main reception. CAP parents would pick up their children by the car entering from the parking level.
During the lunch break, a company canteen with a kitchen would service all the employees.
Additionally, a break area above it would be created next to the external garden where employees could relax.

Courtesy of KAMJZ architects

Emergency exit distances radius
Fire regulations requirements would be met through the use of 3 emergency stairways with the middle one extending to the lifted laboratory block. Their radius would entirely cover the whole area of the building without the need to use additional expensive water sprinklers.

Courtesy of KAMJZ architects

Project Info
Architects: KAMJZ architects
Location: Milan, Italy
Client: CAP Group (Amiacque Srl)
Local Architect: GAS Studio (Goring and Straja studio)
Main Project Architect: Maciej Jakub Zawadzki
Team: Nicolò Bianchino ,Michela Garau, Łukasz Wenclewski, Michał Polak, Jimin Park, Riza Avriansyah, Hélène Desnos

Type: Headquarter, Office Building
