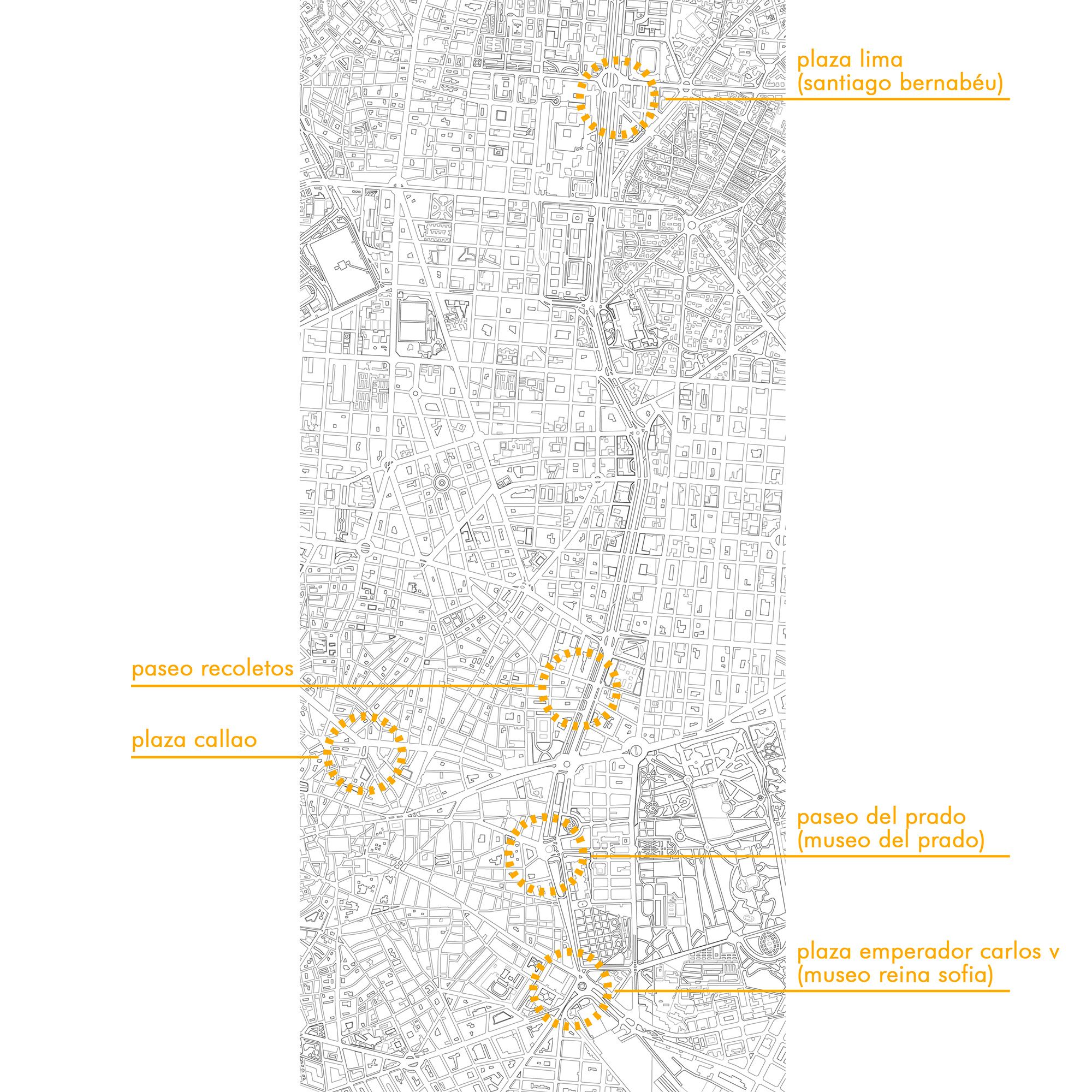

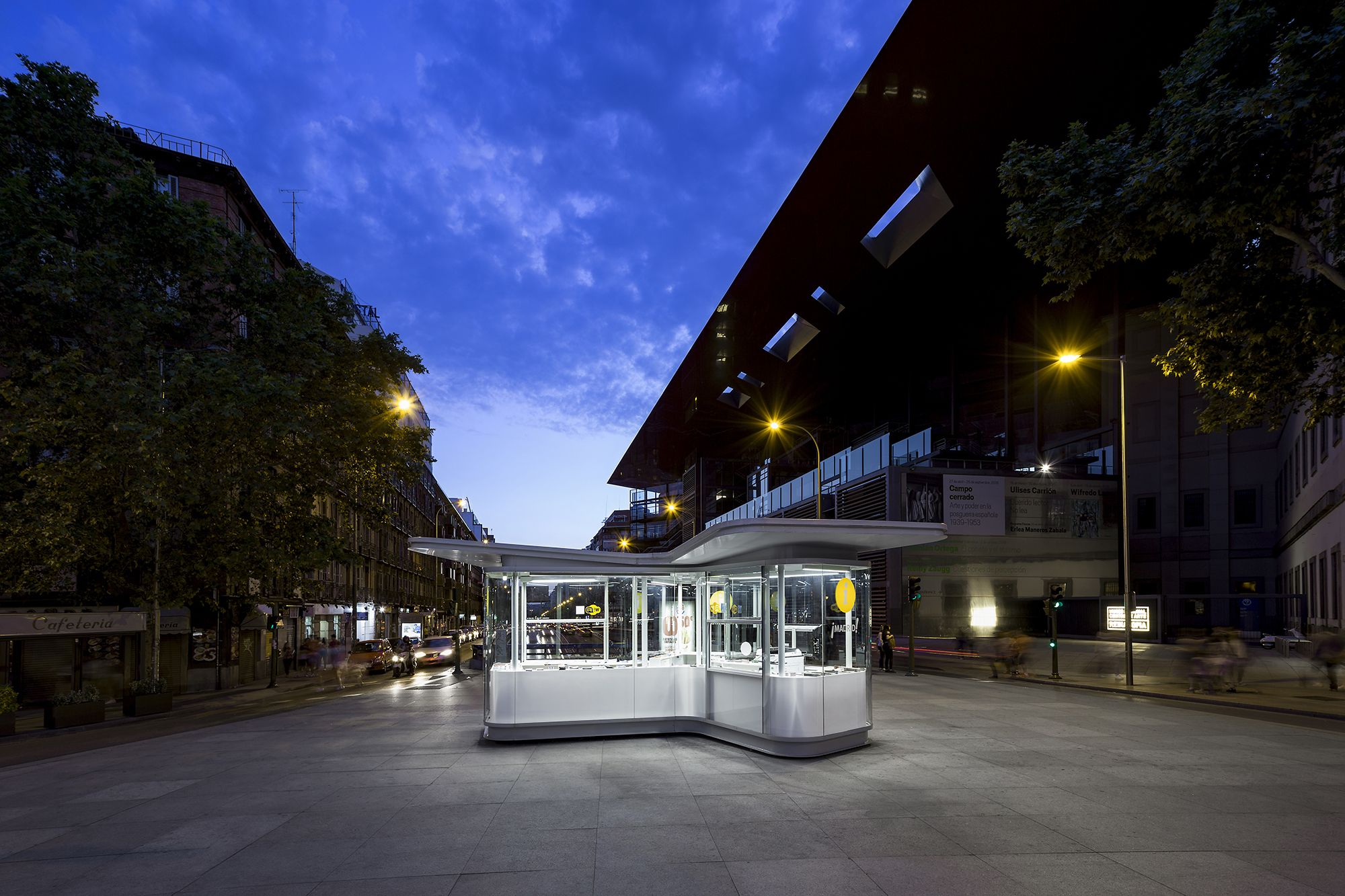

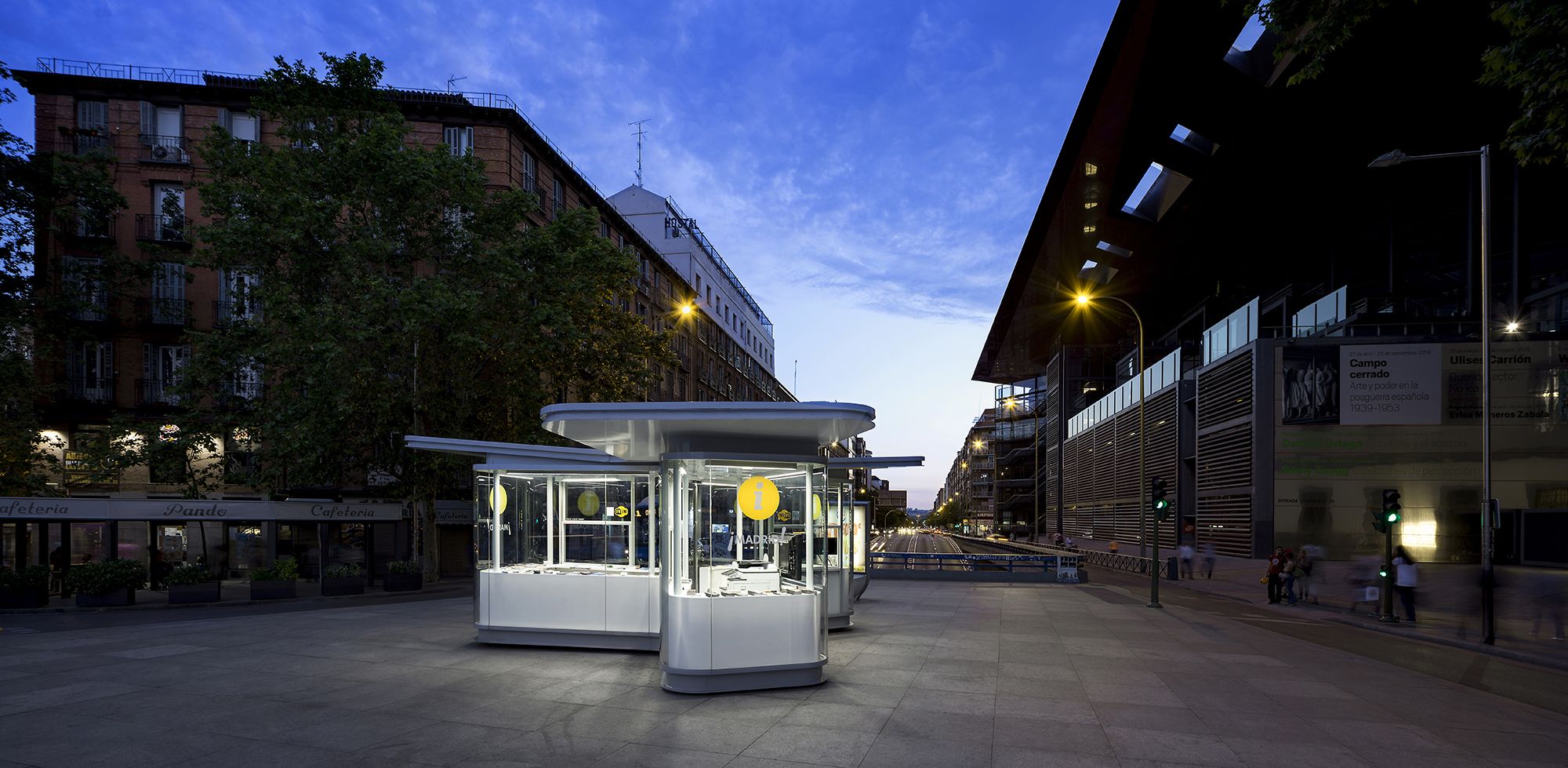

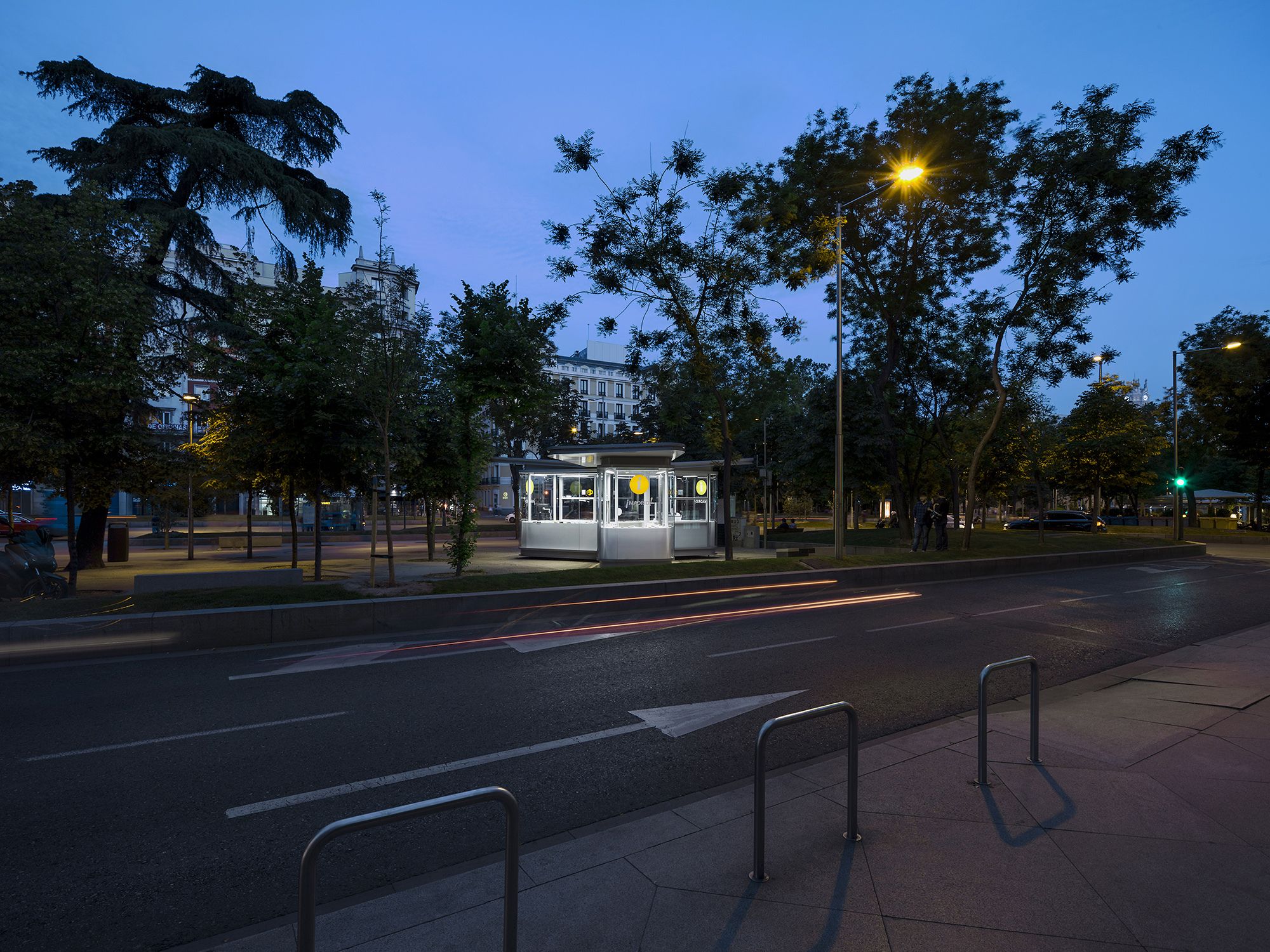

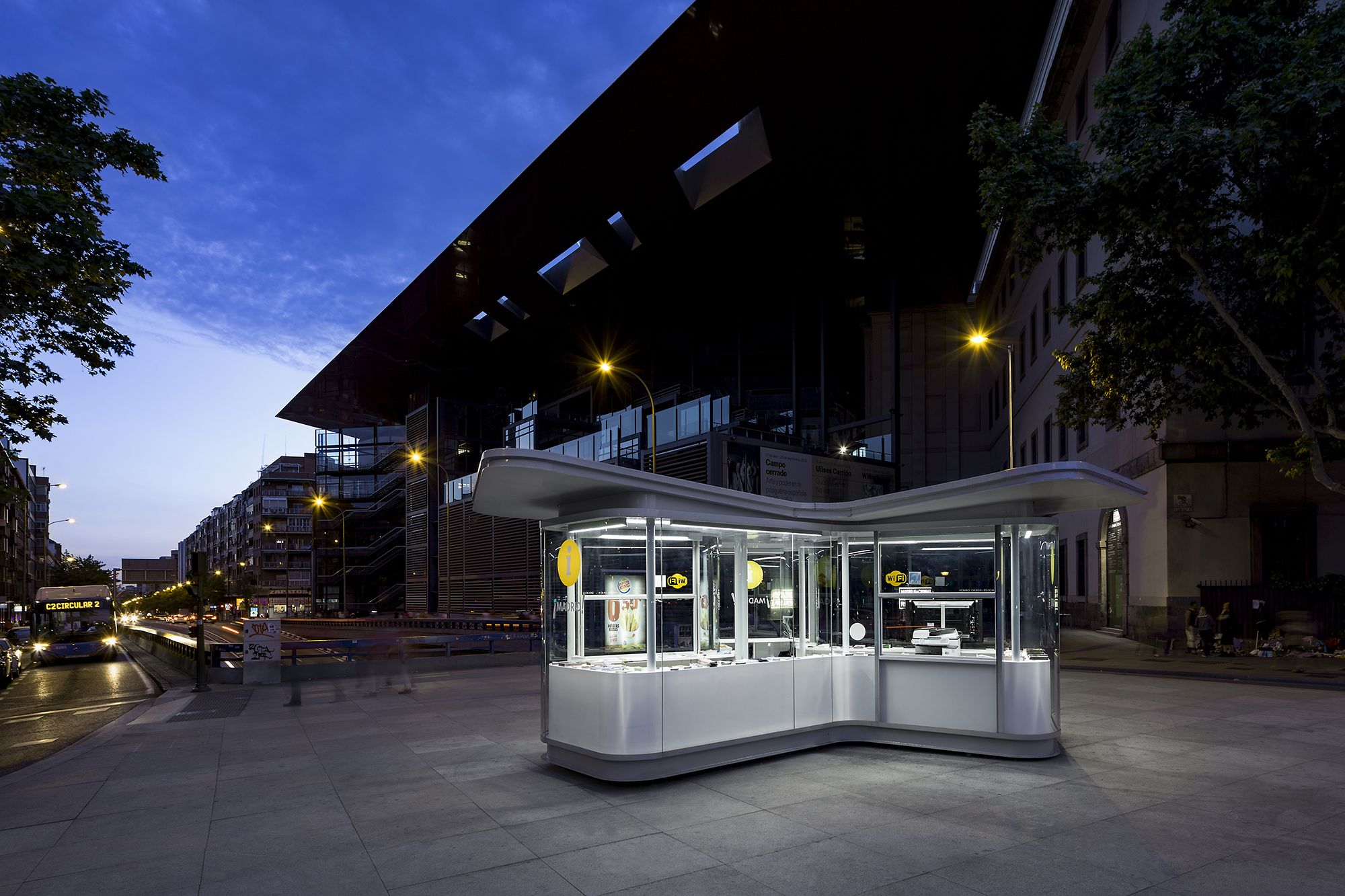

The tourist information devices are situated in different strategic places along the city:
Plaza del Callao, Paseo de Recoletos, Museo del Prado, Museo Nacional Reina Sofía and in Paseo de la Castellana avenue, close to Santiago Bernabeu´s stadium.

Courtesy of José Manuel Sanz Arquitectos + Irene Brea - Photography: José Javier Cullen

Courtesy of José Manuel Sanz Arquitectos + Irene Brea – Photography: José Javier Cullen

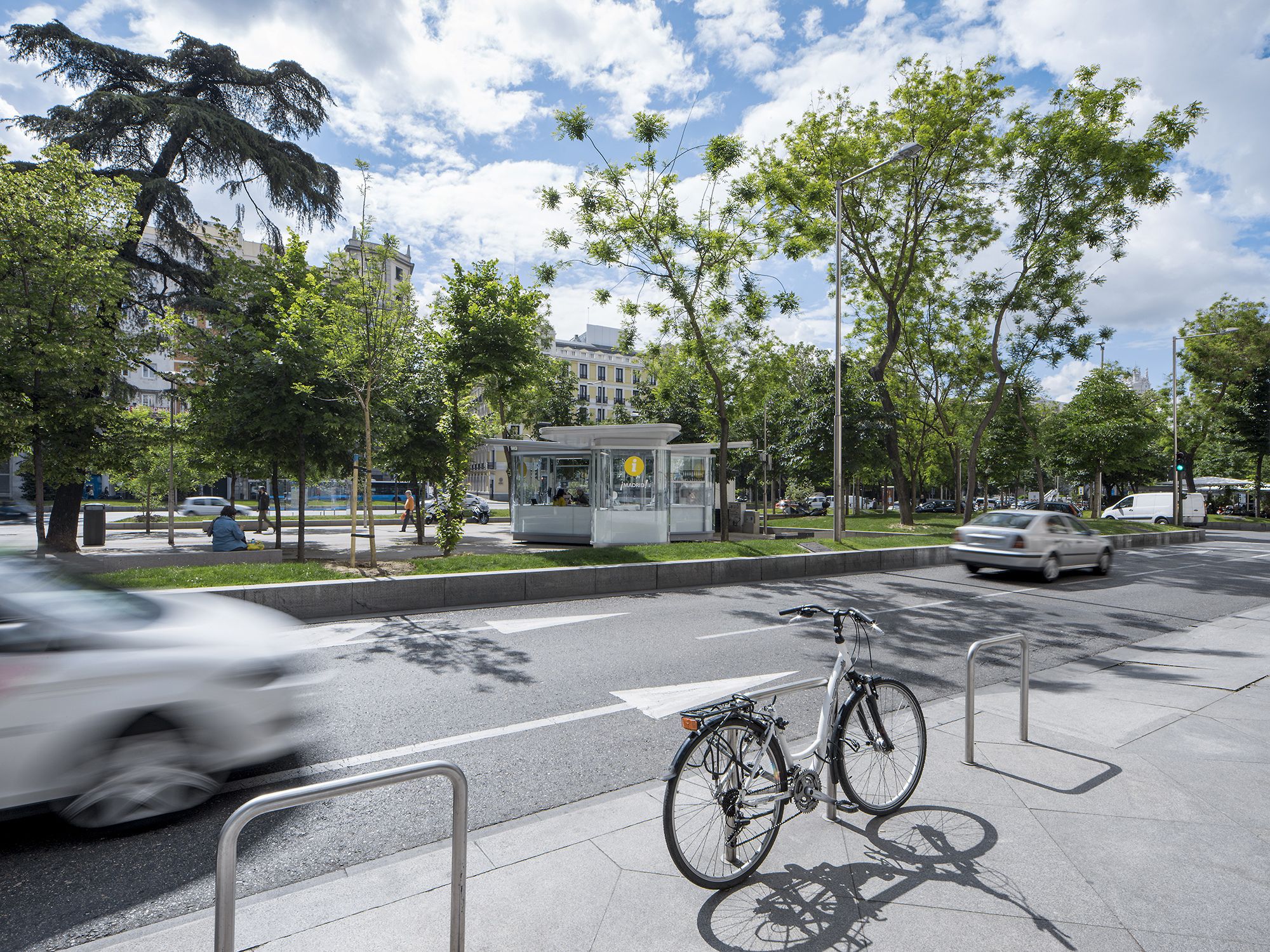

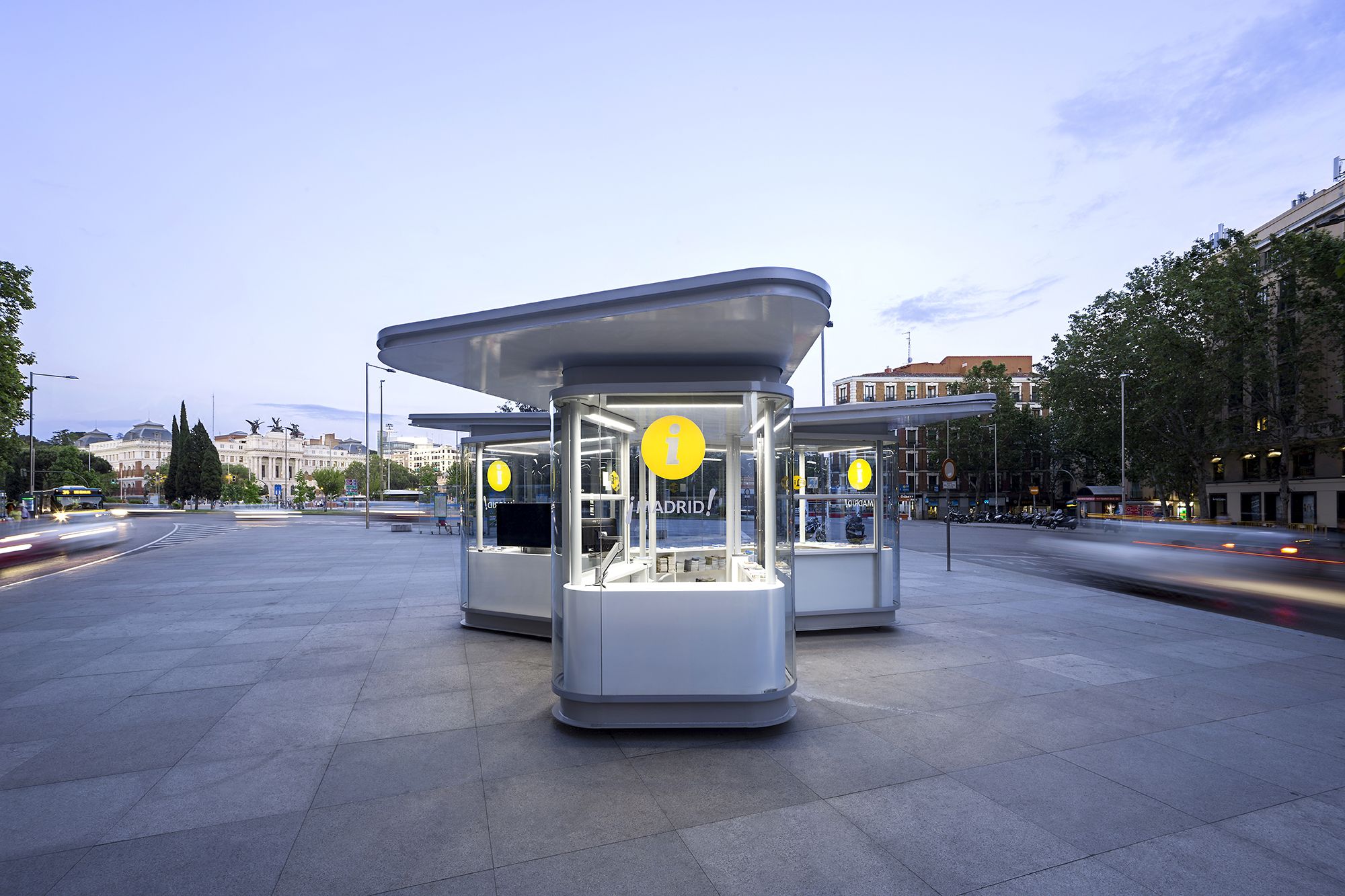

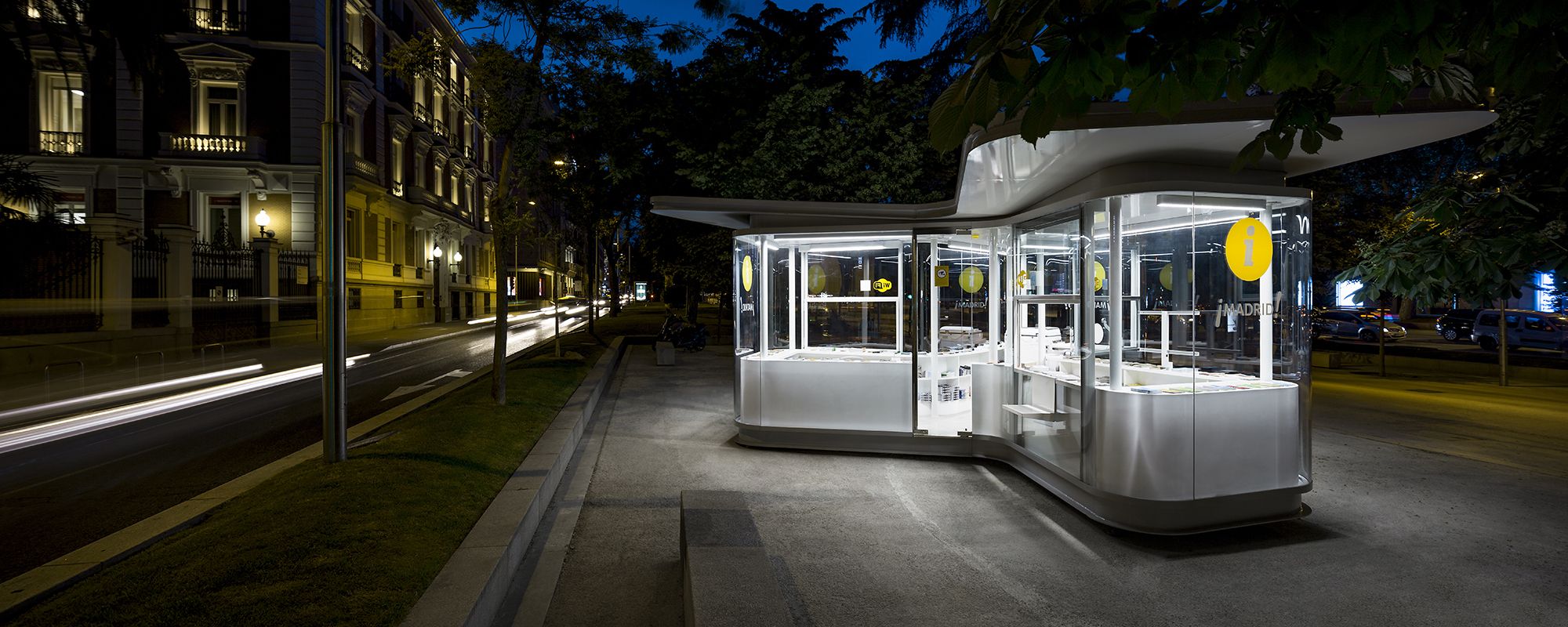

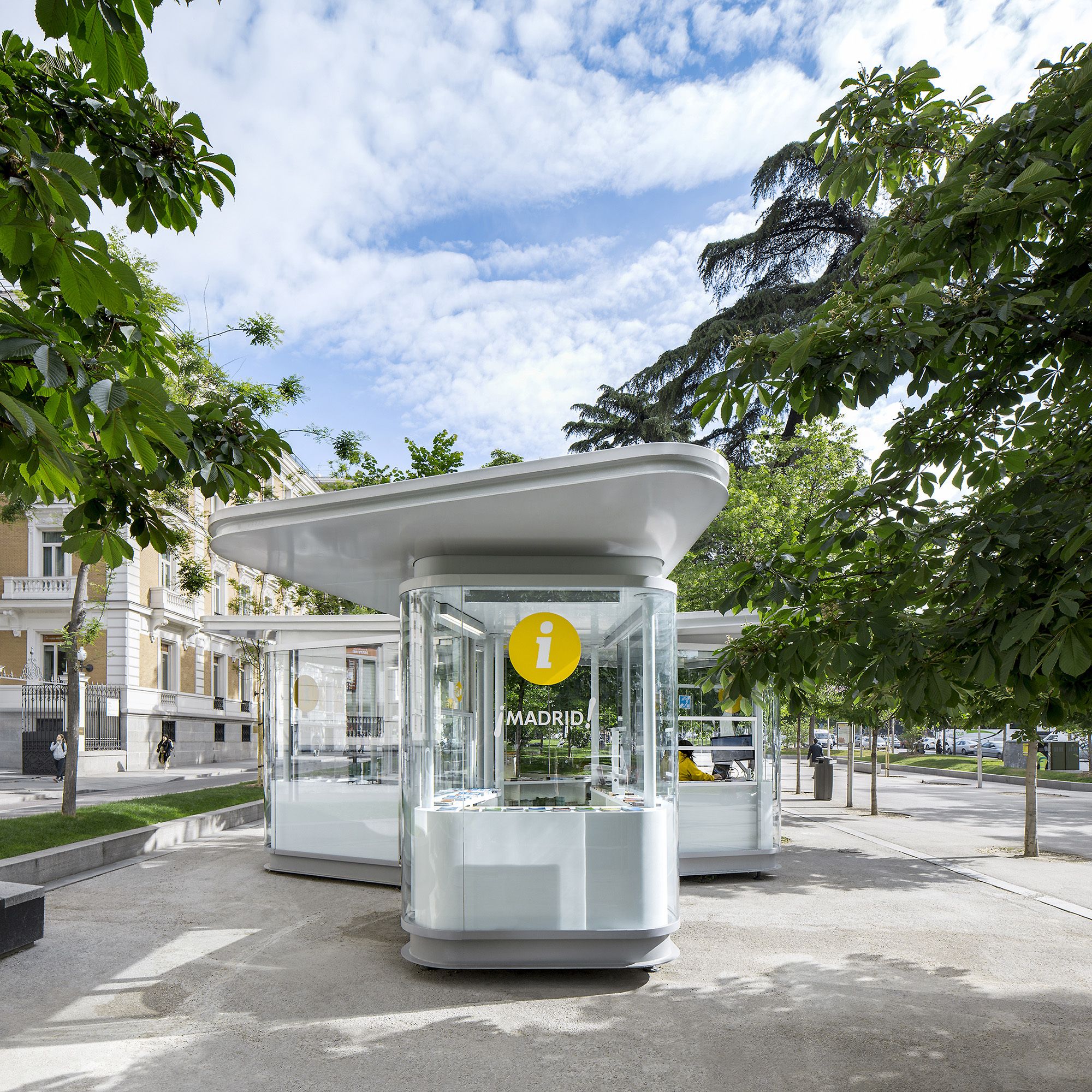

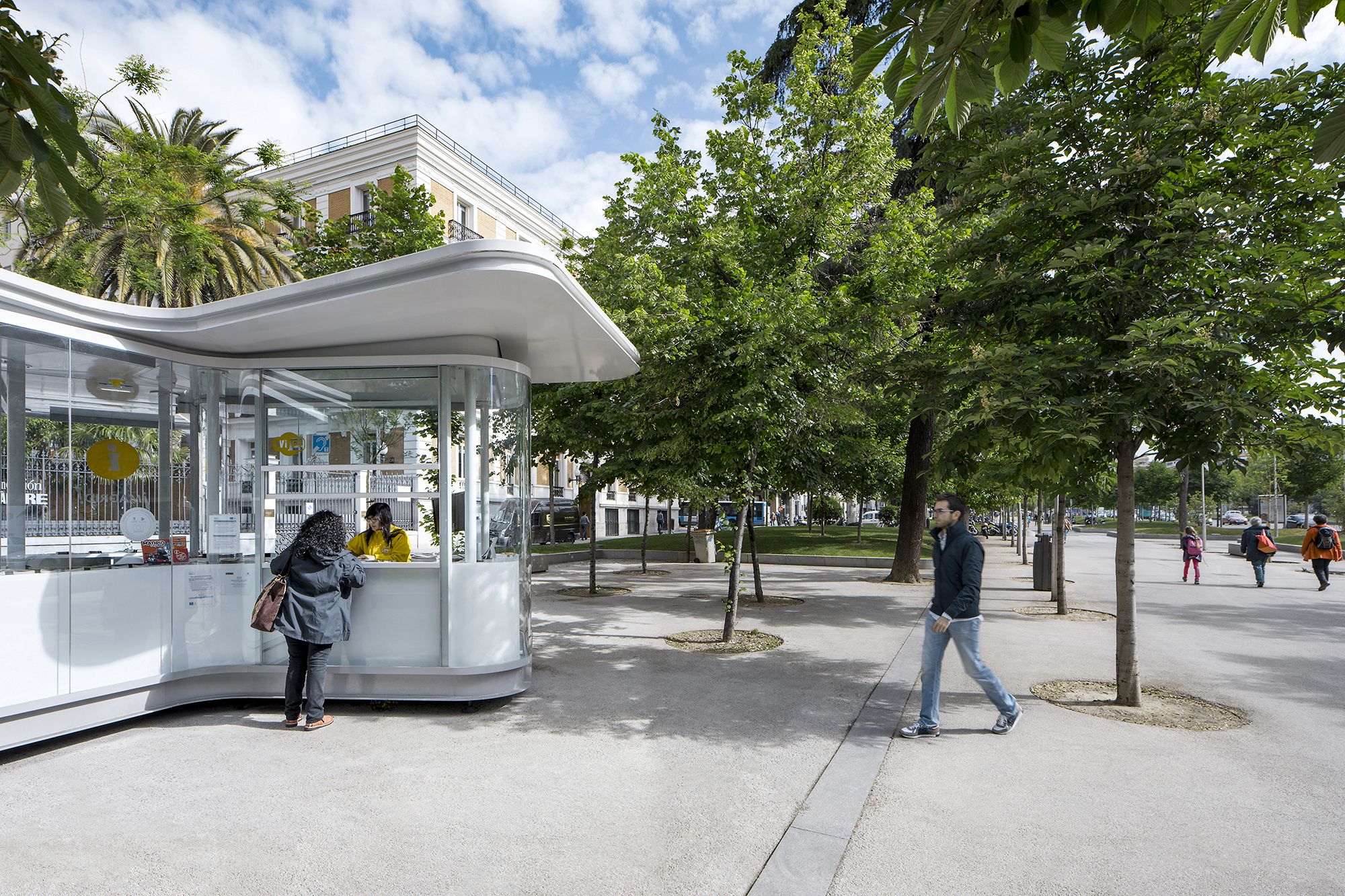

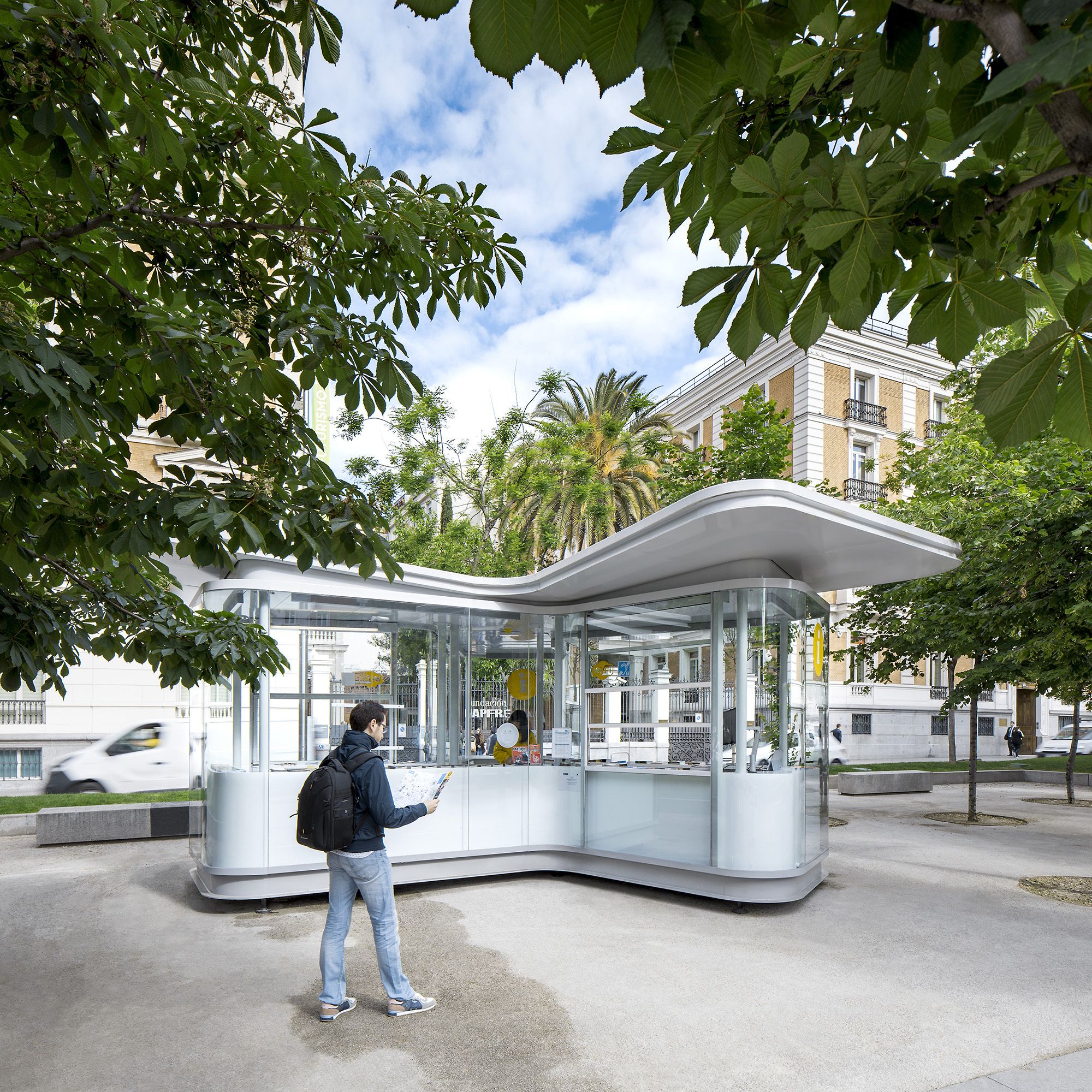

Designed as special pieces in the urban city structure, these five small pavilions are situated within some of the most cultural and commercial city areas. Offering information, as well as different touristic products (ticketing, etc ), the pieces have been Pretending to be recognizable pieces, the devices are as well adaptable to different urban situations.

Courtesy of José Manuel Sanz Arquitectos + Irene Brea - Photography: José Javier Cullen

Courtesy of José Manuel Sanz Arquitectos + Irene Brea – Photography: José Javier Cullen

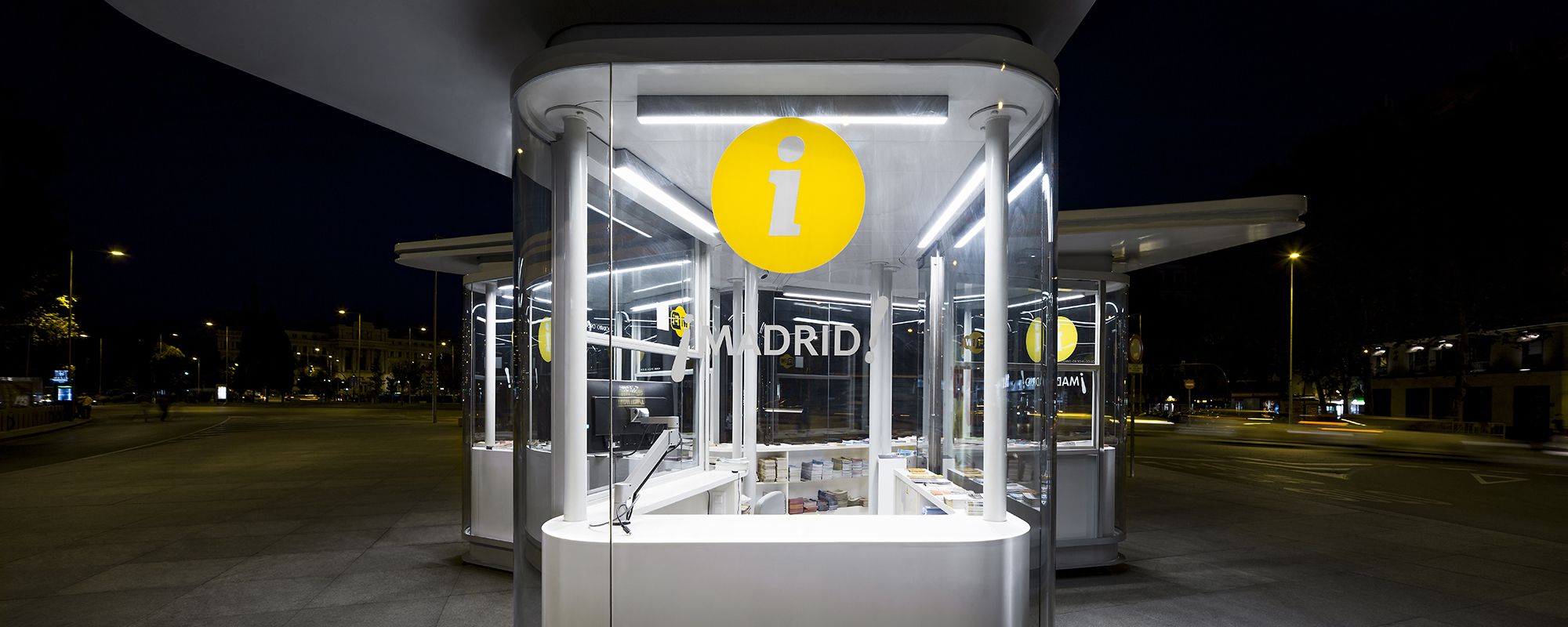

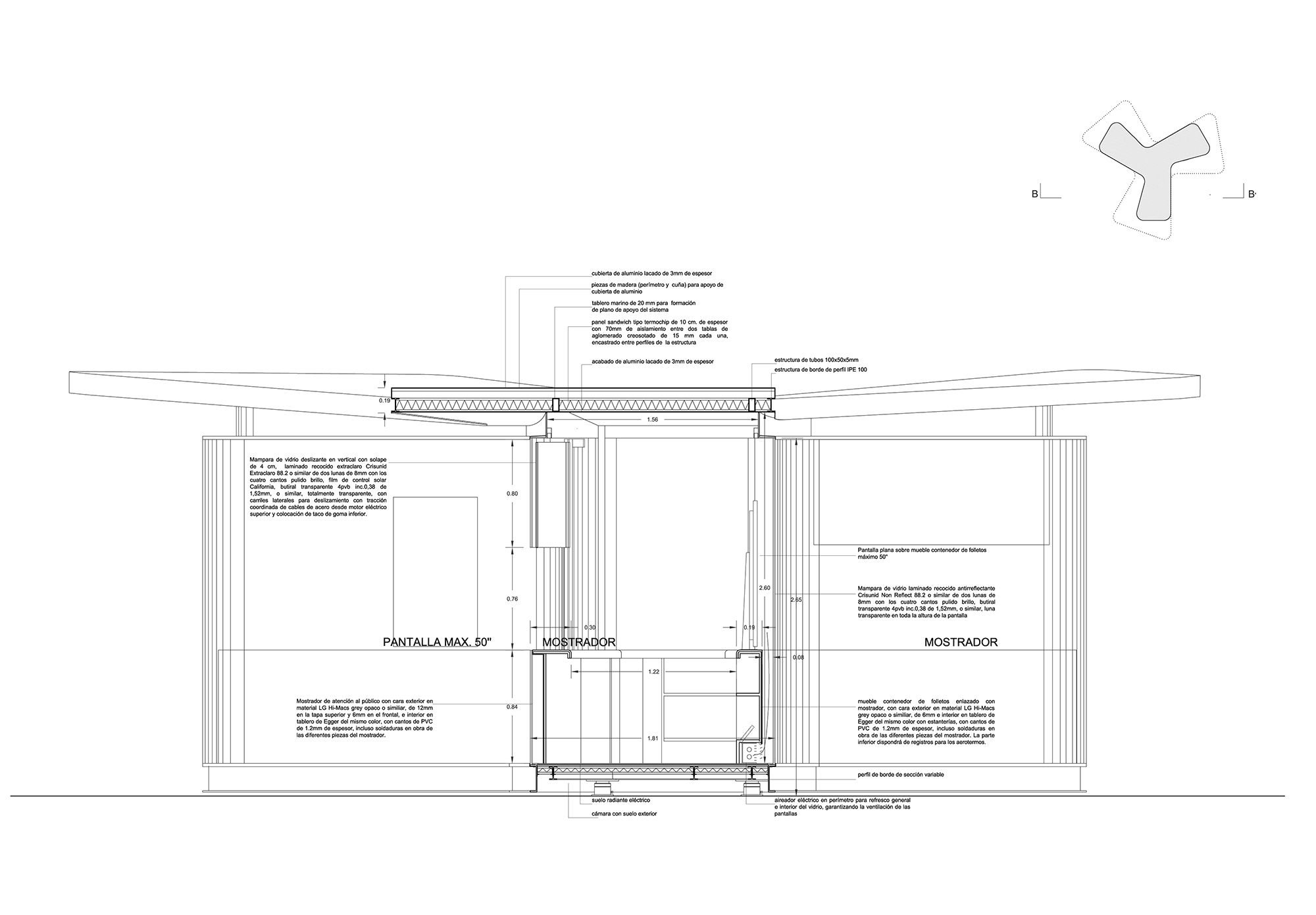

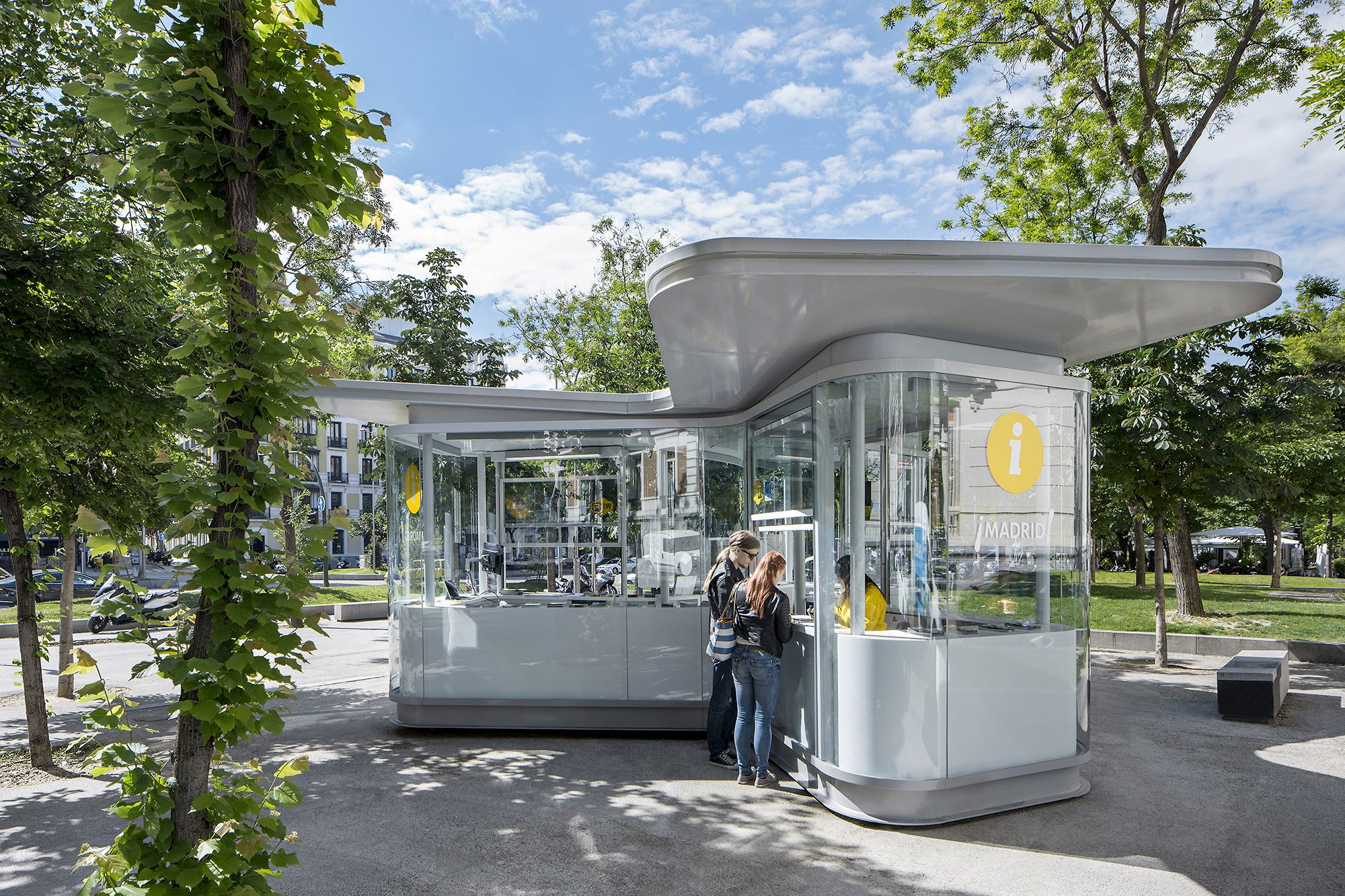

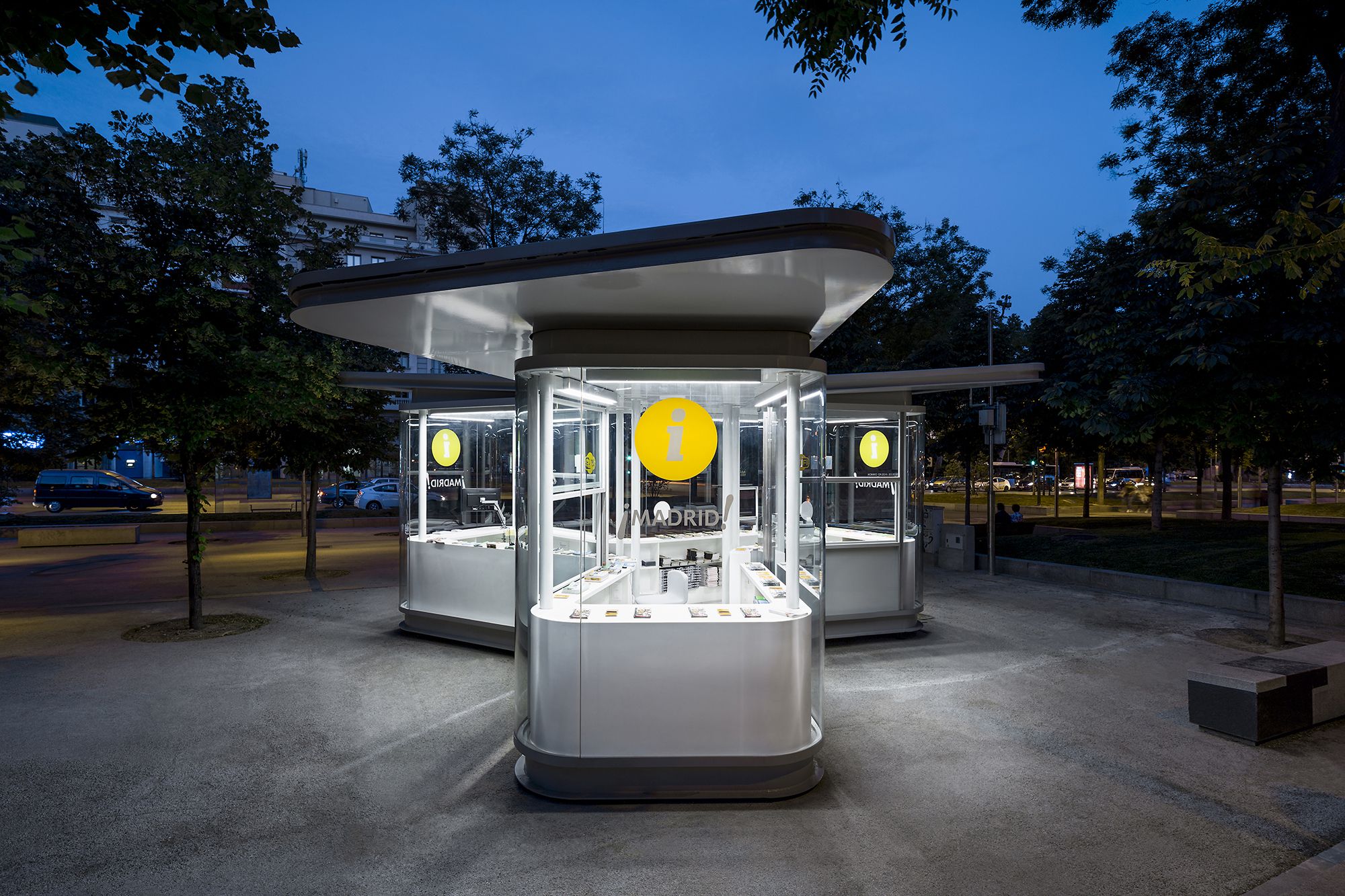

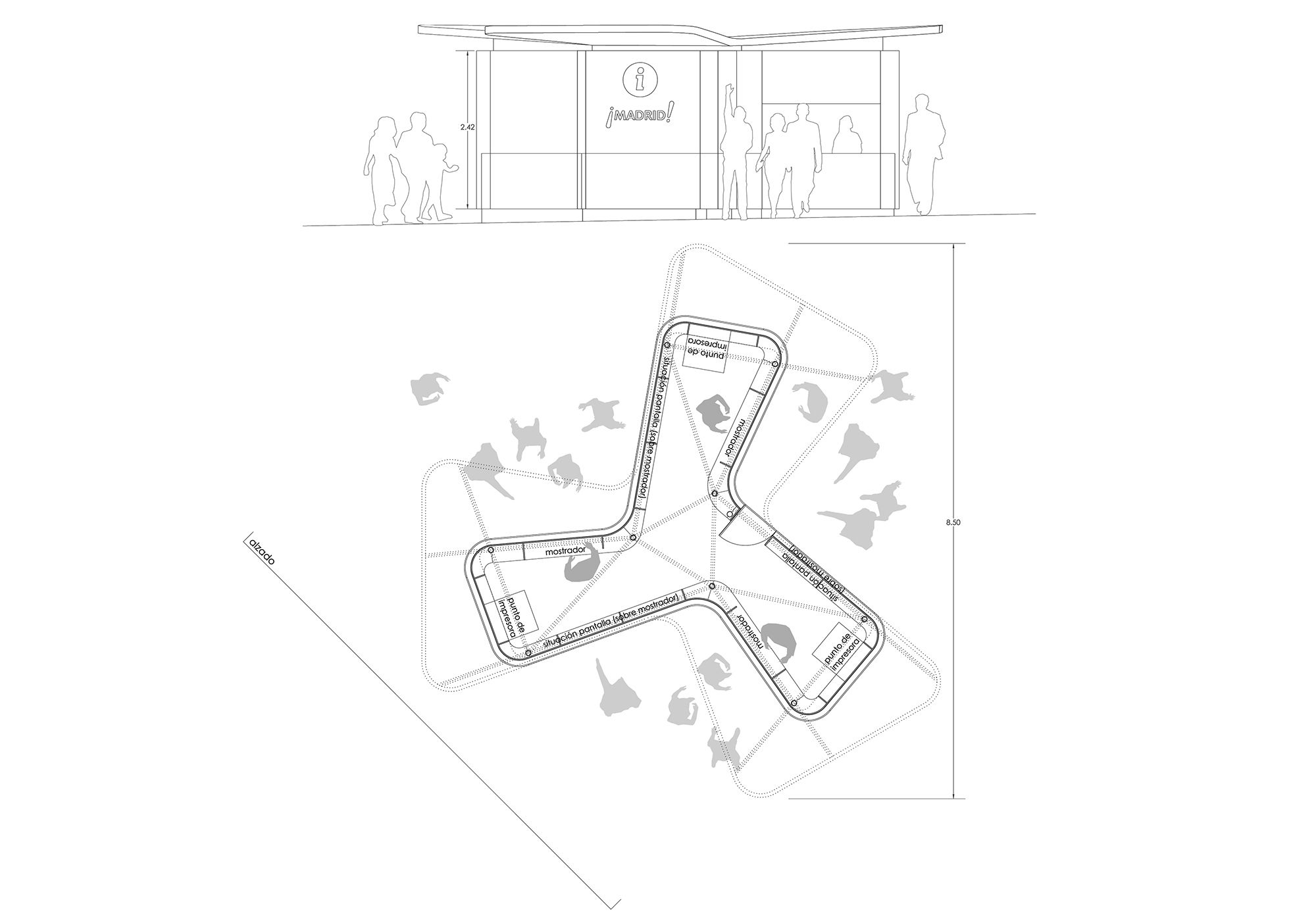

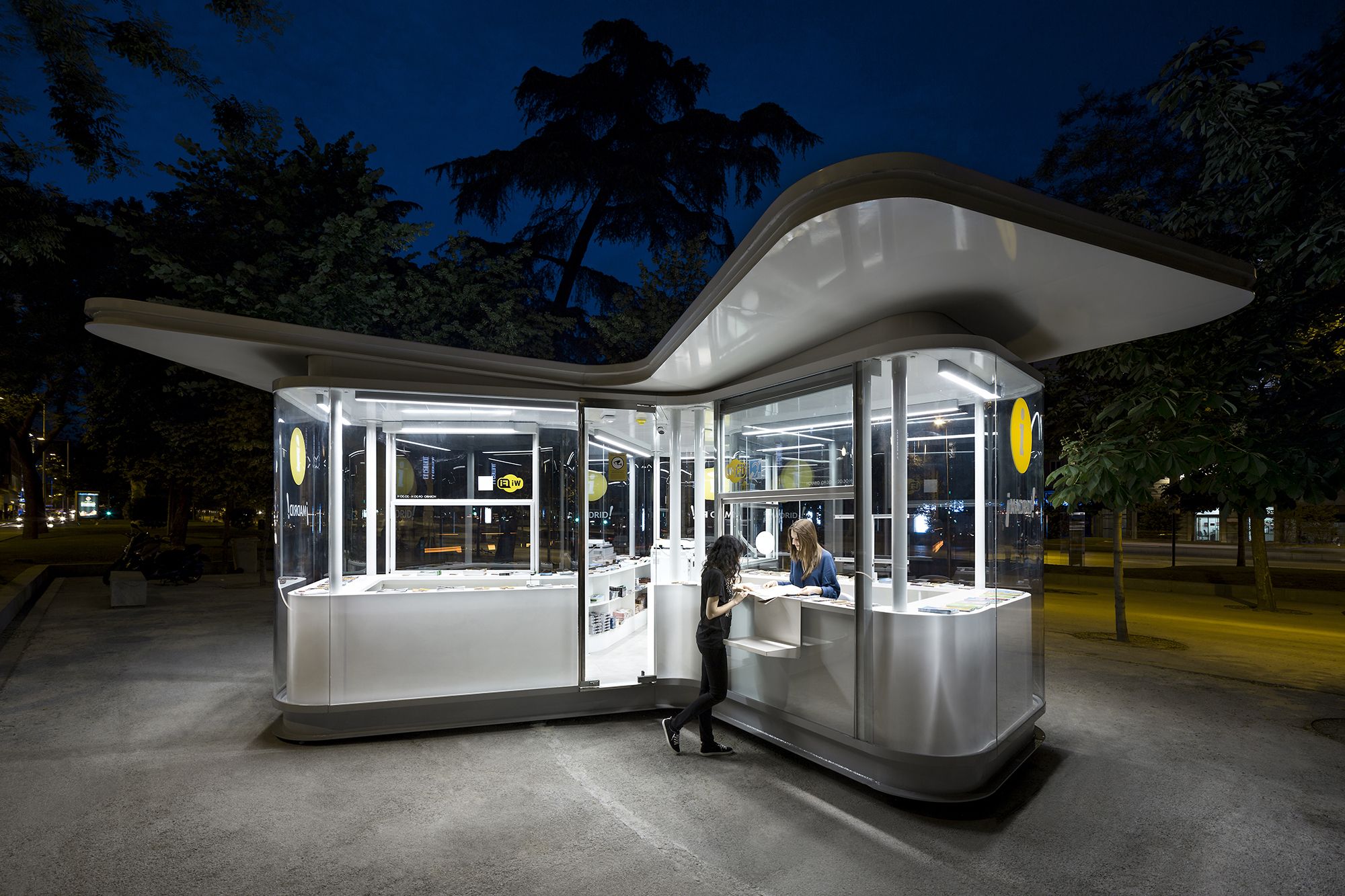

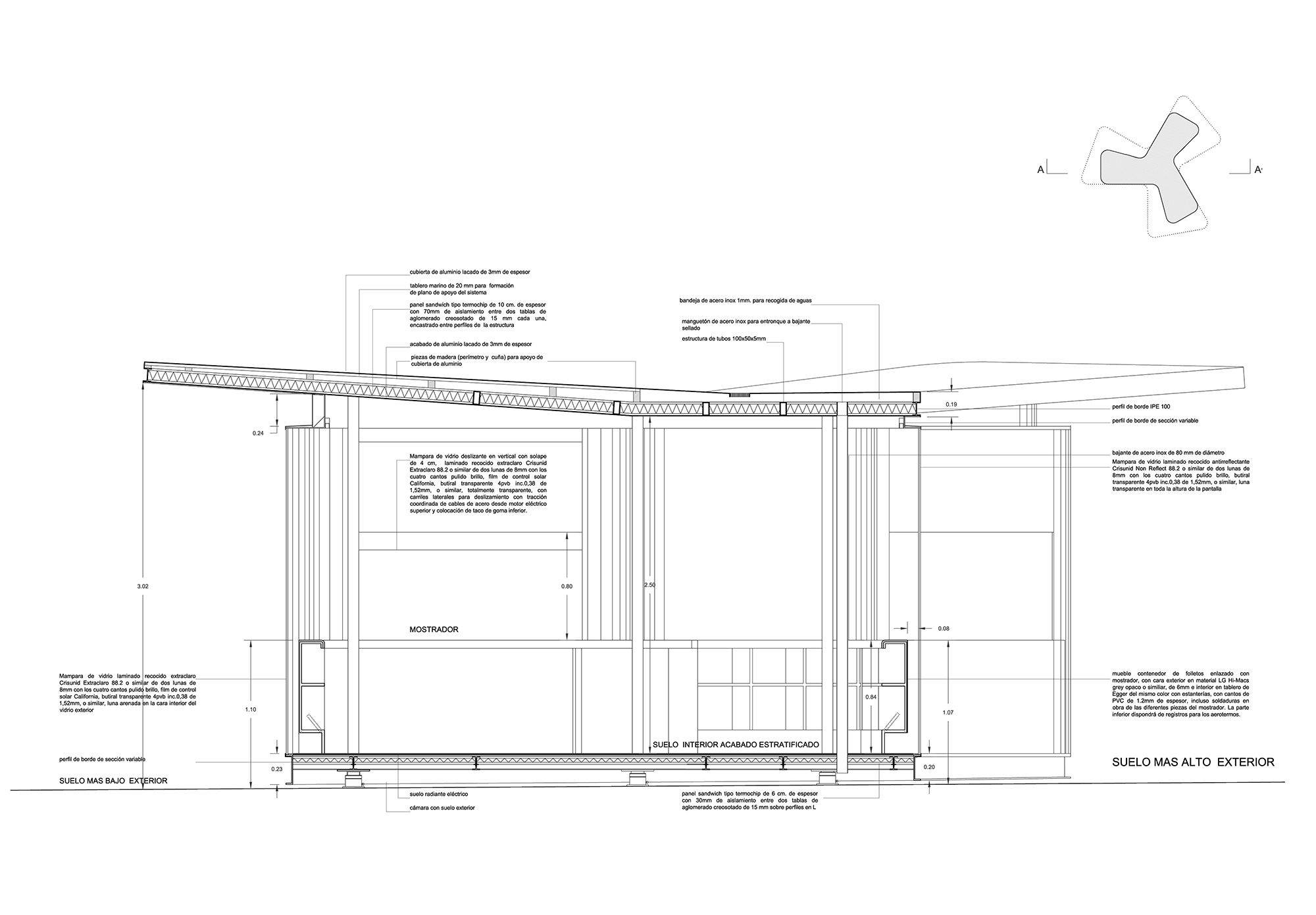

Each one has three different attention points where the services are offered. Parting from this point, these necessities generate the possibility of making three different spaces according to the different functions needed. Thus, the pavilion is configured as a clover ground floor which, in fact, is the one that offers the biggest possible perimeter. At the same time, the division of the roof geometry in two different planes makes an indispensable shadow area created for the raining and hot days.

Courtesy of José Manuel Sanz Arquitectos + Irene Brea - Photography: José Javier Cullen

Courtesy of José Manuel Sanz Arquitectos + Irene Brea – Photography: José Javier Cullen

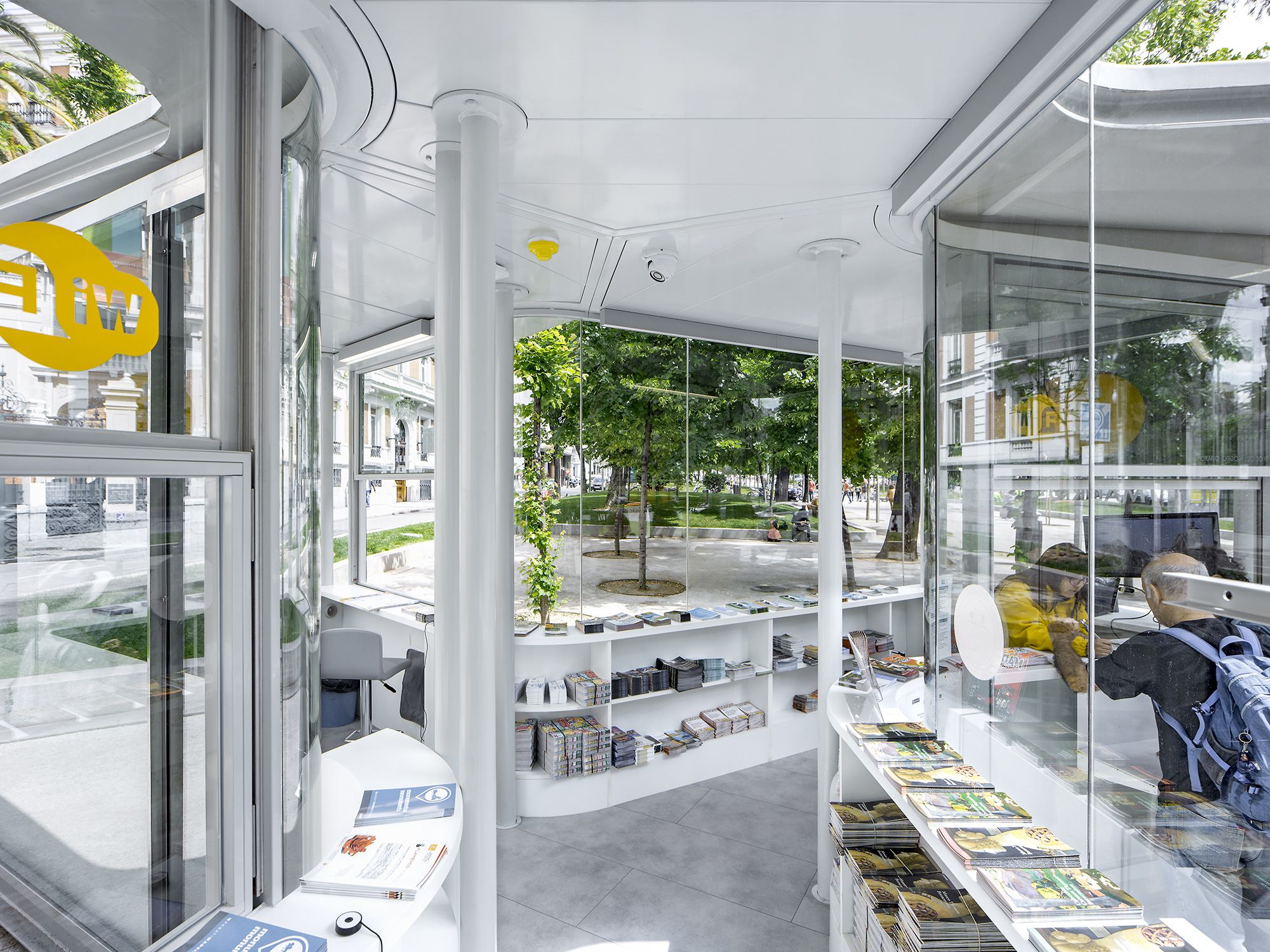

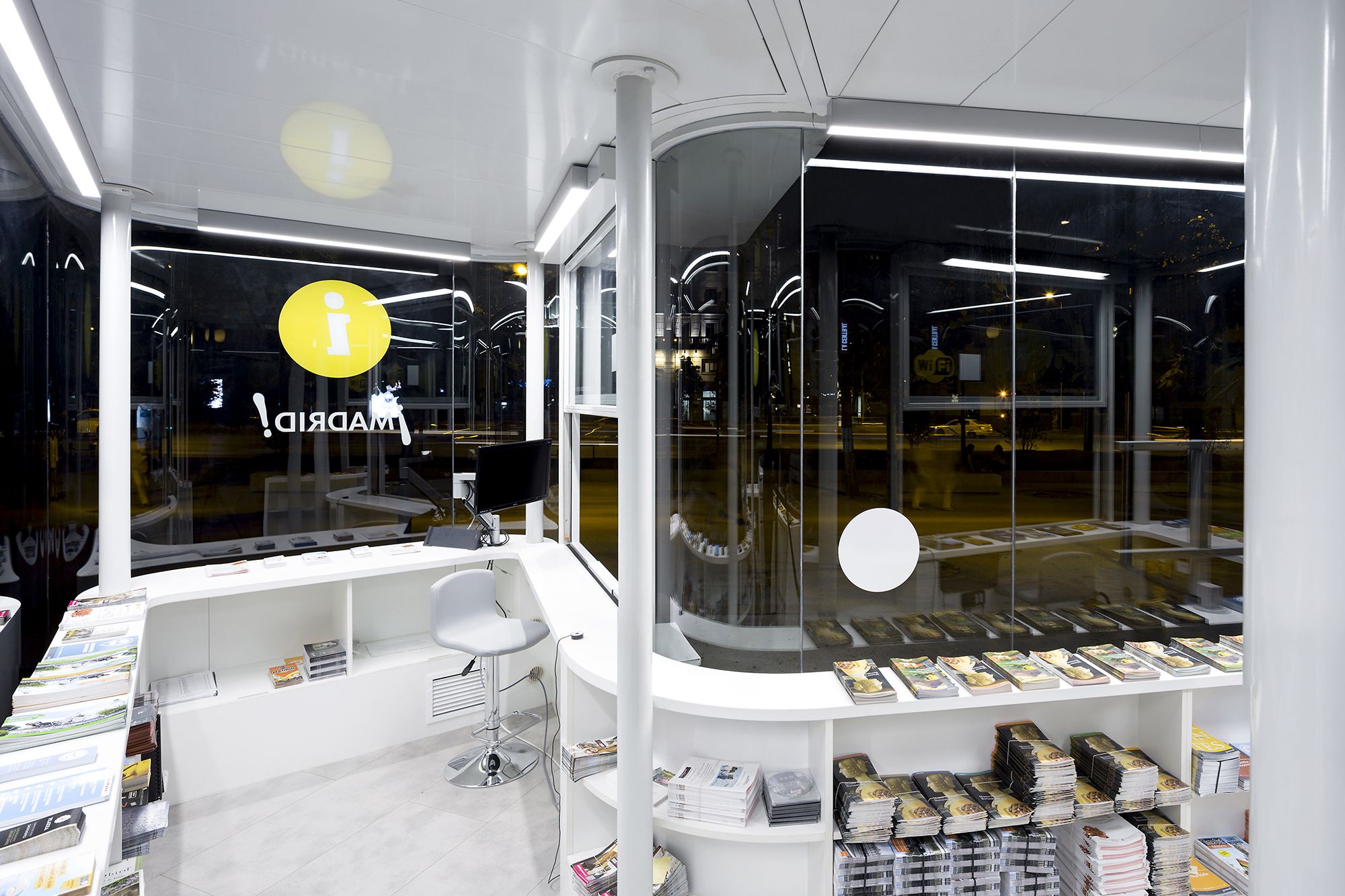

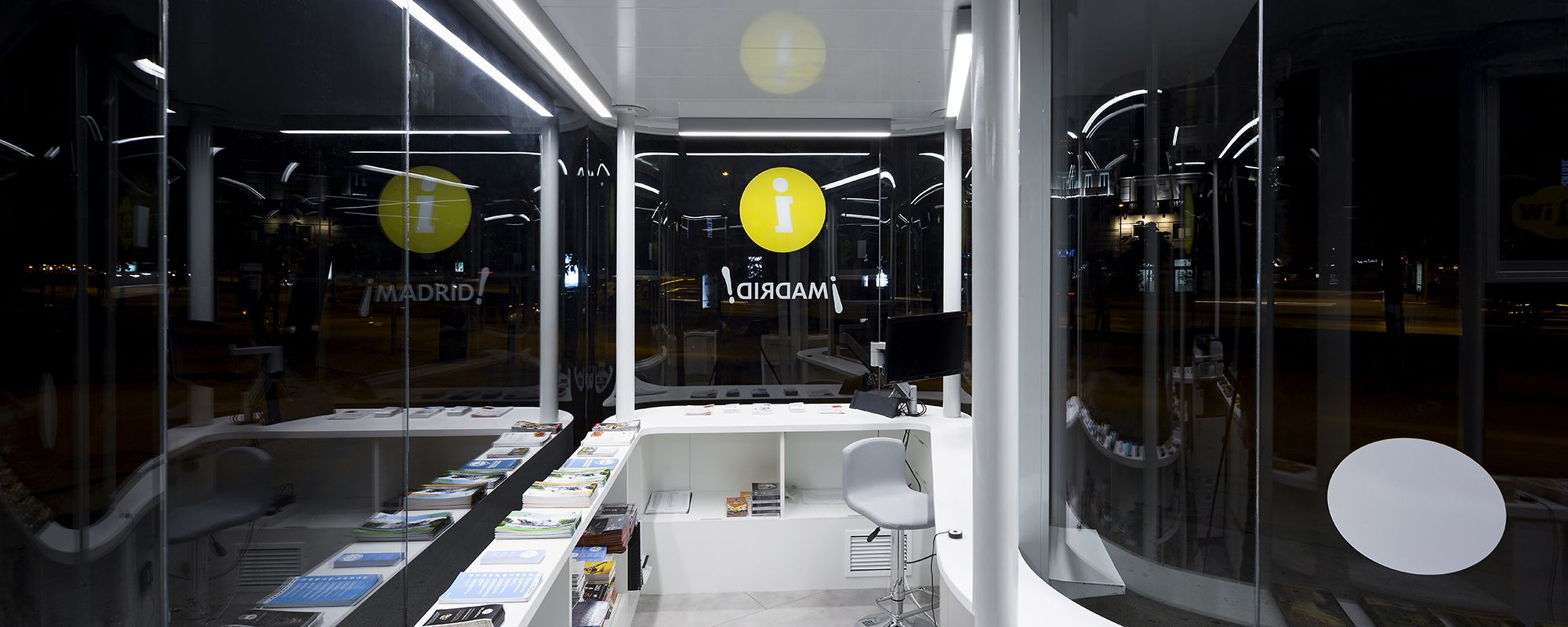

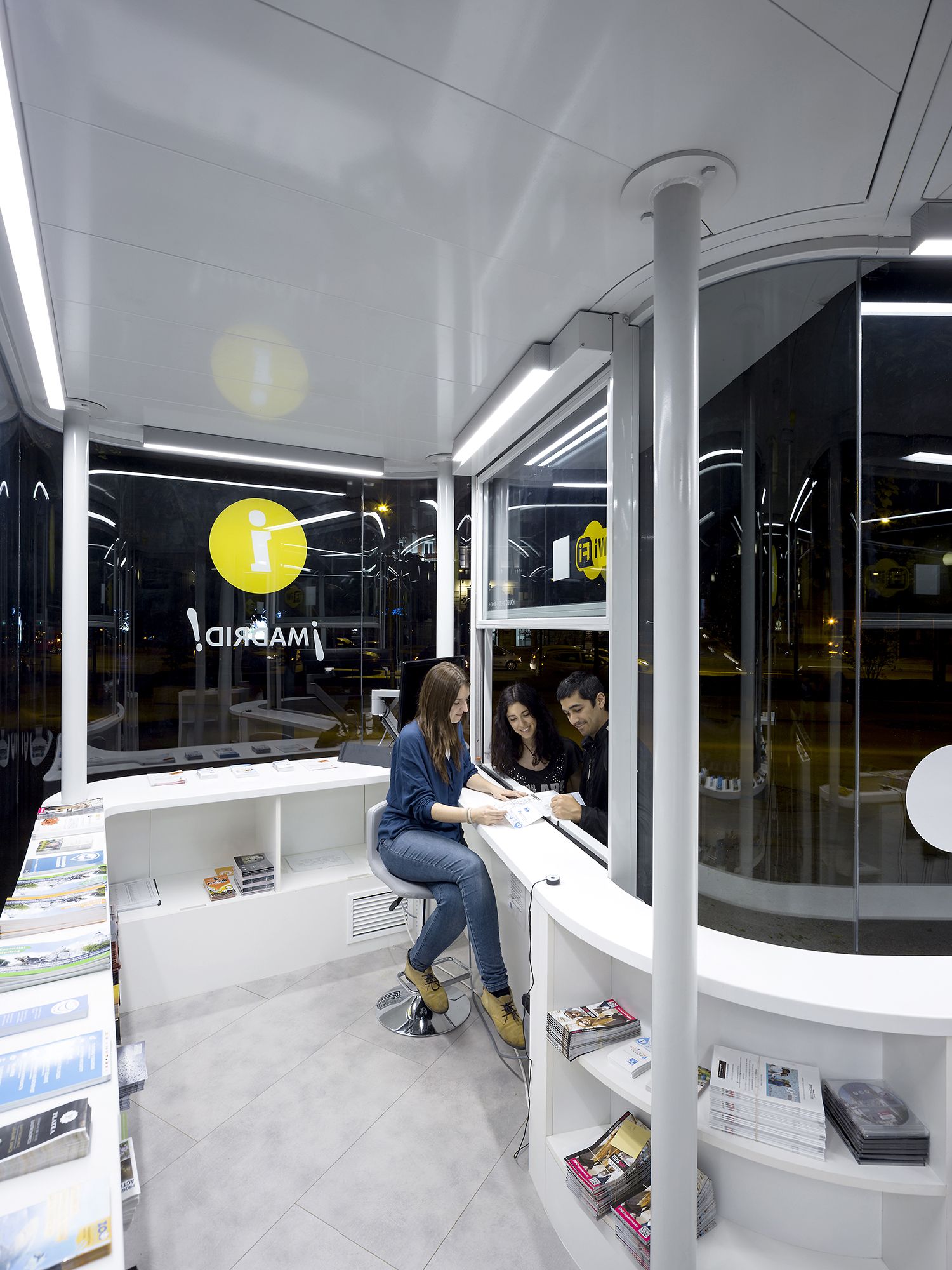

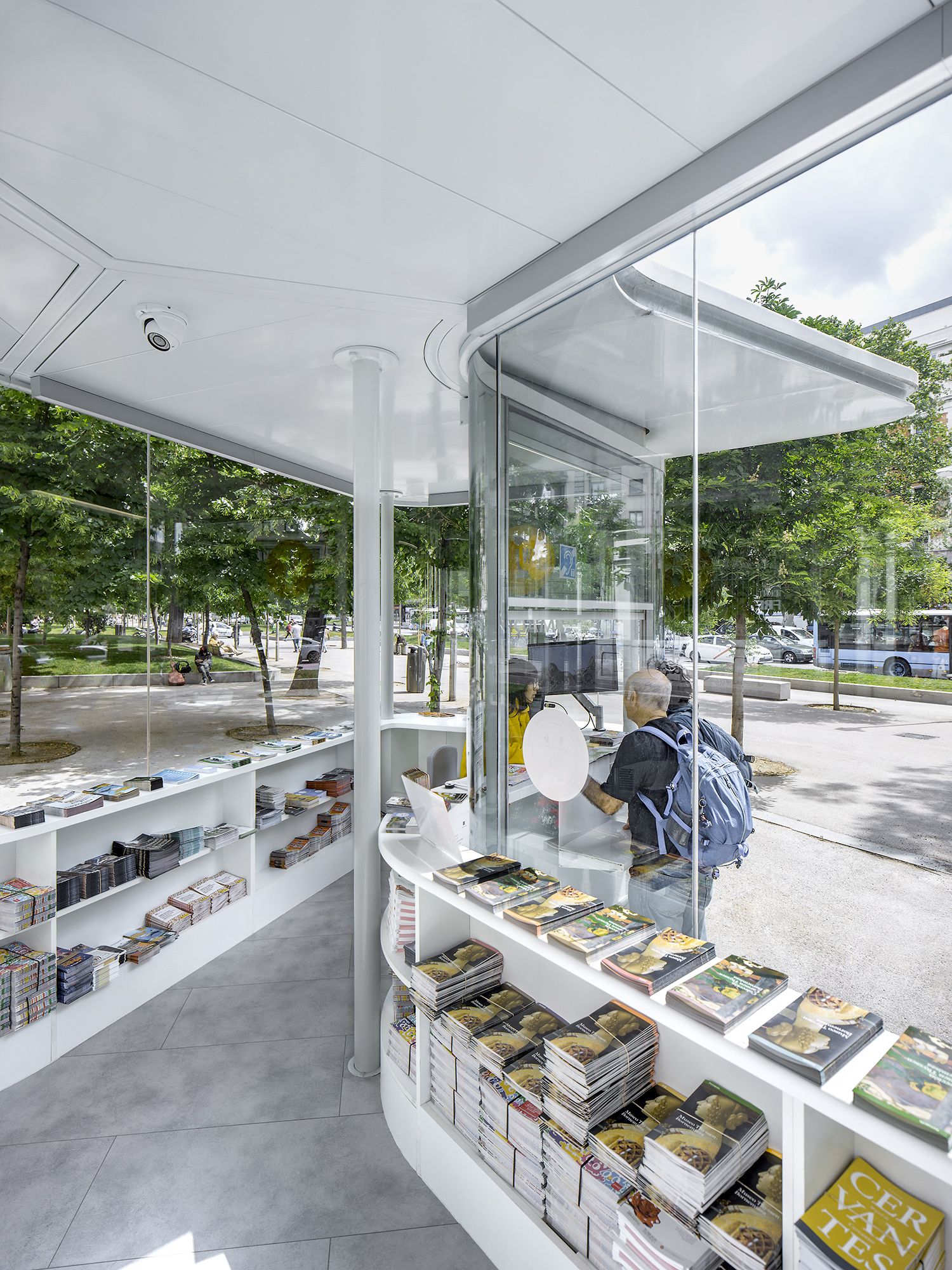

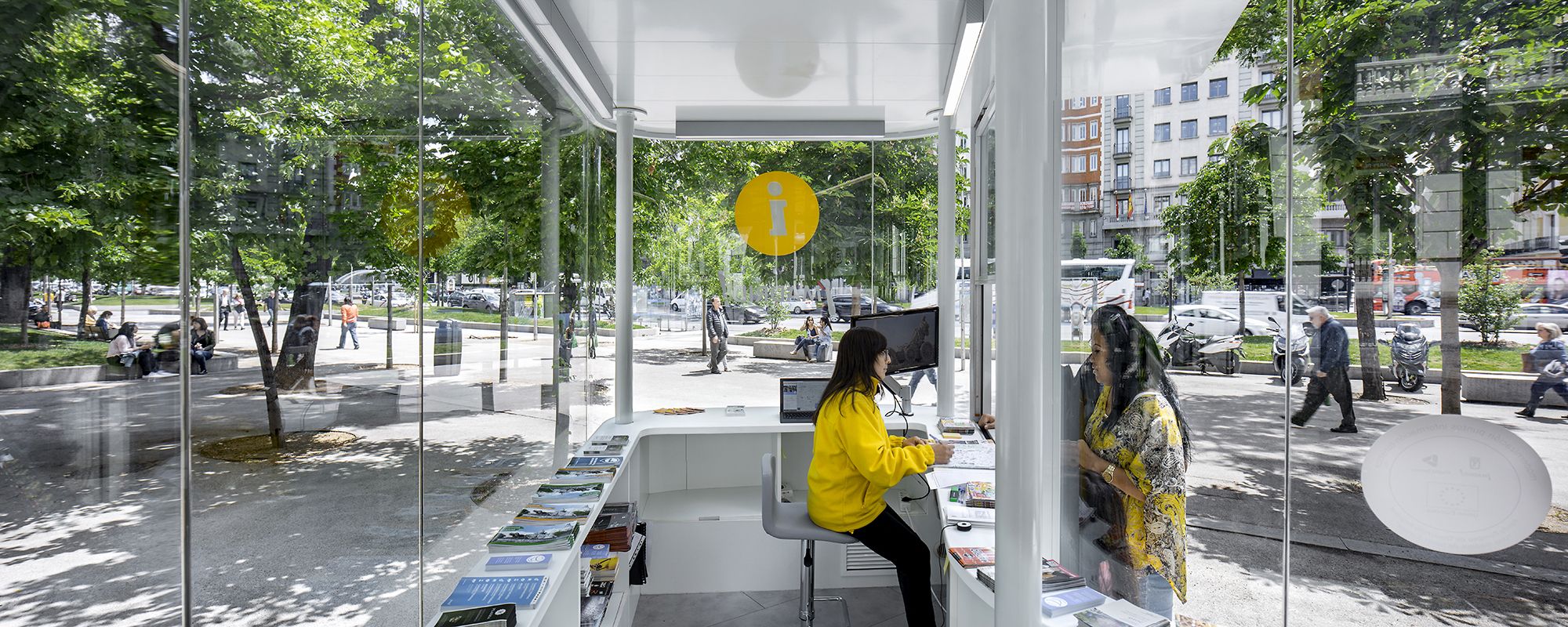

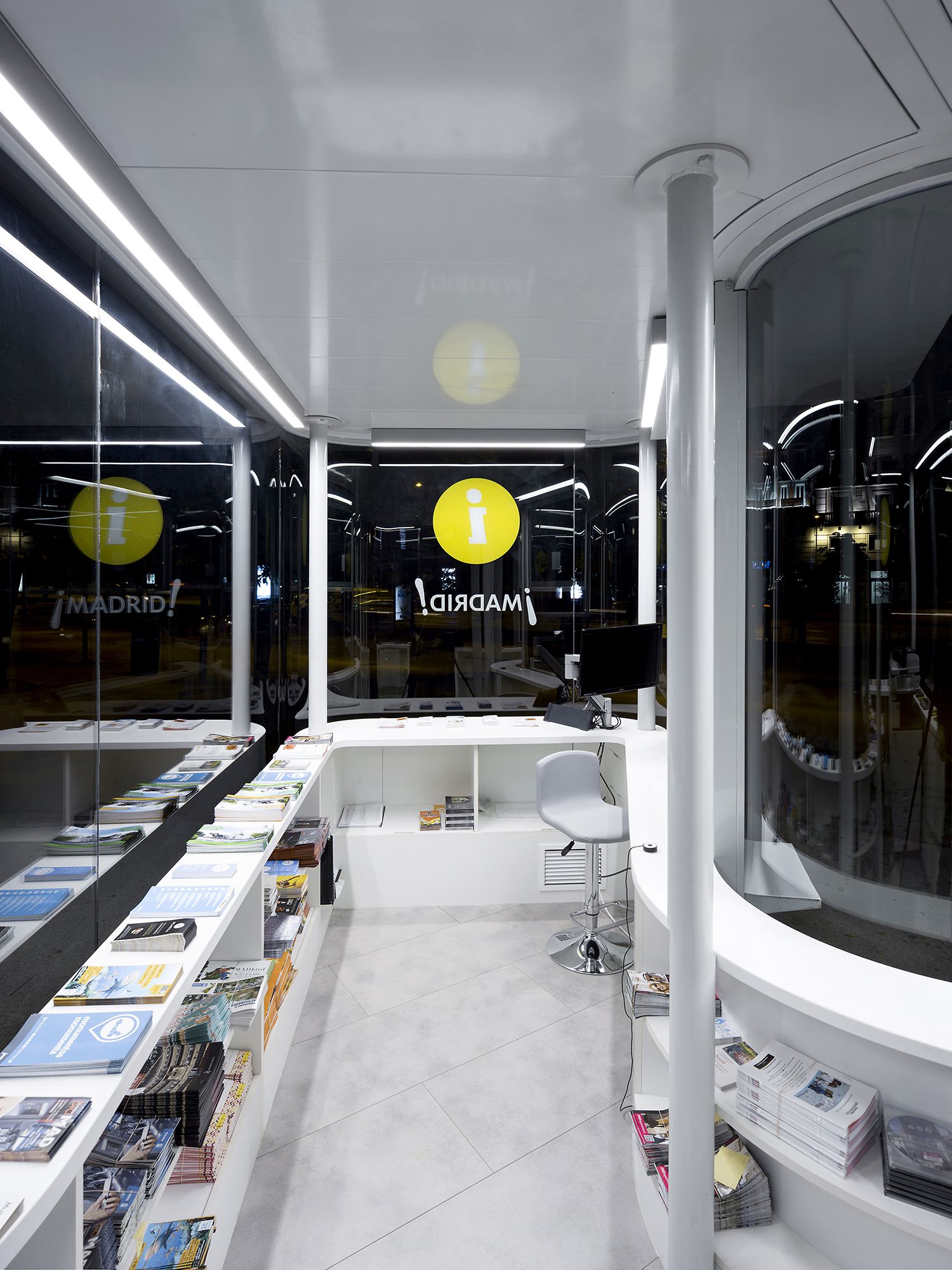

To the end of including the pieces within the visual city structure, the pieces have been thought following principles of transparency and visual lightness. From the interior, the workers can feel they are, in fact, in an exterior space and, therefore visually included in the city.

Courtesy of José Manuel Sanz Arquitectos + Irene Brea - Photography: José Javier Cullen

Courtesy of José Manuel Sanz Arquitectos + Irene Brea – Photography: José Javier Cullen

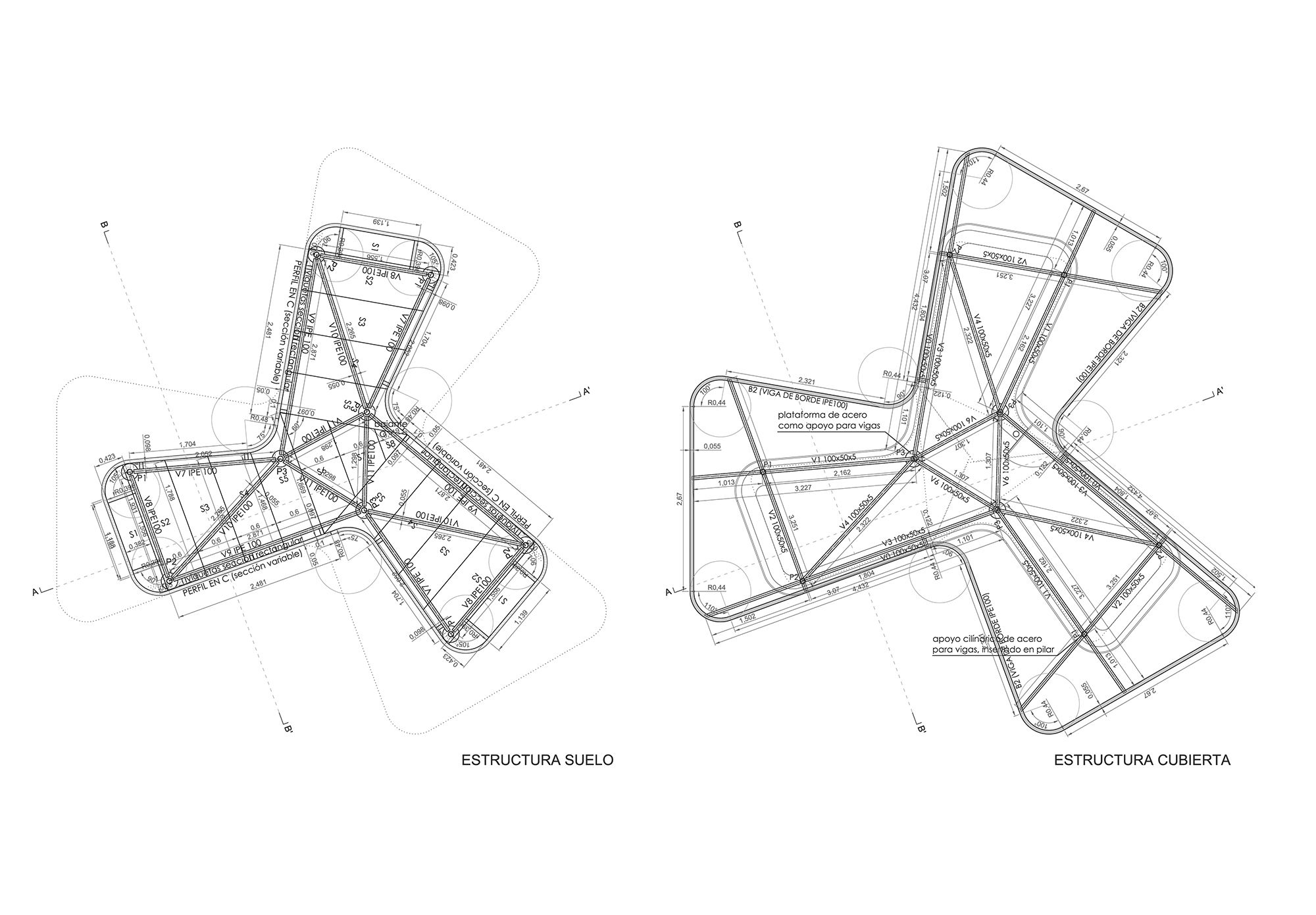

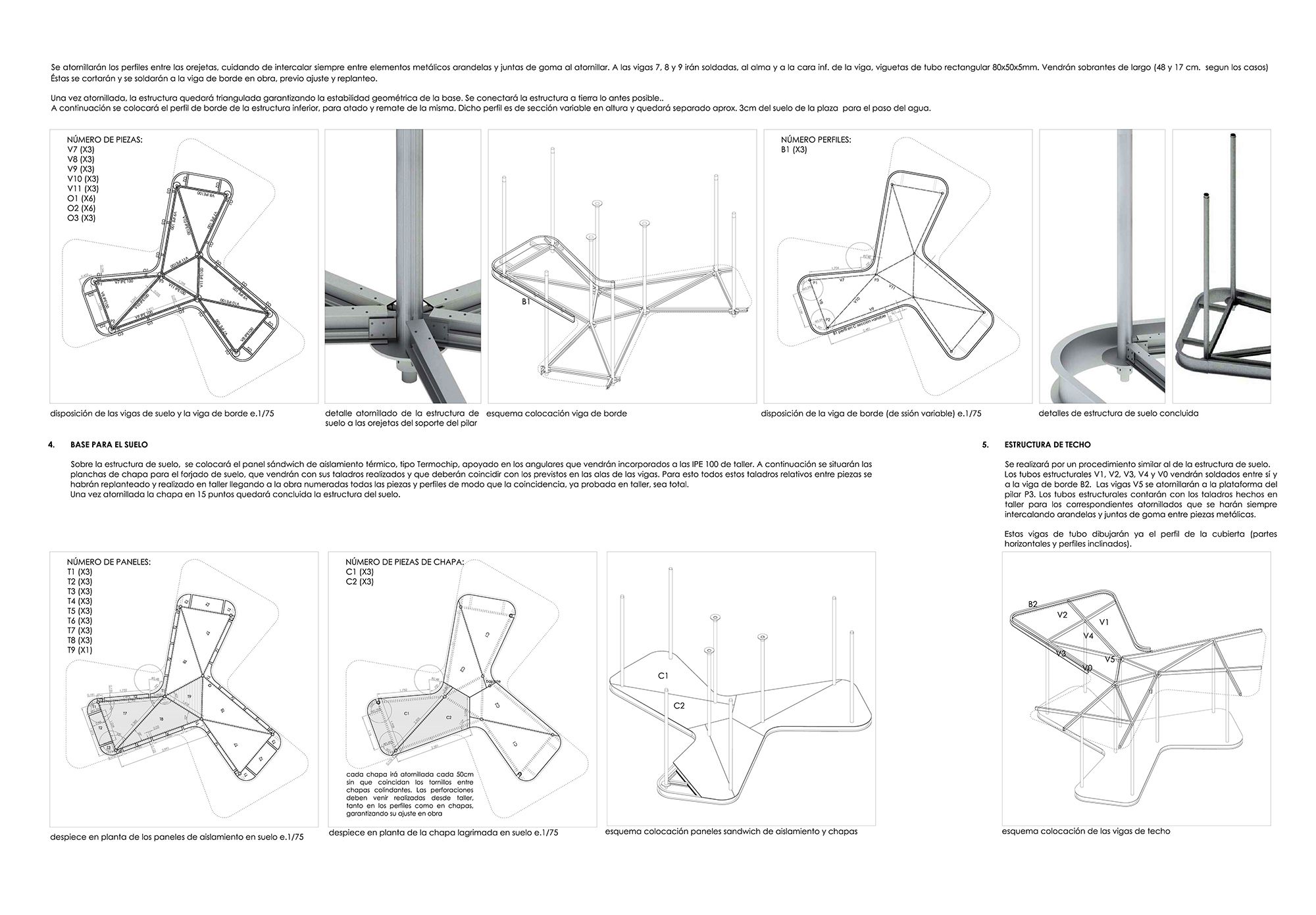

The object is prefabricated, mounted and assembled in a short period of time, being its structure an ensemble of metallic tubes and screwed structural profiles. All the rest constructive elements are either fixed directly to this main structure, or to different substructures arising out of the main one. The support on the ground it is made through adjustable elements which permit the object adaptation to different places. The rain water is collected in the roof, driven through an interior object´s tube and finally directly dewatered to the street.

Courtesy of José Manuel Sanz Arquitectos + Irene Brea - Photography: José Javier Cullen

Courtesy of José Manuel Sanz Arquitectos + Irene Brea – Photography: José Javier Cullen

Project Info:
Architects: José Manuel Sanz Arquitectos , Irene Brea
Location: Madrid, Spain
Architect in Charge: José Manuel Sanz
Project Year: 2016
Photographs: José Javier Cullen
Manufacturers: Cricursa, Olprim, Parador, Polysier, Porcelanosa Grupo
Project Team: Irene Brea Martínez, Leticia Llansó García, Luisa Santamaría Gallardo
Technical Project Manager: Irene Brea Martínez, Leticia Llansó García, Jaime Sanz de Haro, Javier Vila Navarro
Site Manager: Juan Antonio Santuy
Contractor: Olprim. Grupo Olmar
Client: Madrid-Destino, Ayuntamiento de Madrid.
