Brooklyn Bridge Park’s Pier 6

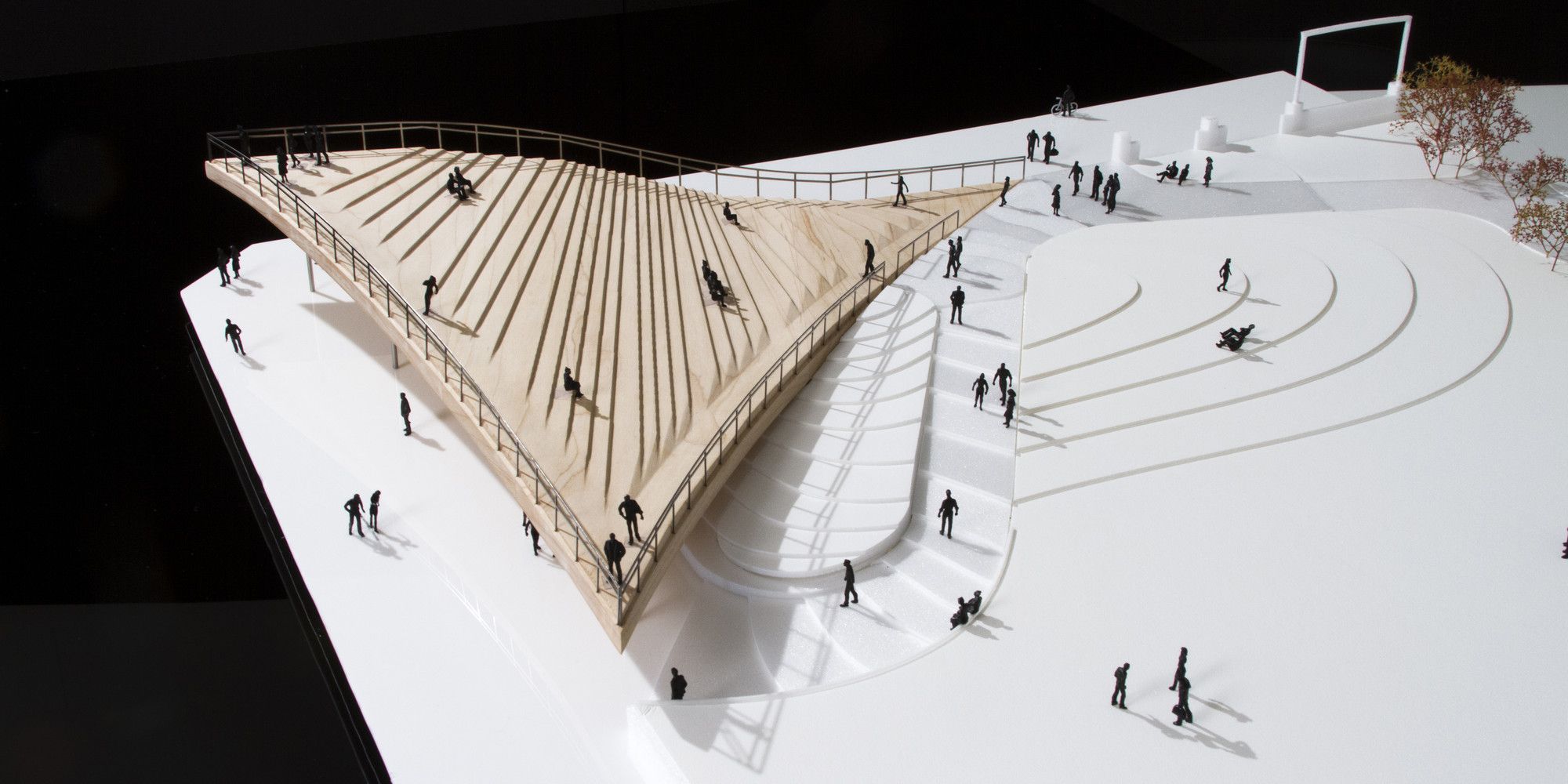

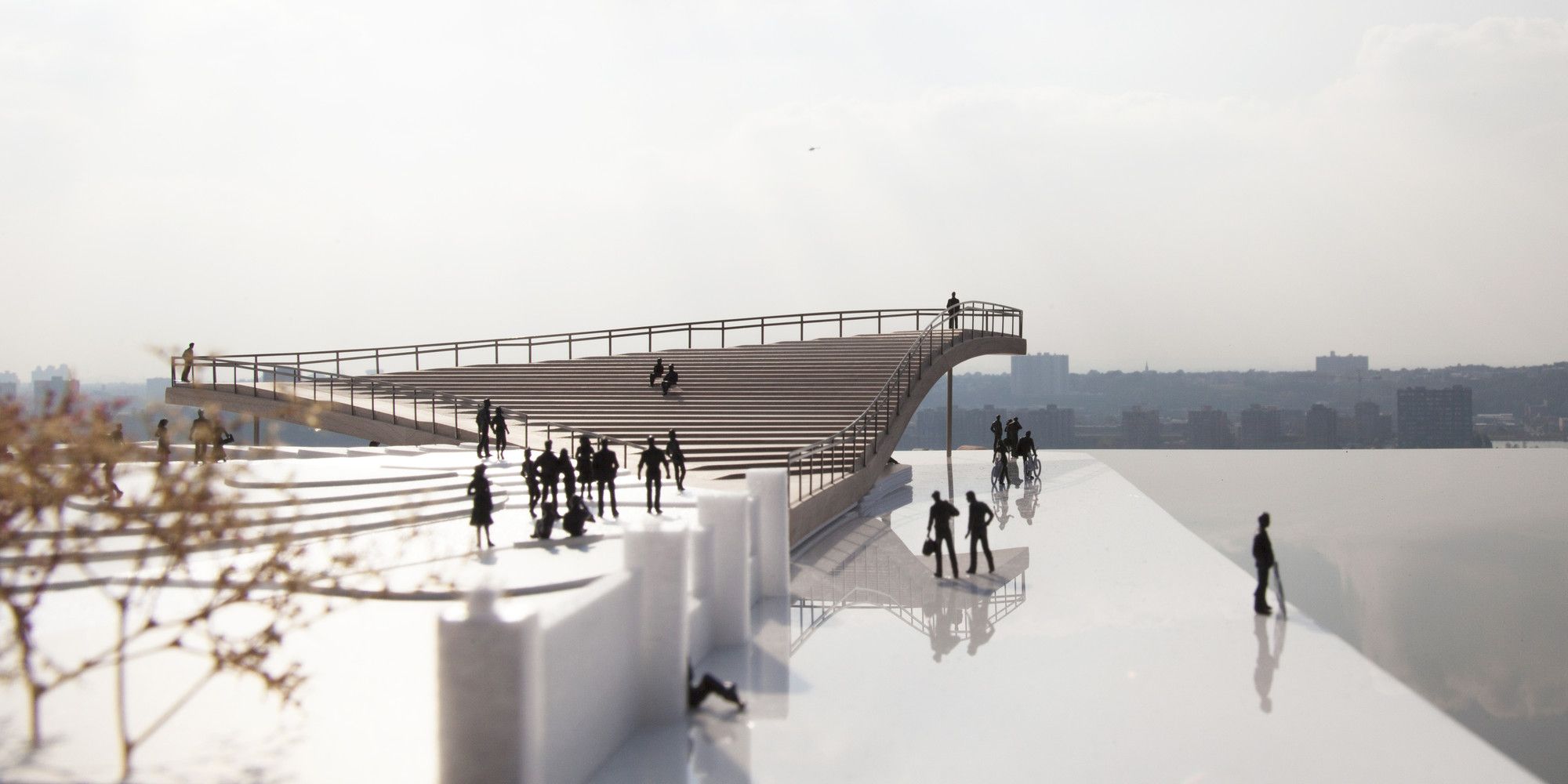

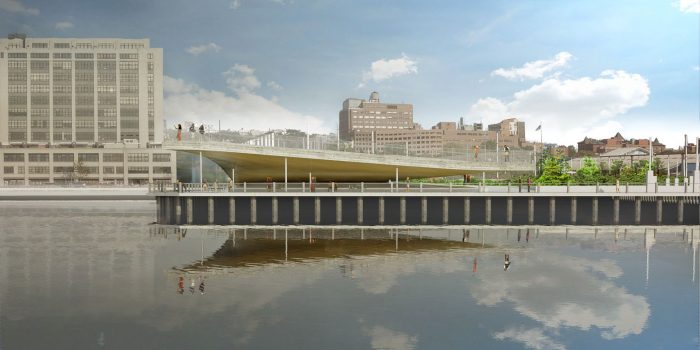

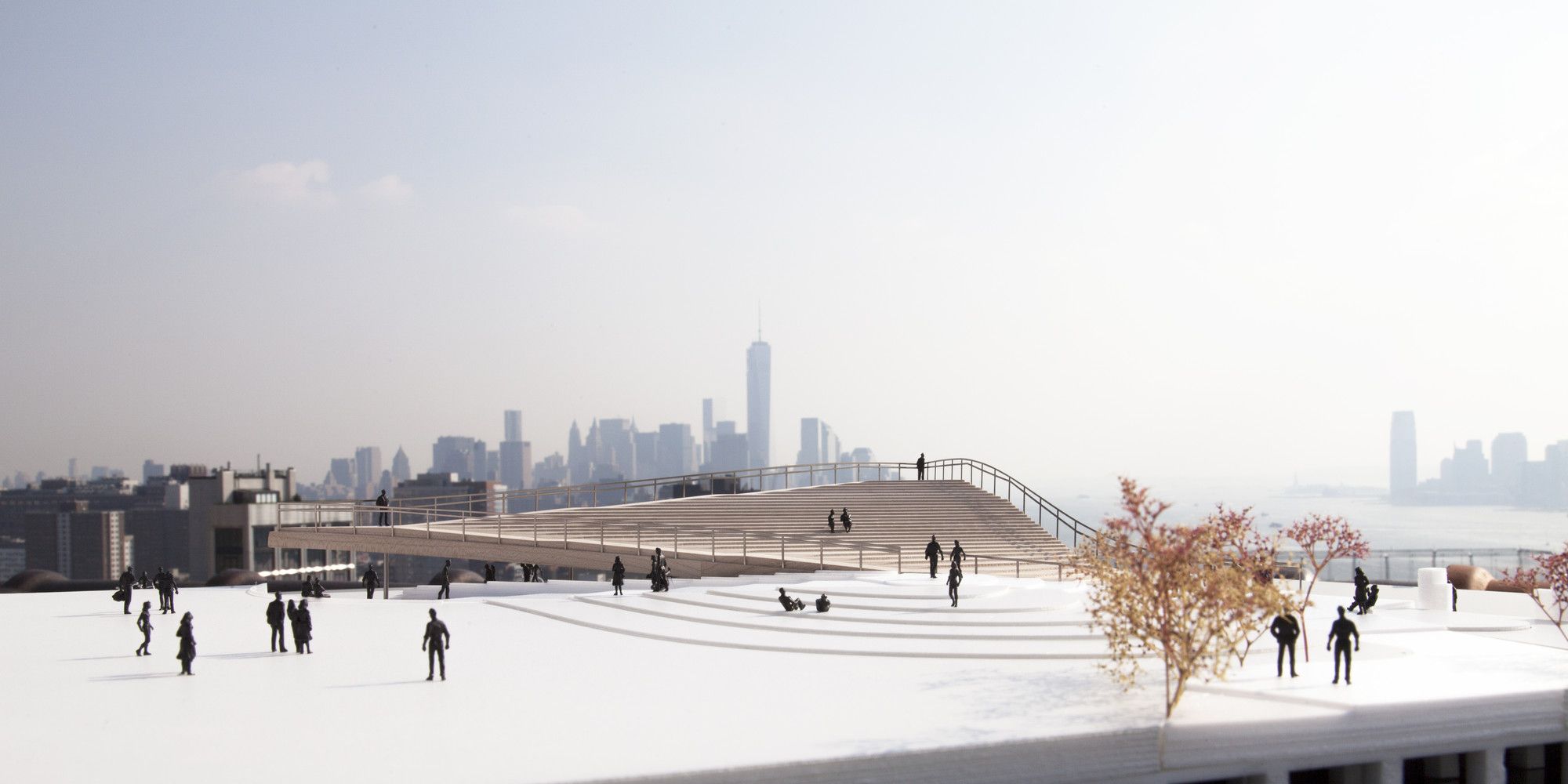

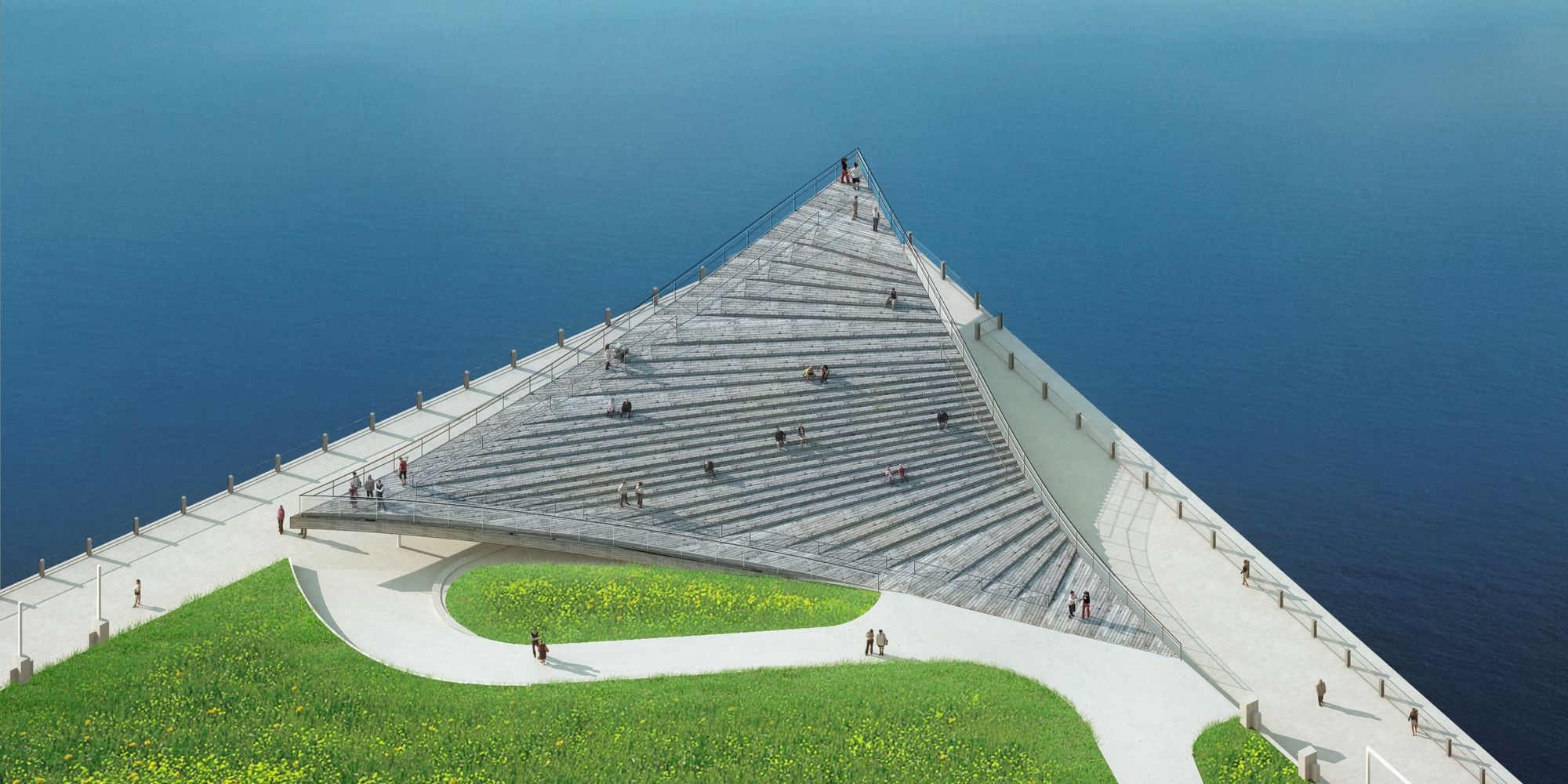

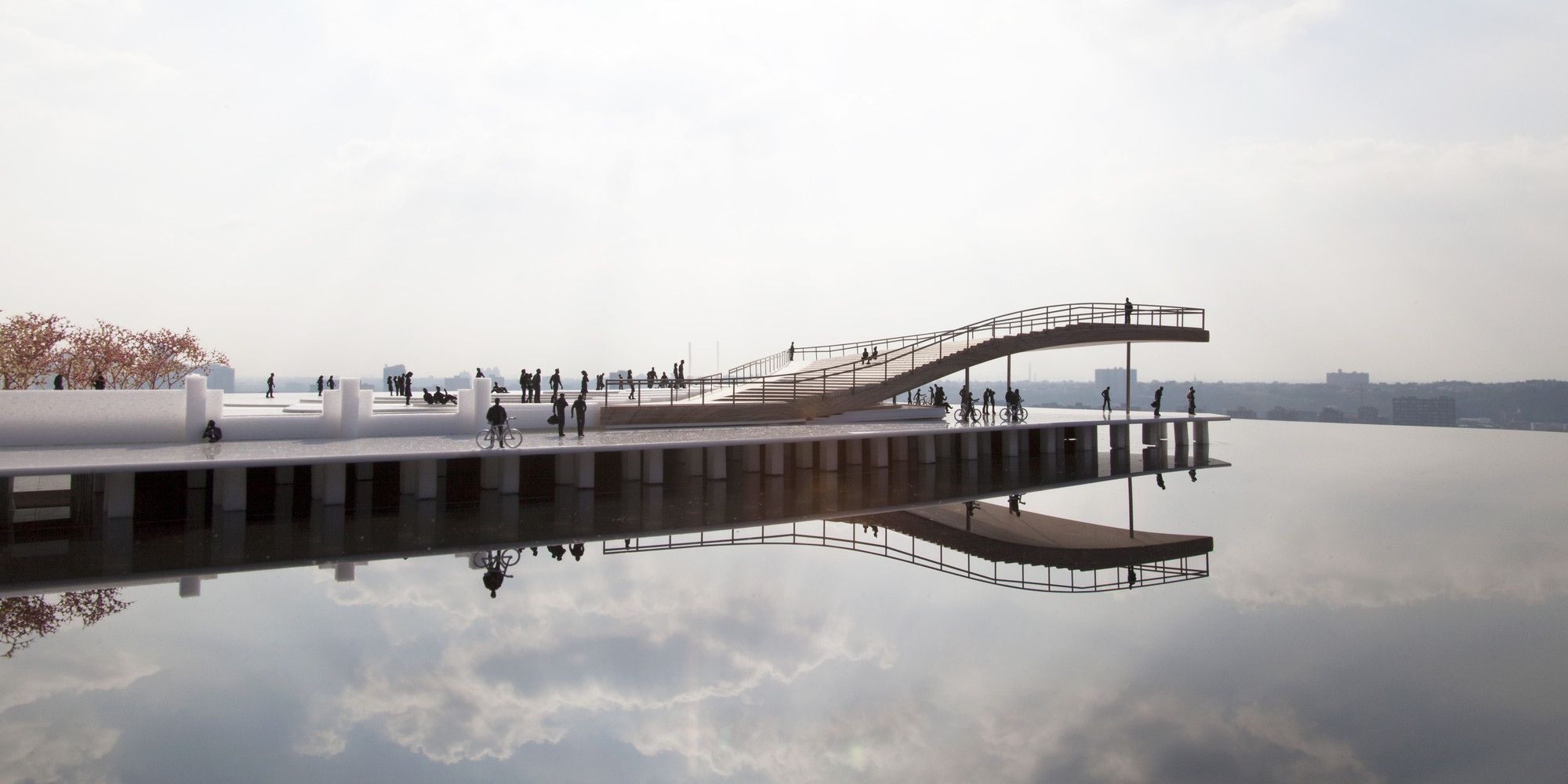

BIG’s proposal for Brooklyn Bridge Park, a project that has revitalized the New York City waterfront, consists of a 6,000 ft2 (560 m2) triangular cross-laminated timber structure, serving both as pavilion and platform. Sloping upwards 17.5 feet (5.3 m) in height from the foot of the large gathering lawn, the platform provides magnificent views of the surrounding harbor, the Statue of Liberty, the Manhattan skyline, and the Brooklyn Bridge.

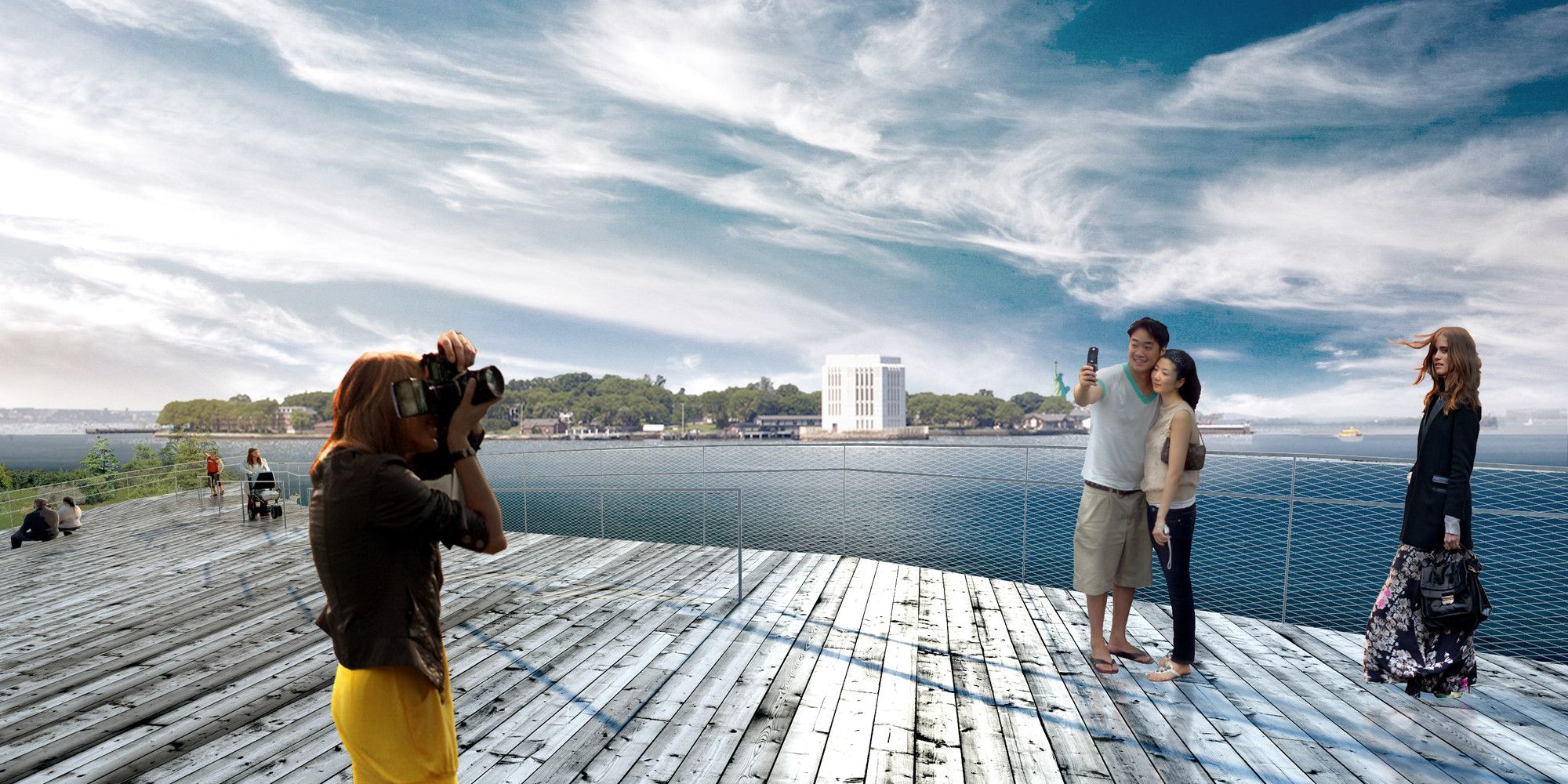

Brooklyn Bridge Park's Pier 6 - Courtesy of BIG

Brooklyn Bridge Park’s Pier 6 – Courtesy of BIG

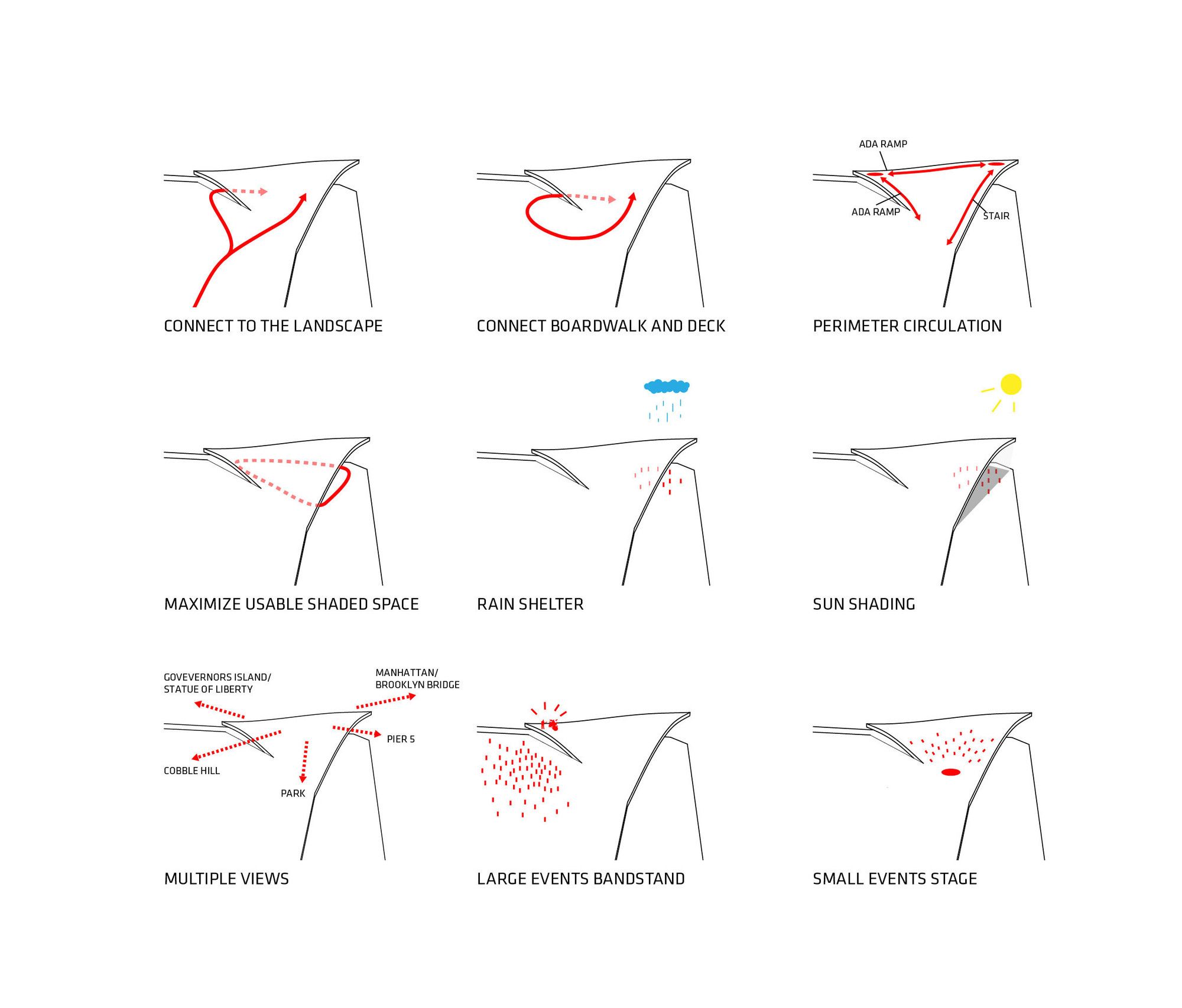

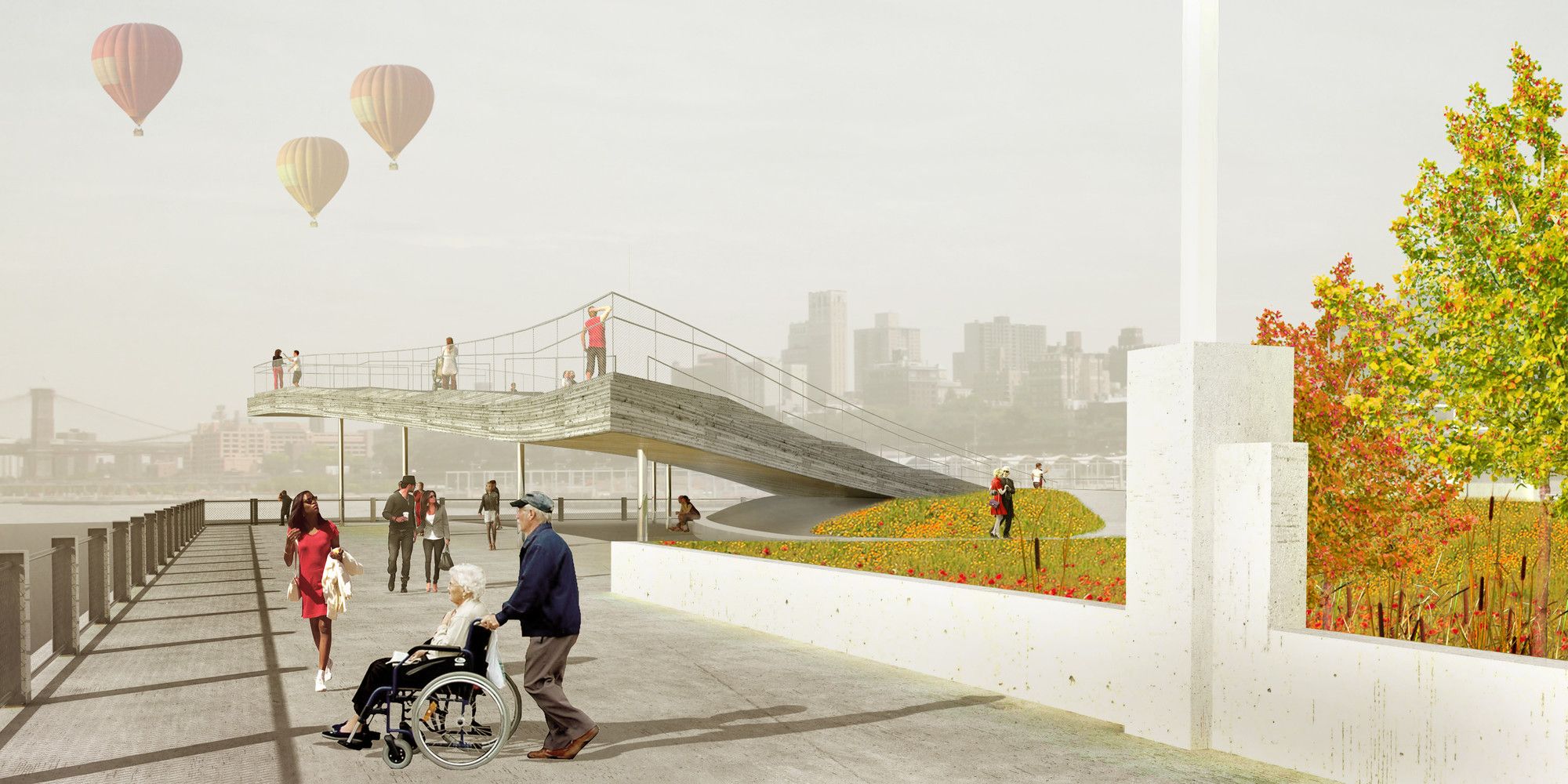

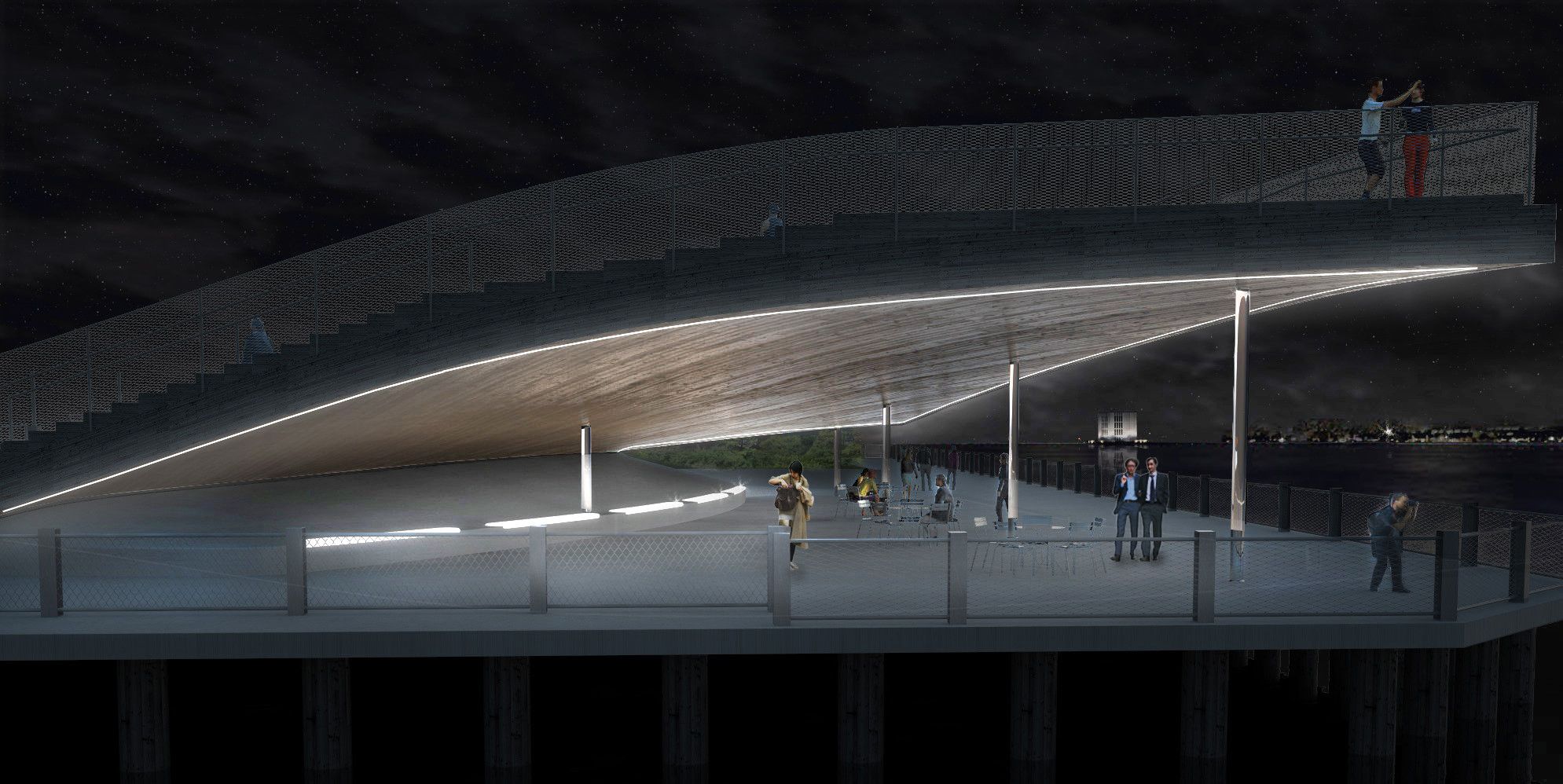

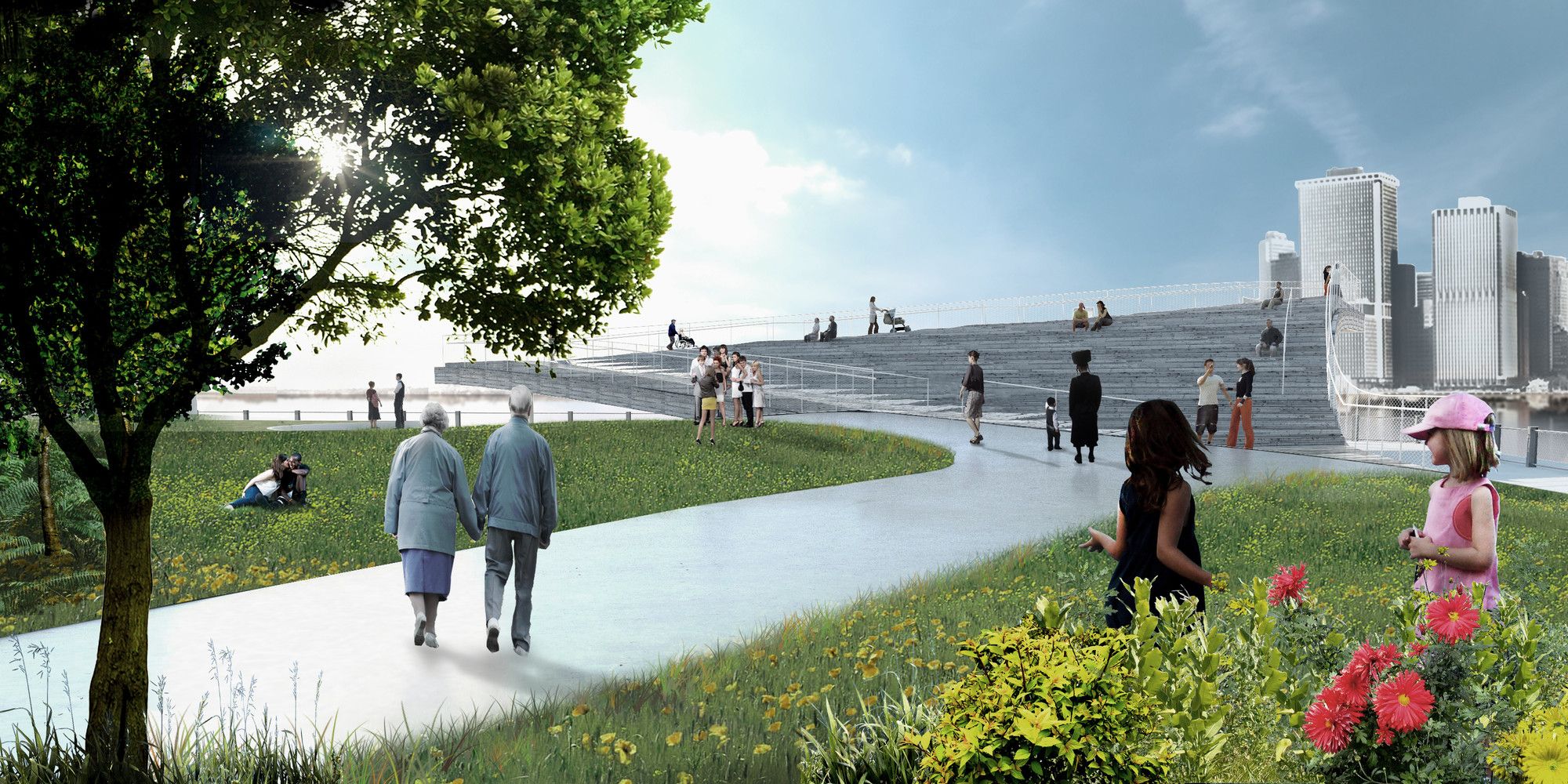

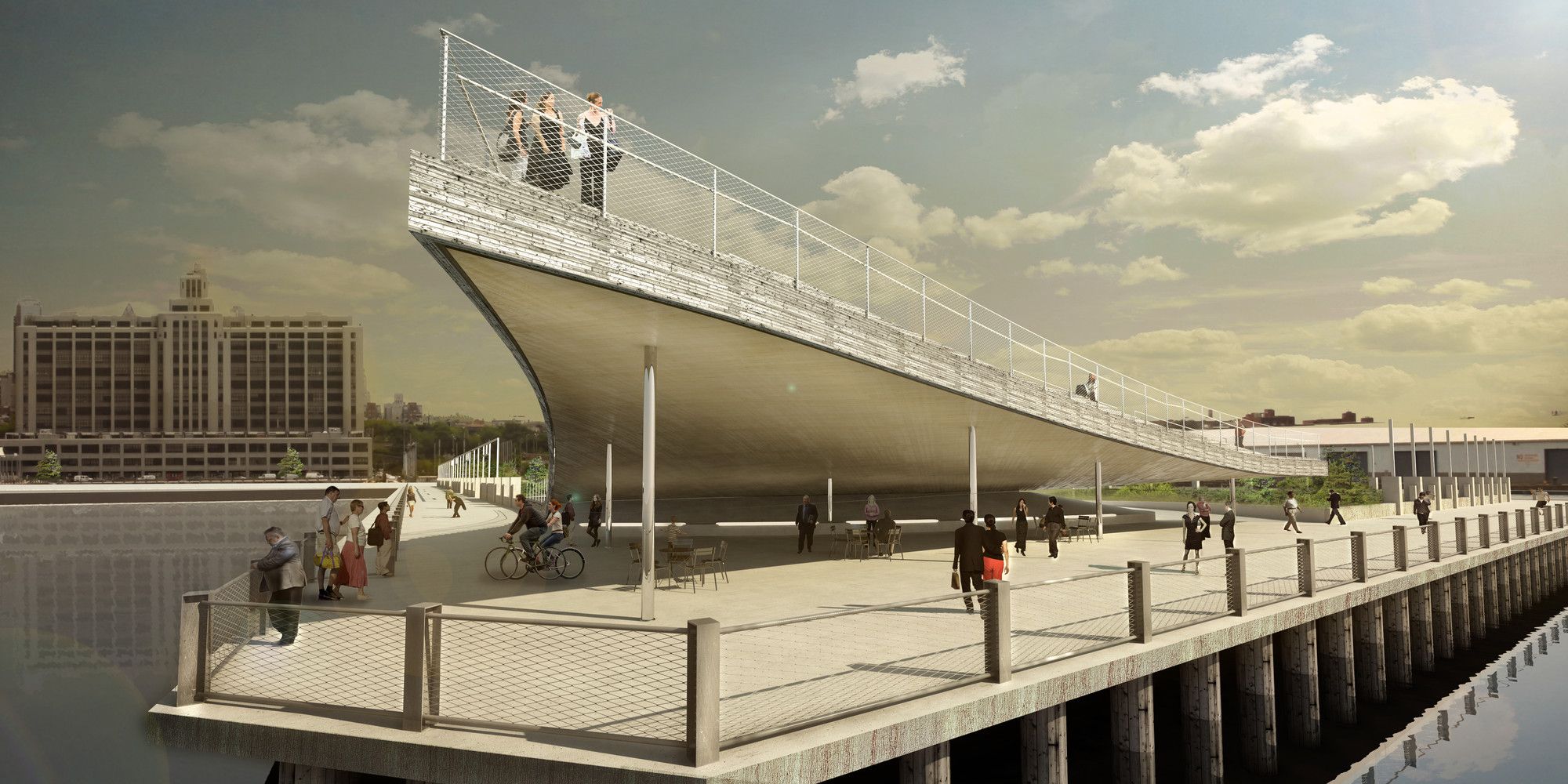

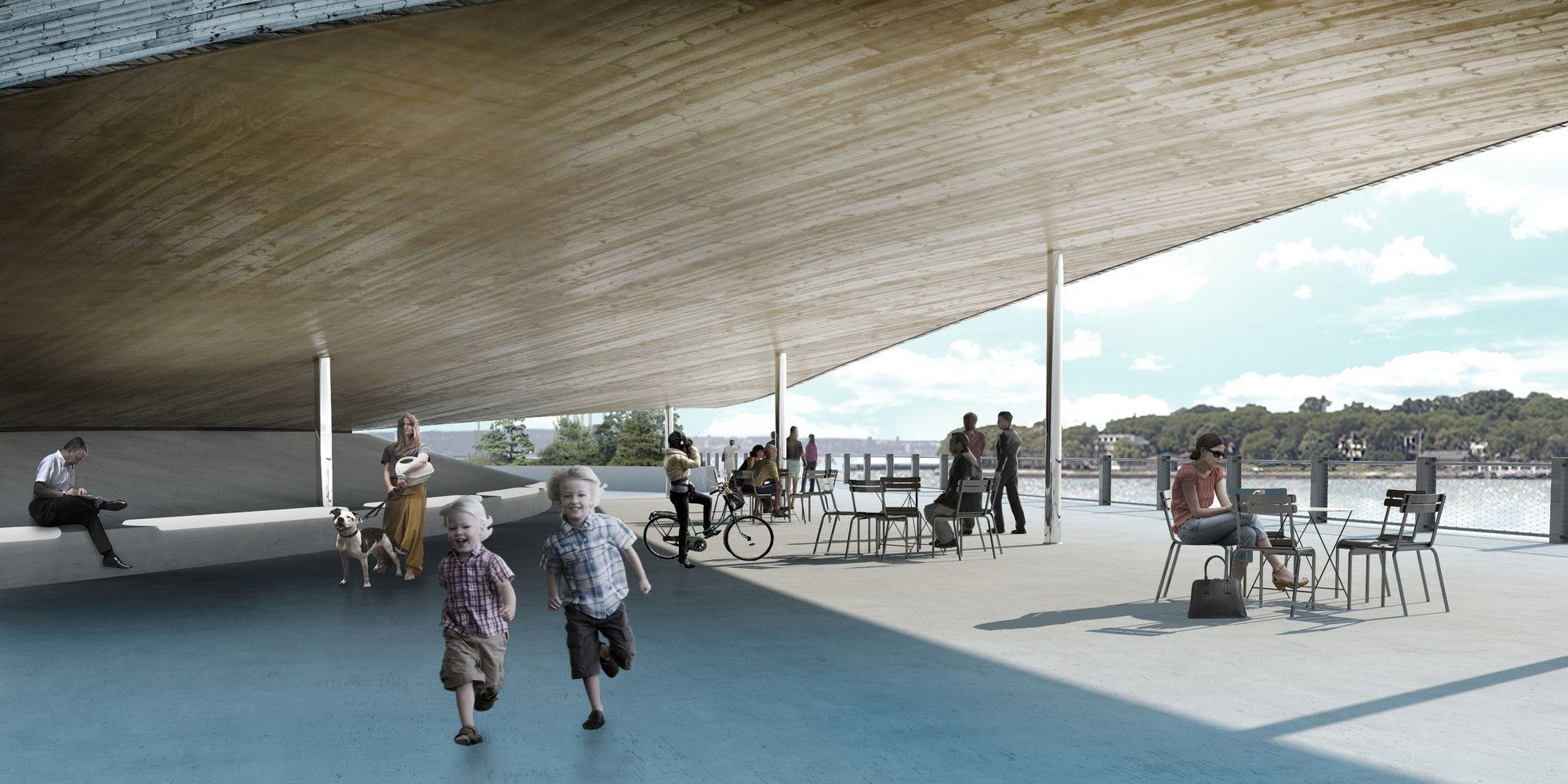

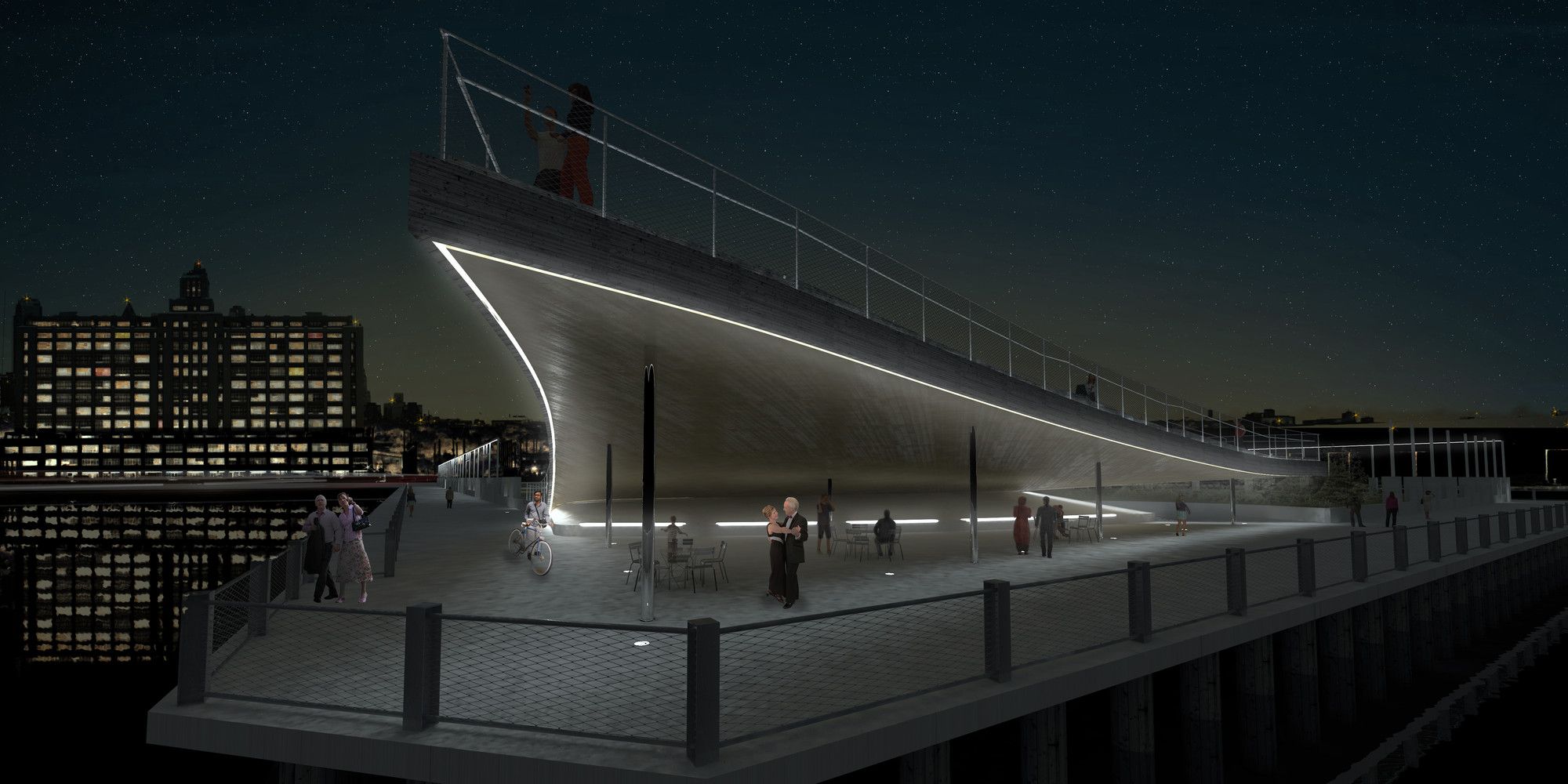

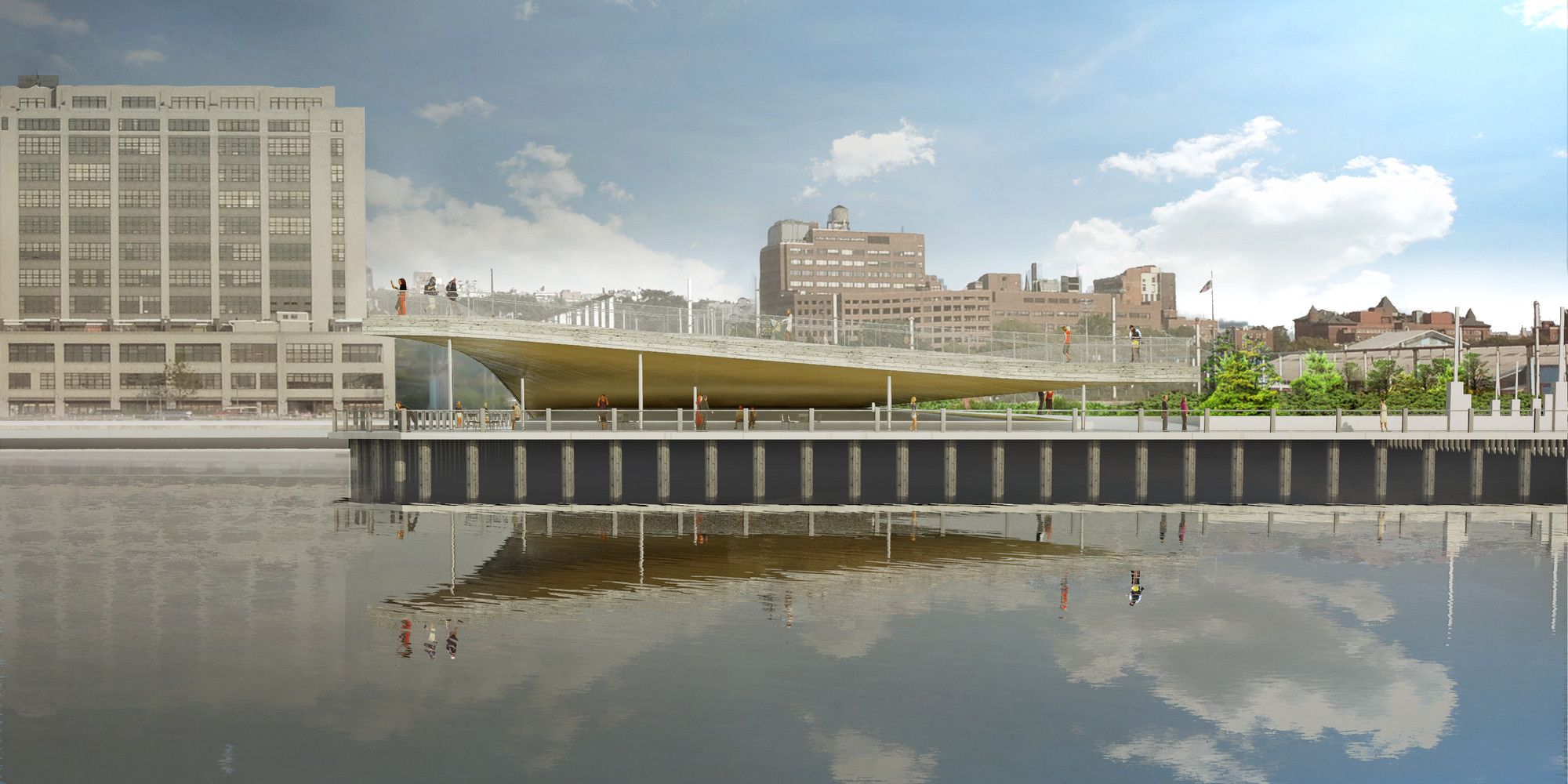

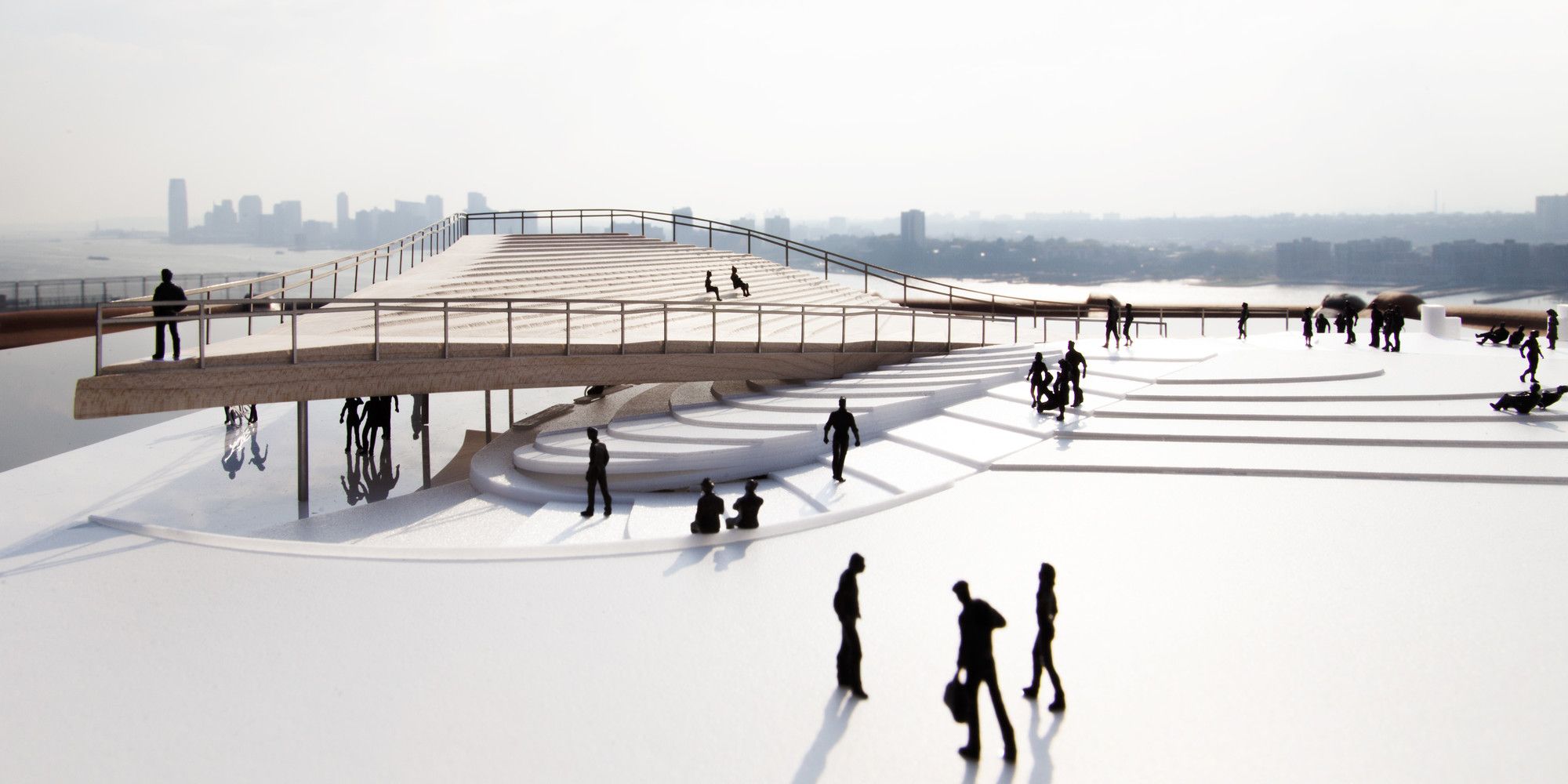

In conjunction with the adjacent greenery, Pier 6 will be dominated by a flower field and treed areas giving the area seasonal displays of color. The surface of terraced stairs, softly illuminated, will allow for large and small events and is fully ADA accessible. The pavilion, supported by thin steel columns, is brightly lit with up-lights and provides shade, shelter and space for indoor activities. Movable site furniture underneath the platform will accommodate a variety of programs, from food carts and picnicking to community events and small performances. Bjarke Ingels comments: “The Mantaray is a small public platform at the end of the pier – equally accessible above and below. Its namesake organic slopes and curves have been shaped by concerns for accessibility, safety, shelter, structure – like a manmade reef evolved to accommodate human life.”

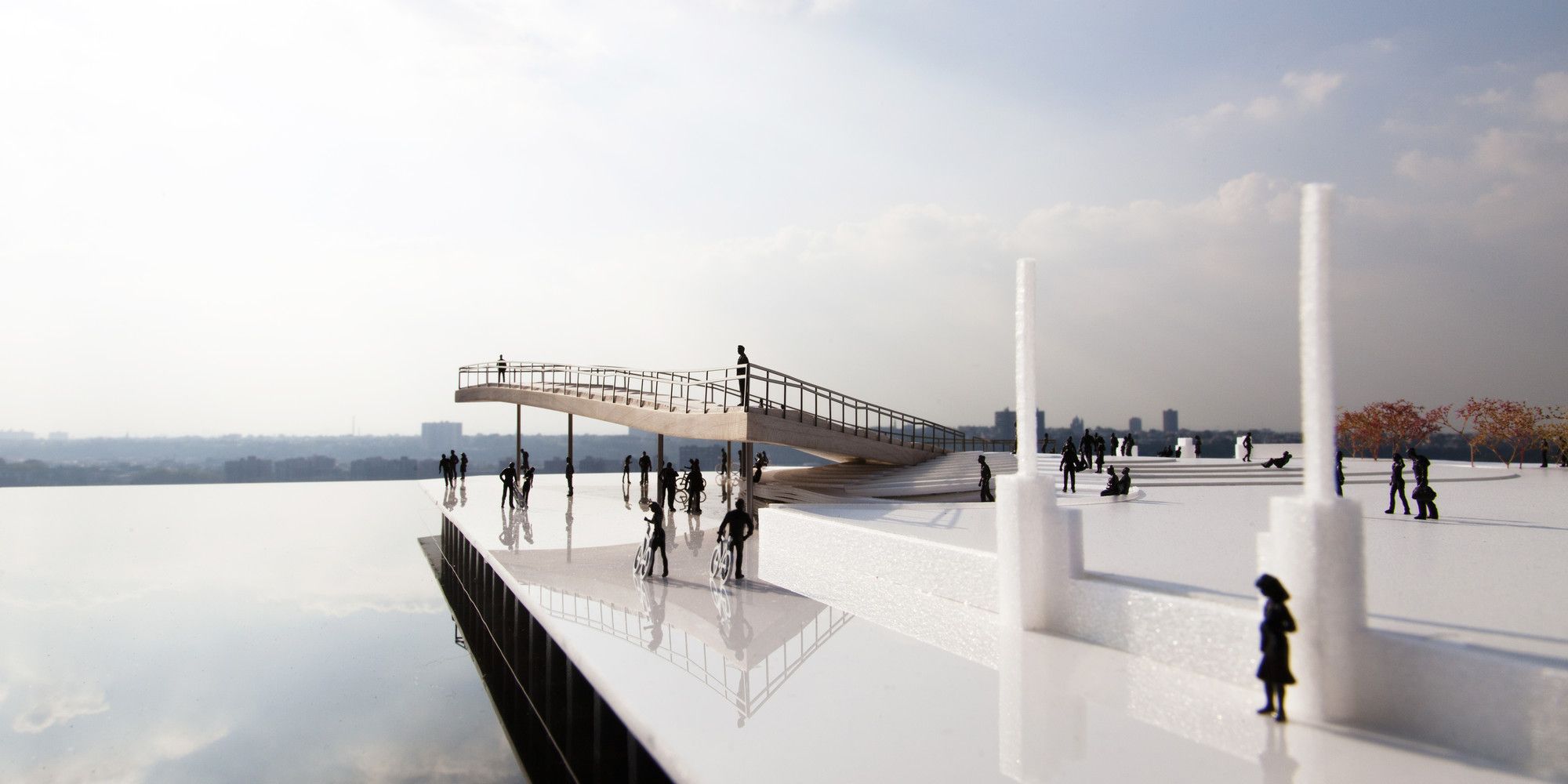

Brooklyn Bridge Park's Pier 6 - Courtesy of BIG

Brooklyn Bridge Park’s Pier 6 – Courtesy of BIG

“This spectacular structure will provide much-needed shade and a unique space for public events, while offering a dramatic ascent to the water’s edge,” said Regina Myer, President of Brooklyn Bridge Park. “We are so pleased with the collaboration between Michael Van Valkenburgh’s landscape design for the southern portion of the park, and Bjarke Ingels’ design for a breathtaking architectural addition that provides a truly special moment on the waterfront.” BIG was selected as winner of the project in Spring 2013. The collaboration between MVVA and BIG has evolved into a fruitful partnership where pavilion and landscape design inform and inspire each other.

Brooklyn Bridge Park's Pier 6 - Courtesy of BIG

Brooklyn Bridge Park’s Pier 6 – Courtesy of BIG

The project won the unanimous approval of the Community Board’s executive committee, as well as from the city’s Public Design Commission. About Pier 6 Pier 6, located at the intersection of Furman Street and Atlantic Avenue, spans over 1.6 acres (6500 m2) and offers a diverse array of amenities, including sand volleyball courts, concessionaires, themed playgrounds, a dog run, plantings, and the seasonal Governor’s Island Ferry connecting Brooklyn and Governors Island.

Project Info.
Project Architects : BIG
Partner In Charge : Bjarke Ingels , Thomas Christoffersen
Project Leader : Iannis Kandyliaris
Project Manager : Martin Voelkle
Project Team :  Ho Kyung Lee, David Spittler, Dennis Harvey, Isshin Morimoto
Collaborators : Michael Van Valkenburgh Associates (Landscape Design), Knippers Helbig (Structure), Tilotson Design Associates (Lighting Design), AltieriSeborWieber (MEP), Pantocraft (Code), Formactiv (Expediter)
Location : New York
Project Type : Parks, Public Gardens
Year : 2013
Status : Unrealised proposals
Photographs : Courtesy of BIG
