Beijing Greenland Center

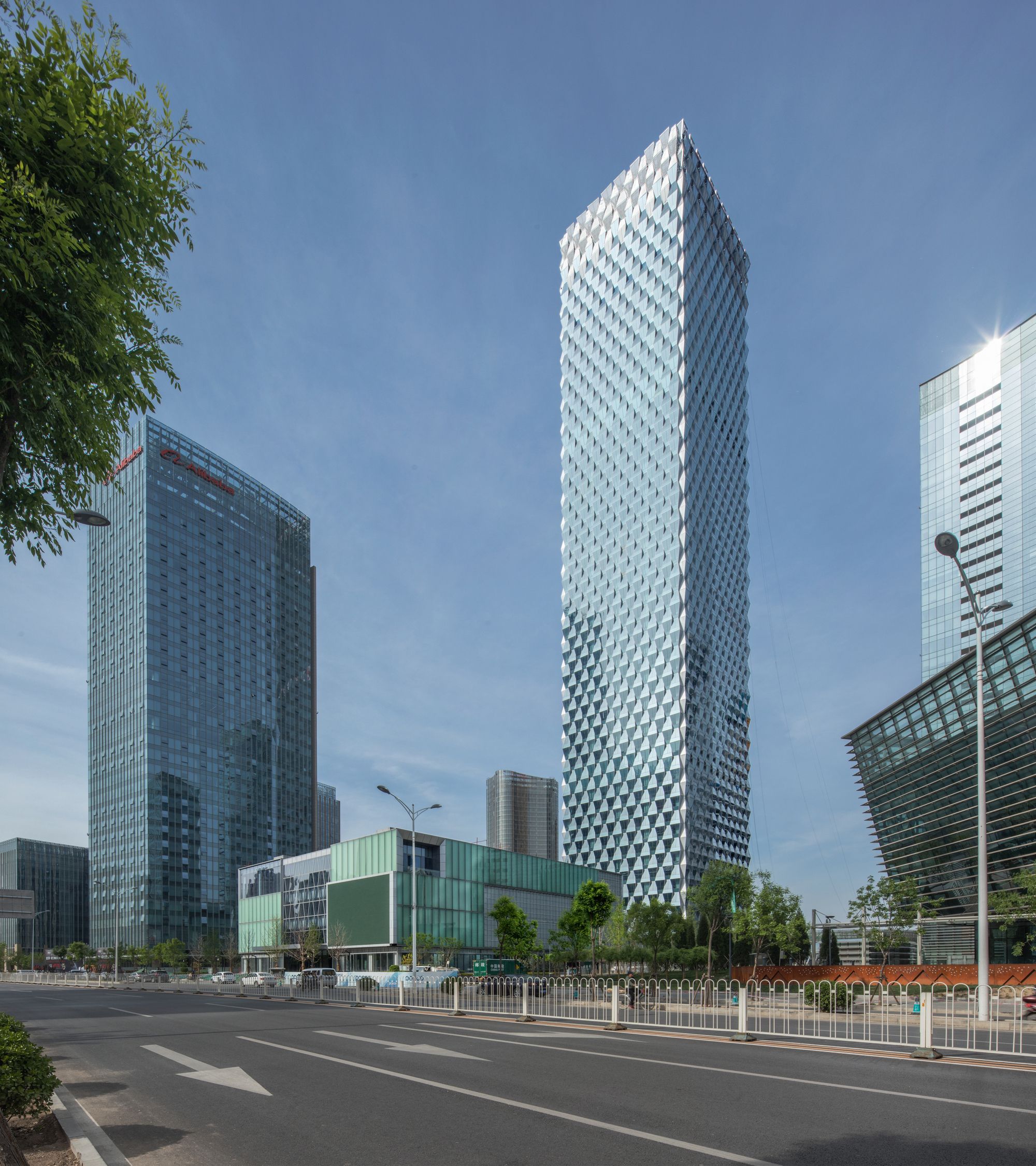

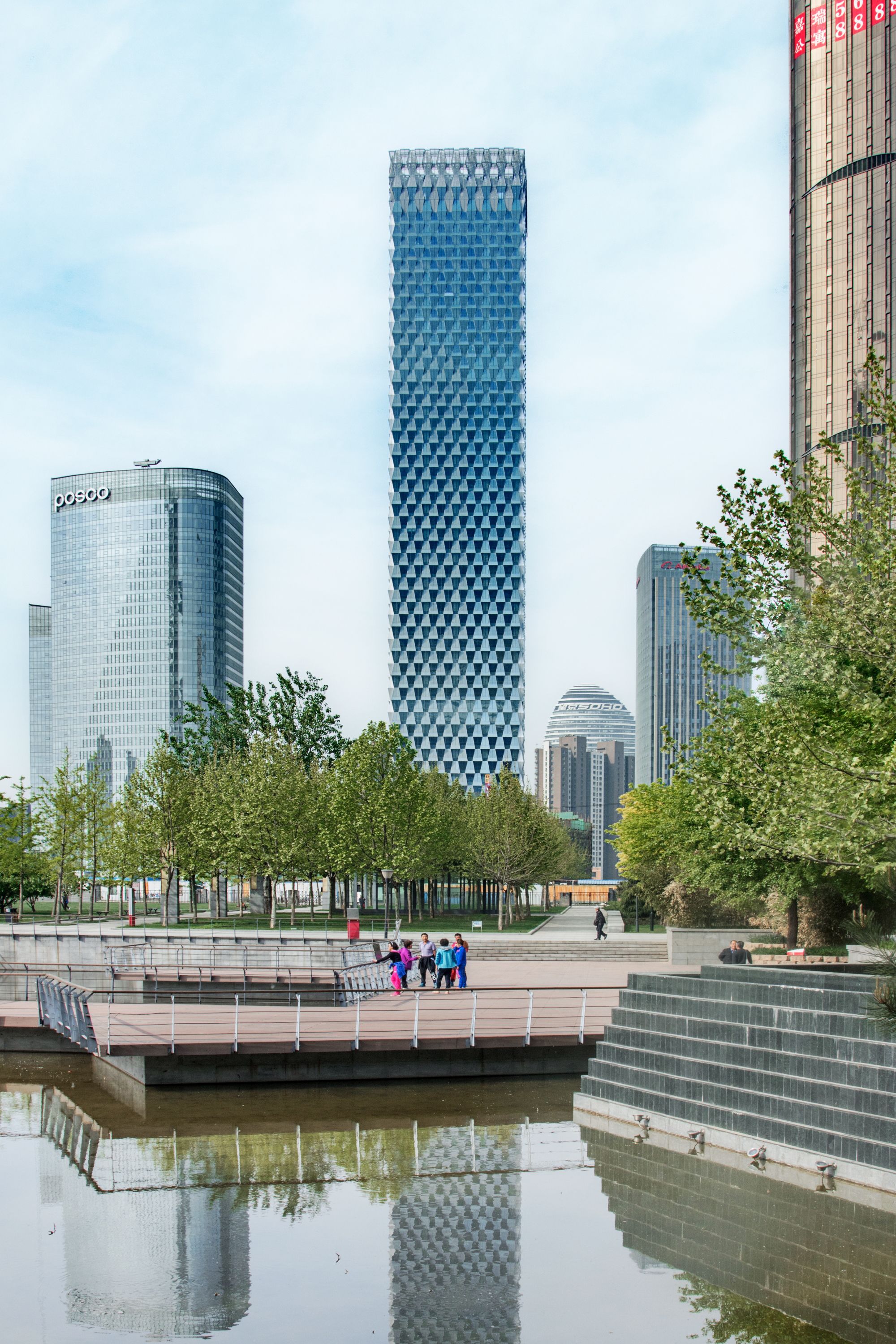

Anchoring Beijing’s Dawangjing business district, the mixed-use Beijing Greenland Center is a highly sustainable landmark building equidistant from Beijing’s bustling core and the airport. The 260-meter-tall, 55-story tower prioritizes sustainability and efficiency and is clad in a prismatic trapezoidal glass facade that generates self- shading to enhance the building’s environmental performance.

Beijing Greenland Center - Courtesy of SOM

Beijing Greenland Center – Courtesy of SOM

The design team sought to create an elegant, eye-catching tower by exploring interactions between simple form, light, and shadow. In a response to Beijing’s overcast skies, the tower catches and reflects daylight to enliven the surrounding neighborhood. The tower accommodates multiple programs and connects to an attached multi-story retail podium.

Beijing Greenland Center - Courtesy of SOM

Beijing Greenland Center – Courtesy of SOM

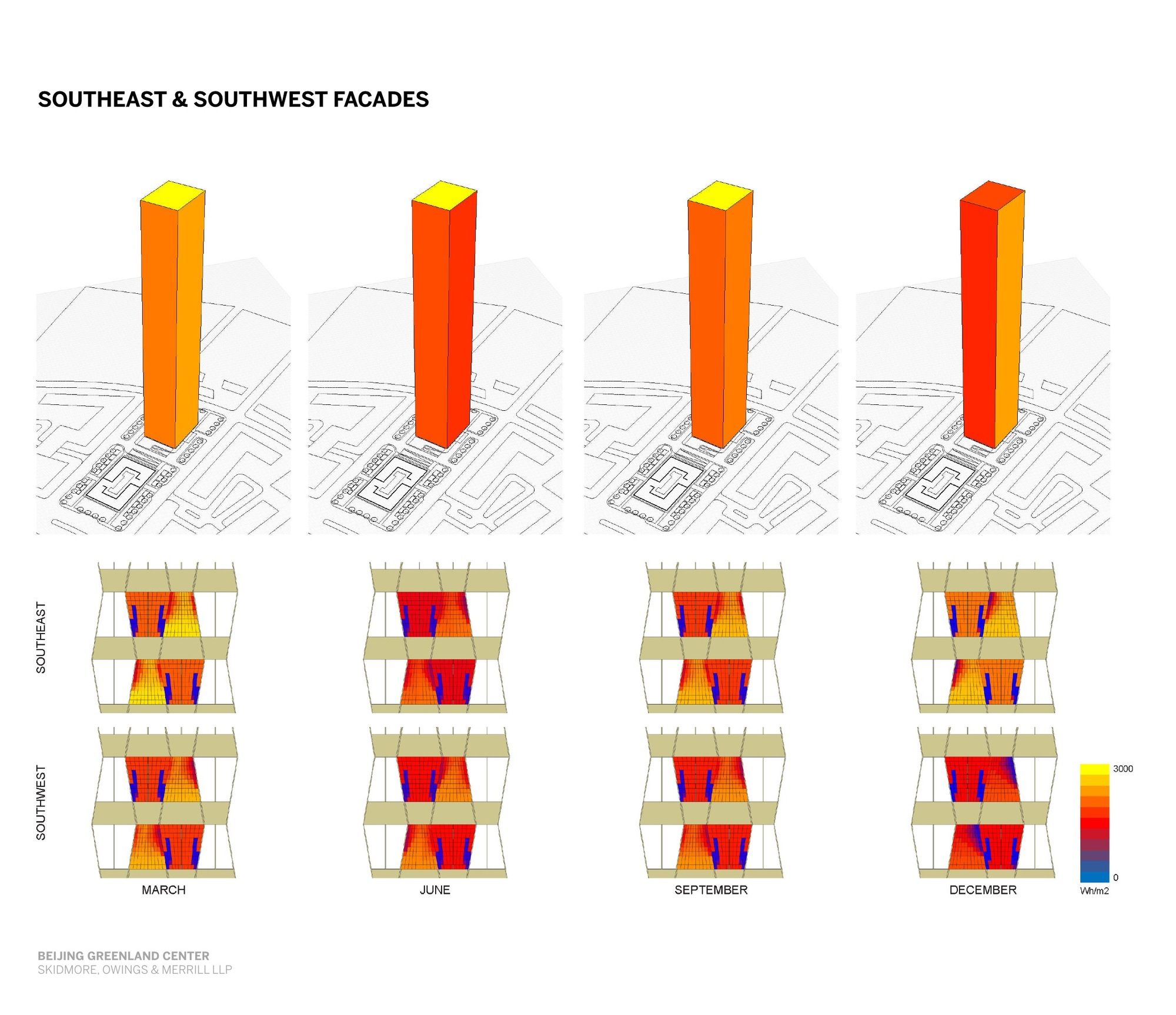

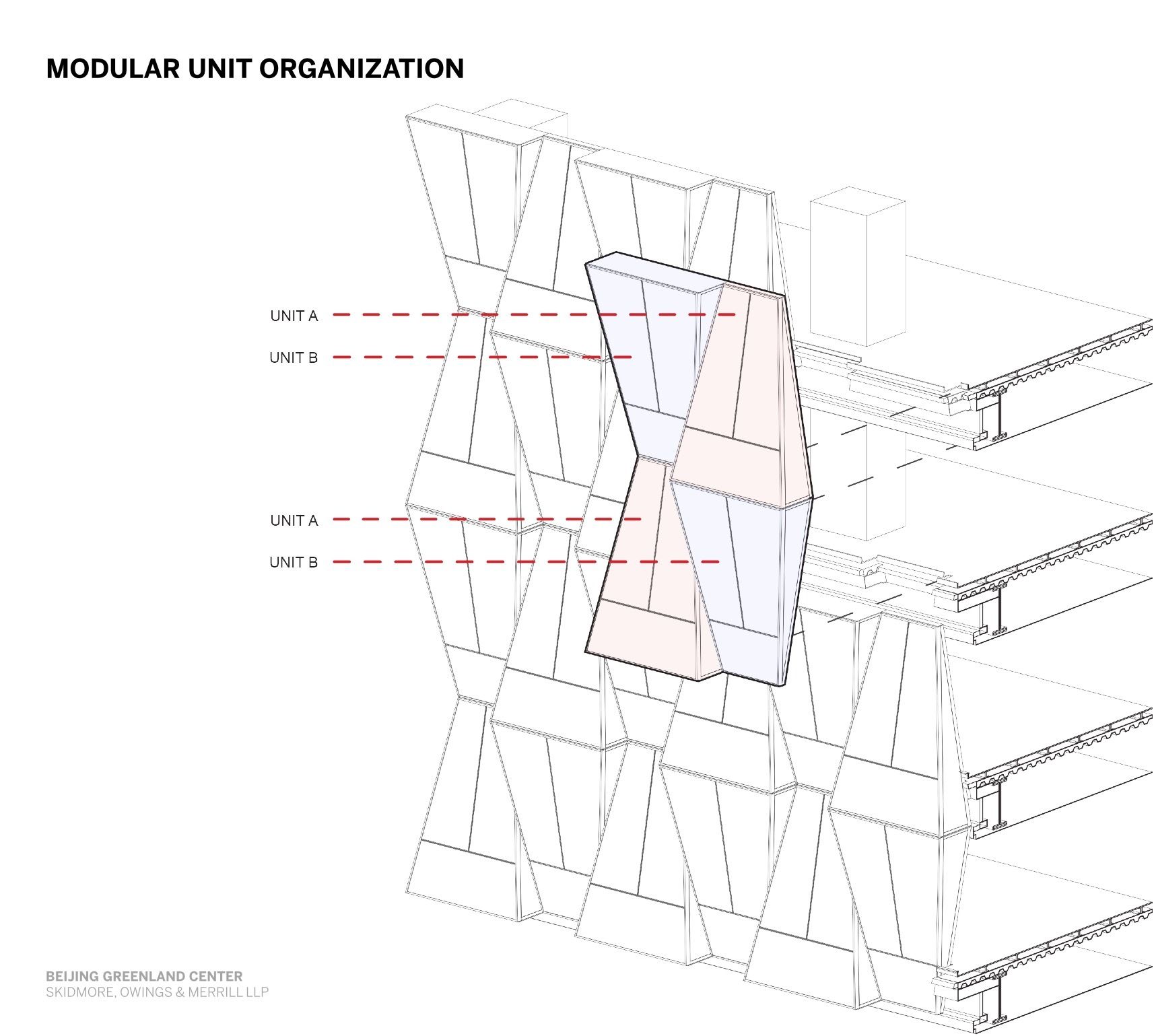

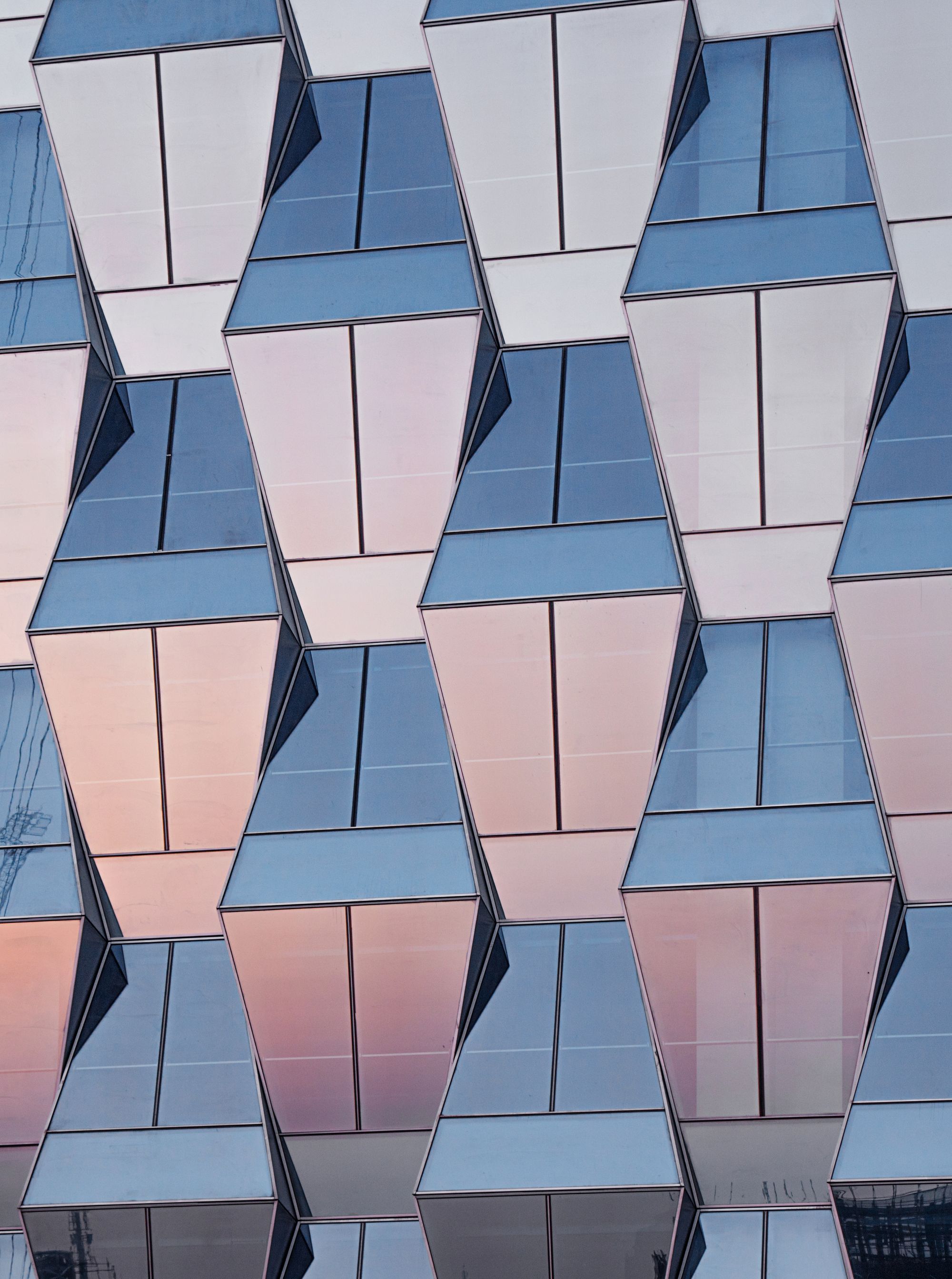

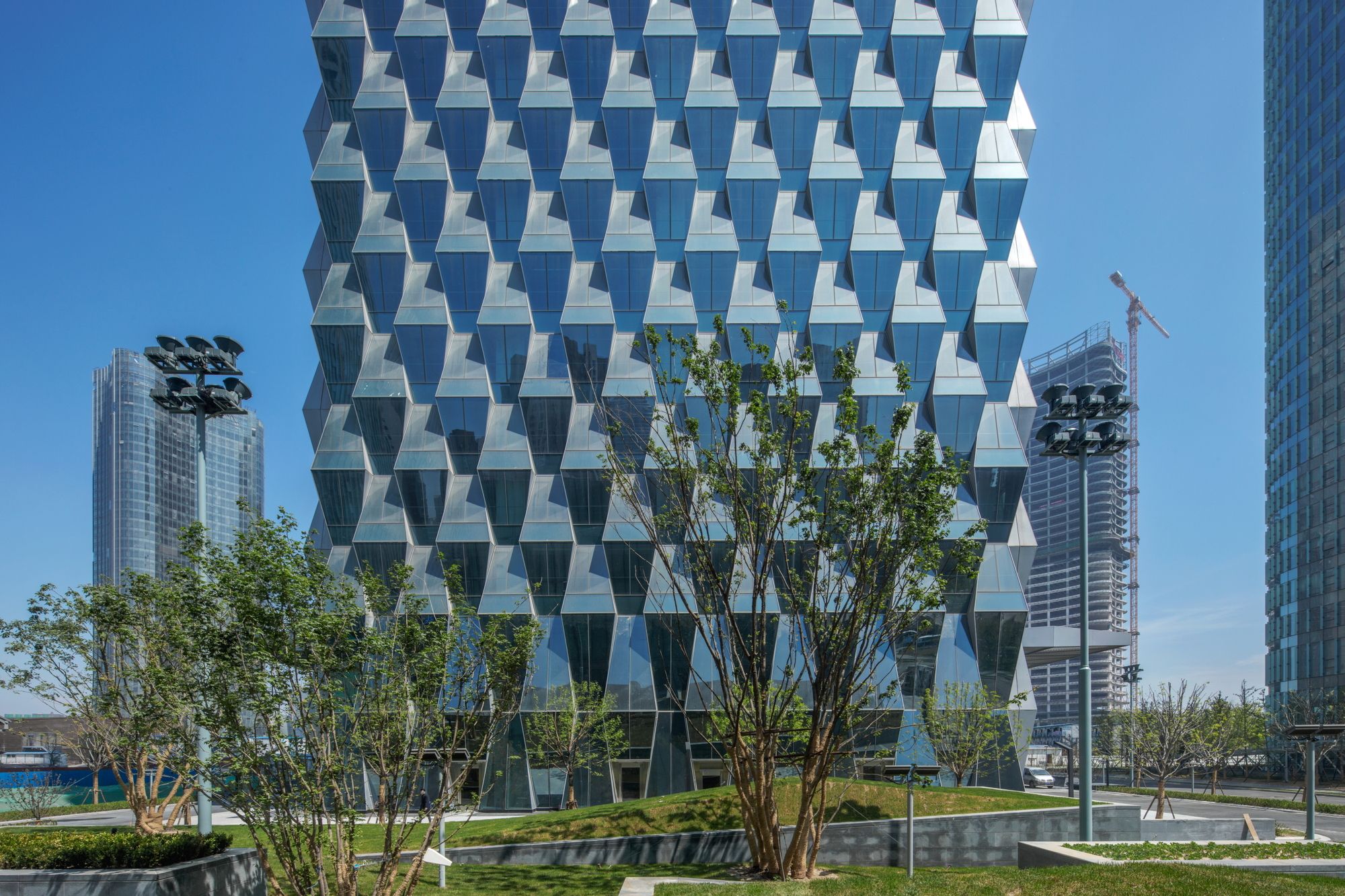

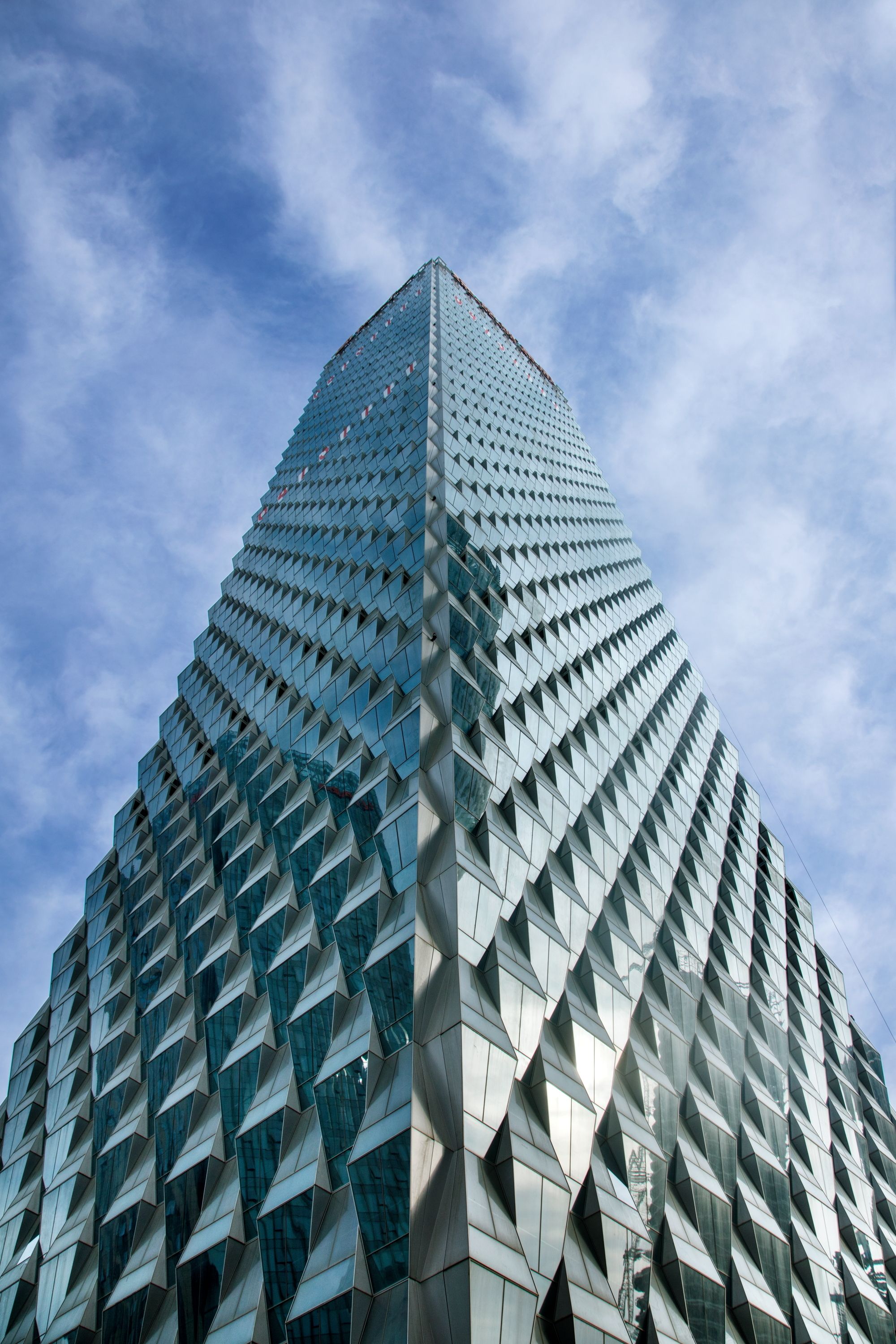

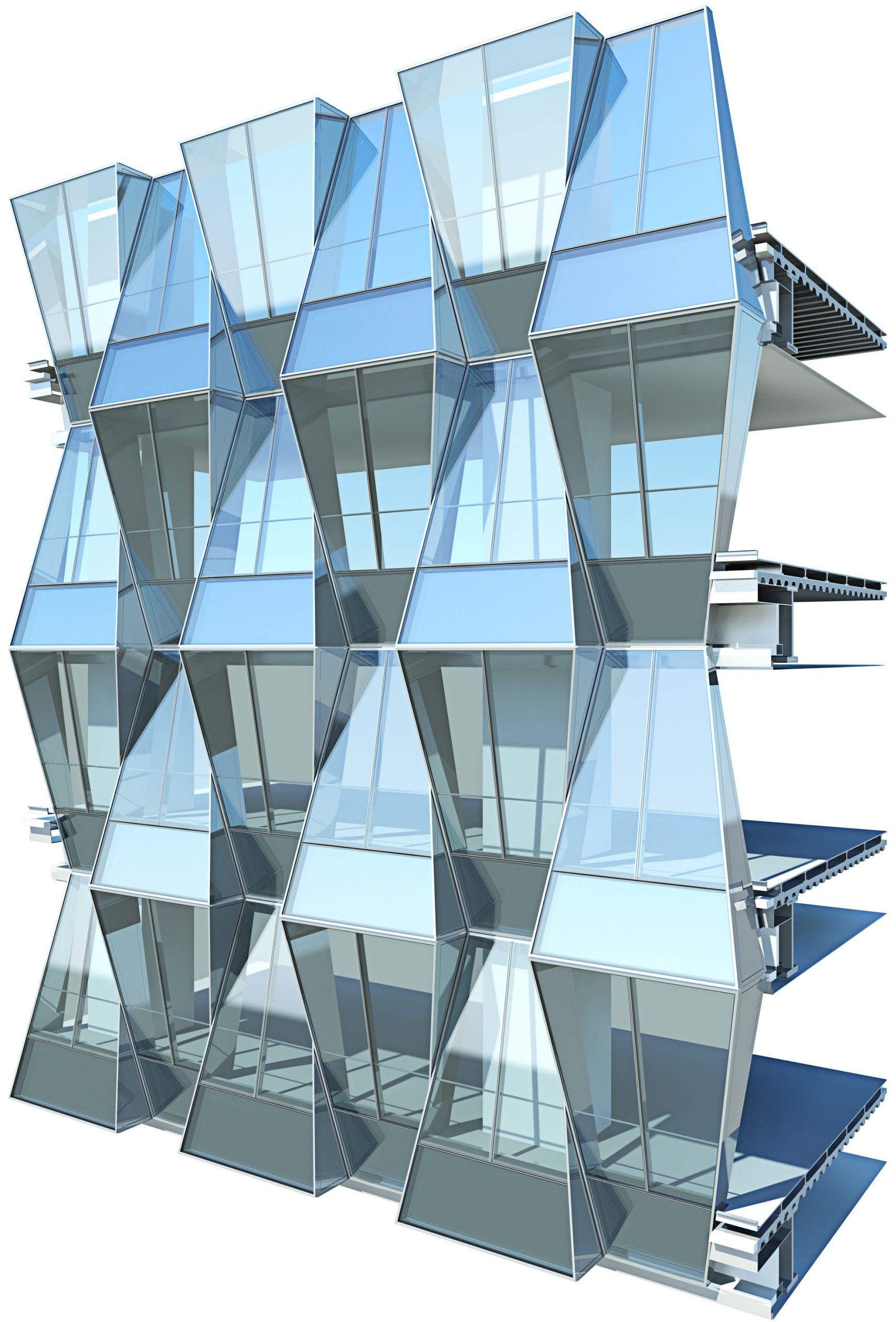

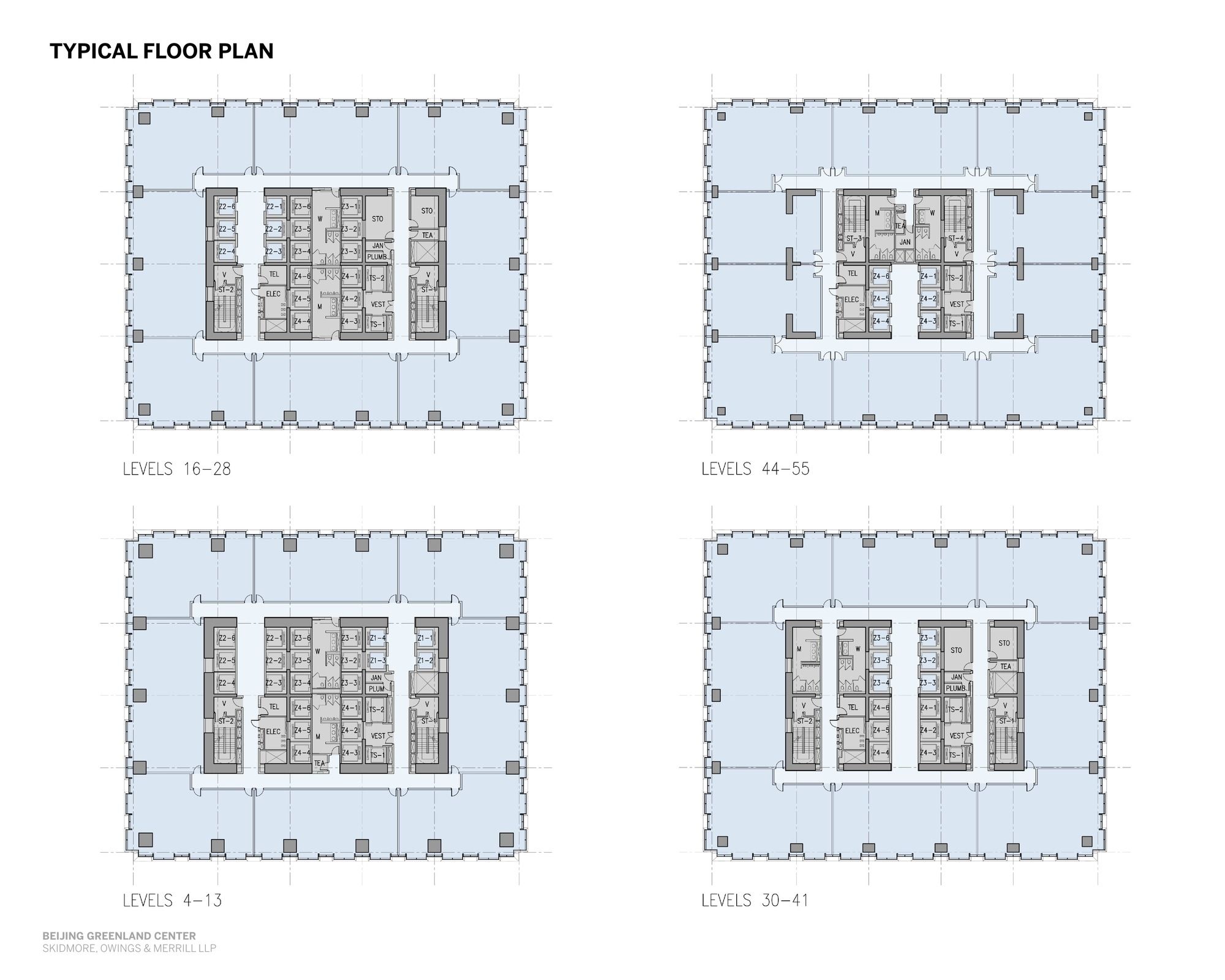

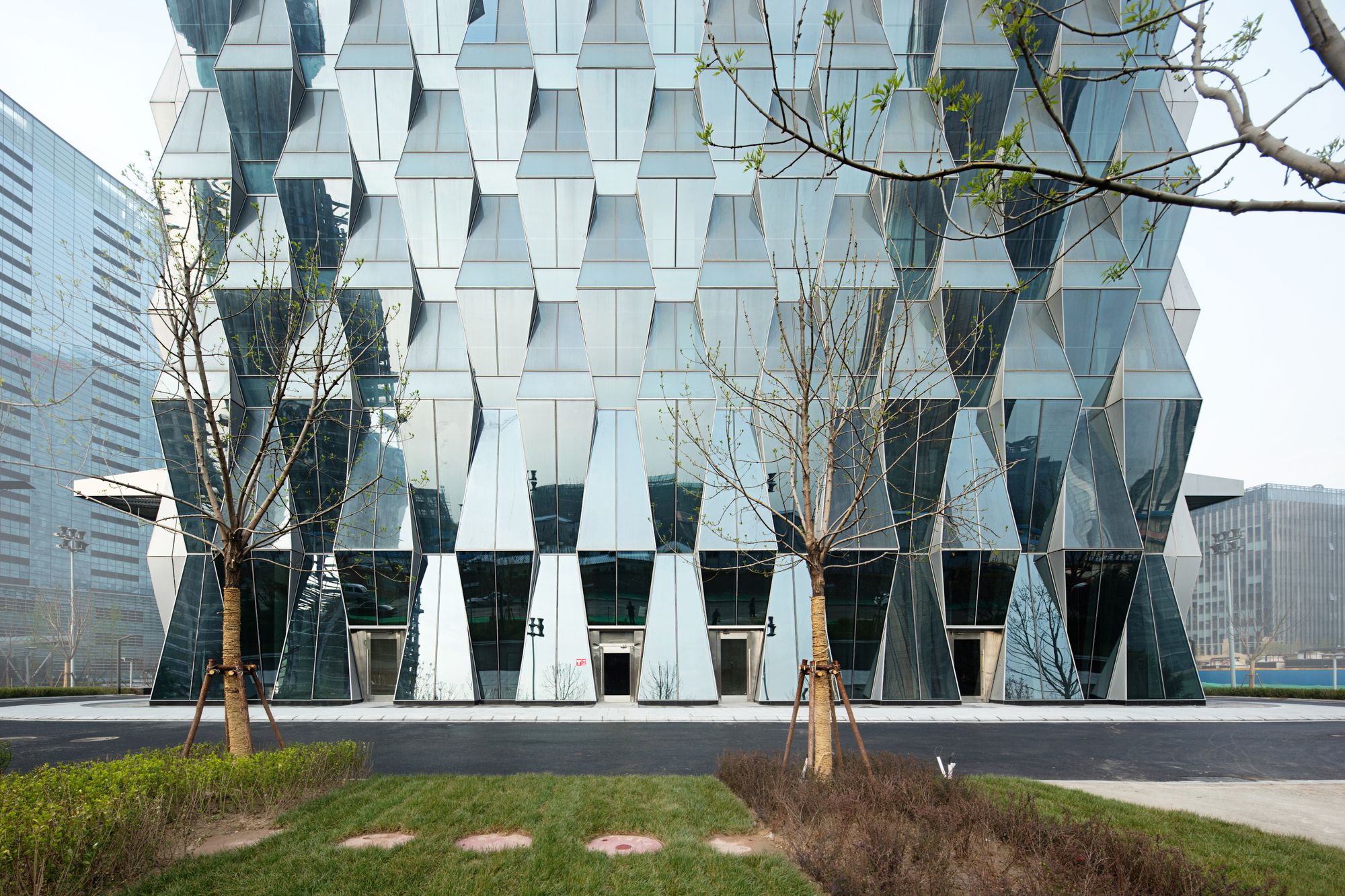

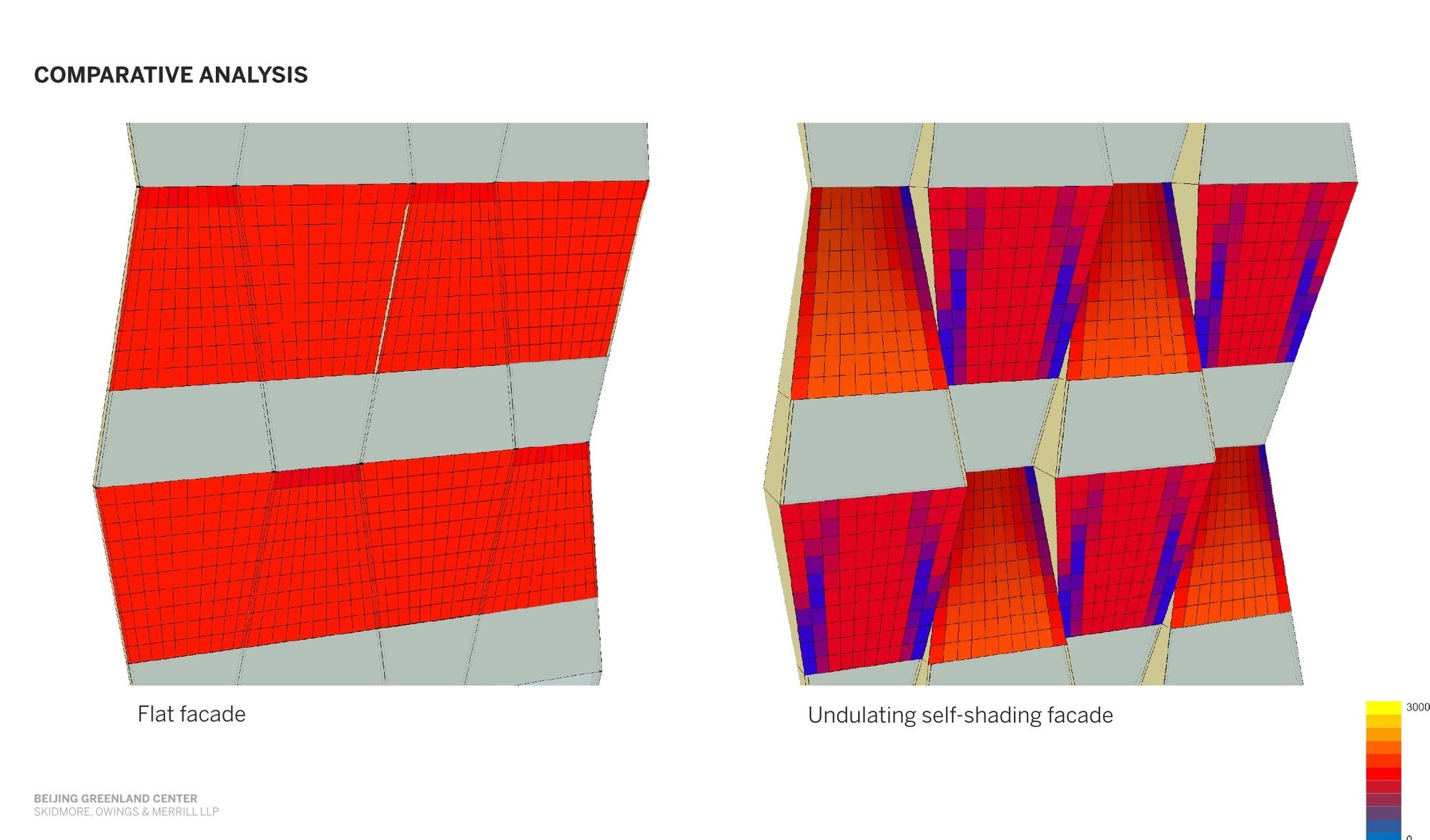

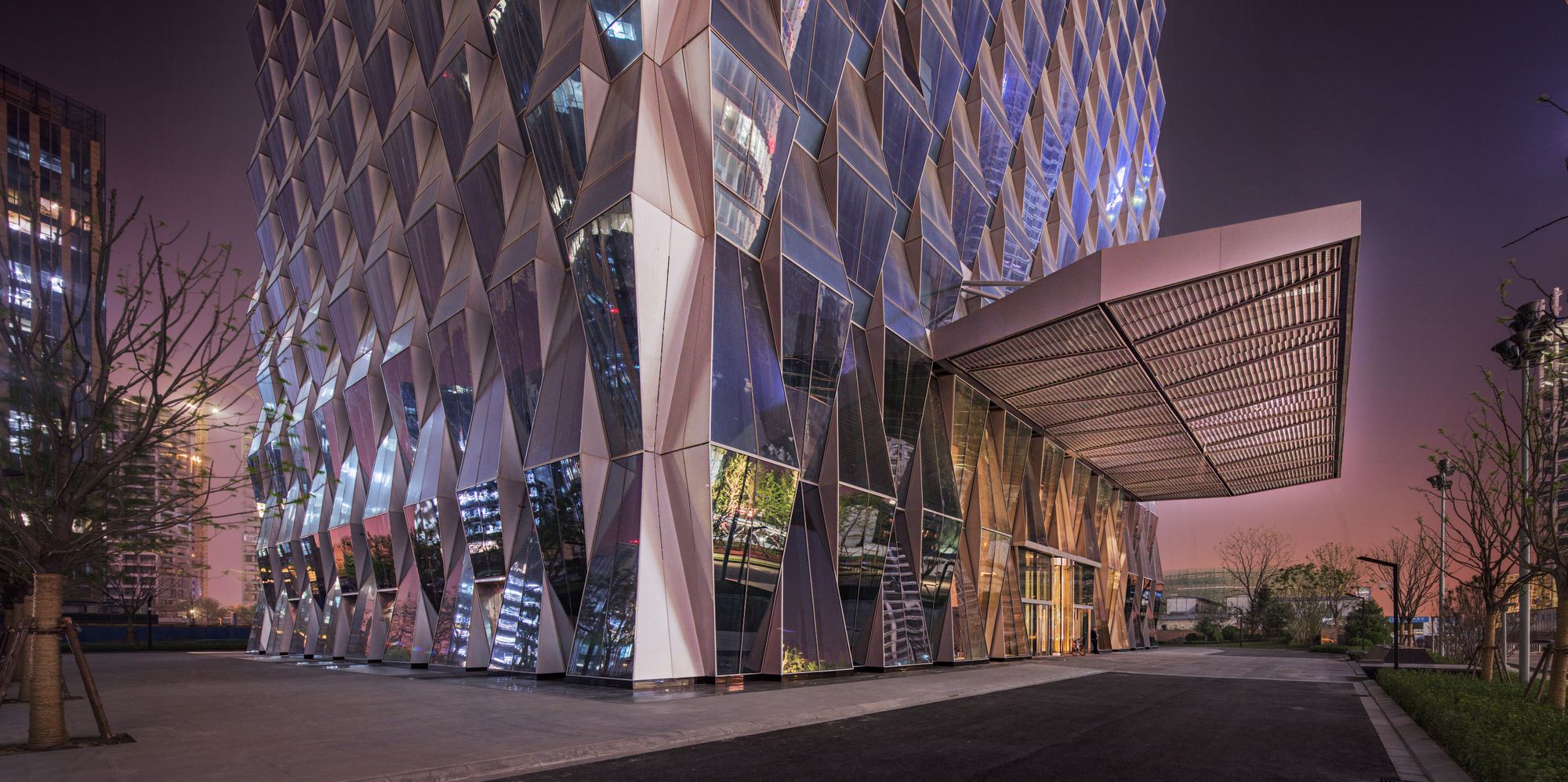

The tower stacks 178 serviced apartments on top of four zones, organized around a simple rectangular plan with a central core to maximize flexibility. The tower’s striking facade pattern is informed by the bas-relief carving technique: Isosceles trapezoidal modules function as prisms, catching daylight and refracting it to create an interplay of light and shadow. Each face is composed of two vertical, low-E insulated vision glass panels. Two trapezoid types alternate in a regular pattern up the tower’s height, tapering toward the sky or the neighborhood below. The trapezoidal skin increases the building’s performance, providing energy-saving self-shading on all faces.

Beijing Greenland Center - Courtesy of SOM

Beijing Greenland Center – Courtesy of SOM

The design aims to achieve a 30% reduction in energy use and water consumption compared to baseline by utilizing sustainable features such as a Direct Digital Control building automation system, a heat reclaim wheel, variable speed pumps for heating and cooling, and a water-side economizer to utilize evaporative cooling. Addressing a need for environmentally responsible, mixed-use urban development, Beijing Greenland Center is a highly visible example of how visually striking design can also be highly flexible and sustainable.

arch2o-beijing-greenland-center-som-03

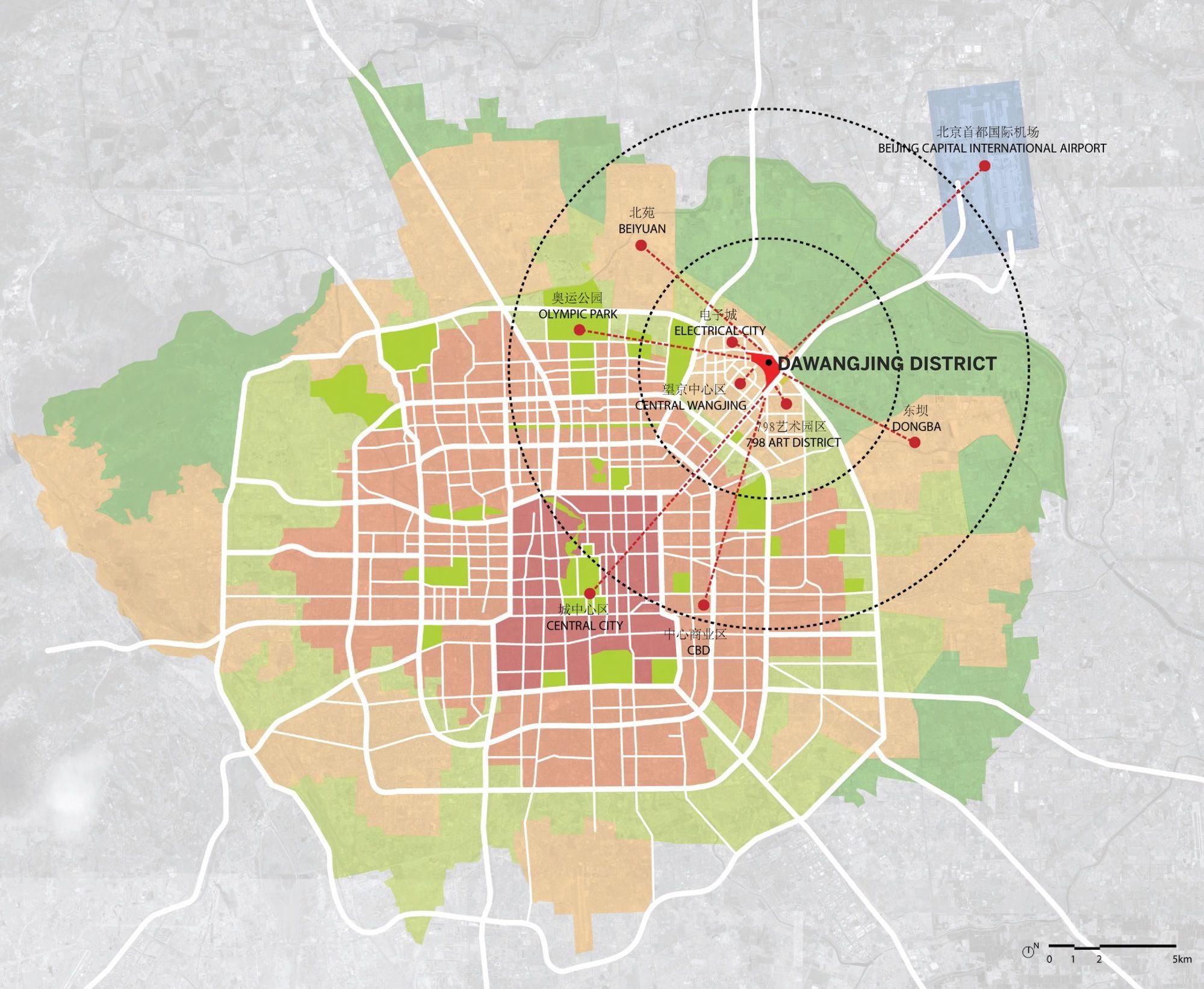

Beijing Dawangjing is a new neighborhood located on Beijing’s northeast side, halfway between the city’s historic core and Beijing Capital International Airport. The mixed-use development was master planned by SOM to be a walkable, green district that prioritizes quality of life and responsible use of natural resources. Adjacent to the Capital-Airport Freeway and the 5th Ring Road and near the M15 metro, Dawangjing seamlessly integrates with the built environment in Beijing’s Wangjing area and brings new green space, cultural and civic venues, and residential, retail to the growing Beijing neighborhood. Several SOM-designed towers, including the Beijing Greenland Center and a cluster of three towers at Poly International Plaza, anchor the district.

Beijing Greenland Center - Courtesy of Lv Hengzhong

Beijing Greenland Center – Courtesy of Lv Hengzhong

The master plan establishes principles and guidelines for the Dawangjing neighborhood that reduce environmental impact and make walking and bicycling safer and more compelling. A new park is the area’s centerpiece and incorporates destination amenities like cafes and recreation facilities to encourage interaction and a sense of community. Streets are designed to be as verdant and welcoming as the park, with bike lanes and sidewalks set alongside green features such as bioswales. Strategies for the massing of buildings emphasize the human scale, and design guidelines recommend the creation of timeless buildings with modulated facades—a long-term approach that focuses on design and planning principles that will endure.

Beijing Greenland Center - Courtesy of Lv Hengzhong

Beijing Greenland Center – Courtesy of Lv Hengzhong

Project Info.
Architects : SOM
Location : Beijing, China
Site Area : 14,672 m2
Project Area : 172,734 m2
Year : 2016
Type : Office/ Mixed Use/ Residential
Photographs : Lv Hengzhong
