Basket Apartments

The project is located on a long and very narrow site, on the edge of Parc La Vilette in Paris’s 19th district, within an urban development done by Reichen & Robert architects. On the northeast, new Paris tram route is passing along the site. The site is bordering with tram garage on the southwest, above which is a football field. The first 3 floors of the housing will inevitably share the wall with the tram garage.

Courtesy of OFIS architects

The parcel has a very particular configuration; 11m in width and extending approximately 200m north-south. This foreshadows the importance of processing the eastern facade overlooking the extension of the street Des Petits Ponts which hosts the tram and both cyclist and pedestrian walkways.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

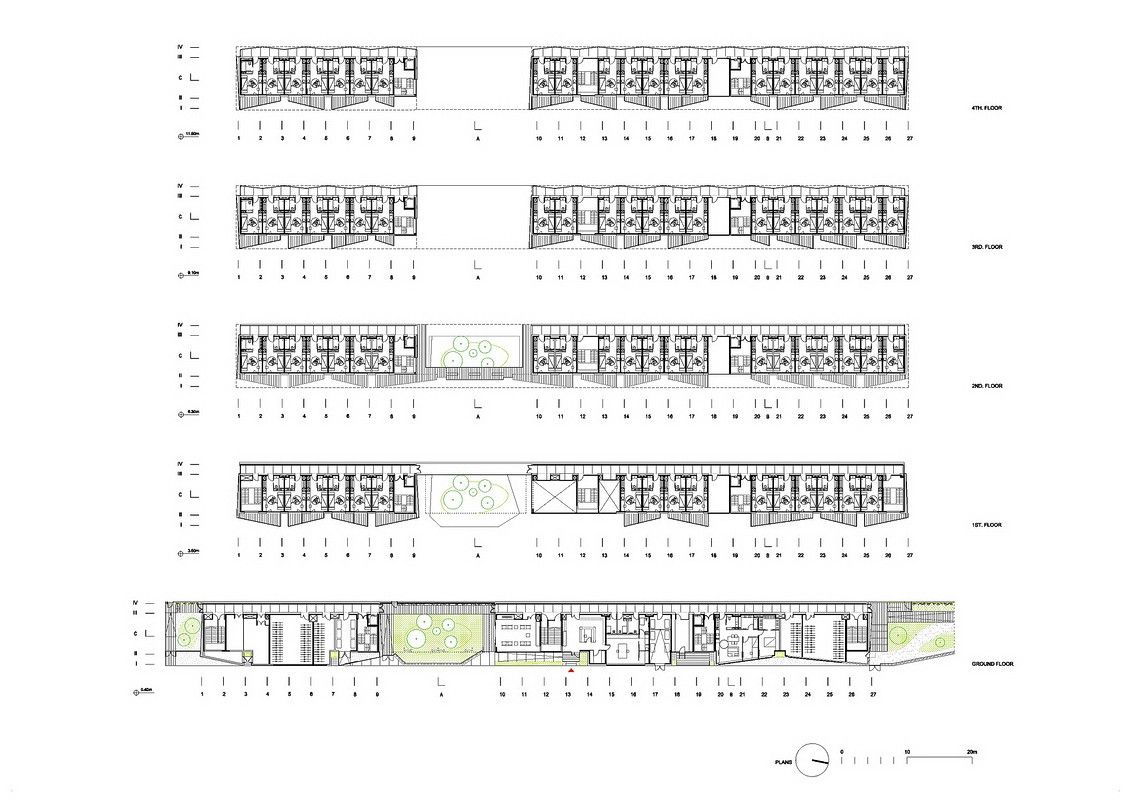

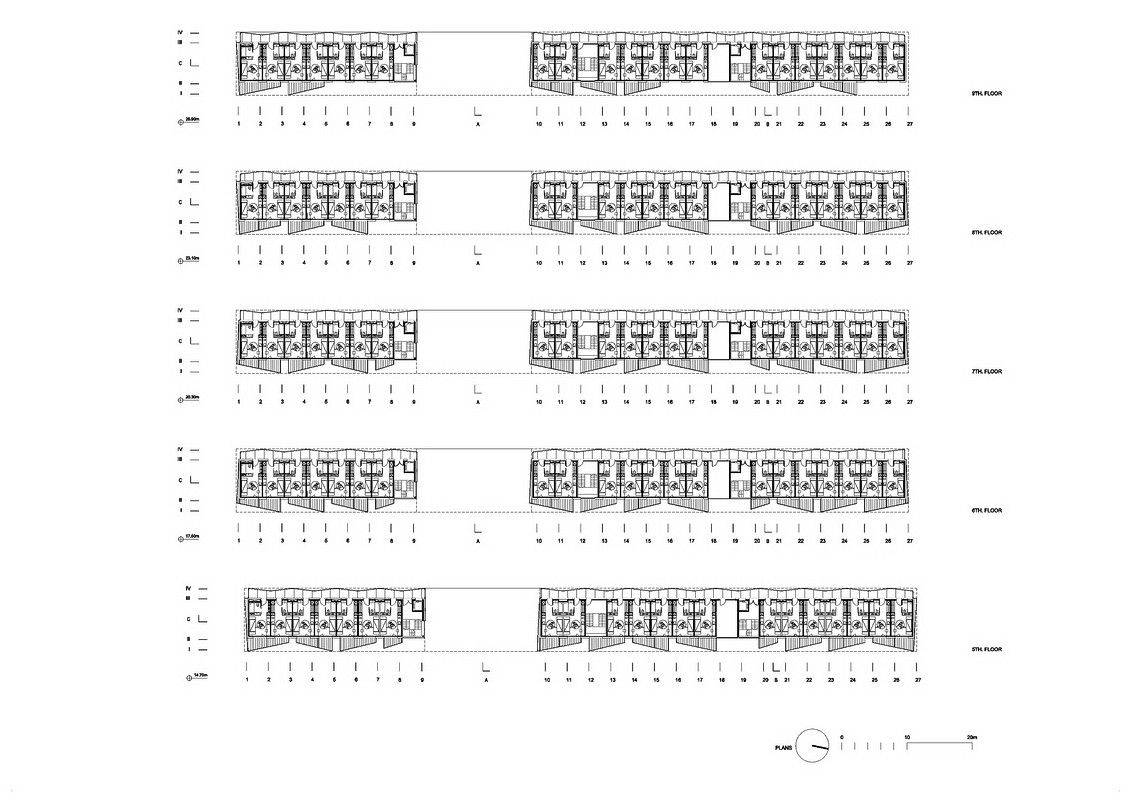

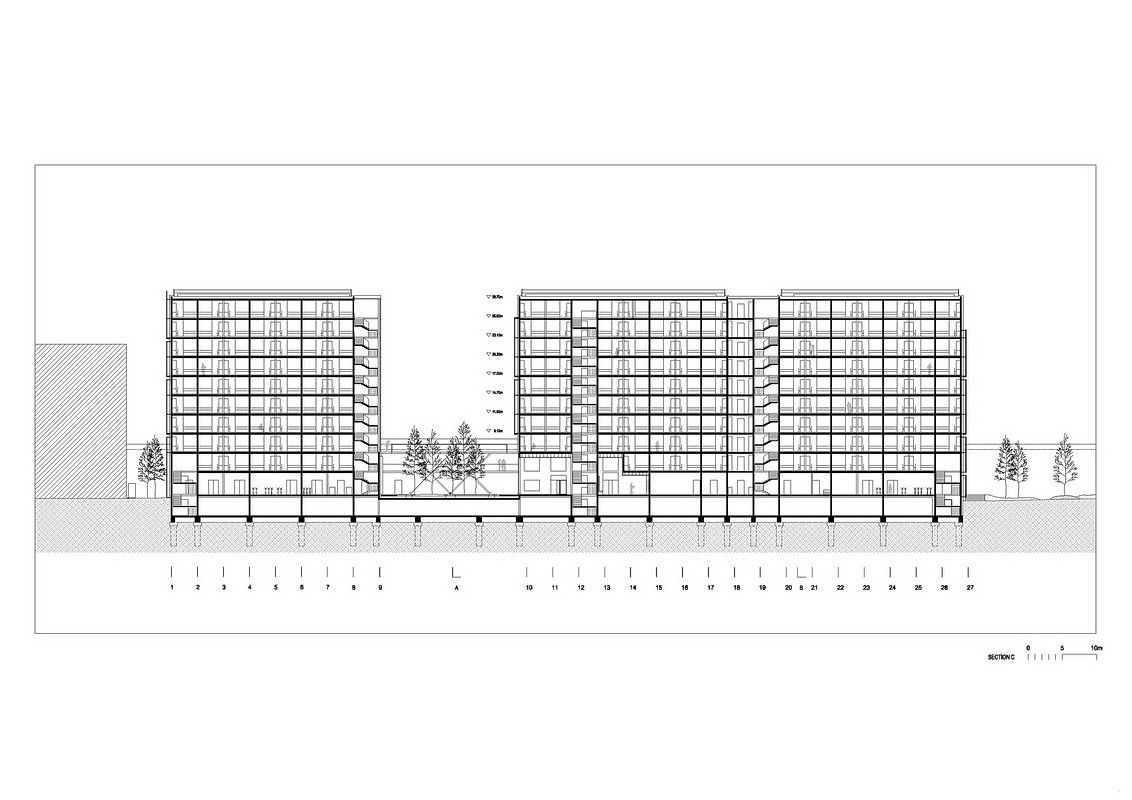

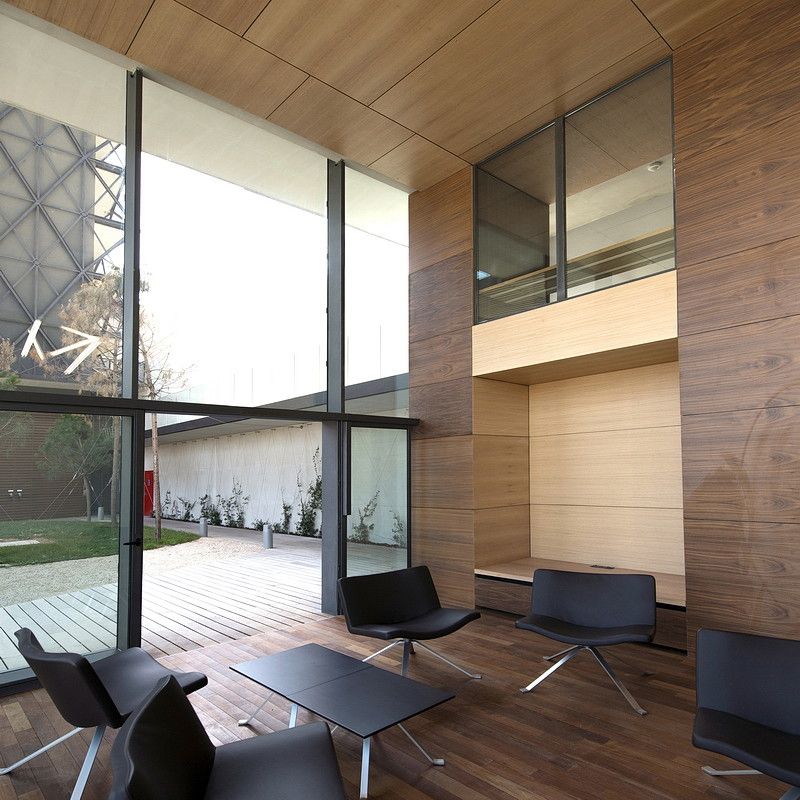

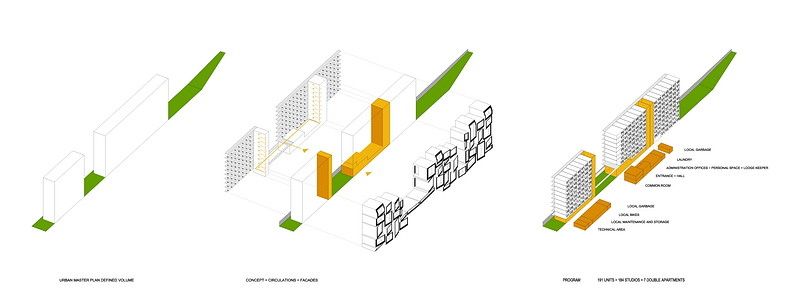

The long volume of the building is divided into two parts connected by a narrow bridge. Between two volumes there is a garden. The building has 11 floors: a technical space in the basement, shared programs on the ground floor, and student apartments in the upper nine floors. The layout is very rational and modular.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

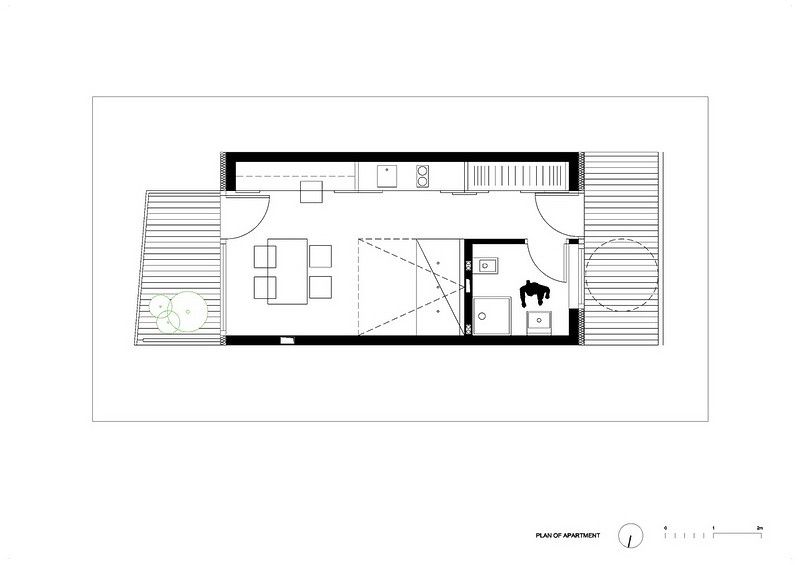

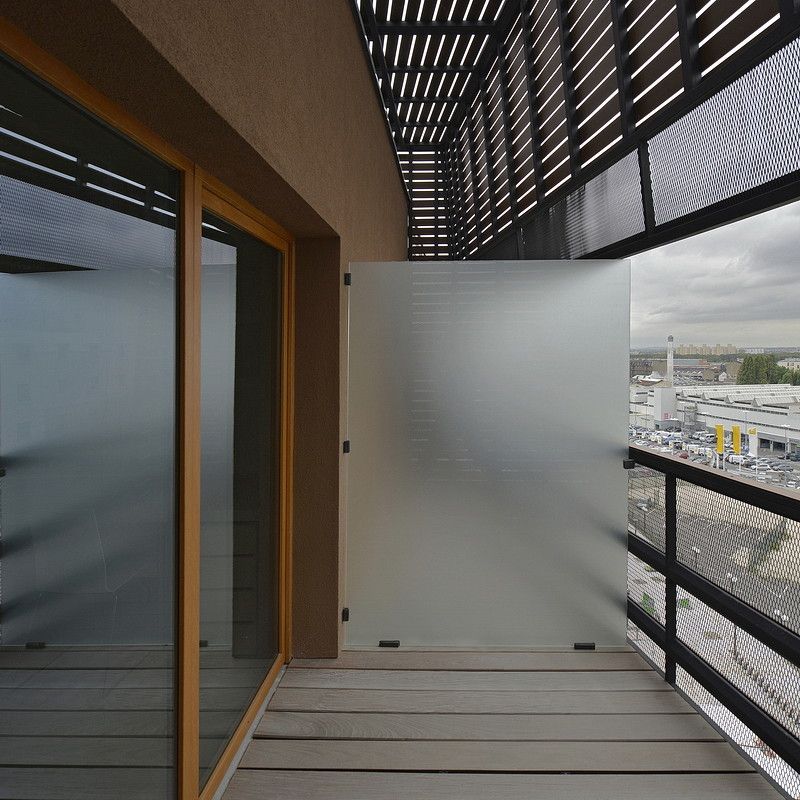

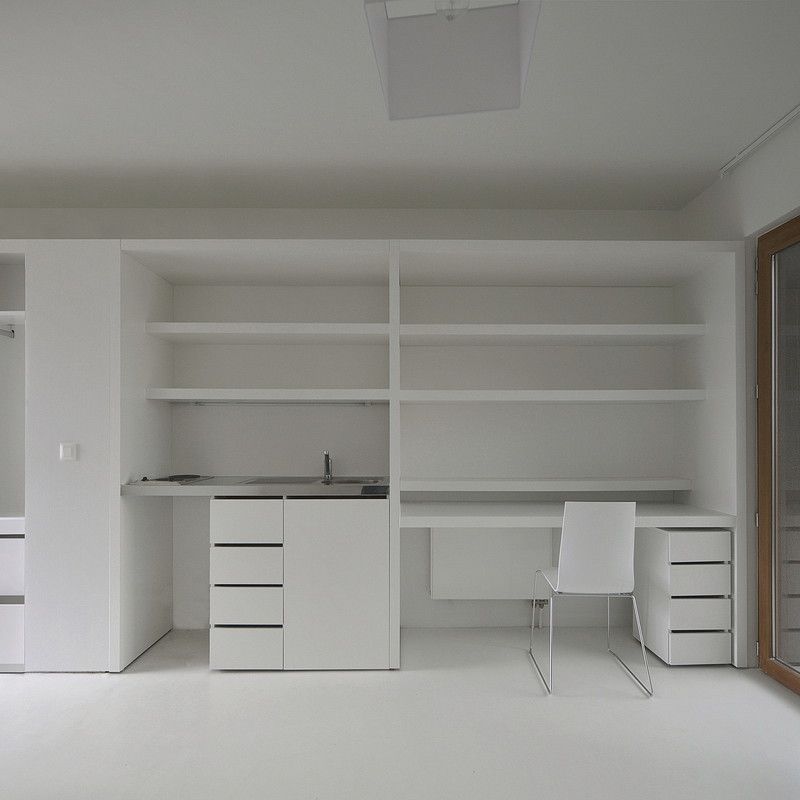

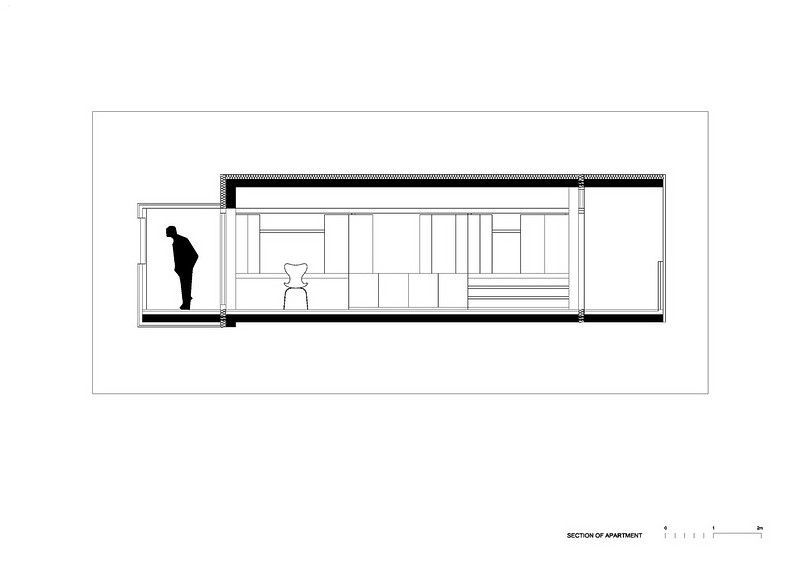

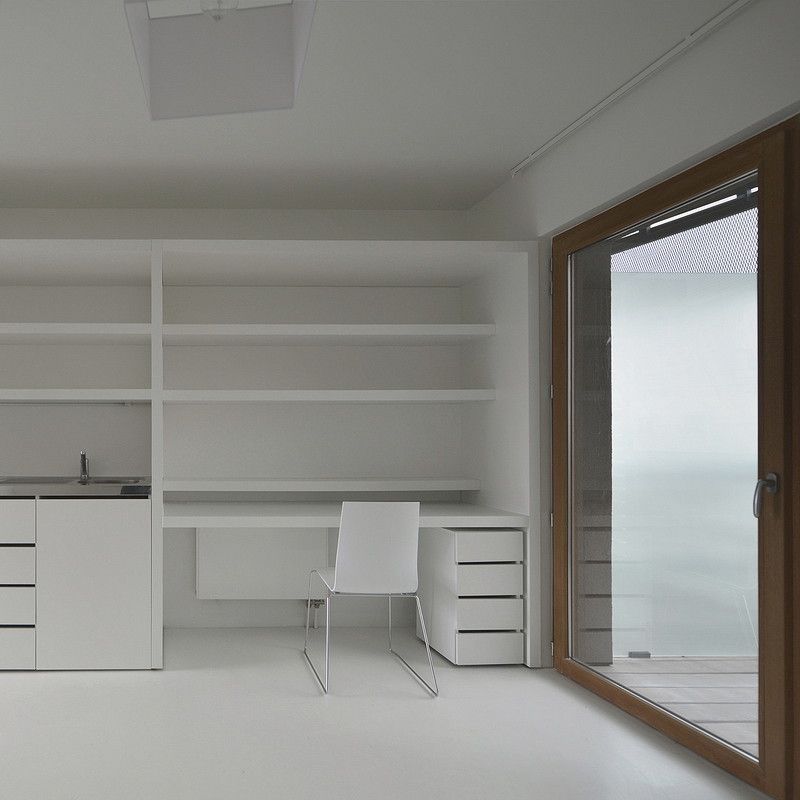

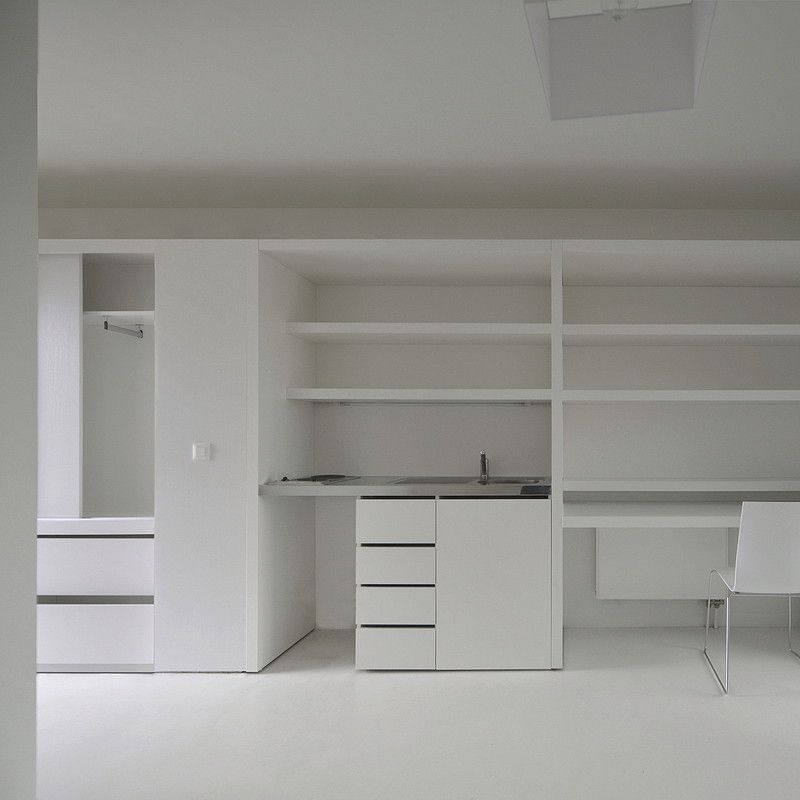

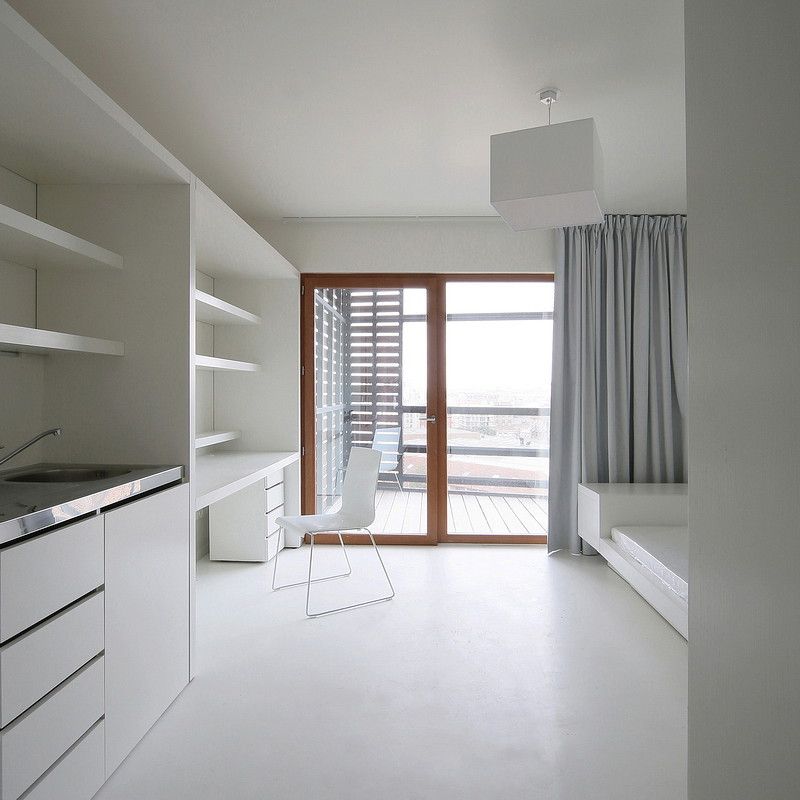

The major objective of the project was to provide students with a healthy environment for studying, learning and meeting. Along the length of the football field is an open corridor and gallery that overlooks the field and creates a view to the city and the Eiffel tower. This gallery is an access to the apartments providing students with a common place. All the studios are the same size and contain the same elements to optimize design and construction: an entrance, bathroom, wardrobe, kitchenette, working space and a bed. Each apartment has a balcony overlooking the street.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

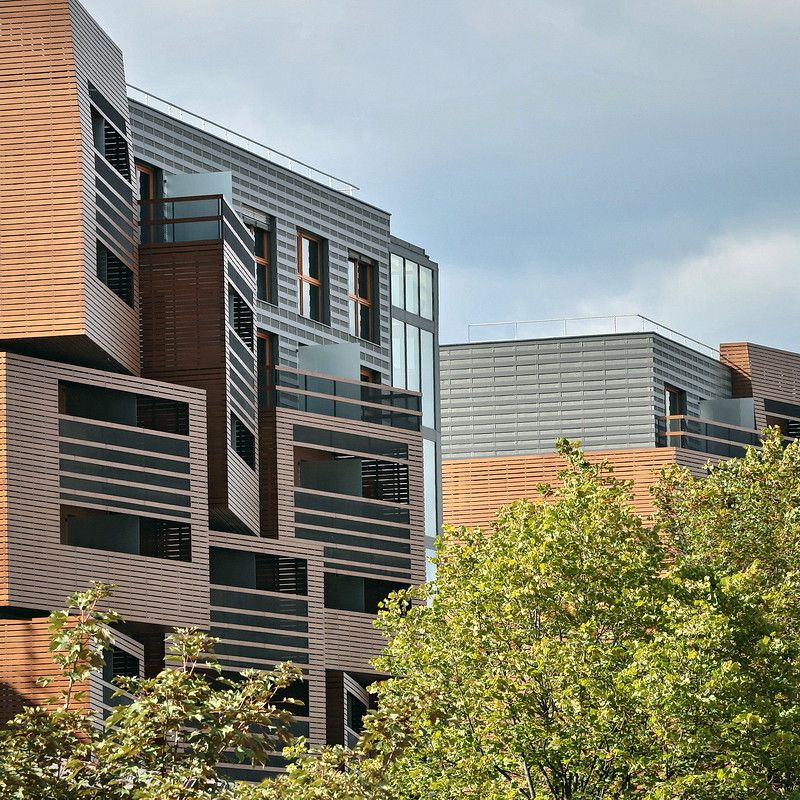

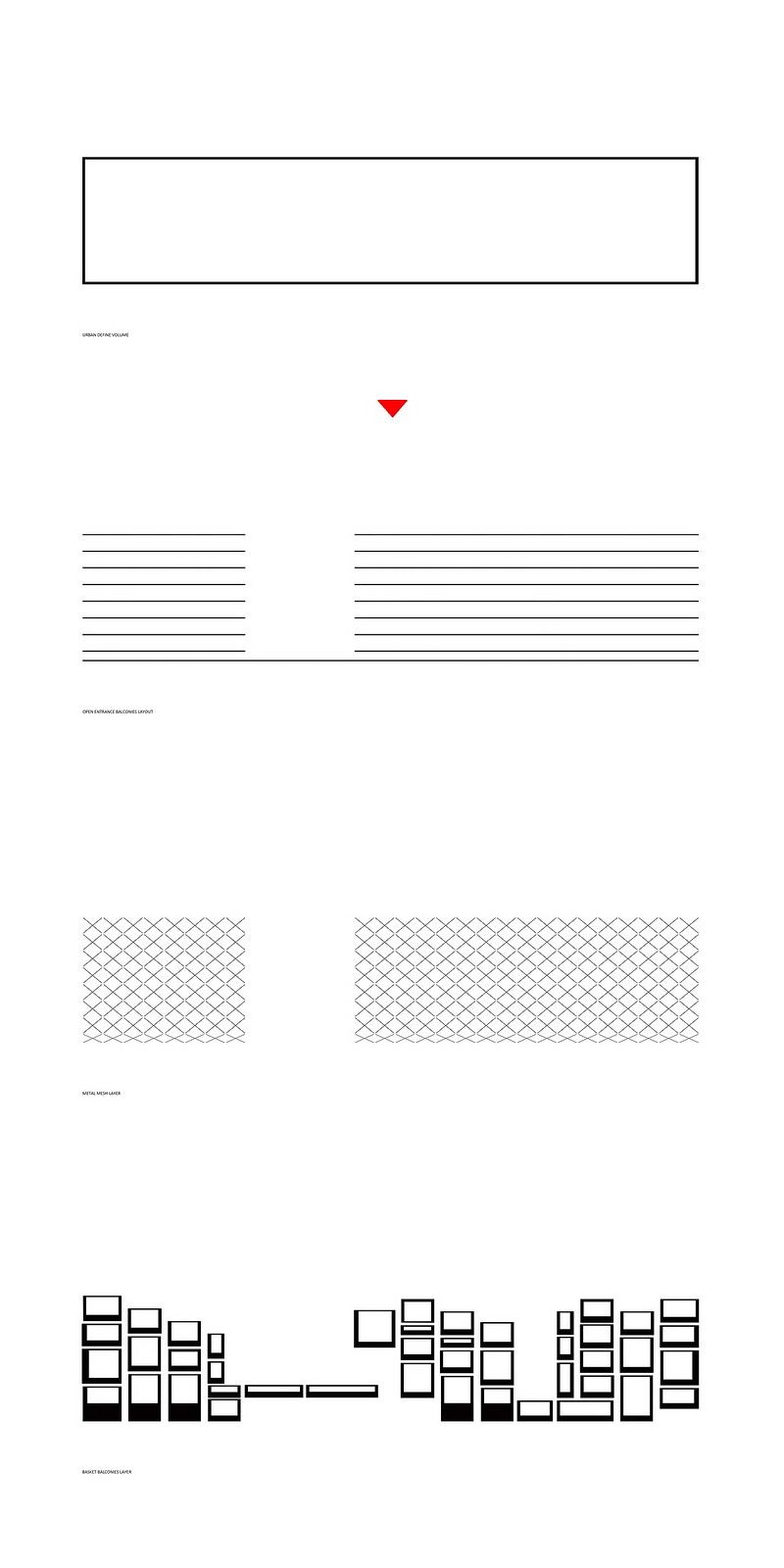

Narrow length of the plot with 10 floors gives to site a significant presence. Each volume contains two different faces according to the function and program:

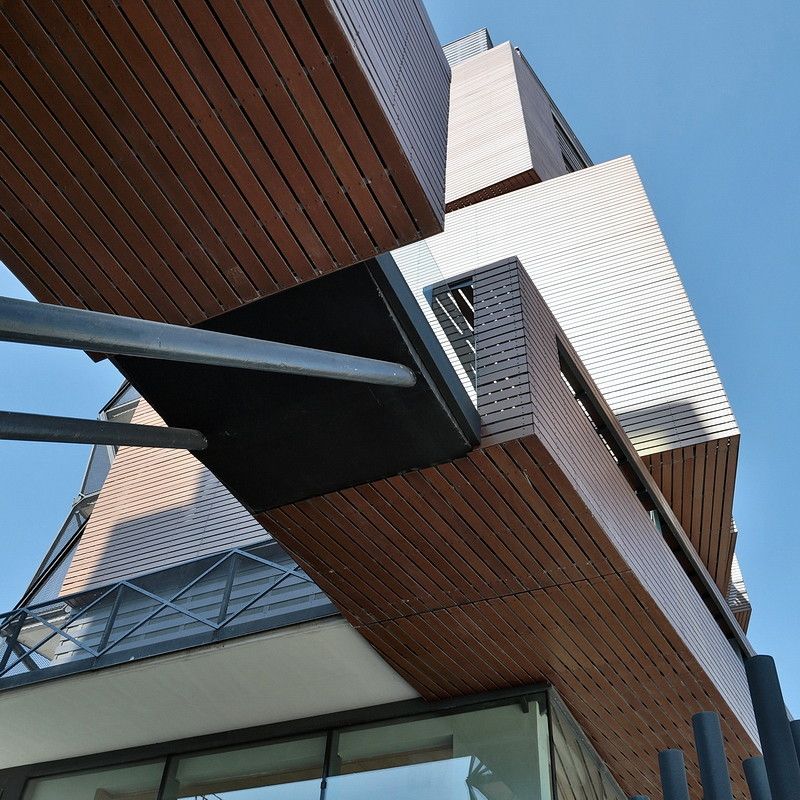

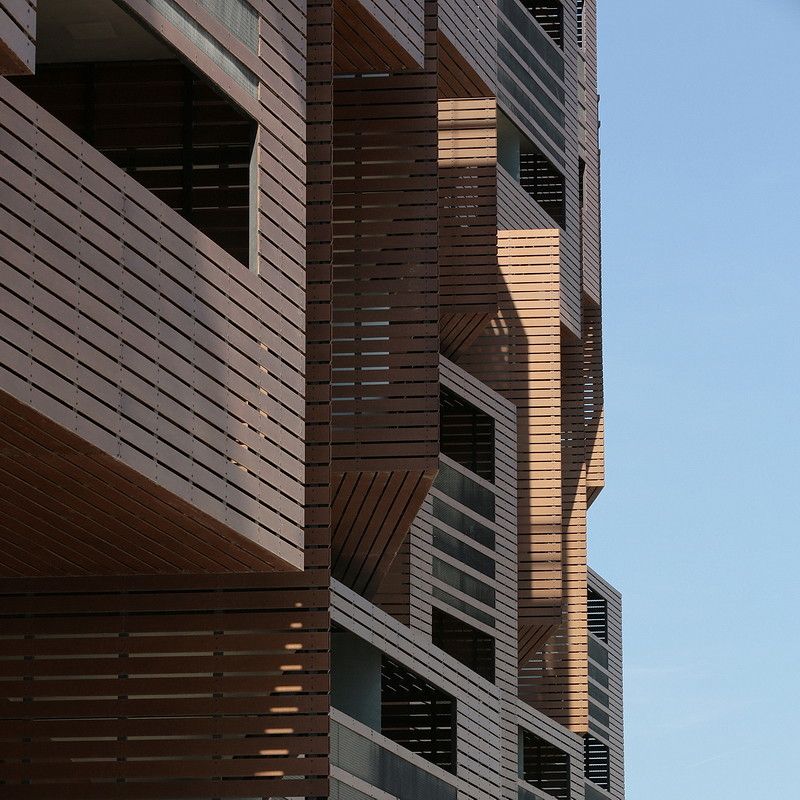

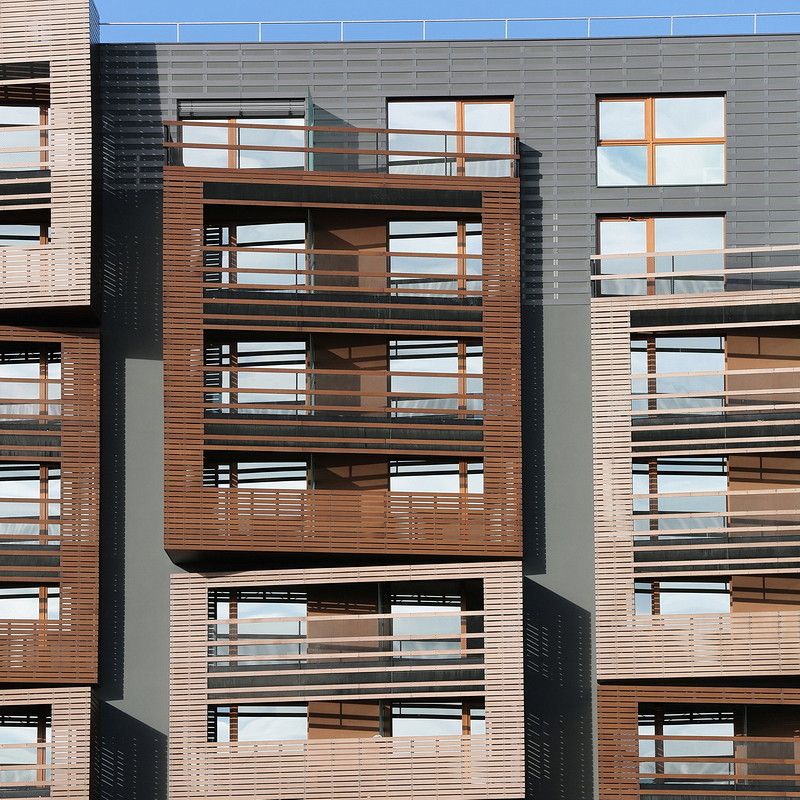

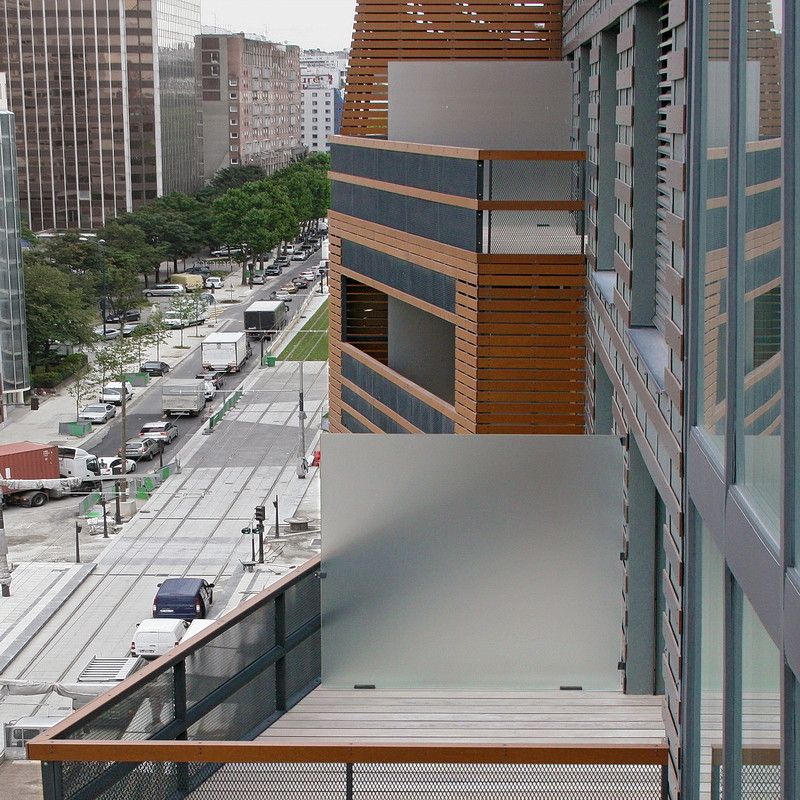

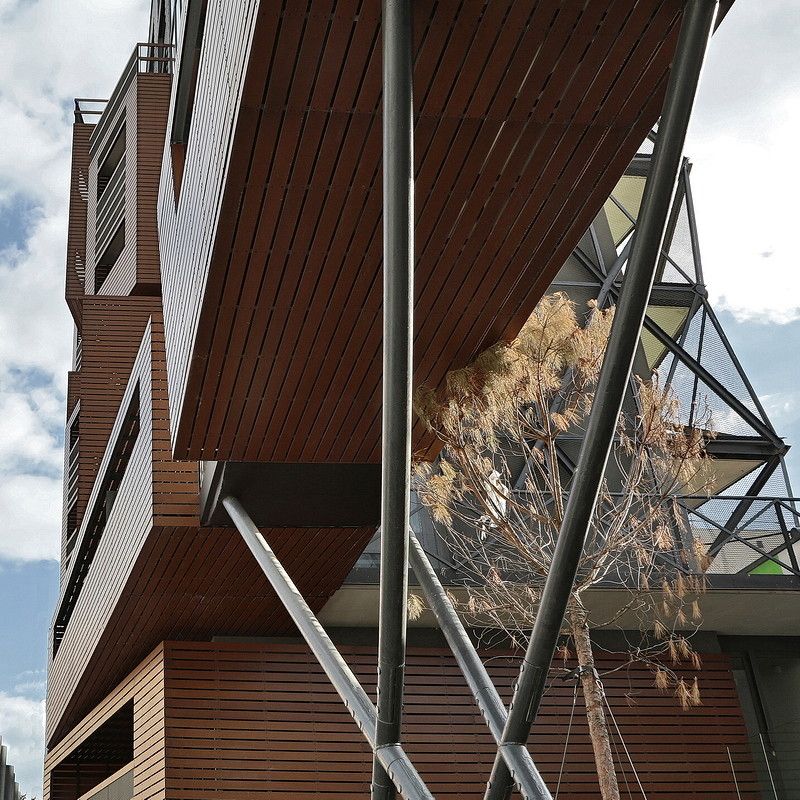

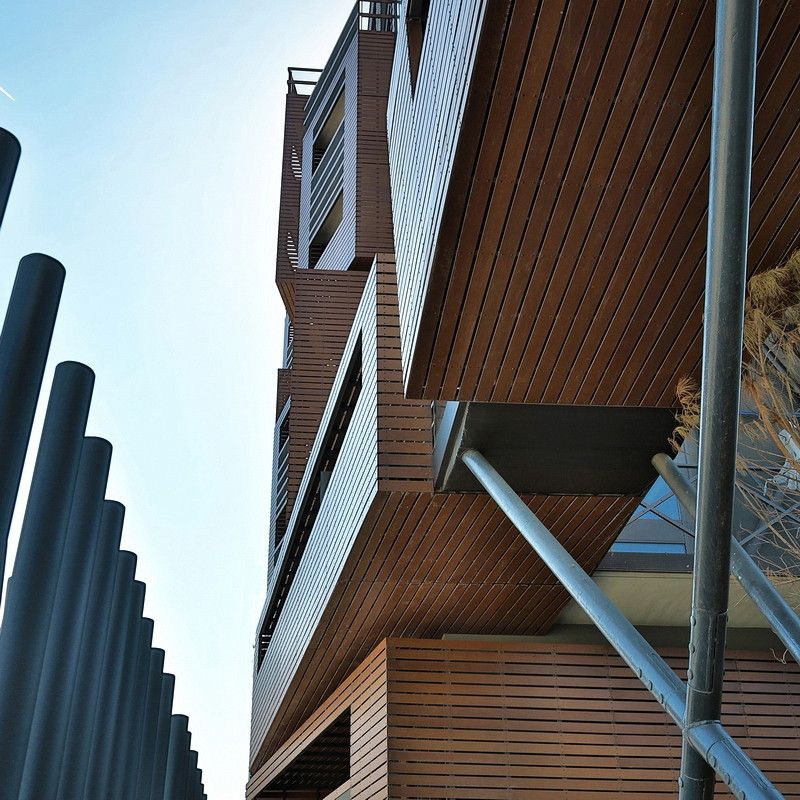

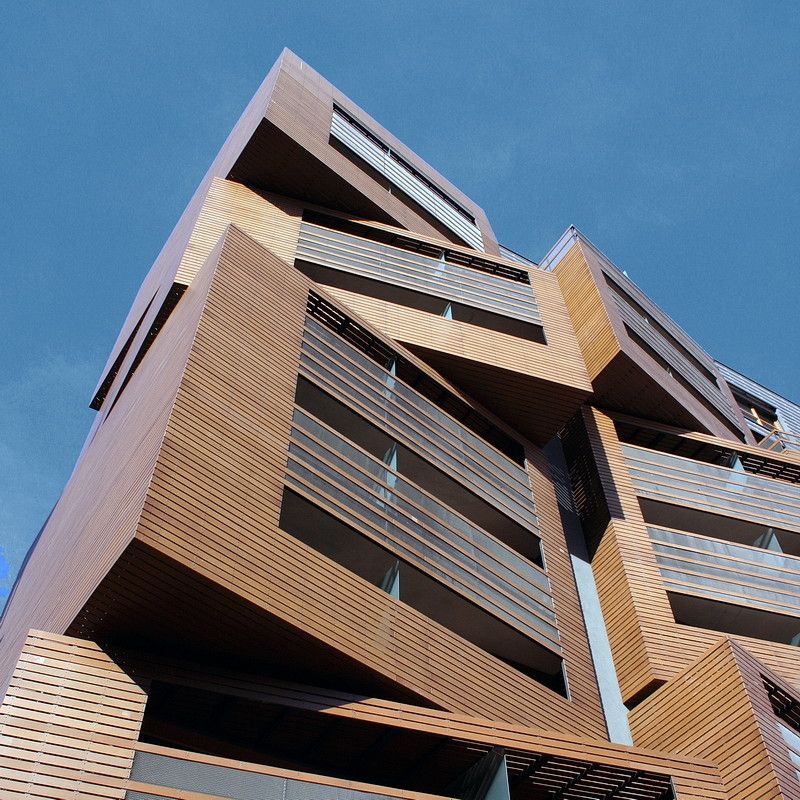

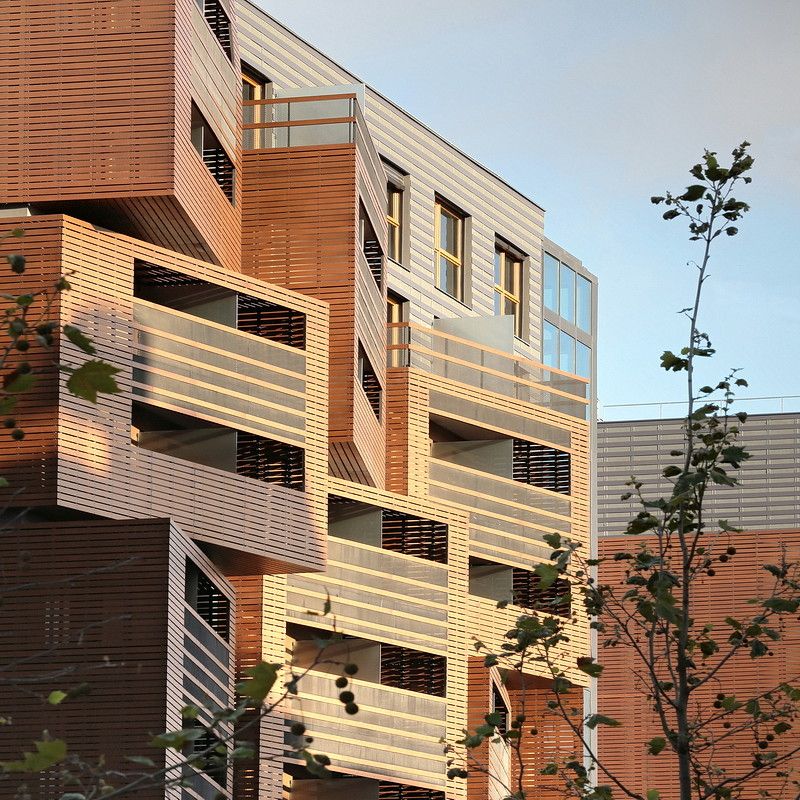

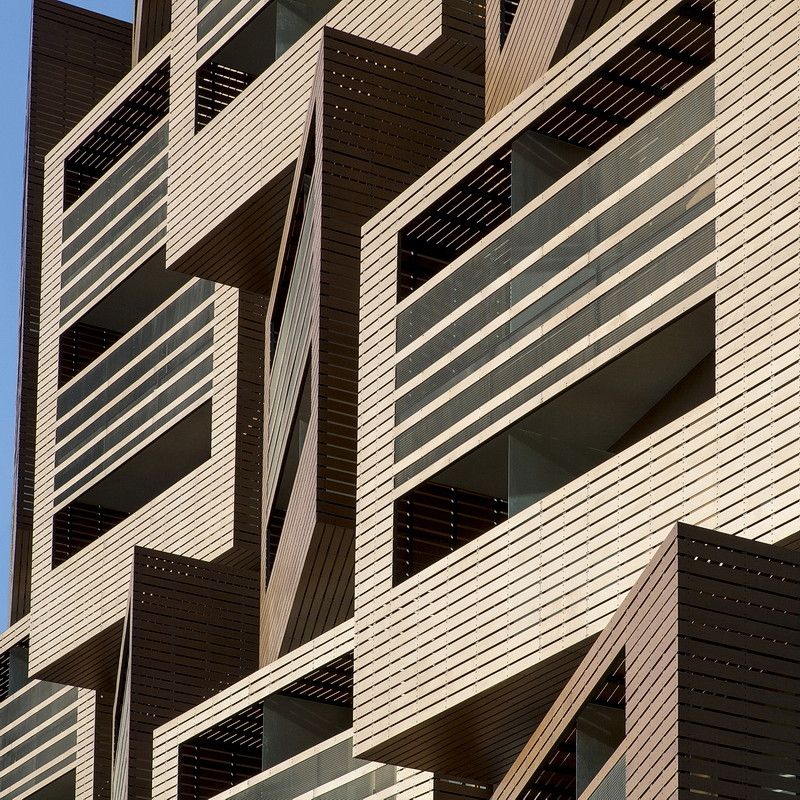

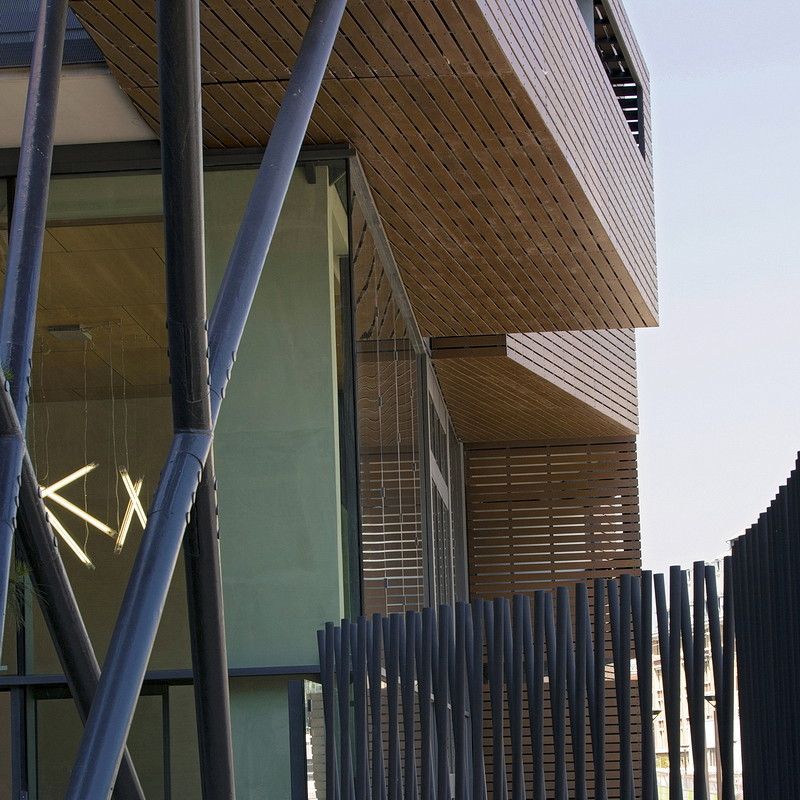

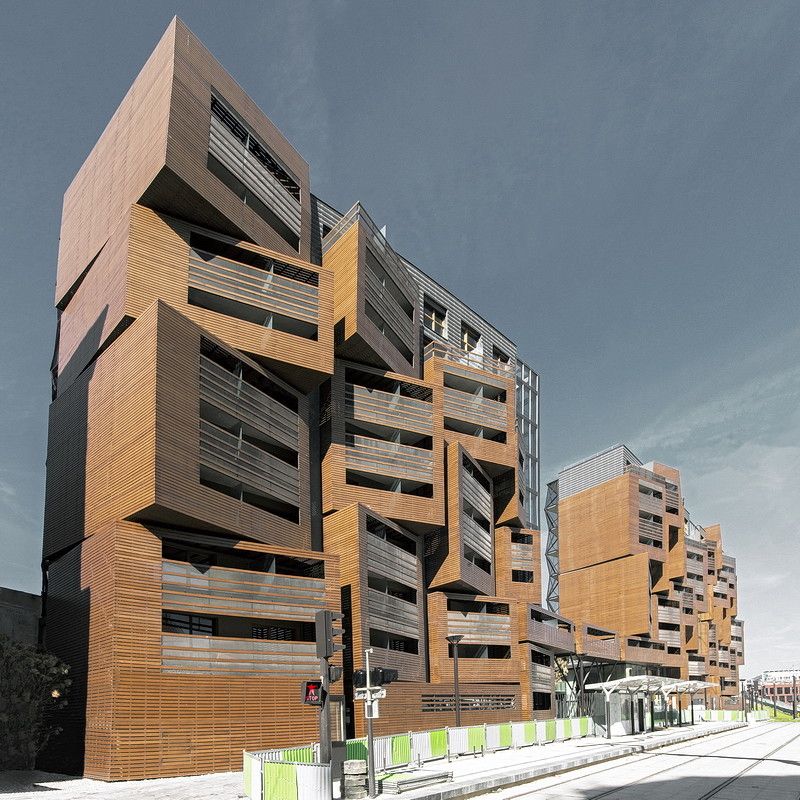

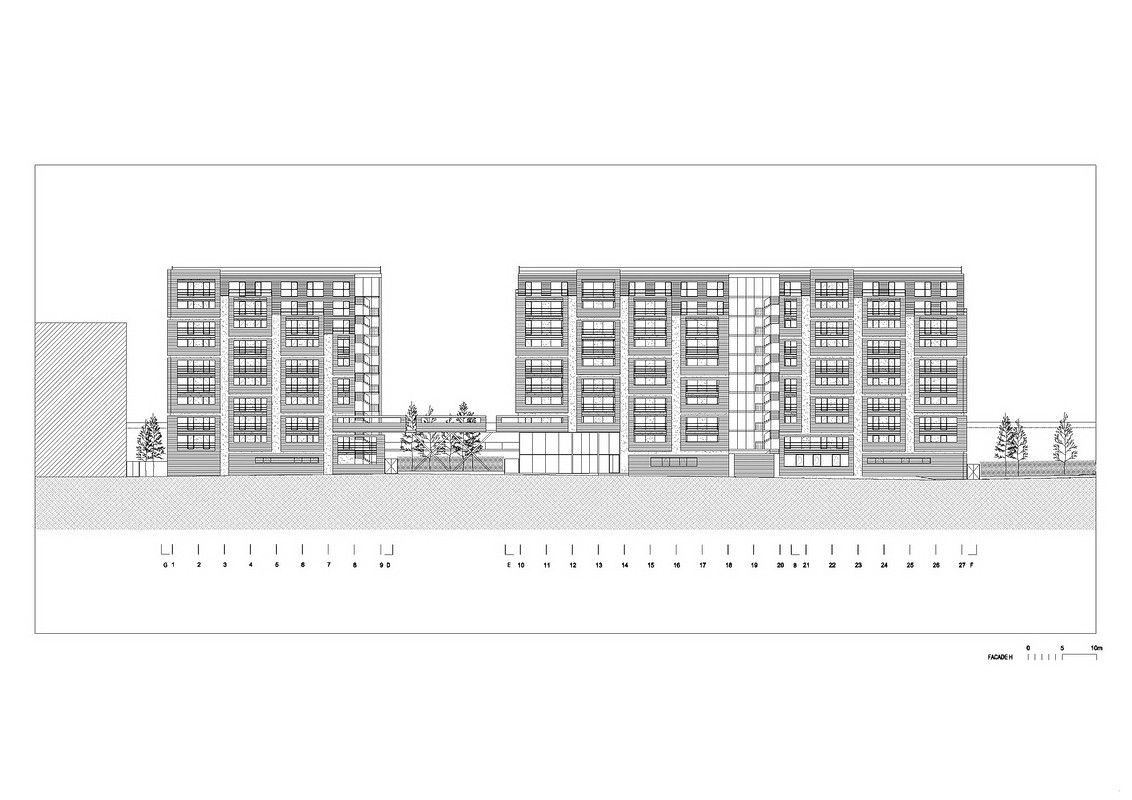

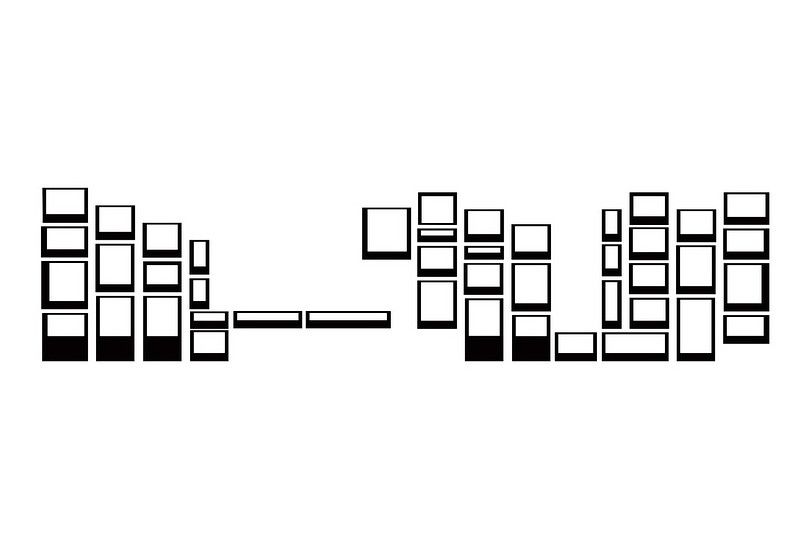

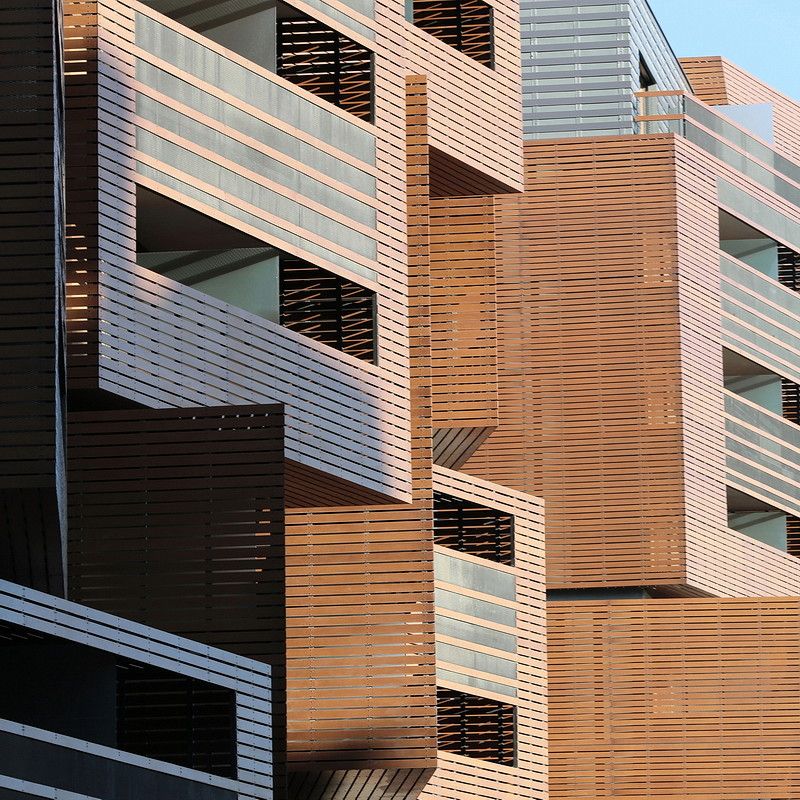

The elevation towards the street des Petits Ponts contains studio balconies-baskets of different sizes made from HPL timber stripes. They are randomly oriented to diversify the views and rhythm of the façade. Shifted baskets create a dynamic surface while also breaking down the scale and proportion of the building.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

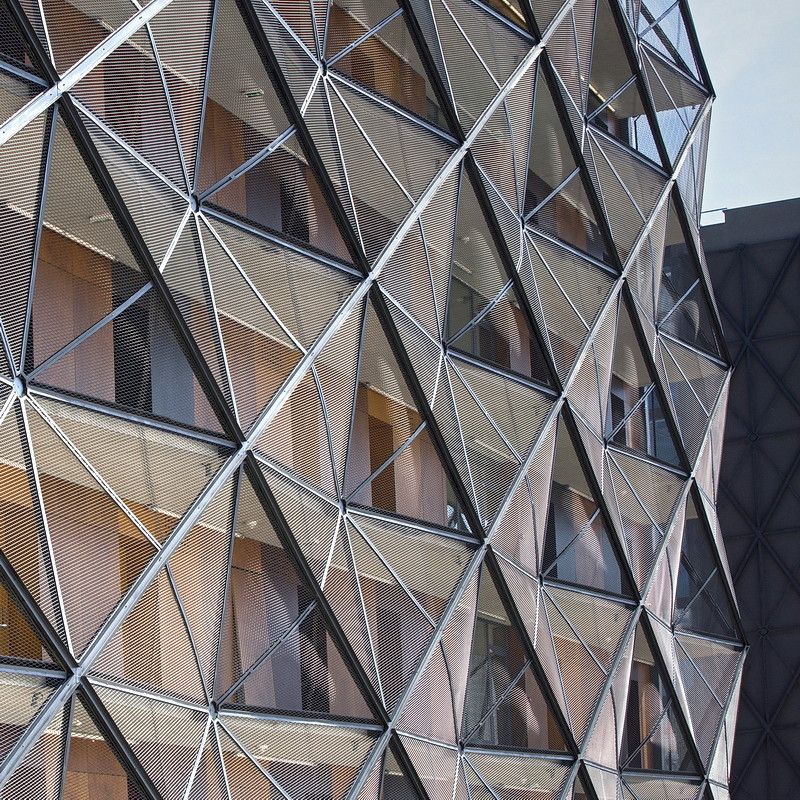

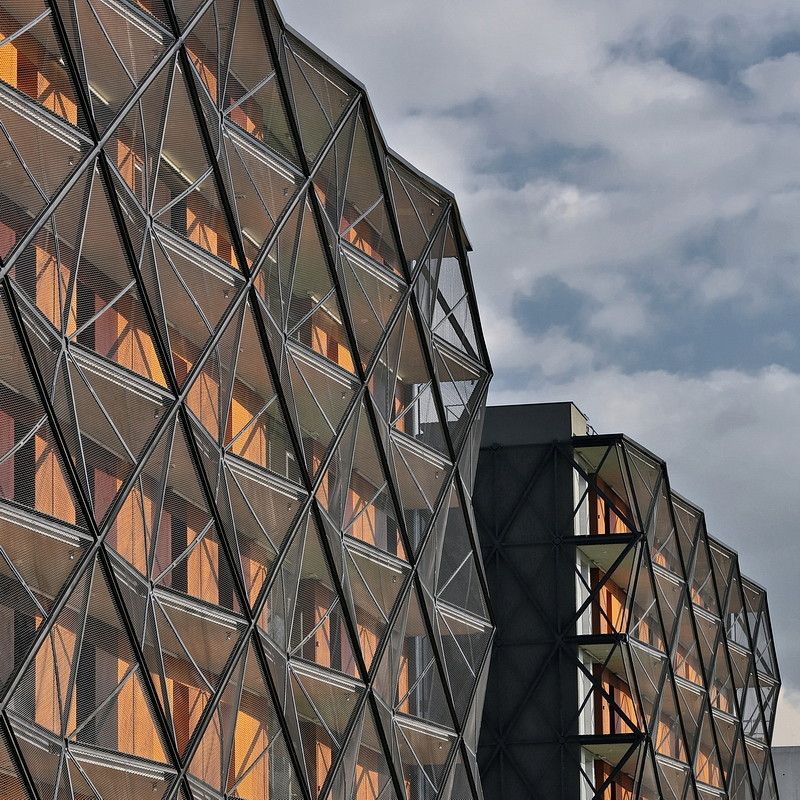

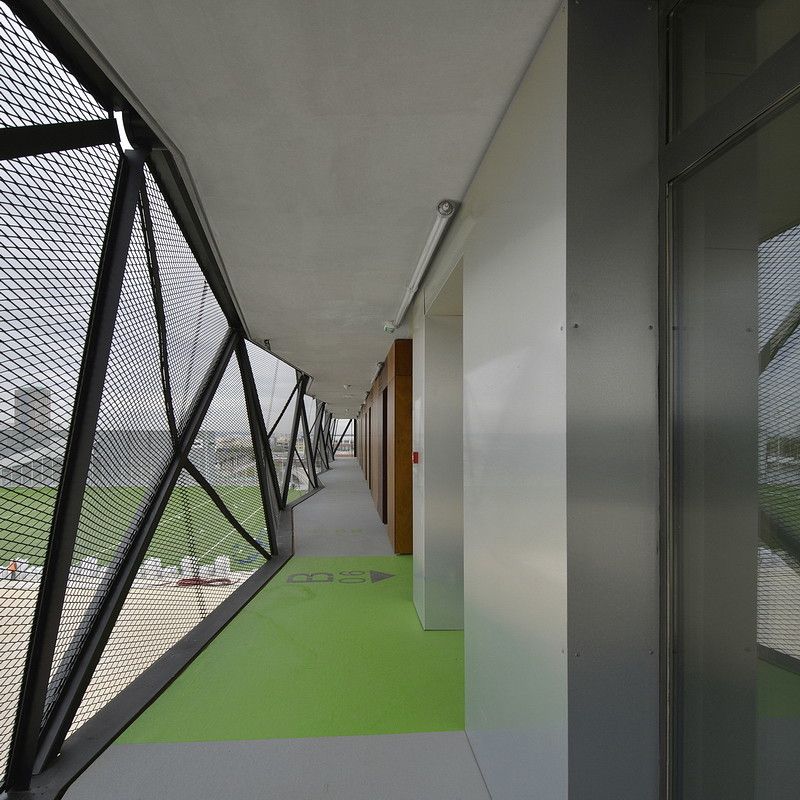

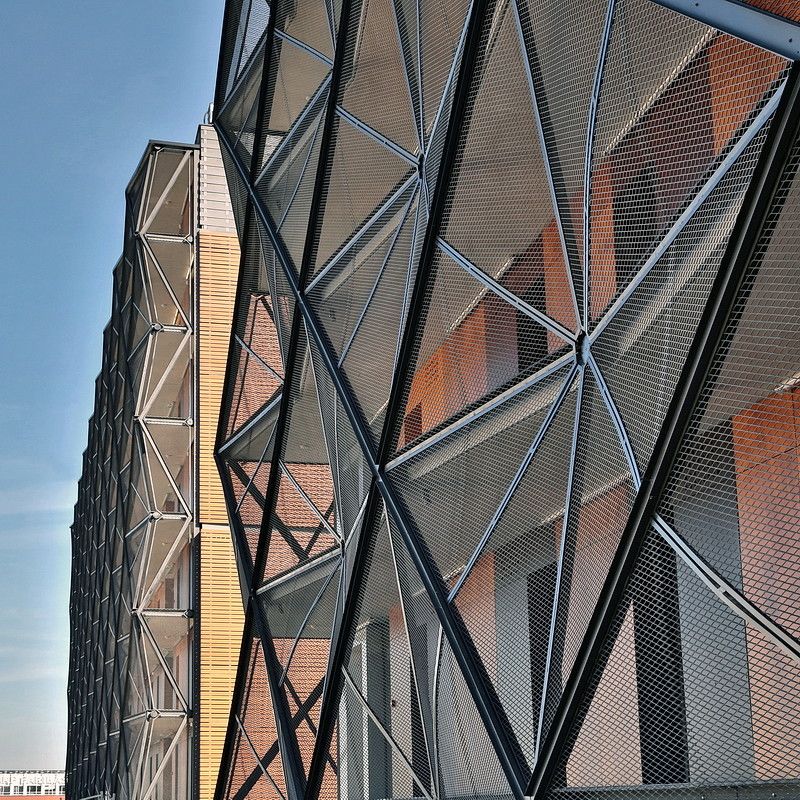

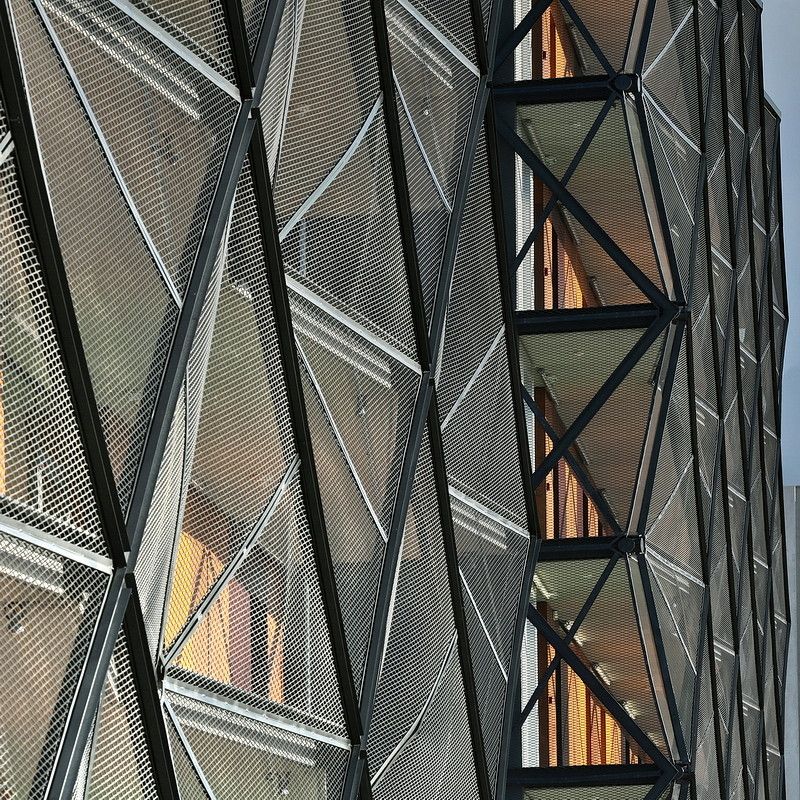

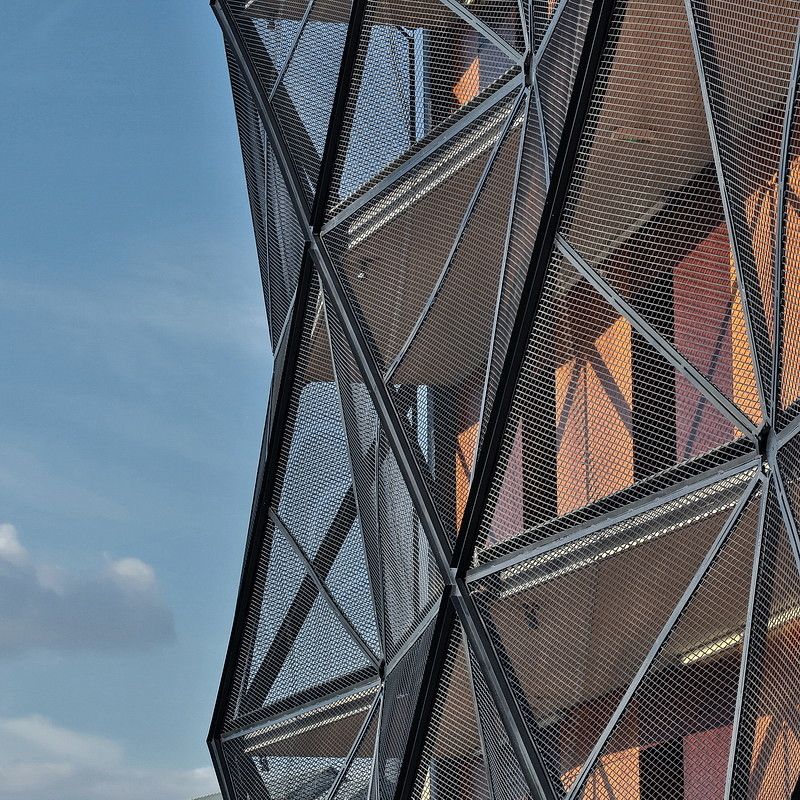

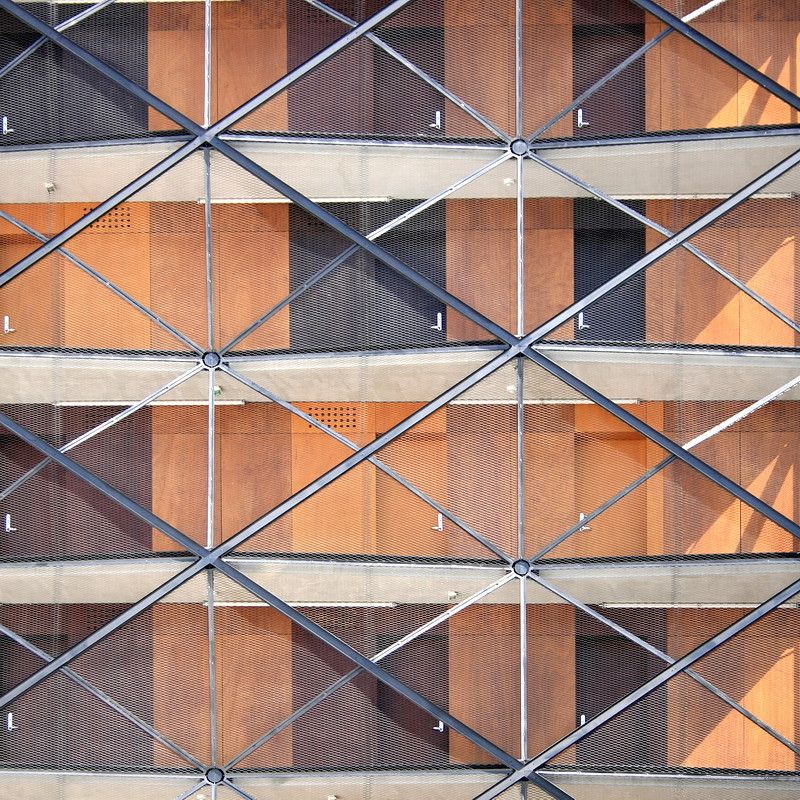

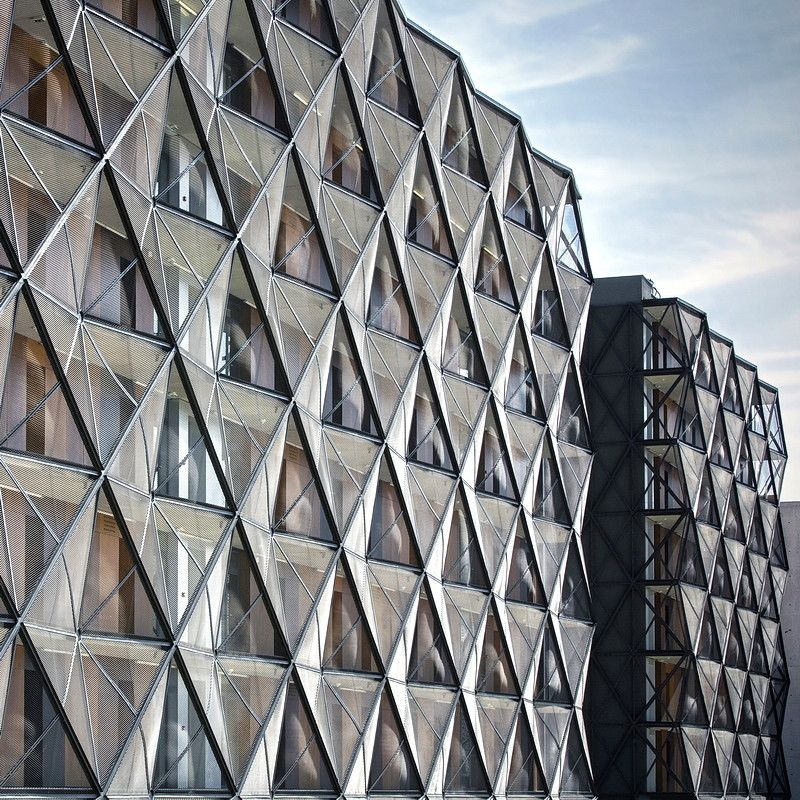

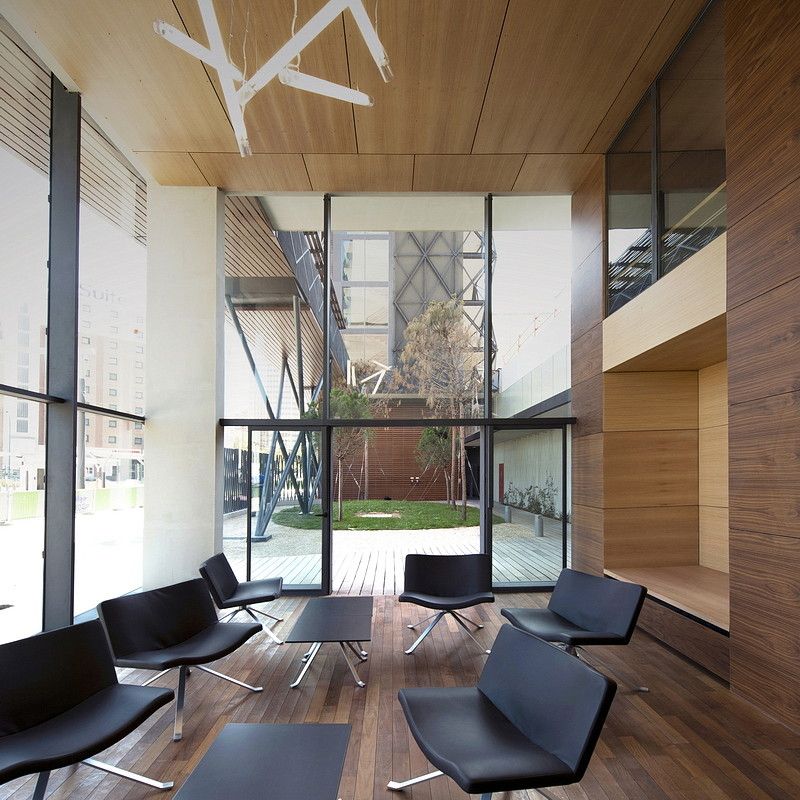

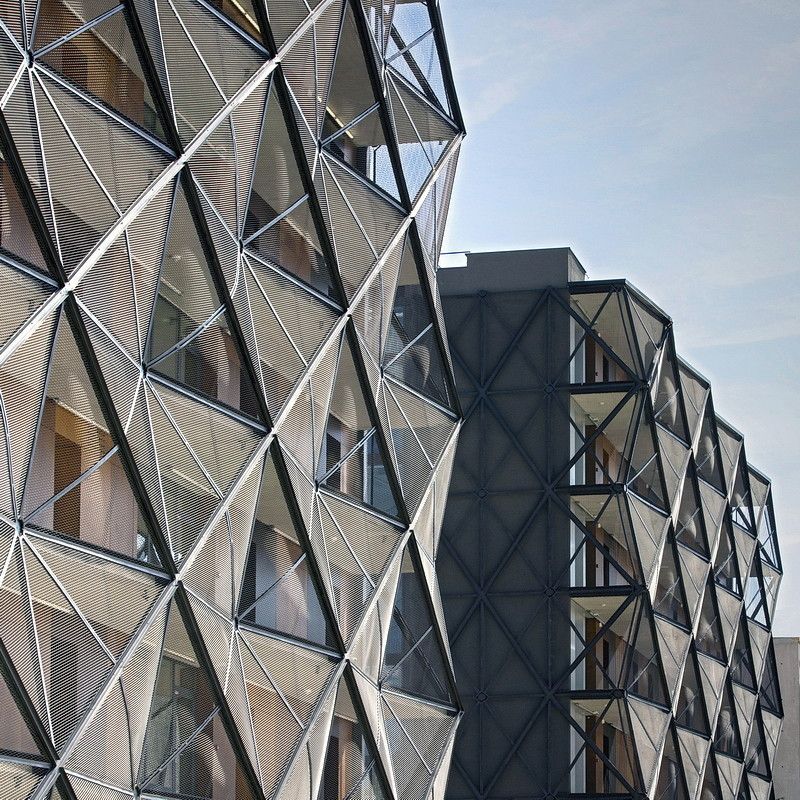

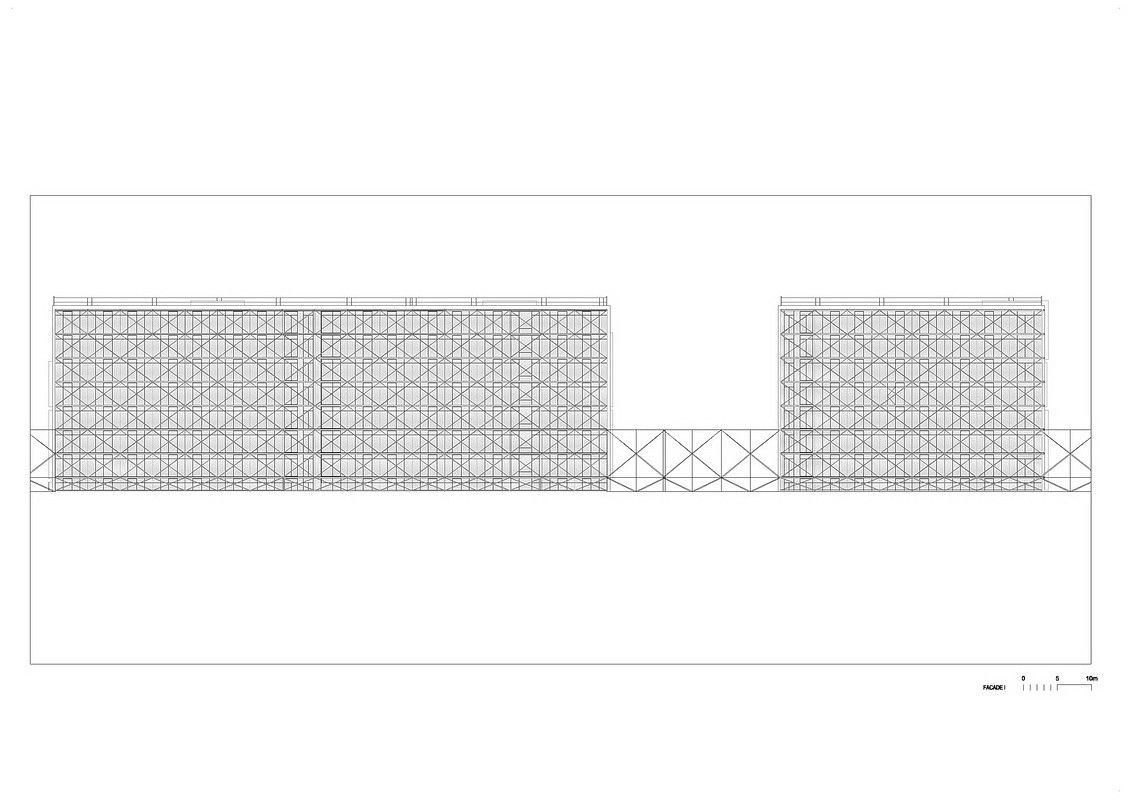

The elevation towards the football field has an open passage walkway with studio entrances enclosed with a 3D metal mesh. Both volumes are connected on the first floor with a narrow bridge which is also an open common space for students.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

Sustainable efficiency

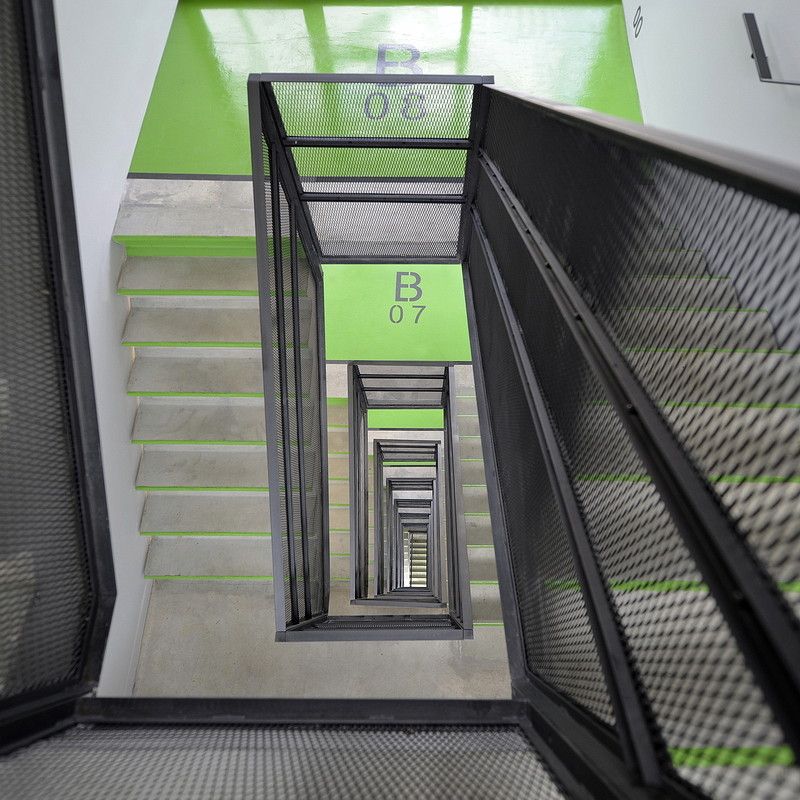

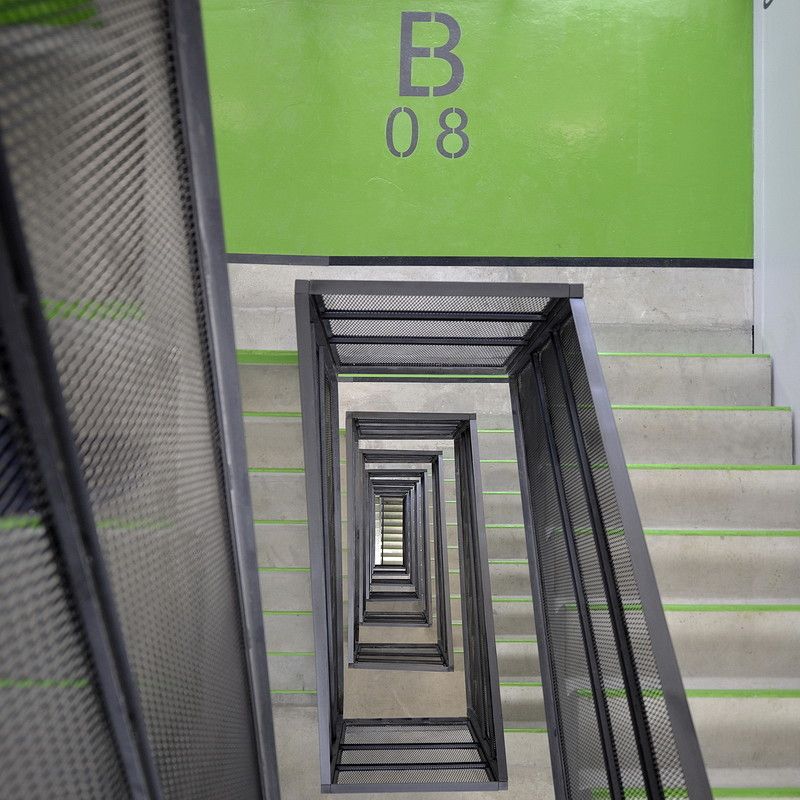

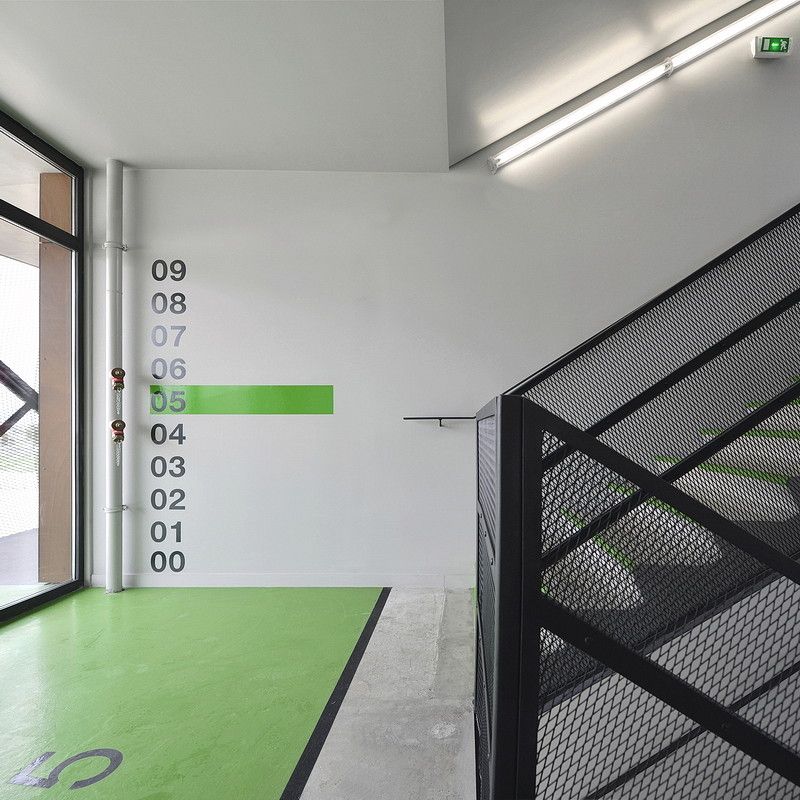

The building is energy efficient to accommodate the desires of Paris’ sustainable development efforts. The Plan Climates goal is that future housing will consume 50KW-h.m.² or less. The objectives of energy performance and the construction timetable were met by focusing on a simple, well insulated and ventilated object that functions at its best year round. Accommodations are cross ventilating and allow abundant day lighting throughout the apartment. External corridors and glass staircases also promote natural lighting in the common circulation, affording energy while also creating comfortable and well lit social spaces. The building is insulated from the outside with an insulation thickness of 20 cm. Thermal bridge breakers are used on corridor floors and balconies to avoid thermal bridges. Ventilation is controlled by double flow mechanical ventilation, providing clean air in every apartment with an optimum temperature throughout the year. The incoming air also reuses heat from the exhaust air. The roof is covered with 300m² of photovoltaic panels to generate electricity. Rainwater is harvested on site in a basin pool used for watering outdoor green spaces.

Courtesy of OFIS architects – Photography: Tomaz Gregoric

Project Info
Architects: OFIS architects
Location: Paris, France
Design Team: Rok Oman, Spela Videcnik, Robert Janez, Janez Martincic, Andrej Gregoric, Janja del Linz, Louis Geiswiller, Hyunggyu Kim, Chaewan Shin, Jaehyun Kim, Erin Durno, Javier Carrera, Giuliana Fimmano, Jolien Maes, Lin Wei
Site Area: 1,981 sqm
Client: Regie Immobiliere de la Ville de Paris
Budget: 17.5 M €
Area: 931.0 sqm
Year: 2012
Type: Residential
Photographs: Tomaz Gregoric
